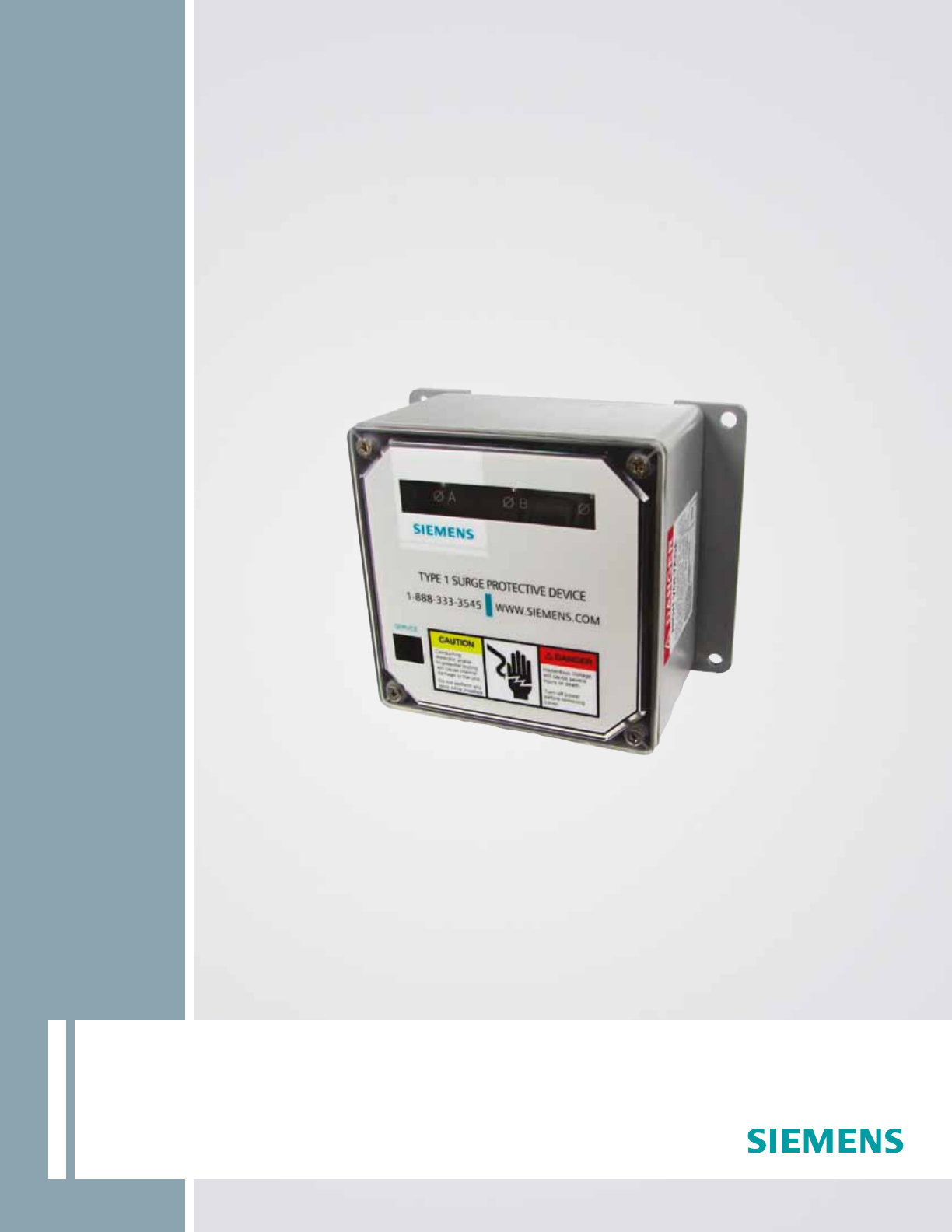

TPS3 11
Surge Protective Device
User Manual - USA
• Only qualified licensed electricians should install or service SPDs
• Hazardous voltages exist within SPDs
• SPDs should never be installed or serviced when energized
• Use appropriate safety precautions including Personal Protection Equipment
• Failure to follow these instructions can result in death, serious injury, and/or equipment damage.
• This manual shall be read in entirety prior to installing
Bonding and Grounding Hazard
Verify that the neutral conductor in the service entrance equipment is bonded to ground in accordance with the National
Electrical Code (NEC®) and all applicable codes.
Verify that the neutral terminal (XO) on the secondary side of distribution transformers are grounded to the system ground
in accordance with the NEC® and all applicable codes.
During installation into an electrical system the SPD must not be energized until the electrical system is completely installed,
inspected and tested. All conductors must be connected and functional including the neutral (if required). The voltage
rating of the SPD and system must be verified before energizing the SPD.
Failure to follow these guidelines can lead to abnormally high voltages at the SPD. This may cause the SPD to fail. The
warranty is voided if the SPD is incorrectly installed and/or if the neutral conductor in the service entrance equipment or
downstream of separately derived systems is not bonded to ground in accordance with the NEC®.
Do Not Hi-Pot Test SPDs
Any factory or on-site testing of power distribution equipment that exceeds normal operating voltage such as
high-potential insulation testing, or any other tests where the suppression components will be subjected to higher voltage
than their rated Maximum Continuous Operating Voltage (MCOV) must be conducted with the SPD disconnected from the
power source. For 4-wire systems, the neutral connection at the SPD must also be disconnected prior to performing high-
potential testing and then reconnected after test completion.
Failure to disconnect SPD and associated components during elevated voltage testing will damage the SPD and will void
the warranty.
WARNING - Hazardous Voltage & Shock Hazard
V
Failure to Follow These Instructions Could Result in Death or Serious Injury
Table of Contents
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS INJURY .............................. 2
Do Not Hi-Pot Test SPDs ............................................................................................................................................................................2
INTRODUCTION ................................................................................................................................................... 4
Warning and Safety Information ...............................................................................................................................................................4
Qualified Person .......................................................................................................................................................................................4
Danger .....................................................................................................................................................................................................4
Warning ...................................................................................................................................................................................................4
Caution ....................................................................................................................................................................................................4
Do Not Hi-Pot Test SPDs ............................................................................................................................................................................4
Industry Standards Changes - 2009 ..........................................................................................................................................................4
Simplified Explanation of Operation ..........................................................................................................................................................5
Parts List and Inspection ..........................................................................................................................................................................5
Voltage Rating & Application ....................................................................................................................................................................5
SPDs on Ungrounded Systems ..................................................................................................................................................................6
Optional Flush Mount Installation Instructions ..........................................................................................................................................6
TPS3 11 INSTALLATION INSTRUCTIONS .............................................................................................................. 7
Common Problems to Avoid .....................................................................................................................................................................7
OPERATION ......................................................................................................................................................... 9
Diagnostic Indication ................................................................................................................................................................................9
Phase indicator LEDs (Green) ....................................................................................................................................................................9
Service LED (Red) .....................................................................................................................................................................................9
Audible Alarm Option ...............................................................................................................................................................................9
Dry Contact Option ..................................................................................................................................................................................9
Remote Monitor Accessory Option ............................................................................................................................................................9
MAINTENANCE ................................................................................................................................................. 10
Troubleshooting & Service .....................................................................................................................................................................10
Please contact us for any service related issues. .....................................................................................................................................10
WARRANTY AND CUSTOMER SERVICE .............................................................................................................. 10
Limited Warranty ....................................................................................................................................................................................10
Technical Support ...................................................................................................................................................................................10
Figures
Figure 1: SPD Types .................................................................................................................................................................................5

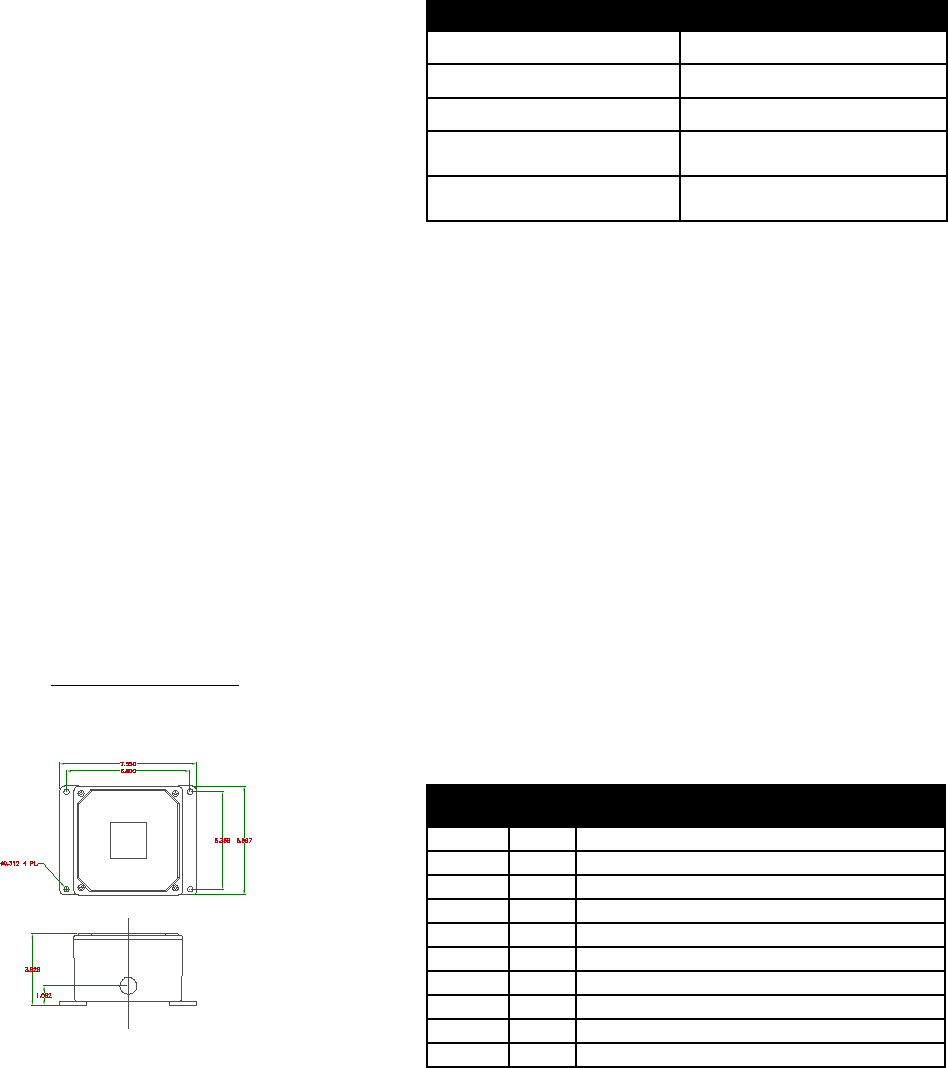

Figure 2: DIMENSIONS AND WEIGHT ........................................................................................................................................................5

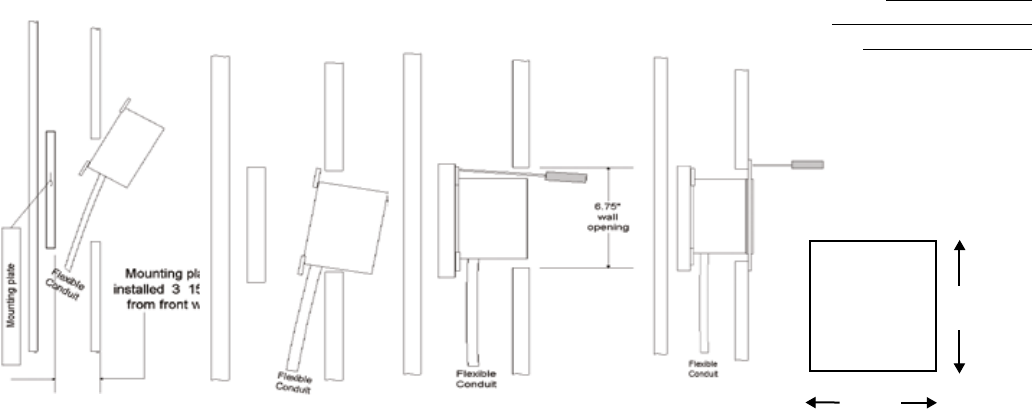

Figure 3: Optional Flush Mount Installation ..............................................................................................................................................6
Figure 4: Conduit Installation ...................................................................................................................................................................7
Figure 5: Typical Panel Installation ...........................................................................................................................................................7

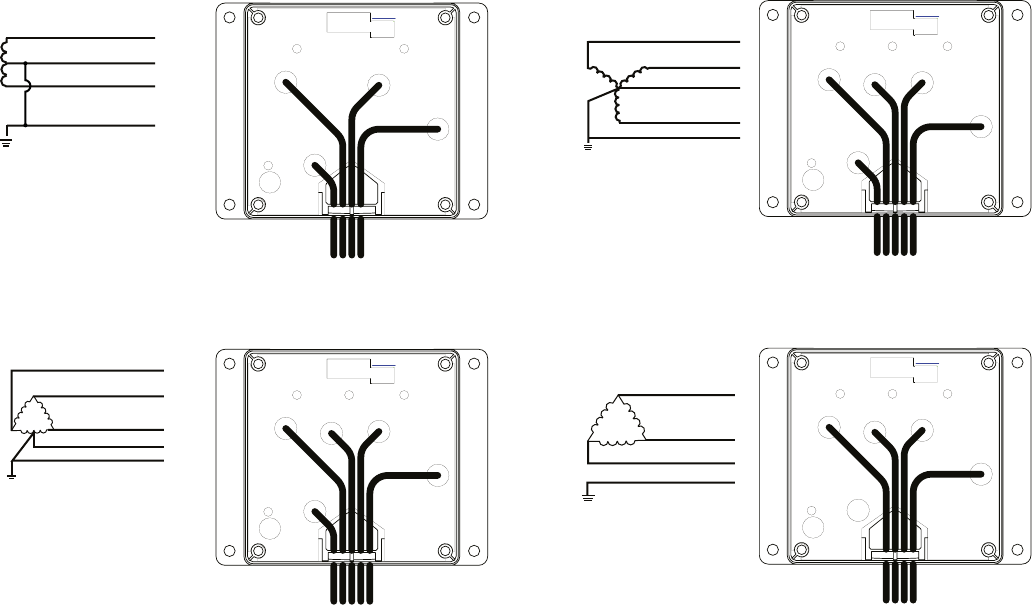

Figure 6: Installation Wiring Diagrams ......................................................................................................................................................8
Figure 7: Diagnostic Display .....................................................................................................................................................................9

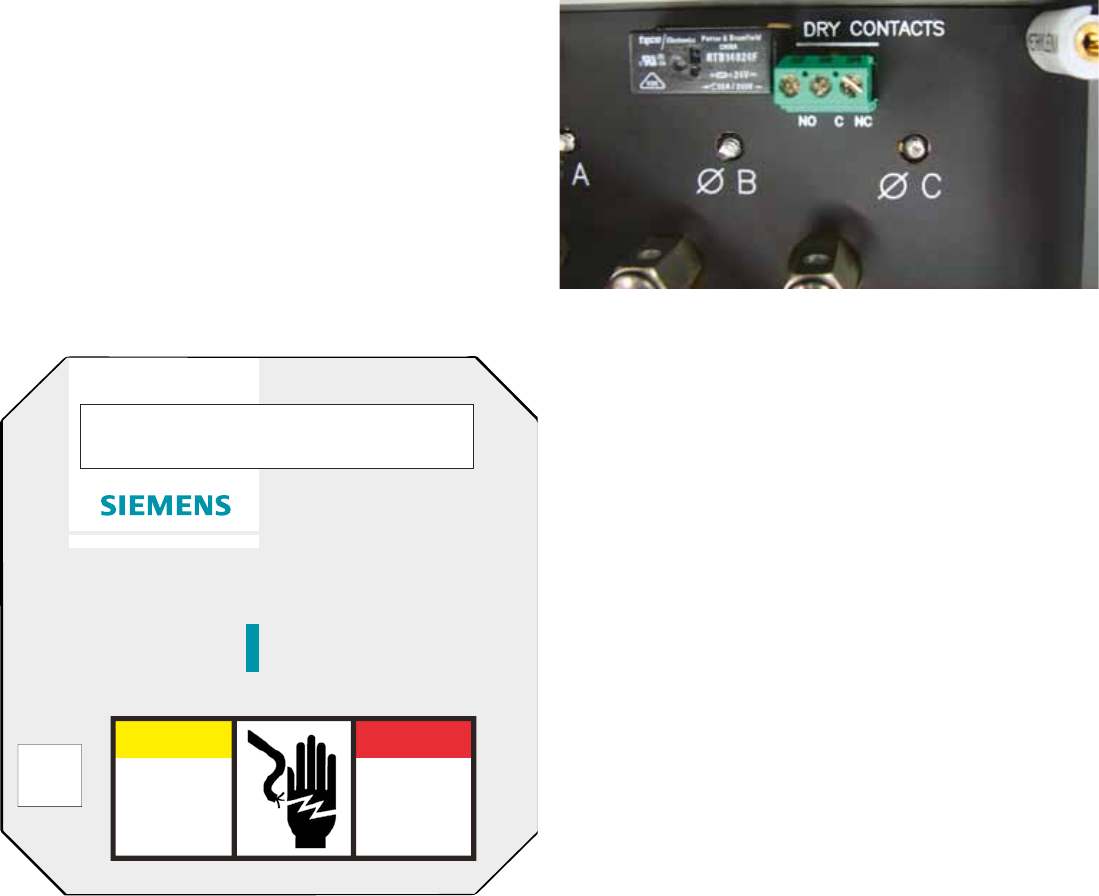

Figure 8: Dry Contact Pin Configuration ...................................................................................................................................................9
Tables
Table 1: Specifications
................................................................................................................................................................................................................5
Table 2: Model number decoder...............................................................................................................................................................6
Introduction
Thank you for choosing Siemens TPS3 Surge Protective Device (SPD).
This is a high quality, high energy surge suppressor designed to protect
sensitive equipment from damaging transient overvoltages.
Proper installation is important to maximize performance. Please follow
the steps outlined herein.
This entire user manual should be read prior to beginning installation.
These instructions are not intended to replace national or local
codes. Follow all applicable electrical codes to ensure compliance.
Installation of this SPD should only be performed by qualified electrical
personnel.
All Siemens SPDs are extensively tested in accordance with industry
standards such as ANSI/IEEE C62.41.1, C62.41.2, C62.45, C62.62,
C62.72, UL 1449, UL 1283, IEC 61643, etc.
Warning and Safety Information
This equipment contains hazardous voltages. Death, serious injury,
or property damage can result if safety instructions are not followed.
Only qualified personnel should work on or around this equipment
after becoming thoroughly familiar with all warnings, safety notices,
and maintenance procedures contained herein.
The successful and safe operation of this equipment is dependent upon
proper handling, installation, operation, and maintenance.
Qualified Person
For the purposes of this manual and product labels, a QUALIFIED
PERSON is one who is familiar with the installation, construction, and
operation of this equipment, and the hazards involved. In addition, he
or she has the following qualifications:
(a) Is trained and authorized to energize, de-energize, clear,
ground and tag circuits and equipment in accordance with
established safety practices.
(b) Is trained in the proper care and use of personal protective
equipment (PPE) such as rubber gloves, hard hat, safety
glasses or face shields, ash clothing, etc. in accordance with
established safety practices.
(c) Is trained in rendering rst aid.
Danger
For the purposes of this manual and product labels, DANGER indicates
an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
Warning
For the purposes of this manual and product labels, WARNING indicates
failure to following these instructions can result in death, serious injury,
or equipment damage.
Caution
For the purposes of this manual and product labels, CAUTION indicates
a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury.
These instruction do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency to be met
in connection with installation, operation or maintenance. Should
further information be required by the user, please call Siemens TPS
Tech Support at 1.888.333.3545 for assistance.
Do Not Hi-Pot Test SPDs
Any factory or on-site testing of power distribution equipment that
exceeds normal operating voltage such as high-potential insula-
tion testing, or any other tests where the suppression components
will be subjected to higher voltage than their rated Maximum
Continuous Operating Voltage (MCOV) must be conducted with
the SPD disconnected from the power source. For 4-wire systems,
the neutral connection at the SPD must also be disconnected prior
to performing high-potential testing and then reconnected after
test completion.
Failure to disconnect SPD and associated components during
elevated voltage testing will damage the SPD and will void the
warranty.
Industry Standards Changes - 2009
UL 1449 Third Edition and 2008 NEC® Article 285 generated substantial
changes.
• The term TVSS changed to SPD
• Types 1, 2, 3 & 4 SPDs are created
• UL 1449 clamping voltage performance testing changed from
500A to 3,000A
• UL 1449 added new I nominal testing (In), which consists of more
rigorous duty-cycle testing
The SPD Type category is important to understand before installing
any SPD. Type 1 and 2 SPDs are fully UL Listed devices whereas Type
4 SPDs are UL Recognized devices.
Type 1 – Installed on line or load side of the Main Overcurrent
Protection (OCP), similar to what you knew as SSA, except now includes
rigorous safety testing. Includes all OCP & safety disconnectors inside
the SPD
Type 2 – Installed on load side of the Main OCP, similar to what you
know as hardwired SPD, and it may require external OCP.
Type 3 – Point of Utilization, direct plug in type devices, similar to what
you know as surge strips. Theses devices are intended for installation
10 meters from the panel (rational based on IEEE Cat. A location).
Type 4 – Surge suppression components, could be a basic component
or a complete module. Type 4 components can be tested for Type 1,
Type 2 or Type 3 applications.

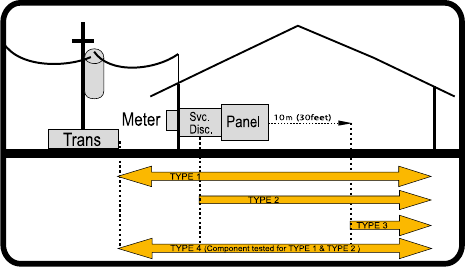

Figure 1: SPD Types
2008 NEC Art 285 & UL 1449-3
SPD Types: Types 1, 2, 3, & 4
Based on Location within electrical distribution system
(also coincides with ANSI/IEEE C62.41.2 - 2002 Categories C, B &A)
For further information, please review latest editions of NEC® Art. 285,
UL 1449, contact your local Siemens sales ofce or contact Siemens
TPS Tech Support at 1.888.333.3545.
The TPS3 11 is a Type 1 SPD. The TPS3 11 is suitable for use almost
anywhere (not as a plug-in SPD). Type 1 SPDs are evaluated more
rigorously by UL 1449 for 2008 NEC® Article 285 compliance. Type
1 SPDs and their connecting leads have been evaluated for line side
applications without need for supplemental overcurrent protection.
Type 1 SPDs include internal overcurrent protection. As a generalization,
there are practical maintenance reasons for installing on the load side of
the main overcurrent device (i.e. Type 2 installation). When connected
on load side of main disconnect, we recommend connecting via a 30A
circuit breaker due to 10 AWG conductors. The circuit breaker serves as
a disconnect switch and provides NEC® imposed short circuit protection
to the conductors in Type 2 or 4 applications.
Simplified Explanation of Operation
SPDs sense overvoltage and create a momentary short circuit to redirect
harmful surge energy to earth ground. SPD’s are not a one time device.
They reset automatically and wait for the next surge. SPDs are capable
of repeating this function thousands of times.
Parts List and Inspection
Items included in the package consist of the following:
• 1 TPS3 11 SPD including 3’ (~1m) conductors
• 1 User’s Manual (this document)
If the Flush Mount Kit was ordered, additional parts are supplied as
follows:
• 1 Flush Mount Plate
• 1 Flush Mount Installation Instructions
• 4 Mounting Screws
Carefully inspect each item in the package for signs of damage. If
damage is found, please contact Siemens TPS Technical Support:
1.888.333.3545. For more information about this product or other
Siemens products, visit www.sea.siemens.com.
Figure 2: DIMENSIONS AND WEIGHT
TPS3 11’s have demonstrated 200kA Short Circuit Current Ratings
(SCCR) including leads (120/240V Split phase models have 100kA
SCCRs). See UL Label markings on SPD or see Data Sheet for specs.)
Supplemental overcurrent protection is not required to protect this SPD.
However, NEC® convention requires that connecting conductors have
overcurrent protection in Type 2 or 4 applications. Follow applicable
codes.
This device features internal overcurrent and overtemperature
protection that will disconnect effected surge suppression components
at the end of their useful life, but will maintain power to the load – now
unprotected. If this situation is undesirable for the application, follow
these instructions for replacing the device. TPS3 11 is ultrasonically
welded closed and contains no user serviceable parts.
Table 1: Specifications
Specifications
Temperature Operating -40oC (-40oF) to 60oC (+140oF)
Temperature Storage -55oC (-67oF) to 65oC (+149oF)
Wire Size & Installation Torque 10 AWG; 18 inch-pounds
Appropriate Circuit Breaker
based on conductor size 30A (SPD includes internal OCP)
NEMA 250 Enclosure Rating Type 4X with appropriate
sealing & sealing condulets
Voltage Rating & Application
Before installing SPD, verify by nameplate voltage or model number
that it has the same voltage rating as the power distribution system.
If unsure call Siemens TPS Tech Support at 1.888.333.3545 before
proceeding. The SPDs specifier or user should be familiar with the
configuration and arrangement of the power distribution system. The
system is defined by how the secondary windings of the transformer
supplying the service entrance main or load are configured. This
includes whether or not the transformer windings are referenced to
earth via a grounding conductor. The system configuration is not based
on how any specific load or equipment is connected to a particular
power distribution system. SPDs should be installed per the distribution
system, not per a load or motor’s wiring connection.
For example, suppose a 480V three phase motor appears to be
connected as a 480V Delta. In actuality, the serving distribution
system might be a 480Y/277V grounded Wye, with or without a
neutral pulled to the motor or MCC. The system is still a 480Y/277V
Wye, even though the load is connected as a Delta. A grounded Wye
has a defined reference to ground (i.e., neutral is bonded to ground).
In contrast, some Delta systems are ungrounded, which have no
reference to ground.
Table 2: Model number decoder
Model Voltage
Code Service Voltage
TPS3A11 A240/120V 1Ø, 3W Plus Ground,
TPS3B11 B240/120V 3Ø, 4W Plus Ground High Leg Delta
TPS3C11 C208Y/120V 3Ø, 4W Plus Ground
TPS3D11 D240v 3Ø, 3W Plus Ground
TPS3E11 E480Y/277V 3Ø, 4W Plus Ground
TPS3F11 F480v 3Ø, 3W Plus Ground
TPS3G11 G600v 3Ø, 3W Plus Ground
TPS3K11 K380Y/220V 3Ø, 4W Plus Ground
TPS3L11 L600Y/347V 3Ø, 4W Plus Ground
TPS3S11 S400Y/230V 3Ø, 4W Plus Ground
SPDs on Ungrounded Systems
Caution – Ungrounded systems are inherently unstable and can
produce excessively high line-to-ground voltages during certain fault
conditions. During these fault conditions, any electrical equipment
including an SPD, may be subjected to voltages which exceed their
designed ratings. This information is being provided to the user so
that an informed decision can be made before installing any electrical
equipment on an ungrounded power system.
Optional Flush Mount Installation Instructions
Caution: The chassis of the TPS3 11 unit can fall into the wall cavity
if the four screws attaching the faceplate to the chassis are removed.
Use caution not to drop the TPS3 11 unit into the wall during instal-
lation or service.
The TPS3 11 unit is approximately 4.0” deep. The unit will not mount
ush unless there is at least 3.75” of clearance. The unit is designed
to mount ush on a typical “2 x 4” stud wall with drywall.
Depending on the depth of the wall cavity, there are two installation
procedures. The preferred installation utilizes Back Flange Mounting.
The back ange supports the weight of the TPS3 unit and service
procedures are greatly simplied. If this can not be accomplished, an
alternate Front Flange Mount is possible. Please note that the front
ange installation may create servicing difculties in the future.
Preferred Installation - Back Flange Mounting: Mount as close as
possible to the protected panel. Create a wall opening approximately
6 3/4” tall by 6 1/16” wide. See drawing. (Rotate dimensions 90o as
appropriate depending on orientation.) Congure an appropriate
backing plate inside the wall cavity 3 7/8” from the wall face such that
the unit will be supported from its back. Note the mounting holes on
the back ange attachments. Be careful not to drop the unit into the
wall. Congure electrical conductor and conduit connection consistent
with the installation instructions on page 5. Preplan connections such
that they are completed prior to fastening the unit to the backing
plate. Install faceplate/cover prior to energizing and testing the unit.
Alternate Installation - Front Flange Mounting: This method is not
preferred for installation as servicing is substantially more difcult.
Extra care should be taken to NOT DROP the TPS3 unit into the wall.
Mount as close as possible to the protected panel. Create a wall open-
ing approximately 6 3/4” tall by 6 1/16” wide. See drawing. (Rotate
dimensions 90o as appropriate depending on orientation.) Preplan
and pre-connect electrical conductor and conduit connections such
that they are completed prior to fastening the TPS3 unit to the wall.
Note that removing the four screws attaching the front faceplate to
the unit chassis will cause the unit to fall inside the wall.
UL 1283 required language concerning the installation of EMI Filters
a) An insulated grounding conductor that is identical in size and
insulation material and thickness to the grounded and ungrounded
circuit supply conductors, except that it is green with or without one
or more yellow stripes, is to be installed as part of the circuit that
supplies the lter. Reference should be made to Table 250-122 of
the National Electrical Code regarding the appropriate size of the
grounding conductor.
b) The grounding conductor mentioned in item a is to be grounded
to earth at the service equipment or other acceptable building
earth ground such as the building frame in the case of a high-rise
steel-frame structure.
c) Any attachment-plug receptacles in the vicinity of the lter are to
be of a grounding type, and the grounding conductors serving these
receptacles are to be connected to earth ground at the service equipment
or other acceptable building earth ground such as the building frame
in the case of a high-rise steel-frame structure.
d) Pressure terminal or pressure splicing connectors and soldering lugs
used in the installation of the lter shall be identied as being suitable
for the material of the conductors. Conductors of dissimilar metals shall
not be intermixed in a terminal or splicing connector where physical
contact occurs between dissimilar conductors unless the device is
identied for the purpose and conditions of use.
Flush Mount “F Option” (Preferred Installation)
Supplemental Installation Instructions
for Deep Wall Mounting
(Walls over 4” thick) Using the Enclosed Mounting Feet
Figure 3: Optional Flush Mount Installation
Step 1
Prepare Wall and SPD
Step 3
Mount the SPD
Step 2
Insert into Wall
Step 4
Mount the Lid
Wall Cutout
Front View
6 1/16”
Wide
6 3/4”
Tall
Supplemental Instructions for
Deep Wall Mounting (Walls over 4” thick)
Using the Enclosed Mounting Feet
6
TPS3 11 Installation Instructions
Common Problems to Avoid
• Confirm System voltage to SPD voltage (120V SPD will fail instantly
on 240V, 277V, etc.)
• Locate SPD close so leads are short & straight as possible (or will
seriously hurt performance)
• Make sure N-G or XO bonding meets NEC® (or will prematurely fail
SPD)
• Energize SPD AFTER system is stabilized & checked (inadvertent system
problem may fail SPD)
• SPDs are regulated by NEC®Article 285 and UL 1449
• Never Hi-Pot test any SPD (will prematurely fail SPD)
Pre-Plan your installation. You will need to accomplish the following:
• Meet all National and Local codes (NEC® Article 285 addresses
SPDs)
• Mount SPD as close to panel or equipment as possible to keep leads
short
• Ensure leads are as short and straight as possible, including neutral
and ground. Consider a breaker position that is closest to the SPD and
the panel’s neutral & ground
• Suggested breaker & conductor size is 50A-30A with 8 AWG
• Make sure system is grounded per NEC® and clear of faults before
energizing SPD.
1. Use a voltmeter to check all voltages to ensure correct SPD
2. If unit has Flush Mount option refer to Flush Mount Installation
Instructions following
3. If SPD has Dry Contact pre-plan its installation
4. Remove power for panel. Confirm panel is deenergized.
5. Identify breaker location and SPD location
6. Remove an appropriately sized knockout from panel
7. Mount SPD, use appropriate weatherproofing equipment as
needed
8. Connect conductors as appropriate – short and straight as possible
(Note that Hi-Legs are Phase B)
9. Label or mark conductors as appropriate (neutral: white, ground:
green, energized: black, hi-leg: orange)
10. Make sure system is bonded per NEC® and is clear of hazards or
faults before energizing (N-G bonding not per NEC® will fail SPDs:
#1 cause of SPD failures)
11. Energize and confirm proper operation of indicators and/or
options
A sealing O-ring is provided. SPD can be chase-nipple mounted (nut
is provided).
Note that any conduits must be installed correctly.

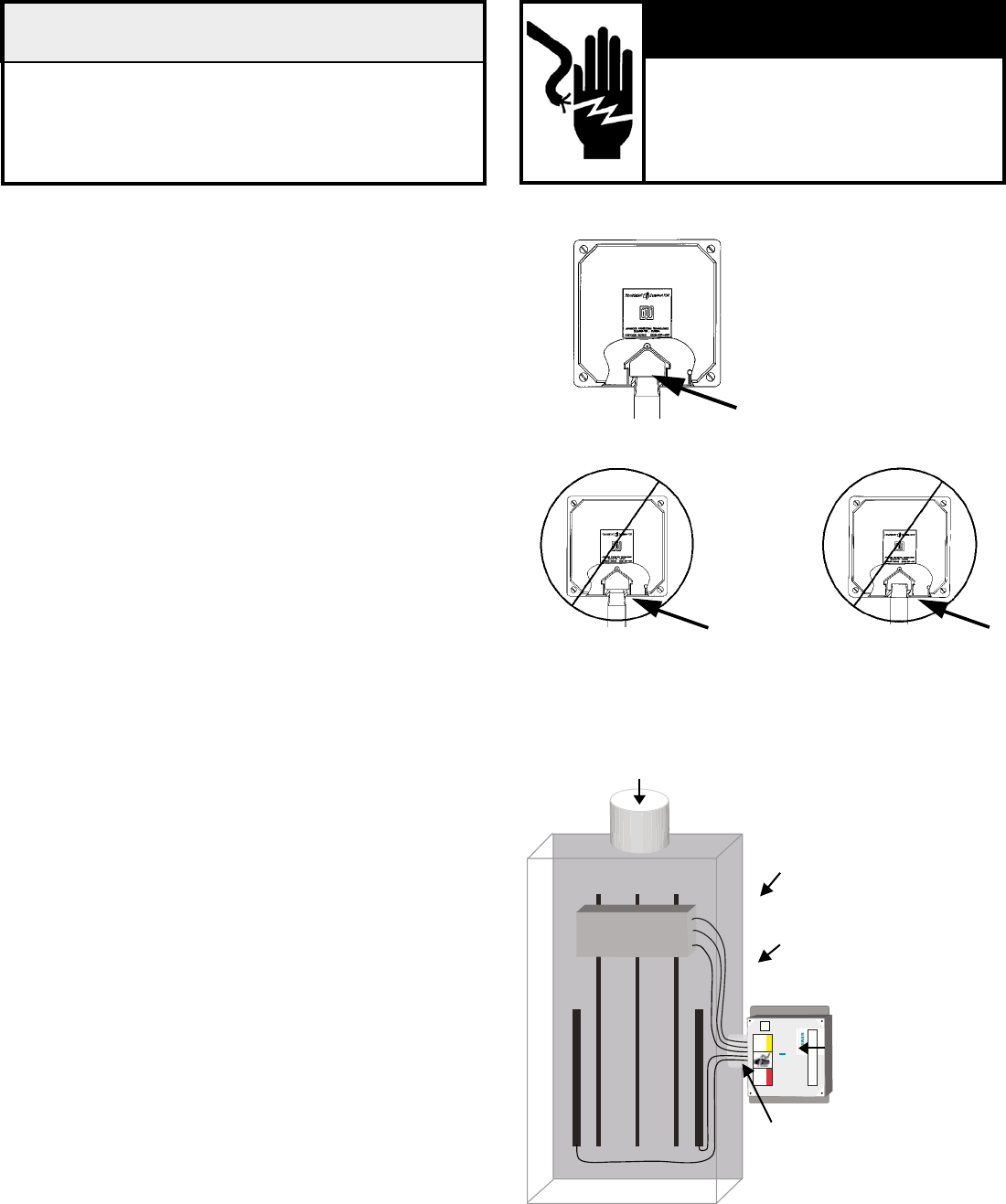

Figure 4: Conduit Installation
CORRECT INSTALLATION
Threaded 6 Full Turns
INCORRECT INSTALLATIONS
OVERTIGHTENED
Stresses box, ONLY
6 full turns required
POOR ENGAGEMENT
Conduit needs to be
threaded in farther
ABC
GN
BREAKER
CAUTION V DANGER
Conducting
dielectric and/or
hi-potential testing
will cause internal
damage to the unit.
Hazardous Voltage
will cause severe
injury or death.
Turn off power
before removing
cover.
Do not perform any
tests while installed.
SERVICE
TYPE 1 SURGE PROTECTIVE DEVICE
1-888-333-3545 WWW.SIEMENS.COM
Figure 5: Typical Panel Installation
• Use closest breaker to SPD
• Locate SPD close to intended
breaker
• Keep Leads Short as Possible
• Avoid Sharp Bends
• Rotate TPS3 11 such
that LED indicator is
most visible
• Outdoor installation requires
appropriate weather sealing at
nipple (o-ring, sealing conduit,
etc.)
To Protected Loads
CONDUCTING DIELECTRIC AND/OR
HI-POTENTIAL TESTING WILL CAUSE
INTERNAL DAMAGE TO TPS3 UNIT.
Do not perform dielectric or high potential
tests with the TPS3 unit installed.
CAUTION
V
Hazardous voltage.
Will cause death or serious injury.
Keep Out.
Qualied personnel only.
Disconnect and lock off all power before
working on this equipment.
V DANGER
7
Figure 6: Installation Wiring Diagrams
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
SPLIT
2 Hots, 1 Neu, 1 Grnd
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
WYE
3 Hots, 1 Neu, 1 Grnd
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
V
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
V
DELTA & HRG WYE
3 Hots, 1 Grnd
CONTACTS
NO CNC
DRY
SERVICE
AB C
N
AC
G
B
THREE POLE
CONTACTS
NO CNC
DRY
SERVICE
AB C
N
AC
G
B
THREE POLE
N
AC
CONTACTS
NO CNC
DRY
SERVICE G
AC
TWO POLE
CONTACTS
NO CNC
DRY
SERVICE
AB C
N
AC
G
B
THREE POLE
8
Operation
Diagnostic Indication
Phase indicator LEDs (Green)
Each phase is equipped with a Green LED. Should complete loss of surge
protection occur on each phase, the Green LED will extinguish and the
Red Service LED will flash. Every suppression element is monitored.
Note that the Green LED indicators will drop out due to loss of power
or severe under voltage.
Service LED (Red)
Flashes in the event of a problem. The Red Service LED is slaved to
the Green LEDs via logic and will illuminate when any Green LED
extinguishes.
Audible Alarm Option
If equipped with optional Dry Contact and Audible Alarm, these options
are slaved via logic to the Green LEDs. In the event of a problem, the
dry contacts will chage state and the audible alarm will sound. The
audible alarm may be silenced by deenergizing the SPD.
CAUTION V DANGER
Conducting
dielectric and/or
hi-potential testing
will cause internal
damage to the unit.
Hazardous Voltage
will cause severe
injury or death.
Turn off power
before removing
cover.
Do not perform any
tests while installed.
SERVICE
TYPE 1 SURGE PROTECTIVE DEVICE
1-888-333-3545 WWW.SIEMENS.COM
Figure 7: Diagnostic Display
Dry Contact Option
Two sets of Form C dry contacts are included with the Dry Contact
option. Dry Contacts change state during inoperative conditions,
including loss of power. Any status change can be monitored elsewhere
via Dry Contacts.
A Terminal Block includes two sets of Normally Open (N.O.) and
Normally Closed (N.C.) contacts. Both sets of contacts operate the
same. This is shown in Figure 8.
A typical application using a Normally Closed configuration would
connect to one set of the N.C. and Common terminals. During an
inoperative condition, the SPDs dry contact would change state from
normally closed to open. We generally suggest the Normally Closed
configuration because it will detect a wiring defect, such as cut wire(s),
where N.O. will not.
Please note:
Dry Contacts are designed for low voltage or control signals only.
Maximum switching current is 5A
Maximum switching voltage is 240V DC or AC.
Higher energy applications require additional relay implementation
outside the SPD.
An optional Remote Monitor accessory is available to provide visual
and audible status. The Remote Monitor will consume one of the two
sets of Dry Contacts.
Remote Monitor Accessory Option
A Remote Monitor is available for remote annunciation. It requires a
standalone 120V power source (wall plug transformer) and uses one
set of Form C dry contacts. The Remote Monitor can be configured
to monitor several Siemens TPS3 SPDs simultaneously. Installation is
detailed in a separate document. Contact factory as appropriate.
Figure 8: Dry Contact Pin Configuration
9
Maintenance
SPDs require minimal maintenance. Periodic inspection of diagnostic
indicators is recommended to ensure proper operation.
Troubleshooting & Service
Please contact us for any service related issues.
Quality SPDs withstand severe duty and attempt to protect their
load until failure. There are electrical anomalies that SPDs cannot
protect against. These are generally Sustained Overvoltages also
known as Temporary Overvoltages (TOVs). In this context, Sustained
Overvoltages may be only a few cycles. Failed SPDs tend to be
symptoms, not root causes. A failed SPD is usually a sign of other
problems within the electrical distribution system. As a generalization,
the single largest cause of SPD failures is reference to ground issues.
If the SPD shows problems on startup, there is reasonable chance of
bonding/grounding/misapplication issue. This permanently damages
the unit. If not corrected, it will happen again.
Warranty and Customer Service
Limited Warranty
Siemens warrants its AC Panel protection products against defective
workmanship and materials for 10 years. Liability is limited to the repair
or replacement of the defective product at Siemens’ option. A Return
Material Authorization number (RA#) must be given by the company
prior to the return of any product. Returned products must be sent
to the factory with the transportation charges prepaid. In addition,
the company also warranties unlimited replacement of modular and
component parts within the warranty period previously described.
The company specifically disclaims all other warranties, expressed or
implied. Additionally, the company is not be responsible for incidental
or consequential damages resulting from any defect in any product or
component thereof.
The sales contract contains the entire obligation of Siemens. This
instruction manual shall not become part of or modify any prior existing
agreement, commitment or relationship.
Technical Support
1.888.333.3545
Prior to calling Siemens TPS3 Technical Support for assistance or
ordering parts, please have the following information available:
TPS3 model number: ________________________________
Manufacture date: _________________________________
Date of Purchase: ___________________________________
Your order number: _______________________________
Return Shipment Address:
Siemens - Attn: RA #___________
14550 58th Street North
Clearwater, FL 33760
CONDUCTING DIELECTRIC AND/OR
HI-POTENTIAL TESTING WILL CAUSE
INTERNAL DAMAGE TO TPS3 UNIT.
Do not perform dielectric or high potential
tests with the TPS3 unit installed.
CAUTION
V
Hazardous voltage.
Will cause death or serious injury.
Keep Out.
Qualied personnel only.
Disconnect and lock off all power before
working on this equipment.
V DANGER
10
11
Siemens Industry, Inc.
Building Technologies Division
5400 Triangle Parkway
Norcross, GA 30092
888-333-3545
info.us@siemens.com
8.9.10.al #8174
