Silex Technology OKILAN520W Wireless LAN Module User Manual
Silex Technology, Inc. Wireless LAN Module Users Manual
Users Manual
OkiLAN520ｗ Users Manual
December 09, 2011
OkiLAN520w Users Manual
1. Introduction/Overview ...................................................2
2. Block Diagram ..................................................3
3. Hardware specifications ...................................................4
1/8
4.System Requirements ...................................................6
5.setup ...................................................6
6.Compliance ...................................................7
1
．
Introduction
本書は組込み型
Wireless BridgeTYPE-GJ1
について説明するものです。
This document describes about “embedded Wireless Bridge TYPE-GJ1.
2
．
Overview
TYPE-GJ1
は
Single Band IEEE802.11bgn
準拠のインテリジェントモジュールです。本モジュールは
EU RoHS
指令
2009/95/EC(Lead Free)
及び中国版
RoHS
に適合しています。本モジュールは
MAC/BBP
チップセット
RTL8196C
と
RTL8188CE(Realtek
社
)
を採用しています。また、このモジュールは
1
ストリームの
11n
システム及び
40MHz
帯域幅
モードをサポートしています。
TYPE-GJ1 is Single Band IEEE802.11bgn intelligent radio module. This module complies with EU RoHS Directive
2009/95/EC(Lead Free) and China RoHS with exemptions. This module has an MAC/BBP Chipset RTL8196C and
RTL8188CE (Realtek) internally. Also this module supports high speed one stream 11n technology and 40MHz
band width mode.
機能
(Features):
- IEEE802.11b/g/n
準拠
(2.4GHz)
IEEE 802.11b/g/n conformity (2.4GHz)
- 1
ストリーム
1 x 1 11n
システム及び
40MHz
帯域幅モード対応
(
スループット理論値
150Mbps)
Two stream 1 x 1 11n technology and 40MHz band width mode. (Throughput up to 150Mbps)
-
データレート
802.11b/g 1-54Mbps, 802.11n MCS0-15
対応
Data rates of 1 - 54 Mbps for 802.11b/g and MCS0-15 for 802.11n.
- “Short Gard Interval”
モード対応
Support “Short Gard Interval” mode.
OkiLAN520w Users Manual
2/8
OkiLAN520w
OkiLAN520w
OkiLAN520wについて説明しています。
OkiLAN520w
MCS0-7対応
MCS0-7 for 802.11n
3
．
Block diagram
DC 5V in
PCIe
RTL8196C
Realtek
SoC
TRANS
TRANS
RJ45
LAN
RJ45
WAN
RTL8188CE
Realtek
WLAN
Chip Antenna １X1
FROM
4MB
DDR
32MB
SW WPS/RESET
LED X 4（Not Populate）
DC/DC
No use
OkiLAN520w Users Manual
3/8
Item Specification Unit Note
電源コネクタ
Power connector
Micro B ( USB) －
インターフェイス
Device Interfaces
IEEE802.3u 10/100BASE 2port －WAN、LAN port
IEEE802.11b/g/n －
重さ
Weight
13.8 g Typ
寸法
Dimensions
54 x 37 x 18 mm W x H x D, PCB Thickness = 1.0mm
* 7.項参照。See section 7.
MTBF 90,000 h Min.
Item Specification Unit Note
保存温度
Storage temperature
-20 to +60 ℃
保存湿度
Storage humidity
Max 95% %RH Non condensing
動作温度
Operating Temperature
0 to +55 ℃Ambient
動作湿度
Operating humidity
10 to 90 %RH Non condensing
4-2
．
Environmental specifications
Item Specification Unit Note
電源電圧
Power supply voltage
Min. Typ. Max.
4.75 5.0 5.25 V 動作条件
Operating Conditions
OkiLAN520w Users Manual
4/8
4-1
．
General specifications
Item Specification Unit Note
Chipset SoC RTL8196C / WLAN RTL8188CE (Realtek) －
中心周波数
Center frequency
11b 2412 – 2472 MHz
11g 2412 – 2472 MHz Ch.1～Ch.13
11ng HT20 2412 - 2472 MHz
11ng HT40 2422 - 2462 MHz Ch.3～Ch.11
チャネル間隔
Channel spacing
11b/11g/11ng HT20/HT40 5 MHz
通信レート
Rate
スキームコード
Scheme code
11b 1, 2, 5.5L, 5.5S, 11L, 11S Mbps
11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
11ng 1Stream MCS0, 1, 2, 3, 4, 5, 6, 7 －
変調方式
Modulation type
11b DSSS(CCK,DQPSK,DBPS
K)
－
11g/11ng DSSS-OFDM
(64QAM,16QAM,QPSK,BPS
K)
－
4-4
．
Radio configuration and general specifications
OkiLAN520w Users Manual
5/8
OkiLAN520w Users Manual
5. System Requirements (for the install)
OS: Embedded Linux or Embedded windows PC
H/W:Ethernet port is required
6. Setup
TYPE-GJ1 connect to the Ethernet port of the END product.
The END product can use the wireless LAN by setting it using a special protocol.
6/8

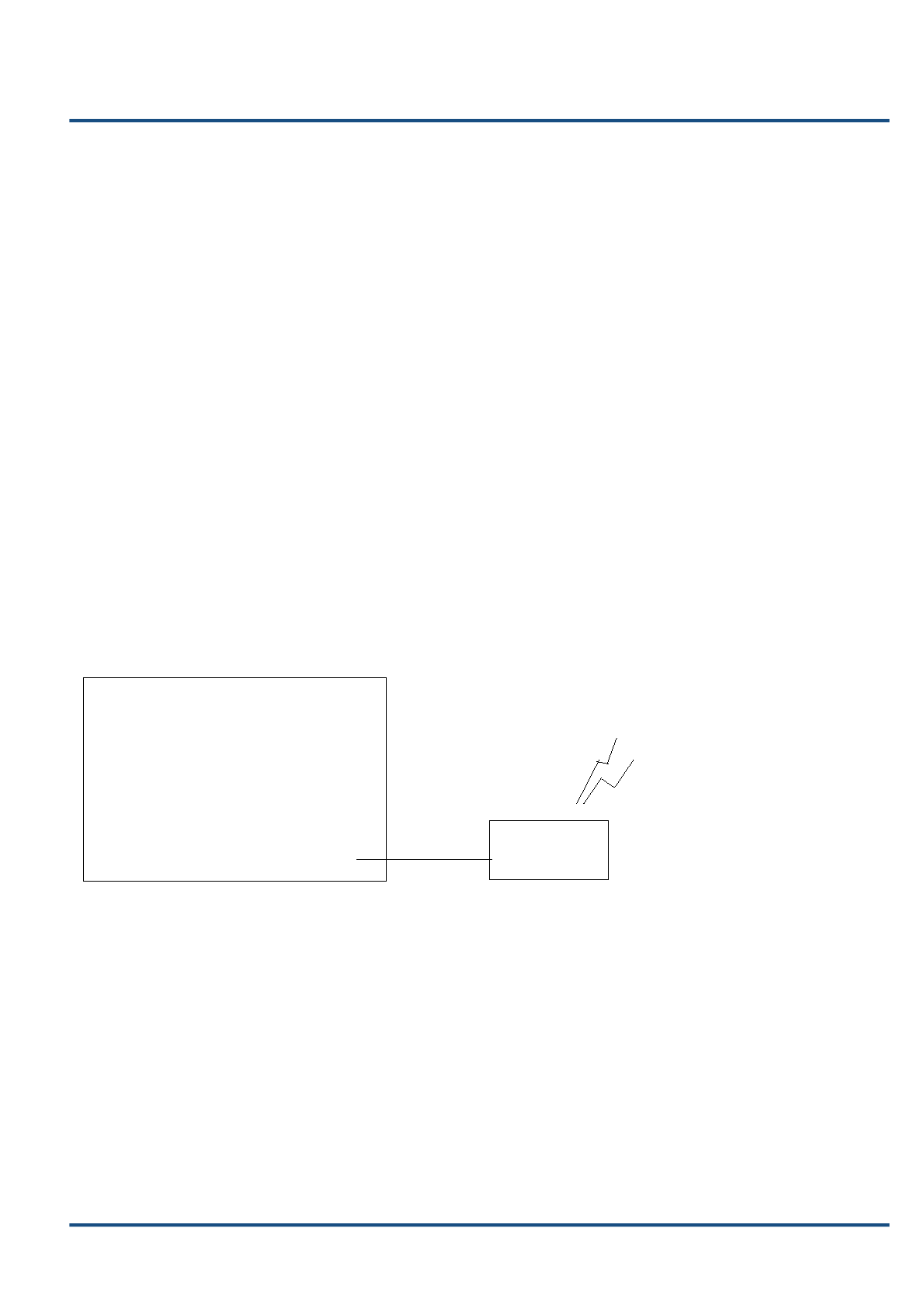

The configuration of this product uses a special protocol.
The exhibition of those procedures is kept by contract.
H/W:Ethernet port is required
EDN Product
OkiLAN520w
Ethernet
OkiLAN520w Users Manual
7/8
7. Compliance
FCC ID：N6C-OKILAN520W
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
IC No：4908A-OKILAN520W
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm
or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non
contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le
Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit
être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à
l’exception des extrémités : mains, poignets, pieds et chevilles).
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of this device.
Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other
users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne
d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire
les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
OkiLAN520w Users Manual
8/8
FCC WARNING：
Antenna information: Omni-directionalChip Antenna Peak Gain 0.5dBi
authority to operate the equipment.
Manual and Product Labeling information To The End User
The end user manual shall include all required regulatory information/warning as show in this manual.
And when this module is installed in the host product, you must include a "Contain FCC ID : N6C-OKILAN520W"
and a “Contain IC: 4908A-OKILAN520W” in the label of the host product.
This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with
this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de
catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible
maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au
gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
