BLE113
DATA SHEET
Wednesday, 27 November 2013
Version 1.2
Bluegiga Technologies Oy
Copyright © 2000-2013 Bluegiga Technologies
All rights reserved.
Bluegiga Technologies assumes no responsibility for any errors which may appear in this manual.
Furthermore, Bluegiga Technologies reserves the right to alter the hardware, software, and/or specifications
detailed here at any time without notice and does not make any commitment to update the information
contained here. Bluegiga’s products are not authorized for use as critical components in life support devices
or systems.
The WRAP is a registered trademark of Bluegiga Technologies
The Bluetooth trademark is owned by the Bluetooth SIG Inc., USA and is licensed to Bluegiga Technologies.
All other trademarks listed herein are owned by their respective owners.
![](/img.php?id=2128980&img=bg3.png)
Bluegiga Technologies Oy
VERSION HISTORY
Version
Comment
0.1
Draft
0.2
Confidential watermark added
0.3
Marketing information updated
0.4
Current consumption, recommended land pattern, layout guide, example
schematic, antenna characteristics
0.5
Minor changes
0.51
Absolute maximum ratings: all supply nets must have the same voltage
0.52
Pin dimensions and recommended land pattern
0.53
FCC and IC statements
0.54
TXP vs HW config setting
0.55
Dimensions
0.56
CE, MIC Japan, KCC
0.57
Chapter 2.1 rephrased
0.58
Missing dimensions added to Figure 7
1.0
Preliminary datasheet -> production datasheet. No changes
1.1
Pull-up resistors added to P1_0 and P1_1 in the example schematic
1.2
5 mm restriction removed from the FCC statement
Bluegiga Technologies Oy
TABLE OF CONTENTS
1 BLE113 Product numbering ..........................................................................................................................6
2 Pinout and Terminal Description ...................................................................................................................7
2.1 I/O Ports .............................................................................................................................................. 10
2.2 UART ................................................................................................................................................... 10
2.3 Electrical Characteristics ..................................................................................................................... 11
2.4 Absolute Maximum Ratings ................................................................................................................ 11
2.5 Recommended Operating Conditions ................................................................................................. 11
2.6 DC Characteristics .............................................................................................................................. 11
2.7 Current Consumption .......................................................................................................................... 12
2.8 Antenna characteristics ....................................................................................................................... 13
3 Physical Dimensions .................................................................................................................................. 16
4 Power-On Reset and Brownout Detector ................................................................................................... 18
5 Design Guidelines ...................................................................................................................................... 19
5.1 General Design Guidelines ................................................................................................................. 19
5.2 Layout Guide Lines ............................................................................................................................. 19
5.3 BLE113-A Layout Guide ..................................................................................................................... 20
6 Soldering Recommendations ..................................................................................................................... 22
7 Block diagram ............................................................................................................................................. 23
8 Certifications ............................................................................................................................................... 26
8.1 Bluetooth ............................................................................................................................................. 26
8.2 FCC and IC ......................................................................................................................................... 26
8.3 CE ....................................................................................................................................................... 29
8.4 MIC Japan ........................................................................................................................................... 29
8.5 KCC (Korea) ........................................................................................................................................ 29
9 Contact Information .................................................................................................................................... 30
![](/img.php?id=2128980&img=bg5.png)
Bluegiga Technologies Oy
BLE113 Bluetooth® Smart Module
DESCRIPTION
BLE113 is a Bluetooth Smart module targeted
for small and low power sensors and
accessories. It integrates all features required
for a Bluetooth Smart application: Bluetooth
radio, software stack and GATT based
profiles.
BLE113 Bluetooth Smart module can also host
end user applications, which means no
external micro controller is required in size or
price constrained devices.
BLE113 module has flexible hardware
interfaces to connect to different peripherals
and sensors. BLE113 can be powered directly
from a standard 3V coin cell battery or pair of
AAA batteries.
In lowest power sleep mode it consumes only
500nA and will wake up in few hundred
microseconds.
APPLICATIONS:
Health and fitness sensors
Medical sensors
iPhone and iPad accessories
Security and proximity tags
Key fobs
Smart home sensors and collectors
Wireless keys
HID keyboards and mice
KEY FEATURES:
Bluetooth v. 4.0, single mode compliant
o Supports master and slave modes
o Up to eight connections
Integrated Bluetooth Smart stack
o GAP, GATT, L2CAP and SMP
o Bluetooth Smart profiles
Radio performance
o TX power : 0 dBm to -23 dBm
o Receiver sensitivity: -93 dBm
Ultra low current consumption
o Transmit: 18.2 mA (0dBm)
o Transmit: 14.3 mA (0dBm +
DC/DC)
o Receive: 14.3 mA
o Sleep mode 3: 0.4 uA
Flexible peripheral interfaces
o UART and SPI
o I2C, PWM and GPIO
o 12-bit ADC
Host interfaces:
o UART
Programmable 8051 processor for stand-
alone operation
Dimensions: 9.15 x 15.75 x 2.1 mm
Bluetooth, CE, FCC, IC, South Korea and
Japan qualified
![](/img.php?id=2128980&img=bg6.png)
Bluegiga Technologies Oy
Page 6 of 30
1 BLE113 Product numbering
BLE113-A-X
Firmware revision
Antenna:
A = Internal
E = External
N = RF pin
Available products and product codes
Product code
Description
BLE113-A-v1
BLE113 with integrated chip antenna
![](/img.php?id=2128980&img=bg7.png)
Bluegiga Technologies Oy
Page 7 of 30
2 Pinout and Terminal Description
GND
GND
GND
GND
GND
GND
GND
AVDD
P2_2
P2_1
P2_0
P1_7
P1_6
SCL
SDA
NC
DVDD
GND
P1_5
P1_4
P1_3
P1_2
P1_1
P1_0
GND
P0_7
P0_6
P0_5
P0_4
P0_3
P0_2
P0_1
P0_0
NC
GND
Reset#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
35
36
34

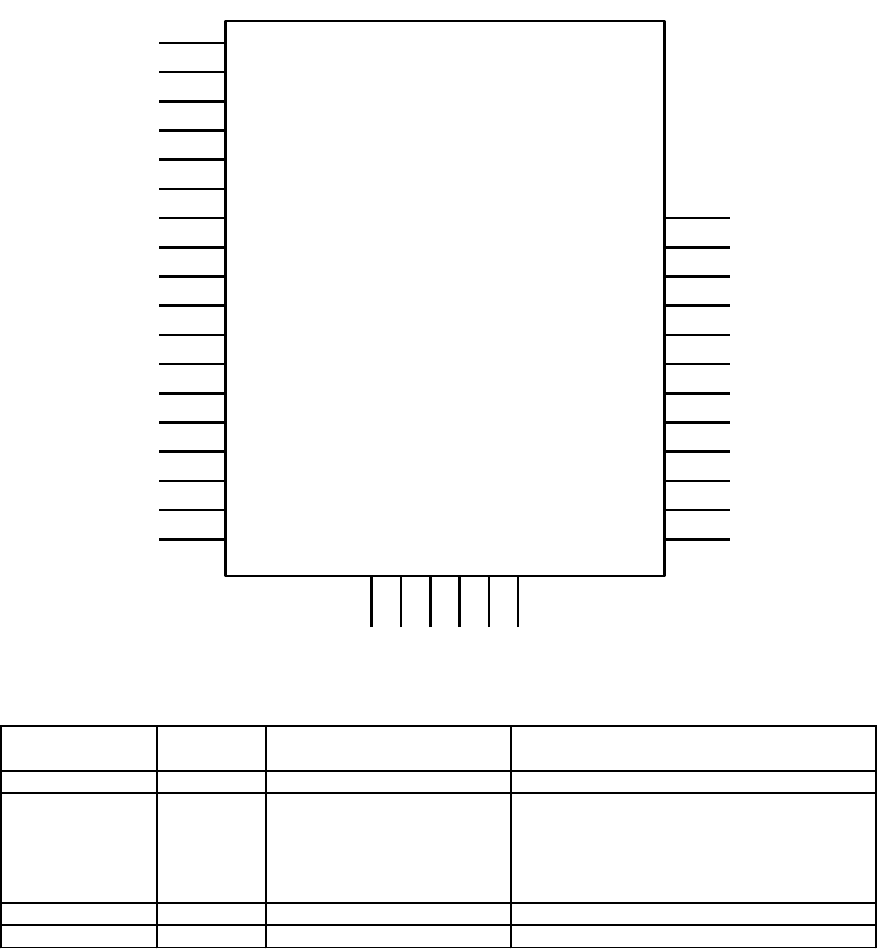

Figure 1: BLE113
PIN
NUMBER
PAD TYPE DESCRIPTION
RESET 34 Active low reset.
GND
1 - 7, 18,
25, 36
GND GND
DVDD 17 Supply voltage Supply voltage 2V - 3.6V
AVDD 8 Supply voltage Supply voltage 2V - 3.6V
Table 1: Supply and RF Terminal Descriptions
![](/img.php?id=2128980&img=bg8.png)
Bluegiga Technologies Oy
Page 8 of 30
PIN
NUMBER
PIN NAME PIN TYPE DESCRIPTION
9 P2_2
10 P2_1
11 P2_0
12 P1_7
13 P1_6
19 P1_5
20 P1_4
21 P1_3
22 P1_2
26 P0_7
27 P0_6
28 P0_5
29 P0_4
30 P0_3
31 P0_2
32 P0_1
33 P0_0
23 P1_1
24 P1_0
14 SCL I2C clock or digital I/O
Can be used as I2C clock pin or digital I/O. Leave
floating if not used. If grounded disable pull up.
15 SDA I2C data or digital I/O
Can be used as I2C data pin or digital I/O. Leave
floating if not used. If grounded disable pull up.
Configurable I/O port, See table 3
Digital I/O
Configurable I/O port with 20mA driving
capability, See table 3
Digital I/O
Table 2: Terminal Descriptions
*)BLE113 is configurable as either SPI master or SPI slave
![](/img.php?id=2128980&img=bg9.png)
Bluegiga Technologies Oy
Page 9 of 30
HARDWARE.XML Example (*
7654321076543210210
A7 A6 A5 A4 A3 A2 A1 A0
Alt.1
CSS MO MI <usart channel="0" mode="spi_master" alternate="1" ...
Alt.2
MO MI CSS <usart channel="0" mode="spi_master" alternate="2" ...
Alt.1
RT CT TX RX <usart channel="0" mode="uart" alternate="1" ...
Alt.2
TX RX RT CT <usart channel="0" mode="uart" alternate="2" ...
Alt.1
MI MO CSS <usart channel="1" mode="spi_master" alternate="1" ...
Alt.2
MI MO CSS <usart channel="1" mode="spi_master" alternate="2" ...
Alt.1
RX TX RT CT <usart channel="1" mode="uart" alternate="1" ...
Alt.2
RX TX RT CT <usart channel="1" mode="uart" alternate="2" ...
Alt.1
43210 <timer index="1" alternate="1" ...
Alt.2
3 4 0 1 2 <timer index="1" alternate="2" ...
Alt.1
1 0 <timer index="3" alternate="1" ...
Alt.2
1 0 <timer index="3" alternate="2" ...
Alt.1
1 0 <timer index="4" alternate="1" ...
Alt.2
0<timer index="4" alternate="2" ...
DC DD
543210
DEBUG
OBSSEL
ADC
TIMER 3
TIMER 4
P0
USART 0 UART
USART 1 SPI (**
USART 1 UART
TIMER 1
P1
PERIPHERAL /
FUNCTION
P2
USART 0 SPI (**
*) Refer to Profile Toolkit Developer Guide for detailed settings
**) SS is the slave select signal when BLE113 is set as SPI slave. When set as SPI master, any available I/O can be used as chip select signal of
BLE113
Table 3:Peripheral I/O Pin Mapping
![](/img.php?id=2128980&img=bga.png)
Bluegiga Technologies Oy
Page 10 of 30
2.1 I/O Ports
Each I/O port can be configured as an input or output. When configured as input, each I/O port, except pins
P1_0 and P1_1, can also be configured with internal pull-up, pull-down or tri-state. Pull-down or pull-up can
only be configured to whole port, not individual pins. Unused I/O pins should have defined level and not be
floating. See the Profile Toolkit developer guide for more information about the configuration.
During reset the I/O pins are configured as inputs with pull-ups. P1_0 and P1_1 are inputs but do not have
pull-up or pull-down.
2.2 UART
UART baud rate can be configured up 2 Mbps. See the Profile Toolkit developer guide for more information.
Following table lists commonly used baud rates for BLE113
Baud rate (bps)
Error (%)
2400
0.14
4800
0.14
9600
0.14
14 400
0.03
19 200
0.14
28 800
0.03
38 400
0.14
57 600
0.03
76 800
0.14
115 200
0.03
230 400
0.03
Table 4: Commonly used baud rates for BLE113
![](/img.php?id=2128980&img=bgb.png)
Bluegiga Technologies Oy
Page 11 of 30
2.3 Electrical Characteristics
2.4 Absolute Maximum Ratings
Note: These are absolute maximum ratings beyond which the module can be permanently damaged. These are not
maximum operating conditions. The maximum recommended operating conditions are in the table 6.
Min Max Unit
-40 85 °C
-0.3 3.9 V
VSS-0.4 VDD+0.4 V
Rating
Storage Temperature
Other Terminal Voltages
AVDD,DVDD (*
*)All supply nets must have the same voltage
Table 5: Absolute Maximum Ratings
2.5 Recommended Operating Conditions
Min Max Unit
-40 85 °C
2.0 3.6 V
Rating
Operating Temperature Range
AVDD, DVDD
*) Supply voltage noise should be less than 10mVpp. Excessive noise at the supply voltage will reduce the RF
performance.
Table 6: Recommended Operating Conditions
2.6 DC Characteristics
Test Conditions Min Typ Max Unit
0.5 V
2.5 V
Input equals 0V -50 50 nA
Input equals VDD -50 50 nA
20 kΩ
Output load 4 mA 0.5 V
Outoput load 4 mA 2.4 V
Parameter
Logic-0 input voltage
Logic-0 output volatge, 4 mA pins
I/O pin pull-up and pull-down resistors
Logic-1 output voltage, 4 mA pins
Logic-1 input voltage
Logic-0 input current
Logic-1 input current
For detailed I/O terminal characteristic and timings refer to the CC2541 datasheet available in
(http://www.ti.com/lit/ds/symlink/cc2541.pdf)
![](/img.php?id=2128980&img=bgc.png)
Bluegiga Technologies Oy
Page 12 of 30
2.7 Current Consumption
Power mode hardware.xml Min Typ Max Unit
<txpower power = "1"/>
<slow clock enable = "true"/>
18.2 mA
<txpower power = "7"/>
<slow clock enable = "true"/>
18.3 mA
<txpower power = "15"/>
<slow clock enable = "true"/>
20.7 mA
<txpower power = "1"/>
<slow clock enable = "false"/>
23.6 mA
<txpower power = "7"/>
<slow clock enable = "false"/>
23.6 mA
<txpower power = "15"/>
<slow clock enable = "false"/>
26.1 mA
<slow clock enable = "true"/> 21.9 mA
<slow clock enable = "false"/> 27.0 mA
270 uA
1uA
0.5 uA
Power mode 2
Power mode 1
Power mode 3
Transmit
Receive
Table 7: Current consumption of BLE113
Figure 2: BLE113 TX peak current as a function of the setting in the HW configuration file
![](/img.php?id=2128980&img=bgd.png)
Bluegiga Technologies Oy
Page 13 of 30

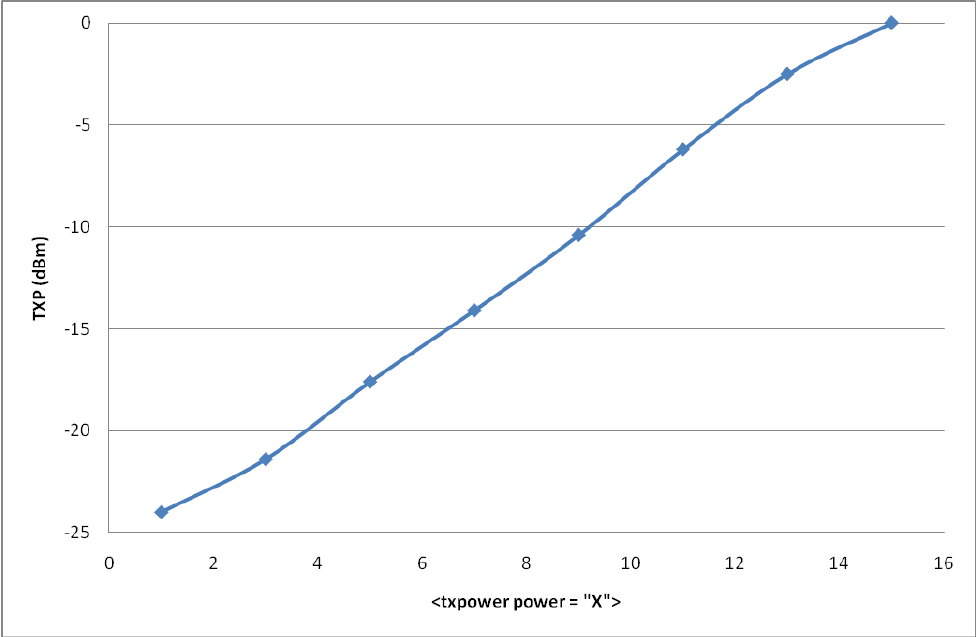

Figure 3: BLE113 TX power as a function of the setting in the HW configuration file
2.8 Antenna characteristics
The antenna is monopole type of chip antenna. The antenna impedance matching is optimized for 1 mm – 2
mm mother board PCB thickness. The radiation pattern is impacted by the layout of the mother board.
Typically the highest gain is towards GND plane and weakest gain away from the GND plane. Figures 4 – 6
show the radiation pattern of BLE113 when mounted to the development board.
The typical efficiency of the antenna is 25…35% depending on the mother board layout. Maximum gain is 0.5
dBi.
![](/img.php?id=2128980&img=bge.png)
Bluegiga Technologies Oy
Page 14 of 30

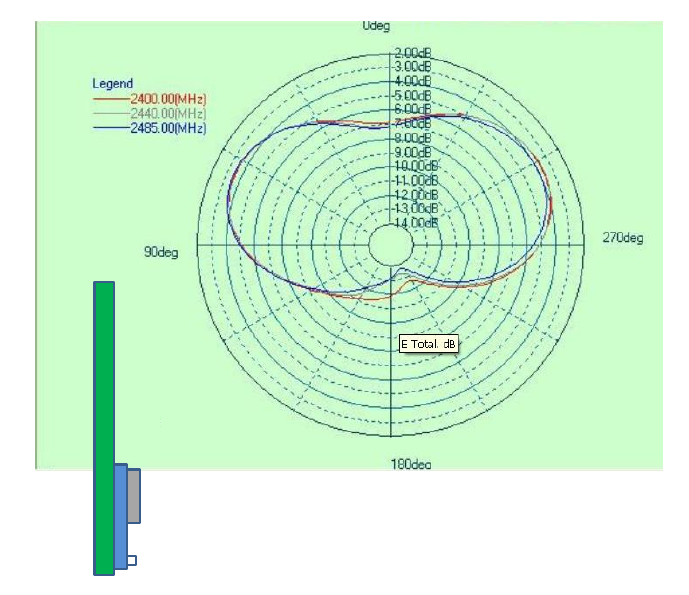

Figure 4: Radiation pattern of BLE113, top view

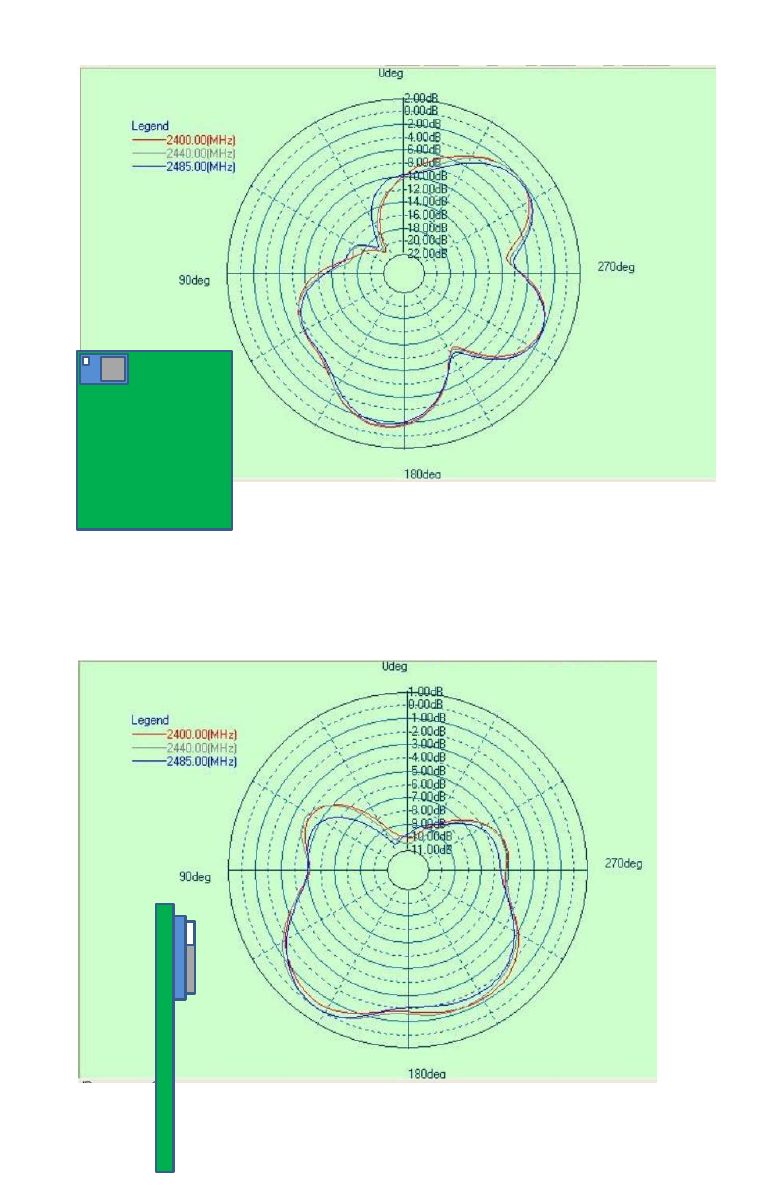

Figure 5: Radiation pattern of BLE113, front view
![](/img.php?id=2128980&img=bgf.png)
Bluegiga Technologies Oy
Page 15 of 30
Figure 6: Radiation pattern of BLE113, side view
![](/img.php?id=2128980&img=bg10.png)
Bluegiga Technologies Oy
Page 16 of 30
3 Physical Dimensions

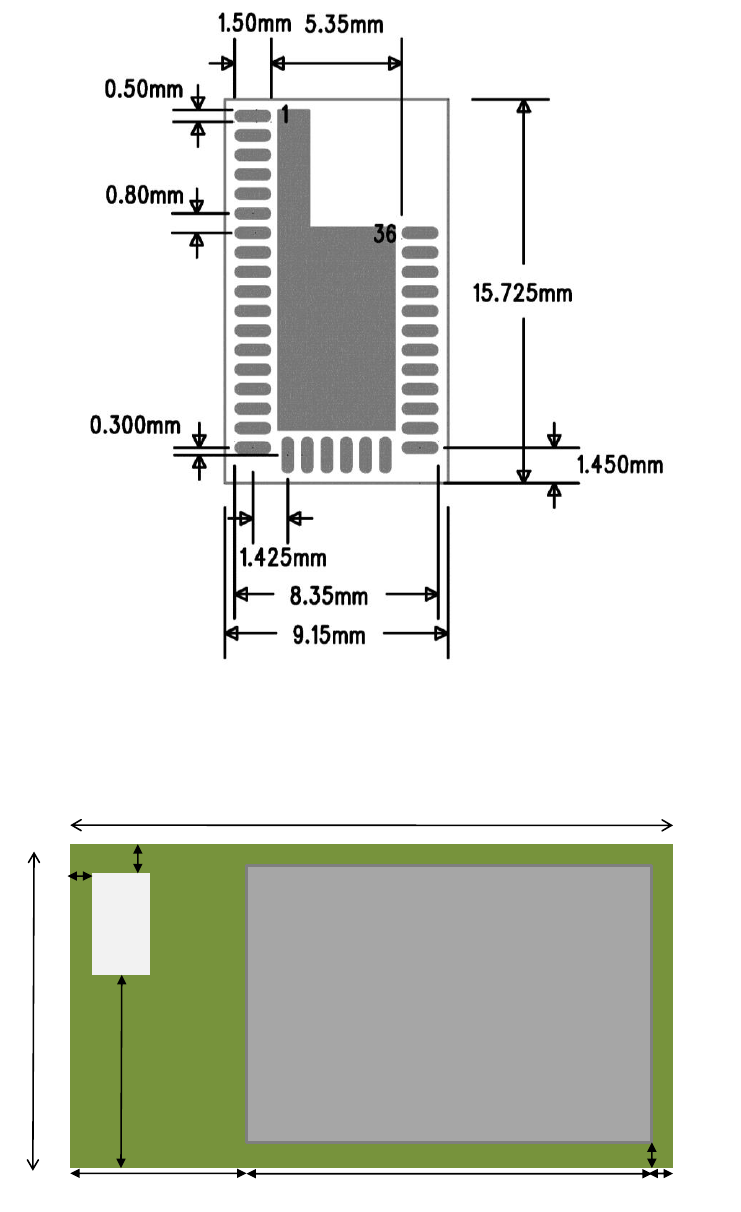

Figure 7: Physical dimensions and pinout (top view)
15.73 mm (+/-0.1mm)
9.15 mm (+/-0.1mm)
Antenna
0.3 mm
4.9 mm
0.85 mm
5.53 mm 9.6 mm 0.6 mm
0.6 mm
Figure 8: Physical dimensions (top view)
![](/img.php?id=2128980&img=bg11.png)
Bluegiga Technologies Oy
Page 17 of 30
15.73 (+/-0.1) mm
0.6 mm 1.9 mm (+/-10%)
1.3 mm

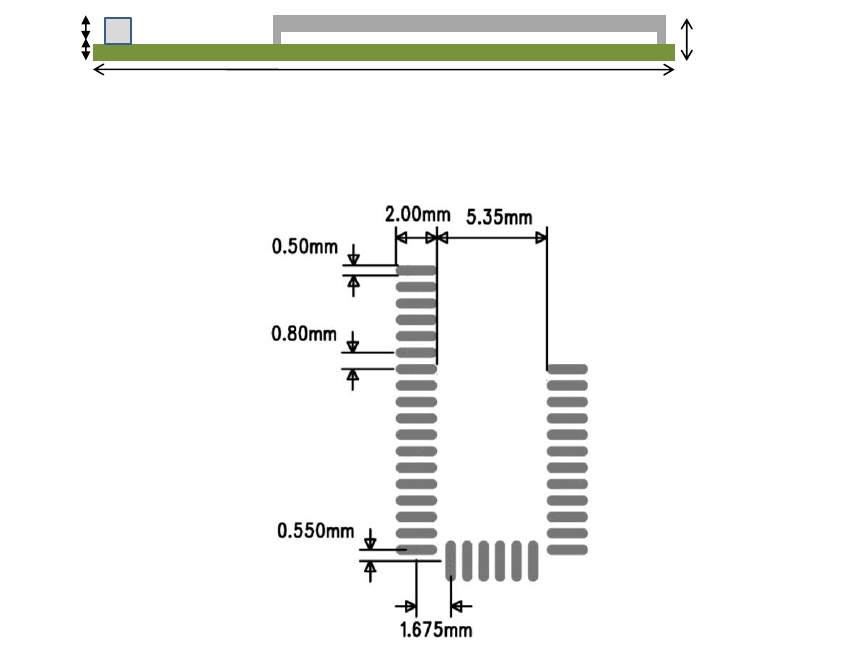

Figure 9: Physical dimensions (side view)
Figure 10: Recommended land pattern for BLE113-A
Bluegiga Technologies Oy
Page 18 of 30
4 Power-On Reset and Brownout Detector
BLE113 includes a power-on reset (POR), providing correct initialization during device power on. It also
includes a brownout detector (BOD) operating on the regulated 1.8-V digital power supply only. The BOD
protects the memory contents during supply voltage variations which cause the regulated 1.8-V power to drop
below the minimum level required by digital logic, flash memory, and SRAM. When power is initially applied,
the POR and BOD hold the device in the reset state until the supply voltage rises above the power-on-reset
and brownout voltages.
![](/img.php?id=2128980&img=bg13.png)
Bluegiga Technologies Oy
Page 19 of 30
5 Design Guidelines
5.1 General Design Guidelines
LE113 can be used directly with a coin cell battery. Due to relatively high internal resistance of a coin cell
battery it is recommended to place a 100uF capacitor in parallel with the battery. The internal resistance of a
coin cell battery is initially in the range of 10 ohms but the resistance increases rapidly as the capacity is used.
Basically the higher the value of the capacitor the higher is the effective capacity of the battery and thus the
longer the life time for the application. The minimum value for the capacitor depends on the end application
and the maximum transmit power used. The leakage current of a 100uF capacitor is in the range of 0.5 uA to
3 uA and generally ceramic capacitors have lower leakage current than tantalum or aluminum electrolytic
capacitors.
Optionally TI’s TPS62730 can be used to reduce the current consumption during TX/RX and data processing
stages. TPS62730 is an ultra low power DC/DC converter with by-pass mode and will reduce the current
consumption during transmission nominally by ~20% when using 3V coin cell battery.
BLE113 Example Schematic
201 2- 08 -03
-
PR A
-
-
Bluegiga Technologies Oy
-C1.0
15
REV:SIZE:CODE:
DRAWN:DATED:
DATED:CHECKED:
QUALITY CONTROL:DATED:
DATED:RELEASED:
COM PANY:
TITL E:
DRAWING NO:
SHEET: OFSCALE:
REVISION RECORD
APPROVED:ECO NO:LTR DATE:
123456
D
C
B
A
C
D
B
A
PROGRAMMING INTERFACE
P1_0 and P1_1 require external pull-up or pull-down
resistor if configured as inputs
C14
10 0 u F/1 6V/1 0 % /TAN
12
U 4
BATTER YH OL D ER _SMD _ C R 2032
1
STAT
2
SW
3VIN
4G N D
5ON/BYP
6
VOUT
U5
TPS62730
C10
2.2 uF/10V/X5R
C11
2.2 uF/10V/X5R
L1
2.2µH±20%, 1 30m A, 0.4 3ohm
12
R4
NP
C5
0.4 7uF/6.3V/X5 R
C6
0.4 7uF/6.3V/X5 R
12
43
SW1
12
R1
10K, 5 0V, 0.0 63W
1GND
2GND
3GND
4GND
5GND
6GND
7GND
8AVDD
9P2_2
10 P2_ 1
11 P2_ 0
12 P1_ 7
13 P1_ 6
14 SCL
15 SDA
16 NC
17 DVDD
18 GND
19 P1 _ 5
20 P1 _ 4
21 P1 _ 3
22 P1 _ 2
23 P1 _ 1
24 P1 _ 0
25
GND
26
P0_7
27
P0_6
28
P0_5
29
P0_4
30
P0_3
31
P0_2
32
P0_1
33
P0_0
34
RESET
35
NC
36
GND
M OD2
BLE11 X_ P2
1 2
R16
4.7K, 50V, 0 .06 3W
1 2
R17
4.7K, 50V, 0 .06 3W
1VDDIO
2BYP
3NC
4SCL
5GND
6SDA
7SA0
8NC
9
INT2
10
GND
11
INT1
12
GND
13
NC
14
VDD
15
NC
16
NC
U2
M M A8 45 1Q
C7
4. 7uF/4V/ X5R/10%
C8
0. 1uF/10 V/X5R
1
3
5
2
4
6
78
91 0
J 1
HEADER_ 2 X5_ SM D_1 .2 7 M M
1
2R2
10K, 5 0V, 0.0 63W
1
2R21
10K, 5 0V, 0.0 63W
VBAT
P1_7 /DCDC
2V ... 3V3 _ M OD
2 V... 3V3 _ M OD
P2_2 /PROG
P2_1 /PROG
P1_7 /DCDC
SCL
SDA
2 V... 3V3 _ M OD
SCL
SDA
P2_2 /PROG
2V... 3V3_SW
P2_1 /PROG
RESET_N
2 V... 3V3 _ M OD

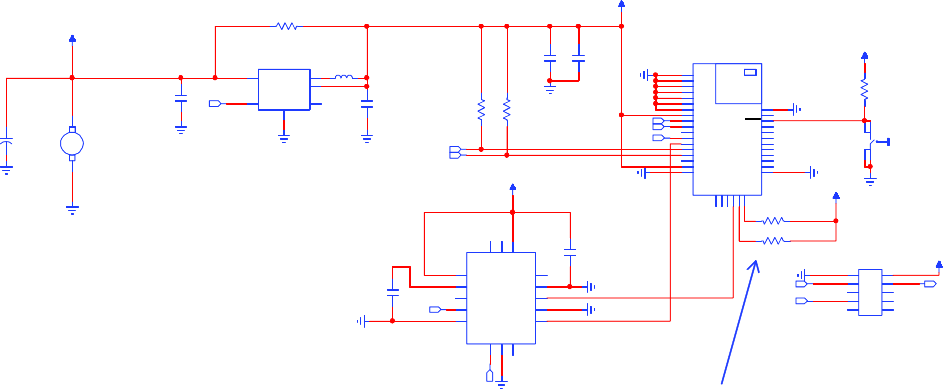

Figure 11: Example schematic for BLE113 with a coin cell battery, TPS62730 DCDC converter and an
I2C accelerometer
5.2 Layout Guide Lines
Use good layout practices to avoid excessive noise coupling to supply voltage traces or sensitive analog
signal traces. If using overlapping ground planes use stitching vias separated by max 3 mm to avoid emission
from the edges of the PCB. Connect all the GND pins directly to a solid GND plane and make sure that there
is a low impedance path for the return current following the signal and supply traces all the way from start to
the end.
A good practice is to dedicate one of the inner layers to a solid GND plane and one of the inner layers to
supply voltage planes and traces and route all the signals on top and bottom layers of the PCB. This
arrangement will make sure that any return current follows the forward current as close as possible and any
loops are minimized.
![](/img.php?id=2128980&img=bg14.png)
Bluegiga Technologies Oy
Page 20 of 30
Layout
•Supply voltage
–If possible use solid power plane
–Make sure that solid GND plane follows the traces all the way
–Do not route supply voltage traces across separated GND regions so that the
path for the return current is cut
•MIC input
–Place LC filtering and DC coupling capacitors symmetrically as close to audio
pins as possible
–Place MIC biasing resistors symmetrically as close to microhone as possible.
–Make sure that the bias trace does not cross separated GND regions (DGND ->
AGND) so that the path for the return current is cut. If this is not possible the do
not separate GND regions but keep one solid GND plane.
–Keep the trace as short as possible
Signals
GND
Power
Signals
Recommended PCB layer configuration
Figure 12: Typical 4-layer PCB construction
Overlapping GND layers without
GND stitching vias Overlapping GND layers with
GND stitching vias shielding the
RF energy

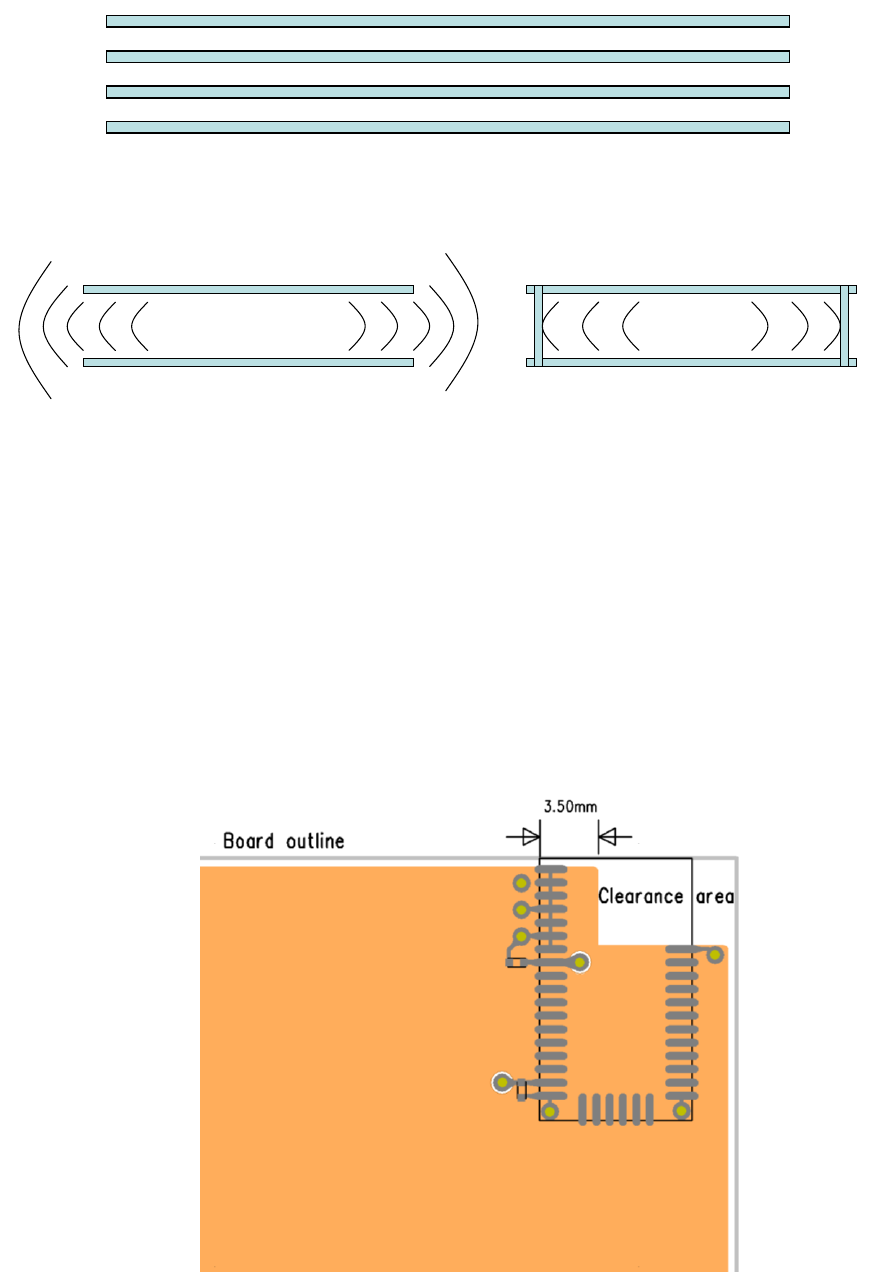

Figure 13: Use of stitching vias to avoid emissions from the edges of the PCB
5.3 BLE113-A Layout Guide
For optimal performance of the antenna place the module at the corner of the PCB as shown in the figure 14.
Do not place any metal (traces, components, battery etc.) within the clearance area of the antenna. Connect
all the GND pins directly to a solid GND plane. Place the GND vias as close to the GND pins as possible. Use
good layout practices to avoid any excessive noise coupling to signal lines or supply voltage lines. Avoid
placing plastic or any other dielectric material closer than 5 mm from the antenna. Any dielectric closer than 5
mm from the antenna will detune the antenna to lower frequencies.
Figure 14: Recommended layout for BLE113-A
![](/img.php?id=2128980&img=bg15.png)
Bluegiga Technologies Oy
Page 21 of 30

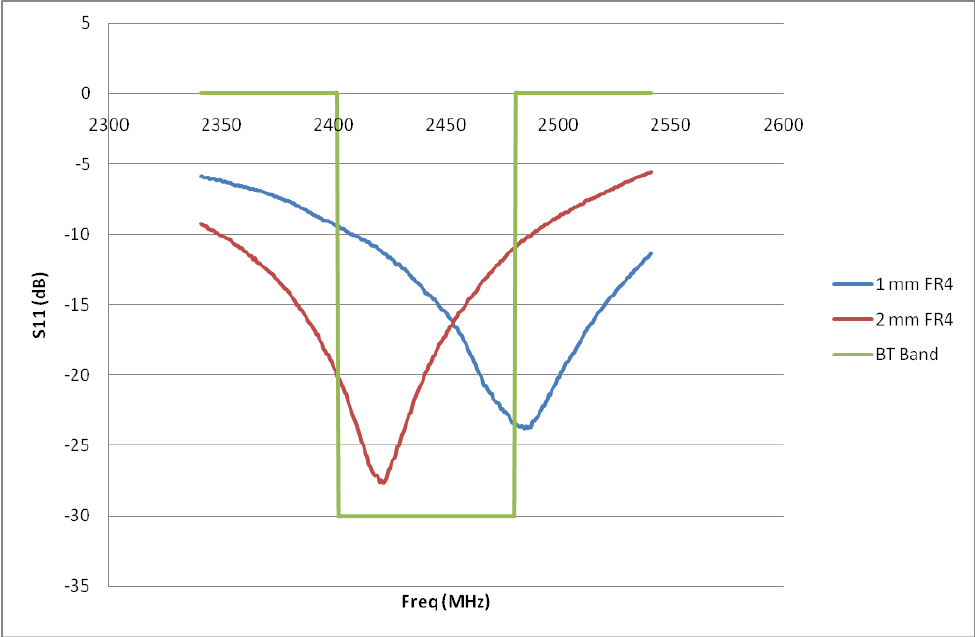

Figure 15: Typical return loss of BLE113-A with two different mother board PCB thickness
![](/img.php?id=2128980&img=bg16.png)
Bluegiga Technologies Oy
Page 22 of 30
6 Soldering Recommendations
BLE113 is compatible with industrial standard reflow profile for Pb-free solders. The reflow profile used is
dependent on the thermal mass of the entire populated PCB, heat transfer efficiency of the oven and
particular type of solder paste used. Consult the datasheet of particular solder paste for profile configurations.
Bluegiga Technologies will give following recommendations for soldering the module to ensure reliable solder
joint and operation of the module after soldering. Since the profile used is process and layout dependent, the
optimum profile should be studied case by case. Thus following recommendation should be taken as a
starting point guide.
- Refer to technical documentations of particular solder paste for profile configurations
- Avoid using more than one flow.
- Reliability of the solder joint and self-alignment of the component are dependent on the solder volume.
Minimum of 150m stencil thickness is recommended.
- Aperture size of the stencil should be 1:1 with the pad size.
- A low residue, “no clean” solder paste should be used due to low mounted height of the component.

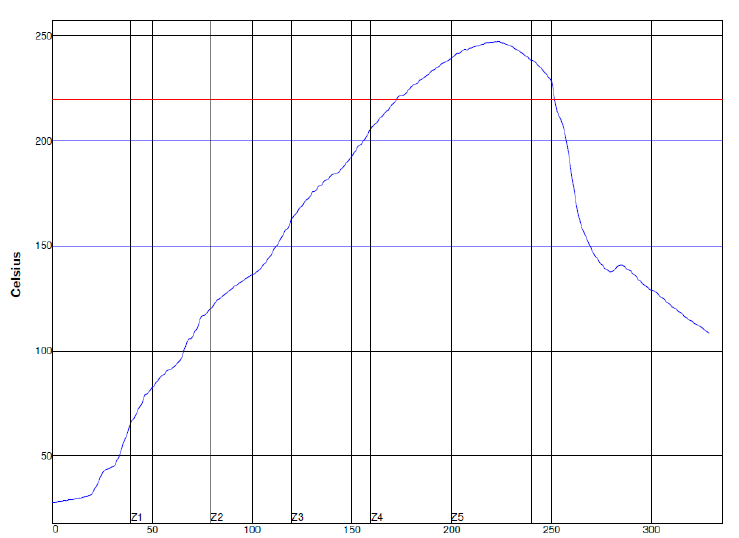

Figure 16: Reference reflow profile
![](/img.php?id=2128980&img=bg17.png)
Bluegiga Technologies Oy
Page 23 of 30
7 Block diagram
BLE113 is based on TI’s CC2541 chip. Embedded 32 MHz and 32.678 kHz crystals are used for clock
generation. Matched balun and low pass filter provide optimal radio performance with extremely low spurious
emissions. Small ceramic chip antenna gives good radiation efficiency even when the module is used in
layouts with very limited space.
I/O controller
CC2540
I/O
32 MHz
XTAL
32.768
kHz XTAL
Clock
Debug interface
8051 CPU core and memory arbitrator
Voltage regulator
SRAM
Flash
Analog comparator
ADC
IRQ controller DMA
I2C
USART 0
USART 1
TIMER 1
TIMER 2
TIMER 3
TIMER 4
Radio arbiter
Radio registers
Link layer engine
SRAM
ModulatorDemodulator Synth
Receive Transmit
Frequency
synthetisizer
Balun +
LPF
Chip
antenna
BLE112-A)
Reset
Power-on reset
2V –3.6V Reset
U.Fl
connector
(BLE112-E)
Assembly
variant:
BLE112-A or
BLE112-E

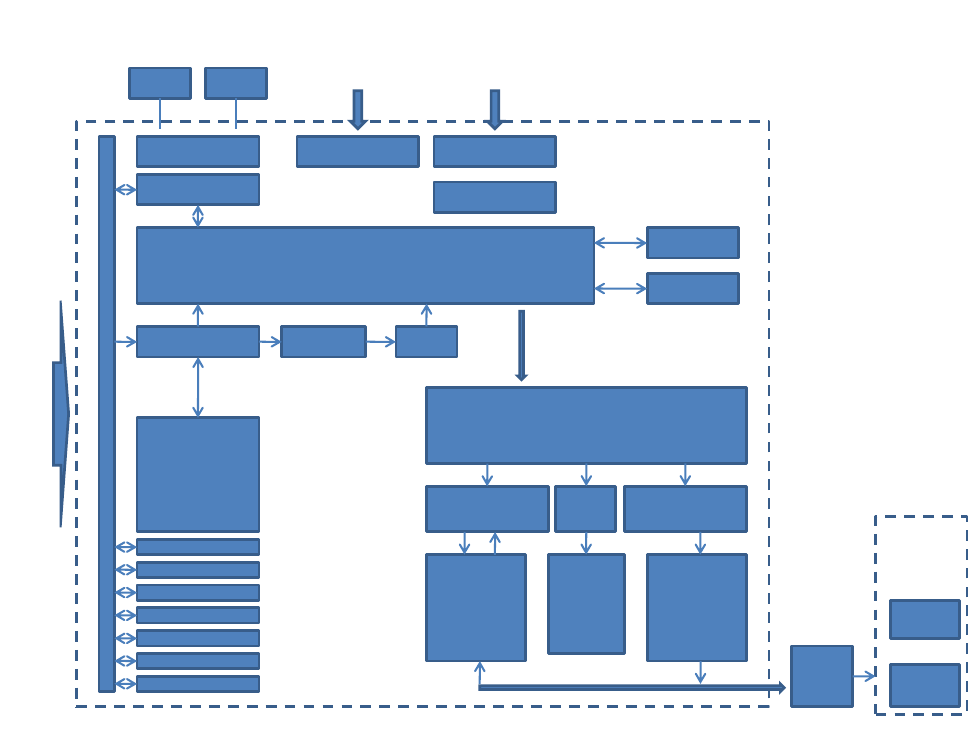

Figure 17: Simplified block diagram of BLE113
CPU and Memory
The 8051 CPU core is a single-cycle 8051-compatible core. It has three different memory access buses (SFR,
DATA, and CODE/XDATA), a debug interface, and an 18-input extended interrupt unit.
The memory arbiter is at the heart of the system, as it connects the CPU and DMA controller with the physical
memories and all peripherals through the SFR bus. The memory arbiter has four memory-access points,
access of which can map to one of three physical memories: an SRAM, flash memory, and XREG/SFR
registers. It is responsible for performing arbitration and sequencing between simultaneous memory accesses
to the same physical memory.
The SFR bus is a common bus that connects all hardware peripherals to the memory arbiter. The SFR bus
also provides access to the radio registers in the radio register bank, even though these are indeed mapped
into XDATA memory space.
Bluegiga Technologies Oy
Page 24 of 30
The 8-KB SRAM maps to the DATA memory space and to parts of the XDATA memory spaces. The SRAM is
an ultralow-power SRAM that retains its contents even when the digital part is powered off (power modes 2
and 3).
The 128/256 KB flash block provides in-circuit programmable non-volatile program memory for the device,
and maps into the CODE and XDATA memory spaces.
Peripherals
Writing to the flash block is performed through a flash controller that allows page-wise erasure and 4-bytewise
programming.
A versatile five-channel DMA controller is available in the system, accesses memory using the XDATA
memory space, and thus has access to all physical memories. Each channel (trigger, priority, transfer mode,
addressing mode, source and destination pointers, and transfer count) is configured with DMA descriptors that
can be located anywhere in memory. Many of the hardware peripherals (AES core, flash controller, USARTs,
timers, ADC interface, etc.) can be used with the DMA controller for efficient operation by performing data
transfers between a single SFR or XREG address and flash/SRAM.
Each CC2541 contains a unique 48-bit IEEE address that can be used as the public device address for a
Bluetooth device. Designers are free to use this address, or provide their own, as described in the Bluetooth
specification.
The interrupt controller services a total of 18 interrupt sources, divided into six interrupt groups, each of which
is associated with one of four interrupt priorities. I/O and sleep timer interrupt requests are serviced even if the
device is in a sleep mode (power modes 1 and 2) by bringing the CC2541 back to the active mode.
The debug interface implements a proprietary two-wire serial interface that is used for in-circuit debugging.
Through this debug interface, it is possible to erase or program the entire flash memory, control which
oscillators are enabled, stop and start execution of the user program, execute instructions on the 8051 core,
set code breakpoints, and single-step through instructions in the code. Using these techniques, it is possible
to perform in-circuit debugging and external flash programming elegantly.
The I/O controller is responsible for all general-purpose I/O pins. The CPU can configure whether peripheral
modules control certain pins or whether they are under software control, and if so, whether each pin is
configured as an input or output and if a pullup or pulldown resistor in the pad is connected. Each peripheral
that connects to the I/O pins can choose between two different I/O pin locations to ensure flexibility in various
applications.
The sleep timer is an ultra low power timer that uses an external 32.768-kHz crystal oscillator. The sleep timer
runs continuously in all operating modes except power mode 3. Typical applications of this timer are as a real-
time counter or as a wake-up timer to exit power modes 1 or 2.
Timer 1 is a 16-bit timer with timer/counter/PWM functionality. It has a programmable prescaler, a 16-bit
period value, and five individually programmable counter/capture channels, each with a 16-bit compare value.
Each of the counter/capture channels can be used as a PWM output or to capture the timing of edges on input
signals. It can also be configured in IR generation mode, where it counts timer 3 periods and the output is
ANDed with the output of timer 3 to generate modulated consumer IR signals with minimal CPU interaction.
Timer 2 is a 40-bit timer used by the Bluetooth low energy stack. It has a 16-bit counter with a configurable
timer period and a 24-bit overflow counter that can be used to keep track of the number of periods that have
transpired. A 40-bit capture register is also used to record the exact time at which a start-of-frame delimiter is
received/transmitted or the exact time at which transmission ends. There are two 16-bit timer-compare
registers and two 24-bit overflow-compare registers that can be used to give exact timing for start of RX or TX
to the radio or general interrupts.
Timer 3 and timer 4 are 8-bit timers with timer/counter/PWM functionality. They have a programmable
prescaler, an 8-bit period value, and one programmable counter channel with an 8-bit compare value. Each of
the counter channels can be used as PWM output.
USART 0 and USART 1 are each configurable as either an SPI master/slave or a UART. They provide double
buffering on both RX and TX and hardware flow control and are thus well suited to high-throughput full-duplex
applications. Each USART has its own high-precision baud-rate generator, thus leaving the ordinary timers
Bluegiga Technologies Oy
Page 25 of 30
free for other uses. When configured as SPI slaves, the USARTs sample the input signal using SCK directly
instead of using some oversampling scheme, and are thus well-suited for high data rates.
The AES encryption/decryption core allows the user to encrypt and decrypt data using the AES algorithm with
128-bit keys. The AES core also supports ECB, CBC, CFB, OFB, CTR, and CBC-MAC, as well as hardware
support for CCM.
The ADC supports 7 to 12 bits of resolution with a corresponding range of bandwidths from 30-kHz to 4-kHz,
respectively. DC and audio conversions with up to eight input channels (I/O controller pins) are possible. The
inputs can be selected as single-ended or differential. The reference voltage can be internal, AVDD, or a
single-ended or differential external signal. The ADC also has a temperature-sensor input channel. The ADC
can automate the process of periodic sampling or conversion over a sequence of channels.
The I2C module provides a digital peripheral connection with two pins and supports both master and slave
operation. I2C support is compliant with the NXP I2C specification version 2.1 and supports standard mode
(up to 100 kbps) and fast mode (up to 400 kbps). In addition, 7-bit device addressing modes are supported, as
well as master and slave modes..
The ultralow-power analog comparator enables applications to wake up from PM2 or PM3 based on an analog
signal. Both inputs are brought out to pins; the reference voltage must be provided externally. The comparator
output is connected to the I/O controller interrupt detector and can be treated by the MCU as a regular I/O pin
interrupt.
RF front end
RF front end includes combined matched balun and low pass filter, and ceramic chip antenna with matching
network. Optimal matching combined with effective low pass filter provides extremely low in-band spurious
emissions and harmonics.
![](/img.php?id=2128980&img=bg1a.png)
Bluegiga Technologies Oy
Page 26 of 30
8 Certifications
BLE113 is compliant to the following specifications.
8.1 Bluetooth
BLE113 is BT qualified as a controller subsystem. As a controller subsystem the module can be used as such
with a Host Subsystem to make a Bluetooth end product without additional qualification or QDID. The
Bluetooth QDID of BLE13 is B021015. The Bluetooth listing can be vied from the link below.
https://www.bluetooth.org/tpg/QLI_viewQDL.cfm?qid=21015
8.2 FCC and IC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by Bluegiga Technologies could void the
user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End
users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter
meets both portable and mobile limits as demonstrated in the RF Exposure Analysis. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC
multi-transmitter product procedures.
IC Statements:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful communication.
OEM Responsibilities to comply with FCC and Industry Canada Regulations
The BLE113 module has been certified for integration into products only by OEM integrators under the
following condition:
![](/img.php?id=2128980&img=bg1b.png)
Bluegiga Technologies Oy
Page 27 of 30
The transmitter module must not be co-located or operating in conjunction with any other antenna or
transmitter except in accordance with FCC multi-transmitter product procedures.
As long as the two condition above is met, further transmitter testing will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements required
with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for certain configurations or co-
location with another transmitter), then the FCC and Industry Canada authorizations are no longer considered
valid and the FCC ID and IC Certification Number can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the
transmitter) and obtaining a separate FCC and Industry Canada authorization.
End Product Labeling
The BLE113 module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and IC
Certification Number are not visible when the module is installed inside another device, then the outside of the
device into which the module is installed must also display a label referring to the enclosed module. In that
case, the final end product must be labeled in a visible area with the following:
“Contains Transmitter Module FCC ID: QOQBLE113”
“Contains Transmitter Module IC: 5123A-BGTBLE113”
or
“Contains FCC ID: QOQBT113”
“Contains IC: 5123A-BGTBLE113”
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module or change RF related parameters in the user manual of the end product.
8.2.1 FCC et IC
Déclaration d’IC :
Ce dispositif est conforme aux normes RSS exemptes de licence d’Industrie Canada. Son fonctionnement est
assujetti aux deux conditions suivantes : (1) ce dispositif ne doit pas provoquer de perturbation et (2) ce
dispositif doit accepter toute perturbation, y compris les perturbations qui peuvent entraîner un fonctionnement
non désiré du dispositif.
Selon les réglementations d’Industrie Canada, cet émetteur radio ne doit fonctionner qu’avec une antenne
d’une typologie spécifique et d’un gain maximum (ou inférieur) approuvé pour l’émetteur par Industrie
Canada. Pour réduire les éventuelles perturbations radioélectriques nuisibles à d’autres utilisateurs, le type
d’antenne et son gain doivent être choisis de manière à ce que la puissance isotrope rayonnée équivalente
(P.I.R.E.) n’excède pas les valeurs nécessaires pour obtenir une communication convenable.
Responsabilités des OEM quant à la conformité avec les réglementations de FCC et d’Industrie
Canada
Les modules BLE113 ont été certifiés pour entrer dans la fabrication de produits exclusivement réalisés par
des intégrateurs dans les conditions suivantes :
Bluegiga Technologies Oy
Page 28 of 30
Le module transmetteur ne doit pas être installé ou utilisé en concomitance avec une autre antenne
ou un autre transmetteur.
Tant que ces deux conditions sont réunies, il n’est pas nécessaire de procéder à des tests supplémentaires
sur le transmetteur. Cependant, l’intégrateur est responsable des tests effectués sur le produit final afin de se
mettre en conformité avec d’éventuelles exigences complémentaires lorsque le module est installé (exemple :
émissions provenant d’appareils numériques, exigences vis-à-vis de périphériques informatiques, etc.)
REMARQUE IMPORTANTE : En cas d’inobservance de ces conditions (en ce qui concerne certaines
configurations ou l’emplacement du dispositif à proximité d’un autre émetteur), les autorisations de FCC et
d’Industrie Canada ne seront plus considérées valables et l’identification de FCC et le numéro de certification
d’IC ne pourront pas être utilisés sur le produit final. Dans ces cas, l’intégrateur OEM sera chargé d’évaluer à
nouveau le produit final (y compris l’émetteur) et d’obtenir une autorisation indépendante de FCC et
d’Industrie Canada.
Étiquetage du produit final
Le module BLE113 est étiqueté avec sa propre identification FCC et son propre numéro de certification IC. Si
l’identification FCC et le numéro de certification IC ne sont pas visibles lorsque le module est installé à
l’intérieur d’un autre dispositif, la partie externe du dispositif dans lequel le module est installé devra
également présenter une étiquette faisant référence au module inclus. Dans ce cas, le produit final devra être
étiqueté sur une zone visible avec les informations suivantes :
« Contient module émetteur identification FCC : QOQBLE113 »
« Contient module émetteur IC : 5123A-BGTBLE113 »
ou
« Contient identification FCC : QOQBLE113 »
« Contient IC : 5123A-BGTBLE113 »
Dans le guide d’utilisation du produit final, l’intégrateur OEM doit s’abstenir de fournir des informations à
l’utilisateur final portant sur les procédures à suivre pour installer ou retirer ce module RF ou pour changer les
paramètres RF.
Bluegiga Technologies Oy
Page 29 of 30
8.3 CE
BLE113 is conformity with the following standards
SAFETY
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
EMC (Art. 3(1)(a)):
EN 301 489-1 v.1.9.2
EN 301 489-17:V2.2.1
o Radiated electric field immunity, EN 61000-4-3:2006
SPECTRUM (Art. 3(2)):
EN 300 328 v1.7.1
o Equivalent isotropic radiated power
o Maximum spectral power density
EN 300 328 V1.8.1
o Occupied channel bandwidth
o Transmitter unwanted spurious emissions in the out-of-band domain
o Transmitter unwanted spurious emissions in the spurious domain
o Receiver spurious emissions
8.4 MIC Japan
BLE113 is certified as a module with type certification number 007-AB0103. As a certified module BLE113 can
be integrated to an end product without a need for additional MIC Japan certification of the end product.
8.5 KCC (Korea)
BLE113 has type certification in Korea with certification number KCC-CRM-BGT-BLE113.
![](/img.php?id=2128980&img=bg1e.png)
Bluegiga Technologies Oy
Page 30 of 30
9 Contact Information
Sales: sales@bluegiga.com
Technical support: support@bluegiga.com
http://techforum.bluegiga.com
Orders: orders@bluegiga.com
WWW: www.bluegiga.com
www.bluegiga.hk
Head Office / Finland:
Phone: +358-9-4355 060
Fax: +358-9-4355 0660
Sinikalliontie 5A
02630 ESPOO
FINLAND
Postal address / Finland:
P.O. BOX 120
02631 ESPOO
FINLAND
Sales Office / USA:
Phone: +1 770 291 2181
Fax: +1 770 291 2183
Bluegiga Technologies, Inc.
3235 Satellite Boulevard, Building 400, Suite 300
Duluth, GA, 30096, USA
Sales Office / Hong-Kong:
Phone: +852 3972 2186
Bluegiga Technologies Ltd.
Unit 10-18
32/F, Tower 1, Millennium City 1
388 Kwun Tong Road
Kwun Tong, Kowloon
Hong Kong
