Simu U S 1-5M CUBS 1C& 5C Mobile 2008805/2008806 User Manual Hz 1 ch Mobile CuBs 5125969A

Simu U.S. Inc. CUBS 1C& 5C Mobile 2008805/2008806 Hz 1 ch Mobile CuBs 5125969A

Users Manual

- 200880612Transmission indicatorLow baer indicatorSelected Channel: 1,2,3,4,5or All (All = Ch 1-5 simultaneously)UP control buonSTOP control buonDOWN control buonSelect buonProgramming buon 345786 9 Transmier range. (Maximum transmission me: 10 seconds)10 Protecon Index. For indoor use.11 Operang temperature Storage temperature - Frequency: 433.42 MHz

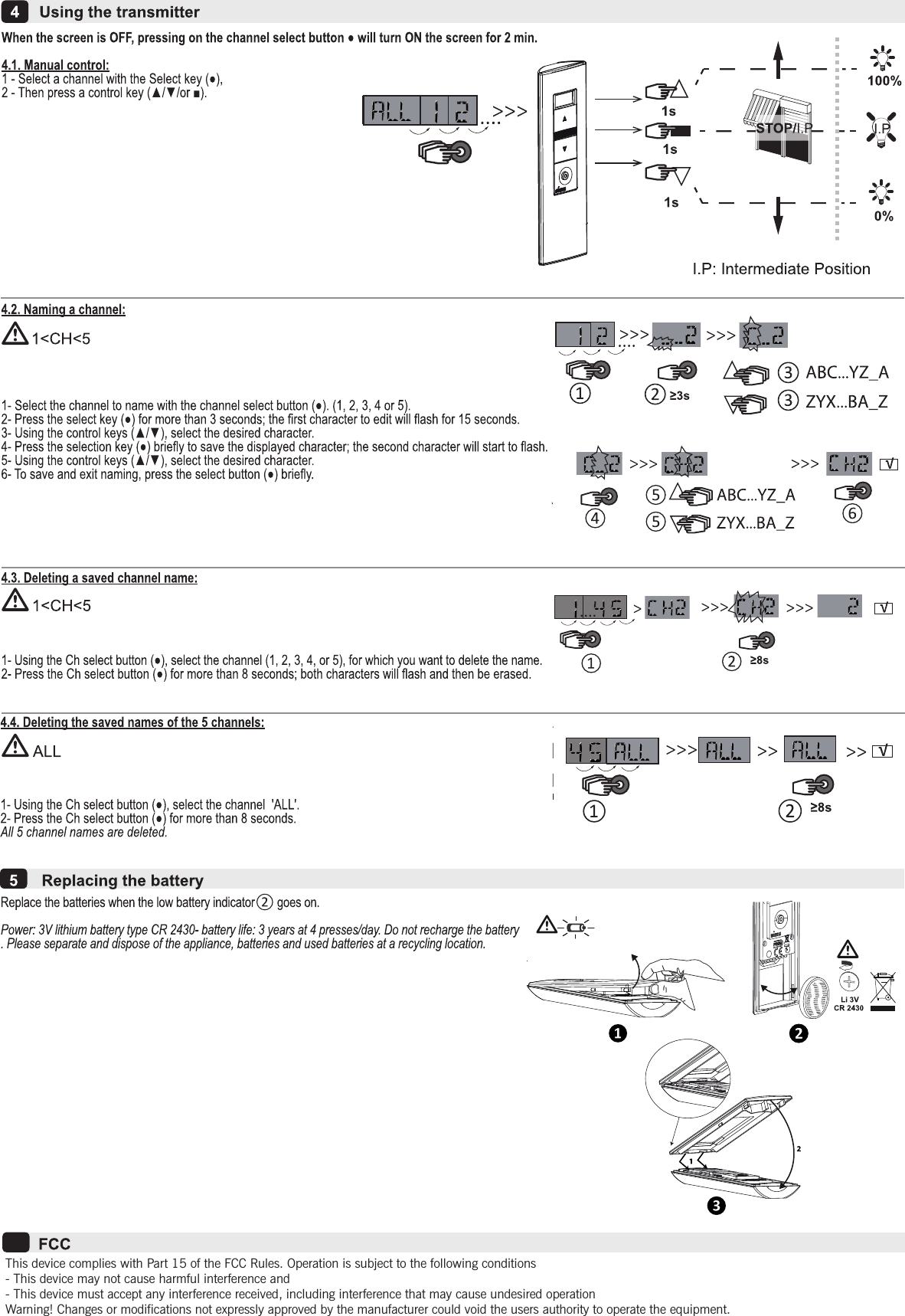

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions- This device may not cause harmful interference and- This device must accept any interference received, including interference that may cause undesired operationWarning! Changes or modifications not expressly approved by the manufacturer could void the users authority to operate the equipment.
Read carefully these instructions before any use. USA - HZ Mobile Transmitter 1 channel - 2008805- Power supply is not required for saving data.- Data need not be programmed once again when the cell is changed.- Do not recharge the battery.- Please separate and dispose of the appliance, batteries and used batteries at a recycling location. 25mm63/64 inch13mm33/64 inch40mm37/641 inch125mm4 59/64 inch3mm1⁄8inch3mm1s1s1s0%100%I.PSTOP/I.P6m max.20ft ma x14°F(-10°C)140°F(+60°C)IP30Transmission indicator LedPROG2 s.PROG2 s.5125969A For more complete information about programming, please refer to the instructions of the motor used.Refer to Hz motor instructions to make sure it has this feature.- For group controls from the new transmitter, repeat operations 1.1 and 1.2 for each motor of the group.- For main controls from the new transmitter, repeat operations 1.1 and 1.2 for each motor of the installation.- To delete a transmitter from the memory of a motor, perform operation 1.1 with a programmed transmitter, then perform operation 1.2 with the transmitter to be deleted.1.1. Open the memory of the motor using its individual control transmitter:- Press the Prog. Button for about 3 sec. on the motor’s individual control transmitter, the motor will jog.1.2. Then validate the operation from the new transmitter to be programmed:- Press the Prog. Button for about 1 sec. on the new transmitter, the motor will jog.- Compatible with motors & receivers- Wireless switch/class III – Protection Index: IP30- Maximum transmission time: 10 seconds- Operating temperature: 14oF (-10oC) to 140oF (60oC)- Storage temperature: -22oF (-30oC) to 158oF (70oC)- Transmitter range: 20ft max. (6m max) throught 2 concrete walls in normal- Power: 3V lithium battery type CR 2430. Lifetime ± 3 years when 4 pressures of 1s./day.- Keep away from children- Do not position the transmitter near metal in order to ensure its proper operation and prevent reduced range- A radio appliance using the same frequency (for example : hi-fi radio headphones) may deteriorate our product’s performance.- Do not immerse the product, avoid splashing of liquids.- Do not use abrasive products or solvents to clean the product.- Frequency: 433.420 MHzAdding the transmitter to an existing installation1Programming and use Intermediate Position (I.P):2Technical data3 Replacing the battery FCC45sProgramming:- Move the motor to the desired position.- Press 5 seconds on the STOP button. The motor will jog.0.5sUse:- Press the STOP button for 0.5 second. The motor runs to the intermediate position.S.A.S. au capital de 5 000 000 € - Z.I. Les Giranaux - BP71 - F70103 Arc-Les-Gray CEDEX - RCS VESOUL B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090I.P= Intermediate positionThis device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions- This device may not cause harmful interference and- This device must accept any interference received, including interference that may cause undesired operationWarning! Changes or modifications not expressly approved by the manufacturer could void the users authority to operate the equipment.
