Sinocastel 213W OBD Vehicle Tracking Device User Manual

IDD-213W User Manual

(Rev. 1.0)

Sinocastel Co., Ltd.

August, 2017

IDD-213W User Manual

1

Contents

1. Introduction ...................................................................................................................................................................... 4

2. Specifications ................................................................................................................................................................... 5

2.1 External Interface .................................................................................................................................................... 5

2.2 Status Indicator ....................................................................................................................................................... 6

2.3 Technical Parameters ............................................................................................................................................ 7

3. Device Configuration .................................................................................................................................................... 9

3.1 PC Tool ....................................................................................................................................................................... 9

3.2 SMS Instructions ..................................................................................................................................................... 9

4. Installation Instruction............................................................................................................................................... 11

4.1 SIM Card Installation .......................................................................................................................................... 11

4.2 OBD Port ................................................................................................................................................................. 12

4.3 Device Installation ............................................................................................................................................... 13

5. Functions ........................................................................................................................................................................ 17

5.1 OBD Protocols ...................................................................................................................................................... 17

5.2 Location Inquiry ................................................................................................................................................... 17

5.3 Regular GPS data reporting............................................................................................................................. 17

5.4 Regular G-Sensor Data Reporting ................................................................................................................ 18

5.5 Regular Diagnostic Data Reporting .............................................................................................................. 18

5.6 DTCs Reporting .................................................................................................................................................... 18

5.7 Cell ID Reporting ................................................................................................................................................. 18

5.8 GPS Data Reporting in Sleep Mode ............................................................................................................. 19

5.9 Data storage/Supplementary Report in Dead zones............................................................................. 19

5.10 Trip Mileage ........................................................................................................................................................ 19

5.11 Trip Fuel Consumption ................................................................................................................................... 19

5.12 Driving behavior monitoring ........................................................................................................................ 19

5.13 Alarms and Events Reporting ....................................................................................................................... 19

5.14 Working Mode ................................................................................................................................................... 20

5.15 GPS/Cellular Timer ............................................................................................................................................ 20

5.16 SMS Alert .............................................................................................................................................................. 20

IDD-213W User Manual

2

5.17 Google Map Link ............................................................................................................................................... 20

5.18 Remote Configuration .................................................................................................................................... 21

5.19 SMS Configuration ........................................................................................................................................... 21

5.20 PC Tool Configuration ..................................................................................................................................... 21

6. Disclaimer ....................................................................................................................................................................... 22

7. Warranty ......................................................................................................................................................................... 23

8. Statement ....................................................................................................................................................................... 24

IDD-213W User Manual

3

Regulatory Compliance

FCC Regulations

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

This device must accept any interference received, including interference that may

cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiated radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modifications not expressly approved by the party responsible

for compliance could void the user‘s authority to operate the equipment.

RF Exposure Information

This device complies with FCC radiation exposure limits set forth for an uncontrolled

environment. In order to avoid the possibility of exceeding the FCC radio frequency

exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches)

during normal operation.

IDD-213W User Manual

4

1. Introduction

IDD-213W is an intelligent on-board diagnostic device with OBD II and SAE

J1939/J1708 (Heavy duty) compliant, it features plug-and-play technology, could read

diagnostic info from vehicle ECU and capture location data with built-in GPS, then

send them to backend server for real-time remote diagnostic and tracking purpose.

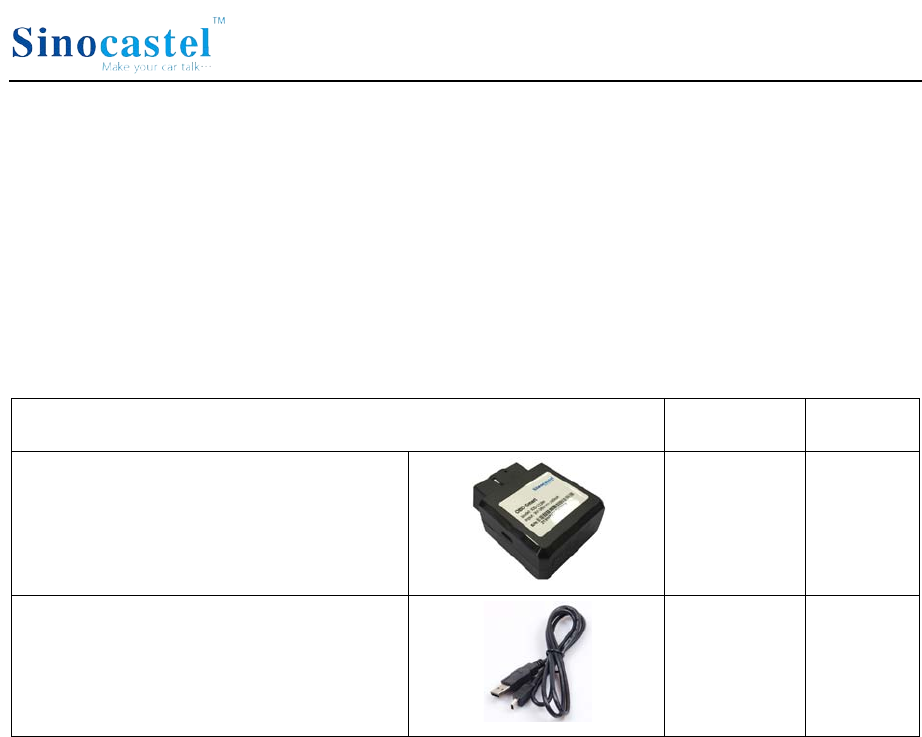

Packing List

Parts name Quantity Note

IDD-213W OBD Dongle

1 ●

USB Configuration

Cable

1 ○

Note: ● Standard configuration ○ Optional configuration

(Optional accessories will not be included if there is no indication in the order)

IDD-213W User Manual

5

2. Specifications

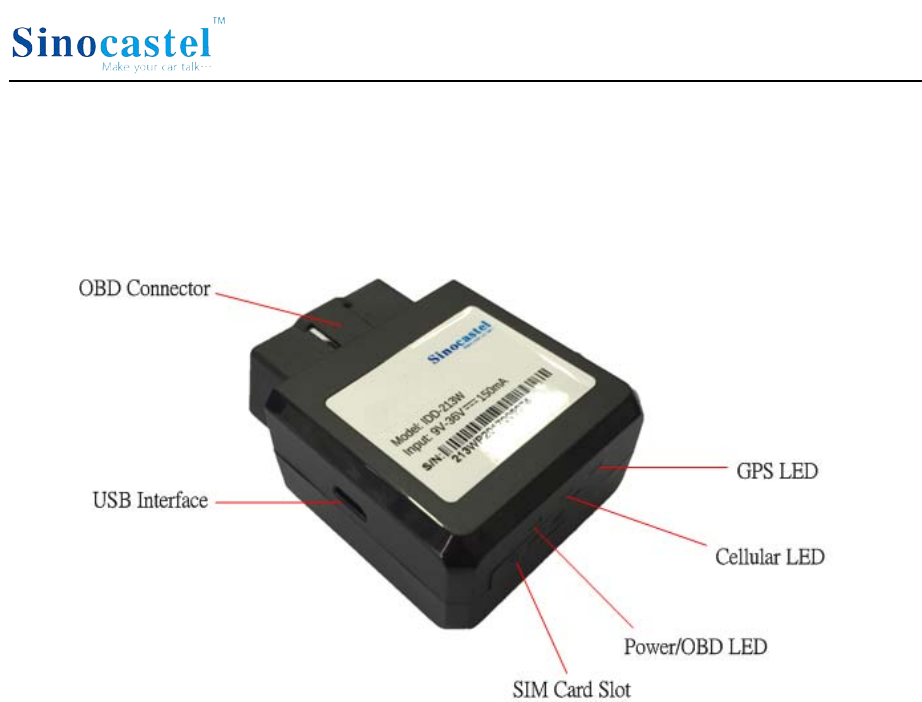

2.1 External Interface

Product appearance as follows：

1. Standard OBD Connector

Connect to the 16 pin on-board Diagnostic Link Connector (DLC).

2. Micro USB Interface

Connect to PC through USB configuration cable.

3. SIM Card slot

IDD-213W User Manual

6

2.2 Status Indicator

Indicator Color Status

Power/OBD

LED Red

Blinking (on 0.5s, off 0.5s) - Trying to access OBD

system or power off

Solid on - Successful OBD communication

Solid off - Tracker mode or in sleep

Cellular LED Orange-red

Fast blinking (on 0.5s, off 0.5s) - No SIM card or

network searching

Slow blinking (on 0.5s, off 2.5s) - Registered network

Solid on - Logged into the server

Solid off - Cellular off

GPS LED Green

Blinking (on 1s, off 1s) - GPS signal is good

Solid on - Searching for GPS signal

Solid off - GPS off

Buzzer Beep

One beep - Power on

Two beeps - Successful OBD communication

Three beeps - Successful log in

Four beeps - Trip end and stop OBD communication

Five beeps - Power off

Six beeps - Fail to access OBD system

Five beeps (short beep) - Alarm indication

5064mm

IDD-213W User Manual

7

2.3 Technical Parameters

Mechanical Dimension (L) x mm (W) x 28mm (H)

Weight 50g

Interface

OBD interface: 16 pin standard OBD II

Configuration interface: Micro USB

SIM card interface: Push-Push Type

Storage 2MB FLASH, can store up to 24000 GPS data

Data Transmission Packet data (GPRS or HSPA) and SMS

Positioning Mode GPS

OBD Protocol

SAE J1850 PWM

SAE J1850 VPW

ISO 9141-2

ISO 14230-4

ISO 15765-4

SAE J1939 (Heavy duty)

SAE J1587/J1708 (Heavy duty)

Power

Working Voltage 9-36VDC

Working Currency

Average Currency: <150mA@13.8/27.6VDC

Max. Currency: <200mA@13.8/27.6VDC

Sleep Currency: <10mA@12/24VDC

Internal Battery 3.7V/150mA Lithium battery

3-axis Accelerometer +/-2g、+/-4g、+/-8g、+/-16g

GPS

Channels: 48

Sensitivity: -163dBm

Accuracy: 5m CEP

Time to first fix:

Cold start: <35s (typ.)

Hot start: <1s (typ.)

Cellular

Frequency:

GSM/GPRS/EDGE: 850/900/1800/1900MHz

UMTS/HSDPA: 850/900/1900/2100MHz

Network protocol: Embedded TCP/IP stack

Sensitivity:

-110dBm@UMTS

IDD-213W User Manual

8

-109dBm@GSM 850/900MHz

-108dBm@GSM 1800/1900MHz

Output power:

Class 4 (2W, 33dBm)@GSM 850/900MHz

Class 1 (1W, 30dBm)@GSM 1800/1900MHz

Class 3 (0.25W, 24dBm)@UMTS

Certification: CE, GCF, FCC, PTCRB, IC, AT&T

LED Indicator OBD/Cellular/GPS

Buzzer System status/Alarm indication

Antenna Cellular Antenna Built-in

GPS Antenna Built-in

Environment

Working

Temperature -30℃ ~ +70℃

Storage

Temperature -40℃ ~ +85℃

Humidity 5%～95%（no fog）

IDD-213W User Manual

9

3. Device Configuration

3.1 PC Tool

Download USB driver and PC Tool at http://www.sinocastel.com/Support/. Install the

USB driver and PC Tool on your PC.

Connect device to PC through USB configuration cable, open the OBD PC Tool, click

on “Help->User manual” for configuration reference.

3.2 SMS Instructions

SMS command is mainly for remote maintenance. The message content is text format.

Default secret key is the last 6 digits of the device ID. The key can only be changed

through PC Tool. SMS format is defined as follows:

3.2.1 Set IP parameters

Send SMS *SecretKey#set gprs#APN,User,Password,IP,Port*, device will reply *set

gprs#ok* or *set gprs#fail*.

e.g.: *123456#set gprs#cmnet,,,113.98.241.66,11088*

3.2.2 Get IP parameters

Send SMS *SecretKey#get gprs#*, device will reply *get gprs#APN,User,Password,

IP,Port*.

e.g.: *123456#get gprs#*

3.2.3 Set domain parameters

Send SMS *SecretKey#set domain #APN,User,Password,IP,Port*, device will reply *set

domain#ok* or *set domain#fail*.

e.g.: *123456#set domain# cmnet,,,obd.livetelematics.com,11088*

3.2.4 Get domain parameters

Send SMS *SecretKey#get domain#*, device will reply *get domain#APN,User,

Password,domain,Port*.

e.g.: *123456#get domain#*

3.2.5 Get current location

IDD-213W User Manual

10

Send SMS *SecretKey#position#*, device will reply

*position#http://maps.google.com /?q=latitude,longitude*.

e.g.: *123456#position#*http://maps.google.com/?q=22.536934,114.021425*

3

.

2

.

6

S

e

t

w

o

r

k

i

n

g

m

o

d

e

Send SMS *SecretKey #set workmode#mode*, device will reply

*set workmode#ok/fail*.

mode = passengerˣheavyduty tracker

e.g.: *123456#set workmode#tracker*

3

.

2

.

7

G

e

t

w

o

r

k

i

n

g

m

o

d

e

Send SMS *SecretKey #get workmode#*, device will reply *get workmode#mode*.

mode = passengerˣheavyduty tracker

e.g.: *123456#get workmode#*

or

IDD-213W User Manual

11

4

.

I

n

s

t

a

l

a

t

i

o

n

I

n

s

t

r

u

c

t

i

o

n

4

.

1

S

I

M

C

a

r

d

I

n

s

t

a

l

a

t

i

o

n

1. Remove the SIM card cover.

2. Insert the SIM card and press gently, a click will be heard upon successfully placing

the SIM card in its place, please follow the insertion direction marked on the SIM

card cover.

3. Put the SIM card cover back.

N

o

t

e

:

There is a backup battery in the device, please make sure all lights are off before inserting or

removing SIM card.

IDD-213W User Manual

12

4

.

2

O

B

D

P

o

r

t

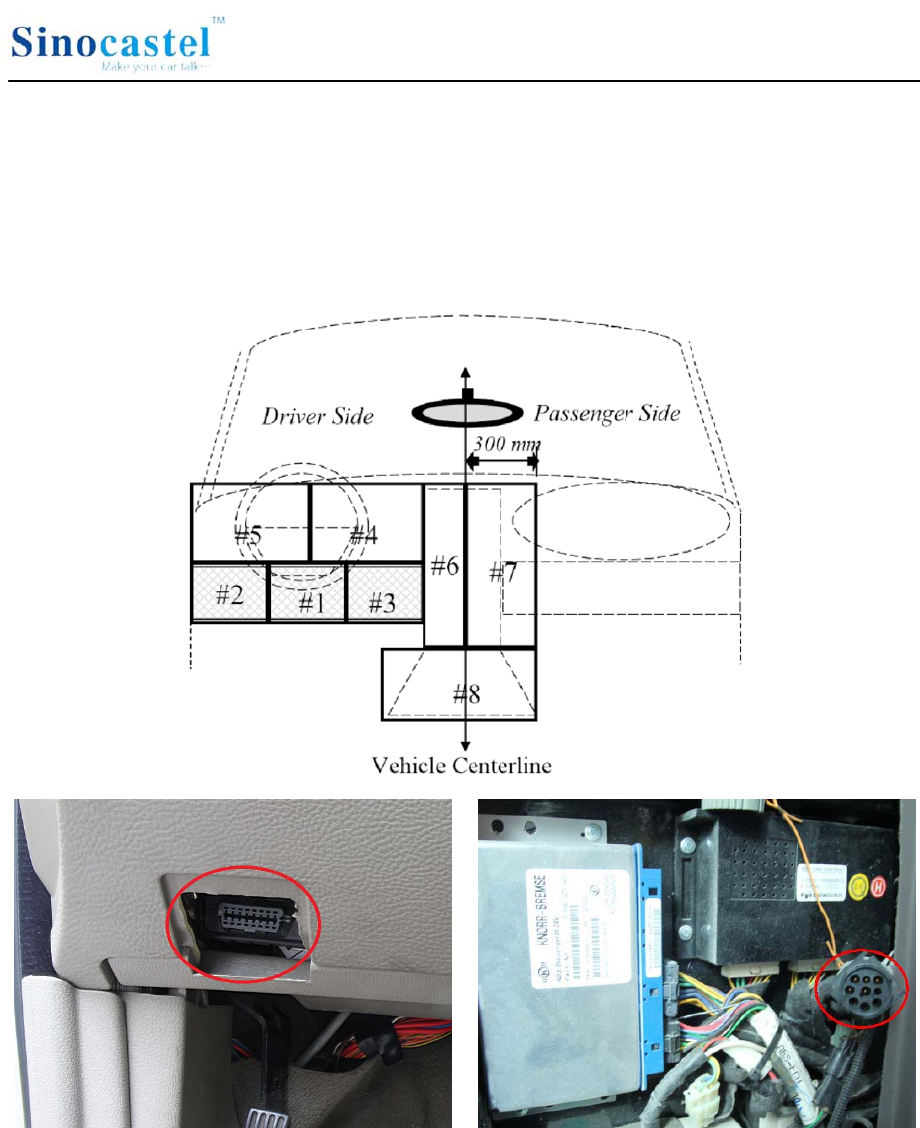

In general, the OBD port is located in the driver or passenger cabin, from the edge of

dashboard on driver side to the border of 300mm. It is easy to touch by sitting in the

driver's seat; the preferred location is within the area from steering post to the vehicle

centerline.

IDD-213W User Manual

13

4

.

3

D

e

v

i

c

e

I

n

s

t

a

l

a

t

i

o

n

Before installing the device, please make sure device has been configured with

necessary parameters including network parameters and working mode.

Park the car and make sure engine is off, align the OBD connector of the device with

the engine diagnostic port and simply push in place, ensuring the device is secure.

There comes one beep indicating device is power on.

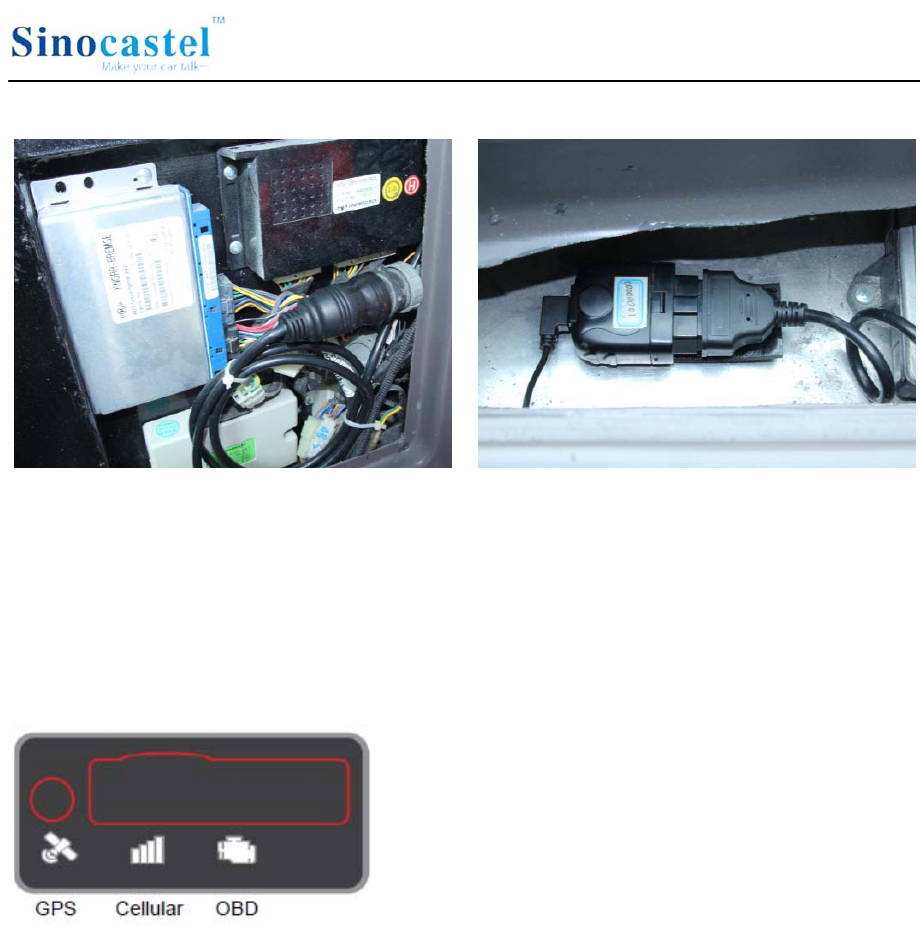

If the OBD port cover can not be closed back after device plugged in, please use OBD

extension cable and mount the device in proper place.

IDD-213W User Manual

14

Some heavy duties may need 9-Pin or 6-Pin deutsch wiring harness.

For vehicles do not have an OBD port, please use power cable to connect vehicle

battery and configure the device with tracker mode.

Start engine, then device starts OBD communication, acquiring GPS info and Cellular

network connection. Various status can be indicated by lights and beeps.

O

B

D

c

o

m

u

n

i

c

a

t

i

o

n

: The OBD light change its status to solid on and comes 2 beeps

with successful OBD communication.

G

P

S

f

u

n

c

t

i

o

n

: The GPS light becomes blinking indicates that device has got its

location.

C

e

l

u

l

a

r

c

o

n

e

c

t

i

o

n

: The Cellular light change its status to slow blinking indicates

registered network, becomes solid on and comes 3 beeps indicate logged into the

server.

N

o

t

e

:

When device is the first time power on (plugged in), it will scan OBD protocol according to

pre-configured working mode (ie, passenger car or heavy duty mode), the maximum scanning

time can be up to 10 minutes, if no OBD protocol is detected during this period, device will auto

change working mode to tracker mode, if OBD protocol is detected, device will keep its working

IDD-213W User Manual

15

mode. After auto scanning period device will not change working mode anymore even it is

re-plugged, unless working mode is re-configured with PC Tool, via SMS, or from server. If tracker

mode is pre-configured device will not scan OBD protocol and keep working with tracker mode

unless working mode is re-configured. There comes 6 beeps indicating that device is working with

tracker mode.

*

I

f

G

P

S

d

o

e

s

n

o

t

w

o

r

k

, please use OBD extension cable and mount the device in a proper place to

make sure GPS signal can be well received.

*

I

f

d

a

s

h

b

o

a

r

d

l

i

g

h

t

s

a

r

e

a

b

n

o

r

m

a

l

a

f

t

e

r

i

n

s

t

a

l

a

t

i

o

n

,

p

l

e

a

s

e

r

e

m

o

v

e

t

h

e

d

e

v

i

c

e

a

n

d

c

o

n

t

a

c

t

S

i

n

o

c

a

s

t

e

l

t

e

c

h

n

i

c

a

l

t

e

a

m

.

*

D

o

n

o

t

p

l

u

g

o

r

u

n

p

l

u

g

d

e

v

i

c

e

w

h

e

n

e

n

g

i

n

e

i

s

o

n

,

t

h

i

s

m

a

y

c

a

u

s

e

u

n

p

r

e

d

i

c

t

a

b

l

e

p

r

o

b

l

e

m

.

*

A

f

t

e

r

e

n

g

i

n

e

o

f

d

e

v

i

c

e

g

o

e

s

i

n

t

o

s

l

e

p

m

o

d

e

,

w

h

i

l

e

i

t

s

t

i

l

k

e

p

s

w

o

r

k

i

n

g

i

n

o

r

d

e

r

t

o

d

e

t

e

c

t

e

n

g

i

n

e

o

n

,

t

h

e

c

u

r

e

n

t

c

o

n

s

u

m

p

t

i

o

n

i

n

s

l

e

p

i

s

1

0

m

A

.

N

o

r

m

a

l

y

w

e

s

u

g

e

s

t

u

n

p

l

u

g

d

e

v

i

c

e

i

f

v

e

h

i

c

l

e

w

i

l

b

e

n

o

t

u

s

e

d

f

o

r

m

o

r

e

t

h

a

n

5

d

a

y

s

i

n

c

a

s

e

o

f

d

r

y

i

n

g

o

u

t

v

e

h

i

c

l

e

b

a

t

e

r

y

.

IDD-213W User Manual

17

5

.

F

u

n

c

t

i

o

n

s

5

.

1

O

B

D

P

r

o

t

o

c

o

l

s

Device supports all legislated OBD II protocols, it is also SAE J1939 and SAE J1708

compliant.

¾ SAE J1850-PWM

¾ SAE J1850-VPW

¾ ISO 9141-2

¾ ISO 14230-4 (KWP2000)

¾ ISO 15765-4 (CAN)

¾ SAE J1939 (Heavy duty)

¾ SAE J1587/J1708 (Heavy duty)

5

.

2

L

o

c

a

t

i

o

n

I

n

q

u

i

r

y

Upon receiving location inquiry message from server or via SMS, device reports GPS

data immediately.

5

.

3

R

e

g

u

l

a

r

G

P

S

d

a

t

a

r

e

p

o

r

t

i

n

g

GPS data can be sampled by 3 means: by time interval, by distance or by heading

change. They can be enabled or disabled separately, only sampled by time interval is

enabled by default.

The sample rate for time interval can be 2-600s and default setting is 30s, for distance

interval can be 50-5000m and default setting is 500m, for heading change can be 5-90°

and default setting is 15°.

There can be single or several groups of GPS data in one GPS message, determined by

groups of GPS data per message, device will not report GPS message until it has

collected specified groups of GPS data. Groups of GPS data per message can be 1-30

and default setting is 1.

For example, sampled by time interval and sampled by distance are enabled, and the

respective settings are 10s and 500m, groups of GPS data per message is 5. Assume

that vehicle is running at speed of 72km/h (20m/s), then it takes 25s to run out of

500m, so GPS data are sampled at 10th, 20th, 25th, 30th, 40th second and reported at

40th second as 5 groups of GPS data have been collected at that time.

IDD-213W User Manual

18

The suggested minimal interval for GPS report is 10s. For example, if only sampled by

time interval is enabled, then the settings might be 10s of sample rate and 1 group of

GPS data per message, or 5s of sample rate and 2 groups of GPS data per message.

5

.

4

R

e

g

u

l

a

r

G

-

S

e

n

s

o

r

D

a

t

a

R

e

p

o

r

t

i

n

g

Device reports G-Sensor data (g-value of X/Y/Z axis) according to configured time

interval, this function is disabled by default.

The sample rate can be 200-6000ms and default setting is 1000ms.

There can be single or several groups of G-Sensor data in one G-Sensor message,

determined by groups of G-Sensor data per message, device will not report G-Sensor

message until it has collected specified groups of G-Sensor data. Groups of G-Sensor

data per message can be 50-100 and default setting is 100.

5

.

5

R

e

g

u

l

a

r

D

i

a

g

n

o

s

t

i

c

D

a

t

a

R

e

p

o

r

t

i

n

g

Device is able to read variety of vehicle diagnostic data, also called PID (parameter ID),

including vehicle speed, engine RPM, engine coolant temperature, mass flow air, etc,

and report up to 10 types of PID data according to configured time interval.

The sample rate can be 2-600s and default setting is 60s.

There can be single or several groups of PID data in one PID message, determined by

groups of PID data per message, device will not report PID message until it has

collected specified groups of PID data. Groups of PID data per message can be 1-30

and default setting is 1.

The suggested minimal interval for PID report is 10s, for example, 10s of sample rate

and 1 group of PID data per message, or 5s of sample rate and 2 groups of PID data

per message.

5

.

6

D

T

C

s

R

e

p

o

r

t

i

n

g

Device is able to read vehicle pending and stored DTCs (diagnostic trouble code), and

freeze frame data. The backend server analyzes and displays the DTCs for users on

time to avoid high repairing cost.

5

.

7

C

e

l

I

D

R

e

p

o

r

t

i

n

g

Device reports Cell ID every 30 seconds when it loses GPS signal, this function is

disabled by default.

IDD-213W User Manual

19

5

.

8

G

P

S

D

a

t

a

R

e

p

o

r

t

i

n

g

i

n

S

l

e

p

M

o

d

e

Device reports GPS data according to configured time interval during sleep. The time

interval can be 10-1440min and default setting is 60min.

5

.

9

D

a

t

a

s

t

o

r

a

g

e

/

S

u

p

l

e

m

e

n

t

a

r

y

R

e

p

o

r

t

i

n

D

e

a

d

z

o

n

e

s

When there is no Cellular signal or Cellular signal is poor, GPS information are stored,

and reported after signal recovery. Supplementary report can be last for 15 minutes at

most after ignition is off.

5

.

1

0

T

r

i

p

M

i

l

e

a

g

e

Device reports driving mileage in each reported message.

5

.

1

T

r

i

p

F

u

e

l

C

o

n

s

u

m

p

t

i

o

n

Device reports fuel consumption in each reported message.

5

.

1

2

D

r

i

v

i

n

g

b

e

h

a

v

i

o

r

m

o

n

i

t

o

r

i

n

g

Real-time detects bad driving behavior, including Speeding, high RPM, hard

acceleration, hard brake, excessive engine idle time.

5

.

1

3

A

l

a

r

m

s

a

n

d

E

v

e

n

t

s

R

e

p

o

r

t

i

n

g

Alarms and Events are reported when they are triggered or eliminated and there

comes short beeps, beeps are disabled by default.

¾ Engine on/off

¾ High RPM (triggered and eliminated)

¾ Speeding (triggered and eliminated)

¾ Low battery voltage (triggered and eliminated)

¾ High engine coolant temperature (triggered and eliminated)

¾ Hard acceleration

¾ Hard brake

¾ Excessive engine idle time (triggered and eliminated)

¾ Fatigue driving (triggered and eliminated)

¾ Towed

¾ MIL on/off

¾ Excessive exhaust emission (triggered and eliminated)

IDD-213W User Manual

20

¾ Plug indication

¾ Unplug notification

Default thresholds for alarms:

¾ High RPM: 4500r/min

¾ Speeding: 120km/h

¾ Low battery voltage: 10.5V

¾ High engine coolant temperature: 98ǔ

¾ Hard acceleration: 0.4g

¾ Hard brake: 0.6g

¾ Excessive engine idle time: 15min

¾ Fatigue driving: 240min

5

.

1

4

W

o

r

k

i

n

g

M

o

d

e

Device supports 3 types of working mode: Passenger car, Heavy duty and Tracker

mode.

With tracker mode, device does not report diagnostic data, DTCs, trip fuel

consumption and some alarms including high RPM, high engine coolant temperature,

hard acceleration, hard brake, excessive engine idle time, MIL and excessive exhaust

emission.

With Tracker mode, device wakes up from sleep on detecting motion state last for 20

seconds, and goes into sleep on detecting static state last for 3 minutes.

5

.

1

5

G

P

S

/

C

e

l

u

l

a

r

T

i

m

e

r

GPS and cellular can keep working after ignition off according to configured timer, but

no regular reports during this period. This function is disabled by default.

The timer for GPS/GSM can be 5-7200min and default setting is 720min, for data

connection can be 5-120min and default setting is 60min.

5

.

1

6

S

M

S

A

l

e

r

t

If user mobile phone numbers are configured, device sends SMS to each user number

when alarms are triggered or eliminated, it is disabled by default.

5

.

1

7

G

o

g

l

e

M

a

p

L

i

n

k

IDD-213W User Manual

21

Latitude and longitude in location SMS can be directly linked to Google map.

5

.

1

8

R

e

m

o

t

e

C

o

n

f

i

g

u

r

a

t

i

o

n

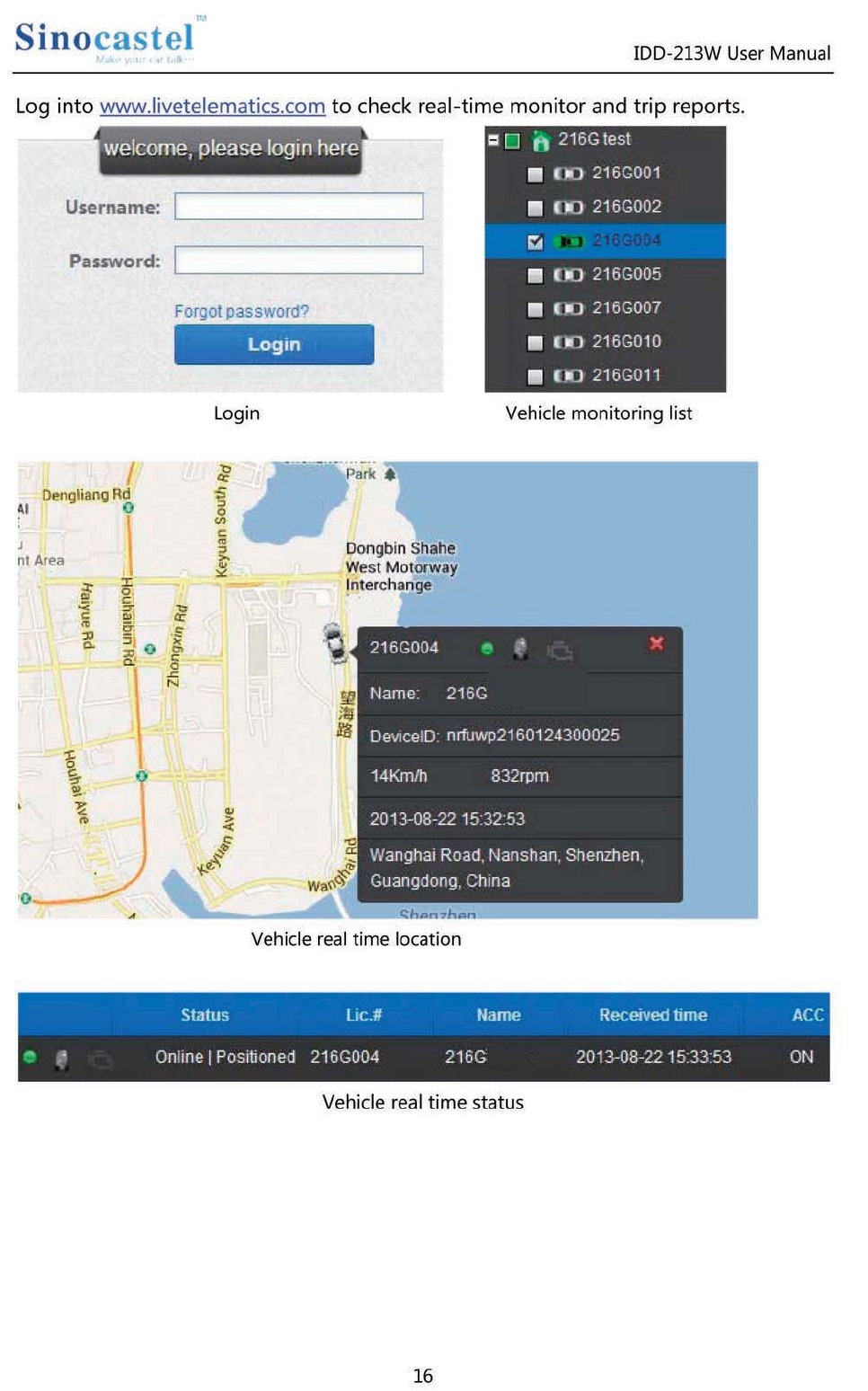

Users can configure device or update firmware through website:

http://www.livetelematics.com.

5

.

1

9

S

M

S

C

o

n

f

i

g

u

r

a

t

i

o

n

Users can configure device via SMS commands.

5

.

2

0

P

C

T

o

l

C

o

n

f

i

g

u

r

a

t

i

o

n

Users can configure device or update firmware through PC Tool.

IDD-213W User Manual

22

6

.

D

i

s

c

l

a

i

m

e

r

This user manual only applies to IDD-213W device.

The device is compatible with OBD II standard, it is also SAE J1939 and J1708

compliant. While some vehicles are not following those standards, therefore

Sinocastel can not guarantee the OBD performance of the device with every vehicle.

The GPS function may be affected in electromagnetic shielding area or bunker place.

The device has a built-in cellular module. It should be used as far as possible away

from fuel depots, chemical plants and other areas could cause an explosion. Most

sensitive to external RF sites (such as gas stations, hospitals and school, etc.) may be

equipped with radio frequency jamming equipment; some functions may be affected

in the interference area.

As the device transmits data via cellular, please use the SIM card which supports data

service and make sure that the account balances is sufficient. Do not use any SIM card

which is restricted by region.

To make sure the products works well, please use the original accessories.

This manual is based on the “as-is” situation. Sinocastel will not guarantee the

accuracy, reliability and content of the handbook. Also Sinocastel reserves the right to

amend or withdrawn this manual without any prior notification.

IDD-213W User Manual

23

7

.

W

a

r

a

n

t

y

If product got quality problem within the warranty period, please bring the product

together with a valid warranty card and purchase invoice to the dealer for checking.

Please do not disassemble this product, this may result in damage, Sinocastel will not

be responsible for those problem.

1 year of warranty since purchase time and life-long maintenance. For Failure or

damage due to incorrect operation or not following the instruction, Sinocastel will

provide paid maintenance within warranty period.

User name:

Contact number:

Address:

Post code:

Purchasing date:

Serial number:

Remark:

Please keep this card carefully in order to better serve you.

Distributor (Company Chop):

M

a

i

n

t

e

n

a

n

c

e

R

e

c

o

r

d

s

Product Model:

D

a

t

e

F

a

u

l

t

s

a

n

d

m

a

i

n

t

e

n

a

n

c

e

o

f

r

e

c

o

r

d

s

M

a

i

n

t

e

n

a

n

c

e

(

S

i

g

n

a

t

u

r

e

)

U

s

e

r

(

S

i

g

n

a

t

u

r

e

)

F

a

u

l

t

D

e

s

c

r

i

p

t

i

o

n

M

a

i

n

t

e

n

a

n

c

e

Note: This form must be carefully completed.

IDD-213W User Manual

24

88.. SSttaatteemmeenntt

Without written permission from Sinocastel, it is prohibited reproduce, transmit,

distribute or save part or all of the contents of this document in any form.

Sinocastel reserves the rights to modify or improve these products without any prior

notification.

Sinocastel reserves the rights to change or cancel the content of this document

without any prior notification.

A

Allll rriigghhttss rreesseerrvveedd bbyy SSiinnooccaasstteell CCoo..,, LLttdd..

Address: 5/F, 5th Building, Software Park, No. 2 Gaoxin C. 3rd Road, Nanshan,

Shenzhen, China

Postcode: 518057

http://www.sinocastel.com

Sinocastel 213W OBD Vehicle Tracking Device User Manual

Sinocastel Co.,Ltd. OBD Vehicle Tracking Device

User Manual

Navigation menu

Namespaces

Views

Navigation
