Users Guide

user guide

XMCK20

Quick Start

1. Set up your XpressR

2. Activate your XM subscription online http://activate.xmradio.com or by

phone 1 800 XM RADIO (1-800-967-2346 )

3. Listen to XM*

4. Manage your channels using presets

Quick Start

*Hardware and required monthly subscription sold separately. Installation cost and other fees and taxes, including a one-time activation fee

may apply. Subscription fee is consumer only. XM products, programming, services, and fees are subject to change, at any time, without no-

tice. Channels with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receivers by calling 1-

800-XM-RADIO. Subscriptions subject to Customer Agreement available at xmradio.com. XM service only available in the 48 contiguous

Contents

IInnttrroodduuccttiioonn.............................................. 4

Features............................................................ 4

Safety Instructions........................................ 5

What’s in the Box .......................................... 7

XpressRControls ............................................ 8

Remote ............................................................ 9

Using this Guide ........................................ 10

VVeehhiiccllee IInnssttaallllaattiioonn............................ 11

Mounting the XM Antenna .................... 14

Installing the Vent or Swivel Mount .... 15

How to Receive XM Through your Car’s

Stereo ............................................................ 18

Making Your FM Radio an XM Radio .. 22

AAccttiivvaattiioonn.................................................. 25

UUssiinngg yyoouurr XXpprreessssRR............................ 27

XXpprreessssRRCCoonnttrroollss

Listening to Live XM.................................. 28

Direct Entry .................................................. 29

Using Presets................................................ 29

Categories .................................................... 30

Jump .............................................................. 30

Info .................................................................. 31

Display............................................................ 31

30-Minute Replay ...................................... 33

TuneSelect .................................................... 36

MMeennuu OOppttiioonnss............................................ 37

Change Display .......................................... 37

Edit Alerts...................................................... 39

Stocks ............................................................ 41

Info Extras .................................................... 42

Channel Access .......................................... 43

Antenna Aiming ........................................ 45

Set Time ........................................................ 46

Factory Defaults.......................................... 49

FM Modulator.............................................. 49

Line Out ........................................................ 51

Set Tone ........................................................ 52

CCuussttoommeerr SSuuppppoorrtt.............................. 53

Troubleshooting ........................................ 54

Specifications .............................................. 56

Product Registration ................................ 58

Patent Information .................................... 59

FFCCCC SSttaatteemmeenntt...................................... 60

WWaarrrraannttyy.................................................... 61

introduction

Features

Congratulations on your purchase of the Audiovox XpressR ™. Your new XpressR

includes:

Multi channel monitoring, view six channels at once

View current and previous channels at the same time

Shortcut to FM frequencies

Scan music category

30 minute Replay- Pause and replay up to 30 mintues of live broadcast.

GameSelect- Finds your favorite sport and team events.

TuneSelect- Finds your favorite songs by song title or artist name if they are currently

playing on any XM channel.

Personalized Stock and Sports Tickers- Track your favorite stocks and sports scores on

your XpressR’s display while listening to your favorite music.

A bright, white LED backlit display with “Auto Dimming” capabilities.

Enjoy XM’s 170 channels from coast to coast, with over 80,000 hours of entertainment

each month. XM offers musical choice, variety, and discovery – worlds beyond your

own collection – plus a wide range of news, sports, talk, comedy, kids, and entertain-

ment channels. Hear XM live, or replay what you missed.

We recommend that you read the entire manual before using your XpressR.

introduction

Safety Instructions

Please read and understand all the instructions to avoid injury to yourself and/or damage

to your XpressR. Please be aware that XM claims no responsibility for damage from data

loss due to breakdown, repair, or

other causes.

XXpprreessssRRDDiiggiittaall AAuuddiioo PPllaayyeerr

 Do not expose to extreme temperatures (above 140°F or below -4°F, or above 60°C

or below -20°C).

 Do not expose to moisture. Do not use XpressRnear or in water.

 Do not let any foreign matter spill into XpressR.

 Do not expose to chemicals such as benzene and thinners. Do not use liquid or

aerosol cleaners. Clean with a soft damp cloth only.

 Do not expose to direct sunlight, fire, flame or other heat sources for a prolonged

period.

 Do not try to disassemble and/or repair XpressRyourself.

 Do not drop your XpressRor subject it to severe impact.

 Do not place heavy objects on XpressR.

 Do not subject XpressRto excessive pressure.

 Do not touch the XpressRwith wet hands.

 Do not store in dusty areas.

CCaauuttiioonn::Opening the case may result in electric shock.

CCaauuttiioonn::The uninsulated parts inside the power adapter and cradle may cause electric

shock or fire. For your safety, please do not open these components. Do not let metallic

objects, such as necklaces or coins, come into contact with the power adapter plugs.

CCaauuttiioonn::To avoid electric shock, use the power adapter only with an outlet that

matches the shape of the adapter’s plug.

CCaauuttiioonn::Make sure that you insert the adapter’s plug all the way into the outlet.

CCaauuttiioonn::Do not plug several devices into the same electrical outlet.

IImmppoorrttaanntt::Always read and understand the user guide to prevent problems.

WWaarrnniinngg::Use the power adapter and cradle away from water sources to avoid fire or

electric shock.

EEnnvviirroonnmmeennttaall IInnffoorrmmaattiioonn

Follow local guidelines for waste disposal when discarding packaging and electronic

appliances.

Your Satellite Radio receiver is packaged with cardboard, polyethylene, etc., and does

not contain any unnecessary materials.

WWaarrnniinnggss

When using this product it is always important to keep your eyes on the road and

hands on the wheel. Not doing so could result in personal injury, death, and/or dam-

age to your XpressRReceiver, accessories, and/or to your vehicle or other property.

XpressRshould be placed in your vehicle where it will not interfere with the function of

safety features, e.g., deployment of airbags. Failure to correctly place XpressRmay re-

sult in injury to you or others if the unit becomes detached during an accident and/or

obstructs the deployment of an airbag.

introduction

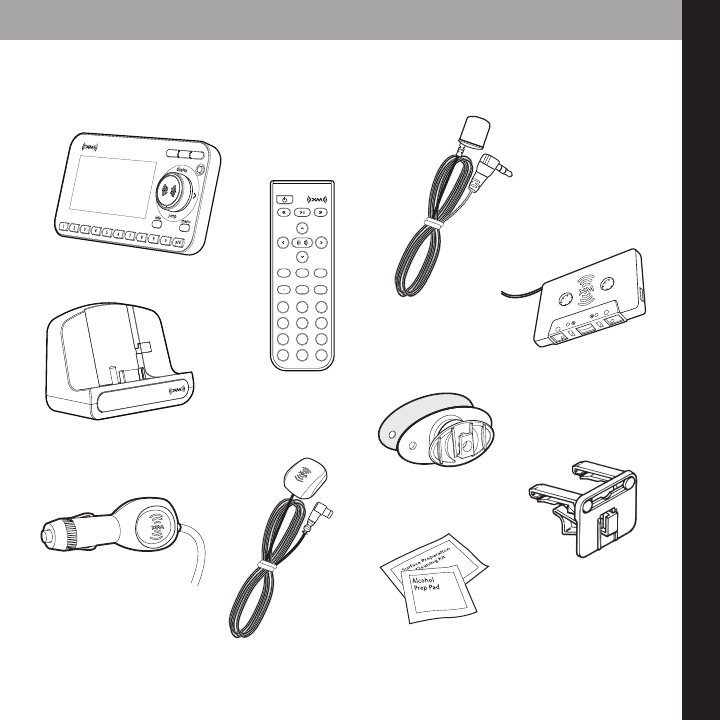

What’s in the Box?

mute

info menu

display

jump p/d

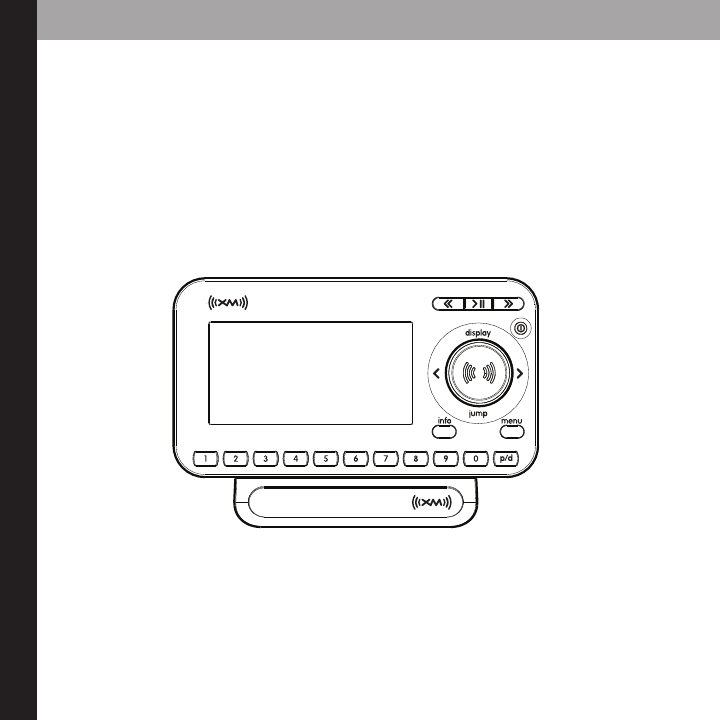

XpressR

Car Cradle

Car Power Adapter

Remote Control

XM Car Antenna

XM SureConnect

Cassette Adapter

Swivel Mount

Vent Mount

Swivel Mount Preparation Kit

introduction

3300--MMiinnuuttee RReeppllaayy BBuuttttoonnss

Pause and replay up to 30

minutes of live XM broadcast.

XpressRFunctions

PPoowweerr BBuuttttoonn

DDiissppllaayy

Changes the way content is

viewed on the display.

LLeefftt aanndd RRiigghhtt AArrrroowwss

Search for channels by

category.

55--wwaayy NNaavviiggaattiioonn KKnnoobb

Previews channels; also selects

various menu options.

MMeennuu

Access advanced features

and configuration options.

XXMM BBuuttttoonn

Confirms selection for chan-

nel and menu items also press

and hold to TuneSelect.

PPrreesseett//DDiirreecctt

Selects between direct

channel entry and up to 30

presets.

JJuummpp

Switches between

current channel and

previous channel.

IInnffoo

Displays either your

personal stock or info

extras information.

NNuummbbeerr KKeeyyss

Enter a channel di-

rectly or select your

favorite preset.

introduction

mute

info menu

display

jump p/d

Remote Control Functions

3300--MMiinnuuttee RReeppllaayy BBuuttttoonnss

Pause and replay up to 30

minutes of live XM broadcast

PPoowweerr BBuuttttoonn

DDiissppllaayy

Changes the way content

is viewed on the display

AArrrrooww BBuuttttoonnss

Select menu entries,

change channels.

MMeennuu

Access advanced features

and configuration options.

XXMM BBuuttttoonn

Confirms selected channel

or menu options.

PPrreesseett//DDiirreecctt

Selects between direct

channel entry and up to 30

presets.

JJuummpp

Switches between current

channel and previous chan-

nel

iinnffoo

Displays either your personal

stock or info extras informa-

tion.

NNuummbbeerr KKeeyyss

Enter a channel directly

or select your favorite

preset.

++ aanndd --

Change channels or control

volume for audio system

(sold separately)

MMuuttee

Silences live or replayed

XM content.

introduction

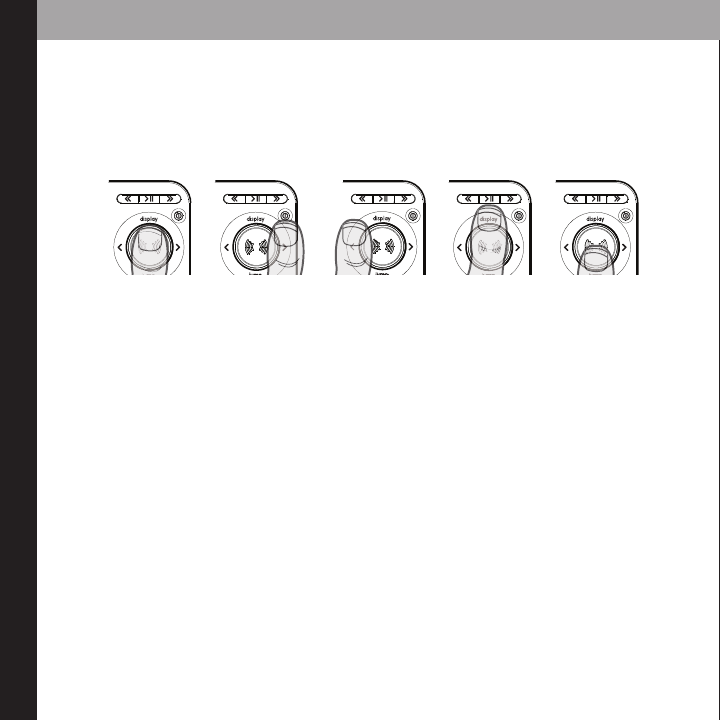

Using the 5-way Navigation Knob

The knob not only rotates, but it toggles. To toggle the knob, press on the edge and in the

direction you want to toggle.

Using This Guide

Throughout this guide, you will see instructions such as Select MMeennuuAAnntteennnnaa AAiimmiinngg.

This tells you to perform the following actions:

1. Press the MMeennuubutton.

2. You will see a menu icon that represents “Antenna Aiming.” Rotate knob to highlight

Antenna Aiming, then press the XM button to select it.

Not all of the menu items described in this guide may appear on your XpressRdisplay.

Some menu items will only be seen when XpressRis used in an accessory home kit or

boombox (Sold Separately).

Toggle right Toggle left Toggle up Toggle downPress center button

(XM button)

vehicle installation

Vehicle installation

Every vehicle is different; for your safety, follow all instructions carefully. Consult a

professional installer if you have questions.

1. To begin, first decide which method of installation is best for your vehicle:

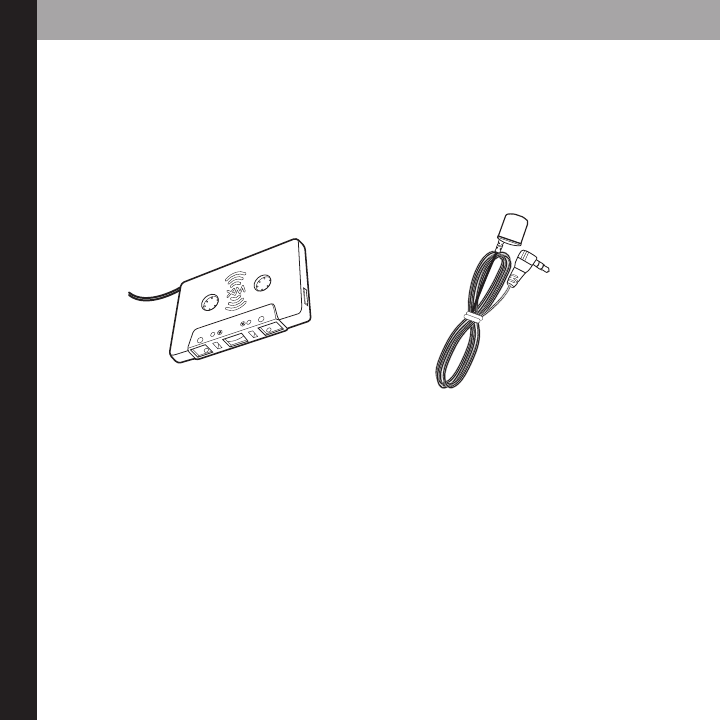

Cassette Adapter: Use the cassette adapter if your vehicle’s audio system has a built

in cassette player.

XM SureConnect: You can listen to your XpressRthrough your car stereo by using

XpressR’s built-in FM modulator and the XM SureConnect. Simply find an unused FM

frequency on the stereo and set your XpressRto transmit on that same frequency. See

your XM SureConnect installation guide.

FM Direct Adapter: The third option is the FM Direct Adapter (sold separately). We

recommend professional installation if you choose to use this method of install.

Audio input: Some vehicles come with an audio input jack. If your vehicle has this

type of input you can simply use a mini audio cable (sold separately).

XM SureConnectCassette Adapter

vehicle installation

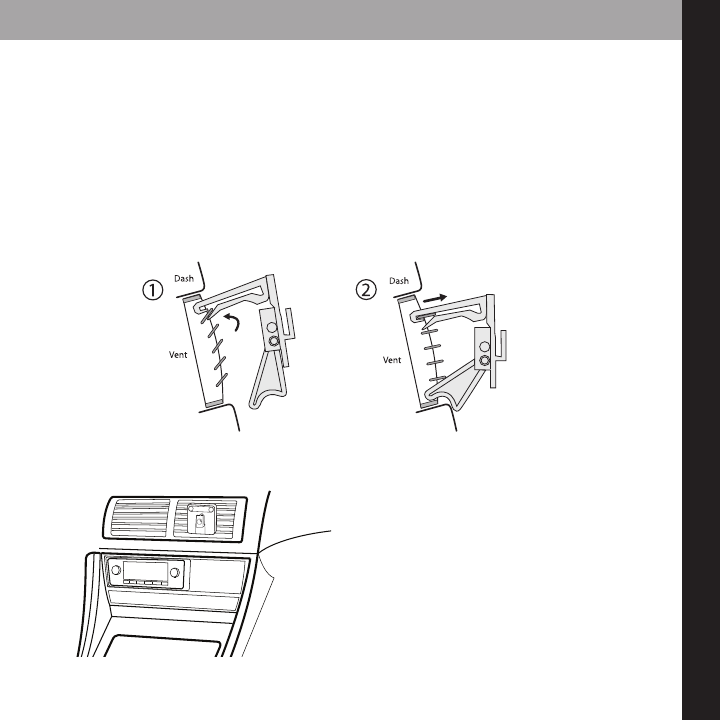

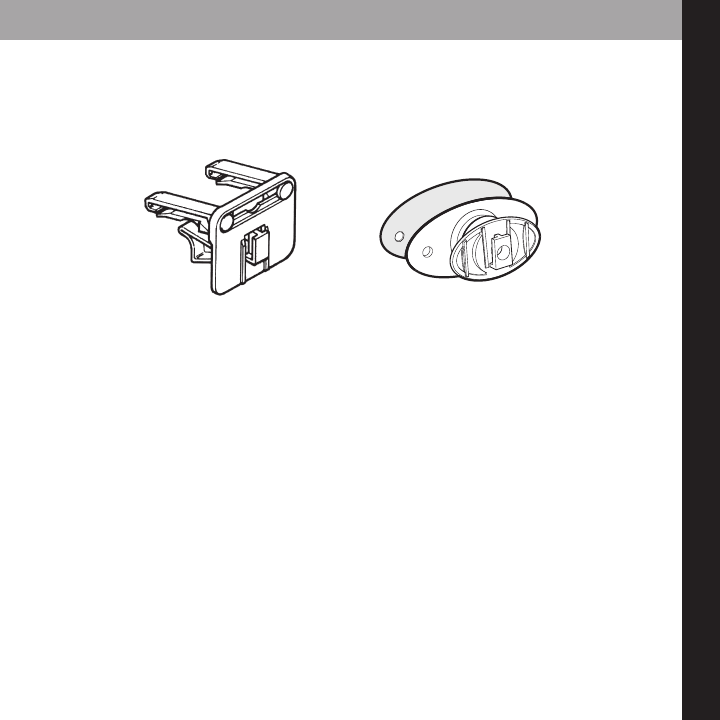

2. Once you have chosen your method of installation, next decide where in your vehicle

you would like to mount your XpressR. The two included methods are vent mount

and swivel mount:

3. Next decide the best location for your XM antenna. Mount this antenna to the

roof or trunk of the vehicle. During installation, make sure you are outdoors and the

antenna is not obstructed by tall buildings.

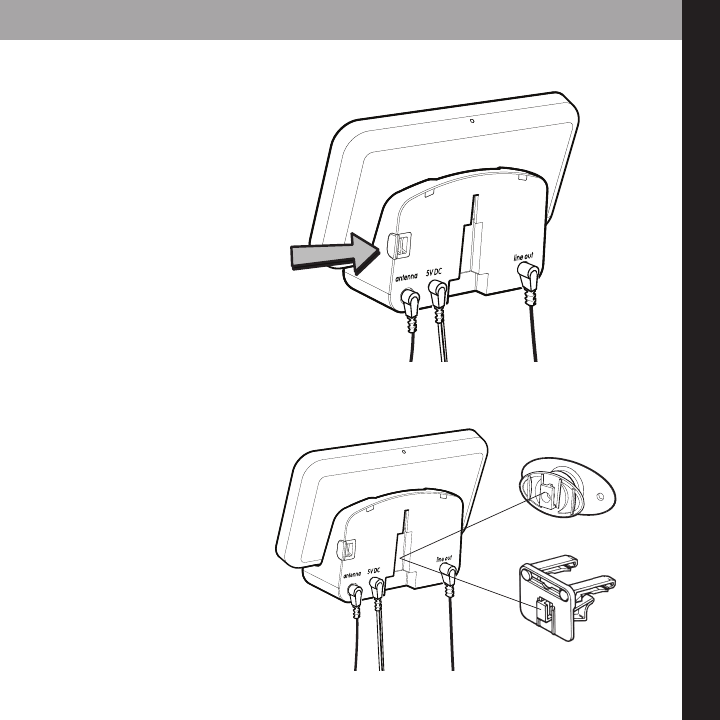

4. Finally you will connect all of the plugs to the car cradle and lock your XpressRinto

place. Once in place you can activate your XpressR

Now that you have all of the parts you need, you are ready to begin installing your

XpressR.

Swivel MountVent Mount

Step 1: Mounting the XM Antenna

Mount the XM antenna to the roof or trunk of the vehicle. During installation,

make sure you are outdoors and the antenna is not obstructed by tall buildings.

For best results mount the XM antenna to the outside of your vehicle. Below are

the recommended options.

The XM antenna contains a strong magnet, allowing

it to stick to any metal parts of your vehicle.

vehicle installation

Magnet

option 1

option 2

Keep excess cable

behind or under

the dashboard.

Step 2: Installing the Vent Mount or Swivel Mount

Installing the vent mount

To install the vent mount, find a horizontal vent that is strong enough to hold your

XpressRand car cradle. To remove the vent mount, push it into the vent and lift upwards

slightly to release the mount’s hooks from the vent vane.

Some parts of the vent mount can be adjusted

to better suit your vent.

vehicle installation

Installing the swivel mount

To install the swivel mount, first find a suitable location. The swivel mount’s adhesive is

very strong and may be difficult to remove. Do not install this mount on leather sur-

faces and make sure the air temperature is at least 60°F (15°C).

Clean the mounting surfaces with the

surface preparation kit.

Peel away the adhesive liner and firmly press the

swivel mount to the surface for 30 seconds. Allow

24 hours before using the mount

adhesive liner

vehicle installation

You can orient your swivel different ways

to accommodate the space available in

your vehicle.

If you need to remove the mount, carefully lift the adhesive pad with your fingers or a

spoon. Warming with a hair dryer for several minutes will help soften the adhesive. Your

swivel mount comes with an extra adhesive pad.

You can adjust this screw to adjust

the tension of the mount with a

screwdriver.

vehicle installation

Step 3: How to receive XM through your car stereo

There are several methods of receiving XM through your car stereo

Cassette Adapter: Use the cassette adapter if your vehicle’s audio system has a built

in cassette player.

XM SureConnect: You can listen to your XpressRthrough your vehicle’s audio system

by using XpressR’s built-in FM modulator and the XM SureConnect. Simply find an un-

used FM frequency on the stereo and set your XpressRto transmit on that same fre-

quency. For XM SureConnect install, please see your XM SureConnect Installation

guide.

Professional Wired: The third option is the FM Direct Adapter (sold separately). We

recommend professional installation if you choose to use this method of install.

Audio input: Some vehicles come with an audio input jack. If your vehicle has this

type of input you can simply use a mini audio cable (sold separately).

Plug the antenna, power adapter, and either the cassette adapter or XM SureConnect

into the car cradle as shown on the next page. The FM Direct Adapter is not pictured.

vehicle installation

XM Antenna

Power Adapter

XM SureConnect

Cassette Adapter

You can use either the XM

SureConnect, the cassette

adapter, or a mini audio cable

(not included) in the line out.

XpressRCar Cradle

vehicle installation

Once you have all of the cables correctly connected you can lock your XpressRinto the

car cradle.

Slide your XpressRinto the car cradle

until it is in place.

Note: Make sure the car cradle is in

the unlocked position before insert-

ing your XpressR.

car cradle locking

mechanism

vehicle installation

Slide the locking mechanism

into place. This ensures that

your XpressRalways stays in

place.

If you haven’t already done

so, hook the car cradle to the

mount.

vehicle installation

Now that your XpressRis all set up, it is time to power it up. If you are using the XM

SureConnect you will need to read Step 4. If you are using the cassette adapter you are

all finished and ready to move on to activation on page 26.

Step 4: Making Your Vehicle’s FM Radio an XM Radio

Your XpressRcontains a built-in FM modulator that transmits the XM audio signal to

your vehicle’s FM radio.

First, turn on your car stereo. You will need to find a suitable FM frequency in order to

get the best sound. A suitable FM frequency is an unused frequency or weak station

that is not located near a strong FM station in your area. Follow the steps below for

more help:

1. Go to www.xmradio.com/fmlocator for recommended FM frequencies in your

area.

2. Enter your local USPS Zip Code.

3. You will see the recommended FM frequencies in your area. Try the “vacant” chan-

nels first.

4. Set your vehicle’s FM radio to one of the recommended frequencies. Now set your

XM receiver to the same frequency using the menu settings. For more information,

see FM Frequency on page 49

5. If the audio quality is not satisfactory, you can repeat these steps by choosing an-

other frequency.

vehicle installation

You will see a chart that looks like this:

This chart represents the FM channels in the Washington, DC area. The spikes represent

the strength of the FM channel. Someone in DC would choose a “vacant” channel like

92.9 that is unused and located between two weaker channels.

Next, power on your XpressR. Be sure all of your cables are properly connected. Go to

channel 1, this is the preview channel. You will not hear any sound through your vehi-

cle’s audio system until you have choosen an FM Frequency.

Note: XpressRwill automatically enter a demo mode if either of these two conditions

exists:

1. If your XM antenna is not connected and your XpressRis not activated.

2. If your XM antenna is connected, you are not receiving a signal, and your XpressRis

not activated.

Note: Your XM radio may not modulate on each of the frequencies shown on the

Radio-Locator site. Check your XpressRfor the frequencies that are usable for you.

Press MMeennuuFFMM MMoodduullaattoorr FFMM FFrreeqquueennccyy.

Match the frequency to the frequency you see on your car’s FM radio

Now you should be able to hear your XpressRthrough your FM stereo. If you can’t hear

any sound please check all of your connections and be sure your XM antenna is not ob-

structed. Visit Troubleshooting (page 54) for more information.

Now you will learn how to activate and use your XpressR.

88.3

88.1

88.7

88.9

88.5

FM Modulator > FM Freq

vehicle installation

activation

Before you can listen to XM content, you must activate your XpressR.

1. Set up your XpressR, car cradle, power adapter, and antenna (pages 11- 24). Make sure

XpressRcan receive the XM signal.

2. Find the 8-character XM Radio ID, which is printed on the package or on the back of

your XpressR. Or select XM channel 0 to view the Radio ID. Record the Radio ID here for

reference:



The XM Radio ID does not use the letters I, O, S, or F.

4. Activate your XM Satellite Radio service online at http://activate.xmradio.com or by

calling 1 800 XM RADIO (1-800-967-2346 ). You will need a major credit card. The

website will walk you through activation, selecting a service plan, and creating an XM

account.

XM will send a signal from the satellites to activate the full channel lineup. Activation

normally takes 10 to 15 minutes, but during peak busy periods you may need to keep

your XpressRon for up to an hour. When you can access the full channel lineup on your

XpressR, you’re finished!

using your XpressR

Listening to Live XM

Turn on your XpressR. Subscribe to XM (page 26) if you haven’t done so already.

SSeelleeccttiinngg CChhaannnneellss

Rotate the knob to scroll through the list of channels. Press the XM button to select

that channel. You can also set up XpressRso that you do not have to press the XM but-

ton to select a channel. See “Direct Tune” on page 43.

- OR –

Press the number keys on your XpressRor the remote that correspond to the channel

number.

- OR –

Pressing one of the preset buttons that correspond to the channel number. When

you’ve entered a valid channel number, your XpressRwill tune to that channel within 2

seconds.

xmradio.com

XM Preview 1

What's on XM?

Direct 5:13

using your XpressR

DDiirreecctt EEnnttrryy

1. Press the p/d button until the word “Direct” appears in the display.

2. Press the number keys corresponding to the channel number. For example, for

channel 31, press 3followed by 1. You can select the channel faster by pressing

the XM button after entering the channel number.

UUssiinngg PPrreesseettss

There are 30 presets in all; each bank (A, B, and C) holds 10 presets. Press the “p/d” but-

ton to select the proper bank. Use these banks to organize your favorite channels or to

create separate preset banks for additional users to enjoy. To set a channel preset:

1. Tune to the desired channel.

2. Press the p/d button until the appropriate “Preset” bank (Preset A, B, or C) appears in

the display.

3. Press and hold the number key that corresponds to the preset you would like to set.

XpressRbeeps when the channel is stored.

To select a stored preset:

1. Press the p/d button until the appropriate “Preset” bank (Preset A, B, or C) appears

in the display.

2. Press one of the number keys. XpressRwill tune to that channel.

using your XpressR

CCaatteeggoorriieess

XM channels are organized into categories, or genres, such as “Rock,” “Jazz,” or “News.”

To find a channel by category:

1. Toggling the knob left and right will display categories

2. Rotate knob and press the XM button to select a channel

Preset categories are displayed within categories only when channels are assigned to those

presets (see Using Presets).

When you are browsing the channels by category you have the option to Scan all channels

in that category, or to revert back to the all channels list.

JJuummpp

Press the jump button to switch to the channel that was previously being listened to.

Pressing the jump button more than once allows you to switch between two channels at a

time. Display mode 4 allows you to view both current channel and previous channel at the

same time.

Vox!

XM Classics

>Scan Classical

>All Channels

XM Pops

110

113

112

Classical

When you choose scan, each chan-

nel in the category plays for 5 sec-

onds. To stop scanning, press the

XM button to select that channel.

While a category is being scanned,

the word "Scan" will flash on and

off.

using your XpressR

IInnffoo

Press the info button to display either stock quotes or Info Extras. See pages 41 and 42

for more information on each of these features.

DDiissppllaayy

Press the display button to change the way you view the content on the display.

There are 4 different display modes.

Display mode 2 (single channel)

Display mode 3 (split display with 6 channels) Display mode 4

(split display with previous channel)

Display mode 1

(single channel large font)

Drive

XM Cafe 45

REM

5:13

Direct

XM Cafe 45

Fred 44

Ethel 47

Top Tracks 46

Drive

REM

XM Cafe XMU 43

Direct All Channels5:14

Take it Home

B.B. King

Bluesville

Direct Previous Channel5:15

45XM Cafe

Drive

REM

Drive

XM Cafe 45

using your XpressR

Turning the knob in display modes 1, 2 and 4 display the “All Channels“list with the current

channel you are listening to as the highlighted channel. Turning the knob in display mode

3 scrolls through the displayed channel list. When using left and right arrow to view cate-

gories, turning the knob scrolls through the channels within that category.

Display Mode 3

When in display mode 3, you can view channel names, artist names or song titles in the dis-

played channel list. To change the way this content is displayed the channel list must be ac-

tive. Turn the knob or toggle the knob in either the left or right direction to make the

displayed channel list active.

Channel name is displayed

Artist name is displayed is displayed Song title is displayed

Be sure a channel within the displayed

channel list is highlighted before press-

ing “display.” If it is not highlighted you

will switch to display mode 4 instead.

XM Cafe 45

Fred 44

Ethel 47

Top Tracks 46

Drive

REM

XM Cafe XMU 43

Direct All Channels5:14

REM 45

U2 44

Red Hot Chili Pe 47

Led Zeppelin 46

Drive

REM

XM Cafe Coldplay 43

Direct All Channels5:14

Drive 45

New Year's Day 44

Snow (Hey Oh) 47

Whole Lotta Lov 46

Drive

REM

XM Cafe Clocks 43

Direct All Channels5:14

using your XpressR

If you have channels assigned to your presets, channel numbers will be displayed with

the preset number rather than the channel number.

You can revert back to “All Channels” by selecting “ View All Channels”. You can also

scan each preset channel.

You are able to view your presets by channel name, artist name, or song title by press-

ing “display.” Be sure that one of the channels is highlighted before pressing “display.”

(See page 32 for more information). You can also toggle left and right to view cate-

gories.

3300--MMiinnuuttee RReeppllaayy

30-Minute Replay gives you the opportunity to “hear that again.” This feature applies

to the current listening session only. Turning your XpressRoff removes all tracks from

the up-to-30 minute buffer.

Both display modes 3 and 4 display a list of replayed tracks. To navigate through the

"replay list", you can either rotate the knob and press the “XM” button or press the re-

play buttons to select a track.

Fuego sp A-3

U-POP A-2

>View All Channels

>Scan Preset A

Clocks

Coldplay

Ethel Ethel A-1

Preset A-1 Preset A11:55

Channel numbers assigned

to your current preset will be

displayed with the preset

number rather than the

channel number.

using your XpressR

Older info is displayed at the bottom of the list. As new content is added, it appears at

the top of the list.

Display mode 2 (single channel)

Drive

XM Cafe 45

REM

4:30

Direct

3:11 3:35

Displays elapsed time

of current track within

the replay buffer.

Displays total time of

current track within the

replay buffer.

Space between white bars

represents tracks within

total replay session.

Display updates as

new track begins.

Replay Status Bar rep-

resents the total re-

play session

XM Cafe 45

U-POP 29

XM Cafe 45

Drive

REM

XM Cafe U-POP 29

Direct Replay List5:35

3:11

Display modes 3 and 4

Both split display modes ( 6 channels

mode and view previous channel) display

a list of replay content. You can choose to

display artist names, song titles or chan-

nel names within the replay list by press-

ing display.

using your XpressR

REM

Drive

XM Cafe 45

In display mode 1 (large font) you will only see play, pause, rewind, or fast-forward sym-

bol in the top right corner next to the channel number, when in replay mode.

When you are in Display mode 1 (large font) or Display mode 2 (single channel), you

can access the replay list by turning the knob. You can change the way the information

is displayed by pressing “display” while the list is visible.

Navigating Replay

1. Press the button. If a track has been playing for less than 5 seconds, XpressR

rewinds to the beginning of the previous track. If the track has been playing for

longer than 5 seconds, XpressRrewinds to the beginning of the current track. Upon

entering the replay buffer, XpressRwill display “Replay” on the display.

2. Pressing the button again skips backward to previous tracks in the order they

played. XpressRallows you to access up to 30 minutes of previously listened to live

broadcast. Press and hold for 3 seconds to skip to the beginning of your replay list.

3. Pressing the button skips forward in the track list.

4. To exit 30-Minute Replay and return to the live XM broadcast, press and hold the

button for 3 seconds; XpressRwill display “LIVE” on the display.

using your XpressR

To Pause a Track

1. Press the button. The pause icon appears in the display.

2. To resume playback from where you had paused, press the button again.

3. To return to the live XM broadcast, press and hold the button until XpressRbeeps

and displays “LIVE” on the display.

TTuunneeSSeelleecctt

TuneSelect finds your favorite artist or song whenever they’re currently being played

on any XM channel. XpressRcan track up to 20 of your favorite artists or songs.

To TuneSelect a song or artist:

1. At any live display press and hold the

knob for 3 seconds

2. Choose between TuneSelecting the artist

or TuneSelecting the song

3. When any song or artist in your TuneSelect

list is currently playing on any other XM

channel, XpressRwill alert you audibly

and visually. Tune to that channel by

pressing the XM button.

To edit your TuneSelect list see “Edit Alerts”

under the Menu Items page. When you attempt

to add more than 20 artists or songs, your

XpressRwill give you the option to replace one

of your previously saved selections

TuneSelect Song

TuneSelect Artist

Replace An Existing TuneSelect

TuneSelect List Full

Do Not Replace And Exit

using your XpressR

MMeennuu OOppttiioonnss

When your XpressRis in the car cradle (and using either SureConnect or FM Direct acces-

sory to transmit audio), and you press Menu, your display will look like this:

Note: pressing the Menu or toggling the knob left, allows you to back out of any menu.

Change Display

FM Modulator

(car cradle only)

Exit

Factory Defaults Set Time

Antenna Aiming

Channel Access

Info Extras

Stocks

Edit Alerts

using your XpressR

CChhaannggee DDiissppllaayy

Display Settings

To change the display’s brightness, contrast, backlight timer, and Auto Dimming sta-

tus:

1. Press the Menu button, scroll to Change Display Display Settings.

2. Rotate knob to scroll through items on display.

3. Press the XM button to select an item.

4. Rotate knob to adjust the selected item.

5. Press the XM button to confirm your selection.

6. Then press either the Menu button or toggle the knob to the left repeatedly

until you return to normal operation.

Leaving the Auto Dimming feature "off" means the user has to manually adjust the

brightness of the display. Enabling the Auto Dimmer (turning it "On") means that

XpressRadjusts the brightness of the display for daytime and night time mode.

using your XpressR

Display Scrolling

At times cold weather can negatively affect the visual quality of scrolling text. Display

scrolling can be enabled or disabled globally. By default Display Scrolling is set to “On”.

When Display Scrolling is set to “On”, all on display items such as Artist Name, Song Title,

Info Extras, and Stock information that need to scroll have the ability to do so. Setting

Display Scrolling to “Off” disables all items from scrolling allowing only to page.

To disable all display scrolling:

1. Press the Menu button, scroll to Change Display Display Scrolling (On)

A confirmation display will be displayed stating Display Scrolling is “Off”. All on dis

play information will Page instead.

To enable all display scrolling:

1. Press the Menu button, scroll to Change Display Display Scrolling (Off)

A confirmation display will be displayed stating Display Scrolling is “On”

EEddiitt AAlleerrttss

Edit TuneSelect

TuneSelect finds your favorite artist or song whenever they’re currently being played on

any XM channel. To edit your TuneSelect list:

Press the Menu button, scroll to Edit Alerts Edit TuneSelect.

using your XpressR

A list of songs and or artists that have been

TuneSelected will be displayed. Select an

artist or song to change its alert status or

choose to delete the TuneSelect. XpressR

can track up to 20 of your favorite artists

and songs.

Edit GameSelect

Adding sports and teams at the info extras menu in which XM broadcasts (see page 42 )

automatically adds those sports and teams to your GameSelect list. GameSelect finds and

alerts you as to whenever your favorite sports and teams are being played on any other XM

channel. XpressRwill store up to 50 GameSelects. To edit your GameSelect list:

Press the Menu button, scroll to Edit Alerts Edit GameSelect.

A list of sports and teams that you have added will be displayed. Select a sport or team to

change its alert status. XpressRcan track up to 50 of your sports and teams.

Note: You will only receive a GameSelect alert on those events in which XM broadcasts.

All Alerts

Selecting All Alerts changes the status of all alerts globally. By default All Alerts are “On”.

To disable All Alerts:

Yeah Yeah Yeahs

Edit Alerts > Edit TuneSelect

New Years Day

Fallen

Whole Lotta Love

Red Hot Chili Peppers

TuneSelected by song TuneSelected by artist Alert is turned oﬀ for that item

using your XpressR

1. Press the Menu button, scroll to Edit Alerts All Alerts (On)

A confirmation display will be displayed stating All Alert is “Off”. All audible and dis

play alerts are disabled.

To enable All Alerts:

1. Press the Menu button, scroll to Edit Alerts All Alerts (Off)

2. Enable any GameSelect or TuneSelect alert when all alerts are set to “Off”.

A confirmation display will be displayed stating All Alert is “On”. All audible and dis

play alerts are enabled.

SSttoocckkss

XM Satellite Radio broadcasts information such as sports scores, stocks, and other fea-

tures. XpressRcan track up to 20 of your favorite stock symbols, displaying the price

and daily movement on the display.*

To add a stock symbol:

1. Press the Menu button, scroll to

Stocks Add Stocks

2. Use the scroll wheel (or remote) to select

each letter in the desired stock symbol.

Press the XM button after each letter.

3. Press the XM button to confirm and

save the stock symbol in memory.

4. Press the Info button once to view your personal Stock Ticker at any live XM display.

*You can track any stock and most indices listed on the NYSE, AMEX, or NASDAQ. Market information is

delayed approximately 25 minutes. Stock data provided by ComStock, Inc.

Rotate Dial For Stock Symbols

Stocks > Add Stocks

Stock Symbol

using your XpressR

Note: XpressRhas an embedded list of more than 9,000 regularly traded stock symbols

that helps complete partial entries and prevents you from entering a non-existent symbol.

To erase a stock symbol:

1. Press the Menu button, scroll to Stocks Erase Stocks

2. XpressRdisplays a list of the stock symbols you have created. Highlight stocks by using

the scroll wheel and select a stock using the XM button to make your choice. Choose

yes from the decision display to erase the stock symbol. Erasing the stock symbol will

remove it from the list.

3. Press the Menu button several times to return to normal operation.

IInnffoo EExxttrraass

XM Satellite Radio will broadcast additional information such as sports scores and other

useful information features. XpressRcan track up to 50 of your favorite Sports and or

Teams.

To Choose Sports or Teams:

1. Press the Menu button, scroll to Info Extras> Sports. A list of sports will be displayed.

2. scroll to highlight a sport or team.

3. Press the XM button to select that sport or team. The “-“symbol in front of the sport or

team will be replaced with a “+” symbol. The “+” symbol being added to the front of the

sport or team indicates:

- The sport or team is added to your info extras.

- The sport or team information will be displayed at any live XM display.

using your XpressR

- The sport or team is added to your GameSelect list if broadcast on XM. GameSelect

finds and alerts you when your favorite sports and teams are being played on any

other XM channel. To Edit your GameSelect list see page 40.

Note: You will only receive a GameSelect alert on those events in which XM

broadcasts.

4. Press the Info button to view your info extras on any live XM display.

CChhaannnneell AAcccceessss

Direct Tune

Normally, as you scroll through live XM channels while rotating the knob, you can pre-

view the channel list before selecting one channel. XpressRdoes not switch to that

channel until you push the XM button. You can change this behavior so that XpressR

automatically tunes to the channel that you’re previewing.

To enable Direct Tune:

1. Press the Menu button, scroll to Channel Access Direct Tune (Off)

A confirmation display will be displayed stating Direct Tune is “On”. XpressRwill auto-

matically tune to the channel that you preview.

Drive

XM Cafe 45

REM

5:13

Direct

Sports scores provided

Sports

Stock Quotes provided

Stocks

Drive

XM Cafe 45

REM

5:13

Direct

using your XpressR

To disable Direct Tune:

1. Press the Menu button, scroll to Channel Access Direct Tune (On)

A confirmation display will be displayed stating Direct Tune is “Off”. XpressRreturns to

its default state: you have to push the XM button to switch to a channel

Channel Skip/Add

You can simplify the list of channels that you see when you browse through categories

or the all channels list by selecting channels to skip.

To skip a channel:

1. Press the Menu button, scroll to Channel Access Channel Skip/Add

2. XpressRdisplays a list of channels. By default, a “+”is in front of each channel.

The “+” symbol indicates the channel is not skipped within the channel list.

3. To skip a channel, use the scroll wheel to highlight a channel. Press the XM button to

change the “+” to a “-“.The “-” symbol indicates the channel is skipped within the

channel list.

4. To add a channel back to the channel list, use the scroll wheel to highlight a skipped

channel. Press the XM button to change the “-“ to a “+”.

5. Pressing either the Menu button or toggle the XM button to the left, XpressRdisplays

a confirmation display stating the channel list has been updated.

using your XpressR

Explicit Language Channels

Those channels identified with a “xL” in front of the channel name are “Explicit Language

Channels”. You can choose to skip all “Explicit Language Channels” by performing the fol-

lowing steps:

1. Press the Menu button, scroll to Channel Access Explicit Language Channels

(On)

A confirmation display will be displayed stating all Explicit Language channels are “Off”.

All Explicit Language channels will be removed from the channel list and the channel list

at the channel skip/add sub menu.

To add all “Explicit Language Channels” to the channel list:

1. Press the Menu button, scroll to Channel Access Explicit Language Channels

(Off)

A confirmation display will be displayed stating all Explicit Language channels are “On”.

Note: You can still tune to skipped channels by entering the channel number (in direct

entry mode) or by pressing a preset (in preset mode) if that channel has already been

stored. This is not considered an appropriate method for performing “parental control.”

Channel Skip/Add should not be used as a form of parental control. To completely block

access to an XM channel, contact XM Listener Care at 1-800-XM-RADIO (1-800-967-

2346) or online at http://www.xmradio.com/parentalcontrols/index.jsp.

using your XpressR

AAiimmiinngg tthhee AAnntteennnnaa

For optimal reception of XM’s live satellite

signal, your XpressRantenna should have

an unobstructed view of the XM satellites

in the southern sky. In large cities, XM also

has a network of ground repeaters to help

increase the signal coverage.

Your XpressRcan help you aim the antenna to pull in the strongest possible signal.

1. Press the Menu button, scroll to Antenna Aiming

2. Slowly turn and tilt the antenna. The “Satellite” and “Terrestrial” signal bars will

change. Find the position that gives the strongest signal strength on either “Satellite”

or “Terrestrial.”

3. The antenna aiming display remains as long as it’s needed to help you position the

antenna. When you’ve found the best position, press the “menu” button or left toggle

repeatedly to exit the menu.

4. Select XM channel 1. You should be able to listen to the XM Preview Channel.

SSeett TTiimmee

Set Clock

Select Time Zone

The time is automatically set using the XM signal. To set the correct time for your

location:

Satellite

Terrestrial

Antenna Aiming

using your XpressR

1. Press the Menu button, scroll to Set Time Set Clock Select Time Zone

Scroll through the list of time zones and select your time zone, the XpressRclock will

update.

Daylight Savings Time

You can also choose whether or not to adjust your settings for daylight savings time.

1. Press the Menu button, scroll to Set Time Set Clock Daylight Savings Time

12/24 Hour Mode

To display time in 12 or 24 hour format, select the desired format by Set Time Set

Clock 12/24 Hour Mode.

Automatic Power

Normally, XpressRturns on whenever it receives power. To disable automatic power:

1. Press the Menu button, scroll to Set Time  Automatic Power (On)

When Automatic power is set to “Off”, you must now use the power button to turn

XpressRon and off.

To enable automatic power:

1. Press the Menu button, scroll to Set Time Automatic Power (Off)

XpressRturns on automatically whenever it receives power.

using your XpressR

Sleep Timer (Home stand option only, sold seperately)

Options: OFF, 15 Minutes, 30 Minutes, 45 Minutes, and 1 Hour

Your XpressRhas a sleep timer that can automatically shut off the unit after a period of

time. By default, the sleep timer is set to “Off”. Perform the following steps to adjust the

sleep timer for your XpressR:

1. Press the “menu” button, scroll to Set Time  Sleep Timer

2. Select the desired time period.

3. Press the XM button; you will receive a confirmation display displaying your

selection.

4. To reset the sleep timer, you can:

-restart XpressR

-wait for XpressRto automatically shut down. On restart XpressRreturns to its default

state: Sleep timer “Off”.

-select the "Off" option from the Set Time Sleep Timer menu

Delayed Power Off (car cradle option only)

Options: OFF, 60 Minutes, 90 Minutes, 120 Minutes, and 180 minutes

If the cigarette lighter is always powered, you can set XpressRto automatically turn off

after 60 to180 minutes after you turn it on.

1. Press the Menu button, scroll to Set Time  Delayed Power Off

2. Select the desired time period.

using your XpressR

3. Press the XM button; you will receive a confirmation display displaying your selection.

The setting is saved even if you turn XpressRoff. The “Delayed Power Off” setting is only

active when you use the XpressRcar cradle. To reset the “Delayed Power Off” to “OFF”

(meaning XpressRwill not automatically shut down in its car cradle):

1. Press the “menu” button, scroll to Set Time Delayed Power Off

2. Select Off

3. Press the XM button; you will receive a confirmation display displaying your selection.

FFaaccttoorryy DDeeffaauullttss

This feature erases all of your personal settings in the presets, TuneSelect, GameSelect,

Stock Ticker, and Sports Ticker and resets all other settings to the original factory config-

uration.

1. Press the Menu button, scroll to Factory Defaults

2. Confirm by selecting Yes, or cancel by selecting No.

FFMM MMoodduullaattoorr

FM Frequency

If you choose to use the FM modulator to lis-

ten to XM in your vehicle, you will need to

find a suitable FM frequency in order to get

the best sound. A suitable FM frequency is

an unused frequency or weak station that is

not located near a strong FM station in your

area. (See page 22).

88.3

88.1

88.7

88.9

88.5

FM Modulator > FM Freq

using your XpressR

After selecting a FM Frequency, you will be given

the choice to add that Frequency to your “FM Pre-

sets”. Creating a list of FM Presets is a valuable

shortcut for those people who need to change

FM Frequencies often. You can assign a FM Fre-

quency to FM Presets by:

-Press any 0-9 buttons to assign that frequency to

that number.

-Or-

-Scroll to any FM-# and press the XM button to assign that frequency to that number

(For more information, see FM Preset on page 50).

FM Level

When listening to your XpressRusing the FM modulator, you can adjust its volume

level to match other audio sources (your CD player, other FM stations, or MP3 player).

1. Press the Menu button, scroll to FM Modulator FM Level

2. Rotate the knob counter clockwise to decrease the FM Level or rotate the knob

clockwise to increase the FM Level.

3. Press the XM button to accept changes.

A confirmation display will be displayed stating FM Level has been “Updated”.

FM Presets

Creating a list of FM Presets is a valuable shortcut for those people who need to

change FM Frequencies often. There are three ways to access the FM Presets menu:

107.7

97.3

95.9 FM-1

FM-2

FM-3

FM-4

FM-5

FM-6

FM-7

FM-8

FM-9

FM-0

FM Modulator > FM Preset

using your XpressR

1. Press the Menu button, scroll to FM Modulator  FM Frequency. After choosing a

frequency the FM Presets list will be displayed.

2. Press the Menu button, scroll to FM Modulator FM Presets.

3. Press and hold Jump for 3 seconds at any live XM display.

To select a FM Frequency from the FM Preset menu, either:

Press a number key on your XpressR that has a FM Frequency assigned to it

-OR-

Scroll to any FM-# that has a FM Frequency assigned to it and press the XM button

To exit the FM Presets list do one of the following:

1. Press the Menu button

2. Select a FM Preset

3. After 30 seconds the display will time out

LLiinnee OOuutt LLeevveell

There are two methods of connecting the

Line Out on the XpressRcar cradle directly

to your car’s stereo to transmit audio:

1. Using the cassette adapter

2. If you car stereo has an audio input

called “Aux In”

Either of these methods will give you the best audio quality. When using either of

these methods to transmit audio through your car’s stereo, you can adjust XpressR’s

audio level to match other audio sources.

Line Out Level

using your XpressR

1. Press the menu button, scroll to Line Out Level

2. Rotate the knob counter clockwise to decrease the Line Out Level or rotate the

knob clockwise to increase the Line Out Level.

3. Press XM button to accept changes. A confirmation display will be displayed stating

Line Out Level has been “Updated”.

Do not use the Line Out Level menu item as a volume control; use the volume control

on your car stereo instead. Line out level is used to adjust the volume level to match

other audio sources (your CD player, other FM stations, or MP3 player).

SSeett TToonnee (Audio system option)*

You can adjust the bass and treble to suit the kind of music you’re listening to.

1. Press the menu button, scroll to and select “Set Tone”

2. Rotate knob to highlight either “Bass” or

“Treble”.

3. Press the XM button to select an item.

4. Rotate knob clockwise to increase levels

and rotate knob counter clockwise to

decrease levels.

5. Press the XM button to confirm your

selection.

6. Then press either the menu button or toggle the knob to the left repeatedly until

you return to normal operation.

Set Tone

*Audio Systems are sold separately

Customer Support

customer support

Troubleshooting

XpressRis designed and built to provide you with trouble-free performance without

the need for servicing. If it does not appear to be functioning properly, follow these

troubleshooting steps first to try to remedy the situation yourself:

1. Attach all connections firmly and securely.

2. Make sure the cigarette lighter/auxiliary power socket is clean and free of corrosion.

3. If you have installed XpressRin a vehicle and it does not power on, check the 12V

adapter fuse by unscrewing the ribbed end of the 12V adapter. If required, replace

with a 1-amp fuse only. If the 12V adapter does not have a removable end-cap, it has

an internal fuse that resets itself after it is left unplugged for a period of time.

If you see this on the display: You should:

No Signal Something is blocking the XM signal. Move your XM antenna away

from the obstructed area (e.g., an underground garage). Make sure

the XM antenna is mounted outside of the vehicle.

Antenna Be sure that the antenna cable is fully inserted on the connector.

Make sure the cable is not bent or broken. Turn XpressRoff, then

on, to reset this message.

Off Air The channel you’ve selected is not currently broadcasting.

Tune to another channel.

Loading Your XpressRis acquiring audio or program information from the

XM signal. This message should disappear in a few seconds in

good signal conditions.

Updating XM is updating your XpressRwith the latest encryption code.

Simply wait a few seconds until the update is done. – OR – You may

be attempting to tune to a channel that is blocked or unavailable.

--- (no artist or title) No program information, such as artist name, song title, or channel

exists.

customer support

If this happens: You should:

XpressRshuts off unexpectedly. Check whether you set the sleep timer, and set it to “Off” if desired.

Check whether “Vehicle Mode/Delayed Power Off” is set, and set it

to “Off” if desired. XpressRremember the “Vehicle Mode” setting

even when you turn the device off.

You do not receive all the XM channels you Check tipped any channels (page 43). If you still do

have subscribed to. not receive all channels, your XpressRmay not be activated. Con-

tact XM Satellite Radio. See page 26.

No audio. Check all connections between your XpressRand your stereo

system.

No song title or artist name is displayed. Nothing is wrong with your XpressR. That information may be in

the process of being updated. Some channels, such as news and

sports, may not have such information.

No audio when listening to XpressRthrough Check that your XpressRand your radio are tuned to the same FM

an FM radio. frequency.

Audio fades or has static when listening You might be hearing interference from another FM station. First

check all cables for a proper connection on your XpressRcar dock.

If the problem persists, you might be hearing interference from

another FM station. Set your XPressRand your radio to a different

FM frequency.

Audio sounds too soft Raise or lower the FM audio level until the sound quality improves.

XM Instant Traffic and Weather channels Nothing is wrong with your XpressR. These channels use a

sound different than other channels different audio technology than the other XM channels

customer support

Specifications

XpressR

Dimensions 115 mm (W) x 63 mm (H) x 16 mm (D)

4.5 in (W) x 2.5 in (H) x 0.6 in (D)

Weight 128 g

4.5 oz

Audio output 3.5 mm mini-stereo jack

Antenna connector (home and car cradle) RF SMB

External power Voltage: 5 V DC

Current: 2000 mA

Polarity:

customer support

Remote

Dimensions 40 mm (W) x119 mm (H) x 14 mm (D)

1.5 in (W) x 4.7 in (H) x 0.55 in (D)

Weight 40 g

1.4 oz

Battery Type: CR2032

Voltage: 3 V

Model Numbers

XpressRXMCK20

XPress universal home kit XMHU20

XPress universal car kit XMCU20

customer support

Product Registration

1. Register your product. We will keep

the details of your purchase on file to

help you refer to this information in

the event of an insurance claim such

as loss or theft.

2. Receive updates on the latest prod-

ucts and technologies.

3. Download owner’s manuals, order

product catalogues, research new

products, and much more.

Serial Number:

IIMMPPOORRTTAANNTT ((SSeerriiaall NNuummbbeerr))The serial number of this device is located on the back

of this unit. For your own security and convenience, be sure to record this number for

future warranty claims.

customer support

Patent Information

TTeecchhnnoollooggyy. It is prohibited to, and you agree that you will not, copy, decompile, dis-

assemble, reverse engineer, hack, manipulate, or otherwise access and/or make avail-

able any technology incorporated in receivers compatible with the XM Satellite Radio

system. Furthermore, the AMBE (r) voice compression software included in this prod-

uct is protected by intellectual property rights including patent rights, copyrights, and

trade secrets of Digital Voice Systems, Inc. The software is licensed solely for use

within this product. The music, talk, news, entertainment, data, and other content on

the Services are protected by copyright and other intellectual property laws and all

ownership rights remain with the respective content and data service providers. You

are prohibited from any export of the content and/or data (or derivative thereof) ex-

cept in compliance with applicable export laws, rules and regulations. The user of this

or any other software contained in an XM Radio is explicitly prohibited from attempt-

ing to copy, decompile, reverse engineer, hack, manipulate or disassemble the object

code, or in any other way convert the object code into human-readable form.

FCC Statement

Please note that the power cable that has been supplied with your device is supplied with permanently

attached ferrite beads. It is the responsibility of the user to use the power cable with the ferrite beads.

The user is cautioned that changes or modifications not expressly approved by XM Satellite Radio Inc.

can void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) this device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the installation instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equip-

ment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna of the affected receiver.

- Increase the separation between the XM equipment and the affected receiver.

- Connect the XM equipment into an outlet on a circuit different from that to which the affected

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Warning: The FCC and FAA have not certified this Satellite Radio Receiver for use in any aircraft

(neither portable nor permanent installation). Therefore, XM Satellite Radio cannot support this

type of application or installation

warranty

Warranty

warranty

1122 MMoonntthh LLiimmiitteedd WWaarrrraannttyy

AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original retail

purchaser of this product that should this product or any part thereof, under normal use

and conditions, be proven defective in material or workmanship within 12 months from

the date of original purchase, such defect(s) will be repaired or replaced with new or re-

conditioned product (at the Company's option) without charge for parts and repair labor.

To obtain repair or replacement within the terms of this Warranty, the product is to be

delivered with proof of warranty coverage (e.g. dated bill of sale), specification of de-

fect(s), transportation prepaid, to an approved warranty station or the Company at the

address shown below.

This Warranty does not extend to the elimination of externally generated static or noise,

to costs incurred for installation, removal or reinstallation of the product, damage to

speakers, accessories, or vehicle and home electrical systems, malfunction of satellite

transmissions, repeater signal or receiver unit.

This Warranty does not apply to any product or part thereof which, in the opinion of the

Company, has suffered or been damaged through alteration, improper installation, mis-

handling, misuse, neglect, accident, or by removal or defacement of the factory serial

number/bar code label(s).

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE

REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S

LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

warranty

This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WAR-

RANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIM-

ITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY

WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY

MUST BE BROUGHT WITHIN A PERIOD OF 48 MONTHS FROM DATE OF ORIGINAL PUR-

CHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR IN-

CIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR

IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the

Company any liability other than expressed herein in connection with the sale of this

product.

Some states do not allow limitations on how long an implied warranty lasts or the ex-

clusion or limitation of incidental or consequential damage so the above limitations or

exclusions may not apply to you. This Warranty gives you specific legal rights and you

may also have other rights which vary from state to state.

U.S.A. : AUDIOVOX ELECTRONICS CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW

YORK 11788 1-800-645-4994

CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR

AREA

Audiovox Electronics Corporation

150 Marcus Blvd.

Hauppauge, New York 11788

U.S.A.

1 800 645 4994

www.audiovox.com

Printed on Recycled Paper

XM name and related logos are trademarks of XM Satellite Radio Inc.

XMCK20

Sirius XM Radio XMCK20 XM Satellite RX and FM TX User Manual Layout 1

Sirius XM Radio Inc. XM Satellite RX and FM TX Layout 1

Contents

Users Guide

Navigation menu

Namespaces

Views

Navigation
