2. General
Validity
This manual describes the sd905 RFID Reader Module into hosts, e.g. the Coder LIGHT (CO
LIGHT).
Addressees
This manual is written exclusively for specialists.
The descriptions in this manual are intended for personnel trained by the manufacturer. The
information in this manual cannot substitute the product training.
The content of this manual is intended for use by the following groups of people:
Project manager
Project manager who is responsible for the system and entrusted with project planning
and realization.
Fitter
Person specialized in mounting and installation.
Person who has an adequate technical training and sufficient experience and who has
been authorized by the manufacturer after completing the training on the product.
Service technician
Specialist for initial set-up and maintenance of the installation.
Person who has an adequate technical training and sufficient experience and who has
been authorized by the manufacturer after completing the training on the product.
Network administrator
Realizes the set-up of the device within the network and makes sure that the devices
are accessible within the network.
Software partner
Specialists for connecting the system to the user software by defining operating and
booking sequences, programming the customer applications and setting the
parameters of the devices.
NOTICE!
For reasons of device safety, some of the activities might only be carried out by the
SERVICE PERSON.
Only persons of the groups "Fitter" and "Service technician" have the status of a SERVICE
PERSON according to EN 60950-1:2006.
Contents and purpose
The contents are limited to the assembly and installation of the hardware.
RFID Reader Module sd905
© 2016 SKIDATA AG General Page 5 of 23
ESD (electro static discharge) protective measures
CAUTION
Danger for electronic components due to electrostatic discharge.
Improper handling of printed circuit boards or components can cause damages that
lead to complete failures or sporadic errors.
During installation and repair of the device, the ESD protective measures must be
considered.
Please consider the following guidelines before the installation or maintenance of the device:
Always carry an ESD antistatic wristband when dealing with electronic components.
Connect one part of the wristband with a discharge socket or an unvarnished grounded
metal component. This way, static charges are discharged from your body securely
and effectively.
Only touch the printed circuit boards at the edges. Do not touch the printed circuit
board itself or the connector.
Place all dismantled components on an anti-static surface or in an anti-static container.
Avoid contact between printed circuit boards and your clothing. The wristband only
protects the printed circuit boards against electrostatic discharge from the body, but
there is still a risk of damage through electrostatic discharge from your clothing.
Transport and dispatch dismantled modules only in electrostatically shielded protective
bags.
RFID Reader Module sd905
© 2016 SKIDATA AG sd905 Page 6 of 23
3. sd905
3.1 Connectors of the sd905

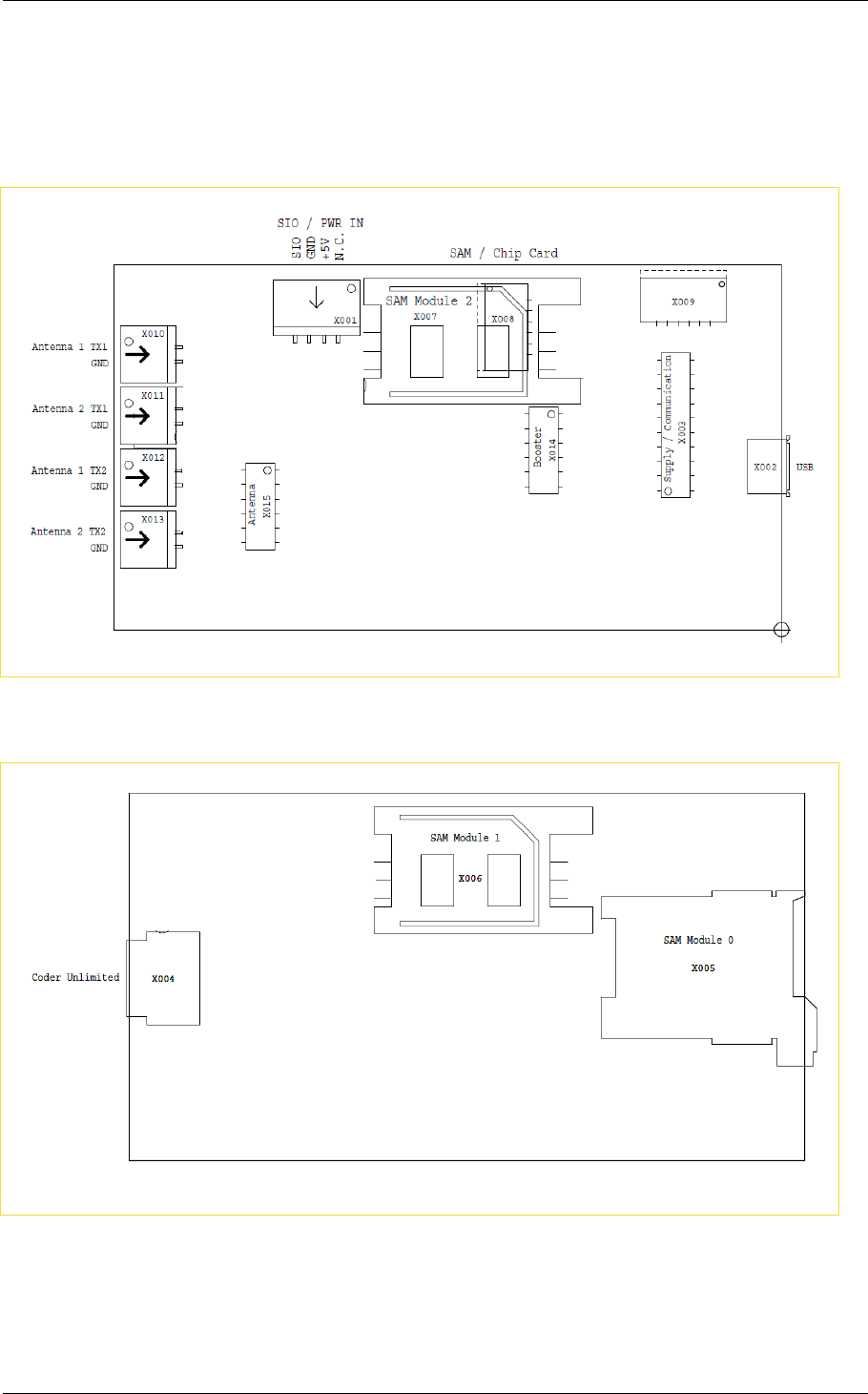

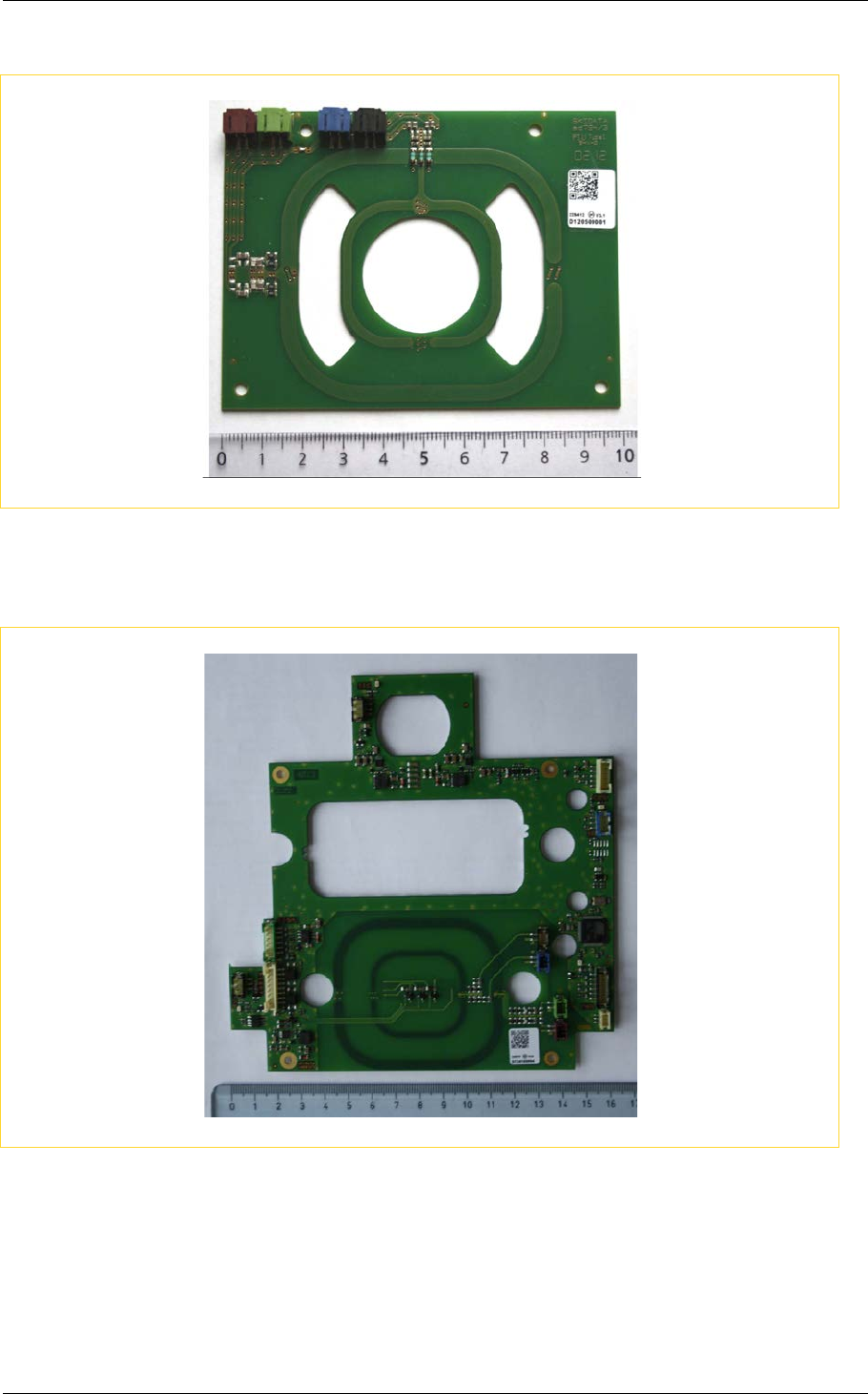

Fig. 1: Connectors of the sd905, top side
Fig. 2: Connectors of the sd905, bottom side
RFID Reader Module sd905
© 2016 SKIDATA AG sd905 Page 7 of 23
3.2 Technical Characteristics
Dimensions: 93 mm × 51 mm
Operating frequencies: 13,56 MHz
Modulation: ASK
Pulse repetition rule: 100 ms typ.
Supply Voltage: 5 V
Operating Temperature: 30 °C to +85 °C
Compatible with RFID data carriers supported by SKIDATA systems
Compatible with data carriers compliant to ISO 15693 and ISO 14443
3.3 Description
The sd905 functions as a built-in interface between a SKIDATA device and contactless data
carriers (RFID). Data communication between the sd905 and the SKIDATA device is
provided by means of a 0 V/5 V RS232 data link or a USB connection.
The most basic communication scenario is where the (unique) serial number of the data
carrier is sent to the RFID interface. This may or may not lead to further data communication
between the data carrier and RFID interface, and it may or may not lead to communication,
via data link, between the RFID interface and connected devices.
The sd905 is equipped with two amplifier stages. These stages may be used to drive two
antennas independently, or to drive one antenna in bridge connection. In case of a bridge
connection the amplifier stages will be driven inversely phased. An antenna for bridge
connection must be equipped with a special connector to be connected to X015 of the
sd905. This special connector will be explicitly mentioned at the description of the respective
antenna in chapter 4.
The main purposes of the sd905 RFID interface are:
Coding of RFID data carriers. SKIDATA coding devices use sd905 as an RFID
transceiver module for encoding RFID data carriers before issuing them to the user.
Access control. SKIDATA access control devices use sd905 for reading RFID data
carriers. Depending on the validity details stored on the data carrier, access is granted or
refused.
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 8 of 23
4. Antennas

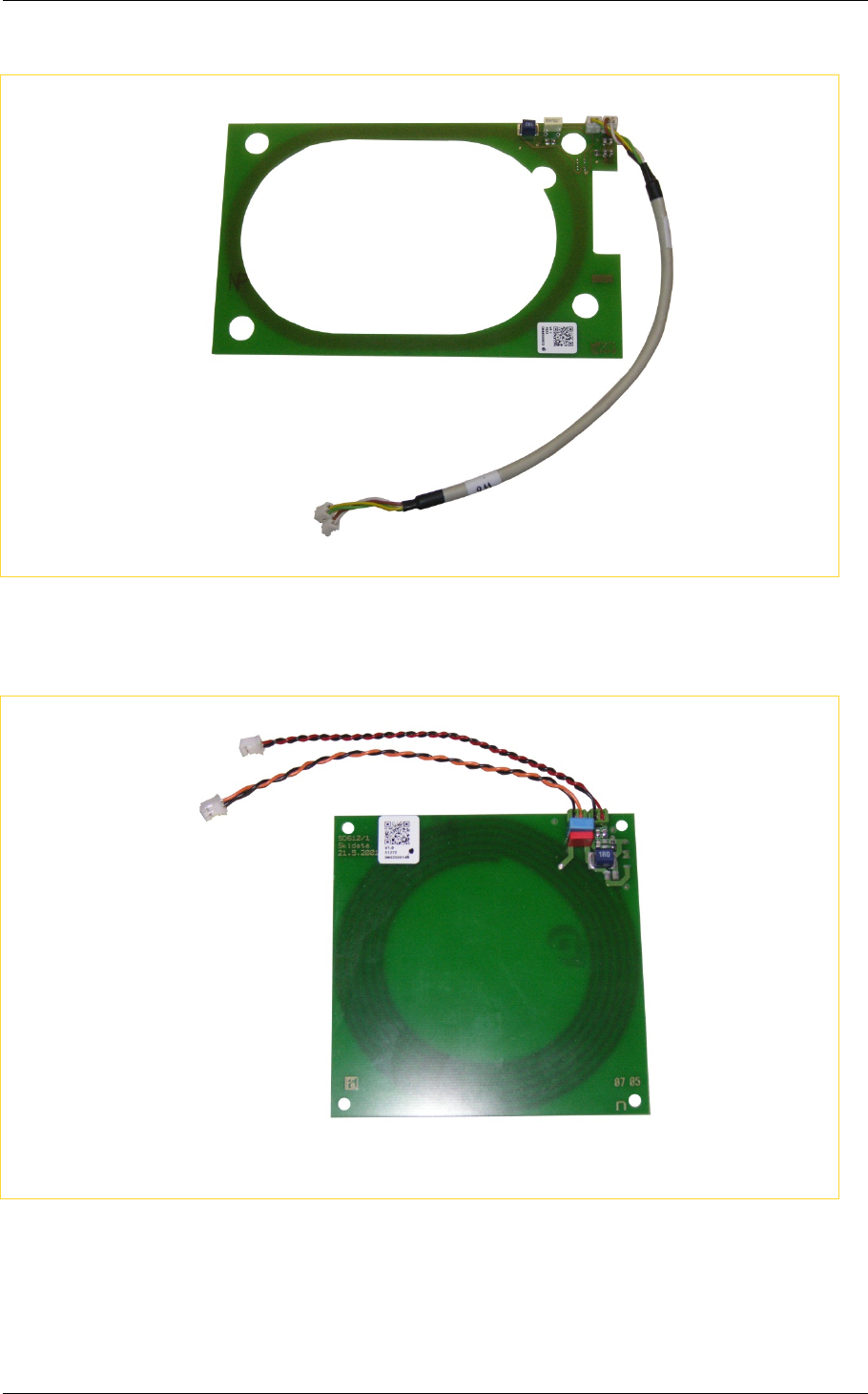

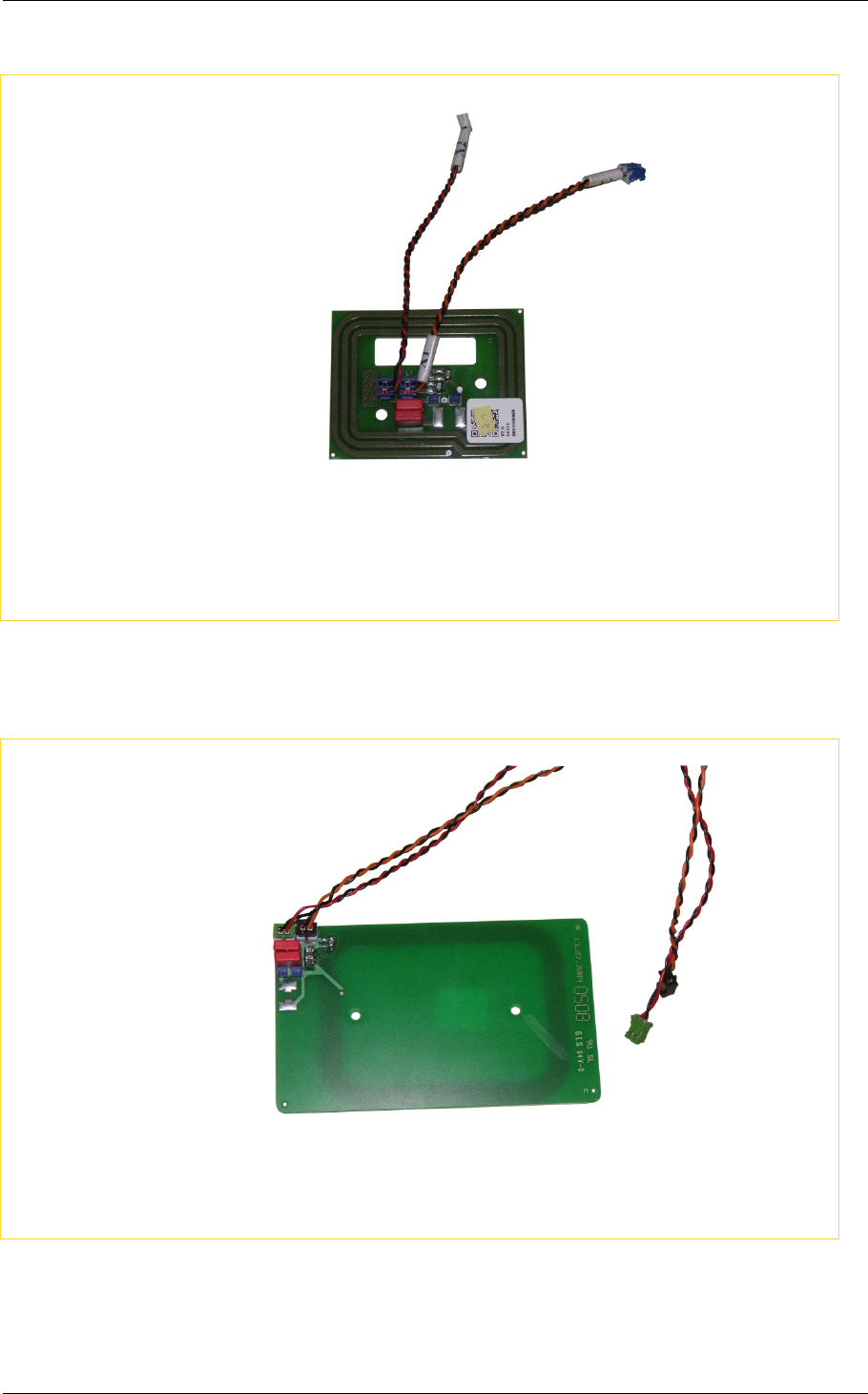

Fig. 3: sd571
Fig. 4: sd572
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 9 of 23

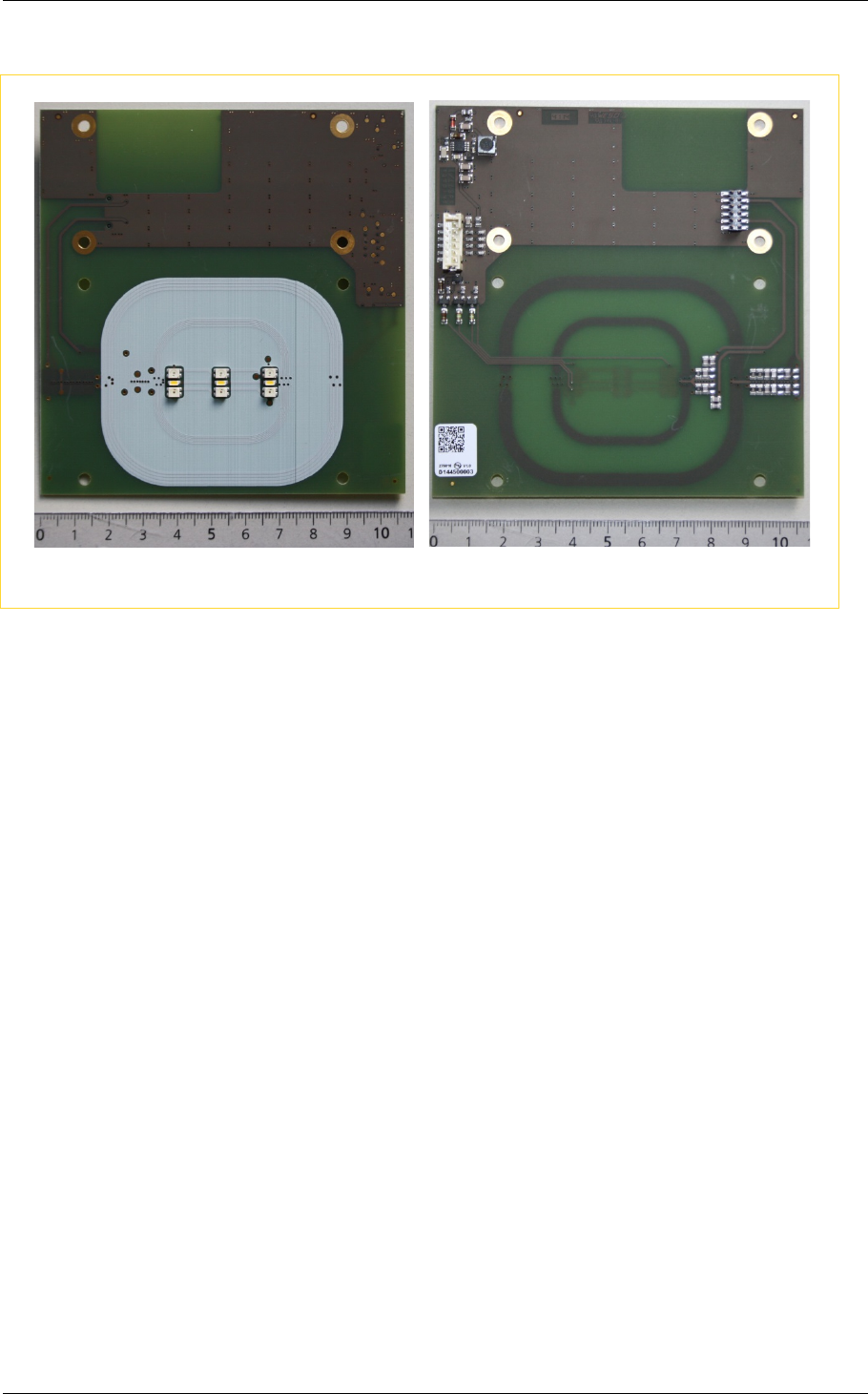

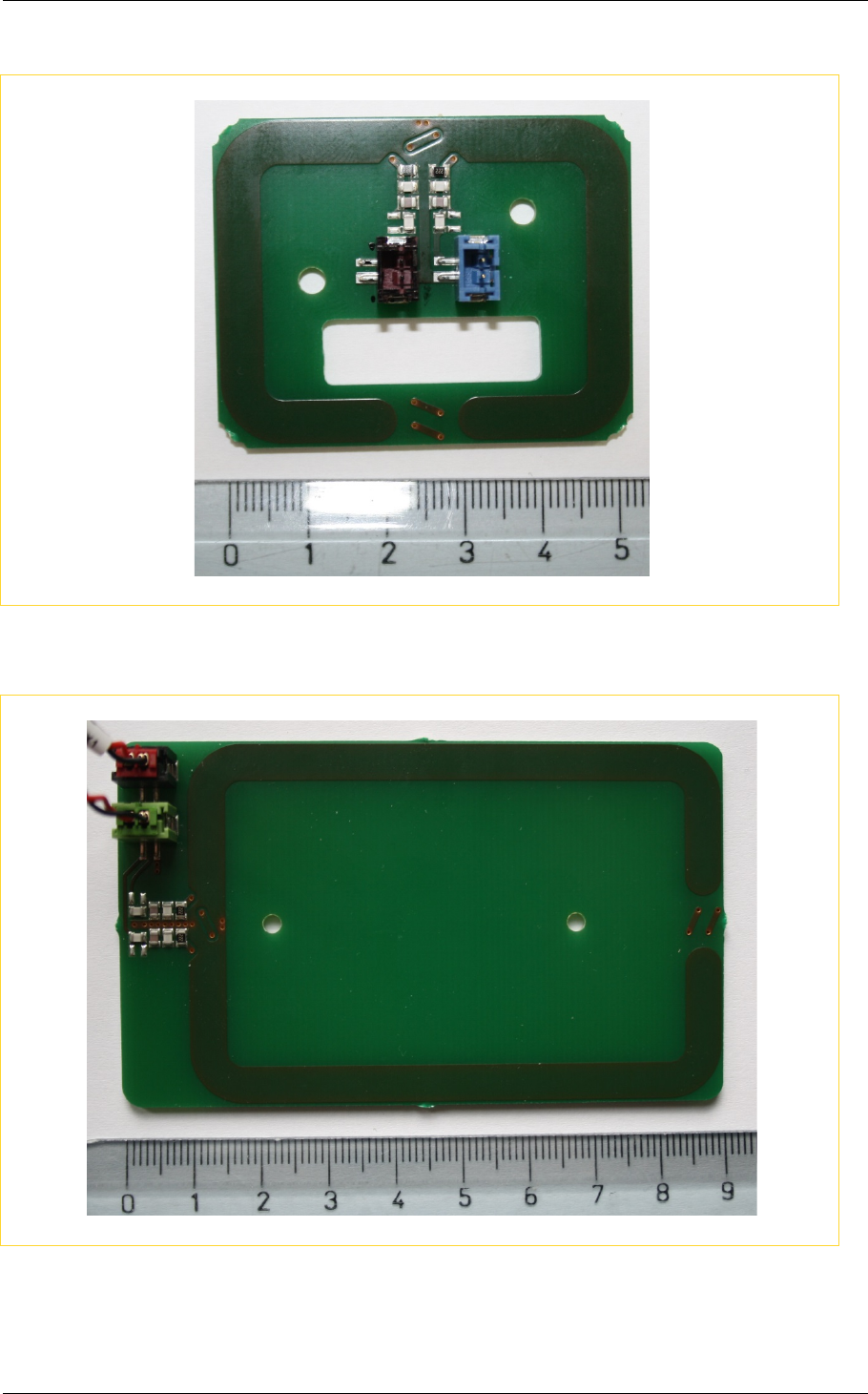

Fig. 5: sd611
Fig. 6: sd612
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 10 of 23

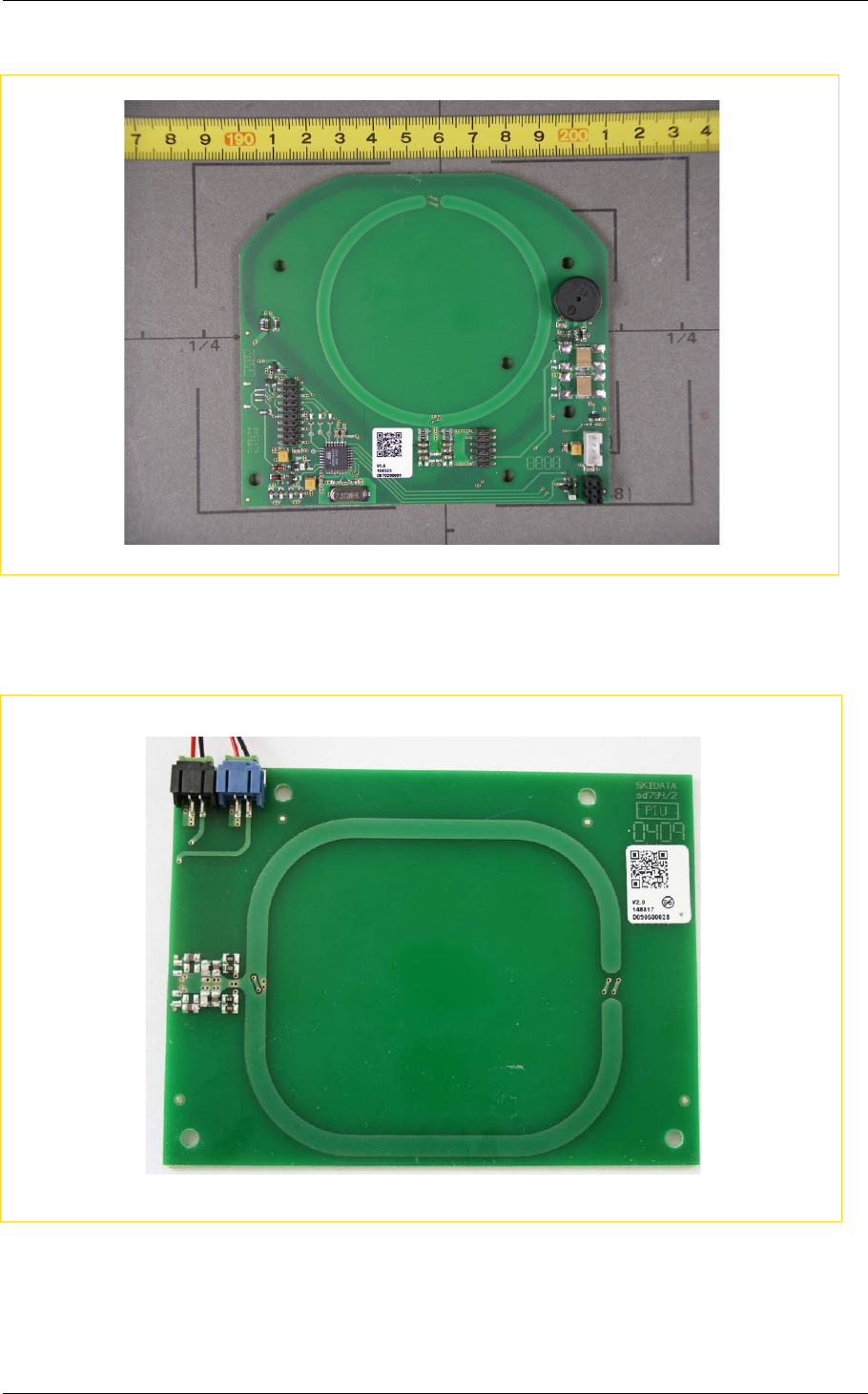

Fig. 7: sd647
Fig. 8: sd648
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 11 of 23

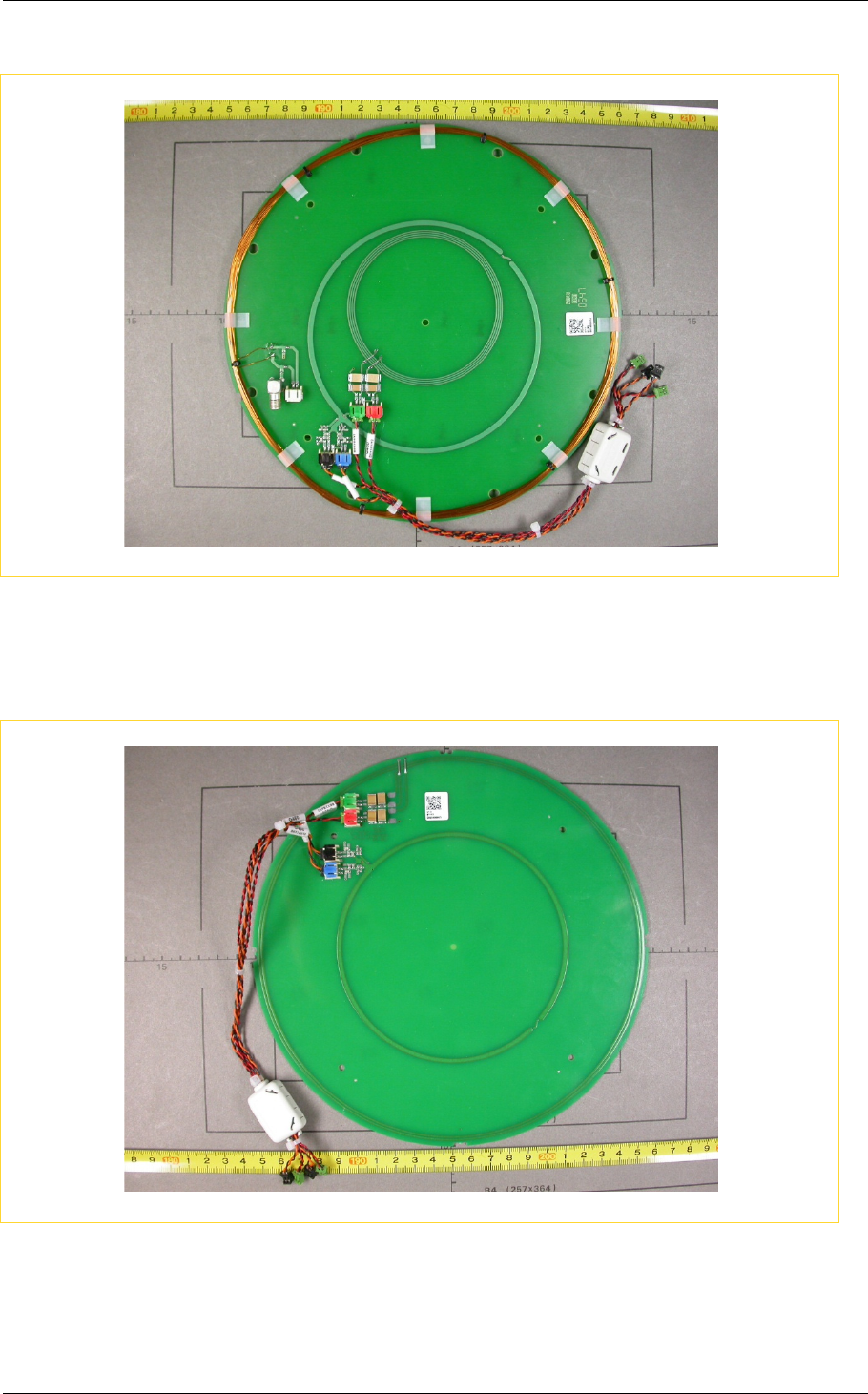

Fig. 9: sd682/1
Only the 13 MHz antenna is used with sd905; the 122 kHz antenna remains unused
Fig. 10: sd682
Antennas A, B and C
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 12 of 23

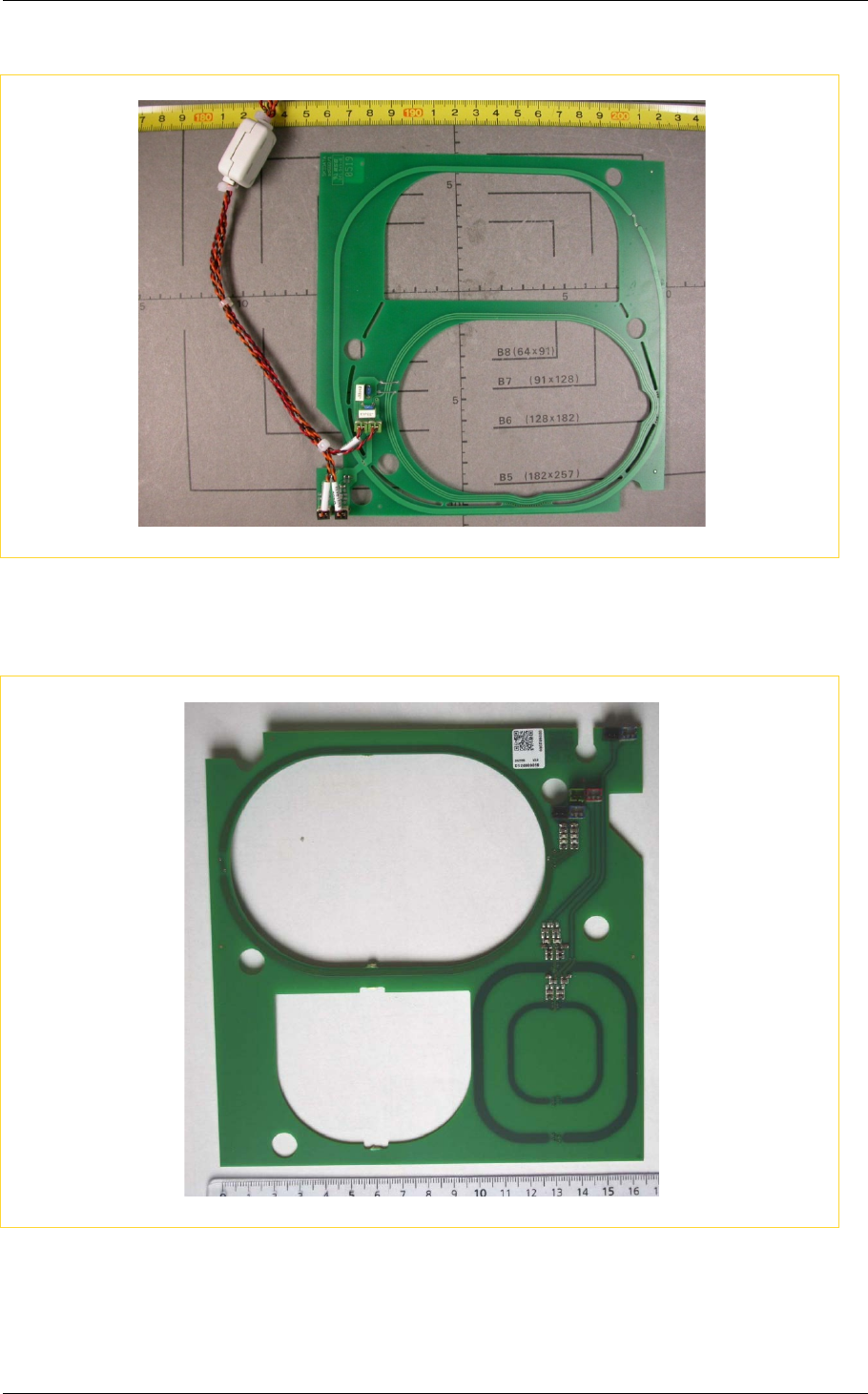

Fig. 11: sd697/2
Only the 13 MHz antenna is used with sd905; the 122 kHz antenna (wired coil) remains
unused
Fig. 12: 697/3
Only the 13 MHz antenna is used with sd905; the 122 kHz antenna remains unused
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 13 of 23

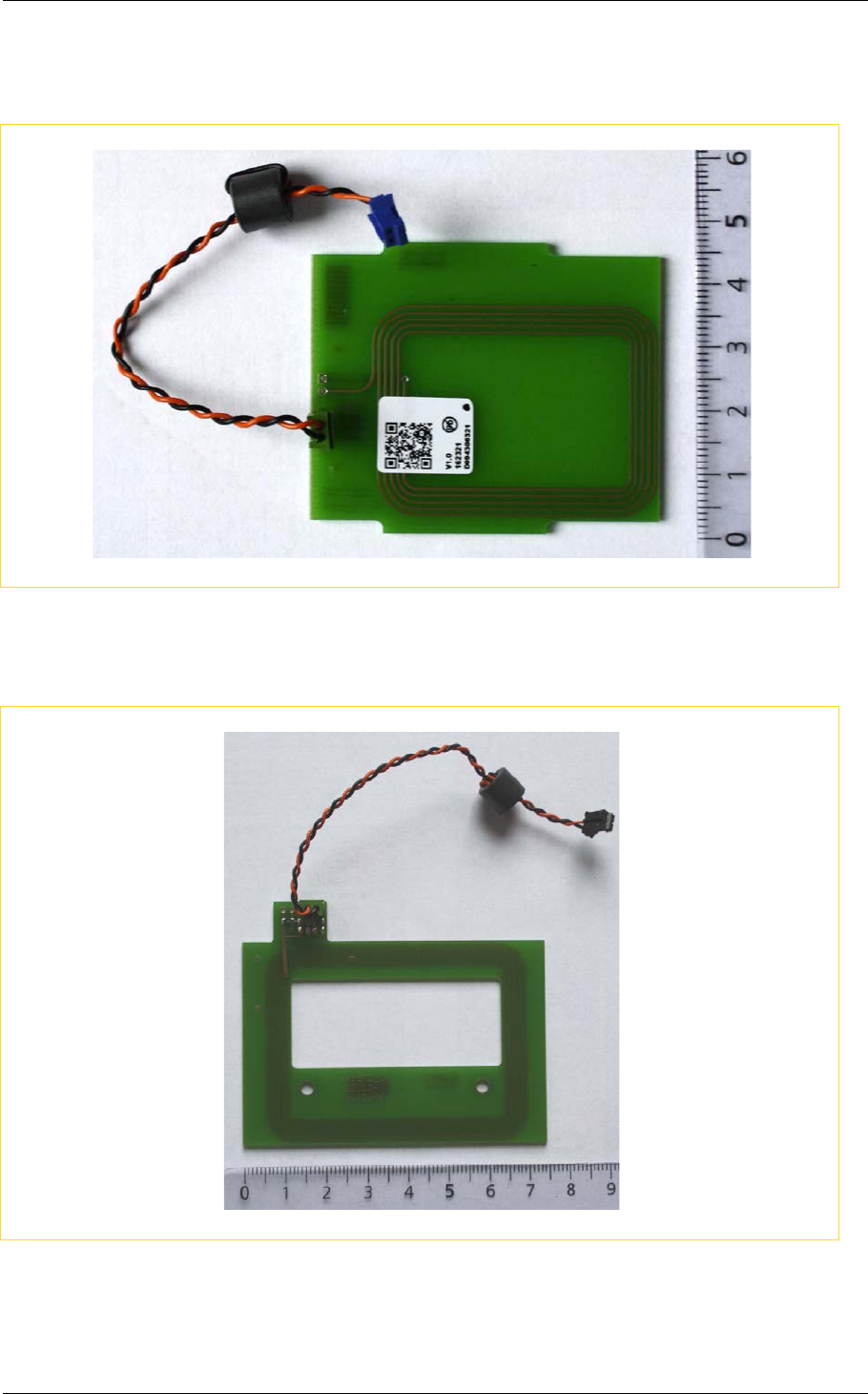

Fig. 13: sd733/2
Only the 13 MHz antenna is used with sd905; the 122 kHz antenna remains unused
Fig. 14: sd733
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 14 of 23
Fig. 15: sd758 (Shortrange module)
Only the 13 MHz antenna is used with sd905; the 122 kHz antenna remains unused
Fig.16: sd794/2
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 15 of 23
Fig.17: sd794
Antennas A and B
Fig. 18: sd847
Antennas A and B
The sd847 acts as an antenna, as an illumination and as a touch key. The antenna part is
completely independent from all other parts.
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 16 of 23
Fig. 19: sd862
Antennas A and B
The sd862 acts as an antenna, as an illumination and as an illuminated touch key. The
antenna part is completely independent from all other parts.
The square part is the illuminated touch key and may or may not be removed.
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 17 of 23
Fig. 20: sd872
The sd872 acts as an antenna and as an illumination. The antenna part is completely
independent from the illumination.
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 18 of 23

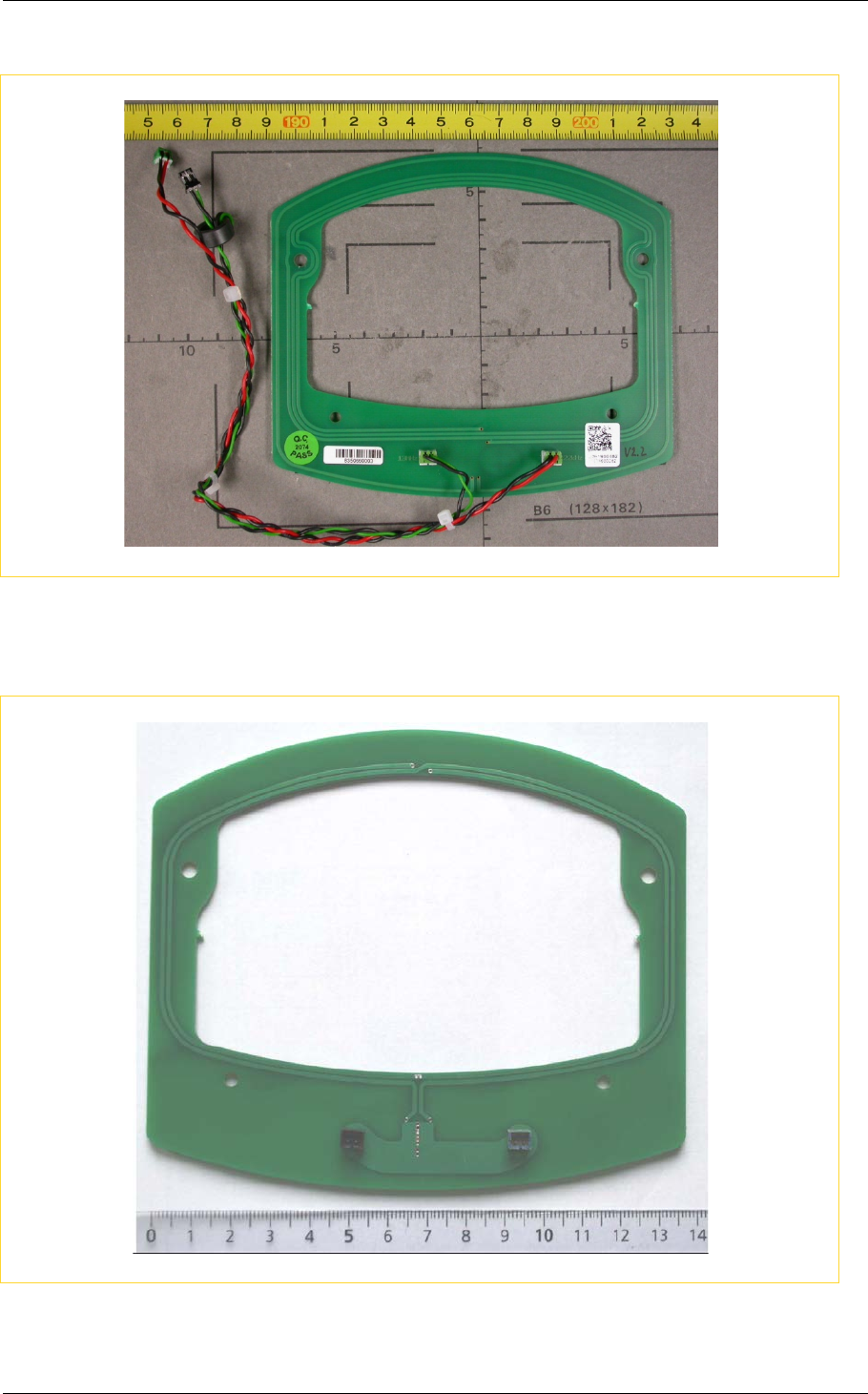

Fig. 21: sd877
Antennas A and B
The sd877 acts as an antenna and as an illumination. The antenna part is completely
independent from the illumination.
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 19 of 23
Fig. 22: sd888
Antennas A and B
The sd888 is equipped with a special connector which fits into X015 of the sd905 and will
therefore be powered as a bridge circuit.
RFID Reader Module sd905
© 2016 SKIDATA AG Antennas Page 20 of 23
Fig. 23: sd901
Fig. 24: sd902
RFID Reader Module sd905
© 2016 SKIDATA AG Integration into Devices Page 21 of 23
5. Integration into Devices
5.1 Integration into CO LIGHT

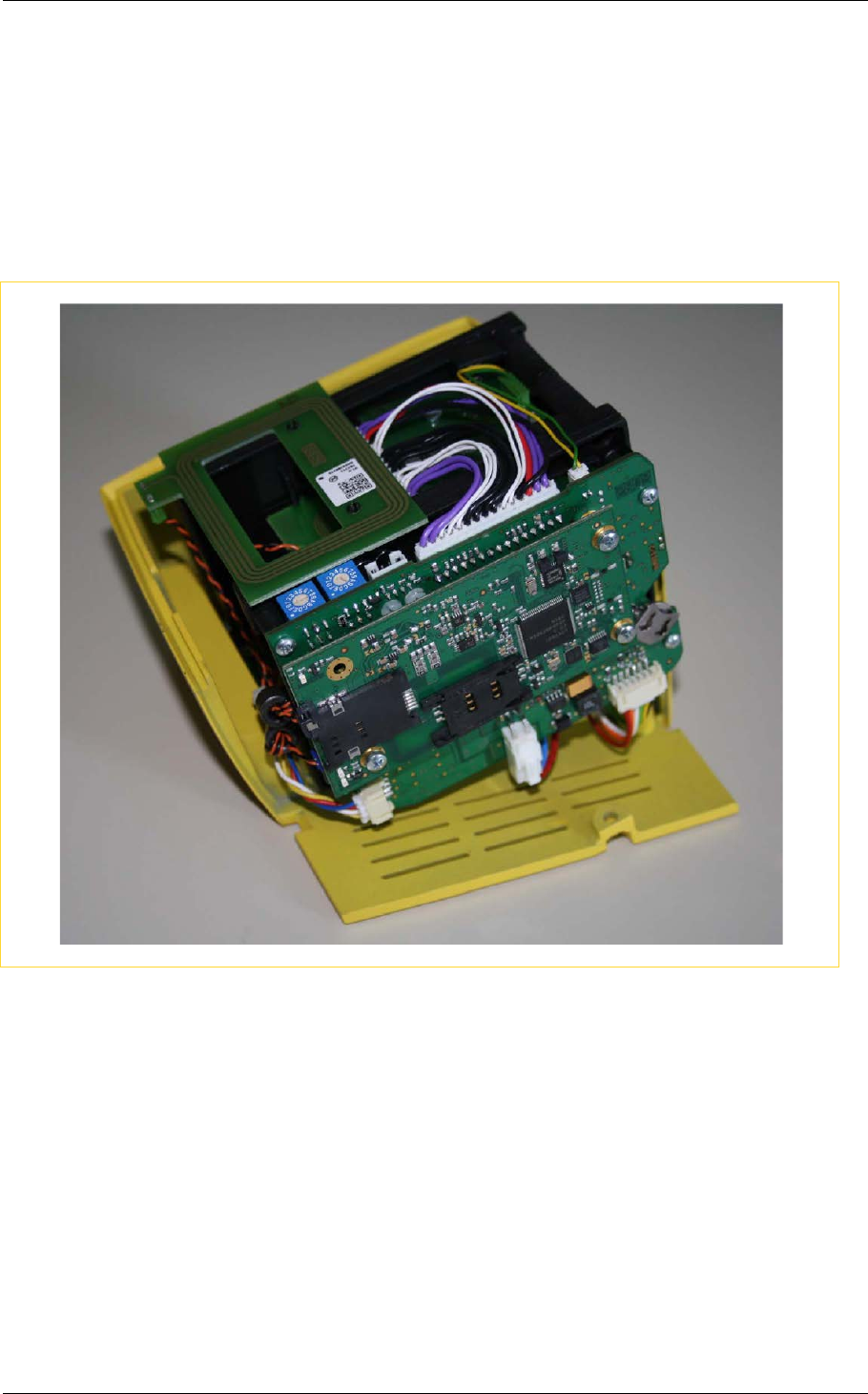

Fig. 25: Inside view of CO LIGHT with shows sd905 wih Antenna sd572
RFID Reader Module sd905
© 2016 SKIDATA AG Integration into Devices Page 22 of 23
5.2 Integration into Ski Antenna

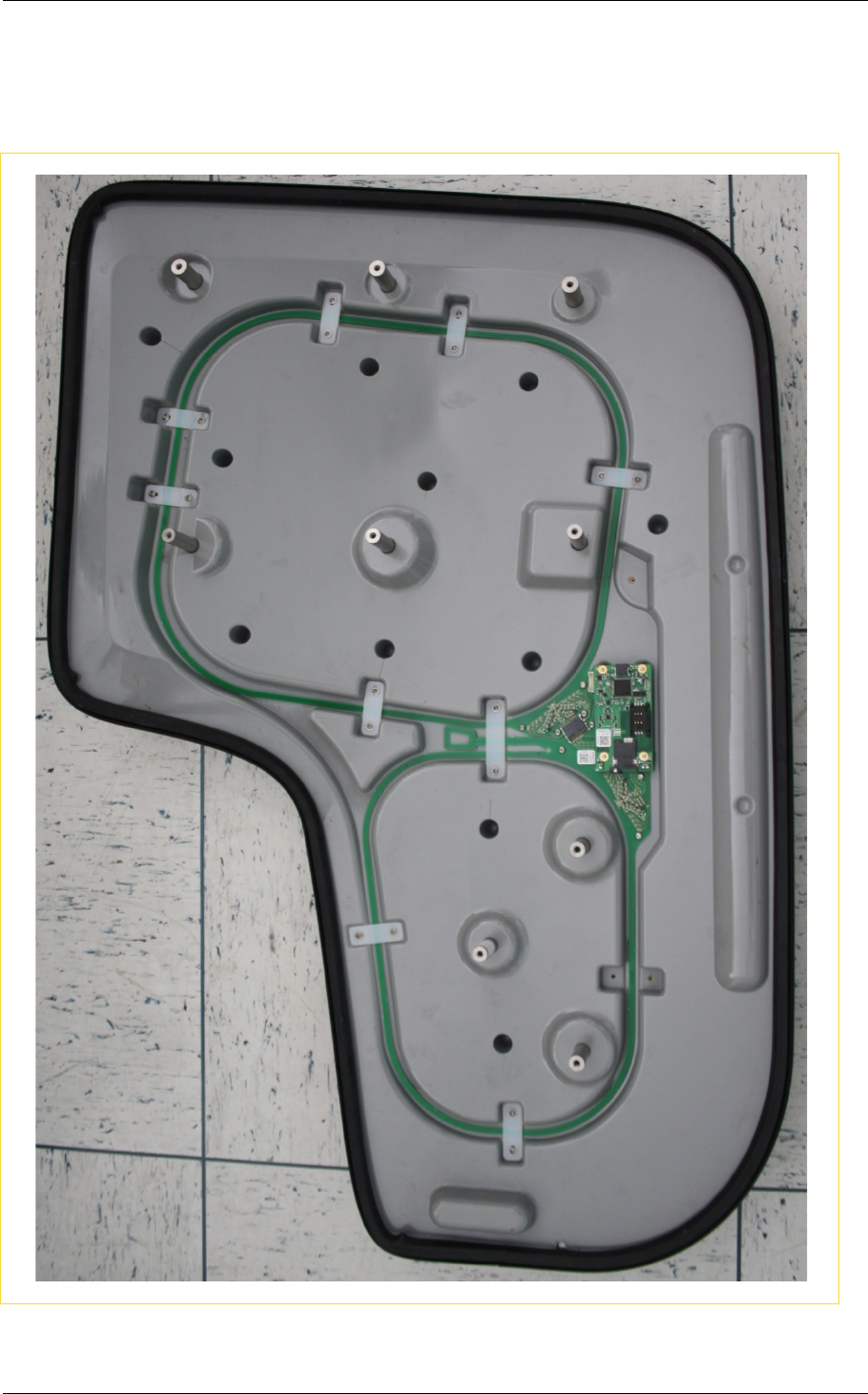

Fig. 26: Inside view of Ski Antenna which shows sd905 with Antenna sd888
RFID Reader Module sd905
© 2016 SKIDATA AG Integration into Devices Page 23 of 23
6. Labeling
Using a permanently affixed label, the modular transmitter will be labeled with its own FCC
identification number, and, if the FCC identification number is not visible when the module is installed
inside another device, then the outside of the device into which the module is installed must also
display a label referring to the enclosed module. The same applies to the IC (Industry Canada)
identification number.
This exterior label can use wording such as the following:
For the USA:
“Contains Transmitter Module FCC ID QSS-SD905 or Contains FCC ID QSS-SD905”. Any similar
wording that expresses the same meaning may be used.
For Canada:
“Contains Transmitter Module IC:6215A-SD905” or “Contains IC:6215A-SD905. Any similar wording
that expresses the same meaning may be used.
7. DECLARATIONS OF CONFORMITY
USA:
DECLARATION OF CONFORMITY
according to FCC Part 15:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Canada:
DECLARATION OF CONFORMITY
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Navigation menu
