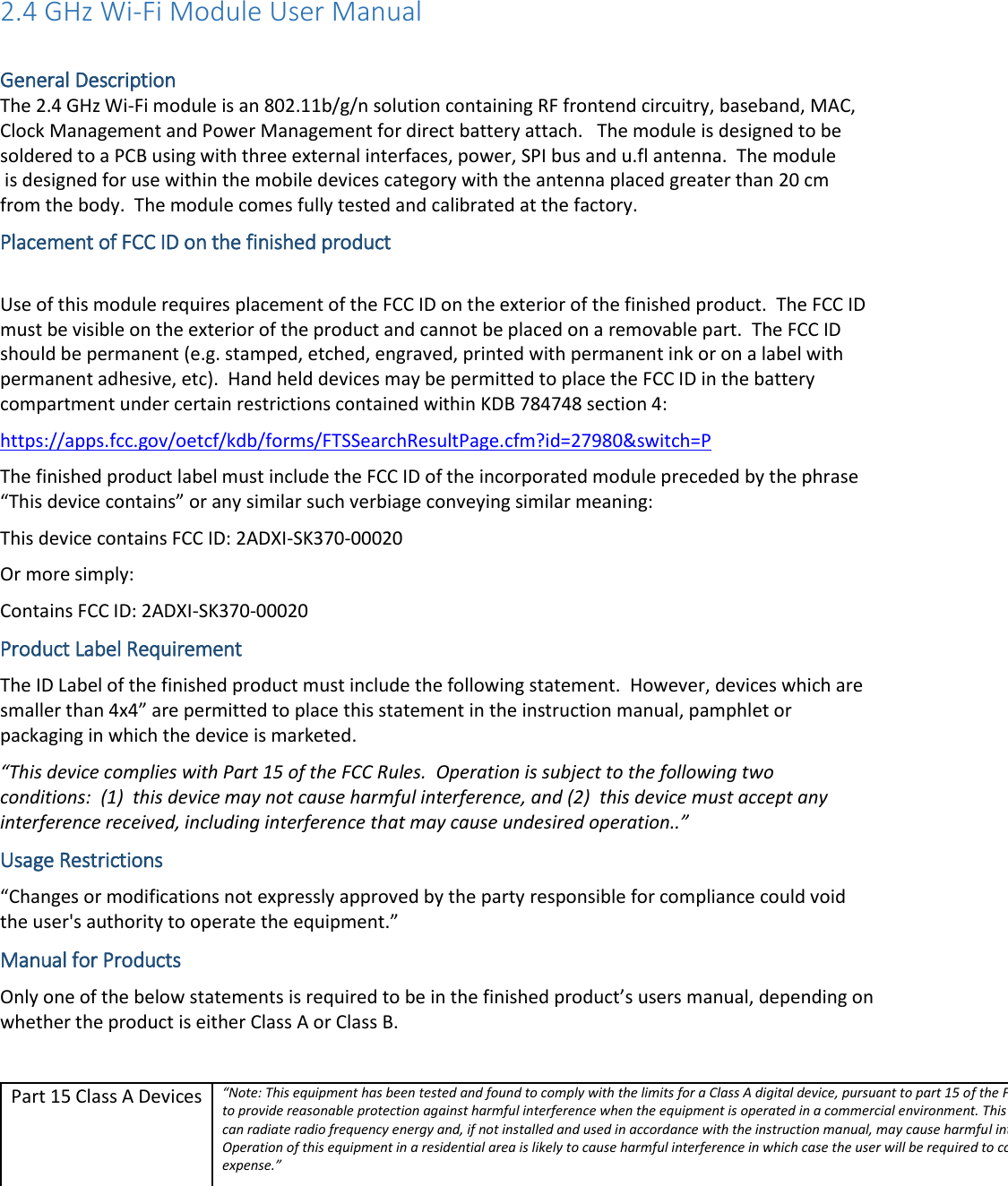

2.4 GHz Wi-Fi Module User Manual  General Description The 2.4 GHz Wi-Fi module is an 802.11b/g/n solution containing RF frontend circuitry, baseband, MAC, Clock Management and Power Management for direct battery attach.   The module is designed to be  Placement of FCC ID on the finished product  Use of this module requires placement of the FCC ID on the exterior of the finished product.  The FCC ID must be visible on the exterior of the product and cannot be placed on a removable part.  The FCC ID should be permanent (e.g. stamped, etched, engraved, printed with permanent ink or on a label with permanent adhesive, etc).  Hand held devices may be permitted to place the FCC ID in the battery compartment under certain restrictions contained within KDB 784748 section 4: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?id=27980&switch=P The finished product label must include the FCC ID of the incorporated module preceded by the phrase “This device contains” or any similar such verbiage conveying similar meaning: This device contains FCC ID: 2ADXI-SK370-00020 Or more simply: Contains FCC ID: 2ADXI-SK370-00020 Product Label Requirement The ID Label of the finished product must include the following statement.  However, devices which are smaller than 4x4” are permitted to place this statement in the instruction manual, pamphlet or packaging in which the device is marketed. “This device complies with Part 15 of the FCC Rules.  Operation is subject to the following two conditions:  (1)  this device may not cause harmful interference, and (2)  this device must accept any interference received, including interference that may cause undesired operation..” Usage Restrictions “Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.” Manual for Products Only one of the below statements is required to be in the finished product’s users manual, depending on whether the product is either Class A or Class B.  Part 15 Class A Devices “Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.” soldered to a PCB using with three external interfaces, power, SPI bus and u.fl antenna.  The module is designed for use within the mobile devices category with the antenna placed greater than 20 cm from the body.  The module comes fully tested and calibrated at the factory.

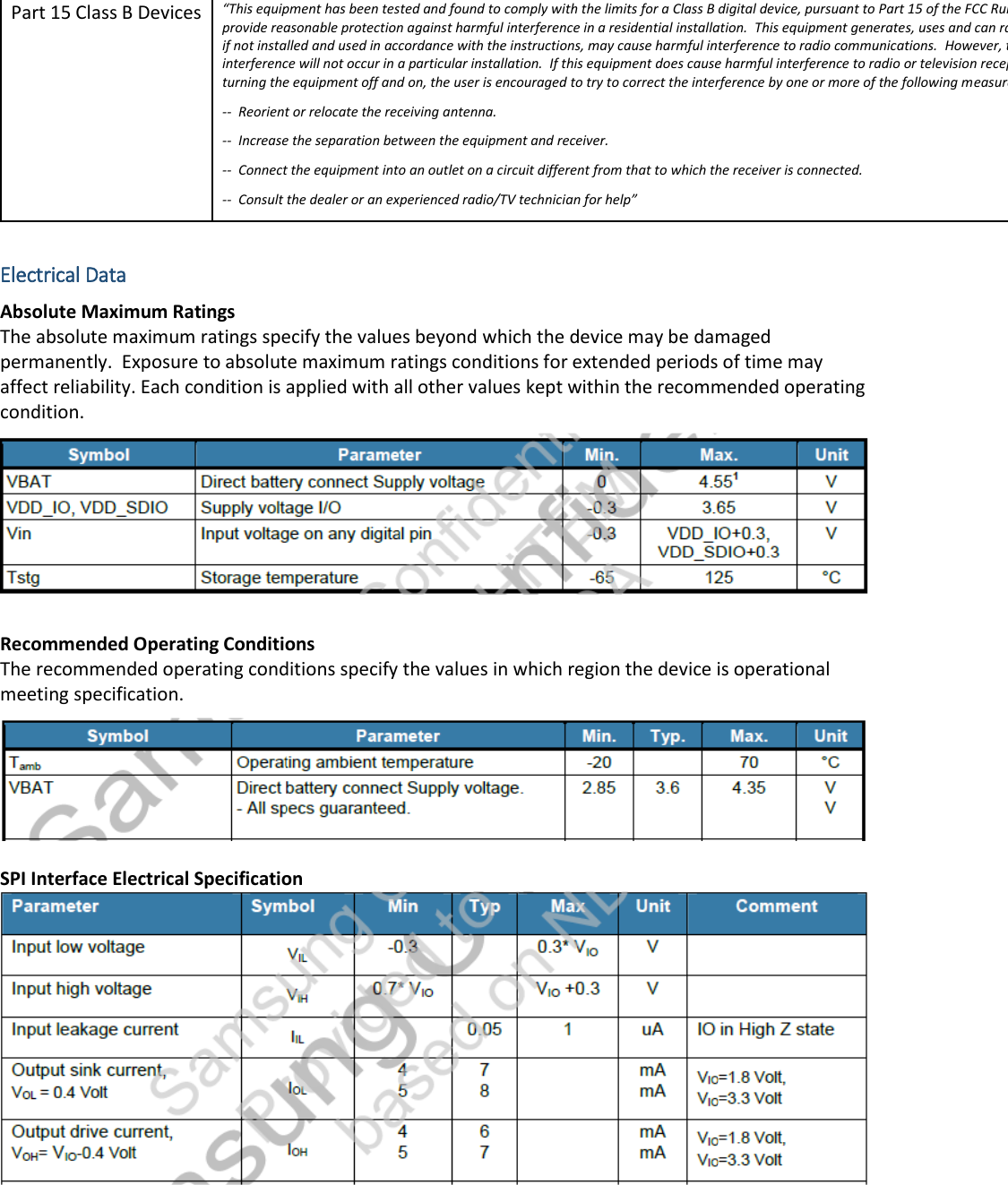

Part 15 Class B Devices “This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against harmful interference in a residential installation.  This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation.  If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --  Reorient or relocate the receiving antenna. --  Increase the separation between the equipment and receiver. --  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --  Consult the dealer or an experienced radio/TV technician for help”  Electrical Data Absolute Maximum Ratings The absolute maximum ratings specify the values beyond which the device may be damaged permanently.  Exposure to absolute maximum ratings conditions for extended periods of time may affect reliability. Each condition is applied with all other values kept within the recommended operating condition.  Recommended Operating Conditions The recommended operating conditions specify the values in which region the device is operational meeting specification.  SPI Interface Electrical Specification

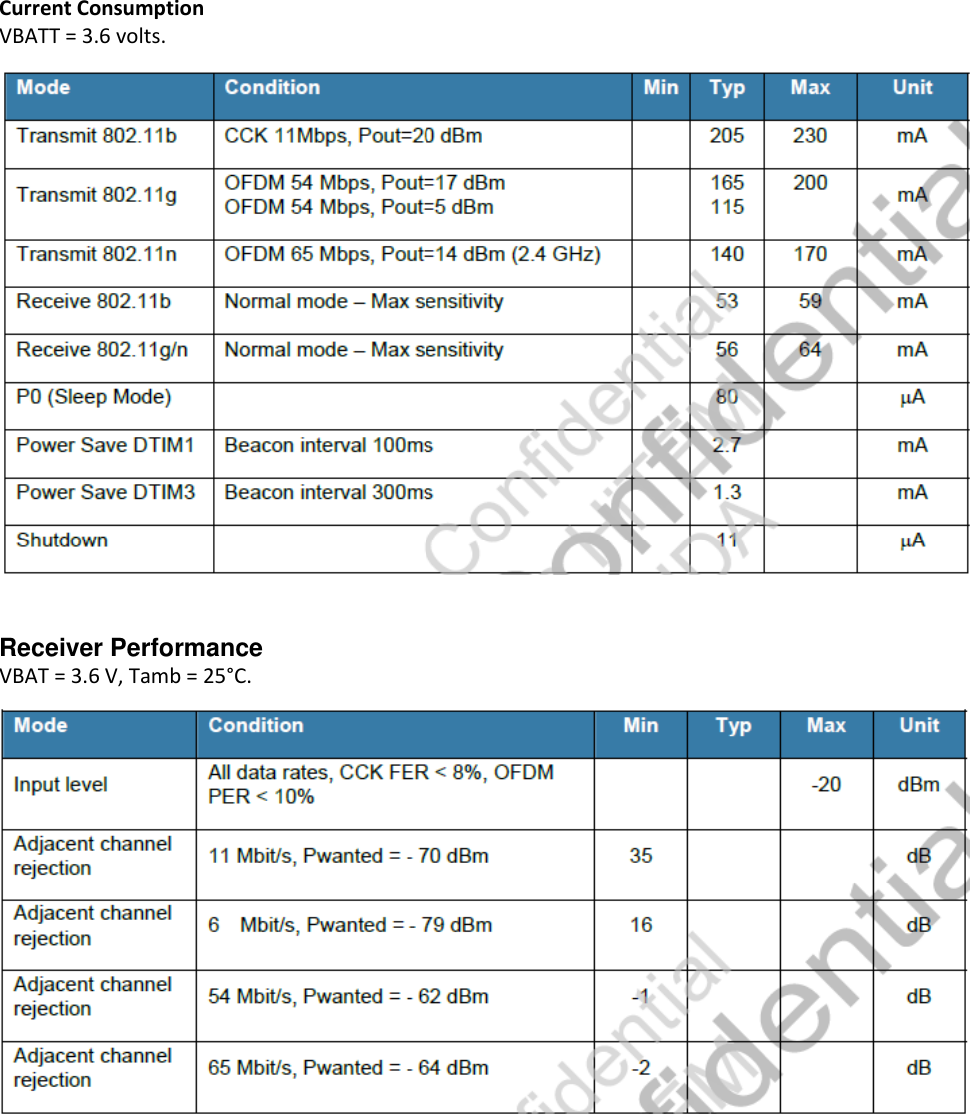

Current Consumption VBATT = 3.6 volts.   Receiver Performance VBAT = 3.6 V, Tamb = 25°C.

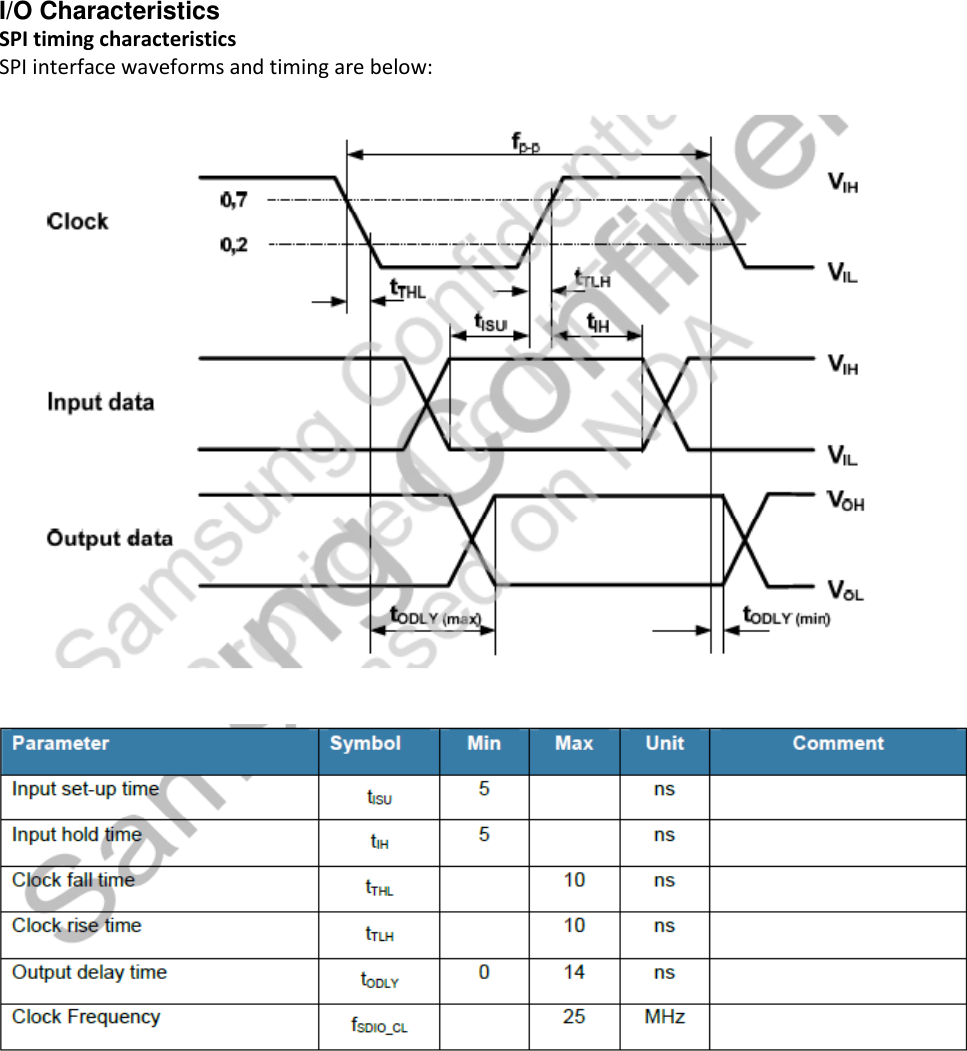

I/O Characteristics SPI timing characteristics SPI interface waveforms and timing are below:

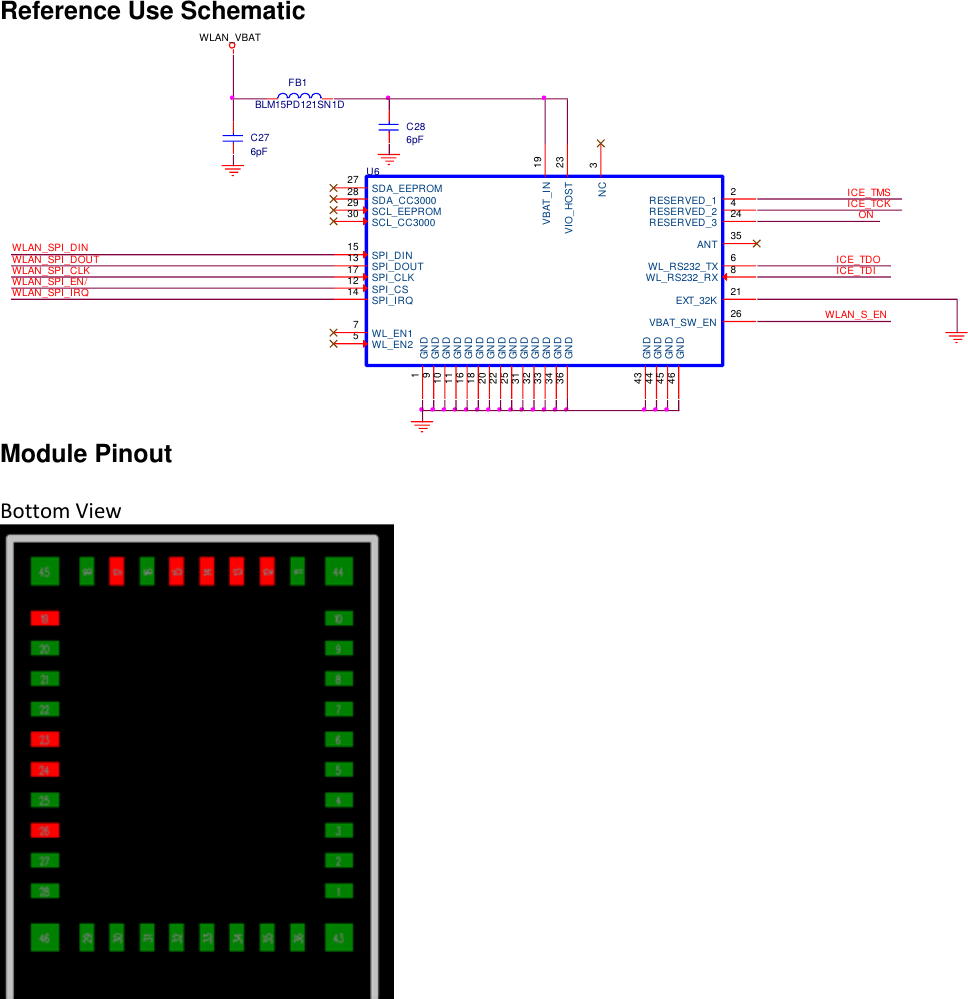

Reference Use Schematic Module Pinout  Bottom View        ICE_TDIICE_TDOWLAN_SPI_CLKWLAN_SPI_EN/WLAN_SPI_DINWLAN_SPI_DOUTWLAN_SPI_IRQFB1BLM15PD121SN1DU6GND1RESERVED_1 2NC 3RESERVED_2 4WL_EN25WL_RS232_TX 6WL_EN17WL_RS232_RX 8GND9GND10GND11GND16SPI_IRQ14VBAT_IN 19GND18SPI_DIN15SPI_CLK17SPI_CS12SPI_DOUT13GND20RESERVED_3 24GND25VBAT_SW_EN 26GND34ANT 35GND43GND44GND31SDA_EEPROM27SDA_CC300028SCL_EEPROM29SCL_CC300030GND32GND33GND36GND46 GND45VIO_HOST 23GND22EXT_32K 21C276pFC286pFWLAN_VBATWLAN_S_ENICE_TMSICE_TCKON

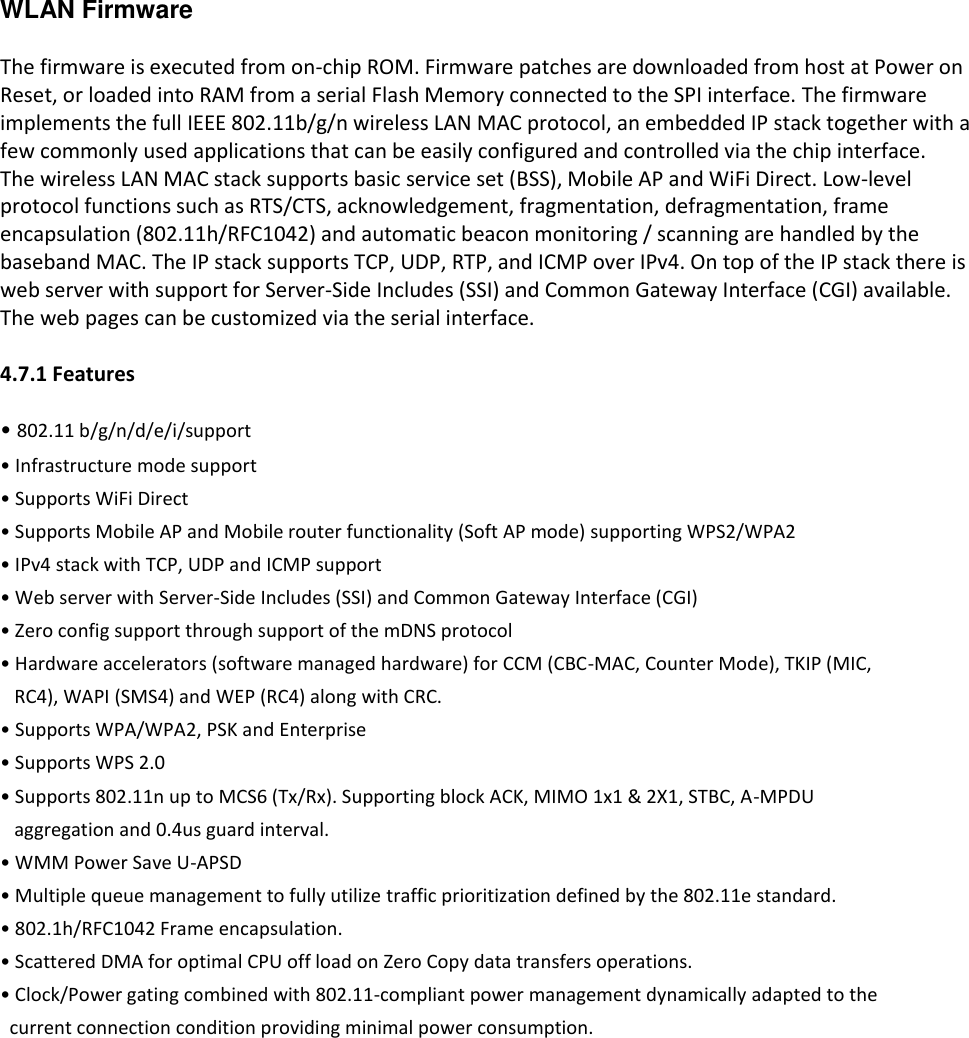

WLAN Firmware  The firmware is executed from on-chip ROM. Firmware patches are downloaded from host at Power on Reset, or loaded into RAM from a serial Flash Memory connected to the SPI interface. The firmware implements the full IEEE 802.11b/g/n wireless LAN MAC protocol, an embedded IP stack together with a few commonly used applications that can be easily configured and controlled via the chip interface. The wireless LAN MAC stack supports basic service set (BSS), Mobile AP and WiFi Direct. Low-level protocol functions such as RTS/CTS, acknowledgement, fragmentation, defragmentation, frame encapsulation (802.11h/RFC1042) and automatic beacon monitoring / scanning are handled by the baseband MAC. The IP stack supports TCP, UDP, RTP, and ICMP over IPv4. On top of the IP stack there is web server with support for Server-Side Includes (SSI) and Common Gateway Interface (CGI) available. The web pages can be customized via the serial interface.  4.7.1 Features  • 802.11 b/g/n/d/e/i/support • Infrastructure mode support • Supports WiFi Direct • Supports Mobile AP and Mobile router functionality (Soft AP mode) supporting WPS2/WPA2  • IPv4 stack with TCP, UDP and ICMP support • Web server with Server-Side Includes (SSI) and Common Gateway Interface (CGI) • Zero config support through support of the mDNS protocol • Hardware accelerators (software managed hardware) for CCM (CBC-MAC, Counter Mode), TKIP (MIC,    RC4), WAPI (SMS4) and WEP (RC4) along with CRC. • Supports WPA/WPA2, PSK and Enterprise • Supports WPS 2.0 • Supports 802.11n up to MCS6 (Tx/Rx). Supporting block ACK, MIMO 1x1 & 2X1, STBC, A-MPDU    aggregation and 0.4us guard interval. • WMM Power Save U-APSD • Multiple queue management to fully utilize traffic prioritization defined by the 802.11e standard. • 802.1h/RFC1042 Frame encapsulation. • Scattered DMA for optimal CPU off load on Zero Copy data transfers operations. • Clock/Power gating combined with 802.11-compliant power management dynamically adapted to the   current connection condition providing minimal power consumption.
