SKW72 User Manual
General Description
The
module
SKW72
compliant to
802.11
b/g/n
Wi-Fi
Solution for
low
power,
low-cost,
and
highly
integrated
AP
and
consumer
electronic devices,
the
module
requiring
only
a
external
3.3V
power
supply
and
connection
to
antenna.
The
module
based
on
the
single
chip
AR9331
which
integrates
an
802.11n
1x1
MAC/BB/radio
with
internal
PA
and
LNA.
It
supports
802.11n
operations
up
to
72
Mbps
for
20
MHz and
150
Mbps
for
40
MHz
channel
respectively,
and
IEEE
802.11b/g
data
rates
.
The
module support AP mode and client mode and repeater mode and
UART wifi.
Applications
AP WIFI
UART WIFI
Repeater WIFI
IP TV
IP DVD(Internet VOD Player)
Set Top Box
Home Gateways
Gaming Consoles
DVR

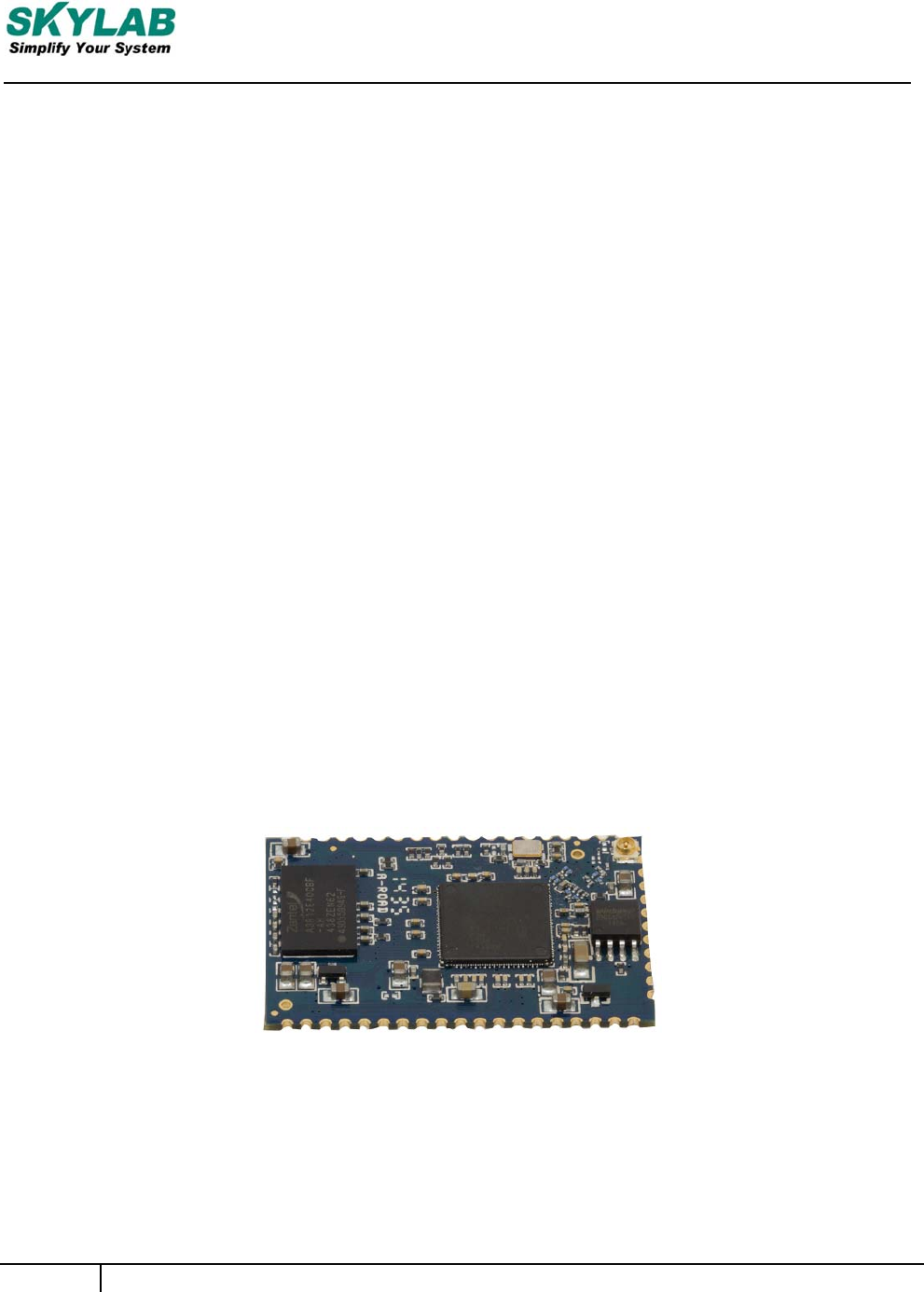

Figure 1: SKW72 Top View
Features
Compliant to IEEE 802.11b/g/n 1x1WLANs
DDR2 memory up to 512Mb
SKYLAB M&C Technology Co., Ltd SKW72- User Manual
SKW72-UM-001,A/2
2
Flash memory up to 64Mb
4LAN
ports
and
1
WAN
port
Uart baud rate: 115200bps.
USB
2.0
host device
mode
support
Support AP/Client/Repeater mode
Support UART to wifi transparent
Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI
RoHS compliance meets environment-friendly requirement.
40.5(L) x 27.5(W) x 2.9(H) mm small dimension
Ordering Information
Module NO. Antenna Connector Type SPI Flash Size
SKW72_P8 Pin Antenna 8M Byte
Module Pinout

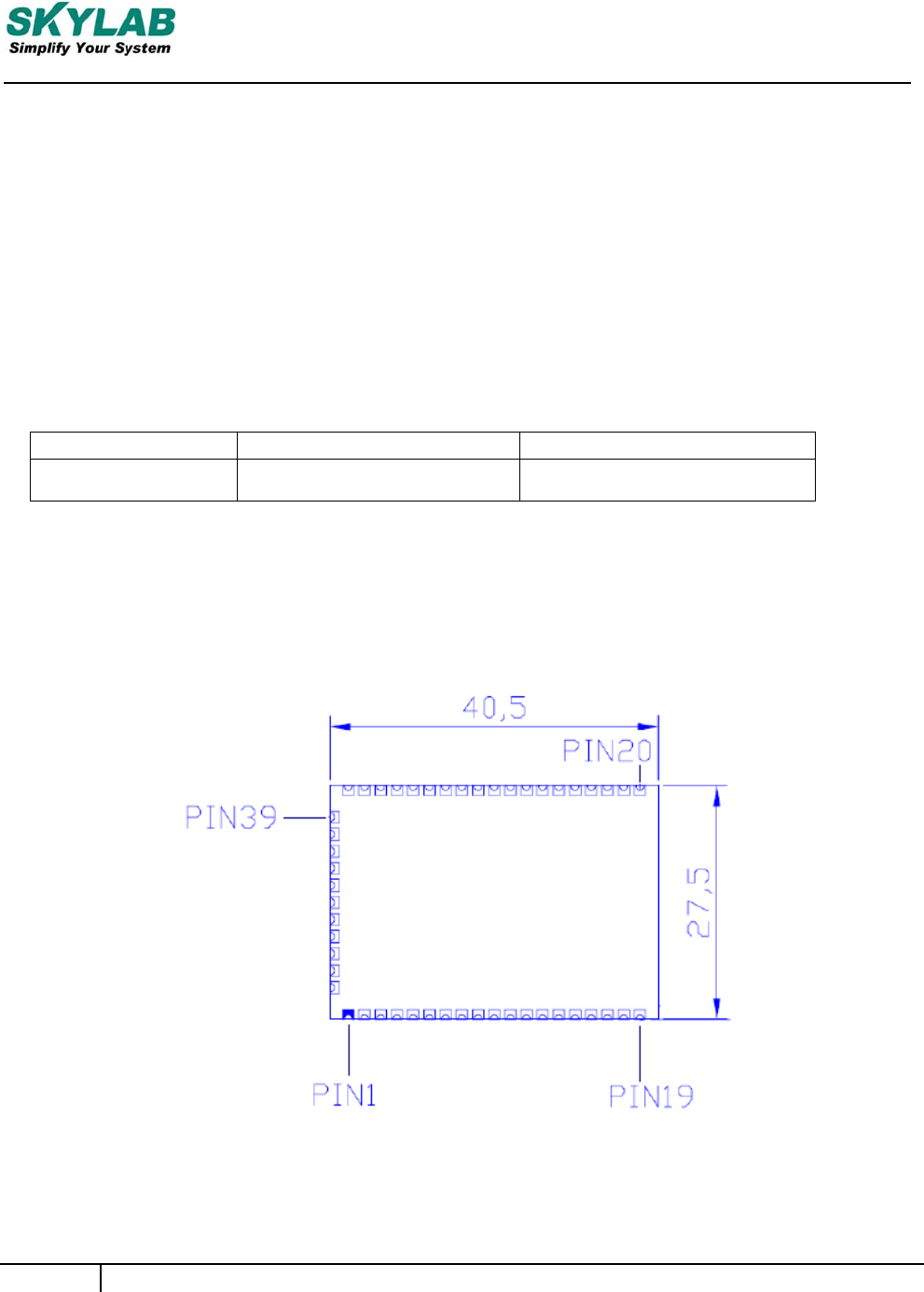

Figure 2: SKW72 Pin Package
SKW72_P8 Pin Antenna 8M Byte
Antenna Type: PCB Pin antenna
Antenna Gain: 1dBi
SKYLAB M&C Technology Co., Ltd SKW72- User Manual
SKW72-UM-001,A/2
3
Pin Description
1 GND GROUND
2 ANT Antenna pin
3 GND GROUND
4 NC NC
5 NC NC
6 NC NC
7 RESET_CONFIG resets the firmware to its default configuration.
(UART_CTS) (GPIO_12) Active pulling up。
8 LED6 (GPIO_17) WLAN LED
9 LED5 (GPIO_16) LAN_PORT3_LED,be free for customer defined.
10 LED4 (GPIO_15) LAN_PORT2_LED
11 LED3 (GPIO_14) LAN_PORT1_LED
12 LED7(GPIO_27) SYSTEM LED
13 LED1 (GPIO_1) USB LED
14 LED2 (GPIO_13) LAN_PORT0_LED
15 LED0 (GPIO_0) Wireless LED
16 UART_RX (SPI_CS1) Serial data in
17 UART_TX (SPI_CS2) Serial data out
18 GND GROUND
19 GND GROUND
20 WAN_PORT_RX+ WAN port
21 WAN_PORT_RX- WAN port
22 WAN_PORT_TX+ WAN port
23 WAN_PORT_TX- WAN port
24 LAN_PORT3_TX+ Ethernet port3
25 LAN_PORT3_TX- Ethernet port3
26 LAN_PORT3_RX+ Ethernet port3
27 LAN_PORT3_RX- Ethernet port3
28 LAN_PORT2_RX+ Ethernet port2
29 LAN_PORT2_RX- Ethernet port2
30 LAN_PORT2_TX+ Ethernet port2
31 LAN_PORT2_TX- Ethernet port2
32 LAN_PORT1_TX+ Ethernet port1
33 LAN_PORT1_TX- Ethernet port1
34 LAN_PORT1_RX+ Ethernet port1
35 LAN_PORT1_RX- Ethernet port1
36 GND GROUND
SKYLAB M&C Technology Co., Ltd SKW72- User Manual
SKW72-UM-001,A/2
4
37 VDD_3.3V
3.3V input 1000mA, recommended voltage 3.3V,Min2.97V,
MAX 3.63V
38 VDD_3.3V
3.3V input 1000mA, recommended voltage 3.3V,Min2.97V,
MAX 3.63V
39 VDD_2.0V OUTPUT Power supply output for peripheral network transformer
40 GND GROUND
41 LAN_PORT0_RX+ Ethernet port0
42 LAN_PORT0_RX- Ethernet port0
43 LAN_PORT0_TX+ Ethernet port0
44 LAN_PORT0_TX- Ethernet port0
45 USB - USB signal, carries USB data to and from the USB 2.0 PHY
46 USB + USB signal, carries USB data to and from the USB 2.0 PHY
47 LED8(GPIO_26) JMP_START LED
48 JUMPSTART KEY_INPUT to start WPS function. Active pulling up.
(UART_RTS) (GPIO_11)
49 GND GROUND
Module Dimensions

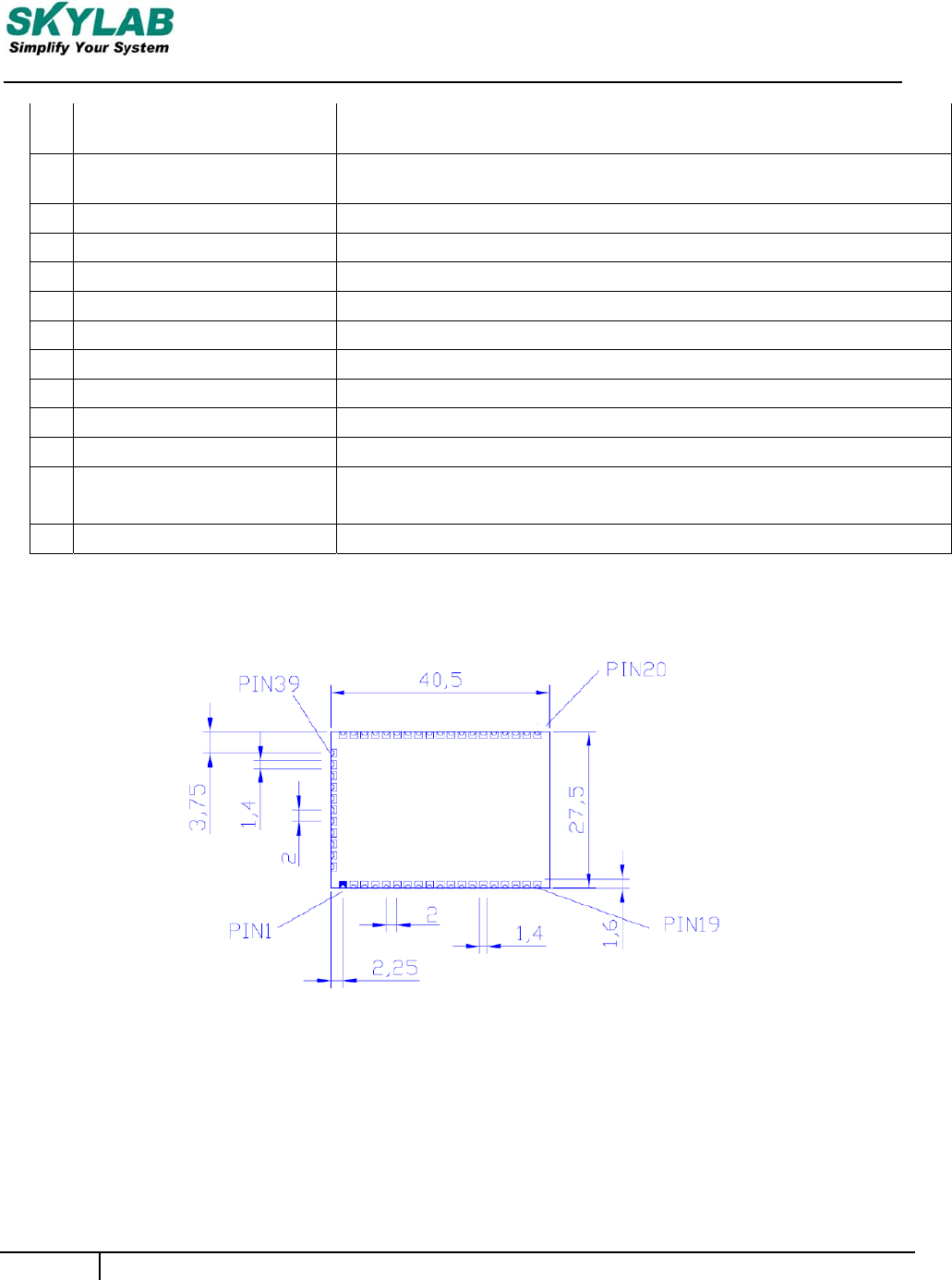

Figure 3: SKW72 dimensions
SKYLAB M&C Technology Co., Ltd SKW72- User Manual
SKW72-UM-001,A/2
5
Manufacturing Process Recommendations

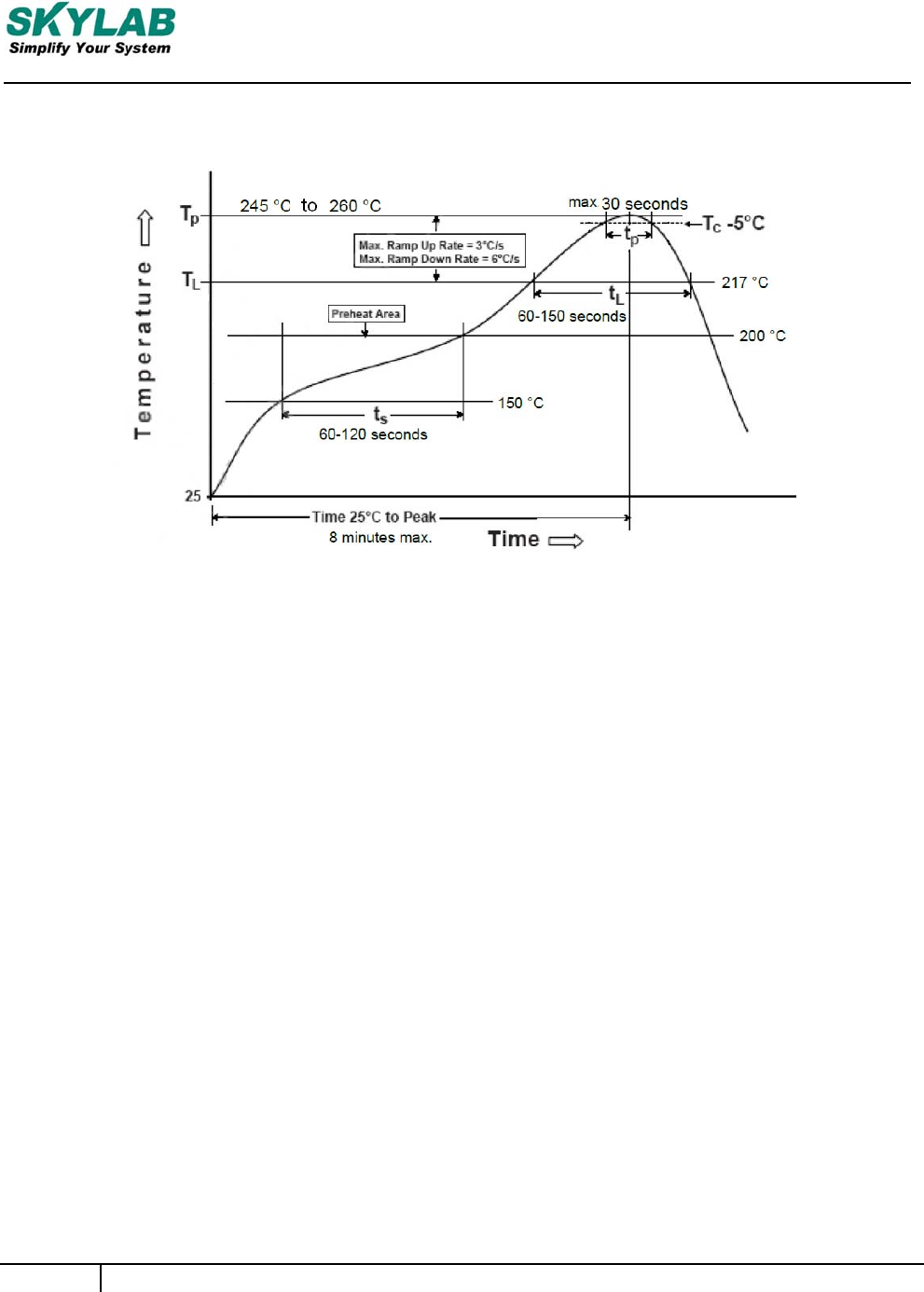

Figure 4: SKW72 Typical Leadfree Soldering Profile
Note：The final soldering temperature chosen at the factory depends on additional
external factors like choice of soldering paste，size，thickness and properties of the
baseboard，etc. Exceeding the maximum soldering temperature in the recommended
soldering profile may permanently damage the module.
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Manufacturer:Skylab M&C Technology Co.,Ltd., Hereby ,kylab M&C Technology Co.,Ltd.hereby
SKYLAB M&C Technology Co., Ltd SKW72- User Manual
SKW72-UM-001,A/2
6
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
-- Consult the dealer or an experienced radio/TV technician for help
receiver is connected.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions (1)this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation
declares that this WIFI module, SKW72 is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
CE Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions (1)this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation
FCC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix devices only.
This modular cannot be installed in any portable device, for example,
USB dongle like transmitters is forbidden.
This modular complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This transmitter must not be co?located
or operating in conjunction with any other antenna or transmitter.
This modular must be installed and operated with a minimum distance of 20
cm between the radiator and user body.
If the FCC identification number is not visible when the module
is installed inside another device, then the outside of the device into which the
module is installed must also display a label referring to the enclosed module.
This exterior label can use wording such as the following:
“Contains Transmitter Module FCC ID:2ACOE-SKW72 Or Contains FCC ID:2ACOE-SKW72”
when the module is installed inside another device, the user manual of this device must contain below warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the
equipment.
The devices must be installed and used in strict accordance with the
manufacturer's instructions as described in the user documentation that comes with the product
