Skylab M and C Technology SKW92 WiFi Module User Manual SKW92

Skylab M&C; Technology Co.,Ltd. WiFi Module SKW92

user manual

Skylab M&C Technology Co., Ltd. SKW92-User ManualSKW92-UM-001,A/11 SKW92 User Manual General Description The module SKW92 compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply . The module based on the single chip MT7628NNwhich integrates an 802.11n MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates. The SKW92 module includes an 802.11n MAC and baseband, a 2.4GH z radio and FEM, a 580MHz MIPS CPU, a 5-port 10/100 fast Ethernet switch. Solution for low power, low-cost, and consumer electronic devices, the module requires only an external 3.3V power supply. It supports 802.11n operating up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates. The module supports bridge mode and AP Client mode and Gateway mode. The high performance Module can process advanced applications effortlessly, such as security and VoIP. It also includes a selection of interface to support a variety of applications, such as a USB port for accessing external storage and 3G/TLE modem. Especially in the IOT, a wide range of applications. Applications  IP TV  IP DVD(Internet VOD Player)  Set Top Box  Home Gateways  Gaming Consoles  DVR
SKW92-UM-001,A/12 Skylab M&C Technology Co., Ltd. SKW92-User Manual Features  Compliant to IEEE 802.11b/g/n WLANs  2T2R Mode with support for a 300Mbps TX/RX PHY rate.  DDR2 memory up to 512Mb  Flash memory up to 64Mb  4LAN ports and 1WAN port  Support USB 2.0 host device  Support USB disk.  Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI  RoHS compliance meets environment-friendly requirement. Module Pinout Figure 1: SKW92 Pin Name
SKW92-UM-001,A/13 Skylab M&C Technology Co., Ltd. SKW92-User Manual Pin Description Pin No. Pin name Description Remark

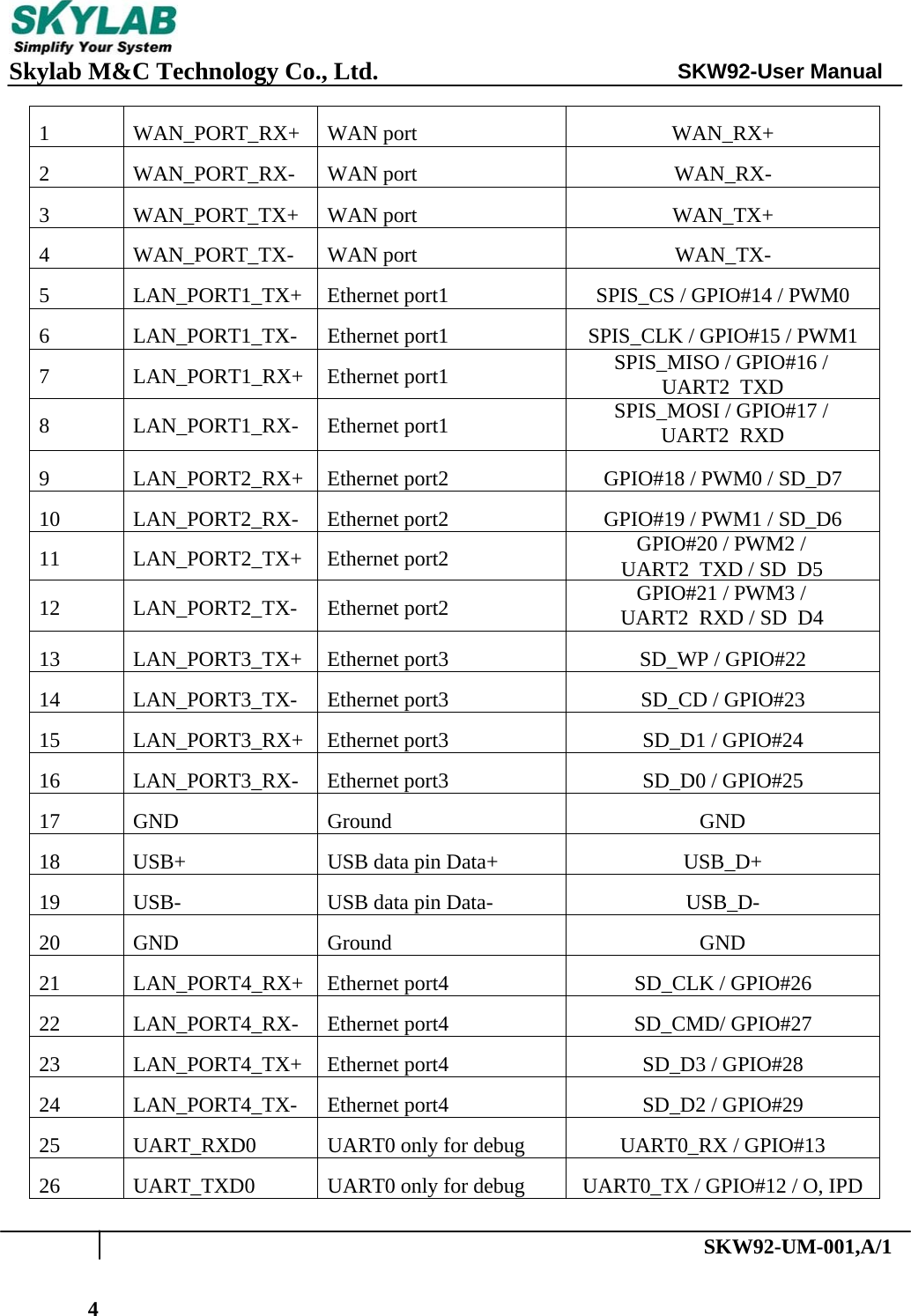

SKW92-UM-001,A/14 Skylab M&C Technology Co., Ltd. SKW92-User Manual 1 WAN_PORT_RX+ WAN port WAN_RX+ 2 WAN_PORT_RX- WAN port WAN_RX- 3 WAN_PORT_TX+ WAN port WAN_TX+ 4 WAN_PORT_TX- WAN port WAN_TX- 5 LAN_PORT1_TX+ Ethernet port1 SPIS_CS / GPIO#14 / PWM0 6 LAN_PORT1_TX- Ethernet port1 SPIS_CLK / GPIO#15 / PWM1 7 LAN_PORT1_RX+ Ethernet port1 SPIS_MISO / GPIO#16 / UART2 TXD 8 LAN_PORT1_RX- Ethernet port1 SPIS_MOSI / GPIO#17 / UART2 RXD 9 LAN_PORT2_RX+ Ethernet port2 GPIO#18 / PWM0 / SD_D7 10 LAN_PORT2_RX- Ethernet port2 GPIO#19 / PWM1 / SD_D6 11 LAN_PORT2_TX+ Ethernet port2 GPIO#20 / PWM2 / UART2 TXD / SD D512 LAN_PORT2_TX- Ethernet port2 GPIO#21 / PWM3 / UART2 RXD / SD D4 13 LAN_PORT3_TX+ Ethernet port3 SD_WP / GPIO#22 14 LAN_PORT3_TX- Ethernet port3 SD_CD / GPIO#23 15 LAN_PORT3_RX+ Ethernet port3 SD_D1 / GPIO#24 16 LAN_PORT3_RX- Ethernet port3 SD_D0 / GPIO#25 17 GND Ground GND 18 USB+ USB data pin Data+ USB_D+ 19 USB- USB data pin Data- USB_D- 20 GND Ground GND 21 LAN_PORT4_RX+ Ethernet port4 SD_CLK / GPIO#26 22 LAN_PORT4_RX- Ethernet port4 SD_CMD/ GPIO#27 23 LAN_PORT4_TX+ Ethernet port4 SD_D3 / GPIO#28 24 LAN_PORT4_TX- Ethernet port4 SD_D2 / GPIO#29 25 UART_RXD0 UART0 only for debug UART0_RX / GPIO#13 26 UART_TXD0 UART0 only for debug UART0_TX / GPIO#12 / O, IPD

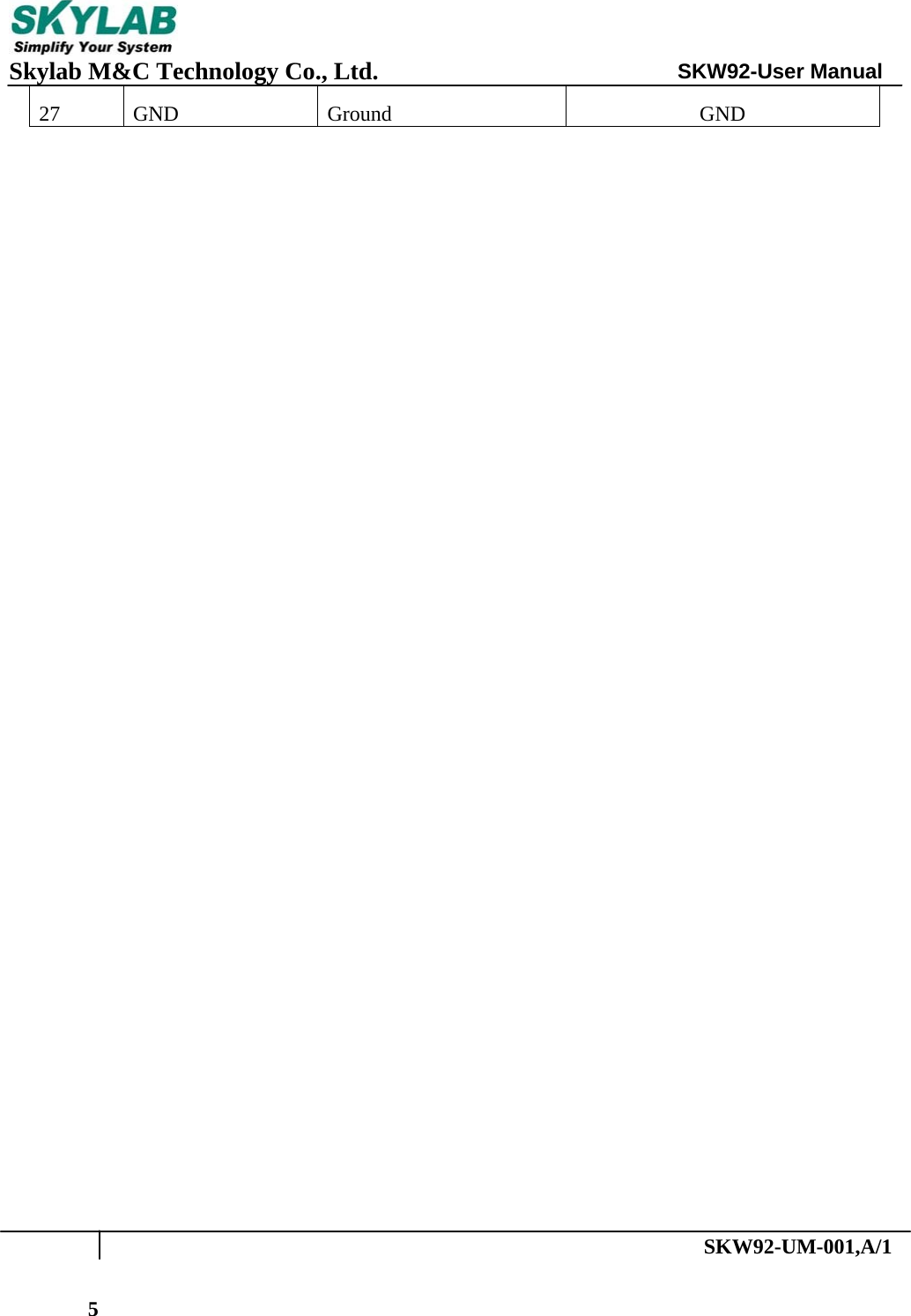

SKW92-UM-001,A/15 Skylab M&C Technology Co., Ltd. SKW92-User Manual 27 GND Ground GND
SKW92-UM-001,A/16 Skylab M&C Technology Co., Ltd. SKW92-User Manual 28 3.3VD 3.3V input 1000mA +3.3V 29 3.3VD 3.3V input 1000mA +3.3V 30 GND Ground GND 31 P4_LED LAN_PORT4_LED P4_LED_N / GPIO#39 32 P3_LED LAN_PORT3_LED P3_LED_N / GPIO#40 33 P2_LED LAN_PORT2_LED P2_LED_N /GPIO#41 34 P1_LED LAN_PORT1_LED P1_LED_N/ GPIO#42 35 P0_LED WAN_PORT_LED P0_LED_N / GPIO#43 36 WLED_N Wireless LED WLED_N / GPIO#44 37 UART_TXD1 UART1 Serial Data Output UART1_TXD / GPIO#45 / O, IPU 38 UART_RXD1 UART 1 Serial Data Input UART1_RXD / GPIO#46 39 WDT_RST_N WPS/Factory Setting_Button_Key WDT_RST_N /I2S_MCLK / GPIO#38/O, IPU 40 WPS_LED WPS_LED WPS_LED_N / GPIO#37 41 I2S_DI I2S data input I2S_SDI/GPIO#0/PCMDRX 42 I2S_WS I2S word select I2S_WS/GPIO#2/PCMCLK 43 I2S_DO I2S data output I2S_SDO /GPIO#1/PCMDTX/IPD 44 I2S_CLK I2S clock I2S_CLK/GPIO#3/PCMFS 45 HW_RESET Power on reset HW_RESET_N# 46 I2C_SD I2C Data I2C_SDA(PU 2K2) / GPIO#5 47 I2C_SCLK I2C clock I2C_SCL(PU 2K2) / GPIO#4 48 GPIO0 General Purpose I/O POWER_ON# / GPIO#11/IPD PCB Dimensions

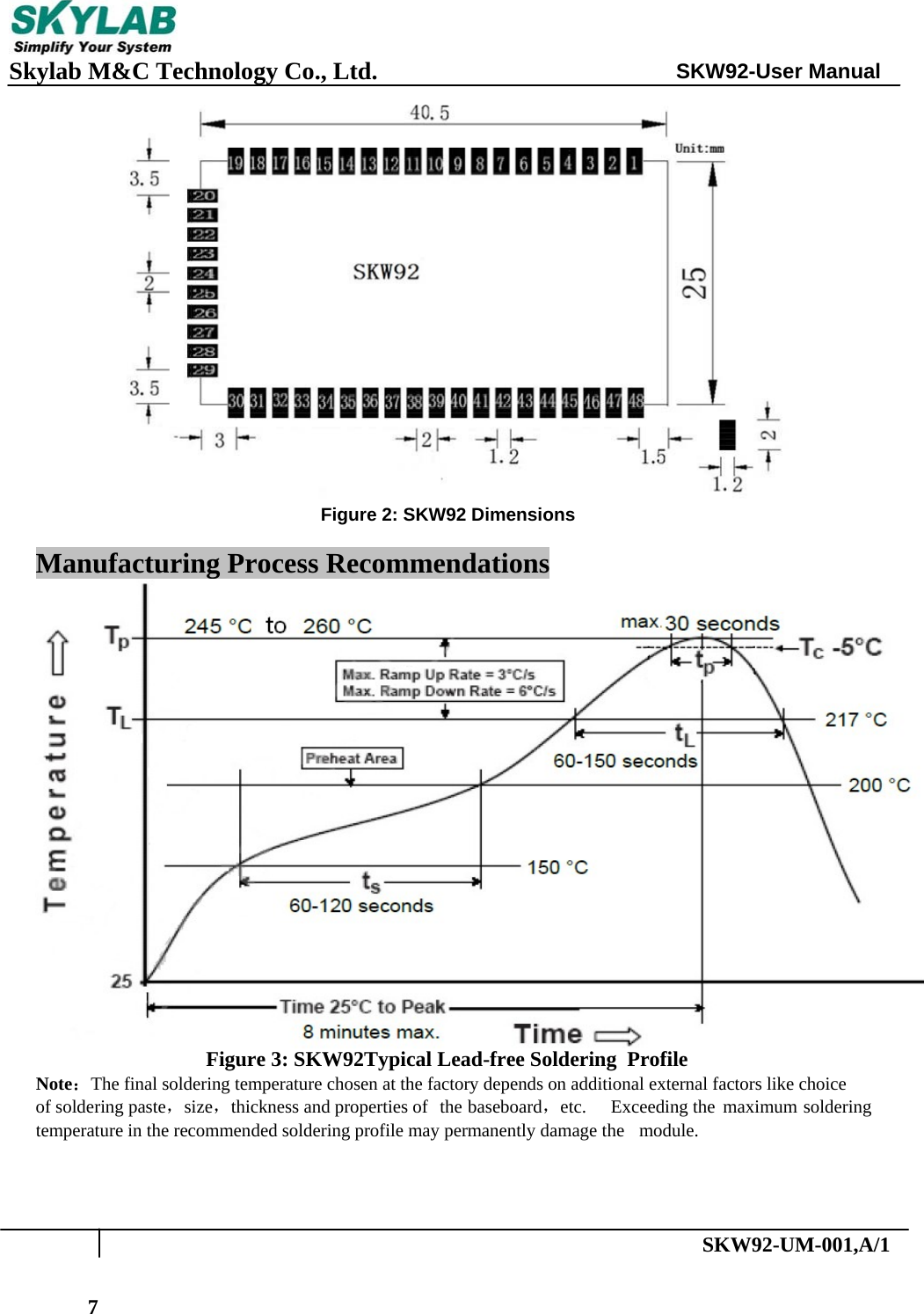

SKW92-UM-001,A/17 Skylab M&C Technology Co., Ltd. SKW92-User Manual Figure 2: SKW92 Dimensions Manufacturing Process Recommendations Figure 3: SKW92Typical Lead-free Soldering Profile Note：The final soldering temperature chosen at the factory depends on additional external factors like choice of soldering paste，size，thickness and properties of the baseboard，etc. Exceeding the maximum soldering temperature in the recommended soldering profile may permanently damage the module.
SKW92-UM-001,A/18 Skylab M&C Technology Co., Ltd. SKW92-User Manual Ordering Information Module No. Antenna Connector Type SPI Flash Size
SKW92-UM-001,A/19 Skylab M&C Technology Co., Ltd. SKW92-User Manual SKW92_8IPEXConnector8MBytesSKW92_16IPEXConnector 16MBytes

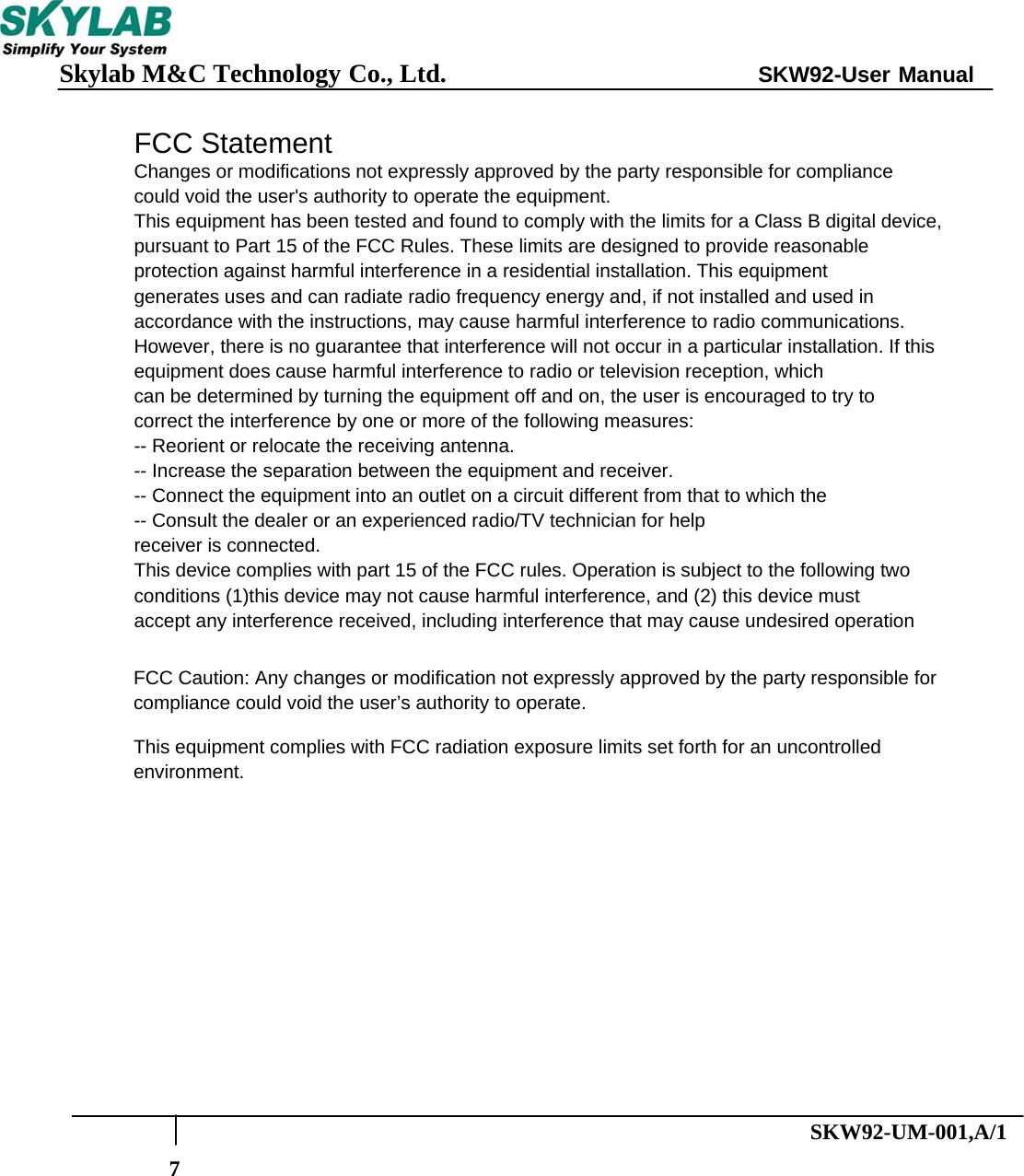

Skylab M&C Technology Co., Ltd. SKW92-User Manual FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the -- Consult the dealer or an experienced radio/TV technician for help receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation FCC Caution: Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. 7 SKW92-UM-001,A/1

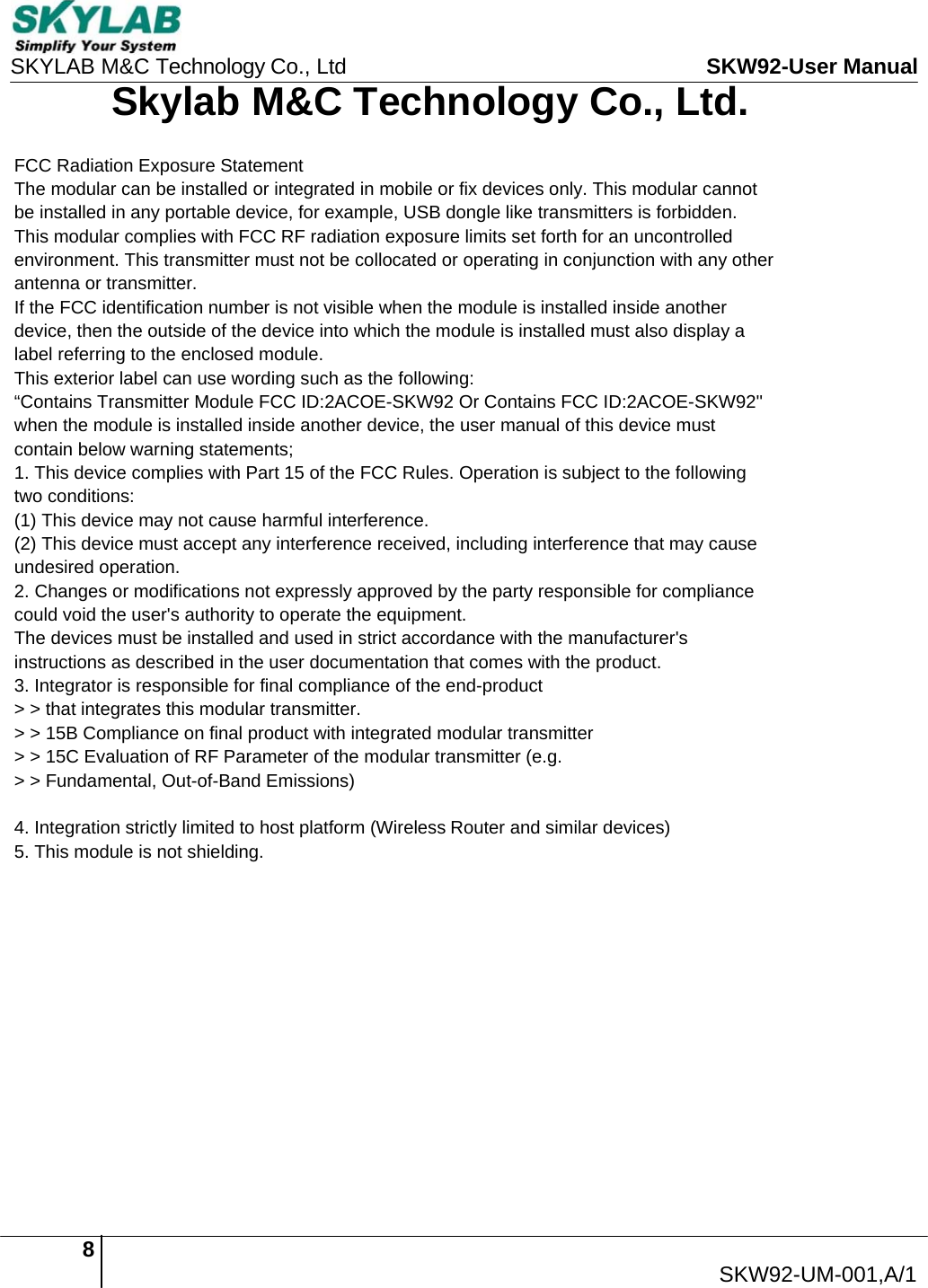

8 SKW92-UM-001,A/1 SKYLAB M&C Technology Co., Ltd SKW92-User Manual Skylab M&C Technology Co., Ltd. FCC Radiation Exposure Statement The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like transmitters is forbidden. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID:2ACOE-SKW92 Or Contains FCC ID:2ACOE-SKW92'' when the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. 3. Integrator is responsible for final compliance of the end-product > > that integrates this modular transmitter. > > 15B Compliance on final product with integrated modular transmitter > > 15C Evaluation of RF Parameter of the modular transmitter (e.g. > > Fundamental, Out-of-Band Emissions) 4. Integration strictly limited to host platform (Wireless Router and similar devices) 5. This module is not shielding.
8 SKW92-UM-001,A/1 SKYLAB M&C Technology Co., Ltd SKW92-User Manual Skylab M&C Technology Co., Ltd. ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions:1) Theantennamustbeinstalledsuchthat20cmismaintainedbetweentheantennaandusersc.2) Thetransmittermodulemaynotbeco‐locatedwithanyothertransmitterorantenna.3) ForallproductsmarketinUnitedStates,OEMhastolimittheoperationchannelsinCH1toCH11for2.4Gbandbysuppliedfirmwareprogrammingtool.AndOEMshallnotsupplyanytoolorinfototheend‐userregardingtochangethedomainselection.Aslongas3conditionsabovearemet,furthertransmittertestwillnotberequired.However,theOEMintegratorisstillresponsiblefortestingtheirend‐productforanyadditionalcompliancerequirementsrequiredwiththismoduleinstalled(forexample,digitaldeviceemissions,PCperipheralrequirements,etc.).IMPORTANTNOTE:Intheeventthattheseconditionscannotbemet(forexamplecertainlaptopconfigurationsorco‐locationwithanothertransmitter),thentheFCCauthorizationisnolongerconsideredvalidandtheFCCIDcannotbeusedonthefinalproduct.Inthesecircumstances,theOEMintegratorwillberesponsibleforre‐evaluatingtheendproduct(includingthetransmitter)andobtainingaseparateFCCauthorization.EndProductLabelingThistransmittermoduleisauthorizedonlyforuseindevicewheretheantennamaybeinstalledsuchthat20cmmaybemaintainedbetweentheantennaandusersThefinalendproductmustbelabeledinavisibleareawiththefollowing:“ContainsFCCID:2ACOE‐SKW92”.ModuleAntennaType:PCBPINANT,1.5dBigain
