Skylab M and C Technology WG209 wifi module User Manual WG209 20140604

Skylab M&C; Technology Co.,Ltd. wifi module WG209 20140604

Users Manual

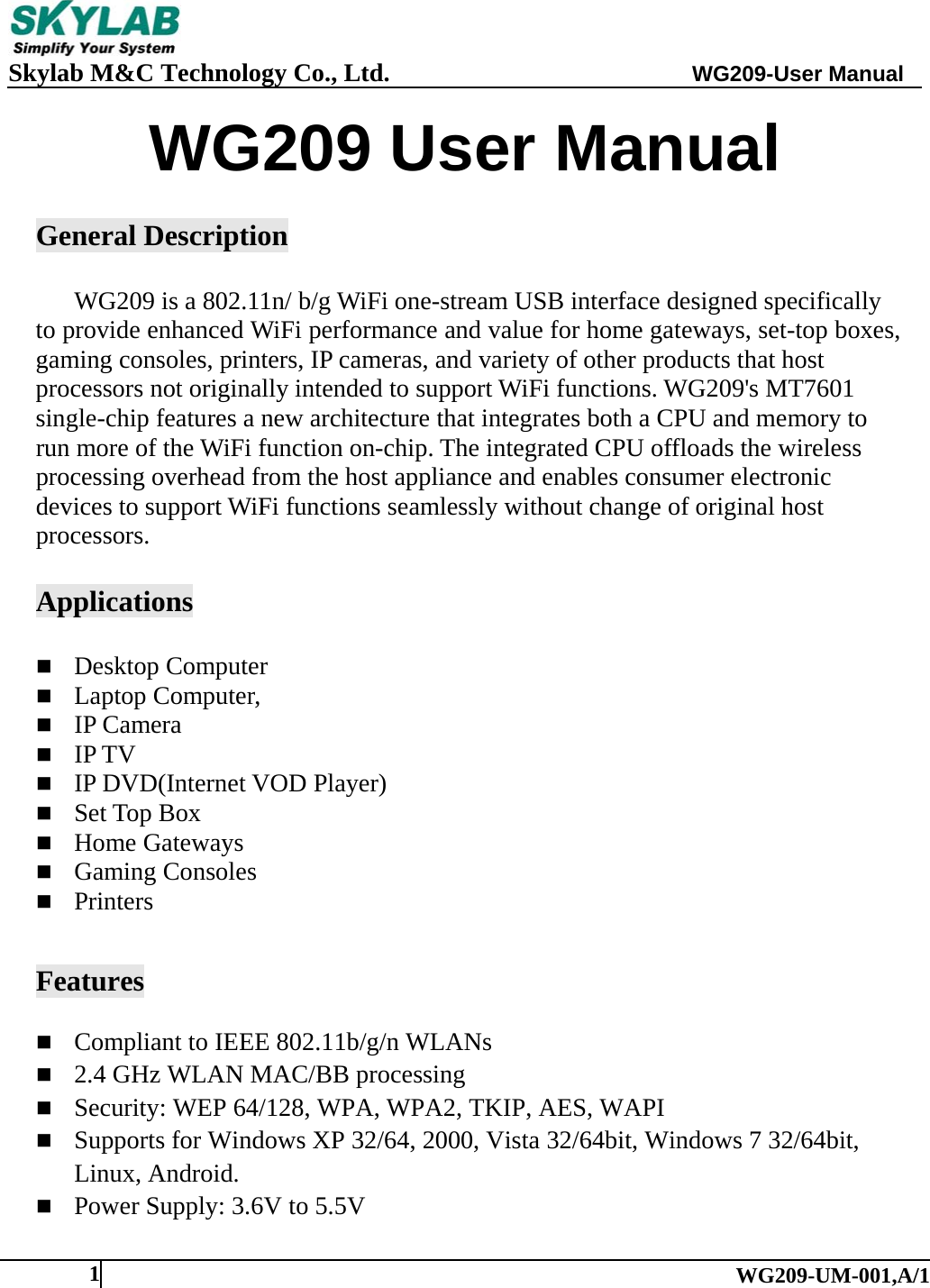

Skylab M&C Technology Co., Ltd. WG209-User Manual WG209-UM-001,A/1 1WG209 User Manual General Description WG209 is a 802.11n/ b/g WiFi one-stream USB interface designed specifically to provide enhanced WiFi performance and value for home gateways, set-top boxes, gaming consoles, printers, IP cameras, and variety of other products that host processors not originally intended to support WiFi functions. WG209's MT7601 single-chip features a new architecture that integrates both a CPU and memory to run more of the WiFi function on-chip. The integrated CPU offloads the wireless processing overhead from the host appliance and enables consumer electronic devices to support WiFi functions seamlessly without change of original host processors. Applications  Desktop Computer  Laptop Computer,  IP Camera  IP TV  IP DVD(Internet VOD Player)  Set Top Box  Home Gateways  Gaming Consoles  Printers Features  Compliant to IEEE 802.11b/g/n WLANs  2.4 GHz WLAN MAC/BB processing  Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI  Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Linux, Android.  Power Supply: 3.6V to 5.5V

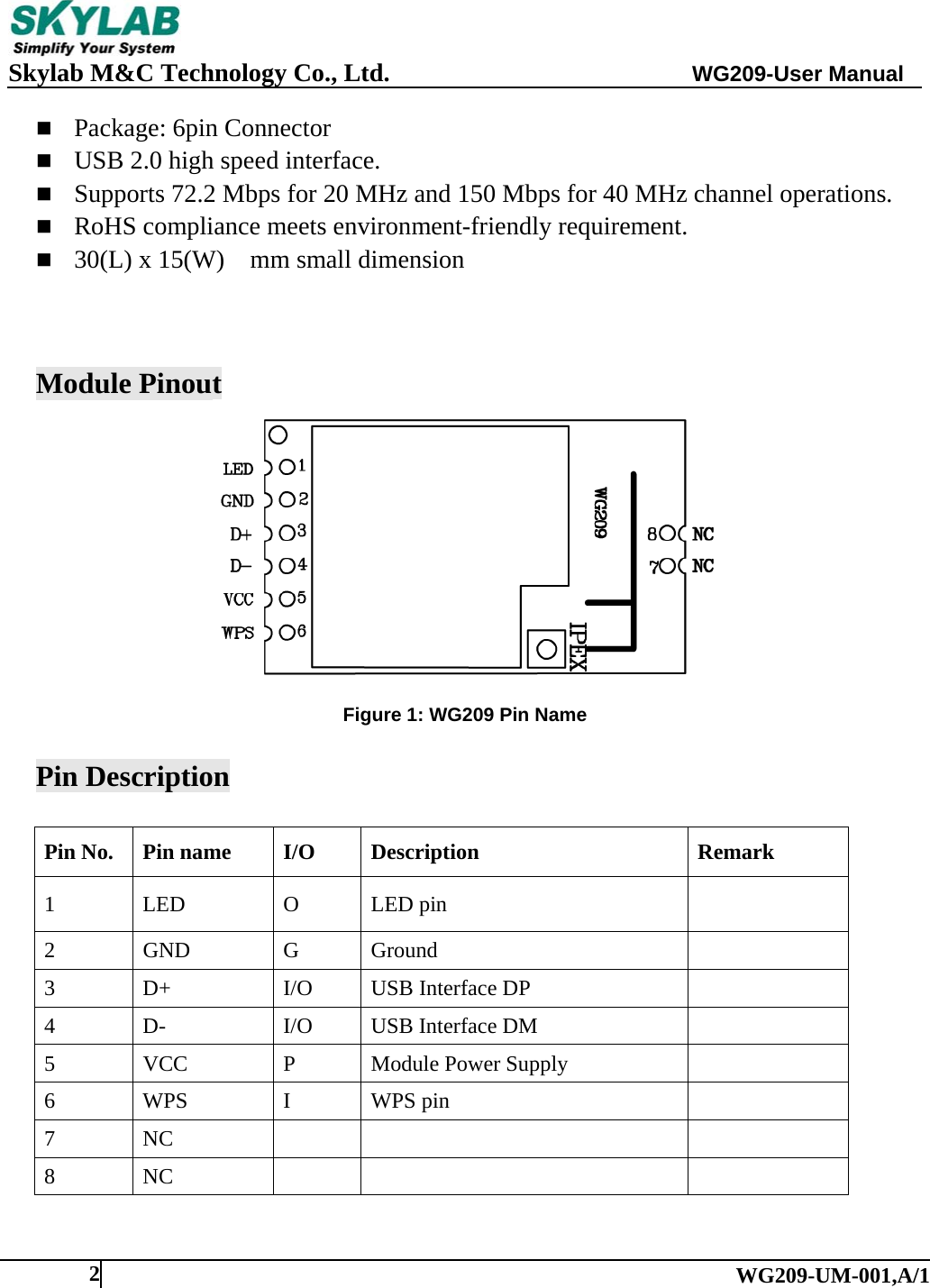

Skylab M&C Technology Co., Ltd. WG209-User Manual WG209-UM-001,A/1 2 Package: 6pin Connector  USB 2.0 high speed interface.  Supports 72.2 Mbps for 20 MHz and 150 Mbps for 40 MHz channel operations.  RoHS compliance meets environment-friendly requirement.  30(L) x 15(W) mm small dimension Module Pinout Figure 1: WG209 Pin Name Pin Description Pin No. Pin name I/O Description Remark 1 LED O LED pin 2 GND G Ground 3 D+ I/O USB Interface DP 4 D- I/O USB Interface DM 5 VCC P Module Power Supply 6 WPS I WPS pin 7 NC 8 NC

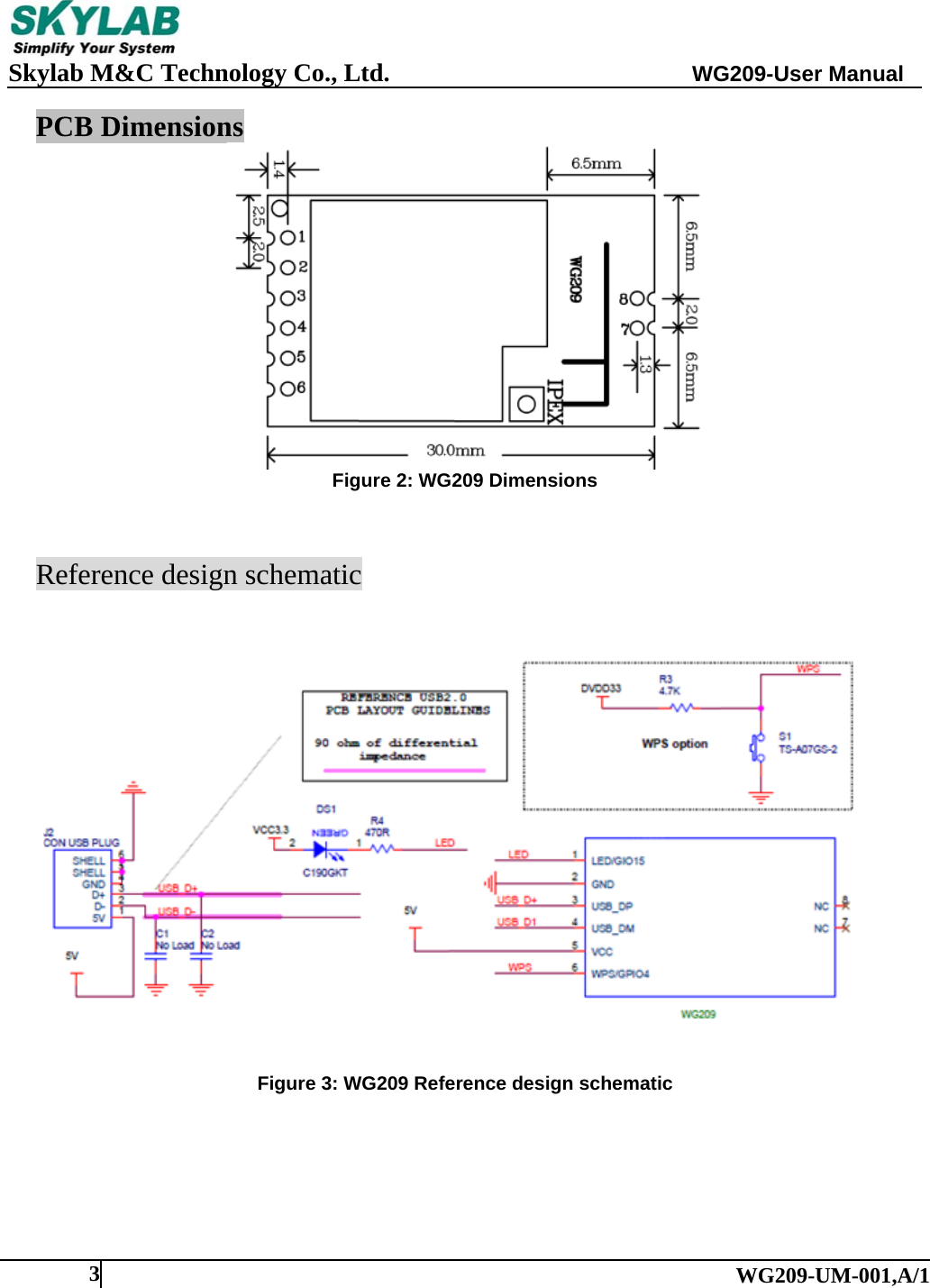

Skylab M&C Technology Co., Ltd. WG209-User Manual WG209-UM-001,A/1 3PCB Dimensions Figure 2: WG209 Dimensions Reference design schematic Figure 3: WG209 Reference design schematic

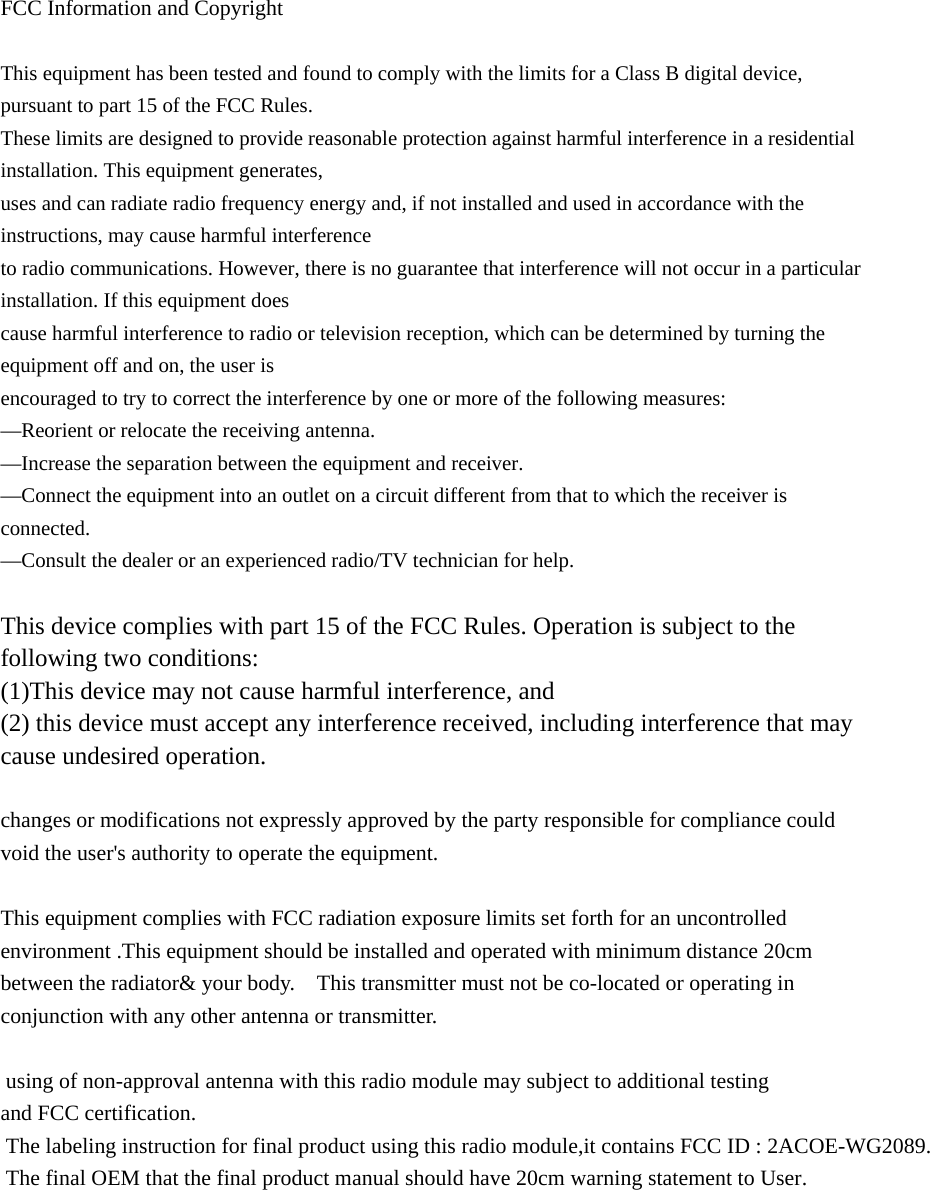

FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. using of non-approval antenna with this radio module may subject to additional testing and FCC certification. The labeling instruction for final product using this radio module,it contains FCC ID : 2ACOE-WG2089. The final OEM that the final product manual should have 20cm warning statement to User.
