Skyrocket Toys 01330TX24G Sky Viper X-Quad User Manual SV X Quad Instr 1 1 JSM
Skyrocket Toys LLC Sky Viper X-Quad SV X Quad Instr 1 1 JSM
User manual
![](/img.php?id=2271709&img=bg1.png)
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=2271709&img=bg2.png)
CHANGING DAMAGED PROPELLER
ADULT SUPERVISION REQUIRED
Before each use, an adult should check this product and the LiPo battery to
ensure no damage or hazards exist. Quadcopter has rotating blades that move
at high speed, posing danger of damage and injury. Pilots are responsible for
any actions that result in damage or injury from the improper operation of
Quadcopter. Adequate flying space is required. Avoid flying near interior fans
and/or vents as they may make flying difficult to control. Keep a safe distance
away from streets, public thoroughfares, bodies of water and power lines. Never
attempt to retrieve Quadcopter from any location higher than your reach (such
as rooftops or trees) or from any location that poses a safety hazard. Never fly
Quadcopter at night. Keep Quadcopter in sight at all times during operation.
Discontinue operation immediately if Quadcopter flies out of your field of view.
Do not fly near spectators or animals. Pets can become excited about R/C
vehicles therefore keep away from pets at all times. Keep spinning rotors away
from fingers, hair, eyes and other body parts. Always launch from a flat surface.
Never launch from your hand. Never leave Quadcopter unattended while it is
turned on. Read all enclosed information before operating.
ALKALINE BATTERY CAUTIONS
• Do not use rechargeable batteries.
• Non-rechargeable batteries are not to be recharged.
• Different types of batteries or new and old batteries are not to be mixed.
• Batteries are to be inserted using correct polarity.
• Remove exhausted batteries as soon as possible and discard properly.
• Remove all batteries from compartment if toy is not used for a long period.
• The supply terminals are not to be short-circuited.
• Never throw batteries in a fire or attempt to open the outer casing.
WARNING:Batteries are harmful if swallowed. Please keep away from children.
Battery Disposal: Dispose of batteries according to the local laws and regulations of your
region. Some batteries may be recycled, and may be accepted for disposal at your local
recycling center. If you are not able to identify the applicable rules in your area, please
check the instructions of the battery manufacturer.
Unplug LiPo battery
on Quadcopter.
Remove the small
retaining screw holding
the damaged blade in
place using the mini
screwdriver provided.
110
1B
• Over time propellers may wind up loose hair or carpet fibers from floors, reducing
performance. Unplug Quadcopter and remove fibers from motors. (Remove blades if
necessary).
• Periodically, motor covers may vibrate loose and slide down the rotor arms. Simply
unplug Quadcopter and slide the motor covers back over the motors. Be sure to keep
the motor wires inside the covers.
MAINTENANCE
1
2
Make note of the blade color
and letter (A,B,C or D) before
removing the blade from
Quadcopter. (Markings are
located on the underside of
blades and Quadcopter).
Replace the damaged blade with
a new blade with matching color
and letter. Secure the blade with
the retaining screw.
3
4
A
A
A
FRONT
BACK
B
CD
B
B
C
C
D
D
WARNING: Do not fly with broken or damaged propeller blades as it may cause
damage or lead to injury.
THIS PRODUCT CONTAINS A LITHIUM-POLYMER BATTERY3.7V 350mAH:
LiPo batteries have a severe risk of fire and injury if they are improperly handled or
misused. They may explode, overheat or ignite.Read all following precautions and
instructions regarding the care and use of LiPo batteries. The enclosed LiPo battery is
only to be used with the vehicle and charger included with this product.
• Keep away from flammable materials.
• Do not expose to direct sunlight.
• Do not place in fires or leave in hot places.
• Do not drop or make subject to strong impact.
• Keep dry and away from water.
• Batteries are to be inserted using correct plority.
• Remove exhausted batteries as soon as possible and discard properly.
• Remove all batteries from the compartment if toy is not used for a long period.
• The supply terminals are not to be short circuited.
• Never throw batteries in a fire or attempt to open outer casing.
LiPo Battery Disposal: LiPo batteries must be recycled or disposed of properly. They
should not be disposed of with other household waste. Check your local laws and
regulations for correct recycling and/or battery disposal.
SIZE: 297 x 210mm (folds to 148.5 x 210mm)
PAGE 1 / PAGE 10
![](/img.php?id=2271709&img=bg3.png)
38

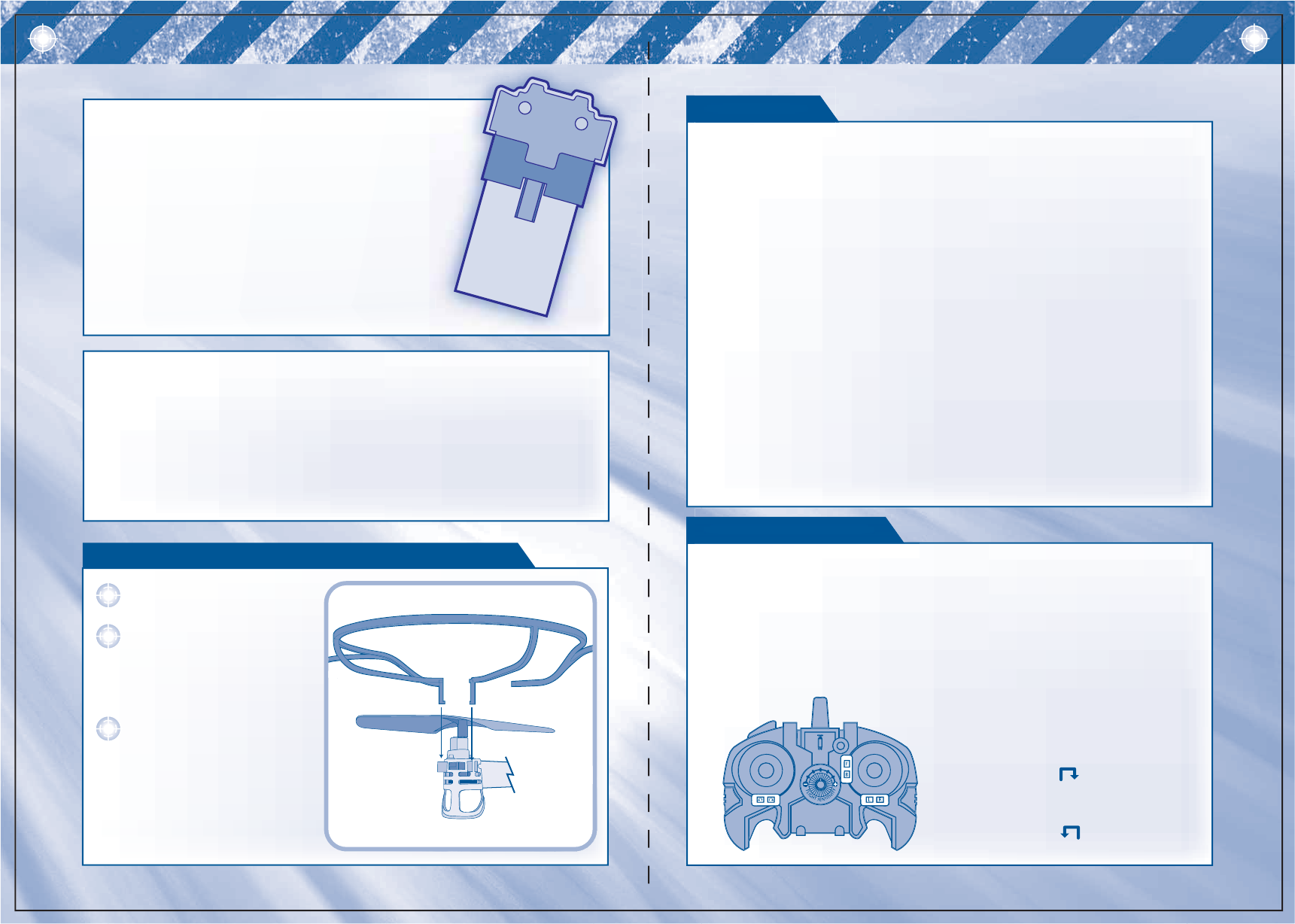

TRIM ADJUSTMENTS
ATTACHING THE BLADE GUARD FOR INDOOR FLIGHT
Place Quadcopter on a
level surface.
Align the blade guard with
Quadcopter so each ring
on the blade guard evenly
surrounds each propeller.
Insert the blade guard
supports into the clips
located on the outside of
each motor housing.
Make sure that each
support is fully inserted
into each clip. Repeat 3X
for each propeller mount.
1
2
3
WHEN NOT IN USE:
• Always unplug Quadcopter’s LiPo battery when
not in use or when Quadcopter is being stored
or transported.
• Store the LiPo battery and Quadcopter in a dry
area at room temperature.
• Avoid temperatures less than 40°F/4°C and
greater than 120°F/49°C.
• Do not leave the LiPo battery in a car or
exposed to direct sunlight. If exposed to
temperatures greater than 120°F/49°C, the
LiPo battery can be damaged or may catch fire.
AUTO SHUTDOWN:
• If battery voltage drops to an extremely low level, Quadcopter will
automatically shutdown. LiPo battery will need to be recharged to
restore flying power.
• If anything prevents Quadcopter’s blades from spinning or they
become jammed during a crash, Quadcopter will automatically
shutdown. LiPo battery will need to be unplugged then reconnected
to restore flying power.
2B
• Stand behind Quadcopter when launching, so you are facing the same direction that
Quadcopter is facing. This makes flying easier. Green Blades are in the front.
• Practice launching, hovering and landing before attempting to learn other moves.
• Flying 2 to 3 feet above the ground will reduce ground turbulence and make flying
easier.
• When first attempting to fly in different directions, start by tapping the Direction stick
until you have a feel for it. Always move the controls slowly until you’ve become well
practiced.
• Once you’ve mastered flying in directions, practice Spin (Yaw) controls. Spinning and
keeping Quadcopter facing the same direction you are facing makes flying easier and
more intuitive.
• Stay 2 to 3 feet away from walls and ceilings as Quadcopter will be drawn towards
them if you fly too close.
• If propeller blades come in contact with another object or you crash during flight,
throttle down immediately to prevent possible or further damage.
• If anything prevents Quadcopter’s blades from spinning or they become jammed
during a crash, THROTTLE DOWN IMMEDIATELY. Do not attempt to further flight until
obstruction or damage has been addressed.
• Should something prevent Quadcopter’s blades from spinning, Quadcopter may AUTO
SHUTDOWN. LiPo battery will need to be unplugged then reconnected to restore
flying power.
If Quadcopter drifts in any direction while
hovering (and you are not pressing the Direction
stick), you may need to make trim adjustments.
Safely land Quadcopter on a level surface then
press the recommended Trim button once as
described below. Launch Quadcopter back into
the air and attempt another still hover. If
Quadcopter continues to drift, repeat the
process until a still hover is achieved:
• Quadcopter drifts forward
– Press the B button
• Quadcopter drifts backward
– Press the F button
• Quadcopter drifts to the left
– Press the R button
• Quadcopter drifts to the right
– Press the L button
• Quadcopter spins counter-clockwise
(when viewed from the top)
– Press the button
• Quadcopter spins clockwise (when
viewed from the top)
– Press the button
FLYING TIPS
SIZE: 297 x 210mm (folds to 148.5 x 210mm)
PAGE 3 / PAGE 8
n
y
e.
LiPo
BATTERY
![](/img.php?id=2271709&img=bg4.png)
74

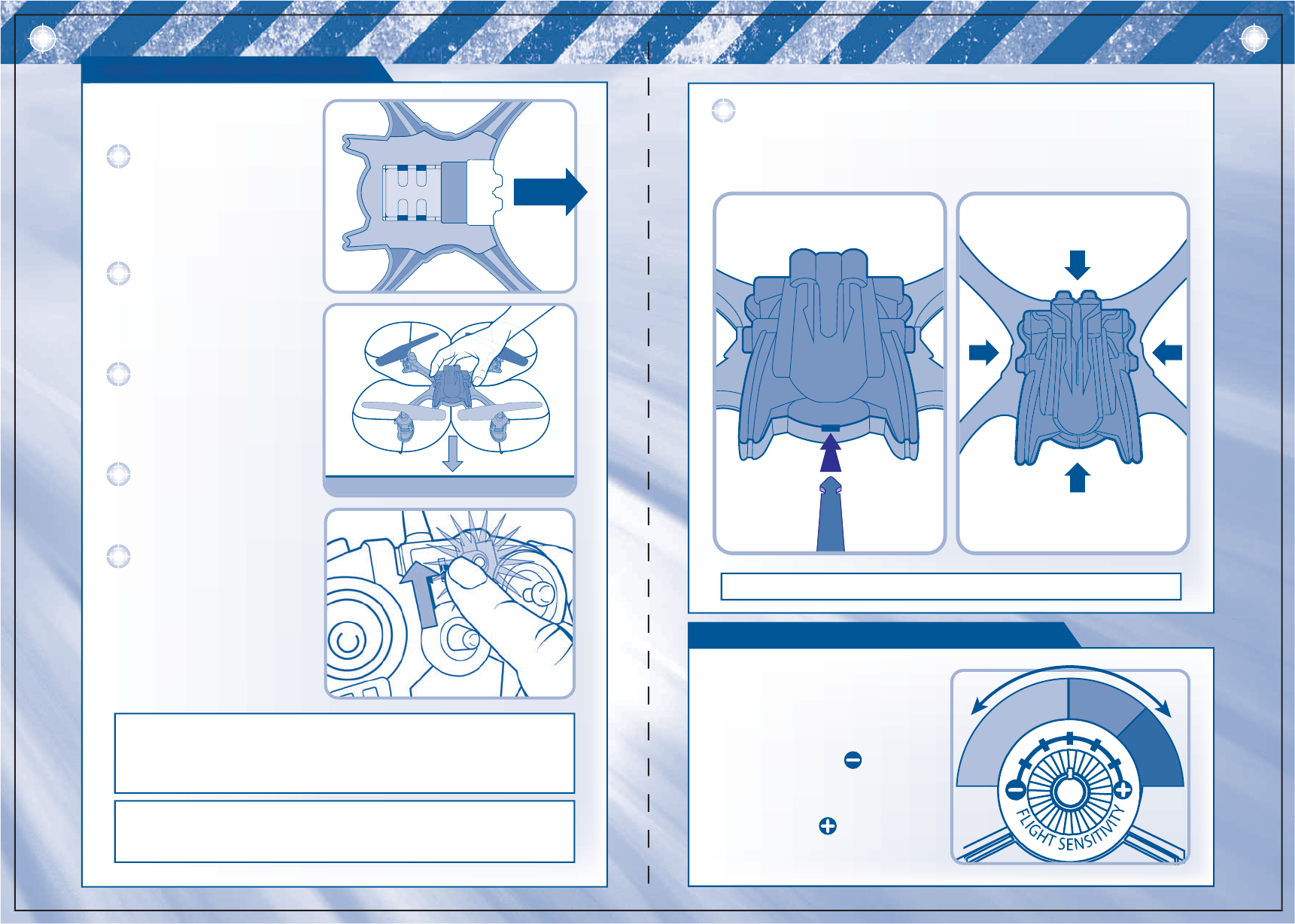

CALIBRATING & LAUNCHING
FLIGHT SENSITIVITY ADJUSTMENT
Quadcopter responsiveness may be
adjusted to match your flying skills.
It is best to start in Beginning Mode
until you have mastered flying.
• BEGINNING PILOT : Rotate
knob counter-clockwise to
decrease responsiveness.
• EXPERT PILOT (+) : Rotate
knob clockwise to increase
responsiveness.
B
E
G
I
N
N
I
N
G
M
O
D
E
I
N
T
E
R
M
E
D
I
A
T
E
A
D
V
A
N
C
E
D
Turn remote OFF and
pull the LiPo battery
out of Quadcopter
Replace Quadcopter
LiPo battery.
Quickly place Quadcopter on
FLAT LEVEL SURFACE.
Turn remote ON.
Slowly push remote
control Throttle stick UP
until Quadcopter lifts
into the air.
1
2
3
4
5
Insert the four blade guard main supports into the holes in
Quadcopter’s body. The holes can be found on the center
of the front, back, left side, and right side of the body. Press
each support firmly into each hole until you hear a “CLICK”.
4
3A
CAUTION: Never approach Quadcopter while the propeller blades are still
spinning. Throttle down until the blades stop then turn off remote before
attempting to handle Quadcopter.
IMPORTANT: YOU ONLY HAVE A FEW SECONDS AFTER THE LIPO
BATTERY IS PLUGGED IN TO PLACE QUADCOPTER ON A LEVEL SURFACE
FOR PROPER CALIBRATION. IF QUADCOPTER DOES NOT RISE TO A
STABLE HOVER OR FLIES ERRATICALLY, REPEAT STEPS 1 THROUGH 4.
WARNING: Do not carry Quadcopter by blade guards as this may damage body.
PULL
AND
REMOVE
BATTEY
SIZE: 297 x 210mm (folds to 148.5 x 210mm)
PAGE 7 / PAGE 4
![](/img.php?id=2271709&img=bg5.png)
92

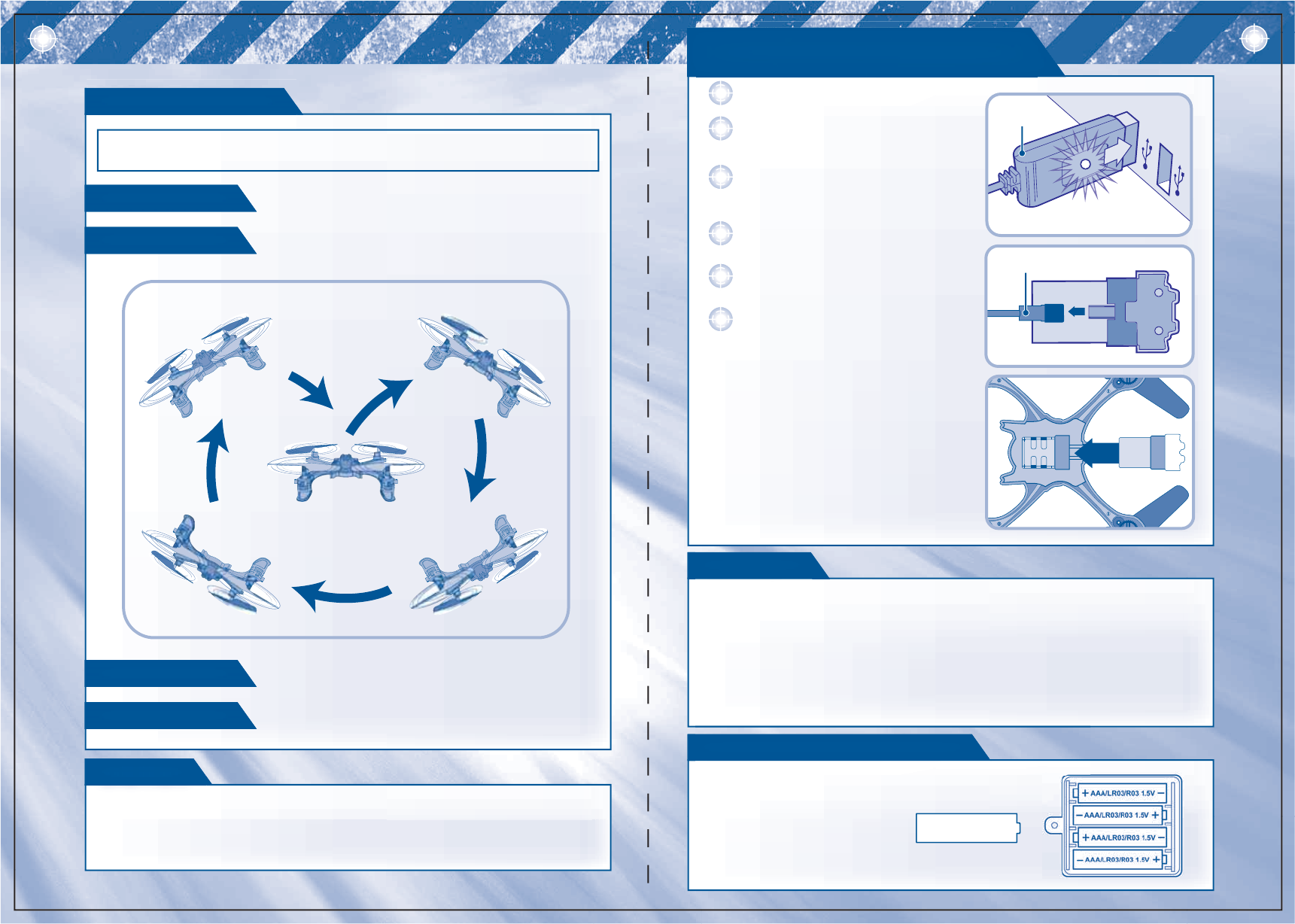

ONE-TOUCH STUNTS
CAUTION
NOTE: Once a stunt has been initiated, DO NOT adjust Throttle or press any other
controls until the stunt has been completed).
FLIP FORWARD
Tap Direction stick UP while pressing Stunt Button.
FLIP BACKWARD
Tap Direction stick DOWN while pressing Stunt Button.
FLIP LEFT
Tap Direction stick LEFT while pressing Stunt Button.
FLIP RIGHT
Tap Direction stick RIGHT while pressing Stunt Button.
Quadcopter should be flying at least 9 feet in the air with a minimum
clearance of 9 feet in all directions before attempting stunt functions.
STUNT FUNCTIONS SHOULD BE PERFORMED OUTSIDE ONLY.
WARNING
IF AT ANY TIME DURING CHARGING OR USE THE BATTERY BEGINS TO SWELL OR
BECOMES DAMAGED IN ANY WAY, DISCONTINUE CHARGING OR USE OF THE
BATTERY IMMEDIATELY. Continuing to charge or discharge a battery that has begun to
balloon or swell can result in a fire. Quickly and safely disconnect the battery and place it
in an open, safe area away from flammable materials. Observe the battery for at least 30
minutes to be certain no additional swelling or rupture occurs. Completely discharge the
battery by submerging it in a saltwater solution (1/2 cup salt per gallon of water) for 24
hours. Check your local laws and regulations for correct recycling and/or battery disposal.
CHARGING, INSTALLING & CARING FOR LiPo
BATTERY IN QUADCOPTER
NOTE: Always unplug LiPo battery when
Quadcopter is not in use.
CHARGING PRECAUTIONS:
After use, allow LiPo battery to cool to room
temperature before charging.
• Charge LiPo battery in an isolated area,
away from excessive heat or moisture.
• Never leave LiPo battery unattended while
charging.
• If LiPo battery swells, unplug it immediately
and permanently discontinue use.
Pull LiPo battery out of underside
of Quadcopter.
Plug charging cord into a computer or
USB power block.
Plug LiPo battery into Charging Cord.
RED LIGHT = CHARGING
GREEN LIGHT = FULLY CHARGED
Once charged, disconnect LiPo battery
from USB port.
Unplug charging cord from USB power
source. (Always unplug when not in use).
Insert LiPo battery into back of Quadcopter
press battery firmly into socket to ensure
the plug is fully attached.
1
2
3
4
5
6
2A
INSTALLING REMOTE BATTERIES
Loosen screws in remote battery
compartment door and insert
batteries as shown. Replace
doors and tighten screws.
+
-
AAA (LR03)
1.5 V
4 x
CHARGING
CORD
LiPo BATTERY
A
B
C
D
D
LiPo
BATTERY
CHARGING
CORD
SIZE: 297 x 210mm (folds to 148.5 x 210mm)
PAGE 9 / PAGE 2
![](/img.php?id=2271709&img=bg6.png)
56
3B
Stunt Button
Power On/Off Switch
Flight Sensitivity Dial
Spin (Yaw) Trim Left/Right Trim
Power Indicator LED
Forward/Backward Trim
THROTTLE / SPIN(YAW) STICK
THROTTLE /
SPIN(YAW) STICK

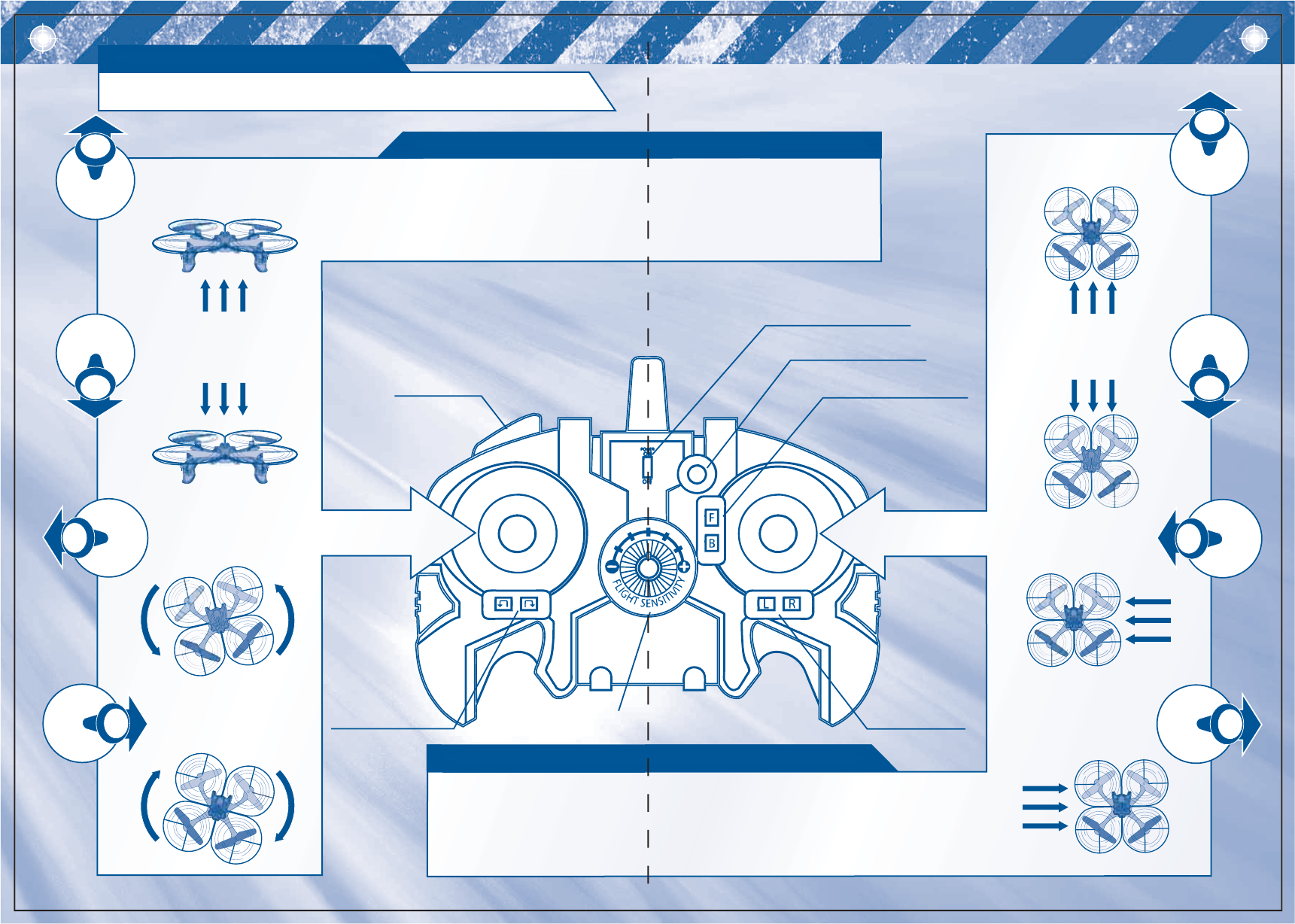

FLIGHT CONTROLS
Familiarize yourself with Quadcopter’s controls before flying!
• Push the Throttle stick FORWARD to make the propeller blades spin and lift
Quadcopter into the air. The farther you push, the faster you lift. Applying just the
right amount of THROTTLE makes Quadcopter hover in place.
• Push the Throttle stick to the LEFT or RIGHT to spin (yaw) clockwise or counter-
clockwise. The farther you push, the faster Quadcopter spins.
Press UP to lift
Press DOWN
to descend
Press RIGHT
to spin right
Press LEFT
to spin left
DIRECTION STICK
DIRECTION STICK
• Push the Direction stick FORWARD to fly forward. Push BACKWARD to fly backward.
The farther you push, the faster Quadcopter flies in that direction.
• Push the Direction stick LEFT to fly left. Push RIGHT to fly right. The farther you push, the
faster Quadcopter flies sideways.
Press UP
to fly forward
Press LEFT
to fly left
Press RIGHT
to fly right
Press DOWN
to fly backward
STUNT
SIZE: 297 x 210mm (folds to 148.5 x 210mm)
PAGE 5 / PAGE 6
