Skyrocket Toys 01598RX24G Sky Viper Nano Drone User Manual 01598 ENF16 SVNano IM 050416 PREVIEW
Skyrocket Toys LLC Sky Viper Nano Drone 01598 ENF16 SVNano IM 050416 PREVIEW
User Manual
1 2
3 4
2
1
OFF
LOW
2
1
OFF
HIGH
Online Video
Instructions & Flying
Tips available now at
SKYVIPER.COM
FLYING TIPS

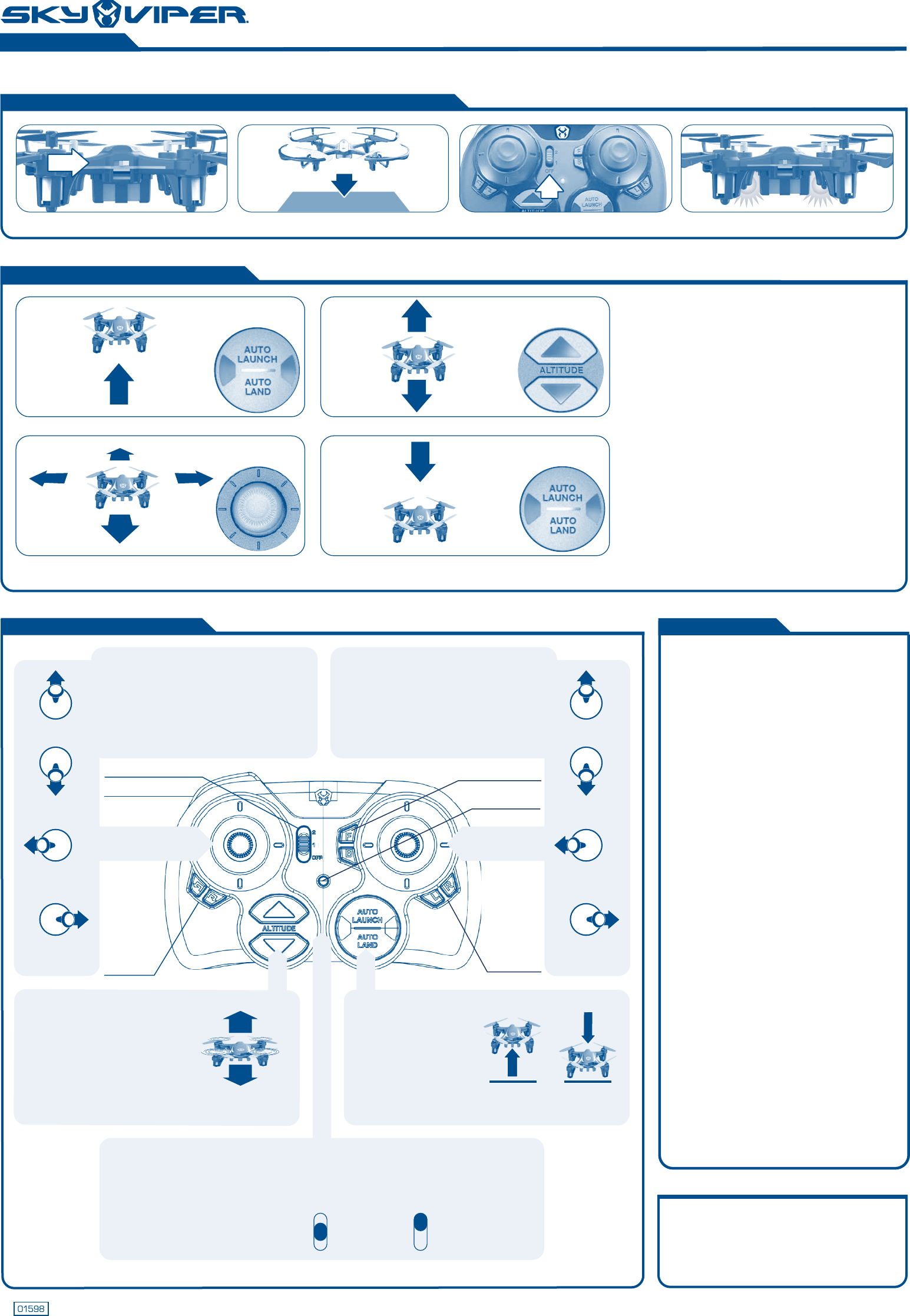

POWERING UP AND PAIRING (WITH ALTITUDE ON)
FLYING GUIDE
Press Auto Launch to launch a few feet off the ground.
Press the directional Thumbstick to fly in any direction.
Press the Altitude button to fly approximately 12” higher or lower.
Press the Auto Land button to land.
Turn on drone. Turn on remote. Wait for flashing green lights to turn solid.
FLYING BASICS
Place drone on flat surface.
TOGGLE INTO MANUAL FLIGHT WHILE IN AUTO-HOVER
• Hold stunt button and press auto land/auto launch button
and a tone will sound from the remote. Make sure your
throttle stick is in the down position.
• After the tone is heard, move the throttle stick up until
the drone starts to rise. (If throttle is not matched in
5 seconds then manual flight will be cancelled.)
TOGGLE INTO AUTO HOVER WHILE IN MANUAL FLIGHT
• Press either the up or down altitude locking button to
toggle back into auto hover. (Your drone will hover at the
current throttle.)
TOGGLE INTO MANUAL FLIGHT BEFORE TAKE-OFF
• Hold stunt button and press auto land/auto launch button
and a tone will sound from the remote. Make sure your
throttle stick is in the down position.
• Push the throttle stick up to begin manual flight.
FLIGHT CONTROLS
DIRECTION STICK
• Push the direction stick forward to fly forward or
away from you (Green blade in front). Push
backwards to fly backward. The further you push,
the faster the drone will fly in that direction.
• Push the direction stick left to fly left. Push right
to fly right. The further you push, the faster
the drone will fly sideways.
FLIGHT SENSITIVITY SWITCH
The Drone’s responsiveness may be adjusted on the Controller to match your flying skills.
There are three choices: 1 LOW sensitivity 2 HIGH sensitivity
It is best to start in the low sensitivity position until you have mastered flying. Flight sensitivity
can be adjusted before or during flight.
THROTTLE/
ROTATION STICK
Press up to
fly forward
Press down
to fly
backward
Press left
to fly left
Press right
to fly right
DIRECTION STICK
Press up
to lift
Press down
to descend
Press left
to rotate
counter-
clockwise
Press right
to rotate
clockwise
NANO DRONE
ONOFF
Stunt Button
Rotation Trim Left/Right Trim
Forward/Backward Trim
Power On/off Switch/sensitivity Switch
Power indicator LED
THROTTLE/ROTATION STICK
• While in manual flight mode push the throttle
stick forward to make drone lift.
• The further you push the throttle stick, the
faster you lift.
Up and down controls only apply to manual
flight mode.
(
(
ALTITUDE BUTTONS
• Press the up or down arrow to adjust
the drone’s altitude. The drone will lift
or lower approximately 12” each time
the up or down arrow is pressed.
(Distance may vary.)
• Hold the up or down buttons for
continuous lift or descent.
AUTO LAUNCH/LAND BUTTON
• Press the auto launch
button to launch a few feet
from the ground.
(Exact height may vary.)
• Press the auto land button
to land the drone by itself.
• When launching the drone, face the same
direction as the drone. Green blades and green
LEDs should be in front.
• If your drone drifts in any direction when you are
hovering, you will need to make Trim
adjustments to correct the driving. Trim
adjustments are sometimes needed when the
drone is first flown after purchase. See TRIM
ADJUSTMENTS section for details.
• Practice launching, hovering and landing before
attempting to learn other moves.
• Flying 2 to 3 feet above the ground will reduce
ground turbulence and make flying easier.
• When first attempting to fly in different
directions, start by tapping the direction stick
until you have a feel for it. Always move controls
slowly until you become comfortable operating
the drone.
• Once you’ve mastered flying in directions,
practice rotational controls. Spinning and
keeping drone facing the same direction as you
makes flying easier and more intuitive.
• Stay 2 to 3 feet away from walls and ceilings
as drone will be drawn towards them if you fly
too close.
• If propeller blades come in contact with
another object or you crash, throttle down or
auto land immediately to prevent possible or
further damage.
• If anything prevents drone’s blades from
spinning or they become jammed, throttle
down or auto land immediately. Do not attempt
to fly until obstruction has been removed and
damage fixed.
• Should something prevent drone’s blades from
spinning, drone may auto shutdown. LiPo
battery will need to be unplugged then
reconnected to restore flying power.
• If the drone flies too far away, beyond the
control range of the remote, the drone will
auto-land to prevent the drone from flying away
out of control.
01598
3 x1.5 V AAA (LR03)
+ AAA/LR03/R03 1.5V –
+ AAA/LR03/R03 1.5V –
– AAA/LR03/R03 1.5V +
®
If the drone drifts in any direction while hovering (and you are not pressing the direction stick), you may need to make trim adjustments.
Press the recommended trim button as described below to make adjustments.
Tip 1: When the remote LED flashes 3 times quickly, the trim will revert back to middle of trim range.
Tip 2: If you are uncomfortable trimming the drone in flight, you can land onto a flat surface and make your trim adjustments.
NOTE:
Trim adjustments will remain saved until remotes batteries
are removed.

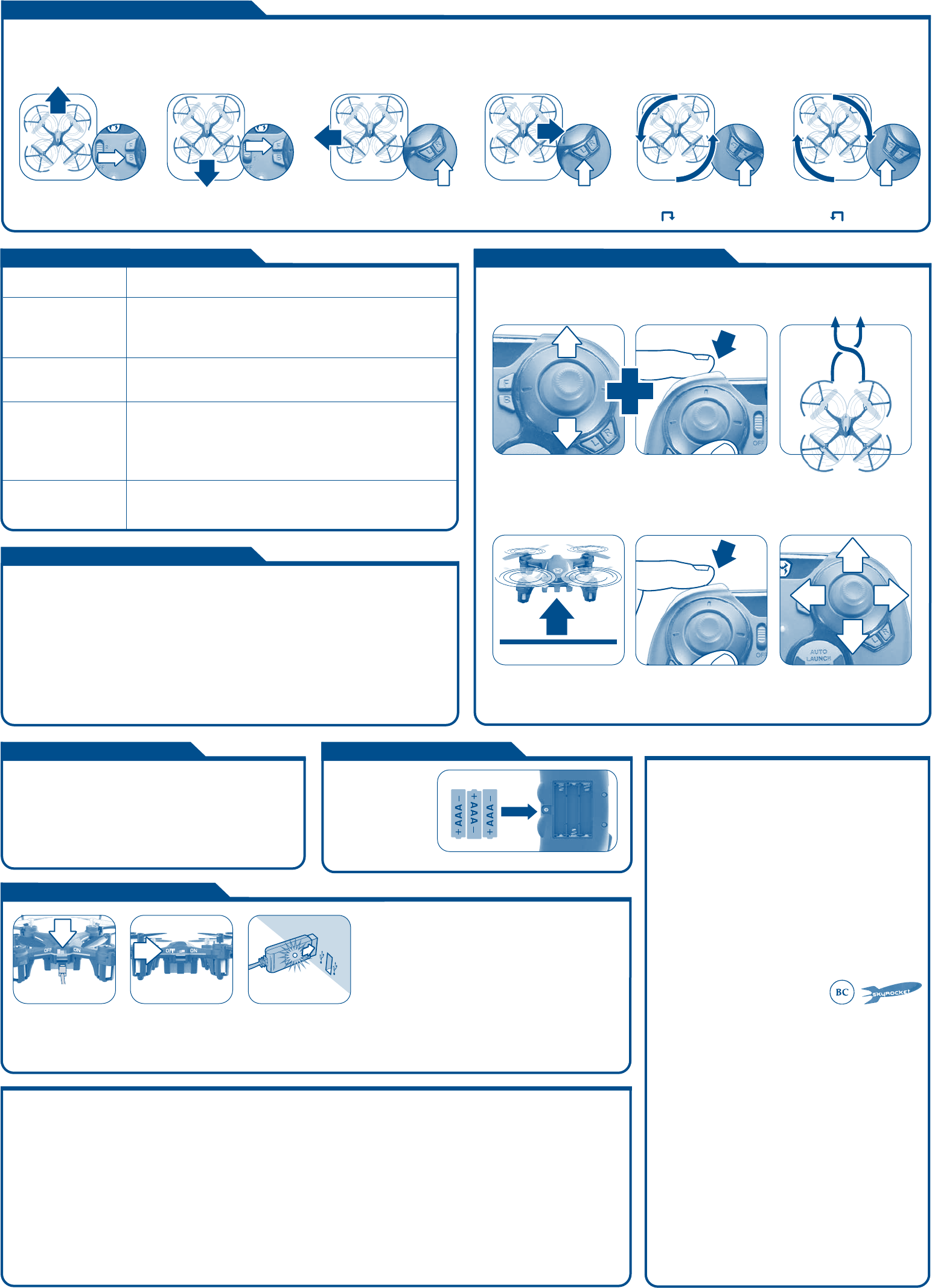

ONE TOUCH STUNTS
TRIM ADJUSTMENTS
BARREL ROLL
While flying forward (or reverse),
tap the stunt button.
NOTE:
Once a stunt has been initiated, DO NOT adjust Throttle or press
any other controls until the stunt has been completed.
CAUTION!
The drone should be flying at least 6 feet in the air with a minimum clearance of 6 feet in all directions
before attempting stunt functions.
FLIP
1 Bring the drone to a mid-air
hover without flying in any
direction. Remove finger
from the direction stick.
2 While hovering, tap and
hold the stunt button.
3 Then quickly tap the
direction stick in the
direction you want the
drone to flip.
Before each use, an adult should check this product and the LiPo battery to ensure no damage or
hazards exist. Drone has rotating blades that move at high speed, posing danger of damage and injury.
Pilots are responsible for any actions that result in damage or injury from the improper operation of
drone. Adequate flying space is required. Avoid flying near interior fans and/or vents as they may make
flying difficult to control. Keep a safe distance away from streets, public thoroughfares and power lines.
Never attempt to retrieve drone from any location higher than your reach (such as rooftops or trees)
or from any location that poses a safety hazard. Never fly drone at night. Keep drone in sight at all
times during operation. Discontinue operation immediately if drone flies out of your field of view. Do not
fly near spectators or animals. Pets can become excited about R/C vehicles therefore keep away from
pets at all times. Keep spinning rotors away from fingers, hair, eyes and other body parts. Always
launch from a flat surface. Never leave drone unattended while it is turned on. Read all enclosed
information before operating.
If the drone drifts forward
– Press B button
If the drone drifts backwards
– Press F button
If the drone drifts left
– Press R button
If the drone drifts right
– Press L button If the drone spins counter-clockwise,
when viewed from the top
– Press button
If the drone spins clockwise,
when viewed from the top
– Press button
ADULT SUPERVISION REQUIRED
1 Turn drone off.
Connect charging
cord to plug on drome.
2 Plug charging cord
into computer or
USB power block.
3 Red light = charging
Green light = fully charged
CHARGING PRECAUTIONS:
• After use, allow drone (battery on bottom) to cool down
to room temperature before charging again.
• Charge drone in an isolated area, away from excessive
heat or moisture.
• If you suspect that the battery is damaged or swelling,
turn off the drone immediately.
• Do not modify, heat, or wet the battery in any way. Only
recharge with provided charger.
• Nano Drone
• USB Charging Cable
• Remote Control
• 4 Replacement Blades
CONTENTS REMOTE BATTERIES
CHARGING THE DRONE
Loosen the screw in
the Remote Control
battery compartment
door with a Phillips
screwdriver and insert
batteries as shown.
Replace door and
tighten screw.
THIS PRODUCT CONTAINS A LITHIUM-POLYMER BATTERY 3.7V 100mAh:
LiPo batteries have a severe risk of fire and injury if they are improperly handled or misused. They may explode, overheat or ignite. Read all following precautions and instructions regarding
the care and use of LiPo batteries.
The built-in LiPo battery is only to be used with the drone and charger included with this product.
• Keep away from flammable materials.
• Do not expose to direct sunlight.
• Do not place in fires or leave in hot places.
• Do not drop or make subject to strong impact.
• Keep dry and away from water.
LiPo Battery Disposal: LiPo batteries must be recycled or disposed of properly. They should not be disposed of with other household waste. Check your local laws and regulations for correct
ALKALINE BATTERY CAUTIONS
• Do not use rechargeable batteries.
• Different types of batteries or new and old batteries are not to be mixed.
• Batteries are to be inserted using correct polarity.
WARNING: Batteries are harmful if swallowed. Please keep away from children.
Battery Disposal: Dispose of batteries according to the local laws and regulations of your region. Some batteries may be recycled, and may be accepted for disposal at your local recycling
centre. If you are not able to identify the applicable rules in your area, please check the instructions of the battery manufacturer.
recycling and/or battery disposal.
©2016 Skyrocket Toys LLC, Los Angeles CA 90066 USA. All Rights Reserved. Sky
Viper and Skyrocket and their respective logos are trademarks and/or
registered trademarks of Skyrocket Toys LLC. All other trademarks, logos and
copyrights are the property of their respective owners, and there is no
relationship express or implied with Skyrocket Toys LLC.
Remove all packaging attachments before giving the toy to a child.
Not suitable for children under 3 years due to small parts that could be swallowed.
Conforms to product safety standards ASTM F963.
Keep instructions for future reference. Do not discard.
This device complies with PART 15 of the FCC Rules. Operation is subject to the
following two conditions. (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures: Reorient
or relocate the receiving antenna - Increase the separation between the equipment
and receiver - Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected - Consult the dealer or an experienced radio/TV
technician for help.
Charging cord Plug in USB cableTurn on drone.
• Remove exhausted batteries as soon as possible and discard properly.
• Remove all batteries from the compartment if toy is not used for a long period.
• The supply terminals are not to be short circuited.
• Never throw batteries in a fire or attempt to open outer casing.
• Remove exhausted batteries as soon as possible and discard properly.
• Remove all batteries from compartment if toy is not used for a long period.
• Never throw batteries in a fire or attempt to open the outer casing.
TROUBLESHOOTING
• Drone’s blade may have been installed incorrectly. Reinstall and
remember that the GREEN blades point forward.
• Adjust the trim controls until drifting ceases.
• Ensure that drone is flying a minimum distance of 6 feet from the
ground with a minimum 6 feet clearance in all directions.
Drone is
unresponsive
All blades spin, but drone
will not fly properly or
crashes immediately
Drone crashes when
attempting stunt
functions
PROBLEM SOLUTION
Drone drifts in any
direction during flight
without direction from
the remote
• Ensure the remote has fresh batteries and the LiPo battery is
fully charged.
• Drone may be miscalibrated by launching from an un-level surface. Turn
the remote off. Turn off the drone then turn them back on and try again
from a flat, level launching surface.
• Inspect drone for any possible damage.
ON
OFF
ON
OFF
MADE IN CHINA
The software included in this product contains copyrighted
software that is licensed under the GPLv3. A copy of that
license is included in our website at the URL below. You may
obtain the complete Corresponding Source code from us for
a period of three years after our last shipment of this
product and/or spare parts therefor, which will be no
earlier than 05-01-2019, on our website at
http://www.skyrockettoys.com/GPL/
