Skyrocket Toys 01942RX24G DASH Nano Drone User Manual 01942 SVNano Production Z
Skyrocket Toys LLC DASH Nano Drone 01942 SVNano Production Z
User Manual
![](/img.php?id=3840386&img=bg1.png)
LAUNCH
AUTO
MANUAL
FLYING MODE
R
L
LAUNCH
LAND
OFF ON
01942
Front
B
A
A
B

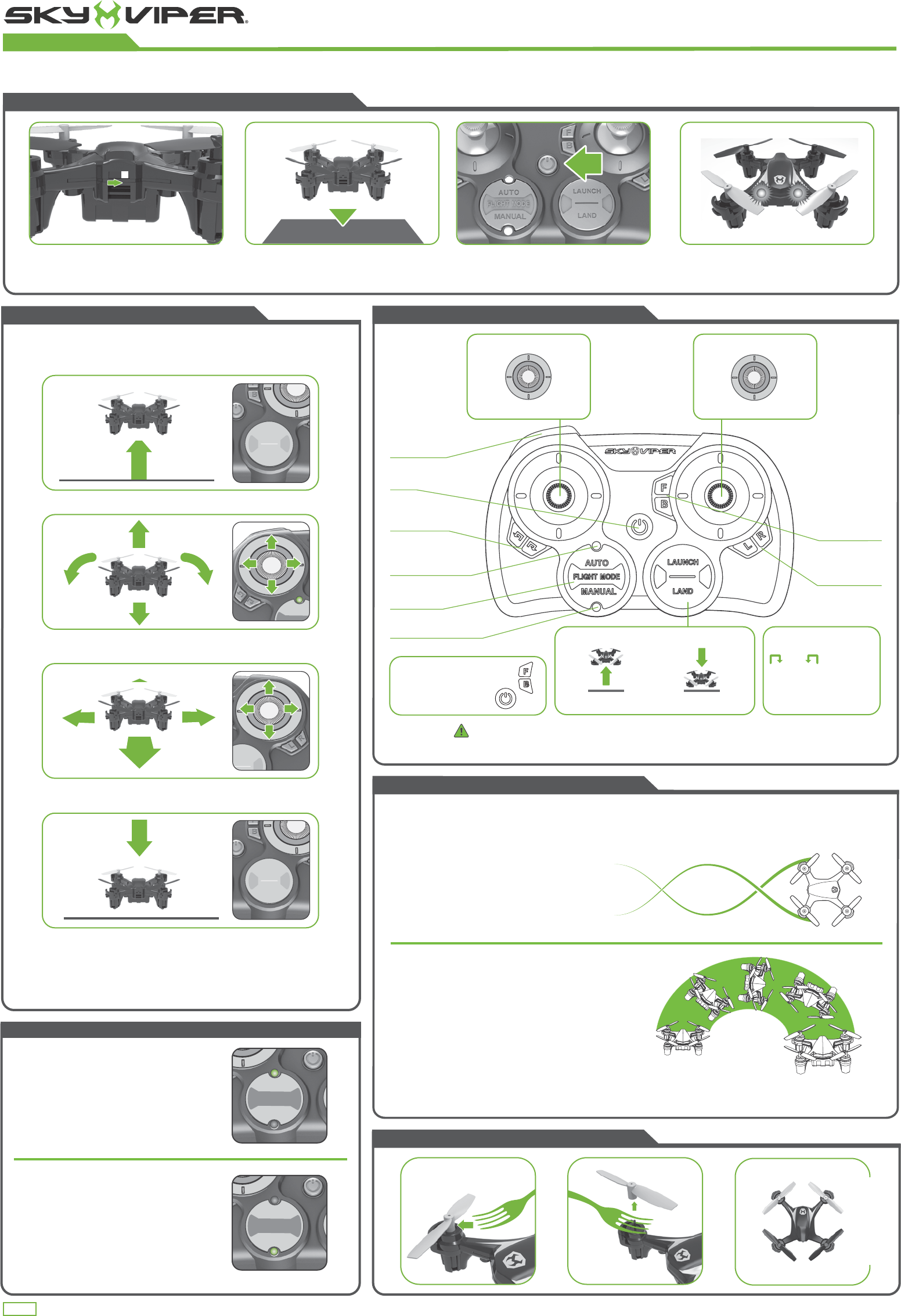

POWERING UP AND PAIRING REMOTE
• Reset controller to
factory settings:
Hold F Trim, B Trim,
and Power for
3 seconds.
Forward/
Back ward Trim
Power
Stunt Button
Auto Mode Indicator
Manual Mode Indicator
Rotation Trim
Left/Right Trim
FLIGHT BASICS
Press LAUNCH to automatically launch a few feet off the ground.
Move LEFT (Throttle) thumbstick up or down to make drone fly
higher or lower and left or right to rotate.
Use RIGHT (Directional) thumbstick to fly forward,
backward, left or right.
Press LAND to automatically land.
Rotate
Left
Rotate
Right
Up
Down
FLIGHT CONTROLS
ONE TOUCH STUNTS
Fly RightFly Left
Fly Forward
Fly Backward
REPLACING DAMAGED BLADES
AUTO AND MANUAL FLIGHT MODES
Using a fork or tool,
gently pry the blade
from the motor shaft.
To make flying easier, place the drone on the ground in front of you
with the drone facing away from you (green blades forward). You
should be facing the same way the drone is facing.
Turn on controller. (Before initial use,
install new batteries into controller.
See Rever se.)
FLYING GUIDE
NANO DRONE
DASH
Place the drone on level surface for
calibration.
R
L
AUTO
MANUAL
FLYING MODE
LAUNCH
LAND
When LEDs turn solid, the drone is ready to fly.
AUTO mode is best for new
pilots. Begin by pressing the
LAUNCH button for takeoff.
The drone will hold its altitude,
and gradually fly up or down
when you press up or down on
the left thumbstick.
MANUAL mode is better for
experienced pilots. When the
left thumbstick is pushed all
the way up the drone will spin
its motors as fast as it can
while maintaining stability, and
when the left thumbstick is
pushed all the way down the
motors will stop spinning
completely.
Turn the drone on. (Be sure that
drone is completely charged.
See reverse.)
NOTE:
Once a stunt has been initiated, DO NOT adjust Throttle or press any other controls until the stunt has been completed.
CAUTION!
The drone should be flying at least 6 feet in the air with a minimum clearance of 6 feet in all directions before
attempting stunt functions.
FLIP IN 4 DIRECTIONS
1 Bring the drone to a mid-air hover without flying in any
direction. Remove finger from the RIGHT thumbstick.
2 While hovering, press and hold the STUNT button.
3 Then quickly tap the RIGHT thumbstick in the direction
you want the drone to flip.
BARREL ROLL LEFT OR RIGHT
While flying forward (or reverse), tap the STUNT button.
R
R
L
LAUNCH
LAND
R
L
AUTO
MANUAL
FLIGHT MODE
LAUNCH
LAND
R
L
AUTO
MANUAL
FLIGHT MODE
LAUNCH
LAND
Flight Mode
LAUNCH/LAND BUTTON
PRESS TO LAND
PRESS TO LAUNCH
If for any reason you need to immediately stop the drone, hold down the stunt
button (for drones that don't have a stunt button, use the video button) and
move both thumbsticks down and away from the center of the controller.
Alternatively you can use the left thumbstick to land
the drone. Hold the left thumbstick all the way down
for about 2.5 seconds after the drone has safely
reached the ground, and the motors will stop spinning.
To change the speed of
the drone, hold STUNT,
, and . The LED on
the controller will blink
once for slow, twice for
medium, and three
times for fast.
![](/img.php?id=3840386&img=bg2.png)

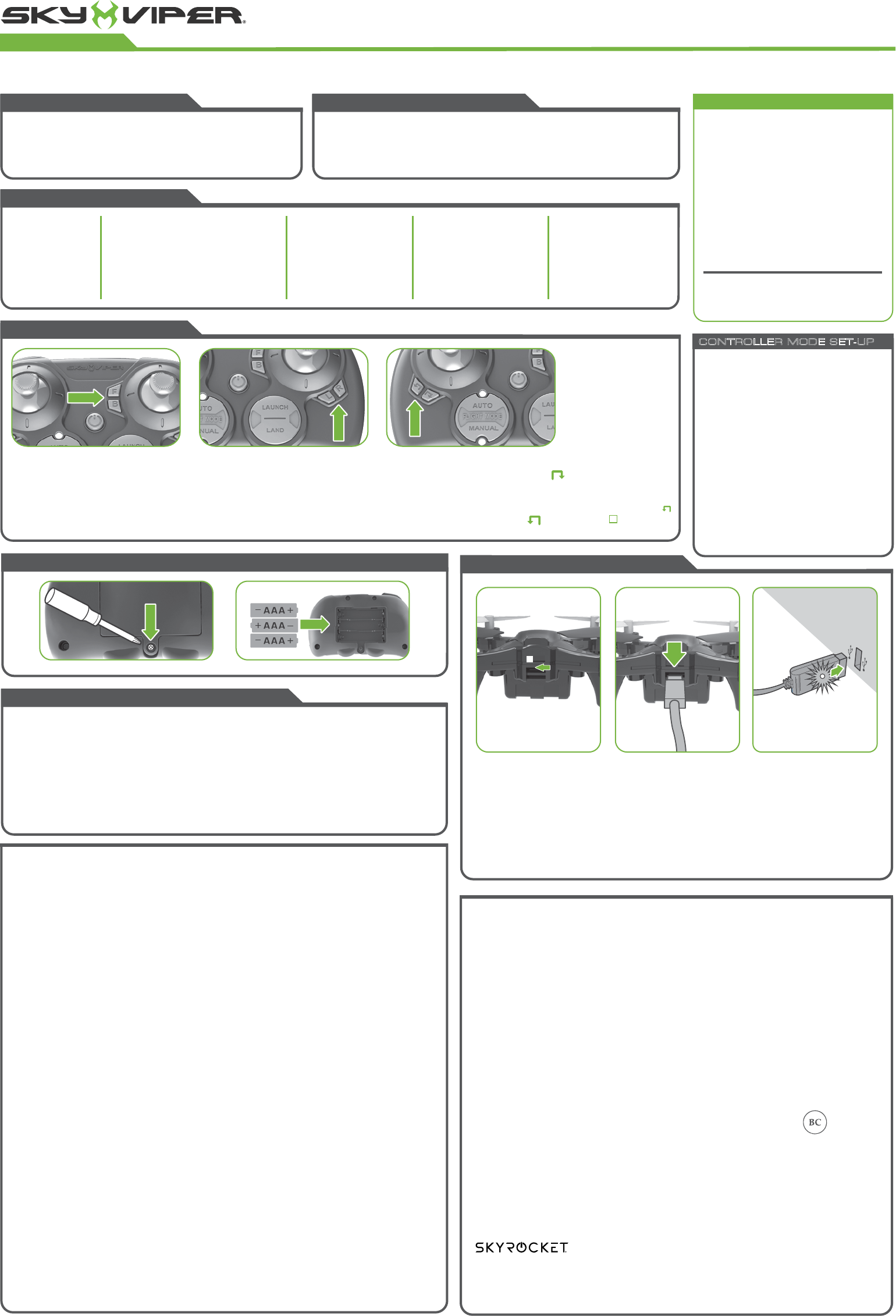

AAA BATTERY CAUTIONS
• Do not use rechargeable batteries.
• Different types of batteries or new and old batteries are not to be mixed.
• Batteries are to be inserted using correct polarity.
• Remove exhausted batteries as soon as possible and discard properly.
• Remove all batteries from compartment if toy is not used for a long period of time.
• Never throw batteries in a fire or attempt to open the outer casing.
• Non-rechargeable batteries are not to be recharged.
• The supply terminals are not to be short circuited.
• Batteries should be replaced by an adult.
WARNING:Batteries are harmful if swallowed. Please keep away from children.
Battery Disposal: Dispose of batteries according to the local laws and regulations of your region. Some
batteries may be recycled, and may be accepted for disposal at your local recycling center. If you are not
able to identify the applicable rules in your area, please check the instructions of the battery manufacturer.
THIS PRODUCT CONTAINS A LITHIUM-POLYMER BATTERY3.7V 100mAh:
LiPo batteries have a severe risk of fire and injury if they are improperly handled or misused. They may
explode, overheat or ignite.Read all following precautions and instructions regarding the care and use
of LiPo batteries.
The LiPo battery is only to be used with the drone and charger included with this product.
• Keep away from flammable materials.
• Do not expose to direct sunlight.
• Do not place in fire or leave in hot places.
• Do not drop or make subject to strong impact.
• Keep dry and away from water.
• Remove exhausted battery as soon as possible and discard properly.
• Remove battery from the compartment if toy is not used for a long period of time.
• The supply terminals are not to be short circuited.
• Never throw battery in a fire or attempt to open outer casing.
• Do not leave battery connected to drone when not in use.
• Do not stress, press or drop the battery.
• Never charge battery unattended. When charging battery you should always remain in constant observa-
tion to monitor the charging process and react to potential problems that may occur.
• Disconnect with the charging wire if the battery is fully charged.
• Never store or charge battery inside the car in extreme temperatures, since extreme temperature could
ignite fire.
• Use caution to avoid puncture of the battery. Puncture of battery may cause a fire.
LiPo Battery Disposal: LiPo batteries must be recycled or disposed of properly. They should not be
disposed of with other household waste. Check your local laws and regulations for correct recycling
and/or battery disposal.
• Nano Drone
• USB Charging Cable
• Controller
• 4 Replacement Blades
Before each use, an adult should check this product and the LiPo battery to ensure no damage or hazards
exist. Drone has rotating blades that move at high speed, posing danger of damage and injury. Pilots are
responsible for any actions that result in damage or injury from the improper operation of drone.
Adequate flying space is required. Avoid flying near interior fans and/or vents as they may make flying
difficult to control. Keep a safe distance away from streets, public thoroughfares and power lines. Never
attempt to retrieve drone from any location higher than your reach (such as rooftops or trees) or from
any location that poses a safety hazard. Never fly drone at night. Keep drone in sight at all times during
operation. Discontinue operation immediately if drone flies out of your field of view. Do not fly near
spectators or animals. Keep spinning rotors away from fingers, hair, eyes and other body parts. Always
launch from a flat surface. Never leave drone unattended while it is turned on. Read all enclosed
information before operating.
ADULT SUPERVISION REQUIRED
3 x1.5 V AAA (LR03)
_ AAA/LR03/R03 1.5V +
_ AAA/LR03/R03 1.5V +
+ AAA/LR03/R03 1.5V _
INSTALLING BATTERIES IN THE CONTROLLER CHARGING THE DRONE
CHARGING PRECAUTIONS:
• After use, allow drone (battery on bottom) to cool down to room temperature
before charging again.
• Charge battery in an isolated area, away from excessive heat or moisture.
• If you suspect that the battery is damaged or swelling, discard the battery in accordance with
your country’s recycling laws.
• Do not modify, heat, or wet the battery in any way. Only recharge with provided charger.
Red light = charging
Green light = fully charged
WE’RE HERE TO HELP
Online Video Instructions &
Flying Tips available now at
SKYVIPER.COM
For questions about
this product:
Online: skyviper.com/support
Email:
support@skyrockettoys.com
Phone:
1-888-674-5650
M-F 9am to 6pm PST
*Screwdriver not included. *Batteries not included.
TRIM ADJUSTMENTS
IF THE DRONE DRIFTS FORWARD: Press
"B" button several times until the drone
stops drifting forward.
IF THE DRONE DRIFTS BACKWARD:
Press "F" button several times until the
drone stops drifting backward.
IF THE DRONE DRIFTS LEFT: Press
"R" button several times until the
drone stops drifting left.
IF THE DRONE DRIFTS RIGHT: Press
"L" button several times until the
drone stops drifting right.
IF THE DRONE SPINS COUNTER-CLOCK-
WISE (VIEWED FROM ABOVE): Press the
button several times until the drone stops
spinning.
IF THE DRONE SPINS CLOCKWISE
(VIEWED FROM ABOVE): Press the button
several times until the drone stops spinning.
Computer or
charging block.
Insert charging cable.
Turn the drone off.
MAINTENANCE
NANO DRONE
DASH
OFF ON
FAILSAFE GUIDE
When the drone's battery is
depleted, the drone will
automatically land itself in its
current position. This
automatic landing cannot be
interrupted with the
controller.
When the drone's battery
is at 10% or less, the LEDs
on the drone will begin to
blink rapidly until the
drone is turned off.
If the drone detects that no
input has been received by
the controller for 15
seconds, the drone will
automatically land itself in
its current position.
When the drone goes out of range of the
controller, it will automatically land itself
in its current position. If the controller
comes back into range before the drone
lands, it is possible to cancel this
automatic landing by pressing up on the
left thumbstick.
When the drone
turns upside down,
the motors will
stop spinning.
To change the speed of
the drone, hold STUNT,
, and . The LED on
the controller will blink
once for slow, twice for
medium, and three
times for fast.
CONTENTS
If one or more of your drone's propellers will not spin, check for foreign objects
on or around the motor and propeller. Remove the propeller with a fork or
tweezers, clear debris, and then replace the propeller. Do not use excessive
force when putting the propeller on the motor.
Propellers Not Spinning?
When the controller is OFF, press and hold
the flight mode button, LAUNCH/LAND
button, and POWER button for three seconds
to toggle between mode 1 and mode 2.
Mode 2 (default, most commonly used)
LEFT thumbstick makes the drone go
up/down, and rotate
clockwise/counter-clockwise. RIGHT
thumbstick makes the drone fly forward,
backward, left, and right.
Mode 1 (used in Australlia and most
Asian & European countries)
LEFT thumbstick makes the drone fly
forward/backward, and rotate
clockwise/counter-clockwise. RIGHT
thumbstick makes the drone go up/down,
and fly left and right.
CONTROLLER MODE SET-UP
TIPS:
#1: When the
controller LED flashes
3 times quickly, the
trim is at middle of
trim range.
#2: If you are
uncomfortable
trimming the drone in
flight, you can land
onto a flat surface and
make your trim
adjustments.
#3: To reset trim
adjustments, hold the
and the buttons
down for 2 seconds.
R
Google Play and the Google Play logo are trademarks of Google Inc.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service
mark of Apple Inc., registered in the U.S. and other countries.
©2018 Skyrocket LLC, Los Angeles CA 90066 USA. All Rights Reserved. Sky Viper and Skyrocket and their respective
logos are trademarks and/or registered trademarks of Skyrocket Toys LLC. All other trademarks, logos and copyrights
are the property of their respective owners, and there is no relationship express or implied with Skyrocket Toys LLC.
MADE IN CHINA.
Remove all packaging attachments before giving the toy to a child.
Not suitable for children under 3 years due to small parts that could be swallowed.
Conforms to product safety standards ASTM F963.
Keep instructions for future reference. Do not discard.
This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving
antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
For Drone:This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
When you use Spiderman Remote on hand, please keep 20cm from your body.
![](/img.php?id=3840386&img=bg3.png)

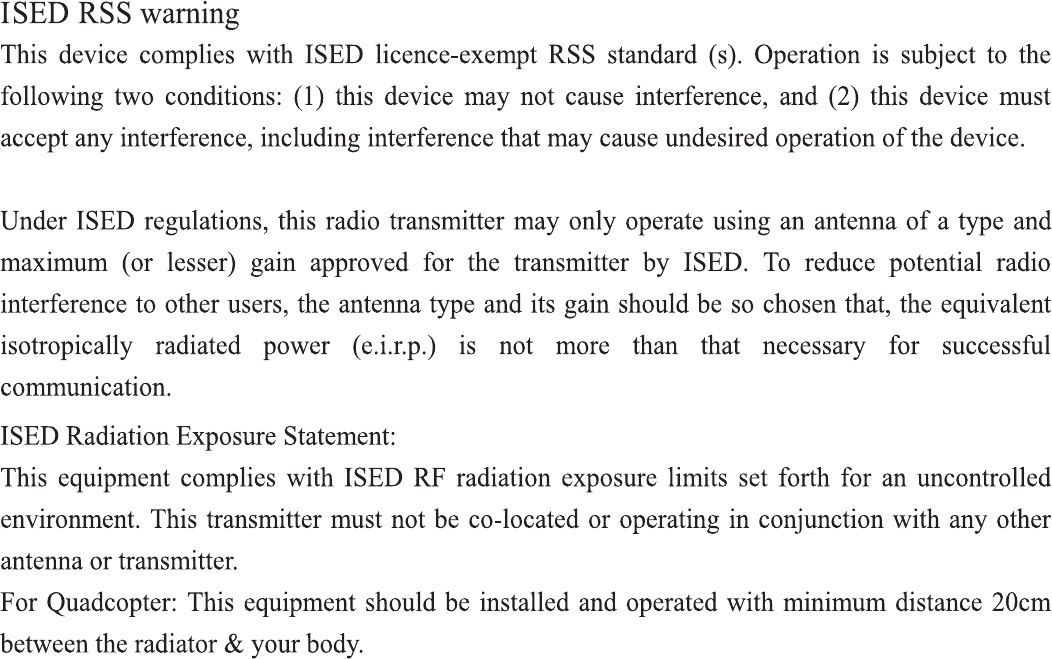

When you use Spiderman Remote on hand, please keep 20cm from your body.
![](/img.php?id=3840386&img=bg4.png)

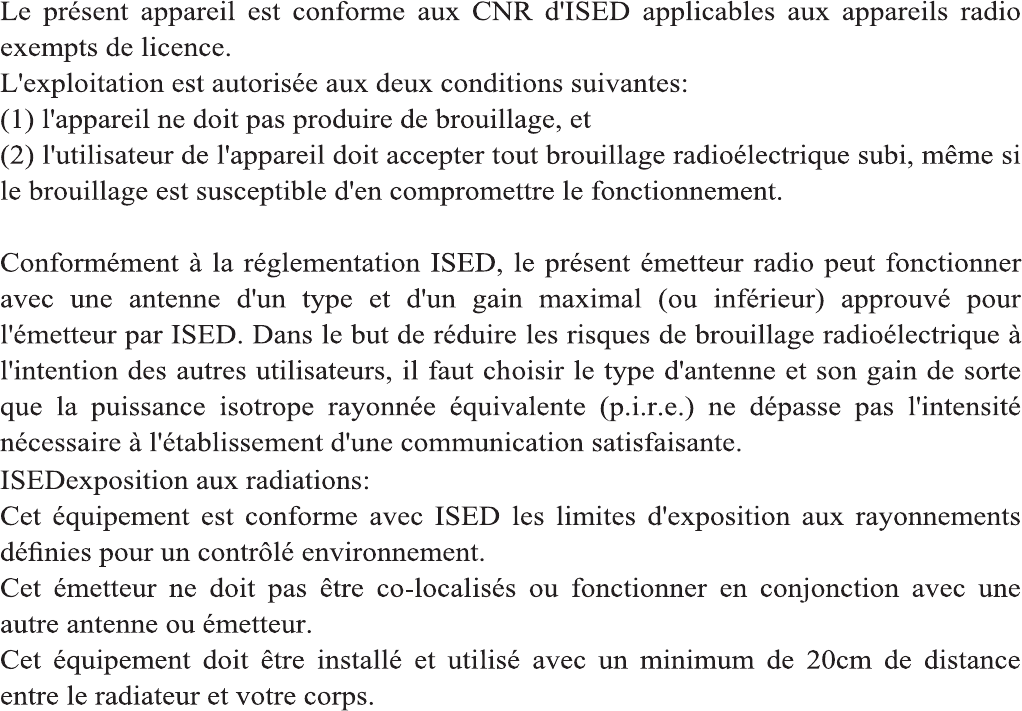

Lorsque vous utilisez Spiderman Remote en main, gardez 20 cm de votre corps.
