Skyworth Digital Technology 081202B PART 15 TV INTERFACE DEVICE User Manual
Shenzhen Skyworth Digital Technology Co.,LTD PART 15 TV INTERFACE DEVICE
User Manual
GENERAL INFORMATION
INSTALLATION
MENU INFORMATION
3
8
10
Main Features
For your Safety

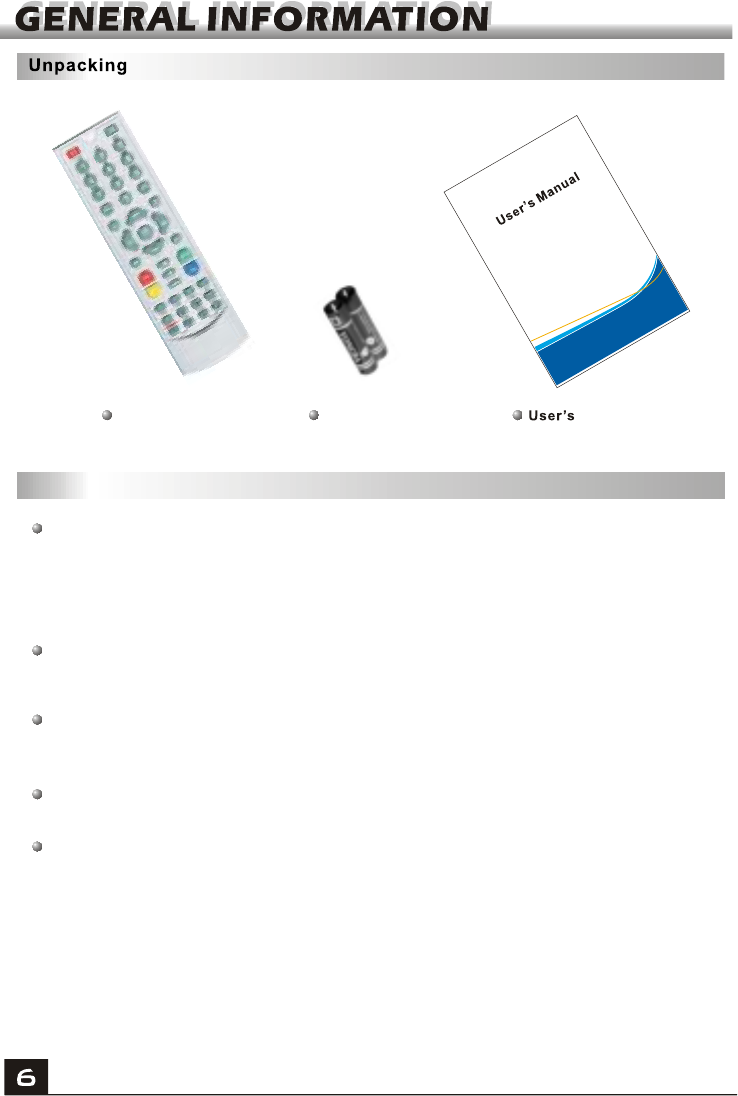

Unpacking
General Operation
RCU
3
4
5
6
7
Rear Panel
Connecting to TV& VCR using SCART support
Connecting to TV using RCA support
Connecting to Digital Amplifier
8
8
9
9
Main Menu
1. Channel List
1.1 TV Channel List
1.2 Radio Channel List
1.3 Delete All
2. Installation
2.1 Antenna Connection
2.2 Satellite List
2.3 Antenna Setup
2.4 Single Satellite Search
2.5 Multi Satellite Search
2.6 TP List
3. System Setup
3.1 Language
3.2 TV
3.3 Local Time setting
3.4 Timer Setting
3.5 Parental Control
3.6 OSD Setting
3.7 Favorite
3.8 Other
10
11
11
14
14
14
14
15
16
18
18
19
20
20
21
21
21
22
22
23
23
4. Tools
4.1 Information
4.2 Factory Setting
4.3 Upgrade by USB
4.4 Common Interface
4.5 Conditional Access
4.6 USB
5. Game
6. REC
6.1 Record Mangager
6.2 HDD Information
6.3 HDD Format
6.4 PVR Setting
7. Hot key
7.1 Info
7.2 EPG
7.3 Find
7.4 Numer
7.5 TV/Radio
7.6 Up/Down
7.7 Left/Right
7.8 Mute
7.9 Pause
7.10 OK
7.11 Audio
7.12 Recall
7.13 Fav
7.14 Teletext
7.15 Zoom
23
23
24
24
24
26
27
28
28
28
29
29
29
29
29
30
30
30
31
31
31
31
31
31
31
32
32
32
32
33
A Digital Satellite Receiver is a convenient product that allows you to view a variety
of programs provided through satellite. This user's guide covers the installation of
the DSR and the necessary steps to implement various features. This also explains
special features available only in this DSR in detail, which will allow you to make full
use of these feature.
Information confirmed in this document is subject to change. We reserves the right,
without notice, to make change in product design or performances as progress in
engineering or technology.
Main Features
MPEG-2 digital & fully DVB-S compliant
SCPC and MCPC receivable from C/Ku band satellite
Automatic PAL/NTSC conversion
4000 channels TV and Radio programmable
32 different favorite groups selection
On Screen Display with multi-language
Fully support to 7 days Electronic Program Guide(EPG)
Picture in Graphics(PIG) support
256 colors On Screen Display
Automatic network search for newly added transponders
DiSEqC 1.0/1.1/1.2/1.3 fully support, 13/18V, 0/22K
Various channel editing function(favorite, move, lock, rename and sort)
Parental control for channels
Easy to use Menu System
Software upgrades through RS232 port and Receiver to receiver
Automatic turn on/off by Timer setting(multiple options)
Subtitle support DVB EN300743 and EBU
Teletext support DVB ETS300472 by VBI and OSD
Automatic save for last channel
Channel list can be sorted by alphabetic A-Z
Up to 3X3 pictures on screen, only 1 active
Video zoom function with 1/2/4/6/8/12/16 ratio
Supprot FAT16/FAT32/FAT12
Only list JPEG/BMP files
Default 2 hours, user can setting the end time
Based on size of HDD, 512M~8G size will reserve for time shifted
recording
Lock/Delete/Rename,Preview playback,Browse record files information
Play/Pause/Stop/Step
Fast Forward/Fast Backward 2/4/8/16/24, Slow Forward/Slow Backward
1/2, 1/4, 1/8, Jump to user selected time point
480i/p, 576i/p, upscale to 720p, 1080i

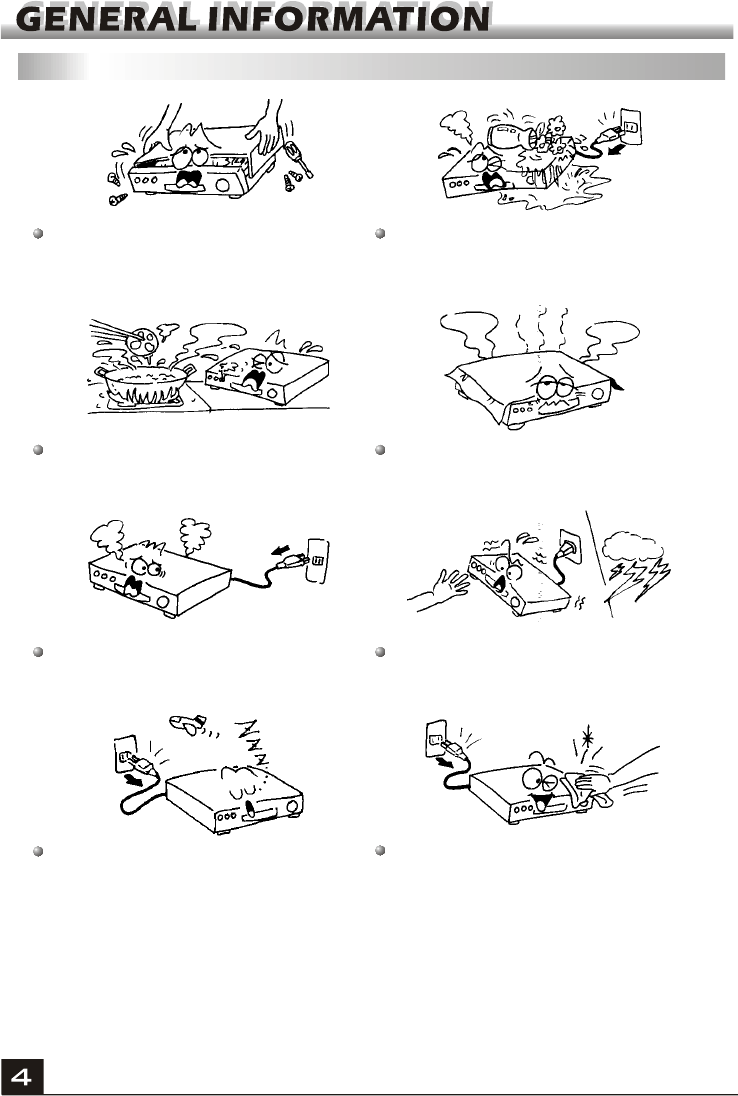

For Your Safety
Be sure to turn the Receiver off and
disconnect the AC power cord before
cleaning the Receiver surface. If the
surface is dirty, wipe clean with a cloth
which has been dipped in a weak soap-and-
water solution and wrung out thoroughly,
and then wipe again with a dry cloth.
Switch the receiver off whenever it remains
out of service for an extended period.
Do not touch the receiver during thunder,
since that might create electric-shock
hazards.
Do not block ventilation holes of the
Receiver so that air can circulate freely.
Do not expose the receiver un-der the
sunlight. And keep it away from the heat
source.
Keep the receiver away from flower vases,
tubs, sinks, etc., in order to avoid damaging
the equipment.
To avoid electric-shock hazards, do not
open the cabinet, refer servicing to qualified
personnel only.
When the abnormal phenomenon occur,
you should cut off the power immediately.
Warning statement
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment .
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
From that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
General Operation
Throughout this manual you will notice that the everyday operation of the receiver is
based on a series of user friendly on screen display and menus. These menus will
help you get the most from your receiver, guiding you through installation, channel
organizing, viewing and many other functions.
All functions can be carried out using the buttons on the RCU, and some of the
functions can also be carried out using the buttons on the front panel.
The receiver is easy to use, always at your command and adaptable for future
advances.
Please be aware that new software may change the functionality of the receiver.
Should you experience any difficulties with the operation of your receiver, please
consult the relevant section of this manual, including the Problem Shooting, or
alternatively call your dealer or a customer service adviser.
Remote Control Batteries Guide

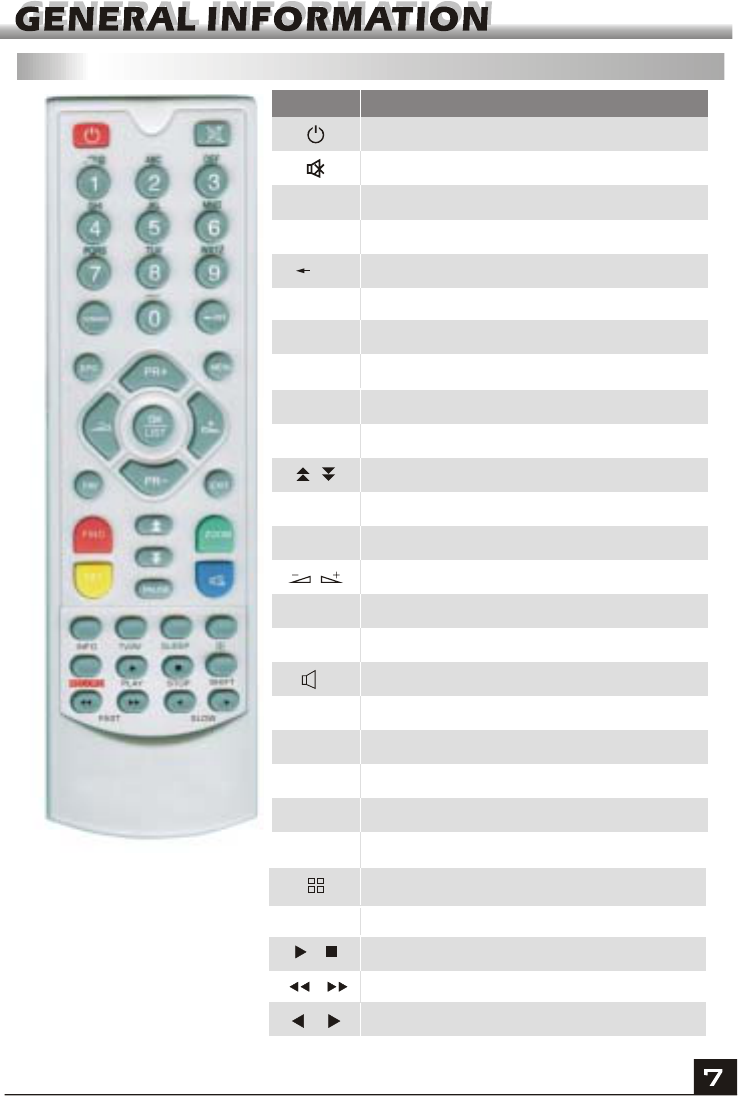

RCU
Key Function
Turns power ON/OFF of the DSR
When watching a channel, mute the sound
Switches between TV and Radio mode
0~9
MENU
EXIT
OK, LIST
PR+, PR-
Enter number of the required menu item or
select a channel number to watch
Press this key one time to run menu onscreen
Return to the previous menu on the menu
screen or escape from the menu
Press once to pause the screen picture, press
once again to go to the normal mode
TV/RADIO
PR
Switches back to previous channel
Displays the favorite group list
Show information of the current channel
Switch to teletext or subtitle mode
Moves up / down a page in the list
FAV
INFO
Executes the selected item in the menu screen
or enters the desired value in any input mode
When watching a channel, change channels or
move to the next higher or lower item in the menu
When watching a channel, adjust the volume or
move to the left or right item in the menu
Call up the EPG (Electronic Program Guide)
Display the Audio window.
Switch between TV and AV modes
EPG
L
R
TV/AV
PAUSE
FIND Display the Find window
ZOOM
Enter into the zoom in mode
SLEEP
Enter into the sleep in mode
Enter into the nine-pictures mode displayed
on the screen.
TXT
SHIFT
RECORD
Play and stop the program
Press to fast Forward or fast backward
Record the program
Timeshift function key
,
Press to slow forward or slow backward

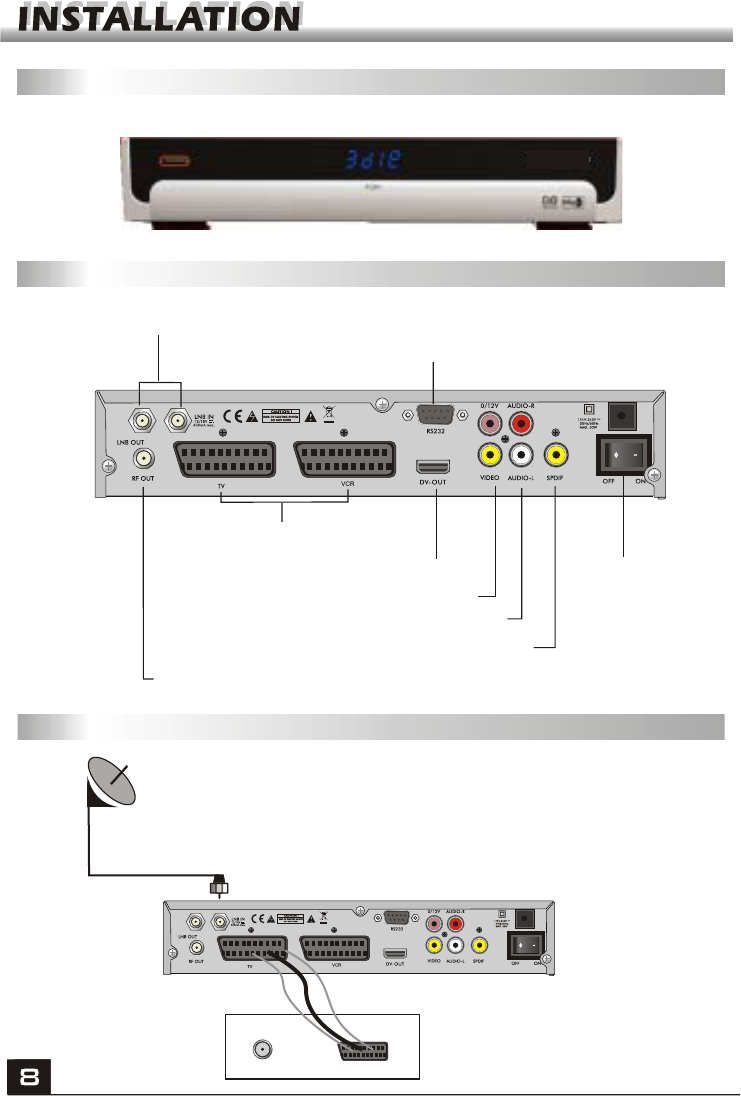

Rear PanelRear Panel
Connecting to TV using SCART support
DSR
Satellite
Dish
Rear PanelFront Panel
POWER ON/OFF
CONNECT VIDEO TO TV USING RCA JACK
LNB IN: CONNECT TO SATELLITE ANTENNA
LNB OUT:CONNECT TO THE OTHER RECEIVER
CONNECT TO TV/VCR
USING A SCART CABLE
RF OUT: CONNECT TO TV ANT INPUT
CONNECT TO A DIGITAL AMPLIFIER
CONNECT TO AUDIO R/L TO TV OR AUDIO TUNER
CONNECT TO A PC FOR S/W UPGRADE
CONNECT TO TV SET HDMI-OUT INPUT
TV
SCART
IN

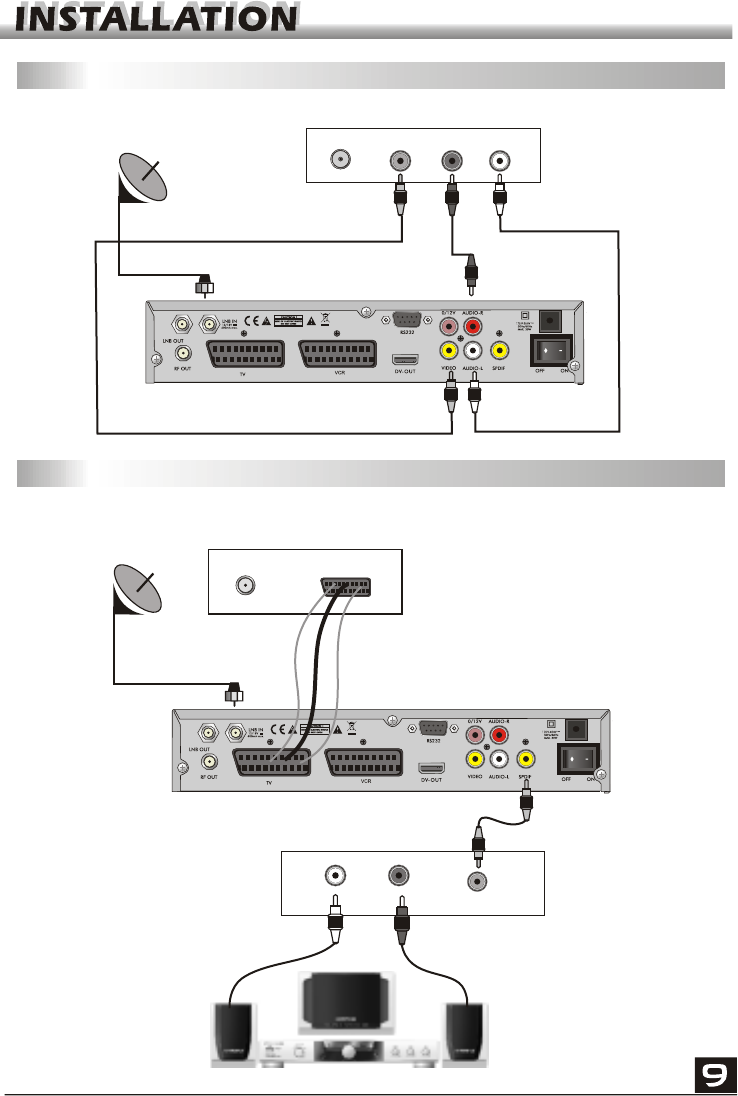

Connecting to TV using RCA support
Satellite
Dish
Connecting to Digital Amplifier
Satellite
Dish
DIGITAL AUDIO
CONVERTOR OR
AMPLIFIER
SPEAKER
DIGITAL AUDIO
LR
IN
LR
IN VIDEO
TV
AUDIO
TV

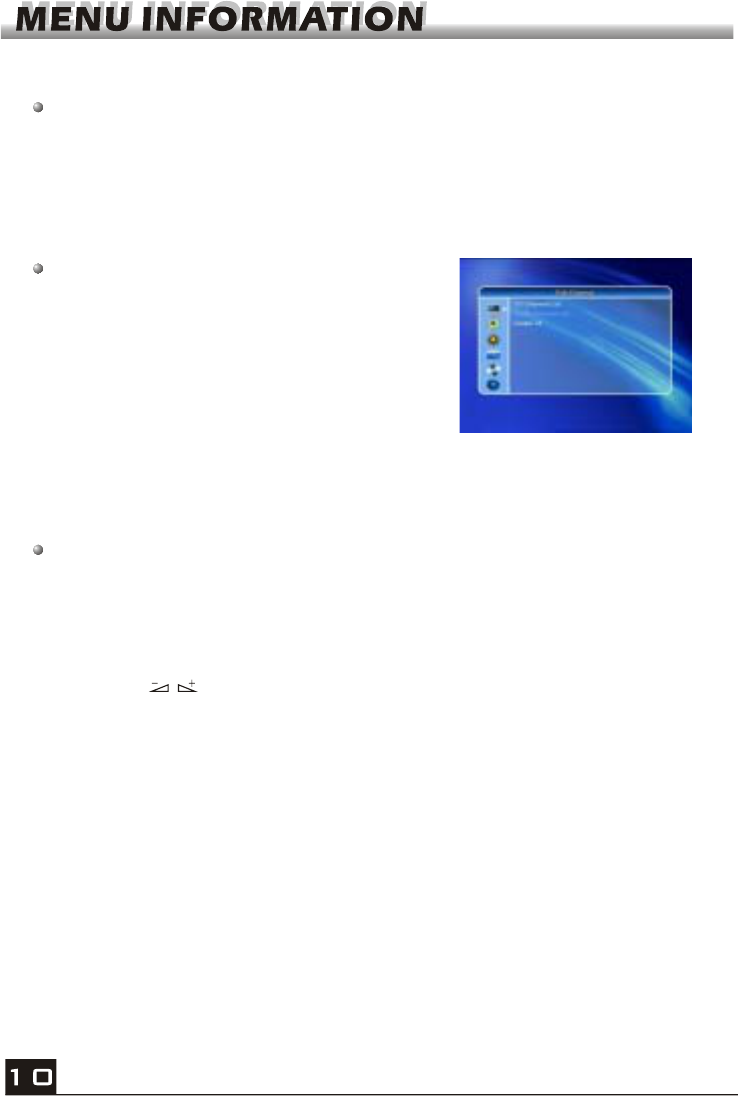

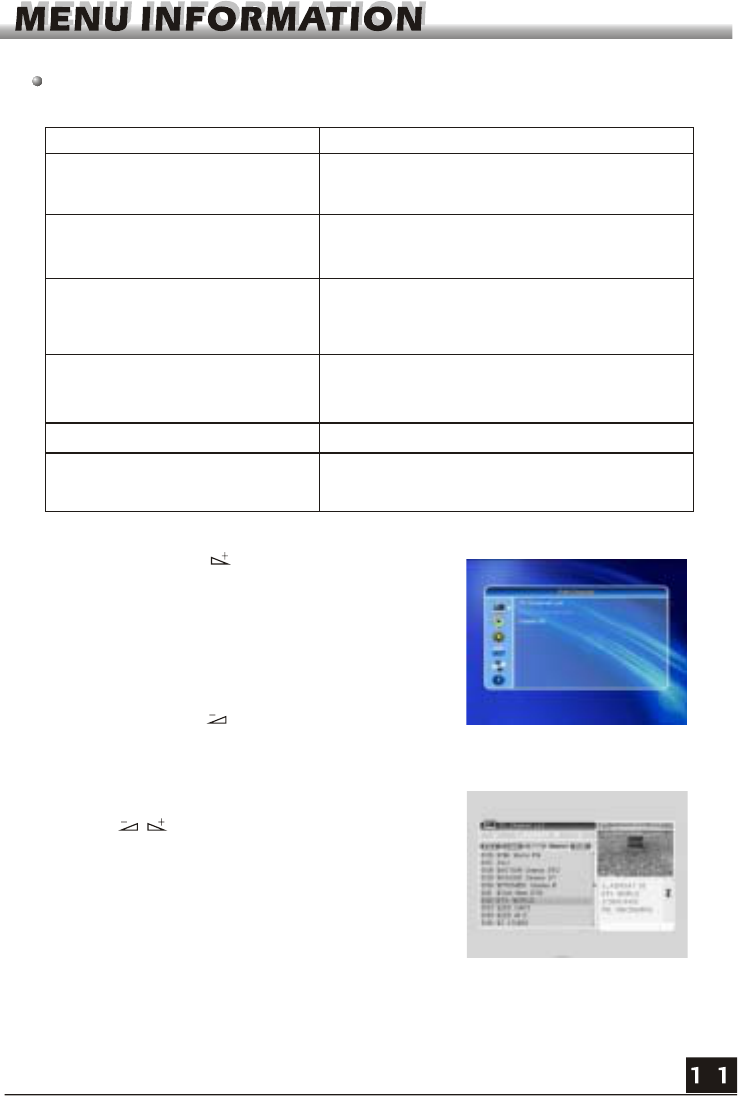

Main Menu
This menu consists of 6 major main menus
as follow.
- Edit Channel
- Installation
- System Setup
- Tools
- Game
- REC
During the installation the OK key confirms a selection and LIST key shows Down
List Box if the column has mark. You can also use the numeric keys on the
RCU to enter numeric value.
Use the PR+, PR- key to move upwards and downwards from one line to another
line and use key to move from main menu to sub menu and move from left
side to right side or versa.
Meantime, you want to escape the menu system, please press MENU or EXIT key
on the RCU.
Make sure that you have properly installed and connected the cables of the receiver .
If the receiver is the factory status or there is no program list, when power on, the
Main Menu window will be displayed on the screen.
During the normal TV/Radio mode, press MENU key on the RCU to enter into the
Main Menu window.
If there is no program, you can not exit from the Main Menu window by pressing
MENU or EXIT key. System will inform "No channel" and the following items turn grey.
1. Press OK key or key to pop up the "Input
Password" dialogue, you can not enter into the
menu unless the correct password is inputted.
The default password is "0000".
2. Press PR+, PR- keys to move the cursor up or
down.
3. Press EXIT key or key to move the focus to
the left menu.
Sub-menu Turn grey when there is no program
Channel List
Installation
System
Tools
TV Channel List
Radio Channel List
Delete all
Antenna Connection Satellite List
Antenna Setup Single Satellite Search
Multi Satellite Search TP List
Language TV System
Local Time Setting Timer Setting
Parental Lock OSD Setting
Favorite Other
Information Factory Setting
1. Channel List
1. Press keys to select satellite.
2. Press PR+, PR- keys to select the program
that you want to play, and then press OK key to
view it in the small window. If move the yellow
cursor to select up or down, you will see a gray
line which indicates the playing program in the
small window.

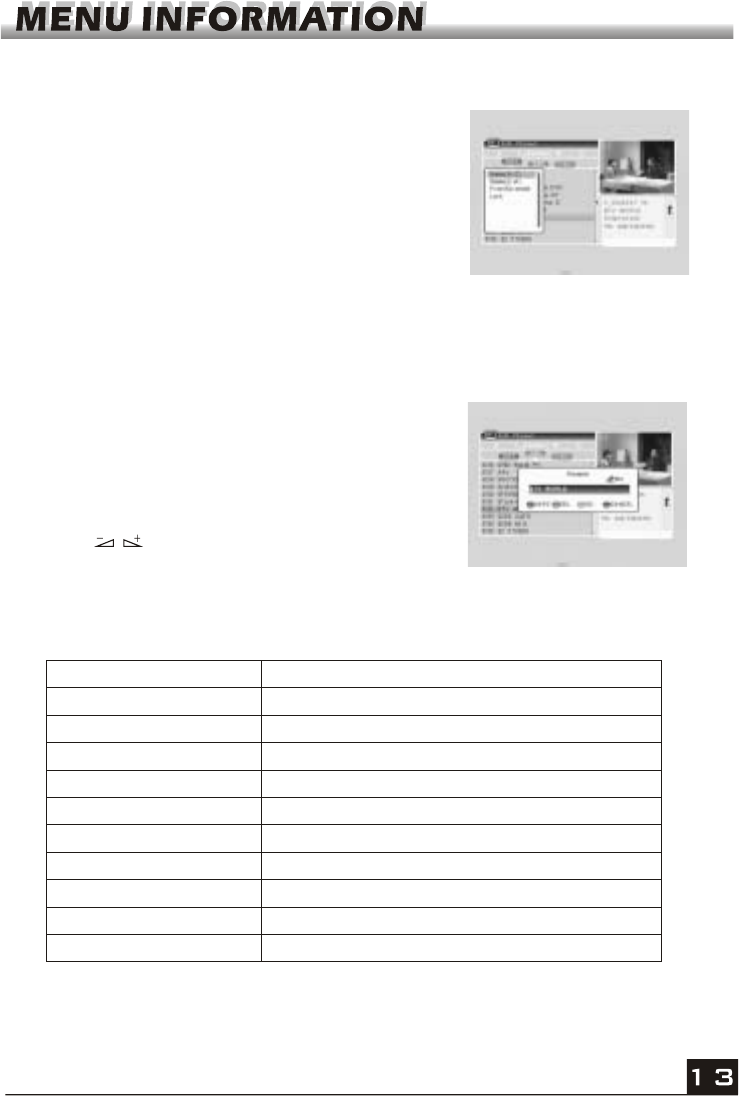

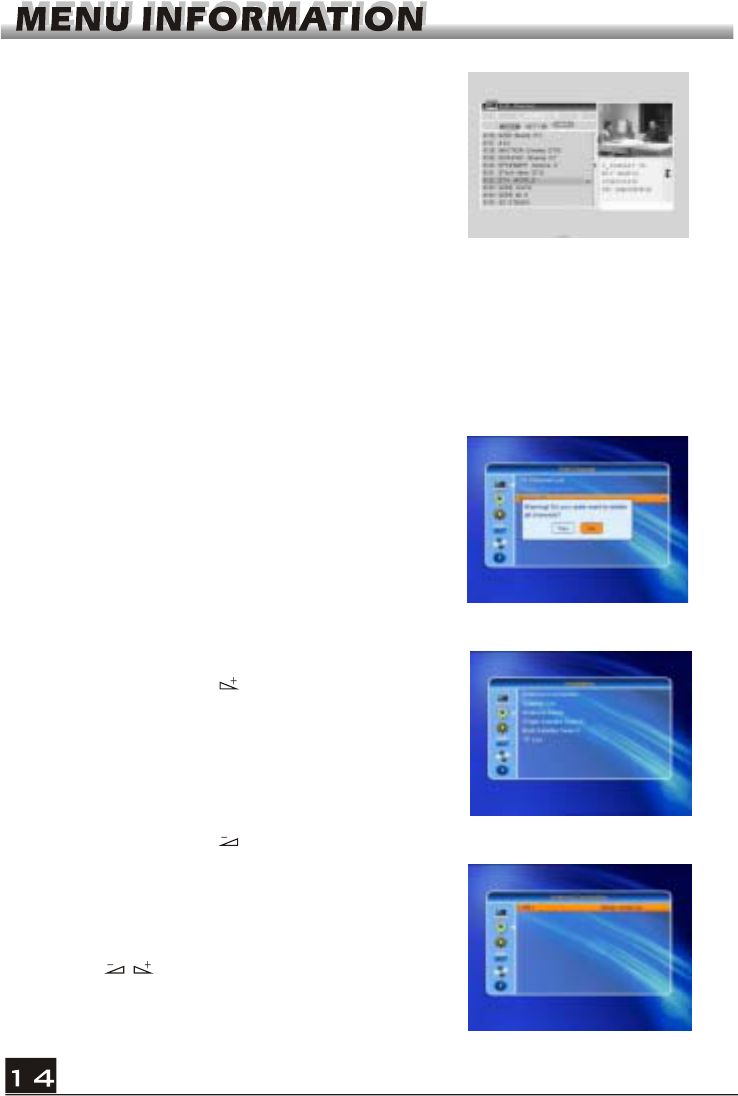

1.1 TV Channel List
Game Tetris Othello Sudoku
REC Record Manager HHD Information
HHD Format PVR Setting
USB
Conditional CA
Upgrade by USB Common Interface

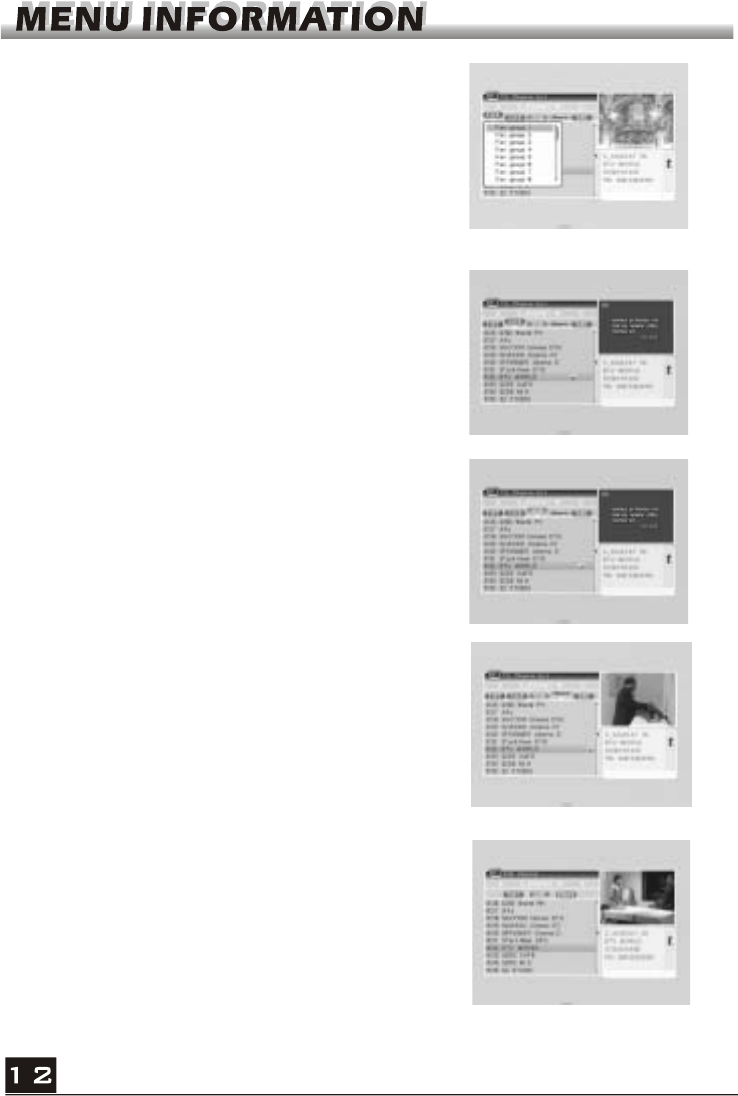

3. Press FAV key to move the FAV button upward.
Select the program and press OK key to pop up the
favourite group list. In the list, select the group that
you want to add into and press OK key, and then
you will find the favourite mark is displayed at the
right side of the selected program.
Press FAV key again to exit from the fav mode, and
you will find the FAV button return to the origin
position.
4. Press red colour key to move the Lock button
upward. Select the program and press OK key to
mark this program with the Lock mark. You can
cancel this mark by pressing OK key once more.
Press red colour key again to exit from the lock
mode, and you will find the Lock button return to the
origin position.
5. Press green colour key to move the Skip button
upward. Select the program and press OK key to
mark this program with the skip mark. You can
cancel this mark by pressing OK key once more.
Press green colour key again to exit from the skip
mode, and you will find the Skip button return to the
origin position.
6. Press yellow colour key to move the Move
button upward. Select the program and press OK
key to mark this program with the move mark.
Press PR+, PR- keys to move the cursor to the
position where you want to locate and press OK
key to confirm.
Press yellow colour key again to exit from the
yellow mode, and you will find the yellow button
return to the origin position.
7. Press blue colour key to enter into the Edit
channel window.
Press red colour key to pop up the Sort drop-down
list.
Name(A-Z): The ascending order, omitting the $
character, the number is ahead, then the capital
letter, at last the lowercase.
Name (Z-A): The opposite order of the above Name
(A-Z).
Free/Scramble: All FTA programs are listed ahead,
while all scrambled programs are listed last.
Lock: all locked programs are listed at the last.
Default
i . Sort (red colour key)
Press green colour key to move the Edit button
upward. Select the program and press OK key to
pop up theRename window.
In Rename window, press red colour key to switch
between capital letter and lower letter; press green
colour key to delete the character on the cursor;
press keys to move the cursor left or right;
press numeric keys (0-9) to input the character,
please refer to the down table. Press yellow colour
key to save and exit, or press blue key to cancel
and exit.
ii. Edit (green colour key)
Numeric keys Press numeric key repeatedly, display in circle
1
2
3
4
5
6
7
8
9
0
.,*?!@1
ABC2
DEF3
GHI4
JKL5
MNO6
PQRS7
TUV8
WXYZ9
[space]_-0
If the name is empty, system will pop up a dialogue informing "Name" once yellow
colour key is pressed. Press OK key to close this dialogue.
In Delete window, press blue colour key to move
the Delete button upward. Select the program and
press OK key to mark this program with the
deletion mark. You can cancel this mark by
pressing OK key again.
Press EXIT key to pop up the dialogue "Are you
sure to save?". Select Yes button and press OK
key to save, or select NO button and press OK key
to exit without saving.
1.2 Radio Channel List
Sine the same operation as 1.1 TV Channel List, here we don't explain any more.
iii. Delete (blue colour key)
1.3 Delete All
Move cursor to the Delete All item, and press OK
Key to pop up the dialogue "Warning! Do you really
want to delete all channel?".
Press EXIT key to pop up the dialogue "Are you
sure to save?". Select Yes button and press OK
key to save, or select NO button and press OK key
to exit without saving.
2. Installation
1. Press OK key or key to pop up the "Input
Password" dialogue, you can not enter into the
menu unless the correct password is inputted.
The default password is "0000".
2. Press PR+, PR- keys to move the cursor up or
down.
3. Press EXIT key or key to move the focus
to the left menu.
2.1 Antenna Connection
Press keys to select between Motor
Antenna and Fixed Antenna.

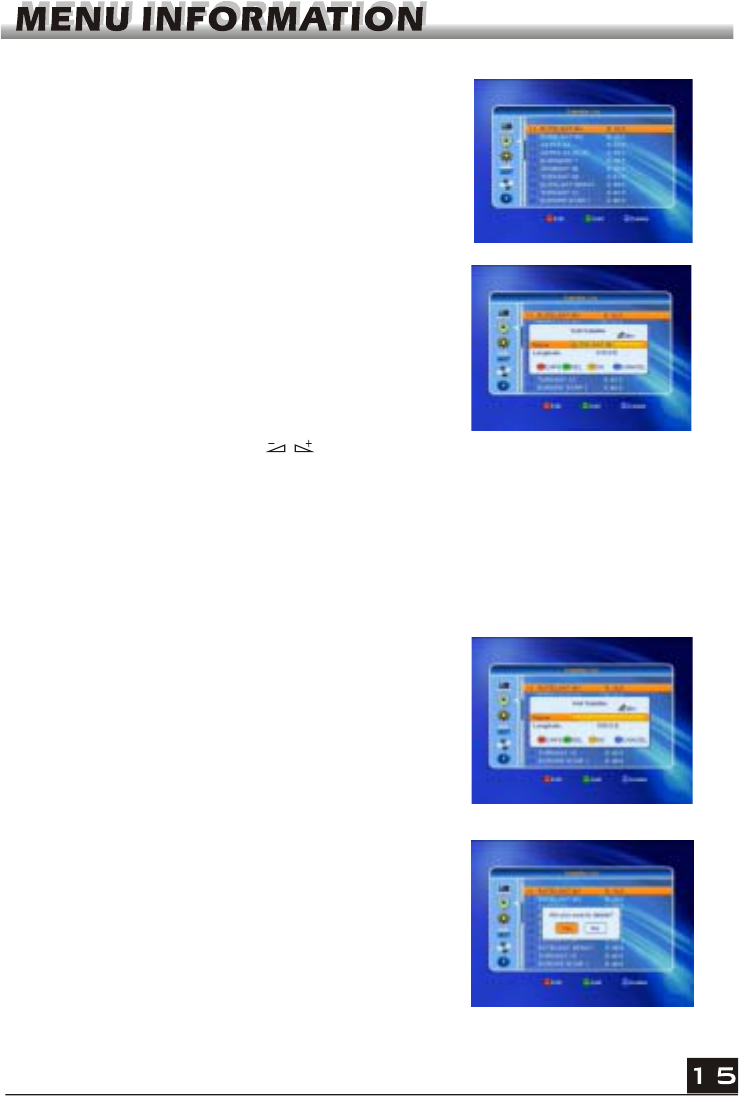

2.2 Satellite List
1. Press PR+, PR- keys to select the satellite up or
down. Press OK key to select and mark, and you
can press OK key again to cancel the selection and
the mark.
2. If there is no satellite, the red colour and blue
colour keys will be invalid.
3. Press red colour key to pop up the Edit Satellite
window. Press PR+, PR- keys to move cursor up or
down.
Name: User numeric keys to change the name of
the satellite, please refer to theEdit Channel Name.
Longitude: You can press keys to switch between east longitude and west
longitude. After pressing OK key, you can use numeric keys to edit the longitude,
press EXIT key or the PR+, PR- keys to exit editing mode. The range of the
longitude is from 1to 180 degree. If beyond this range, system will inform you "out of
range" when you press yellow colour key on the RCU.
After setting, press yellow colour key to save and exit, while press blue colour key
to exit without saving.
4. Press green colour key to pop up the Add
Satellite window. Since the same operation as the
above Edit Satellite window, here we don't explain
any more.
5. Press blue colour key to pop up the dialogue
"Are you sure to delete?". Select Yes button and
press OK key to delete the selected satellite. You
can cancel this operation by pressingOK key at the
NO button.
Suppose that you have selected Fixed Antenna in
the Antenna Connection window.
1. Satellite: All selected satellites in the satellite list
are displayed in this item.
Press keys to select the satellite in circle. Or
press OK key to pop up the drop-down list, then
select the desired satellite in the list and press OK
key to confirm.
2. LNB Freq, Transponder, DiSEqC1.0,
DiSEqC1.1: The same operation as the above.
2.3 Antenna Setup
Part A: Fixed
3. 22K, 0/12V, Polarity: You can press keys to select in circle.

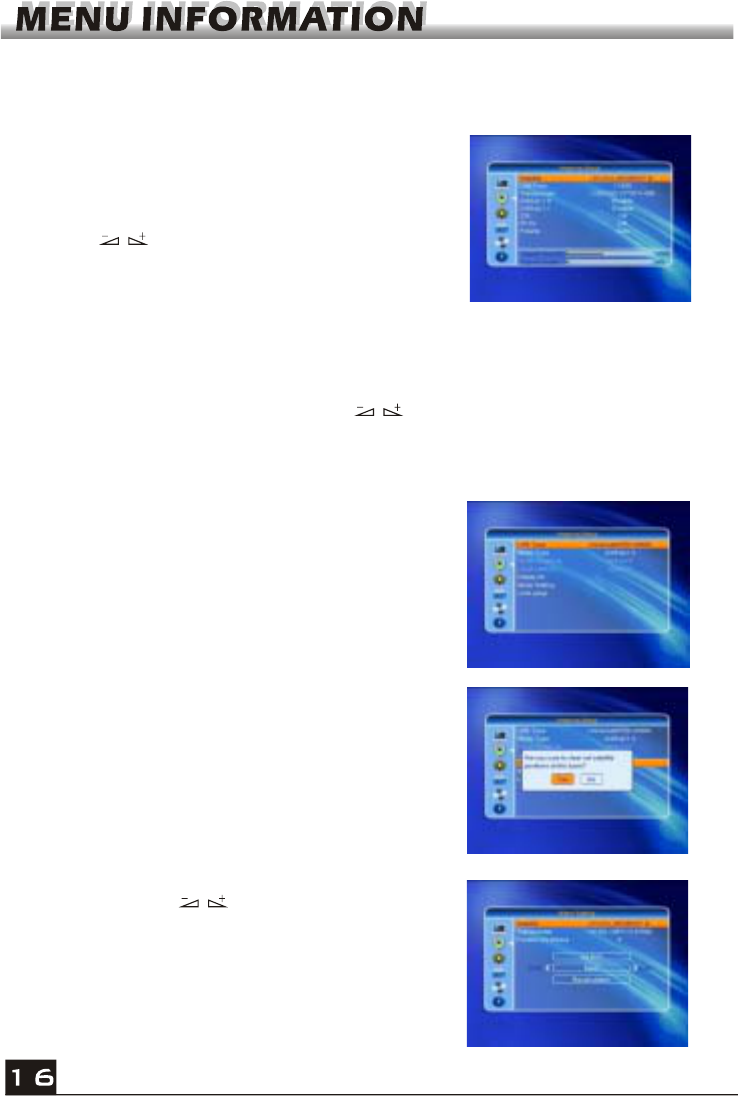

Part B: Motor
Suppose that you have selected Moter Antenna in
the Antenna Connection window.
1. LNB Type: Select the proper LNB type.
2. Motor Type: Select between DiSEqC1.2 and
USALS. If you select DiSEqC1.2, the following
Local Longitude and Local Latitude items will turn
grey.
3. Delete All: Press OK key to pop up the dialogue
"Are you sure to clear set satellite position of this
tuner?". Press OK key at the Yes button to clear all
the memories about the position of the satellites
that are connected to the current tuner.
4. Motor Setting: Press OK key to the Motor
Setting window.
Satellite: Press keys to select the satellite
in circle. Or press OK key to pop up the drop-down
list, then select the desired satellite in the list and
press OK key to confirm.
Transponder: The same operation as the above.
Position No., & Save: The range is from 0 to 63. "0" delegates the original position.
You can select the proper value when you has rotated the antenna.
Go to X: Press OK key to pop up the drop-down list, select the proper position
(reference or from 1to 63) to realize the selected position.
West <Save> East: Press key to turn west, while press key to turn east.
Press OK key to pop up the dialogue "Are you sure to change this satellite's
position?". Press OK key at the Yes button to save the current position, or press OK
key at the No button to cancel the operation.
Recalculation: Press OK key to pop up the dialogue "Are you sure to change this
satellite's position?". PressOK key at the Yes button to recalculation.

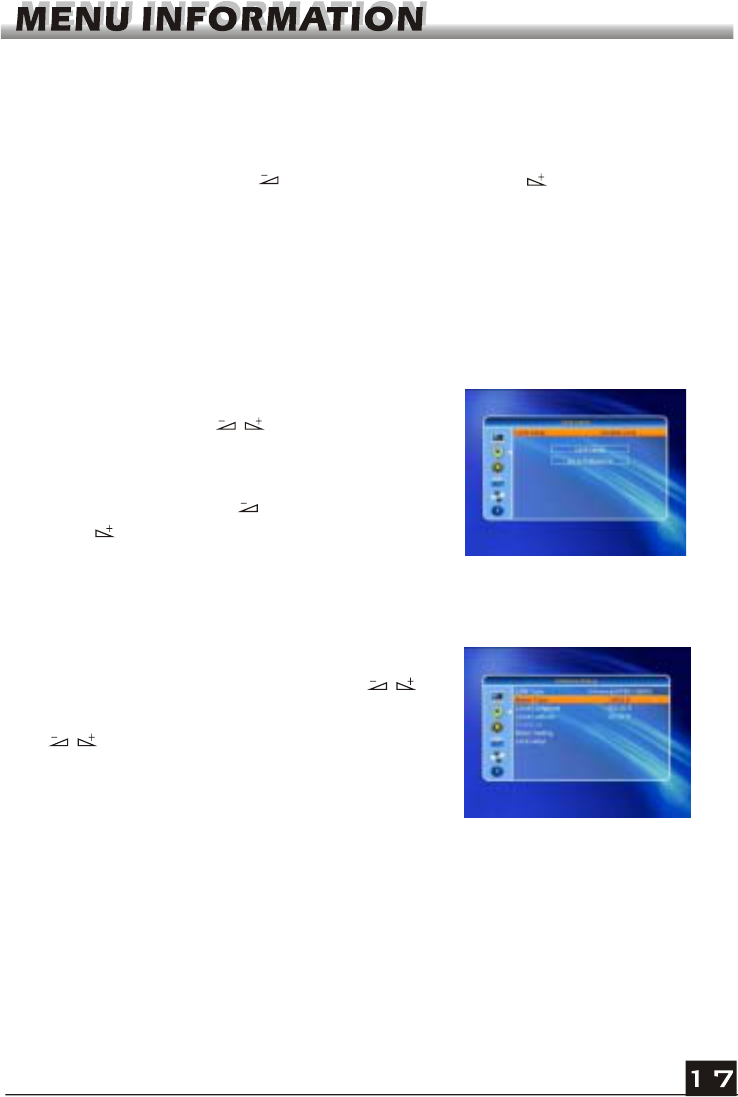

5. Limit Setup: Press OK key to pop up the Limit
Setup window.
Limit Setup: Press keys to switch among
Disable Limit, East Limit and West Limit.
Limit Setup: Move cursor to the Limit Setup
button. You can press key to turn west , or
press key to turn east.
Go to Reference: Press OK key to go to reference.
If you select Disable Limit in the above Limit Setup
item, this button will turn grey.
6. If select USALS, Delete All item will turn grey.
Local Longitude, Local Latitude: Press
keys to switch between West and East, or press
keys to switch between North and South.
Press OK key to enter into the editing mode. Use
numeric keys (0-9) to input the longitude or
latitude, press MENU key or EXIT key to exit. The
range of the longitude is from 0 to 180,while the
range of the latitude is from 0 to 90. If the inputted
value is not in this range, system will pop up a
dialogue "Out of Range" when you exit from this
window. You can press OK key to close this
dialogue.
7. Motor Setting: Press OK key to enter into the
Motor setting window.
Satellite, Transponder: Press keys to
select satellite or transponder, or press OK key to
pop up the drop-down list and select in the list.

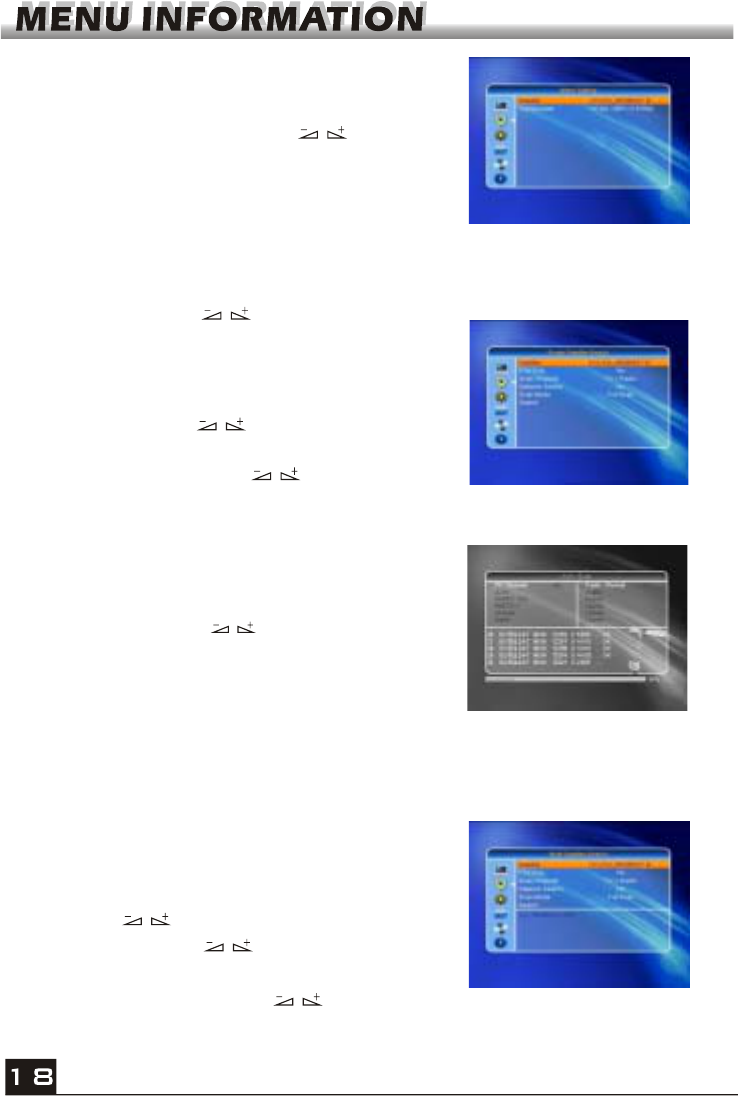

2.4 Single Satellite Search
1. Satellite :
2. FTA Only: Press keys to select between
Yes and No.
3. Scan Channel: Press keys to select
among TV+Radio, TV Channel, Radio.
Press keys to select the
satellite in circle. Or press OK key to pop up the
drop-down list, then select the desired satellite in
the list and press OK key to confirm.
4. Network Search: Select between No and Yes.
This item turns grey when Auto Scan is selected in
the following Scan mode item.
5. Scan Mode: Press keys to select between
Auto Scan and Preset Scan. Auto Scan is Blind
scan, while Preset Scan is to search the preset
frequencies.
6. Search: Press OK key to start searching.
2.5 Multi Satellite Search
From the Multi Satellite Search window, you can
search several satellites at the one time.
1. Satellite: All selected satellites in the satellite
list window are displayed on the down part. You
can press keys to switch among them.
2. FTA Only: Press keys to select between
Yes and No.
3. Scan Channel: Press keys to select
among TV+Radio, TV Channel, Radio.
4. Network Search: Select between No and Yes. This item turns grey when Auto
Scan is selected in the following Scan mode item.
5. Scan Mode: Press keys to select between Auto Scan and Preset Scan.
Auto Scan is Blind scan, while Preset Scan is to search the preset frequencies.
6. Search: Press OK key to start searching.

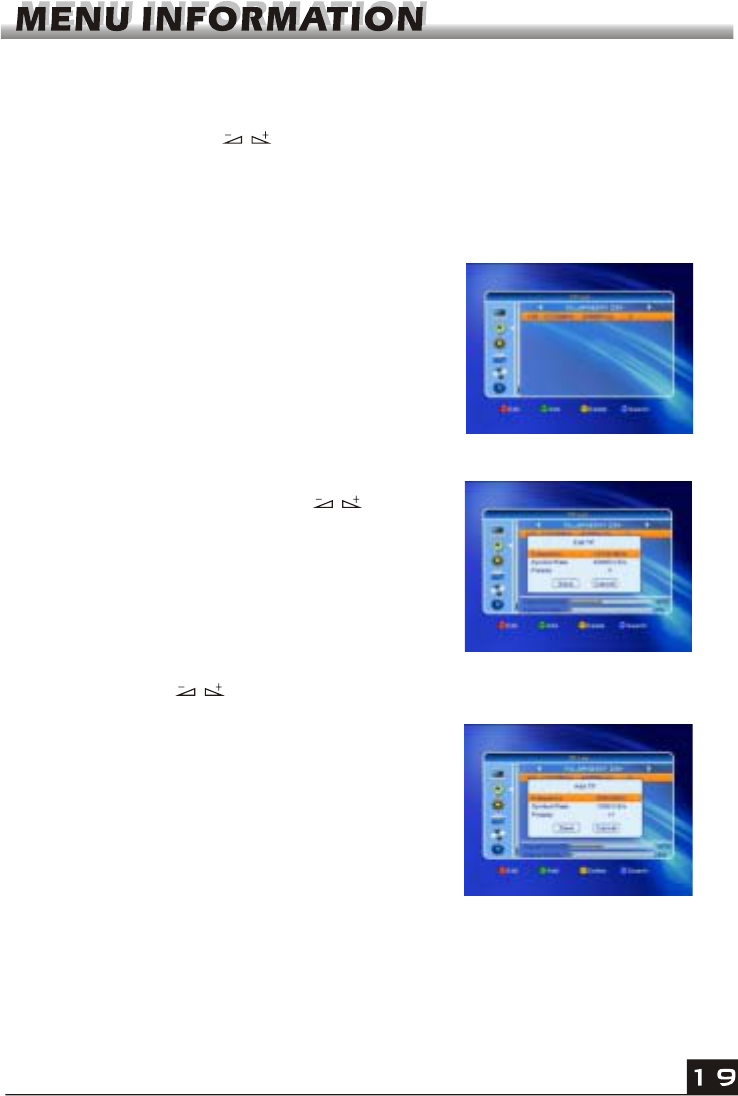

2.6 TP List
1. Press PR+,PR- keys to select the proper
satellite.
2. Press red colour key to pop up the Edit TP
window.
Frequency, Symbol rate: Press keys to
add or reduce by step one. Or press numeric
keys (0-9) to input the desired value. The range
of the frequency is 3000-13450, while the range
of the symbol rate is 1000~45000. The inputted
value is beyond this range, the value will return
to the origin value.
Polarity: Press keys to switch between
Vertical and Horizontal.
3. Press green colour key to pop up the Add TP
window. Since the same operation as the above
Edit TP window, here we don't explain any more.

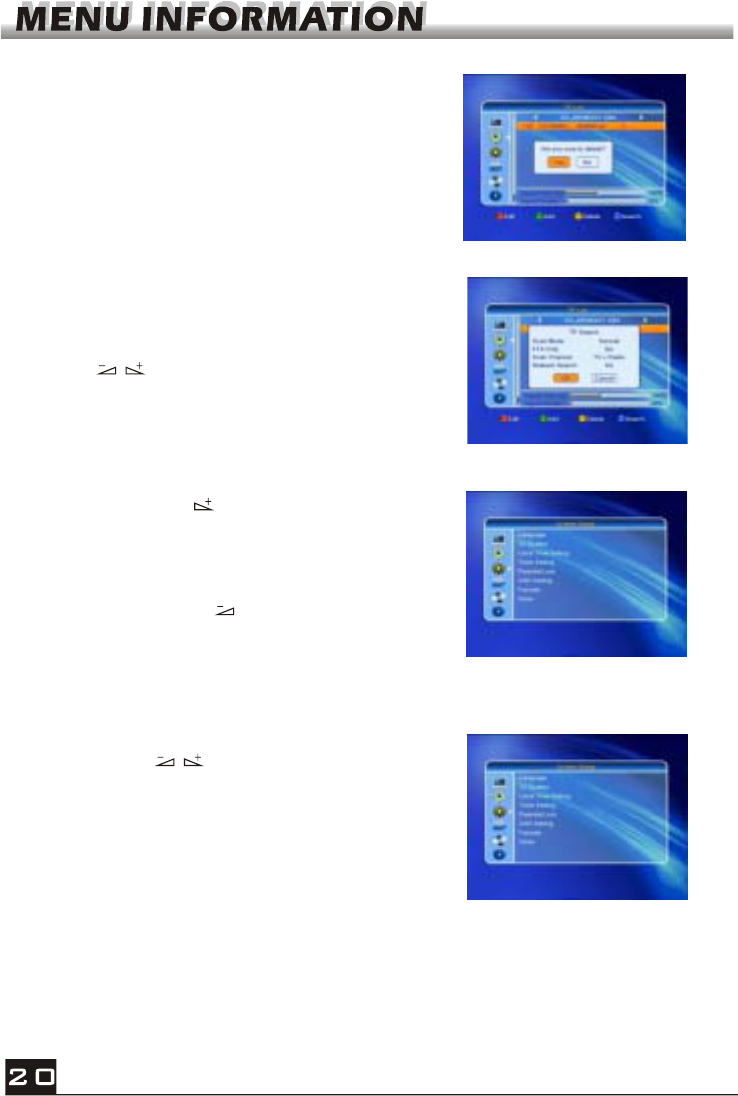

4. Press yellow colour key to pop up dialogue "
Are you sure to delete?". Press OK key at the
Yes button to delete the selected TP, or press
EXIT key to cancel the operation.
5. Press blue colour key to pop up the TP
Search window.
FTA only, Scan Channel, Network Search:
Press keys to select the proper option.
Press OK key at the OK button to start searching.
1. Press OK key to enter into the Language
window. Press keys to select the language
in circle, while press PR+, PR- keys to move the
cursor up or down in circle.
2. Press MENU key or EXIT key to save and exit.
3. The types of the language, pleaser refer to the
configuration of the customer.
3. System Setup
1. Press OK key or key to move the cursor to
the right menu.
2. Press PR+, PR- keys to move the cursor up or
down.
3. Press EXIT key or key to move the focus
to the left menu.
3.1 Language
Press PR+, PR- key to move the cursor up or
down, while press keys to change the
setting and the setting will take effect
immediately.
1. Display Mode: Select among Auto,PAL,
PAL-M, PAL-N, NTSC.
2. Aspect Mode: Select among 4:3LetterBox,
4:3PanScan, 16:9.
3.2 TV
3. Video Output: Select between RGB and CVBS.
4.RF System: Select among PAL,PAL- M,PAL-N,NTSC and Auto.
5.RF Channel:PAL:21-69,NTSC:14-83.
6. DV-OUT: Select among 480i/576i, 480P/576P, 720P and 1080i.
1. Summer Time: Select between ON and OFF.
"OFF" delegates the normal time. If select ON,
time will add one hour.
2. GMT Offset: When select "ON" in GMT Usage
item, system will get the date and time
information from the screen automatically. Date
and Time two items will turn grey. Select the
proper option in the GMT Offset item. The default
setting is GMT ON.
3.3 Local Time Setting
3.Date, Time: When select "OFF" in GMT Usage, Date and Time two items take
effect, while GMT Usage turns grey. Use numeric keys to input the desired value.5.
After setting, press MENU key or EXIT key to exit and save. If the value is invalid,
system will inform "Invalid input! Continue to edit?". Press OK key at the Yes button
to continue the modification, or pressOK key at the No button to exit without saving.

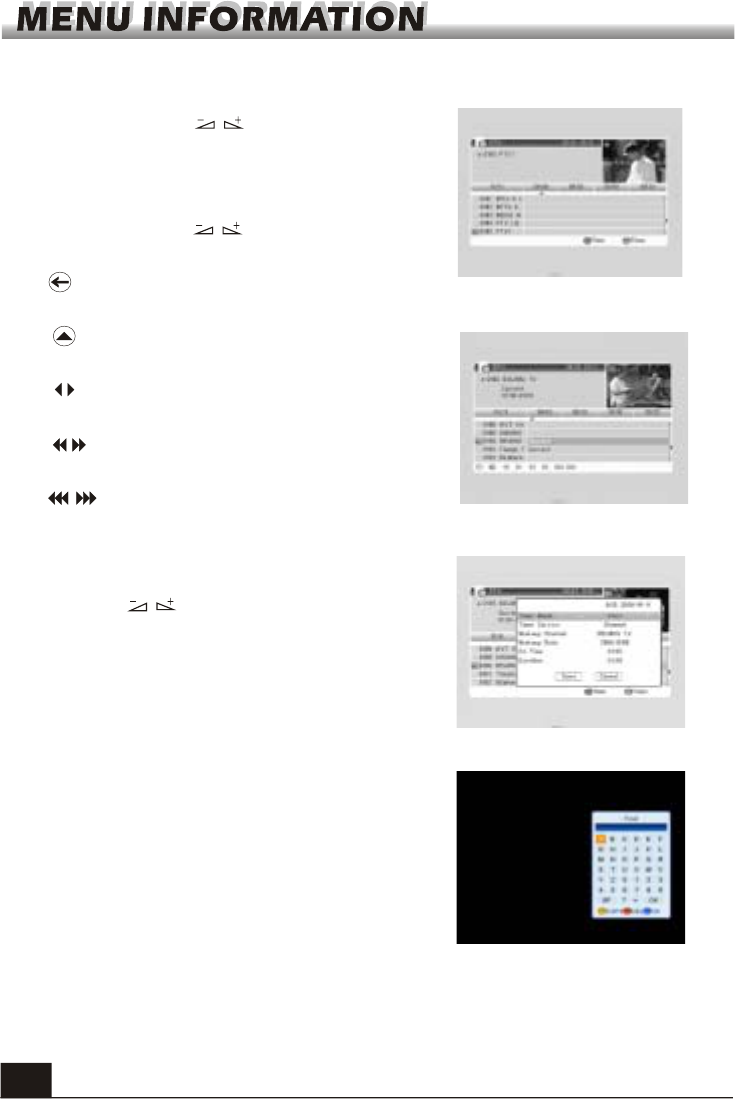

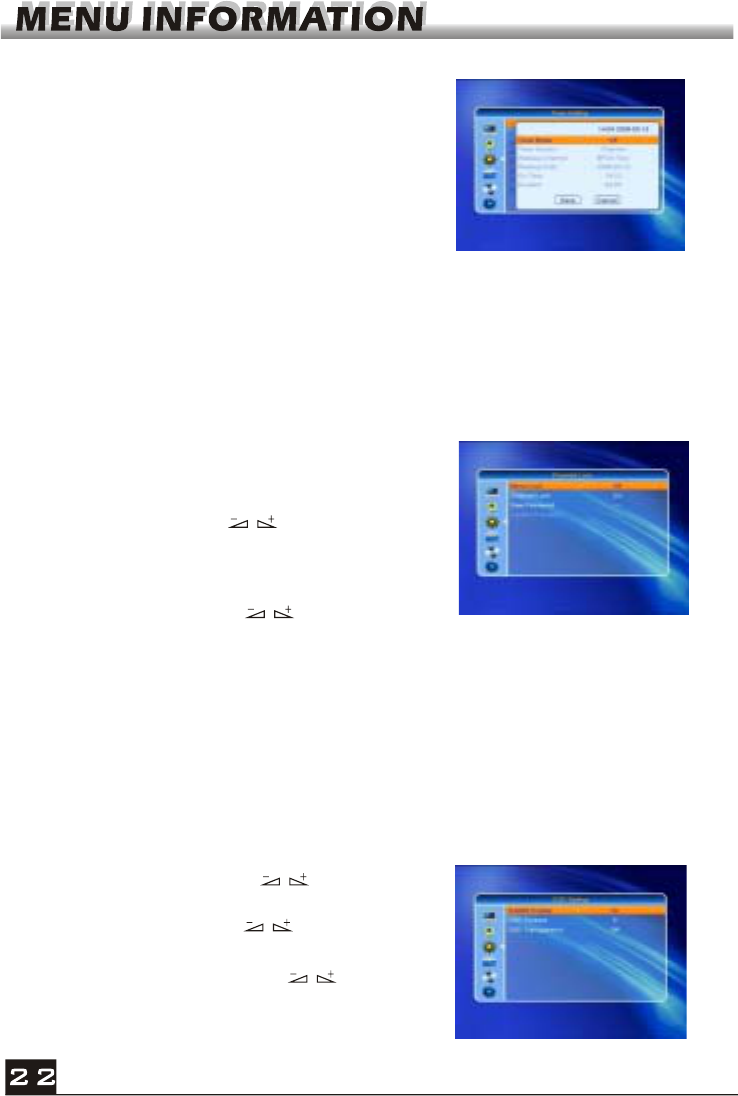

3.4 Timer Setting
If there is no program, you can not enter into this
window. There are 8 timers that can be set.
Select Timer up or down, and press OK key to
enter into the setting window.
1. Timer mode: The default mode is off. You can
set the timer once, daily, weekly, monthly and
yearly.
2. Timer Service: Select between Channel and
Message. If Channel is selected, the Wakeup
Channel is displayed in the following item. If
Message is selected, the Wakeup Message is
displayed in the following item. In wakeup
message, you can select among Birthday,
Anniversary, General. At the same time the
duration item turns grey.
3. Wakeup Date, On Time: Use numeric keys to
input the valid date.
Duration: Set the gap time. After waking up, system will power off automatically
after the duration time.
Press MENU or EXIT key to save and exit.
Before entering into the Parental Lock window,
you need input the correct password. The
default password is0000.
1. Menu Lock: Press keys to select
between Off and On. If select "On" , you can not
enter into the window before entering the
password.
2. Channel Lock: Press keys to select
between Off and On. The default value is Off.
3.5 Parental Lock
If select "On", you can not view the locked channel set in Chanel List Edit window
until you have inputted the correct password.
3. New Password: User numeric key (0-9) to input the new password.
4. Confirm Password: Input the new password once again. Confirm password
must be the same as the New password. System will inform you "Change password
successfully!" while they are the same, or inform you to input the password of
Confirm password once again when they are not the same.
3.6 OSD Setting
1. Subtitle Display: Press keys to select
between On and Off.
2. OSD Timeout: Press keys toselect
from 1 to 10 by step1. The default values Is 5.
3. OSD Transparency: Press keys to
select among Off, 10%, 20%, 30%, 40%. The
default option is Off.
Press MENU or EXIT key to save and exit.

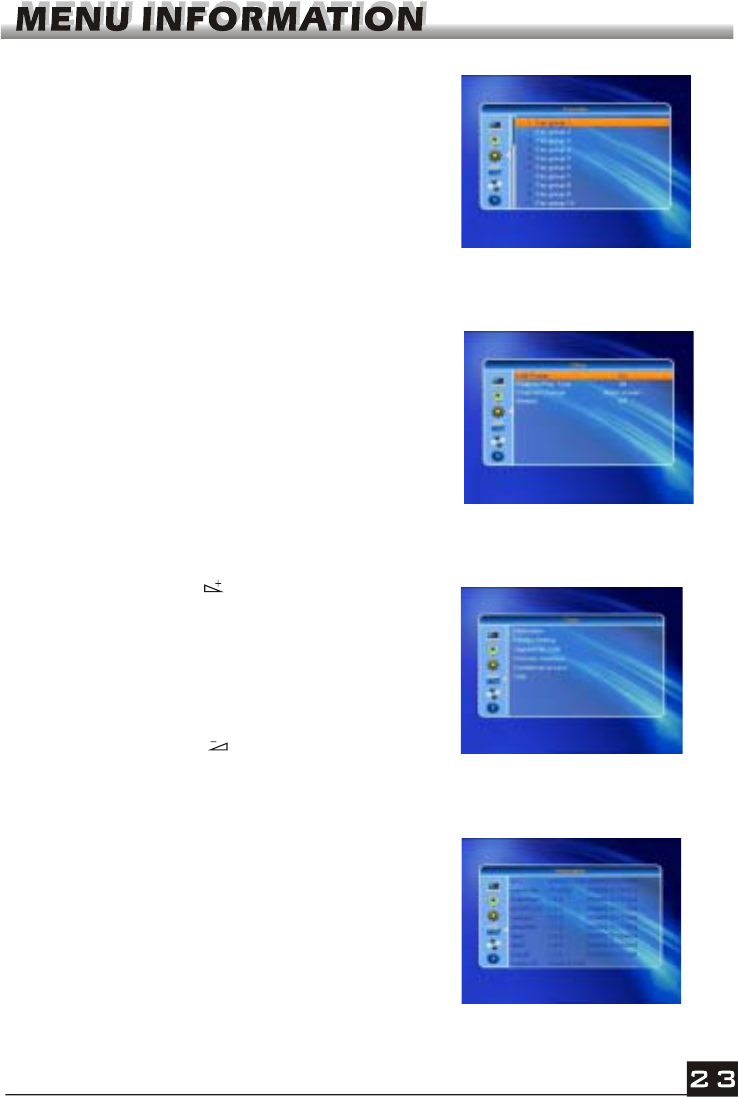

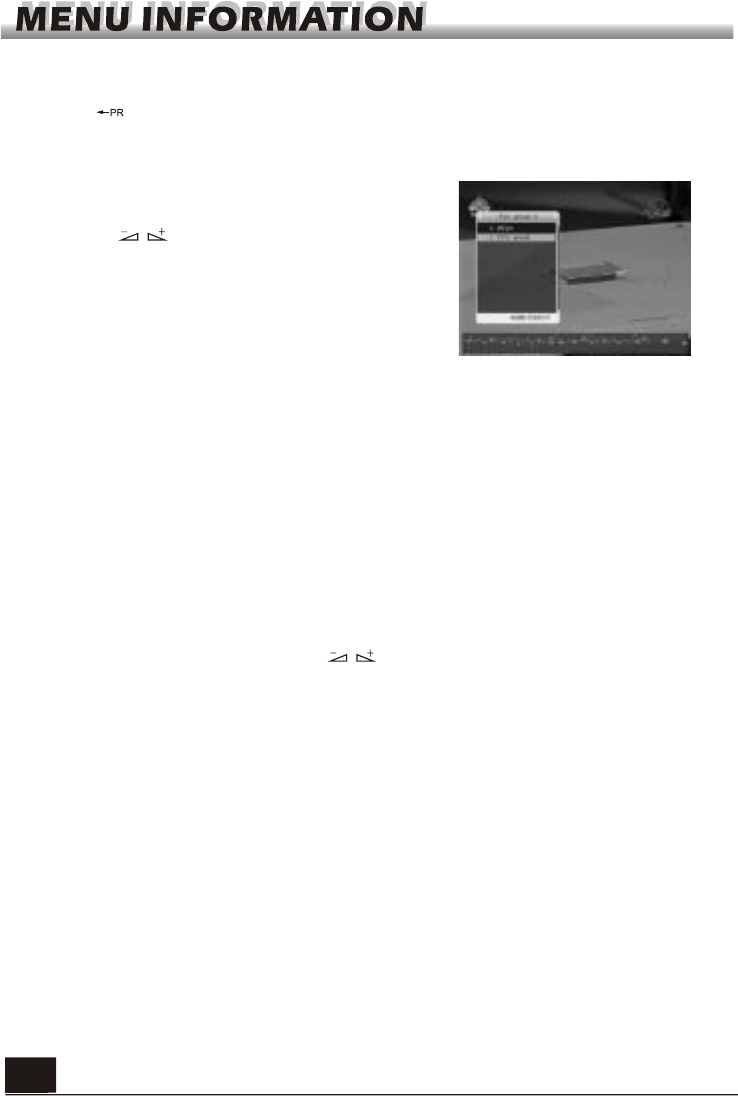

There are 32 favorites group listed in this
window. Press PR+, PR- keys to select one
and press OK key to the Rename window.
Since the same operation as the above the Add
Satellite window, here we don't explain any
more.
3.7 Favorite
3.8 Other
1. LNB Power:Select between Off and On.
2. Channel Play Type: Select among All, Free,
Scramble.
3. Channel Change: Select between Freeze
and Black screen.
4. Beeper: Select between Off and On.
4. Tools
1. Press OK key or key to pop up the "Input
Password" dialogue, you can not enter into the
menu unless the correct password is inputted.
The default password is 0000.
2. Press PR+, PR- keys to move the cursor up or
down.
3. Press EXIT key or key to move the focus to
the left menu.
4.1 Information
Press OK key to the Information window.
4.2 Factory Setting
Press OK key to enter into the Factory Setting
window.
Select Yes button and press OK key to return to
the factory setting. All searched channels and set
information will be erased.
Select No button and press OK key to cancel this
operation, or press MENU or EXIT key to cancel
and exit.
1.Upgrade File: Show the Upgrade File.
2.Upgrade Mode: Select between AllCode and Dump. When users switch the
upgrade mode, Upgrade File will show the corresponding file according to the
table below:
4.3 Upgrade by USB
3.Press OK key on start button to start receiving the data from USB device.
When the USB device is not connected, this item is grey, you can not edit it now.
Upgrade Mode File feature
All code : File named as "*.abs"
Main Code: File named as *.bin
Radio back: File named as "*.m2v",
the picture will be used
as both radio back and
menu back
Default db: File named as "*.bin"
Select the upgrade mode and upgrade file, then you can start upgrade by USB.
4.4 Common Interface
Press OK key to enter into the main menu.
You can know information about product
Ordering, Subscription Status, PPV Status,
Token Status and so on.
There are 2 types of CI: Conax access and Irdeto
access. Here we take Conax access for example.
Know the detail information of Tokens Status.
Know the detail information of Subscription Status.
Subscription Status
Tokens Status
Not avaliable in this software.
Product Ordering
PPV Status
No Entitlement.
Changes CA PIN window is designed for changing the smart card's PIN, which is
required if you want change the maturity level settings.
In order to change the PIN, you must know the current PIN also called the old PIN.
Input the new PIN and twice the PIN (New PIN and Confirm PIN must be the same)
your want to set. Move cursor to OK button and press OK key, and then system will
pop up a dialogue informing you the changing result.
Note that the PIN can only constructed with Arabic numerals.
Change CA PIN
Do the same way as the above Change PIN.
Note: The signature PIN will be locked after the three erroneous attempts to enter
the correct PIN. If locked, please call the dealer for help.
Change Signature PIN
In Maturity Rating submenu, you can change the smart card s maturity rating, which
will affect whether scrambled program is granced or not. There are four available
settings for selection: G-General Audience,A-Over18,X-Erotic,G-For the
family,PG- parental Guidance.
In order to change the maturity level, you must enter the correct PIN. If all of the items
are satisfied, then you can click change maturity level button. A dialogue will tell you
whether your change is succeeded or not.
Maturity Rating
Modem Ordering
Not Modem available.
About Conax CA
Know the information about Conax CA.
Message
All messages are listed in this window.
Language
Show all the language you can select.
Loader Status
You can select allow download or forbid download.
4.5 Conditional CA

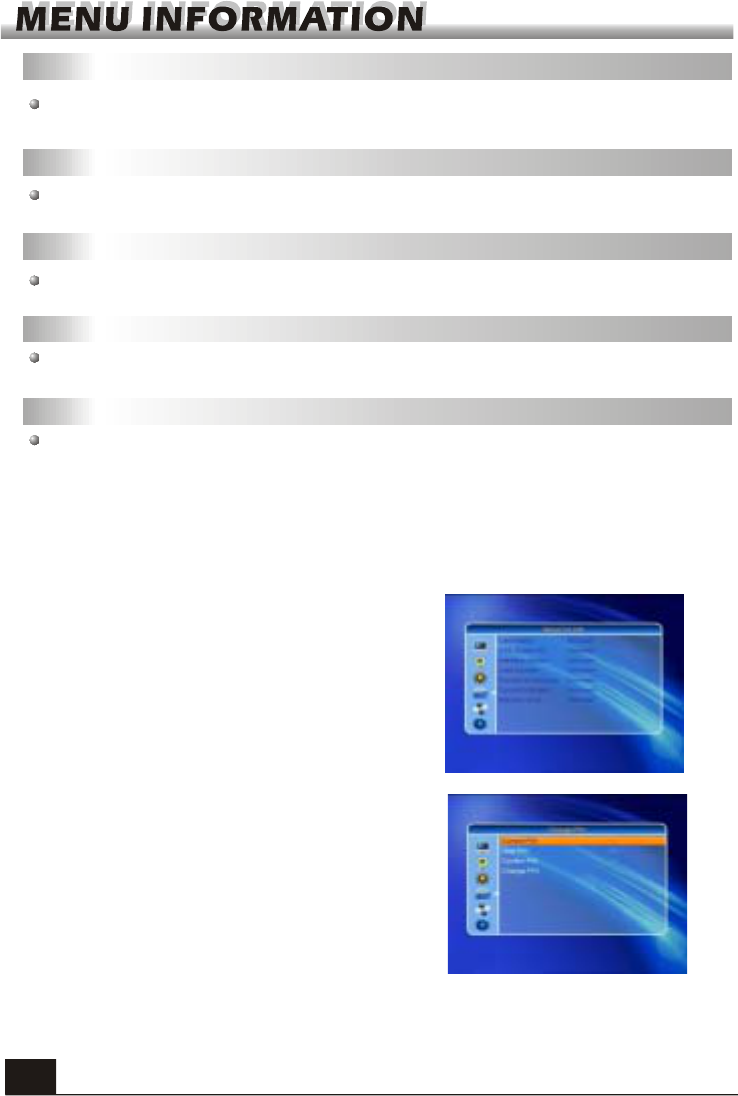

4.5.1 About CA Info
Select Conditional CA item and press OK key, then you will enter into its sub-
menu which consists four items of About CA Info, Change PIN, Change Signature
PIN, Maturity Level.
In About CA Info sub-menu, you can know the
basic information about this conditional access
such as Card Status, CAS System ID, Interface
Version, Card Number, Number of sessions,
Country Indicator, and Maturity Level.
4.5.2 Change PIN
Changes PIN window is designed for
changing the smart card's PIN, which is
required if you want change the maturity level
settings.
In order to change the PIN, you must know the
current PIN also called the old PIN. Input the
new PIN and twice the PIN (New PIN and
Confirm PIN must be the same) your want to
set. Move cursor to OK button and press OK
key, and then system will pop up a dialogue
informing you the changing result.
Note that the PIN can only constructed with Arabic numerals.
26

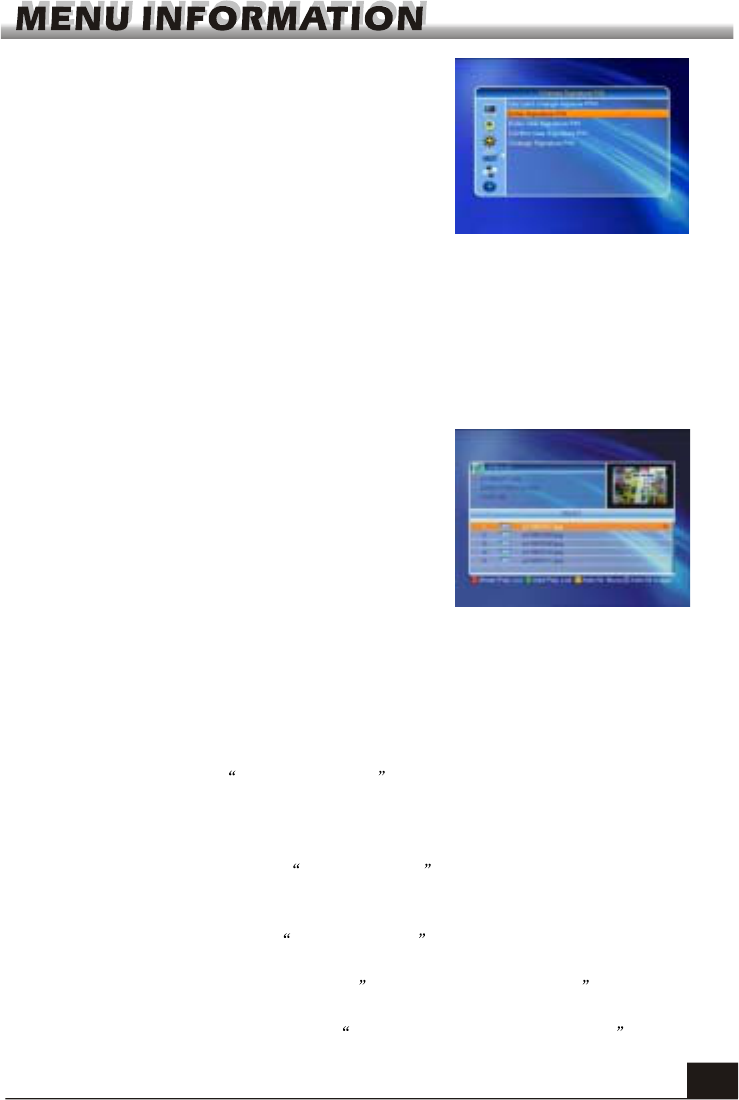

4.5.3 Change Signature PIN
Do the same way as the above Change PIN.
Note: The signature PIN will be locked after
the three erroneous attempts to enter the
correct PIN. If locked, please call the dealer for
help.
4.5.4 Maturity Level
Input the PIN then Move cursor to Select Maturity level,you can select A-
Over18,X-Erotic,G-General audience,PG-Parental Guidance,move cursor to
Change Maturity level button and press OK key,and then system will pop up a
dialogue informing you the changing result.
4.6 USB
USB menu will be automatically shown when
insert U disk to USB port except auto scan, multi
picture, upgrade. Or open USB menu according
to Menu -> Tools-> USB. Press OK to enter into
this window.
USB menu will be disabled when no USB device
is plugged. Media Play List will not be saved
when USB plug out or standby or power off.
Move scroll bar when press up/down key, page up or down by page key. Go into
sub-directory when press ok key in the file directory, play the selected file when
scroll bar is on the file, automatic return USB menu after play is over.
Color key operation:
1.Green key: put the file selected by scroll bar to play list when press Green Key, in
the meanwhile show Add to Play List , display disappear after about one
seconds, the file will be added into OGG play list if it is one OGG file, to Image play
file for one Image file.
2.Yellow Key: All the OGG files in current directory are added into OGG play list by
yellow key, and screen display Add to Play List , display will disappear after one
second.
3.Blue Key: All the Image files in current directory are added into Image play list by
Blue key, and screen display Add to Play List , display will disappear after one
second.
4.Red Key: Show one operation window: please select play list type by Red key,
you can select Music or Image play by Left/Right Arrow key, open the selected Play
list if press OK key. There will display This type of play list does not exist if there
are no any file.
27

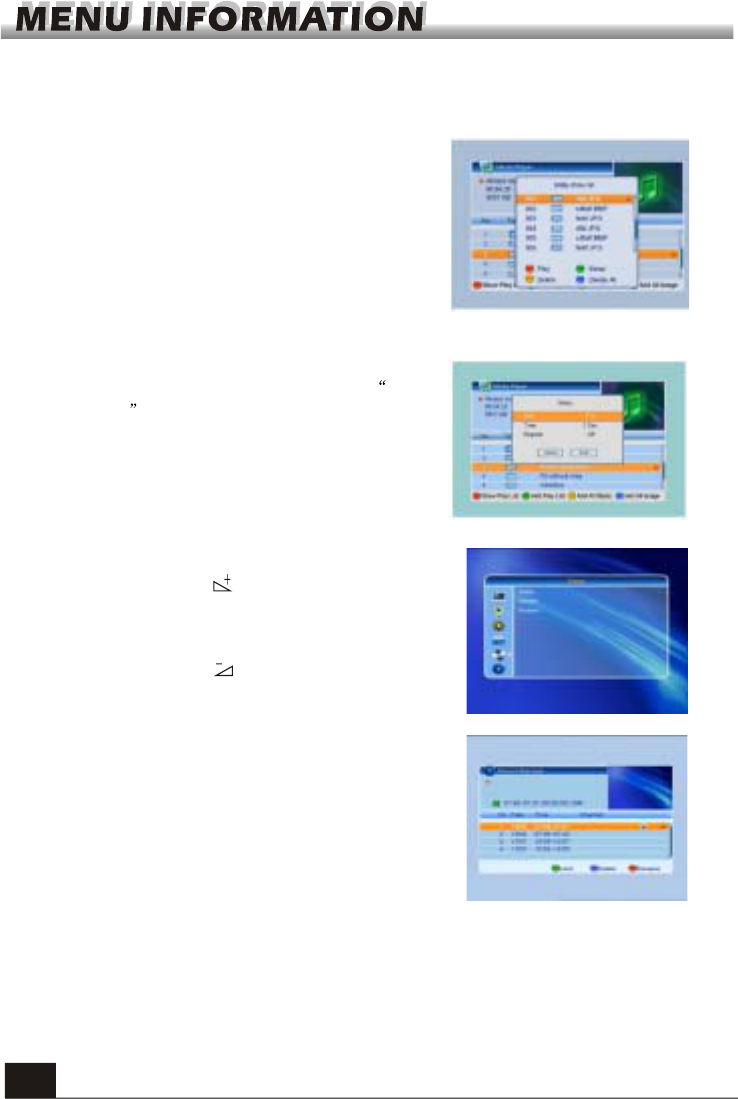

Image view operation
Please see the below image operation menu if Image function is selected.
1.Red Key: Start to browse image if press RED
key, or play the selected image if press OK key,
return to USB File list if play is over, or return by
press Exit Key.
2.Yellow Key: Delete selected image if press
Yellow Key.
3.Blue Key: Press Blue Key, will delete all image
files in play list, but system will remind you Are
you sure? before practical operation, if you
select Yes, all file will be deleted and Play list
window will be closed.
4.Green key: Press Green Key will show Setup
Menu, please see the besides setup menu.
5. Game
1. Press OK key or key to enter into the
game.
2. Press PR+, PR- keys to move the cursor up or
down.
3. Press EXIT key or key to move the focus
to the left menu.
4. Select the game that you want to play and
press OK key to enter into the window.
6. REC
6.1. Record Manager
1. Press PR+, PR- keys to select up or down,
2. Press green color key to lock the channel you
selected, the lock symbol will be marked behind
the channel. Before you lock the channel you
must input the correct password, the default
password is 0000.
3.Press blue color key to delete the channel you selected.
4.Press red color key to pop up the window for renaming the channel you
selected,press numeric keys (0-9) to input the character .
28
5.Press [Play] key to preview. Press [OK] to play the recorder in full screen as below
picture.
6.Press [Pause] key to pause. Press [Pause] key repeatedly to realize the step
function. Press / key to fast Forward or fast backward. Press / key to slow
forward or slow backward .

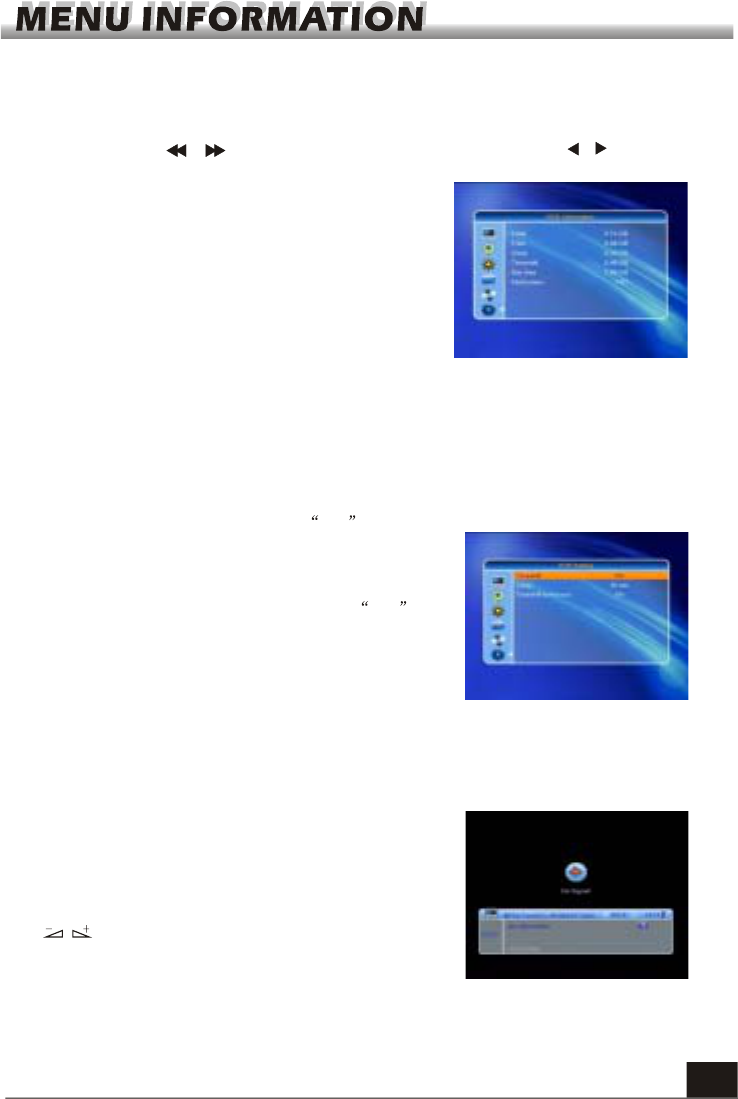

6.2 HDD Information
Show you the information in windows as
besides.
6.3 HDD format
Press OK at the HDD Format button to pop up the dialogueAre you sure to format
the disc? You can select Yes or No.
1.Timeshift:If you set timeshift On , it will
record the current channel you watch
automatically. Then you can press [Pause] /
[Fast Backward] / [Slow Backward] key to watch
the previous program. If timeshift is Off ,
timeshift function doesn’t work. Select between
ON and OFF.
2.Jump:Select among 30sec,1min,5min,10min
and 30min.
3.Timeshift to Record: Select between ON and
OFF.
6.4 PVR Setting
Press INFO key to pop up the Info bar.
Press INFO key again to pop up the program guide
of the current program. You can press
keys to know the program guide of the future
16 days.
7. Hot Key
7.1 Info
29
Press EPG key to enter into the EPG window.
1. Press PR+, PR-, keys to select up or
down, left or right.
2. Press red colour key to pop up the Time Bar
window. Press PR+, PR- keys to select up or
down, while press keys to select left or
right in the time bar.
: Press OK key at this button to return to the
EPG window.
7.2 EPG
: Press OK key at this button to move the
cursor to the current time line.
: Press OK key to push the time forward or
backward by half an hour.
: Press OK key to push the time forward or
backward by half an hour.
: Press OK key to push the time forward or
backward by a day.
4. Press green colour key to enter into the Timer
window. You can add the current program to the
Timer. If 8 timers are already yet, system will
inform you "Timer is full!'.
3. Detail Information: In the EPG window, press
PR+, PR- keys to select the channel and
program, and press OK key to know the detail
information of the current program.
Press FIND key on to pop up the Find window.
Use numeric keys to enter into the character and
use the colour keys to realized the corresponding
operation.
7.3 Find
Use the numeric keys (0-9) to input the
number of the desired channel. If the inputted
7.4 Number
number is beyond the valid channel number, system will "No such a channel" and
press OK key to close this message.
30
In normal mode, press TV/RADIO key to switch between TV mode and Radio mode.
7.5 TV/RADIO
Press PR+, PR- keys to change the channel up or down. If in the all satellites group,
you can select channel in all searched channels. If in the specific satellite, only can
select channel in the satellite group.
7.6 Up/Down (Channel Change)
Press keys to change the volume. Press keys to decrease the volume,
while press keys to increase the volume.
7.7 Left/Righ (Volume+/-)
Press key to turn off the volume. You can press key once again to restore
the volume, or press keys to increase the volume.
7.8 Mute
During the viewing, you can press PAUSE key to stop the picture while the volume
continues. You can play the picture by pressing PAUSE key once again.
7.9 Pause

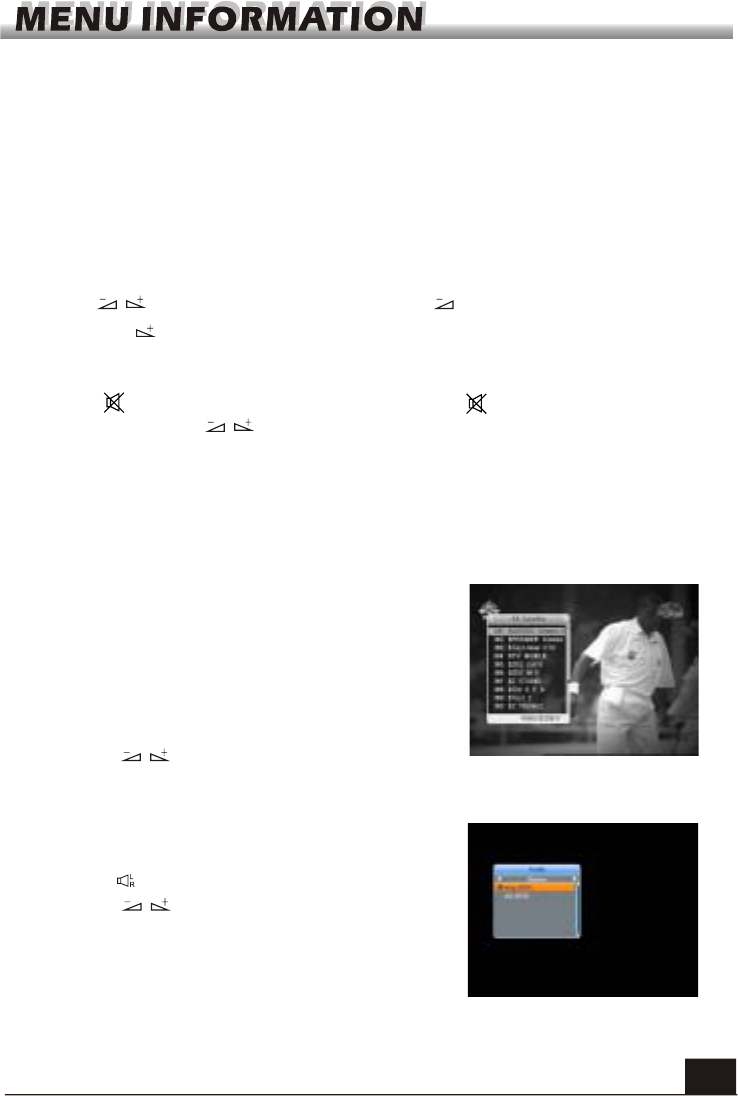

1. During the viewing or listening, press OK key
to pop up the TV program list or the Radio
program list.
2. Press PR+, PR- keys to select the channel up
or down, and then press OK key to play this
channel in full-screen.
3. Press keys to select the satellite.
4. Press MENU or EXIT key to close this window.
7.10 OK
1. Press keys to enter into the Audio window.
2. Press keys to select among Left, Right,
Stereo, and Mono.
3. Changing the audio mode is only connected
with the current channel, not all the channels.
4. Press MENU or EXIT key to close this window.
7.11 Audio
31
Press key to switch the current channel to the previous channel.
7.12 Recall
1. Press FAV key to pop up the favourite group
window.
2. Press keys to select the favorite group.
Press PR+, PR- keys to select the channel up
or down. Press OK key at the selected channel
to view it in full-screen. Press MENU or EXIT
key to exit.
3. If there is no favorite channel, system will
inform " No FAV Channel!" when you press FAV
key.
7.13 FAV
1. Press ZOOM key to switch among Zoom*1, Zoom*2, Zoom*3, Zoom*4, Zoom*5,
Zoom*6, Zoom*8, Zoom*12, Zoom*16.
2. In zoom mode, press PR+, PR- keys to move the cursor up, left, right,
down.
3. Press MENU or EXIT key to exit
7.15 Zoom
Press TXT key to open the teletext on the screen. If there is no teletext, system will
inform "No Teletext Data". Press EXIT key to exit.
7.14 Teletext
32
Problem Possible causes What to do
The display on the front
panel does not light up.
No sound or picture, but the
front panel shows red light.
Main cable is not connected.
The is in standby mode.receiver
Check that the main cable is plugged into
the power socket.
Press the standby button.
No sound or picture.
The satellite dish is not pointing at the
satellite.
Adjust the dish. Check the signal
level in the Antenna Setup menu.
No signal or weak signal.
Check the cable connections, LNB and
other equipment connected between the
LNB and the receiver, or adjust the dish.
Bad picture / blocking
error.
The satellite dish is not pointing at
the satellite. Adjust the dish.
Signal is too strong.
Connect a signal attenuator to the LNB
input.
Satellite dish is too small. Change to a larger dish.
LNB noise factor too high. Change to an LNB with lower noise
factor.
The LNB is faulty. Change the LNB.
The picture is not
showed on the screen,
when switching on.
The system is connected by RF
leads.
Check the UHF channel fixed in your
system and tune the UHF channel
properly.
The system is connected by RF
leads and the output channel of the
receiver interferes with an existing
terrestrial channels or Video signal.
Change the output channel to
a more suitable channel, or connect the
system by SCART leads.
receiver
The RCU is not working.
Battery exhausted. Change the batteries.
RCU is incorrectly aimed. Aim RCU at the , or check that
nothing blocks the front panel.
receiver
Note : If you have tried all of the actions suggested above, without solving the
problem, please contact your dealer or service provider.
There is interference on
your digital satellite
channels, an existing
terrestrial channel or video
signal.
33
