Smarfid Security Equipment LH3228K Magic Series 13.56MHz&125KHz Reader User Manual Mounting
Shanghai Smarfid Security Equipment Co., Ltd. Magic Series 13.56MHz&125KHz Reader Mounting
User Manual
Manual Keypad & Proximity Flash Mount Reader Installation
Mounting:

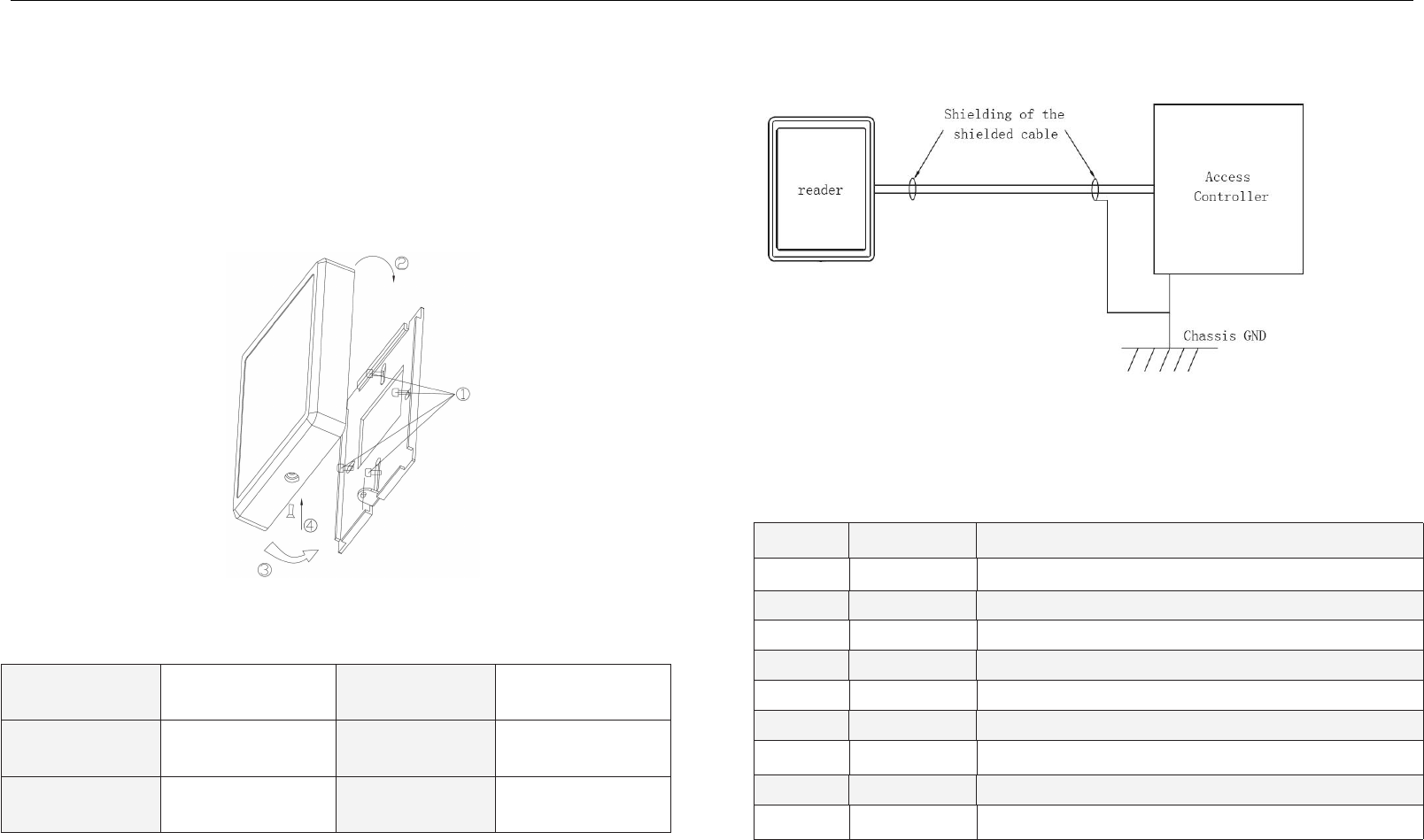

1. Install the metal plate on the wall with two or four screws, which depends on different kinds of
gang box being installed.
2. The cover shall clip on the upper edge
the push in the bottom part as show in
diagram.
3. Tighten the secure non-dropout screw, which located underneath of the reader to fix the
reader and the back plate, installation is completed.
Specification:
Recommendation:
1. Linear DC Power Supply;
2. 22AWG shielded cable; it’s required to do “one-point” ground. (As shown in the diagram)
Wiring:
Input Voltage (at
Reader end)
DC9V~15V
Typical Read
range
> 5cm
Operating Current
160mA (max)
Maximum Cable
Length
150m
Operating
Temperature
-30ºC~70 ºC
Number pad
format
4 bits burst by default
Color
Label
Description
Red
+12V dc
Power Supply to the reader
Black
GND
Signal GND
Green
Data0
Wiegand Output data, D0
White
Data1
Wiegand Output data, D1
Yellow
RED LED
RED LED control, active low.
Blue
Green LED
Green LED control, active low
Brown
Buzzer
Buzzer input, active low
Orange
Tamper
Tamper output (open collector, Active low, max 100mA)
Purple
Doorbell
Door bell output (open collector, +5Vdc output ≤ 5mA)
Manual Keypad & Proximity Flash Mount Reader Installation
Power up Sequences:
1. When reader is powered up, the Green back will flicker for 5 seconds. The reader will beep
once and the reader is in Ready mode.
2. Present the card. The Blue LED will flicker once; buzzer will beep once.
3. When card is present and read by the reader, blue back lit will flash once; and buzzer will
beep once as well. The card data will then transmit to the controller. After, weather the back lit
of the reader will remain ON or Flash or change to Green or Red color, this shall depend on
the Green and Red LED inputs.
4. For number pad reader, when a number is pressed and successfully detected, the back lit
under the number will flash 1 time and the buzzer will beep once. The number being pressed
will burst out by default (4 bits burst).

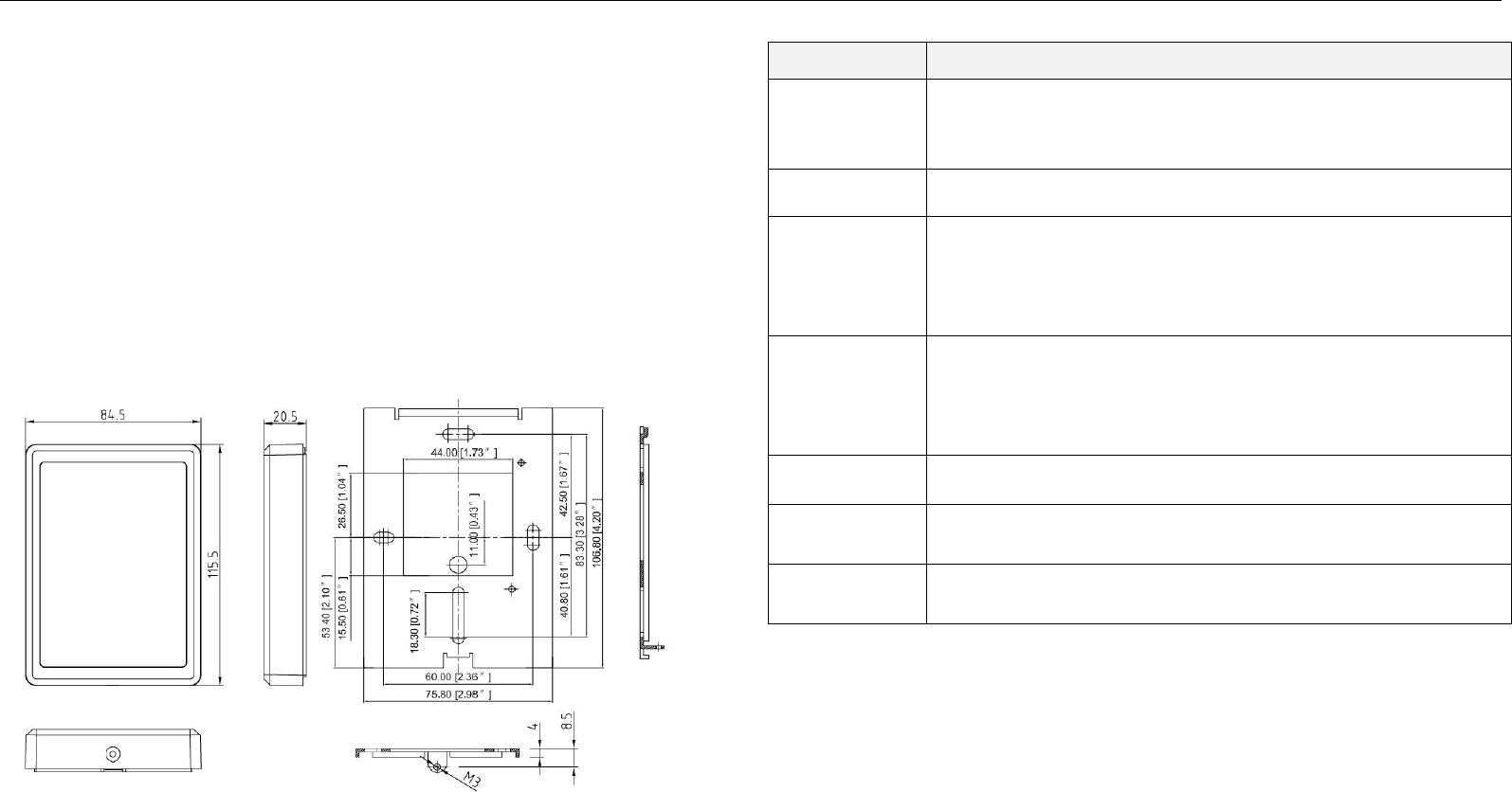

Physical Dimension:
Troubleshooting:
FCC Caution.
§15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Trouble List
Solution
No Response
when Power Up
Discount the power and confirm that the power supply cable is
correctly connected (See “Wiring” above).
Check the input voltage is sufficient (See “Specifications” above).
Auto Restart
Check the input voltage is sufficient (See “Specifications” above).
Cannot read card
number correctly
Check the format setting on the controller if it is the same as the card
format. Use approved card (known format and Facility Code) to test.
Check if the shield cable is correctly connected to Classis Ground at
ONE point only.
Reader beeps but
No card data info
Check if data 0 & data 1 cable is correctly connected (See “Wiring”
above).
Check the input voltage at the card reader end is correct (See
“Specifications” above).
Buzzer error
Check if the buzzer cable is correctly connected (See “Wiring” above).
Back Lit Error
Check the Led cable is correctly connected (See “Wiring” above).
Use Default Configuration Card to set it back to normal.
Keypad
No Response
Power off reader for 5 seconds and power on again
