Smarfid Security Equipment MD3828N Magic MINI DesFire Reader User Manual
Shanghai Smarfid Security Equipment Co., Ltd. Magic MINI DesFire Reader
User Manual

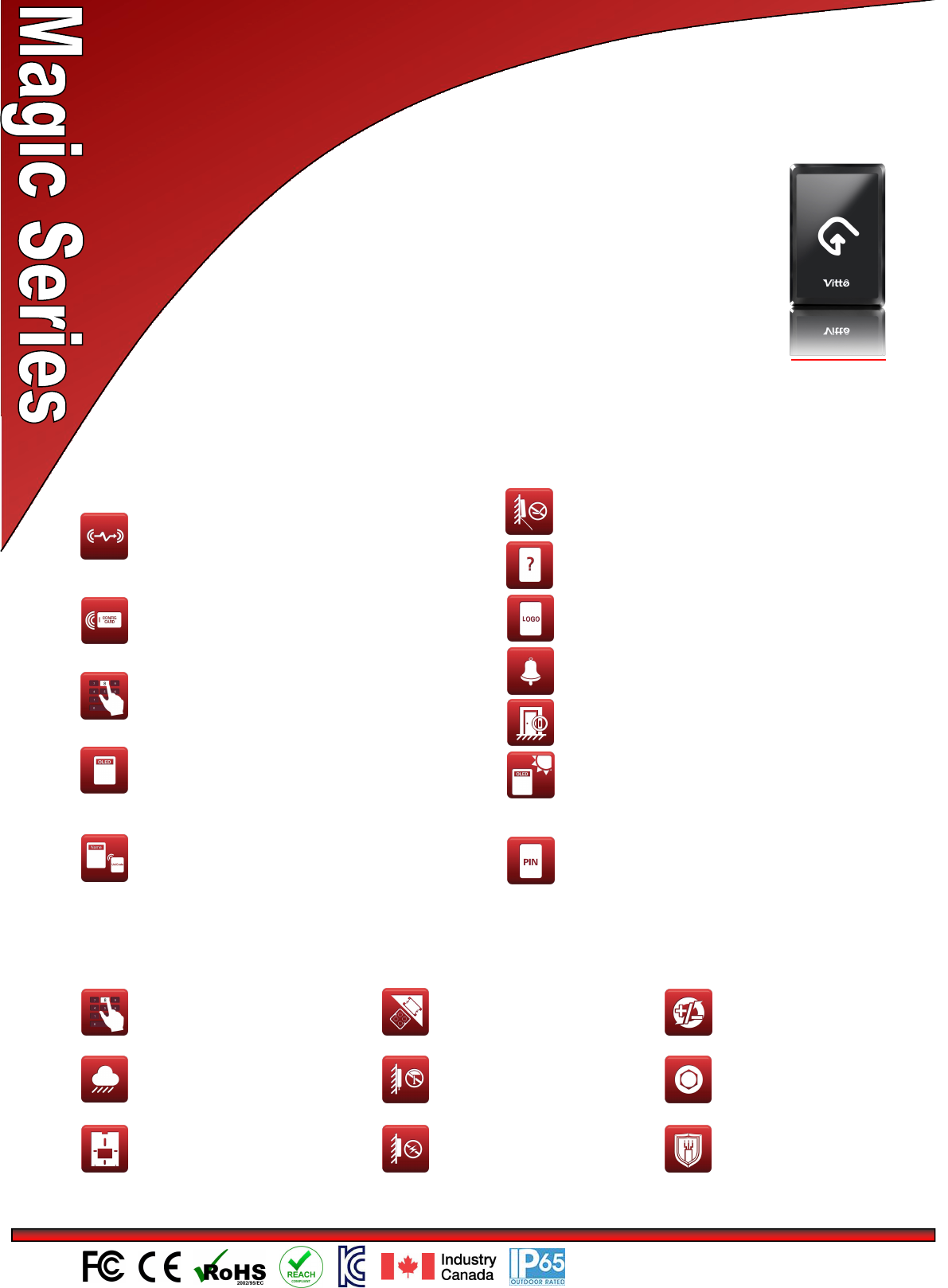

DesFire EV1 Magic Series Reader
Design & Technologies
Number pad use “touching sensor”, the latest
technology and individual number backlit when
touch.
Economical Mini Magic can be mullion mount.
Display Magic can provide customer a full
series of choices
Front plate customization and back lit design is
available.
Design with End User logo is possible.
Support on-site Reader Configuration Card to
change certain parameters.
OLED Display allow user to see the message
clearly under direct sunlight.
Door Bell function for Number pad reader.
Tamper protection
Friendly Installation
“Touch” number pad does not
carry any moving parts, which
implies more durable.
All weather proof design with
IP65 certificate.
Universal back plate allows
the reader be installed on
different size of gang box.
Non-drop bottom screw made
servicing handier.
Metal back plate allows the
reader install on metal surface
and back-to back without
affecting the read range.
All input and output signals are
protected against static
charges.
和输出信号受到防静电保护
Reverse power protection.
接保护
Stainless steel Security
screw is an option
All inputs are 12Vdc
protected.
Display reader can display CSN/UID number or
Programmed Card Number or user Name when
the user card is present.* (Supported Multiple
Languages)
Available Later!
Read full 56 bits UID, Application & Files
content of DesFire EV1 card.
Support 3DES & AES encrypted
communication between the reader and card.
A PIN can be set inside the card to authenticate
with the reader so that “Card + PIN” mode can
be implemented without relying on the
controller.*
Model Number: X1X2N1N2N3– N4X3
Model
Functions
Standard & Mini Reader
Keypad Reader
Display Reader
Configurable Functions
Re-configure Window
5 seconds (Default) or Half an hour after Power up
Reader Output Format
CSN/UID 32bits, 34bits, 56bits (backward/forward), file content reading for programmed ID
Wiegand Plus Width
Different choices to fit with different Controller’s requirements
Keypad Output
N/A
Definable
Definable
Buzzer Control
Reader & Controller control (Default) or Controller control only
LED/Back lit Control
Define different LED color response base on Green LED
N/A
Display Clock
Synchronization.
N/A
N/A
H/W reset
Via RS485 TimeSyn S/W
Technical Specifications
Typical Read range
2 – 3 cm
Reader Standard Output
Wiegand (RS232 & RS485 optional)
Standard Keypad output
N/A
Wiegand with 4 bits burst
Wiegand with 4 bits burst
Display
N/A
N/A
OLED Display
Display Message
N/A
N/A
Access Granted, Access
Denied, Enter PIN;
Time;
Card Number
Wiring Distance
150m (22 AWG with shielded cable)
120m (22 AWG with shielded cable)
Operating Specification:
Operating Voltage
10 - 15VDC
Operating Current
150mA (max)
Operating Temperature
-30℃-70℃
Exterior dimension (Mini)
84.05*54.05*16.5mm
Case material
PC+ABS
Standard Color
Black
Operating Humidity
10% - 90%
Weight (Mini)
160g
RF Technologies
Reader Appearance and Function
X1X2
MD = DesFire Technology
N1
3 = Normal Reader ; 5 = Display Reader
N2
2 = Normal Size
8 = Mini Size
N3
2 = Read UID / Card Number
3 = Sector reading (Only Mifare)
N4
3 = Terminal (for Display Reader)
8 = Pigtail
X3
N = No Number pad; K = Number pad
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
