Smarfid Security Equipment SSHR35 Slender Series 125 kHz Reader User Manual 15020079
Shanghai Smarfid Security Equipment Co, Ltd. Slender Series 125 kHz Reader 15020079
15020079_User manual
Design & Technologies
Support reader to read either EM or HID cards.
Number pad use “touching sensor”, the latest
technology and individual number backlit when
touch.
Economical mullion mounts type.
Support on-site Reader Configuration Card to
change certain parameters.
Door Bell function for Number pad reader.
Tamper protection
Design with customer logo is possible.

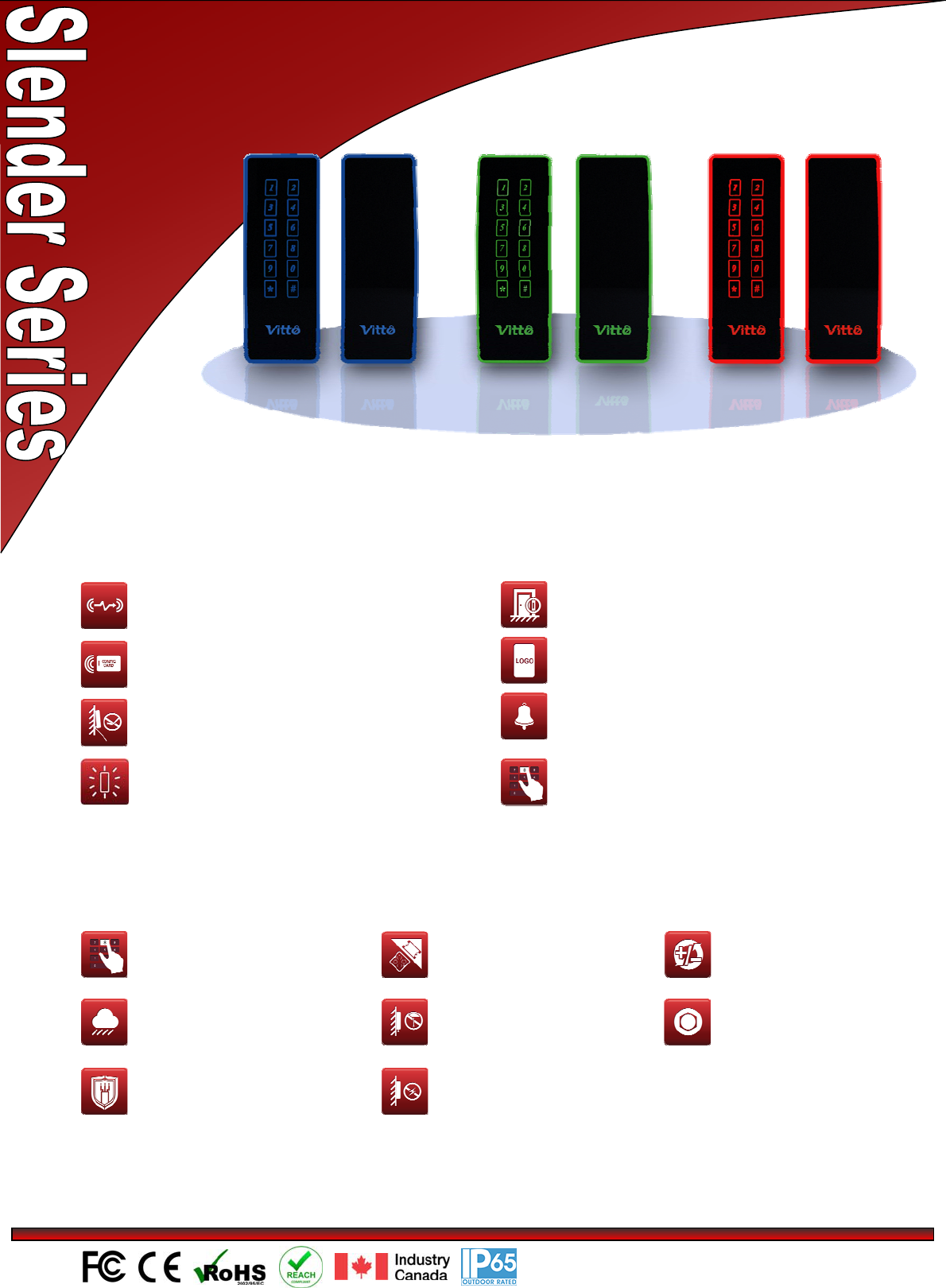

125KHz Slender Series Reader
Easily see under dark environment.
Couldbeuseasadoorlocation
Friendly Installation
“Touch” number pad does not
carry any moving parts, which
implies more durable.
All weather proof design with
IP65 certificate.
Universal back plate allows
thereaderbeinstalledon
different size of gang box.
Non-drop bottom screw made
servicing handier.
All input and output signals are
protected against static
charges.
Reverse power protection.
Stainless steel Security
screw is an option
All inputs are 12Vdc
protected.
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Model Number: X1X2N1N2N3–N
4X3
RF Technologies Reader Appearance and Function
X1X2HR = 125KHz
N13 = Normal Reader
N25 = Normal Reader
N32 = Read UID / Card Number
N48 = Pigtail
X3N = No Number pad; K = Number pad
Operating Specification::
Model
Functions Standard Reader Keypad Reader
Configurable Functions
Re-configure Window 5 seconds (Default) or Half an hour after Power up
Reader Output Format CSN/UID 32bits, 34bits, 56bits (backward/forward), file content reading for programmed ID
Wiegand Plus Width Different choices to fit with different Controller’s requirements
Keypad Output N/A Definable
Buzzer Control Reader & Controller control (Default) or Controller control only
LED/Back lit Control Define different LED color response base on Green LED
Technical Specifications
Typical Read range >5 cm (Base on different technology)
Reader Standard Output Wiegand (RS232 & RS485 optional)
Standard Keypad output N/A Wiegand with 4 bits burst
Wiring Distance 150m (22 AWG with shielded cable)
Wiring Distance 125KHz
Operating Voltage 10 - 15VDC
Operating Current 150mA (max)
Operating Temperature -30℃-70℃
Exterior dimension 150*53*25 mm
Case material PC+ABS
Standard Color Black
Operating Humidity 10% - 90%
Weight 180g
