1 Introduction
This document consists of descriptions and specifications for both functional and physical
aspects of the MQN18 NFC reader / writer module.
In addition to the datasheet, Smart Approach maintains and extensive device-specific library of
support and collateral materials that you may find useful in your application. Depending upon
the Smart Approach device, this library may include:
Presentations highlighting the operational features and specifications of the device to
assist in developing your own product road map.
Application notes that provide detailed descriptions of the use of the particular Smart
Approach product to solve real-world problems.
MQN18 Datasheet
- 8 -
Revision 1.3 April 2015
2 Product Overview
MQN18 is full featured NFC controllers designed for integration in portable equipment. It is
optimized for low power consumption with fully host controllable power states and for small
footprint for portable equipment applications.
The module’s compact, flexible design with and exposed pad is optimal for size-sensitive
applications, assures robust performance.
The following illustration shows a high-level, generic view of a MQN18 application.

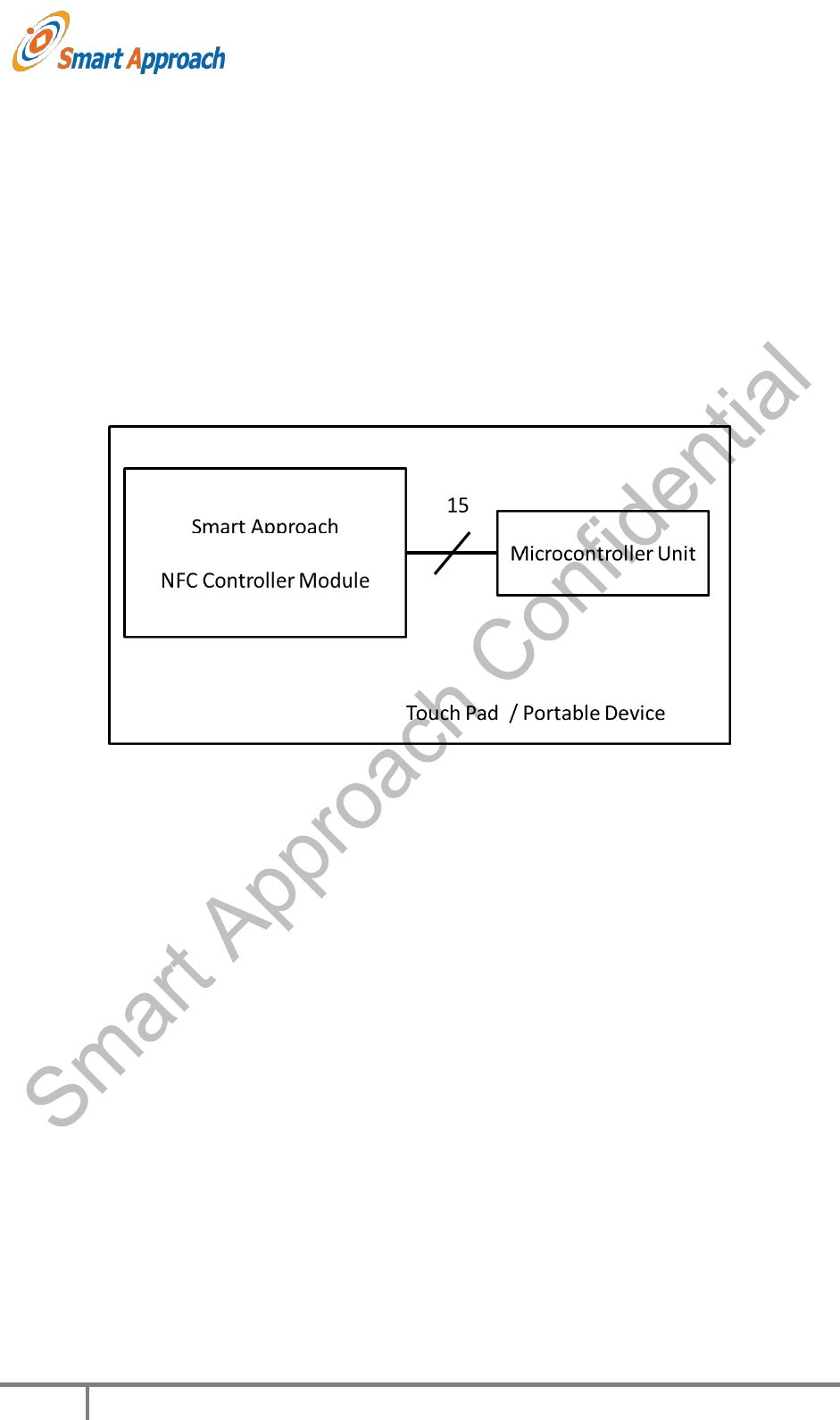

Figure 1 Typical Application
2.1 Features
This section Tables key aspects of the MQN18 module functionality and design that
distinguish it from similar products:
NXP NPC100 NFC Controller
Compliant with ISO/IEC 14443 A/B
Compliant with ISO/IEC 15693/18092
Antenna pairing could be customized
I2C interface
2.2 Application
Suggested applications for the MQN18 module include:
NFC writer
NFC reader
NFC peer to peer controller
NFC payment
NFC identification
MQN18 Datasheet
- 9 -
Revision 1.3 April 2015
3 Functional Descriptions
This section provides detailed information about how MQN18 module works, what
configurations and operational features are available.
The following illustration shows the primary functional blocks of MQN18 module.

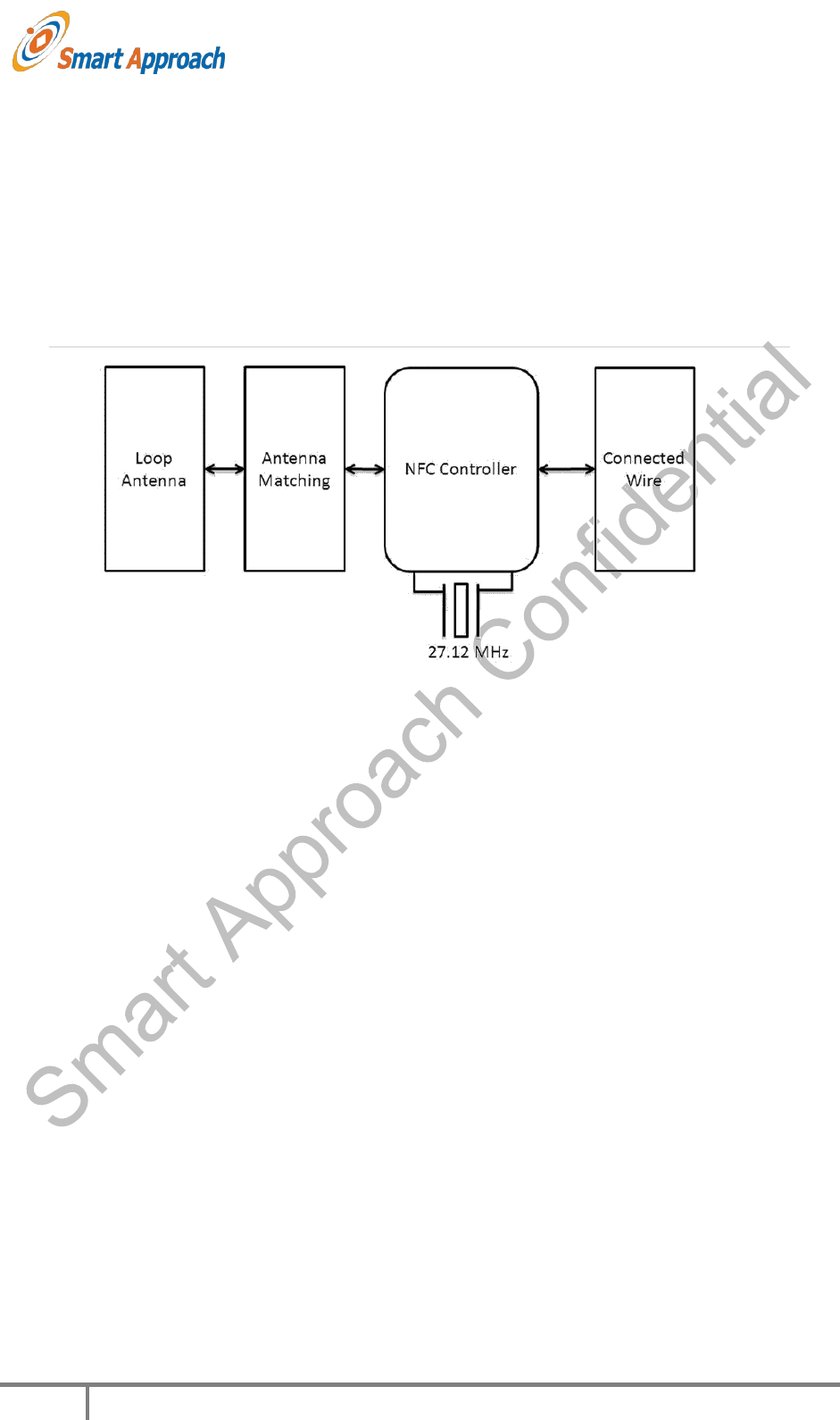

Figure 2 Module Block Diagram
Loop Antenna is Smart Approach customize solution. Antenna matching is also a customize
solution. NFC controller includes NXP NPC100 chipset, and has an I2C control interface
through the connector to mother board.
MQN18 Datasheet
- 10 -
Revision 1.3 April 2015
4 Electrical Specifications
This section provides the DC characteristics, AC characteristics, recommended operating
conditions. It includes information on the various timing functions of the module.
4.1 Pin Description
The following Table shows the pin description for MQN18 module.
The connection ground is internally connected and should be connected to GND on the main
board as well.
Table 1 Module Pin Description
PIN
No.
Name
Description
Power
Reference
1
VBAT
+3.3V power supply input
3.3V
2
MOD_GND
Module Ground
GND
3
SWP
SWP data line to UICC/SIM, Input / Output
PMUVCC
4
RFU
Unused pin could be floating
-
5
IRQ
Interrupt to host, High: Interrupt; Low: Normal
VDD_IO
6
PMUVCC
Power supply to UICC/SIM, input, + 1.8V
1.8V
7
I2C_SDA
I2C Data Line
VDD_IO
8
I2C_SCL
I2C Clock
VDD_IO
9
MOD_GND
Module Ground
GND
10
VEN
Wake up the module from standby mode or reset the
module
VBAT
11
DWL_REQ
Firmware download control: Active High
VDD_IO
12
SIMVCC
The power rail used to power UICC / SIM, input
PMUVCC
13
VBAT
+3.3V Power Supply
3.3V
14
VDD_IO
+1.8V or +3.3V for host IO reference voltage
1.8V/3.3V
15
MOD_GND
Module Ground
GND
MQN18 Datasheet
- 11 -
Revision 1.3 April 2015
4.2 I2C Address
MQN18 I2C 7bit address is defined to 0x28. To write data, MQN18 is addressed using 0x50, to
read data, MQN18 is addressed using 0x51.
Table 2 I2C Address
I2C address (R/W=0, write)
I2C address (R/W=1, read)
0x50
0x51
4.3 Temperature Maximum Ratings
Thermal specifications for this module have been modeled using a two-layer test board.
Table 3 Temperature Maximum Ratings
Symbol
Definition
Value
Units
Min
Max
T
Operating
Temperature
-20
80
℃
TS
Storage
Temperature
-40
100
℃
MQN18 Datasheet
- 12 -
Revision 1.3 April 2015
4.4 DC Electrical Parameters
DC Electrical specifications for this module have been modeled using a two-layer test board.
Table 4 DC Electrical Specification
Symbol
Definition
Value
Units
Min
Typ
Max
VBAT
Power
Supply
3.1
3.3
3.5
Volts
IVBAT
DC Current
-
-
170
mA
PBAT
Power
Consumption
-
-
0.595
W
4.5 Antenna Specifications
Customized Antenna specifications for this module have been modeled using a two-layer test
board.
Table 5 Antenna Specifications
Item
Value
Unit
Note
Min
Typ
Max
DC
Resistance
0.5
1
2
Ω
AC
Impedance
50
Ω
Frequency
13.06
13.56
14.06
MHz
VSWR <2
Q factor
25
30
35
Antenna
Type
FPC Loop Coil
Add the Ferrite
sheet
Module
Material
FR4
Antenna
Size
(40 ±0.3) X (60±0.3)
mm
MQN18 Datasheet
- 13 -
Revision 1.3 April 2015
4.6 Power Consumption
Table 6 Current Consumption
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
IHPD
Hard power down current
VBAT=3.6V,
VEN=0V
-
10.5
12
μA
ISTBY
Standby state current
VBAT=3.6V
-
-
20
μA
IACT
Active state current
VBAT=3.6V
-
6
-
mA
ITVDD
Transmitter supply current
VBAT=3.1V
-
30
100
mA
IPMUVCC
PMUVCC supply
Class B
-
1.5
3
μA
Class C
-
1
2
μA
4.7 Thermal Protection
Table 7 Thermal Protection
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
TOVERTEMP
Temperature
protection trigger
120
125
130
0C
4.8 System power modes
Table 8 System Power Modes Description
Mode
Description
Full power
mode
The battery supply (VBAT) as well as the pad supply (VDD_IO) is
available, all use cases can be executed
Low-power
mode
The pad supply (VDD_IO) is not available. Only the Card Emulation
mode use cases via SWP are allowed
Powered by the
Field
The battery supply (VBAT) and pad supply (VDD_IO) are not available.
The system is powered via PbF interface. Only Card Emulation use
cases via SWP are allowed.
Power Off mode
The system is not supplied from any source or the system is kept Hard
Power Down (HPD)
MQN18 Datasheet
- 14 -
Revision 1.3 April 2015
Table 9 Power Mode Configuration
VBAT
VDD_IO
VEN
Power mode
Off
Off
X
Power Off mode
On
X
Off
Power Off mode
On
Off
On
Low Power Mode
On
On
On
Full power mode
Note: X: Don’t care
4.9 Reset and download concept
To enter reset there are 2 ways:
- Pulling VEN low (Hard Power Down state)
- If VBAT monitor is enabled: lowering VBAT below the monitor threshold (monitor mode, if VEN
is kept above 1.1 V)This reset mode can be left if PbF is enabled when the field is high
enough (RF field detected) to enter PbF mode.
To get out of reset, there are 2 ways:
- Pulling VEN high with VBAT above VBAT monitor threshold if enabled
- Entering a field strong enough to power the IC
Figure 3 Reset via VEN pin
Table 10 Reset Timing
Symbol
Parameter
Condition
Min
Typ
Max
Unit
tRESETVEN
VEN pulse
width to reset
3
μ s
tBOOT
Boot time
10
ms
MQN18 Datasheet
- 15 -
Revision 1.3 April 2015

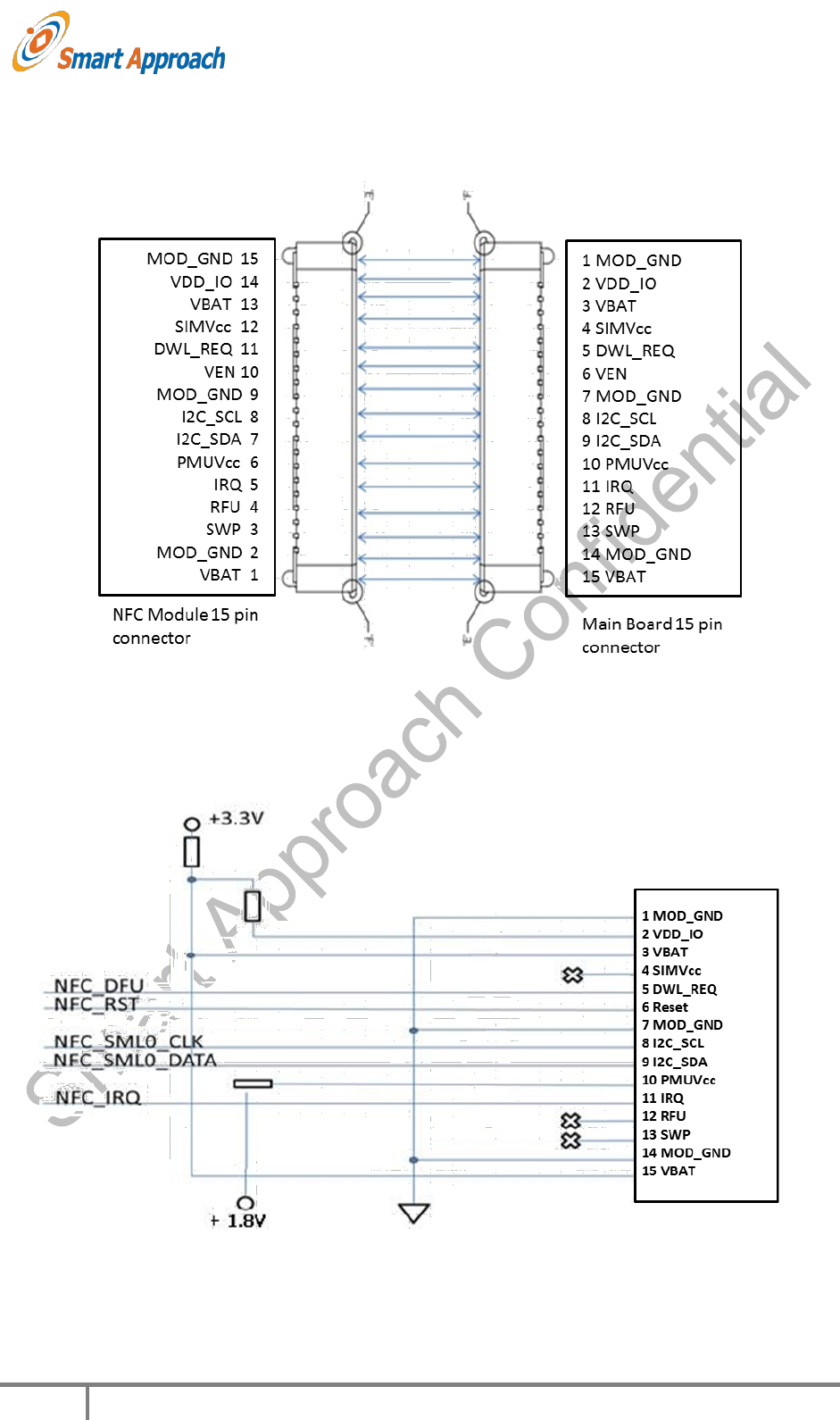

4.10 NFC Connection Recommendation
Figure 4 Connection Recommendation
4.11 Main Board Design Reference
Figure 5 Main Board Design W/O UICC Reference
MQN18 Datasheet
- 16 -
Revision 1.3 April 2015
5 Ordering Information
Table 11 Ordering Information Table
Order Number
Descriptions
MQN18
NFC Controller Module (NXP NPC100) with Integrated Antenna
Dimension
Module: 12x26mm; Antenna Area Size: 60x40 mm
MQN18 Datasheet
- 17 -
Revision 1.3 April 2015
6 Reliability Verification
Table 12 Reliability Item Table
No.
Item
Condition
Benchmark
Result
Qty
1
Low Temperature
Storage Test
-40oC
IEC60068-2-1
Pass
5
2
High Temperature
Storage Test
80oC, Humidity:
95%
IEC60068-2-78
Pass
5
3
Low Temperature
Operation Test
-20oC
IEC60068-2-1
Pass
5
4
High Temperature
Operation Test
80oC
IEC60068-2-2
Pass
5
5
High Temperature
Operation Test
65oC, Humidity:
95%
IEC60068-2-78
Pass
5
6
Salt Test
PH: 3.0 ~ 3.2
,50℃, 72 hrs,
Density: 5%±1%
ASTM B368
Pass
5
7
RoHS
Normal
Compliance
Pass
5
8
HF
Normal
Compliance
Pass
5
MQN18 Datasheet
- 18 -
Revision 1.3 April 2015
7 NFC Module Outline
The following illustration shows the package drawing for MQN18 module. The drawing contains
the detail views, dimensions, tolerances, and notes.

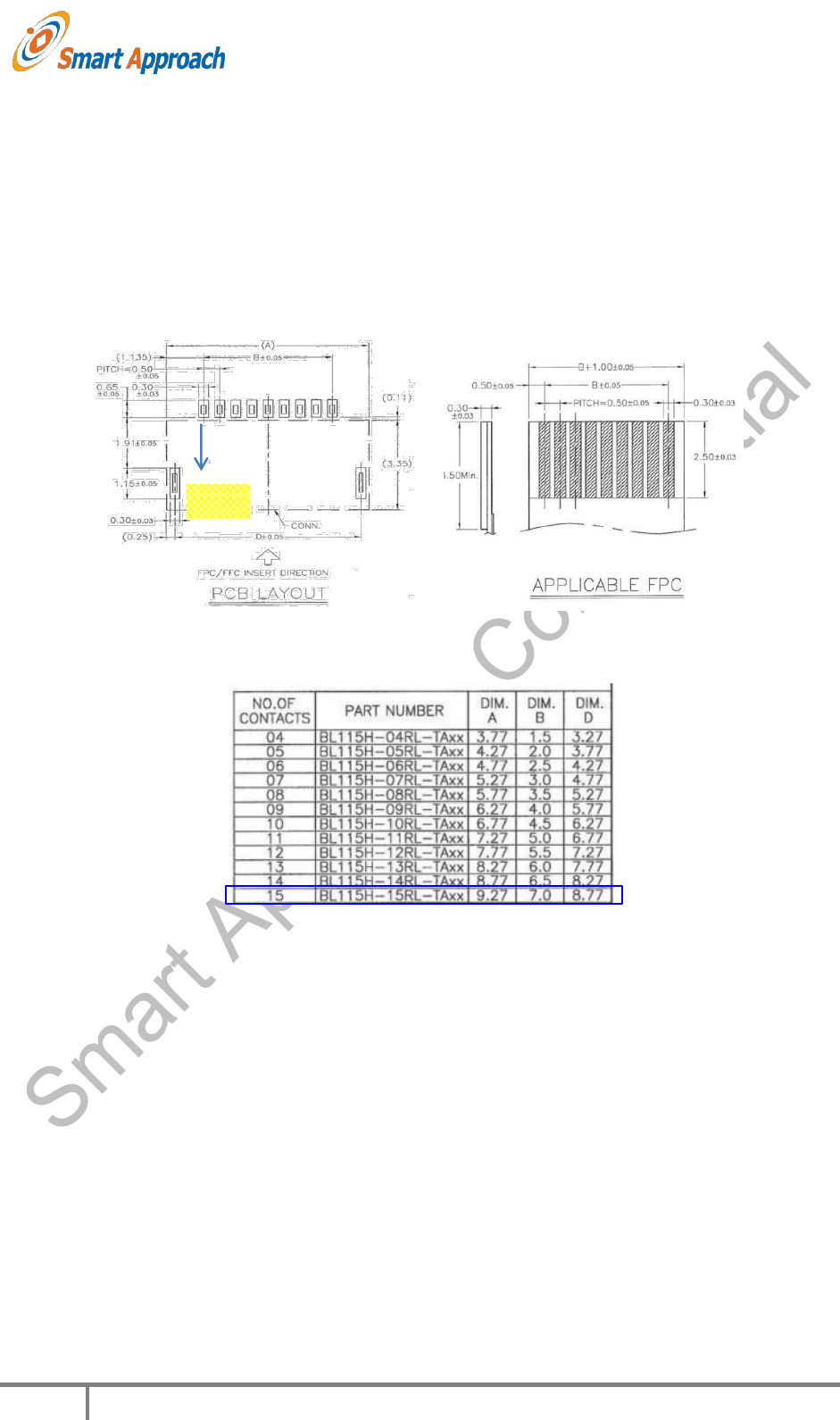

Figure 6 Module FPC Connection Foot Print
Figure 7 FPC Wire Dimension
Pin 1
MQN18 Datasheet
- 19 -
Revision 1.3 April 2015

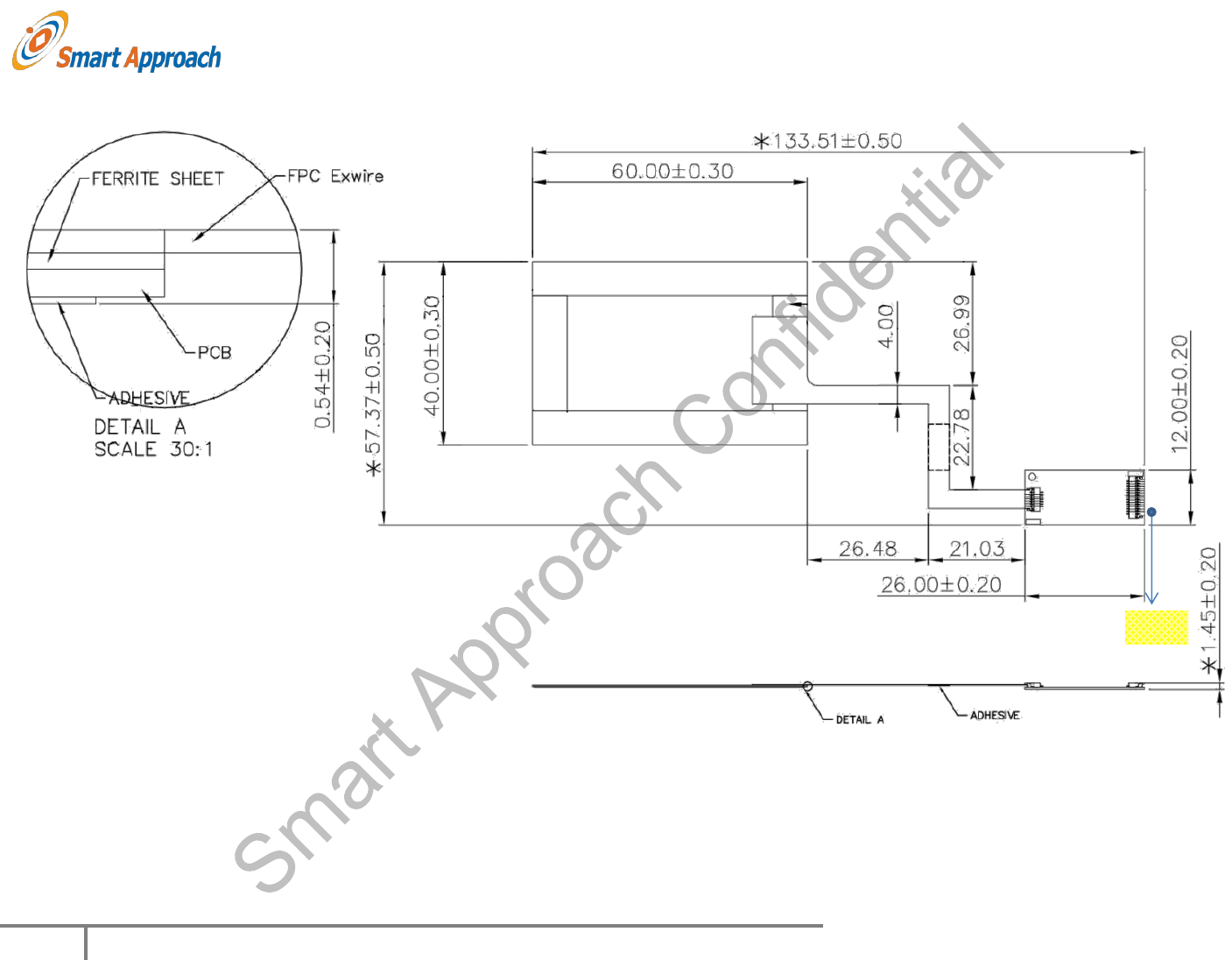

Figure 8 MQN18 NFC Module Drawing

Navigation menu
