   Macaron N Series MSN09 NFC Controller Module with Integrated Antenna Datasheet Version 1.1 Smart Approach Co., Ltd. Rm. 5, 3F., No.1, Taiyuan 2nd St., Zhubei City, Hsinchu County 302, Taiwan, R.O.C. +886-3-5601363 www.smart-approach.com.tw
MSN09 Datasheet - 2 - Revision 1.1 January 2016    Smart  Approach  Co.,  Ltd  (“S.A.”)  retains  the  right  to  make  changes  to  its  products  or specifications  to  improve  performance,  reliability  or  manufacturability.  All  information  in  this document, including descriptions of features, functions, performance, technical specifications and availability, is subject to change without notice at any time. While the information furnished herein is held to be accurate and reliable, no responsibility will be assumed by Smart Approach for its use. Furthermore, the information contained herein does not convey to the purchaser of microelectronic devices any license under license under the patent right of any manufacturer.  Smart Approach Co., Ltd is a registered trademark. All other products or service names used in this  publication  are  for  identification  purposes  only,  and  may  be  trademarks  or  registered trademarks  of  their  respective  companies.  All  other  trademarks  or  registered  trademarks mentioned herein are the property of their respective holders.  Feedback on the use of any of the document is welcomed and encouraged by Smart Approach.    Please contact service@smart-approach.com.tw for your feedback or any ordering inquiry.  Please contact support@smart-approach.com.tw for any technical question.

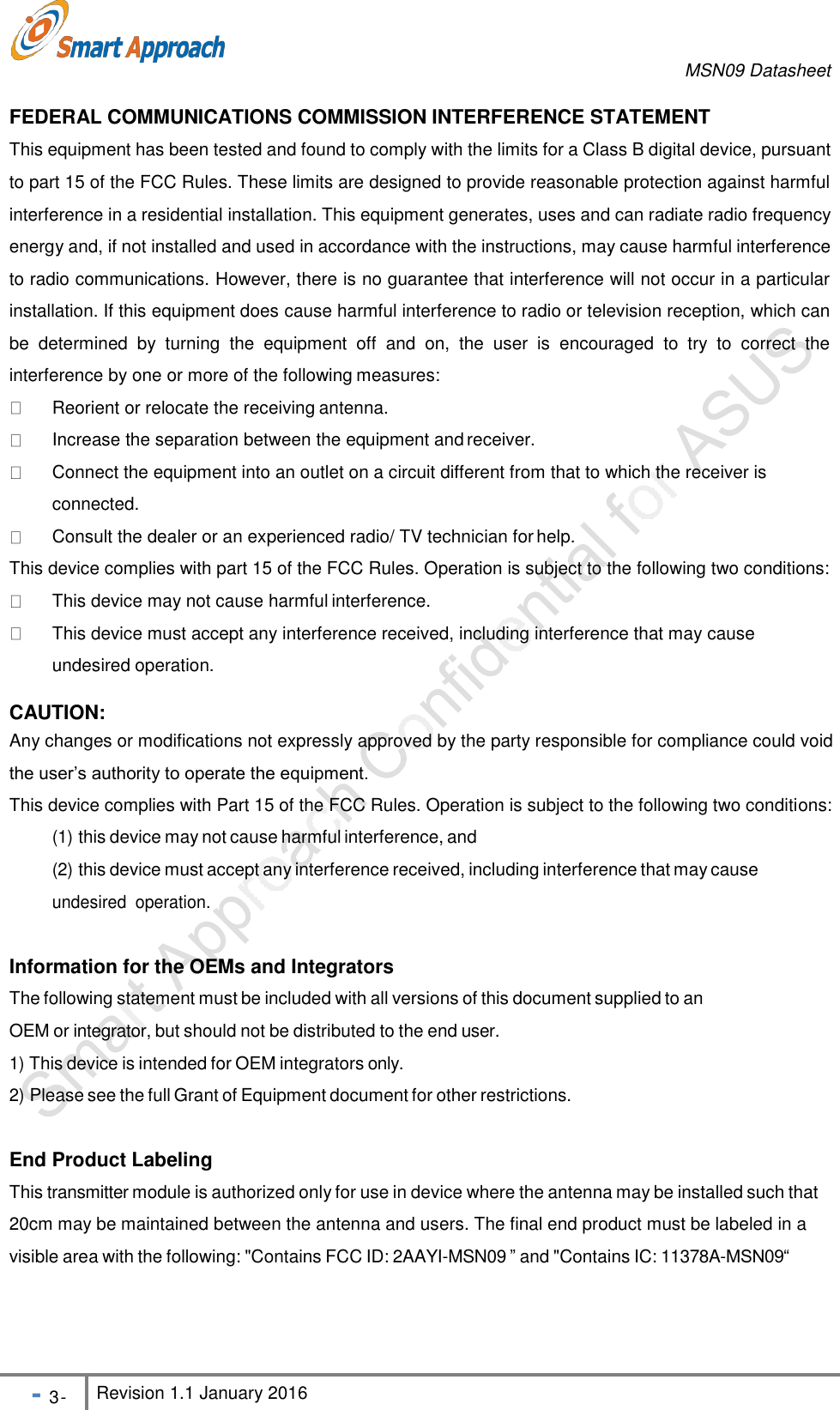

MSN09 Datasheet - 3 - Revision 1.1 January 2016    FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be  determined  by  turning  the  equipment  off  and  on,  the  user  is  encouraged  to  try  to  correct  the interference by one or more of the following measures:   Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:   This device may not cause harmful interference.  This device must accept any interference received, including interference that may cause undesired operation.CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired  operation.  Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions.   End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: 2AAYI-MSN09 ” and "Contains IC: 11378A-MSN09“

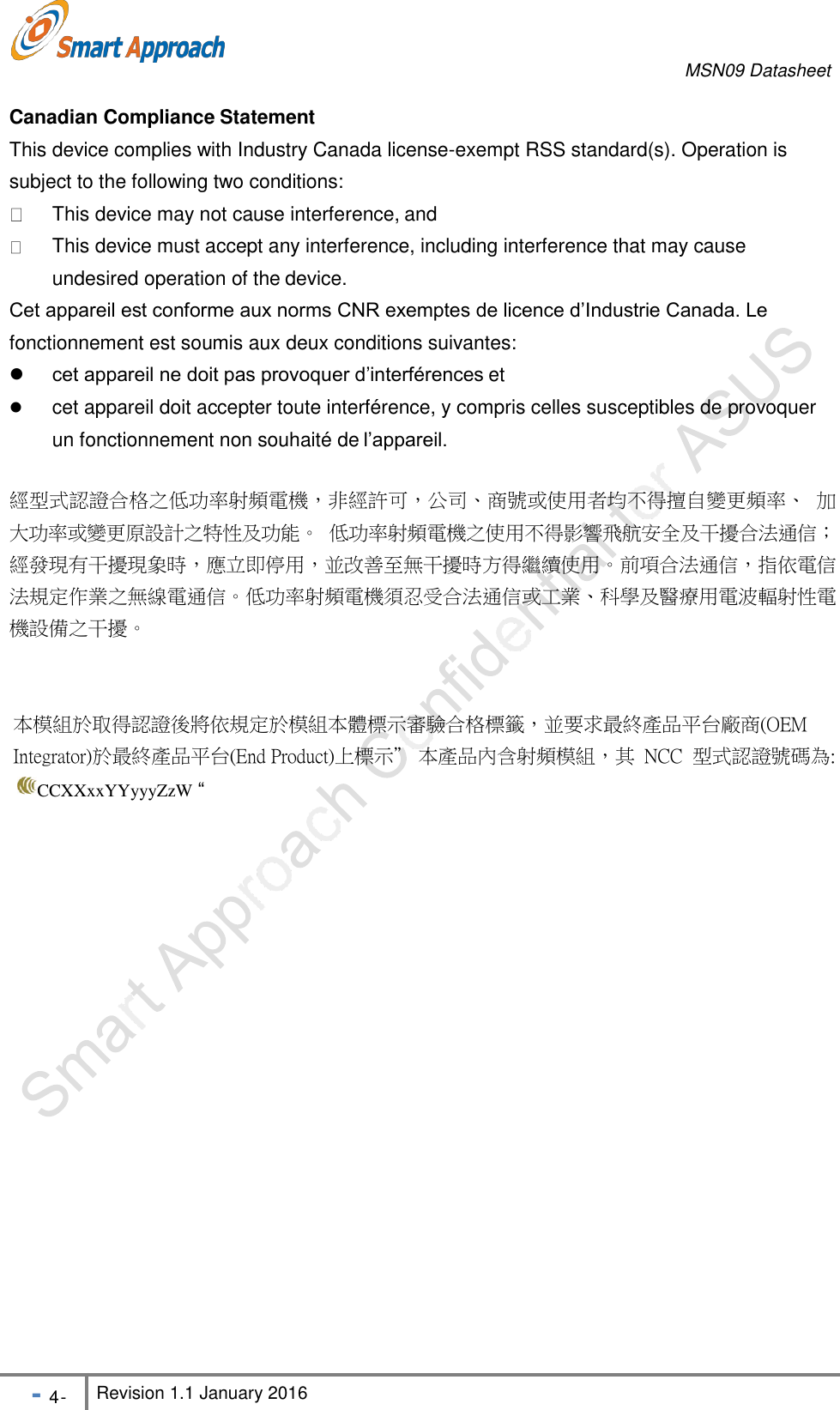

MSN09 Datasheet - 4 - Revision 1.1 January 2016    Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:   This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device.Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes:  cet appareil ne doit pas provoquer d’interférences et cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil. 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、 加 大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信; 經發現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。前項合法通信,指依電信 法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。   本模組於取得認證後將依規定於模組本體標示審驗合格標籤,並要求最終產品平台廠商(OEM    Integrator)於最終產品平台(End Product)上標示” 本產品內含射頻模組,其 NCC 型式認證號碼為: CCXXxxYYyyyZzW “

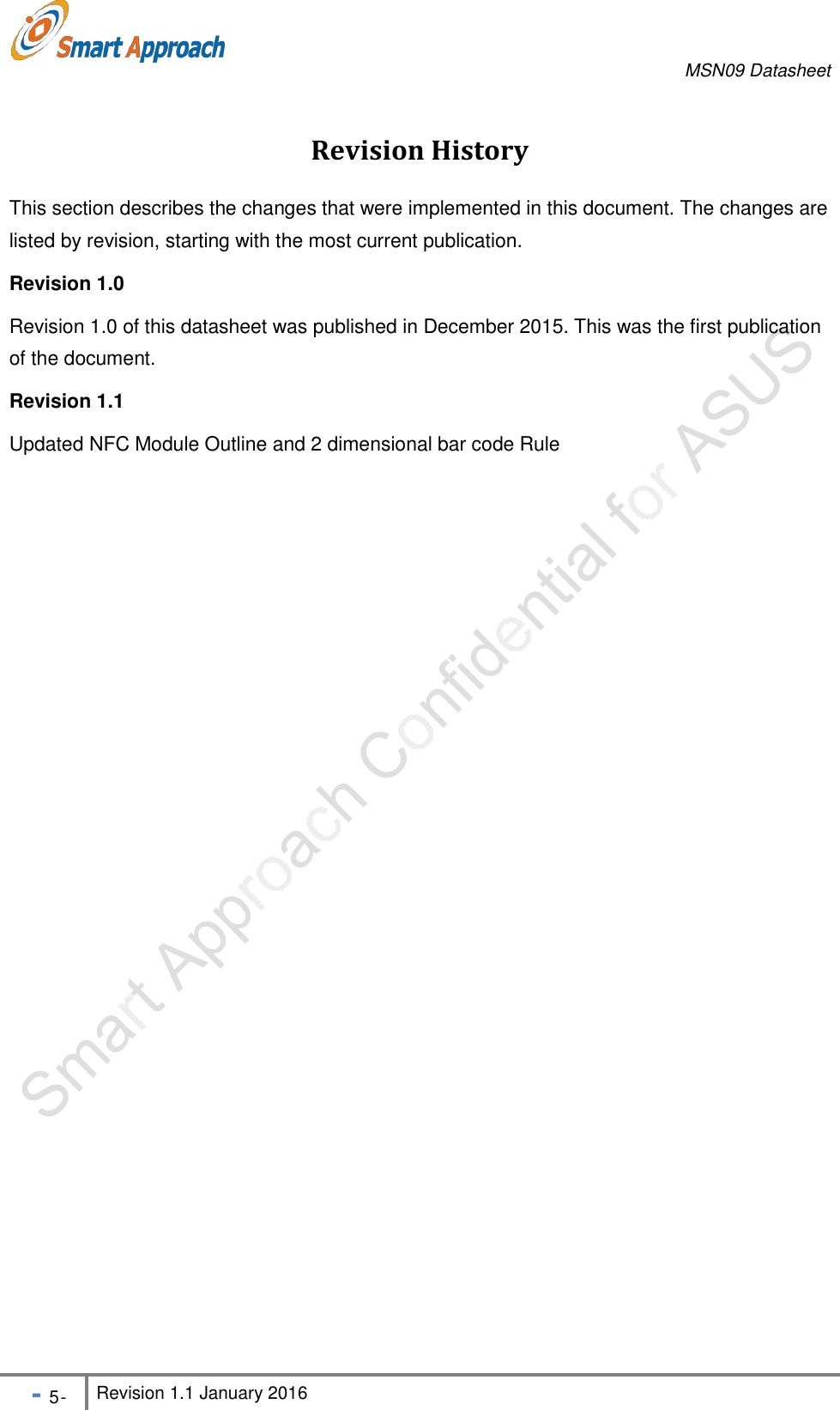

MSN09 Datasheet - 5 - Revision 1.1 January 2016    of the document.  Revision 1.1  Updated NFC Module Outline and 2 dimensional bar code Rule   Revision History  This section describes the changes that were implemented in this document. The changes are listed by revision, starting with the most current publication. Revision 1.0  Revision 1.0 of this datasheet was published in December 2015. This was the first publication

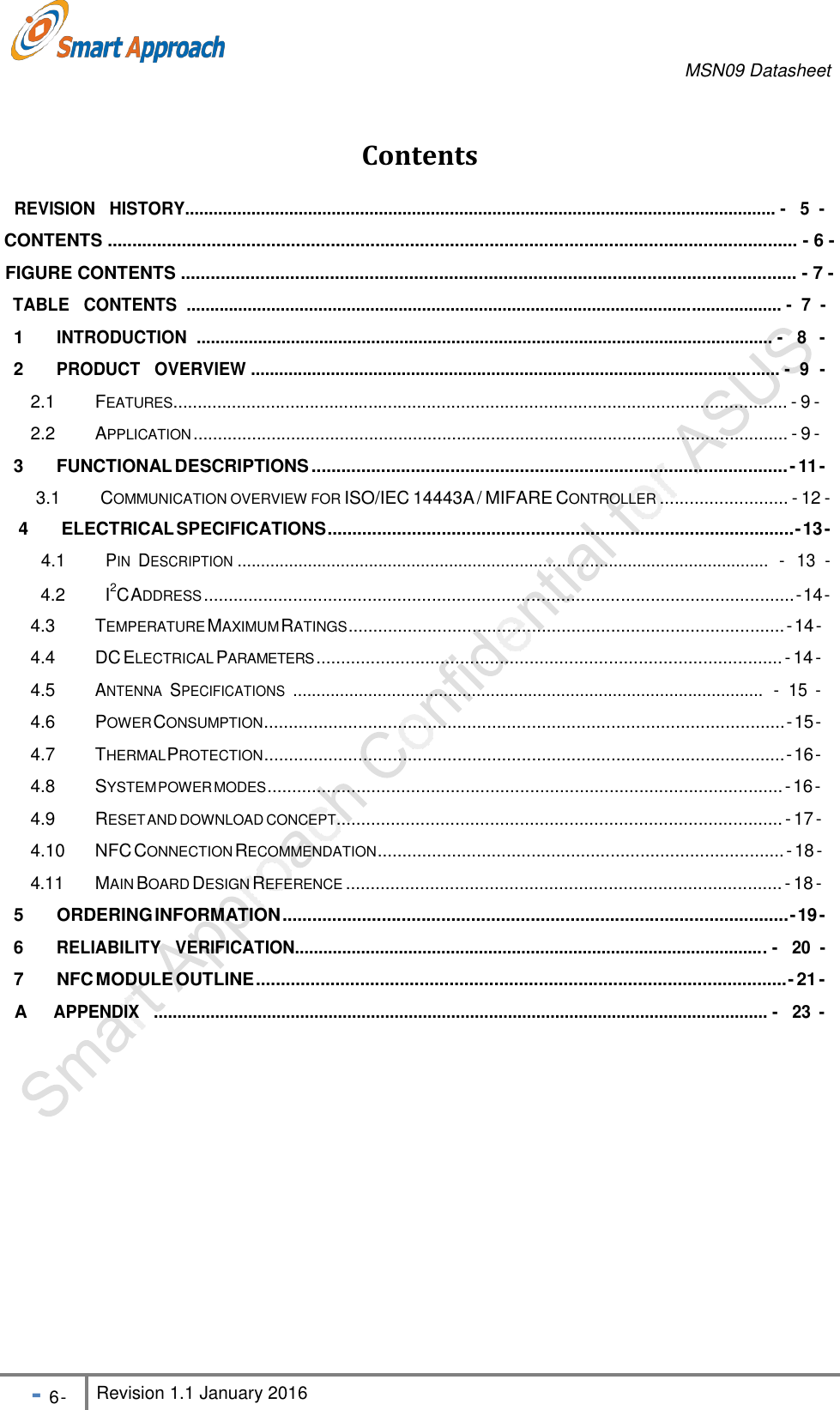

MSN09 Datasheet - 6 - Revision 1.1 January 2016     Contents  REVISION   HISTORY............................................................................................................................. -   5  - CONTENTS ........................................................................................................................................... - 6 - FIGURE CONTENTS ............................................................................................................................ - 7 - TABLE   CONTENTS  .............................................................................................................................. -  7  - 1 INTRODUCTION  .......................................................................................................................... -   8   - 2 PRODUCT   OVERVIEW ................................................................................................................ -  9  - 2.1  FEATURES.............................................................................................................................. - 9 - 2.2  APPLICATION .......................................................................................................................... - 9 - 3  FUNCTIONAL DESCRIPTIONS ................................................................................................ - 11 - 3.1    COMMUNICATION OVERVIEW FOR ISO/IEC 14443A / MIFARE CONTROLLER .......................... - 12 - 4  ELECTRICAL SPECIFICATIONS .............................................................................................. - 13 - 4.1   PIN  DESCRIPTION .................................................................................................................  -  13  -  4.2    I2C ADDRESS ....................................................................................................................... - 14 - 4.3  TEMPERATURE MAXIMUM RATINGS ........................................................................................ - 14 - 4.4 DC ELECTRICAL PARAMETERS .............................................................................................. - 14 - 4.5 ANTENNA  SPECIFICATIONS  ....................................................................................................  -  15  - 4.6  POWER CONSUMPTION ......................................................................................................... - 15 - 4.7  THERMAL PROTECTION ......................................................................................................... - 16 - 4.8  SYSTEM POWER MODES ........................................................................................................ - 16 - 4.9  RESET AND DOWNLOAD CONCEPT.......................................................................................... - 17 - 4.10  NFC CONNECTION RECOMMENDATION .................................................................................. - 18 - 4.11  MAIN BOARD DESIGN REFERENCE ........................................................................................ - 18 - 5  ORDERING INFORMATION ...................................................................................................... - 19 - 6 RELIABILITY   VERIFICATION.................................................................................................... -   20  - 7  NFC MODULE OUTLINE ........................................................................................................... - 21 - A APPENDIX   .................................................................................................................................. -   23  -
MSN09 Datasheet - 7 - Revision 1.1 January 2016     Figure Contents Figure 1 Typical Application ................................................................................................. - 9 - Figure 2 Typical Application II ............................................................................................ - 10 - Figure 3 Module Block Diagram ........................................................................................ - 11  - Figure 4 Transmission Modes ........................................................................................... - 12  - Figure 5 Reset via VEN  pin ................................................................................................. - 17 - Figure 6 Connection Recommendation ............................................................................. - 18  - Figure 7 Main Board Design W/O UICC Reference ........................................................... - 18 - Figure 8 Antenna Module Drawing .................................................................................... - 21  - Figure 9 Module FPC Connection Footprint (Button Contact) ............................................ - 22 - Figure 10 FPC Wire Dimension ......................................................................................... - 22 -  Table Contents Table 1 Module Pin Description ......................................................................................... - 13  - Table  2 I2C Address ........................................................................................................... - 14 - Table 3 Temperature Maximum Ratings ............................................................................ - 14  - Table 4 DC Electrical Specification .................................................................................... - 14  - Table  5 Antenna Specifications.......................................................................................... - 15 - Table 6 Current Consumption ............................................................................................ - 15  - Table  7 Thermal Protection................................................................................................ - 16 - Table 8 System Power Modes Description ........................................................................ - 16  - Table 9 Power Mode Configuration.................................................................................... - 17  - Table  10 Reset Timing....................................................................................................... - 17  - Table 11 Ordering Information Table .................................................................................. - 19  - Table 12 Reliability Item Table ........................................................................................... - 20  -

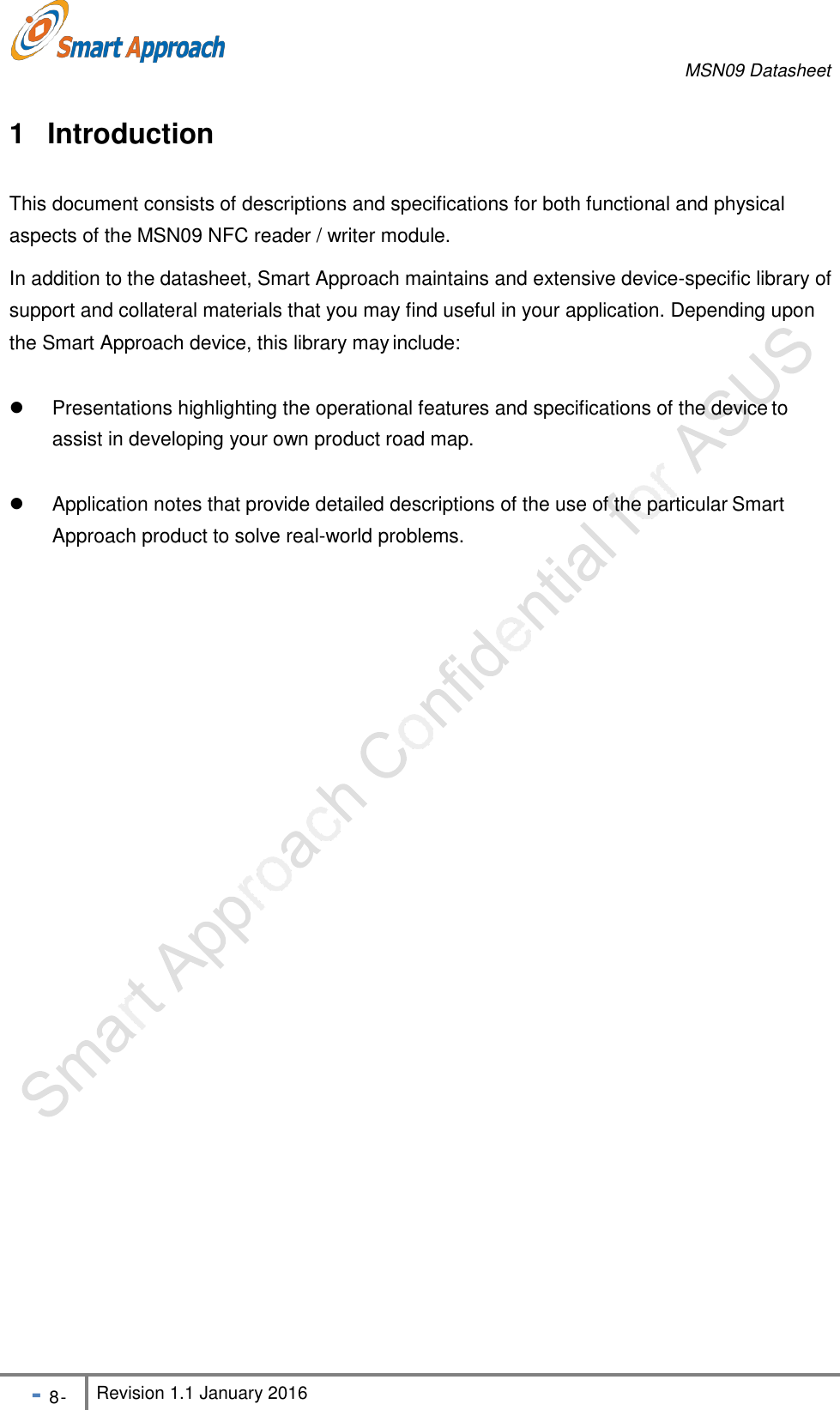

MSN09 Datasheet - 8 - Revision 1.1 January 2016   the Smart Approach device, this library may include:   Presentations highlighting the operational features and specifications of the device to assist in developing your own product road map.   Application notes that provide detailed descriptions of the use of the particular Smart Approach product to solve real-world problems.  1 Introduction  This document consists of descriptions and specifications for both functional and physical aspects of the MSN09 NFC reader / writer module. In addition to the datasheet, Smart Approach maintains and extensive device-specific library of support and collateral materials that you may find useful in your application. Depending upon

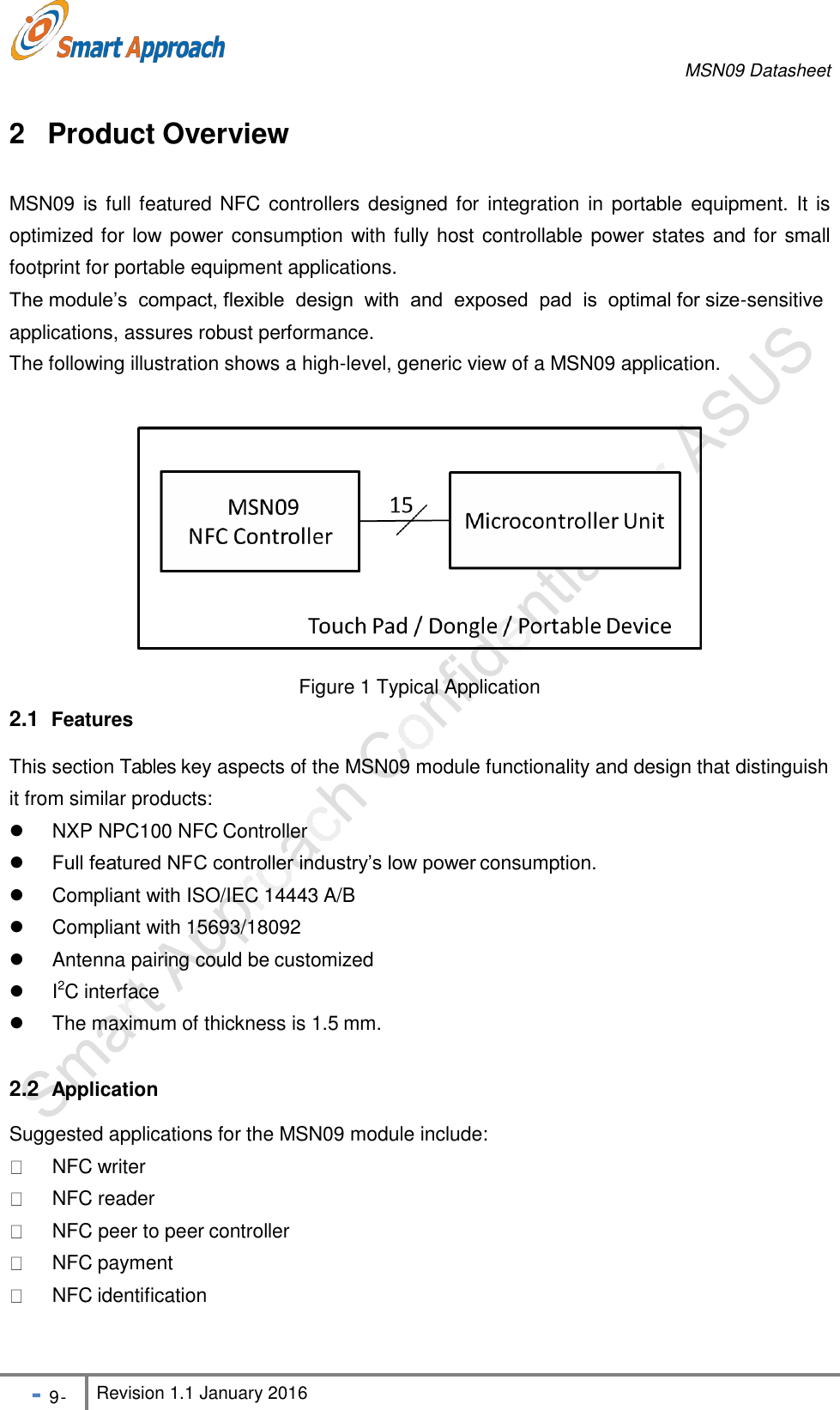

MSN09 Datasheet - 9 - Revision 1.1 January 2016    2 Product Overview  MSN09 is full featured NFC controllers designed for  integration in portable equipment. It  is optimized for low power consumption with fully host controllable power states and for small footprint for portable equipment applications. The module’s  compact, flexible  design  with  and  exposed  pad  is  optimal for size-sensitive Suggested applications for the MSN09 module include:   NFC writer  NFC reader  NFC peer to peer controller  NFC payment  NFC identificationapplications, assures robust performance. The following illustration shows a high-level, generic view of a MSN09 application. Figure 1 Typical Application 2.1  Features  This section Tables key aspects of the MSN09 module functionality and design that distinguish it from similar products:   NXP NPC100 NFC Controller  Full featured NFC controller industry’s low power consumption.   Compliant with ISO/IEC 14443 A/B   Compliant with 15693/18092   Antenna pairing could be customized   I2C interface   The maximum of thickness is 1.5 mm. 2.2  Application

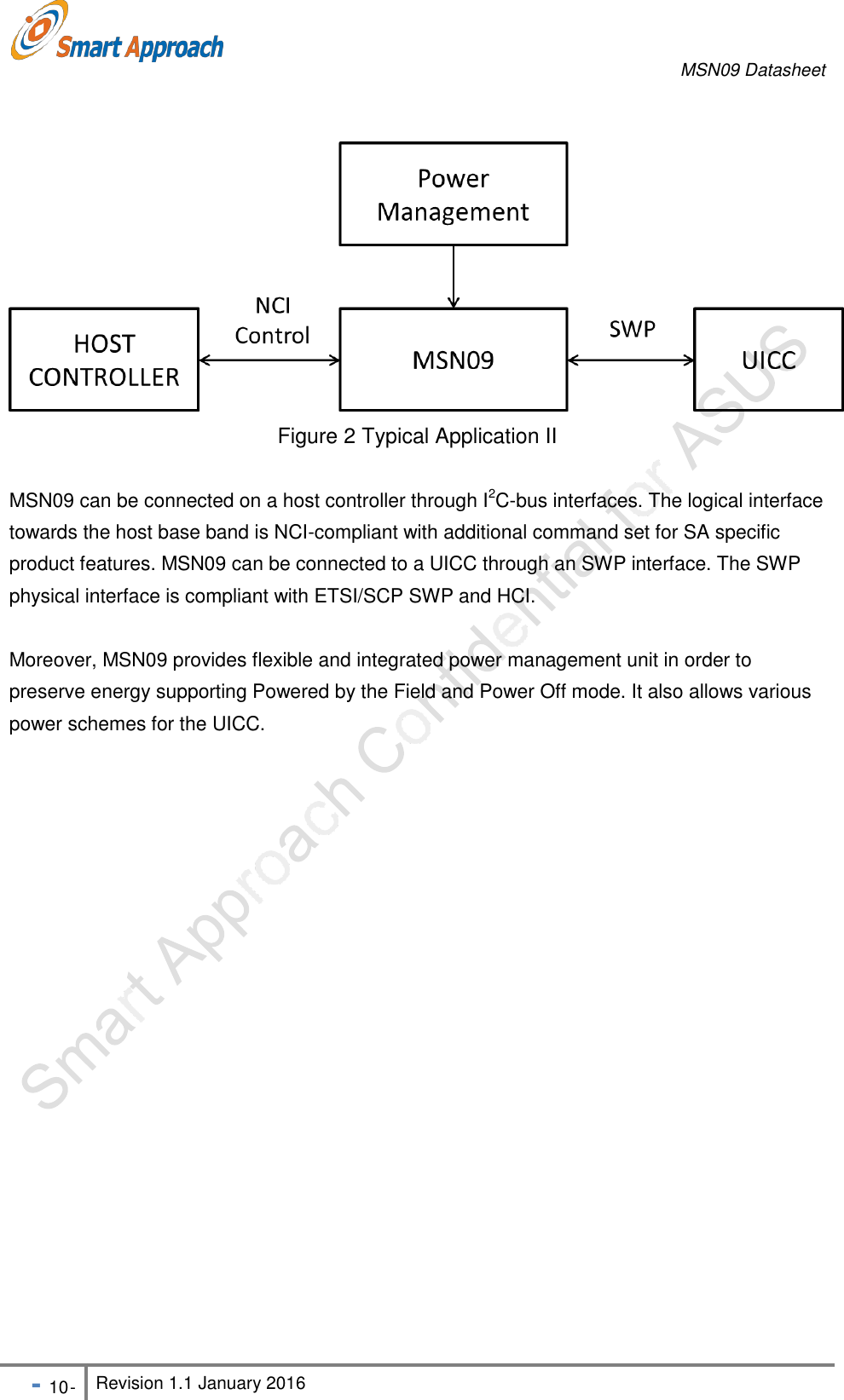

MSN09 Datasheet - 10 - Revision 1.1 January 2016                   Figure 2 Typical Application II  MSN09 can be connected on a host controller through I2C-bus interfaces. The logical interface towards the host base band is NCI-compliant with additional command set for SA specific product features. MSN09 can be connected to a UICC through an SWP interface. The SWP physical interface is compliant with ETSI/SCP SWP and HCI.  Moreover, MSN09 provides flexible and integrated power management unit in order to preserve energy supporting Powered by the Field and Power Off mode. It also allows various power schemes for the UICC.

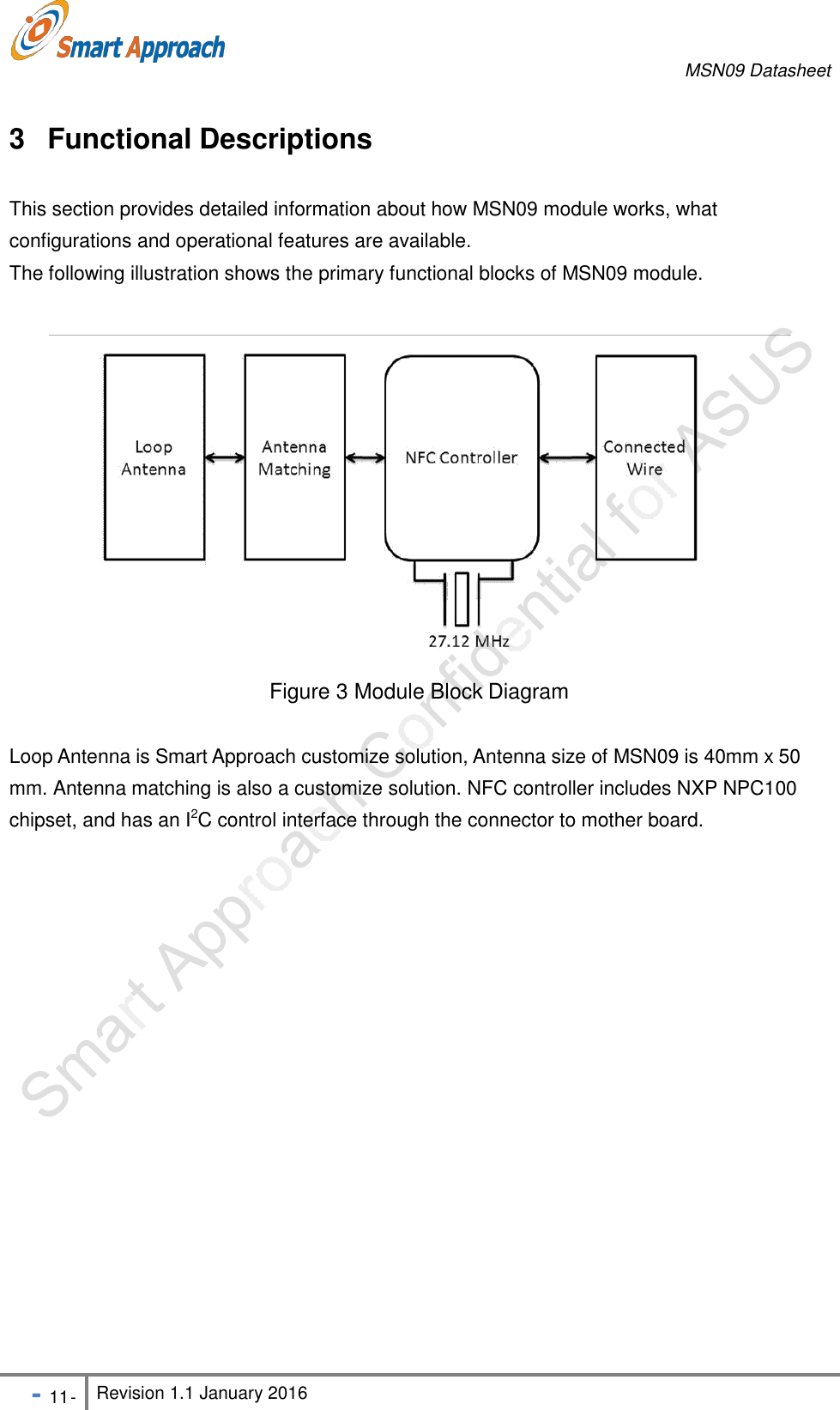

MSN09 Datasheet - 11 - Revision 1.1 January 2016     3 Functional Descriptions  This section provides detailed information about how MSN09 module works, what configurations and operational features are available. The following illustration shows the primary functional blocks of MSN09 module.   Figure 3 Module Block Diagram Loop Antenna is Smart Approach customize solution, Antenna size of MSN09 is 40mm x 50 mm. Antenna matching is also a customize solution. NFC controller includes NXP NPC100 chipset, and has an I2C control interface through the connector to mother board.

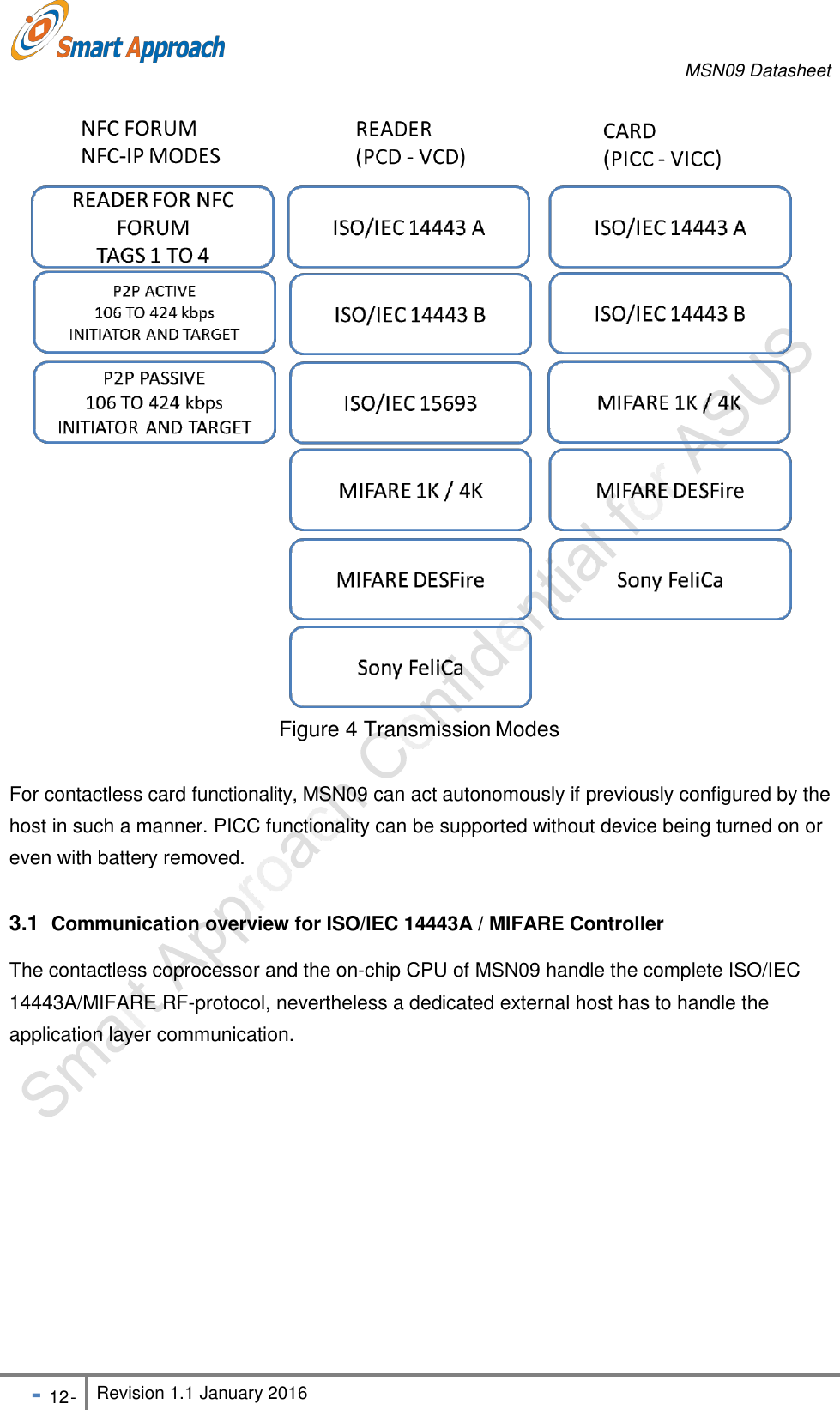

MSN09 Datasheet - 12 - Revision 1.1 January 2016     Figure 4 Transmission Modes For contactless card functionality, MSN09 can act autonomously if previously configured by the host in such a manner. PICC functionality can be supported without device being turned on or even with battery removed. 3.1  Communication overview for ISO/IEC 14443A / MIFARE Controller The contactless coprocessor and the on-chip CPU of MSN09 handle the complete ISO/IEC 14443A/MIFARE RF-protocol, nevertheless a dedicated external host has to handle the application layer communication.

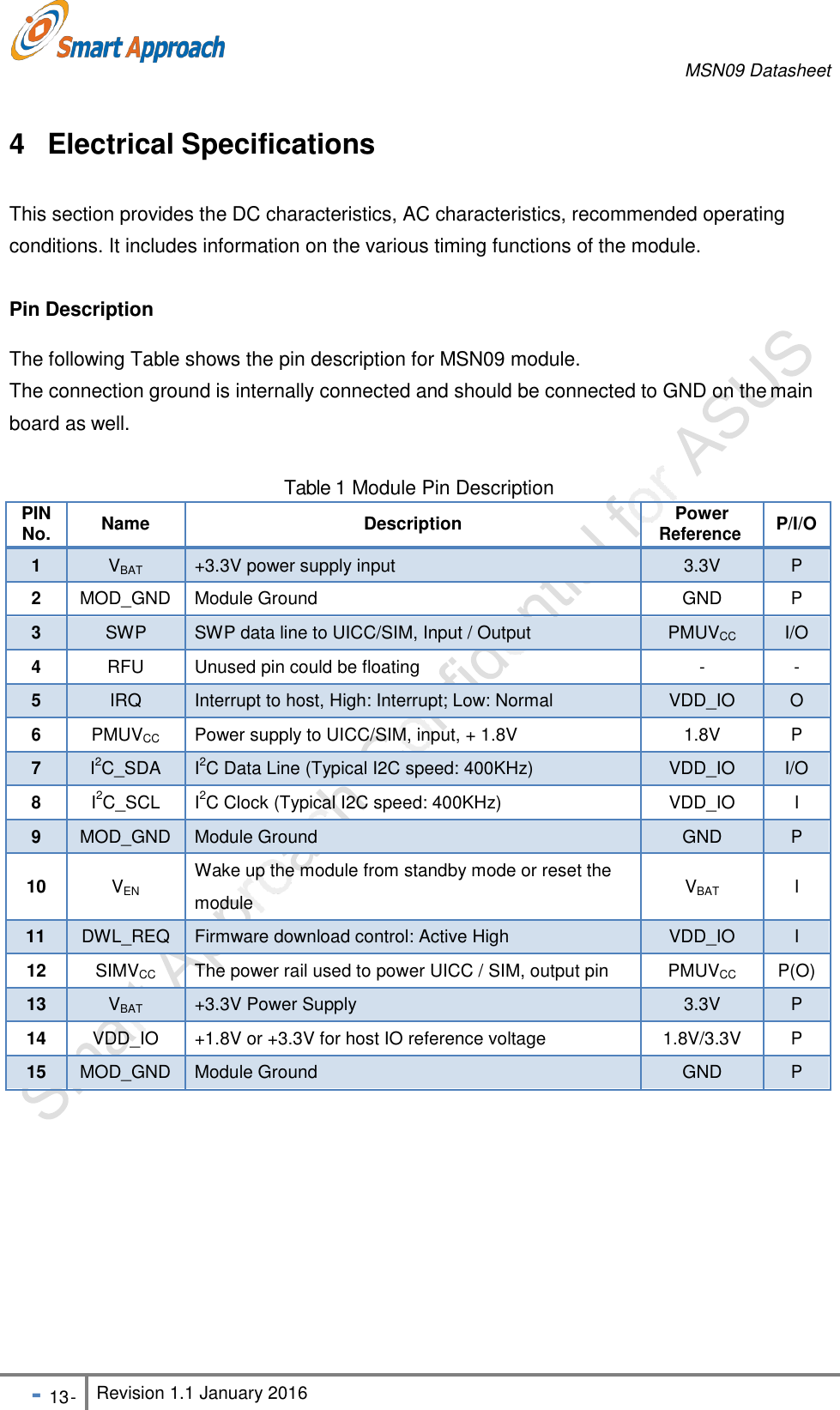

MSN09 Datasheet - 13 - Revision 1.1 January 2016   The following Table shows the pin description for MSN09 module. The connection ground is internally connected and should be connected to GND on the main board as well. Table 1 Module Pin Description   4 Electrical Specifications  This section provides the DC characteristics, AC characteristics, recommended operating conditions. It includes information on the various timing functions of the module.  Pin Description          PIN No. Name Description Power Reference P/I/O 1 VBAT +3.3V power supply input 3.3V P 2 MOD_GND Module Ground GND P 3 SWP SWP data line to UICC/SIM, Input / Output PMUVCC I/O 4 RFU Unused pin could be floating - - 5 IRQ Interrupt to host, High: Interrupt; Low: Normal VDD_IO O 6 PMUVCC Power supply to UICC/SIM, input, + 1.8V 1.8V P 7 I2C_SDA I2C Data Line (Typical I2C speed: 400KHz) VDD_IO I/O 8 I2C_SCL I2C Clock (Typical I2C speed: 400KHz) VDD_IO I 9 MOD_GND Module Ground GND P  10  VEN Wake up the module from standby mode or reset the module  VBAT  I 11 DWL_REQ Firmware download control: Active High VDD_IO I 12 SIMVCC The power rail used to power UICC / SIM, output pin PMUVCC P(O) 13 VBAT +3.3V Power Supply 3.3V P 14 VDD_IO +1.8V or +3.3V for host IO reference voltage 1.8V/3.3V P 15 MOD_GND Module Ground GND P

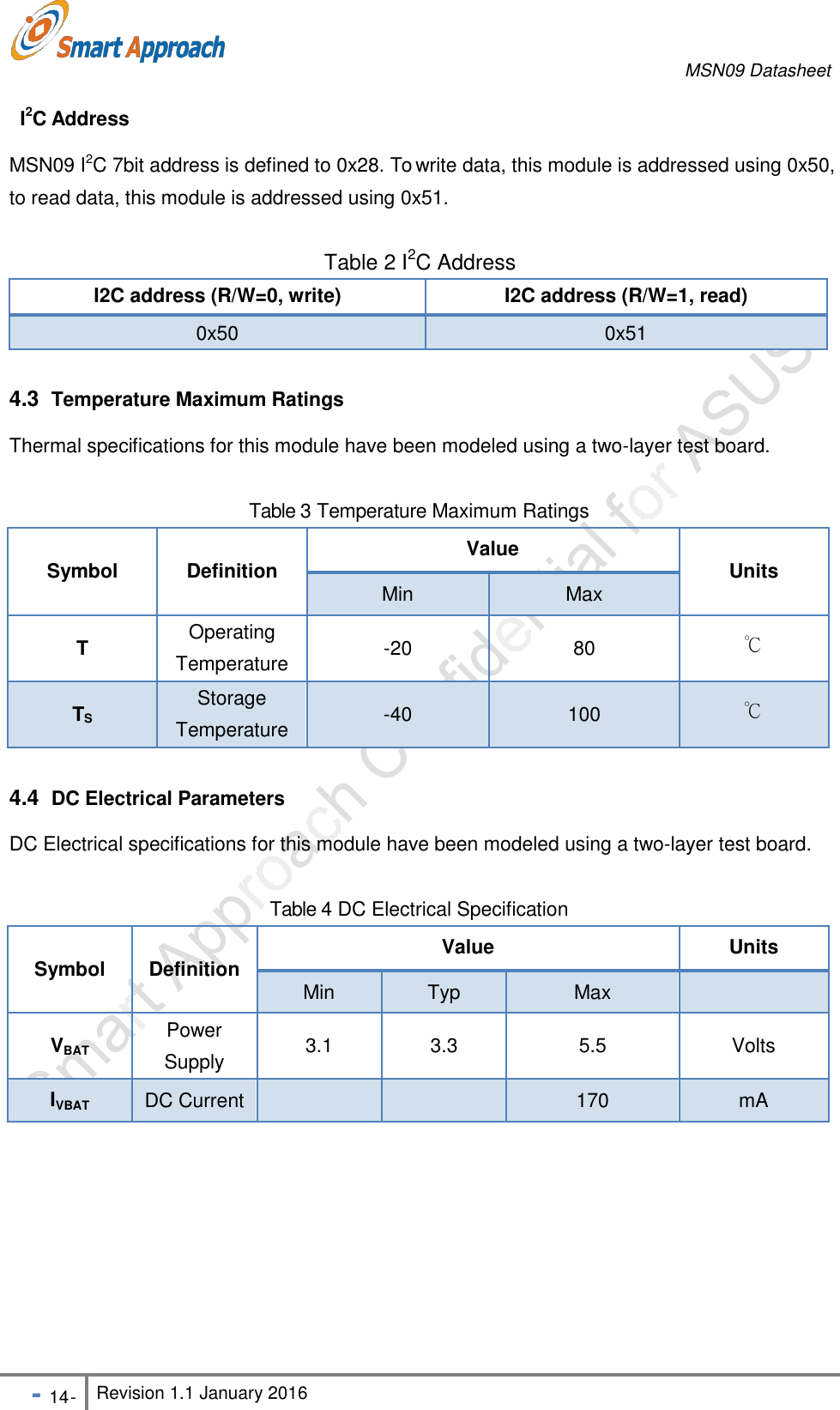

MSN09 Datasheet - 14 - Revision 1.1 January 2016   4.3  Temperature Maximum Ratings  Thermal specifications for this module have been modeled using a two-layer test board. Table 3 Temperature Maximum Ratings 4.4  DC Electrical Parameters  DC Electrical specifications for this module have been modeled using a two-layer test board. Table 4 DC Electrical Specification    I2C Address  MSN09 I2C 7bit address is defined to 0x28. To write data, this module is addressed using 0x50, to read data, this module is addressed using 0x51.  Table 2 I2C Address I2C address (R/W=0, write) I2C address (R/W=1, read) 0x50 0x51           Symbol  Definition Value  Units Min Max  T Operating Temperature  -20  80 ℃  TS Storage Temperature  -40  100 ℃           Symbol  Definition Value Units Min Typ Max   VBAT Power Supply  3.1  3.3  5.5  Volts IVBAT DC Current   170 mA

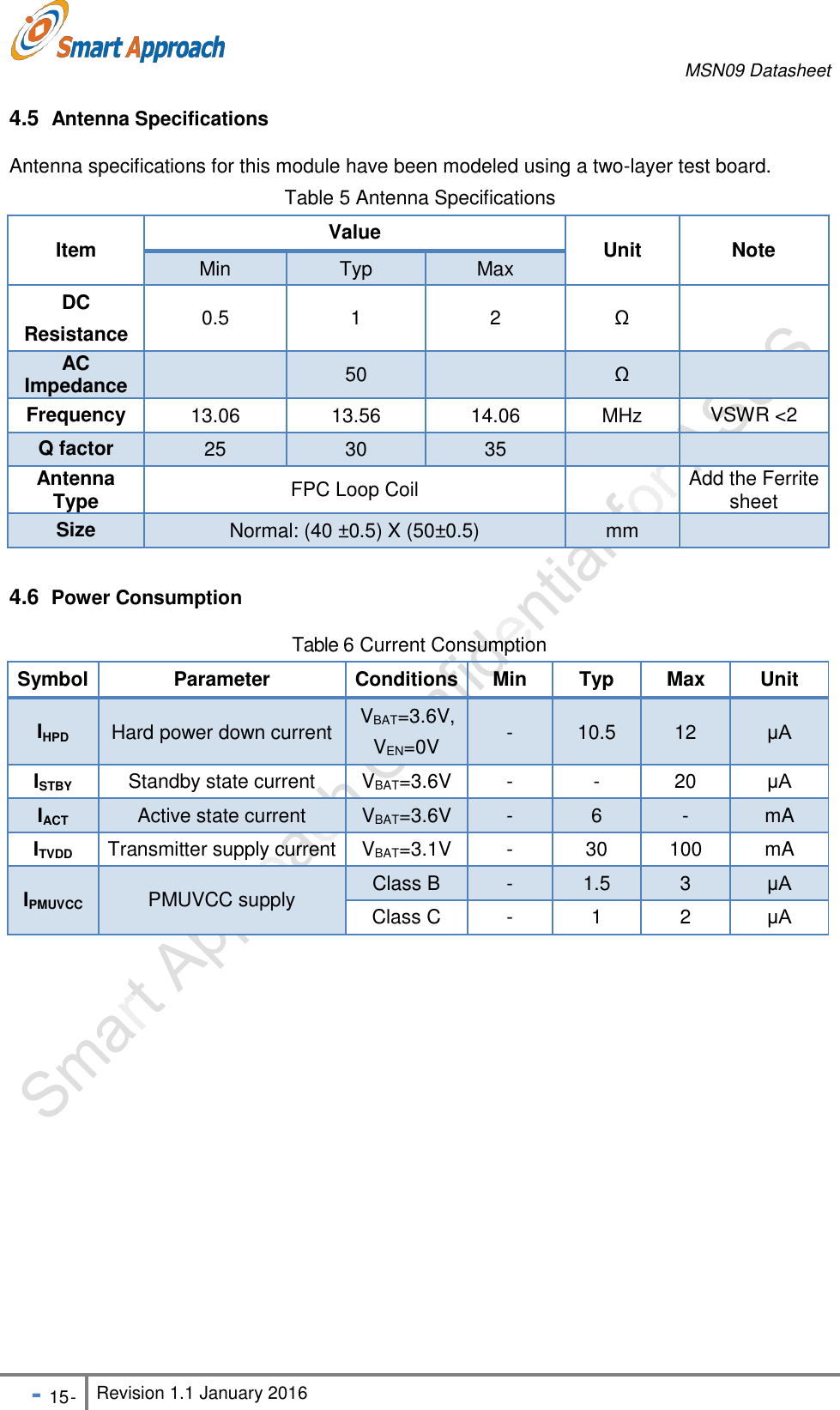

MSN09 Datasheet - 15 - Revision 1.1 January 2016   4.6  Power Consumption Table 6 Current Consumption  4.5  Antenna Specifications  Antenna specifications for this module have been modeled using a two-layer test board. Table 5 Antenna Specifications  Item Value  Unit  Note Min Typ Max DC Resistance  0.5  1  2  Ω  AC Impedance  50  Ω  Frequency 13.06 13.56 14.06 MHz VSWR <2 Q factor 25 30 35   Antenna Type FPC Loop Coil  Add the Ferrite sheet Size Normal: (40 ±0.5) X (50±0.5) mm       Symbol Parameter Conditions Min Typ Max Unit  IHPD  Hard power down current VBAT=3.6V, VEN=0V  -  10.5  12  μA ISTBY Standby state current VBAT=3.6V - - 20 μA IACT Active state current VBAT=3.6V - 6 - mA ITVDD Transmitter supply current VBAT=3.1V - 30 100 mA  IPMUVCC  PMUVCC supply Class B - 1.5 3 μA Class C - 1 2 μA

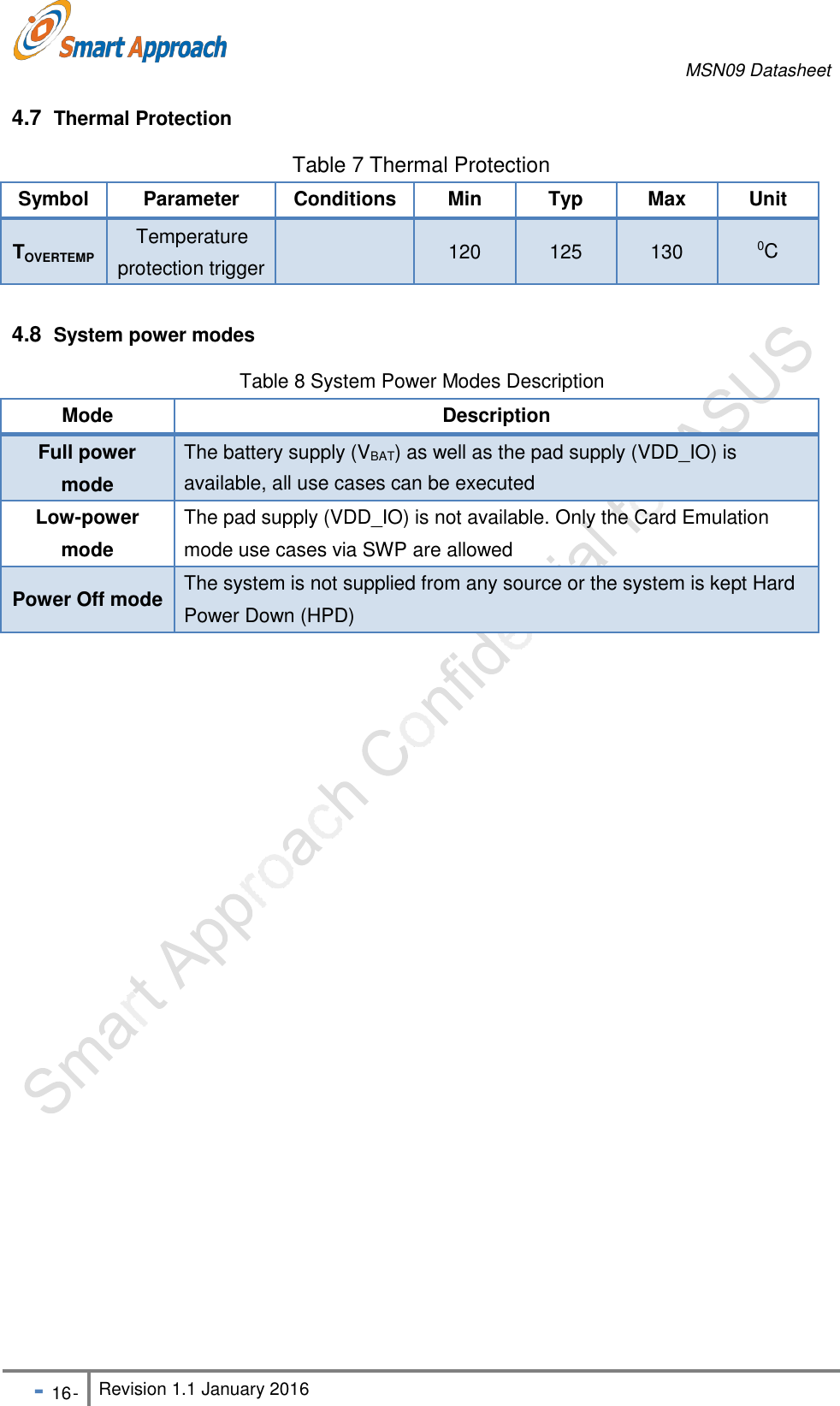

MSN09 Datasheet - 16 - Revision 1.1 January 2016   4.8  System power modes  Table 8 System Power Modes Description  4.7  Thermal Protection  Table 7 Thermal Protection Symbol Parameter Conditions Min Typ Max Unit  TOVERTEMP Temperature protection trigger   120  125  130 0C      Mode Description Full power mode The battery supply (VBAT) as well as the pad supply (VDD_IO) is available, all use cases can be executed Low-power mode The pad supply (VDD_IO) is not available. Only the Card Emulation mode use cases via SWP are allowed  Power Off mode The system is not supplied from any source or the system is kept Hard Power Down (HPD)

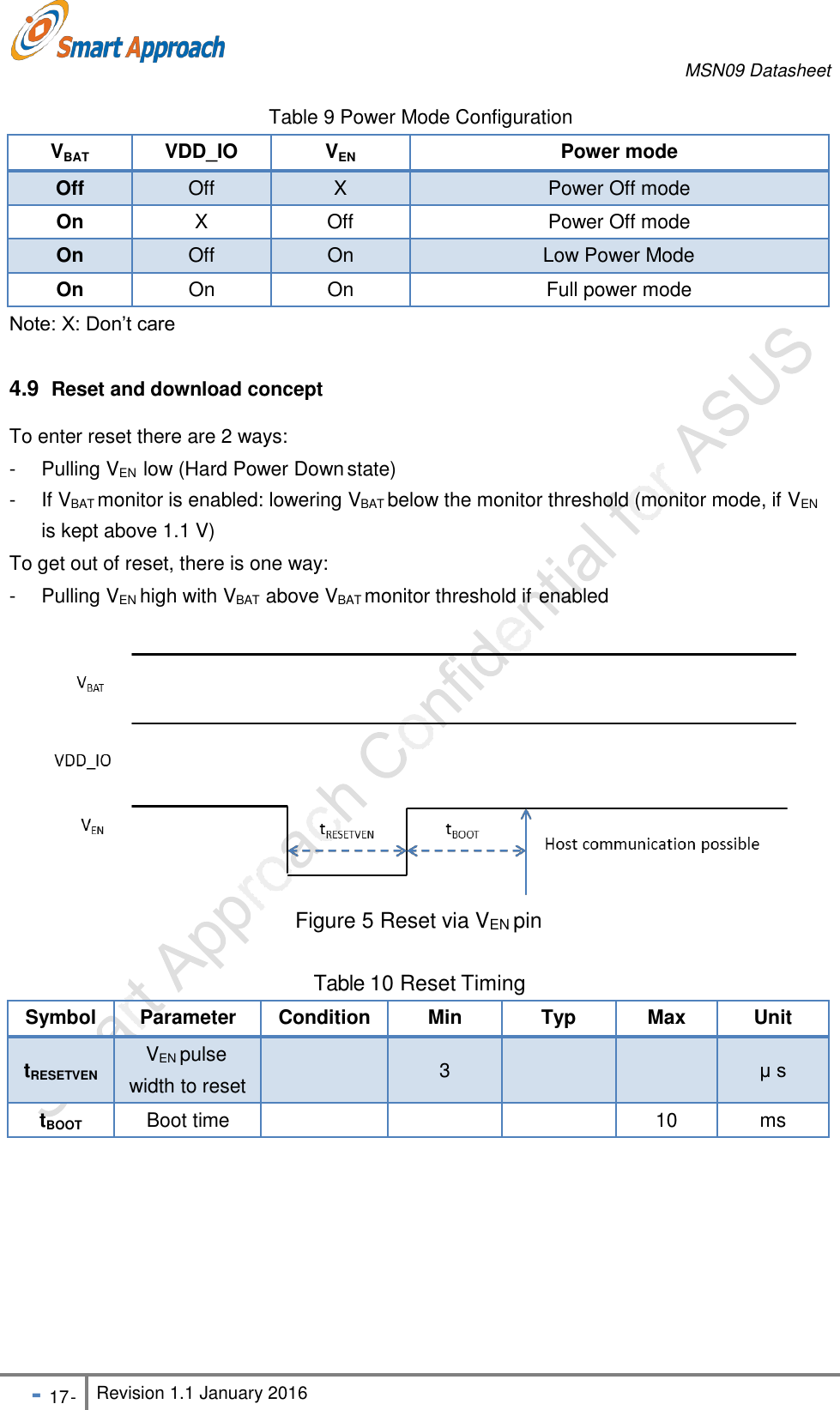

MSN09 Datasheet - 17 - Revision 1.1 January 2016   4.9  Reset and download concept  To enter reset there are 2 ways: -  Pulling VEN  low (Hard Power Down state) -  If VBAT monitor is enabled: lowering VBAT below the monitor threshold (monitor mode, if VEN is kept above 1.1 V) To get out of reset, there is one way: -  Pulling VEN high with VBAT  above VBAT monitor threshold if enabled Figure 5 Reset via VEN pin Table 10 Reset Timing  Table 9 Power Mode Configuration VBAT VDD_IO VEN Power mode Off Off X Power Off mode On X Off Power Off mode On Off On Low Power Mode On On On Full power mode Note: X: Don’t care                                 Symbol Parameter Condition Min Typ Max Unit  tRESETVEN VEN pulse width to reset   3    μ s tBOOT Boot time    10 ms

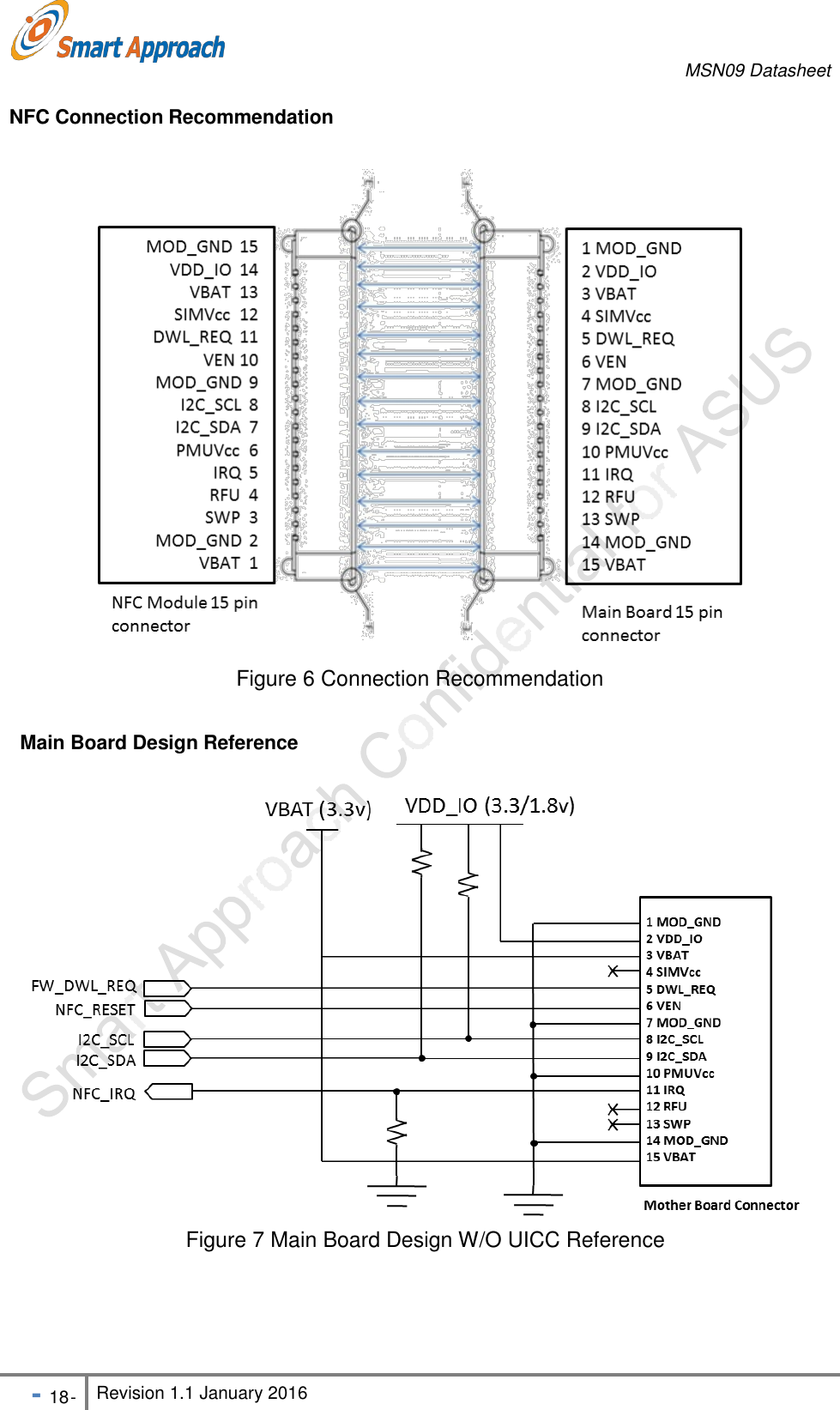

MSN09 Datasheet - 18 - Revision 1.1 January 2016    NFC Connection Recommendation                       Figure 6 Connection Recommendation    Main Board Design Reference                    Figure 7 Main Board Design W/O UICC Reference

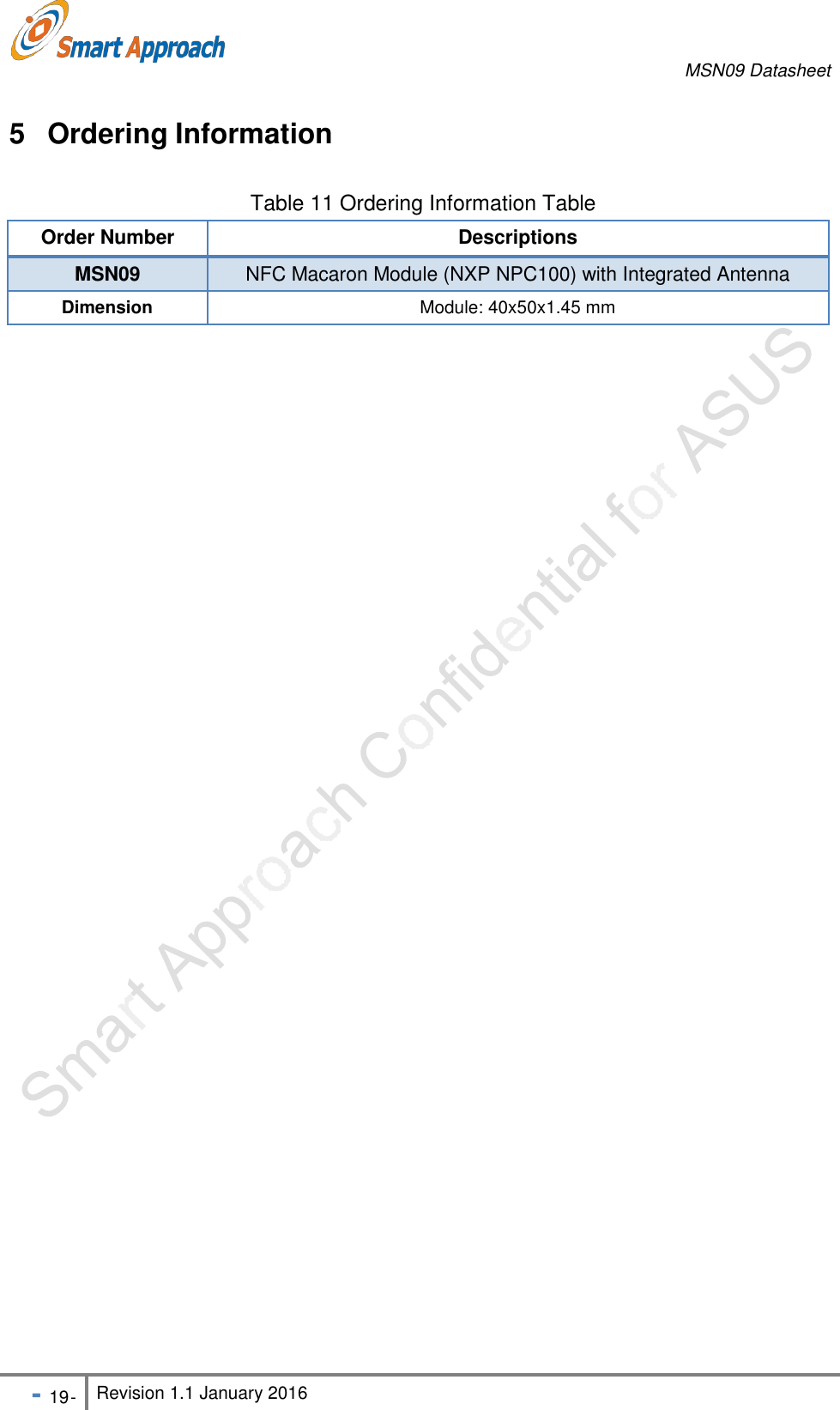

MSN09 Datasheet - 19 - Revision 1.1 January 2016    5  Ordering Information  Table 11 Ordering Information Table Order Number Descriptions MSN09 NFC Macaron Module (NXP NPC100) with Integrated Antenna Dimension Module: 40x50x1.45 mm
MSN09 Datasheet - 20 - Revision 1.1 January 2016     6  Reliability Verification  Table 12 Reliability Item Table No. Item Condition Benchmark Result Qty  1 Low Temperature Storage Test -40oC  IEC60068-2-1  Pass  5  2 High Temperature Storage Test 80oC, Humidity: 95%  IEC60068-2-78  Pass  5  3 Low Temperature Operation Test -20oC  IEC60068-2-1  Pass  5  4 High Temperature Operation Test 80oC  IEC60068-2-2  Pass  5  5 High Temperature Operation Test 65oC, Humidity: 95%  IEC60068-2-78  Pass  5  6  Salt Test PH: 3.0 ~ 3.2 ,50℃, 72 hrs, Density: 5%±1%  ASTM B368  Pass  5 7 RoHS Normal Compliance Pass 5 8 HF Normal Compliance Pass 5

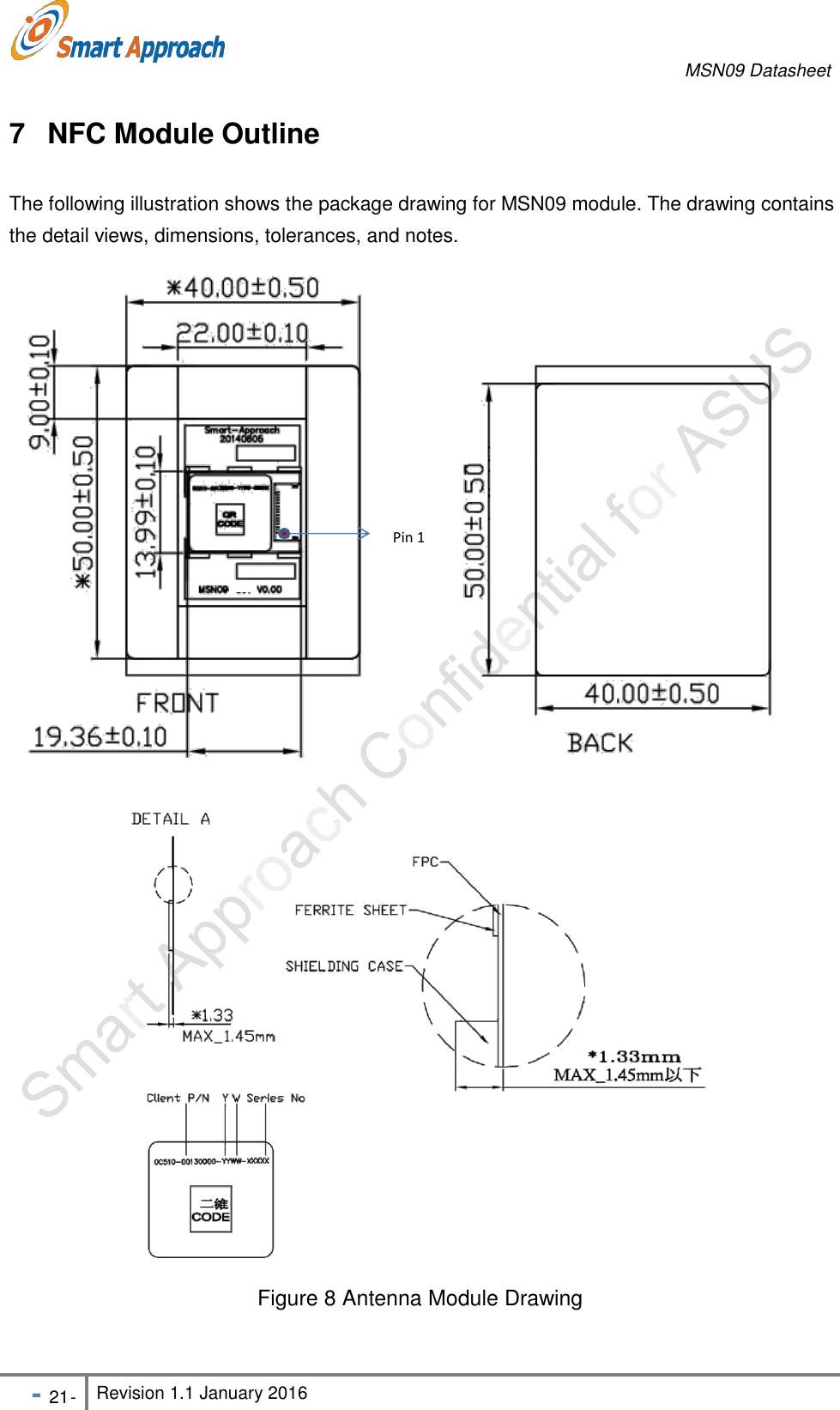

MSN09 Datasheet - 21 - Revision 1.1 January 2016    7  NFC Module Outline  The following illustration shows the package drawing for MSN09 module. The drawing contains the detail views, dimensions, tolerances, and notes.                  Pin 1                                   Figure 8 Antenna Module Drawing
MSN09 Datasheet - 22 - Revision 1.1 January 2016       Figure 9 Module FPC Connection Footprint (Button Contact) Figure 10 FPC Wire Dimension

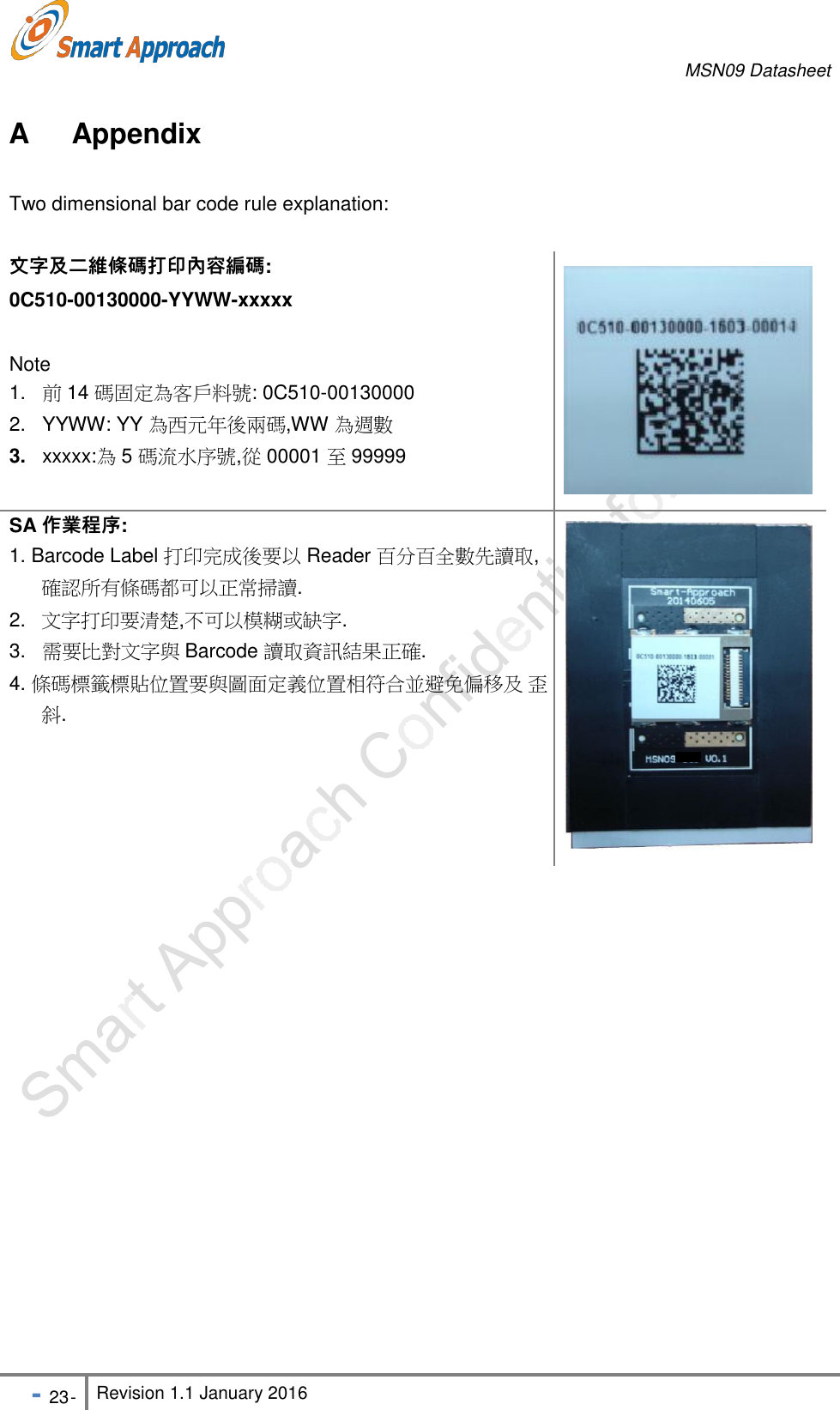

MSN09 Datasheet - 23 - Revision 1.1 January 2016    A  Appendix  Two dimensional bar code rule explanation:   文字及二維條碼打印內容編碼: 0C510-00130000-YYWW-xxxxx   Note 1.   前 14 碼固定為客戶料號: 0C510-00130000 2.   YYWW: YY 為西元年後兩碼,WW 為週數 3.   xxxxx:為 5 碼流水序號,從 00001 至 99999  SA 作業程序: 1. Barcode Label 打印完成後要以 Reader 百分百全數先讀取, 確認所有條碼都可以正常掃讀. 2.   文字打印要清楚,不可以模糊或缺字. 3.   需要比對文字與 Barcode 讀取資訊結果正確. 4. 條碼標籤標貼位置要與圖面定義位置相符合並避免偏移及 歪斜.
