Macaron N Series
MSN09
NFC Controller Module with Integrated Antenna
Datasheet Version 1.1
Smart Approach Co., Ltd.
Rm. 5, 3F., No.1, Taiyuan 2nd St.,
Zhubei City, Hsinchu County 302,
Taiwan, R.O.C.
+886-3-5601363
www.smart-approach.com.tw
MSN09 Datasheet
- 2 -
Smart Approach Co., Ltd (“S.A.”) retains the right to make changes to its products or
specifications to improve performance, reliability or manufacturability. All information in this
document, including descriptions of features, functions, performance, technical specifications
and availability, is subject to change without notice at any time. While the information furnished
herein is held to be accurate and reliable, no responsibility will be assumed by Smart Approach
for its use. Furthermore, the information contained herein does not convey to the purchaser of
microelectronic devices any license under license under the patent right of any manufacturer.
Smart Approach Co., Ltd is a registered trademark. All other products or service names used in
this publication are for identification purposes only, and may be trademarks or registered
trademarks of their respective companies. All other trademarks or registered trademarks
mentioned herein are the property of their respective holders.
Feedback on the use of any of the document is welcomed and encouraged by Smart
Approach.
Please contact service@smart-approach.com.tw for your feedback or any ordering
inquiry.
Please contact support@smart-approach.com.tw for any technical question.
MSN09 Datasheet
- 3 -
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)
this device may not cause harmful interference, and
(2)
this device must accept any interference received, including interference that may cause
undesired operation.
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1)
This device is intended for OEM integrators only.
2)
Please see the full Grant of Equipment document for other restrictions.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that
20cm may be maintained between the antenna and users. The final end product must be labeled in a
visible area with the following: "Contains FCC ID: 2AAYI-MSN09 ” and "Contains IC: 11378A-MSN09“
MSN09 Datasheet
- 4 -
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
This device may not cause interference, and
This device must accept any interference, including interference that may cause
undesired operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
cet appareil ne doit pas provoquer d’interférences et
cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer
un fonctionnement non souhaité de l’appareil.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、 加
大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；
經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信
法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電
機設備之干擾。
本模組於取得認證後將依規定於模組本體標示審驗合格標籤，並要求最終產品平台廠商(OEM
Integrator)於最終產品平台(End Product)上標示” 本產品內含射頻模組，其 NCC 型式認證號碼為:
CCXXxxYYyyyZzW “
MSN09 Datasheet
- 5 -
of the document.
Revision 1.1

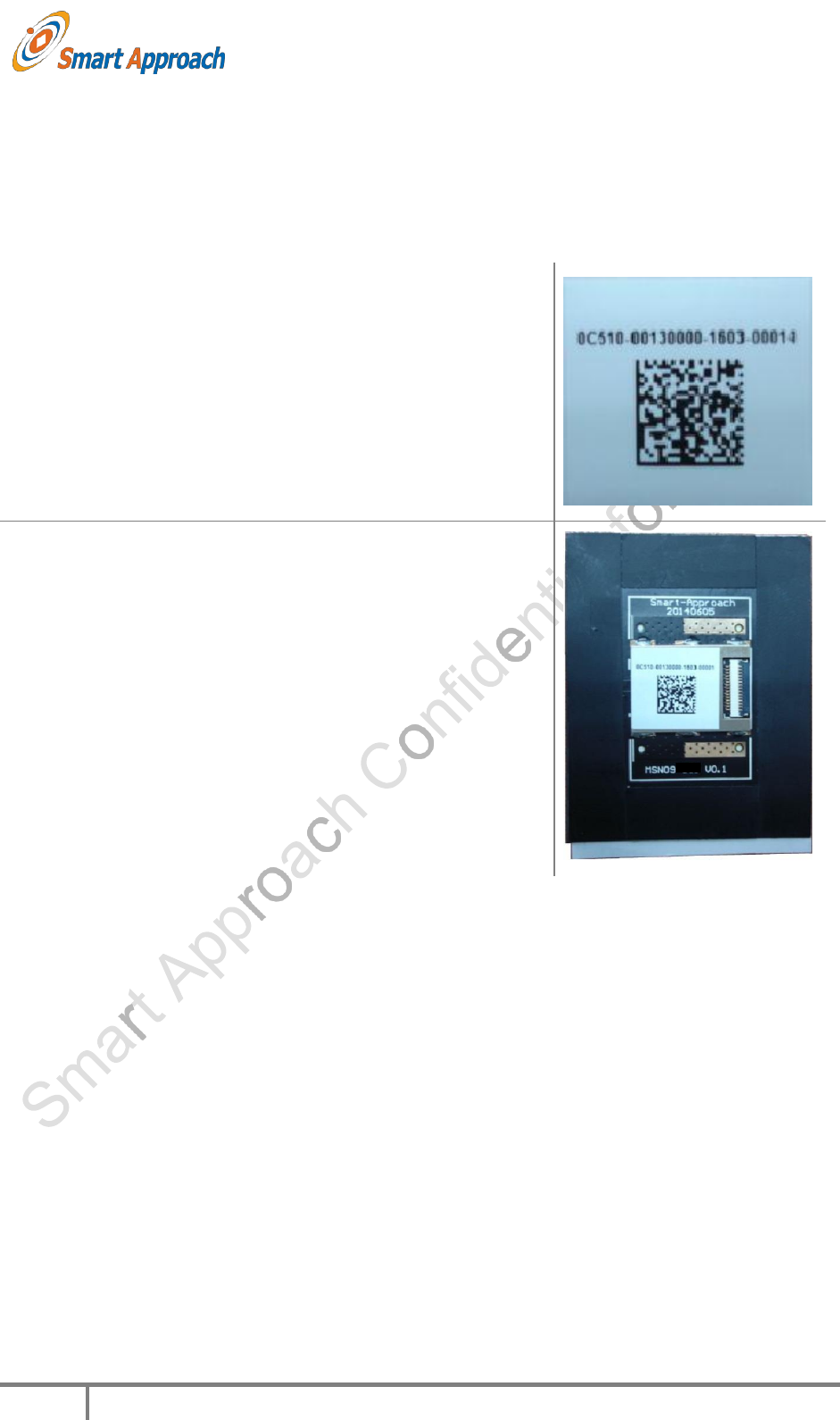

Updated NFC Module Outline and 2 dimensional bar code Rule
Revision History
This section describes the changes that were implemented in this document. The changes are
listed by revision, starting with the most current publication.
Revision 1.0
Revision 1.0 of this datasheet was published in December 2015. This was the first publication
MSN09 Datasheet
- 6 -
Contents
REVISION HISTORY............................................................................................................................. - 5 -
CONTENTS ........................................................................................................................................... - 6 -
FIGURE CONTENTS ............................................................................................................................ - 7 -
TABLE CONTENTS .............................................................................................................................. - 7 -
1
INTRODUCTION .......................................................................................................................... - 8 -
2
PRODUCT OVERVIEW ................................................................................................................ - 9 -
2.1 FEATURES.............................................................................................................................. - 9 -
2.2 APPLICATION .......................................................................................................................... - 9 -
3 FUNCTIONAL DESCRIPTIONS ................................................................................................ - 11 -
3.1 COMMUNICATION OVERVIEW FOR ISO/IEC 14443A / MIFARE CONTROLLER .......................... - 12 -
4 ELECTRICAL SPECIFICATIONS .............................................................................................. - 13 -
4.1
P
IN
D
ESCRIPTION
................................................................................................................. - 13 -
4.2 I2C ADDRESS ....................................................................................................................... - 14 -
4.3 TEMPERATURE MAXIMUM RATINGS ........................................................................................ - 14 -
4.4 DC ELECTRICAL PARAMETERS .............................................................................................. - 14 -
4.5
A
NTENNA
S
PECIFICATIONS
.................................................................................................... - 15 -
4.6 POWER CONSUMPTION ......................................................................................................... - 15 -
4.7 THERMAL PROTECTION ......................................................................................................... - 16 -
4.8 SYSTEM POWER MODES ........................................................................................................ - 16 -
4.9 RESET AND DOWNLOAD CONCEPT.......................................................................................... - 17 -
4.10 NFC CONNECTION RECOMMENDATION .................................................................................. - 18 -
4.11 MAIN BOARD DESIGN REFERENCE ........................................................................................ - 18 -
5 ORDERING INFORMATION ...................................................................................................... - 19 -
6
RELIABILITY VERIFICATION.................................................................................................... - 20 -
7 NFC MODULE OUTLINE ........................................................................................................... - 21 -
A
APPENDIX .................................................................................................................................. - 23 -
MSN09 Datasheet
- 7 -
Figure Contents
Figure 1 Typical Application ................................................................................................. - 9 -
Figure 2 Typical Application II ............................................................................................ - 10 -
Figure 3 Module Block Diagram ........................................................................................ - 11 -
Figure 4 Transmission Modes ........................................................................................... - 12 -

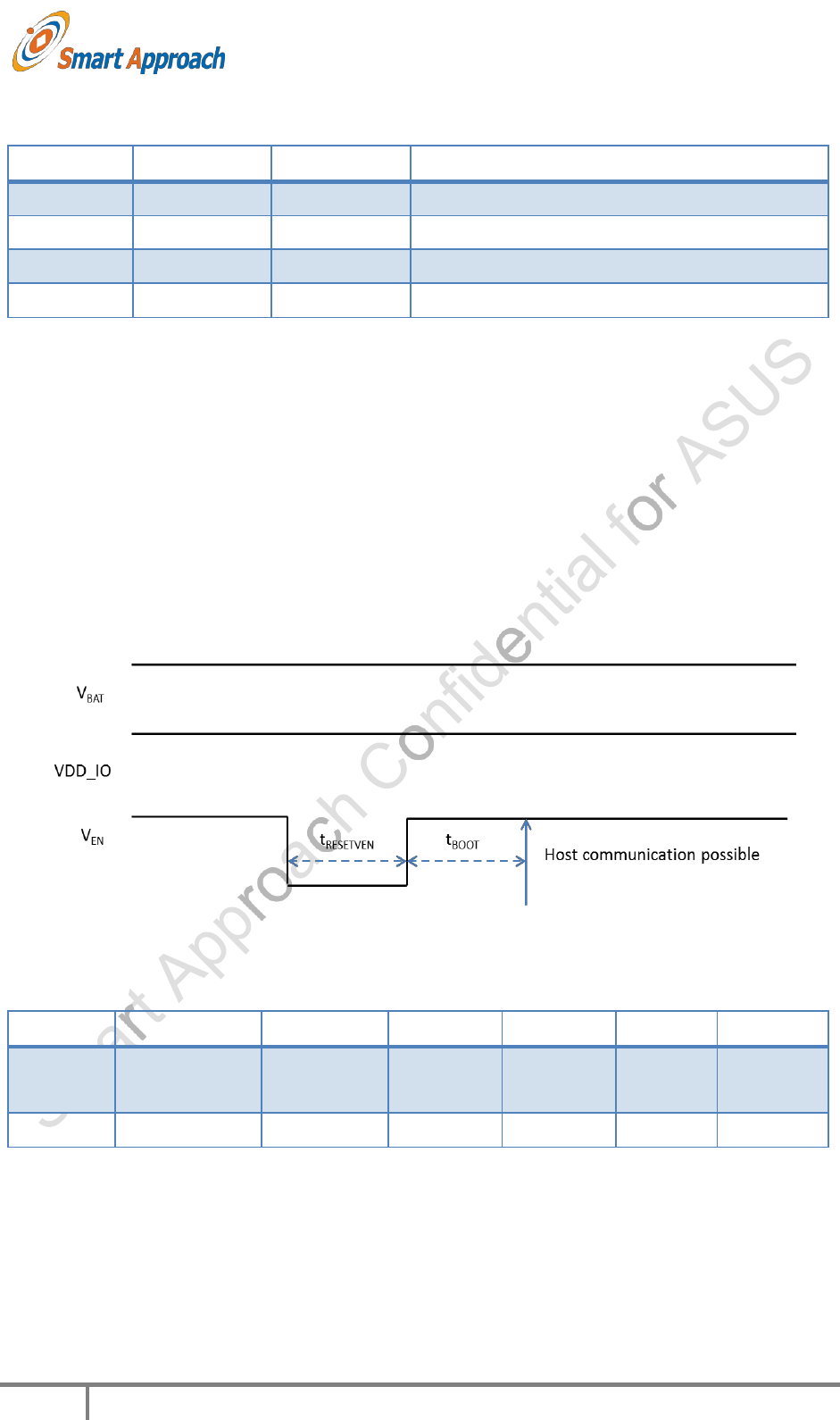

Figure 5 Reset via VEN pin ................................................................................................. - 17 -

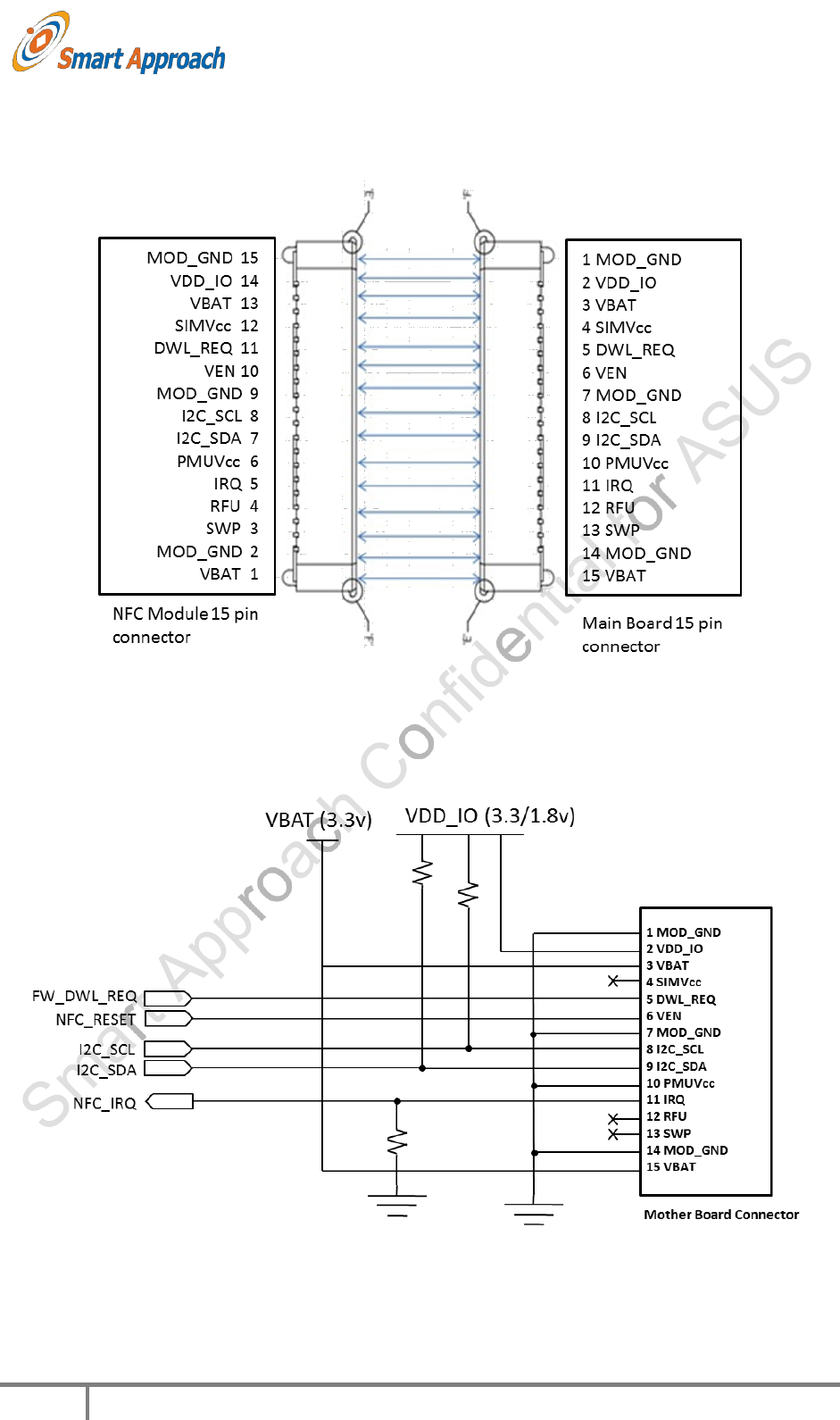

Figure 6 Connection Recommendation ............................................................................. - 18 -
Figure 7 Main Board Design W/O UICC Reference ........................................................... - 18 -

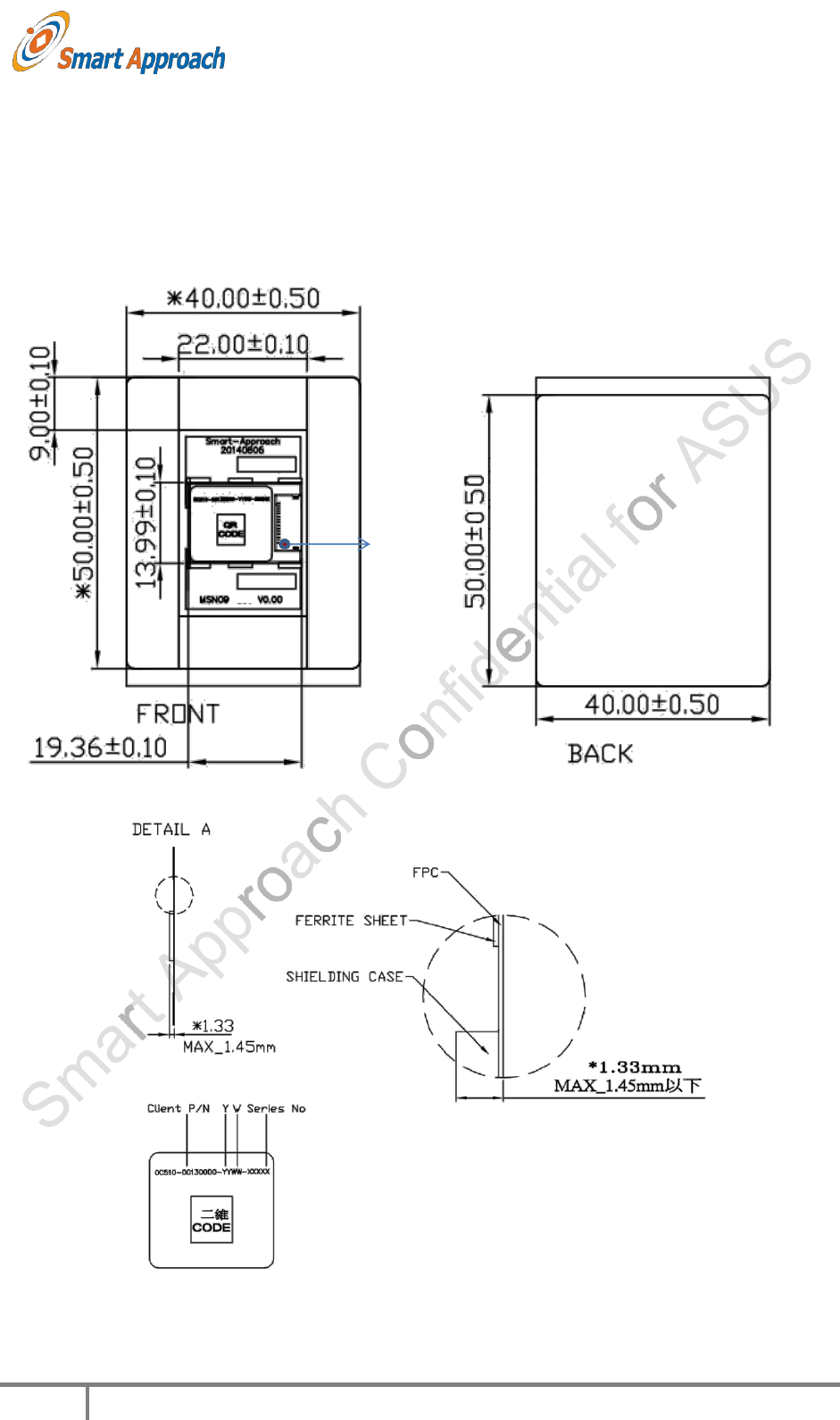

Figure 8 Antenna Module Drawing .................................................................................... - 21 -
Figure 9 Module FPC Connection Footprint (Button Contact) ............................................ - 22 -
Figure 10 FPC Wire Dimension ......................................................................................... - 22 -
Table Contents
Table 1 Module Pin Description ......................................................................................... - 13 -
Table 2 I2C Address ........................................................................................................... - 14 -
Table 3 Temperature Maximum Ratings ............................................................................ - 14 -
Table 4 DC Electrical Specification .................................................................................... - 14 -
Table 5 Antenna Specifications.......................................................................................... - 15 -
Table 6 Current Consumption ............................................................................................ - 15 -
Table 7 Thermal Protection................................................................................................ - 16 -
Table 8 System Power Modes Description ........................................................................ - 16 -
Table 9 Power Mode Configuration.................................................................................... - 17 -
Table 10 Reset Timing....................................................................................................... - 17 -
Table 11 Ordering Information Table .................................................................................. - 19 -
Table 12 Reliability Item Table ........................................................................................... - 20 -
MSN09 Datasheet
- 8 -
the Smart Approach device, this library may include:
Presentations highlighting the operational features and specifications of the device to
assist in developing your own product road map.
Application notes that provide detailed descriptions of the use of the particular Smart
Approach product to solve real-world problems.
1
Introduction
This document consists of descriptions and specifications for both functional and physical
aspects of the MSN09 NFC reader / writer module.
In addition to the datasheet, Smart Approach maintains and extensive device-specific library of
support and collateral materials that you may find useful in your application. Depending upon
MSN09 Datasheet
- 9 -
2
Product Overview
MSN09 is full featured NFC controllers designed for integration in portable equipment. It is
optimized for low power consumption with fully host controllable power states and for small
footprint for portable equipment applications.
The module’s compact, flexible design with and exposed pad is optimal for size-sensitive
Suggested applications for the MSN09 module include:
NFC writer
NFC reader
NFC peer to peer controller
NFC payment
NFC identification
applications, assures robust performance.

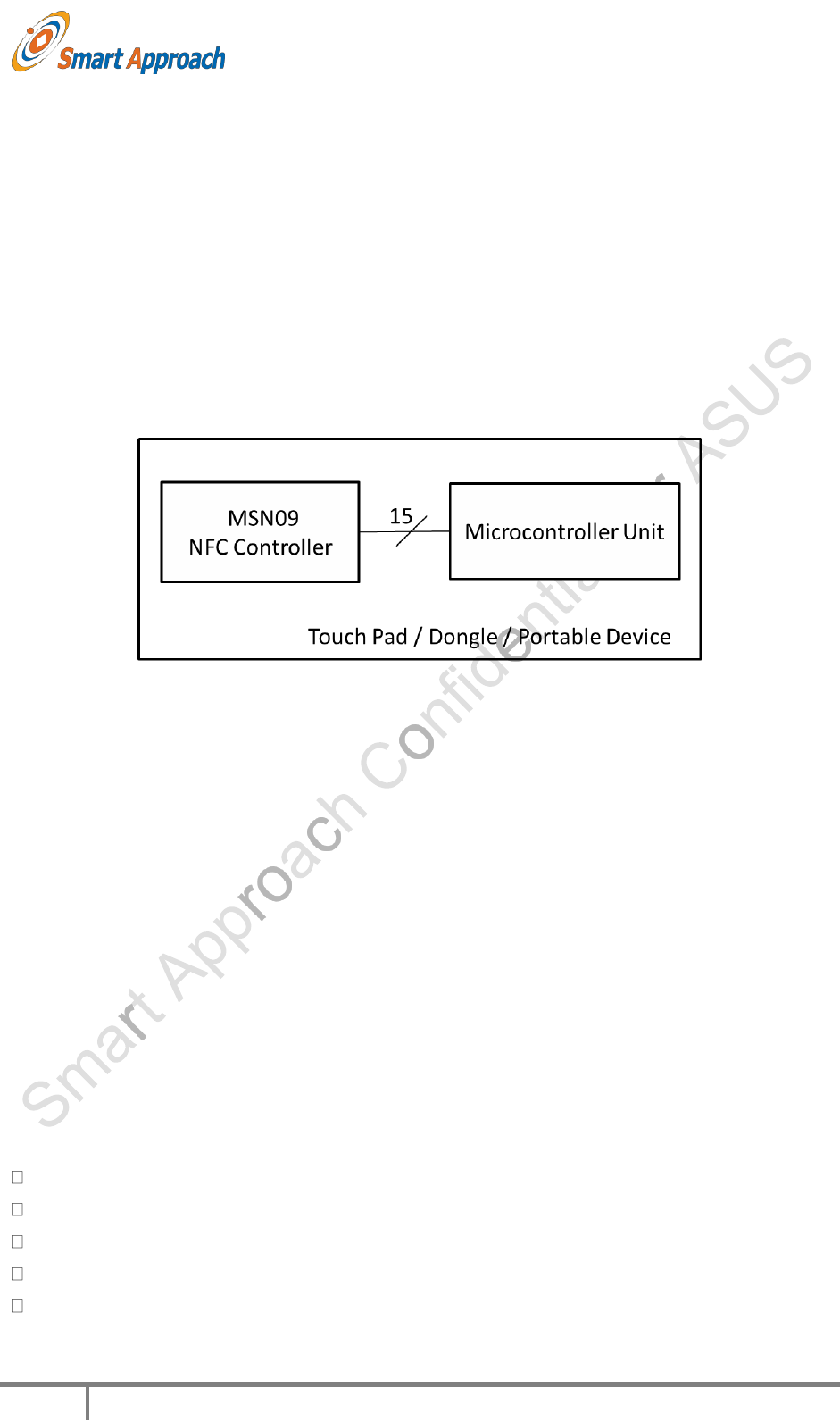

The following illustration shows a high-level, generic view of a MSN09 application.
Figure 1 Typical Application
2.1 Features
This section Tables key aspects of the MSN09 module functionality and design that distinguish
it from similar products:
NXP NPC100 NFC Controller
Full featured NFC controller industry’s low power consumption.
Compliant with ISO/IEC 14443 A/B
Compliant with 15693/18092
Antenna pairing could be customized
I2C interface
The maximum of thickness is 1.5 mm.
2.2 Application
MSN09 Datasheet
- 10 -

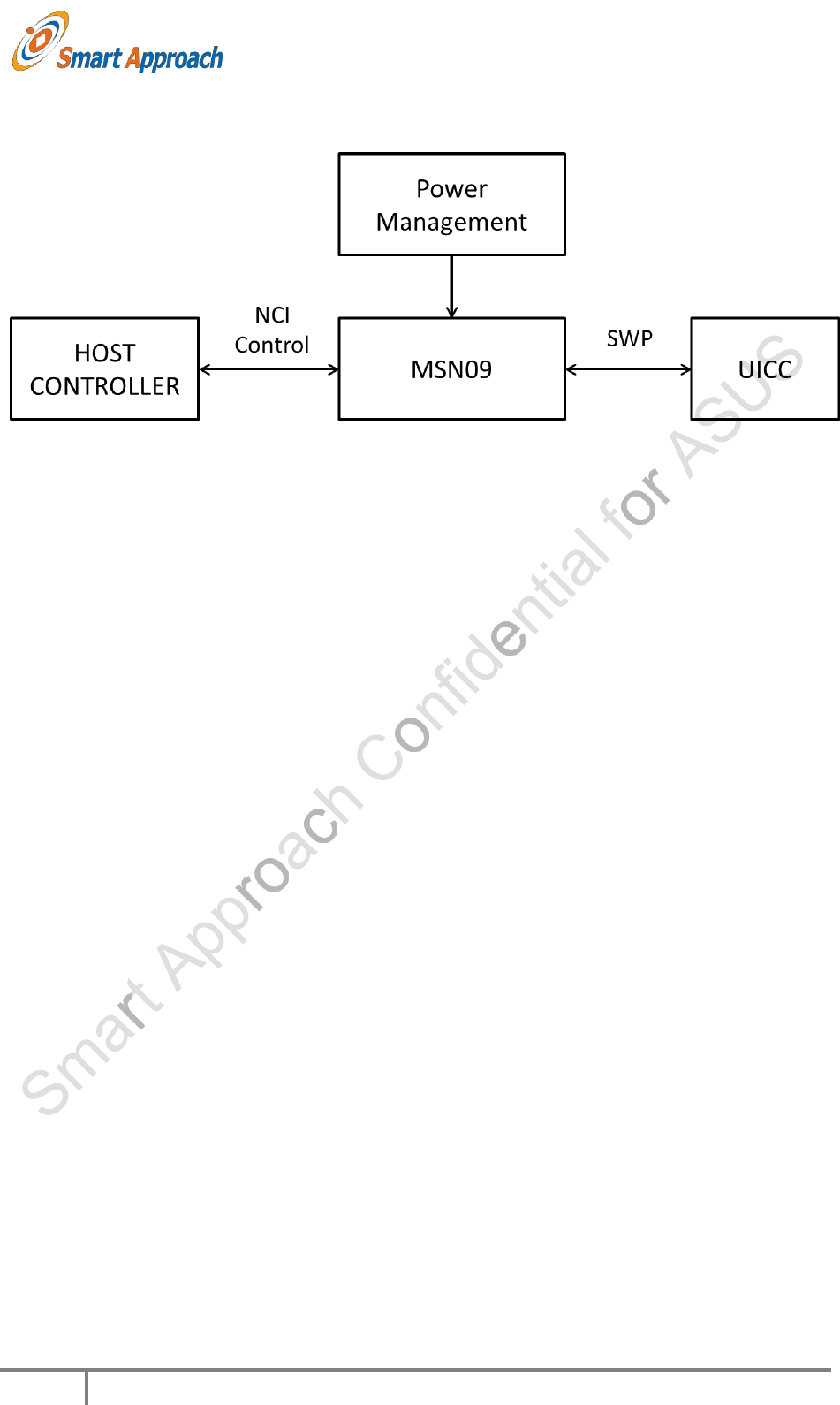

Figure 2 Typical Application II
MSN09 can be connected on a host controller through I2C-bus interfaces. The logical interface
towards the host base band is NCI-compliant with additional command set for SA specific
product features. MSN09 can be connected to a UICC through an SWP interface. The SWP
physical interface is compliant with ETSI/SCP SWP and HCI.
Moreover, MSN09 provides flexible and integrated power management unit in order to
preserve energy supporting Powered by the Field and Power Off mode. It also allows various
power schemes for the UICC.
MSN09 Datasheet
- 11 -
3
Functional Descriptions
This section provides detailed information about how MSN09 module works, what
configurations and operational features are available.

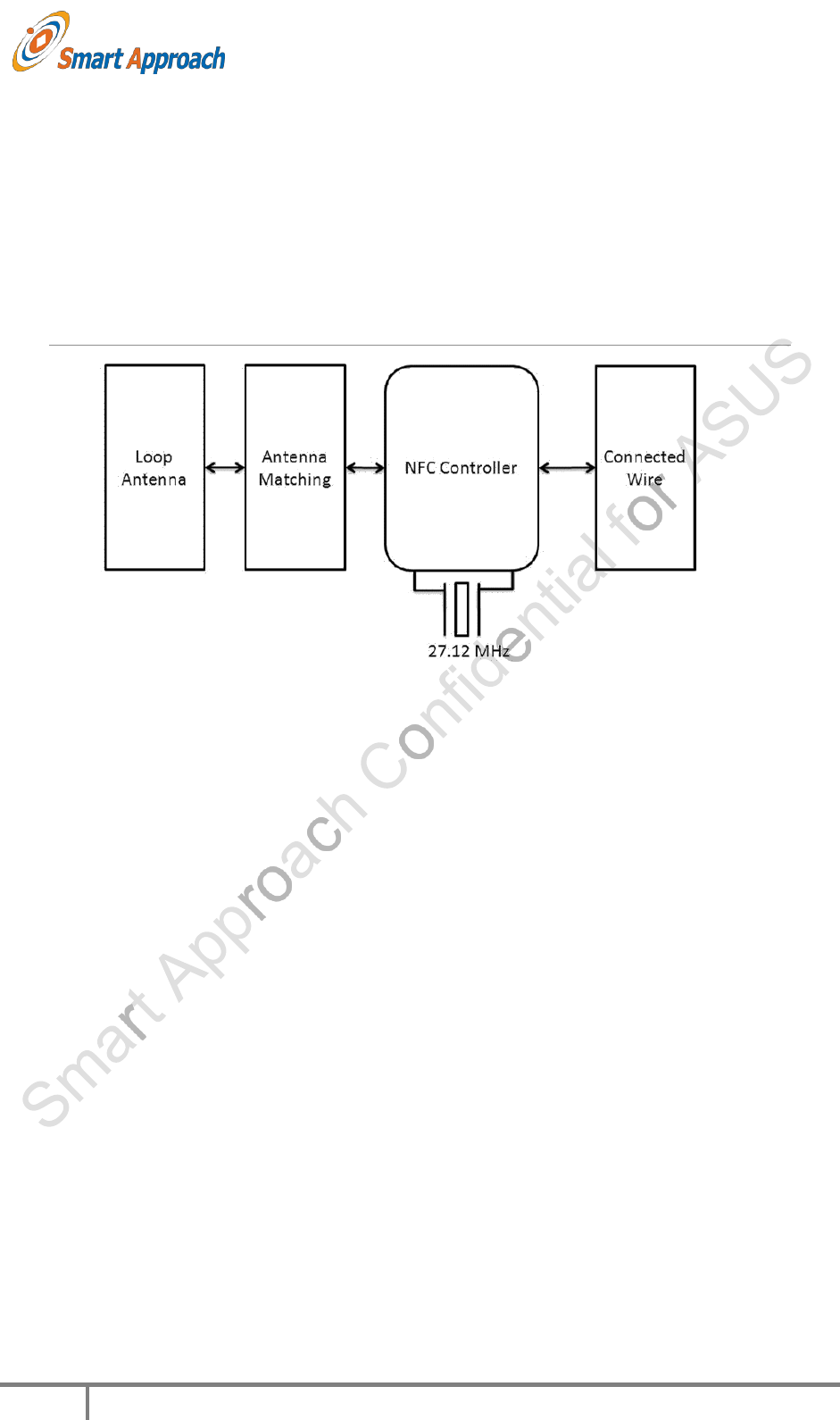

The following illustration shows the primary functional blocks of MSN09 module.
Figure 3 Module Block Diagram
Loop Antenna is Smart Approach customize solution, Antenna size of MSN09 is 40mm x 50
mm. Antenna matching is also a customize solution. NFC controller includes NXP NPC100
chipset, and has an I2C control interface through the connector to mother board.
MSN09 Datasheet
- 12 -

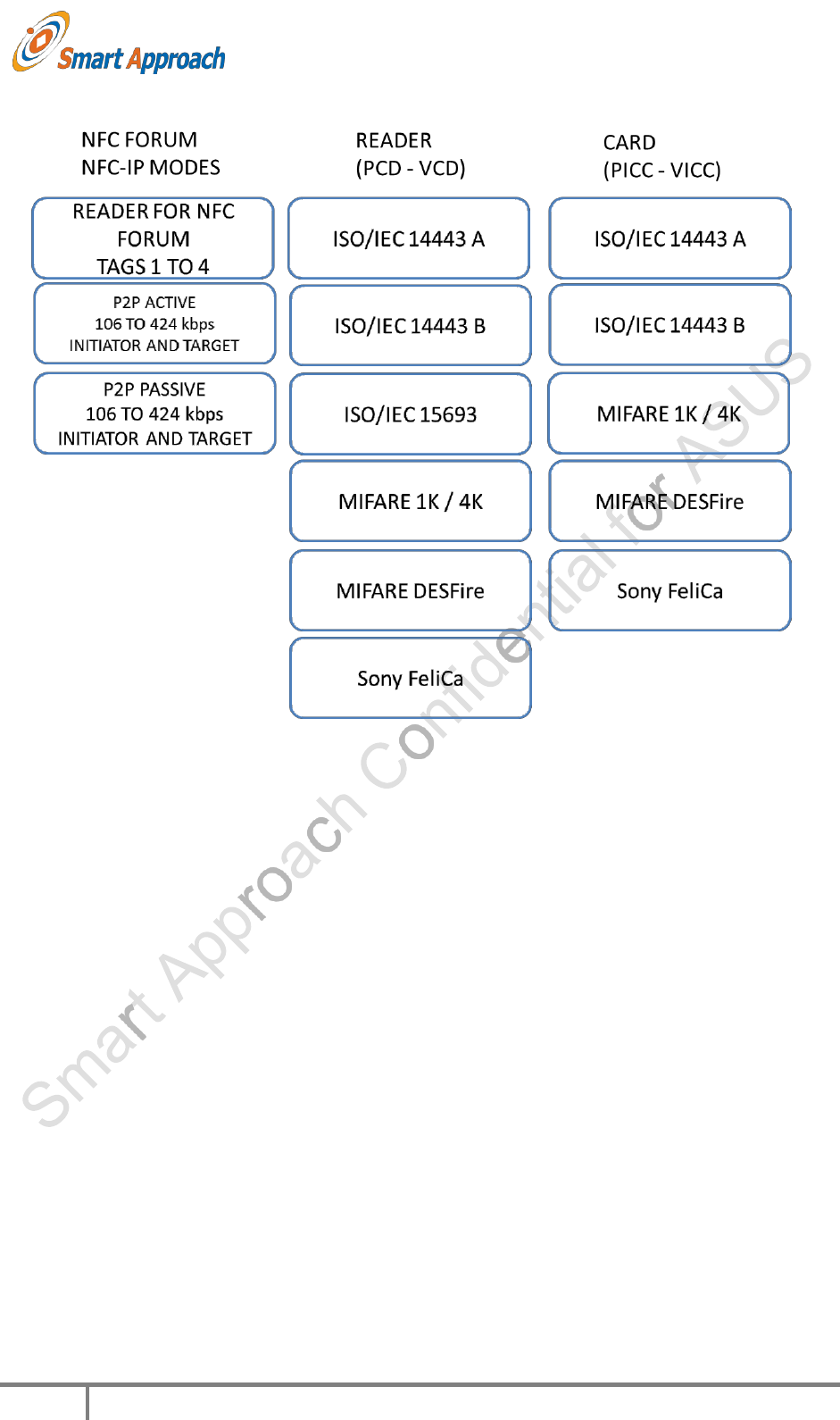

Figure 4 Transmission Modes
For contactless card functionality, MSN09 can act autonomously if previously configured by the
host in such a manner. PICC functionality can be supported without device being turned on or
even with battery removed.
3.1 Communication overview for ISO/IEC 14443A / MIFARE Controller
The contactless coprocessor and the on-chip CPU of MSN09 handle the complete ISO/IEC
14443A/MIFARE RF-protocol, nevertheless a dedicated external host has to handle the
application layer communication.
MSN09 Datasheet
- 13 -
The following Table shows the pin description for MSN09 module.
The connection ground is internally connected and should be connected to GND on the main
board as well.
Table 1 Module Pin Description
4
Electrical Specifications
This section provides the DC characteristics, AC characteristics, recommended operating
conditions. It includes information on the various timing functions of the module.
Pin Description
PIN
No.
Name
Description
Power
Reference
P/I/O
1
VBAT
+3.3V power supply input
3.3V
P
2
MOD_GND
Module Ground
GND
P
3
SWP
SWP data line to UICC/SIM, Input / Output
PMUVCC
I/O
4
RFU
Unused pin could be floating
-
-
5
IRQ
Interrupt to host, High: Interrupt; Low: Normal
VDD_IO
O
6
PMUVCC
Power supply to UICC/SIM, input, + 1.8V
1.8V
P
7
I2C_SDA
I2C Data Line (Typical I2C speed: 400KHz)
VDD_IO
I/O
8
I2C_SCL
I2C Clock (Typical I2C speed: 400KHz)
VDD_IO
I
9
MOD_GND
Module Ground
GND
P
10
VEN
Wake up the module from standby mode or reset the
module
VBAT
I
11
DWL_REQ
Firmware download control: Active High
VDD_IO
I
12
SIMVCC
The power rail used to power UICC / SIM, output pin
PMUVCC
P(O)
13
VBAT
+3.3V Power Supply
3.3V
P
14
VDD_IO
+1.8V or +3.3V for host IO reference voltage
1.8V/3.3V
P
15
MOD_GND
Module Ground
GND
P
MSN09 Datasheet
- 14 -
4.3 Temperature Maximum Ratings
Thermal specifications for this module have been modeled using a two-layer test board.
Table 3 Temperature Maximum Ratings
4.4 DC Electrical Parameters
DC Electrical specifications for this module have been modeled using a two-layer test board.
Table 4 DC Electrical Specification
I2C Address
MSN09 I2C 7bit address is defined to 0x28. To write data, this module is addressed using 0x50,
to read data, this module is addressed using 0x51.
Table 2 I2C Address
I2C address (R/W=0, write)
I2C address (R/W=1, read)
0x50
0x51
Symbol
Definition
Value
Units
Min
Max
T
Operating
Temperature
-20
80
℃
TS
Storage
Temperature
-40
100
℃
Symbol
Definition
Value
Units
Min
Typ
Max
VBAT
Power
Supply
3.1
3.3
5.5
Volts
IVBAT
DC Current
170
mA
MSN09 Datasheet
- 15 -
4.6 Power Consumption
Table 6 Current Consumption
4.5 Antenna Specifications
Antenna specifications for this module have been modeled using a two-layer test board.
Table 5 Antenna Specifications
Item
Value
Unit
Note
Min
Typ
Max
DC
Resistance
0.5
1
2
Ω
AC
Impedance
50
Ω
Frequency
13.06
13.56
14.06
MHz
VSWR <2
Q factor
25
30
35
Antenna
Type
FPC Loop Coil
Add the Ferrite
sheet
Size
Normal: (40 ±0.5) X (50±0.5)
mm
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
IHPD
Hard power down current
VBAT=3.6V,
VEN=0V
-
10.5
12
μA
ISTBY
Standby state current
VBAT=3.6V
-
-
20
μA
IACT
Active state current
VBAT=3.6V
-
6
-
mA
ITVDD
Transmitter supply current
VBAT=3.1V
-
30
100
mA
IPMUVCC
PMUVCC supply
Class B
-
1.5
3
μA
Class C
-
1
2
μA
MSN09 Datasheet
- 16 -
4.8 System power modes
Table 8 System Power Modes Description
4.7 Thermal Protection
Table 7 Thermal Protection
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
TOVERTEMP
Temperature
protection trigger
120
125
130
0C
Mode
Description
Full power
mode
The battery supply (VBAT) as well as the pad supply (VDD_IO) is
available, all use cases can be executed
Low-power
mode
The pad supply (VDD_IO) is not available. Only the Card Emulation
mode use cases via SWP are allowed
Power Off mode
The system is not supplied from any source or the system is kept Hard
Power Down (HPD)
MSN09 Datasheet
- 17 -
4.9 Reset and download concept
To enter reset there are 2 ways:
- Pulling VEN low (Hard Power Down state)
- If VBAT monitor is enabled: lowering VBAT below the monitor threshold (monitor mode, if VEN
is kept above 1.1 V)
To get out of reset, there is one way:
- Pulling VEN high with VBAT above VBAT monitor threshold if enabled
Figure 5 Reset via VEN pin
Table 10 Reset Timing
Table 9 Power Mode Configuration
VBAT
VDD_IO
VEN
Power mode
Off
Off
X
Power Off mode
On
X
Off
Power Off mode
On
Off
On
Low Power Mode
On
On
On
Full power mode
Note: X: Don’t care
Symbol
Parameter
Condition
Min
Typ
Max
Unit
tRESETVEN
VEN pulse
width to reset
3
μ s
tBOOT
Boot time
10
ms
MSN09 Datasheet
- 18 -
NFC Connection Recommendation
Figure 6 Connection Recommendation
Main Board Design Reference
Figure 7 Main Board Design W/O UICC Reference
MSN09 Datasheet
- 19 -
5 Ordering Information
Table 11 Ordering Information Table
Order Number
Descriptions
MSN09
NFC Macaron Module (NXP NPC100) with Integrated Antenna
Dimension
Module: 40x50x1.45 mm
MSN09 Datasheet
- 20 -
6 Reliability Verification
Table 12 Reliability Item Table
No.
Item
Condition
Benchmark
Result
Qty
1
Low Temperature
Storage Test
-40oC
IEC60068-2-1
Pass
5
2
High Temperature
Storage Test
80oC, Humidity:
95%
IEC60068-2-78
Pass
5
3
Low Temperature
Operation Test
-20oC
IEC60068-2-1
Pass
5
4
High Temperature
Operation Test
80oC
IEC60068-2-2
Pass
5
5
High Temperature
Operation Test
65oC, Humidity:
95%
IEC60068-2-78
Pass
5
6
Salt Test
PH: 3.0 ~ 3.2
,50℃, 72 hrs,
Density: 5%±1%
ASTM B368
Pass
5
7
RoHS
Normal
Compliance
Pass
5
8
HF
Normal
Compliance
Pass
5
MSN09 Datasheet
- 21 -
7 NFC Module Outline
The following illustration shows the package drawing for MSN09 module. The drawing contains
the detail views, dimensions, tolerances, and notes.
Pin 1
Figure 8 Antenna Module Drawing
MSN09 Datasheet
- 22 -
Figure 9 Module FPC Connection Footprint (Button Contact)
Figure 10 FPC Wire Dimension
MSN09 Datasheet
- 23 -
A Appendix
Two dimensional bar code rule explanation:
文字及二維條碼打印內容編碼:
0C510-00130000-YYWW-xxxxx
Note
1. 前 14 碼固定為客戶料號: 0C510-00130000
2. YYWW: YY 為西元年後兩碼,WW 為週數
3. xxxxx:為 5 碼流水序號,從 00001 至 99999
SA 作業程序:
1. Barcode Label 打印完成後要以 Reader 百分百全數先讀取,
確認所有條碼都可以正常掃讀.
2. 文字打印要清楚,不可以模糊或缺字.
3. 需要比對文字與 Barcode 讀取資訊結果正確.
4. 條碼標籤標貼位置要與圖面定義位置相符合並避免偏移及 歪
斜.

Navigation menu
