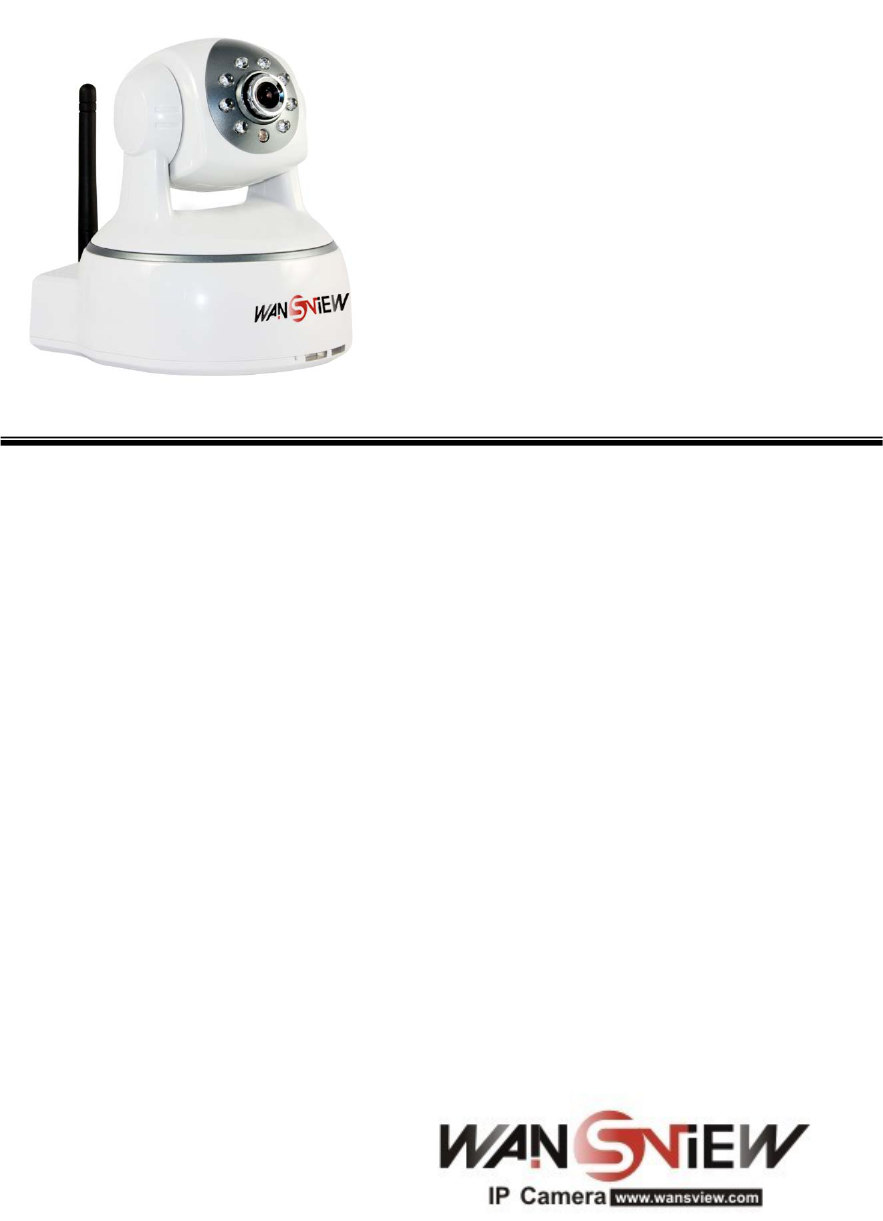

Smart eye Digital Electronics HYIPC-530W IP CAMERA User Manual H Sereis
Shenzhen Smart-eye Digital Electronics Co.,Ltd IP CAMERA H Sereis
Users Manual
H
H
S
Se
er
ri
ie
es
s—
——
—w
wi
it
th
h
P
Pa
an
n/
/T
Ti
il
lt
t
o
of
f
C
CM
MO
OS
S
N
NC
C5
53
30
0
N
NC
C5
53
30
0W
W
U
Us
se
er
r
M
Ma
an
nu
ua
al
l
http://www.wansview.com
Index
1 INTRODUCTION...........................................................................................................................4
2 FUNCTION AND FEATURES .....................................................................................................4
3 APPEARANCE AND INTERFACE.............................................................................................6
3.1 APPEARANCE............................................................................................................................6
3.2 INTERFACE OF EQUIPMENT .......................................................................................................6
4 NETWORK CONNECTING .........................................................................................................8
4.1 CONNECTION INSTRUCTION......................................................................................................8
4.2 VISIT INSTRUCTION ..................................................................................................................8
5 VISIT IP CAMERA FROM LAN ..................................................................................................9
5.1 SET IP ADDRESS.......................................................................................................................9

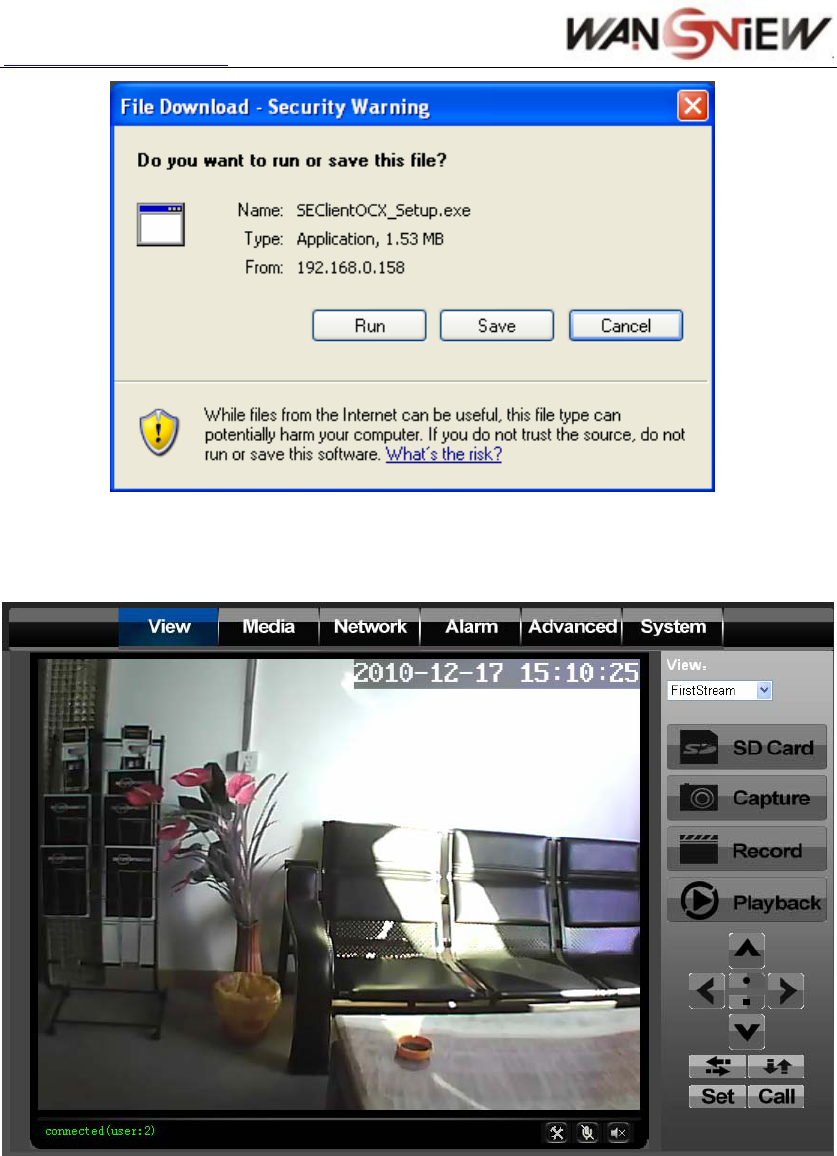

5.2 VISIT IP CAMERA ...................................................................................................................10
5.2.1 Menu column ..................................................................................................................... 11
5.2.2 Video Displaying Area .......................................................................................................12
5.2.3 Browse SD Card.................................................................................................................12
5.2.4 Capture ..............................................................................................................................12
5.2.5 Record................................................................................................................................13
5.2.6 Playback ............................................................................................................................13
5.2.7 The control of Pan/Tilt.......................................................................................................13

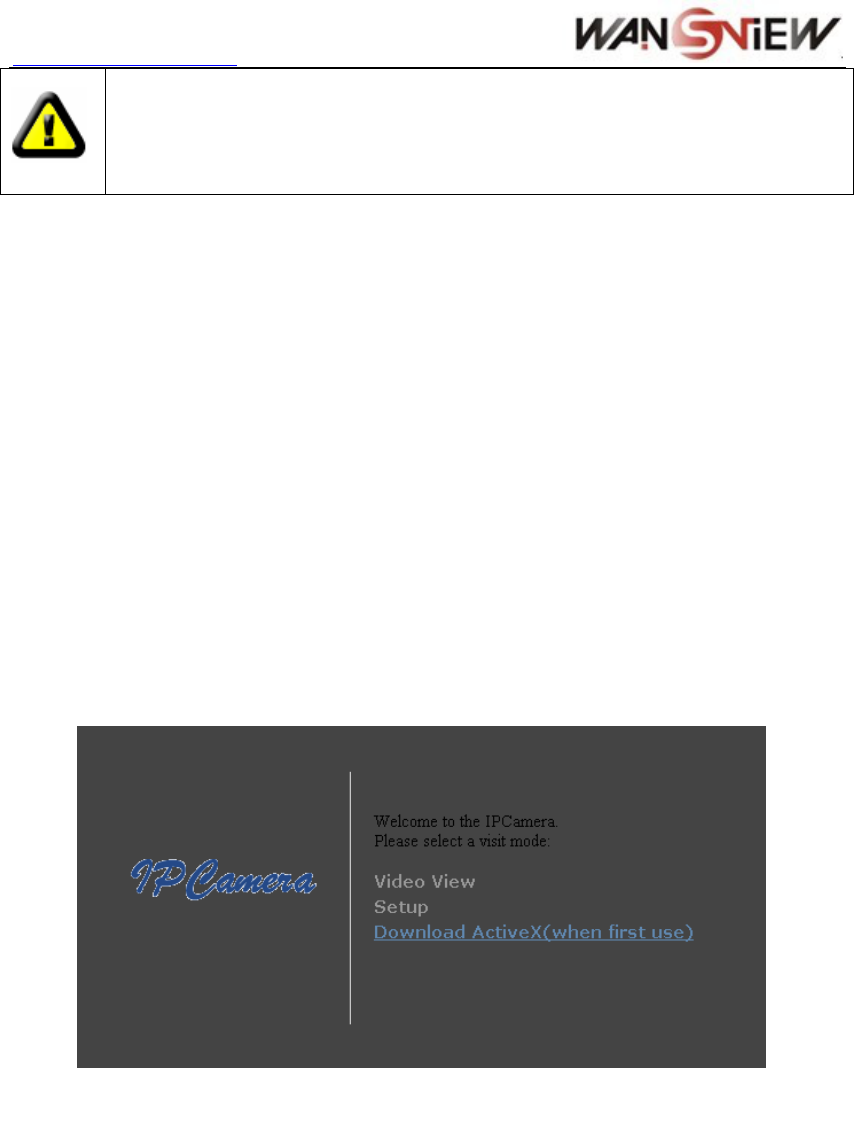

5.3 NOTICE (FOR THE FIRST TIME USE)..........................................................................................13
6 VISIT IP CAMERA FROM WAN ...............................................................................................14
6.1 PORT FORWARDING ................................................................................................................14
6.2 DDNS ....................................................................................................................................14
6.2.1 Manufacturer’s Domain Name...........................................................................................15
6.2.2 Third Part Domain Name ..................................................................................................15
7 OTHER SETTINGS.....................................................................................................................16
7.1 VIDEO SETTING PAGE.............................................................................................................16

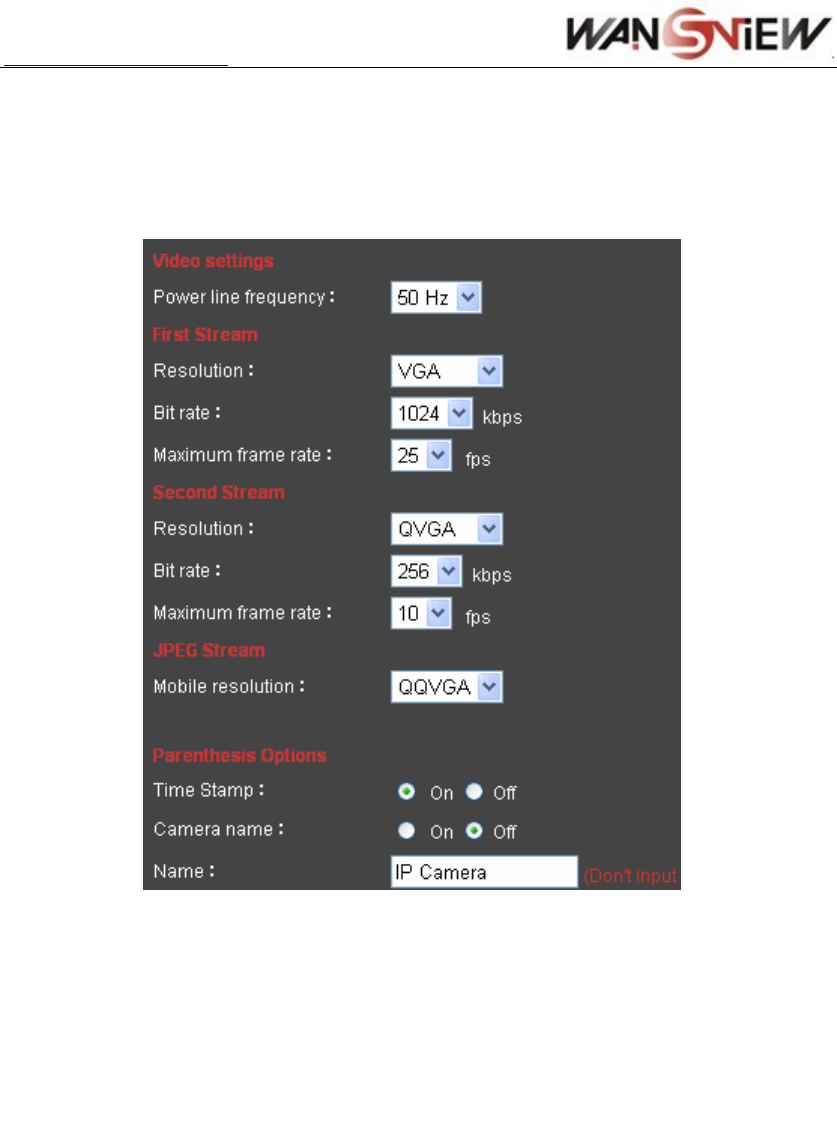

7.1.1 Video Setting ......................................................................................................................16

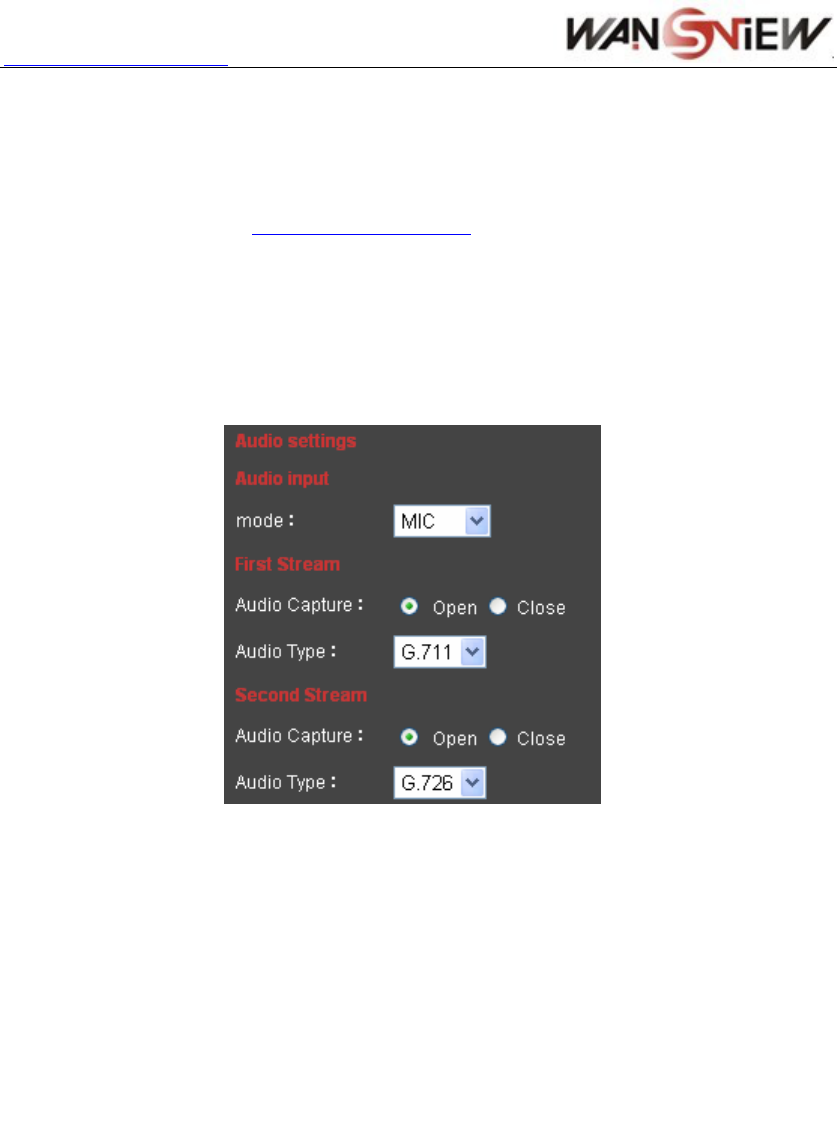

7.1.2 Audio Setting......................................................................................................................17

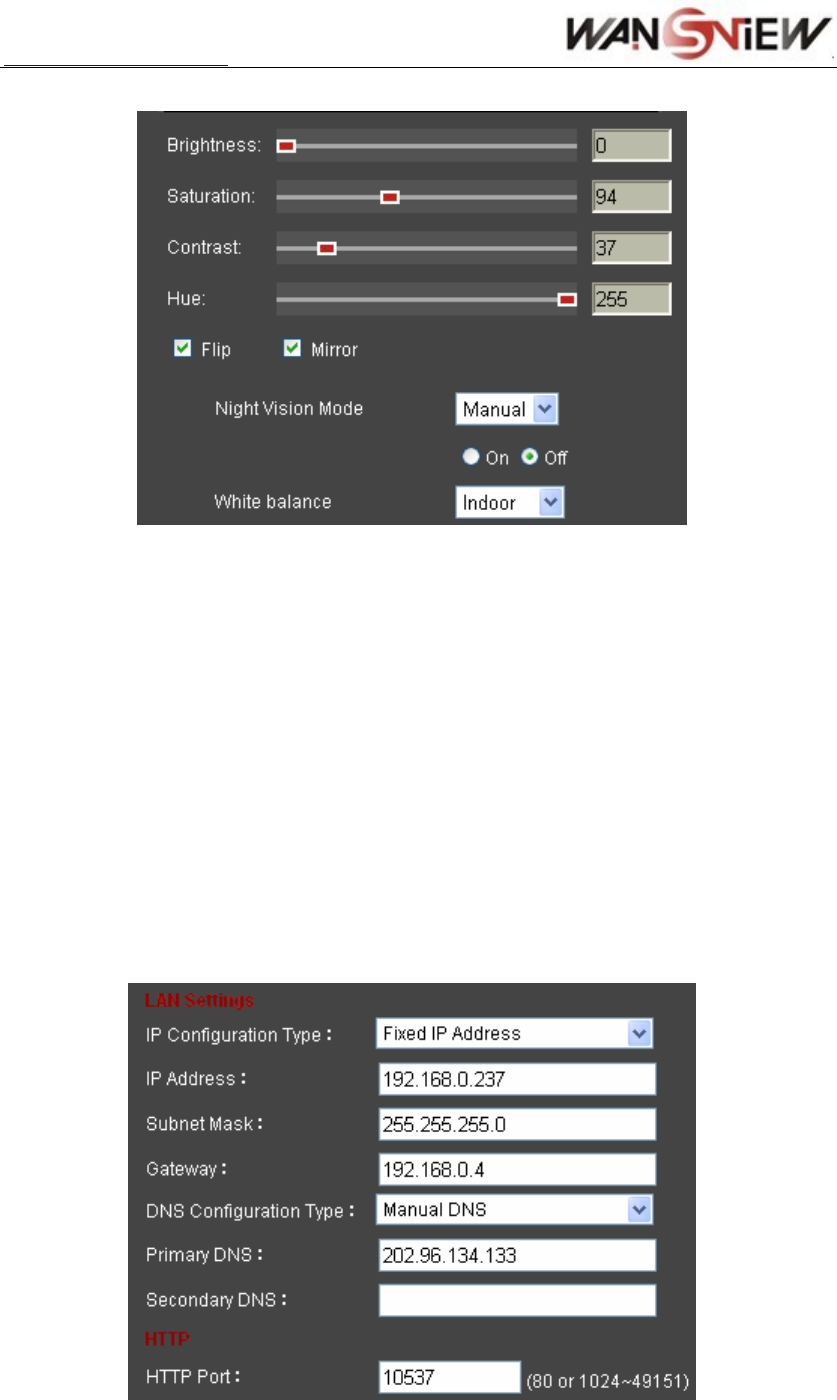

7.1.3 Image Setting .....................................................................................................................18
7.2 NETWORK SETTING PAGE.......................................................................................................18
7.2.1 Basic Network Setting........................................................................................................18
7.2.2 WIFI Setting.......................................................................................................................19
7.2.3 Remote Access Setting .......................................................................................................19
7.3 ALARM SETTING PAGE ...........................................................................................................20
7.3.1 External Alarm Input .........................................................................................................20
2
http://www.wansview.com
7.3.2 Motion Detection Setting ...................................................................................................20
7.3.3 Alarm Mode Setting ...........................................................................................................21
7.3.4 Alarm Time Setting.............................................................................................................21
7.4 ADVANCE SETTING.................................................................................................................22

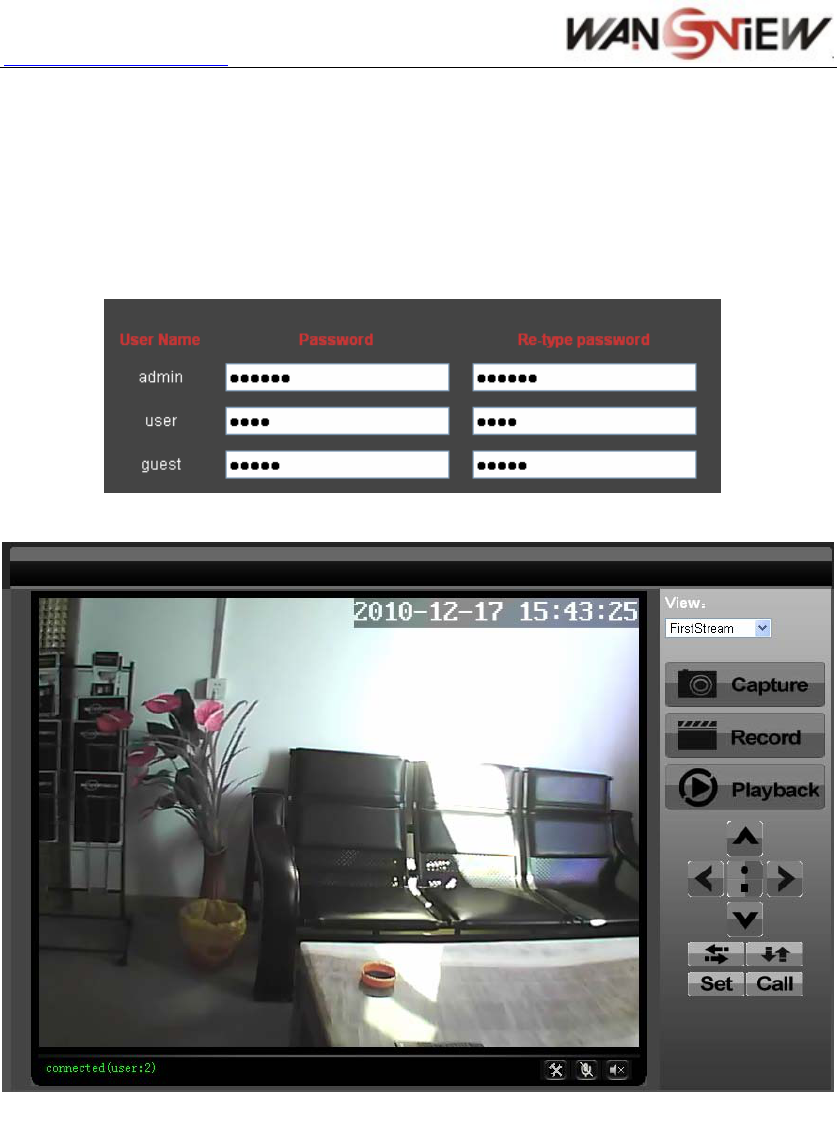

7.4.1 User Management..............................................................................................................22
7.4.2 Auto Capture Setting..........................................................................................................23
7.4.3 E-mail Setting ....................................................................................................................24
7.4.4 FTP Setting ........................................................................................................................24
7.4.5 Alarm Server Setting..........................................................................................................25
7.5 SYSTEM SETTING PAGE ..........................................................................................................25
7.5.1 Device Information Checking ............................................................................................25

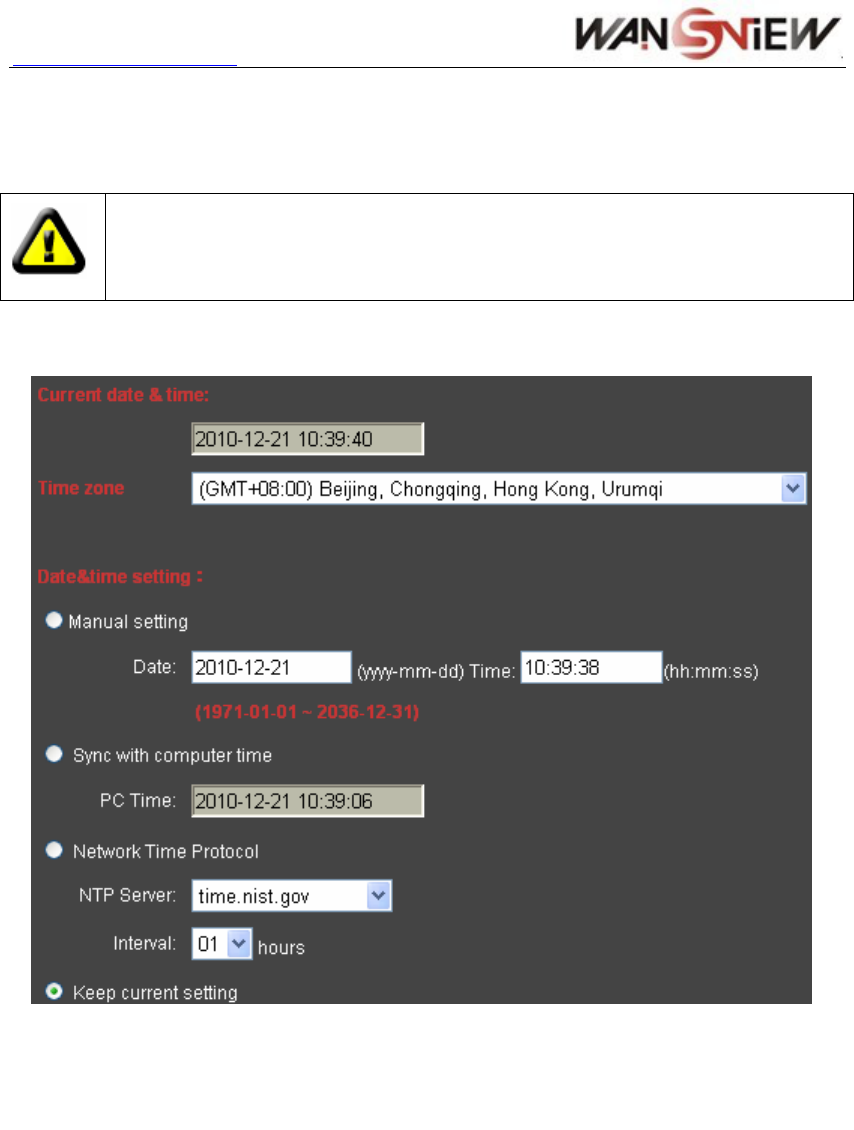

7.5.2 Date and Time Setting........................................................................................................26

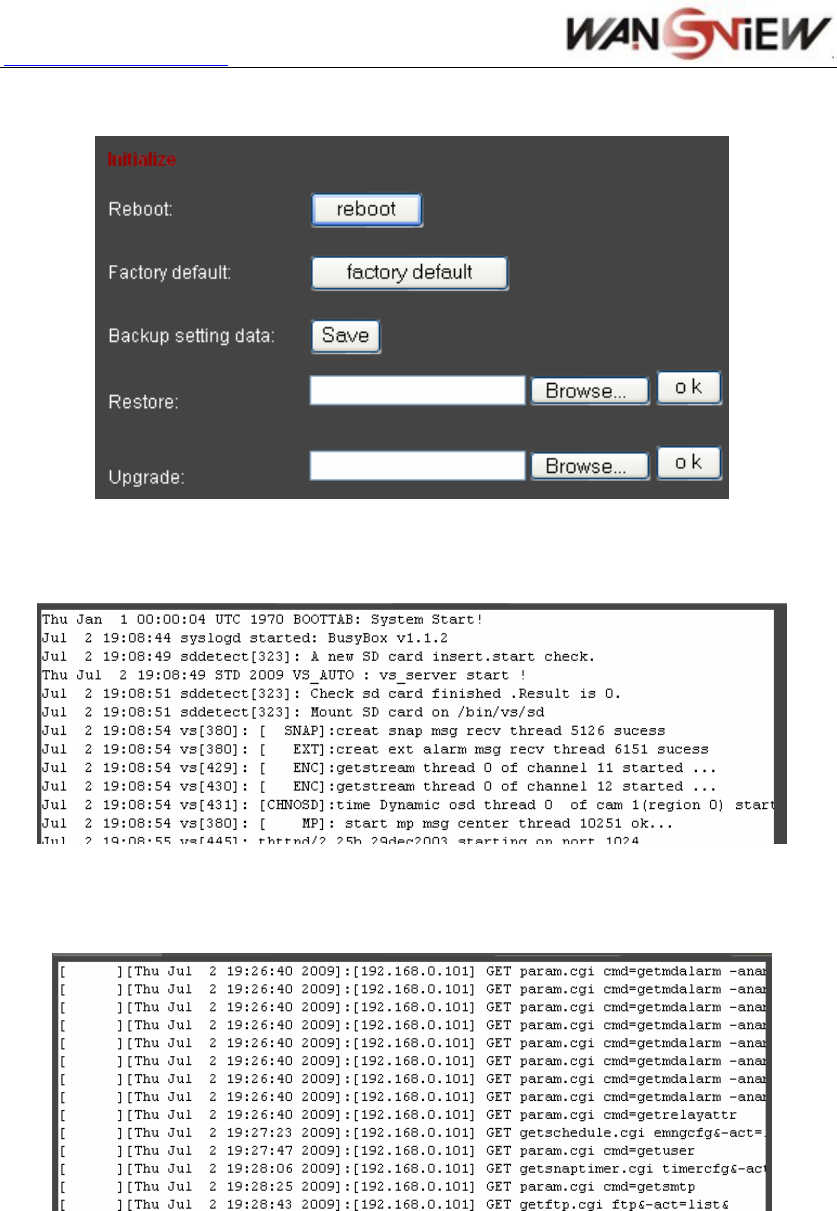

7.5.3 Default Setting ...................................................................................................................26
7.5.4 System Log Checking.........................................................................................................27
7.5.5 User browsing Log Checking.............................................................................................27
8 ADVANCED APPLICATION......................................................................................................28
8.1 MOBILE PHONE BROWSING.....................................................................................................28
8.2 OTHER WEB BROWSER VISIT DEVICE.......................................................................................28

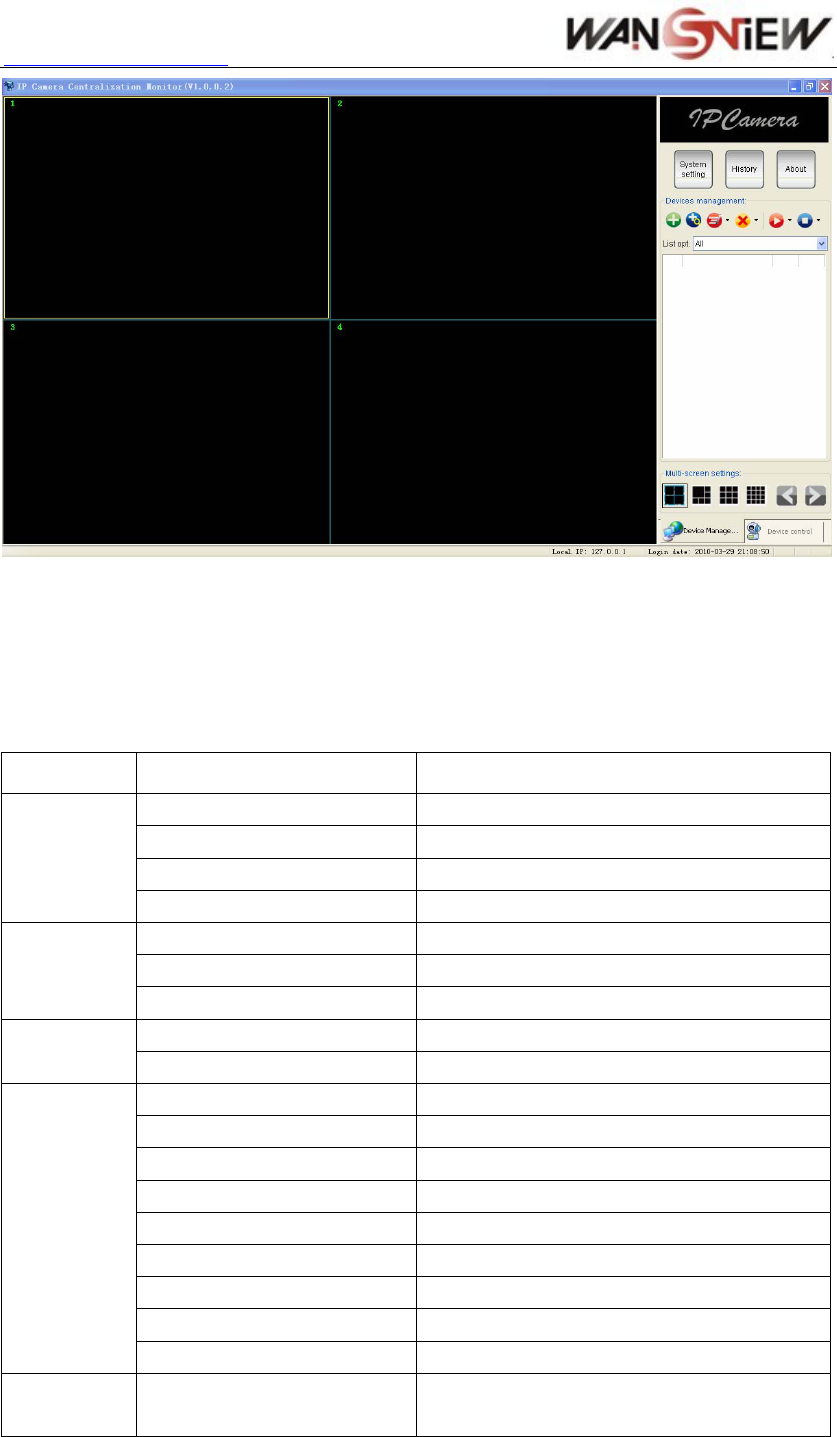

8.3 CENTRALIZATION CONTROL SOFTWARE ................................................................................29
9 TECHNICAL PARAMETERS....................................................................................................30
10 FCC STATEMENT ..................................................................................................................32
3
http://www.wansview.com
1 Introduction
The IP Camera combines a high quality digital video camera with network connectivity and a
powerful web server to bring clear video to your desktop from anywhere on your local
network or over the Internet.
Your IP Camera package should contain the following items, If any of the listed
items are missing, please contact your reseller from where you purchased the
camera for assistance.
The package includes:
9 IP Camera * 1
9 IP Camera Utility CD *1
9 5V Power Adapter *1
9 Stand of plastic * 1
9 Cable * 1
If you select the device with wifi function, it has built-in wifi module and transmitting
antenna in package.
2 Function and Features
9 32-bits RISC processor and special video encoder which can be up to 3M pixels encoding
performance
9 Support H.264 Main Profile@Level3.0 compression format, bit rate is smaller, and the
image is more clear. It is more convenient for transferring through Internet and save more
storage space.
4
http://www.wansview.com
9 VGA/QVGA/QQVGA resolution optional. User can change some specification according
to their demands to satisfy his own visual prefer.
9 Support 3 kinds of video stream, suitable for Local, Internet and Cross-platform view.
9 Built-in microphone, and also support to connect external audio capturing device (like MIC
phone or sound pick-up) to capture the audio. External speaker can play the voice sent to
the live scene, to achieve two-way intercom function. Audio support G.711 and G.726
types.
9 Built-in Pan/Tilt, horizontally 350°, vertically 100°. This equipment is smart and beautiful,
very easy to install and use in many occasions.
9 Built-in web server, support video view and parameter settings by browser; use one port
to send all the data, it facilitates network setting.
9 Support 802.11b/g protocol, can build up wireless monitoring.
9 Support mobile phone watching.
9 Support UPNP, port forwarding automatically on the router.
9 Support maxim 32G SD card for video and picture storage.
9 Motion detection and alarm pin can be connected to external sensors to detect
environmental situation.
9 Alarming record can be stored by email, SD card, and FTP server. External alarm can be
open when detecting unusuality. It also sends alarm info to the alarm server.
9 Infrared LED for night vision covers 5m area, to realize 24 hours monitoring.
9 Support three level of user authority.
9 Support upgrading online.
9 Manufacture attached a label at the bottom of each IP Camera, it include Device ID,
DDNS. When IP Camera is connected to the internet, this URL can be used to visit the
device.
9 Manufacture provides free software, support Multi-view, Long time recording, video replay
etc.
9 Support video view by other browsers like as Firefox, safari etc.
5
http://www.wansview.com
3 Appearance and interface

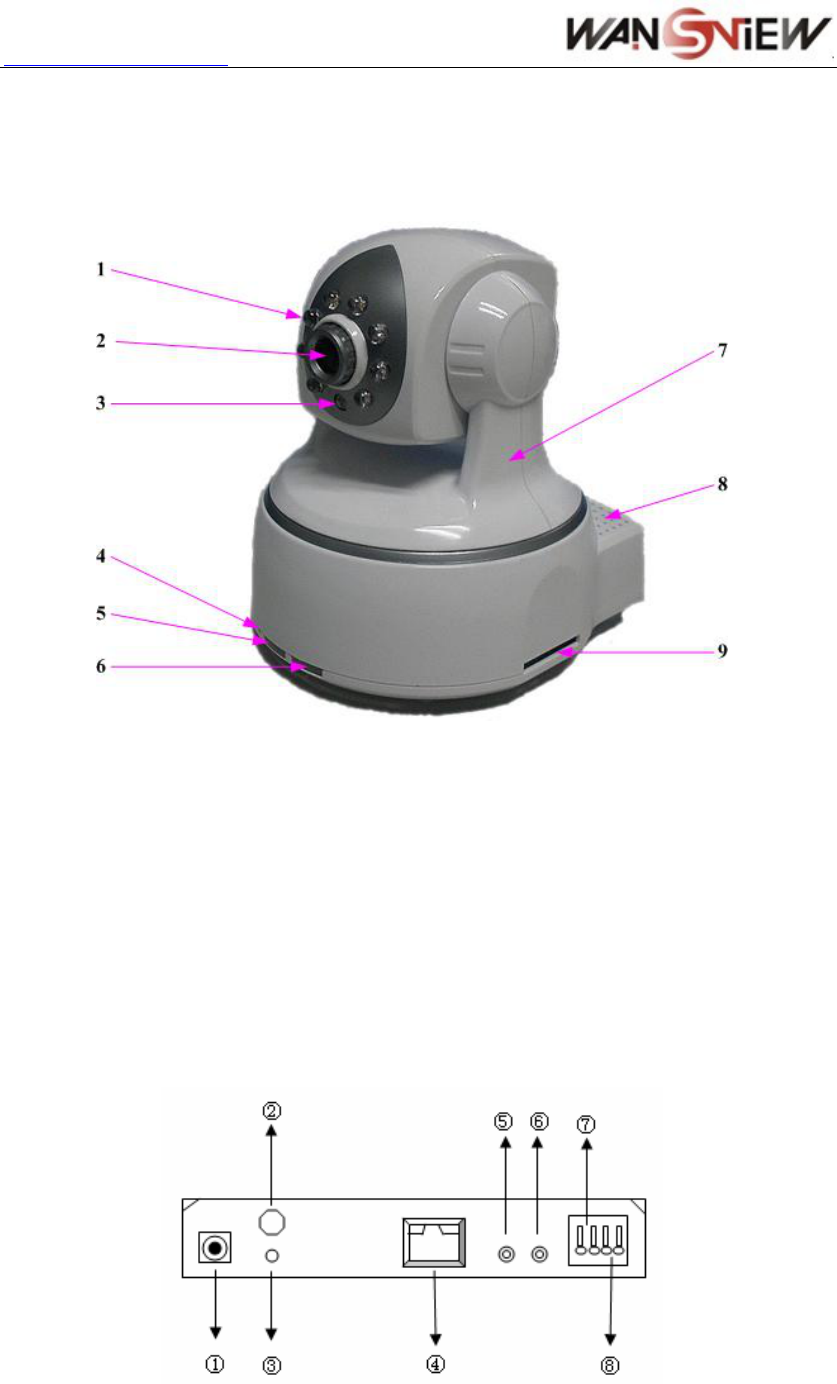

3.1 Appearance
Figure 1
1——IR Lights 2——Lens 3——Photovaristor
4——Internal Mic Hole 5——Power Indicator 6——WIFI Indicator
7——Shell 8——Heat Dissipation Hole 9——SD Card Socket
Remarks:
¾ Power Indicator: it will turn RED if equipment was powered on.
¾ WIFI Indicator: If there is a WIFI module in the equipment, and there is data transferring
by WIFI, it will begin twinkle.
3.2 Interface of Equipment
Figure 2
1） Power Input Socket: Connect DC adaptor, its output should be 5V power specification.
6
http://www.wansview.com
2） WIFI Antenna Hole: Install the WIFI antenna.
3） RESET Button: Press the RESET button and hold on more than 5 seconds, the
equipment will restart and recover to the factory default settings. The Pan/Tilt will move
around for one circle and finally focus to the center.
4） RJ45 Ethernet Socket: RJ45 Ethernet socket is 10/100M self-adjust. The equipment
can connect to all kinds of network equipments, such as hub, router, switch, etc.
5） Audio Input Socket: Audio input socket is designed for connecting external microphone
or line-in audio signal. Please refer to 7.1.2 and select right settings.
6） Audio Output Socket: Audio output socket is for line-out audio player, such as
headphone, speaker, etc.
7） Alarm Output Socket: The alarm output socket is connected with a relay in the IP
camera. IP camera will control the switch to trigger the alarm bell or buzzer to alarm. The
relay is able to control the switch of a alarm whose voltage is no more than 36V, and
current is lower than 2A. Please refer to the Figure 3 for the connection of an external
alarm.
Figure 3
8） Alarming Input Pin: Please refer to the schematic Diagram of Figure 4 for how external
detector collects alarm information.
PIR
Input
pins
Switch
Alarm
Alarm power
Output Pins
Switch
PIR Power
Figure 4
The detector should be switched type (always on or always off). If the detector has detected
the smoke or people or animal to enter the area, the detector will switch on or switch off. And
it will send the external alarm signal into the IP camera.
7
http://www.wansview.com
4 Network Connecting

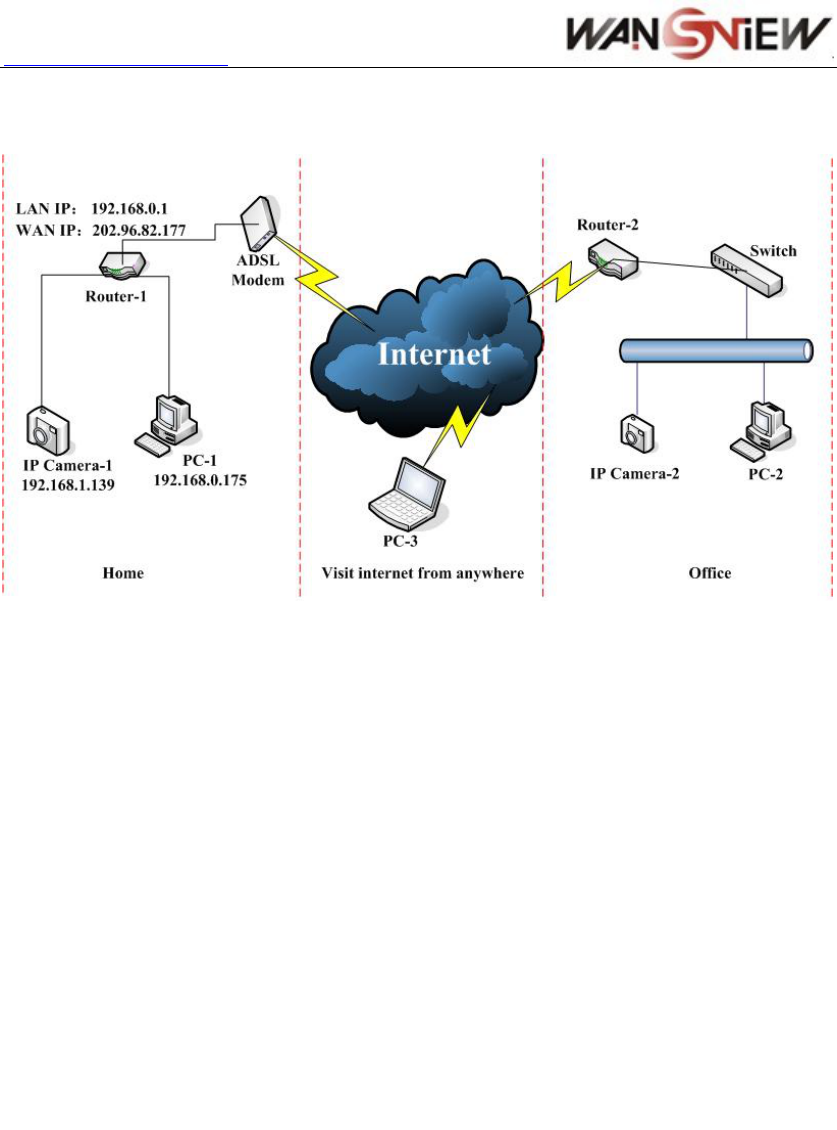

Figure 5
IP Camera can be connected with other PC through router, switch or hub to establish a
network. Figure 5 shown connections.
4.1 Connection Instruction
Before visit the IP Camera, you should firstly connect it to the Network, supply the power to it,
and check if the light of RJ45 Socket is normal to make sure all of the communication links
are fluency. The connection method likes as Figure 5.
1) IP Camera-1 and IP Camera-2 are connected separately to 2 different LANs.
2) And these 2 LANs are already connected to the Internet. In order to get the LANs to be
connected to the Internet, they are required to be equipped with router and to apply for
the communication link from the local Internet Service Provider (ISP) and connect to it by
ADSL or optical fiber, etc.
3) PC-3 is connected to the Internet.
4.2 Visit Instruction
To visit the IP Camera, you should do some settings of IP Camera and Internet besides
getting the communication link fluency.
1) The PC and IP Camera are in the same LAN. If you want to use this PC to visit the IP
Camera, you need to make sure their IP address is at the same segment. Otherwise you
need to do the reset of the IP Camera’s IP address. For example, the IP Camera-1’s IP
address in Figure 5 is 192.168.1.139 (at the segment of 192.168.1), while the PC-1’s IP
address is 192.168.0.175 (at the segment of 192.168.0), then you will be not able to visit
the IP Camera through the PC-1. You need to change the IP Camera-1’s IP address to
192.168.0.139 firstly.
8
http://www.wansview.com
2) The PC and IP Camera are in different LANs, but they are all connected to Internet. For
the IP Camera-1 and PC-2 in Figure 5, if you want to visit IP Camera-1 by PC-2, you
should firstly do the setting as 1) to make sure that you can visit IP Camera-1 through
PC-1 and then do the setting of router-1 (do the port forwarding from the router). The
PC-2’s visit application could be sent through router-1 to IP Camera-1. Normally, PC-2
could only send the information to router-1, if you don’t do the setting of router-1, then
PC-2 could not visit IP Camera-1.
5 Visit IP Camera from LAN
5.1 Set IP Address
The IP addresses of IP Camera and PC should be at the same segment, in Figure 5, the IP
Camera-1 can’t be visited. Run the HSearch_en.exe in the CD, click Search button, and then
select the IP Camera to reset the IP Camera’s IP address, as the Figure 6.
Figure 6
If you have the firewall software in your PC, when you run the HSearch_en.exe, it
may pop up a window to say if you want to block this program or not, then you
should choose not to block.
9
http://www.wansview.com
IP Camera by default use fixed IP address 192.168.0.158 and fixed http port 80. If
you don’t have this software, you could also press down the reset button (Figure 2)
to go back the factory setting. Then you could use this defaulted IP address to visit
the IP Camera.
Setting Instruction:
9 Please carefully check the “Local PC information” on the top left corner which lists the
PC configuration. If there are several network adapters in the PC, please select the one
you are using and make sure the IP address of IP Camera is as the same segment of
the PC.
9 Change the content of “IP config” on the right to make sure the content is the same as
“Local PC information”. Only the last section of the IP address which needs setting by
yourself, you can set it as 139 just like Figure 6.
9 If you don’t know how to fill out the content of “IP config”, you could also tick the “Set IP
automatically” to get the IP address from the router automatically (If can’t get IP from
router, the IP Camera will set it to 192.168.0.158 for itself).
9 Put the user name and password into “Authentication” (By default, the user name is:
admin, password is: 123456). Click “Update”. The setting will take effect now. Select
the device in list box, click “Browse” button, it will open the Browser automatically and
pop up a window at the same time which requires to inputting the user name and
password. Then you see the home page of the IP Camera-1, just as below Figure 7.
Figure 7
5.2 Visit IP Camera
If you use internet explorer or compatible browser to visit it for the first time (use other
browsers, please refer to 8.2), you will be required to install the ActiveX before viewing the
video. As Figure 7, click “Download ActiveX (when first use)”. The dialog just as Figure 8 will
pop up accordingly. Click “Run”, then it will download and install the ActiveX automatically.
10
http://www.wansview.com
Figure 8

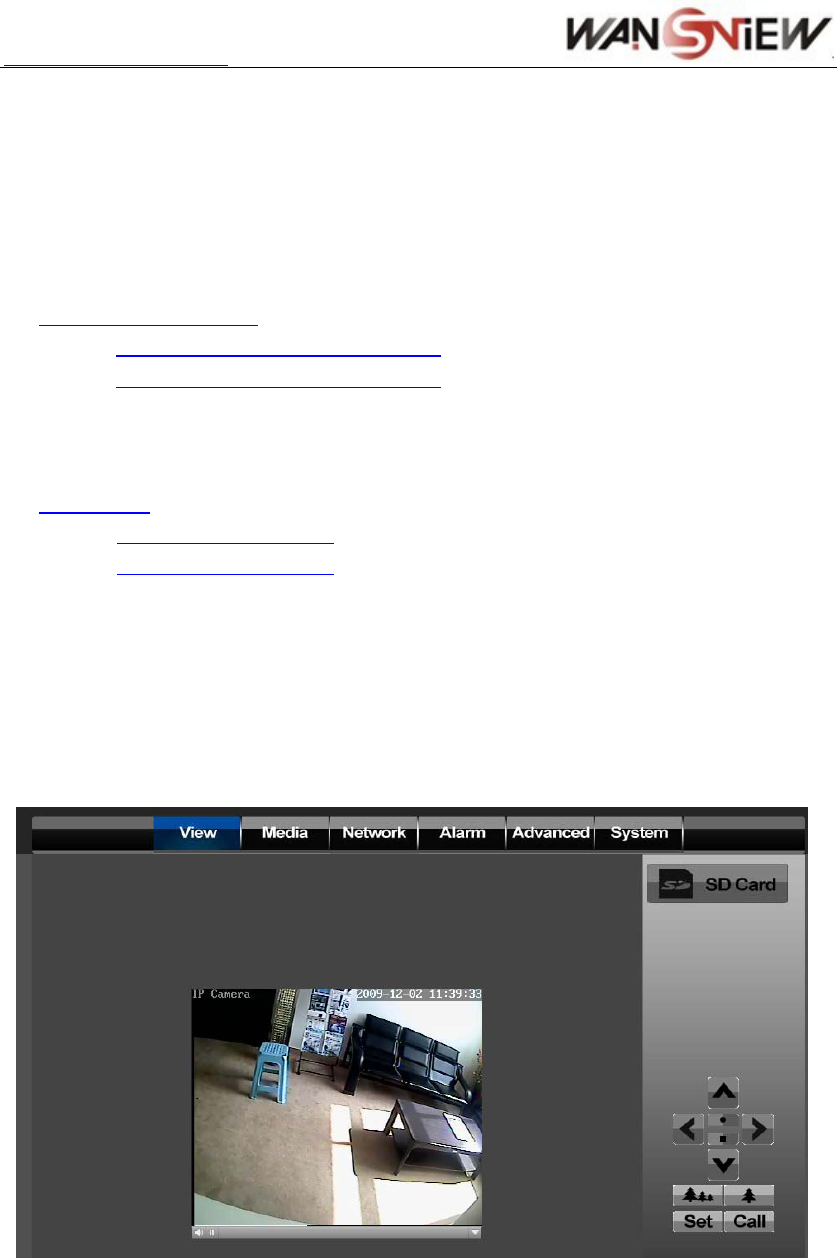

After the ActiveX installation, click the “Video View” as Figure 7, then you will enter the video
view home page as below Figure 9.
Figure 9
5.2.1 Menu column
There are 2 kinds of menu, one is main menu, the other is submenu. The main menu lies at
the top of the interface, including View, Media, Network, Alarm, Advanced and System;
Submenu lies on the left of the interface, and different main menu is in line with different
submenu.
11
http://www.wansview.com
5.2.2 Video Displaying Area
The video displaying area is correspond to the resolution, the higher the resolution is, larger
the displaying area will be. If motion detection was set, when it has detected any movements
of the certain area, it will show a pane to call user’s attention.

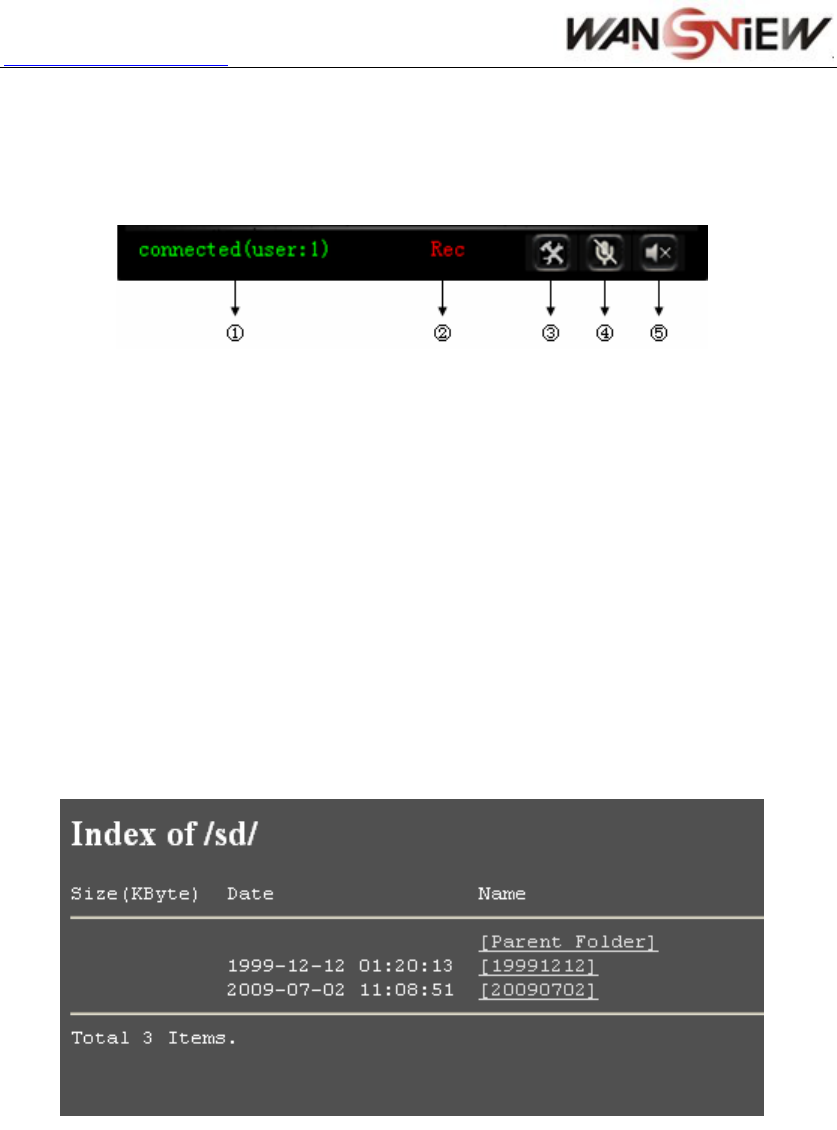

Figure 10 is status column at the bottom of video displaying area.
Figure 10
1） Displaying how many users are visiting this video.
2） If user has clicked the “Record” button in the Figure 9, here will show “Rec”, means the
video is being recorded. If click the “Record” button again, it will stop recording.
3） File Saving Path Setting: User can click it to browse a file saving path to save the
recorded video and snapshots.
4） Talk-back Button: Click it, and the stereo equipment which was connected to the IP
Camera will play the achieved audio. Click it again, the speaker will stop playing.
5） Audio Play Button: Click it to play the audio getting from IP Camera, click it again, it will
disable this function.
5.2.3 Browse SD Card
When SD Card inserted, click the submenu, the pop-up page will display the content in SD
Card like the Figure 11.
Figure 11
In above figure, text in [ ] is catalog info, click sub catalog to browse the recorded images and
videos. The images will be displayed when you click them and the videos will be downloaded
and played by the video player in user’s computer automatically when click the video.
5.2.4 Capture
Click the “Capture” button, which could take photos for the current video and store the image
at the present path.
12
http://www.wansview.com
5.2.5 Record
Click “Record” button, which could record the video with audio and store it at the present path.
When recording, there will be an indicated symbol in the status of video display area to show
you it is recording. Click the “Record” button again, and then the record stops.
5.2.6 Playback

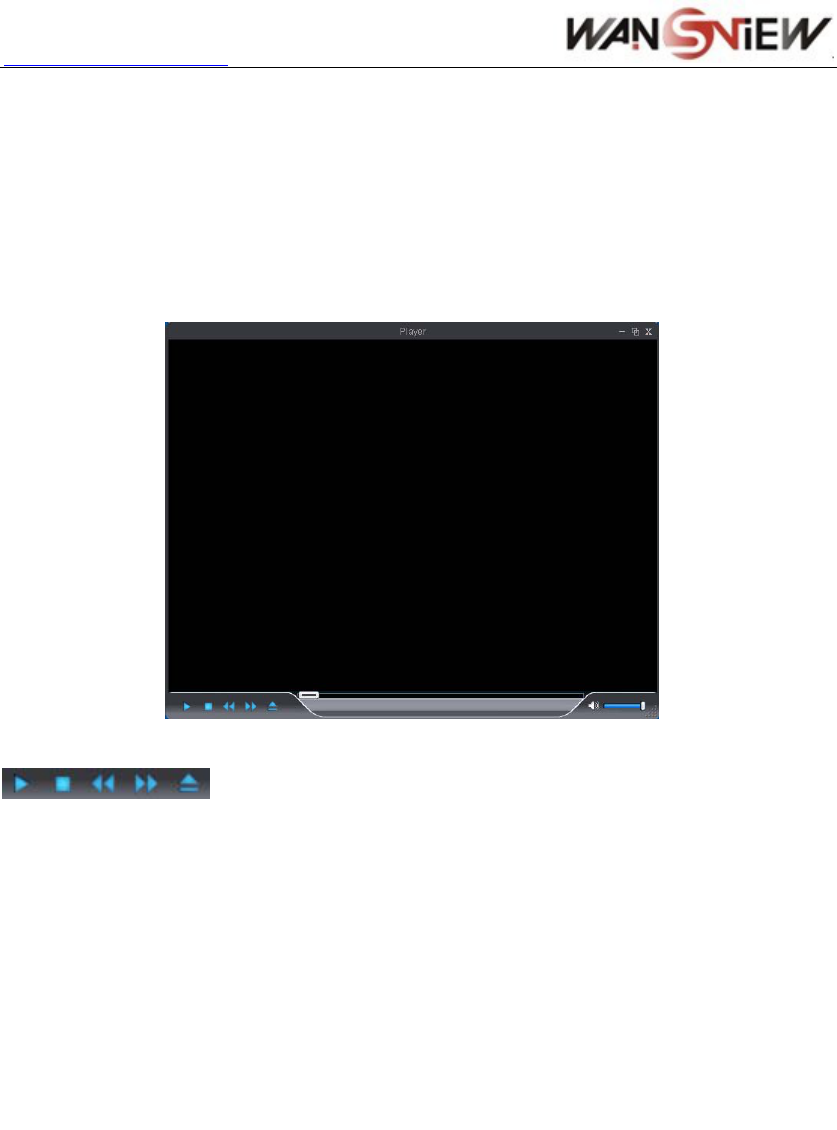

Click “Playback” button, it will pop up a player which could play the video stored on your PC
disk.
Figure 12
, these buttons are for play, stop, the previous recorder, the next
recorder, open the recorder file. Please click the button of “open the recorder file” first,
and select the file you want to play, you can playback the recorder.
5.2.7 The control of Pan/Tilt
At the control area of Pan/Tilt, the user could control the cruise of the Pan/Tilt by the
arrowhead direction (Up/Down/Left/Right/Centre/Stop/Left-right cruise/Up-down cruise).
When your mouse stops on these control buttons, it will guide you what this button mean.
When the IP Camera turns to some position, you can click the “Set” Button, when you
continue to control the Pan/tilt to turn to other position, you could click the “Call” button, the
Pan/Tilt will go back the pre-position.
5.3 Notice (for the first time use)
Please change the following 2 settings when using for the first time:
1) Please refer to the content of part 7.4.1 to change the initial passwords of admin, user,
and guest. Their initial passwords are respectively “123456”, “user”, “guest”.
2) Refer to the content of part 7.5.2 to set the system time.
13
http://www.wansview.com
6 Visit IP Camera from WAN
6.1 Port forwarding
Follow the “Visit IP Camera from LAN” steps; make sure PC-1 can visit IP Camera-1. In
Figure 5, before the computers in WAN (PC-2, PC-3) can visit the IP Camera-1, must put
the IP Camera -1 into WAN. You can set port forwarding on Router-1 to put IP Camera-1 into
WAN.
Open the Router Setting interface on PC-1. The interfaces for different routers are different,
and the port forwarding settings are different, please refer the router manual to set. For most
routers, “Virtual server” option can be found in setting interface. Fill the IP address and port of

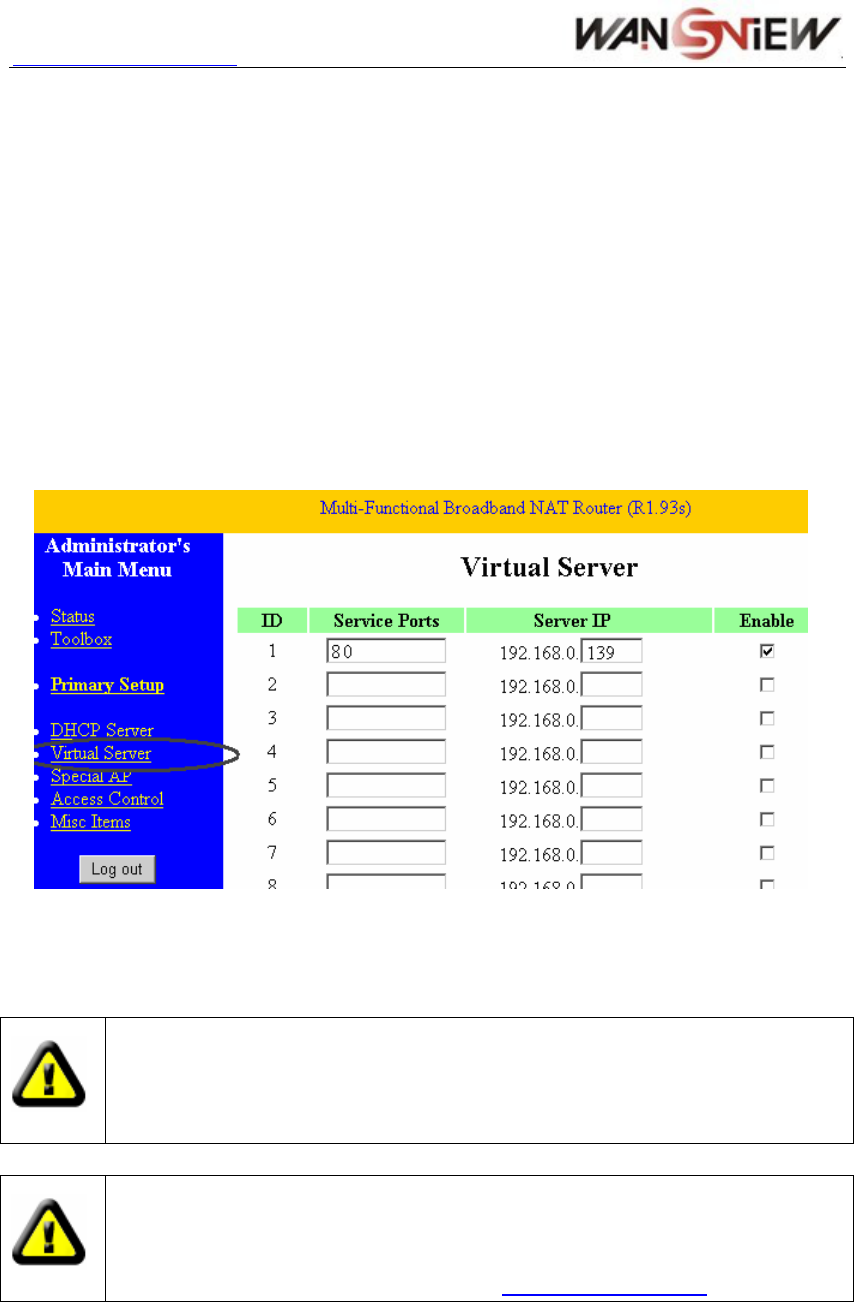

IP Camera-1 into corresponding blank. Figure 13 is an example.
Figure 13
Select “status” option and remember the WAN IP address, enter the IP address in browser of
PC-1, if IP Camra-1 can be visited via PC-1, the port forwarding is success. And PC-2 and
PC-3 can also visit the IP Camera-1.
WAN IP address is allotted by ISP, please make sure it’s an available WAN IP
address. As WAN IP address is lack, many WAN IP address are available in limited
area. If PC-2 and PC-3 are not in this area, the IP Camera-1 won’t be visited by
them.
If user wants to put several IP Cameras into WAN, every device should set the port
forwarding. In order to distinguish these devices, every device should set a
different port. If the port of the device is not 80, should add the port to IP address
with colon to visit the IP Camera. Example: http://202.96.82.177:81.
6.2 DDNS
In Figure 5, Router-1 get WAN IP address via ADSL, these WAN IP address is always
changing, so, the IP address can’t be confirmed when visit the device in WAN. We need the
14
http://www.wansview.com
dynamic domain name server (DDNS). IP Camera-1 send IP configuration to DDNS every
few time, DDNS can recognize the WAN IP address of the router-1 which connected with IP
Camera-1. The WAN IP address can be searched on DDNS by domain name. Herein,
domain name substitute the dynamic IP address. If the device can’t be visited by IP address,
this domain name is also unavailable.
6.2.1 Manufacturer’s Domain Name
Device manufacturer has established a DDNS, and allotted a dynamic domain name to every
device, the domain name has been integrated into devices when producing. For example,
enter domain name of Figure 14, the browser will connect the device and display the IP
address.
Figure 14
The domain name is realized by forward manner, the domain name will change
into the IP address and port number of the device when visit by domain name.
If the device can be visited by IP address but can’t be visited by manufacturer’s
domain name, please check the DNS info is available or not and make sure the
DNS setting is the same with the DNS setting of PC in LAN.
6.2.2 Third Part Domain Name
User can also use third part DDNS, such as www.3322.org. User should apply a free domain
name from this website and fill the info into the below blanks (Figure 15) and save the
settings. Then the domain name can be used.
Figure 15
The third party domain name is realized by analysis manner, the domain name will
be displayed in the browser all the time when visit camera. If the port is not 80, the
port number should be add to the domain name with colon. Example:
http://ipcam.3322.org:81
15
http://www.wansview.com
7 Other Settings
7.1 Video Setting Page
7.1.1 Video Setting
Figure 16
1） Power Line Frequency
If the monitoring site adopting lighting elimination, user should set a corresponding frequency.
If the two frequencies are different, the image will flick. There are two frequencies on the
world, one is 50HZ, and the other is 60HZ. In China, adopt 50HZ.
2） First Stream
Use H.264 code, support VGA (640*480), QVGA (320*240), QQVGA (160*120), higher
resolution, high quality picture, but bit rate will be higher and will take more bandwidth.
User can specify stream, normally, high bit rate, higher image quality. But the frame rate need to
setting according to the bandwidth, when bandwidth is narrow, if set high frame rate, the result
will be worse.
User can set Max frame rate, when the bandwidth is limited, suggest set to lower frame rate.
Normally, above 15fps the stream is smoothly.
3） Second Stream
16
http://www.wansview.com
Use H.264 code , support QVGA(320*240)、QQVGA(160*120), also can setting bit rate and
Max frame rate .
4） JPEG Stream
JPEG stream send JPEG picture, support the browser which don’t support H.264 code, like
mobile phone. Also can use Http://ip:port/mobile.html to view JPEG stream. For more details,
please refer to Chapter 8.
5） Parenthesis Options
Through the setting, user can add the time and Camera name to the image.
7.1.2 Audio Setting
Figure 17
When choose audio input model to MIC , will use build-in or external MIC to gather the sound
signal; if choose line-in , will get signal from external audio gathering system (like sound
pick-up )
Audio capture function can open or close and audio type can be G.711 or G.726 two types. G.711
bit rate is higher, but clearly, G.726 compression rate is higher.
Only choose open audio capture to play the audio (like Figure 10), then can hear the sound .If
choose close, can save bandwidth and storage space.
17
http://www.wansview.com
7.1.3 Image Setting
Figure 18
1) Color Adjustment: Drag the glide bar showed as above Figure 18, user can adjust the
brightness, saturation, contrast, hue.
2) Image Display Adjustment: There are “Flip” and “Mirror” two options, select it for the
image display.
3) Night vision mode: If you choose “auto” mode, IR lights will be lighted on and shut off
by the photoresistance. If you choose manual mode, you can light on and shut off the IR
light manually.
4) White Balance: There are auto, Indoor, Outdoor three white balance modes for options.
If the environments is very bright, please select auto or outdoor.
7.2 Network Setting Page
7.2.1 Basic Network Setting
Figure 19
18
http://www.wansview.com
1） LAN Setting: The default setting of this equipment is showed as above Figure 19, user
can change it according to your network environment.
2） HTTP Port: The IP address Identity one IP camera in the network, you can run several
programs on this equipment, and every program will transfer the data through some port,
in fact data is transferred from one port to another. The port setting of this page is asking
user choose which port to transfer the data for the web server.
7.2.2 WIFI Setting
Figure 20

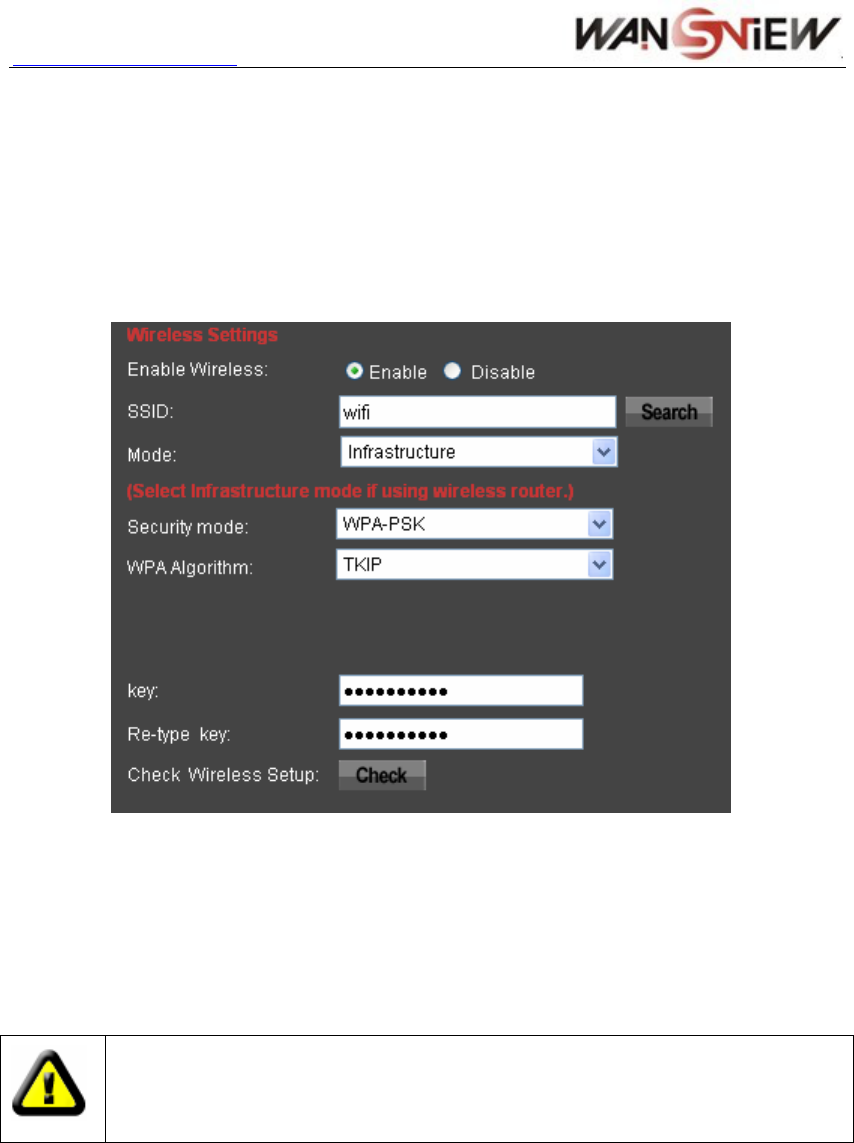

The wireless setting page is showed as below Figure 20, user can click the “Search” button,
and it will show you the page telling you the WIFI network it has detected. Please choose one
of it, and the network data will filled in the blanks automatically. (For example, SSID,
encryption algorithm etc.). User only needs to fill in the password and retype the
password. After you configured it, you can click the “Check” button to check if there is any
mistake. Check is success, please click “Apply” button to set it.
If you have set wifi, please unplug the network cable, and power on the ip camera
again for rebooting it, then the wifi will work.
7.2.3 Remote Access Setting
1） Manufacturer’s DDNS and Third Part Dynamic DNS: Please refer to the content of the
part 6.2.
2） UPNP: UPNP stands for universal plug and play, if you started UPNP, once the IP
camera was connected into the LAN, it will communicate with the router of the LAN. It will
request the router to open a port to forward its own port. User doesn’t need to log in the
router to set the port forwarding.
19
http://www.wansview.com
Before using UPNP function, please make sure the router’s UPNP function has
been triggered. Because there are so many different routers, and not all of them
can support UPNP. Please test if the router work well with the equipment, if not, we
would suggest you don’t enable this function.
3） WAN IP Test: Click the “Show” button, it will show you another new page displaying the
WAN IP address when it is connected to the Internet.
7.3 Alarm Setting Page
7.3.1 External Alarm Input
Figure 21
Figure 2below has listed the external alarm input setting. If the alarm input pins have
connected with an alarm detector (Figure 4), please tick the “External Alarm”, and then you
will have enabled external alarm function. If the external alarm detector is open mode, please
tick “Open”, vice versa.
7.3.2 Motion Detection Setting
Figure 22
If user wants to monitor a certain area’s movement, please select the motion detection to
20
http://www.wansview.com
trigger alarm. The motion detection setting page is showed in Figure 22. This equipment
supports four areas settings. By ticking the options, on the screen, it will show you the area
frame, and the areas are numbered. Using the mouse to drag the area frame, you can
change the position of the frame, and to drag the right bottom corner of frame, you can
change the size of frame. After setting is finished, click “Apply“ button, then the motion
detection is enabled.
7.3.3 Alarm Mode Setting
When the alarm is triggered, user can adopt several ways to alarm.
¾ Snapshot a live picture of the site on the SD card.
¾ Record a 30 seconds long video on the SD card (including 5 seconds long video before
the alarm was triggered).
¾ Send the recorded video on the SD card to the FTP server (Please enable “save the
video on SD card” function and insert the SD card first).
¾ Relay on (refer to Figure 2 and Figure 3), enable external alarm function and set the
time.
¾ Send alarm info to the alarm server.
¾ Send alarm info to E-mail.
Figure 23
7.3.4 Alarm Time Setting
Figure 24
IP Camera will trigger alarm only on the time set by Figure 24.
Please adjust the system time first. Refer to Part 7.5.2
21
http://www.wansview.com
7.4 Advance Setting
7.4.1 User Management
There have three level of authority; they are admin/user/guest. Admin have the highest
authority, it can do any change to the settings. User account only can operate the IP camera,
can’t do changes to the settings, and please refers to Figure 26. Guest account only can
watch the video, can’t do any operation to the IP camera, and please refers to Figure 27.
Figure 25
Figure 26
22
http://www.wansview.com
23
Figure 27
7.4.2 Auto Capture Setting
Figure 28
Please tick “save picture on the SD card”, the equipment will snapshot every short time (for
example, showed as Figure 28, every 60 minutes)
http://www.wansview.com
7.4.3 E-mail Setting
Figure 29
In Figure 29, the blanks which have been filled with info should be filled. If any info is not filled
right, the setting will fail.
Before setting these parameters, please refer the settings of Outlook Express.
7.4.4 FTP Setting
Figure 30
In order to use FTP function, user should apply username and password on the
FTP server first. And please apply some storage, and the authority to write and
create sub-category into it.
24
http://www.wansview.com
7.4.5 Alarm Server Setting
Figure 31
Please confirm if you have connected to alarm server. The alarm message format as follow:
GET /api/alarm.asp？
username=username&
userpwd=password&
rea=alarm type (1=Motion Detection, 2 =Alarm from Alarm in port, 3 =Other Type)&
io=0
Alarm server need develop by customer; user can extend other functions on this server, like
SMS, MMS alarm, and mobile phone etc.
7.5 System Setting Page
7.5.1 Device Information Checking
Figure 32
¾ Device ID is set by factory. Every ID is unique
¾ Network Connection status will display “LAN” when connected by wired cable and
25
http://www.wansview.com
display “Wireless LAN” connected by wireless Router.
¾ SD status will remind if SD card inserted and display the free capacity. Click “Browse” to
view the contents in SD card and, “Format SD Card as fat32” to format SD Card and,
“Unplug SD Card” to stop the work of SD Card.
The device supports max 32G SD card. Please format the SD card to FAT32
before use the card on Camera. Please check if the SD Card matches the camera
or not before purchase the SD Card.
7.5.2 Date and Time Setting
Figure 33
Please refer to above Figure 33. Select the time zone first. There are three options to set the
time and date. One is manually, another is keeping the same as the time and date on the
computer, and the third one is getting it from the NTP server.
7.5.3 Default Setting
¾ Reboot button to restart the equipment, if you have set the pre-position, and it will turn
this position.
¾ Click “Factory Default” button, equipment will restart and back to all the default settings.
¾ Click “save”, it will save all the present settings.
¾ “Restore” part, select the setting file you have saved, click OK, it will recover all the
settings.
¾ “Upgrade” part, select the firmware file for upgrading, click OK, and you are able to
upgrade the equipment. After the upgrading, equipment will restart. Upgrading took a
26
http://www.wansview.com
little long, please wait patiently. If upgrading is finished, it will show you a message to
remind you.
Figure 34
7.5.4 System Log Checking
Figure 35
7.5.5 User browsing Log Checking
Figure 36
27
http://www.wansview.com
8 Advanced Application
8.1 Mobile phone Browsing
After connect into network, you can view by mobile phone. Device will send MJEPG picture to
mobile phone, you can setting the image resolution, which mention on Chapter 7.1.1. View
way as below:
1） http://IP:Port/mobile.html, for example:
http://58.61.54.177:1025/mobile.html
http://test.3322.org:1025/mobile.html
Smartphone (like iphone, windows mobile, symbian, black berry, Android etc.) can use
this mode to visit. If can’t visit, you have to download and use opera mobile browser.
2） http://IP:Port, for example:
http://58.61.54.177:1025
http://test.3322.org:1025
Only iphone can use this mode to visit.
8.2 Other web browser visit device
Using browser with IE kernel, user must download the Activex. Using other web browser like
Safari or Firefox, it will use QuickTime to play. Safari for example, you can find the player
interface as the below Figure 37.
Figure 37
1) The settings to use Firefox or Safari in Windows OS
In the Windows OS, if you don’t install the QuickTime, it will remind the users of
installation. Users could install the QuickTime according to its message. After installation,
users can start the QuickTime program, and to access the QuickTime Preferences
28
http://www.wansview.com

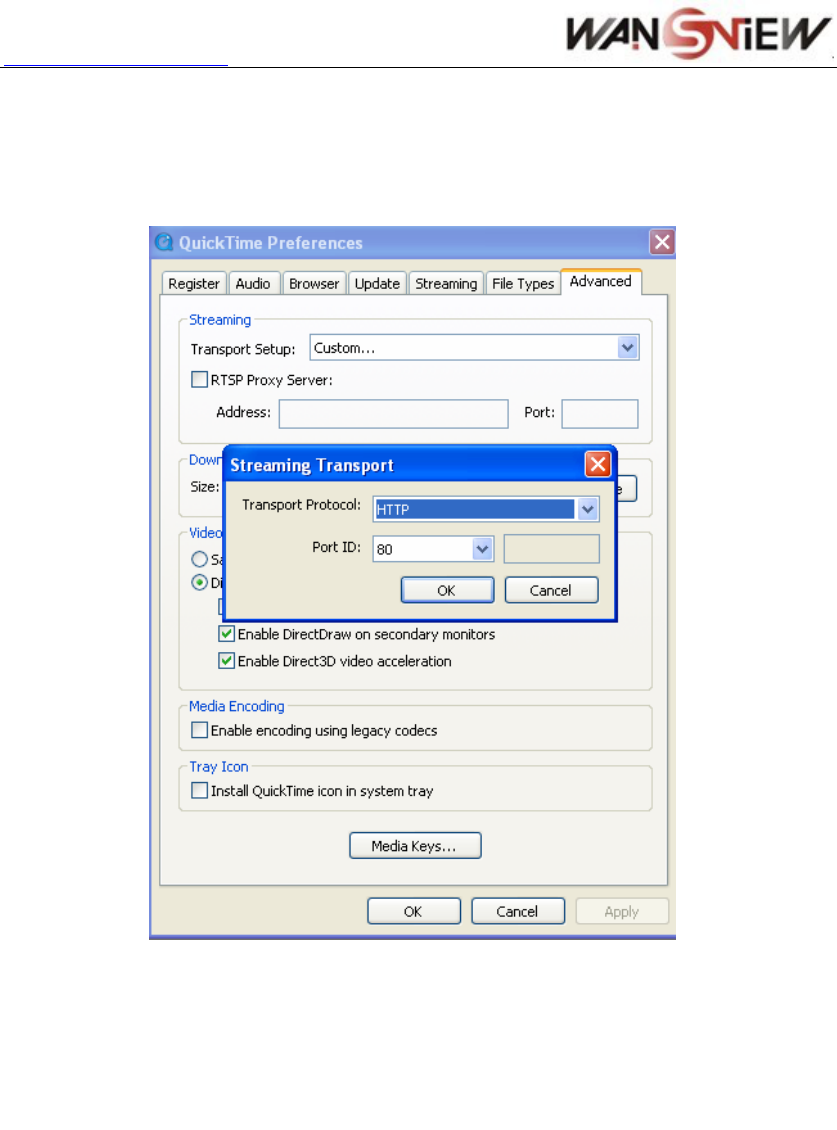

dialog box from Edit Menu. Click Advanced, select “custom..” in the Transport Setup. It
pops up the Streaming Transport dialog box. Please select “HTTP” for transport protocol
and “80” as port ID, and then click “ok”. Please be back to Transport Setup to change
“Custom..” to “Auto”. Finally, click “ok” at the bottom. Please refer to the above Figure 38.
Then you could view the video through Firefox or Safari now.
Figure 38
2) The settings to use Safari in MAC OS
When use MAC, because QuickTime is the default software, user only need go to
Utilities folder under the Applications folder, and start command line program (Terminal
program), input the command as:
qtdefaults write TransportSettings HTTP 80
Then open safari to view. If can’t view from safari, please try http://ip:port/mobile.html .
8.3 Centralization Control Software
IPCMonitor is a free software offered by factory, several devices on LAN and WAN can
be browsed at the same time. The software also support snap, video record and so on.
The below Figure 39 is the interface.
29
http://www.wansview.com
30
Figure 39
For more information, pls. refer the <<IPCMonitor User Manual>> in CD.
9 Technical Parameters
Item Sub item Description
Sensor 1/4" CMOS sensor
Total of pixel 300k
Minimum illumination IR lights on，0 Lux
Capture
Lens f=4.5mm, F=2.0, Fixed Iris
Pan Coverage 350°
Tilt Coverage 100°
Pan/Tilt
Preset Numbers 1
Lighting Control Auto/manual control
Assistant Lighting 8pcs 850nm Infrared lights, 5m distant
First Stream Resolution VGA/QVGA/QQVGA
Second Stream Resolution QVGA/QQVGA
Compression H.264/JPEG
Frame rate 30fps
First Stream Bit rate 90kbps ~ 2.048Mbps
Second Stream Bit rate 90kbps ~ 512kbps
Image Rotation Flip / Mirror
OSD support
Video and
Audio
Audio Compression G.711/G.726
Network Basic Protocol TCP/IP、HTTP、SMTP、FTP、DHCP、DDNS、
UPNP、NTP
http://www.wansview.com
Other Protocol 802.11b/g
Mobile Phone View support
Video control support
Dual way audio support
Memory Snap or video into SD card
Browser SD card View or download from network
Motion Detection yes( 4 zone detection )
Triggered Actions Email/FTP/SD storage/external alarm/send
message to alarm server
User Setting Three levels
Date/ Time Setting support
Upgrade Upgrade from network
Other
Features
DDNS A free DDNS provided by manufacturer
Ethernet 10Base-T/100base-TX
Memory SD Slot
Alarm In 1 way
Alarm Out 1 way
Audio In Internal mic x 1, audio input interface x 1
Hardware
Interface
Audio Out audio output interface x 1
Weight 358g
Main body 111mm(L)*107mm(W)*121mm(H)
Power DC 5V
Power consumption <6W
Operating temperature -20 ~ 45℃℃
Physical
Index
Humidity 10% ~ 80% non-condensing
OS Supported Microsoft Windows 98/2000/XP/Vista, Mac
OS etc.
Browser Internet Explorer6.0 and Above or
Compatible Browser, Safari/Firefox etc.
Software(PC
Side)
Application Software IPCMonitor.exe
31
http://www.wansview.com
32
10 FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
