SmartLabs 2441T Wall-Mounted Wireless Thermostat (MN: 2441T) User Manual Owners Manual
SmartLabs, Inc. Wall-Mounted Wireless Thermostat (MN: 2441T) Owners Manual
Owners Manual
September 30, 2011
Wall-Mounted Wireless Thermostat
Models: 2441T and 2441TH

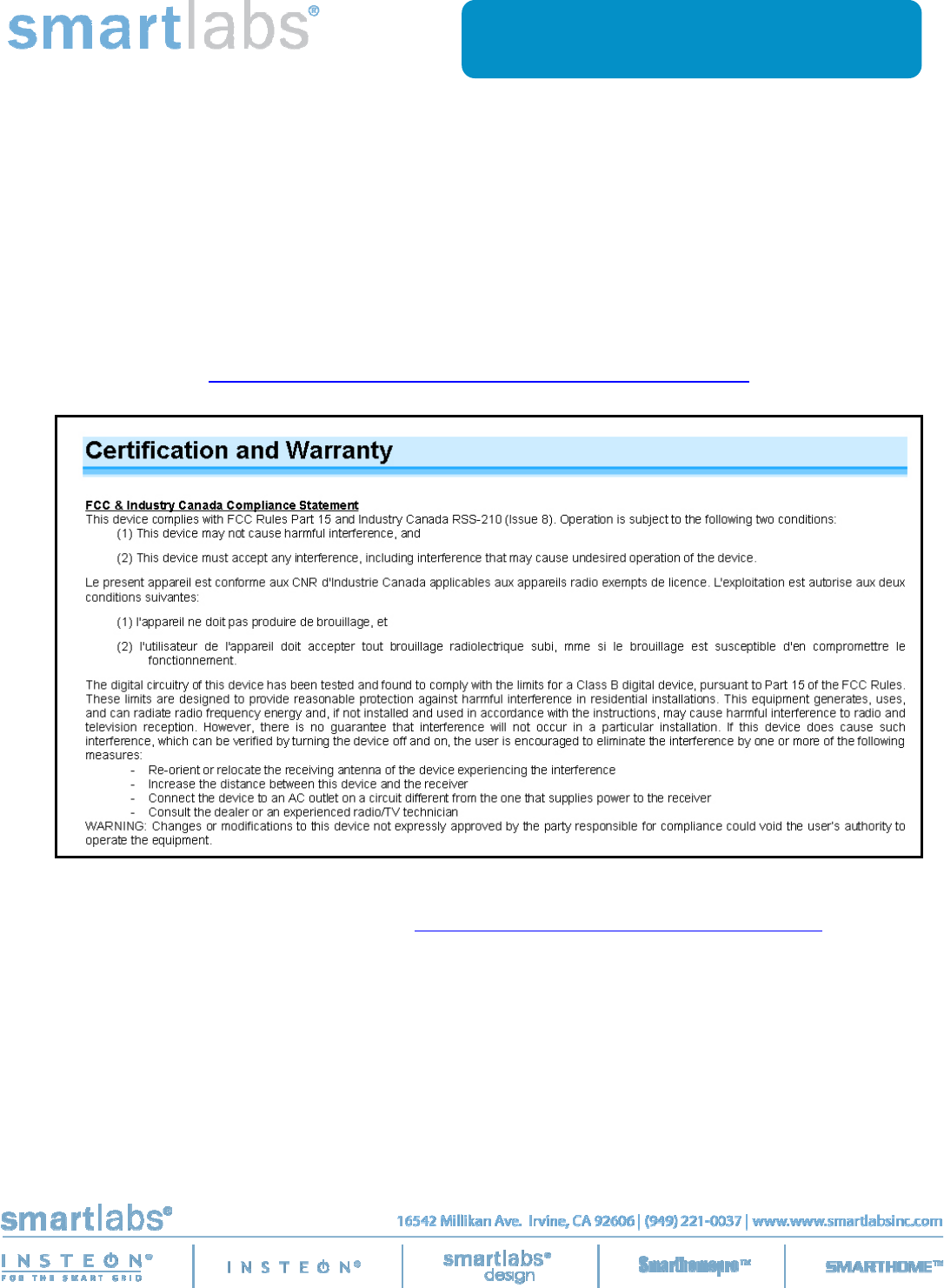

FCC ID: SBP2441T IC: 5202A-2441T
The owner’s manual below may be accessed freely via the Internet
with any web browser and supports the PDF format.
http://www.smarthome.com/2441TH.html
Complies with Section 5 of FCC document 784748 D01 Labeling Part 15 18 Guidelines v07 where
cautionary statements in the user manual may be provided over the Internet.
On-Line Owner’s Manual Containing
Cautionary FCC & IC Statements
Page 1 of 22 Rev: 9/30/2011 1:26 PM
TempLinc
Owners Manual
INSTEON® Thermostat (#2441T)
Page 2 of 22 Rev: 9/30/2011 1:26 PM
About TempLinc 3
TempLinc – Features & Benefits 3
What’s in the box? 3
Thermostat Button Overview 4
Thermostat Operation and Programming 5
Thermostat Mode Button Operation 5
Thermostat Energy Button Operation 6
Thermostat Set Button Operation 7
Thermostat Time / Sensor Button Operations 7
Thermostat Program Button Operation 8
Thermostat Fan and Hold Button Operations 10
Thermostat Master Button Operation 11
Installation 12
Tools Needed 12
Preparation 12
Wire Connections 12
Test Operation 13
Adding a Wireless Thermostat 13
INSTEON Programming 14
Linking as a Responder 14
Linking as a Controller 14
Unlinking 16
Factory Setup Modes 17
Factory Programming Mode 18
Humidity Calibration Mode 20
Factory Reset to Default 20
Certification and Warranty 22
FCC & Industry Canada Compliance Statement 22
Limited Warranty 22
Limitations 22
Page 3 of 22 Rev: 9/30/2011 1:26 PM
About TempLinc
TempLinc is a 7 day programmable INSTEON-compatible thermostat. It comes in two variants, with and
without a humidity sensor. The humidity sensor model also includes 2 stage heating and cooling, while
the non-humidity sensor device is a single stage device.
Expand the system by creating extra temperature zones in your home. Simply add wireless TempLinc
zone thermostats to your system.
There is one accessory product for the TempLinc, a waterproof sensor that plugs into the TempLinc using
bare leads on a 6’ cord.
TempLinc – Features & Benefits
Installs and Links to other INSTEON devices in minutes
Saves energy and money on bills by remotely controlling and automating your thermostat
Communicates wirelessly over radio frequency (RF)
Automatically controls remote INSTEON devices when the thermostat switches A/C, heat, and fan on
or off
Reports changes in thermostat modes, temperature, humidity, setpoints and fan to compatible
automation controllers or software
Fine-tunes thermostat set points by single degrees from any INSTEON controller with specific Bright
and Dim buttons
Stores setup state in memory so settings aren’t lost during power outages
Two-year warranty
What’s in the box?
TempLinc
2 mounting screws
2 anchors
Quick-Start Guide
Page 4 of 22 Rev: 9/30/2011 1:26 PM

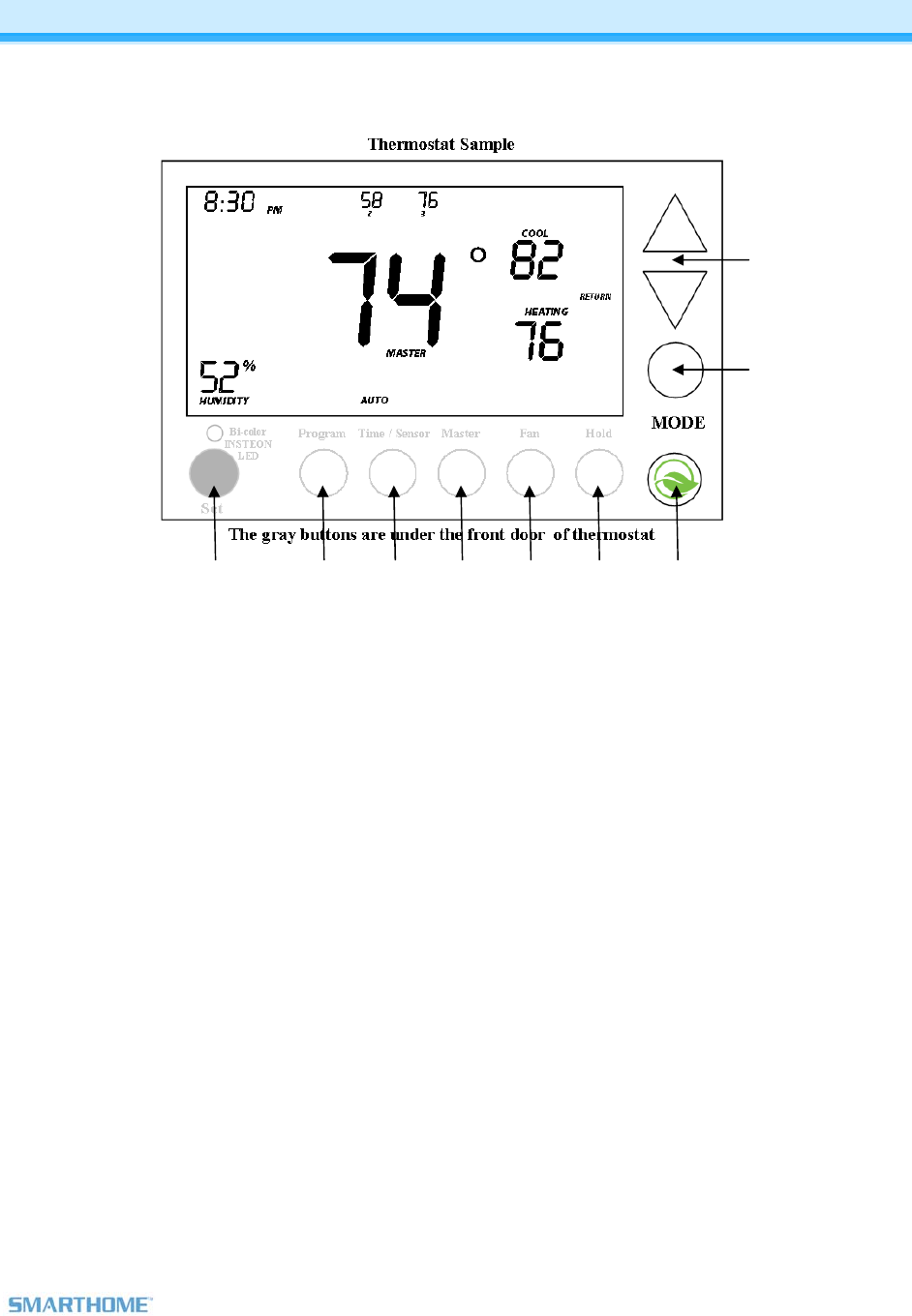

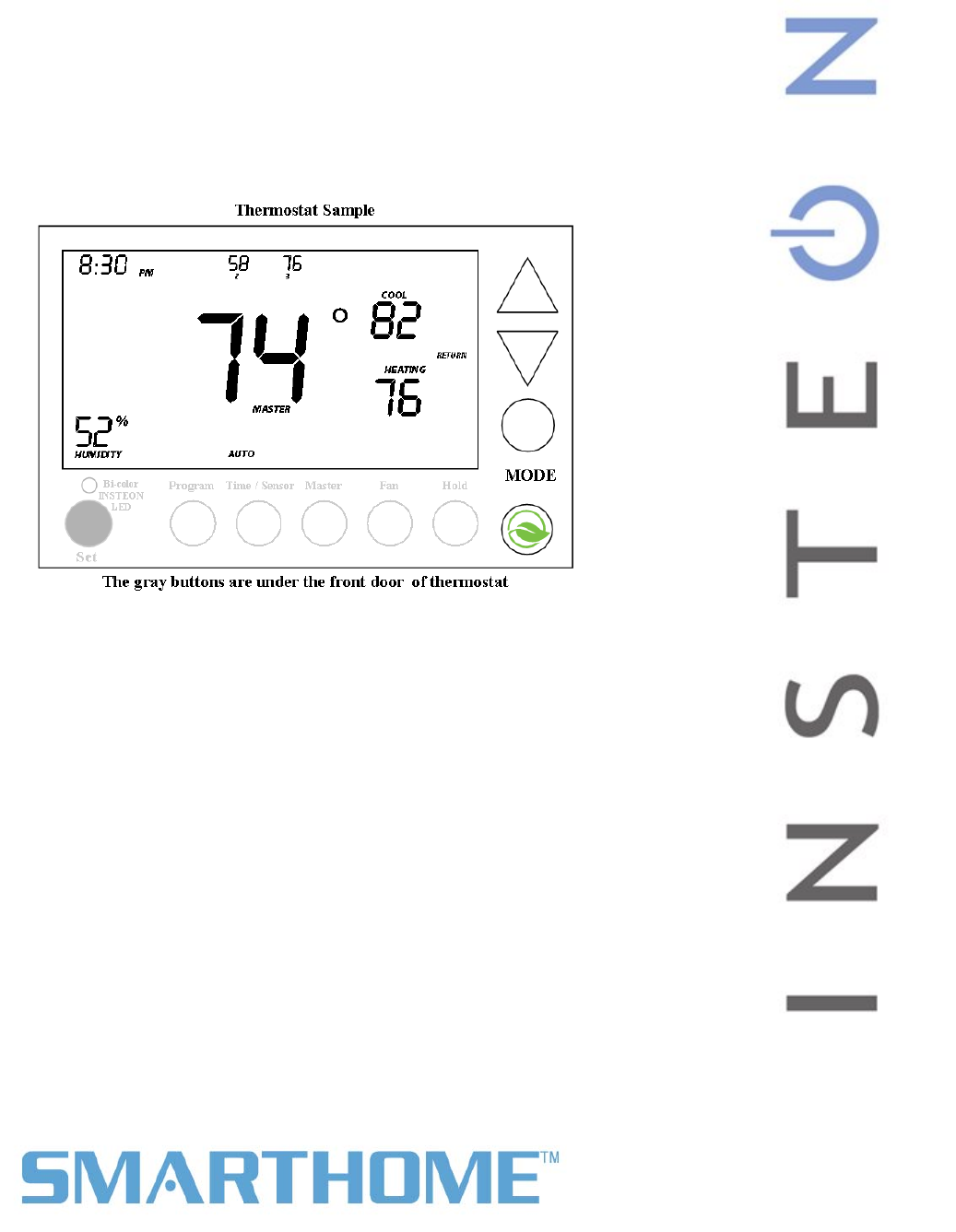

Thermostat Button Overview
1 Up/Down adjust the temperature setpoint based on the mode you are currently in
2 Mode allows the user to select the current operational mode of the HVAC system. It cycles between
Off, Auto, Cool and Heat
3 Energy button is designed to be a very quick to use option that saves energy (and money). When
you press it, it will back off the set point by a specified value. The default value if 5 degrees from the
current setting. To change the default offset value away from 5 degrees, you must use HouseLinc.
4 Hold over-rides a pre-programmed mode
5 Fan cycles between Auto and Always On
6 Master makes the device the master temperature controller
7 Time / Sensor button allows you to set the date, time and select the sensors/humidity to display. It
cycles between day, time, format, and each sensor option.
8 Program button allows you to setup the various pre-programmed modes (Wake, Leave, Return, and
Sleep).
9 Set button is for INSTEON linking and unlinking as well as accepting the current programming step
and going to the next one in sequence. For INSTEON functions, it works like Set does for other
INSTEON devices.
2
1
4 5 6 7 8 9 3
Page 5 of 22 Rev: 9/30/2011 1:26 PM
Thermostat Operation and Programming

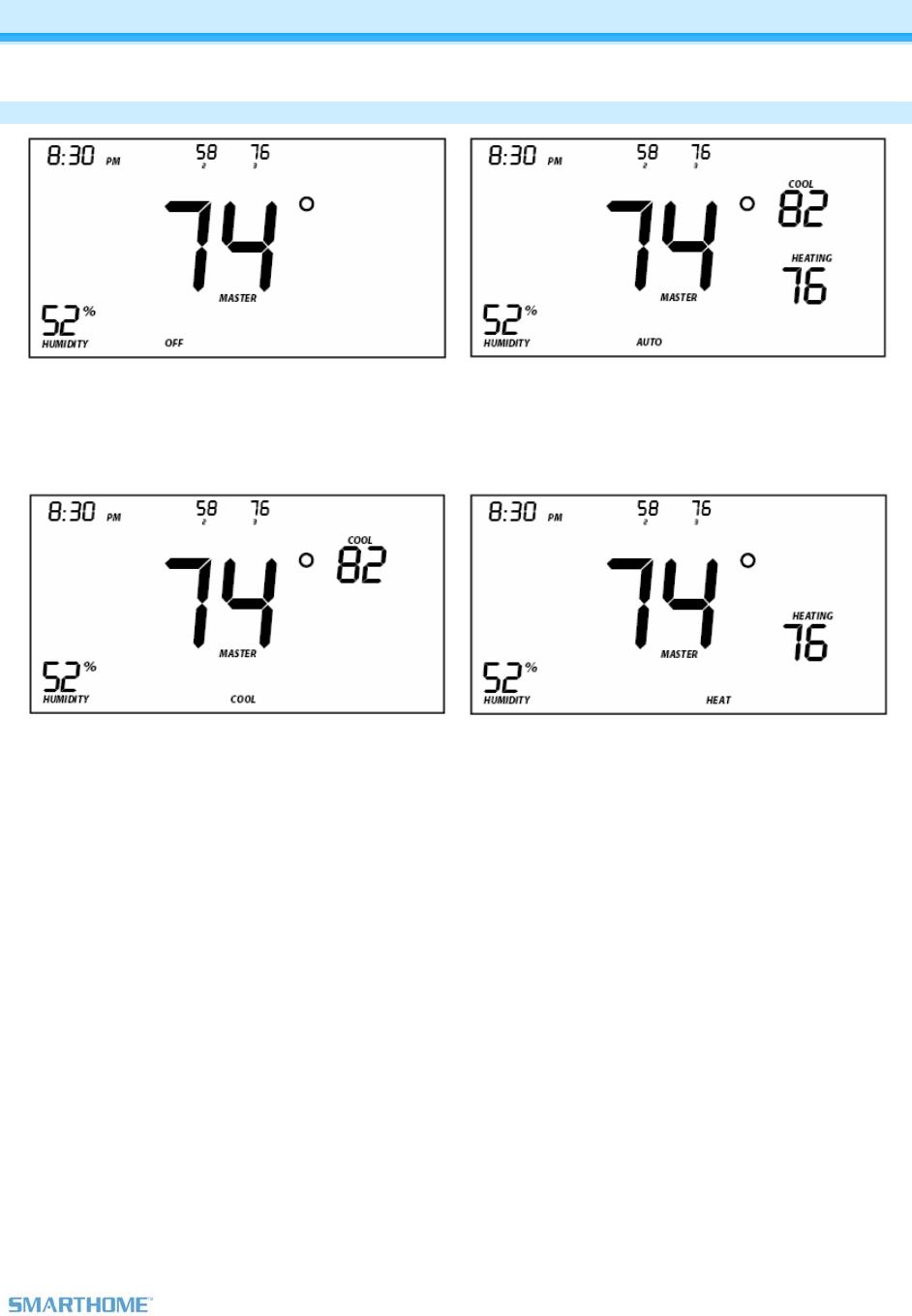

Thermostat Mode Button Operation
Off Mode:
No set points are shown
Up / Down do not do anything
Auto Mode:
Both cool and heat set points are shown
Up / Down move both together with a set
gap
Cool Mode:
Only Cool set point is shown
Up / Down do not do anything
Heat Mode:
Only Heat set point is shown
Up / Down changes the Heat set point
Page 6 of 22 Rev: 9/30/2011 1:26 PM

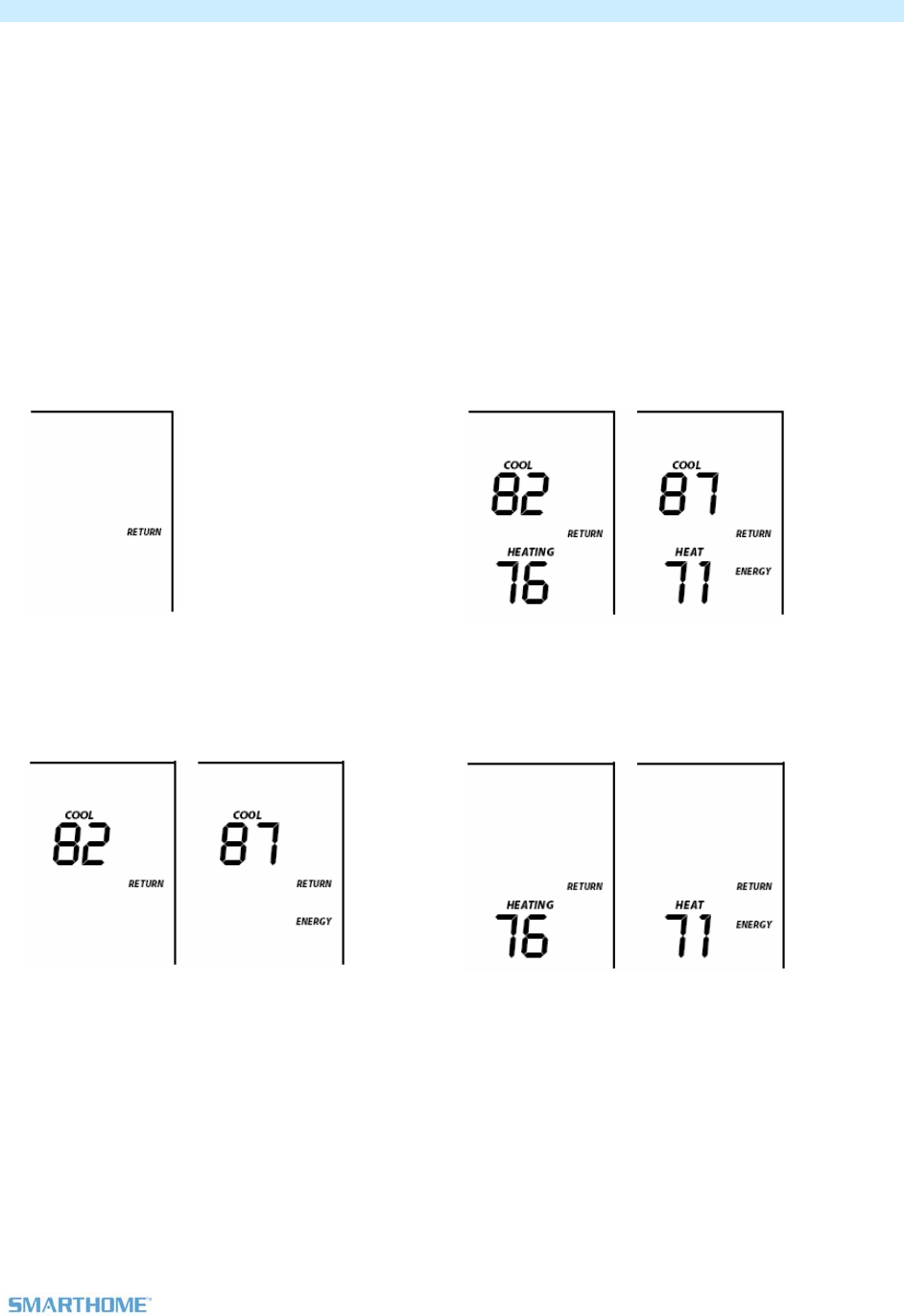

Thermostat Energy Button Operation
The Energy button is designed to be a very quick to use option that saves energy (and money). When
you press it, it will back off the set point by a specified value. The default value is 5 degrees from the
current setting. To change the default offset value away from 5 degrees, you must use HouseLinc.
When you exit Energy mode, it will change back the 5 degrees that were change upon entry
The unit remains in Energy mode until:
Energy button is pressed again
The mode button is pressed
A pre-programmed mode is activated due to time
Up / Down adjust the temperature set point based on the mode you are currently in inside Energy.
No options blink with this button’s operations.
From Off Mode:
Energy button does nothing because the
system is off (at maximum energy savings
already)
From Auto Mode:
Both Heat and cool set points back off as
specified
Default back-off is 5 degrees
From Cool Mode:
Cool set point backs off as specified
Default back-off is 5 degrees
From Heat Mode:
Heat set point backs off as specified
Default back-off is 5 degrees
When you go into Energy mode, Up and Down buttons are active and the previous pre-programmed
mode (Wake, Leave…) will continue to show.
Page 7 of 22 Rev: 9/30/2011 1:26 PM
Thermostat Set Button Operation
Set button is for INSTEON linking and unlinking as well as accepting the current programming step and
going to the next one in sequence. For INSTEON functions, it works like Set does for other INSTEON
devices. Operating details can be found in other sections.
Thermostat Time / Sensor Button Operations
The Time / Sensor button allows the user to set the date, time and select the sensors/humidity to
display. It cycles between day, time, format, and each sensor option.
Up/Down arrows cycle through the available options.
Go to the next Program step by:
o Pressing Program again
o Press the Set button
o NOTE: Both accepts current setting
Exit Time / Sensor setup by:
o Time out (30 seconds)
o Pressing any button other than Up / Down, Set or Date / Time

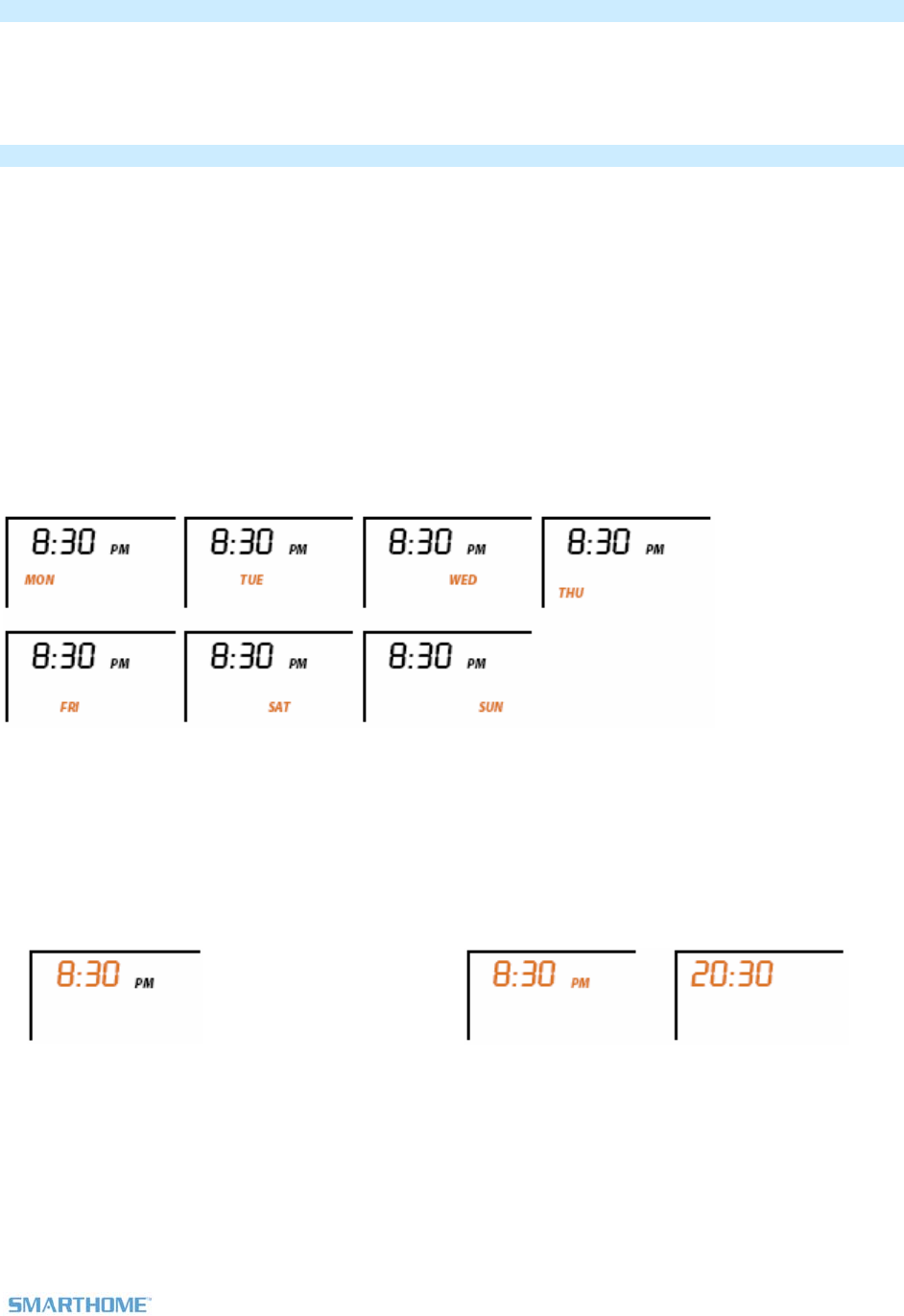

1st press of Time / Sensor:
- Selects day setting
- Up / Down cycles between each day of the week
2nd press of Time / Sensor:
Selects Time setting
Up / Down cycles through time in 15 minute
increments
Press and hold of Up / Down cycles faster
Note: AM / PM changes automatically as
needed
3rd press of Time / Sensor:
Selects Clock Format setting (12 or 24 Hr
clock)
Entire "time" section blinks
Up / Down cycles through and shows
modified time
Page 8 of 22 Rev: 9/30/2011 1:26 PM

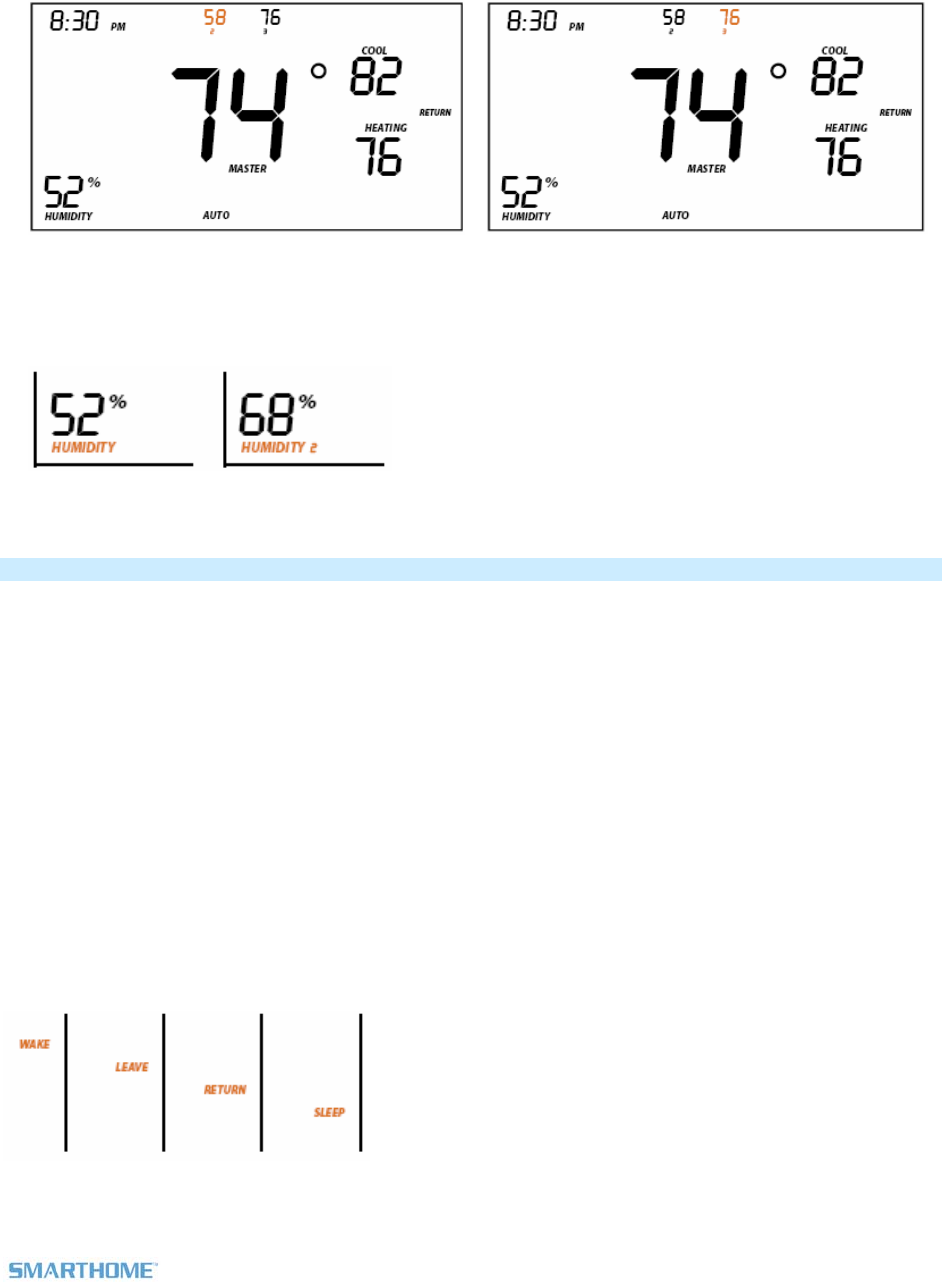

4th press of Time / Sensor:
Selects which sensor to show in position 1
Up / Down cycles through 1-9 with none then
again
5th press of Time / Sensor:
Selects which sensor to show in position 2
Up / Down cycles through 1-16 with none
then again
6th press of Time / Sensor:
Selects which Humidity sensor to show
Up / Down cycles between 1 (no number)
and 2
Thermostat Program Button Operation
The Program button allows you to setup the various pre-programmed modes (Wake, Leave,
Return, and Sleep).
Go to the next Program step by:
o Pressing Program again
o Press the Set button
o NOTE: Both accepts current setting
Exit Program setup by:
o Time out (30 seconds)
o Pressing any button other than Up / Down, Set, or Program
1st press of Program:
- Selects from available pre-program modes
- Up / Down cycles through Wake, Leave, Return, and Sleep
- NOTE: Energy is not a part of this option
- NOTE: Once a pre-programmed mode is selected, that item remains blinking throughout to indicate
what you are programming
- NOTE: Once a pre-programmed mode is selected, the current settings are displayed on the thermostat
Page 9 of 22 Rev: 9/30/2011 1:26 PM
2nd press of Program:
- Selects day setting
- Up / Down cycles between 7 days, weekdays, weekend days, each day
- As you select a different day option, the current pre-programmed settings for that day (or group of days)
are displayed
3rd press of Program:
- Selects Start / Time
- Up / Down cycles through time in 15 minute increments
- Press and hold of Up / Down cycles faster
NOTE: AM / PM changes automatically as needed
4th press of Program:
Selects Cool set point
Up / Down cycles through temperature
5th press of Program:
Selects Heat set point
Up / Down cycles through temperature
6th press of Program:
- Starts the process all over again to program another Mode / Day
- Up / Down cycles through time in 15 minute increments
- Press and hold of Up / Down cycles faster
NOTE: The 4 modes come pre-programmed. The defaults are:
Wake: 6AM start, Auto, 65 / 75
Leave: 8:30AM start, Auto, 60 / 80
Return: 5:00PM start, Auto, 65 / 75
Sleep: 11:00PM start, Auto, 60 / 80
Page 10 of 22 Rev: 9/30/2011 1:26 PM

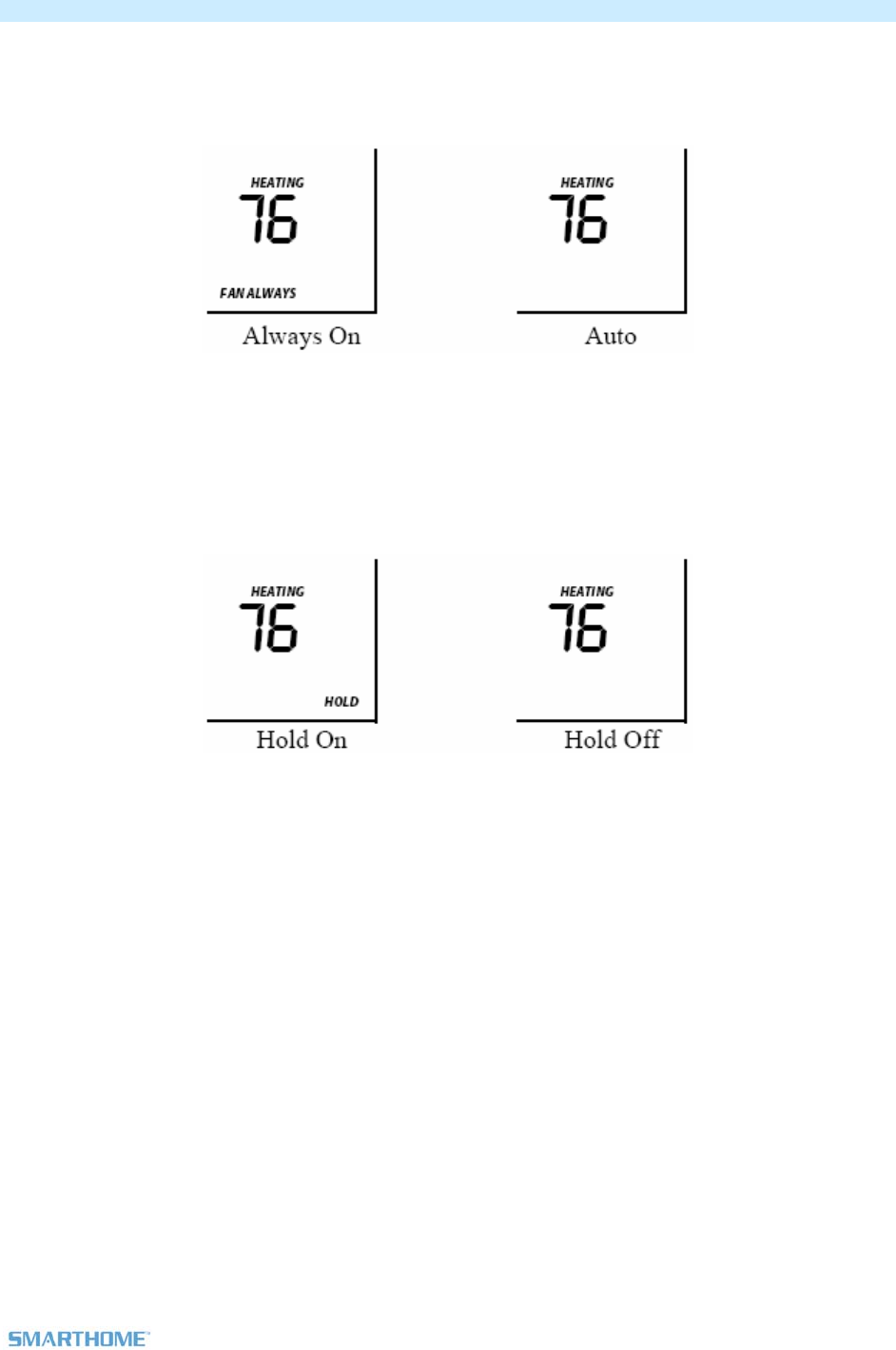

Thermostat Fan and Hold Button Operations
Fan button operations
The Fan button cycles between Auto and Always On.
On the display, it simply cycles the text Fan Always to show or not.
Hold button operations
The Hold button over-rides a pre-programmed mode until either:
o The mode / temp is changed manually by user
Including on a remote thermostat / templinc
o Hold is turned off
NOTE: If the next pre-programmed time comes, it will be ignored unless one of the above items
occurs.
NOTE: While hold is enabled, the pre-programmed time notations are not shown.
NOTE: There are no blinking items when using this button.
Page 11 of 22 Rev: 9/30/2011 1:26 PM

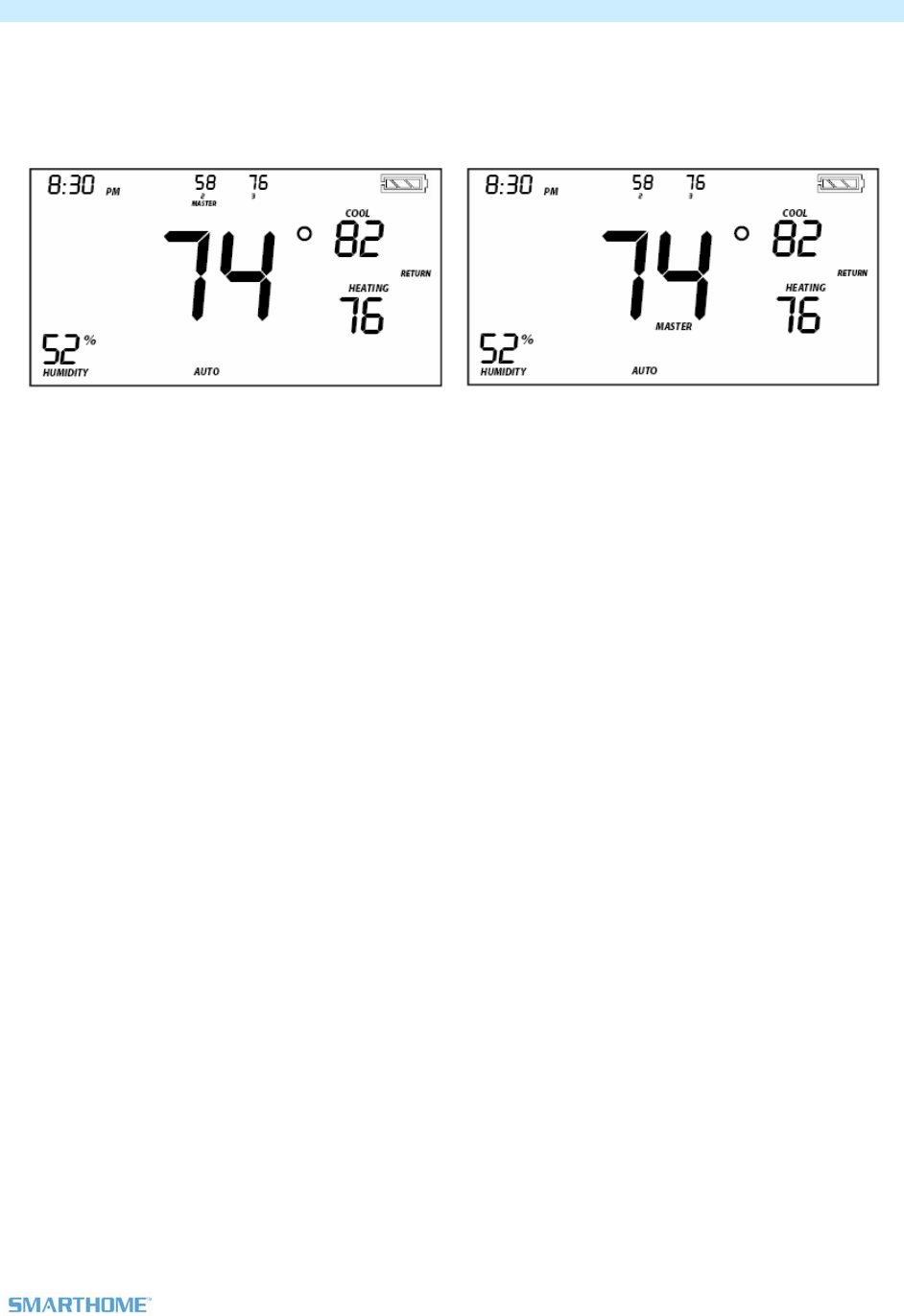

Thermostat Master Button Operation
1st press:
- Makes the local TempLinc the master
Before pressing Master button:
Notice that remote sensor 2 is currently the
Master

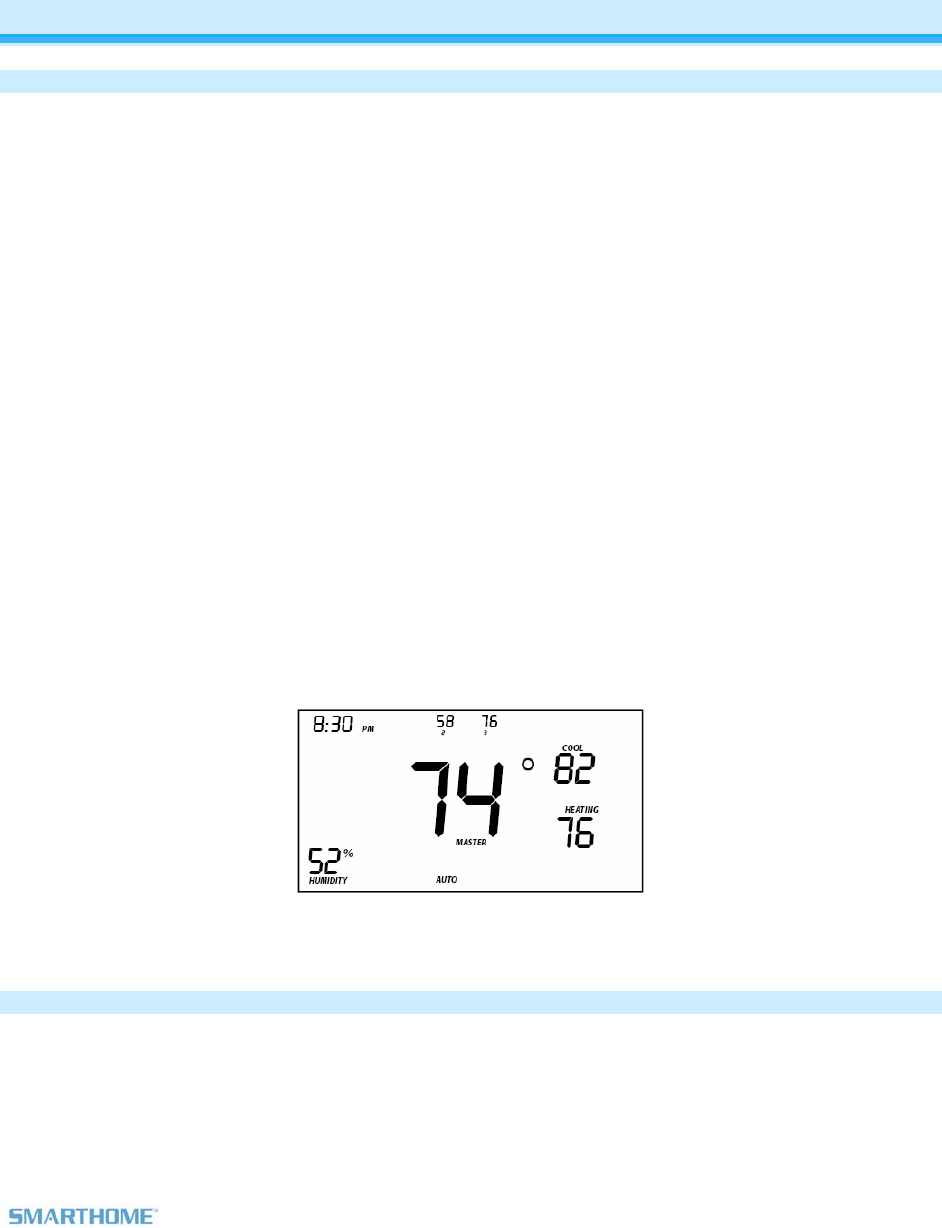

After pressing Master button:
Notice that remote sensor 2 is no longer the
Master
The local temp now is Master controlling
temperature
Page 12 of 22 Rev: 9/30/2011 1:26 PM
Installation
CAUTIONS AND WARNINGS
Read and understand these instructions before installing and retain them for future reference.
IMPORTANT!
If you are not knowledgeable about, and comfortable with, HVAC circuitry, you should have a qualified HVAC professional install
TempLinc for you.
Tools Needed
- Flat blade screwdriver
- Wire cutter / stripper
Preparation
Proper installation of the thermostat will be accomplished by following these step by step instructions. If
you are unsure about any of these steps, call a qualified technician for assistance.
1) Make sure your Heater/Air Conditioner is working properly before beginning installation of the
thermostat
2) Carefully unpack the thermostat. Save the screws, bracket and instructions
3) Turn off power to the Heating/Air Conditioning system at the main fuse panel. Most residential system
have a separate breaker for disconnecting power to the furnace
4) Remove the cover of the old thermostat. If it does not come off easily check to see if it is mounted
with screws.
5) Loosen the screws holding the thermostat base or subbase to the wall, and lift away
6) Disconnect the wires from the old thermostat. Tape the ends of the wires as you disconnect them,
and mark them with the letter of the terminal for easy reconnection to TempLinc.
7) Keep the old thermostat for reference purposes, until you new thermostat is functioning properly
Wire Connections
If the terminal designations on your old thermostat do not match those on TempLinc, refer to the chart
below or the wiring diagram that follows.
Wires from old
thermostat terminal Function Install on TempLinc
connector
Common 24V 24V COM
Power 24V 24 RH
Power 24V 24 RC
Heat 1 W1
Heat 2 W2
Fan G
Cooling 1 Y1
Cooling 2 Y2
Page 13 of 22 Rev: 9/30/2011 1:26 PM
[Connection diagram]
Test Operation
1) Turn the power on to the Heating/Air Conditioning system
2) Press the MODE button repeatedly until the HEAT icon appears in the display. Press the UP or
DOWN buttons until the set temperature is 10 degrees above room temperature. The furnace should
turn on.
3) Press the MODE button repeatedly until the COOL icon appears on the display. Press the UP or
DOWN buttons until the set temperature is 10 degrees below room temperature. The air conditioner
should turn on.
NOTE: Most equipment has a time delay of 5 minutes between cool cycles.
4) Press the UP button until the setpoint is equal to the room temperature. Press the FAN button to Fan
On. The fan should turn on and run continuously.
Adding a Wireless Thermostat
The TempLinc can be paired with a wireless thermostat (TempLinc Wireless Zone Thermostat) to provide
a portable thermostat wherever you want temperature control. You can add up to xx wireless thermostats.
1) Press & hold the Set button on TempLinc Wireless Zone Thermostat
TempLinc Wireless Zone Thermostat Set LED goes GREEN for xx seconds
2) Press & hold TempLinc Set button
Thermostat will (Beep)
Page 14 of 22 Rev: 9/30/2011 1:26 PM
TempLinc Wireless Zone Thermostat will (Beep)-(Beep)
3) Test the link by pressing the Master button on the TempLinc Wireless Zone Thermostat
INSTEON Programming
Linking as a Responder
Linking to On
4) Set thermostat to desired state
5) Put controller in linking
6) Press & hold Thermostat Set button
Thermostat Set LED goes GREEN for xx seconds
Thermostat will (Beep)
7)
Linking complete with a (Beep)-(Beep) / LED off
Linking to Off
1) Set thermostat to desired state
2) Put controller in linking
3) Simultaneously Press & hold Thermostat Set button and Down arrow
Thermostat Set LED goes GREEN for xx seconds
Thermostat will (Beep)
TempLinc will (Beep)-(Beep) / LED off
Display while in Linking to On or Off
Linking as a Controller
TempLinc can be setup to control other INSTEON devices or trigger software events when there is a
change. The following TempLinc changes can be setup as a controller:
Group 1 - Cooling mode change (scene control)
Page 15 of 22 Rev: 9/30/2011 1:26 PM
Group 2 - Heating mode change (scene control)
Group 3 - Fan mode change (scene control)*
Group FE - broadcast on any change (info only)*
* Can only be configured via software.
NOTE: The Wireless TempLinc can also be linked as a controller to Group 1 and 2 but it will operate if
there’s a TempLinc or not. When it is linked as a controller of a TempLinc, the setpoints between
Wireless TempLinc and TempLinc will always be matched. When it is not linked to a TempLinc, the set
points are local only. Wireless TempLinc will send group commands based on local temp and the
setpoint shown on the display, regardless of whether it’s connected to a TempLinc or not.
Linking Process:
1) Press & hold Thermostat Set button until it beeps
Thermostat Set LED blinks GREEN
Thermostat will (Beep)
2) Press:
Up arrow to link to Group 1, Cooling mode changes
Down arrow to link to Group 2, Heating mode changes
3) Set responder’s desired state
4) Press and hold responder Set button
Thermostat will (Beep)-(Beep) to show completion, LED off
Upon entering Linking mode
Seen if press Up arrow
Page 16 of 22 Rev: 9/30/2011 1:26 PM
Seen if press Down arrow
Can alternate between these 2 by pressing Up and Down
Unlinking
1) Press & hold Thermostat Set button until it beeps
Thermostat Set LED blinks GREEN
Thermostat will (Beep)
as a responder
2) Press & hold Thermostat Set button to put it in unlinking
Thermostat Set LED blinks RED
Thermostat will (Beep)
LCD display indicates the group that you are unlinking from
3) Press:
Up arrow to unlink from Group 1, Cooling mode changes
Down arrow to unlink from Group 2, Heating mode changes
4) Press and hold responder Set button
Thermostat will (Beep)-(Beep) to show completion, LED off
Upon entering Linking mode
Page 17 of 22 Rev: 9/30/2011 1:26 PM
Upon entering Unlinking mode
Defaults to Cooling mode
Seen if press Down arrow
Can alternate between these last 2 screens by pressing Up and Down
Factory Setup Modes
To enter a Factory Setup Mode:
1) Press Mode, Up, and Down buttons simultaneously for 3 seconds to enter all of the Factory Setup
Modes below
2) All LCD segments will turn on
Page 18 of 22 Rev: 9/30/2011 1:26 PM
Factory Programming Mode
1) Once in Factory Setup Mode, press the Program button and select from one of the following (Press
Mode button to step through the options):

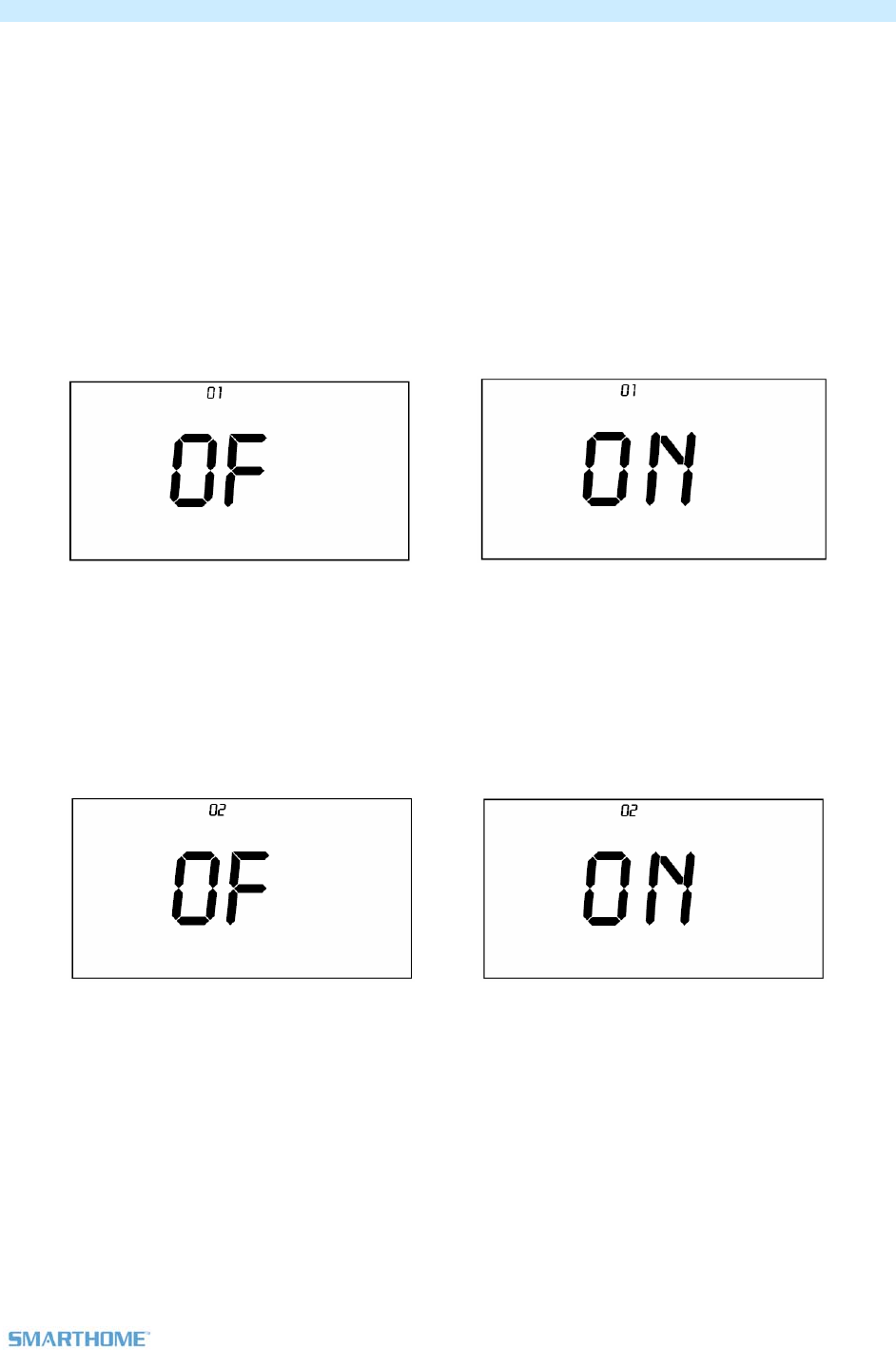

Sub-mode 1: Beep on button press (Default is Off)
Sub-mode 2: Programming lock (Default is Off)
Sub-mode 3: Button Lock (Default is Off)
Sub-mode 4: Temperature format select (Default is Fahrenheit)
2) Press the Up or Down button to change a setting
Sub-mode 1: Beep on button press (Enable / Disable)
a. Up arrow = On
b. Down arrow = Off (default setting)
Sub- mode 2: Programming lock (Enable / Disable)
a. Up arrow = On
b. Down arrow = Off (default setting)

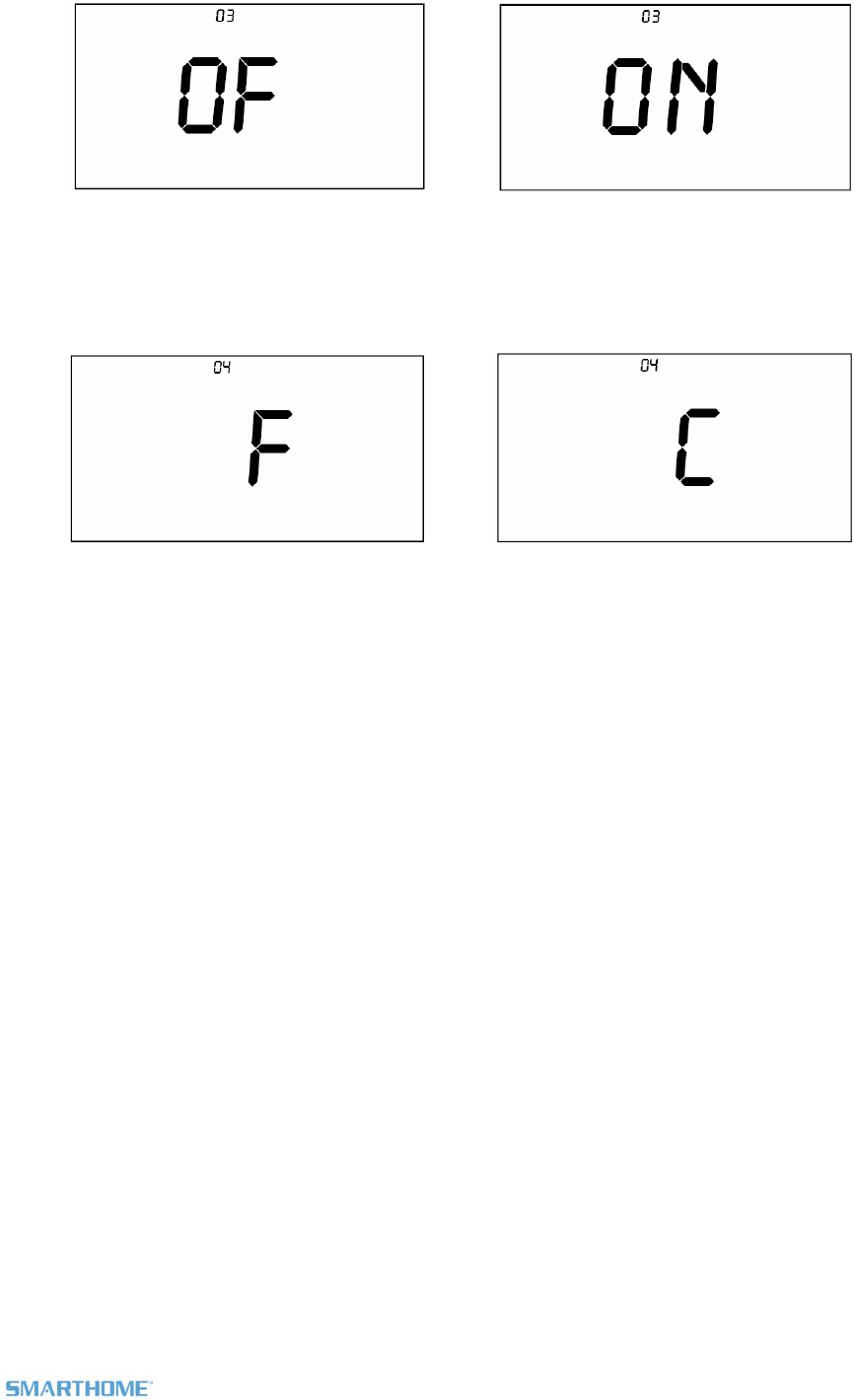

Sub- mode 3: Button Lock (disables front button presses)
a. Up arrow = On
b. Down arrow = Off (default setting)
Page 19 of 22 Rev: 9/30/2011 1:26 PM
Sub- mode 4: Termperature format select (C or F)
a. Up arrow = C
b. Down arrow = F (default setting)
Page 20 of 22 Rev: 9/30/2011 1:26 PM
Humidity Calibration Mode
1) Once in Factory Setup Mode, press the Sensor button
2) Press the Up or Down button to select the current humidity level

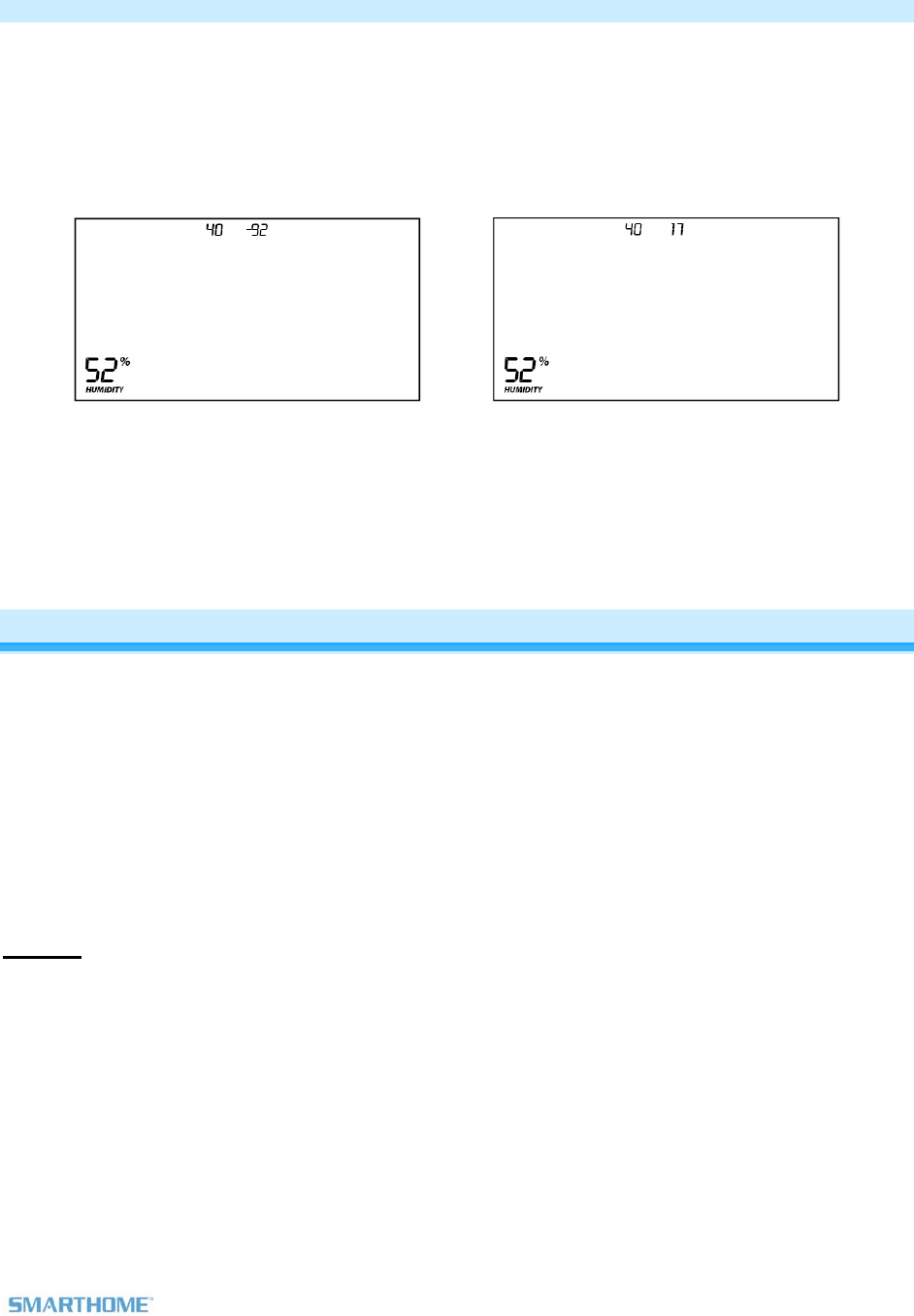

The display will appear similar to the following
The top numbers represent:
40 What the humidity sensor sees
-92 or 17 the offset from current reading
The offset is from -10 to +10
The displayed number needs to be multiplied by 0.1 to get the actual offset
Factory Reset to Default
Factory Reset Changes
INSTEON is reset (all links removed)
Day / time is changed to 12:00, Monday
Programming times and temperatures are reset to their default
Factory Reset Does Not Change
Temperature offset
Humidity Offset
F or C setting
Option 1
1) Remove power, press and hold Set button while powering up
2) Continue pressing and holding for ~10 seconds
Device will blink all segments and do continuous (Beep) during 10 seconds
3) When blinking / buzzing stops, release Set button
Device goes into factory reset for ~10 seconds
Screen goes blank, LEDs off
At completion display will briefly show a reset status code:
00 = successful reset
Page 21 of 22 Rev: 9/30/2011 1:26 PM
Xx = unsuccessful
4) Device will return to normal operations
Option 2
1) Press & hold Thermostat Set button until it beeps
Thermostat Set LED blinks GREEN
Thermostat will (Beep)
as a responder
2) Press & hold Thermostat Set button again until it beeps
Thermostat Set LED blinks RED
Thermostat will (Beep)
LCD display indicates the group that you are unlinking from
1) Double tap the Set button
2) Press and hold the set button for ~10 seconds
3) Continue pressing and holding for ~10 seconds
Device will blink all segments and do continuous (Beep) during 10 seconds
4) When blinking / buzzing stops, release Set button
Device goes into factory reset for ~10 seconds
Screen goes blank, LEDs off
At completion display will briefly show a reset status code:
00 = successful reset
Xx = unsuccessful
Page 22 of 22 Rev: 9/30/2011 1:26 PM
Certification and Warranty
FCC & Industry Canada Compliance Statement
This device complies with FCC Rules Part 15 and Industry Canada RSS-210 (Issue 8). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorise aux deux
conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est susceptible d'en compromettre le
fonctionnement.
The digital circuitry of this device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and
television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such
interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following
measures:
- Re-orient or relocate the receiving antenna of the device experiencing the interference
- Increase the distance between this device and the receiver
- Connect the device to an AC outlet on a circuit different from the one that supplies power to the receiver
- Consult the dealer or an experienced radio/TV technician
WARNING: Changes or modifications to this device not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
Limited Warranty
Seller warrants to the original consumer purchaser of this product that, for a period of two years from the date of purchase, this product will be free
from defects in material and workmanship and will perform in substantial conformity to the description of the product in this Owner’s Manual. This
warranty shall not apply to defects or errors caused by misuse or neglect. If the product is found to be defective in material or workmanship, or if the
product does not perform as warranted above during the warranty period, Seller will either repair it, replace it, or refund the purchase price, at its
option, upon receipt of the product at the address below, postage prepaid, with proof of the date of purchase and an explanation of the defect or error.
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or
replacement during the warranty period, call the INSTEON Gold Support Line at 800-762-7845 with the Model # and Revision # of the device to receive
an RMA# and send the product, along with all other required materials to:
Smarthome
ATTN: Receiving
16542 Millikan Ave.
Irvine, CA 92606-5027
Limitations
The above warranty is in lieu of and Seller disclaims all other warranties, whether oral or written, express or implied, including any warranty or
merchantability or fitness for a particular purpose. Any implied warranty, including any warranty of merchantability or fitness for a particular purpose,
which may not be disclaimed or supplanted as provided above shall be limited to the two-year of the express warranty above. No other representation
or claim of any nature by any person shall be binding upon Seller or modify the terms of the above warranty and disclaimer.
Home automation devices have the risk of failure to operate, incorrect operation, or electrical or mechanical tampering. For optimal use, manually verify
the device state. Any home automation device should be viewed as a convenience, but not as a sole method for controlling your home.
In no event shall Seller be liable for special, incidental, consequential, or other damages resulting from possession or use of this device, including
without limitation damage to property and, to the extent permitted by law, personal injury, even if Seller knew or should have known of the possibility of
such damages. Some states do not allow limitations on how long an implied warranty lasts and/or the exclusion or limitation of damages, in which case
the above limitations and/or exclusions may not apply to you. You may also have other legal rights that may vary from state to state.
U.S Patent No. 7,345,998, International patents pending
© Copyright 2011 Smarthome, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845, www.smarthome.com
