INDUSTRIAL PASSPORT STATION (2 HEADS, 4 HEADS)
PST-STAT-2
PST-STAT-4
USER MANUAL
INDUSTRIAL PERSONALIZATION READER FOR SMART CARDS
V1R01a
PST-STAT-4 - User Manual - V1R01a
Copyright
All rights of translation adaptation and reproduction by any mean reserved for all the countries.
Any reproduction or any complete or partial representation of the pages published in this work, made
without the written permission of SMARTWARE is illicit and constitutes an imitation, whatever mean is
used. Only reproductions strictly reserved for the private use of the purchaser and not intended to be
used collectively are authorized. So are the short quotations justified by the scientific or informative
nature of the work which they are extracted from (art L.122-4 L. 122-5 and L. 335-2 of the French
Code ruling on intellectual property).
© SMARTWARE, Les ULIS, France, 1999-2018
Disclaimers
Information in this document is subject to change without notice and does not represent a
commitment on the part of SMARTWARE.
2 © 2018, Smartware
PST-STAT-4 -
User Manual
V1R01a
© 2018, Smartware 3
Table of Content
1 Abbreviations and symbols ......................................................................... 4
2 Overview ...................................................................................................... 5
3 Overview ...................................................................................................... 6
4 Block Diagram ............................................................................................. 7
5 Functionnal Description .............................................................................. 8
5.1 Communication protocols and standards ....................................................................... 8
6 Technical Characteristics ........................................................................... 9
6.1 Electrical characteristics .................................................................................................. 9
6.2 Operating environment ..................................................................................................... 9
7 Regulatory ................................................................................................. 10
7.1 Grants ............................................................................................................................... 10
7.2 Warning to users ............................................................................................................. 10
7.3 Labelling ........................................................................................................................... 11
8 Contact information .................................................................................. 12
9 Revision history ......................................................................................... 12
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
4 © 2018, Smartware
1 ABBREVIATIONS AND SYMBOLS
BPSK Binary Phase-Shift Keying
CPU Central Processing Unit
ETU Elementary Time Unit
EUT Equipment Under Test
FCC Federal Communications Commission
IEC International Electrotechnical Commission
ISO International Standards Organization
LAN Local Area Network
n/a Not Applicable or Not Available
NRZ Non-Return to Zero
P/N Part Number
PCB Printed Circuit Board
PICC Proximity Integrated Circuit Card
RF Radio Frequency
RFID Radio Frequency IDentification
S/N Serial Number
OOK On-Off Keying.
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
© 2018, Smartware 5

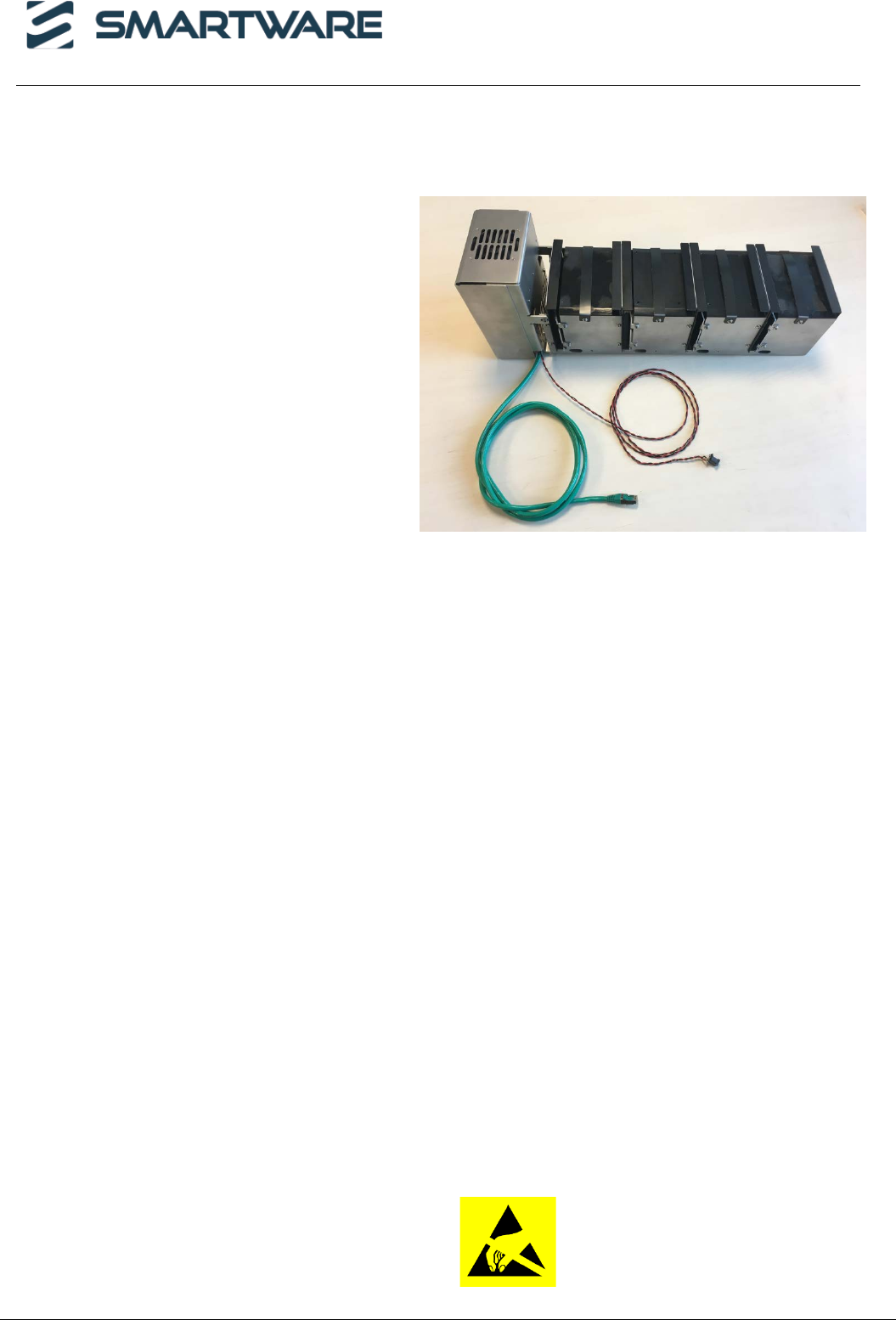

2 OVERVIEW
The Industrial Passport Stations PST-STAT-2
and PST-STAT-4 are two-head and
four-head smartcard readers dedicated to
personalization of smart cards in an industrial
environment.
Contactless interfaces features
Supported Protocols:
- ISO/IEC 14443 (parts 2, 3 and 4)
- MasterCard PayPass
- Sony FeliCaTM
- NXP MIFARETM and MIFARE PlusTM
- ISO/IEC 15693
- Proprietary protocols
Key Programmable Parameters:
- RF output level
- Communication speed up to 848 kbps
- Communication protocol parameters
Other features
- In-system firmware updates
Target Application
• Production environment
• Contactless reader/encoder
Electrostatic discharge sensitivity
The Passport Station uses semiconductors
that can be damaged by electrostatic
discharge (ESD). Observe precautions for
handling. Damage due to inappropriate
handling is not covered by the warranty.
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
6 © 2018, Smartware

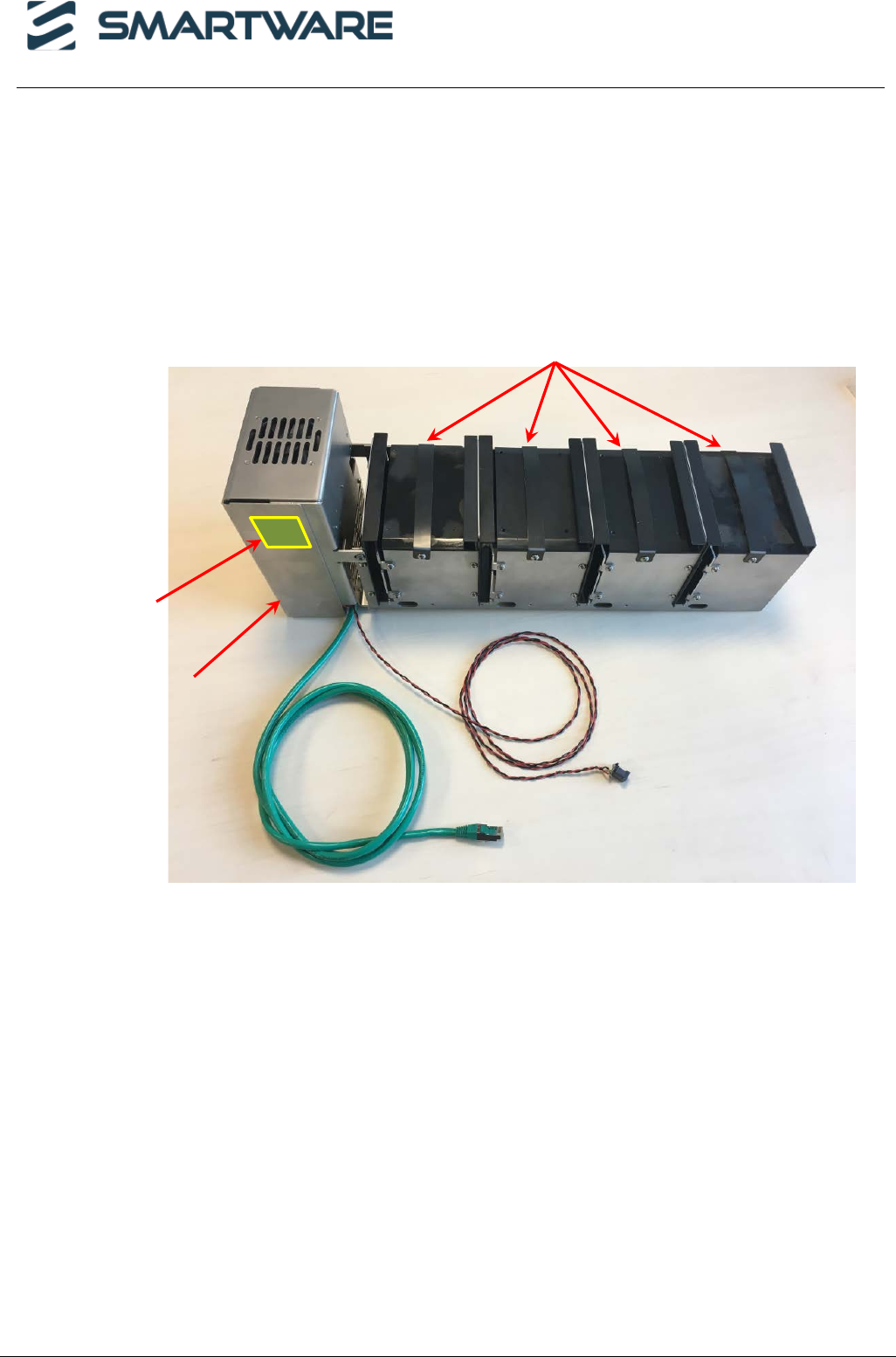

3 OVERVIEW
The Passport Station is a standalone equipment. It is powered by an external DC supply and
connected to computer equipment through a LAN over an Ethernet cable.
LAN
Cable
Power
Cable
4 heads
(antennas hidden)
US-CORE and US-PICC2
assembly (in shielding)
FCC Grant Label
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
© 2018, Smartware 7

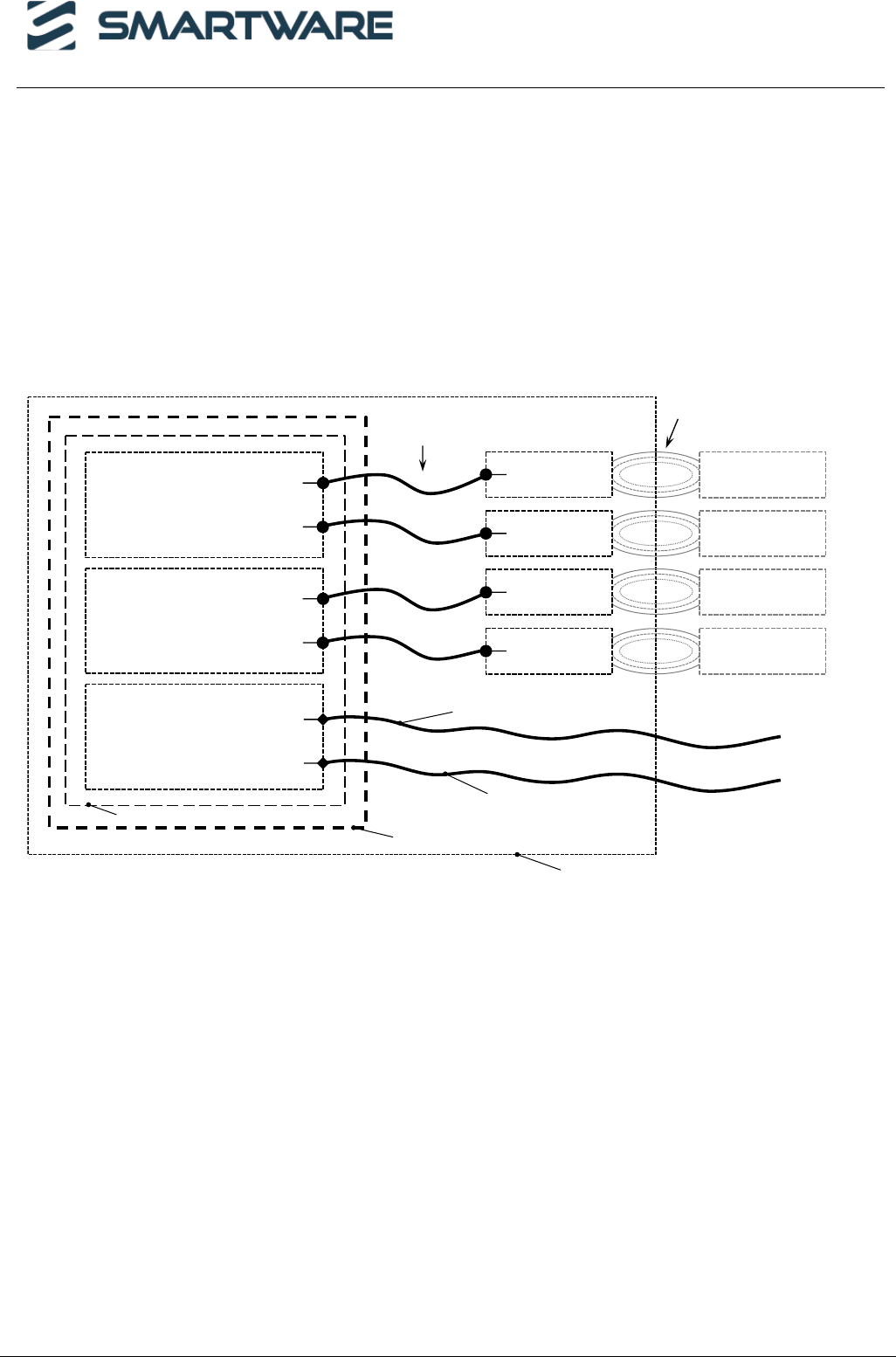

4 BLOCK DIAGRAM
The Passport Station chassis comprises
• one US-CORE board
• one or two US-PICC2 boards
• two or four antennas
The following figure shows a simplified block diagram of the Passport Station (with 4 heads).
Detailed information may be found in the US-PICC2 and US-CORE datasheets.
US-PICC2
#2
RF interface #3
RF interface #4
US-CORE
LAN interface
Power input
US-PICC2
#1
RF interface #1
RF interface #2
US-PICC2 and US-CORE Assembly
coaxial cables
to LAN
DC supply
Passport Station
magnetic coupling
Contactless
Smartcard #1
Contactless
Smartcard #2
Contactless
Smartcard #3
Contactless
Smartcard #4
Antenna
Coil #1
Antenna
Coil #2
Antenna
Coil #3
Antenna
Coil #4
Ethernet Cat. 6 cable
Power cable
Shielding
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
8 © 2018, Smartware
5 FUNCTIONNAL DESCRIPTION
US-PICC2 includes two or four contactless interfaces to communicate with contactless smart cards
and smart objects.
Smartware MLOS system and CARD package manage most of the functionalities of the
US-PICC2. Please refer to their documentation for more information.
5.1 COMMUNICATION PROTOCOLS AND STANDARDS
Embedded software provides the following functionalities:
• Adjustable field strength
• Timing parameters management such as FWT, FDT, EGT…
• Several protocol parameters management such as FSCI, FSDI, SOF, EOF, NAD, CID…
• Frame blocks error and recovery mechanism
• Raw mode access to support user custom protocols
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
© 2018, Smartware 9
6 TECHNICAL CHARACTERISTICS
6.1 ELECTRICAL CHARACTERISTICS
POWER SUPPLY MIN TYPICAL MAX
Input voltage
10.8 V
12 V
13.2 V
Input Current (Vcc = 12 V)
1200 mA
1400 mA
2000 mA
6.2 OPERATING ENVIRONMENT
OPERATING ENVIRONMENT MIN TYPICAL MAX
Operating temperature
5°C
20°C
40°C
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
10 © 2018, Smartware
7 REGULATORY
7.1 GRANTS
The US-PICC2 is CD, FCC modular approval, and RoHS compliant.
7.2 WARNING TO USERS
Warning 1: The US-PICC2 is considered as a component that will be operated in combination with the final equipment.
Then, the final equipment (including power supply system) still needs to re-confirm that the whole system complies with
the local EMC directives.
Warning 2: The US-PICC2 model is a low power radiofrequency emitter, and then specific precaution should be taken to
restrict the human presence near the antennas.
We recommend that persons should be at least at 20 cm far from the emitting antennas. This information also has to be
mentioned in the end product.
Access should only be authorized to qualified personal.
If the product is not installed and used in accordance with the instruction manual, it may cause harmful interference to
radio communications.
Warning 3: To reduce the risk of fire or injury to persons, follow these instructions:
All maintenance and servicing of this device must be performed in a safe area away from hazardous locations.
Disconnect all power before servicing.
Use an earthed bracelet to avoid ESD damages.
Power supply must be SELV, no energy hazard.
Warning 4: To comply with directives, the backplane Ethernet cable length should be less than 3 meters.
Warning 5: This device has been designed to operate with the antenna(s) listed below. Antennas not included in this list
are strictly prohibited for use with this device
List of acceptable antenna(s):
- 5207A-02050
Warning 7: To comply with directives, RF power may be set from power 0 to power 10.
Warning 8: In case of collocated transmitters, the maximum number of transmitters in a small place should be 48.
Warning 9: The product shall not be modified without written authorisation of Smartware. Changes or modifications not
expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Warning 10: The end product’s sticker should mention that it “contains a FCCID: RPM – USPICC201 product.
Warning 11:
WARNING TO USERS IN THE UNITED STATES
Federal Communication Commission Interference
Section 15.105 Information to the user
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
© 2018, Smartware 11
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try
to correct interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC RF radiation exposure limits set forth for general population. This device must be
installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
NO UNAUTHORIZED MODIFICATIONS
47 CFR Section 15.21
CAUTION: This equipment may not be modified, altered, or changed in any way without signed written permission from
Smartware. Unauthorized modification may void the equipment authorization from the FCC and will void the Smartware
warranty.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
7.3 LABELLING
The following label is affixed on the product:
PICC2 US FCC CEM EMC Passport Station -
Erreur ! Nom de propriété de document inconnu.
V1R01a
12 © 2018, Smartware
8 CONTACT INFORMATION
For more information, please send an email to: support@smartware.fr
For ordering information, please send an email to: sales@smartware.fr
9 REVISION HISTORY
VERSION DATE AUTHOR DESCRIPTION OF CHANGES
V1R01a
June 2018
MZ
Creation
