User Manual

USER MANUAL
Smiirl - Counter
12/01/2015
USER MANUAL
© Copyright 2015 All rights reserved.
No part of this document may be reproduced, republished, or retransmitted in any form or by
any means whatsoever, whether electronically or mechanically, including, but not limited to, by
way of photocopying, recording, information recording, or through retrieval systems without the
express written permission. We reserve the right to revise this document at any time without
the obligation to notify any person and/or entity. All other company or product names
mentioned are used for identification purposes only and may be trademarks of their respective
owners
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED "AS IS," BASIS. THE
MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS
“THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES
ARISING FROM COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE.
IN NO EVENT WILL THE SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT
NOT LIMITED TO DIRECT, INDIRECT, SPECIAL WILFUL, PUNITIVE, INCIDENTAL, EXEMPLARY,
OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, OR
DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING
OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE SOFTWARES,
INCLUDING BUT NOT LIMITED TO THOSE RESULTING FROM DEFECTS IN THE PRODUCT
OR SOFTWARE OR DOCUMENTATION, OR LOSS OR INACCURACY OF DATA OF ANY KIND,
WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY, EVEN IF THE
PARTIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK
AS TO THE RESULTS AND PERFORMANCE OF THE PRODUCT OR ITS SOFTWARE IS
ASSUMED BY CUSTOMER. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO THE
PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE LIABILITY OF EACH AND
EVERY KIND IN RELATION TO THE PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT
PAID BY CUSTOMER FOR THE PRODUCT.!
12/01/2015!!
Smiirl
"/"2 22
USER MANUAL
CONTENT
CONTENT 3
ABOUT IT 4
MINIMUM SYSTEM REQUIREMENTS 4
PACKAGE CONTENTS 4
DEVICE DESIGN 5
FRONT PANEL 5
BACK PANEL 6
UNDERSTAND YOUR COUNTER 7
CREATE ONLINE ACCOUNT 9
ADD COUNTER 9
CONNECTING THE COUNTER 11
ETHERNET 11
WIFI 11
HELP & ADVANCED CONFIGURATION 18
HELP 18
ADVANCED CONFIGURATION 19
APPENDIX 20
FCC STATEMENT 20
EUROPEAN REGULATIONS 20
SAFETY WARNINGS 20
12/01/2015!!
Smiirl
"/"3 22
USER MANUAL
ABOUT IT
Smiirl Counter is a counter that display numbers from internet, for example Facebook fan. The
counter supports wireless 802.11b/g/n, and one 10/100 Base-T Ethernet port. It is able to
connect to 2.4GHz networks.
MINIMUM SYSTEM REQUIREMENTS
Your computer must meet the following minimum requirements :
-Any operating system can be used
-Web Browser
-233MHz processor (or higher)
-Ethernet network adapter
-Wireless network adapter
You can use any smartphone instead of using a computer. It require only a Web Browser.
PACKAGE CONTENTS
Package contents are listed below. For any missing items, please contact your dealer
immediately. Product contents vary for different models :
-Your Counter
-A power supply
-4 adapters for power supply
-a clothe (to clean object)
Note : the user manual can be found on http://my.smiirl.com
12/01/2015!!
Smiirl
"/"4 22
USER MANUAL
DEVICE DESIGN

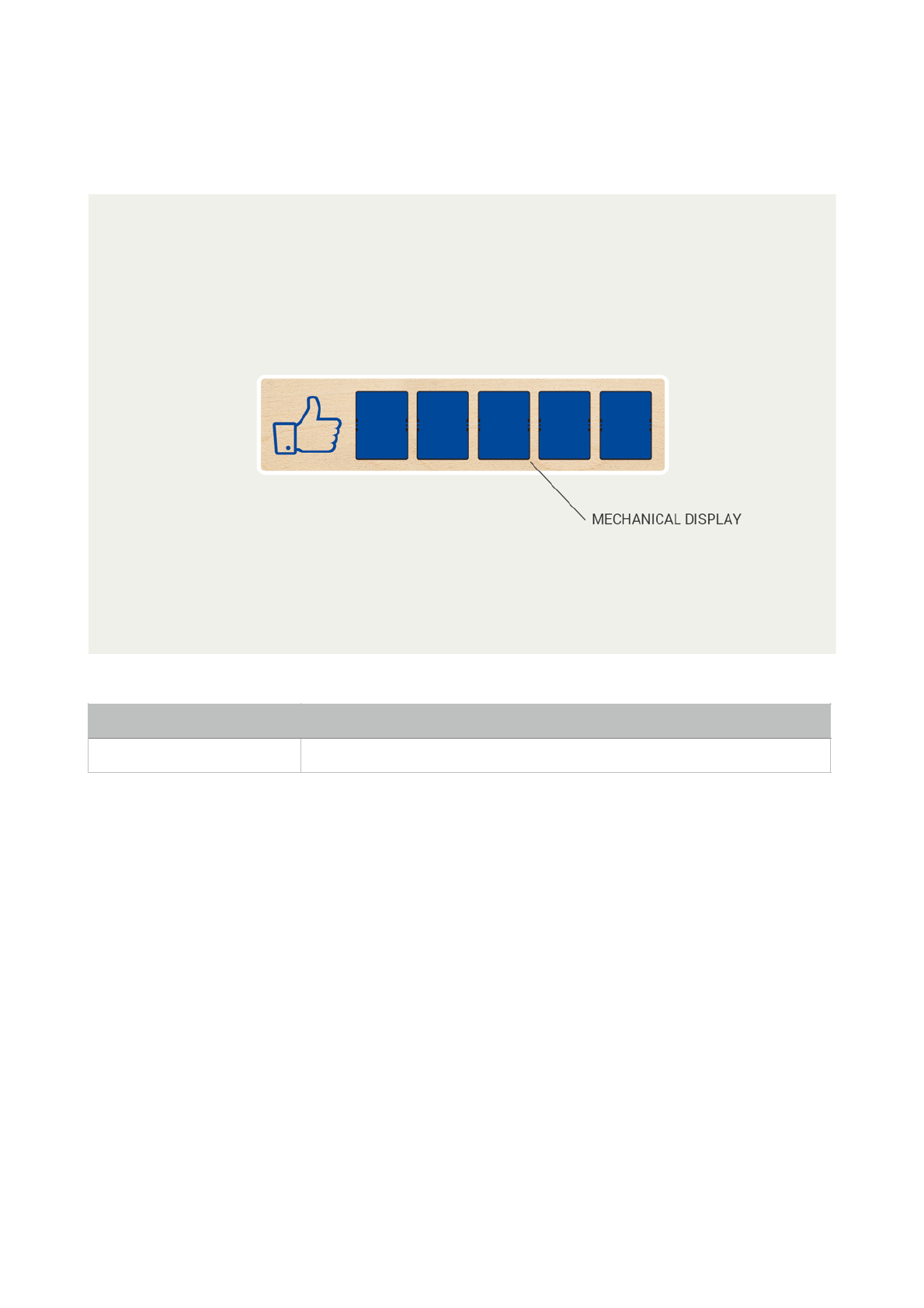

FRONT PANEL
LABEL
MECHANICAL DISPLAY
12/01/2015!!
Smiirl
"/"5 22
USER MANUAL

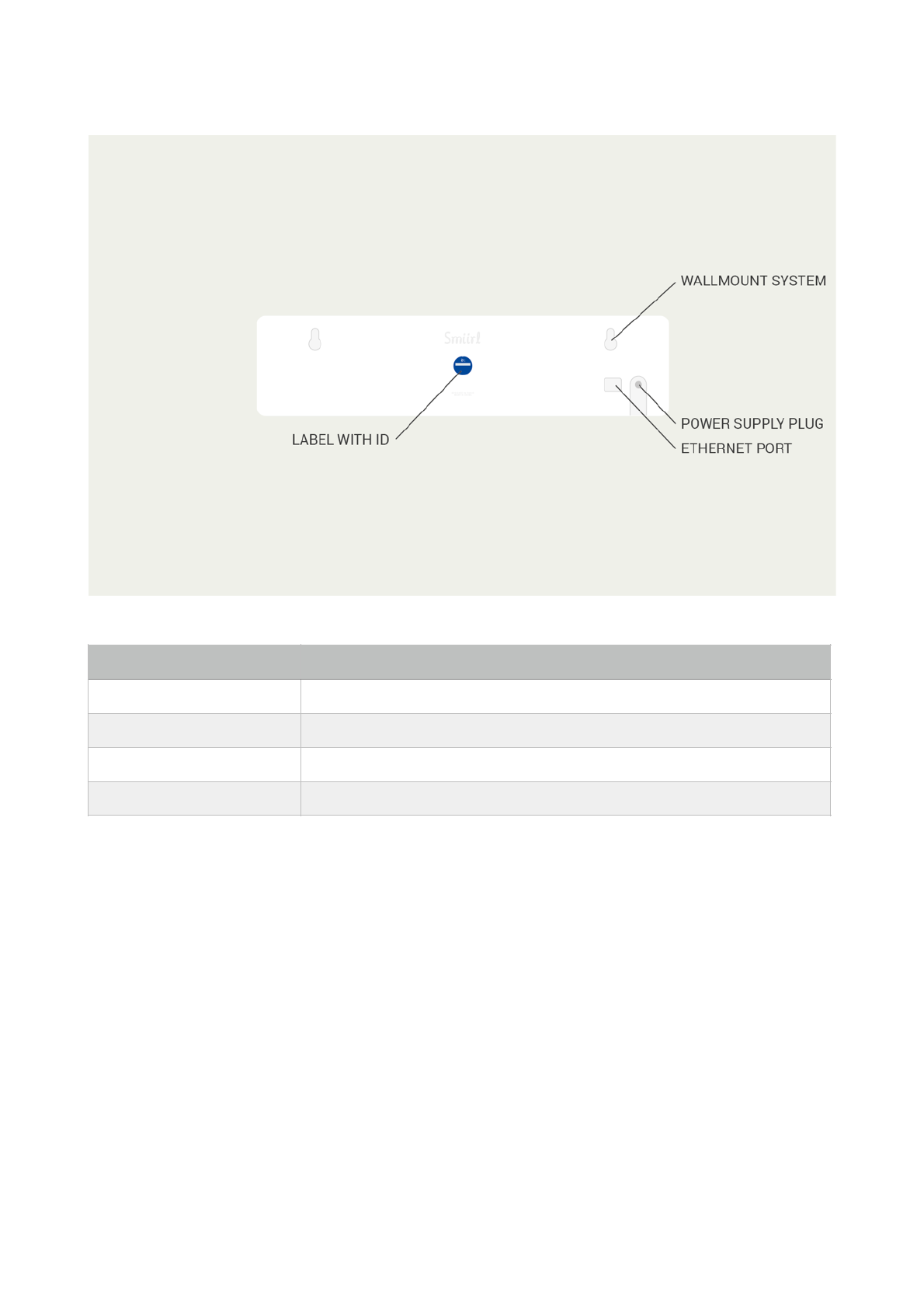

BACK PANEL
LABEL
LABEL WITH ID
WALLMOUNT SYSTEM
POWER SUPPLY PLUG
ETHERNET PORT
12/01/2015!!
Smiirl
"/"6 22
USER MANUAL

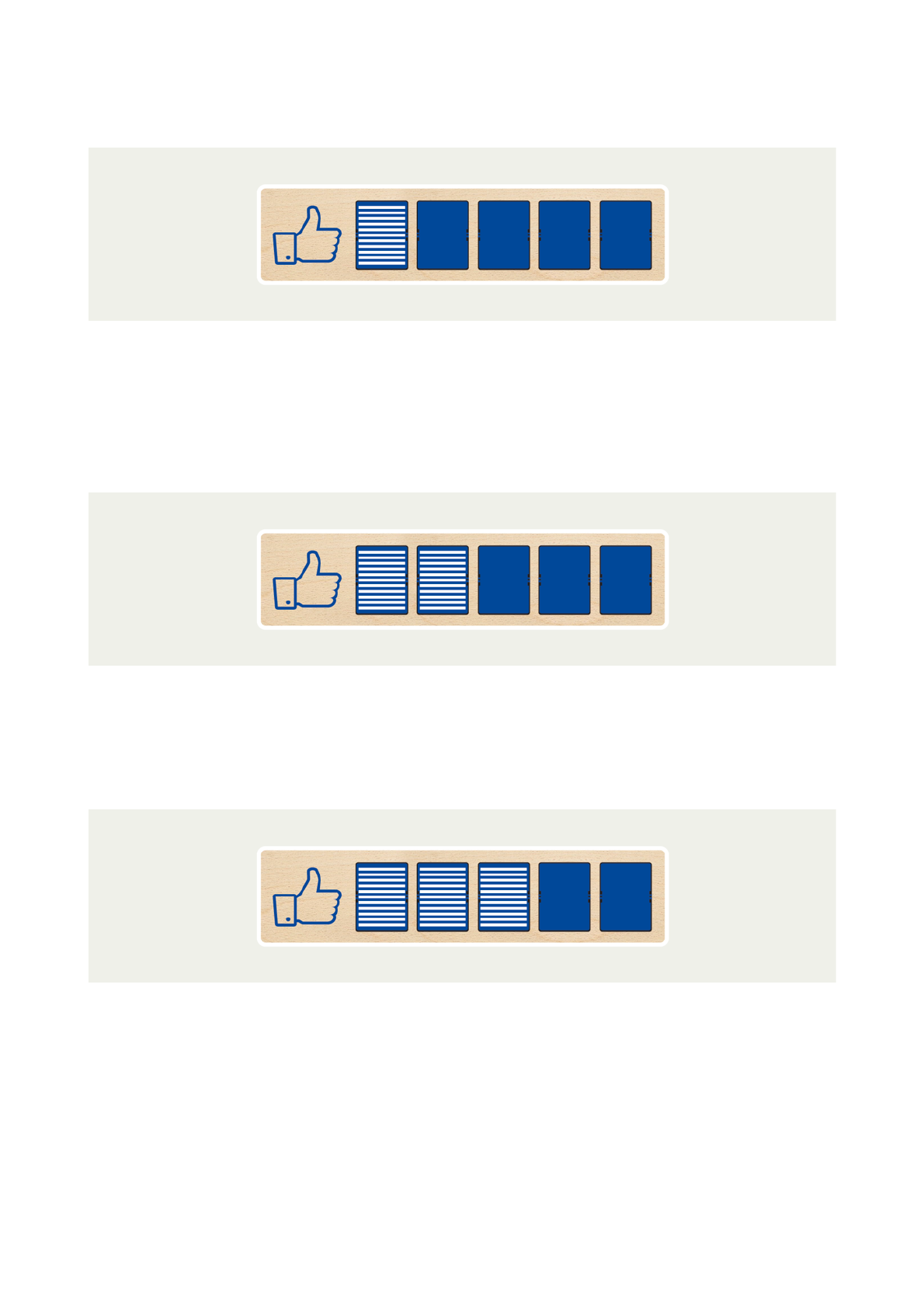

UNDERSTAND YOUR COUNTER
Counter is broadcasting a wifi network «#SmiirlSetup#».
It is ready to be connected to internet.
User is connected on the web interface.
Counter is successfully associated to the wifi network configured.
12/01/2015!!
Smiirl
"/"7 22
USER MANUAL

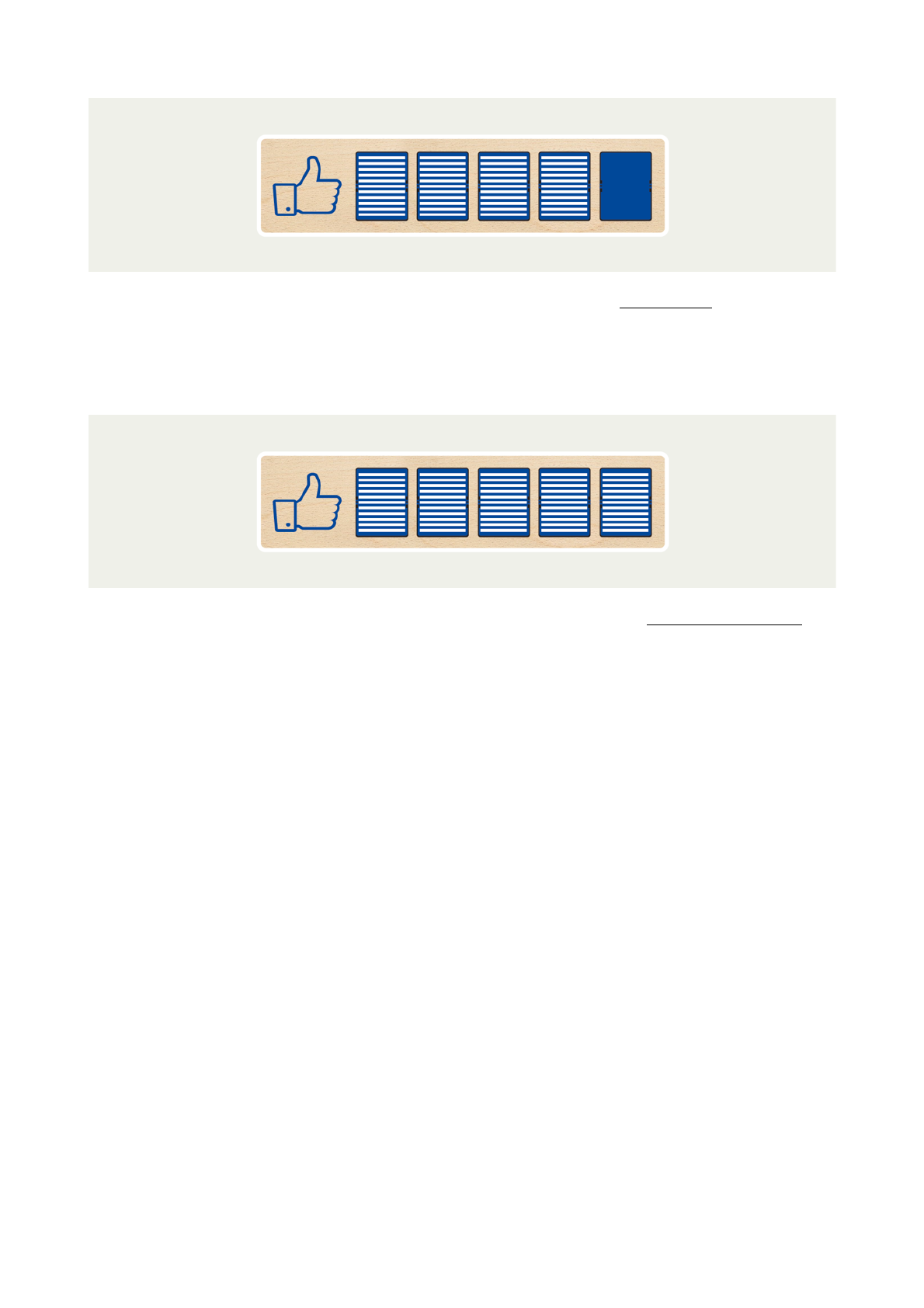

Counter is successfully connected to internet. (Can access google.com server)
Counter is connected to internet and is waiting to be configured on http://my.smiirl.com.
12/01/2015!!
Smiirl
"/"8 22
USER MANUAL
CREATE ONLINE ACCOUNT
Before connecting your Counter to internet, you have to create an account on http://
my.smiirl.com and register your Counter on this platform. The design & process of the website
for the configuration may change following our website release. Process will not change.

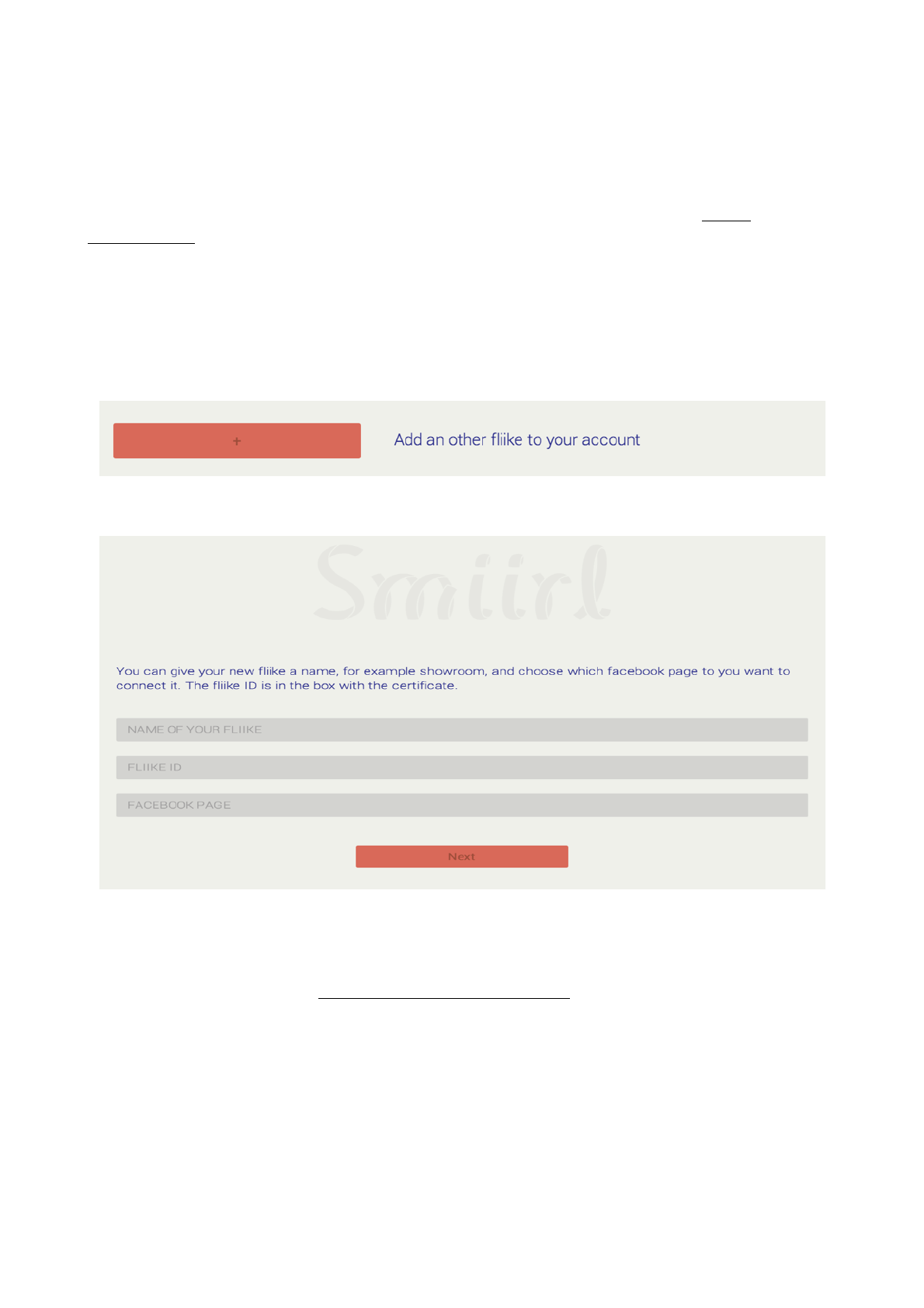

ADD COUNTER
To link the Counter to your user account, you have to go on my.smiirl.com and log-in.
In the section “Your Counter(s)”, click on:
This is what you should see then:
Choose an appropriate name for your Counter (like “Showroom”) and enter the “Counter ID”
that can be found at the back of the object.
You can now choose the Facebook page that you want to link with this Counter by inserting the
full url of this page, example: http://www.facebook.com/smiirl
12/01/2015!!
Smiirl
"/"9 22
USER MANUAL
Example:
If you want to link your Counter to the Facebook page of Smiirl, simply find the page on
Facebook

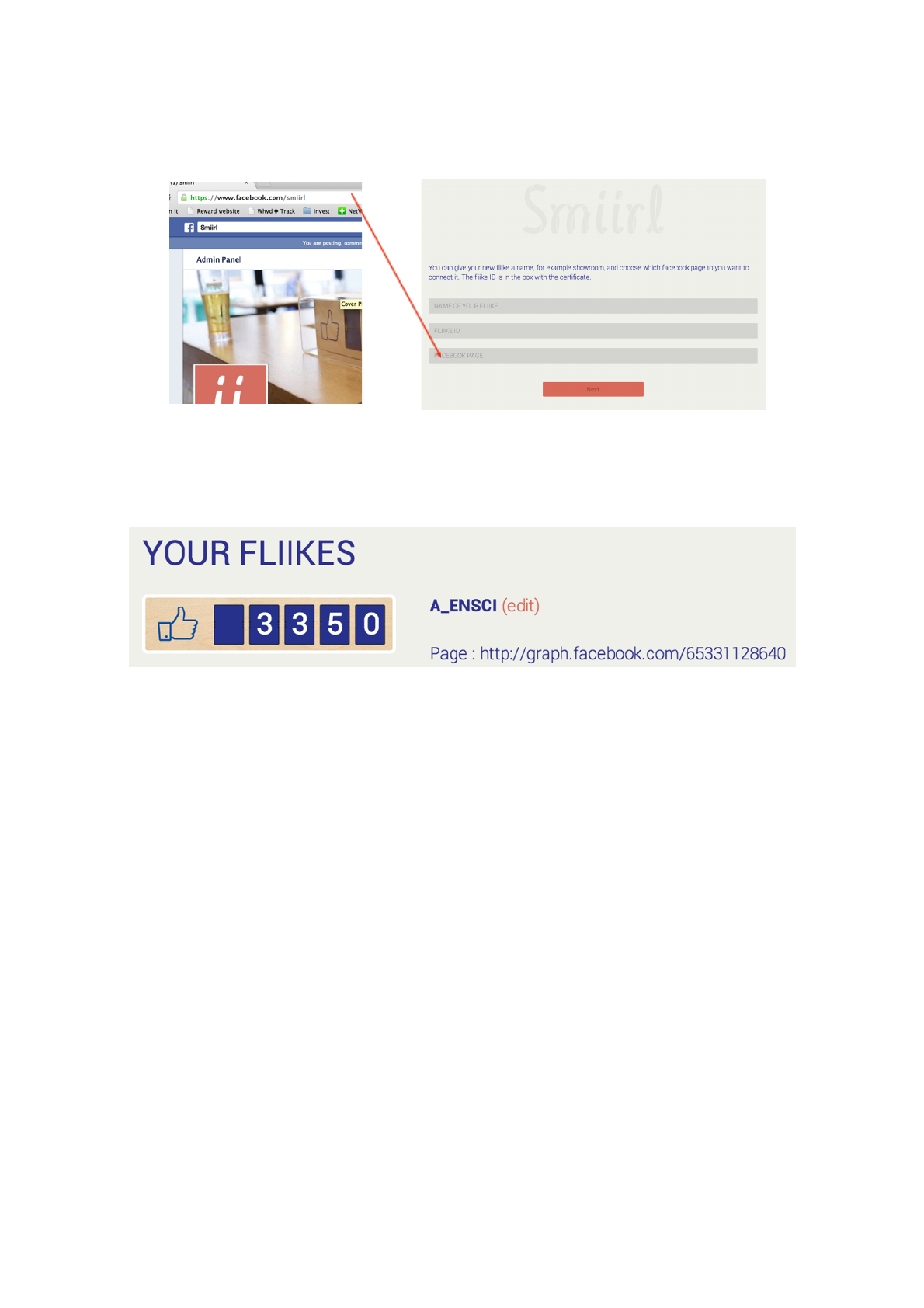

When you are on this page, copy the URL of the page and paste it at the right place
Once created, here is what you should see on the home page of my.smiirl.com:
Where “A_ENSCI” will be the name that you gave to the Counter and the number of fans
displayed is corresponding to the Facebook page you linked-it with.
12/01/2015!!
Smiirl
"/"10 22
USER MANUAL
CONNECTING THE COUNTER
Now that your profile is set-up on http://my.smiirl.com, you’ll have to connect the Counter to
internet. To do that, there are two ways to connect it:
1. through wifi (recommended if you wan’t to hang your Counter on a wall)
2. through ethernet.
ETHERNET
Required step :
-Create an online account
If you want to connect your Counter through Ethernet, just plug a RJ45 cable from your
internet router to the back of the Counter. If your network is not protected with special firewall,
your Counter will be able to access internet and display the number that you have configured
while «#online account#»
WIFI
To connect-it via Wifi: you have to connect your computer (or smartphone) to the local system
of your Counter through the wifi it broadcasts in order to give him the information needed to
connect itself to your own wifi network.
1) Plug the Counter
Every time you plug-in the Counter, there is a calibration process where every digits will move
one after each other.

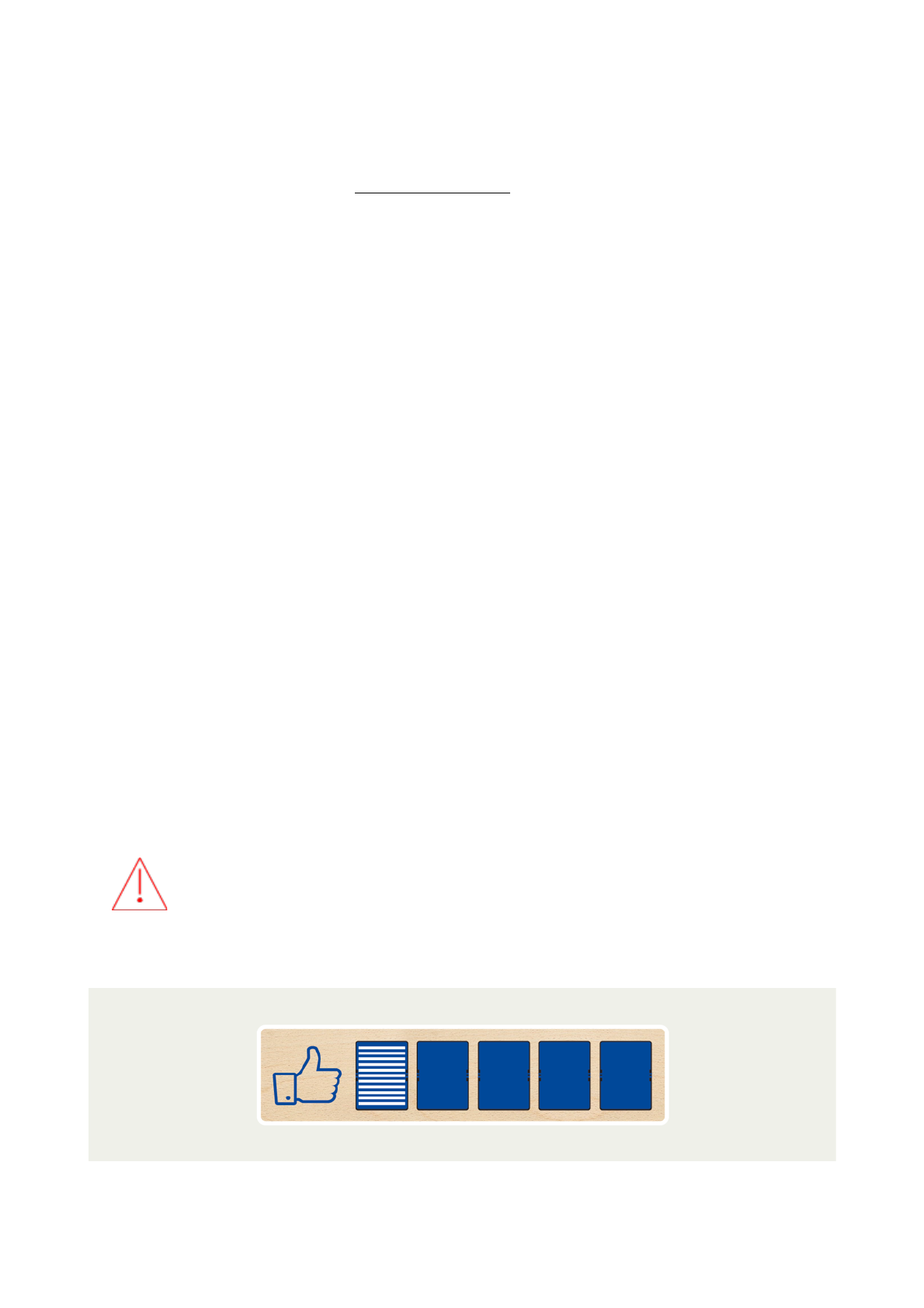

Once the Counter is calibrated it will broadcast a “SmiirlSetup” wifi network.
Warning : The network « SmiirlSetup » is broadcasted only when the Counter has
no access to internet.
When the «#SmiirlSetup#» is broadcasted, the Counter displays :
12/01/2015!!
Smiirl
"/"11 22
USER MANUAL

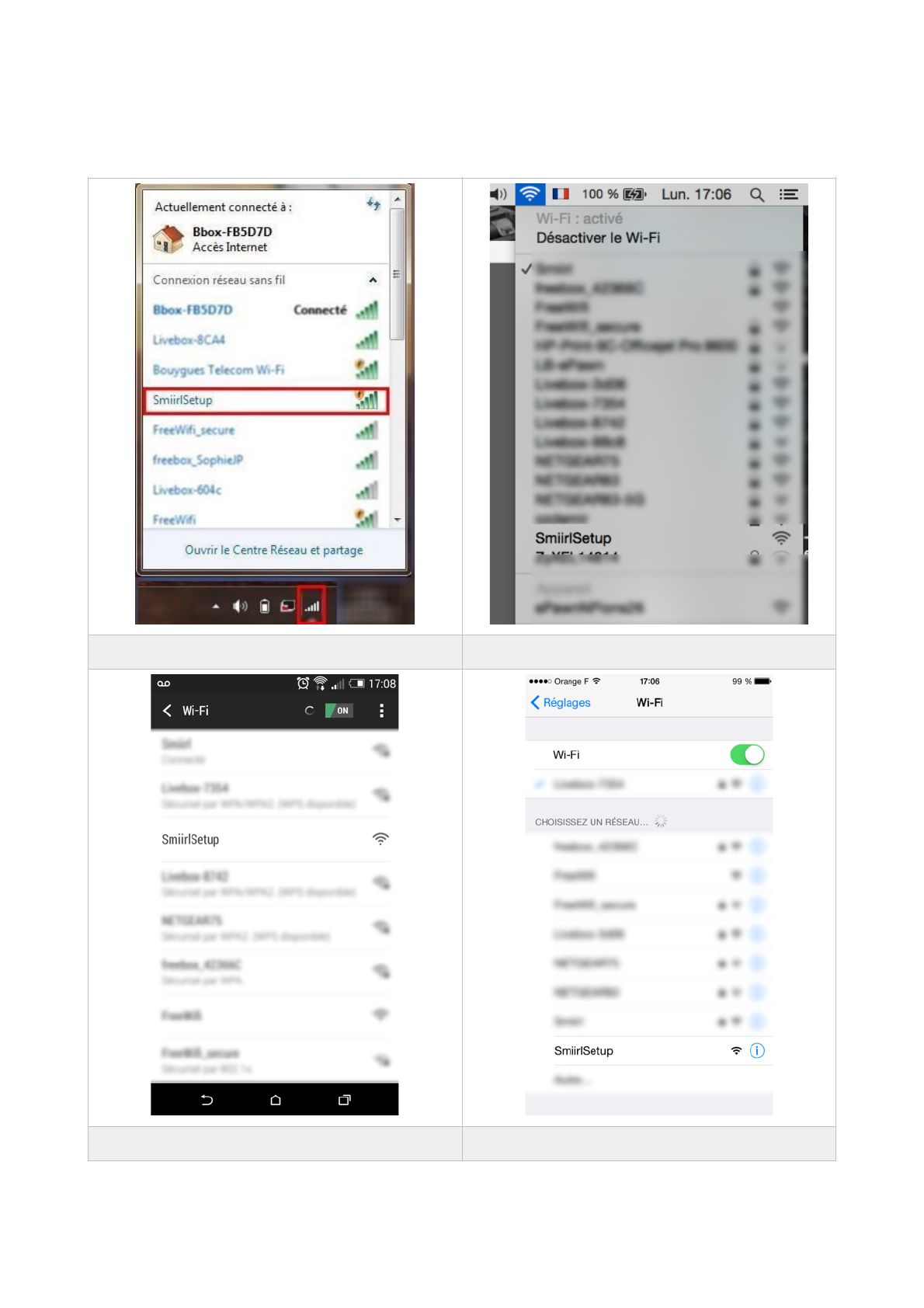

2) Connect your computer to the “SmiirlSetup” wifi network
Connect to the «#SmiirlSetup#» wifi on your device.
Windows
Mac OSX
Android
iDevices (iPhone, iPad)
12/01/2015!!
Smiirl
"/"12 22
USER MANUAL

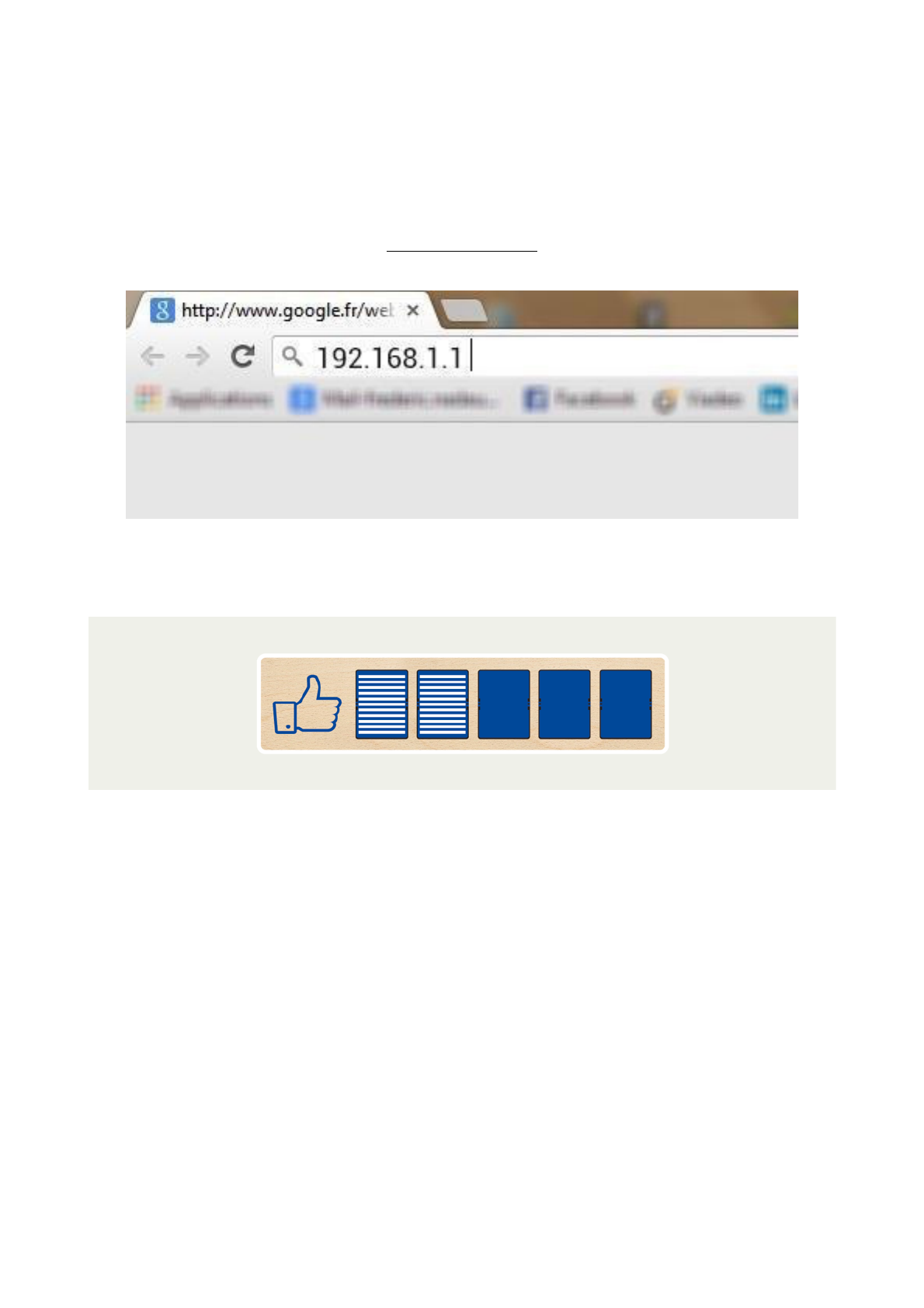

3) Access to the inside of the Counter
Right now your computer won’t have access to internet but is connected on the network
broadcasted by the Counter.
Use your web browser (Chrome, Firefox, Internet Explorer...etc) and go on the address:
http://192.168.1.1
When the page is loaded, the Counter displays:
12/01/2015!!
Smiirl
"/"13 22
USER MANUAL
4) Connect the Counter to your wifi network
Counter is scanning the wifi networks available around. It will switch
to next step automatically (should not take more than 1 minute).

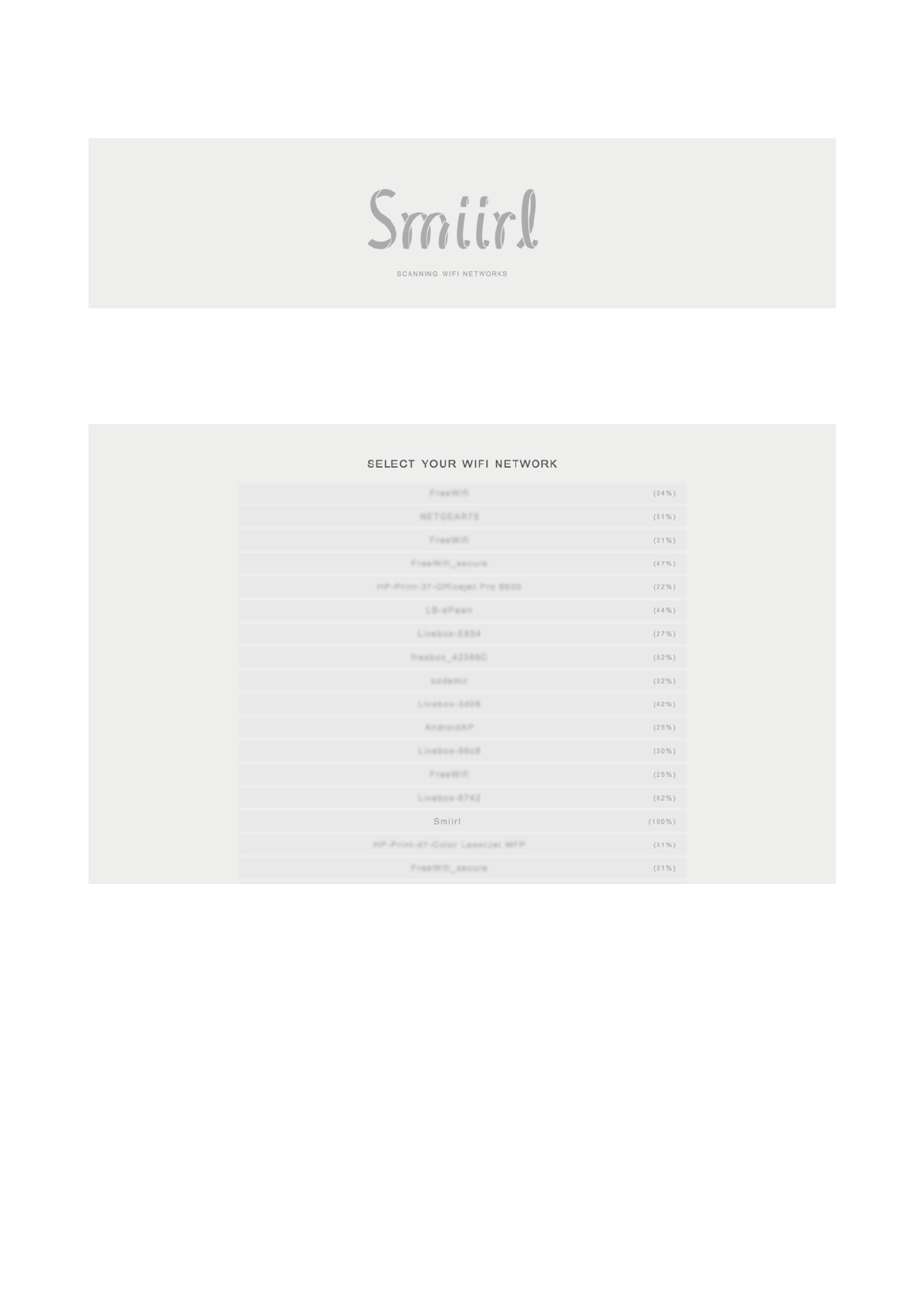

You now have to choose to which wifi network the Counter should be connected.
This list is updated each 7 seconds. To select the wifi that you want to connect
on, just click on the following wifi network.
12/01/2015!!
Smiirl
"/"14 22
USER MANUAL

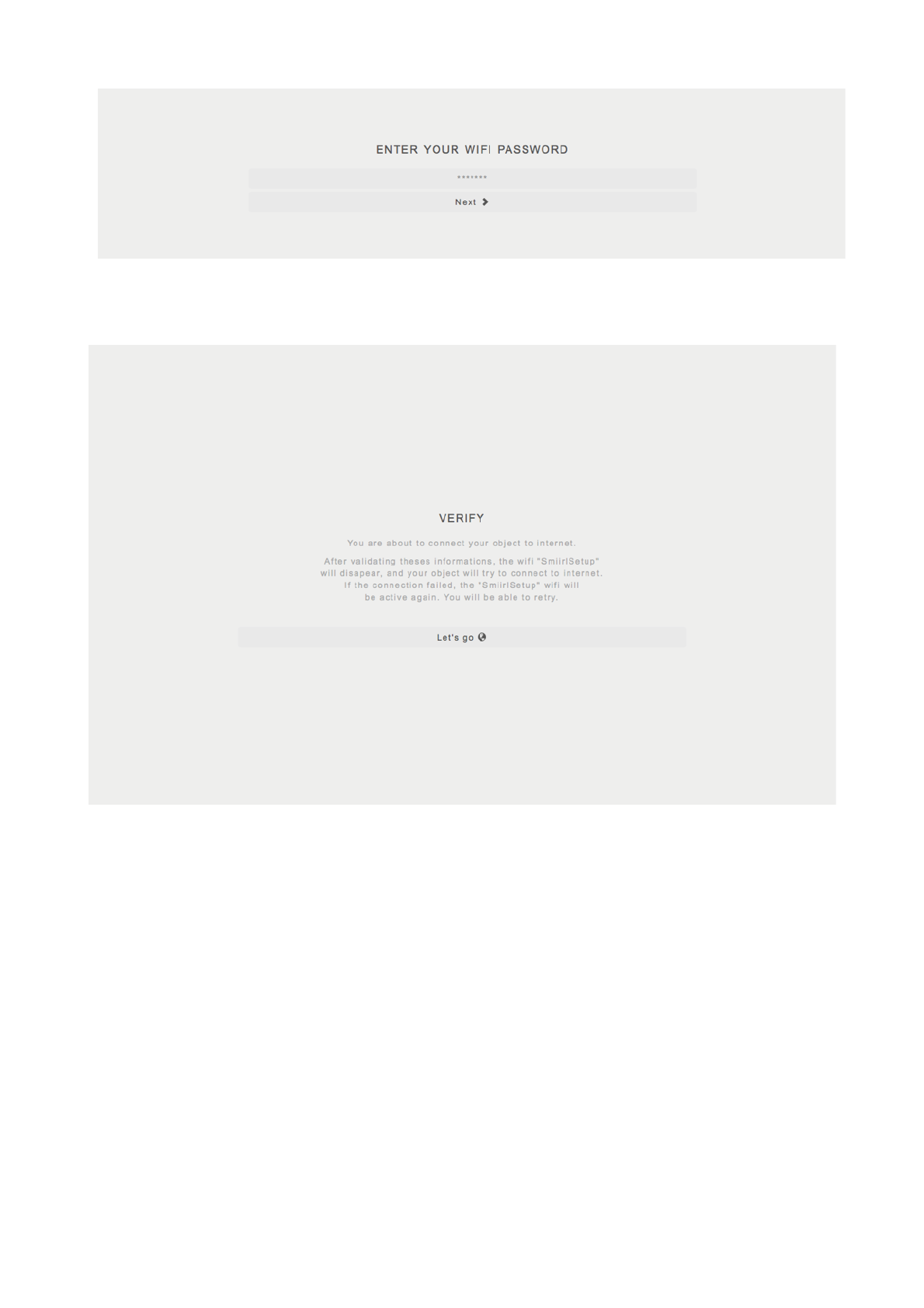

And if this wifi is protected, please enter the WEP/WPA Key.
Next step is only informative. It explain that the object will stop to broadcast
«#SmiirlSetup#» wifi network and try to connect to the wifi that you configured.
If it failed, it will broadcast again a «#SmiirlSetup#» network and you will be
able to restart this process.
12/01/2015!!
Smiirl
"/"15 22
USER MANUAL

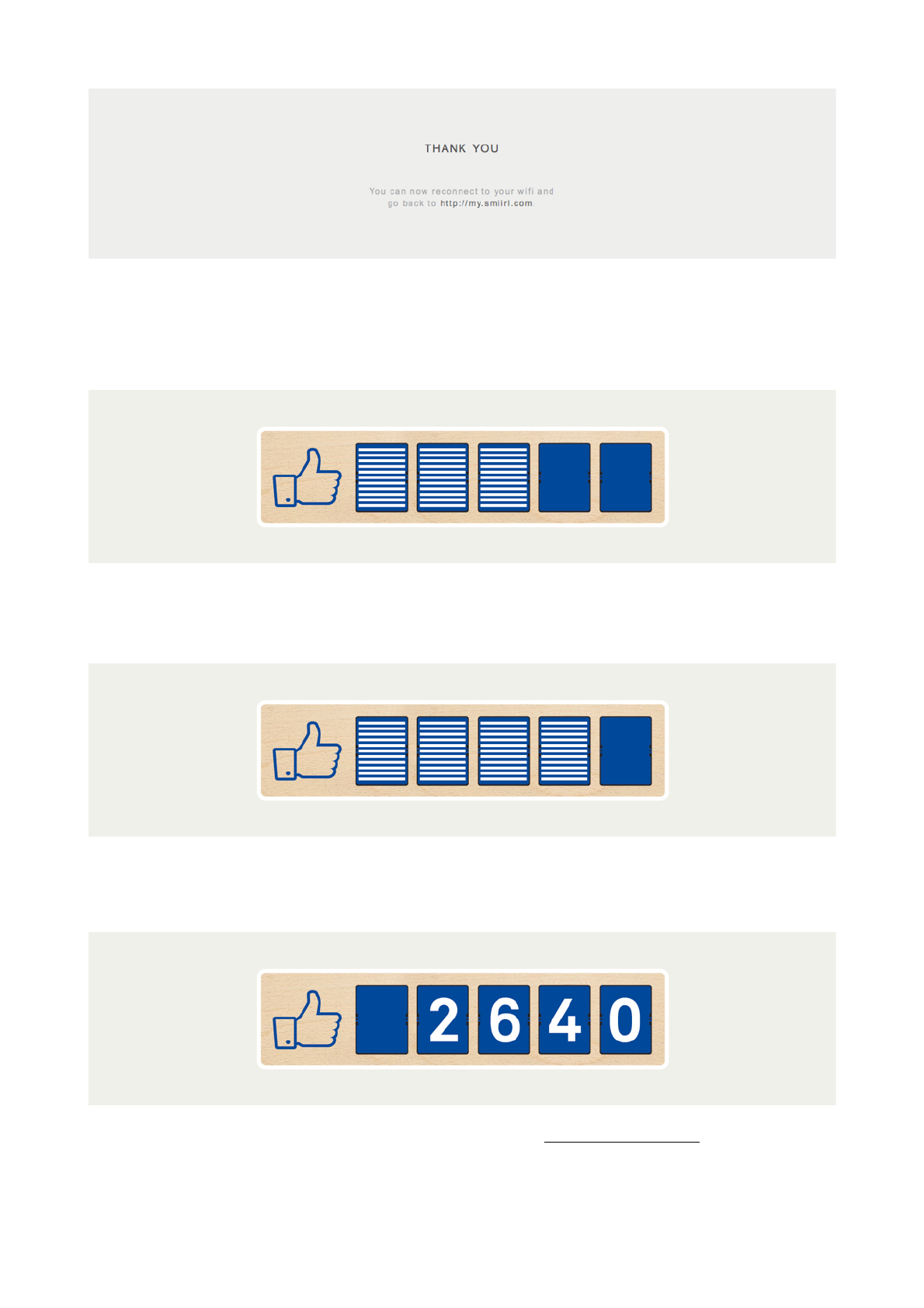

Once validated the Counter will apply the configuration and display this
confirmation message.
The object will display 3 stripped flaps if the password is correct.
The object will display 4 stripped flaps if it is able to connect to internet.
If your account is correctly configured on http://my.smiirl.com,
the object will display the number.
12/01/2015!!
Smiirl
"/"16 22
USER MANUAL

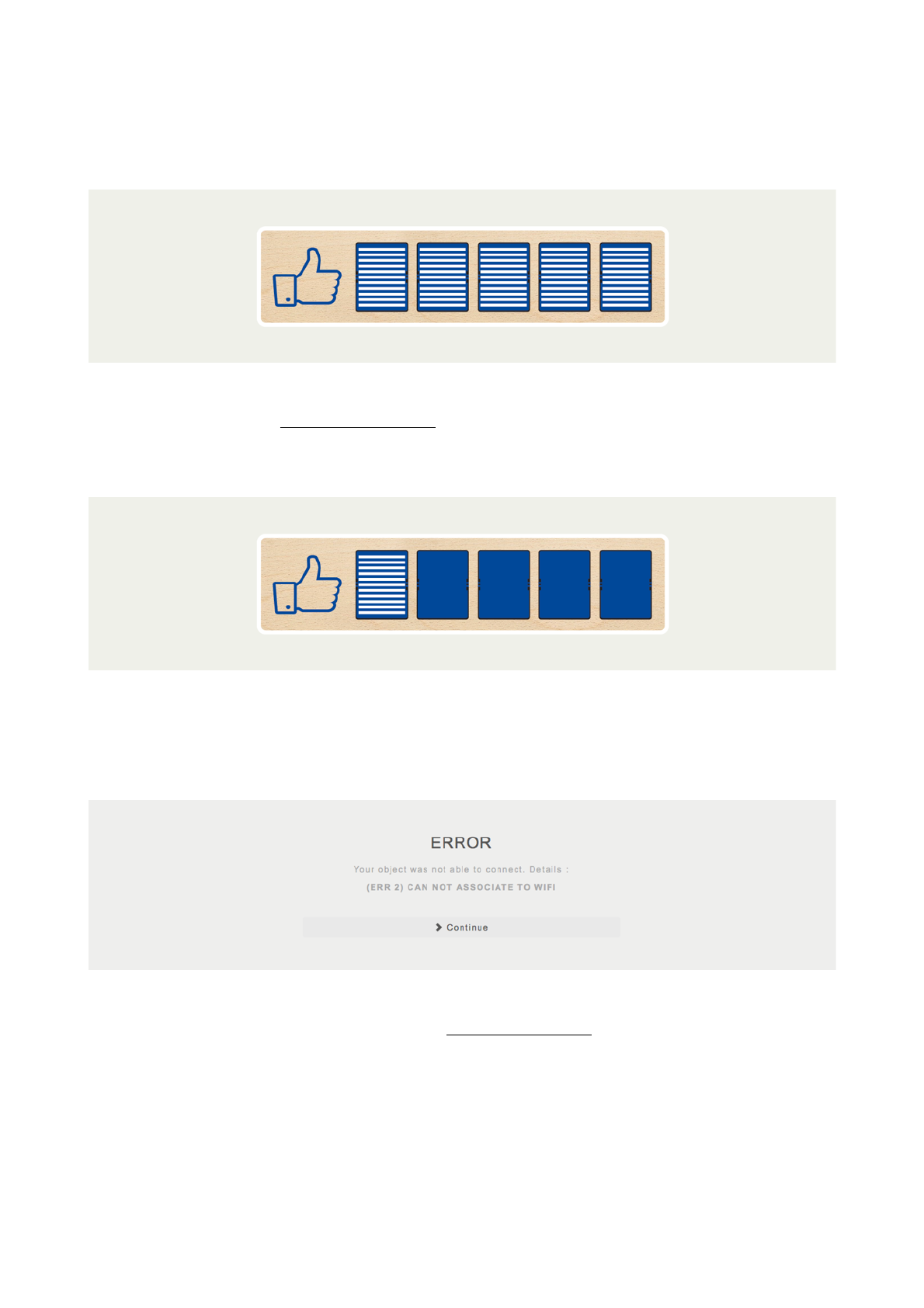

5) Understanding Counter errors
If you did not have the number at the end of the process, the Counter can display 2 different
screen.
Counter is connected to internet, but you need to go to
http://my.smiirl.com to finish the configuration.
Something went wrong while trying to setup the object. You can restart the process
and the first page will display you a detailed error.
Example of detailed error when you connect on «#SmiirlSetup#»
and you go to http://192.168.1.1
12/01/2015!!
Smiirl
"/"17 22
USER MANUAL
HELP & ADVANCED CONFIGURATION

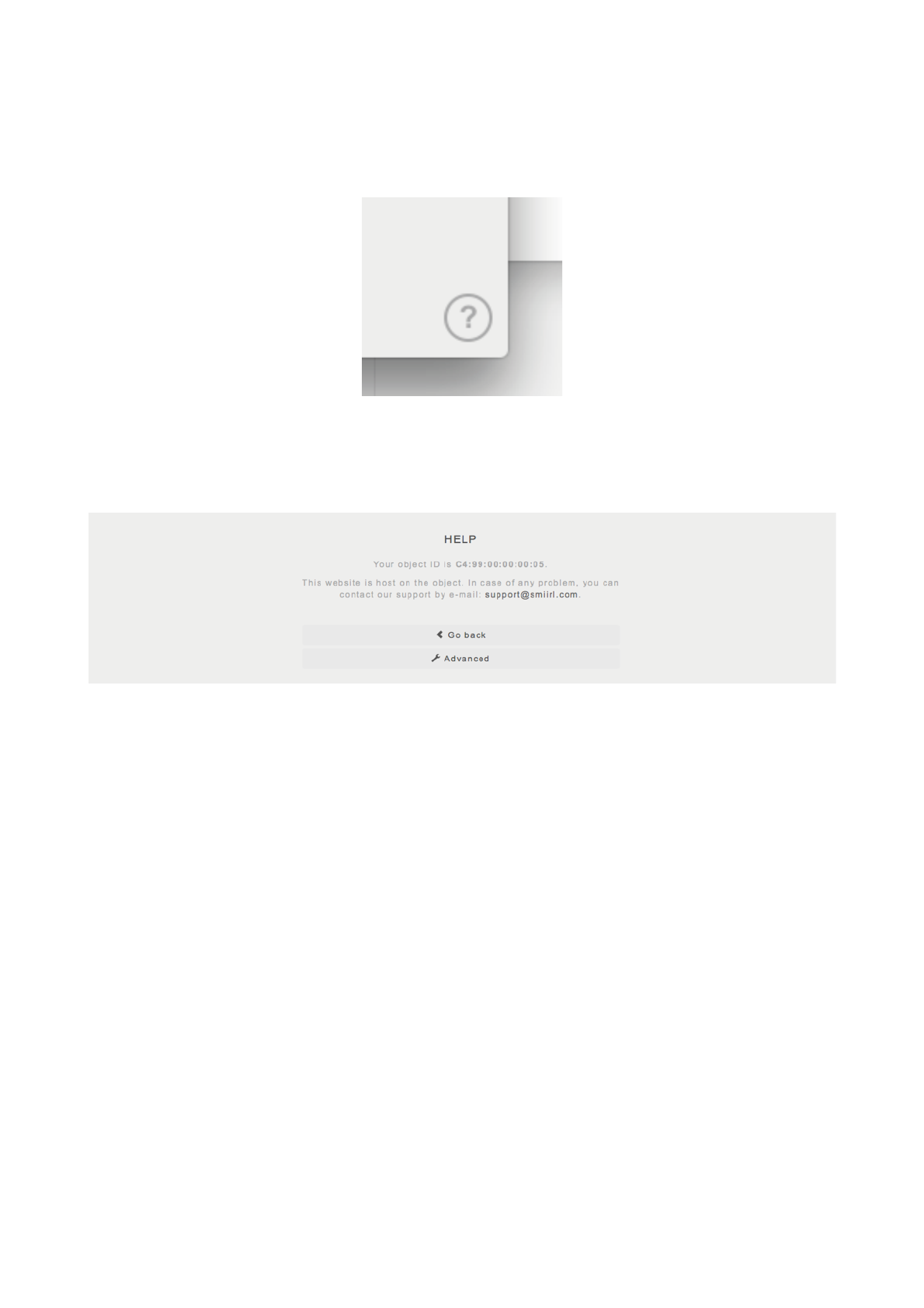

HELP
You can access a quick help, and advanced configuration
when you click on the button «#?#» on right bottom of the page.
You can find your Counter ID on this page. Or go to advanced configuration.
12/01/2015!!
Smiirl
"/"18 22
USER MANUAL

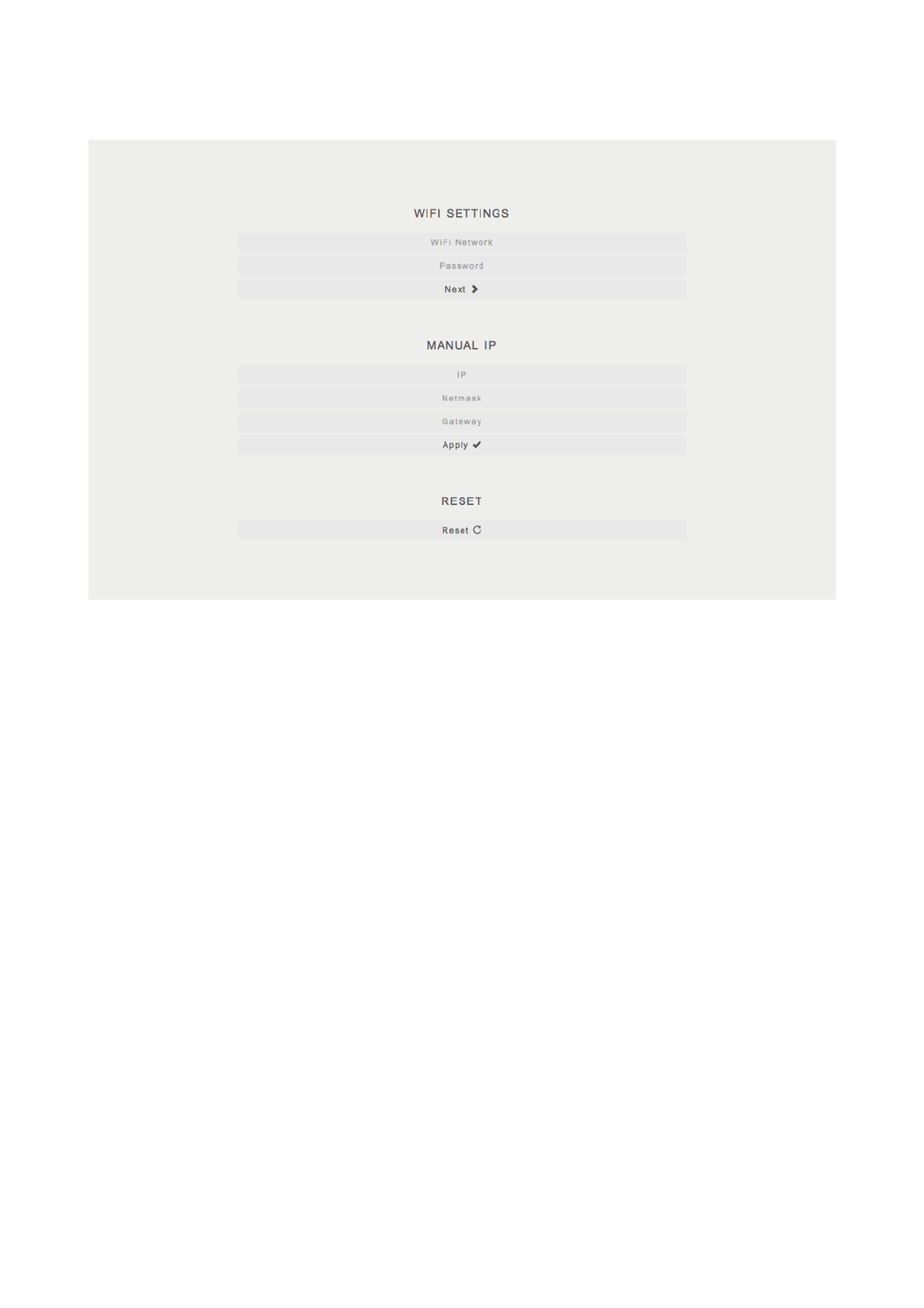

ADVANCED CONFIGURATION
1) Wifi Settings
Use this form to connect your Counter to any Wifi Network. It is useful for any hidden network.
2) Manual IP
If the Counter need a Manual IP, you can apply the configuration in the section «#Manual IP#».
You need to specify the IP address, the netmask of the network and the gateway.
3) Reset
You can recover your Counter with the factory’s settings by click on the reset button on the
web interface.
12/01/2015!!
Smiirl
"/"19 22
USER MANUAL
APPENDIX
FCC STATEMENT
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be
installed and operated in accordance with provided instructions and the antenna(s) used for
this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provided with antenna installation instructions and
consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

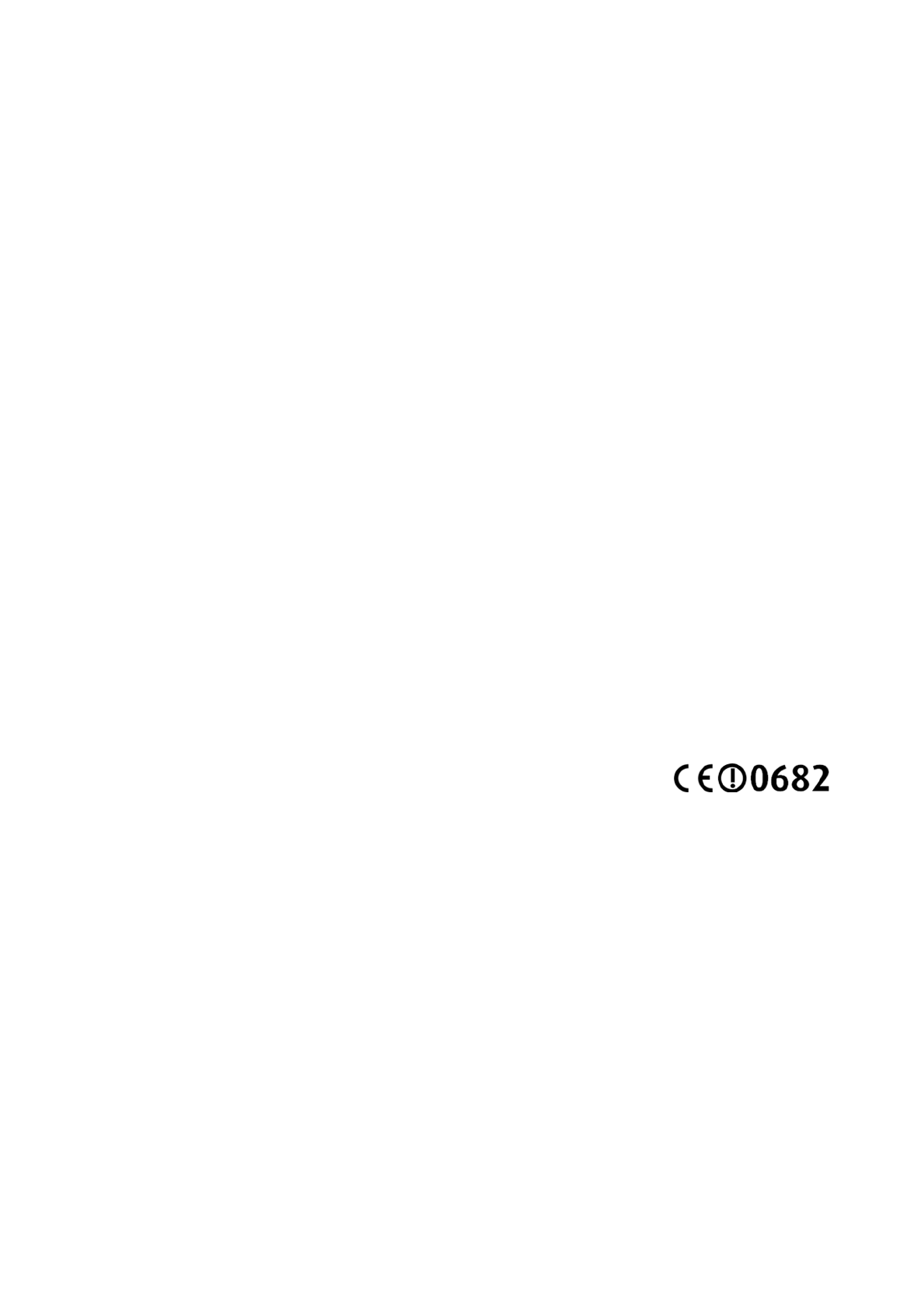

EUROPEAN REGULATIONS
The product has been designed, tested and manufactured according to
the European R&TTE directive 1999/5/EC.
SAFETY WARNINGS
For your safety, be sure to read and follow all warning notices and instructions.
-Do not open the device. Opening or removing the device cover can expose you to
dangerous high voltage points or other risks. Only qualified service personnel can service the
device. Please contact your vendor for further information.
-Do not use your device during a thunderstorm. There may be a risk of electric shock brought
about by lightning.
-Do not expose your device to dust or corrosive liquids.
-Do not use this product near water sources.
-Make sure to connect the cables to the correct ports.
-Do not obstruct the ventilation slots on the device.
12/01/2015!!
Smiirl
"/"20 22
USER MANUAL
12/01/2015!!
Smiirl
"/"21 22
USER MANUAL
Copyright © 2015 Smiirl SAS. All rights reserved.
