MODEL #870016

18 GAUGE 1-1/4" BRAD NAILER

INSTRUCTION MANUAL

FOR CUSTOMER SERVICE

PARA EL SERVICIO

PARA EL CONSUMIDOR

1-888-278-8092

Printed in Taiwan

SNAP-ON®IS A TRADEMARK LICENSED BY SNAP-ON®CORP.,

U.S.A., WHICH DOES NOT MANUFACTURE OR

DISTRIBUTE THIS PRODUCT. CONSUMER INQUIRES SHOULD BE

DIRECTED TO:

1431 VIA PLATA

LONG BEACH, CA 90810-1462 USA

870016 – 18 Gauge 1 1/4" Brad Nailer _Rev 9/6/07

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION,

MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND

UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO

COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.

IF YOU SHOULD HAVE ANY QUESTIONS OR EXPERIENCE A PROBLEM WITH YOUR SNAP-ON PRODUCT,DO

NOT RETURN THIS PRODUCT TO THE STORE. PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT AT

1-888-278-8092. BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION AVAILABLE: MODEL No.,

DATE PURCHASED AND STORE LOCATION.

CONGRATULATIONS!

Thanks for choosing this product. Our aim is to provide you with the highest quality prod-

ucts, and we want you to be totally satisfied with your product and our Customer Service.

If any help or advice is needed, please contact us at 1-888-278-8092. When properly

cared for, this product will give you many years of satisfaction.

GENERAL SAFETY RULES

READ AND FOLLOW ALL INSTRUCTIONS. Failure to fol-

low all instructions in this manual may result in severe personal injury or death.

Keep this manual and refer to it for Safety Instructions, Operating Procedures,

and Warranty.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

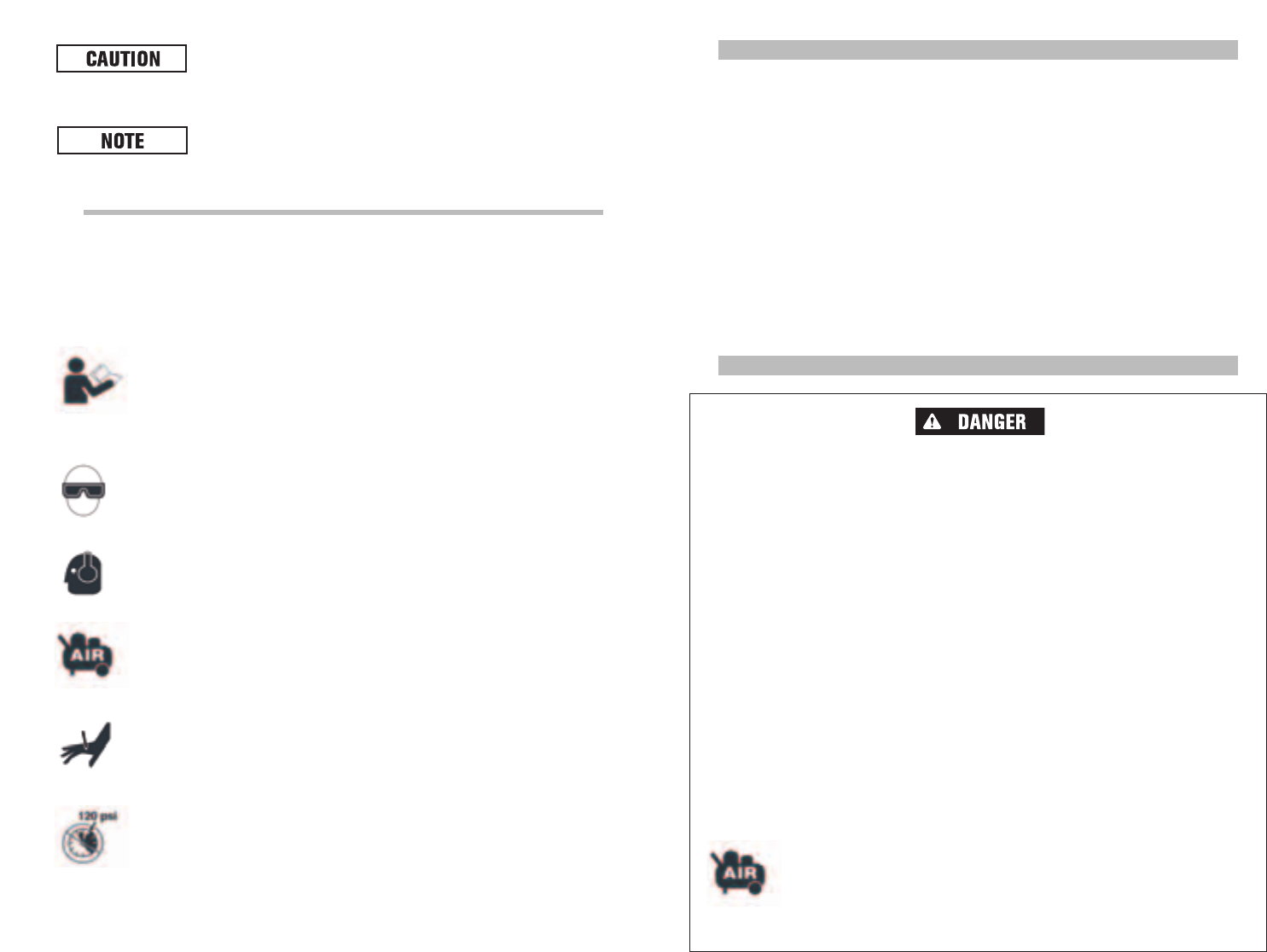

RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS

The safety instructions provided in this manual are not intended to cover all possible

conditions and practices that may occur when operating, maintaining and cleaning

power tools.

Always use common sense and pay particular attention to all the DANGER,

WARNING, CAUTION and NOTE statements of this manual.

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all

safety messages that follow this symbol to avoid

possible injury or death.

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

minor or moderate injury.

TABLE OF CONTENTS

CONGRATULATIONS! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS . . . . . . . . 2-3

IMPORTANT INFORMATION ABOUT THIS MANUAL . . . . . . . . . . . 4

SAFETY WARNINGS AND PRECAUTIONS . . . . . . . . . . . . . . . . . . . 4-7

FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

COMPONENT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

OPERATING THE BRAD NAILER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13

SELECT TRIGGER ACTUATION MODE . . . . . . . . . . . . . . . . . . . . . . 9-10

ADJUSTING DEPTH OF NAILING . . . . . . . . . . . . . . . . . . . . . . . . . . 11

USING THE HOOK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

LOADING NAILS INTO THE AIR NAILER . . . . . . . . . . . . . . . . . . . . 12

USING THE NO-MAR NOSEPIECE . . . . . . . . . . . . . . . . . . . . . . . . . 12-13

REQUIRED DAILY PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

USING THE AIR NAILER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

CHANGING DIRECTION OF EXHAUST AIR . . . . . . . . . . . . . . . . . . . 15

CLEARING JAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-16

MANDATORY MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

PARTS DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

1 YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-26

1 2

IMPORTANT INFORMATION ABOUT THIS MANUAL

Improper maintenance and operation are responsible for the majority of accidents

involving brad nailers. The largest portion of these could be prevented by recogniz-

ing the basic safety rules and precautions. Most accidents can be avoided if the

operator recognizes a potentially hazardous situation before it happens and by

observing appropriate safety rules and procedures as outlined in this manual.

Basic safety precautions are outlined in the SAFETY portion of this manual and

throughout text in this manual where a potential hazard might occur.

Hazards that MUST be avoided to prevent serious injury follow headers marked

DANGER or WARNING. These same precautions are placed as labels on the tool

itself.

NEVER use this nailer for applications that are NOT specified in this manual.

SAFETY WARNINGS AND PRECAUTIONS

Do not operate brad nailer anywhere fastener may contact hidden electrical

wiring. Contact with a “live” wire will make all metal parts of the brad nailer

“live.” This can result in severe electrical shock, severe burns or death to the

operator. Contact a qualified electrical contractor to ensure a safe working envi-

ronment exists.

Be aware of conduits or gas pipes. Striking a gas pipe could result in an explo-

sion causing serious injuries or even death to the operator or bystanders.

Be aware of what is behind the work piece. A fastener could travel through the

work piece and out the other side, striking a bystander resulting in serious

injury or even death.

Do not operate the brad nailer in the presence of flammable liquids, such as

gasoline, thinner, paint, or adhesives, gases or dust. Sparks created by the tool

can cause flammable materials to ignite or explode. Failure to comply with this warn-

ing could result in serious injury or even death to the operator.

Keep bystanders, children and visitors away from area where brad nailer is

being used. Distractions can result in severe injury or even death to anyone

who inadvertently gets in the way of nailing operations.

Do not use oxygen, combustible or bottled gases (such as carbon

dioxide or nitrogen) as a power source for the brad nailer. Use

only compressed air from a source as outlined in this manual. The

tool will explode resulting in severe injury or even death to the operator and

bystanders.

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which,

if not avoided, may result in property damage.

NOTE provides additional information that is useful

for proper use and maintenance of this tool. If a

NOTE is indicated make sure it is fully understood.

In addition to SAFETY ALERTS listed above, there could also be numerous symbols

alerting the operator that specific safety equipment is required to safely operate this

tool. Learn these SAFETY SYMBOLS as well as the SAFETY ALERTS to prevent

injury to the operator and to bystanders.

READ OPERATING INSTRUCTIONS: Read and understand tool labels,

safety warnings and precautions in this manual before operating the tool.

Failure to follow WARNINGS could result in serious injury or even death

to the operator or bystanders.

WEAR APPROVED EYE PROTECTION: Safety glasses must conform to

the requirements of American National Standards Institute (ANSI) Z87.1

and provide protection against flying particles from both front and side.

WEAR HEARING PROTECTORS: Hearing protectors should be worn to

protect the ears from loud exhaust noise produced by the air tools.

USE ONLY CLEAN, DRY COMPRESSED AIR: Never use oxygen, com-

bustible gases and any other bottled gas to operate air tools. Using these

other sources can cause the air tool to explode.

NEVER POINT THE BRAD NAILER AT YOURSELF OR OTHERS: Fasteners

are under extreme pressure and can cause severe injury or even death if

misused.

DO NOT EXCEED 120 psi (8.43 kg/cm2G). Using excessive pressure

from the power source can cause the brad nailer to explode resulting in

severe injury or even death to the operator or bystanders.

Do not connect brad nailer to an air source capable of generating

more than 200 psi (14.06 kg/cm2 G). Over-pressurizing the brad

nailer will result in bursting, abnormal operation or breakage of the

tool. Use only clean, dry, regulated compressed air at levels speci-

fied on the tool. Failure to comply can cause severe injury or death to the oper-

ator or bystanders.

Do not attempt to fasten the trigger in the “ON” position. This could lead to

an accidental discharge of the brad nailer. Do not operate the brad nailer if any

portion of the tool’s operating controls are inoperable, disconnected, altered in

any way or not in proper working order. Failure to comply with this warning

could result in serious injury or even death to the operator or other bystanders.

All air compressors must comply with the requirements of ANSI

b19.3. Pressure regulators must be used to limit air pressure where

air supply pressure exceeds the tool’s rated operating pressure.

Do not carry the brad nailer with a finger on the trigger. This could lead to an

accidental discharge of the brad nailer. Do not press the trigger of the brad nail-

er unless it is pressed firmly against the work piece. Do not point the brad nail-

er at yourself or in the direction of another person. Failure to comply with this

warning could result in serious injury or even death to the operator or other

bystanders.

Do not tamper with the work piece contact. The work piece contact prevents

accidental discharge of the brad nailer and should never be removed or com-

promised in any way. Failure to comply with this warning could result in seri-

ous injury or even death to the operator or other bystanders.

Always disconnect air hose and remove any remaining nails:

1. When brad nailer is left unattended.

2. Before performing any maintenance or repair on the brad nailer.

3. Before attempting to clear a jam in the brad nailer.

4. Before moving the brad nailer to a new location.

Always check the overall condition of the brad nailer before using. Check for

and tighten any loose screws. Ensure all safety systems are in working condi-

tion before using the brad nailer. The brad nailer must not operate if only the

trigger is pulled or if only the work piece contact is pressed against the work

piece. The brad nailer must only be used if both the trigger and work piece con-

tact work at the same time.

Always use hearing protection to protect your ears against

hearing loss due to exhaust noise. Always wear proper safe-

ty glasses to prevent injuries to the eyes from fragments of

the work piece, defective nails or other debris caused by using the brad nail-

er. All safety glasses must have side shields and should conform to the require-

ments of the American National Standards Institute (ANSI) z87.1. Failure to

comply with this warning could lead to serious or permanent damage to the

ears as well as serious damage or permanent blindness in the eyes.

Never carry the brad nailer by the air hose. A sudden disconnection of the air

hose could cause the brad nailer to remain charged and an accidental firing

could occur. Failure to comply with this warning could lead to serious injury to

the operator or bystanders.

Always disconnect the power source and ensure the tool is not charged

before loading fasteners. Failure to comply with this warning could cause

severe injury or death to the operator, bystanders and severe damage to the

brad nailer.

Never use a non-relieving air coupler with the brad nailer. Always use cou-

plers that release any built-up charge in the brad nailer’s firing mechanism. A

non-relieving air coupler can allow the brad nailer to discharge a fastener while

the tool is disconnected from the power source. Failure to comply with this

warning can result in serious or permanent injury or even death to the operator

or to bystanders.

Do not drive nails on top of other nails. Do not operate the brad nailer at too

steep of an angle. Nails can ricochet. Failure to comply with this warning can

result in serious injury or even death to the operator or bystanders.

Do not modify the brad nailer in any way. Unauthorized alterations can jeop-

ardize safety in the tool’s operation. Failure to follow this precaution can result

in serious injury or even death to the operator or bystanders.

On rooftops and other high locations, always move forward as you use the

brad nailer. You can easily loose your footing if moving backwards. When nail-

ing against a perpendicular surface, nail from the top down. This causes less

fatigue and reduces the chances of accidents.

Ensure the work area is sufficiently illuminated to operate power tools. The

work area should be clear and free of litter.

COMPONENT INSTALLATION

Never use a non-relieving air coupler with the brad nail-

er. Always use couplers that release any built-up charge in the brad nailer’s fir-

ing mechanism. A non-relieving air coupler can allow the brad nailer to dis-

charge a fastener while the tool is disconnected from the power source. Failure

to comply with this warning can result in serious or permanent injury or even

death to the operator or to bystanders.

When selecting an air compressor, it must comply with the requirements of the

American National Safety Institute - ANSI B19.3.

Choose an air compressor that can supply more than the required air pressure to

ensure optimum efficiency. Always use clean, dry compressed air with a maximum

pressure of 200 psi. Use a pressure regulator and set the pressure between 60 –

115 psi. (4.0 – 8.0 kg/cm2G). Before each use, check the pressure regulator to

ensure it is functioning within the proper pressure range.

Using an air pressure of more than 120 psi can

cause the brad nailer to malfunction or possibly explode causing

severe injury or property damage.

SELECTING A PROPER AIR HOSE

Use an air hose with the largest diameter and shortest length possible to ensure

continuous, efficient nailing operations. Using an air pressure of 70 psi (5.0

kg/cm2G), an air hose with an inside diameter of 1/4" (6.5 mm) or greater and a hose

length of less than 6.6 ft (20 m), it is recommended that a 0.5 second interval be

allowed between each nailing. Air supply hoses shall have a minimum working pres-

sure of 150 psi (10.7 kg/cm2G) or 150% of the maximum pressure produced by the

compressor or whichever is higher.

Low air output by the compressor or a longer hose with

a smaller inside diameter in relation to the nailing frequency may decrease

the driving capability of the air nailer.

SELECTING A QUICK DISCONNECT

1. Remove the plastic protective plug

from the tool’s air inlet.

2. Insert a 1/4" NPT male quick

disconnect into the air inlet. Install

the female portion to the air hose.

Thoroughly clean and maintain the brad nailer after every use. Lubricate

moving parts to prevent rust and minimize friction-related wear. Wipe down the

entire tool and remove all dust from the moving parts. Properly store the brad

nailer in a suitable case to keep it ready for the next job.

All maintenance and repairs should be performed by an authorized repair

facility. Call 1-888-278-8092 to obtain a list of repair facilities in your area or

to make arrangements to return the tool for service.

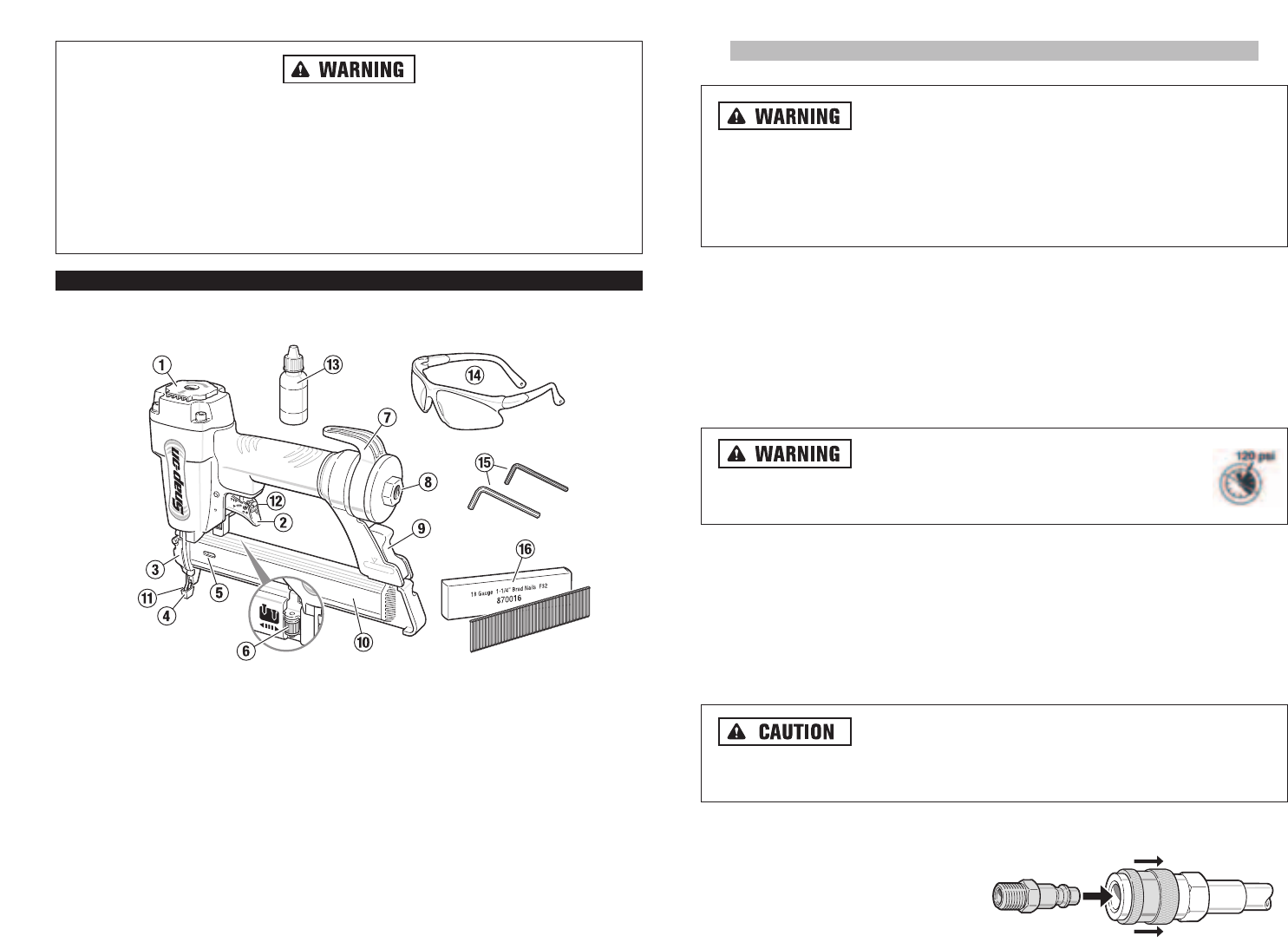

FUNCTIONAL DESCRIPTION

CONTROLS AND COMPONENTS:

1. Exhaust Cover

2. Trigger

3. Jam Clearing Door

4. No-mar Nosepiece

5. Empty Magazine Indicator

6. Nail Depth Adjuster

7. Hanging Hook

8. Air Inlet

9. Nail Magazine Lever

10. Nail Magazine Cover

11. Work Piece Contact

12. Trigger Actuation Mode Selector

ACCESSORIES:

13. Lubricant

14. Safety Glasses

15. Hex Wrenches (2)

16. F32 - Brad Strips

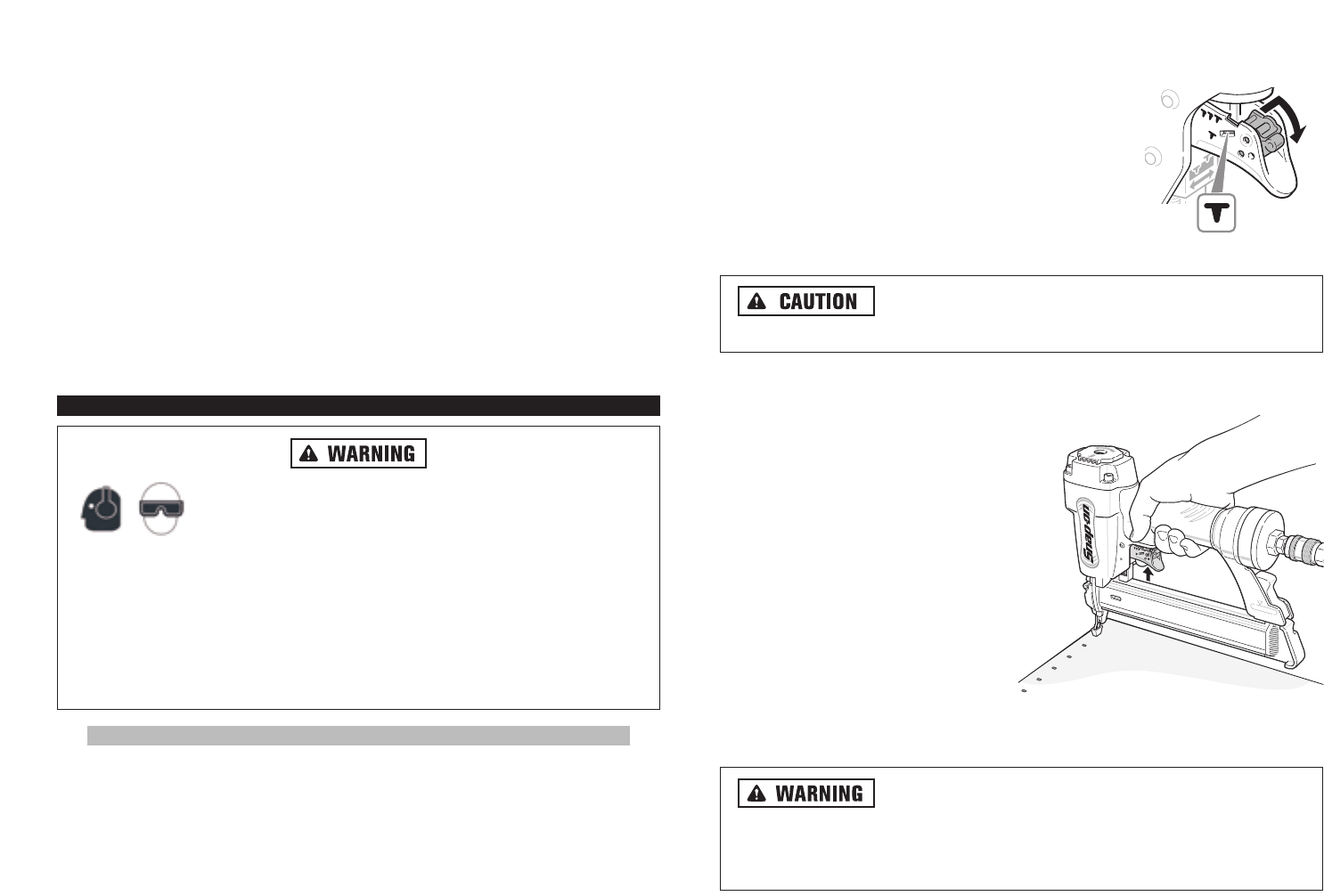

OPERATION IN SINGLE SEQUENTIAL ACTUATION MODE

To select the Single Sequential Actuation Mode (see

Figure 1):

1. Press and hold the red Actuation Selector embedded

in the trigger.

2. Rotate Actuation Selector down to the Single

Sequential Actuation (T).

3. Release Actuation Selector, ensuring locking tab is

fully seated in the slot.

Ensure selector has locked into position. Ensure

actuation process is fully understood before attempting to use brad nailer.

TO USE THE BRAD NAILER IN SINGLE SEQUENTIAL

ACTUATION MODE:

1. Firmly grip brad nailer handle.

2. Position brad nailer work piece

contact on work piece surface.

3. Push brad nailer against work piece

compressing work piece contact.

4. Pull trigger on brad nailer to drive

nail. The brad nailer will recoil away

from the work piece as nail is driven.

5. Remove finger from trigger and lift

brad nailer away from surface of work

piece.

OPERATION IN CONTACT ACTUATION MODE

When using contact actuation mode, be careful of unin-

tentional double fires resulting from tool recoil. Unwanted fasteners may be

driven if the work piece contact is allowed to accidentally re-contact the work

piece.

9 10

To improve the connection between the quick disconnect and air nailer, and to help

prevent oxidation, apply PTFE tape or joint compound to the connector threads

before insertion.

3. Snap the air hose onto the quick disconnect on the air nailer. Check for air

leaks.

LUBRICATION

To ensure maximum performance, it is recommended to install an air set (oiler, reg-

ulator, and air filter) as close as possible to the air nailer. Adjust the oiler so that

approximately one drop of oil will be released for every 50 nails.

If an air set is not used or is unavailable, oil the tool using pneumatic tool oil by plac-

ing 2 or 3 drops into the air inlet. This should be done before and after use. For

proper lubrication, the tool must be fired several times after the oil is introduced to

the filter.

OPERATING THE BRAD NAILER

Always use hearing protection to protect your ears against

hearing loss due to exhaust noise. Always wear proper safe-

ty glasses to prevent injuries to the eyes from fragments of

the work piece, defective nails or other debris caused by using the brad nail-

er. All safety glasses must have side shields and should conform to the require-

ments of the American National Standards Institute (ANSI) z87.1. Failure to

comply with this warning could lead to serious or permanent damage to the

ears as well as serious damage or permanent blindness in the eyes.

Always disconnect the air hose before making adjustments or checking the

functionality of the air nailer.

SELECT TRIGGER ACTUATION MODE

The brad nailer is equipped with a selectable trigger. This allows the selection of

Single Sequential Actuation Mode or Contact Actuation Mode.

Figure 1

To select Contact Sequential Actuation Mode (see Figure 2):

1. Press and hold Actuation Selector embedded in the

trigger.

2. Rotate Actuation Selector up to the Contact

Sequential Actuation (TTT).

3. Release Actuation Selector, ensuring locking tab is

fully seated in the slot.

Ensure selector has locked into position. Ensure

actuation process is fully understood before attempting to use brad nailer.

TO USE THE BRAD NAILER IN CONTACT ACTUATION MODE:

1. Firmly grip brad nailer handle.

2. Pull and hold the brad nailer trigger.

3. Push brad nailer against work piece compressing work piece contact.

4. The brad nailer will drive nail upon contact. The brad nailer will recoil away

from the work piece as nail is driven.

ADJUSTING DEPTH OF NAILING

Be aware of material thickness when using nailer. A pro-

truding nail may cause injury.

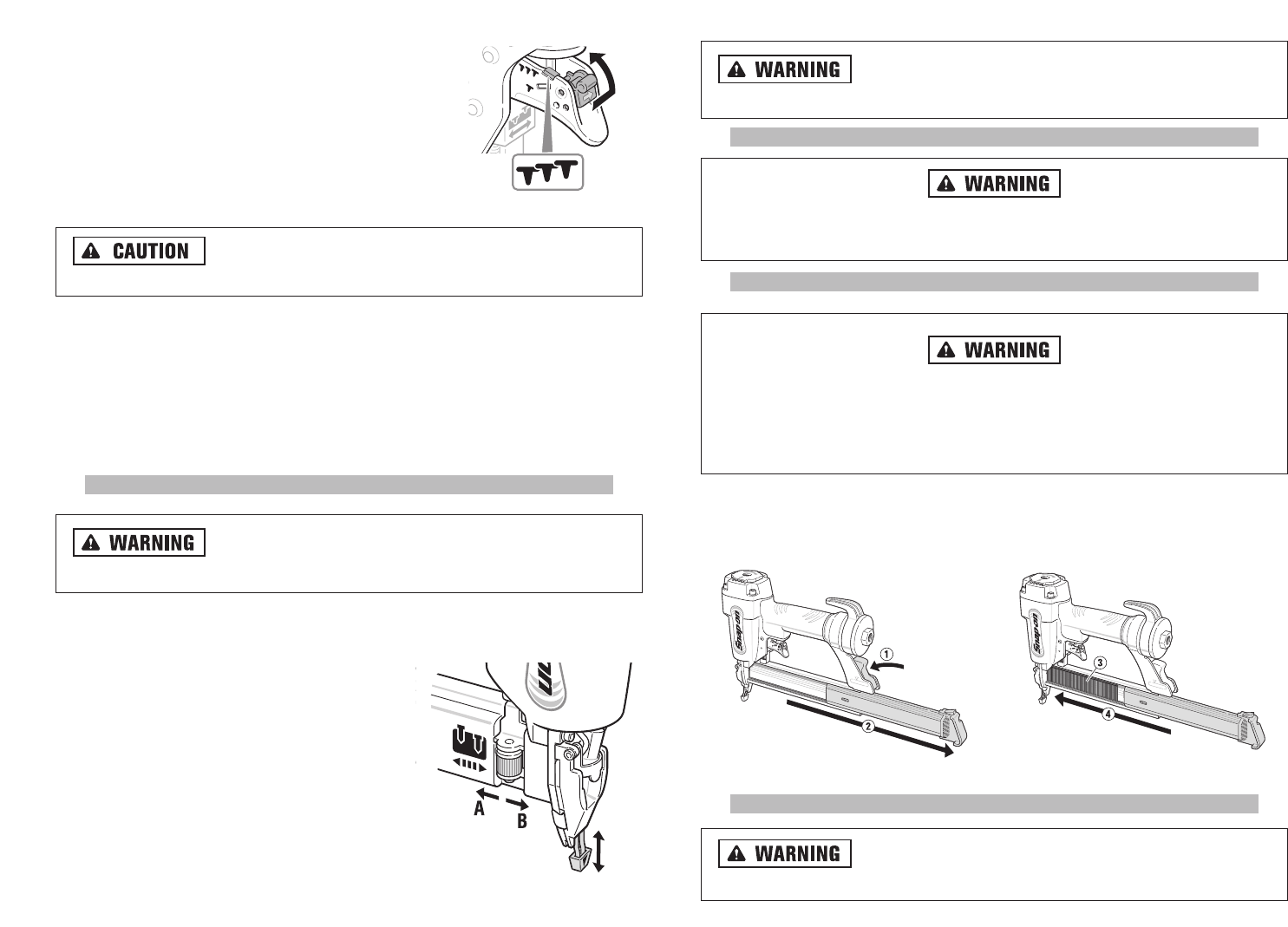

Adjust the depth of nailing by turning the

adjustment knob (Figure 3, Item 1) to the left (A)

for the shallowest setting and to the right (B) for

the deepest setting. To increase the depth of the

nails, when the adjustment knob is already set to

its lowest setting, increase the air pressure. To

decrease the depth of nails when the adjustment

knob is already set to its highest setting,

decrease the air pressure. Should nails be driven

too deep even when the adjustment knob is set

at its lowest setting, decrease the air pressure. In

general, the brad nailer will have a longer service

life when the adjustment knob is set at a lower

setting causing less wear and tear on the driving

mechanism.

Always disconnect the brad nailer before making any

adjustments to the nail depth knob.

USING THE HOOK

Always disconnect the air hose before hanging the brad nailer with the hook.

NEVER hook the brad nailer in a high location or on an unstable platform.

LOADING NAILS INTO THE AIR NAILER

Always disconnect the air hose from the brad nailer before adding or remov-

ing nails to the brad nailer.

NEVER use deformed nails or nail strip. Failure to observe this precaution

can result in poor nail feeding and/or jams in the feeding mechanism.

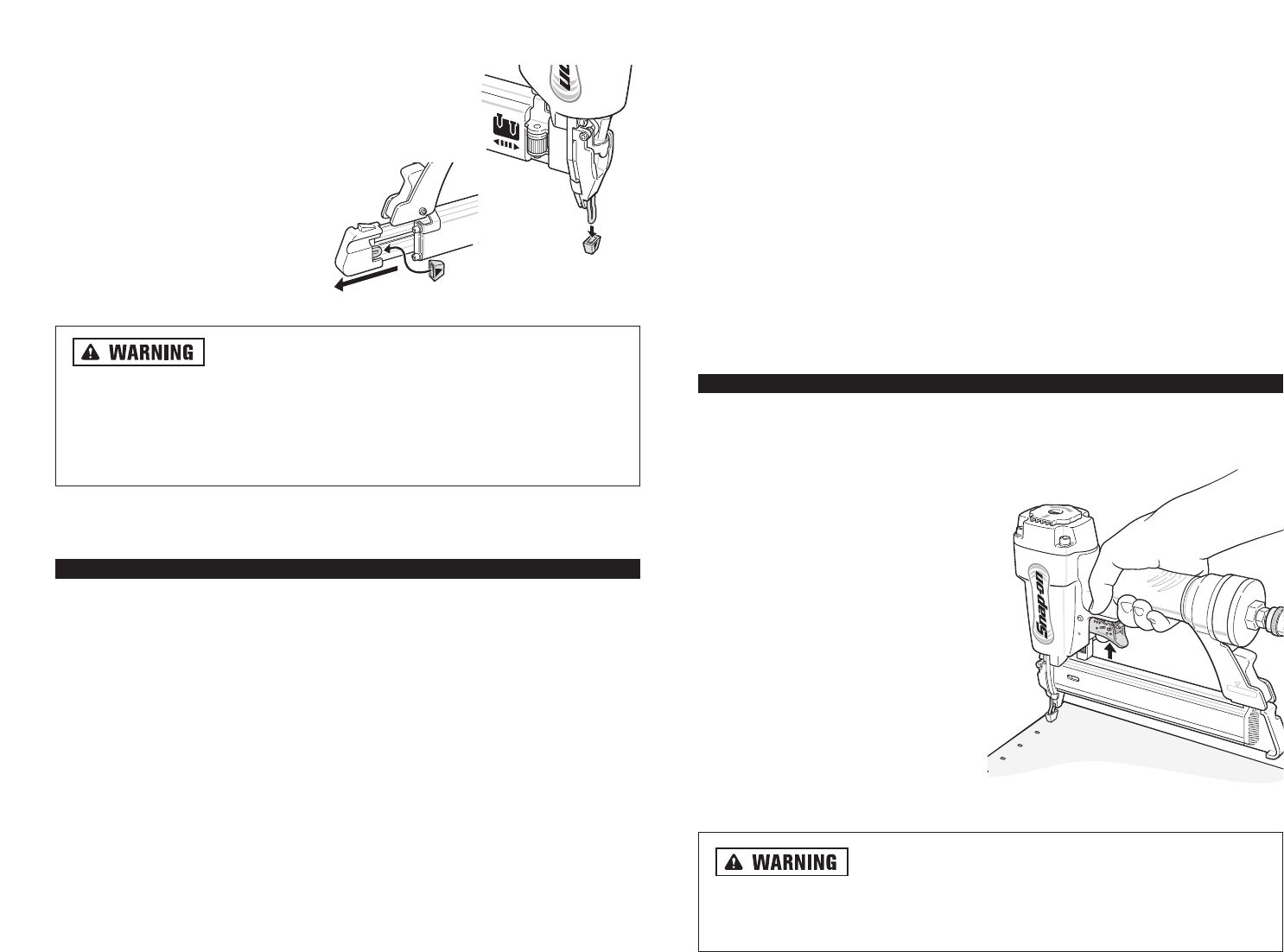

To load nails in brad nailer, depress magazine lever and pull magazine cover to back

of magazine. (Figure 4). Insert nails and slide magazine cover over nails until it locks

into place.

USING THE NO-MAR NOSEPIECE

Always disconnect the air hose before attaching the

no-mar nosepiece.

11 12

Figure 3

Figure 4

Figure 2

6. Select Single Sequential Actuation Operation. Check for leaks. Without pulling

the trigger, press the work piece contact against the work piece. The tool

MUST NOT operate. Holding the tool away from the work piece, pull trigger

and hold for 5 seconds. The tool MUST NOT operate. Repeat steps several

times. Without pulling trigger, press nailer against work piece and pull trigger.

The tool MUST operate. Release trigger. Driver MUST move up.

7. Select Contact Actuation Operation. Holding nailer away from work piece, pull

trigger. The tool MUST NOT operate. While still pulling trigger, press the nailer

against work piece. The tool MUST operate.

8. If Steps 1 through 7 function properly, prepare the tool for use. Select opera-

tion mode and load fasteners.

9. Set the required depth of drive.

10.Repeat these steps daily. Test again if the nailer is dropped, jammed, etc.

USING THE AIR NAILER

To drive a nail, place the work piece contact of the brad nailer against the work

piece and pull the trigger. See Figure 6.

To avoid any unexpected nailings,

perform the operation as follows:

1. Avoid placing the work piece contact

against the work piece with excessive

force.

2. Pull the trigger fully and hold it in the

fired position for 1 to 2 seconds

before releasing the trigger. This will

give the brad nailer time to complete-

ly expend the previous nail and build

enough pressure for the next nail.

DO NOT hold the trigger in a half-pulled position. This

could cause an unexpected nailing to occur if the work piece contact is permit-

ted to re-contact the work piece. Failure to comply could result in damage to

work piece.

In order to prevent the surface of the work piece from being

scratched or damaged, use the no-mar nosepiece. Install

no-mar nosepiece by pressing it into place on the nose

frame. See Figure 5.

Store the no-mar nosepiece in place when not being used.

Never use a non-relieving air coupler with the brad nail-

er. Always use couplers that release any built-up charge in the brad nailer’s

firing mechanism. A non-relieving air coupler can allow the brad nailer to

discharge a fastener while the tool is disconnected from the power source.

Failure to comply with this warning can result in serious or permanent injury

or even death to the operator or to bystanders.

When the air hose is disconnected, the pressure reservoir in the air nailer will dis-

charge removing any built-up air inside the tool.

REQUIRED DAILY PREPARATION

The following steps should be performed on a daily basis to ensure the brad nailer

is operating correctly:

1. Disconnect air supply from nailer and remove fastener strip.

2. Check all screws, nuts and pins and ensure all are tight.

3. Press the pusher release button and slide back the pusher assembly

(Overriding the reload indicator). Press the work piece contact against a work

piece ensuring smooth movement.

4. With work piece contact against the work piece, pull trigger. The trigger must

operate smoothly.

5. Connect air supply and set regulator for 70 psi. DO NOT load a fastener strip.

Figure 6

Figure 5

OVERALL MAINTENANCE OF AIR NAILER

Always disconnect the air hose from brad nailer before

attempting any type of maintenance or visual inspection of tool.

Always visually inspect brad nailer before every use. Check on the overall condition

and for any loose screws. Tighten any screws that have come loose. See Figure 9.

Visually inspect the work piece contact and

trigger to ensure there is free movement. See

Figure 10.

When the tool is not going to be used for an

extended period, wipe off all dust and debris

that have collected on it. Tighten all loose

screws. Lubricate the firing mechanism with

pneumatic tool oil. See page 9 for

Lubrication.

Store the brad nailer in a safe location or in

suitable carrying case. It is recommended

that the air nailer be secured in a locked

location to prevent unauthorized usage.

Avoid exposure to direct sunlight and/or

locations with high humidity and heat.

Remove the brad nailer from use and schedule to have

it repaired at an authorized repair facility if the work piece contact is bind-

ing or not moving freely. Do not attempt to repair the brad nailer. Failure to

comply can result in malfunction of the tool and severe injury to the opera-

tor or any bystanders.

CHANGING DIRECTION OF EXHAUST AIR

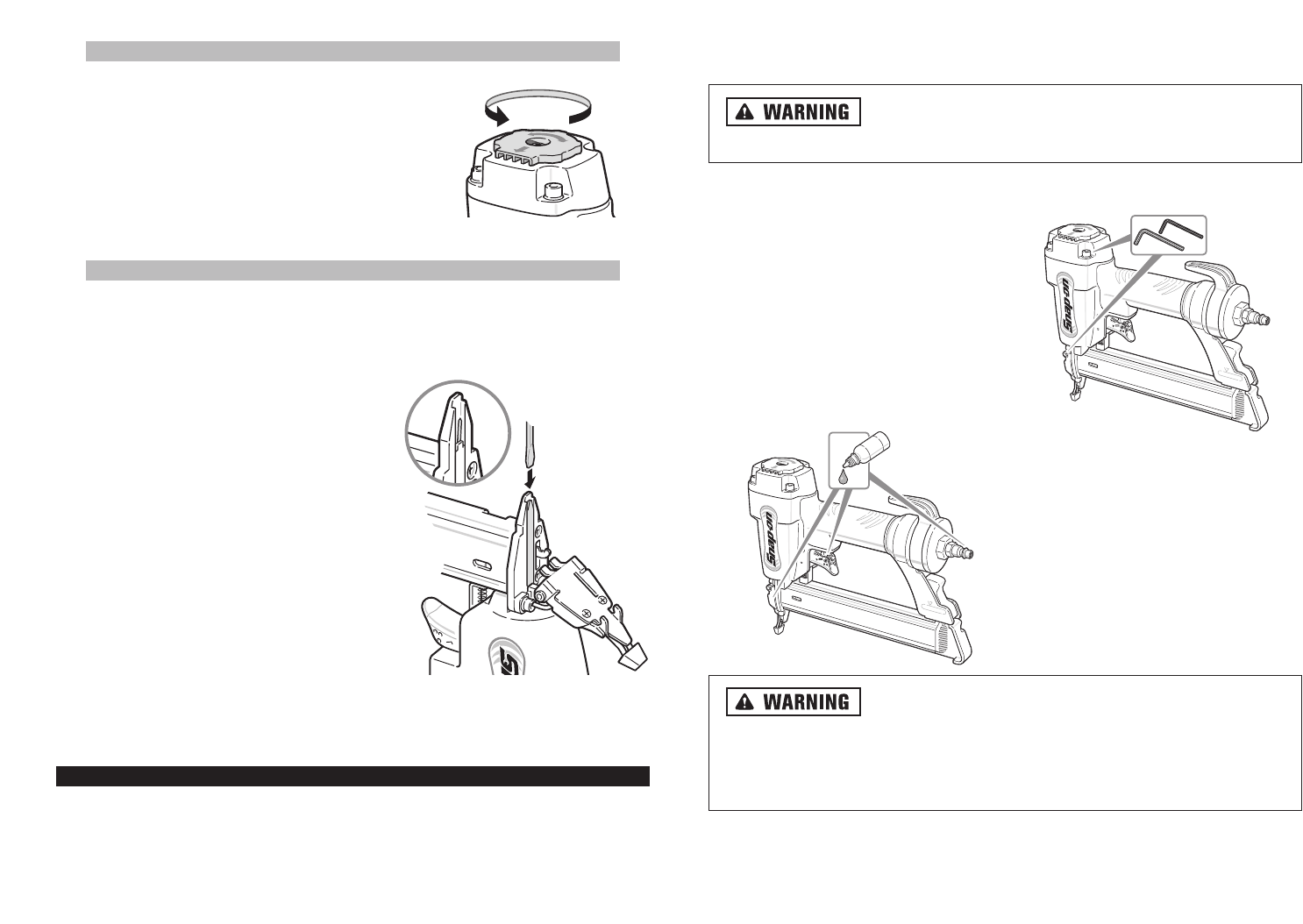

The direction of exhaust air on the air nailer can be

directed 360˚ degrees by placing hand on exhaust

cover and turning. See Figure 7.

CLEARING JAMS

Typically, jams are caused when a fastener or a fastener fragment becomes wedged

between the driver blade and nail guide. Using the wrong fastener can also cause jams.

TO CLEAR A JAM:

1.Disconnect the air supply and remove the

fastener strip. Leave the pusher assembly

open.

2.Pull out the latch tab and open the jam-

clearing door.

3.Remove all debris that has built up

during operation.

4.Remove jammed fastener. If fastener is diffi-

cult to grasp, use needle nose pliers instead

of fingers.

5.If necessary, insert a flat-blade screwdriver

so that it touches the tip of the driver blade.

See Figure 8. Tap the screwdriver with a

hammer. The screwdriver will push the driver

blade back, freeing the jam.

6.Close the jam-clearing door securely.

MAINTENANCE

STORAGE OF NAILS

Always handle nail strips and their box very carefully. If the nail strips have been mis-

handled, they may be out of shape or have breaks in the connecting strips. This will

cause the nails to feed poorly and possibly result in misfiring or jams in the air nailer.

Avoid storing nails in a very humid or hot environment or place in direct sunlight.

15 16

Figure 8

Figure 9

Figure 10

Figure 7

PROBLEM POSSIBLE CAUSE SOLUTION

MANDATORY MAINTENANCE

All maintenance and repairs should be performed by an

authorized repair facility. Call 1-888-278-8092 to obtain a list of repair facil-

ities in your area or to make arrangements to return the tool for service.

ACTION REASON OPERATION

TROUBLESHOOTING

Most minor problems can be resolved quickly and easily using the troubleshooting

table below. For problems that cannot be solved, contact Customer Service (toll

free) at 1-888-278-8092.

PROBLEM POSSIBLE CAUSE SOLUTION

Clean magazine and

feeder mechanism. Prevents brad nailer

from jamming. Use compressed air and

clean daily.

Inspect and ensure work

piece contact operates

properly.

Ensures operator safety

and keeps brad nailer

working efficiently.

Use compressed air and

clean daily.

Lubricate brad nailer

after every use using

pneumatic tool oil. Extends life of brad nailer.

Apply 2 – 3 drops of

pneumatic tool oil to

brad nailer air inlet after

every use.

Weak drive. Slow to

cycle between nailings.

Ensure proper air pres-

sure is being used.

Inspect for worn driver

blade.

Inspect piston O-ring for

wear or damage.

Increase air pressure,

Do not exceed 120 psig

(8.3 bars, 8.5 kg/cm2)

Contact Customer

Service.

Nails driven too deep. Check air pressure. Reduce air pressure.

Brad nailer feeds inter-

mittently or skips nails.

Ensure correct nails are

being used.

Inspect nail feeder

mechanism.

Piston O-ring damaged

or worn

Nail feeder worn or

damaged.

Use ONLY recommend-

ed nails.

Clean and lubricate nail

feeder.

Use recommended

pneumatic tool oil.

Contact Customer

Service.

Replace nail feeder.

Nails jam or driven nail

is bent.

Ensure correct nails are

being used.

Inspect for worn driver

blade.

Nail feeder worn or

damaged.

Use ONLY recommend-

ed nails.

Contact Customer

Service.

Replace nail feeder.

Drives nails properly

during normal nailing

operations, but fails to

drive nails fully at faster

operating speeds.

Check inside diameter of

air hose. Switch to air hose with

larger inside diameter.

Nailer operates, but no

nail is driven.

Check for jammed nail.

Inspect nail feeder

mechanism.

Ensure correct nails are

being used.

Clear jammed nail.

Clean and lubricate nail

feeder.

Use ONLY recommend-

ed nails.

PARTS LIST

ITEM NO. PART NO. DESCRIPTION

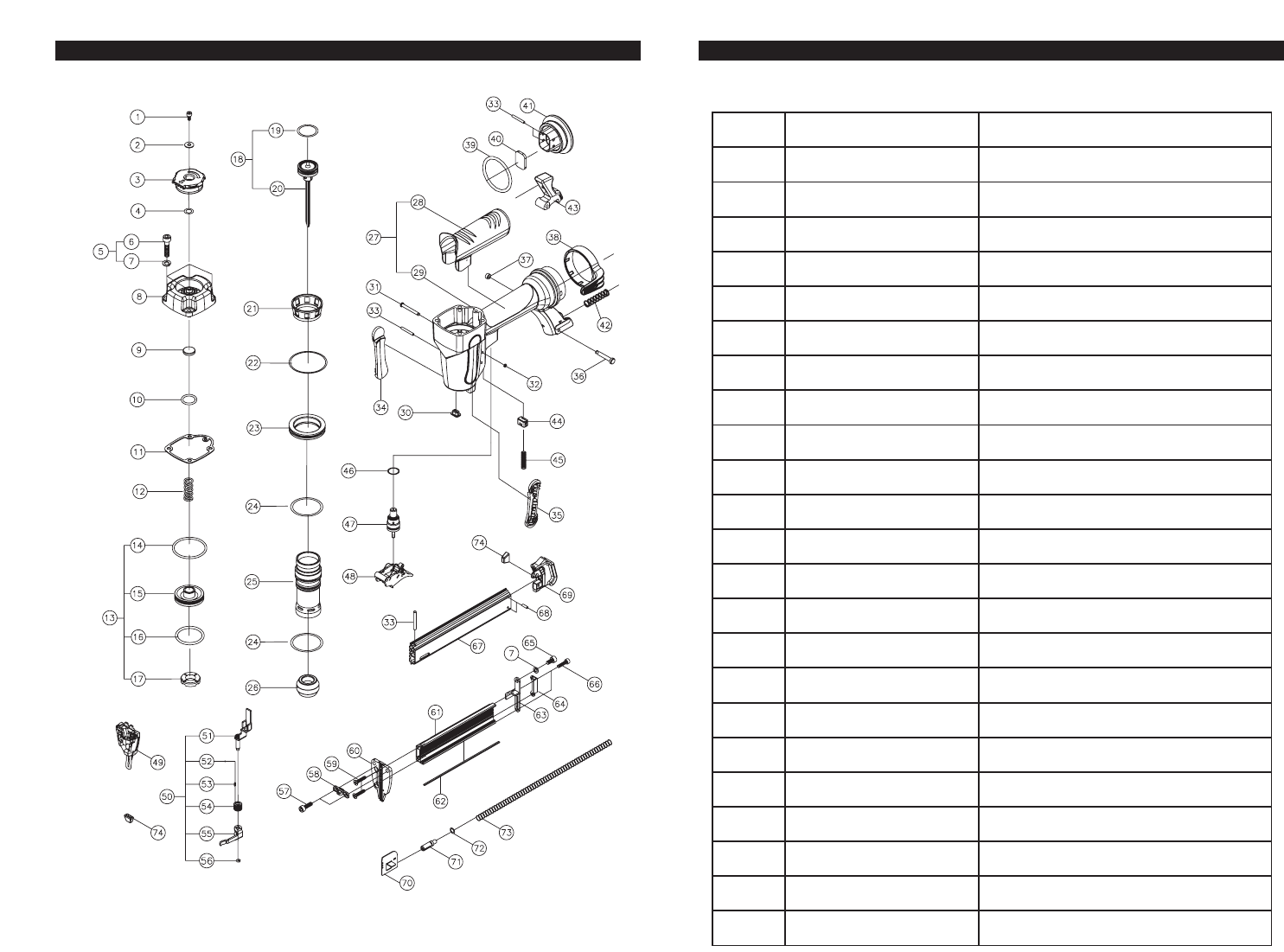

PARTS DIAGRAM

19 20

1 A0000-1211 Nylon Screw M4*8

2 A0005-0691 Washer 12*1

3 A0304-0651 Exhaust Cover

4 A0200-2471 O-Ring 7.59*2.62

5 B0000-0051 Screw Set M5*20

6 A0000-0091 Screw M5*20

7 A0005-0031 Washer #5*1.21

8 A0301-1541 Cap, Top

9 A0311-0451 Seal, Air

10 A0200-0221 O-Ring 15*2.5

11 A0205-0651 Gasket

12 A0100-0631 Spring

13 K0300-2221 Firing Valve Piston Set

14 A0200-0711 O-Ring 33.5*2.5

15 A0308-0341 Firing Valve Piston

16 A0200-0601 O-Ring 26.59*2.95

17 A0313-0041 Piston Stopper

18 K0600-2111 Piston Unit

19 A0200-1281 O-Ring 22.4*3.3

20 B0600-2101 Piston Set

21 A0305-0081 Sleeve Retainer

22 A0200-0271 O-Ring 44.8*2.6

23 A0800-0391 Spacer

24 A0200-0071 O-Ring 31*2.5

ITEM NO. PART NO. DESCRIPTION

25 A0303-0901 Cylinder

26 A0309-0741 Bumper

27 K0400-0601 Body and Handle Grip

28 A0204-1661 Grip

29 A0401-1951 Body

30 A0310-0751 Nozzle

31 A0006-0821 Trigger Pin

32 A0005-0311 Pin Retainer 5.5*2

33 A0011-0161 Spring Pin 3*24

34 A0313-0631 Main Body Bumper L(Snap-on)

35 A0313-0641 Main Body Bumper R(Snap-on)

36 A0006-0411 Pin

37 A0005-0291 Pin Retainer 6*2.9

38 A0316-0331 Belt Hook

39 A0200-2851 O-Ring 38*3.5W

40 A0203-0191 Filter

41 A0306-1181 Tail Cover

42 A0101-0191 Spring

43 A0709-0301 Click Lever

44 A0712-0341 Safety Guide Plate

45 A0100-0811 Spring

46 A0200-1091 O-Ring 11*1.05

47 K0500-1381 Trigger Valve Set

48 K0500-1491 Trigger Set

49 K0800-0411 Driver Guide Cover Set

50 K0700-5771 Release Catch

51 A0711-2601 Release Catch (C)

52 A0009-0071 Steel Ball

53 A0100-2741 Spring

54 A0714-0651 Adjustment Wheel

55 A0711-2821 Release Catch (B)

56 A0005-1021 Stopping Ring

57 A0000-0071 Screw M5*16

58 A0800-0901 Spacer

59 A0001-0001 Screw M4*18

60 A0801-2791 Driver Guide

61 A0701-2551 Lower Magazine

62 A0708-0321 Steel Bar

63 A0706-0781 Support

64 A0715-0191 Magazine Stop

65 A0000-0241 Screw M5*14

66 A0000-0521 Nylon Screw M4*12

67 A0700-1361 Upper Magazine

68 A0011-0131 Spring Pin 3*10

69 A0718-0701 Tail Cover

70 A0707-2001 Pusher

71 A0706-1731 Spring Holder

72 A0200-0291 O-Ring 4*1.25(Red)

73 A0101-0431 Spring

74 A0204-1571 No Mar Pad

sending your product, include your name, address, phone number, e-mail address,

dated proof of purchase (or copy) and a statement about the nature of the problem.

Warranty coverage is conditioned upon purchaser furnishing Alltrade with adequate

written proof that they are the original purchaser and of the original purchase date.

Parts returned, freight prepaid and insured, will be inspected and, at Alltrade's

option, repaired and/or replaced free of charge if it is found to be defective and sub-

ject to warranty. Alltrade retains the sole discretion to determine whether any item

or part is nonconforming and, if so, whether the item and/or part will be repaired

and/or replaced. If the unit is repaired, new or reconditioned replacement parts may

be used. If Alltrade chooses to replace the product, it may replace it with a new or

reconditioned of the same or comparable design. The repaired or replaced unit will

be warranted under the terms of the remainder of the one year warranty period; cov-

ered defective parts not subject to normal wear and tear or other exclusions will be

repaired or replaced, at Alltrade's option. During the warranty period, Alltrade will

be responsible for the return shipping charges. Alltrade's repair and/or replacement

of any nonconforming item and/or part thereof shall constitute fulfillment of all obli-

gations to the purchaser. Alltrade shall not be responsible or liable for any expense,

including freight charges, or repairs made outside Alltrade's facility or an Alltrade

designated service, unless expressly agreed to by Alltrade in writing. Under no cir-

cumstances shall Alltrade bear any responsibility for loss of the unit, loss of time or

rental, inconvenience, commercial loss, or consequential damages.

For the location of an Authorized Service Center nearest you, please call customer

service at 1-888-278-8092.

EXCLUSIONS

Air nailers and staplers need periodic maintenance to remain in proper operating

condition. Normal wear parts (o-rings and driver blades) shall be warranted to the

original purchaser to be free from defects in materials and workmanship for a peri-

od of 90 days from the original date of purchase.

This warranty does not cover parts damaged due to normal wear, abnormal condi-

tions, misapplication, misuse, abuse, accidents, operation, improper storage, or

freight damage. Parts damaged or worn by operation in dusty environments are not

warranted. Failure to follow recommended operating and maintenance procedures

also voids warranty.

DAMAGE TO THE PRODUCT RESULTING FROM TAMPERING, ACCIDENT, ABUSE,

NEGLIGENCE, FAILURE TO FOLLOW INSTRUCTIONS, UNAUTHORIZED REPAIRS

OR ALTERATIONS, DAMAGE WHILE IN TRANSIT TO OUR SERVICE FACILITY, USE

OF UNAPPROVED OR IMPROPER ATTACHMENTS OR ACCESSORIES, OR OTHER

CAUSES UNRELATED TO PROBLEMS WITH MATERIAL OR WORKMANSHIP ARE

NOT COVERED BY THIS WARRANTY.

SPECIFICATIONS

1 YEAR LIMITED WARRANTY

Express and Exclusive Limited Warranty to Original Retail Buyer

Alltrade Tools LLC (hereinafter "Alltrade") expressly warrants to the original retail

purchaser of the accompanying SNAP-ON™ portable air tool and no one else all

parts of the product (except those parts referred to below which are specifically

excluded from such warranty (see Exclusions) to be free from defects in materials

and workmanship for a period of one year from the original date of purchase.

The date of purchase shall be the date of shipment to the original purchaser, or the

date the original purchaser took possession, custody, or control of the product,

whichever occurred first. This warranty shall be null and void if the product or any

component thereof is modified or altered. This warranty does not apply to any other

product and/or component thereof manufactured or distributed by Alltrade, and

does not apply to products and/or components thereof designed, manufactured

and/or assembled by others, for which Alltrade makes no warranties whatsoever.

THERE ARE NO WARRANTIES, WHICH EXTEND BEYOND THE DESCRIPTION ON

THE FACE HEREOF.

WARRANTY PERFORMANCE

By purchasing this product, purchaser expressly acknowledges and agrees that

their sole and exclusive remedy under this warranty shall be strictly limited to the

repair or replacement of any covered nonconforming items or parts thereof provid-

ed that any such nonconforming item and/or part is promptly returned to an author-

ized Service Center within the applicable warranty period, with a written request by

purchaser to repair and/or replace the nonconforming item and/or part. We recom-

mend that you keep the original product packaging in the event you need to ship the

unit. We suggest the package be insured against loss or in transit damage. When

MODEL NUMBER 870016

AIR PRESSURE 60-115 PSIG (4.0- 8.0 kg/cm2G)

NAIL LENGTH 5/8" (15 mm) - 1 1/4" (31.75 mm)

NAIL CAPACITY 110 NAILS

MINIMUM HOSE

DIAMETER 1/4" (6.5 mm)

NAIL DIAMETER 18 GAUGE

NET WEIGHT 2.6 LBS. (1.17KG)

SENTATIVE(S) AND PURCHASER, AND WARRANTY HEREUNDER, AND/OR THE

EXISTENCE, DESIGN, MANUFACTURE, PURCHASE, USE AND/OR OPERATION OF

ANY ITEM(S) SOLD HEREUNDER EVEN IF ALLTRADE AND/OR ITS REPRESENTA-

TIVE(S) HAS BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH DAMAGES. IN NO

EVENT, WHETHER BECAUSE OF A BREACH OF CONTRACT, WARRANTY, TORT

(INCLUDING NEGLIGENCE) OR OTHERWISE, SHALL ALLTRADE'S AND/OR ITS

REPRESENTATIVE (S) LIABILITY EXCEED THE PRICE OF THE PRODUCT. All LIA-

BILITY CONNECTED WITH THE USE OF THIS PRODUCT SHALL TERMINATE UPON

THE EXPIRATION OF THE WARRANTY PERIODS SPECIFIED ABOVE.

LIMITATIONS ON WARRANTY DISCLAIMERS

Some states do not allow limitations on how long an implied warranty lasts and

some states do not allow the exclusion or limitation of the incidental or consequen-

tial damages, so part or all of the above limitations or exclusions may not apply to

you. This warranty gives you specific legal rights, and you may also have other

rights, which vary from state to state.

If your product is not covered by this warranty, please call our Customer Service

Department at 1-888-278-8092 for general repair information, and charges and the

location of your nearest authorized service facility.

Alltrade will not be liable for the following: labor charges, loss or damage resulting

from improper operation, maintenance or repairs made by other persons; pre-deliv-

ery services such as assembly, oil and lubricants, and adjustment; maintenance

services that are normally required to maintain the product.

The use of other than genuine Snap-On™ Repair Parts will VOID the warranty.

WARRANTY DISCLAIMERS

EXCLUSION AND DISCLAIMER OF ALL OTHER EXPRESS WARRANTIES, GUAR-

ANTIES AND/OR REPRESENTATIONS, EXCEPT FOR THE LIMITED WARRANTY

PROVIDED HEREIN, ALL OTHER EXPRESS WARRANTIES, GUARANTIES, AND/OR

REPRESENTATIONS BY ALLTRADE AND OR ITS REPRESENTATIVE(S) REGARDING

THE DESIGN, MANUFACTURE, PURCHASE, USE AND/OR OPERATION OF THE

PRODUCT OR ANY COMPONENT THEREOF SOLD HEREUNDER, REGARDLESS OF

WHETHER ANY SUCH WARRANTY, GUARANTY AND/OR REPRESENTATION,

WRITTEN OR ORAL, ARISES BY OPERATION OF LAW AND/OR EQUITY AND/OR BY

ANY ACT OR OMISSION OF ALLTRADE AND/OR ITS REPRESENTATIVE(S), OR THE

BUYER, ARE HEREBY EXPRESSLY EXCLUDED AND DISCLAIMED BY ALLTRADE

AND/OR ITS REPRESENTATIVES. PURCHASER KNOWINGLY AND WILLINGLY

WAIVES ANY AND ALL SUCH WARRANTIES AND RIGHTS, CLAIMS AND/OR

CAUSE OF ACTION ARISING THEREFROM OR BASED THEREON. PURCHASER'S

SOLE AND EXCLUSIVE REMEDY IS AS STATED ABOVE.

EXCLUSION AND DISCLAIMER OF ALL IMPLIED WARRANTIES, INCLUDING THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. NO WARRANTY, ORAL OR WRITTEN, OTHER THAN THE WARRANTY

LISTED HEREIN IS MADE WITH REGARD TO THIS PRODUCT. ALL WARRANTIES

AND/OR IMPLIED WARRANTIES, GUARANTIES AND/OR REPRESENTATIONS BY

ALLTRADE AND/OR ITS REPRESENTATIVE(S) REGARDING THE DESIGN, MANU-

FACTURE, PURCHASE, USE AND/OR OPERATION OF THE PRODUCT OR ANY COM-

PONENT THEREOF SOLD HEREUNDER, REGARDLESS OF WHETHER ANY SUCH

WARRANTY, GUARANTY AND/OR REPRESENTATION, WRITTEN OR ORAL, ARISES

BY OPERATION OF LAW AND/OR EQUITY AND/OR BY ANY ACT OR OMISSION OF

ALLTRADE AND/OR ITS REPRESENTATIVES. PURCHASER KNOWINGLY AND

WILLINGLY WAIVES ANY AND ALL SUCH WARRANTIES AND RIGHTS, CLAIMS

AND/OR CAUSES OF ACTION ARISING THEREFROM OR BASED THEREON.

PURCHASER'S SOLE AND EXCLUSIVE REMEDY IS AS STATED ON PRECEDING

PAGES.

LIMITATIONS OF LIABILITY

IN NO EVENT SHALL ALLTRADE AND/OR ITS REPRESENTATIVE(S) BE LIABLE FOR

INDIRECT, INCIDENTAL, SPECIAL AND/OR CONSEQUENTIAL DAMAGES OF ANY

KIND ARISING OUT OF OR RELATED TO, DIRECTLY OR INDIRECTLY, ANY BREACH

OR PROVISION OF ANY AGREEMENT BETWEEN ALLTRADE AND/OR ITS REPRE-

Snap On 870016 Users Manual

870016 Snapon-18Ga-Brad-Nailer_870016_eng

Navigation menu

Versions of this User Manual:

Views

Navigation
