Snapper Lt 100 Series Users Manual PartsManual

: Snapper Snapper-Lt-100-Series-Users-Manual-226633 snapper-lt-100-series-users-manual-226633 snapper pdf

Open the PDF directly: View PDF .
Page Count: 50

Parts Manual fo

r

Revision C,

HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

McDonough, GA, 30253 U.S.A.

TP 400-5330-C-TC-N

1/30/2008

Manual No. 7006261

LAWN TRACTOR

Copyright © 2008

Briggs & Startton Yard Power Products Group

Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

MODEL

CLT23460 (7800344)

CLT24520 (7800345)

LT23460 (7800207)

LT24520 (7800212)

SLT23460 (7800342)

SLT24520 (7800343)

Table Of Content

s

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 3

PAGE GROUP

4Hood / Seat Group

8Steering Group

10 Main Frame Group

14 Motion Drive Group

18 Fuel Tank Group

20 Engine Group

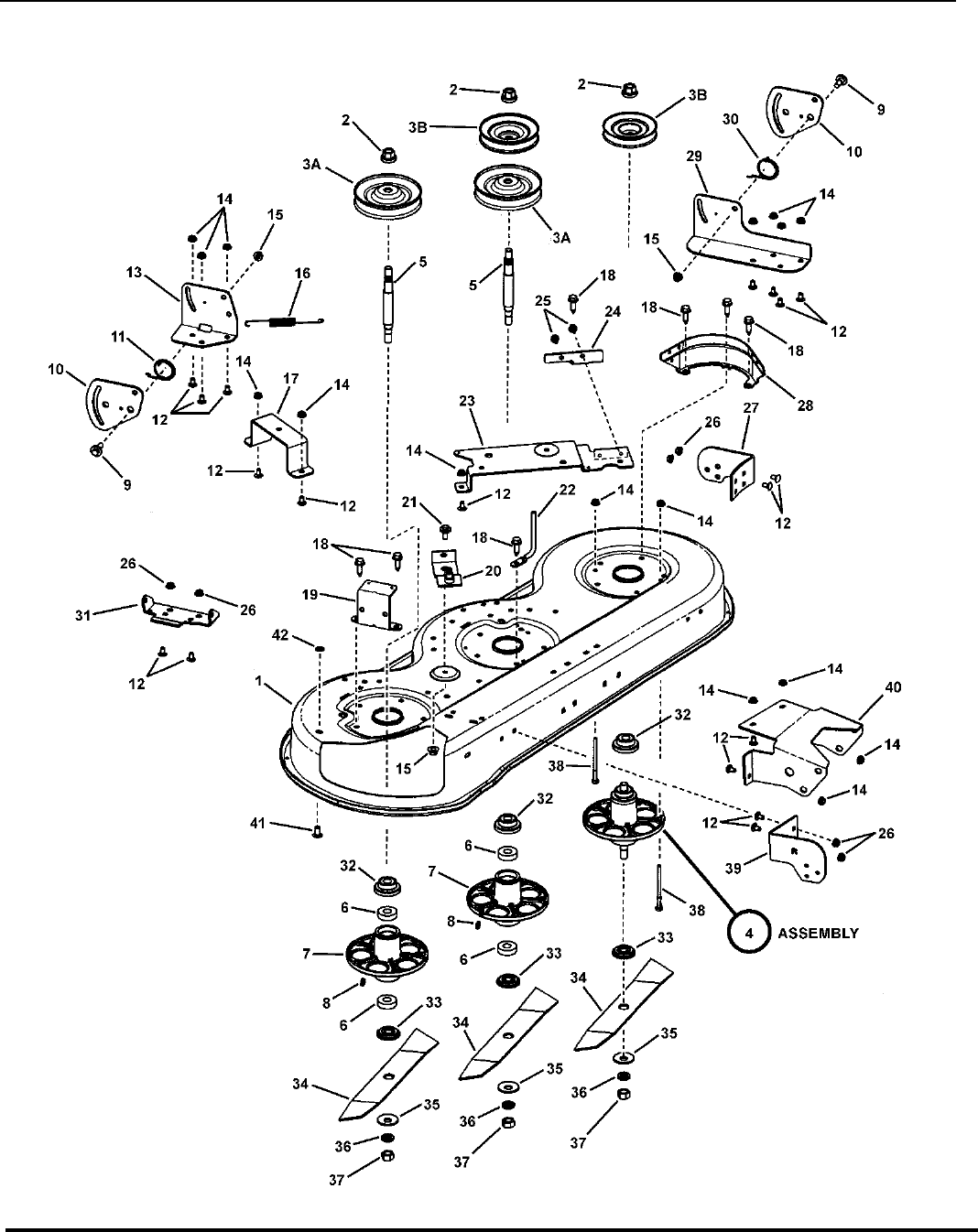

22 46" Mower Housing Assembly

26 46" Mower Deck Group

30 50" Mower Housing Assembly

32 50" Deck Blade Drive Assembly

34 50" Deck Housing Suspension Assembly

36 52" Mower Housing Assembly

38 52" Deck Blade Drive Assembly

40 52" Deck Housing Suspension Assembly

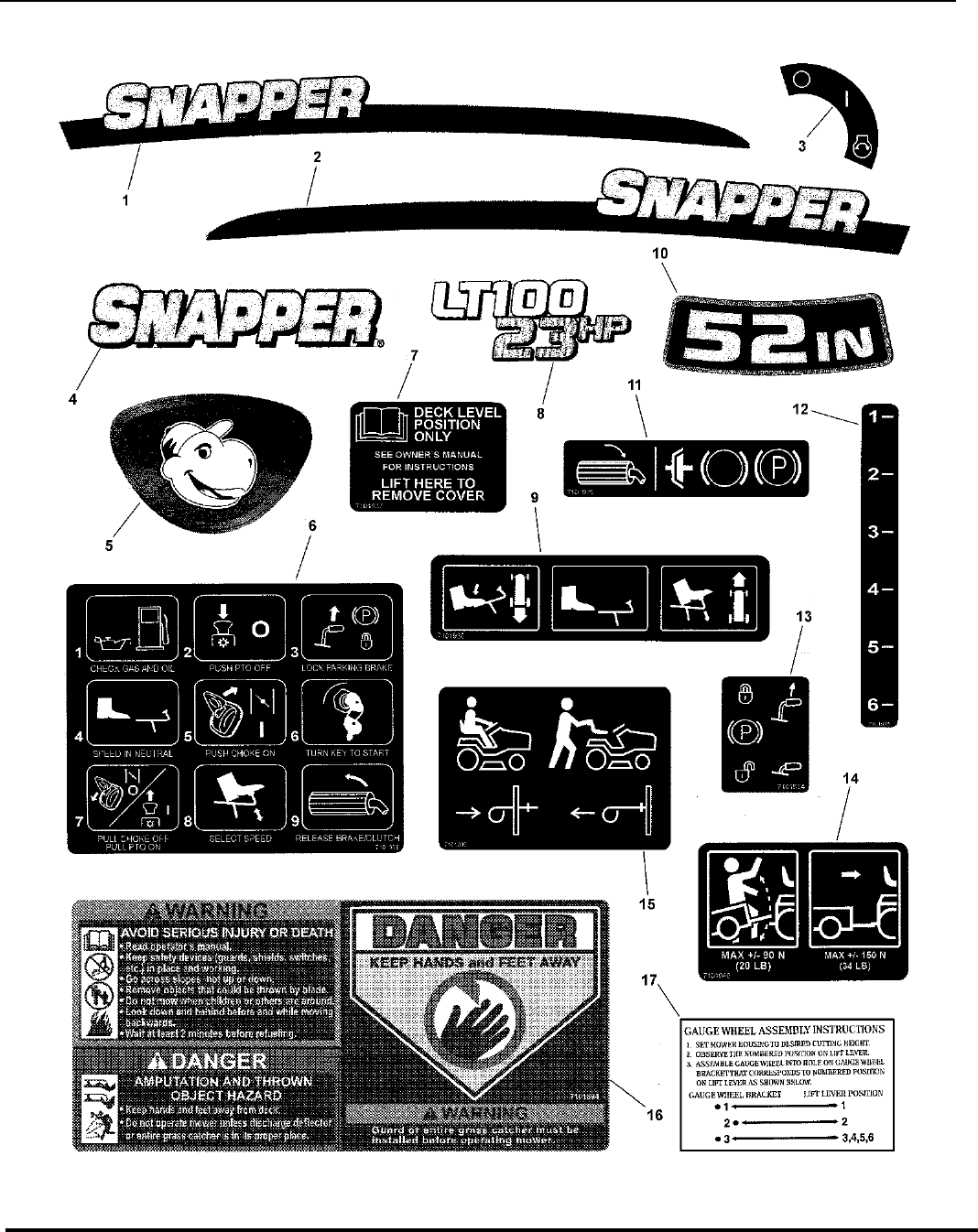

42 Decals

44 Electrical Group

46 Wiring Schematic

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

4

Hood / Seat Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 5

Part No Descri

p

tionItem Qt

y

Note

1 7091016 4 HWST 1/4CX5/8

2 721487 1 BEARING, STEERING

3 7101355 1 CONSOLE TRACTOR

4 1960392 2 SCREW, PHILLIPS HD

5 1732031 1 HOOD GUIDE, RH

1732030 1 HOOD GUIDE, LH (not shown)

7 1933896 2 NUT, HEX LOCK 10C W/ NYL INSERT BZ

8 7090952 4 SCREW, 1/4-20 THREAD CUTTING

9 7101493 1 CUTTING HEIGHT INDICATOR

10 7101770 1 POD W/ DETENT

11 7101771 1 POD W/ COMPARTMENT

12 725181 1 CONTAINER, BATTERY

13 722858 16 CAPSCREW, 5/16-18

14 722411 2 SPRING, COMPRESSION 2.43LENGTH

15 7300677D 1 SEAT DECK

16 1727294D 1 PANEL HOOD RH SIDE

17 1727295D 1 PANEL HOOD LH SIDE

18 1722110D 1 HOOD, W/ LOUVERS

19 1731891 1 AIR DUCT, PLASTIC

20 1960295 12 SCREW, HEX WZ LOCK FLNG 1/4-20X0.625 BLK

21 1930641 12 HFLN, 1/4-20 LARGE BLK

22 7102076 1 CRUISE ROD LINK

23 7300820 1 LATCH, CRUISE (was 7400261, weldment)

24 7101894 1 ROD, PIVOT CRUISE

25 7300805 1 CHANNEL - CRUISE

26 7101891 1 CRUISE - ACTUATOR

27 7102074 1 PULL KNOB, 1/4-20 THREAD

28 7300696Z 1 DASH, SUPPORT BRKT RH

29 7300697Z 1 DASH, SUPPORT BRKT LH

30 7300810Z 1 BRACKET, SUPPORT CRUISE

31 7400252Z 1 WELDMENT, CLUTCH ROD SUPPORT

32 7101860 1 SEAT, HI BACK

33 721257 1 SUPPORT, SEAT

33 7300875D 1 SUPPORT, SEAT used on model SLT24520

34 720102 2 BOLT, SHOULDER 5/16-18

35 720360 2 CAP, PUSH ON

36 721259 1 ROD, PIVOT

Hood / Seat Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

6

Hood / Seat Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 7

Part No Descri

p

tionItem Qt

y

Note

37 721214 1 SPRING, LEAF

38 722851 4 SCREW 1/4-14X.38”ST-

39 720163 2 FW, .34X.62X16GA

40 721425 2 BOLT, WING, 0.62L X 5/16-18 UNC 2A

41 720101 1 BOLT, SHOULDER 1/4-20 X 3.652 2A

42 721258 1 WASHER, CUP, 1.50 OD X 0.344 ID

43 727614 1 SPRING, COMPRESSION 4.57 FREE LENGTH

44 721531 1 PIVOT, BRACKET SEAT

44 7300794D 1 BRACKET SEAT PIVOT used on model SLT24520

45 7091298 2 HLN, 5/16-18-3B YZ ESNA

46 720146 1 NUT, 1/4-20 HF

47 721276 1 PLATE, INDEX

47 7300865Z 1 PLATE, INDEX used on model SLT24520

48 720182 12 FASTENER PANEL

49 7101772 1 MAT, LEFT

50 7101773 1 MAT, RIGHT

51 7300818Z 1 STIFFENER, STEERING

52 7300772Z 1 BULKHEAD

53 7300658Z 1 HOOD, PIVOT LH

54 7300657Z 1 HOOD, PIVOT RH

55 7101657 2 BOLT, SHOULDER

56 720142 2 NUT, HEX FLANGE, 3/8-16 NC

57 7101458 1 HARNESS, HEADLIGHT, TCT, 1/4 TERMINALS

58 1727296 1 HEADLIGHT ASSY (Includes #'s 59, 60, 61, & 62)

59 1728973 1 REFLECTOR, HEADLIGHT

60 1728974 1 LENS, HEADLIGHT

61 1723451 2 SOCKET, LIGHT

62 1677371 2 BULB, 12.8V (1141)

63 1728059D 1 GRILLE, SNAPPER

64 7101810 1 INSERT, LIGHT BAR

Steering Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

8

Steering Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 9

Part No Descri

p

tionItem Qt

y

Note

1 729275 1 COVER, INTEGRA

2 727628 1 STEERING WHEEL (SOFT RIM)

3 720973 1 BELLOWS - STEERING POST

4 7101525 1 STEERING POST - 24.56” LONG

5 722867 2 CAPSCREW 5/16-18

6 721242 1 BEARING - LOWER

7 725138 1 GEAR PINION

8 720119 1 SNAP RING, 0.543”ID

9 722620 2 FW, 1.862X .765 X 16GA

10 721318 2 HUB CAP

11 7101566 2 WHEEL & TIRE ASSY, 18X6.50-8

Main Frame Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

10

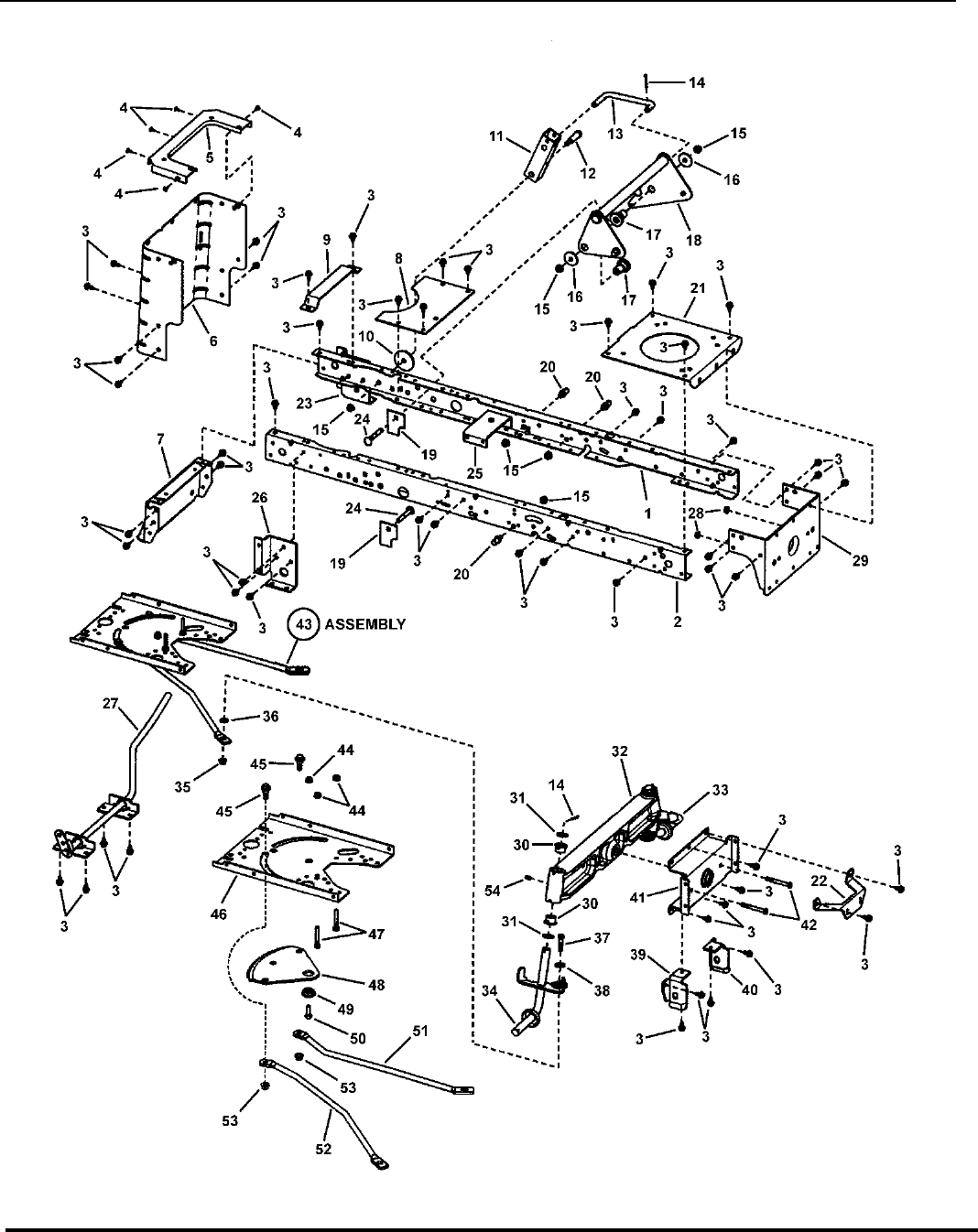

Main Frame Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 11

Part No Descri

p

tionItem Qt

y

Note

7400221Z 1 ASSEMBLY, MAIN FRAME (includes 1 thru 54 below)

1 7300869 1 RAIL, FRAME LH was M721603

2 7300870 1 RAIL, FRAME RH was M721604

3 722858 54 CAPSCREW 5/16-18

4 729075 5 SCREW, THREAD FORMING 10-24X.340MIN THREADS

5 7300876 1 TOP, REAR PLATE was M728900

6 7300866 1 PLATE, REAR was M728478

7 7300864 1 PLATE, HITCH was M726871

8 7300689 1 PLATE, IDLER PULLEY HYDRO GEAR

9 7300741 1 BRACKET, BATTERY SUPPORT was 7300741

10 722616 1 WASHER PLAIN .406 X 2.25

11 7300819 1 BRACKET, PIVOT was M721190

12 720099 1 SHOULDER BOLT, 1.563L X 0.75D X 9/16 X 3/8-16

13 7300877 1 LIFT HANDLE LINK was M725122

14 7091809 3 PIN, COTTER 1/8 X 1.25 YZ

15 7091619 6 HFLN, 3/8-16 YZ

16 7013866 2 WASHER 1-1/2 OD

17 725131 2 SPACER - LIFTER PIVOT

18 7500525 1 LIFTER WELDMENT

19 7300868 2 PLATE, STIFFENING was M728409

20 721221 3 PIN - THREADED SHOULDER

21 7300863 1 PLATE, ENGINE was M721187

22 7300817 1 BRACKET, MUFFLER MOUNTING was M725215

23 7300830 1 BRACKET, TRANSAXLE LH was M721271

24 7091008 2 RHSSNB, 3/8CX2-1/2

25 7500601 1 ASSY, IDLER BRKT (SECONDARY)

26 7300831 1 BRACKET, TRANSAXLE RH was M721270

27 7400237 1 WELDMENT - BRAKE LEVER

28 7092081 2 HFLN, 5/16-24 BZ

29 7300751 1 BRACKET, HANGER REAR was M721456

30 725130 4 BEARING SPINDLE

31 7010935 4 WASHER, .77X1.13X.06

32 729160 1 GT AXLE - CAST IRON

33 7400232 1 WELDMENT - SPINDLE LH

34 7400231 1 WELDMENT - SPINDLE RH

35 720142 2 NUT, HEX FLANGE, 3/8-16 NC

36 720166 2 FW, .41 X.82 X 16GA

Main Frame Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

12

Main Frame Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 13

Part No Descri

p

tionItem Qt

y

Note

37 720192 2 BOLT, HEX, 3/8-16 UNC X 1.50 BRIGHT ZINC

38 722580 2 WASHER, FLAT, 25/64” ID X 1” OD X 14 GA.

39 7300861 1 HANGER, DECK RH was M721198

40 7300860 1 HANGER, DECK LH was M721199

41 7300742 1 AXLE, HANGER was M728334

42 720211 2 HHB, 5/16-24 X 2.75 BOLT

43 7500524 1 SECTOR GEAR ASSY (GEAR DRIVE - LT)

44 7090585 3 HFLN, 5/16-18 BZ

45 720103 2 BOLT, SHOULDER 3/8-16

46 7300867Z 1 PLATE, STEERING MT

47 721293 2 SCREW - GUIDE

48 721240 1 GEAR - SECTOR

49 721241 1 BEARING - SECTOR GEAR

50 7027168 1 HHCS, 5/16-18 X 1 YZ

51 7101805Z 1 DRAG, LINK LH

52 7101806Z 1 DRAG, LINK RH

53 7091619 2 HFLN, 3/8-16 YZ

54 721095 2 FITTING - LUBRICATION (1/4-28 Self-Tap)

Motion Drive Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

14

Motion Drive Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 15

Part No Descri

p

tionItem Qt

y

Note

1 7101332 1 TRANSAXLE, HYDRO GEAR #310-0510 used on 21 H. P.

1 7101669 1 TRANSAXLE, HYDRO GEAR #310-0610 used on 23 H.P. & 24 H.P.

2 7101569 2 ASSY, WHEEL & TIRE, 22X9.50-12 (incl. next 3 items) used on 23 H.P. & 24 H.P.

7101568 1 TIRE, 22X9 50-12 2PLY K358

7101567 1 RIM, 12X7 INT W/3 5 LG HUB SILVER

7012234 1 VALVE STEM, TR 412

3 7101563 2 ASSY, WHEEL & TIRE, 20X10-8 (incl. next 3 items) used on 21 H. P.

7101562 1 TIRE, 20X10-8 2PLY K358

7101558 1 RIM, 8 X 7 BROACHED HUB WHEEL SILVER

7012234 1 VALVE STEM, TR 412

4 720215 4 HHB, 5/16-18X2.50

5 727761 1 BOLT, 3/8-16 x 2” Square Neck Carriage

6 722440 1 SPRING, Extension Lift

7 721204 1 STUD, Spring Mounting (5/16-18)

8 725137 1 STUD, Swivel (3/8-16)

9 720145 4 NUT, HEX FLANGE LOCK, 5/16-18 NC

10 722620 2 FW, 1.862X .765 X 16GA

11 720010 2 E-RING, .750D X .050T

12 721318 2 HUB CAP

13 720142 1 NUT, HEX FLANGE, 3/8-16 NC

14 2860694 2 NUT, 1/4-20 Hex Flange Lock (Nyloc)

15 7300888 1 PLATE, Forward Stop

16 7091495 2 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5

17 7900057 3 SCREW, #12-24X.50 HWST

18 7101653 1 FAN 7.0” (TEN BLADE)

19 7035500 1 BELT, DUAL SPINDLE BRAKE HA Sect.; 85.4” Effective Length

20 720258 2 3/16 SQ KEY - REAR WHEELS

21 720139 8 HEX NUT, 5/16-18 FLANGE SER YZ

22 720018 4 BOLT, 5/16-18 x 5/8” Hex Head, GR 5

23 7300684Z 1 TORQUE BRACKET - HYDRO

24 7300701Z 1 BRKT, ROLL RELEASE

25 7101542 1 ROLL RELEASE LEVER

26 720069 5 HAIR PIN, .56D-.092T

27 7101453 1 ROD - REAR DRIVE

28 7102053 1 ROD, PIVOT DRIVE

29 7046451 1 SWIVEL, Adjustment (3/8-24)

30 7300682Z 1 BRACKET SUPPORT

Motion Drive Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

16

Motion Drive Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 17

Part No Descri

p

tionItem Qt

y

Note

31 7200130 2 SPACER, AXLE

32 722598 2 WASHER, 3/4 I.D. x 1-1/4” Flat

33 7400248Z 1 WELDMENT, FOOT CONTROL

34 1721675 1 PAD, FORWARD FOOT

35 720049 3 BOLT CARRIAGE, 5/16-18 X .62

36 727933 1 SPRING, Extension

37 7101454 1 ROD - FRONT DRIVE (3/8-24)

38 7500602 1 WELDMENT, IDLER ARM

39 722451 1 SPRING CLUTCH

40 721419 1 PIVOT BUSHING

41 725178 1 IDLER PULLEY - 3” DIA.

42 725167 1 SPACER 1/2” TO 17MM

43 725177 1 IDLER PULLEY - 2.75 DIA.

44 720148 2 NUT FLANGE, 3/8-16 ZINC PLATED

45 721420 1 NUT-TEE (3/8-16)

46 7300934 1 LINK, Clutch

47 720100 1 SHOULDER BOLT, 1/4-20X3.75

48 7101801 1 SPRING, HYDRO BRAKE

49 720164 2 WASHER, .39 Flat

50 720387 1 PIN, .090 x 3/4” Cotter

51 726795 1 LATCH - PARKING BRAKE

52 7101489 1 ROD - CLUTCH DRIVE (3/8-16)

53 7101455 1 ROD - PARKING BRAKE

54 720870 1 GRIP

55 720257 1 CLUTCH / BRAKE PEDAL

Fuel Tank Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

18

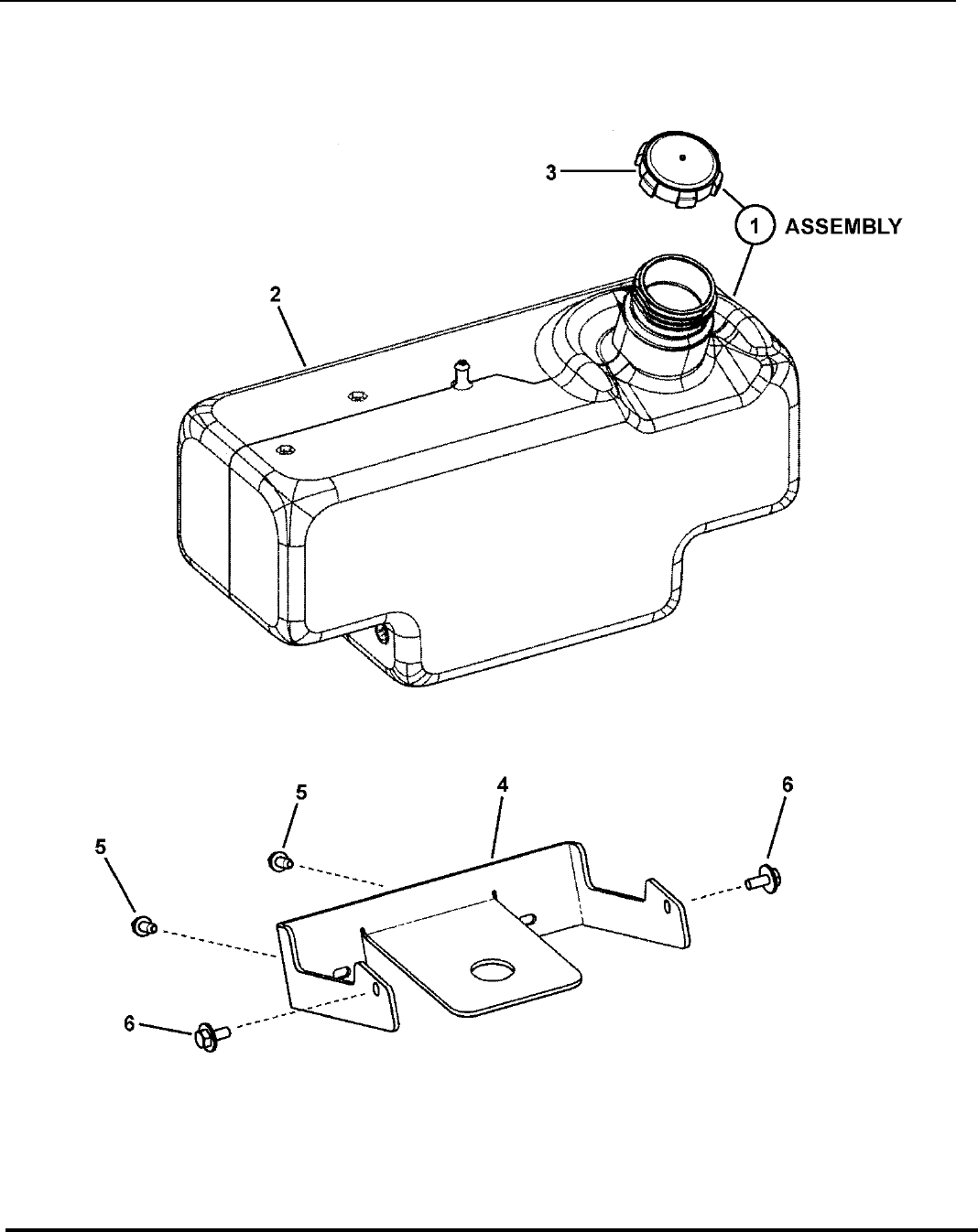

Fuel Tank Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 19

Part No Descri

p

tionItem Qt

y

Note

1 7101521 1 FUEL TANK, TRACTOR W/CAP (SNAPPER)

2 7101520 1 FUEL TANK, TRACTOR

3 727333 1 FUEL CAP (or 7101421 Cap w/tether)

4 7300653Z 1 TANK BRKT

5 722866 2 SCREW .25-20 X0.59 HEX

6 7091016 2 HWST 1/4CX5/8

Engine Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

20

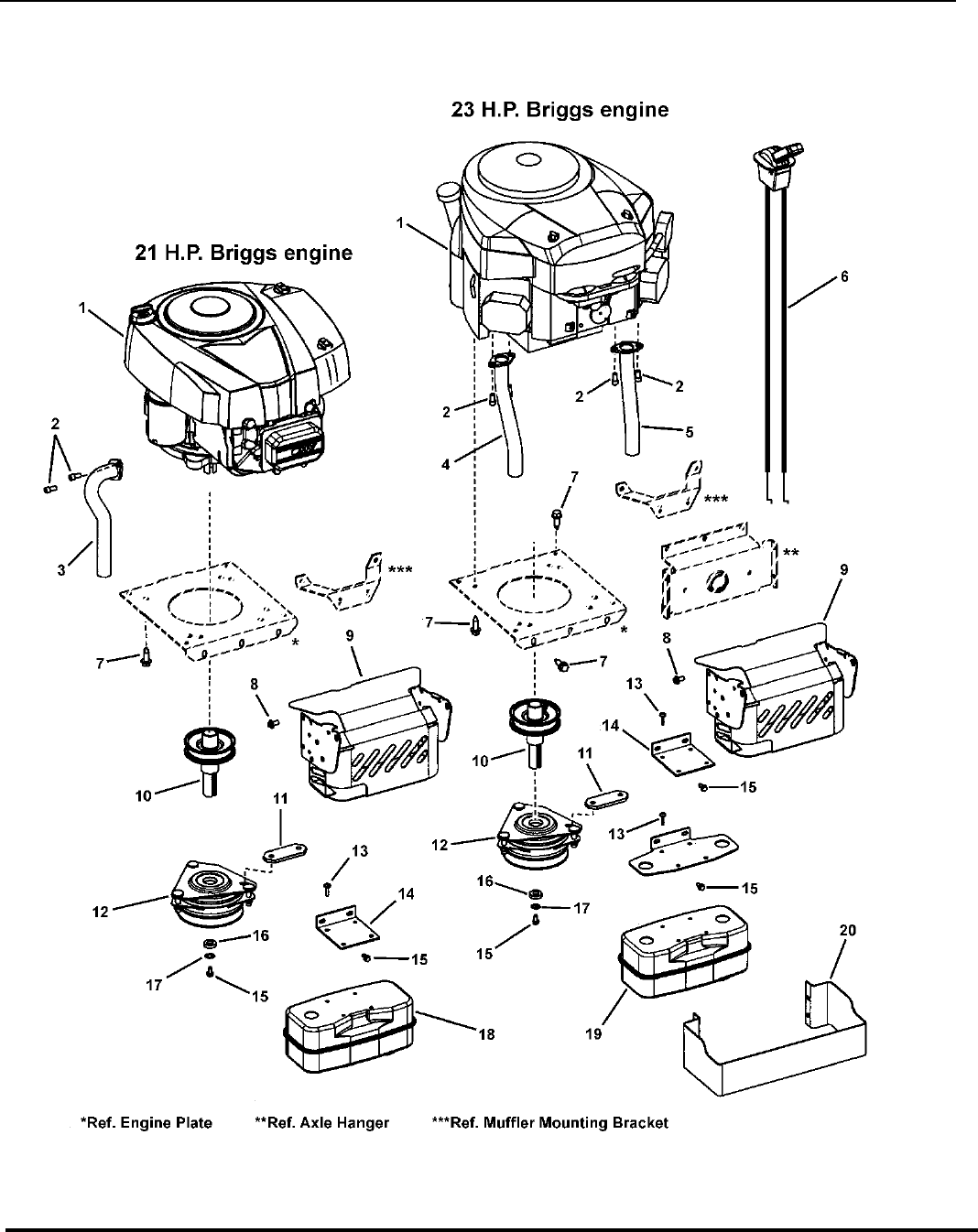

Engine Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 21

Part No Descri

p

tionItem Qt

y

Note

1 1 * ENGINE, 19.5HP B&S INTEK SINGLE CYL Mod. 445577-0755-

E1

(not shown)

1 1 * ENGINE, 23HP B&S ELS 2-CYL, Mod. 44L777-0125-B1

1 1 * ENGINE, 24HP B&S, ELS, Mod. 44M777-0113-E1 (not shown)

2 720663 2 SCREW, TORX HEAD 5/16-18 X 5/8 YZ all

3 727816 1 EXHAUST TUBE SINGLE 21 H.P.

4 725220 1 EXHAUST TUBE RH 23 H.P. & 24 H.P.

5 725221 1 EXHAUST TUBE LH 23 H.P. & 24 H.P.

6 1727817 1 THROTTLE ASSY, DUAL LEVER 23 H.P. & 24 H.P.

6 1722955 1 THROTTLE, SINGLE (not shown) 21 H.P.

7 720045 4 HHST, 3/8-16X1.25 all

8 720664 2 WASHER, 5/16-18 HEX HEAD all

9 7500533Z 1 ASSY - HEAT SHIELD all

10 7101543 1 ADAPTER - ELECTRIC PTO all

11 7101706 1 CLUTCH, ANCHOR PAD all

12 7101323 1 CLUTCH, ELECTRIC OGURA all

13 722861 4 SCREW - THREAD FORMING, 0.88 X 3/16-15 all

14 728664 1 BRKT - MUFFLER all

15 722866 1 SCREW .25-20 X0.59 HEX all

16 722605 1 WASHER .470- 1.00.25 FLT all

17 720183 1 WASHER, .43-.074 X .04 STAR all

18 721325 1 MUFFLER - SINGLE 21 H.P.

19 721180 1 MUFFLER 23 H.P. & 24 H.P.

20 7300662 1 GUARD, HEAT SHIELD (EURO) 23 H.P.

NOTE: * Purchase engine parts from engine manufacturer dealer.

46" Mower Housing Assembly

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

22

46" Mower Housing Assembly

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 23

Part No Descri

p

tionItem Qt

y

Note

1 7300671 1 MOWER DECK HOUSING, 46”

2 722397 3 NUT-NYLOCK RING - PULLEY 9/16-18

3A 726069 2 S.S. PULLEY 46”

3B 7101744 2 PULLEY

4 721447 3 JACKSHAFT HOUSING ASSY

5 726958 1 SHAFT, SPLINED (per Jackshaft Housing

Assembly)

6 726957 2 BALL BEARING, JACKSHAFT (per Jackshaft Housing

Assembly)

7 726959 1 JACKSHAFT HOUSING (per Jackshaft Housing

Assembly)

8 721095 1 FITTING - LUBRICATION (1/4-28 Self-Tap) (per Jackshaft Housing

Assembly)

9 720097 2 SHOULDER BOLT, 3/8-16X1.06

10 726498 2 PLATE SUSPENSION

11 722511 1 SPRING, TORSION RH

12 720049 19 BOLT CARRIAGE, 5/16-18 X .62

13 726831 1 BRACKET, RIGHT REAR

14 720139 3 HEX NUT, 5/16-18 FLANGE SER YZ

15 720142 2 NUT, HEX FLANGE, 3/8-16 NC

16 722485 1 SPRING

17 726830 1 BRACKET, BELL CRANK

18 720045 15 HHST, 3/8-16X1.25

19 728320 1 BRACKET, COVER

20 7400226 1 ASSY - IDLER ARM, 46”, RH

21 720091 5 SHOULDER BOLT, 0.75 X 0.60 X 3/8-16

22 720989 1 GUIDE, BELT

23 721308 1 BRACKET - BRAKE MTG 46'

24 721310 1 BRACKET, BRAKE PLATE

25 722858 4 CAPSCREW 5/16-18

26 720145 6 NUT, HEX FLANGE LOCK, 5/16-18 NC

27 727317 1 BRACKET, LEFT GAUGE WHEEL

28 725149 1 BRACKET, PULLEY COVER

29 721309 1 BRACKET, LEFT LIFTER

30 722512 1 SPRING, TORSION RH

31 728319 1 BRACKET, HINGE

32 721446 2 SPACER, PULLEY

33 725179 3 BLADE ADAPTER

34 720658 3 BLADE (15.68")

35 722601 3 WASHER-BELLEVILLE 1.0 X .625 X .200

36 722600 3 WASHER - HARDENED 1.0OD X .625ID X .188

46" Mower Housing Assembly

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

24

46" Mower Housing Assembly

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 25

Part No Descri

p

tionItem Qt

y

Note

37 722382 3 NUT, BLADE, 9/16-18 ZINC PLATE YELLOW CHROMATE

38 720908 2 GUIDE, SCREW

39 721364 1 BRACKET, RIGHT GAUGE WHEEL

40 728906 1 BRACKET, FRONT DECK

41 720053 1 CARRIAGE BOLT

42 720372 1 BOLT RETAINER

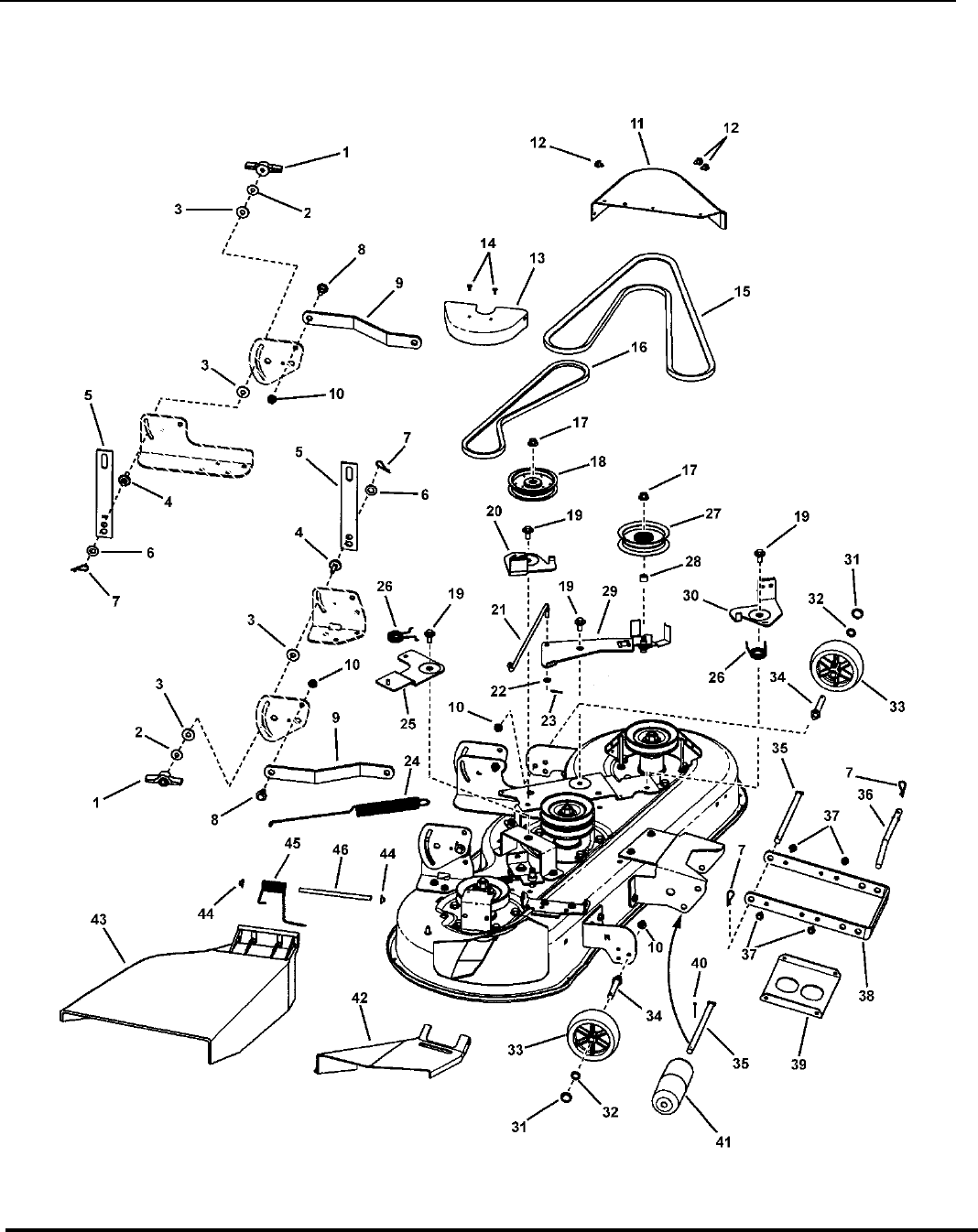

46" Mower Deck Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

26

46" Mower Deck Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 27

Part No Descri

p

tionItem Qt

y

Note

1 721222 2 KNOB

2 720161 2 WASHER FLAT, 1.0 X .328 X 16GA

3 721250 2 FRICTION PAD

4 721402 2 PIN - HANGER 3/8-16 X 1.25

5 725226 2 LINK, LIFT

6 722579 3 WASHER - FLAT, 1.0”OD X 0.550”

7 720069 2 HAIR PIN, .56D-.092T

8 720098 2 SHOULDER BOLT, 3/8-16 X .600OD X.95L

9 725230 2 BRACKET, REAR SUSPENSION

10 720142 6 NUT, HEX FLANGE, 3/8-16 NC

11 721313 1 COVER, LEFT PULLEY

12 722871 3 SCREW

13 721315 1 COVER, RIGHT PULLEY

14 729075 2 SCREW, THREAD FORMING 10-24X.340MIN THREADS

15 720416 1 BELT, PRIMARY (88.30" HA) 46” MOWER

16 720404 1 BELT, SECONDARY (47.10" HA) 46” MOWER

17 720148 2 NUT FLANGE, 3/8-16 ZINC PLATED

18 725225 1 PULLEY IDLER

19 720091 3 SHOULDER BOLT, 0.75 X 0.60 X 3/8-16

20 7500566 1 BRAKE ASSEMBLY CENTER

21 727459 1 LINK BELLCRANK

22 720163 1 FW, .34X.62X16GA

23 720387 1 PIN - COTTER, 0.75 X 0.090

24 722441 1 SPRING

25 721311 1 BELLCRANK

26 722510 2 SPRING, TORSION BRAKE

27 725171 1 PULLEY BACKSIDE IDLER, 4.0 OD

28 725167 2 SPACER 1/2” TO 17MM

29 7400227 1 ASSY - IDLER ARM, 46”

30 7500565 1 ASSY - BRAKE LH 46”

31 720392 2 CLIP - HAIR PIN

32 720173 2 WASHER, FLAT, .81 X .550 X 16GA

33 721118 2 WHEEL GAGE

34 721197 2 BOLT AXLE, 3/8-16 X 3.0

35 721376 2 ROD, DECK SUSPENSION

36 721263 1 ROD, HANGER

37 722858 2 CAPSCREW 5/16-18

46" Mower Deck Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

28

46" Mower Deck Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 29

Part No Descri

p

tionItem Qt

y

Note

38 721346 1 BRACKET, FRONT SUSPENSION

39 721312 1 STIFFENER

40 720390 1 COTTER PIN

41 721453 1 ROLLER

42 720983 1 DEFLECTOR, INSIDE

43 720982 1 DEFLECTOR, CHUTE

44 720360 1 CAP, PUSH ON

45 722504 1 SPRING - TORSION

46 721017 1 ROD, DEFLECTOR

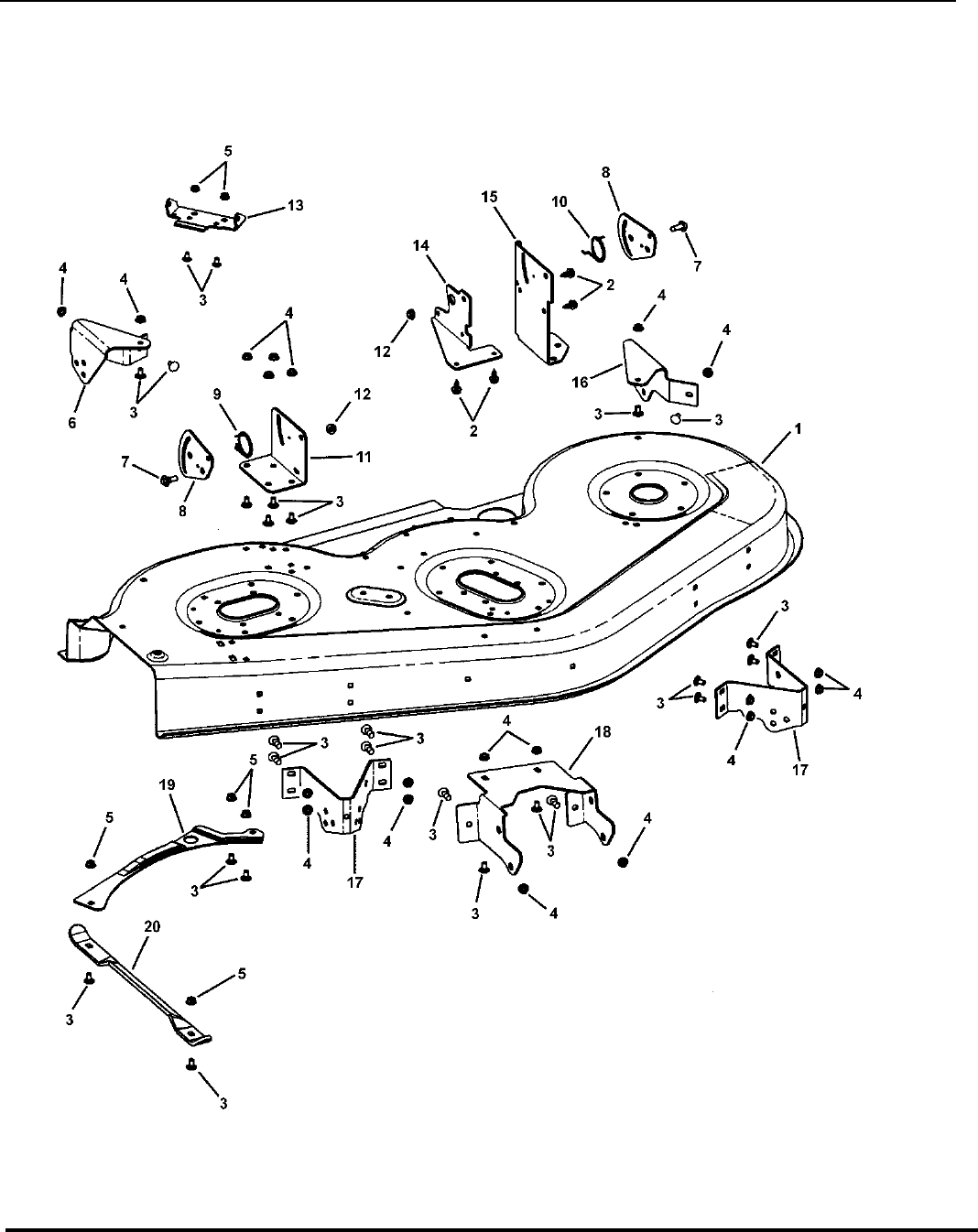

50" Mower Housing Assembly

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

30

50" Mower Housing Assembly

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 31

Part No Descri

p

tionItem Qt

y

Note

1 726814 1 BLADE HOUSING 50/52

2 722858 4 CAPSCREW 5/16-18

3 720049 26 BOLT CARRIAGE, 5/16-18 X .62

4 720139 20 HEX NUT, 5/16-18 FLANGE SER YZ

5 720145 3 NUT, HEX FLANGE LOCK, 5/16-18 NC

6 726824 1 BRACKET GAGE WHEEL RH REAR

7 720097 2 SHOULDER BOLT, 3/8-16X1.06

8 726498 2 PLATE SUSPENSION

9 722511 1 SPRING, TORSION RH

10 722512 1 SPRING, TORSION RH

11 726373 1 BRACKET LIFTER RH 50”

12 720142 2 NUT, HEX FLANGE, 3/8-16 NC

13 728319 1 BRACKET, HINGE

14 727152 1 BRACE LH LIFTER

15 726473 1 BRACKET LIFTER LH

16 726823 1 BRACKET GAGE WHEEL LH REAR

17 721457 2 BRACKET GAGE WHEEL 52”

18 721336 1 BRACKET FRONT DECK 50”

19 726790 1 BAFFLE 48/52 RH BOTTOM

20 721399 1 BRACKET CHUTE SUPPORT

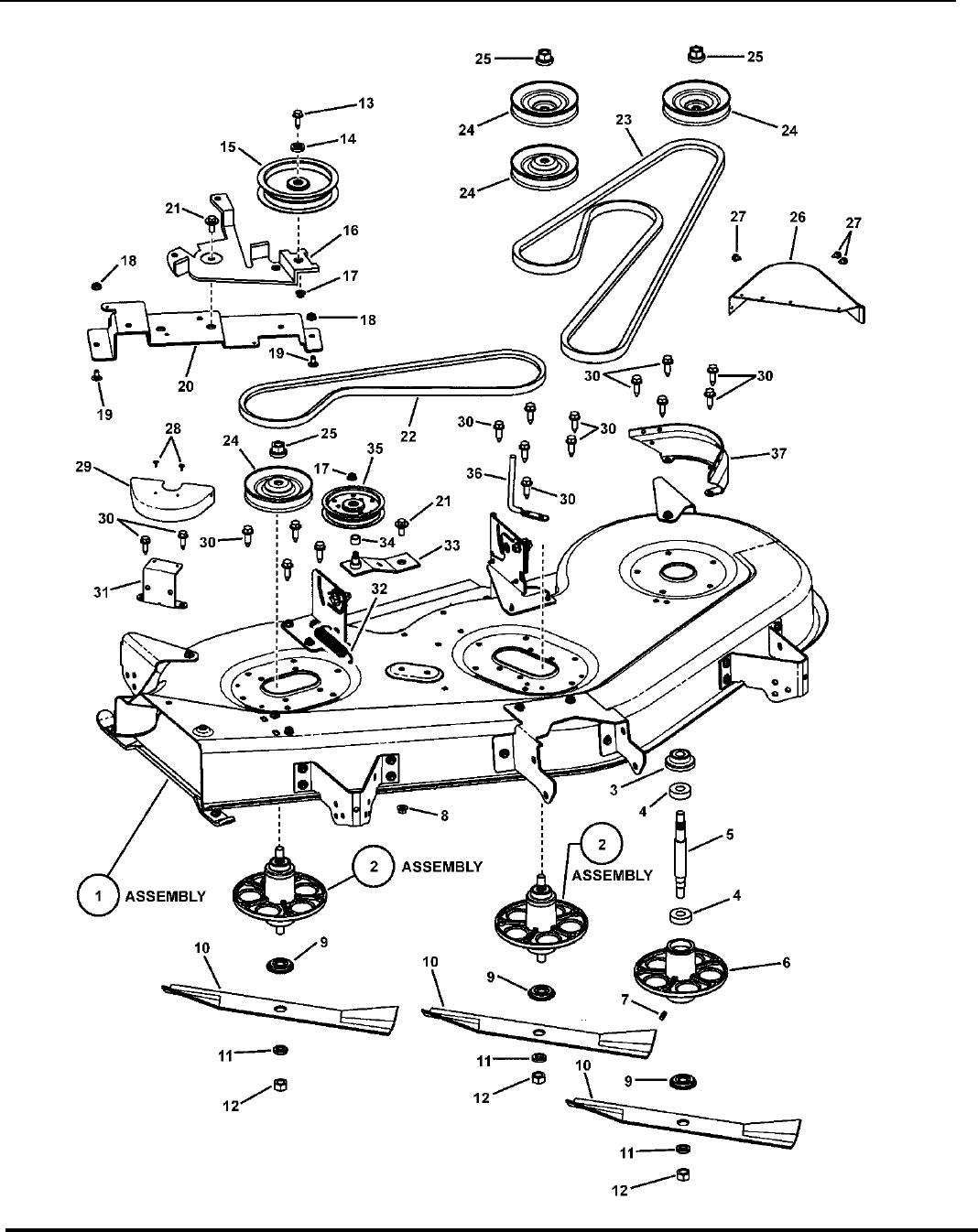

50" Deck Blade Drive Assembly

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

32

50" Deck Blade Drive Assembly

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 33

Part No Descri

p

tionItem Qt

y

Note

1 7500607 1 ASSY, MOWER HOUSING 48/50/52”

2 721447 3 JACKSHAFT HOUSING ASSY

3 721446 1 SPACER, PULLEY (per Jackshaft Housing

Assembly)

4 726957 2 BALL BEARING, JACKSHAFT (per Jackshaft Housing

Assembly)

5 726958 1 SHAFT, SPLINED (per Jackshaft Housing

Assembly)

6 726959 1 JACKSHAFT HOUSING (per Jackshaft Housing

Assembly)

7 721095 1 FITTING - LUBRICATION (1/4-28 self-Tap) (per Jackshaft Housing

Assembly)

8 720142 1 NUT, HEX FLANGE, 3/8-16 NC

9 725179 3 BLADE ADAPTER

10 721334 3 BLADE 50/52 (17.66")

11 722600 6 WASHER - HARDENED 1.0OD X .625ID X .188

12 722382 3 NUT, BLADE, 9/16-18 ZINC PLATE YELLOW CHROMATE

13 720192 1 BOLT, HEX, 3/8-16 UNC X 1.50 BRIGHT ZINC

14 7090122 1 WASHER, 3/8” Flat SAE

15 721385 1 PULLEY BACKSIDE IDLER

16 7300924 1 ARM - IDLER ref. 725117 & 7300922)

17 720148 1 NUT FLANGE, 3/8-16 ZINC PLATED

18 720139 2 HEX NUT, 5/16-18 FLANGE SER YZ

19 720049 2 BOLT CARRIAGE, 5/16-18 X .62

20 7300923 1 BRACKET - BRAKE MOUNTING ref. 726514

21 720091 1 SHOULDER BOLT, 0.75 X 0.60 X 3/8-16

22 726842 1 BELT SECONDARY 52.75" HA

23 726855 1 V-BELT A WEDGE 103.10 HA ref. 1734048

24 726069 4 S.S. PULLEY 46”

25 726507 3 NUT PULLEY

26 721313 1 COVER, LEFT PULLEY

27 722871 3 SCREW

28 722859 2 SCREW THREAD FORMING

29 721315 1 COVER, RIGHT PULLEY

30 720045 15 HHST, 3/8-16X1.25

31 728320 1 BRACKET, COVER

32 722438 1 SPRING, EXTENSION

33 7400265 1 ASSEMB-IDLER ARM 50” (was 721338)

34 725167 1 SPACER 1/2” TO 17MM

35 725225 1 PULLEY IDLER

36 721081 1 ROD BELT GUIDE

37 725149 1 BRACKET, PULLEY COVER

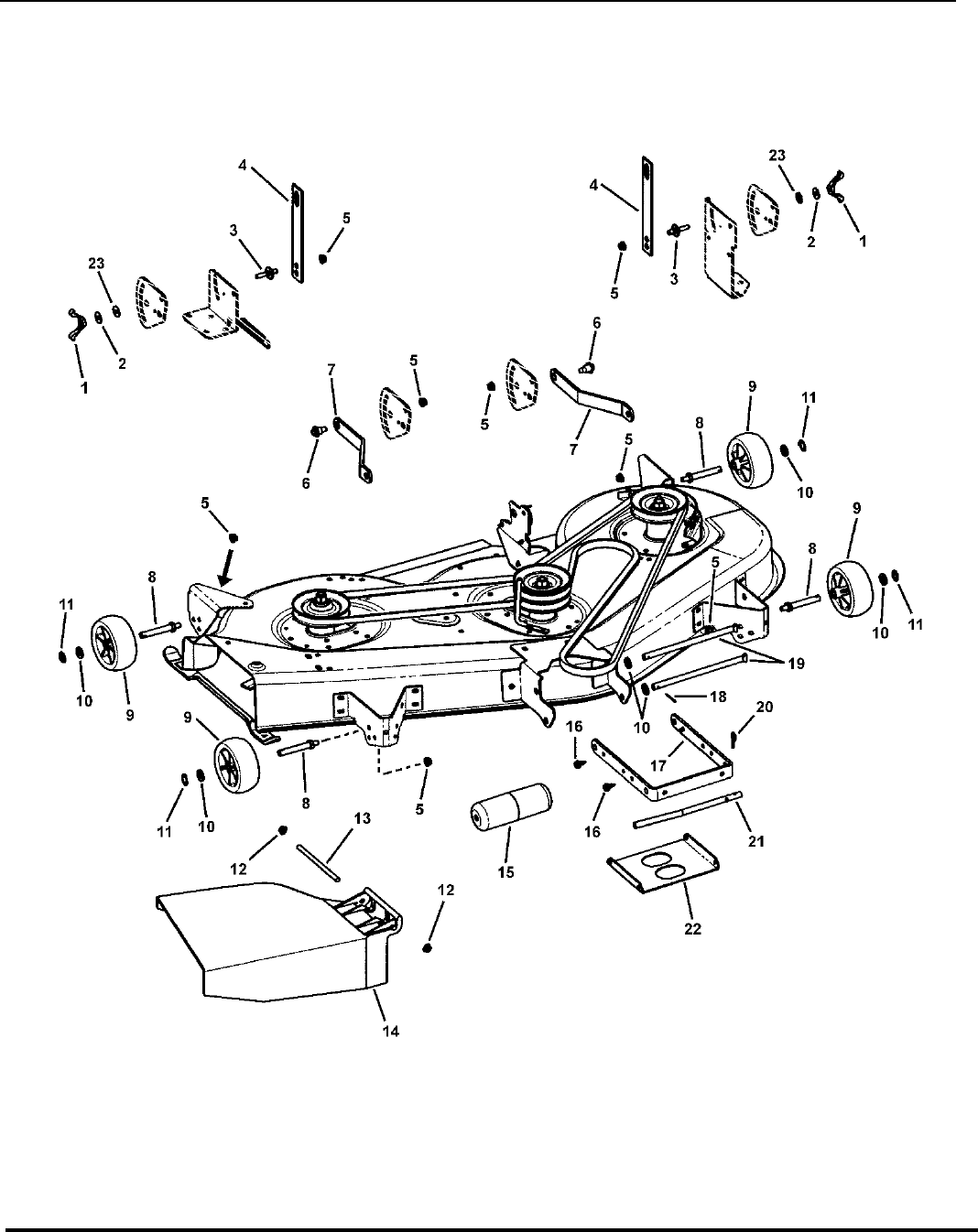

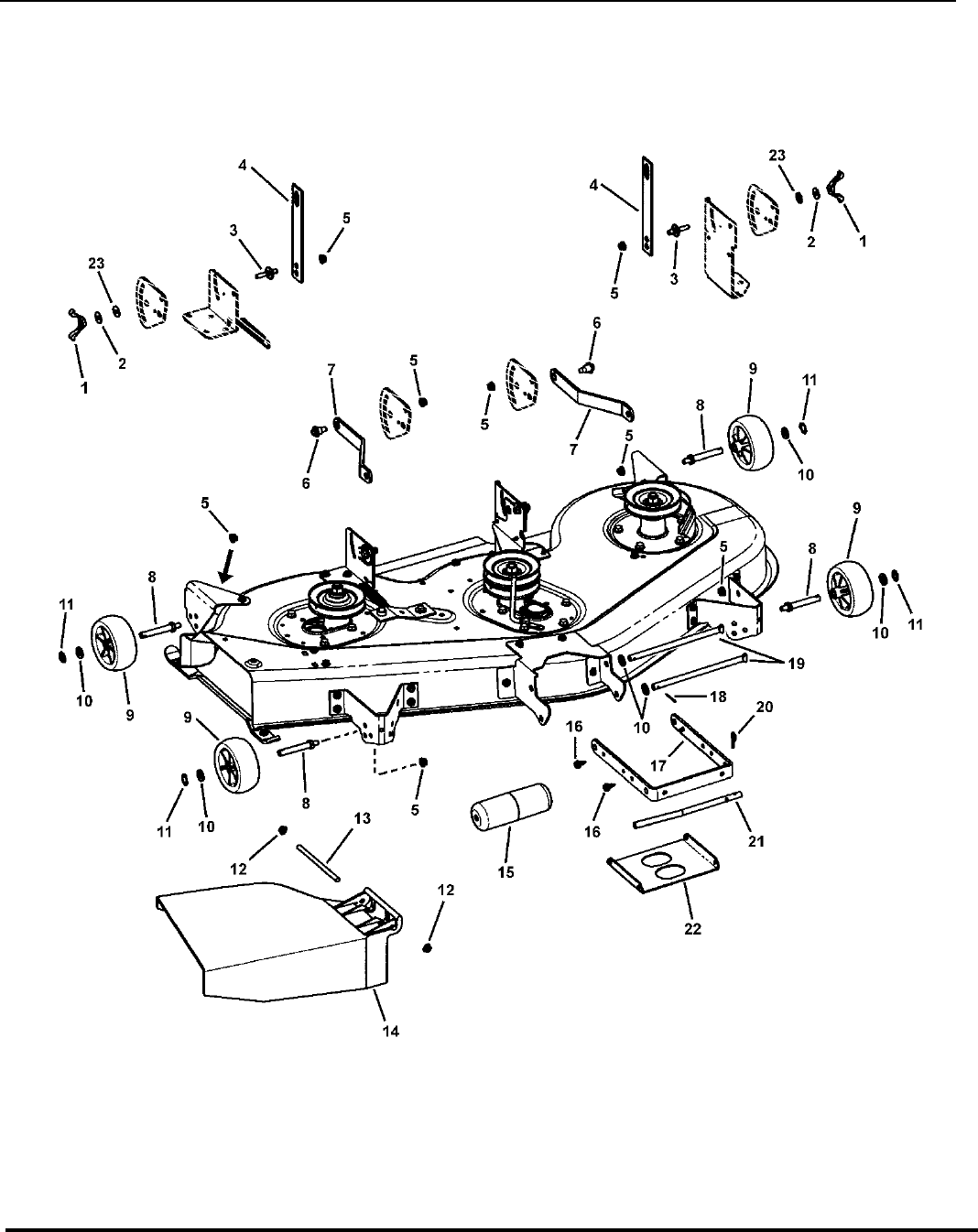

50" Deck Housing Suspension Assembly

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

34

50" Deck Housing Suspension Assembly

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 35

Part No Descri

p

tionItem Qt

y

Note

7500606 1 ASSY, BLADE DRIVE 50/52”

1 721380 2 WINGNUT

2 720161 2 WASHER FLAT, 1.0 X .328 X 16GA

3 721402 2 PIN - HANGER 3/8-16 X 1.25

4 728667 2 LINK, LIFT ref. 7300921D

5 720142 8 NUT, HEX FLANGE, 3/8-16 NC

6 720098 2 SHOULDER BOLT, 3/8-16 X .600OD X.95L

7 721212 2 BRACKET, REAR SUSPENSION ref. 7300826D

8 721197 4 BOLT AXLE, 3/8-16 X 3.0

9 721118 4 WHEEL GAGE

10 722579 6 WASHER - FLAT, 1.0”OD X 0.550”

11 720392 4 CLIP - HAIR PIN

12 720360 2 CAP, PUSH ON

13 721017 1 ROD, DEFLECTOR

14 720982 1 DEFLECTOR, CHUTE

15 721453 1 ROLLER

16 722858 4 CAPSCREW 5/16-18

17 728665 1 BRACKET, SUSPENSION FRONT ref. 7300767D

18 720390 1 COTTER PIN

19 721376 2 ROD, DECK SUSPENSION

20 720069 2 HAIR PIN, .56D-.092T

21 721263 1 ROD, HANGER

22 721312 1 STIFFENER ref. 7300871D

23 720185 4 WASHER

52" Mower Housing Assembly

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

36

52" Mower Housing Assembly

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 37

Part No Descri

p

tionItem Qt

y

Note

1 726814 1 BLADE HOUSING 50/52

2 722858 4 CAPSCREW 5/16-18

3 720049 26 BOLT CARRIAGE, 5/16-18 X .62

4 720139 20 HEX NUT, 5/16-18 FLANGE SER YZ

5 720145 3 NUT, HEX FLANGE LOCK, 5/16-18 NC

6 726824 1 BRACKET GAGE WHEEL RH REAR

7 720097 2 SHOULDER BOLT, 3/8-16X1.06

8 726498 2 PLATE SUSPENSION

9 722511 1 SPRING, TORSION RH

10 722512 1 SPRING, TORSION RH

11 726373 1 BRACKET LIFTER RH 50”

12 720142 2 NUT, HEX FLANGE, 3/8-16 NC

13 728319 1 BRACKET, HINGE

14 727152 1 BRACE LH LIFTER

15 726473 1 BRACKET LIFTER LH

16 726823 1 BRACKET GAGE WHEEL LH REAR

17 721457 2 BRACKET GAGE WHEEL 52”

18 721336 1 BRACKET FRONT DECK 50”

19 726790 1 BAFFLE 48/52 RH BOTTOM

20 721399 1 BRACKET CHUTE SUPPORT

52" Deck Blade Drive Assembly

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

38

52" Deck Blade Drive Assembly

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 39

Part No Descri

p

tionItem Qt

y

Note

1 7500607 1 ASSY, MOWER HOUSING 48/50/52”

2 721447 3 JACKSHAFT HOUSING ASSY

3 721446 1 SPACER, PULLEY (per Jackshaft Housing

Assembly)

4 726957 2 BALL BEARING, JACKSHAFT (per Jackshaft Housing

Assembly)

5 726958 1 SHAFT, SPLINED (per Jackshaft Housing

Assembly)

6 726959 1 JACKSHAFT HOUSING (per Jackshaft Housing

Assembly)

7 721095 1 FITTING - LUBRICATION (1/4-28 self-Tap) (per Jackshaft Housing

Assembly)

8 720142 1 NUT, HEX FLANGE, 3/8-16 NC

9 725179 3 BLADE ADAPTER

10 721334 3 BLADE 50/52 (17.66")

11 722600 6 WASHER - HARDENED 1.0OD X .625ID X .188

12 722382 3 NUT, BLADE, 9/16-18 ZINC PLATE YELLOW CHROMATE

13 720192 1 BOLT, HEX, 3/8-16 UNC X 1.50 BRIGHT ZINC

14 7090122 1 WASHER, 3/8” Flat SAE

15 721385 1 PULLEY BACKSIDE IDLER

16 7300924D 1 ARM - IDLER ref. 725117 & 7300922)

17 720148 1 NUT FLANGE, 3/8-16 ZINC PLATED

18 720139 2 HEX NUT, 5/16-18 FLANGE SER YZ

19 720049 2 BOLT CARRIAGE, 5/16-18 X .62

20 7300923 1 BRACKET - BRAKE MOUNTING ref. 726514

21 720091 1 SHOULDER BOLT, 0.75 X 0.60 X 3/8-16

22 726842 1 BELT SECONDARY 52.75” HA

23 1734048 1 V-BELT A WEDGE 103.10" HA ref. 726855 -52

24 726069 4 S.S. PULLEY 46”

25 726507 3 NUT PULLEY

26 721313 1 COVER, LEFT PULLEY

27 722871 3 SCREW

28 722859 2 SCREW THREAD FORMING

29 721315 1 COVER, RIGHT PULLEY

30 720045 15 HHST, 3/8-16X1.25

31 728320 1 BRACKET, COVER

32 722438 1 SPRING, EXTENSION

33 7400265 1 ASSEMB-IDLER ARM 50” (was 721338)

34 725167 1 SPACER 1/2” TO 17MM

35 725225 1 PULLEY IDLER

36 721081 1 ROD BELT GUIDE

37 725149 1 BRACKET, PULLEY COVER

52" Deck Housing Suspension Assembly

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

40

52" Deck Housing Suspension Assembly

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 41

Part No Descri

p

tionItem Qt

y

Note

7500606 1 ASSY, BLADE DRIVE 50/52”

1 721380 2 WINGNUT

2 720161 2 WASHER FLAT, 1.0 X .328 X 16GA

3 721402 2 PIN - HANGER 3/8-16 X 1.25

4 7300921D 2 LINK, LIFT

5 720142 8 NUT, HEX FLANGE, 3/8-16 NC

6 720098 2 SHOULDER BOLT, 3/8-16 X .600OD X.95L

7 7300826D 2 BRACKET, REAR SUSPENSION

8 721197 4 BOLT AXLE, 3/8-16 X 3.0

9 721118 4 WHEEL GAGE

10 722579 6 WASHER - FLAT, 1.0”OD X 0.550”

11 720392 4 CLIP - HAIR PIN

12 720360 2 CAP, PUSH ON

13 721017 1 ROD, DEFLECTOR

14 720982 1 DEFLECTOR, CHUTE

15 721453 1 ROLLER

16 722858 4 CAPSCREW 5/16-18

17 7300767D 1 BRACKET, SUSPENSION FRONT

18 720390 1 COTTER PIN

19 721376 2 ROD, DECK SUSPENSION

20 720069 2 HAIR PIN, .56D-.092T

21 721263 1 ROD, HANGER

22 7300871D 1 STIFFENER

23 720185 4 WASHER

Decals

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

42

Decals

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 43

Part No Descri

p

tionItem Qt

y

Note

1 7102191 1 DECAL, Snapper Name Plate, RH

2 7102192 1 DECAL, Snapper Name Plate, LH

3 7101965 1 DECAL, Ignition

4 7102196 1 DECAL, Snapper Logo, Rear

5 7102211 1 DECAL, Snapper Logo, Steering Wheel

6 7101933 1 DECAL, Operation

7 7101937 1 DECAL, Deck Level

8 7102197 1 DECAL, 19.5 hp (not shown)

8 7102198 1 DECAL, 23 hp

8 7102199 1 DECAL, 24 hp (not shown)

9 7101936 1 DECAL, Drive Pedal

10 7102193 1 DECAL, 46” Deck (not shown)

10 7102194 1 DECAL, 42” Deck (not shown)

10 7102195 1 DECAL, 52” Deck

11 7101939 1 DECAL, Belt/Clutch

12 7101938 1 DECAL, Height of Cut

13 7101934 1 DECAL, Park Brake

14 7101940 1 DECAL, Weight Limitation

15 7101935 1 DECAL, Roll Release

16 7101394 1 DECAL, Warning, Rear Discharge Door

17 724017 1 DECAL, Gage Wheel Instruction

7101663 1 DECAL-Umber (not shown)

7101664 1 DECAL-No Step (not shown)

7101665 1 DECAL, Danger Do Not Operate w/o Deflector (not shown)

7102210 1 DECAL, Height of Cut Snapper (not shown)

724023 1 DECAL, Deck Level (not shown)

724026 1 DECAL, Gage Wheel Leveling (not shown)

Electrical Group

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

44

Electrical Group

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 45

Part No Descri

p

tionItem Qt

y

Note

1 7101446 1 HARNESS, WIRING, HYDRO TCT, ELEC PTO

2 721516 1 SWITCH, LIMIT, NO, SNAP-IN

3 721249 1 SWITCH, LIMIT, NO/NC, SNAP-IN

4 720123 2 WINGNUT, 1/4-20 NC-2 TAP

5 720349 1 CABLE, BAT 8GA 12.00L - BLACK

6 720057 2 CARRIAGE BOLT, 0.63L X 1/4-20 2A

7 720588 1 BOOT, BATTERY POSITIVE

8 720348 1 CABLE, BAT 8GA 18.00L - RED

9 7060618 1 BATTERY, 12 VOLT, 230 CCA replaces 7100449

10 1722887 1 SWITCH, PTO, YELLOW, VERTICAL SYMBOLS

11 7026343 1 SWITCH, IGNITION-AFTERFIRE SOLENOID

12 727338 1 CAP, IGNITION SWITCH

13 721461 1 KEY, IGNITION

14 722851 3 SCREW, 1/4-14X.38”ST

15 722393 2 NUT, HEX LOCK 1/4-20 BZ

16 721615 1 SOLENOID, 3 POLE

17 7023354 1 SWITCH, SEAT

1726556 1 SWITCH, REV MOW OPTION MODULE ONLY W/KEY (not shown)

1726557 1 KEY (CHERRY) (not shown)

1727185 1 KEY W/ HANG TAG (not shown)

Wiring Schematic

TP 400-5330-C-TC-N

Manual No. 7006261 HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

46

Wiring Schematic

Footnotes:

TP 400-5330-C-TC-N

Manual No. 7006261HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES 47

Part No Descri

p

tionItem Qt

y

Note

1 1 Wiring Schematic for Harness # 7101446

Parts Manual fo

r

HYDRO DRIVE ELECTRIC CLUTCH

LT-100 SERIES

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Revision C, TP 400-5330-C-TC-N

1/30/2008

Manual No. 7006261

McDonough, GA, 30253 U.S.A.

LAWN TRACTOR

Copyright © 2008

Briggs & Startton Yard Power Products Group

Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation
