Safety Instructions & Operator’s Manual for

YARD CRUISER

HYDRO DRIVE

SERIES 4

MODELS

YZ16424BVE

YZ20484BVE

MODEL NUMBER EXPLANATION

Y Z 16 42 4 B V E

MODEL DESIGNATION ENGINE OPTIONS

DRIVE SYSTEM TYPE ENGINE TYPE

ENGINE HORSE POWER ENGINE MODEL

CUTTING WIDTH SERIES DESIGNATION

– Yard Cruiser

Z – Zero Turning Radius 16 – 16 HP Engine

20 – 20 HP Engine 42 - 42” Cutting Deck

48 - 48” Cutting Deck 4 - Series Designation B - Briggs Engine

V – Over Head Valve

E - Electric Start

Thank you for buying a SNAPPER Product! Before operating your YARD CRUISER, read this manual carefully

and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all

power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in

accordance with the operating instructions and common sense!

SNAPPER INC.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that

can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious

injury or death to the operator or other persons. The owner of the machine must understand these instructions

and must allow only persons who understand these instructions to operate machine. Each person operating the

machine must be of sound mind and body and must not be under the influence of any substance, which might

impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your dealer

cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough,

Georgia 30253. Phone: (1-800-935-2967).

PROTECTION FOR CHILDREN

Tragic accidents can occur if the operator is not alert

to the presence of children. Children are often

attracted to the machine and the mowing activity.

Never assume that children will remain where you last

saw them.

1. KEEP children out of the mowing area and under

the watchful care of a responsible adult.

2. DO NOT allow children in yard when machine is

operated (even with the blade OFF).

3. DO NOT allow children or others to ride on

machine or on attachments (even with the blades

OFF). They may fall and be seriously injured.

4. DO NOT allow pre-teenage children to operate

machine.

5. ALLOW only responsible adults & teenagers with

mature judgment under close adult supervision to

operate machine.

6. DO NOT operate blades in reverse. STOP BLADES.

LOOK and SEE behind and down for children, pets

and hazards before and while backing.

7. USE EXTRA CARE when approaching blind

corners, shrubs, trees, or other objects that may

obscure vision.

PROTECTION AGAINST TIPOVERS

Slopes are a major factor related to loss-of-control

and tip-over accidents, which can result in severe

injury or death. All slopes require extra CAUTION. If

you cannot back up the slope or if you feel uneasy on

the slope, DO NOT mow it. Use extra care with grass

catchers or other attachments; these affect the

handling and the stability of the machine.

1. DO NOT operate machine on slopes exceeding 15

degrees (27% grade).

2. Exercise EXTREME CAUTION on slopes above 10

degrees (18% grade). Turn blades OFF when

traveling uphill. Use a slow speed and avoid

sudden or sharp turns.

3. DO NOT operate machine back and forth across

face of slopes. Operate up and down. Practice on

slopes with blades off.

4. AVOID uphill starts. If machine stops going uphill

or tires lose traction, turn blades OFF and back

slowly down the slope.

PROTECTION AGAINST TIPOVERS

(Continued From Previous Column)

5. STAY ALERT for holes and other hidden hazards.

Tall grass can hide obstacles. Keep away from

ditches, washouts, culverts, fences and

protruding objects.

6. KEEP A SAFE DISTANCE (at least 3 feet) away

from edge of ditches and other drop offs. The

machine could turn over if an edge caves in.

7. Always begin forward motion slowly and with

caution.

8. Use weights or a weighted load carrier in accordance

with instructions supplied with a grass catcher. DO

NOT operate machine on slopes exceeding 10

degrees (18% grade) when equipped with grass

catcher.

9. DO NOT put your foot on the ground to try to

stabilize the machine.

10. DO NOT operate machine on wet grass. Reduced

traction could cause sliding.

11. DO NOT operate machine under any condition

where traction, steering or stability is doubtful.

PREPARATION

1. Read, understand, and follow instructions and

warnings in this manual and on the machine,

engine and attachments. Know the controls and

the proper use of the machine before starting.

2. Only mature, responsible persons shall operate

the machine and only after proper instruction.

3. Data indicates that operators age 60 and above,

are involved in a large percentage of mower-

related injuries. These operators should evaluate

their ability to operate the mower safely enough to

protect themselves and others from serious injury.

4. Handle fuel with extra care. Fuels are flammable

and vapors are explosive. Use only an approved

fuel container. DO NOT remove fuel cap or add

fuel with engine running. Add fuel outdoors only

with engine stopped and cool. Clean spilled fuel

from machine. DO NOT smoke.

5. Practice operation of machine with BLADES OFF

to learn controls and develop skills.

6. Check the area to be mowed and remove all

objects such as toys, wire, rocks, limbs and other

objects that could cause injury if thrown by blade

or interfere with mowing.

IMPORTANT SAFETY INSTRUCTIONS

PREPARATION

(Continued From Previous Page)

7. Keep people and pets out of mowing area.

Immediately STOP blades, STOP engine, and

STOP machine if anyone enters the area.

8. Check shields, deflectors, switches, blade

controls and other safety devices frequently for

proper operation and location.

9. Make sure all safety decals are clearly legible.

Replace if damaged.

10. Protect yourself when mowing and wear safety

glasses, long pants and substantial footwear.

11. Know how to STOP blades and engine quickly

in preparation for emergencies.

12. Use extra care when loading or unloading the

machine into a trailer or truck.

13. Check grass catcher components frequently for

signs of wear or deterioration and replace as

needed to prevent injury from thrown objects

going through weak or worn spots.

OPERATION

1. Mount and dismount machine from left side.

2. Start engine from operator's seat, if possible.

Make sure blades are OFF and parking brake is

set.

3. DO NOT leave machine with engine running.

STOP engine, STOP blades, SET brake, and

Remove key before leaving operators position

of any reason.

4. DO NOT operate machine unless properly

seated with feet on feet rests or pedal(s).

5. STOP BLADES and ENGINE and make sure

blades have stopped before removing grass

catcher or unclogging mower to prevent loss of

fingers or hand.

6. Blades must be OFF except when cutting grass.

Set blades in highest position when mowing

over rough ground.

7. Keep hands and feet away from rotating blades

underneath deck. DO NOT place foot on ground

while BLADES are ON or machine is in motion.

8. DO NOT operate machine without entire grass

catcher or guards in place. DO NOT point

discharge at people, passing cars, windows or

doors.

9. Slow down before turning.

10. Watch out for traffic when near or crossing

roadways.

11. STOP engine immediately after striking an

obstruction. Inspect machine and repair

damage before resuming operation.

12. Operate machine only in daylight or with good

artificial light.

13. Move joystick (if equipped) SLOWLY to

maintain control during speed and directional

changes.

OPERATION

(Continued From Previous Column)

14. Exercise CAUTION when pulling loads. Limit loads

to those you can safely control and attach loads to

hitch plate as specified with SNAPPER attachment

instructions.

15. DO NOT operate engine in enclosed areas. Engine

exhaust gases contain carbon monoxide, a deadly

poison.

MAINTENANCE

1. DO NOT store machine or fuel container inside

where fumes may reach an open flame, spark or

pilot light such as in a water heater, furnace, clothes

dryer or other gas appliance. Allow engine to cool

before storing machine in an enclosure. Store fuel

container out of the reach of children in a well

ventilated, unoccupied building.

2. Keep engine free of grass, leaves or excess grease

to reduce fire hazard and engine overheating.

3. When draining fuel tank, drain fuel into an approved

container outdoors and away from open flame.

4. Check brakes frequently; adjust, repair or replace as

needed.

5. Keep all bolts, nuts and screws properly tight.

Check that all cotter pins are in proper position.

6. Always provide adequate ventilation when running

engine. Exhaust gases contain carbon monoxide,

an odorless and deadly poison.

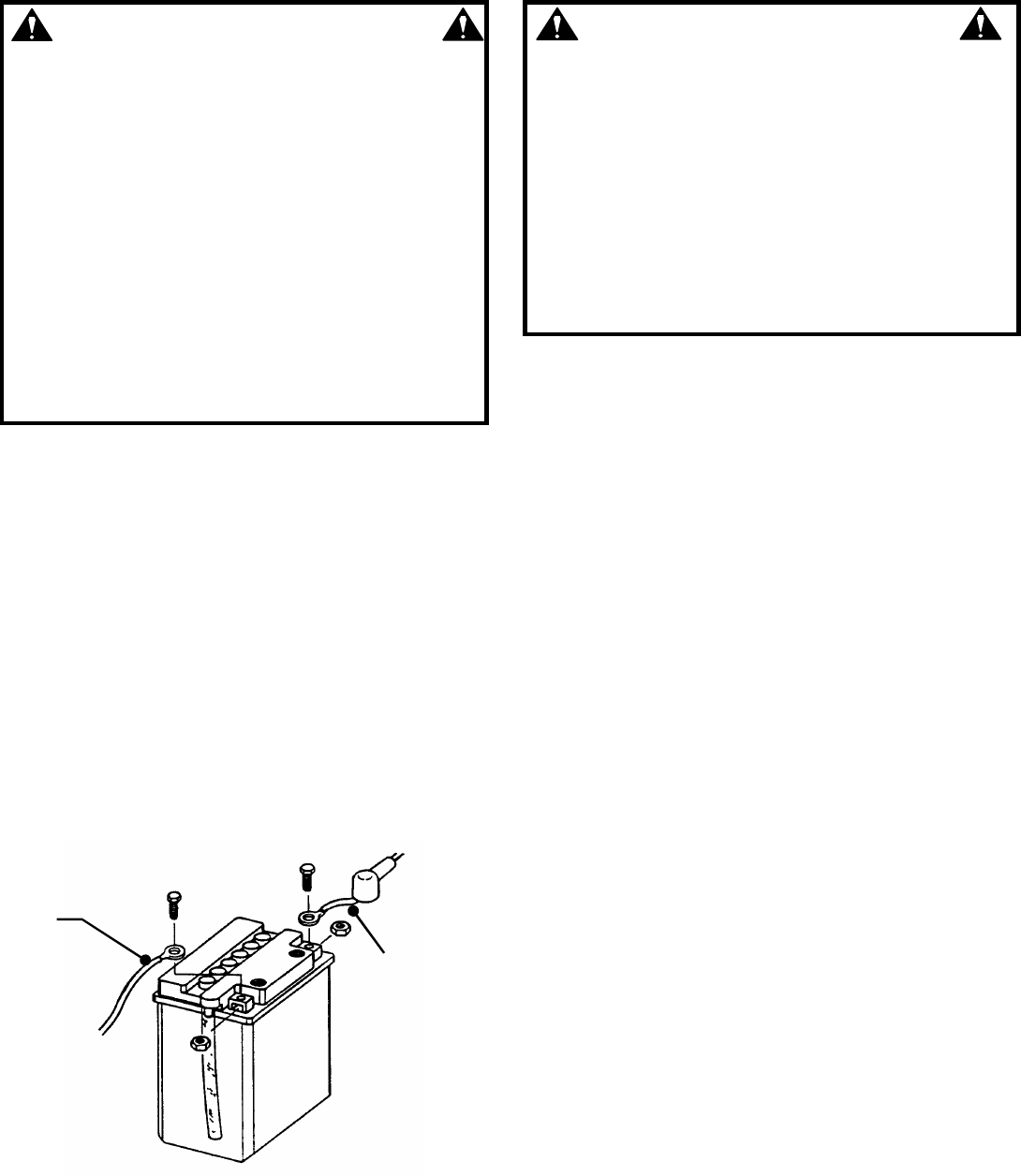

7. Disconnect negative (black) cable from battery

before performing maintenance or service.

Cranking engine could cause injury.

8. DO NOT work under machine without safety blocks.

9. Service engine and make adjustments only when

engine is stopped. Remove spark plug wire(s) from

spark plug(s) and secure wire(s) away from spark

plug(s).

10. DO NOT change engine governor speed settings or

overspeed engine.

11. Lubricate machine at intervals specified in manual

to prevent controls from binding.

12. Mower blades are sharp and can cut. Wrap the

blades or wear heavy leather gloves and use

CAUTION when handling them.

13. DO NOT test for spark by grounding spark plug

next to spark plug hole; spark plug could ignite gas

exiting engine.

14. Have machine serviced by an authorized SNAPPER

dealer at least once a year and have the dealer

install any new safety devices.

15. Use only genuine SNAPPER replacement parts to

assure that original standards are maintained.

16. If battery is removed, DO NOT operate engine

without insulating Positive + battery cable terminal

with electrical tape, or sparking from battery cables

can result.

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.........................................................................2-3

TABLE OF CONTENTS......................................................................................................4

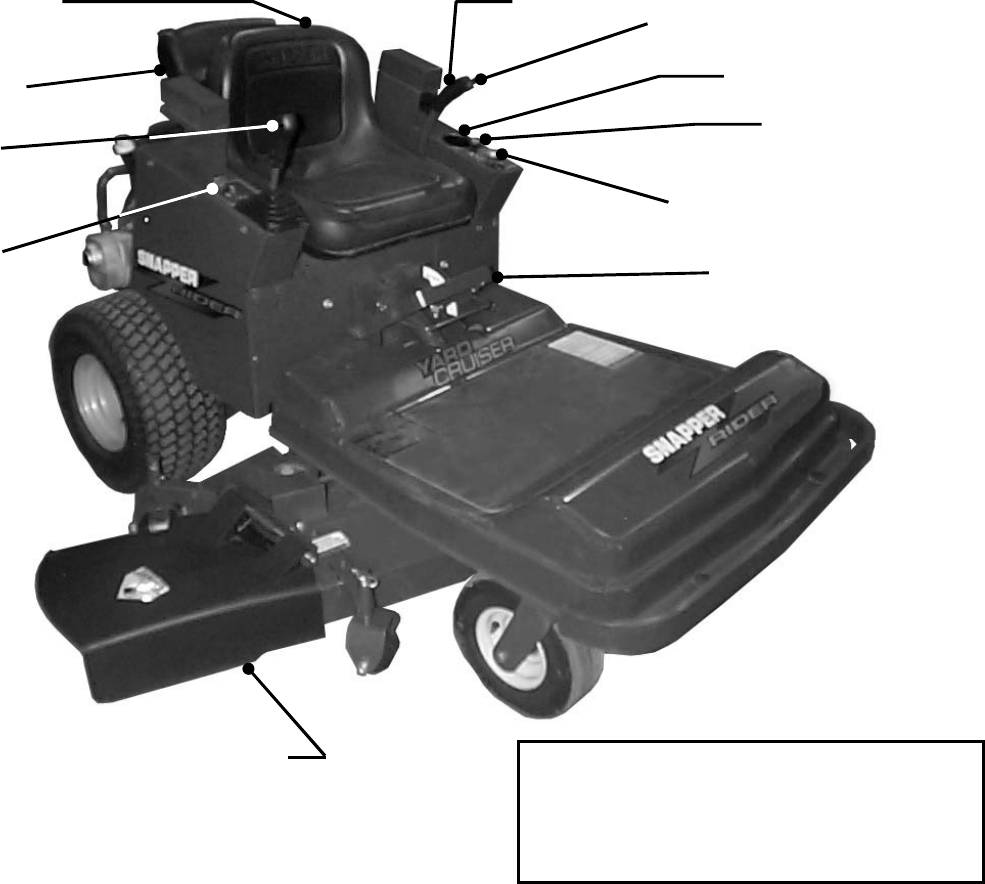

SECTION 1 - FAMILIARIZATION.......................................................................................5

SECTION 2 - OPERATING INSTRUCTIONS..................................................................6-9

Pre-start Checklist ............................................................................................6-7

Rolling Machine w/o Engine Running................................................................6

Starting & Stopping Engine, Propelling Mower .............................................7-8

Starting & Stopping Mower Blades ....................................................................8

Starting & Stopping Wheel Drive........................................................................8

Setting & Releasing Parking Brake.....................................................................8

Cutting Height Adjustment..................................................................................9

SECTION 3 - MAINTENANCE INSTRUCTIONS ........................................................10-13

Service – After First Five Hours........................................................................10

Change Engine Oil ..........................................................................................10

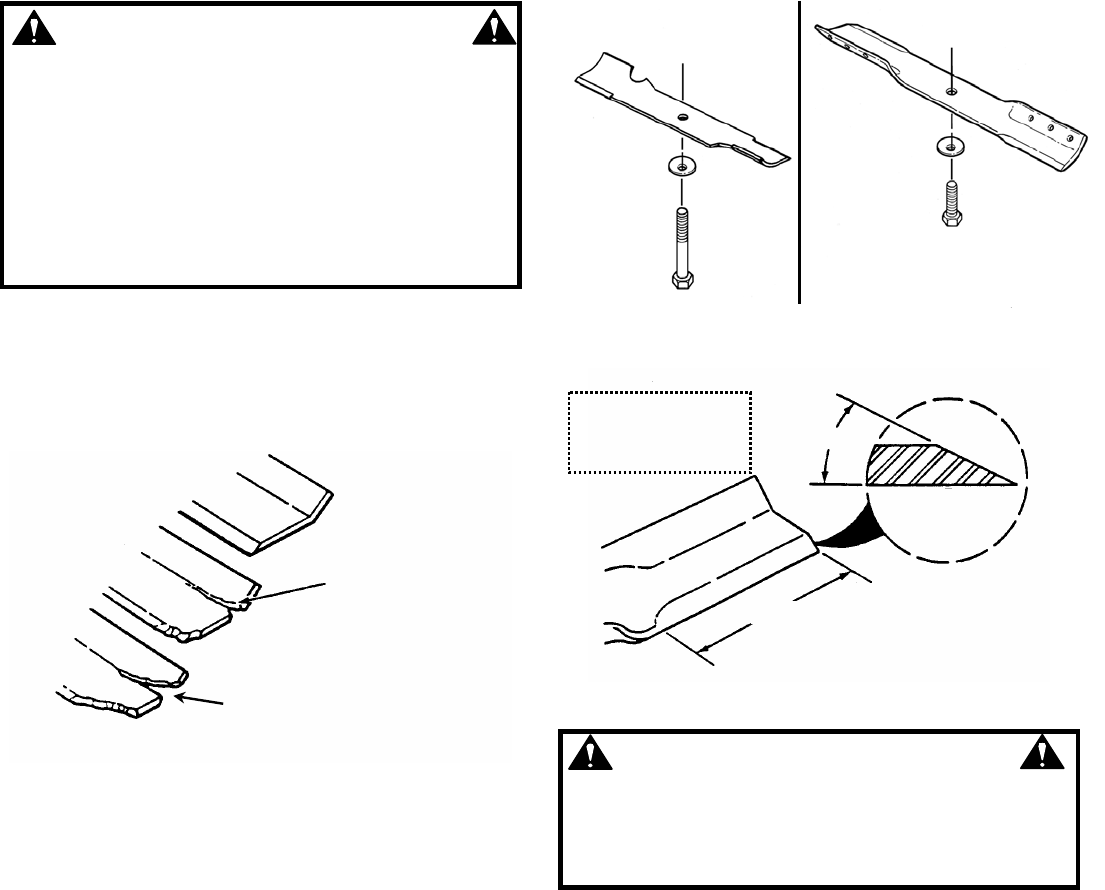

Check Mower Blade ........................................................................................10

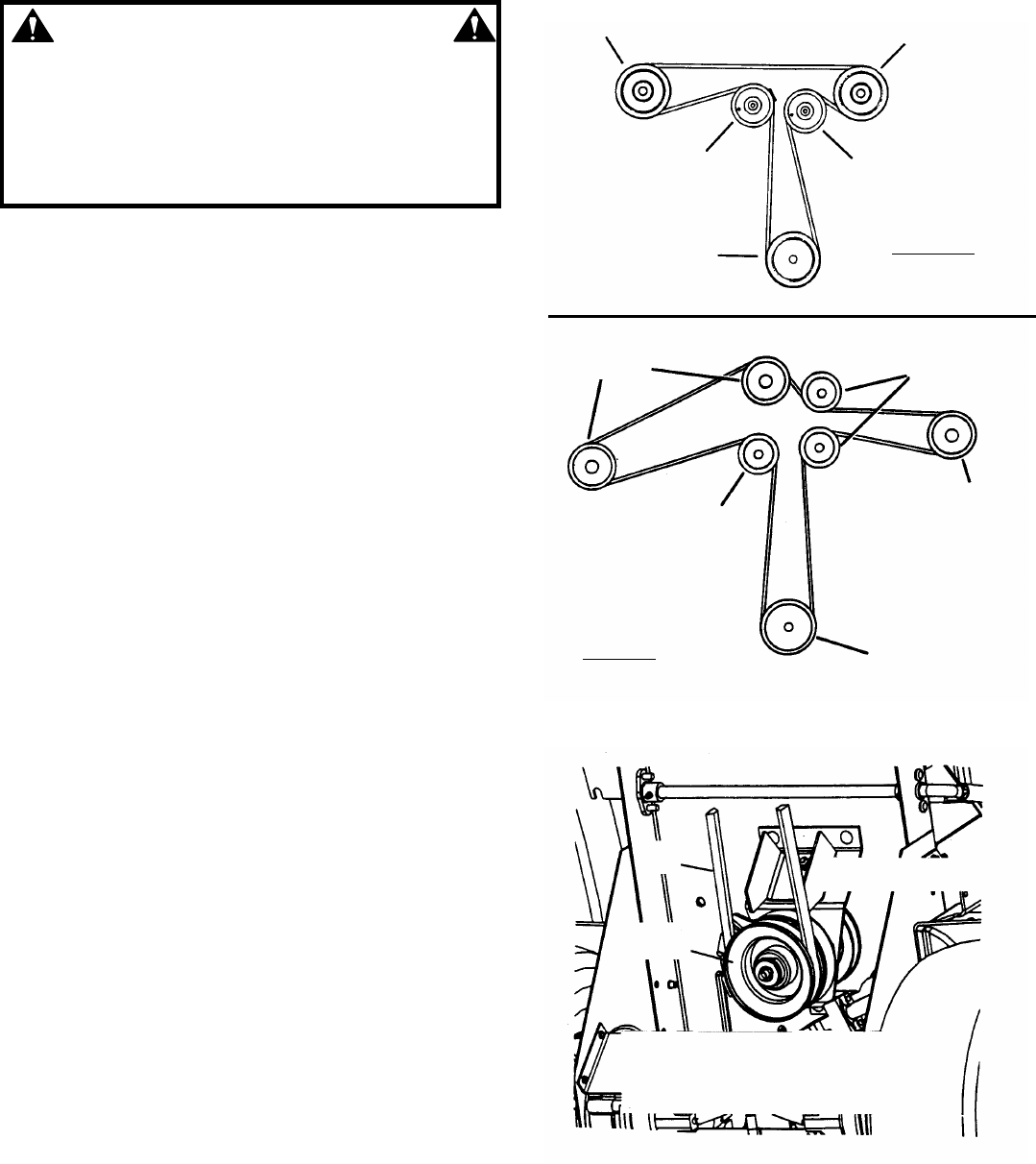

Check Mower Drive Belt .................................................................................11

Check Transaxle Drive Belts..........................................................................11

Service - Every 25 Operating Hours .................................................................11

Check Engine..............................................................................................11-12

Check Mower Components............................................................................12

Mower Blade Spindle – Lubrication .........................................................12-13

Mower Deck Linkage – Lubrication...............................................................13

Front Wheel Bearings - Lubrication ..............................................................13

Front Caster Wheel Pivot Shaft .....................................................................13

Parking Brake Pivot Bushings.......................................................................13

Service - Annually...............................................................................................14

Engine ..............................................................................................................14

Air Filter............................................................................................................14

Oil Filter............................................................................................................14

Engine Oil.........................................................................................................14

Transaxle..........................................................................................................14

Fuel Filter .........................................................................................................14

Storage – Out of Season....................................................................................14

SECTION 4 - ADJUSTMENTS AND REPAIR .............................................................15-22

Engine Adjustments & Repair...........................................................................15

Mower Deck & Components Adjustments.......................................................15

Mower Drive Belt Adjustment ...........................................................................15

Mower Drive Belt Replacement.........................................................................15

Belt Removal & Replacement.......................................................................15-16

Blade Brake.........................................................................................................16

Mower Deck Adjustment (Levelness - Side to Side 48” Deck)..................16-17

Mower Deck Adjustment (Front to Rear Pitch 48” Deck) ...............................17

Mower Deck Adjustment (Side to Side, 42” & 48” Decks)..............................18

Mower Deck Adjustment (Front to Rear Pitch, 42” Decks) ............................19

Mower Deck Timing Rod – (42” Decks)............................................................19

Wheel Brake Adjustment ...................................................................................19

Mower Blade Wear Limits..................................................................................20

Blade Sharpening...............................................................................................20

Blade Replacement ............................................................................................20

Battery Removal .................................................................................................21

Battery Installation .............................................................................................21

Battery Service & Charging...............................................................................21

New Battery Preparation...............................................................................21-22

Battery Testing ...................................................................................................22

TROUBLESHOOTING.................................................................................................23-24

Maintenance/Replacement Parts ......................................................................24

SERVICE SCHEDULE ......................................................................................................25

WARRANTY......................................................................................................................26

PRIMARY MAINTENANCE..........................................................................................27-30

PRODUCT REGISTRATION FORM.................................................................................31

Section 1 - FAMILIARIZATION

FIGURE 1.1

1.1 INTRODUCTION

This manual has been prepared for the operator’s of the

SNAPPER YARD CRUISER. Its purpose, aside from

recommending standard operating procedures and routine

service requirements, is to promote SAFETY through the

use of accepted operating practices. Read, Understand and

Follow the IMPORTANT SAFETY INSTRUCTIONS on

Pages 2 and 3 of this manual and All SAFETY messages

on the YARD CRUISER and its attachments before

operating. SNAPPER recommends returning the YARD

CRUISER to an authorized SNAPPER dealer annually for

inspection and addition of any new devices which might

upgrade the safety of the mower.

1.2 NOMENCLATURE

The nomenclature drawing above, Figure 1.1, shows the

essential parts of the SNAPPER YARD CRUISER. It is

recommended that all operators of this equipment

become thoroughly familiar with the controls,

components, and operation of this machine before

operating. Specific details involving the engine are found

in the separate engine owner’s manual. Study these

manuals before operating and keep both handy for future

reference. For the nearest SNAPPER dealer in your

area, check the yellow pages under the heading LAWN

MOWERS. For engine parts and service, look for the

engine manufacturer’s dealers under the heading,

ENGINES - gasoline.

KEY

SWITCH

JOYSTICK

CONTROL

HANDLE

OPERATOR’S

SEAT

FUEL

TANK

PARKING

BRAKE BRAKE

RELEASE

BUTTON

CHOKE

CONTROL

BLADE

SWITCH

ENGINE

SPEED

CONTROL

DECK LIFT

HANDLE

DISCHARGE

DEFLECTOR

IMPORTANT! The figures and illustrations in

this manual are provided for reference only

and may differ from your specific model.

Contact your Snapper dealer if you have

questions.

Section 2 - OPERATING INSTRUCTIONS

2.1 PRE-START CHECK LIST

Make the following checks and perform the service

required before each start-up.

2.1.1. Check tires and add or release air as needed

to bring pressure to 12 P.S.I. in front and 12 P.S.I. in

rear tires.

2.1.2. Check guards, deflectors and covers to make

sure all are in place and securely tightened.

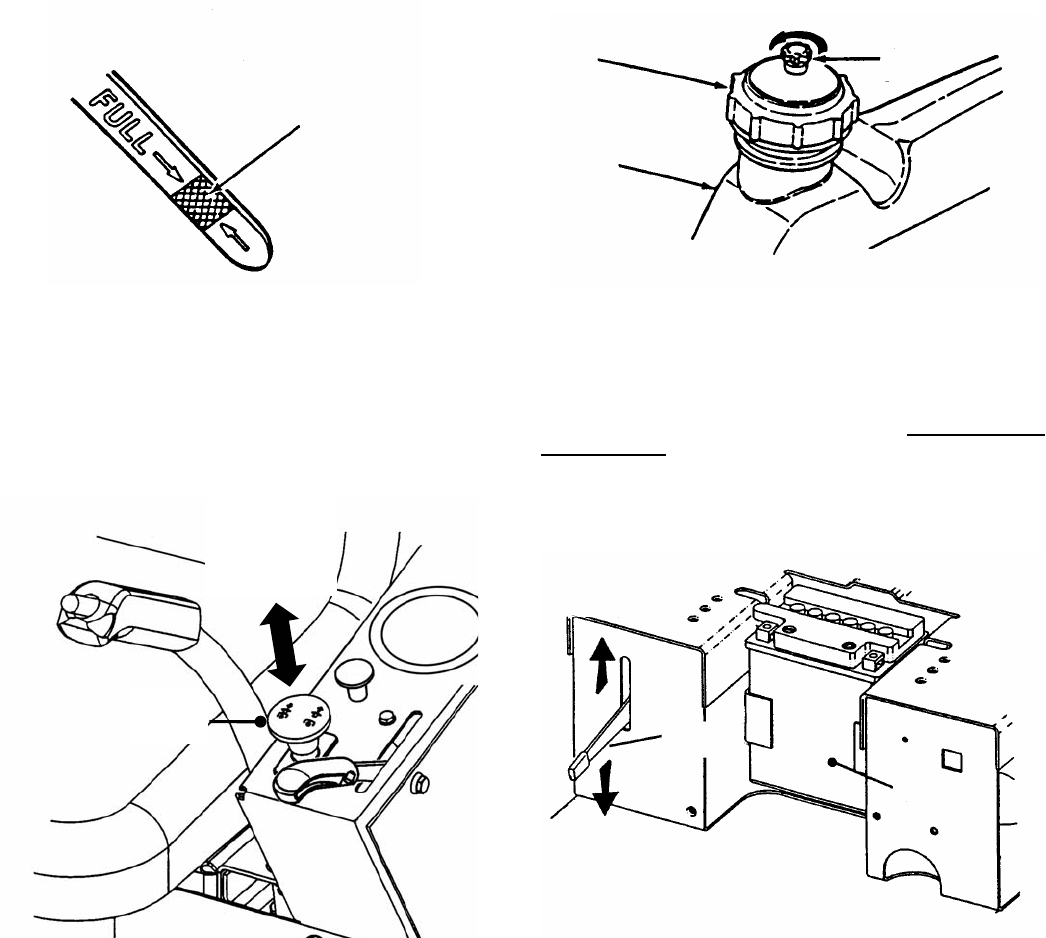

2.1.3. Check engine oil and add oil as needed to

bring level up to the FULL mark. Refer to engine

owner’s manual for oil specifications. See Figure 2.1.

FIGURE 2.1

2.1.4. Check Blade switch to insure it works freely.

Switch is pulled “OUT” into the “ON” position for

blade engagement or pushed back “IN” into the

“OFF” position for blade disengagement. See

Figure 2.2. IMPORTANT: Disengagement stops the

blades rotation.

FIGURE 2.2

2.1.5. Clean exterior surfaces of cutting deck and

engine of any accumulation of dirt, grass, oil, etc.

Keep engine air intake screen and cooling fins clear

at all times.

2.1.6. Add fuel to tank of the YARD CRUISER

outside where fumes can safely dissipate. Make

sure fuel filler cap is tight and vent is open after

refueling. See Figure 2.3. Refer to engine owner’s

manual for fuel specifications.

FIGURE 2.3

IMPORTANT: To roll the machine without the engine

running, pressure within the hydraulic pumps must be

released. Tilt seat up and move control lever down to

release pressure. NOTE: Control lever must be in the

“UP” position to drive machine. See Figure 2.4.

DO NOT USE CONTROL TO RELEASE PRESSURE AND

COAST DOWN SLOPES. RELEASE PRESSURE ONLY WHEN

MACHINE MOTION CAN BE CONTROLLED AND ENGINE OFF.

FIGURE 2.4

SAFE LEVEL

AREA

ENGINE OIL DIPSTICK

MOVE CONTROL

LEVER UP TO

DRIVE MACHINE

CONTROL

LEVER

MOVE CONTROL LEVER

DOWN TO ROLL MACHINE

BATTERY

FUEL

FILLER

CAP OPEN

VENT

FUEL

TANK

PUSH “IN” TO

DISENGAGE

PULL “OUT”

TO ENGAGE

BLADE

SWITCH

Section 2 - OPERATING INSTRUCTIONS

IMPORTANT: This YARD CRUISER is equipped with

hydrostatic drive. The forward, rearward and

steering movement of the machine is controlled by a

joystick lever. Joystick operations should be

performed only from the operator’s position in the

seat. A small movement of the joystick can cause the

machine to move instantly. Move joystick very

carefully and slowly.

1. Always move the joystick to the center position to

“STOP” machine. IMPORTANT: To stop machine

always return the joystick with hand assistance to

the neutral position. Always engage parking brake

when leaving operator’s seat.

2. Move the joystick forward to propel the machine

forward.

3. Move the joystick rearward to propel the machine

backward.

4. Move the joystick to the right to rotate the front of

the machine in circular motion to the right, as in

turning around to go in a different direction.

5. Move the joystick to the left to rotate the front of

the machine in circular motion to the left, as in

turning around to go in a different direction.

2.2 STARTING & OPERATION

2.2.1. ENGINE (ELECTRIC START)

IMPORTANT: When the ignition key is turned to

“START”, the engine will not turn over and will not start

unless the Parking Brake is engaged and the Blade

Switch is in the “Off” position. The operator should be

in the seat. Start engine as follows:

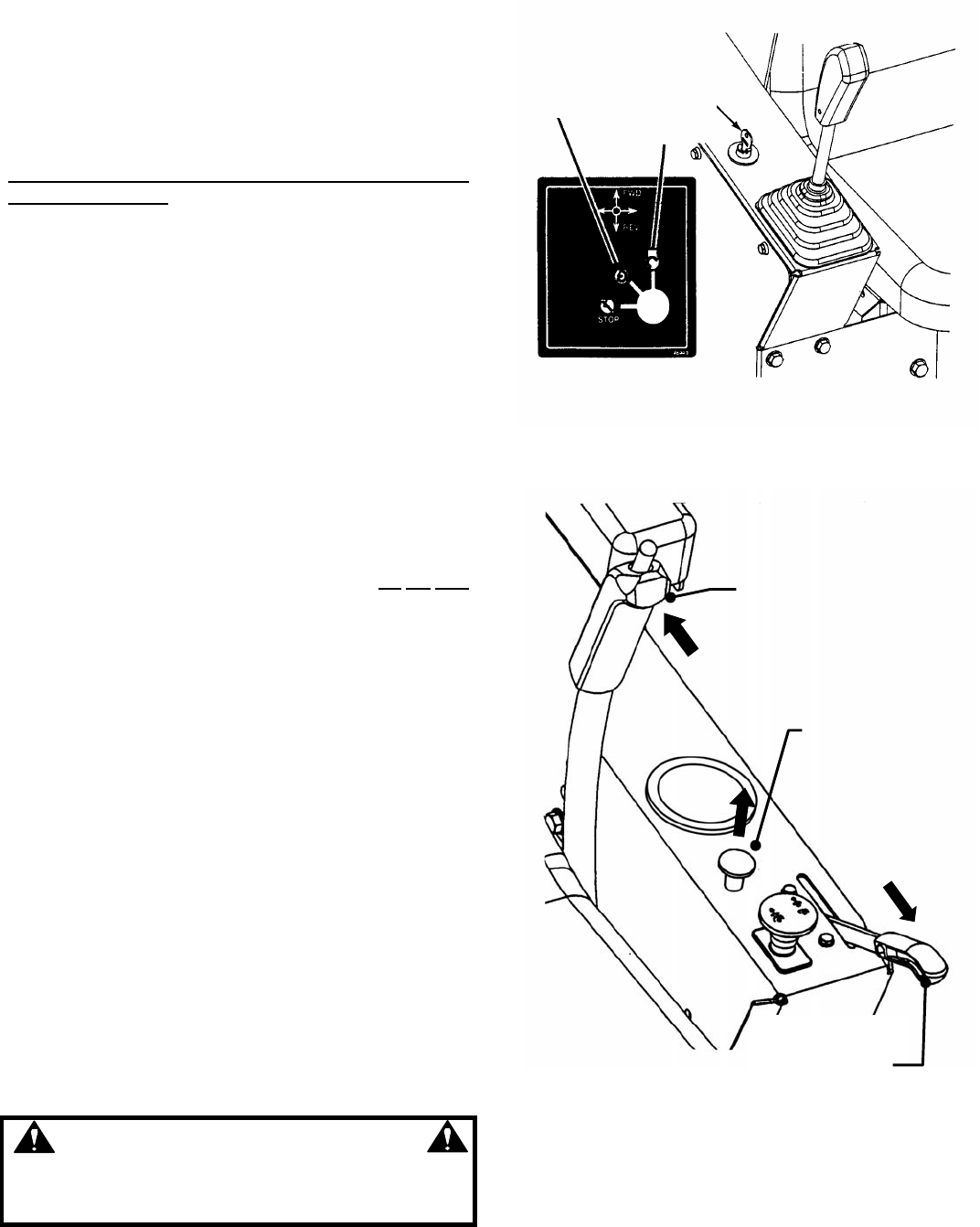

1. Move joystick lever to (N) Neutral position. See

Figure 2.5.

2. Make certain the blade switch is in the “Off”

position. See Figure 2.6.

3. Make certain the parking brake is engaged. See

Figure 2.5.

4. Open vent on fuel filler cap by turning

counterclockwise. IMPORTANT: Failure to open

vent on the fuel filler cap can cause engine to stall.

See Figure 2.3.

5. Pull choke control up to choke position.

6. Move engine speed control to the “Fast” (Rabbit)

position. See Figure 2.6.

7. Turn key to the “START” position until engine

starts. See Figure 2.5. NOTE: If after 5 seconds of

cranking the engine and it does not start, release the

key. Attempt starting again after waiting for

approximately 20 seconds.

8. After engine starts, push choke control in to the

“OFF” position, move engine speed control to the

desired speed position, allow a brief warm-up until

engine runs smooth.

WARNING

DO NOT leave machine with engine running. STOP

engine. STOP blades. Engage park brake. Remove

key. DO NOT park machine on slopes.

FIGURE 2.5

FIGURE 2.6

(Continued on Next Page)

RUN

POSITION TURN KEY

TO START

POSITION

DECAL VIEWED FROM

OPERATOR’S POSITION

JOYSTICK IS IN

NEUTRAL POSITION

PARKING BRAKE

ENGAGED

PULL CHOKE

CONTROL OUT

TO START ENGINE

MOVE ENGINE

SPEED CONTROL

TO FAST POSITION

Section 2 - OPERATING INSTRUCTIONS

2.2.2. MOWER BLADE

1. With engine running, move engine speed control

to the Rabbit or “Fast” position.

2. Pull the blade switch out into the “ON” position to

engage the mower blades. See Figure 2.7.

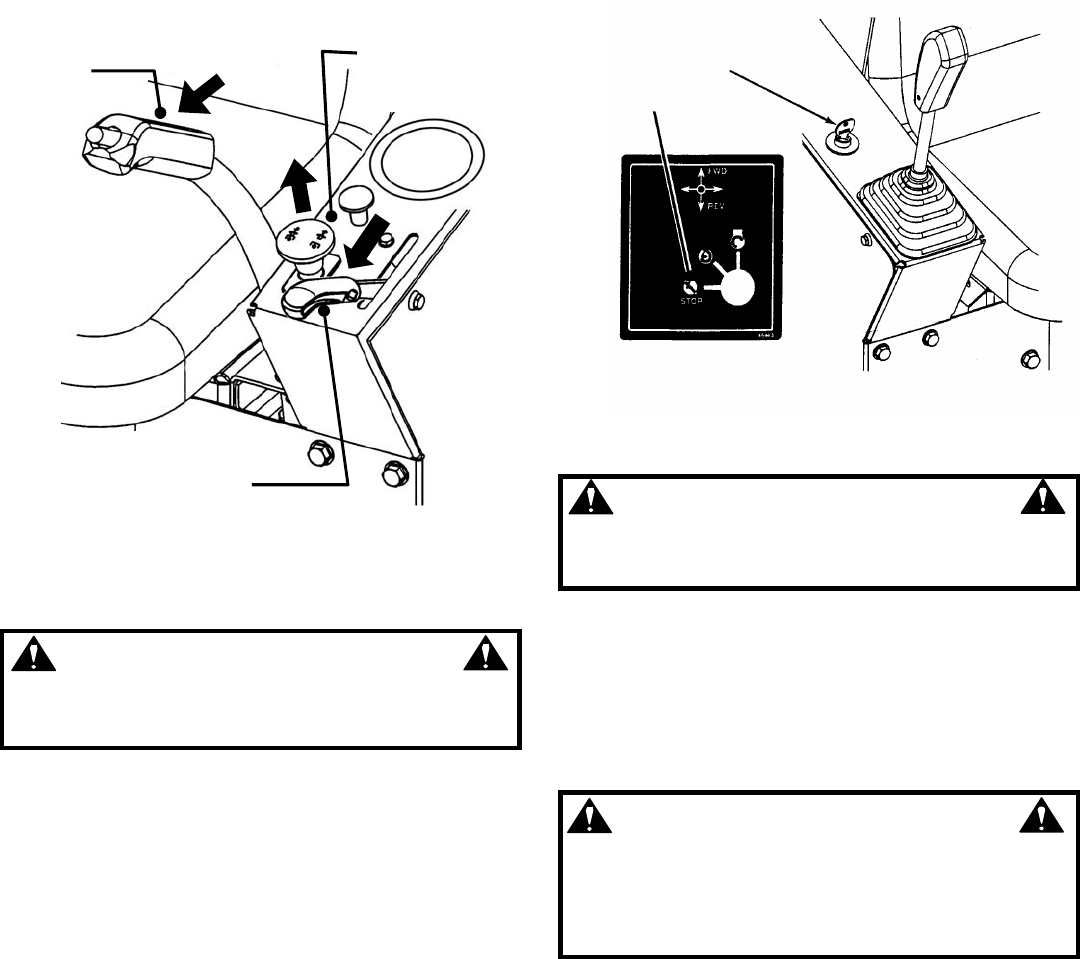

FIGURE 2.7

3. Release the parking brake. See Figure 2.7.

WARNING

DO NOT operate blades in reverse. STOP Blades.

LOOK and SEE behind and down for children, pets

and hazards before and while backing.

4. Move joystick carefully in the desired direction to

propel the machine. A small movement of the

joystick can cause the machine to move instantly.

Move joystick carefully and slowly.

2.3 STOPPING

2.3.1. ENGINE

1. Stop engine by turning key to the “OFF” position.

See Figure 2.8.

FIGURE 2.8

WARNING

DO NOT leave the machine with the engine running.

STOP engine. STOP blades. Engage parking brake.

Remove key. DO NOT park machine on slopes.

2.3.2. WHEEL DRIVE

1. Stop motion of riding mower by moving joystick

to neutral (N) position. See Figure 2.8.

2.3.3. MOWER BLADE

1. Push the blade switch in to “OFF” position to

disengage or stop the mower blades. See Figure 2.7.

WARNING

Blades must stop rotating in 5 seconds or less after

blades have been turned off. DO NOT operate

machine until blade brake has been repaired and

functioning properly. Contact your SNAPPER dealer

for assistance.

2.3.4. PARKING BRAKE

1. Manually position joystick in the neutral position.

2. Engage parking brake by pushing button at the

top of lever and then pulling the parking brake lever

slowly back to the “ON” position.

3. Release parking brake by pushing button at the

top of lever and moving brake lever forward to the

“OFF” position. Refer Figure. 2.7.

DISENGAGE

PARKING

BRAKE

PULL BLADE

SWITCH OUT TO

THE “ON” POSITION

ENGINE SPEED

CONTROL IN THE

“FAST” POSITION

TURN KEY TO

“OFF” OR STOP

POSITION

DECAL VIEWED FROM

OPERATOR’S POSITION

Section 2 - OPERATING INSTRUCTIONS

2.3.5. CUTTING HEIGHT ADJUSTMENT

This machine has seven different cutting height

positions. IMPORTANT: When positioning the

cutting deck into a higher cutting position, pull up on

the deck lift handle only, it is not necessary to pull

up on the release lever at the same time. Use the

release lever when moving deck cutting height to a

lower cutting position.

1. Grasp both handles together to disengage

latch.

2. Raise or lower handles to desired height.

3. Release lower handle to engage latch. See

Figure 2.9.

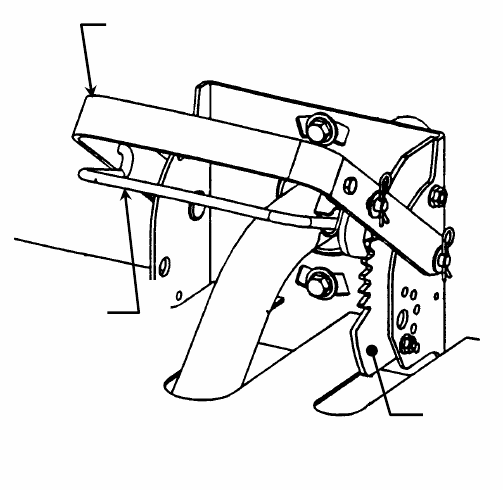

FIGURE 2.9

DECK LIFT

HANDLE DECK LIFT HANDLE SHOWN

IN HIGHEST NOTCH.

RELEASE

LEVER

DETENT

PLATE

CONNECTING BAR OMITTED IN THIS

VIEW FOR CLARITY

Section 3 - MAINTENANCE

3.1 INTRODUCTION

To retain the quality of the YARD CRUISER, use

genuine SNAPPER replacement parts only. Contact a

local SNAPPER dealer for parts and service assistance.

For the correct part or information for a particular mower,

always mention the model and serial number.

3.2 SERVICE - AFTER FIRST 5 HOURS

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool.

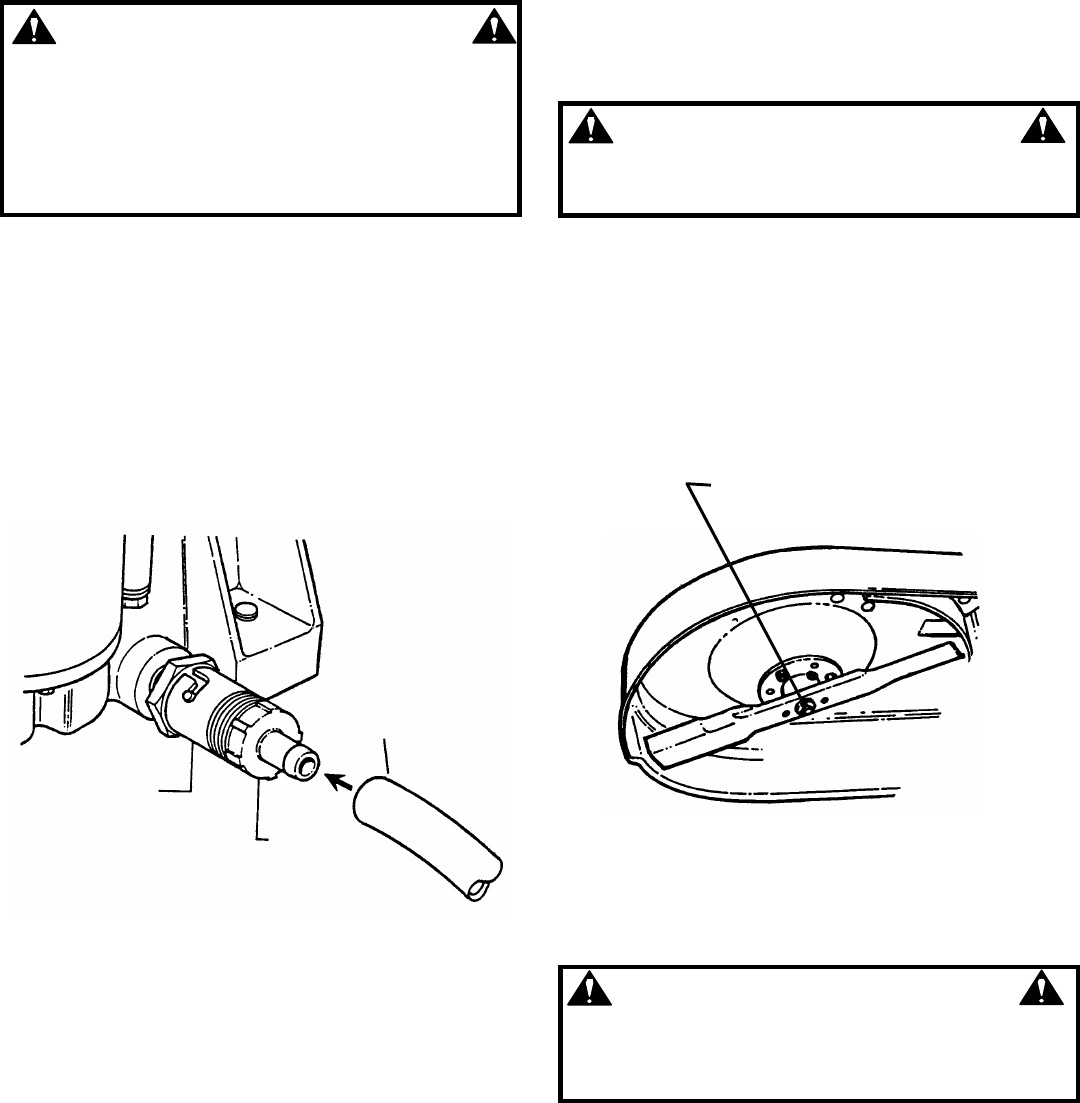

3.2.1. CHANGE ENGINE OIL

1. Place bricks or wooden blocks under the front

wheels to lower rear of engine.

2. Place a 4 quart minimum capacity container

under the end of the oil drain.

3. Loosen or remove oil fill cap on engine.

4. Install the drain hose (Supplied in hardware bag)

onto drain plug nipple and place hose into drain

container.

5. Rotate drain plug counter-clockwise and pull out

to open and allow oil to drain out. See Figure 3.1.

FIGURE 3.1

6. After all the oil has drained, close the drain by

pushing in and rotating clockwise to close. Wipe up

any oil that may have spilled. Dispose of drained oil

properly. See Figure 3.1.

7. Change oil filter at every oil change. Refer to your

engine owner’s manual for service instructions.

8. Fill engine crankcase with new oil. Refer to your

engine owner’s manual for oil specifications.

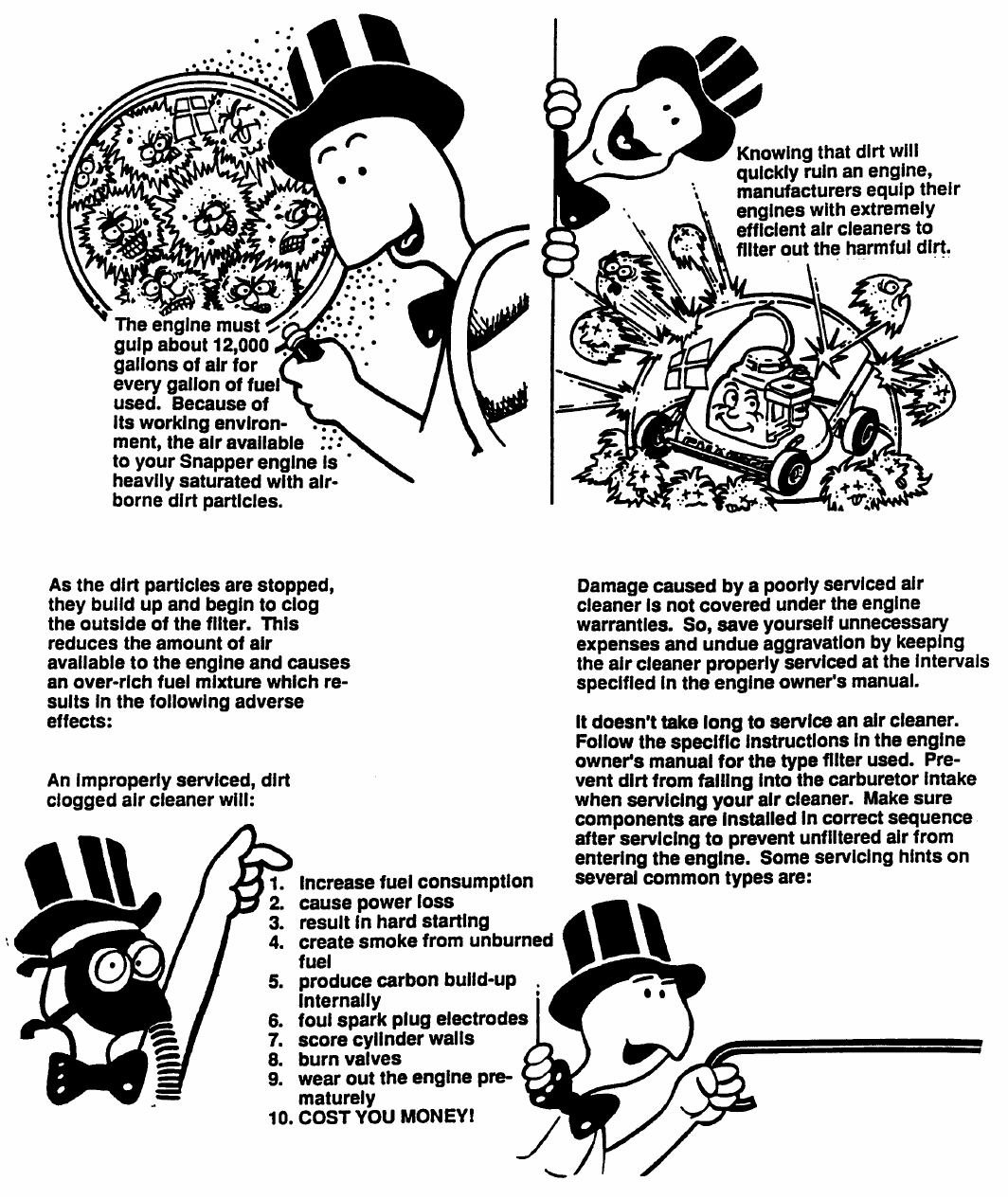

3.2.2. SERVICE ENGINE AIR CLEANER

The engine is equipped with a dual element air

cleaner. Both the foam pre-cleaner and cartridge

require service. Refer to Engine Owner's Manual for

recommended service procedures.

3.2.3. CHECK MOWER BLADE

1. Make sure fuel cap is on tight. Start engine and

allow it to run until engine runs out of fuel. Close vent

on fuel filler cap. See Figure 2.3.

2. Engage parking brake.

3. Turn key to “OFF” position and remove key from

ignition switch.

WARNING

Wear heavy leather gloves when handling or working

around cutting blades. Blades are extremely sharp and

can cause severe injury.

4. Carefully stand YARD CRUISER on rear bumper.

It may be necessary to have help to stand unit up.

5. Check torque of blade mounting bolts or nuts.

Torque to:

42” Decks -- 30 to 40 ft. lbs.

48” Decks – 80 to 90 ft. lbs.

See Figure 3.2.

6. Check blade for sharpness, wear and damage.

Refer to Section “BLADE WEAR LIMITS”.

FIGURE 3.2

7. Check blade for straightness.

WARNING

DO NOT use a cutting blade that shows signs of

excessive wear or damage. Refer to Section

“MOWER BLADE REPLACEMENT” for proper blade

inspection and service procedures.

INSTALL HOSE

ONTO OIL DRAIN

NIPPLE

OIL DRAIN

ROTATE 1/4 TURN

COUNTERCLOCKWISE

AND PULL OUT TO

DRAIN ENGINE OIL.

BLADE MOUNTING TORQUE:

42” -- 30 TO 40 FT. LBS.

48” -- 80 TO 90 FT. LBS.

TWIN & TRIPLE BLADE DECK

Section 3 - MAINTENANCE

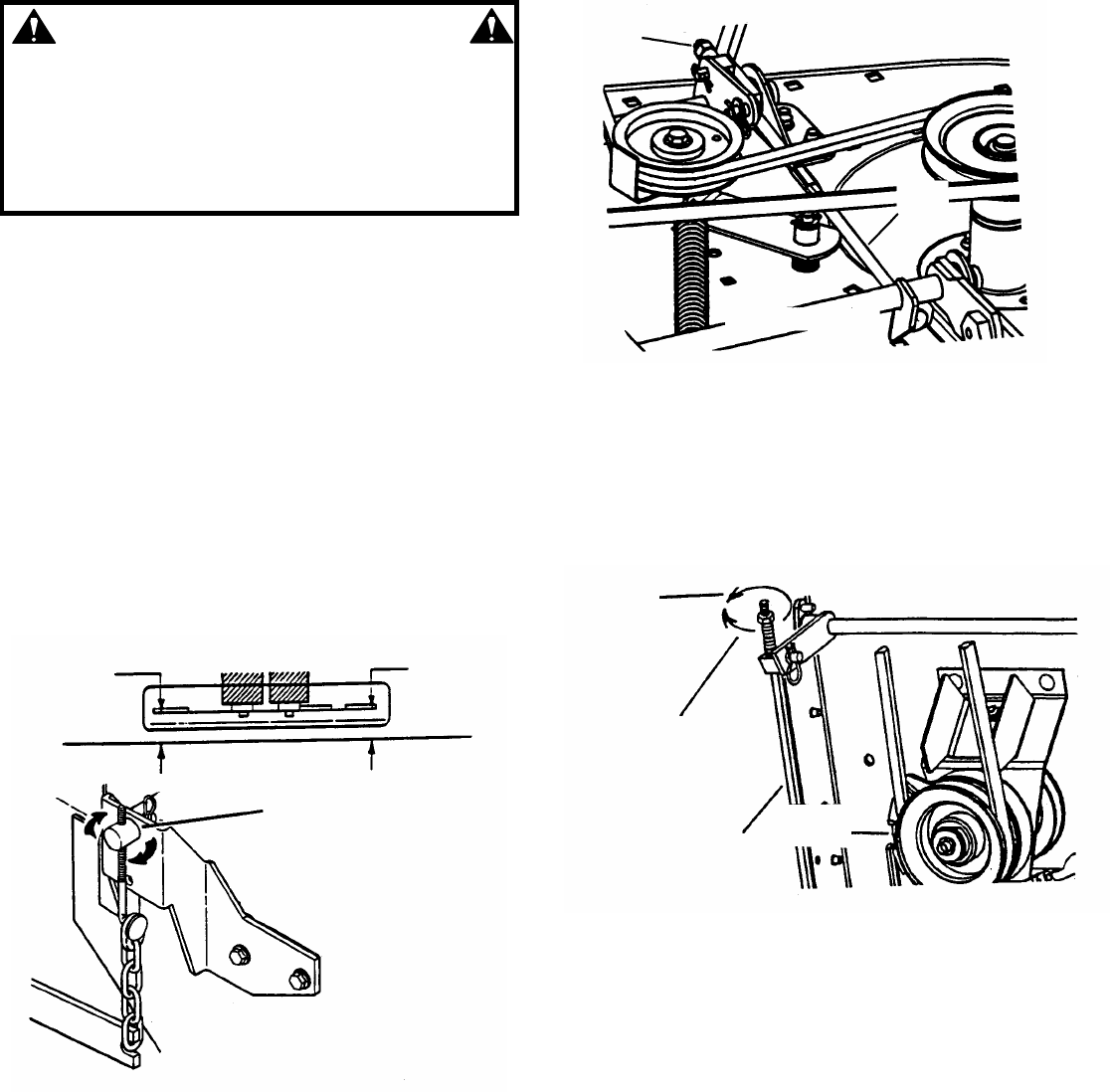

3.2.4. CHECK MOWER DRIVE BELT

1. Footrest Removal

a. Pull deck lift handle to highest cutting

position. See Figure 3.3.

b. Remove the knobs that secure the corners of

the footrest.

c. Remove footrest.

FIGURE 3.3

2. Checking Mower Belt Tension

The idler and spring provide proper belt tension and

require no adjustment. If belt is frayed, slit, severed

or belt strands exposed, replace belt before

operating mower.

3.2.5. CHECK TRANSAXLE DRIVE BELT

1. Checking Transaxle Belt Tension

The transaxle drive belt requires no adjustment. If

belt is frayed, slit, severed or belt strands exposed,

replace belt before operating mower.

3.3 SERVICE EVERY 25 OPERATING HOURS

3.3.1. ENGINE

1. Engine Cooling System

The engine cooling system consists of an engine

shroud and engine fins. These should be kept clean

and free of debris as needed or cleaned.

2. Engine Oil

Change engine oil. See Section on CHANGE ENGINE

OIL. Refer to engine owner’s manual for oil

specifications.

3. Oil Filter

Change engine oil filter. Refer to engine owner’s

manual for filter specifications.

4. Fuel Filter

Refer to engine owner’s manual for service instructions.

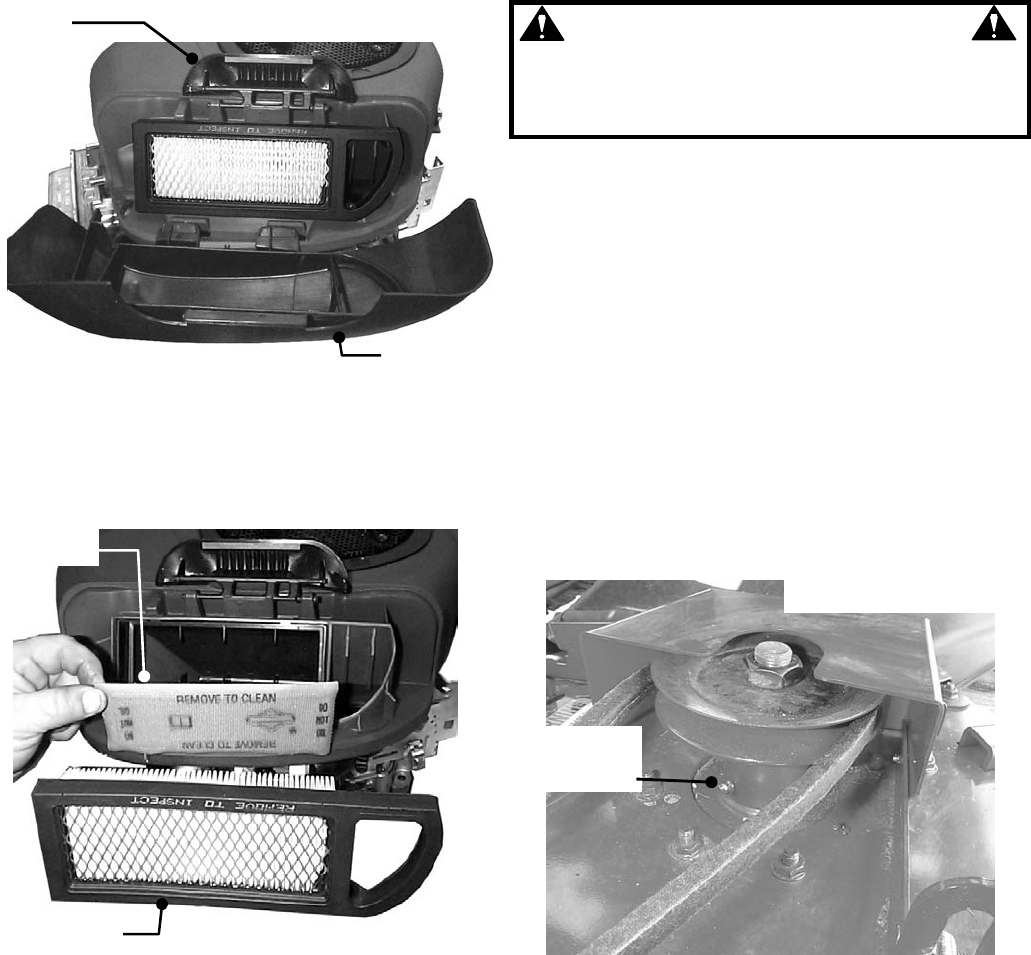

5. Air Filter

Refer to engine owner’s manual for service

instructions.

a. 20 Hp Engines: Change air filter. Remove bolts

that secure air cleaner cover. See Figure 3.4.

IMPORTANT: When cover is removed, you are

viewing the carburetor side of the air filter, which will

appear clean. Remove filter and pre-cleaner for

inspection.

FIGURE 3.4

b. Refer to engine owner's manual for cleaning

and service instructions. Remove and clean engine

air pre-cleaner. Remove and replace engine air

cleaner. See Figure 3.5. Install pre-cleaner and air

cleaner per engine owner’s manual.

FIGURE 3.5

DECK LIFT HANDLE

SHOWN

POSITIONED IN

HIGHEST NOTCH.

RELEASE

LEVER

DECK LIFT

HANDLE

AIR CLEANER

COVER

AIR CLEANER

RETAINING BOLTS

NOTE: YELLOW TABS MUST BE

COMPLETELY INSERTED INTO SLOTS

AIR CLEANER

AIR PRE-

CLEANER

Section 3 - MAINTENANCE

3.3 SERVICE EVERY 25 OPERATING HOURS

3.3.1. ENGINE

5. Air Filter

c. Reinstall air cleaner cover. Insert tabs located on

the engine cover into corresponding slots in air

cleaner cover. IMPORTANT: The yellow tabs must

be completely inserted into air cleaner cover or the

compartment will not be completely sealed to

prevent debris from entering into the carburetor.

a. 16 HP Engines: Change air filter. Pull up and

rotate the air cleaner latch to remove cleaner cover.

See Figure 3.4.

IMPORTANT: When cover is removed, you are

viewing the carburetor side of the air filter, which will

appear clean. Remove filter and pre-cleaner for

inspection.

FIGURE 3.4

b. Refer to engine owner's manual for cleaning and

service instructions. Remove and clean engine air

pre-cleaner. Remove and replace engine air

cleaner. See Figure 3.5. Install pre-cleaner and air

cleaner per engine owner’s manual.

FIGURE 3.5

c. Reinstall air cleaner cover. Insert tabs located at

the bottom of the cover into corresponding slots in

engine cover. Position cover and engage latch over

cover and rotate and push down to lock.

3.3.2. MOWER COMPONENTS

1. Mower Drive Belt

Check belt for proper tension. No adjustment required.

Replace belt as needed.

2. Mower Blade

Check blade for sharpness, wear, damage, and

torque. See the section on Mower Blade

Replacement/Repair.

3. Mower Deck Levelness

Check mower deck for proper levelness. Adjust as

required. See section on Mower Deck Adjustment -

Levelness.

WARNING

Lifting or letting down the machine unassisted can

cause severe injury. Always have assistance from

another person when supporting the weight of

machine.

4. Cleaning Mower Deck

a. Make sure fuel cap is on tight. Start engine

and allow it to run until engine runs out of fuel.

Close vent on fuel filler cap. See Figure 2.3.

b. Remove key from ignition switch.

c. Remove spark plug wire(s) and secure away

from spark plug(s).

d. Carefully stand YARD CRUISER on rear

bumper.

e. Clean underside of mower deck, removing all

accumulation of grass clippings and debris.

f. Lower YARD CRUISER to ground. Clean top

of deck, removing all grass clippings and debris.

5. Mower Blade Spindle - Lubrication

a. Lubricate spindle bearings with three shots of

general purpose grease from grease gun. See

Figure 3.6.

FIGURE 3.6

LUBRICATE

SPINDLE

BEARINGS

TOP VIEW OF 48” DECK

AIR CLEANER

COVER

AIR CLEANER

LATCH

AIR CLEANER

AIR PRE-

CLEANER

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool.

5. Mower Blade Spindle - Lubrication

b. 42” Deck spindle assemblies are equipped

with a grease fitting located underneath the

deck. Lubricate spindle bearings with three shots

of general purpose grease from grease gun.

6. Mower Deck Linkage - Lubrication

Lubricate all mower deck linkage pivot points with a

light coat of motor oil.

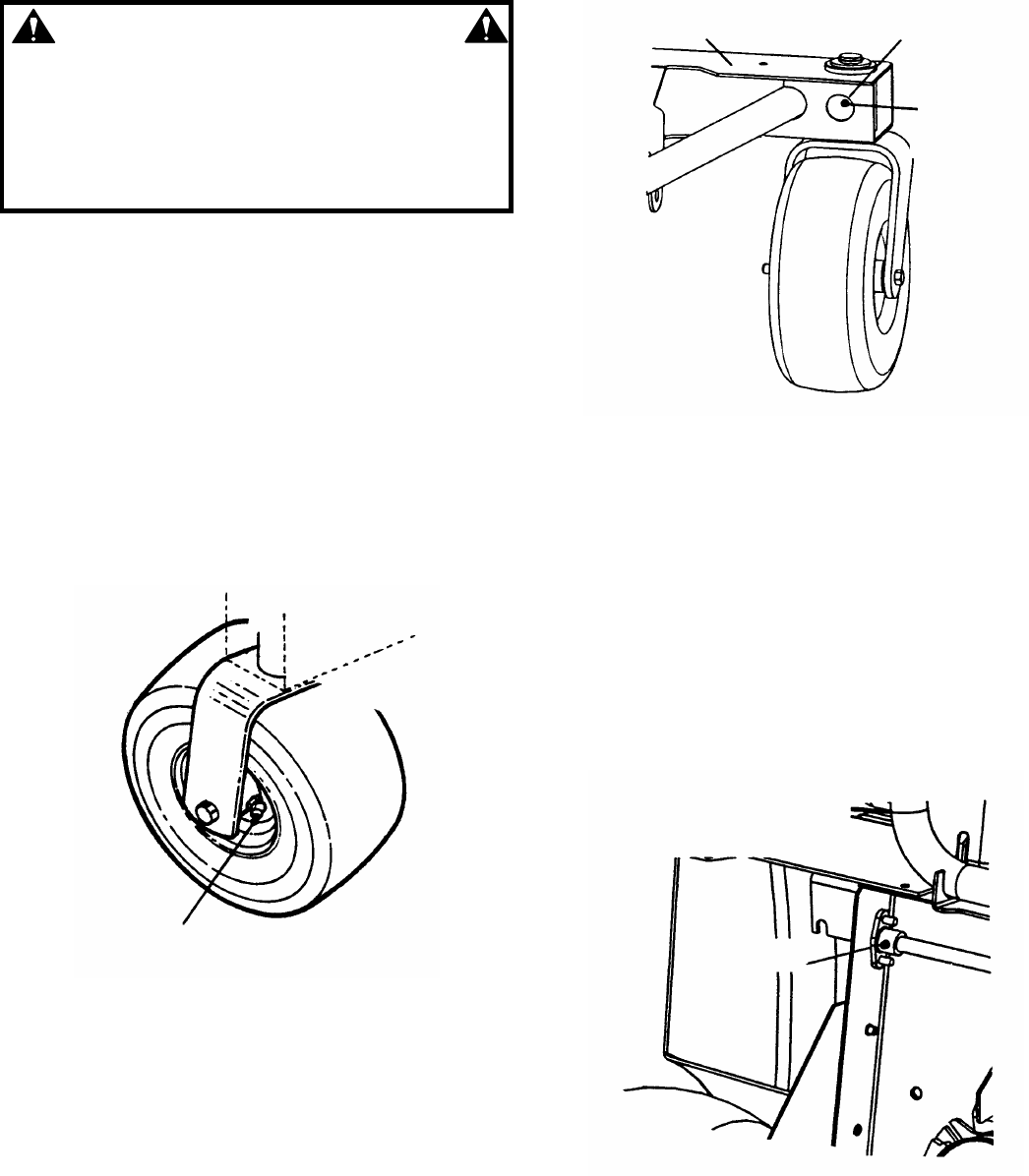

3.3.3. YARD CRUISER - LUBRICATION

1. Front Wheel Bearings

Lubricate front wheel bearings with five shots of

general purpose grease from grease gun. See

Figure 3.7.

FIGURE 3.7

2. Front Caster Wheel Pivot Shaft

The front frame cover will not have to be removed to

lubricate the pivot shaft. The access hole is at the rear

of the front structure underneath frame cover.

a. The pivot shaft grease fitting can be accessed

through a hole at the rear of the front structure.

Lubricate pivot shaft with three shots of general

purpose grease from grease gun. See Figure 3.8.

FIGURE 3.8

3. Parking Brake Pivot Bushings

a. Make sure fuel cap is on tight. Start engine

and allow it to run until engine runs out of fuel.

Close vent on fuel filler cap.

b. Remove key from ignition switch.

c. Remove spark plug wire(s) and secure away

from spark plug(s).

d. Carefully stand YARD CRUISER on rear

bumper.

e. Lubricate both pivot bushings with three shots

general purpose grease from grease gun. See

Figure 3.9

FIGURE 3.9

YARD CRUISER SHOWN WITH DECK

REMOVED. DECK REMOVAL NOT

NECESSARY FOR LUBRICATION.

LUBRICATE BOTH

PIVOT BUSHINGS

LUBRICATE FRONT WHEEL BEARINGS

FRONT STRUCTURE ACCESS HOLE

LUBRICATE PIVOT

SHAFTS

FRONT COVER

IS REMOVED

Section 3 – MAINTENANCE

3.4 SERVICE - ANNUALLY

Perform all maintenance as described in the maintenance

schedule.

3.4.1. Engine

Service engine according to engine owner’s manual.

3.4.2. Air Filter

Refer to engine owner’s manual for service

instructions.

3.4.3. Oil Filter

Refer to engine owner’s manual for service

instructions.

3.4.4. Engine Oil

Refer to engine owner’s manual for service

instructions.

3.4.5. Transaxle

IMPORTANT: DO NOT try to open reservoir cap at

any time. The transaxle is maintenance free. The

transaxle does not require any fluid or any

service. If there is any problem: leakage,

malfunction or etc. return the Yard Cruiser

immediately to the nearest authorized Snapper

dealer for service.

3.4.6. Fuel Filter

Service fuel filter as instructed below. Turn key to

“OFF” position. Engine MUST be stopped and

MUST be cold before removing filter. Perform filter

change when fuel tank and fuel line is empty.

1. Remove hose clamps from fuel filter.

2. Remove fuel lines from filter. Discard filter.

3. Install new fuel filter. Reinstall hose clamps.

See Figure 3.8.

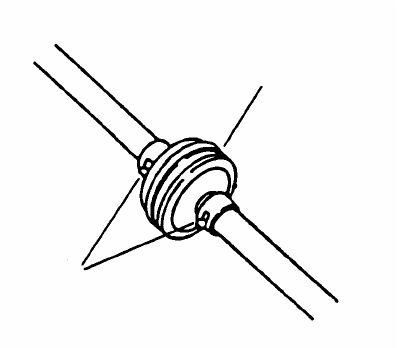

FIGURE 3.8

3.5 STORAGE (OUT OF SEASON)

If desired, the YARD CRUISER can be stored on the

rear bumper. Perform the following procedures to insure

the YARD CRUISER will operate properly when taken

out of storage.

3.5.1. Thoroughly clean the YARD CRUISER by

removing all grass clippings and debris.

3.5.2. Perform maintenance and lubrication as

described in the previous sections.

3.5.3. Drain fuel from fuel tank.

3.5.4. Start engine and allow it to run until engine

runs out of fuel. This allows the carburetor and

fuel system to remain clean during storage.

3.5.5. Remove battery. Refer to Section

“BATTERY REMOVAL AND STORAGE”.

3.5.6. Close vent on fuel filler cap. Remove key.

3.5.7. Carefully stand YARD CRUISER on rear

bumper in desired location for storage.

NEW FUEL

FILTER

HOSE

CLAMPS

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool.

4.1 ENGINE ADJUSTMENTS & REPAIR

Refer to the engine owner’s manual for those adjustments

and/or repairs that can be made by the owner.

4.2 MOWER DECK & COMPONENT ADJUSTMENTS

The following mower deck and component adjustments

and repairs can be made by the owner. However, if

there is difficulty in achieving these adjustments and

repairs, it is recommended that these repairs be made by

an authorized SNAPPER dealer.

4.2.1. MOWER DRIVE BELT ADJUSTMENT

The 42” and 48”mower deck drive belts do not

require any adjustment. If the belt does not drive

blade properly, replace belt as needed. See Section

“Belt Replacement”. Belt routing shown on this

page. See Figure 4.1.

4.2.2. MOWER DRIVE BELT REPLACEMENT

Inspect mower drive belt. Replace belt if signs of

excessive wear and/or damage are present.

4.2.3. BELT REMOVAL

1. Remove foot rest.

2. Remove old belt.

4.2.4. BELT REPLACEMENT

1. Route new belt around electric clutch pulley. See

Figure 4.2.

2. Route belt around stationary idler.

3. Remove spring that is connected to idler pulley.

Loosen nut and bolt that secures idler pulley to idler

arm. Route belt between belt guide and idler pulley.

(Continued On Next Page)

FIGURE 4.1

FIGURE 4.2

SPINDLE PULLEY SPINDLE PULLEY

IDLER PULLEY STATIONARY

PULLEY

ELECTRIC CLUTCH

PULLEY

42” DECKS

ELECTRIC

CLUTCH

PULLEY

SPINDLE

PULLEY

STATIONARY

PULLEY

IDLER

PULLEY

SPINDLE

PULLEY

48” DECK

ROUTE MOWER BELT AROUND

ELECTRIC CLUTCH PULLEY

MOWER

BELT

ELECTRIC

CLUTCH

VIEW SHOWN FROM UNDERNEATH WITH DECK

REMOVED, DECK REMOVAL IS NOT NECESSARY

FOR MOWER BELT REPLACEMENT.

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool.

4.2.4. BELT REPLACEMENT

(Continued From Previous Page)

4. Route belt onto spindle pulley. Make sure belt is

inside spindle pulley belt guide.

5. Reinstall idler pulley spring. See Figure 4.3.

NOTE: The idler belt guide should be positioned so

the locator tab fits into the corresponding hole found

on the idler arm. See Figure 4.3. Tighten bolt

securely.

6. Reinstall front frame cover.

NOTE: FOR ALL BELT REPLACEMENT PARTS

IDENTIFICATION NUMBERS SEE PAGE 24.

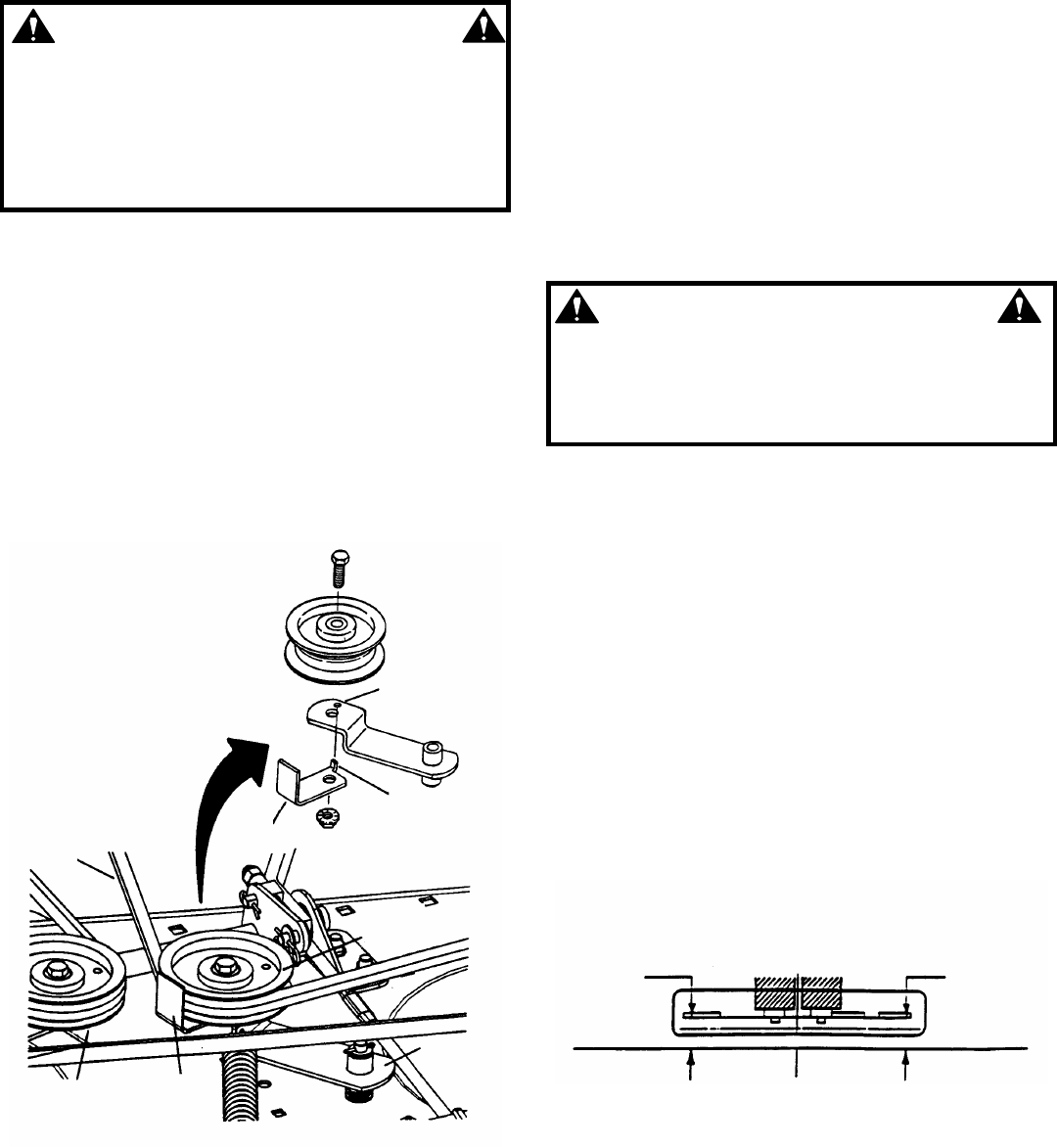

FIGURE 4.3

4.2.5. BLADE BRAKE

The blade switch engages the electric clutch when

pulled out to the “ON” position. When the blade

switch is in the “ON” position the cutting blade(s)

are engaged. The blade switch disengages the

electric clutch when the blade switch is pushed in to

the “OFF” position. When the blade switch is in the

“OFF” position the cutting blade(s) are disengaged.

The electric clutch is non-adjustable. The blade(s)

should stop rotation in 5 seconds or less. If the

electric clutch fails to stop the blade(s) rotation in 5

seconds, contact an authorized SNAPPER dealer to

repair or replace.

WARNING

Blades must stop rotating in 5 seconds or less after

blades have been turned off. DO NOT operate

machine until blade brake has been repaired and

functioning properly. Contact your SNAPPER dealer

for assistance.

4.2.6. MOWER DECK ADJUSTMENT (LEVELNESS)

Side-To-Side (48” Decks)

Before making deck leveling adjustments, check

the tire pressure. Add or release air as needed to

bring pressure to 12 P.S.I. in front and 12 P.S.I. in

rear tires. If tires are properly inflated and mowing is

still uneven, adjust side-to-side deck levelness first

as follows:

1. Place YARD CRUISER on a smooth level

surface.

2. Remove floor pan.

3. Rotate outside blades so tips are pointed to

the sides of deck. See Figure 4.4. Measure the

distance from blade tips to floor. If the

measurement is within 1/8” from side-to-side, the

deck levelness is satisfactory. If the difference

from side-to-side is greater than 1/8”, continue to

Step 4 for adjustment.

FIGURE 4.4

(Continued On Next Page)

IDLER ARM AND BELT

GUIDE DETAIL

42” DECK SHOWN TAB MUST GO

INTO HOLE

LOCATOR TAB

BELT GUIDE

MOWER

BELT

IDLER PULLEY

IDLER

ARM

BELT

GUIDE

STATIONARY

PULLEY

SIDE SIDE

X X-1/8”

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool.

4.2.6. MOWER DECK ADJUSTMENT (LEVELNESS)

Side-To-Side (48” Decks)

(Continued From Previous Page)

4. Remove hair pin from pivot rod and pull rod

out of lift arm.

5. Rotate pivot rod up or down to achieve the

proper levelness. See Figure 4.5.

6. Reinstall hair pin into pivot rod.

7. Reinstall floor pan.

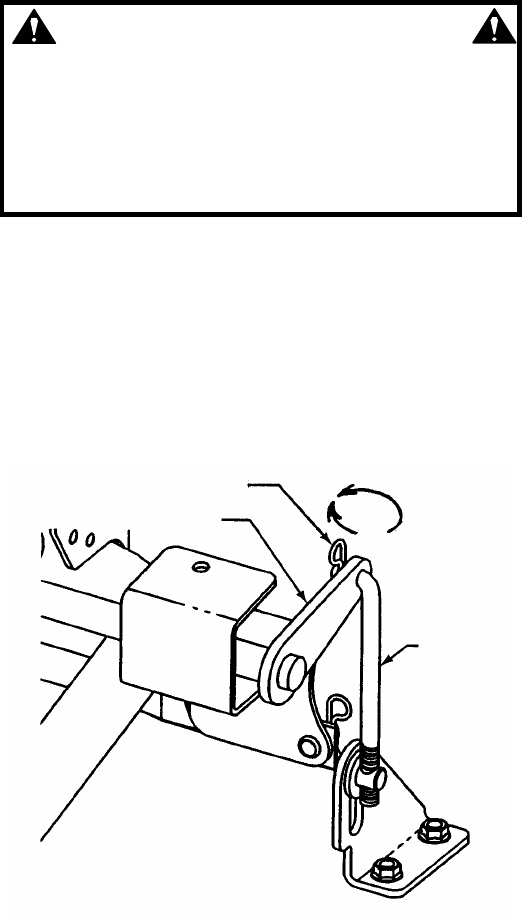

FIGURE 4.5

4.2.7. MOWER DECK ADJUSTMENT (LEVELNESS)

Front to Rear Deck Pitch (48” Deck)

Before making deck leveling adjustments, check the

tire pressure. Add or release air as needed to bring

pressure to 12 P.S.I. in front and 12 P.S.I. in rear tires. If

tires are properly inflated and mowing is still uneven,

check side-to-side deck levelness first then proceed

to front to rear adjustment. Adjust front to rear deck

levelness as follows:

1. Place YARD CRUISER on a smooth level

surface.

2. Remove floor pan.

3. Rotate outside blades so tips are pointed to the

front and rear of deck. Measure the distance from

blade tips to floor. The distance should be the

same, or the rear 1/4” higher than the front. If the

rear blade tip is lower or is more than 1/4” higher

than the front, proceed to Step 4 for adjustment.

4. Remove the hair pin from pivot rod on one side

of deck at a time.

5. Rotate each pivot rod up or down the same

number of turns to achieve the proper levelness.

6. Reinstall both hair pins into pivot rods. See

Figure 4.5.

4.2.8. MOWER DECK TIMING ROD - 48” DECKS

The mower deck timing rod is preadjusted at the

factory. It is set to maintain the deck in the same

attitude through all heights of cut. If the timing rod

requires adjustment, contact an authorized SNAPPER

dealer for service.

HAIRPIN

LIFT ARM

PIVOT ROD

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool.

4.2.9. MOWER DECK ADJUSTMENT (LEVELNESS)

1. Side-To-Side (42”Decks)

Before making deck leveling adjustments, check

the tire pressure. Check tires and add or release air

as needed to bring pressure to 12 P.S.I. in front and 12

P.S.I. in rear tires. If tires are properly inflated and

mowing is still uneven, adjust side-to-side deck

levelness as follows:

a. Place YARD CRUISER on a smooth level

surface.

b. Turn engine off and remove key, remove

spark plug wire(s) from spark plug(s) and secure

wire(s) away from plug(s).

c. Place a piece of angle iron, pipe, or similar

object under center of deck at the rear.

d. Remove rear hanger chains and allow center,

rear of deck to rest on angle iron.

e. Measure the distance from blade tips to floor. If

the measurement is within 1/8” from side-to-side,

the deck levelness is satisfactory. If the difference

from side-to-side is greater than 1/8”, continue to

the Step “f” for adjustment. See Figure 4.6.

f. Loosen the shoulder bolt that retains the

eccentric.

g. Turn eccentric “UP” or “DOWN” as required

until blade tips are within 1/8” of the same

distance from the floor. See Figure 4.7.

h. Tighten shoulder bolt loosened in Step “f”.

i. Readjust rear hanger chain pivots to align

with holes in support brackets.

j. Reconnect hanger chains, remove angle iron,

pipe, etc. and recheck side to side level. Adjust

either chain as needed to result in blade tips

being within 1/8” of the same distance from the

floor.

k. Proceed to check front to rear deck pitch.

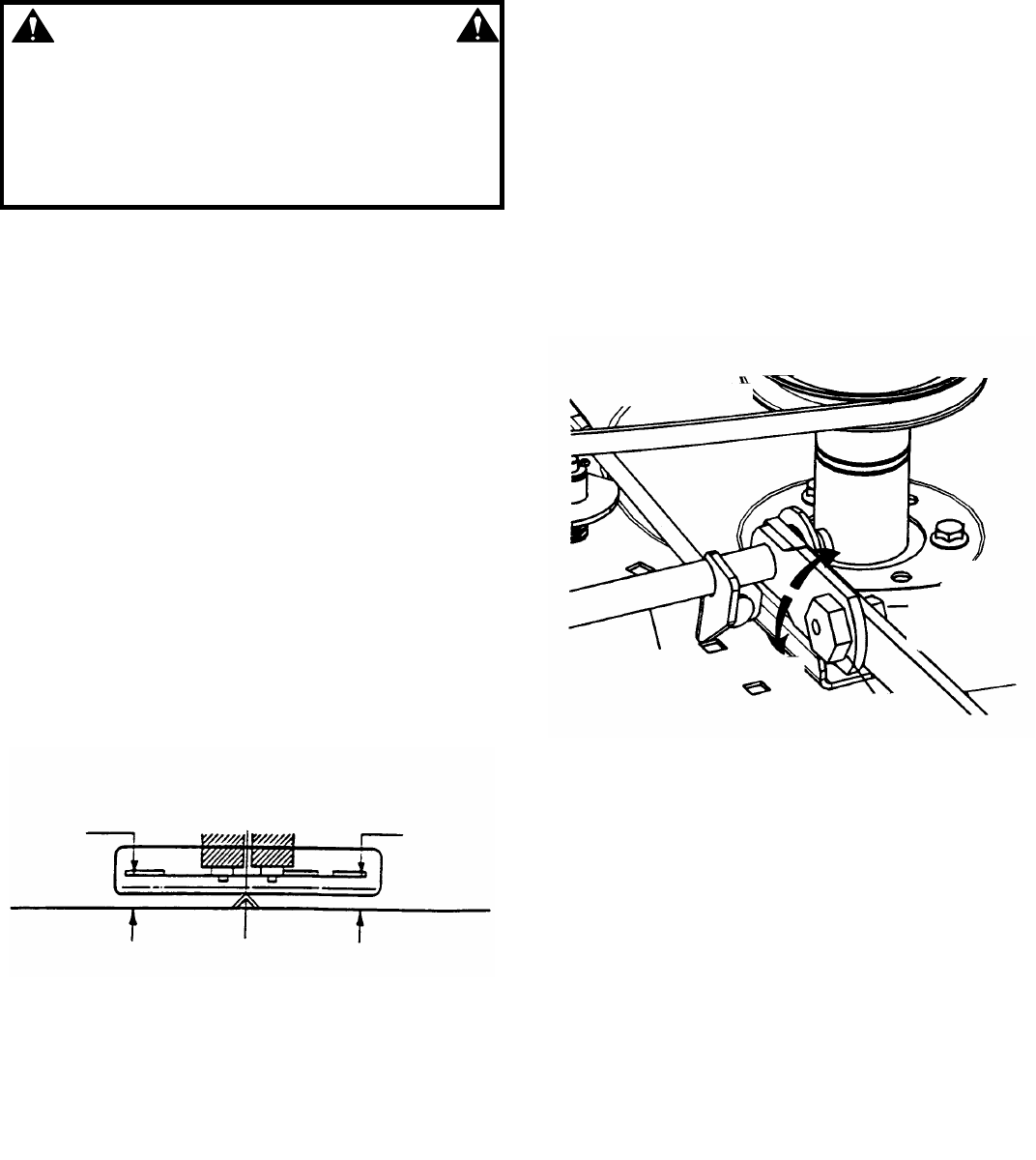

FIGURE 4.7

(Continued On Next Page)

FRONT OR REAR VIEW OF DECK

TWIN BLADE DECK

ANGLE

IRON

X - 1/8”

SIDE SIDE

SINGLE BLADE DECK

SIDE

SIDE X - 1/8”

ANGLE IRON

42” DECK SHOWN

DOWN

FRONT

LIFT ARM

ECCENTRIC

LOOSEN

SHOULDER

BOLT

FIGURE 4.6

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool.

4.2.9. MOWER DECK ADJUSTMENT (LEVELNESS)

(Continued From Previous Page)

2. Front to Rear Deck Pitch (42” Decks)

With the YARD CRUISER on a smooth, level

surface, rotate blades until blade tips are at front

and rear of deck. Measure the distance from blade

tips to floor. The distance should be the same, or

the rear 1/4” higher than the front. If the rear blade

tip is lower or is more than 1/4” higher than the

front, proceed with adjustment.

a. Remove rear hanger chains.

b. Turn each hanger pivot the same number of

rotations on the eye-bolt to raise or lower the

rear of the deck. See Figure 4.8.

c. Reinstall rear hanger chains and measure

blade tips again.

d. Repeat steps “a” through “c” until proper

levelness is obtained.

FIGURE 4.8

4.2.10. MOWER DECK TIMING ROD - 42” DECKS

The mower deck timing rod is preadjusted at the

factory. It is set to maintain the deck in the same

attitude through all heights of cut. If the timing rod

requires adjustment, contact an authorized SNAPPER

dealer for service. See Figure 4.9.

FIGURE 4.9

4.2.11. WHEEL BRAKE ADJUSTMENT

Adjust the wheel brake if wheels turn when parking

brake is engaged. Adjust the wheel brake by turning

wheel brake adjusting nut clockwise to increase

braking action or counter clockwise to decrease

braking action. See Figure 4.10.

FIGURE 4.10

X + 1/4”

FRONT

REAR

ROTATE HANGER PIVOT:

UP TO RAISE DECK OR

DOWN TO LOWER DECK.

ADJUSTING

NUT DO NOT ADJUST

TIMING

ROD

42” DECK SHOWN

UNDERSIDE VIEW OF

MACHINE

ELECTRIC

CLUTCH

WHEEL

BRAKE ROD

ADJUST

CLOCKWISE TO

INCREASE

BRAKE

ADJUST

COUNTER-

CLOCKWISE TO

DECREASE

BRAKE

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool. Wear heavy

leather gloves when handling or working around

cutting blades. Blades are extremely sharp and can

cause severe injury.

4.3 MOWER BLADE REPLACEMENT

4.3.1. BLADE WEAR LIMITS

1. Inspect blade frequently for signs of excessive wear

or damage. See Figure 4.11.

FIGURE 4.11

4.3.2. BLADE SHARPENING

1. Make sure fuel cap is on tight. Start engine and

allow it to run until engine runs out of fuel. Close

vent on fuel filler cap. See Figure 2.3.

2. Remove key from ignition switch.

3. Remove spark plug wire(s) and secure away from

spark plug(s).

4. Carefully stand YARD CRUISER on rear bumper.

5. Remove blade(s). See Figure 4.12.

6. Inspect condition of blade. See Figure 4.11.

7. If blade is in good condition, sharpen at 22 to 28

degrees. DO NOT sharpen beyond existing cutting

edge. See Figure 4.13.

8. Check blade balance after sharpening. If

necessary, correct blade balance by grinding the heavy

end of blade.

9. Reinstall blade. See Figure 4.12. Torque blade

mounting bolts to recommended range of:

42” Deck - 30 to 40 ft. lbs.

48” Deck - 80 to 90 ft. lbs.

FIGURE 4.12

FIGURE 4.13

WARNING

DO NOT use a cutting blade that shows signs of

excessive wear or damage. Wear heavy leather

gloves when handling or working around cutting

blades. Blades are extremely sharp and can cause

severe injury.

4.3.3. BLADE REPLACEMENT

1. Remove blade(s). See Figure 4.12. Replace

blade(s) if it shows signs of excessive wear or

damage.

NOTE: FOR ALL CUTTING BLADE REPLACEMENT

PARTS IDENTIFICATION NUMBERS SEE PAGE 24.

DO NOT SHARPEN

BEYOND ORIGINAL

CUTTING EDGE

BLADE TIP

ORIGINAL CUTTING EDGE

22º TO 28º

NEW BLADE

WEAR LIMIT

(NOTCH STARTS)

DANGEROUS CONDITION!

DO NOT USE ON MOWER!

REPLACE WITH NEW BLADE.

48” DECK

42” DECK

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blade running. STOP

blade. STOP engine. Set brake. Remove key. Remove

spark plug wire from spark plug and secure wire

away from spark plug. Engine and components can

be extremely hot. Avoid burns by allowing engine

and components sufficient time to cool. Never

attempt to service or charge the battery while it is

installed on the YARD CRUISER. Shield the positive

terminal with terminal cover located on battery harness.

This prevents metal from touching the positive

terminal, which could cause sparks. Cables must be

connected to battery terminals in the proper position as

shown. If battery is removed, DO NOT operate engine

without insulating Positive + battery cable terminal with

electrical tape, or sparking from the battery cables can

result.

4.4 BATTERY

4.4.1. BATTERY REMOVAL

1. Tilt seat up to gain access to battery.

2. Observe and note cable positions on battery.

See Figure 4.14.

3. Disconnect cables from battery terminals,

disconnecting BLACK (Negative) cable first.

Disconnect RED (Positive) battery cable. Slide

battery from battery cradle.

4. Retain mounting bolts and nuts for future use.

4.4.2. BATTERY INSTALLATION

1. Slide battery into battery cradle.

2. Connect cables to battery terminals. Connect

RED (Positive) cable first. Connect BLACK

(Negative) cable. See Figure 4.14.

3. Place the positive (+) terminal insulator over

positive terminal and cable. See Figure 4.15.

FIGURE 4.14

WARNING

The electrolyte (acid) produces a highly explosive

gas. Keep all sparks, flame and fire away from area

when charging battery or when handling electrolyte

or battery. Electrolyte (acid) is a highly corrosive

liquid. Wear eye protection. Wash affected areas

immediately after having eye or skin contact with

electrolyte (acid). Battery acid is corrosive. Rinse

empty acid containers with water and mutilate before

discarding. If acid is spilled on battery, bench, or

clothing, etc., Flush with clear water and neutralize

with baking soda. DO NOT attempt to charge battery

while installed on the YARD CRUISER. DO NOT use

“BOOST” chargers on the battery.

4.4.3. BATTERY SERVICE

1. Remove battery. See Section on Battery

Removal

2. Place battery in a well ventilated area on a level

surface.

3. Using distilled water, refill cells as required to

cover cell plates. Fluid level in battery can be seen

through the cell case.

4. With cell caps removed, connect battery charger

to battery terminals. Red to positive (+) terminal

and black to negative (-) terminal.

5. Slow charge battery at 1 amp for 10 hours.

6. If battery will not accept charge or is partially

charged after 10 hours of charging at 1 amp,

replace with new battery, Part Number 6-0753.

4.4.4. BATTERY STORAGE

If YARD CRUISER is to be stored out of season on

its rear bumper, it is recommended the battery be

removed, charged and stored.

1. Remove battery. (Refer to Section ”BATTERY

REMOVAL”).

2. Perform battery service.

3. Bring battery to full charge, if required.

4. Store battery in an area away from the YARD

CRUISER on a wood surface. DO NOT STORE

BATTERY ON A CONCRETE SURFACE.

4.4.5. NEW BATTERY PREPARATION

1. Remove battery from carton.

2. Place battery in a well ventilated area on a level

non-concrete surface.

3. Remove battery cell caps. Fill cells as required

with electrolyte (purchased separately) to proper

level. Fill to 3/16” above cell plates. Filling battery

with electrolyte will bring the battery to 80% charged

state.

4. With cell caps removed, connect battery charger to

battery terminals; RED to positive (+) and BLACK to

negative (-) terminal.

BLACK

NEGATIVE (-)

CABLE

RED

POSITIVE (+)

CABLE

Section 4 - ADJUSTMENTS & REPAIR

WARNING

The electrolyte (acid) produces a highly explosive gas.

Keep all sparks, flame and fire away from area when

charging battery or when handling electrolyte or battery.

Electrolyte (acid) is a highly corrosive liquid. Wear eye

protection. Wash affected areas immediately after

having eye or skin contact with electrolyte (acid). Battery

acid is corrosive. Rinse empty acid containers with

water and mutilate before discarding. If acid is spilled on

battery, bench, or clothing, etc., Flush with clear water

and neutralize with baking soda. DO NOT attempt to

charge battery while installed on the YARD CRUISER.

DO NOT use “BOOST” chargers on the battery.

IMPORTANT: 3/16” above cell plates is the recommended

level. DO NOT place anything in battery other than specified

electrolyte.

WARNING

DO NOT OVERFILL! DO NOT attempt to charge

battery while installed on the Yard Cruiser. DO NOT

use “BOOST” chargers on the battery.

5. Slow charge the battery at 1 amp for 2 hours to

bring the battery to full charge.

6. After charging, check level of electrolyte and add

as needed to bring level to 3/16” above cell plates.

7. Reinstall cell caps.

8. Install battery into power unit. Connect over flow

tube.

9. Connect positive (+) cable (red) first, from wiring

harness to the positive terminal (+) on battery using

bolt and nut provided in hardware bag. Connect

negative (-) cable (black) last, to negative terminal

(-) on battery using bolt and nut. Apply a small

amount of grease over terminals to prevent

corrosion.

WARNING

Shield the positive terminal with terminal cover

located on battery harness. This prevents metal

from touching the positive terminal, which could

cause sparks.

4.4.6. BATTERY TESTING

There are two types of battery tests: Unloaded and

Loaded. The unloaded test is the procedure that will

be discussed. It’s the simplest and most commonly

used. An unloaded test is made on a battery without

discharging current. To perform unloaded testing,

check charge condition using either a hydrometer or

voltmeter.

1. Using a voltmeter, voltage readings appear

instantly to show the state of charge. Remember to

hook the positive lead to the battery’s positive

terminal, and the negative lead to the negative

terminal.

2. A hydrometer measures the specific gravity of

each cell. The specific gravity tells the degree of

charge; generally, a specific gravity of about 1.265

to 1.280 indicates full charge. A reading of 1.230 to

1.260 indicates the battery should be charged. The

Battery Condition chart below shows the charge

level as measured by syringe float hydrometer,

digital voltmeter and five ball hydrometer.

Battery Condition Chart

State of Charge Syringe Hydrometer Digital Voltmeter Five Ball Hydrometer

100% Charged w/ Sulfate Stop 1.280 12.80v Five Balls Floating

100% Charged 1.265 12.60v Four Balls Floating

75% Charged 1.210 12.40v Three Balls Floating

50% Charged 1.160 12.10v Two Balls Floating

25% Charged 1.120 11.90v One Ball Floating

0% Charged Less than 1.100 Less than 11.80v Zero Balls Floating

TROUBLESHOOTING

PROBLEM PROBABLE CAUSE CORRECTIVE ACTION

Starter Will Not Crank

1. Battery dead. 1. Service battery.

Engine 2. Blown fuse. 2. Replace fuse.

3. Electrical connections loose or corroded. 3. Clean and check connections for good contact.

4. Defective ignition switch. 4. Contact authorized SNAPPER dealer.

5. Blade engagement switch in the “ON” position. 5. Move blade engagement switch to “OFF”.

6. Park brake not engaged. 6. Engage park brake.

7. Faulty parking brake, blade or ignition switch. 7. Contact authorized SNAPPER dealer.

8. Faulty engine starter. 8. Replace engine starter.

9. Faulty starter solenoid. 9. Replace starter solenoid.

Engine Will Crank But

1. Fuel tank empty. 1. Fill fuel tank with fresh fuel.

Not Start 2. Engine needs choking. 2. Move choke control to “CHOKE” position.

3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.

4. Battery weak or dead. 4. Service battery.

5. Faulty parking brake, blade or ignition switch. 5. Contact authorized SNAPPER dealer.

Engine Will Not Start

1. Blade engagement switch in the “ON” position. 1. Move blade engagement switch to “OFF”.

Using Recoil Starter 2. Park brake not engaged. 2. Engage park brake.

3. Fuel tank empty. 3. Fill fuel tank with fresh fuel.

4. Engine needs choking. 4. Move choke control to “CHOKE” position.

5. Blown Fuse. 5. Replace with new 20 AMP fuse.

6. Faulty relay switch. 6. Contact authorized SNAPPER dealer.

7. Faulty parking brake or blade switch. 7. Contact authorized SNAPPER dealer.

Engine Stalls After 1. Operator not in seat. 1. Sit in operator’s seat.

Running 2. Choke control in the “CHOKE” position. 2. Move choke control to “OFF” position.

3. Fuel tank empty. 3. Fill with fuel to proper level.

4. Engine air pre-cleaner and or air cleaner dirty. 4. Clean free of all debris.

5. Spark plug defective or gap set improperly. 5. Service spark plug.

6. Fuel filter stopped up. 6. Replace fuel filter.

7. Water, debris or stale fuel in fuel system. 7. Drain and clean fuel system.

Engine Loses Power 1. Excessive load on engine. 1. Lessen load.

2. Engine air pre-cleaner or air cleaner dirty. 2. Clean or replace filters.

3. Spark plug faulty. 3. Service spark plug.

4. Water, debris or stale fuel in fuel system. 4. Drain and clean fuel system.

5. Debris build up on engine cooling screen. 5. Clean all debris from engine cooling screen.

Engine Backfires When

Turned To “STOP” 1. Throttle control set too “FAST”.

1. Set throttle control to “SLOW” and allow engine to

idle. Then, turn key to “OFF”.

Excessive Vibration 1. Damaged, out of balance or bent mower blades. 1. Service mower blade(s).

2. Loose blade components. 2. Service and tighten loose parts.

3. Loose or missing airlift (if equipped). 3. Replace air lifts. Tighten to proper torque.

4. Lumpy or frayed belt. 4. Replace belt.

5. Bent Idler, stationary or spindle pulley. 5. Replace pulley.

(Trouble Shooting Continued on Next Page)

TROUBLESHOOTING

PROBLEM

PROBABLE CAUSE

CORRECTIVE ACTION

Rider Will Not Move Or

1. Joystick in the neutral “N” position. 1. Place joystick in desired speed position.

Loss Of Traction 2. Roll release lever is in “ROLL” position. 2. Move roll release lever to the engaged position.

3. Low transmission hydraulic oil level. 3. Contact authorized SNAPPER dealer.

4. Parking Brake engaged. 4. Move parking brake to disengaged position.

5. Traction drive belt requires replacement. 5. Replace traction drive belt.

Blade(s) Not Cutting

1. Blade engagement switch in the “OFF” position. 1. Move blade switch to the “ON” position.

2. Clutch belt slipping. 2. Replace clutch belt.

3. Mower belt slipping. 3. Replace mower belt.

4. Electric clutch not functioning. 4. Contact authorized SNAPPER dealer.

Cutting Grass

1. Uneven tire pressure. 1. Bring to proper pressure.

Improperly 2. Cutting height too low or high. 2. Adjust cutting height.

3. Engine speed too slow. 3. Move engine speed control to “FAST” position.

4. Forward speed too fast. 4. Move joystick to a slower speed.

5. Terraced cut, side to side. 5. Adjust side to side level.

6. Excessive deck pitch, front to rear. 6. Adjust front to rear pitch.

7. Cutting blade(s) dull or damaged. 7. Sharpen cutting edges or replace blade(s).

8. Blade belt slipping. 8. Replace blade belt.

9. Check electric clutch. 9. Adjust to proper specifications. (33” Deck Only)

10. Check clutch belt. 10. Replace clutch belt.

Poor Grass Discharge

1. Engine speed too slow. 1. Move engine speed control to “FAST” position.

2. Forward speed too fast. 2. Move joystick to a slower speed.

3. Grass is wet. 3. Mow when grass is dry.

4. Excessively worn or damaged blade(s). 4. Service mower blade(s).

5. Build up of grass clippings and debris under deck. 5. Clean deck.

6. Improper blade(s) installed on deck. 6. Install proper SNAPPER blades.

7. Blade(s) installed improperly on deck. 7. Install blades properly.

Battery Will Not Charge

1. Poor cable connections. 1. Clean cables and battery terminals.

2. Bad battery cell(s). 2. Replace with new battery.

3. Faulty alternator. 3. Contact engine manufacturer’s dealer.

Oil Leaking

1. Leaking hose fittings, clamps or reservoir. 1. Verify fittings and hose clamps are tight.

4.6. MAINTENANCE/REPLACEMENT PARTS

MAINTENANCE/REPLACEMENT PARTS

Engine Speed Control Cable (Briggs 16 HP) 2-4652

Engine Speed Control Cable (Briggs 20 HP) 2-8564

Choke Control Cable (Briggs 20 HP) 6-3252

42” Cutter Deck Blade (2 Blades Required) 2-6691

48” Cutter Deck Blade (3 Blades Required) 2-9247

42” Cutter Deck Belt (Electric Clutch to Cutting Deck) 3-6585

48” Cutter Deck Belt (Electric Clutch to Cutting Deck) 4-2997

Wheel Drive Belt (Engine to Hydro Transaxle) 4-1823

Wheel Drive Belt (Engine to Hydro Transaxle) (48” Deck Only) 4-1829

Mower Drive Belt (Engine to Electric Clutch) 2-9117

Mower Drive Belt (Engine to Electric Clutch) (48” Deck Only) 4-6997

Parts Manual for Yard Cruiser Series 3 & 4 06109

SERVICE SCHEDULE

ITEM SERVICE PERFORMED

REF. EACH

USE 5

HRS 25

HRS 50

HRS 100

HRS EACH

SEASON

Engine Oil Check Oil Level Page 6 X

Initial Oil Change Page 10 X

Periodic Oil Change Page 11 X*

Oil Filter Initial Oil Change Engine Manual

& Page 10 X

Periodic Oil Change Engine Manual

& Page 11 X*

Air Pre-Cleaner Clean Sponge Element Engine Manual X**

Air Cleaner Clean or Replace Engine Manual X**

Spark Plug Replace Engine Manual

Fuel Filter Replace Engine Manual

Engine Cooling

System Clean Shroud & Fins Engine Manual

& Page 11 X**

Battery Check Electrolyte Page 20 X X

Charge Battery Page 20 X

Testing Battery Pages 20-21 X

Tires Check Pressures Page 6 X X

Drive Belts Check For Wear And

Tension Page 14-15 X X X

Mower Blades Check For Wear, Damage

& Replacement Page 19 X

Mower Deck Clean Debris

Accumulation Page 11 X

Mower Deck Clean Outside and

Underside Page 11 X

Lubrication

Points Grease or Oil Pages 12 X X

* Change oil every 25 hours when operating under heavy load or high temperatures.

**Clean more often under dusty conditions or when air debris is present

3 YEAR LIMITED WARRANTY

For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through

any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found

upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

For ninety (90) days from purchase date for the original purchaser's commercial, rental, or other non-residential use,

SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon

examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for

replacement under this warranty must be paid by the purchaser.

This warranty does not apply to engines and their components, and batteries, as these items are warranted separately.

This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper lubrication,

normal wear, or other cause beyond the control of SNAPPER. This warranty does not cover any machine or component

part that has been altered or modified changing safety, performance, or durability.

Batteries have a one (1) year prorated warranty period with free replacement if required during the first ninety (90) days

from the original purchase date. SNAPPER will not be responsible for any installation cost incurred. The battery warranty

only covers original equipment batteries and does not cover damage to the battery or machine caused by neglect or

abuse, destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.

There is no other express warranty.

DISCLAIMER OF WARRANTY

Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to three

(3) years from purchase date for the original purchaser's residential or other non-commercial use, and ninety

(90) days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the

extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for

consequential damages, under any and all warranties are excluded.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE

SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER

ASSOCIATED WITH THE USE OF SUCH PARTS.

IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:

Snapper’s Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253

PRIMARY MAINTENANCE

SNAPPER PRODUCT REGISTRATION FORM

IMPORTANT: KEEP THIS INFORMATION FOR YOUR PERSONAL RECORDS

(Complete the following information on your Snapper purchase)

Model Number ____________________________________________________________

Serial Number _____________________________________________________________

Date of Purchase ___________________________________________________________

Retailer ___________________________________________________________________

Retailer’s Phone Number____________________________________________________

It is very important that you register your purchase with Snapper to ensure

warranty coverage. Please mail your product registration card to:

Snapper at P.O. Box 777, McDonough, Georgia 30253.

Or you may register on line at www.snapper.com.

You can contact us at our web site or if you would like to speak with a Customer

Service Representative. Call us at the Snapper Customer Relations Center. For

faster service please have your Serial Number and Model Number available.

Call the Snapper Customer Relations Center at 1-800-935-2967.

Eastern Standard Time

Monday through Friday from 8am to 6pm.

Saturday from 9am to 1pm.

Safety Instructions & Operator’s Manual for

YARD CRUISER

HYDRO DRIVE

SERIES 4

IMPORTANT

Snapper products are built using engines that meet or exceed all applicable emissions requirements on

the date manufactured. The labels on those engines contain very important emissions information and

critical safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the

engine manual, and on the machine, engine and attachments. If you have any questions about your

Snapper product, contact your local authorized Snapper dealer or contact Snapper Customer Service at

Snapper, McDonough, GA. 30253. Phone: (1-800-935-2967).

SNAPPER INC.

WARNING

ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR

EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER

REPRODUCTIVE HARM.

WARNING

BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER

REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.

Snapper Yz16424Bve Yz20484Bve Users Manual 6 3260D R1

YZ20484BVE, YZ16424BVE to the manual 122e2e46-650d-4a3f-a20e-dd61feaa0725

Navigation menu

Versions of this User Manual:

Views

Navigation
