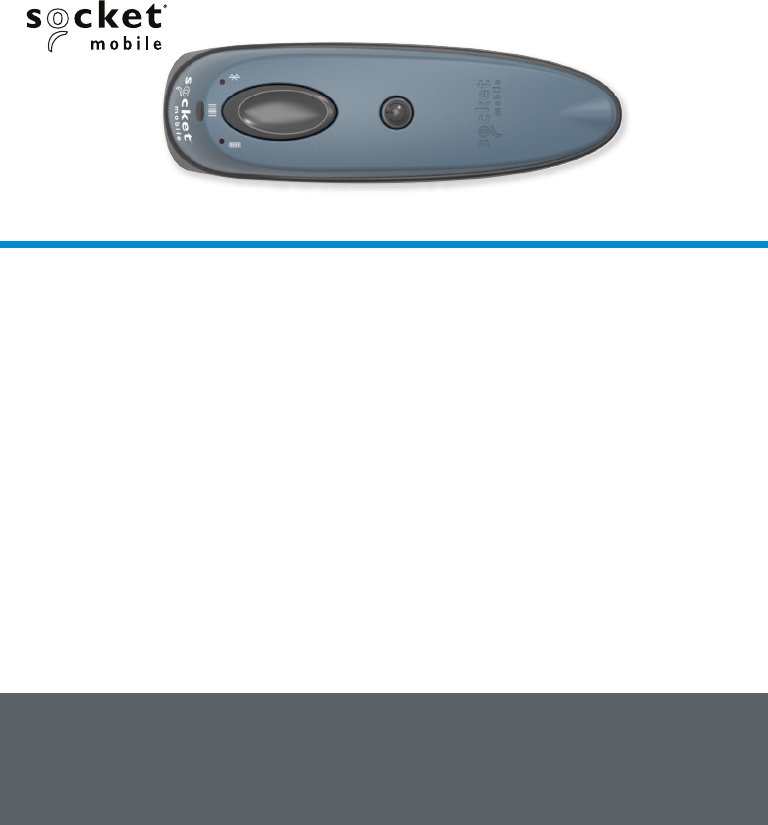

Socket Mobile D750 Bluetooth Barcode Scanner User Manual
Socket Mobile, Inc. Bluetooth Barcode Scanner Users Manual
Users Manual
Bluetooth Barcode Scanner
Model D750
www.socketmobile.com
DURASCANTM
SERIES 700
socketmobile.com
Application Mode (MFi-SPP) Setup for Apple® iOS 22
Application Mode (SPP)
• Android 17
• Windows PC 20
• Windows (Peripherals) 20
Basic Mode (HID)
• Android 13
• Windows PC 14
• Windows (Peripherals) 15
Battery Charger & Battery Warning 40-44
Bluetooth Connection 25
Bluetooth Connection Modes 11
Bluetooth Unpairing 24
Command Barcodes 26
Helpful Resources 34
TABLE OF CONTENTS
© 2010-2016 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, and
SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The
Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc.
USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and
trade names contained herein may be those of their respective owners.
AC adapter* & USB to
DC plug cable
*Use the plug that is
regionally appropriate
Lanyard
DuraScan
D750
Thank you for choosing Socket Mobile!
Let’s get started!

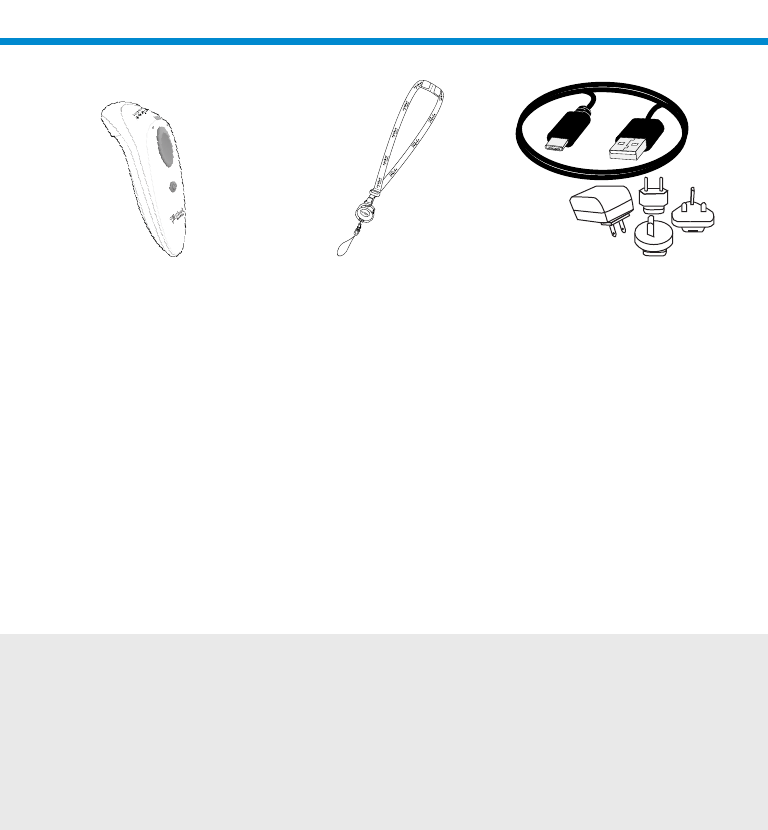

PACKAGE CONTENTS
PRODUCT INFORMATION
5
*Also used for keyboard Pop-up in Basic Mode (HID) only
Scanner head
Product label
Lanyard
Green/Red LED
Trigger button
Power button*
Battery LED (Green/Yellow/Red)
Bluetooth LED (Blue)
Pins for
charging
cradle
Direct Current

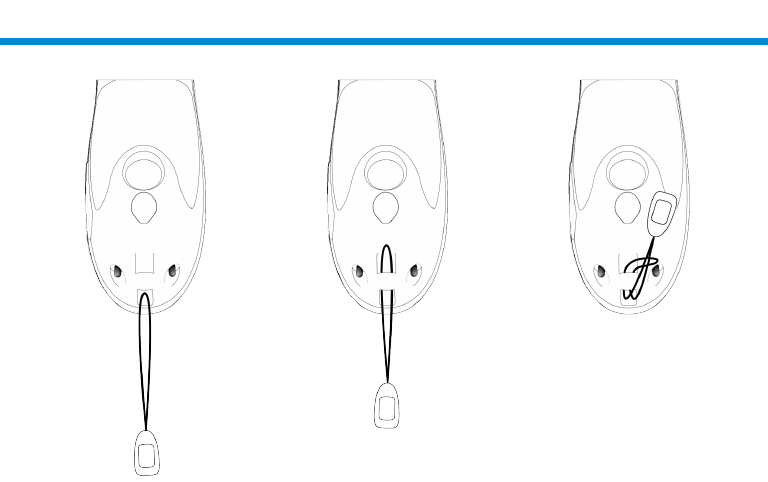

1. Attach the Lanyard (optional)
Detach the string loop of the tether from the lanyard. Then feed the
string loop through the slot. Pull tight so the string loop is secure,
reattach the string loop to the tether from the Lanyard.
SCANNER SETUP
6
The scanner must be fully charged before rst use. Please allow 6 hours
uninterrupted charging for the initial battery charge.
For the Scanner, lift the rubber ap to access the power connector.
• Red LED = Charging
• Green LED = Fully charged
Important: Charging from a computer USB port is not reliable and
not recommended.
Battery warning: Do not remove the pre-installed battery.
The DuraScan contains a rechargable lithium-ion battery.
The battery may be replaced with a Socket Mobile battery
replacement kit. See socketmobile.com for replacement battery.
See other battery warning at pg. 39
6 Hours
CHARGE THE BATTERY
7
Battery charger warning: Only use the dedicated charger
provided for this unit. See more battery charger warnings at pg. 41

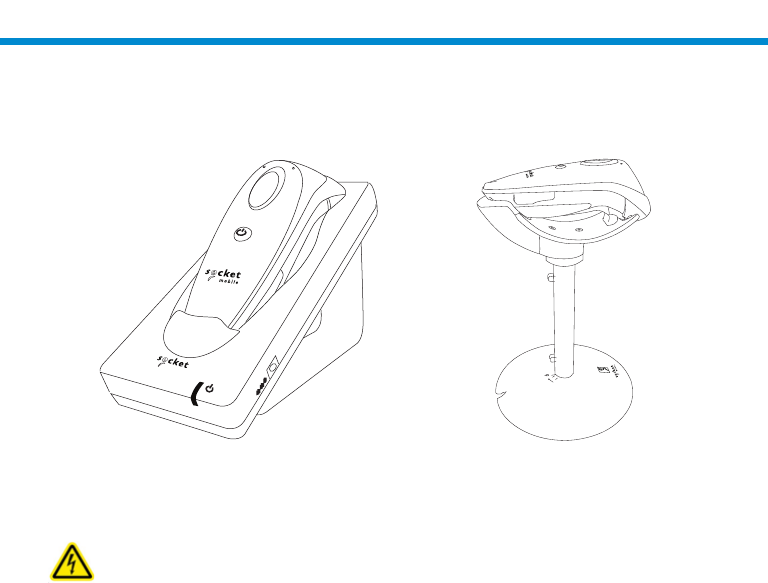

Charging with Cradle or QX Stand is
optional (available separately).
OPTIONAL CHARGING ACCESSORIES
8
Charging Cradle QX Stand

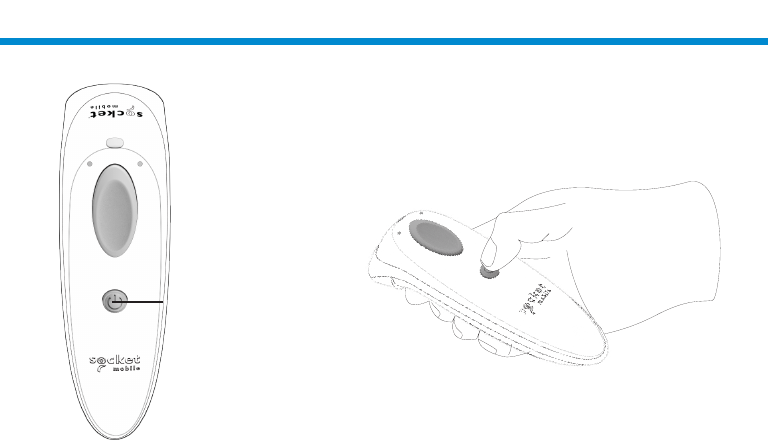

Powering On:
Press and hold down the small
power button until the LED turns
blue and the scanner beeps twice
(low-high).
Powering Off/ Disconnecting:
Press and hold down the small
power button until the scanner
beeps twice (high-low).
The scanner can power off
automatically if it is not connected
within 5 minutes and it is
connected within 2 hours of
inactivity.
POWERING ON/OFF
Power button
9

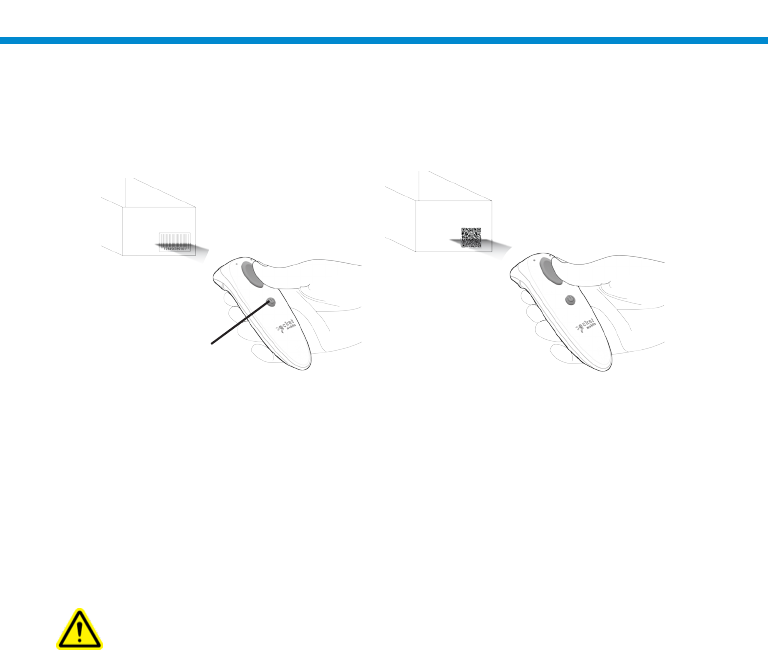

1D Barcode
Aim the scan beam straight
across the entire barcode.
2D Barcode
Aim at the center.
Scanning Barcodes
1. Hold the scanner a few inches from the barcode.
2. Aim, press and hold the trigger button.
By default, the scanner will beep, vibrate, and the LED will ash green
to conrm successful scan.
Caution: Do not stare directly into the LED beam.
SCANNING BARCODES
Trigger button
10
Connect your scanner using one of the following Bluetooth connection
modes:
Bluetooth Connection Proles
Bluetooth Mode Description
Basic Mode (HID)
(Default)*
Human Interface
Device Prole
• “NO” software installation needed
• Connects to most devices
• Good for barcodes containing small amounts of
data
• Scanner appears like a keyboard to host device
Application Mode
(SPP)
Serial Port Prole
• Software installation required
• More efcient and reliable data communications
for barcodes containing lots of data
Application Mode
(MFi-SPP)
Apple Specic
Serial Prole
• Must use with an App developed to work with
iOS devices
• Apple MFI tested and certied
• If you have an application that supports Socket
Mobile Scanners this is the mode you want to use
*By default, the scanner is set to Basic Mode (HID).
BLUETOOTH CONNECTION MODES
11
Operating System Connection Options
Operating
Systems
(OS)
Devices
Bluetooth
HID
Support
Bluetooth
SPP
Support
Bluetooth
Apple
Serial
Specic
(MFi Mode)
Android Android 2.1 & later Yes Yes N/A
Apple iOS iPod, iPhone, &
iPad Yes N/A Yes
Windows
Mobile
Windows Mobile
6.x Yes Yes N/A
Windows PC Windows 7, 8, 10 Yes Yes N/A
Mac OS
Mac OS X 10.4 to
10.X
Mac Books, Mac
Mini, & iMac
Yes No N/A
Note: To switch from one mode to the other you must remove the
pairing information from both devices - host computer and the scanner.
(see unpairing procedure on page 21)
12
BLUETOOTH CONNECTION MODES
Android: Connect Android Device in Basic Mode (HID)
1. Power on the scanner. Make sure the scanner is
discoverable (unpaired).
2. Touch Home | Menu | Settings | Wireless & Networks |
Bluetooth settings
3. Make sure the device has Bluetooth “On” and scan for devices.
4. In the list of found devices, select Socket scanner [xxxxxx]. Tap Pair.
5. The scanner will connect to the Android device.
6. The scanner will beep once after it has connected and is ready to scan
barcodes.
BASIC MODE
13

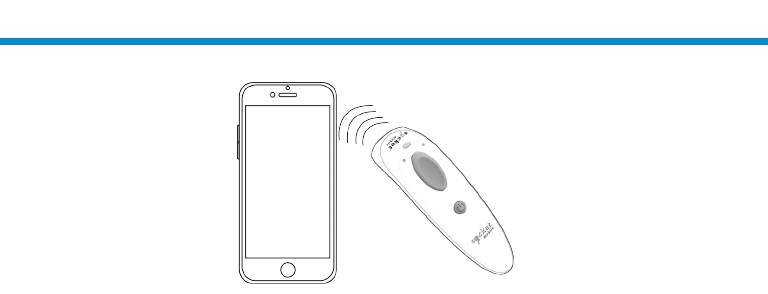

Apple: Connect Apple iOS Device or Mac OS Device Basic Mode (HID)
In this mode the scanner works and behaves just like a keyboard.
Therefore, scanner will work with Safari, Notes, and any other
applications that supports an active cursor.
1. Power on the scanner. Make sure the scanner is
discoverable (unpaired).
2. Start a Bluetooth device search.
• iOS: Tap Settings | General | Bluetooth. Turn on Bluetooth.
A Bluetooth device search will begin.
• Mac OS: Click System Preferences | Internet & Wireless | Bluetooth.
In Bluetooth preferences, select the On checkbox. Click Set up New
Device... A Bluetooth device search will begin.
3. In the device list, tap on Scanner [xxxxxx]. Tap Pair.
4. The Scanner will connect to the Apple device.
5. The Scanner will beep once after it has connected and is ready to scan
barcodes.
14
BASIC MODE
Windows: Connect Windows PC
Power on the Scanner. Make sure the Scanner is discoverable (unpaired).
1. Use your computer’s Bluetooth Settings to connect to the Scanner.
2. Open Devices and Printers and select “Add a device”.
3. In the device list, select Socket Scanner [xxxxxx]. Click Next.
4. If a passkey is requested, enter 0000 (four zeroes). Click OK.
Or Pair Now.
5. Follow the remaining screens to complete the wizard.
Note: On some computers the Scanner will have to be congured as Basic
Mode (HID) Peripheral. If not successful, scan this special barcode and
repeat the steps above.
BASIC MODE
15
Windows: Connect Windows PC as a Basic Mode (HID) Peripheral
1. Power on the Scanner and scan this barcode. The Scanner will beep 3
times.
2. Turn on Bluetooth on your PDA or PC and start a device search.
Make sure it is discoverable.
3. Select Socket Scanner. If prompted for a passkey, enter 0000
(four zeroes). If prompted to select services, select Input Device.
4. After the Scanner connects and is ready to scan barcodes, it will beep
once.
Now you are ready to scan barcodes!
To connect to a new device or use a different prole (mode) on the
same device, you must rst unpair the Scanner See page 21.
16
WINDOWS BASIC MODE (PERIPHERALS)
Connect Android or Windows Mobile Device:
Highly recommended, allows two-way communications with Android,
Windows and Mobile Devices. SocketScan 10 software installation
required.
1. Power on the Scanner and scan this barcode. The Scanner will beep 3
times. Make sure the Scanner is discoverable (unpaired).
2. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A
Bluetooth Devices search will begin.
3. Tap Socket Scanner[xxxxxx] in the list of Devices found. After a
few seconds the “Not Paired” status will change to “Connected” or
“Paired” and the Scanner Blue LED will start blinking every 3 seconds
conrming the connection.
You are now ready to scan barcodes using your Scanner-enabled
Application.
APPLICATION MODE (SPP)
17
Connect Android device in Application Mode (SPP) using EZ Pair
1. Go to Google Play Store, search for “SocketScan 10”.
2. Download & install. Follow the on screen instructions.
Note: If prompted, allow the app to access your Bluetooth settings / USB
storage / SD card / Coarse location.
3. Make sure Bluetooth is turned on.
4. Open SocketScan 10 application.
5. When prompted to set SocketScan 10 as the keyboard language, tap
Back .
6. Go to Settings on Android device / Language and Input
7. Under Keyboard Settings, select SocketScan 10.
8. Open SocketScan 10 on your device.
9. When prompted to enable SocketScan 10 as Input Method,
tap Back .
10. Tap the Menu icon, then select Input Method.
11. On the next screen, select SocketScan 10 as input method.
12. Power on the Scanner. Make sure the Scanner is discoverable
(unpaired).
13. In SocketScan 10, tap the Menu icon then select Socket EZ Pair.
14. Scan the barcode on the screen to switch or set your scanner in
Application Mode (SPP). The Scanner will beep 3 times.
18
APPLICATION MODE (SPP)
Connect Android device in Application Mode (SPP)
15. Select [On screen] button.
16. On the next screen, tap on the 7Qi or 7Xi button that is appropriate
for your scanner button.
17. Scan the barcode on the screen. The Scanner will beep 3 times.
18. When notied of a pairing request, swipe the notication icon down
then tap Pairing request.
19. On the next screen, tap Pair.
20. The Scanner will beep once to indicate connected state and is ready
to scan barcodes. Tap Back to close Socket EZ Pair.
21. If you are connecting a scanner which is not registered, a Scanner
registration icon will appear on top of the screen. Swipe the icon
down to open the registration pages. Follow the instructions to
register your Scanner. Socket Mobile highly recommends that all
customers register their products, but registration is not necessary.
Now you are ready to scan barcodes!
Note: If you are unable to scan the barcode on screen, please use the
alternative Bluetooth Method to connect the Scanner; refer to the User
Guide at Socket Mobile’s support web page.
APPLICATION MODE (SPP)
19
Connect Windows PC in Application Mode (SPP)
Note: Make sure you have administrative privileges.
1. Download the latest SocketScan 10 software from Socket Mobile’s
support web page.
2. Follow the on-screen instructions to install the software.
3. In SocketScan 10 Settings, select an incoming Bluetooth serial COM
port.
Note: If there is none please click Ports to create at least one new
incoming COM port in Bluetooth settings.
4. Click Finish.
20
WINDOWS PC - APPLICATION MODE
To pair the Scanner with the PC using EZ Pair:
1. Power on the Scanner. Make sure the Scanner is available to be
connected to Bluetooth (unpaired).
2. Launch SocketScan 10 and click on the SocketScan 10 icon in the task
tray. In the pop-up menu, click Socket EZ Pair.
3. Scan the barcode on the screen to switch set your scanner in
Application Mode (SPP). The Scanner will beep 3 times.
4. Click 2D Scanner accordingly.
5. Scan the barcode that appears on the screen.
6. The PC will automatically try to pair with the Scanner. If prompted
to allow the pairing, click Yes. If prompted for a passkey, enter 0000
(four zeroes).
7. After the Scanner connects, it will beep once. Close Socket EZ Pair.
8. If you are connecting a scanner which is not registered, a Scanner
registration icon will appear on top of the screen. Follow the
instructions to register your Scanner. Socket Mobile highly
recommends that all customers register their products, but
registration is not necessary.
9. The task tray icon will change to indicate the connection.
Now you are ready to scan barcodes.
Note: If you are unable to scan the barcode on screen, please use the
alternative Bluetooth Method to connect the Scanner; refer to the User
Guide at Socket Mobile’s support web page.
WINDOWS PC - APPLICATION MODE
21
Connect Apple iOS device in MFi Mode
Please check with your scanner application vendor or visit
www.socketmobile.com/appstore to conrm your Scanner-enabled
application supports the Scanner.
If you are using the Scanner with an Apple iOS device and a
Scanner-enabled Application that does not provide instructions how to
connect with the Scanner, please use the following steps.
1. Power on the Scanner. Make sure the Scanner is discoverable
(unpaired).
2. To change the prole to MFi mode scan this barcode. The Scanner will
beep 3 times.
Use with iPad, iPod touch, and iPhones.
3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth.
A Bluetooth Devices search will begin.
4. Tap Socket Scanner[xxxxxx] in the list of Devices found. After a
few seconds the “Not Paired” status will change to “Connected”
or “Paired” and the Scanner Blue LED will blink every 3 seconds
conrming the connection.
22
APPLICATION MODE (MFI-SPP)
Note: The characters in brackets are the last 6 characters of the
Bluetooth Adress. The full Bluetooth address is printed on the Product
label.
5. Launch your Scanner-enabled Application. The Scanner will beep once
indicating that it is connected to the appropriate application.
Now you are ready to scan barcodes.
APPLICATION MODE (MFI-SPP)
23
Note: This procedure will put the Scanner in discoverable mode.
Step 1: Unpairing the Scanner: Delete the Bluetooth Pairing
If the Scanner is paired with a device, unpair it before trying to
connect to a different device.
1. Power on the Scanner.
2. Press the trigger button then then power button and hold.
3. After you hear 3 beeps, release both buttons.
The Scanner will unpair and automatically power off. The next time you
power on the Scanner, it will be discoverable.
Step 2: Remove the Scanner from the Bluetooth list on the host device
Important: Both steps above must be done to complete
the unpairing.
24
BLUETOOTH UNPAIRING
Automatic Reconnections
Each time you power on the Scanner, it will automatically try to
connect to the last device it was connected to.
• Make sure the device is in range with Bluetooth On.
• If using Basic Mode (HID), pressing the trigger button will force or
trigger the connection.
• If using Application Mode (SPP), make sure the Scanner-enabled
Application is active.
• If using Application Mode (SPP), make sure SocketScan 10 software
or an
application developed with SocketScan 10 SDK is running.
Make sure the device is on and in range. While the Scanner is
attempting to connect the Blue LED will blink every second.
• If a connection is made, the Blue LED will blink every 3 seconds.
• If a connection is not made after 30 attempts, the Scanner will emit
a long beep.
BLUETOOTH CONNECTION
25
Scan command barcode(s) to quickly congure the Scanner.
Make sure the Scanner is not connected to a device before scanning
a command barcode! See page 21 for unpairing instructions.
For a complete set of command barcodes, download the Command
Barcodes Sheet: http://www.socketmobile.com/support/downloads
The web link is also provided in the below QR Code. To open the web
page, scan this QR Code using a QR Code Reader App in your iOS device.
26
COMMAND BARCODES
Important! Make sure the Scanner is not connected to a host computer or
device before scanning a command barcode!
Bluetooth Connection Modes
Basic Mode (HID-Keyboard)
(default)
Congures the Scanner to
Human Interface Device (HID)
mode as a Keyboard class
device
Application Mode (SPP)
Changes the Scanner to Serial
Port Prole (SPP) mode
Application Mode (MFi-SPP)
Changes the Scanner to MFi
mode for Apple iOS Devices
COMMAND BARCODES (CONTINUED)
27
Important! Make sure the Scanner is not connected to a host
computer or device before scanning a command barcode!
Beep Settings
Beep after scanner
Decodes Data ON
(default)
Enables Scanner to
beep to indicate
successful scans.
Beep after scanner
Decodes Data OFF
Disables Scanner
from beeping to
indicate successful
scans.
28
COMMAND BARCODES (CONTINUED)
Vibrate Settings
Vibrate “ON” (default)
Enables scanner to vibrate to
indicate successful scans.
Vibrate “OFF”
Disables scanner from
vibrating to indicate
successful scans.
Factory Default
Factory Reset
Revert all settings to
factory defaults. The scanner
will power off after scanning
this barcode.
COMMAND BARCODES (CONTINUED)
29
Status LED Activity Meaning
Bluetooth 1 Blue blink every
second
Bluetooth is On but not
connected
1 Blue blink every 3
seconds
Scanner is connected to
device
Good Read Green Constant
(while scanning)
Data successfully scanned
Battery Status Red Blinking
(while scanning and
no AC power)
20% or less battery capacity
remaining
Red Constant
(while AC power)
Battery is charging
Off (no light)
(while AC power)
Battery is fully charged
Off (no light)
(while no AC power)
Scanner is Off
30
STATUS INDICATORS
Beep Pattern Meaning
Low-high tone Power On.
High-low tone Power Off.
1 low beep Keyboard Pop-up Enable.
1 beep Scanner connected to device and ready to scan
barcodes.
1 beep with Green
LED blink
Data successfully scanned.
2 beeps, same
tone
Scanner disconnected from device.
1 long beep Scanner tried multiple times unsuccessfully to
connect to the last device it paired with. After 5
minutes the Scanner will power off.
3 beeps with
escalating tone
Scanner recognized the Command Barcode and
implemented the change.
3 beeps with
escalating tone
followed by a long
tone
Scanner recognized the Command Barcode, but
could not implement the change. Verify the
Command Barcode is valid and retry.
STATUS INDICATORS (CONTINUED)
31
Vibrate Meaning
Vibrate Power On or data successfully
scanned.
Command Barcodes are available on pages 23-25 to modify the LED,
beep, and vibrate settings.
If you are using a Scanner-enabled Application, typically the
application provides settings for LED, beep, and vibrate settings.
Bluetooth Mode Sequence
Time after powering on Scanner Bluetooth mode
0-5 minutes Discoverable and connectable
5 minutes If a connection is not made the
Scanner will power off.
If a device connects to the Scanner, it stays on for 2 hours then turns
off if a button is not pressed. If a button is press the timer is reset
to expire in another 2 hours.
32
STATUS INDICATORS (CONTINUED)
Specications D750
Dimensions (L x W x H) 5.2” x 1.5” x 1.6” (132.2 x 37.1 x 40.1 mm)
Total Mass 3.8 oz (108 g)
Antimicrobial Antimicrobial additive in all external surfaces
Operating Temp -4 to +122°F (-20 to + 50°C)
Battery Life
Per full charge Standby: over 30 hours
Active scanning: 14,000 & 70,000 scans*
*Depends on scanning situation
Charge Time 6 hours fully charged
Bluetooth Version Bluetooth v2.1 + EDR with 56 bit data encryption
Wireless Range 100 m (330ft) Line of sight
Scanner Type Omni-directional Imager (2D)
Symbologies All major 1D and 2D barcodes
Supported
Language Settings
(in Basic Mode (HID))
English, French, German, Spanish
Supported
Language Settings
(in MFi mode)
All languages supported by Apple
Systems/Battery
Chargers Rated input: 5Vdc, 1.0A
PRODUCT SPECIFICATIONS
33
Technical Support & Product Registration:
http://support.socketmobile.com
Phone: 800-279-1390 +1-510-933-3020 (worldwide)
Warranty Checker:
http://www.socketmobile.com/support/warranty-checker
Socket Mobile Developer Program:
Learn more at: http://www.socketmobile.com/developers
The User’s Guide (full installation and usage instructions) and Command
Barcodes (Advanced Scanner Congurations) can be download at:
http://www.socketmobile.com/support/downloads
This web link is also provided in the below QR Code. To open the
web page, scan this QR Code using a QR Code Reader App in your
iOS device.
34
HELPFUL RESOURCES
WARNING: Failure to follow these safety instructions could result in
re or other injury or damage to the DuraScan D700 Series Barcode
Scanners or other property.
Carrying and Handling the DuraScan Barcode Scanners: The Socket Mobile
barcode scanner contains sensitive components. Do not drop,
disassemble, open, crush, bend, deform, puncture, shred, microwave,
incinerate, paint, or insert foreign objects into this unit.
Do not attempt to disassemble the product. Should your unit need
service, contact Socket Mobile technical support at
http://support.socketmobile.com/
Changes or modications of this product, not expressly approved by
Socket Mobile may void the user’s authority to use the equipment.
Do not charge the DuraScan Barcode Scanner using the AC adapter when
operating the unit outdoors, or in the rain.
Operating Temperature - this product is designed for a maximum ambient
temperature of 50° degrees C or 122° degrees F.
SAFETY AND HANDLING INFORMATION
35

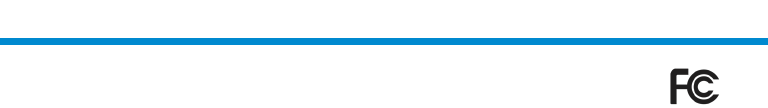

FCC ID: LUBD750
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or
modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
(Example - use only shielded interface cables when connecting to
computer or peripheral devices).
36
BLUETOOTH DEVICE UNITED STATES
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20 centimeters between the radia-
tor and your body. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation
BLUETOOTH DEVICE UNITED STATES
37
IC ID: 2925A-D750
This device complies with Industry Canada licenseexempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouil-
lage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
38
BLUETOOTH DEVICE CANADA
CE Marking & European Union Compliance
Products intended for sale within the European Union are marked with a
CE Mark, which indicates compliance to applicable Directives and Europe-
an Normes (EN), as follows. Amendments to these Directivces or ENs are
included: Normes (EN), as follows:
Applicable Directives:
Bluetooth Products: R&TTE Directive 1999/95EC, Low Voltage Directives
73/23/EEC and 2006/95/EC, EMC Directive 2004/108/EC.
BLUETOOTH DEVICE EUROPE
39
BATTERY CHARGER
BATTERY CHARGER:
Charging: CAUTION: Only use the dedicated charger provided for this
unit.
The provided battery charger may become warm during normal use.
Always allow adequate ventilation around the battery charger and use
care when handling. Unplug the Charger if any of the following conditions
exist:
• The Charger is exposed to rain, liquid, or excessive moisture.
• The Charger case has become damaged.
• You suspect the Charger needs service or repair.
Warning: To prevent electric shock, never open the charger. There
are no
user-serviceable parts inside.
For indoor use only. Do not expose the battery charger to liquid, moisture
or extreme humidity.
Warning: The plug on the charger is used as a disconnection device.
To fully de-energize equipment for service, disconnect the adapter
from the outlet.
Pluggable Equipment. The socket outlet shall be installed near the equip-
ment and shall be easily accessible.
40
BATTERY WARNING STATEMENTS
This device contains a rechargeable Lithium-Ion battery.
Stop charging DuraScan Barcode Scanners if charging isn’t completed
within the normal specied time (approx. 6 hours).
Stop charging the battery if the DuraScan Barcode Scanner case becomes
abnormally hot, or shows signs of odor, discoloration, deformation, or
abnormal conditions is detected during use, charge, or storage.
Stop using the DuraScan Barcode Scanner if the enclosure is cracked,
swollen or shows any other signs of mis-use. Discontinue immediately and
promptly dispose of unit.
Your device contains a rechargeable Lithium-Ion battery which may
present a risk of re or chemical burn if mistreated. Do not charge or use
the unit in a car or similar place where the inside temperature may be
over 60 degrees C or 140 degrees F.
• Never throw the battery into a re, as that could cause the battery to
explode.
• Never short circuit the battery by bringing the terminals in contact
with another metal object. This could cause personal injury, or re,
and could also damage the battery.
• Never dispose of used batteries with other ordinary solid wastes.
Batteries contain toxic substances.
41
BATTERY WARNING STATEMENTS
• Dispose of used batteries in accordance with the prevailing
community regulations that apply to the disposal of batteries.
• Never expose this product or the battery to any liquids.
• Do not shock the battery by dropping it or throwing it.
If this unit shows any type of damage, such as bulging, swelling or
disgurement, discontinue use and promptly dispose.
Product Disposal
Your device should not be placed in municipal waste. Please check local
regulations for disposal of electronic products.
42
LASER AND LED DEVICES
Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM.
LED DEVICE:
The DuraScan D700 and D750 contain a LED-type scan engine.
For the Class 1 LED version of this engine, the following
applies:
• Complies with IEC 60825-1:2001-08, and EN 60825-1:1994 + A1 + A2
• LED output is in the 630-670nm range (visible red).
• Class 1 LED devices are not considered to be hazardous when used for
their intended purpose.
The following statement is required to comply with US and international
regulations:
Caution: Use of controls, adjustments or performance of procedures
other than those specied herein may result in hazardous LED light
exposure.
43
REGULATORY COMPLIANCE
CE MARKING AND EUROPEAN UNION COMPLIANCE
Testing for compliance to CE requirements was performed by an
independent laboratory. The unit under test was found compliant with all
the applicable Directives, 2004/108/EC and 2006/95/EC.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
The WEEE directive places an obligation on all EU-based
manufacturers and importers to take-back electronic products at the end
of their useful life.
RoHS STATEMENT OF COMPLIANCE
This product is compliant to Directive 2011/95/EC.
NON-MODIFICATION STATEMENT
Changes or modications not expressly approved by
the party responsible for compliance.
44
WEEE
LIMITED WARRANTY
45
Socket Mobile Incorporated (Socket) warrants this product against
defects in material and workmanship, under normal use and service,
for one (1) year from the date of purchase. Product must be purchased
new from a Socket Authorized Distributor or Reseller. Used products and
products purchased through non-authorized channels are not eligible for
this warranty support.
Warranty benets are in addition to rights provided under local
consumer laws. You may be required to furnish proof of purchase details
when making a claim under this warranty.
Consumables such as batteries, removable cables, cases, straps,
and chargers: 90 day coverage only
For more warranty information, please visit:
http://www.socketmobile.com/support/downloads
