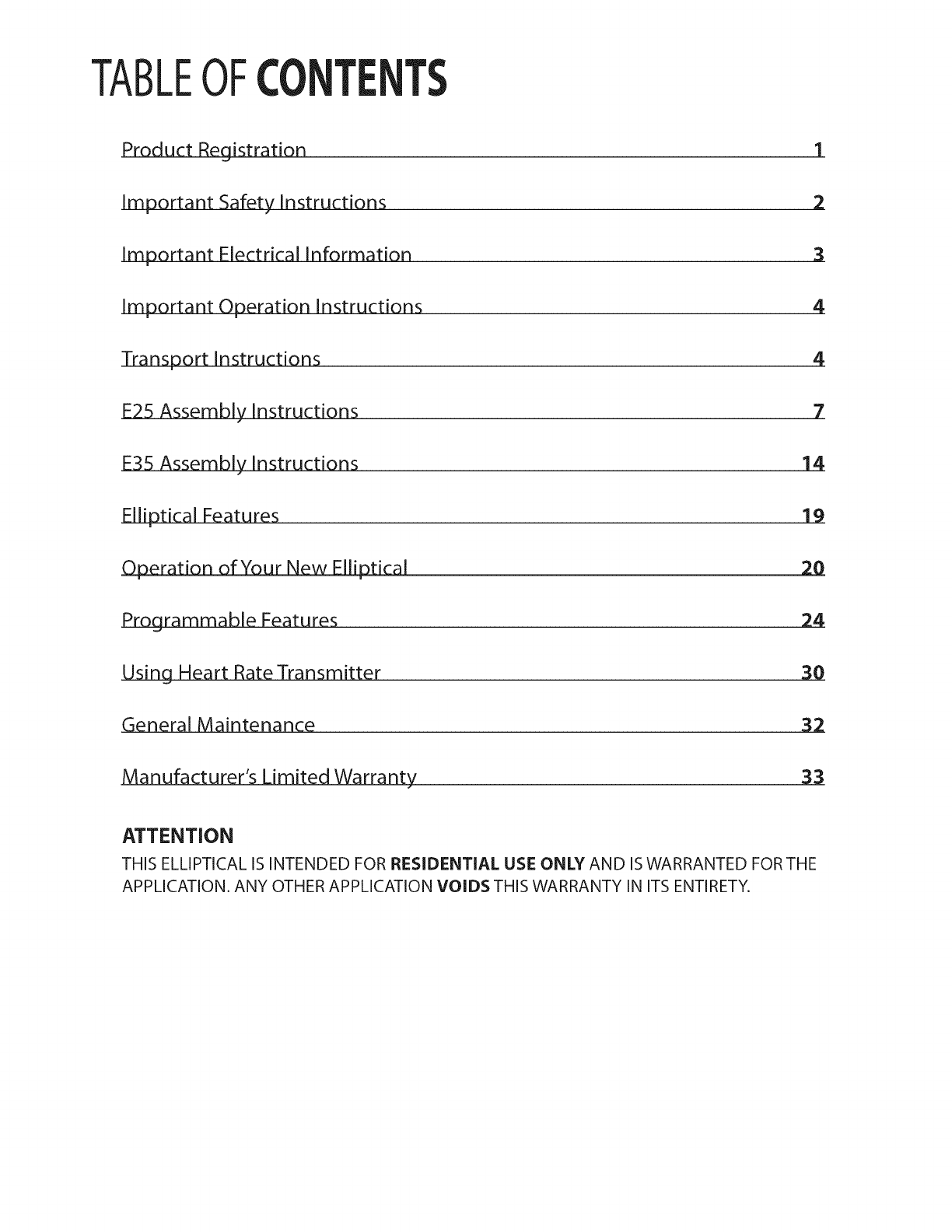

TABLEOF T TS
Product Registration
Important Safety Instructions
Important Electrical Information
Important Operation Instructions
Transport Instructions
E25 Assembly Instructions
E35 Assembly Instructions
Elliptical Features
Operation of Your New Elliptical
Programmable Features
Using Heart Rate Transmitter
General Maintenance

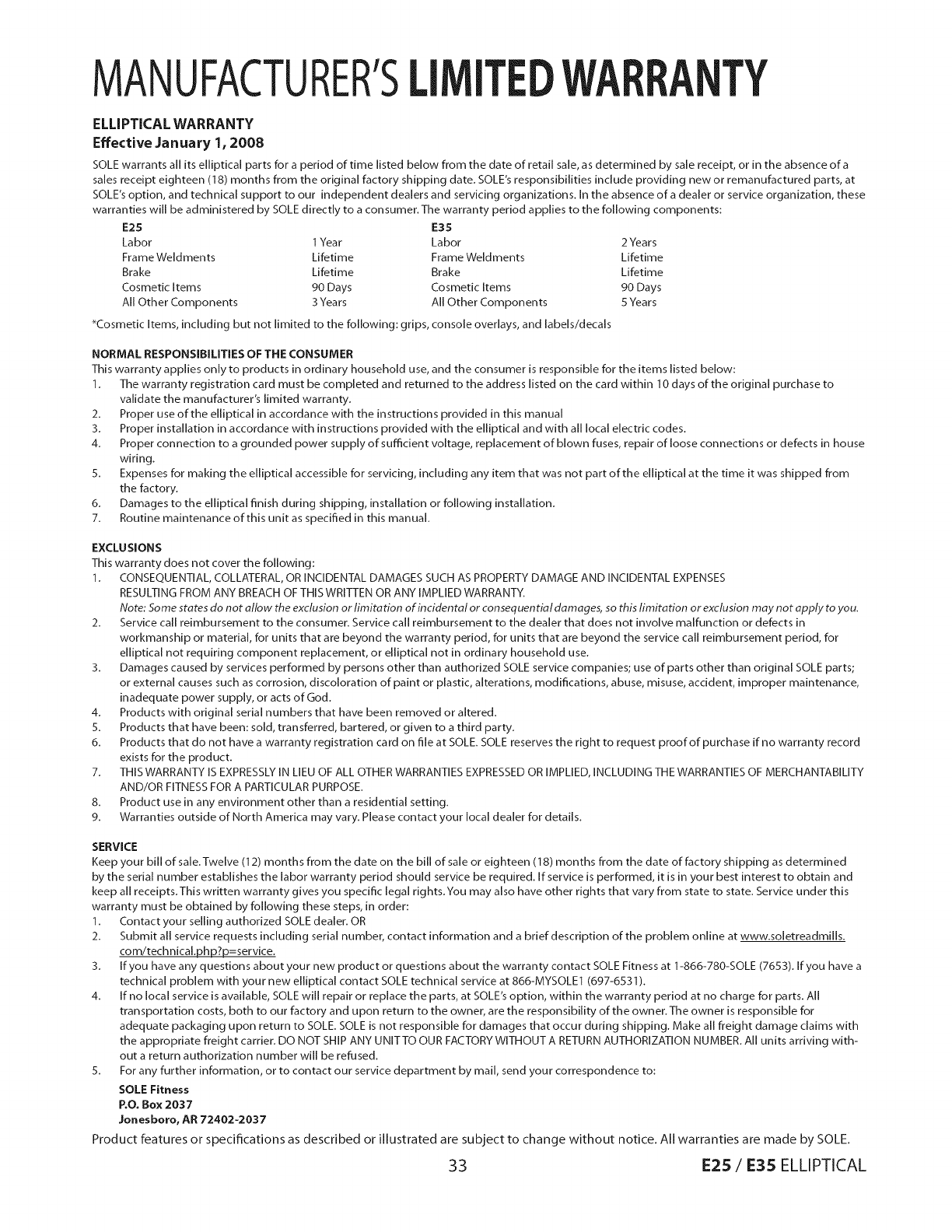

Manufacturer's Limited Warranty
ATTENTION
1
2
3
4
4
7
14
19
20
24
30
32
33
THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE
APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
FmTNES$

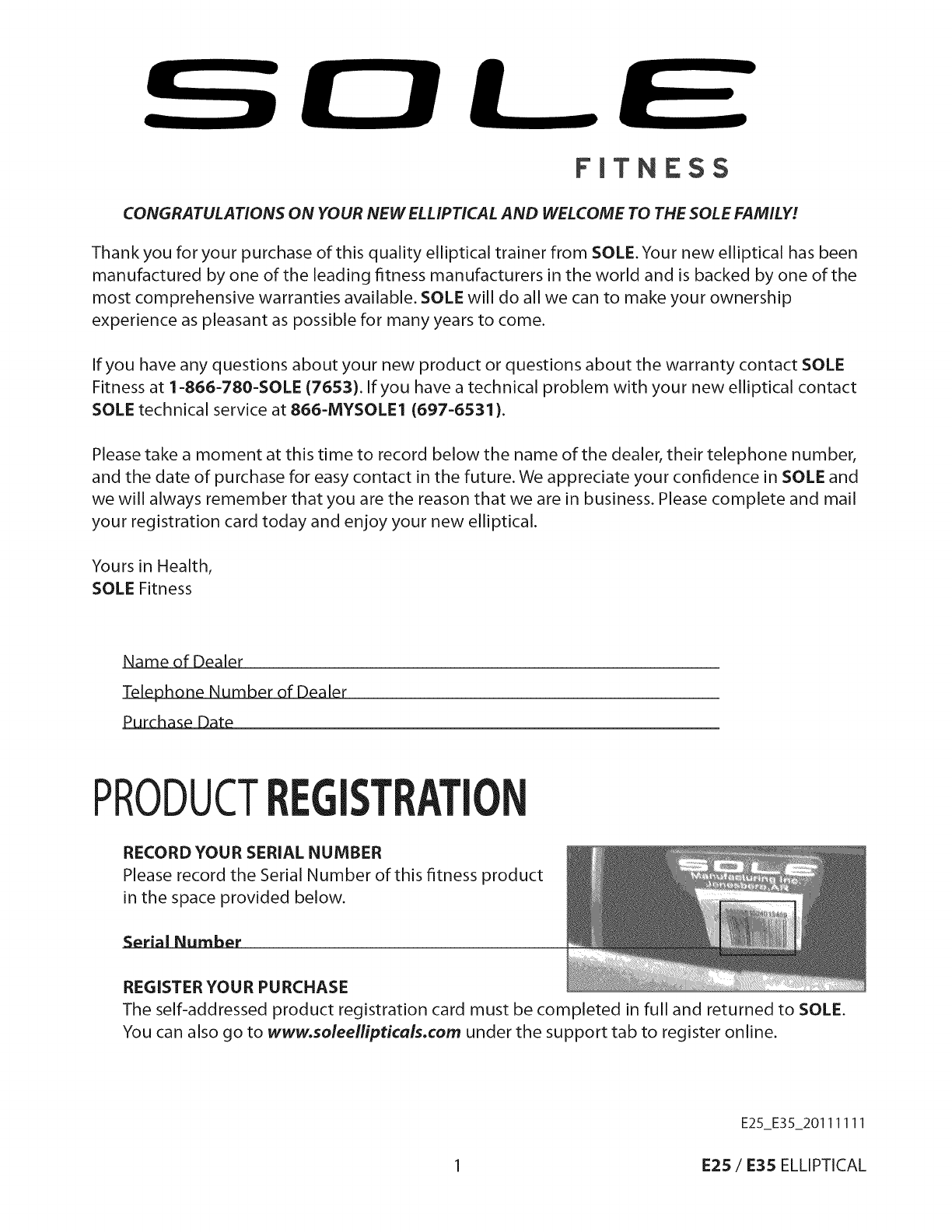

CONGRATULATIONS ON YOUR NEW ELLiPTiCAL AND WELCOME TO THE SOLE FAMILW
Thank you for your purchase of this quality elliptical trainer from SOLE. Your new elliptical has been
manufactured by one of the leading fitness manufacturers in the world and is backed by one of the
most comprehensive warranties available. SOLE will do all we can to make your ownership
experience as pleasant as possible for many years to come.
If you have any questions about your new product or questions about the warranty contact SOLE
Fitness at 1-866-780-SOLE (7653). If you have a technical problem with your new elliptical contact
SOLE technical service at 866-MYSOLE1 (697-6531).
Please take a moment at this time to record below the name of the dealer, their telephone number,
and the date of purchase for easy contact in the future. We appreciate your confidence in SOLE and
we will always remember that you are the reason that we are in business. Please complete and mail
your registration card today and enjoy your new elliptical.
Yours in Health,
SOLE Fitness
Name of Dealer
Telephone Number of Dealer
PRODUCT ST TI
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this fitness product
in the space provided below.
Serial Number
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to SOLE.
You can also go to www.soleelliptkals.com under the support tab to register online.
E25_E35_20111111
E25 /E35 ELLIPTICAL
IMPORTANT TYI UCT

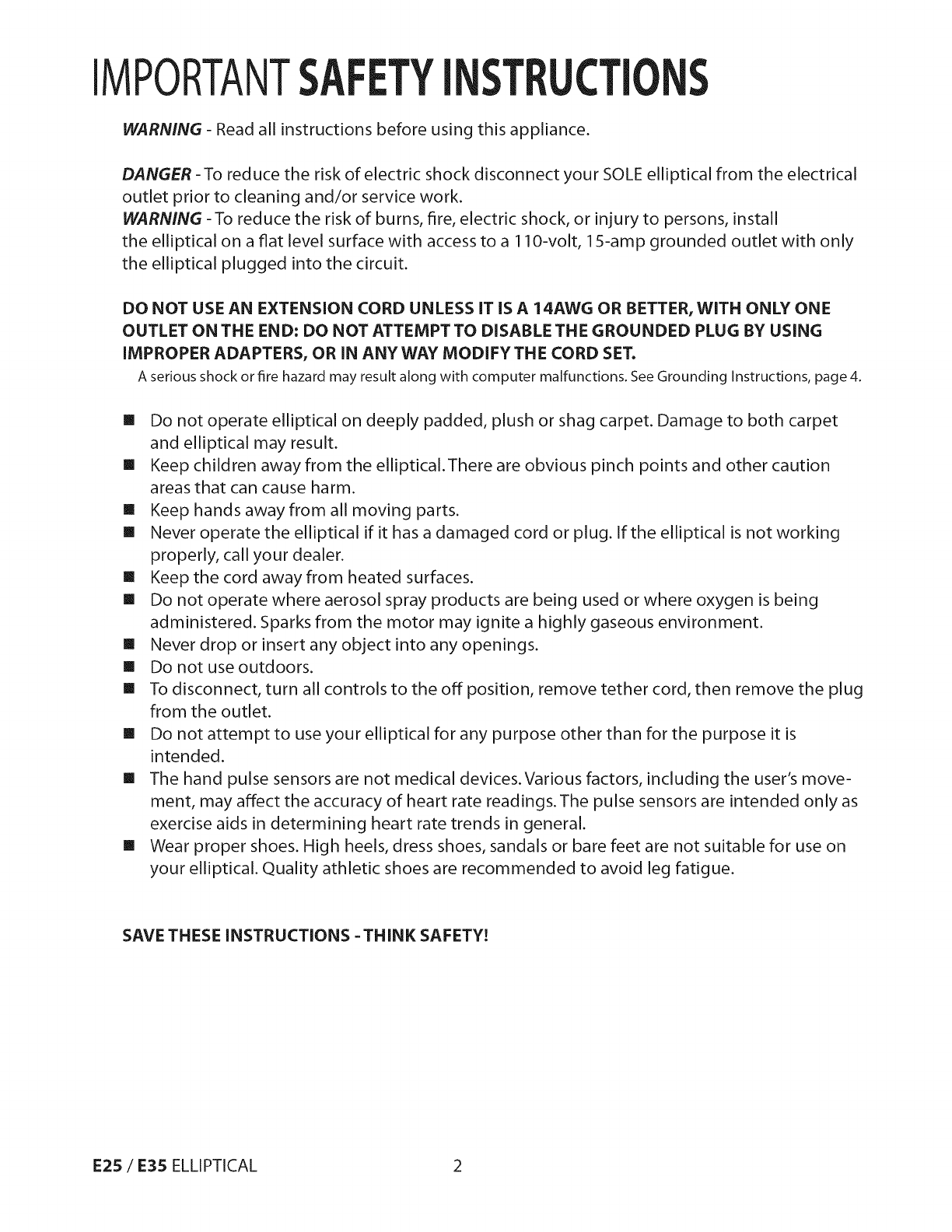

WARNING - Read all instructions before using this appliance.
DANGER -To reduce the risk of electric shock disconnect your SOLE elliptical from the electrical
outlet prior to cleaning and/or service work.
WARNING -To reduce the risk of burns, fire, electric shock, or injury to persons, install
the elliptical on a fiat level surface with access to a 110-volt, 15-amp grounded outlet with only
the elliptical plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A14AWG OR BETTER, WITH ONLY ONE
OUTLET ON THE END: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING
IMPROPER ADAPTERS, OR IN ANYWAY MODIFY THE CORD SET.
A serious shock or fire hazard may result along with computer malfunctions. See Grounding Instructions, page 4.
[] Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both carpet
and elliptical may result.
[] Keep children away from the elliptical.There are obvious pinch points and other caution
areas that can cause harm.
[] Keep hands away from all moving parts.
[] Never operate the elliptical if it has a damaged cord or plug. If the elliptical is not working
properly, call your dealer.
[] Keep the cord away from heated surfaces.
[] Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
[] Never drop or insert any object into any openings.
[] Do not use outdoors.
[] To disconnect, turn all controls to the off position, remove tether cord, then remove the plug
from the outlet.
[] Do not attempt to use your elliptical for any purpose other than for the purpose it is
intended.
[] The hand pulse sensors are not medical devices.Various factors, including the user's move-
ment, may affect the accuracy of heart rate readings.The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
[] Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your elliptical. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS =THINK SAFETY!
E25 /E35 ELLIPTICAL 2
IMPORTANTELECTCALl UCTI
WARNING!
NEVER remove any cover without first disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your elliptical may be
affected. Such conditions are not covered under your warranty. If you suspect the voltage is low,
contact your local power company or a licensed electrician for proper testing.
NEVER expose this elliptical to rain or moisture.This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity environment.The operating temperature
specification is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing
(no water drops forming on surfaces).

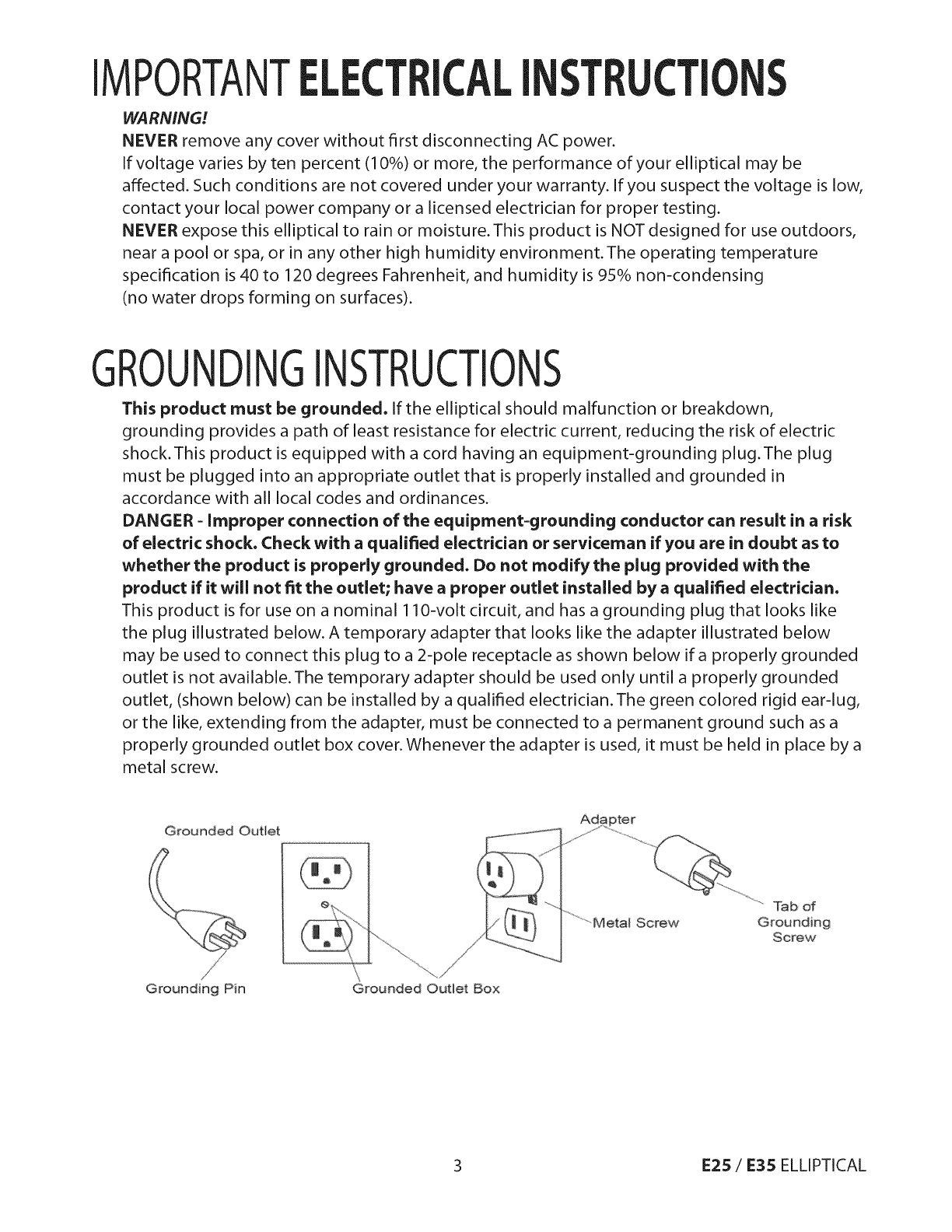

GROUNDINGINSTRUCTIONS
This product must be grounded. If the elliptical should malfunction or breakdown,
grounding provides a path of least resistance for electric current, reducing the risk of electric
shock.This product is equipped with a cord having an equipment-grounding plug.The plug
must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment=grounding conductor cart result in arisk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the
product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 1lO-volt circuit, and has a grounding plug that looks like
the plug illustrated below. A temporary adapter that looks like the adapter illustrated below
may be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded
outlet is not available.The temporary adapter should be used only until a properly grounded
outlet, (shown below) can be installed by a qualified electrician.The green colored rigid ear-lug,
or the like, extending from the adapter, must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a
metal screw.
Grounded Outlet
..........Tabof
Grounding
Screw
Grounding Pin Grounded Outlet Box
3E25 /E35 ELLIPTICAL
IMPORTANT TI ST

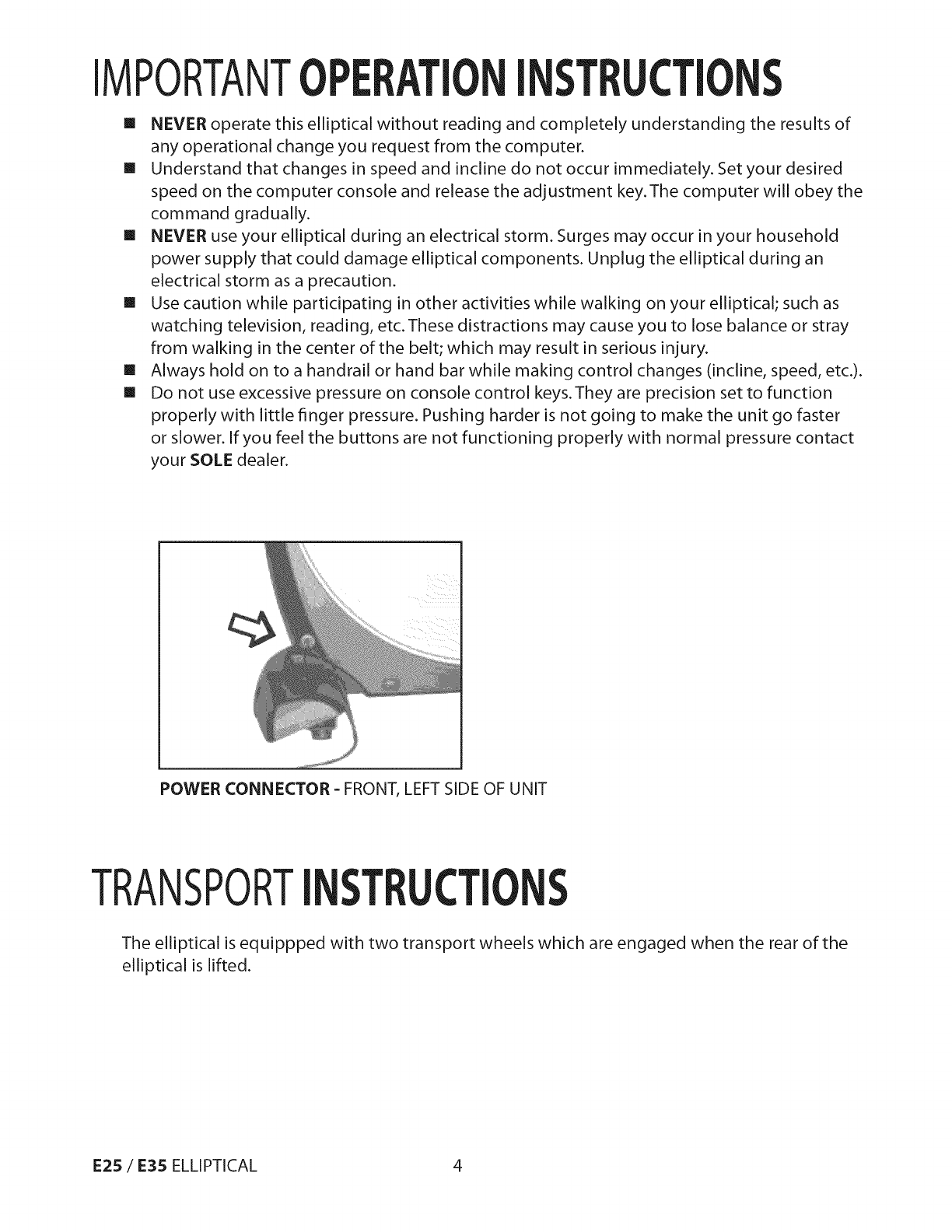

[] NEVER operate this elliptical without reading and completely understanding the results of
any operational change you request from the computer.
[] Understand that changes in speed and incline do not occur immediately. Set your desired
speed on the computer console and release the adjustment key.The computer will obey the
command gradually.
[] NEVER use your elliptical during an electrical storm. Surges may occur in your household
power supply that could damage elliptical components. Unplug the elliptical during an
electrical storm as a precaution.
[] Use caution while participating in other activities while walking on your elliptical; such as
watching television, reading, etc.These distractions may cause you to lose balance or stray
from walking in the center of the belt; which may result in serious injury.
[] Always hold on to a handrail or hand bar while making control changes (incline, speed, etc.).
[] Do not use excessive pressure on console control keys.They are precision set to function
properly with little finger pressure. Pushing harder is not going to make the unit go faster
or slower. If you feel the buttons are not functioning properly with normal pressure contact
your SOLE dealer.
POWER CONNECTOR -FRONT, LEFT SIDE OF UNIT
TRANSPORTI ST T
The elliptical is equippped with two transport wheels which are engaged when the rear of the
elliptical is lifted.
E25 /E35 ELLIPTICAL 4

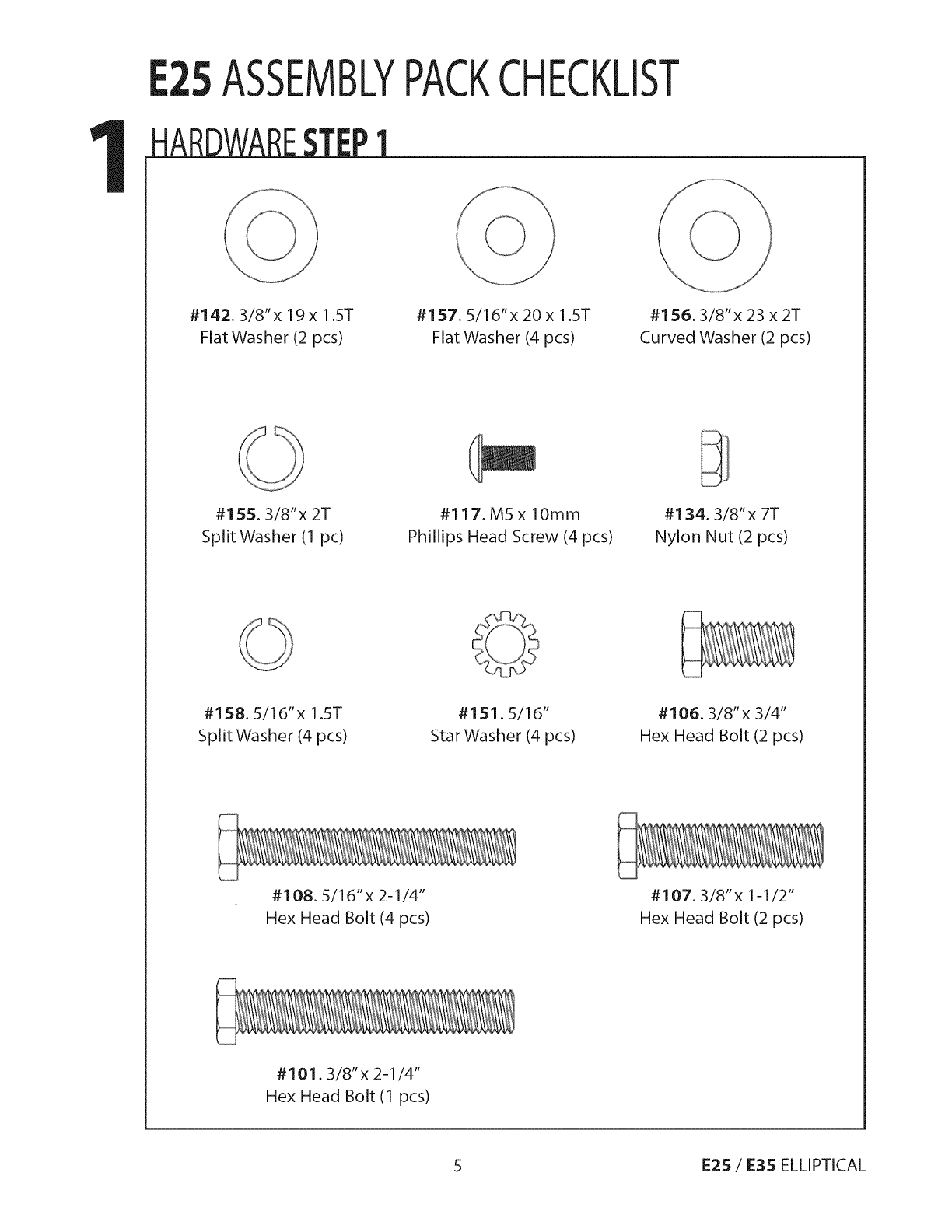

ASSEMBLYPACKCHECKLIST
#142.3/8" x 19 x 1.ST
Flat Washer (2 pcs)
#157, 5/16"x 20 x 1.5T
Flat Washer (4 pcs)
#156.3/8" x 23 x 2T
Curved Washer (2 pcs)
#155.3/8"x 2T
Split Washer (1 pc)
#117. M5 x lOmm
Phillips Head Screw (4 pcs)
#134.3/8" x 7T
Nylon Nut (2 pcs)
#158.5/16"x 1.5T
Split Washer (4 pcs)
#151.5/16"
Star Washer (4 pcs)
#106.3/8"x 3/4"
Hex Head Bolt (2 pcs)
#108.5/16"x 2-1/4"
Hex Head Bolt (4 pcs)
#107.3/8"x 1-1/2"
Hex Head Bolt (2 pcs)
#101.3/8" x 2-1/4"
Hex Head Bolt (1 pcs)
5 E25 /E35 ELLIPTICAL

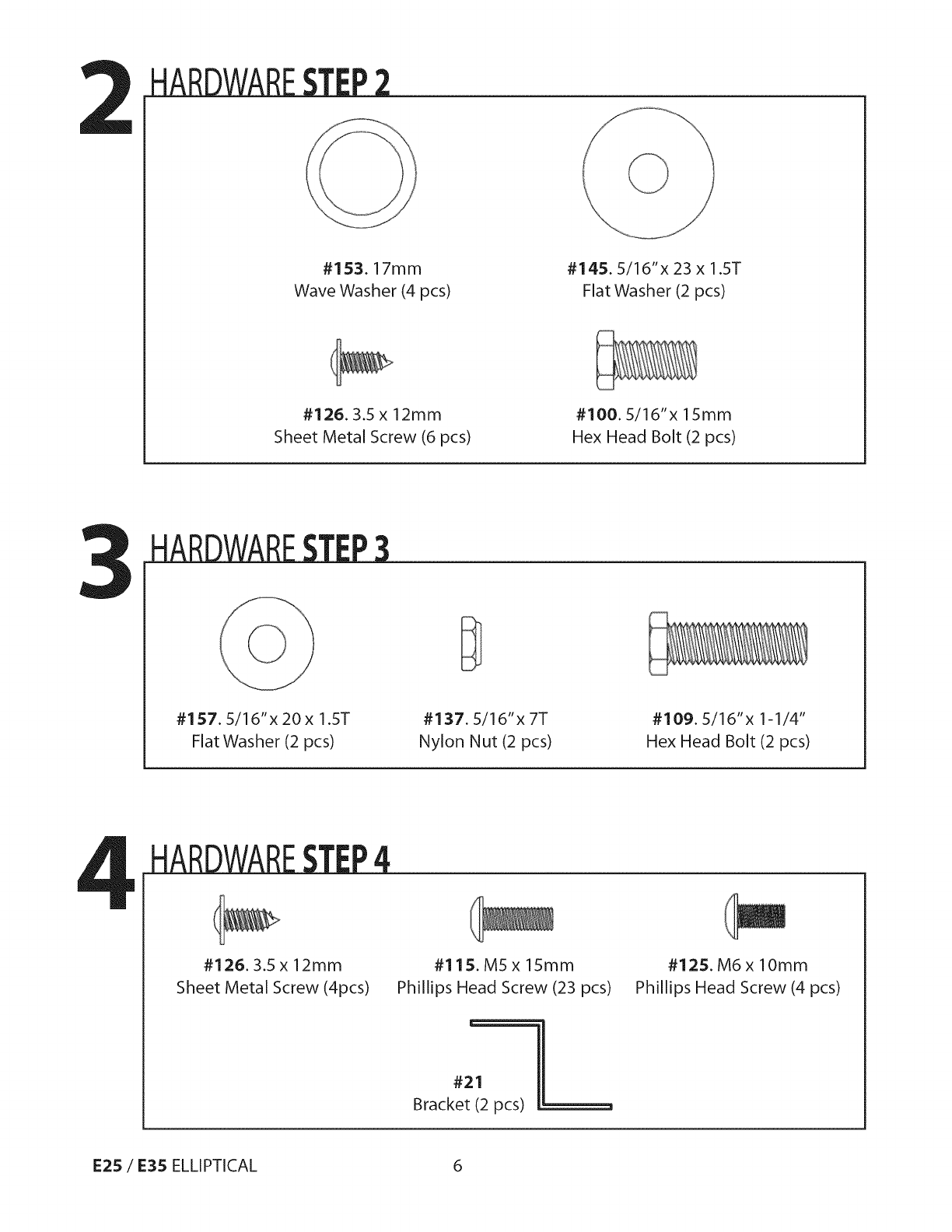

#153.17mm
Wave Washer (4 pcs)
#145.5/16"x 23 x 1.5T
Flat Washer (2 pcs)
#126.3.5 x 12mm
Sheet Metal Screw (6 pcs)
#100.5/16"x 15mm
Hex Head Bolt (2 pcs)
#157.5/16"x 20 x 1.5T
Flat Washer (2 pcs)
#137.5/16"x 7T
Nylon Nut (2 pcs)
#109.5/16"x 1-1/4"
Hex Head Bolt (2 pcs)
#126.3.5 x 12mm
Sheet Metal Screw (4pcs)
#115. M5 x 15mm
Phillips Head Screw (23 pcs)
#21
Bracket (2 pcs)
#125. M6 x 10mm
Phillips Head Screw (4 pcs)
E25 /E35 ELLIPTICAL 6
#161. PhillipsHeadScrewdriver #160.Short PhillipsHeadScrewdriver
#162.12/14mm Wrench #159. 13/14mmWrench
5ASSEMLYINSTRUCTIONS

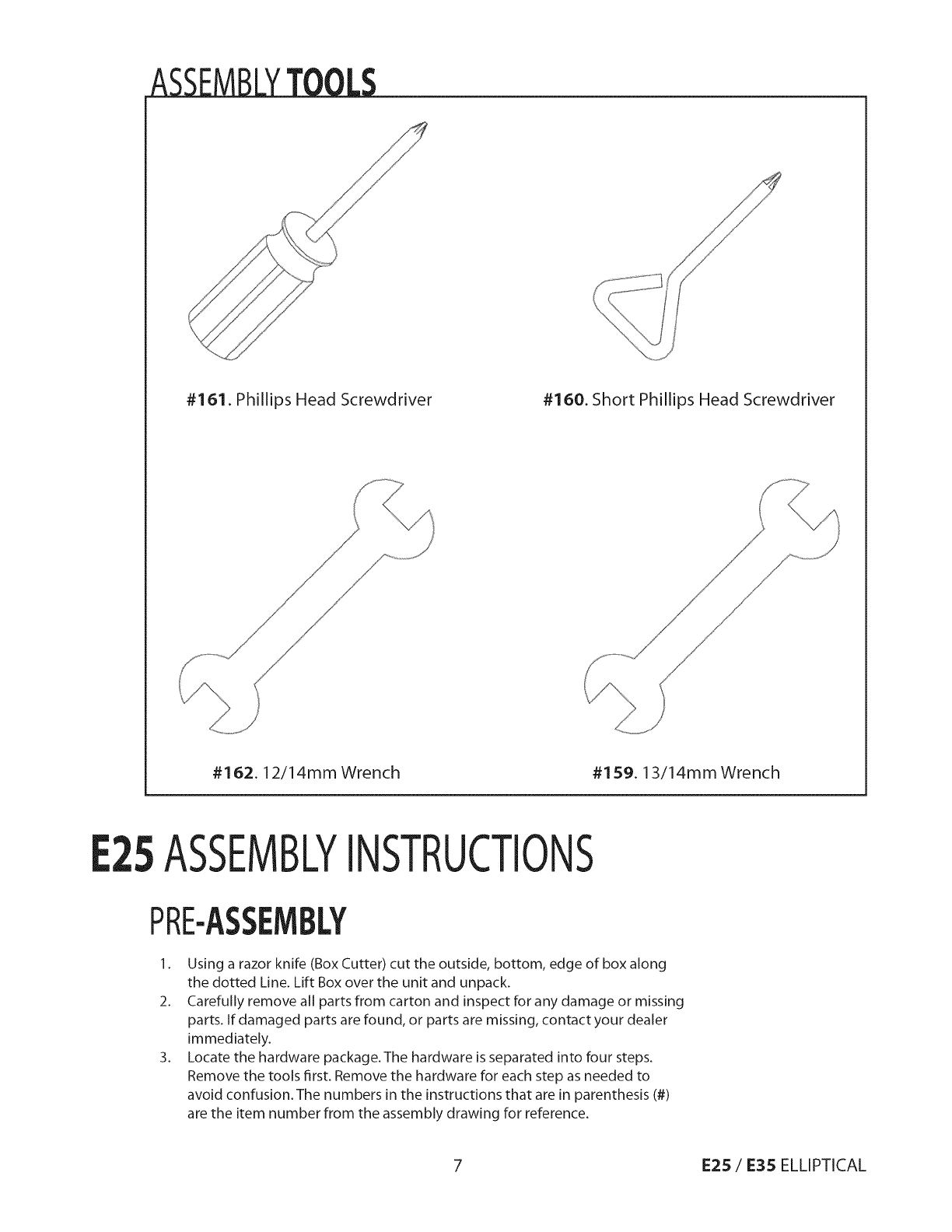

PRE-ASSEMBLY
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along
the dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing
parts. If damaged parts are found, or parts are missing, contact your dealer
immediately.

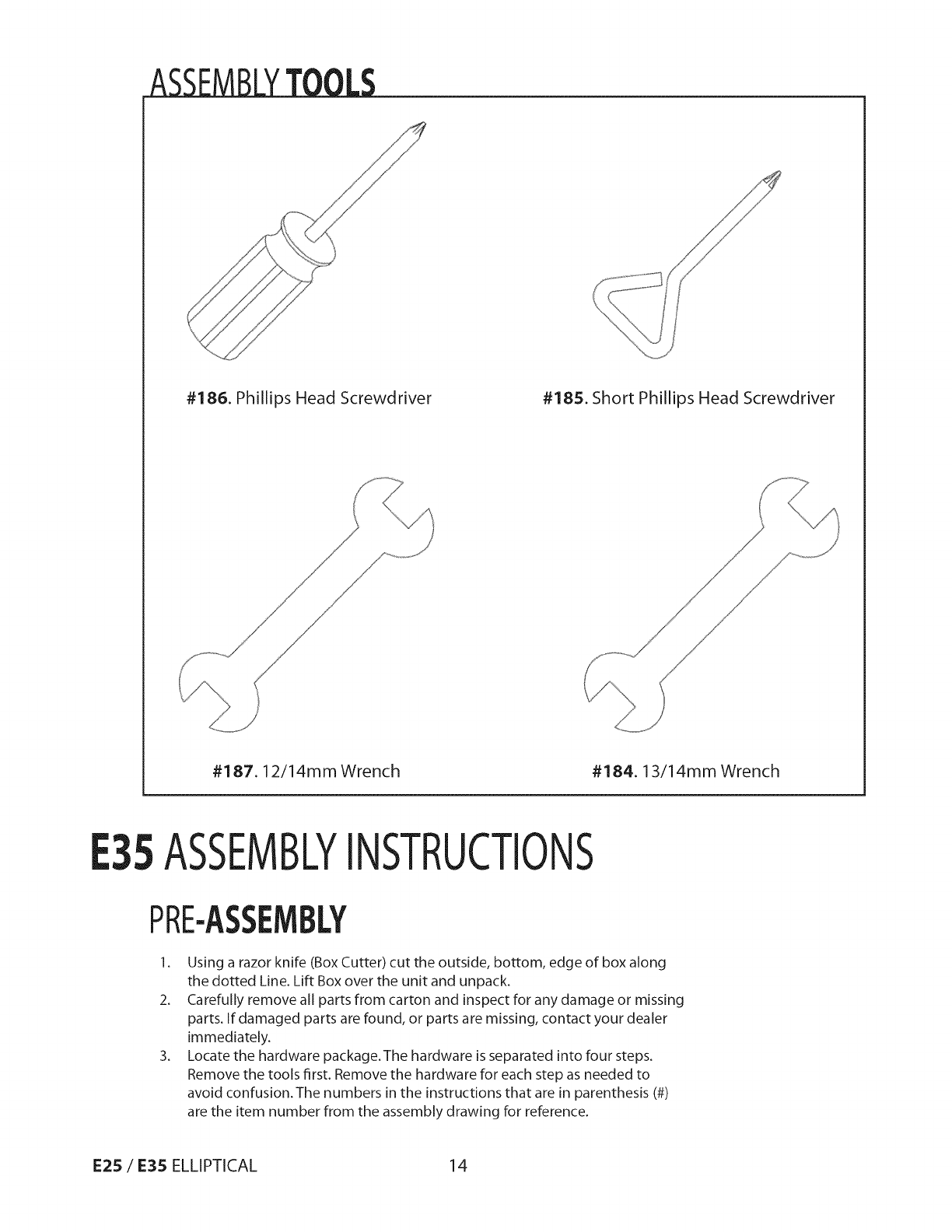

3. Locate the hardware package. The hardware is separated into four steps.
Remove the tools first. Remove the hardware for each step as needed to
avoid confusion. The numbers in the instructions that are in parenthesis (#)
are the item number from the assembly drawing for reference.
7 E25 /E35 ELLIPTICAL
INCLINE &CONSOLE

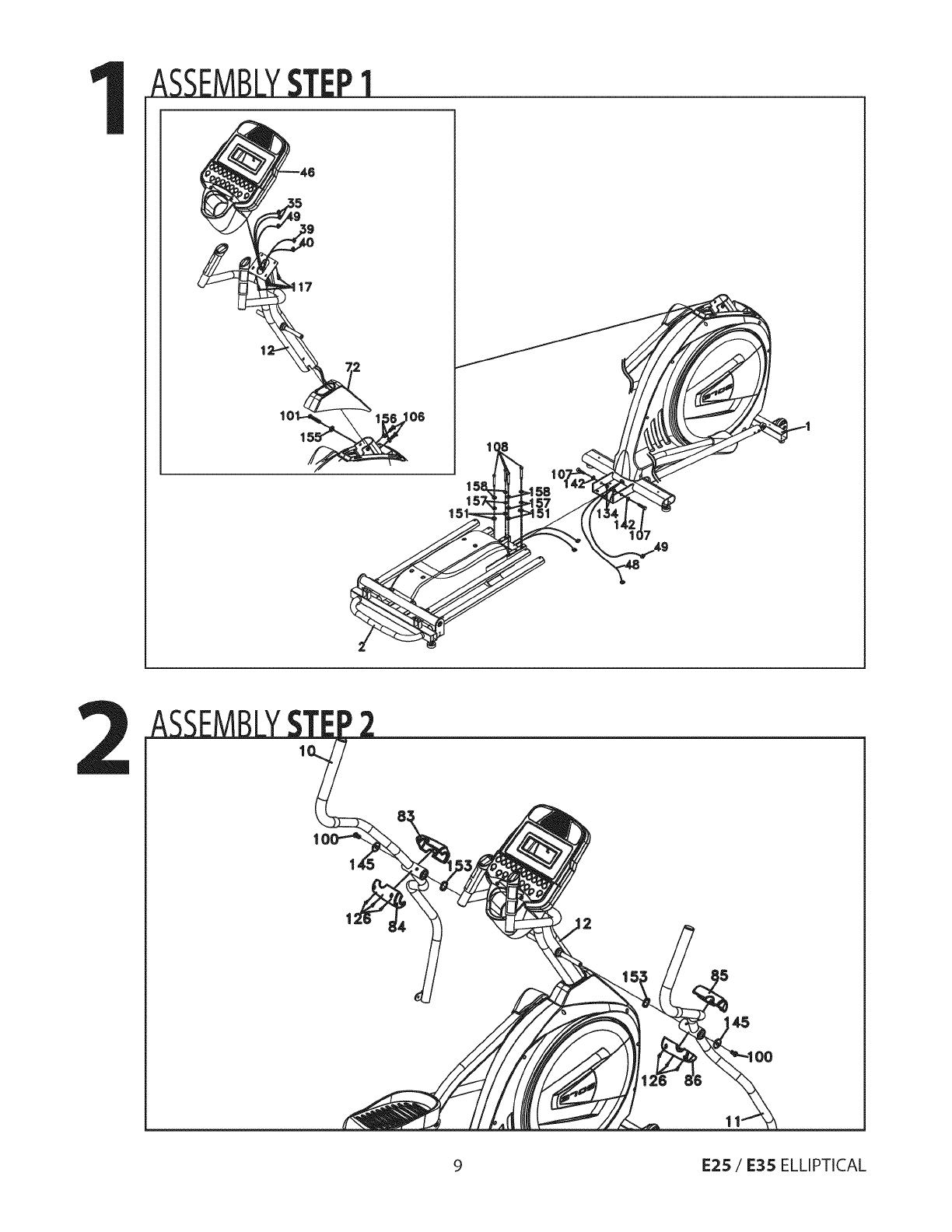

See Page 10 for illustration

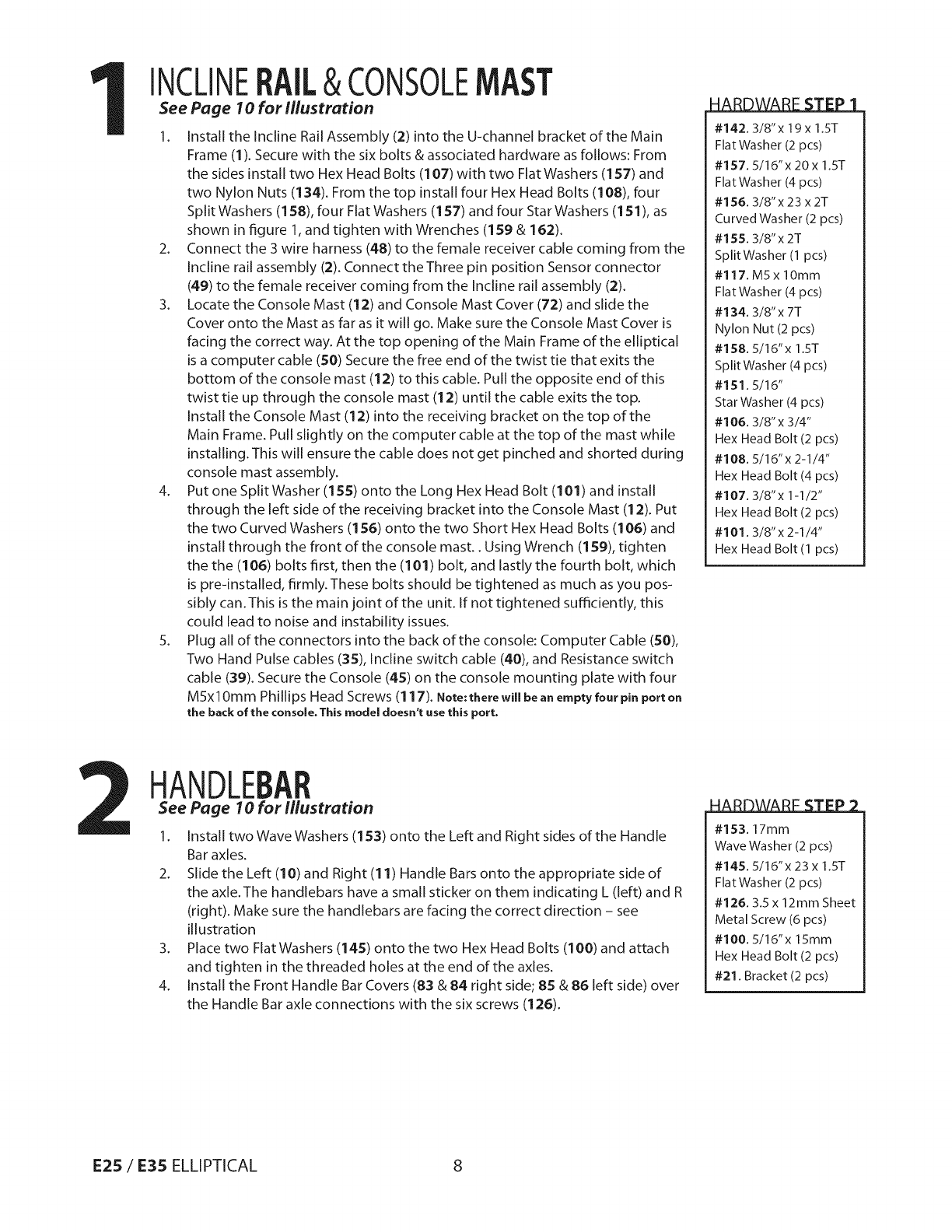

1. Install the Incline Rail Assembly (2) into the U-channel bracket of the Main
Frame (1). Secure with the six bolts & associated hardware as follows: From
the sides install two Hex Head Bolts (107) with two Flat Washers (157) and
two Nylon Nuts (134). From the top install four Hex Head Bolts (108), four
Split Washers (158), four Flat Washers (157) and four Star Washers (151), as
shown in figure 1, and tighten with Wrenches (159 & 162).
2. Connect the 3 wire harness (48) to the female receiver cable coming from the
Incline rail assembly (2). Connect the Three pin position Sensor connector
(49) to the female receiver coming from the Incline rail assembly (2).
3. Locate the Console Mast (12) and Console Mast Cover (72) and slide the
Cover onto the Mast as far as it will go. Make sure the Console Mast Cover is
facing the correct way. At the top opening of the Main Frame of the elliptical
is a computer cable (50) Secure the free end of the twist tie that exits the
bottom of the console mast (12) to this cable. Pull the opposite end of this
twist tie up through the console mast (12) until the cable exits the top.
Install the Console Mast (12) into the receiving bracket on the top of the
Main Frame. Pull slightly on the computer cable at the top of the mast while
installing. This will ensure the cable does not get pinched and shorted during
console mast assembly.
4. Put one Split Washer (155) onto the Long Hex Head Bolt (101) and install
through the left side of the receiving bracket into the Console Mast (12). Put
the two Curved Washers (156) onto the two Short Hex Head Bolts (106) and
install through the front of the console mast.. Using Wrench (159), tighten
the the (106) bolts first, then the (101) bolt, and lastly the fourth bolt, which
is pre-installed, firmly. These bolts should be tightened as much as you pos-
sibly can. This is the main joint of the unit. If not tightened sufficiently, this
could lead to noise and instability issues.
5. Plug all of the connectors into the back of the console: Computer Cable (50),
Two Hand Pulse cables (35), Incline switch cable (40), and Resistance switch
cable (39). Secure the Console (45) on the console mounting plate with four
MSxlOmm Phillips Head Screws (117). Note: there will be anempty four pin port on
the back of the console. This model doesn't use this port.
#142.3/8"x 19x 1.5T
Flat Washer (2 pcs)
#157.5/16"x 20 x 1.ST
Flat Washer (4 pcs)
#156. 3/8"x 23 x 2T
Curved Washer (2 pcs)
#155.3/8"x 2T
Split Washer (1 pcs)
#117. M5 x lOmm
Flat Washer (4 pcs)
#134. 3/8"x 7T
Nylon Nut (2 pcs)
#158. 5/16"x 1.5T
Split Washer (4 pcs)
#151.5/16"
Star Washer (4 pcs)
#106. 3/8"x 3/4"
Hex Head Bolt (2 pcs)
#108.5/16"x 2-1/4"
Hex Head Bolt (4 pcs)
#107.3/8"x 1-1/2"
Hex Head Bolt (2 pcs)
#101.3/8"x 2-1/4"
Hex Head Bolt (1 pcs)
HANDLE
See Page 10 for illustration
1. Install two Wave Washers (153) onto the Left and Right sides of the Handle
Bar axles.
2. Slide the Left (1O)and Right (11) Handle Bars onto the appropriate side of
the axle.The handlebars have a small sticker on them indicating L (left) and R
(right). Make sure the handlebars are facing the correct direction - see
illustration
3. Place two Flat Washers (145) onto the two Hex Head Bolts (100) and attach
and tighten in the threaded holes at the end of the axles.
4. Install the Front Handle Bar Covers (83 & 84 right side; 85 & 86 left side) over
the Handle Bar axle connections with the six screws (126).
#153.17rnm
Wave Washer (2 pcs)
#145.5/16"x 23 x 1.ST
Flat Washer (2 pcs)
#126. 3.5 x 12mm Sheet
Metal Screw (6 pcs)
#100. 5/16"x 15rnm
Hex Head Bolt (2 pcs)
#21. Bracket (2 pcs)
E25 /E35 ELLIPTICAL 8
ASSEMBLYSTEP1
9E25 /E35 ELLIPTICAL
CONNECTING
See Page 12 for illustration
1. 1. Untie the wire holding the Sleeve Spacer (25) in place on the rod-end
of the Connecting Arms (8 & 9). Align the hole in the rod ends with the hole
in the brackets of the left and right Handle Bar (10 & 11).The end of
connecting arms should be positioned on the inside of the Handle Bar
bracket. Secure with a Hex Head bolt (109), Flat Washer (157) and Nylon Nut
(137) by using the Wrenches provided (159 & 162).
#157..5/16" x 20 x 1.ST
Flat Washer (2 pcs)
#137.5/16"x 7T
Nylon Nut (2 pcs)
#109.5/16"x 1-1/4"
Hex Head Bolt (2 pcs)

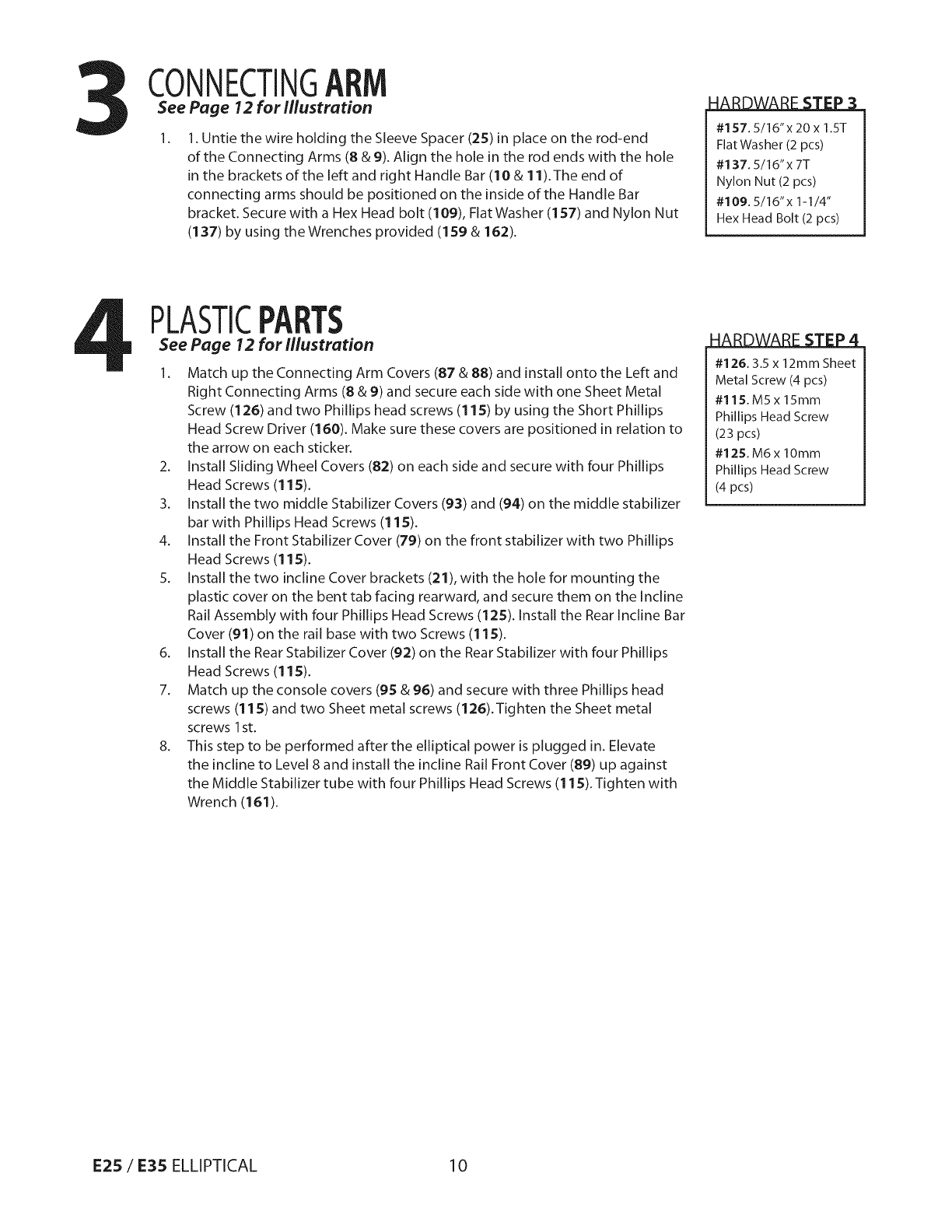

PLASTIC
See Page 12 for illustration
1. Match up the Connecting Arm Covers (87 & 88) and install onto the Left and
Right Connecting Arms (8 & 9) and secure each side with one Sheet Metal
Screw (126) and two Phillips head screws (115) by using the Short Phillips
Head Screw Driver (160). Make sure these covers are positioned in relation to
the arrow on each sticker.
2. Install Sliding Wheel Covers (82) on each side and secure with four Phillips
Head Screws (115).
3. Install the two middle Stabilizer Covers (93) and (94) on the middle stabilizer
bar with Phillips Head Screws (115).
4. Install the Front Stabilizer Cover (79) on the front stabilizer with two Phillips
Head Screws (115).
5. Install the two incline Cover brackets (21), with the hole for mounting the
plastic cover on the bent tab facing rearward, and secure them on the Incline
Rail Assembly with four Phillips Head Screws (125). Install the Rear Incline Bar
Cover (91) on the rail base with two Screws (115).
6. Install the Rear Stabilizer Cover (92) on the Rear Stabilizer with four Phillips
Head Screws (115).
7. Match up the console covers (95 & 96) and secure with three Phillips head
screws (115) and two Sheet metal screws (126). Tighten the Sheet metal
screws 1st.
8. This step to be performed after the elliptical power is plugged in. Elevate
the incline to Level 8 and install the incline Rail Front Cover (89) up against
the Middle Stabilizer tube with four Phillips Head Screws (115). Tighten with
Wrench (161).
•
#126.3.5 x 12mm Sheet
Metal Screw (4 pcs)
#115. M5 x 15mm
Phillips Head Screw
(23 pcs)
#125. M6x lOmm
Phillips Head Screw
(4 pcs)
E25 /E35 ELLIPTICAL 10

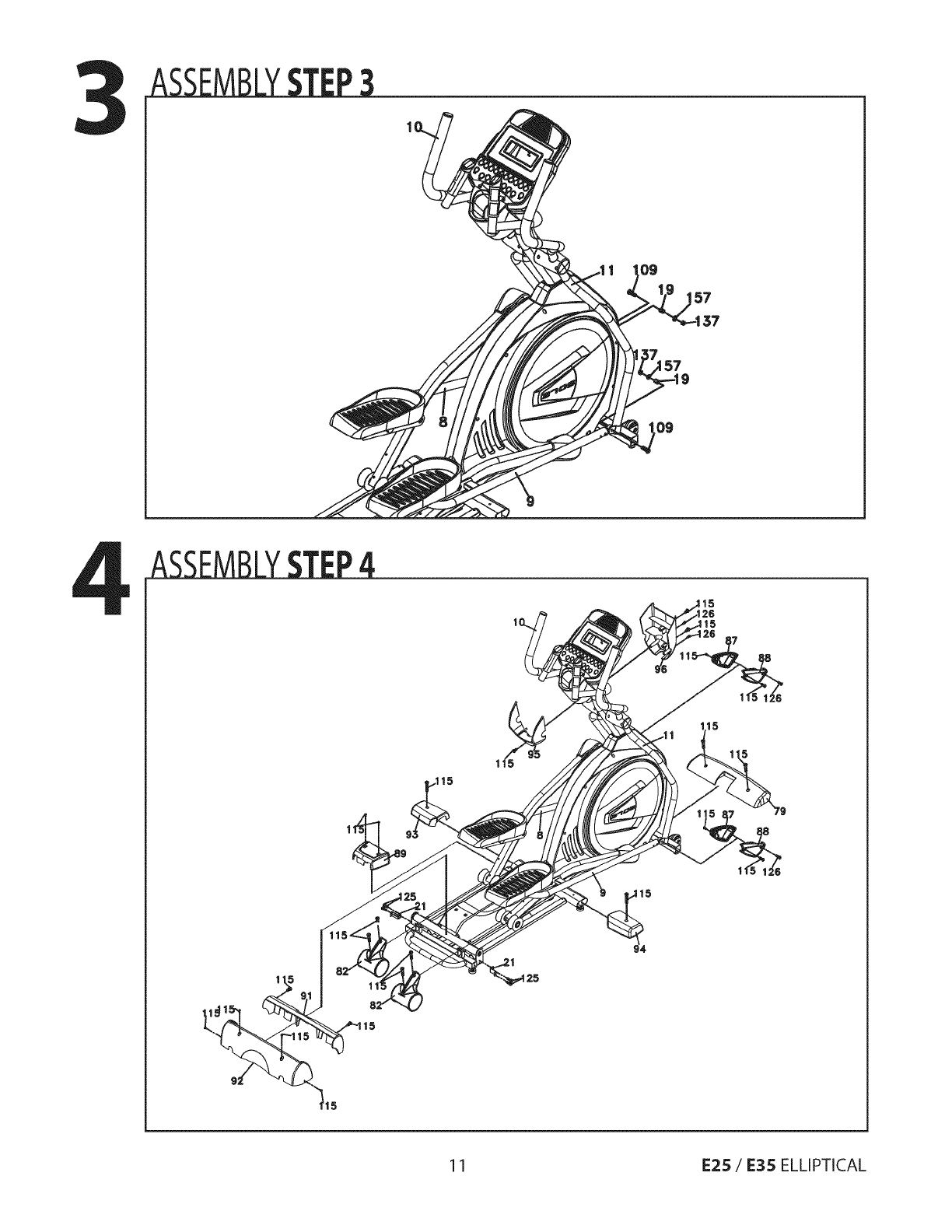

ASSEMBLYSTEP3
09
_57
37
11 E25 /E35 ELLIPTICAL

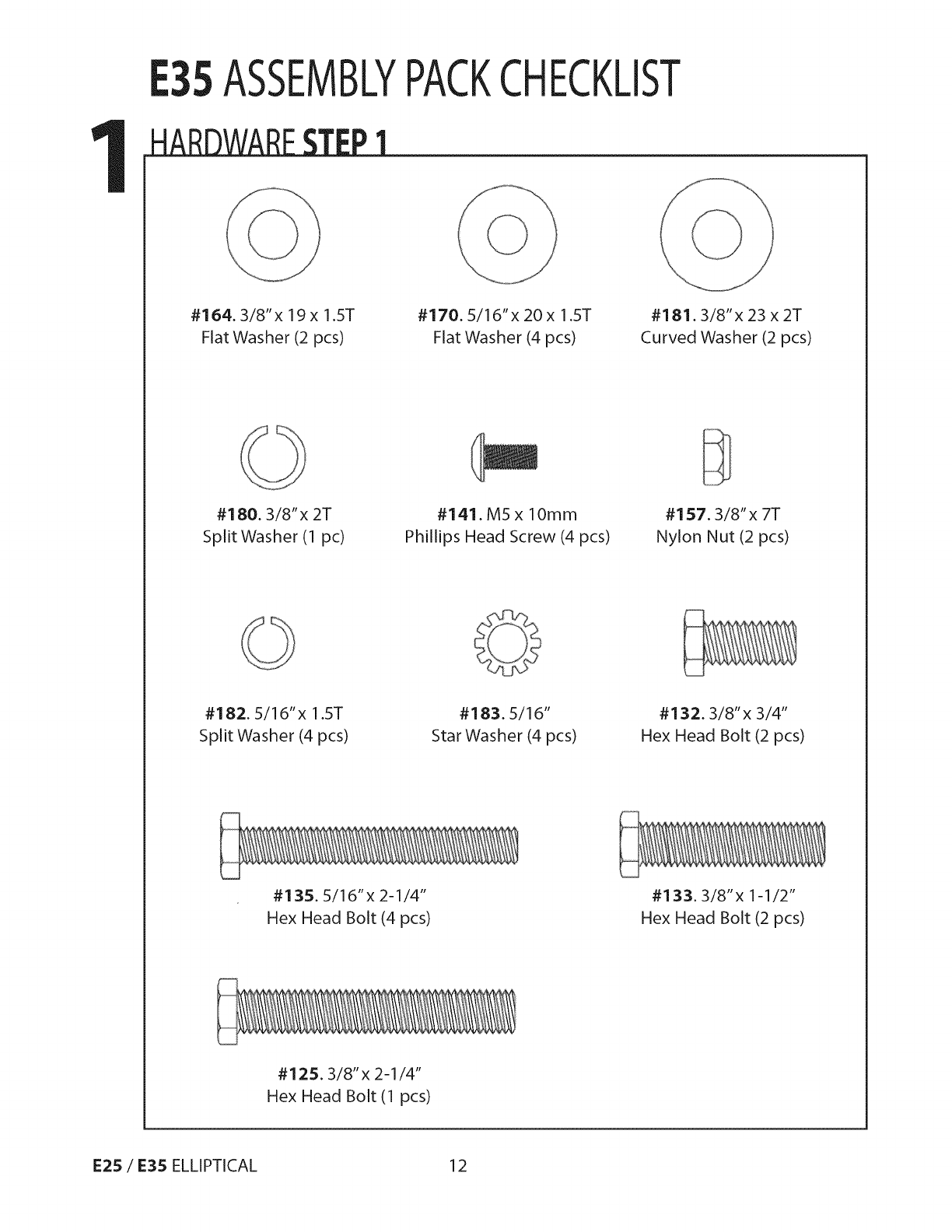

ASSEMBLYPACKCHECKLIST
#164. 3/8" x 19 x 1.ST
Flat Washer (2 pcs)
#170.5/16"x 20 x 1.5T
Flat Washer (4 pcs)
#181.3/8"x 23 x 2T
Curved Washer (2 pcs)
#180.3/8"x 2T
Split Washer (1 pc)
#141. M5 x lOmm
Phillips Head Screw (4 pcs)
#157.3/8" x 7T
Nylon Nut (2 pcs)
#182.5/16"x 1.5T
Split Washer (4 pcs)
#183.5/16"
Star Washer (4 pcs)
#132.3/8"x 3/4"
Hex Head Bolt (2 pcs)
#13,5.5/16"x 2-1/4"
Hex Head Bolt (4 pcs)
#133.3/8"x 1-1/2"
Hex Head Bolt (2 pcs)
#125.3/8"x 2-1/4"
Hex Head Bolt (1 pcs)
E25 /E35 ELLIPTICAL 12
#175.25m m
Wave Washer (4 pcs)
#165.3/8"x 30 x 2T
Flat Washer (2 pcs)
#75. Rubber Grommet
(2 pcs)
#142.3.5 x 12mm
Sheet Metal Screw (8 pcs)
#132.3/8"x 3/4"
Hex Head Bolt (2 pcs)
#170.5/16"x 20 x 1.5T
Flat Washer (2 pcs)
#159.5/16"x 7T
Nylon Nut (2 pcs)
#134. 5/16"x 1-1/4"
Hex Head Bolt (2 pcs)

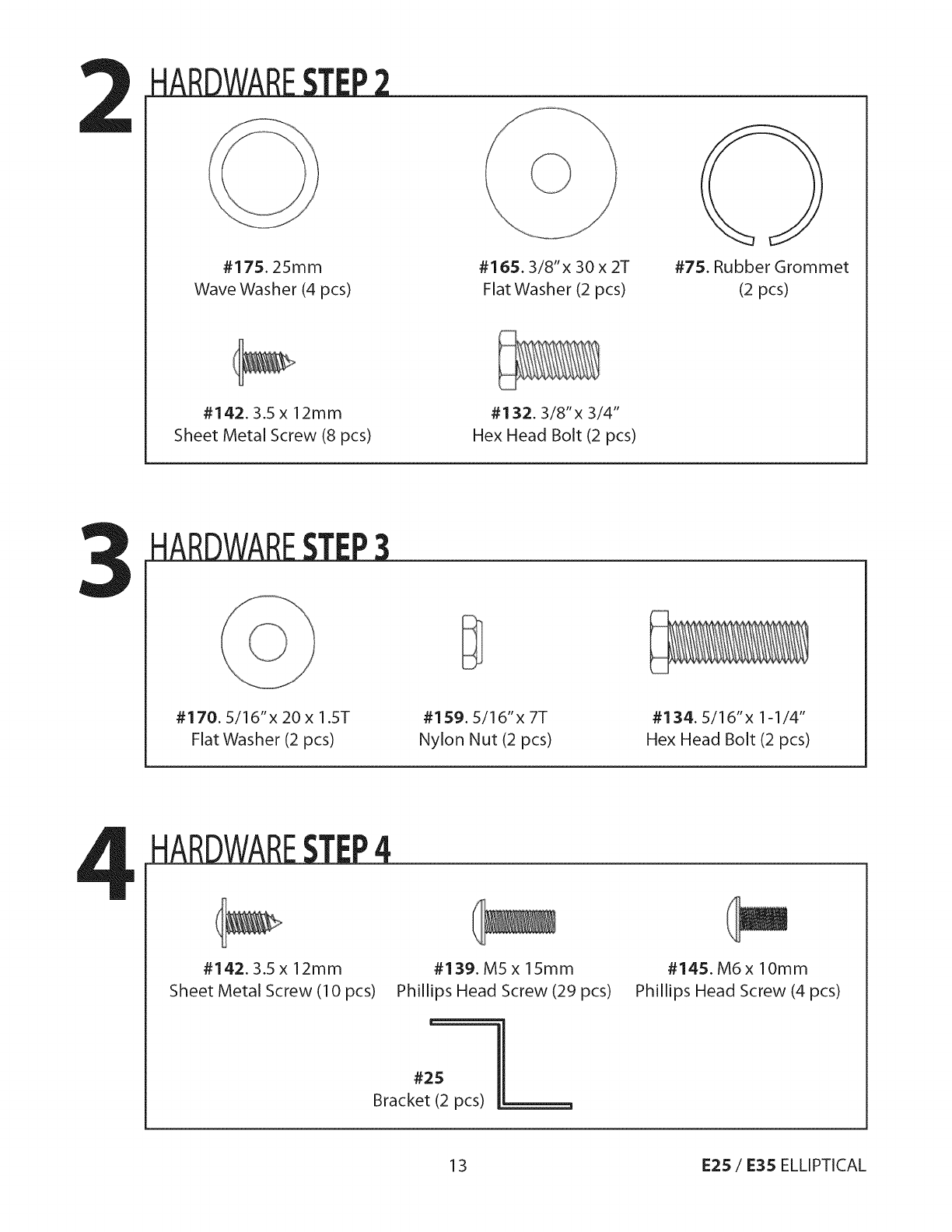

HARDWARE
#142.3.5 x 12mm
Sheet Metal Screw (10 pcs)
4
#139. M5 x 15mm
Phillips Head Screw (29 pcs)
#25
Bracket (2 pcs)
#145. M6x lOmm
Phillips Head Screw (4 pcs)
13 E2S /E3S ELLIPTICAL
#186. PhillipsHeadScrewdriver #185. ShortPhillipsHeadScrewdriver
#187.12/14mm Wrench #184. 13/14mmWrench
ASSEMLYINSTRUCTIONS
PRE-ASSEMBLY
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along
the dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing
parts. If damaged parts are found, or parts are missing, contact your dealer
immediately.
3. Locate the hardware package. The hardware is separated into four steps.
Remove the tools first. Remove the hardware for each step as needed to
avoid confusion. The numbers in the instructions that are in parenthesis (#)
are the item number from the assembly drawing for reference.
E25 /E35 ELLIPTICAL 14

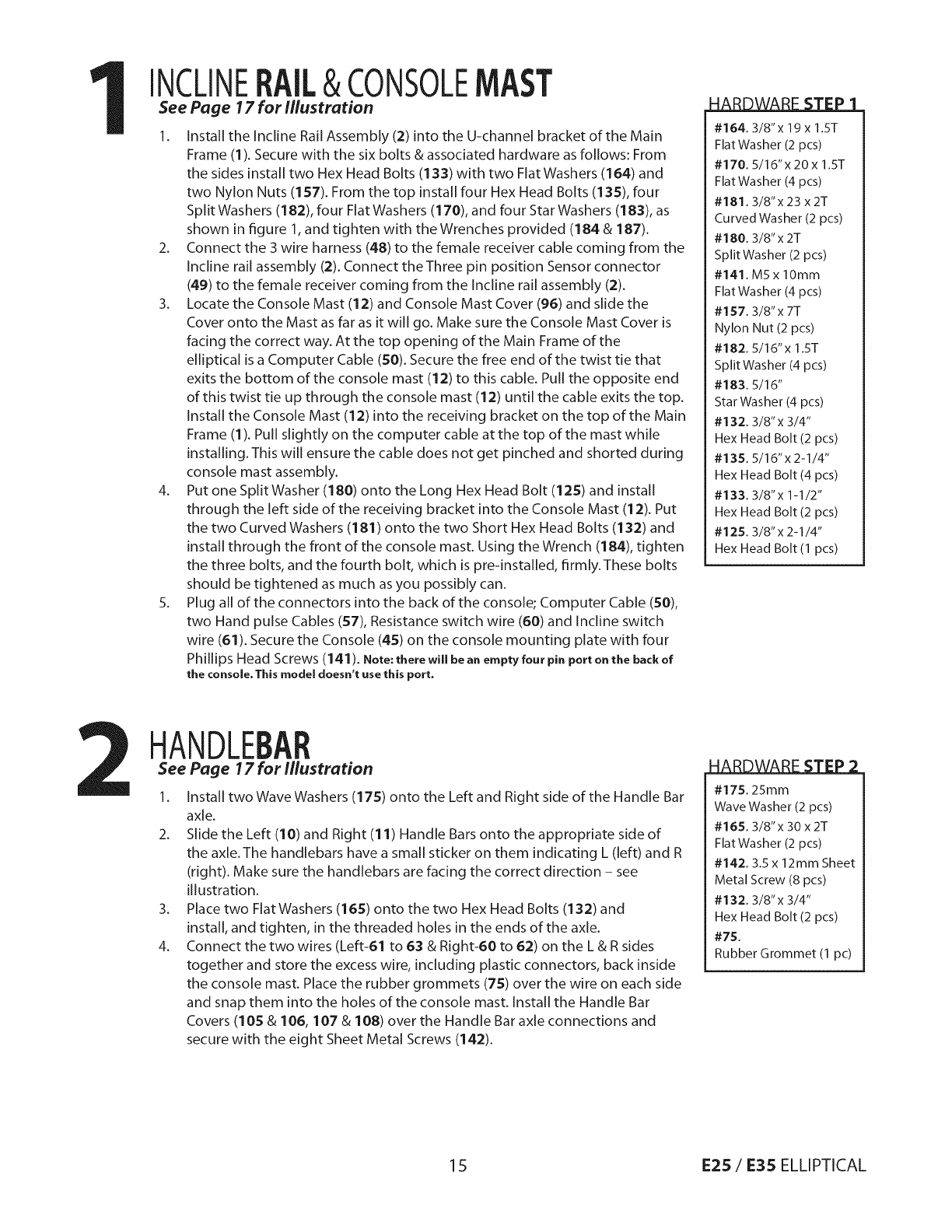

INCLINE &CONSOLE
See Page 17 for illustration

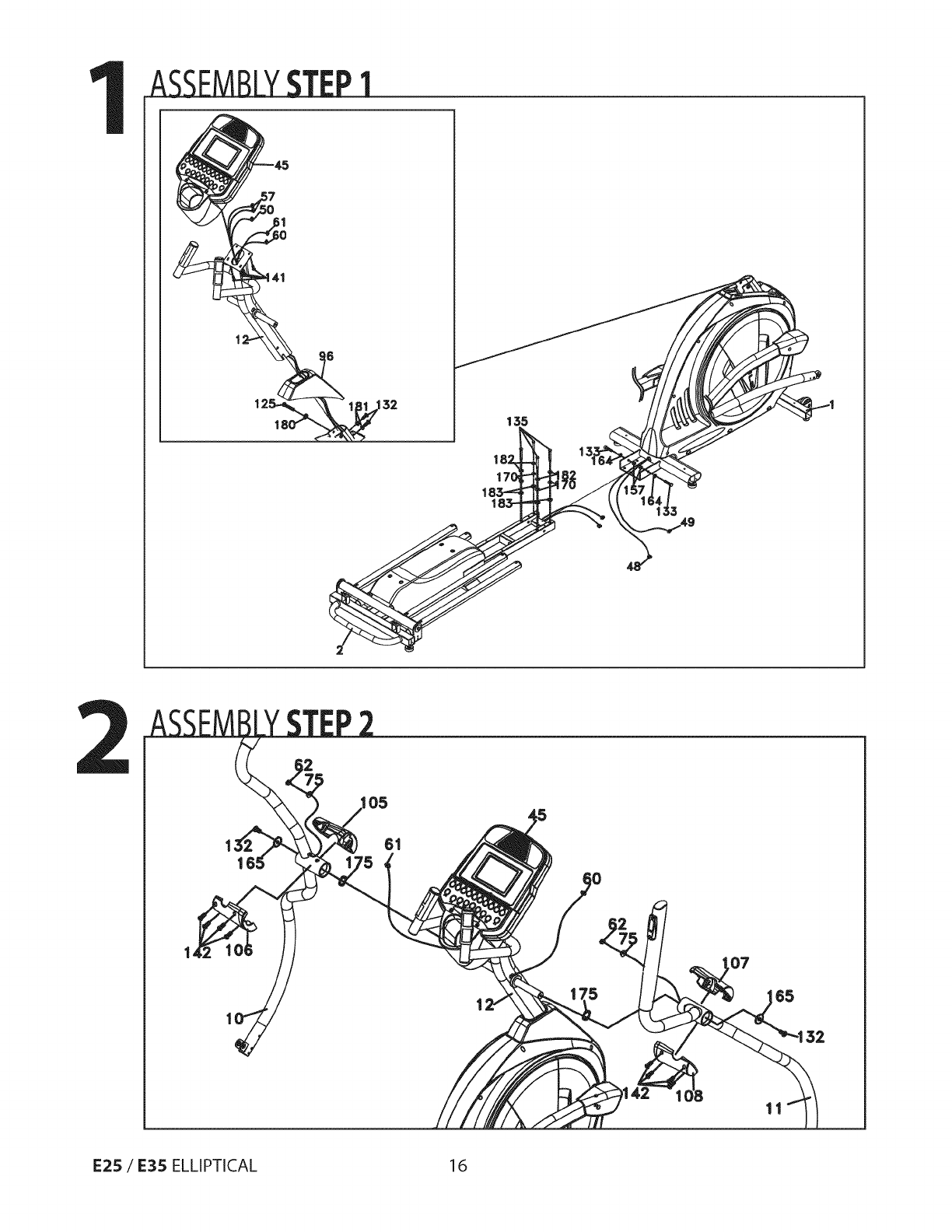

1. Install the Incline Rail Assembly (:2)into the U-channel bracket of the Main
Frame (1). Secure with the six bolts & associated hardware as follows: From
the sides install two Hex Head Bolts (133) with two Flat Washers (164) and
two Nylon Nuts (157). From the top install four Hex Head Bolts (135), four
Split Washers (182), four Flat Washers (170), and four Star Washers (183), as
shown in figure 1, and tighten with the Wrenches provided (184 & 187).
2. Connect the 3 wire harness (48) to the female receiver cable coming from the
Incline rail assembly (:2).Connect the Three pin position Sensor connector
(49) to the female receiver coming from the Incline rail assembly (2).
3. Locate the Console Mast (1:2) and Console Mast Cover (96) and slide the
Cover onto the Mast as far as it will go. Make sure the Console Mast Cover is
facing the correct way. At the top opening of the Main Frame of the
elliptical is a Computer Cable (50). Secure the free end of the twist tie that
exits the bottom of the console mast (12) to this cable. Pull the opposite end
of this twist tie up through the console mast (1:2) until the cable exits the top.
Install the Console Mast (1:2) into the receiving bracket on the top of the Main
Frame (1). Pull slightly on the computer cable at the top of the mast while
installing. This will ensure the cable does not get pinched and shorted during
console mast assembly.
4. Put one Split Washer (180) onto the Long Hex Head Bolt (1:25) and install
through the left side of the receiving bracket into the Console Mast (1:2). Put
the two Curved Washers (181) onto the two Short Hex Head Bolts (132) and
install through the front of the console mast. Using the Wrench (184), tighten
the three bolts, and the fourth bolt, which is pre-installed, firmly.These bolts
should be tightened as much as you possibly can.
5. Plug all of the connectors into the back of the console; Computer Cable (50),
two Hand pulse Cables (57), Resistance switch wire (60) and Incline switch
wire (61). Secure the Console (45) on the console mounting plate with four
Phillips Head Screws (141). Note: there will be an empty four pin port on the back of
the console. This model doesn't use this port.
#164. 3/8"x 19x 1.5T
Flat Washer (2 pcs)
#170. 5/16"x 20 x 1.ST
Flat Washer (4 pcs)
#181.3/8"x 23 x 2T
Curved Washer (2 pcs)
#180. 3/8"x 2T
Split Washer (2 pcs)
#141. M5 x lOmm
Flat Washer (4 pcs)
#157.3/8"x 7T
Nylon Nut (2 pcs)
#182.5/16"x 1.ST
Split Washer (4 pcs)
#183.5/16"
Star Washer (4 pcs)
#1:32.3/8"x 3/4"
Hex Head Bolt (2 pcs)
#135.5/16"x 2-1/4"
Hex Head Bolt (4 pcs)
#1:33.3/8"x 1-1/2"
Hex Head Bolt (2 pcs)
#125.3/8"x 2-1/4"
Hex Head Bolt (1 pcs)
HANDLEBAR
See Page 17 for illustration
1. Install two Wave Washers (175) onto the Left and Right side of the Handle Bar
axle.
2. Slide the Left (1O) and Right (11) Handle Bars onto the appropriate side of
the axle.The handlebars have a small sticker on them indicating L (left) and R
(right). Make sure the handlebars are facing the correct direction - see
illustration.
3. Place two Flat Washers (165) onto the two Hex Head Bolts (132) and
install, and tighten, in the threaded holes in the ends of the axle.
4. Connect the two wires (Left-61 to 63 & Right-60 to 6:2) on the L & R sides
together and store the excess wire, including plastic connectors, back inside
the console mast. Place the rubber grommets (75) over the wire on each side
and snap them into the holes of the console mast. Install the Handle Bar
Covers (105 & 106, 107 & 108) over the Handle Bar axle connections and
secure with the eight Sheet Metal Screws (142).
#175.25ram
WaveWasher (2 pcs)
#165.3/8"x 30 x 2T
Flat Washer (2 pcs)
#142.3.5 x 12ram Sheet
Metal Screw (8 pcs)
#1:32.3/8"x 3/4"
Hex Head Bolt (2 pcs)
#75.
Rubber Grommet (1 pc)
15 E25 /E35 ELLIPTICAL
07
65
E25 /E35 ELLIPTICAL 16

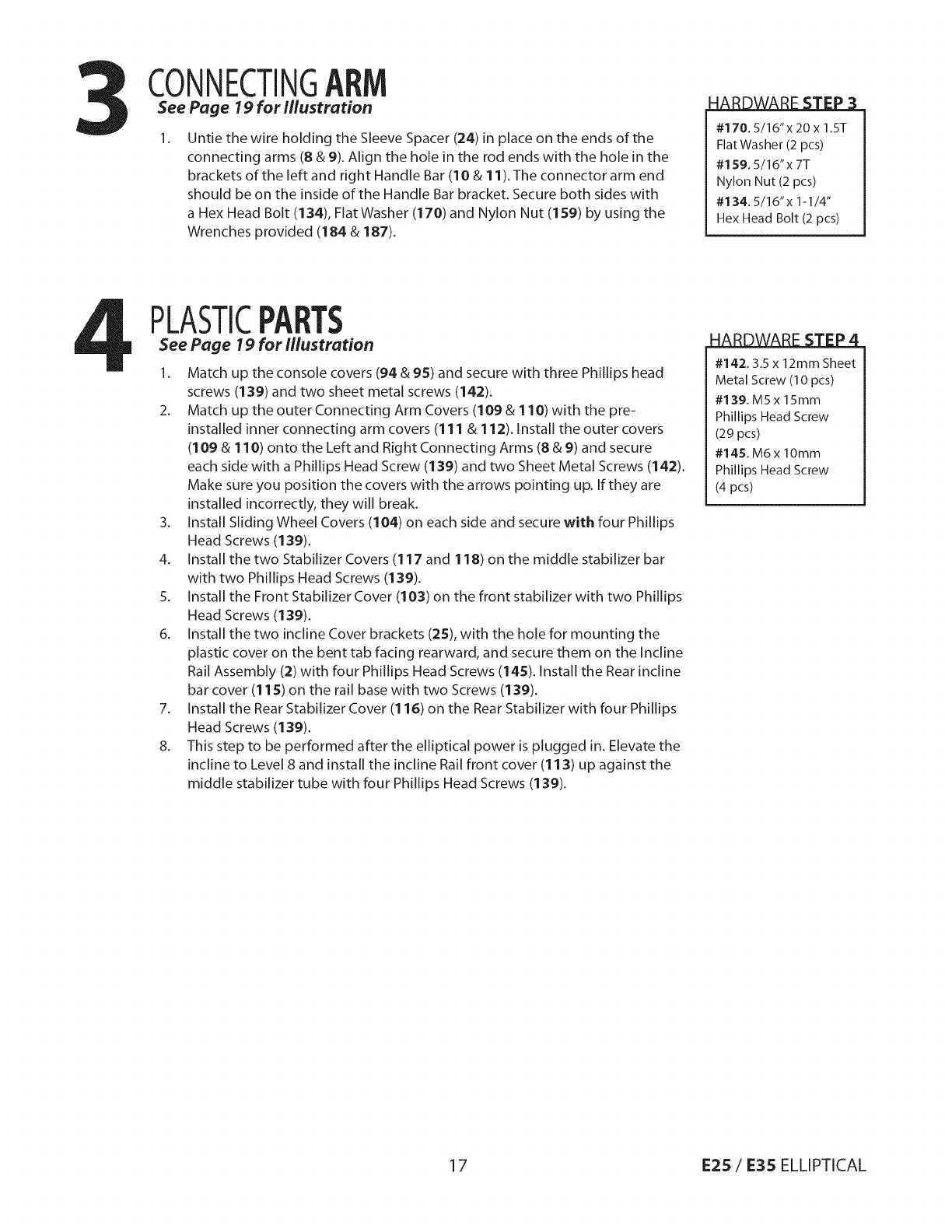

CONNECTING
See Page 19 for illustration
1. Untie the wire holding the Sleeve Spacer (24) in place on the ends of the
connecting arms (8 & 9). Align the hole in the rod ends with the hole in the
brackets of the left and right Handle Bar (10 & 11). The connector arm end
should be on the inside of the Handle Bar bracket. Secure both sides with
a Hex Head Bolt (134), Flat Washer (170) and Nylon Nut (159) by using the
Wrenches provided (184 & 187).
#170.5/16" x 20 x 1.5T
Flat Washer (2 pcs)
#159.5/16"x 7T
Nylon Nut (2 pcs)
#134.5/16"x 1-1/4"
Hex Head Bolt (2 pcs)
PLASTIC
See Page 19 for illustration
1. Match up the console covers (94 & 95) and secure with three Phillips head
screws (139) and two sheet metal screws (142).
2. Match up the outer Connecting Arm Covers (109 & 11 O) with the pre-
installed inner connecting arm covers (111 & 112). Install the outer covers
(109 & 11 O)onto the Left and Right Connecting Arms (8 & 9) and secure
each side with a Phillips Head Screw (139) and two Sheet Metal Screws (142).
Make sure you position the covers with the arrows pointing up. If they are
installed incorrectly, they will break.
3. Install Sliding Wheel Covers (104) on each side and secure with four Phillips
Head Screws (139).
4. Install the two Stabilizer Covers (117 and 118) on the middle stabilizer bar
with two Phillips Head Screws (139).
5. Install the Front Stabilizer Cover (103) on the front stabilizer with two Phillips
Head Screws (139).
6. Install the two incline Cover brackets (25), with the hole for mounting the
plastic cover on the bent tab facing rearward, and secure them on the Incline
Rail Assembly (2) with four Phillips Head Screws (145). Install the Rear incline
bar cover (115) on the rail base with two Screws (139).
7. Install the Rear Stabilizer Cover (116) on the Rear Stabilizer with four Phillips
Head Screws (139).
8. This step to be performed after the elliptical power is plugged in. Elevate the
incline to Level 8 and install the incline Rail front cover (113) up against the
middle stabilizer tube with four Phillips Head Screws (139).
•
#142.3.5 x 12mm Sheet
Metal Screw (10 pcs)
#139. M5 x 15mm
Phillips Head Screw
(29 pcs)
#145. M6 x lOmm
Phillips Head Screw
(4 pcs)
17 E25 /E35 ELLIPTICAL

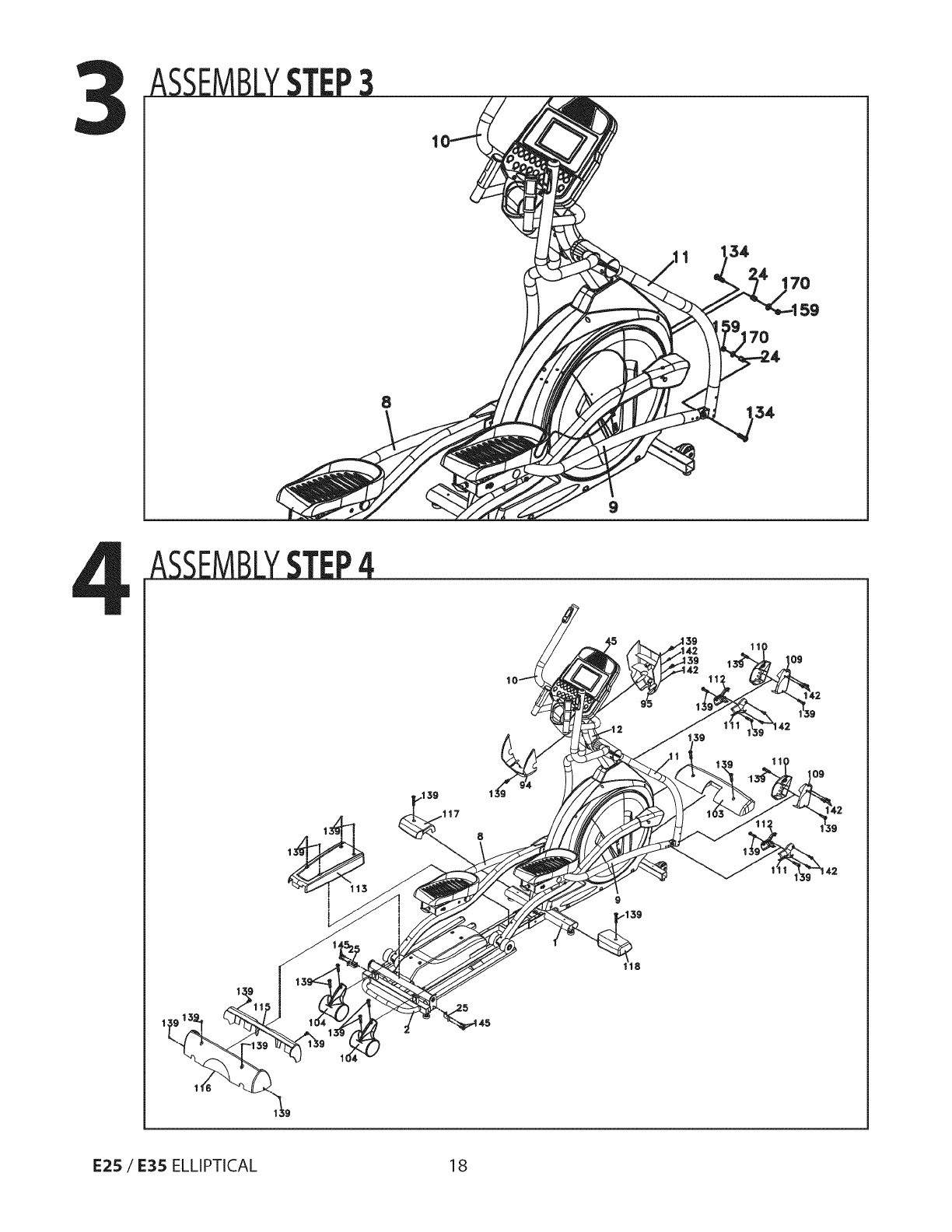

ASSEMBLYSTEP_
E25 /E35 ELLiPTiCAL 18

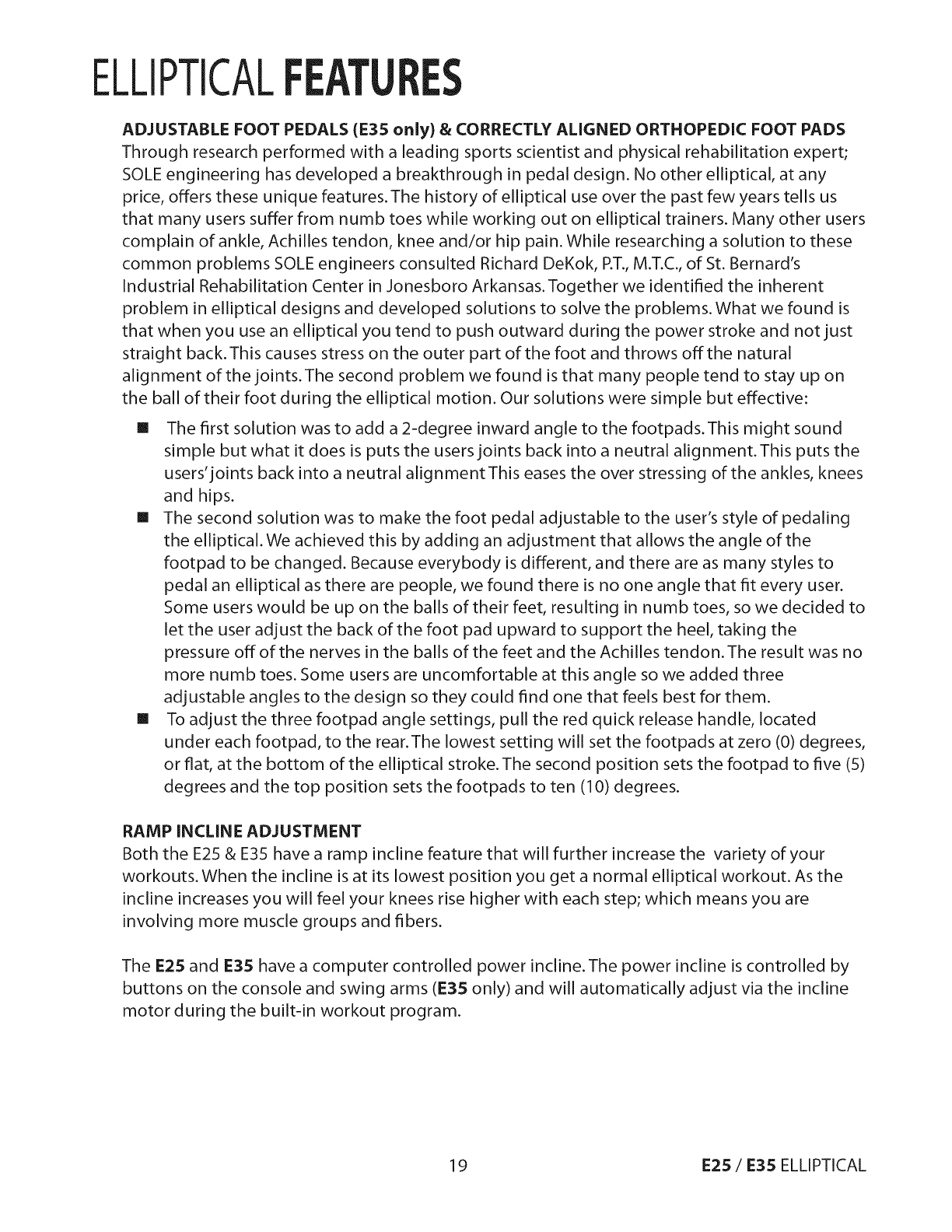

ELLIPTICAL
ADJUSTABLE FOOT PEDALS (E35 only) &CORRECTLY ALIGNED ORTHOPEDIC FOOT PADS
Through research performed with a leading sports scientist and physical rehabilitation expert;
SOLE engineering has developed a breakthrough in pedal design. No other elliptical, at any
price, offers these unique features. The history of elliptical use over the past few years tells us
that many users suffer from numb toes while working out on elliptical trainers. Many other users
complain of ankle, Achilles tendon, knee and/or hip pain. While researching a solution to these
common problems SOLE engineers consulted Richard DeKok, RT., M.T.C., of St. Bernard's
Industrial Rehabilitation Center in Jonesboro Arkansas.Together we identified the inherent
problem in elliptical designs and developed solutions to solve the problems.What we found is
that when you use an elliptical you tend to push outward during the power stroke and not just
straight back.This causes stress on the outer part of the foot and throws offthe natural
alignment of the joints.The second problem we found is that many people tend to stay up on
the ball of their foot during the elliptical motion. Our solutions were simple but effective:
II The first solution was to add a 2-degree inward angle to the footpads. This might sound
simple but what it does is puts the users joints back into a neutral alignment.This puts the
users'joints back into a neutral alignment This eases the over stressing of the ankles, knees
and hips.
II The second solution was to make the foot pedal adjustable to the user's style of pedaling
the elliptical. We achieved this by adding an adjustment that allows the angle of the
footpad to be changed. Because everybody is different, and there are as many styles to
pedal an elliptical as there are people, we found there is no one angle that fit every user.
Some users would be up on the balls of their feet, resulting in numb toes, so we decided to
let the user adjust the back of the foot pad upward to support the heel, taking the
pressure off of the nerves in the balls of the feet and the Achilles tendon.The result was no
more numb toes. Some users are uncomfortable at this angle so we added three
adjustable angles to the design so they could find one that feels best for them.
II To adjust the three footpad angle settings, pull the red quick release handle, located
under each footpad, to the rear.The lowest setting will set the footpads at zero (0) degrees,
or fiat, at the bottom of the elliptical stroke.The second position sets the footpad to five (5)
degrees and the top position sets the footpads to ten (10) degrees.
RAMP INCLINE ADJUSTMENT
Both the E25 & E35 have a ramp incline feature that will further increase the variety of your
workouts. When the incline is at its lowest position you get a normal elliptical workout. As the
incline increases you will feel your knees rise higher with each step; which means you are
involving more muscle groups and fibers.
The E25 and E35 have a computer controlled power incline.The power incline is controlled by
buttons on the console and swing arms (E35 only) and will automatically adjust via the incline
motor during the built-in workout program.
19 E25 /E35 ELLIPTICAL
OPERATIONOFYOU [IPTICAL

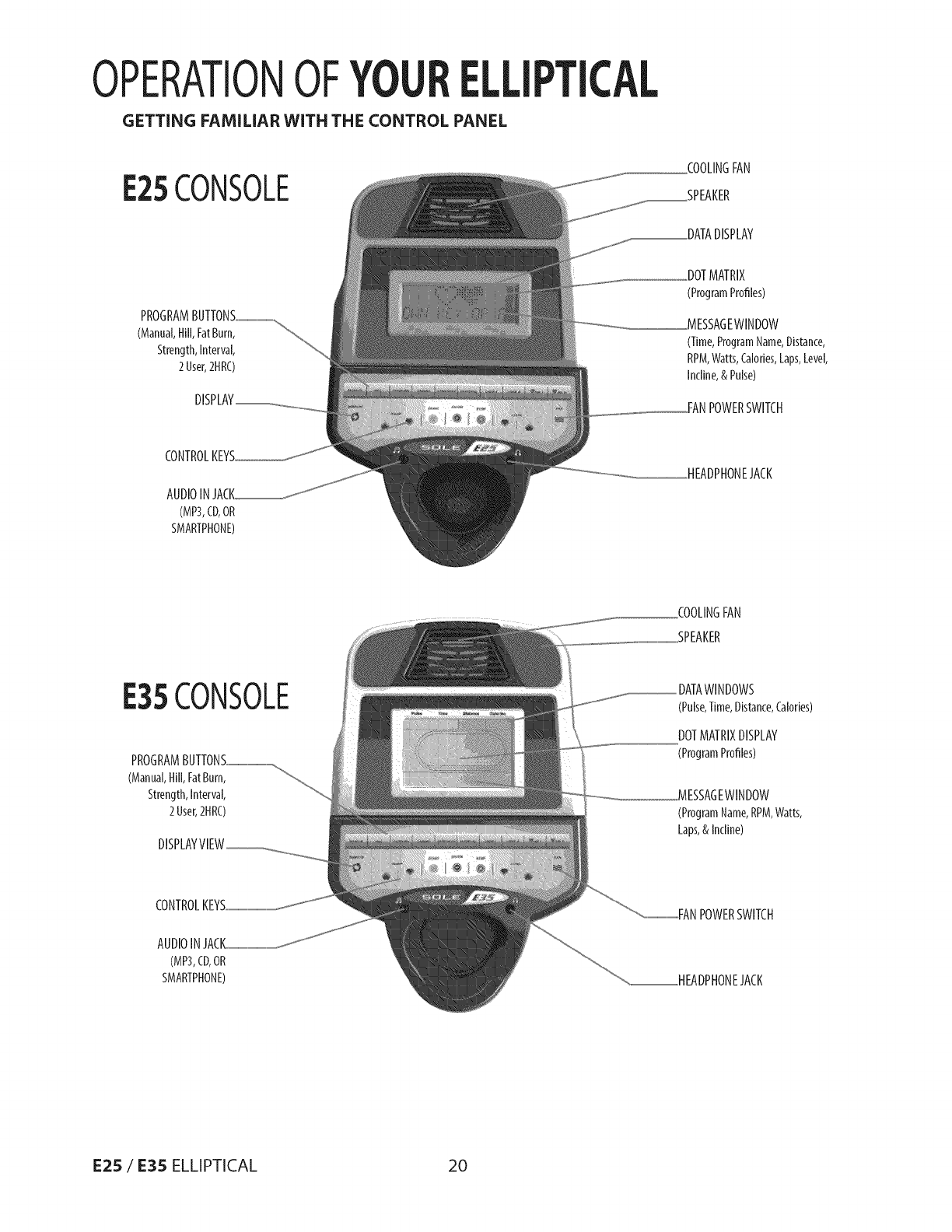

GETTING FAMILIAR WITH THE CONTROL PANEL
E25CONSOLE
PROGRAMBUTTONS....................................................
(Manual,Hill,FatBurn, _
Strength,Interval, _
2 User,2HRC)
CONTROL
AUDIOIN JACK.....
(MP3,CD,OR
SMARTPHONE)
COOLINGFAN
__SPEAKER
__DATA DISPLAY
(ProgramProfiles)
(Time,ProgramName,Distance,
RPM,Watts,Calories,Laps,Level,
Incline,& Pulse)
FANPOWERSWITCH
COOLINGFAN
SPEAKER
E35CONSOLE
PROGRAMBUTTONS.............................................................
(Manual,Hill,FatBurn, _.........................
Strength,Interval,
2 User,2HRC)
(Pulse,Time,Distance,Calories)
DOTMATRIXDISPLAY
(ProgramProfiles)
(ProgramName,RPM,Watts,
Laps,&Incline)
AUDIOIN
(MP3,CD,OR
SMARTPHONE)
POWERSWITCH
___HEADPHONE JACK
E25 /E35 ELLIPTICAL 20

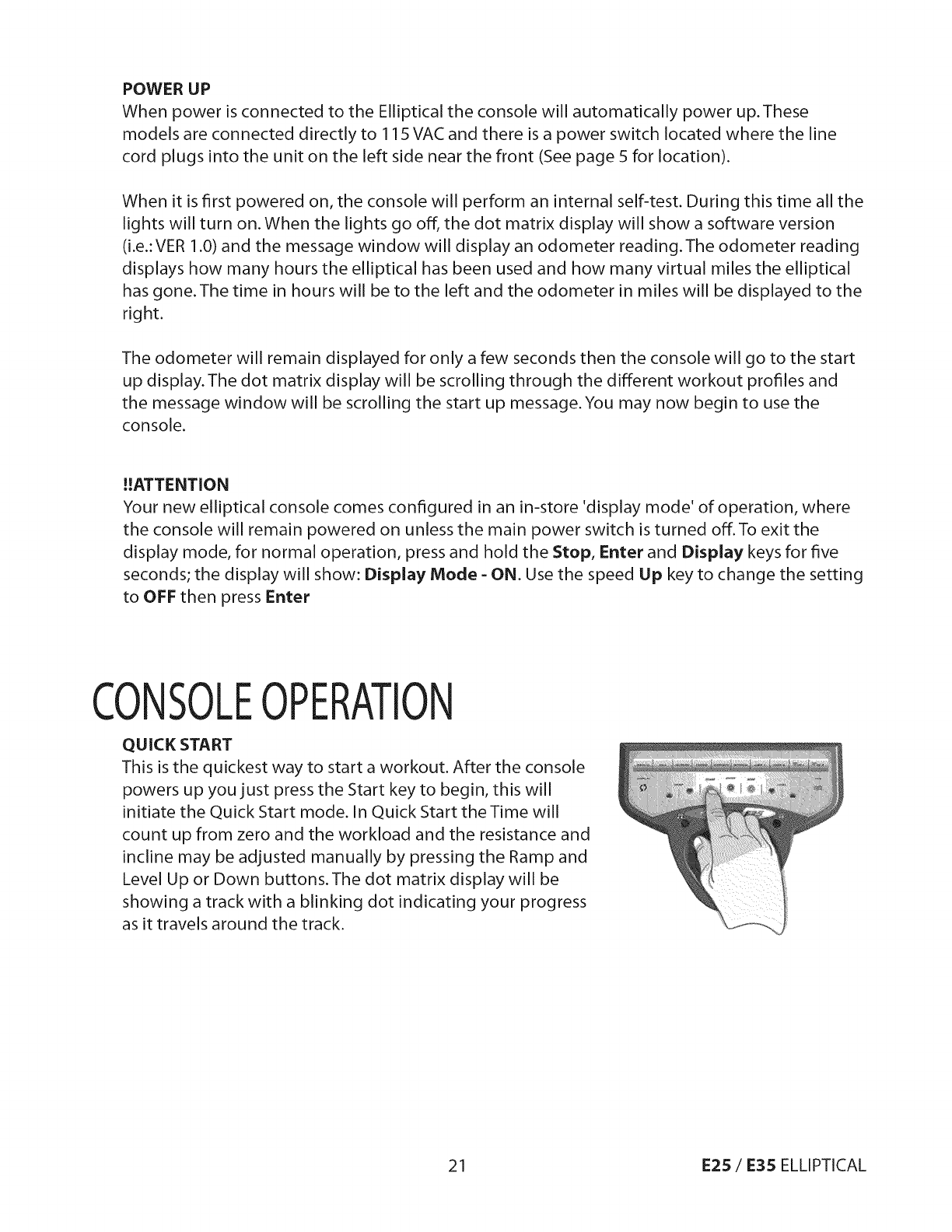

POWERUP
Whenpower isconnectedto the Ellipticalthe consolewill automaticallypower up.These
modelsareconnecteddirectlyto 115VACandthere isapowerswitchlocatedwherethe line
cordplugs into the unit onthe left sidenearthe front (Seepage5 for location).
Whenit isfirst poweredon,the consolewill perform aninternalself-test.Duringthistime all the
lightswill turn on.Whenthe lights go off,the dot matrixdisplaywill showasoftwareversion
(i.e.:VER1.0)and the messagewindow will displayanodometer reading.Theodometer reading
displayshow manyhoursthe elliptical hasbeenusedand how manyvirtual milesthe elliptical
hasgone.Thetime in hourswill beto the left andthe odometerin mileswill bedisplayedto the
right.
Theodometerwill remaindisplayedfor only afew secondsthen the consolewill goto the start
updisplay.Thedot matrixdisplaywill bescrollingthrough the differentworkout profilesand
the messagewindow will be scrollingthe start up message.Youmaynow beginto usethe
console.
!!ATTENTION
Yournew elliptical consolecomesconfigured inan in-store'displaymode'of operation,where
the consolewill remainpoweredon unlessthe main power switchisturned off.Toexitthe
displaymode,for normaloperation,pressand holdthe Stop, Enter and Display keys for five
seconds; the display will show: Display Mode =ON. Use the speed Up key to change the setting
to OFF then press Enter
CONSOLEOPERATION
QUICK START
This is the quickest way to start a workout. After the console
powers up you just press the Start key to begin, this will
initiate the Quick Start mode. In Quick Start the Time will
count up from zero and the workload and the resistance and
incline may be adjusted manually by pressing the Ramp and
Level Up or Down buttons.The dot matrix display will be
showing a track with a blinking dot indicating your progress
as it travels around the track.
21 E25 /E35 ELLIPTICAL

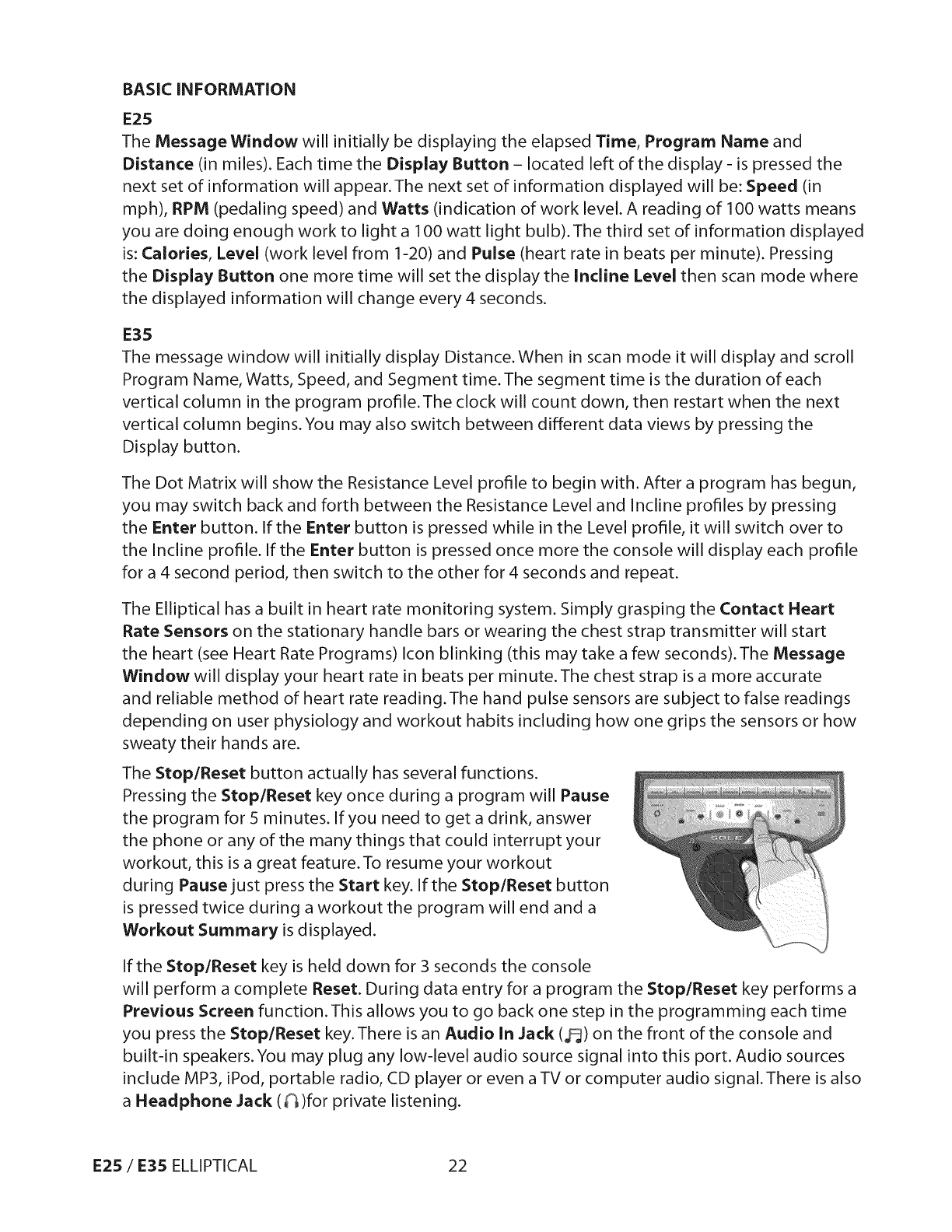

BASIC iNFORMATiON
E25
The Message Window will initially be displaying the elapsed Time, Program Name and
Distance (in miles). Each time the Display Button - located left of the display - is pressed the
next set of information will appear.The next set of information displayed will be: Speed (in
mph), RPM (pedaling speed) and Watts (indication of work level. A reading of 100 watts means
you are doing enough work to light a 100 watt light bulb).The third set of information displayed
is: Calories, Level (work level from 1-20) and Pulse (heart rate in beats per minute). Pressing
the Display Button one more time will set the display the Incline Level then scan mode where
the displayed information will change every 4 seconds.
E35
The message window will initially display Distance.When in scan mode it will display and scroll
Program Name, Watts, Speed, and Segment time. The segment time is the duration of each
vertical column in the program profile.The clock will count down, then restart when the next
vertical column begins. You may also switch between different data views by pressing the
Display button.
The Dot Matrix will show the Resistance Level profile to begin with. After a program has begun,
you may switch back and forth between the Resistance Level and Incline profiles by pressing
the Enter button. If the Enter button is pressed while in the Level profile, it will switch over to
the Incline profile. If the Enter button is pressed once more the console will display each profile
for a 4 second period, then switch to the other for 4 seconds and repeat.
The Elliptical has a built in heart rate monitoring system. Simply grasping the Contact Heart
Rate Sensors on the stationary handle bars or wearing the chest strap transmitter will start
the heart (see Heart Rate Programs) Icon blinking (this may take a few seconds).The Message
Window will display your heart rate in beats per minute.The chest strap is a more accurate
and reliable method of heart rate reading.The hand pulse sensors are subject to false readings
depending on user physiology and workout habits including how one grips the sensors or how
sweaty their hands are.
The Stop/Reset button actually has several functions.
Pressing the Stop/Reset key once during a program will Pause
the program for 5 minutes. If you need to get a drink, answer
the phone or any of the many things that could interrupt your
workout, this is a great feature.To resume your workout
during Pause just press the Start key. If the Stop/Reset button
is pressed twice during a workout the program will end and a
Workout Summary is displayed.
If the Stop/Reset key is held down for 3 seconds the console
will perform a complete Reset. During data entry for a program the Stop/Reset key performs a
Previous Screen function.This allows you to go back one step in the programming each time
you press the Stop/Reset key.There is an Audio In Jack (_p_)on the front of the console and
built-in speakers. You may plug any low-level audio source signal into this port. Audio sources
include MP3, iPod, portable radio, CD player or even a TV or computer audio signal.There is also
a Headphone Jack (_)for private listening.
E25 /E35 ELLIPTICAL 22

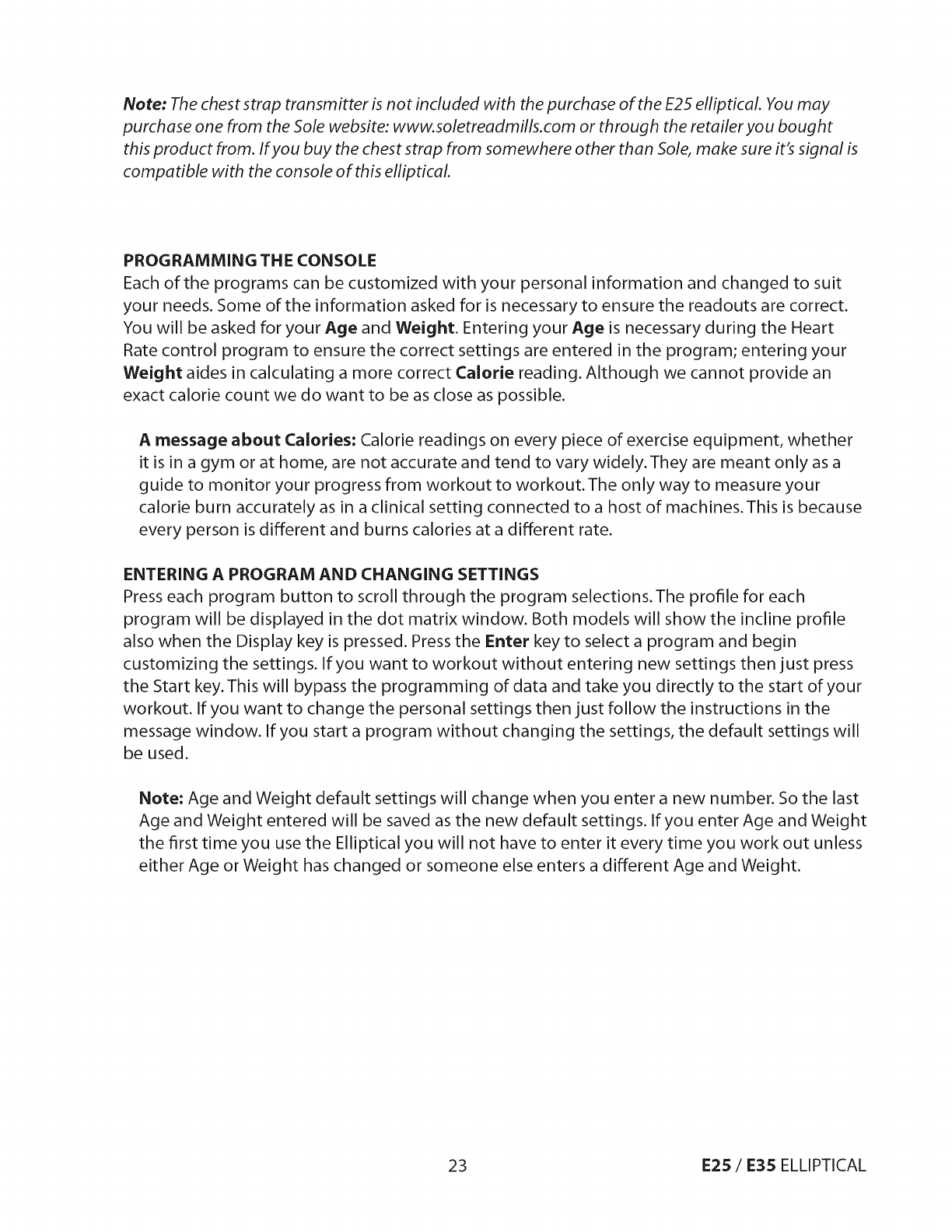

Note: The chest strap transmitter is not included with the purchase of the E25 eflipticaL You may
purchase one from the Sole website: www.soletreadmills.com or through the retailer you bought
this product from. If you buy the chest strap from somewhere other than Sole, make sure it's signal is
compatible with the console of this eflipticaL
PROGRAMMING THE CONSOLE
Each of the programs can be customized with your personal information and changed to suit
your needs. Some of the information asked for is necessary to ensure the readouts are correct.
You will be asked for your Age and Weight. Entering your Age is necessary during the Heart
Rate control program to ensure the correct settings are entered in the program; entering your
Weight aides in calculating a more correct Calorie reading. Although we cannot provide an
exact calorie count we do want to be as close as possible.
Amessage about Calories: Calorie readings on every piece of exercise equipment, whether
it is in a gym or at home, are not accurate and tend to vary widely.They are meant only asa
guide to monitor your progress from workout to workout.The only way to measure your
calorie burn accurately as in a clinical setting connected to a host of machines.This is because
every person is different and burns calories at a different rate.
ENTERING A PROGRAM AND CHANGING SETTINGS
Press each program button to scroll through the program selections.The profile for each
program will be displayed in the dot matrix window. Both models will show the incline profile
also when the Display key is pressed. Press the Enter key to select a program and begin
customizing the settings. If you want to workout without entering new settings then just press
the Start key. This will bypass the programming of data and take you directly to the start of your
workout. If you want to change the personal settings then just follow the instructions in the
message window. If you start a program without changing the settings, the default settings will
be used.
Note: Age and Weight default settings will change when you enter a new number. So the last
Age and Weight entered will be saved as the new default settings. If you enter Age and Weight
the first time you use the Elliptical you will not have to enter it every time you work out unless
either Age or Weight has changed or someone else enters a different Age and Weight.
23 E2S /E3S ELLIPTICAL
PROGRAMMALE

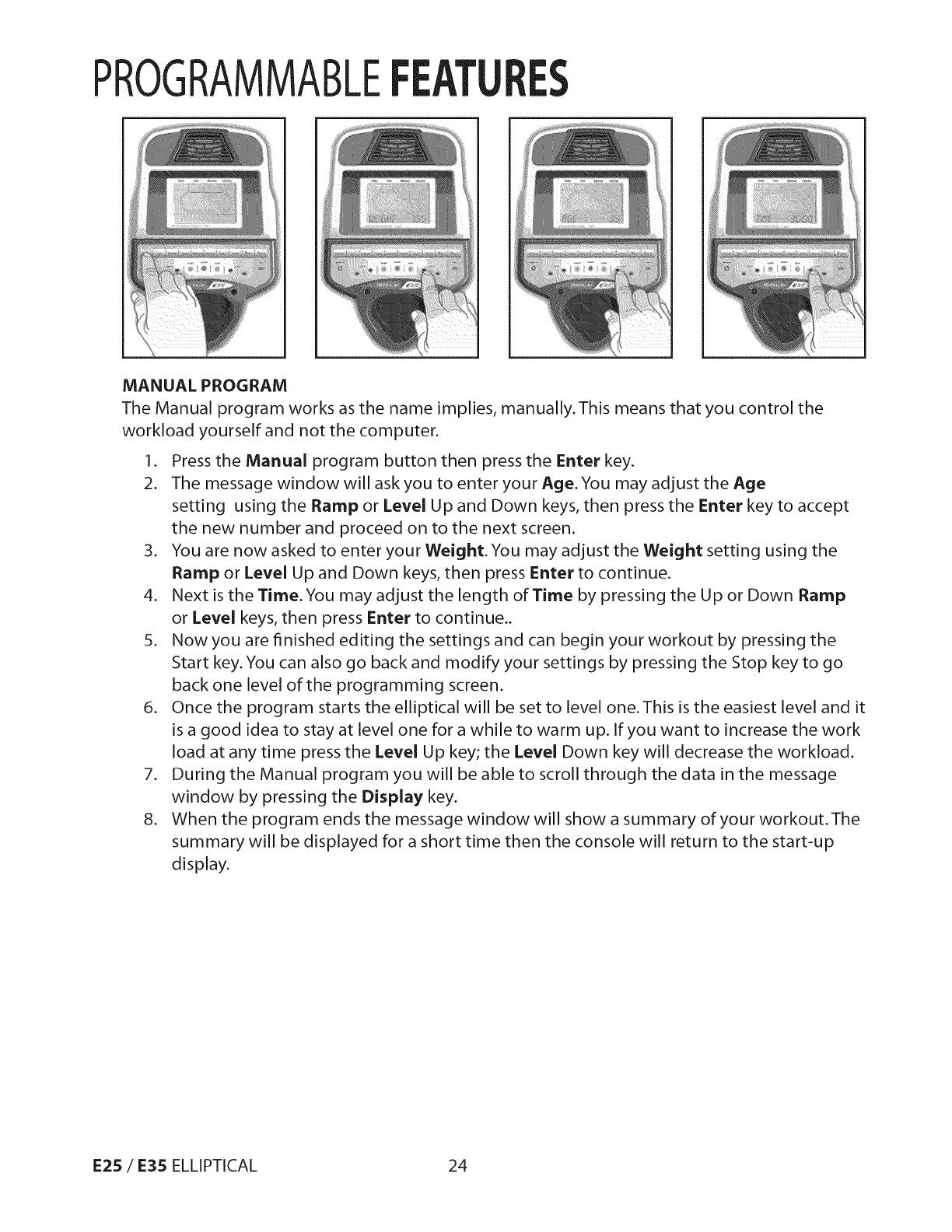

MANUAL PROGRAM
The Manual program works as the name implies, manually.This means that you control the
workload yourself and not the computer.
1. Press the Manual program button then press the Enter key.
2. The message window will ask you to enter your Age. You may adjust the Age
setting using the Ramp or Level Up and Down keys, then press the Enter key to accept
the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight setting using the
Ramp or Level Up and Down keys, then press Enter to continue.
4. Next is the Time.You may adjust the length of Time by pressing the Up or Down Ramp
or Level keys, then press Enter to continue..
5. Now you are finished editing the settings and can begin your workout by pressing the
Start key. You can also go back and modify your settings by pressing the Stop key to go
back one level of the programming screen.
6. Once the program starts the elliptical will be set to level one.This is the easiest level and it
is a good idea to stay at level one for a while to warm up. If you want to increase the work
load at any time press the Level Up key; the Level Down key will decrease the workload.
7. During the Manual program you will be able to scroll through the data in the message
window by pressing the Display key.
8. When the program ends the message window will show a summary of your workout.The
summary will be displayed for a short time then the console will return to the start-up
display.
E25 /E35 ELLIPTICAL 24

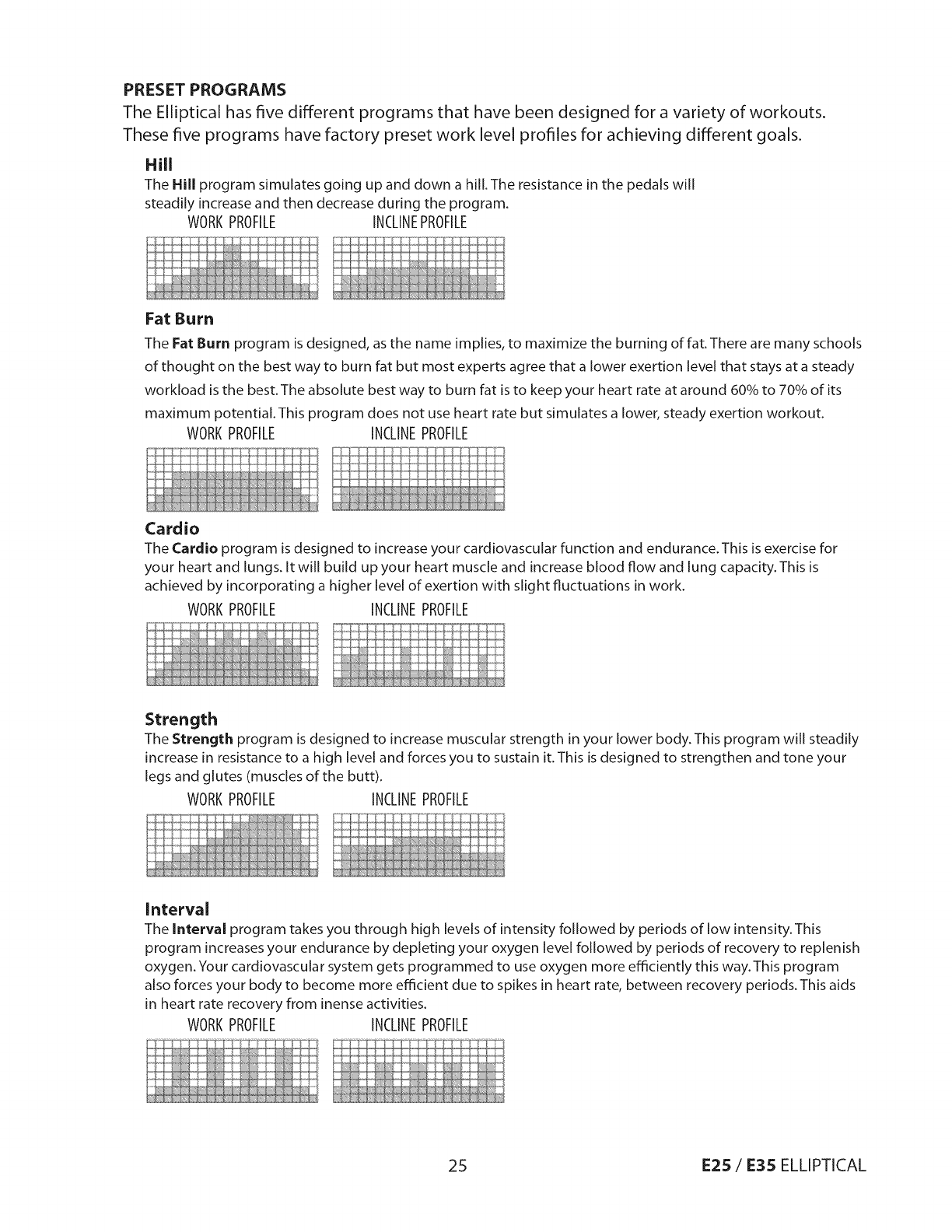

PRESET PROGRAMS
The Elliptical has five different programs that have been designed for a variety of workouts.
These five programs have factory preset work level profiles for achieving different goals.
Hill
The Hill program simulates going up and down a hill.The resistance in the pedals will
steadily increase and then decrease during the program.
WORKPROFILE INCLINEPROFILE
Fat Burn
The Fat Burn program is designed, as the name implies, to maximize the burning of fat.There are many schools
of thought on the best way to burn fat but most experts agree that a lower exertion level that stays at a steady
workload is the best.The absolute best way to burn fat is to keep your heart rate at around 60% to 70% of its
maximum potential. This program does not use heart rate but simulates a lower, steady exertion workout.
WORKPROFILE INCLINEPROFILE
Cardio
The Cardio program is designed to increase your cardiovascular function and endurance.This is exercise for
your heart and lungs. It will build up your heart muscle and increase blood flow and lung capacity. This is
achieved by incorporating a higher level of exertion with slight fluctuations in work.
WORKPROFILE INCLINEPROFILE
Strength
The Strength program isdesigned to increase muscular strength in your lower body. This program will steadily
increase in resistance to a high level and forces you to sustain it. This is designed to strengthen and tone your
legs and glutes (muscles of the butt).
WORKPROFILE INCLINEPROFILE
Interval
The Interval program takes you through high levels of intensity followed by periods of low intensity.This
program increases your endurance by depleting your oxygen level followed by periods of recovery to replenish
oxygen. Your cardiovascular system gets programmed to use oxygen more efficiently this way. This program
also forces your body to become more efficient due to spikes in heart rate, between recovery periods. This aids
in heart rate recovery from inense activities.
WORKPROFILE INCLINEPROFILE
25 E25 /E35 ELLIPTICAL

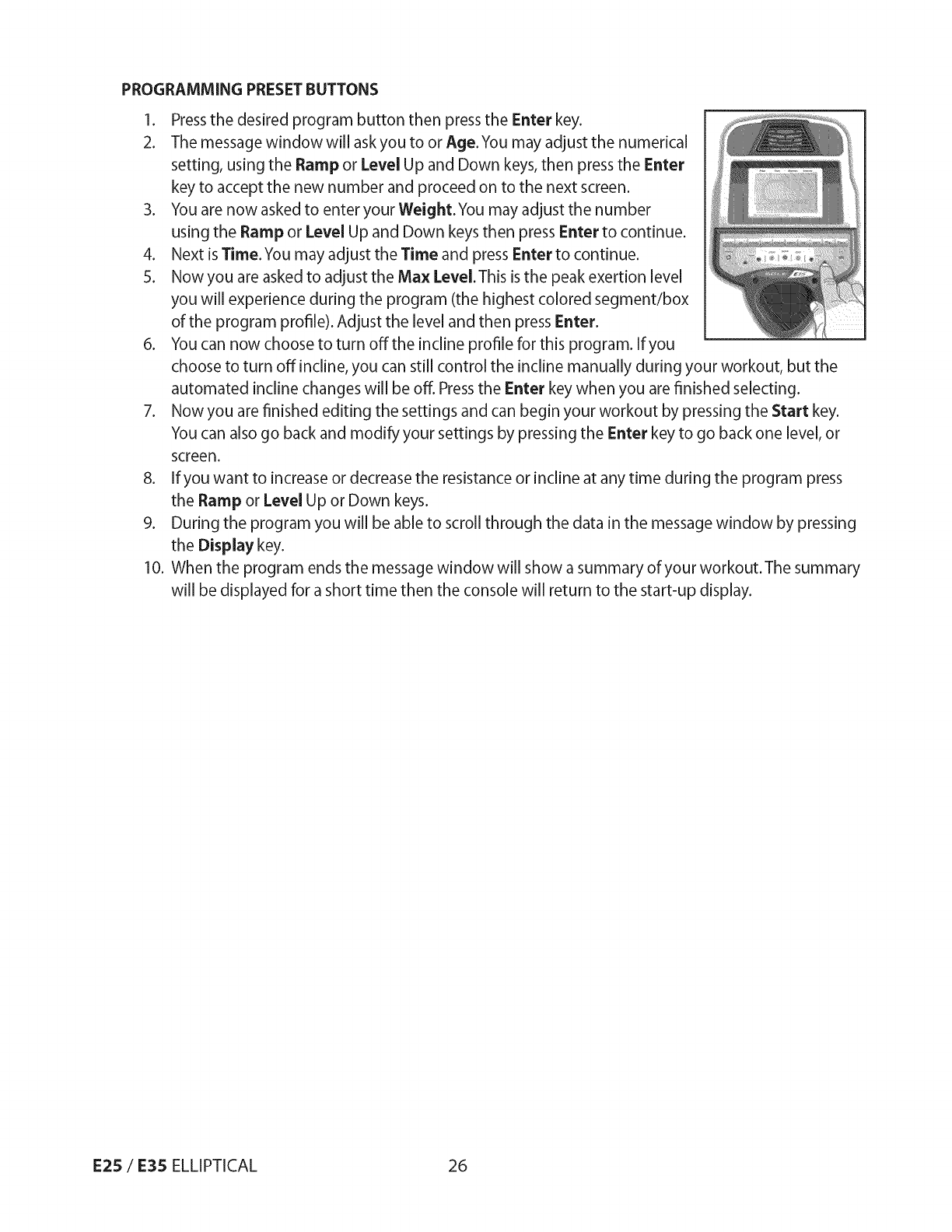

PROGRAMMING PRESET BUTTONS
.
2.
.
.
5.
.
.
.
.
10.
Press the desired program button then press the Enter key.
The message window will ask you to or Age. You may adjust the numerical
setting, using the Ramp or Level Up and Down keys, then press the Enter
key to accept the new number and proceed on to the next screen.
You are now asked to enter your Weight. You may adjust the number
using the Ramp or Level Up and Down keys then press Enter to continue.
Next is Time. You may adjust the Time and press Enter to continue.
Now you are asked to adjust the Max Level. This isthe peak exertion level
you will experience during the program (the highest colored segment/box
of the program profile). Adjust the level and then press Enter.
You can now choose to turn offthe incline profile for this program. If you
choose to turn off incline, you can still control the incline manually during your workout, but the
automated incline changes will be off. Press the Enter key when you are finished selecting.
Now you are finished editing the settings and can begin your workout by pressing the Start key.
You can also go back and modify your settings by pressing the Enter key to go back one level, or
screen.
If you want to increase or decrease the resistance or incline at any time during the program press
the Ramp or Level Up or Down keys.
During the program you will be able to scroll through the data in the message window by pressing
the Display key.
When the program ends the message window will show a summary of your workout. The summary
will be displayed for a short time then the console will return to the start-up display.
E25 /E35 ELLIPTICAL 26

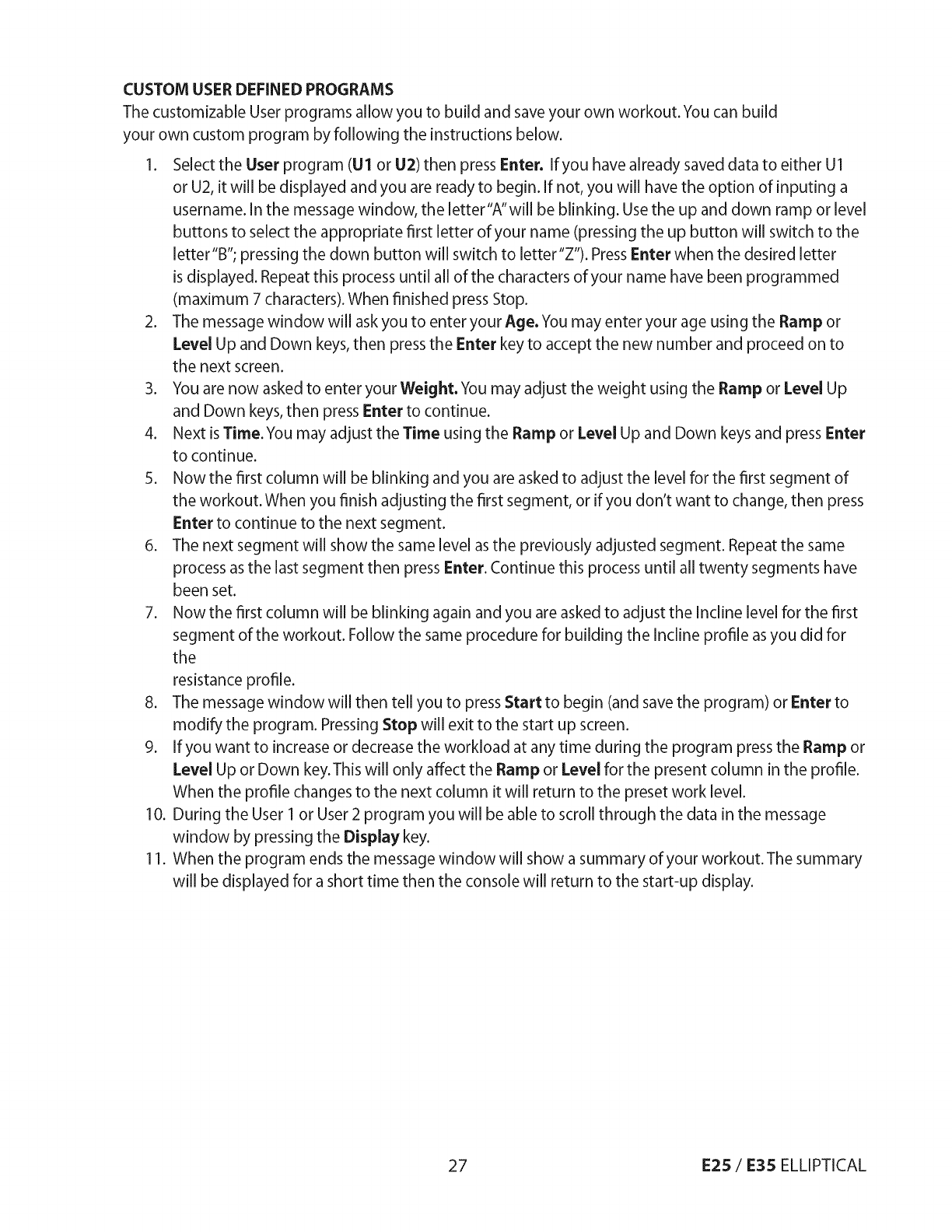

CUSTOM USER DEFINED PROGRAMS
The customizable User programs allow you to build and save your own workout. You can build
your own custom program by following the instructions below.
1. Select the User program (U1 or O2) then press Enter. If you have already saved data to either U1
or U2, it will be displayed and you are ready to begin. If not, you will have the option of inputing a
username. In the message window, the letter "A" will be blinking. Use the up and down ramp or level
buttons to select the appropriate first letter of your name (pressing the up button will switch to the
letter"B"; pressing the down button will switch to letter"Z"). Press Enter when the desired letter
is displayed. Repeat this process until all of the characters of your name have been programmed
(maximum 7 characters). When finished press Stop.
2. The message window will ask you to enter your Age. You may enter your age using the Ramp or
Level Up and Down keys, then press the Enter key to accept the new number and proceed on to
the next screen.
3. You are now asked to enter your Weight. You may adjust the weight using the Ramp or Level Up
and Down keys, then press Enter to continue.
4. Next isTime.You may adjust the Time using the Ramp or Level Up and Down keys and press Enter
to continue.
5. Now the first column will be blinking and you are asked to adjust the level for the first segment of
the workout. When you finish adjusting the first segment, or if you don't want to change, then press
Enter to continue to the next segment.
6. The next segment will show the same level as the previously adjusted segment. Repeat the same
process as the last segment then press Enter. Continue this process until all twenty segments have
been set.
7. Now the first column will be blinking again and you are asked to adjust the Incline level for the first
segment of the workout. Follow the same procedure for building the Incline profile as you did for
the
resistance profile.
8. The message window will then tell you to press Start to begin (and save the program) or Enter to
modify the program. Pressing Stop will exit to the start up screen.
9. If you want to increase or decrease the workload at any time during the program press the Ramp or
Level Up or Down key.This will only affect the Ramp or Level for the present column in the profile.
When the profile changes to the next column it will return to the preset work level.
10. During the User 1 or User 2 program you will be able to scroll through the data in the message
window by pressing the Display key.
11. When the program ends the message window will show a summary of your workout.The summary
will be displayed for a short time then the console will return to the start-up display.
27 E25 /E35 ELLIPTICAL

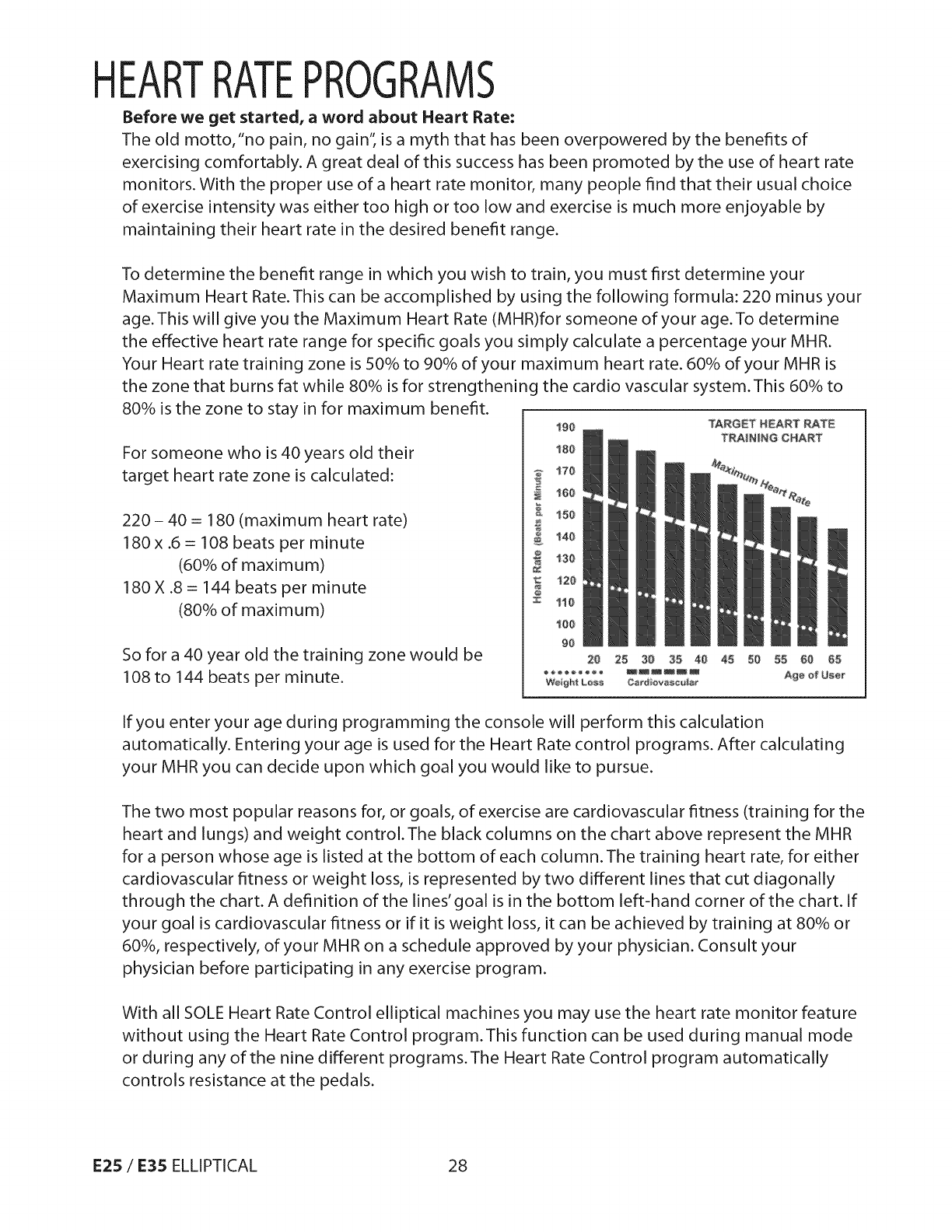

HEARTRATEPROGRAMS
Before we get started, aword about Heart Rate:
The old motto,"no pain, no gain", is a myth that has been overpowered by the benefits of
exercising comfortably. A great deal of this success has been promoted by the use of heart rate
monitors. With the proper use of a heart rate monitor, many people find that their usual choice
of exercise intensity was either too high or too low and exercise is much more enjoyable by
maintaining their heart rate in the desired benefit range.
To determine the benefit range in which you wish to train, you must first determine your
Maximum Heart Rate.This can be accomplished by using the following formula: 220 minus your
age.This will give you the Maximum Heart Rate (MHR)for someone of your age.To determine
the effective heart rate range for specific goals you simply calculate a percentage your MHR.
Your Heart rate training zone is 50% to 90% of your maximum heart rate. 60% of your MHR is
the zone that burns fat while 80% is for strengthening the cardio vascular system. This 60% to
80% is the zone to stay in for maximum benefit. "TARGET HEART _TE
TRA_N|NG CHART
For someone who is 40 years old their
target heart rate zone is calculated:
220 - 40 = 180 (maximum heart rate)
180x.6 = 108 beats per minute
(60% of maximum)
180X.8= 144 beats per minute
(80% of maximum)
So for a 40 year old the training zone would be 35 40 45 50 55 60
108 to 144 beats per minute, o......... l_mmw_ AgeofU_e_
W÷ight L_SS C_dio_¢_t
20 25 30 65
If you enter your age during programming the console will perform this calculation
automatically. Entering your age is used for the Heart Rate control programs. After calculating
your MHR you can decide upon which goal you would like to pursue.
The two most popular reasons for, or goals, of exercise are cardiovascular fitness (training for the
heart and lungs) and weight control.The black columns on the chart above represent the MHR
for a person whose age is listed at the bottom of each column.The training heart rate, for either
cardiovascular fitness or weight loss, is represented by two different lines that cut diagonally
through the chart. A definition of the lines'goal is in the bottom left-hand corner of the chart. If
your goal is cardiovascular fitness or if it is weight loss, it can be achieved by training at 80% or
60%, respectively, of your MHR on a schedule approved by your physician. Consult your
physician before participating in any exercise program.
With all SOLE Heart Rate Control elliptical machines you may use the heart rate monitor feature
without using the Heart Rate Control program.This function can be used during manual mode
or during any of the nine different programs.The Heart Rate Control program automatically
controls resistance at the pedals.
E25 /E35 ELLIPTICAL 28

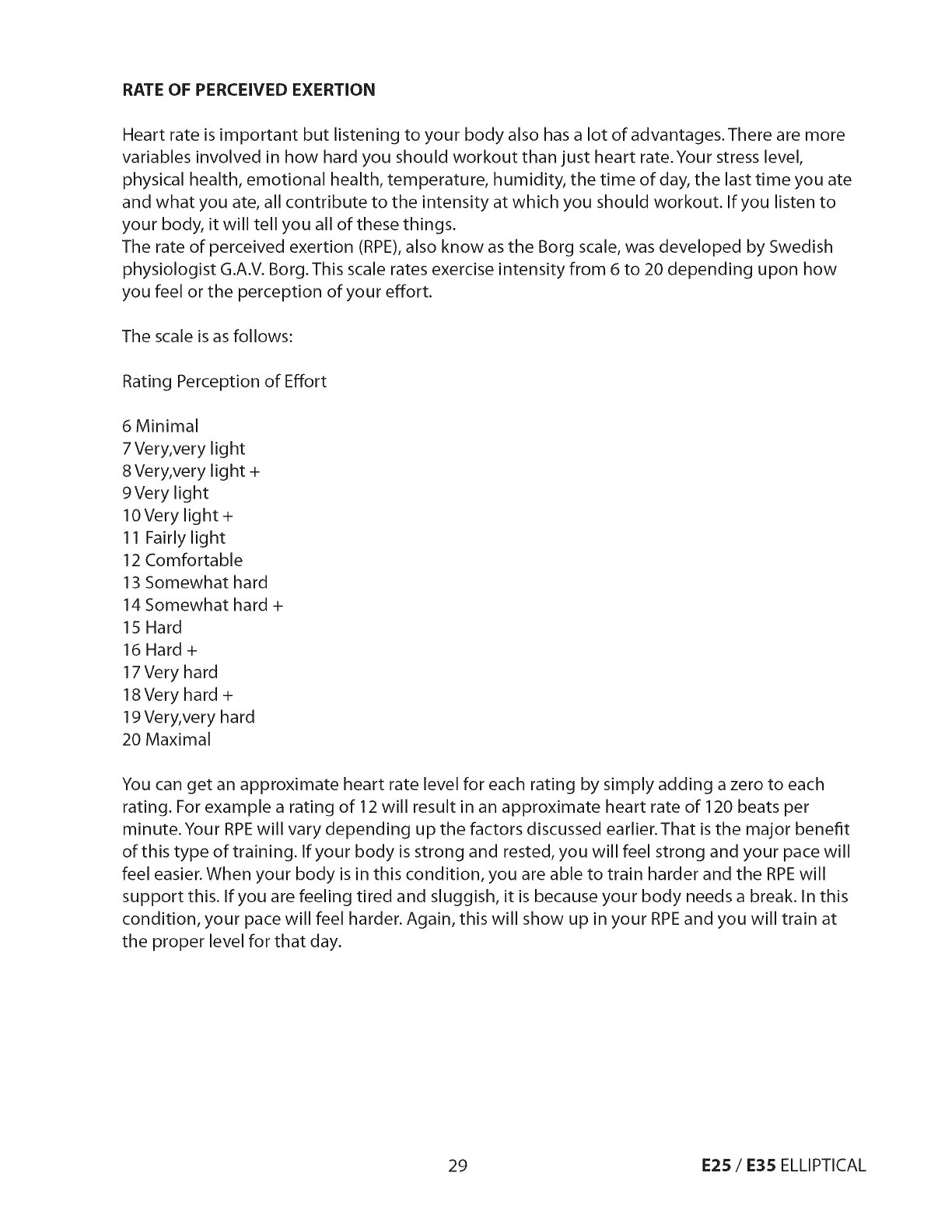

RATE OF PERCEIVED EXERTION
Heart rate is important but listening to your body also has a lot of advantages.There are more
variables involved in how hard you should workout than just heart rate.Your stress level,
physical health, emotional health, temperature, humidity, the time of day, the last time you ate
and what you ate, all contribute to the intensity at which you should workout. If you listen to
your body, it will tell you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish
physiologist G.A.V. Borg.This scale rates exercise intensity from 6 to 20 depending upon how
you feel or the perception of your effort.
The scale is as follows:
Rating Perception of Effort
6 Minimal
7 Very, very light
8 Very, very light +
9Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very, very hard
20 Maximal
You can get an approximate heart rate level for each rating by simply adding a zero to each
rating. For example a rating of 12 will result in an approximate heart rate of 120 beats per
minute.Your RPE will vary depending up the factors discussed earlier.That is the major benefit
of this type of training. If your body is strong and rested, you will feel strong and your pace will
feel easier. When your body is in this condition, you are able to train harder and the RPE will
support this. If you are feeling tired and sluggish, it is because your body needs a break. In this
condition, your pace will feel harder. Again, this will show up in your RPE and you will train at
the proper level for that day.
29 E25 /E35 ELLIPTICAL

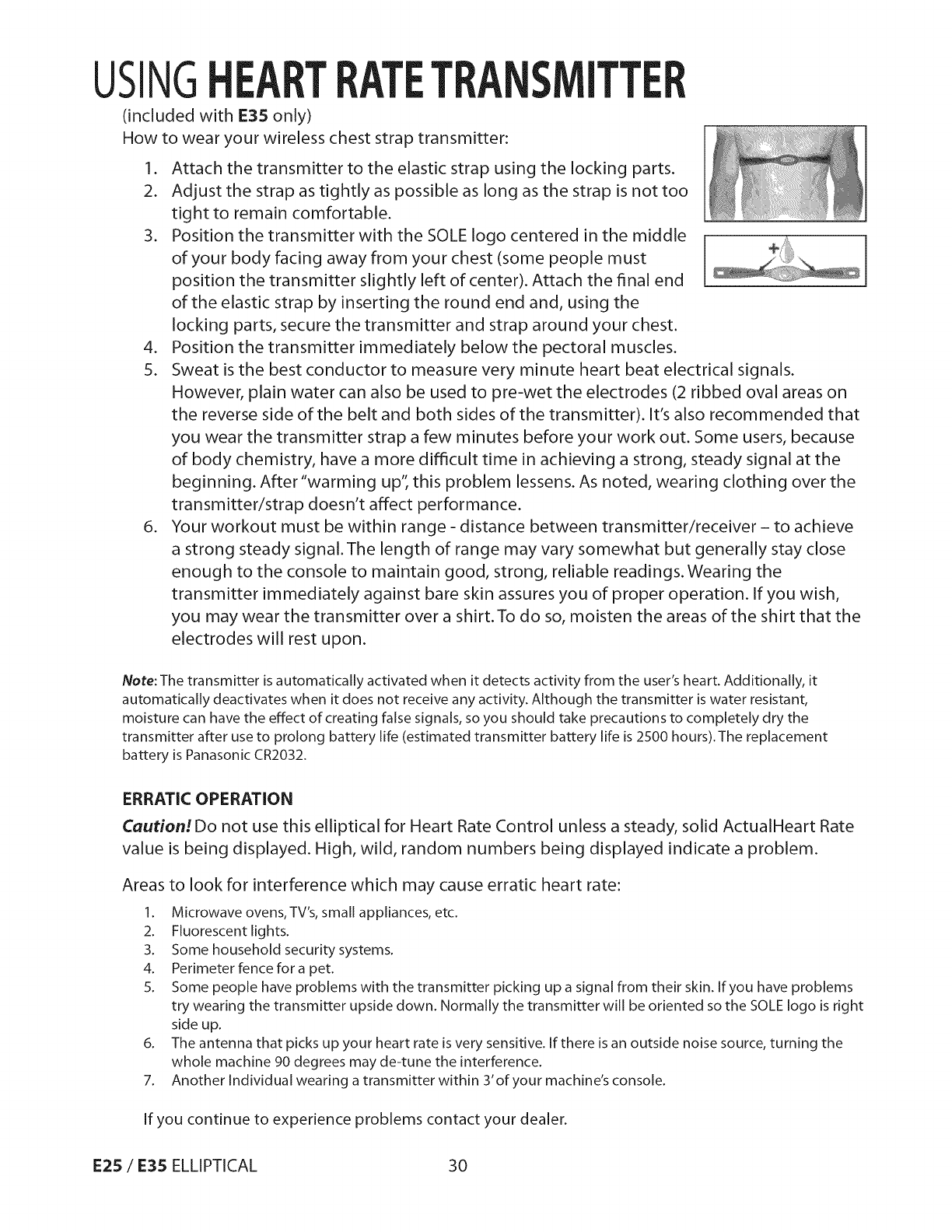

USING T 1"T
(included with E35 only)
How to wear your wireless chest strap transmitter:
TT
.
2.
.
.
5.
.
Attach the transmitter to the elastic strap using the locking parts.
Adjust the strap as tightly as possible as long as the strap is not too
tight to remain comfortable.
Position the transmitter with the SOLE logo centered in the middle
of your body facing away from your chest (some people must
position the transmitter slightly left of center). Attach the final end
of the elastic strap by inserting the round end and, using the
locking parts, secure the transmitter and strap around your chest.
Position the transmitter immediately below the pectoral muscles.
Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval areas on
the reverse side of the belt and both sides of the transmitter). It's also recommended that
you wear the transmitter strap a few minutes before your work out. Some users, because
of body chemistry, have a more difficult time in achieving a strong, steady signal at the
beginning. After "warming up", this problem lessens. As noted, wearing clothing over the
transmitter/strap doesn't affect performance.
Your workout must be within range - distance between transmitter/receiver - to achieve
a strong steady signal.The length of range may vary somewhat but generally stay close
enough to the console to maintain good, strong, reliable readings. Wearing the
transmitter immediately against bare skin assures you of proper operation. If you wish,
you may wear the transmitter over a shirt.To do so, moisten the areas of the shirt that the
electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user's heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the effect of creating false signals, so you should take precautions to completely dry the
transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours).The replacement
battery is Panasonic CR2032.
ERRATIC OPERATION
Caution! Do not use this elliptical for Heart Rate Control unless a steady, solid ActualHeart Rate
value is being displayed. High, wild, random numbers being displayed indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Microwave ovens, TV's, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Perimeter fence fora pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems
try wearing the transmitter upside down. Normally the transmitter will be oriented so the SOLE logo is right
side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the
whole machine 90 degrees may de-tune the interference.
7. Another Individual wearing a transmitter within 3'of your machine's console.
If you continue to experience problems contact your dealer.
E25 /E35 ELLIPTICAL 30

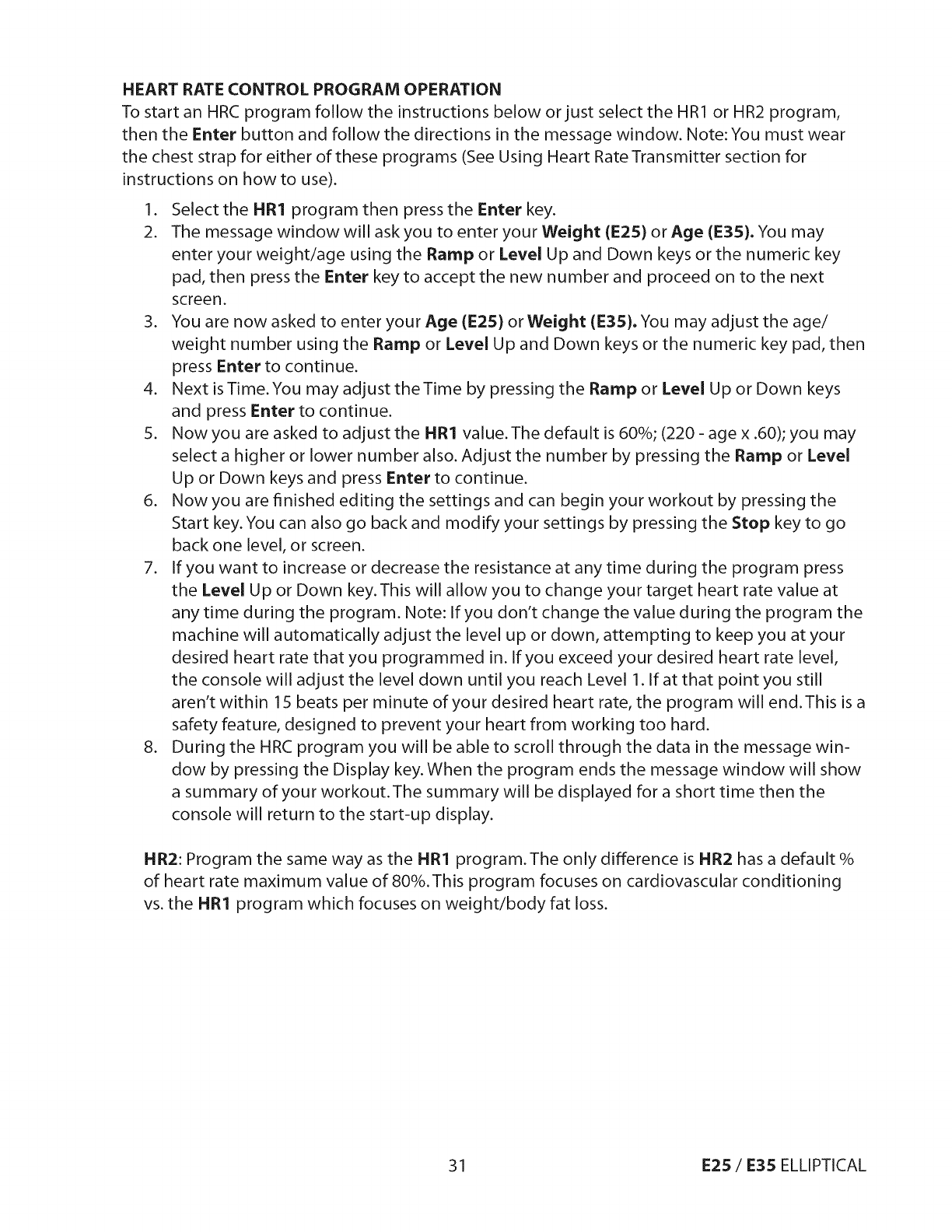

HEART RATE CONTROL PROGRAM OPERATION
To start an HRC program follow the instructions below or just select the HR1 or HR2 program,
then the Enter button and follow the directions in the message window. Note:You must wear
the chest strap for either of these programs (See Using Heart Rate Transmitter section for
instructions on how to use).
1. Select the HR1 program then press the Enter key.
2. The message window will ask you to enter your Weight {E2S} or Age (E35}. You may
enter your weight/age using the Ramp or Level Up and Down keys or the numeric key
pad, then press the Enter key to accept the new number and proceed on to the next
screen.
3. You are now asked to enter your Age (E2S) or Weight (E35). You may adjust the age/
weight number using the Ramp or Level Up and Down keys or the numeric key pad, then
press Enter to continue.
4. Next isTime.You may adjust theTime by pressing the Ramp or Level Up or Down keys
and press Enter to continue.
5. Now you are asked to adjust the HR1 value.The default is 60%; (220- age x.60);you may
select a higher or lower number also. Adjust the number by pressing the Ramp or Level
Up or Down keys and press Enter to continue.
6. Now you are finished editing the settings and can begin your workout by pressing the
Start key. You can also go back and modify your settings by pressing the Stop key to go
back one level, or screen.
7. If you want to increase or decrease the resistance at any time during the program press
the Level Up or Down key.This will allow you to change your target heart rate value at
any time during the program. Note: If you don't change the value during the program the
machine will automatically adjust the level up or down, attempting to keep you at your
desired heart rate that you programmed in. If you exceed your desired heart rate level,
the console will adjust the level down until you reach Level 1. If at that point you still
aren't within 15 beats per minute of your desired heart rate, the program will end.This is a
safety feature, designed to prevent your heart from working too hard.
8. During the HRC program you will be able to scroll through the data in the message win-
dow by pressing the Display key.When the program ends the message window will show
a summary of your workout.The summary will be displayed for a short time then the
console will return to the start-up display.
HR2: Program the same way as the HR1 program.The only difference is HR2 has a default %
of heart rate maximum value of 80%.This program focuses on cardiovascular conditioning
vs. the HR1 program which focuses on weight/body fat loss.
31 E25 /E35 ELLIPTICAL

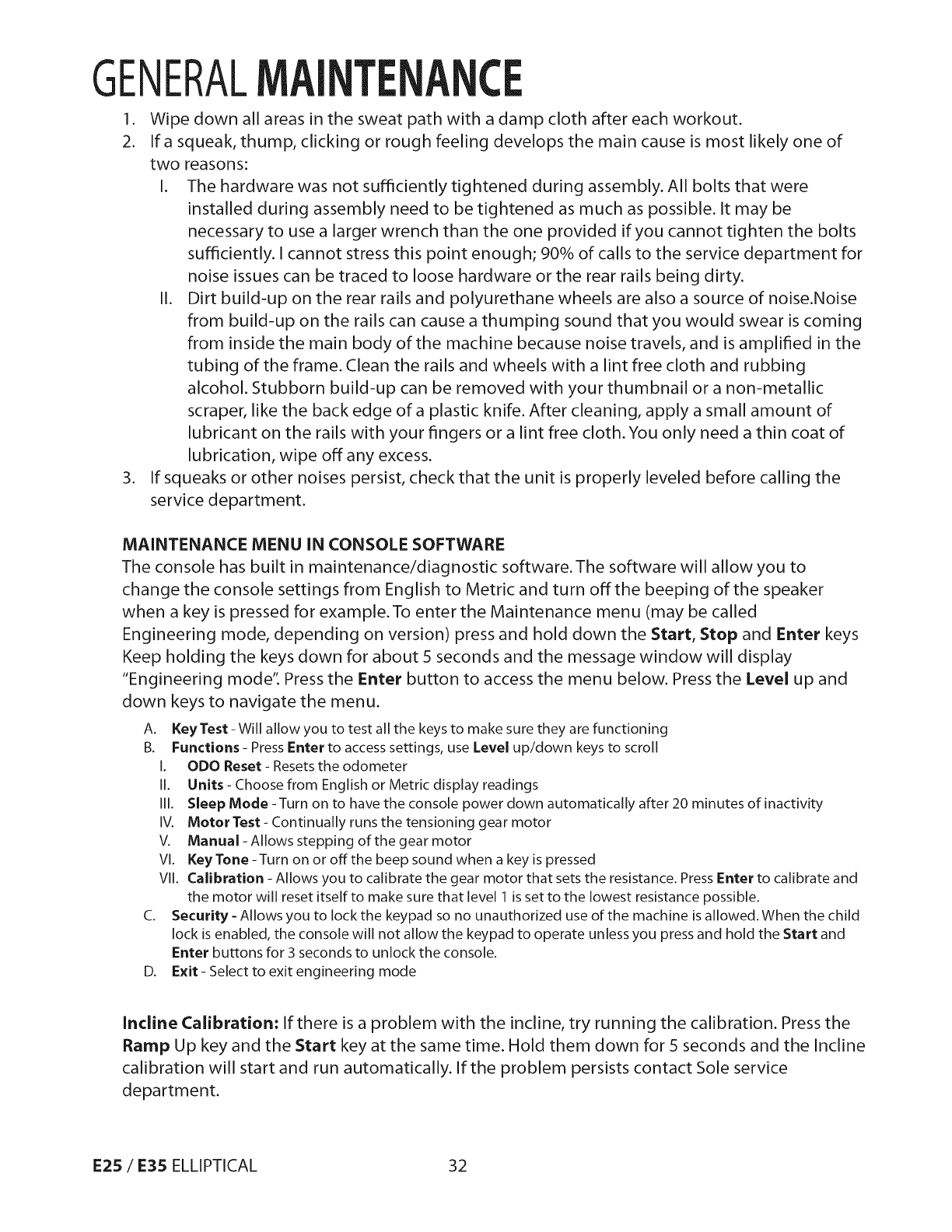

GENERAL T CE
I. Wipe down all areas in the sweat path with a damp cloth after each workout.
2. Ifa squeak, thump, clicking or rough feeling develops the main cause is most likely one of
two reasons:
I. The hardware was not sufficiently tightened during assembly. All bolts that were
installed during assembly need to be tightened as much as possible. It may be
necessary to use a larger wrench than the one provided if you cannot tighten the bolts
sufficiently. I cannot stress this point enough; 90% of calls to the service department for
noise issues can be traced to loose hardware or the rear rails being dirty.
II. Dirt build-up on the rear rails and polyurethane wheels are also a source of noise.Noise
from build-up on the rails can cause a thumping sound that you would swear is coming
from inside the main body of the machine because noise travels, and is amplified in the
tubing of the frame. Clean the rails and wheels with a lint free cloth and rubbing
alcohol. Stubborn build-up can be removed with your thumbnail or a non-metallic
scraper, like the back edge of a plastic knife. After cleaning, apply a small amount of
lubricant on the rails with your fingers or a lint free cloth.You only need a thin coat of
lubrication, wipe off any excess.
3. If squeaks or other noises persist, check that the unit is properly leveled before calling the
service department.
MAINTENANCE MENU IN CONSOLE SOFTWARE
The console has built in maintenance/diagnostic software.The software will allow you to
change the console settings from English to Metric and turn offthe beeping of the speaker
when a key is pressed for example.To enter the Maintenance menu (may be called
Engineering mode, depending on version) press and hold down the Start, Stop and Enter keys
Keep holding the keys down for about 5 seconds and the message window will display
"Engineering mode". Press the Enter button to access the menu below. Press the Level up and
down keys to navigate the menu.
A. Key Test -Will allow you to test all the keys to make sure they are functioning
B. Functions- Press Enter to access settings, use Level up/down keys to scroll
I. ODO Reset - Resets the odometer
II. Units- Choose from English or Metric display readings
III. Sleep Mode -Turn on to have the console power down automatically after 20 minutes of inactivity
IV. Motor Test- Continually runs the tensioning gear motor
V. Manual -Allows stepping of the gear motor
Vl. Key Tone-Turn on or offthe beep sound when a key is pressed
VII. Calibration - Allows you to calibrate the gear motor that sets the resistance. Press Enter to calibrate and
the motor will reset itself to make sure that level 1 is set to the lowest resistance possible.
C. Security - Allows you to lock the keypad so no unauthorized use of the machine is allowed. When the child
lock is enabled, the console will not allow the keypad to operate unless you press and hold the Start and
Enter buttons for 3 seconds to unlock the console.
D. Exit- Select to exit engineering mode
Incline Calibration: If there is a problem with the incline, try running the calibration. Press the
Ramp Up key and the Start key at the same time. Hold them down for 5 seconds and the Incline
calibration will start and run automatically. If the problem persists contact Sole service
department.
E25 /E35 ELLIPTICAL 32
MANUFACTURER'SLI IT TY
ELLIPTICALWARRANTY
Effective January 1, 2008
SOLE warrants all its elliptical parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a
sales receipt eighteen (18) months from the original factory shipping date. SOLE's responsibilities include providing new or remanufactured parts, at
SOLE's option, and technical support to our independent dealers and servicing organizations. In the absence of a dealer or service organization, these
warranties will be administered by SOLE directly to a consumer. The warranty period applies to the following components:
E35E2S
Labor 1Year Labor 2 Years
Frame Weldments Lifetime Frame Weldments Lifetime
Brake Lifetime Brake Lifetime
Cosmetic Items 90 Days Cosmetic Items 90 Days
All Other Components 3 Years All Other Components 5 Years
*Cosmetic Items, including but not limited to the following: grips, console overlays, and labels/decals
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase to
validate the manufacturer's limited warranty.
2. Proper use of the elliptical in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the elliptical and with all local electric codes.
4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections or defects in house
wiring.
5. Expenses for making the elliptical accessible for servicing, including any item that was not part of the elliptical at the time it was shipped from
the factory.
6. Damages to the elliptical finish during shipping, installation or following installation.
7. Routine maintenance of this unit as specified in this manual.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period, for
elliptical not requiring component replacement, or elliptical not in ordinary household use.
3. Damages caused by services performed by persons other than authorized SOLE service companies; use of parts other than original SOLE parts;
or external causes such as corrosion, discoloration of paint or plastic, alterations, modifications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on file at SOLE. SOLE reserves the right to request proof of purchase if no warranty record
exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product use in any environment other than a residential setting.
9. Warranties outside of North America may vary. Please contact your local dealer for details.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined
by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your best interest to obtain and
keep all receipts.This written warranty gives you specific legal rights.You may also have other rights that vary from state to state. Service under this
warranty must be obtained by following these steps, in order:
1. Contact your selling authorized SOLE dealer. OR
2. Submit all service requests including serial number, contact information and a brief description of the problem online at www.soletreadmills.
com/tech nical.ph p?p=service.
3. If you have any questions about your new product or questions about the warranty contact SOLE Fitness at 1-866-780-SOLE (7653). If you have a
technical problem with your new elliptical contact SOLE technical service at 866-MYSOLE1 (697-6531).
4. If no local service is available, SOLE will repair or replace the parts, at SOLE's option, within the warranty period at no charge for parts. All
transportation costs, both to our factory and upon return to the owner, are the responsibility of the owner. The owner is responsible for
adequate packaging upon return to SOLE. SOLE is not responsible for damages that occur during shipping. Make all freight damage claims with
the appropriate freight carrier. DO NOT SHIP ANY UNITTO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving with-
out a return authorization number will be refused.
5. For any further information, or to contact our service department by mail, send your correspondence to:
SOLE Fitness
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by SOLE.
33 E25 /E35 ELLIPTICAL
