FITNESS
PLEASE CAREFULLY READTHIS ENTIRE MANUAL BEFORE OPERATING YOUR NEWTREADMILL
![](asset-2.png)

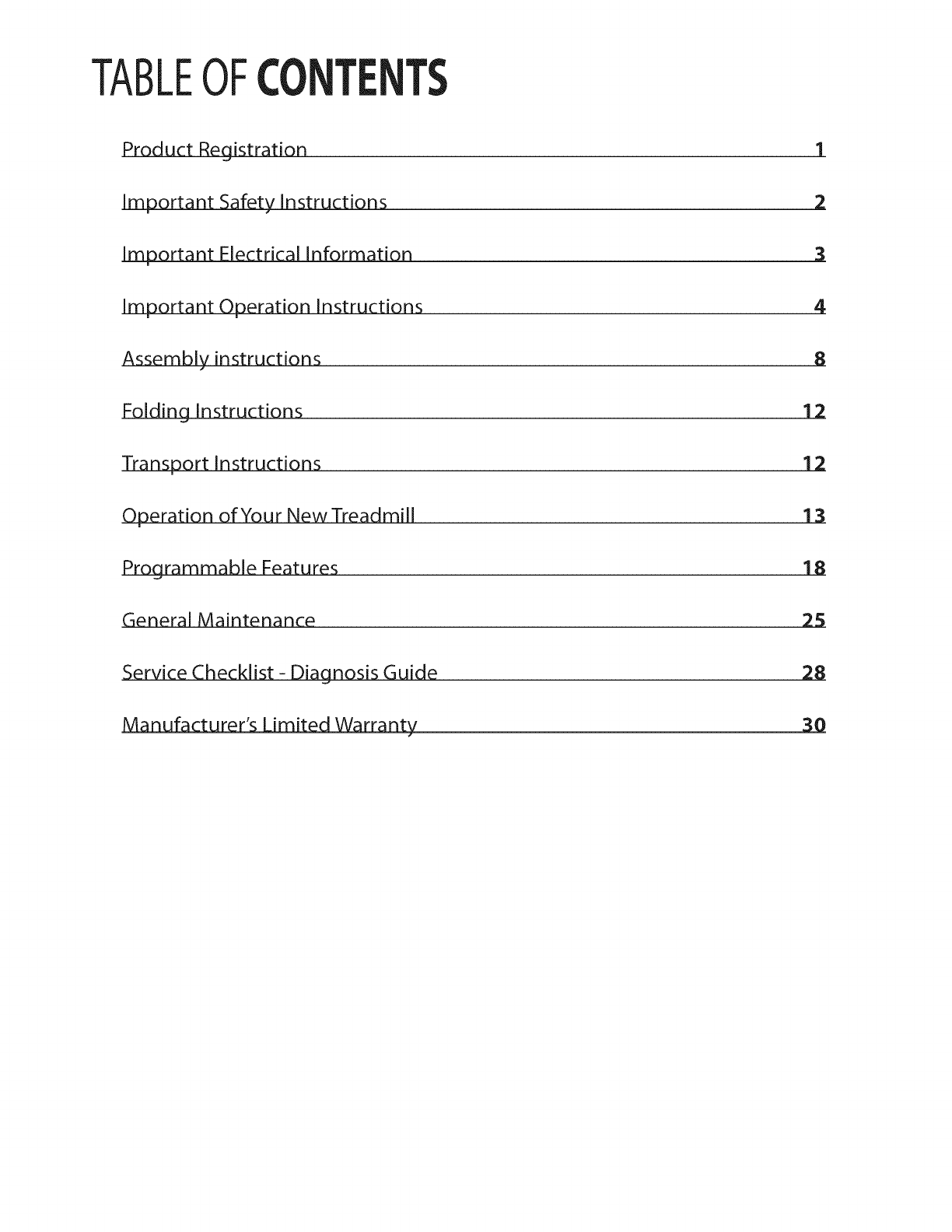

TABLEOF T
Product Registration 1
Important Safety Instructions 2
b_portant Electrical Information 3
Important Operation Instructions 4
Assembly instructions 8
Folding Instructions 12
Transport Instructions 12
.Operation of Your New Treadmill 13

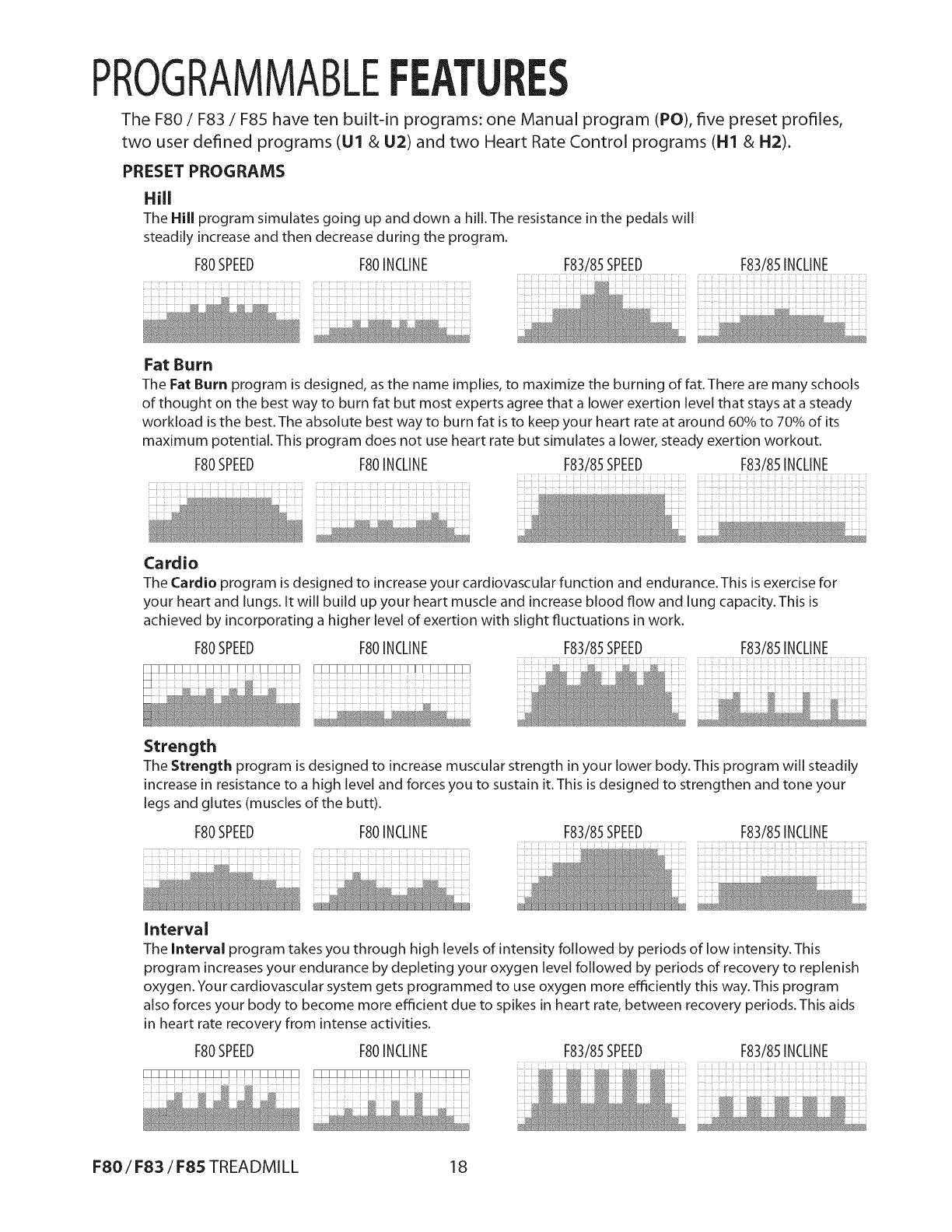

Programmable Features 18

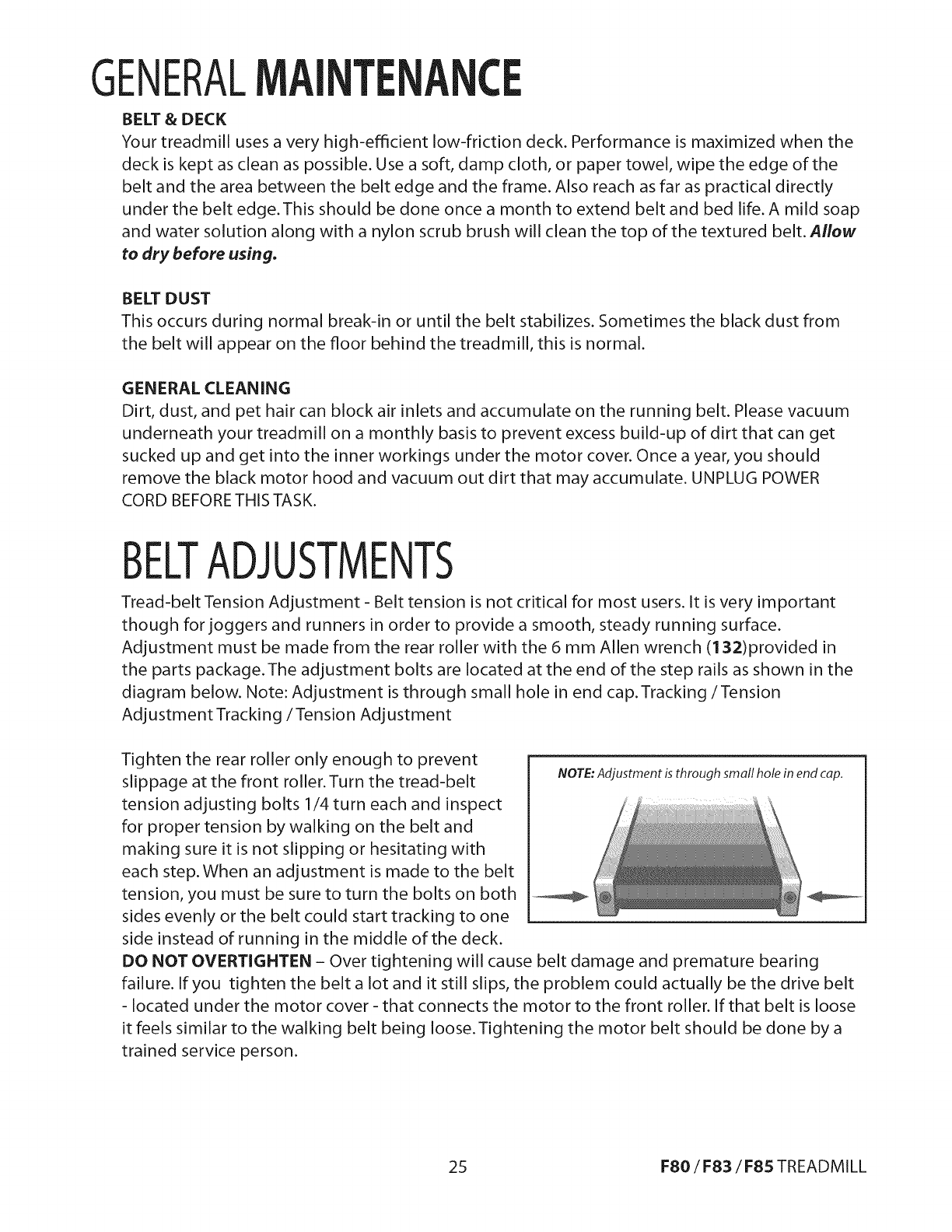

General Maintenance 25

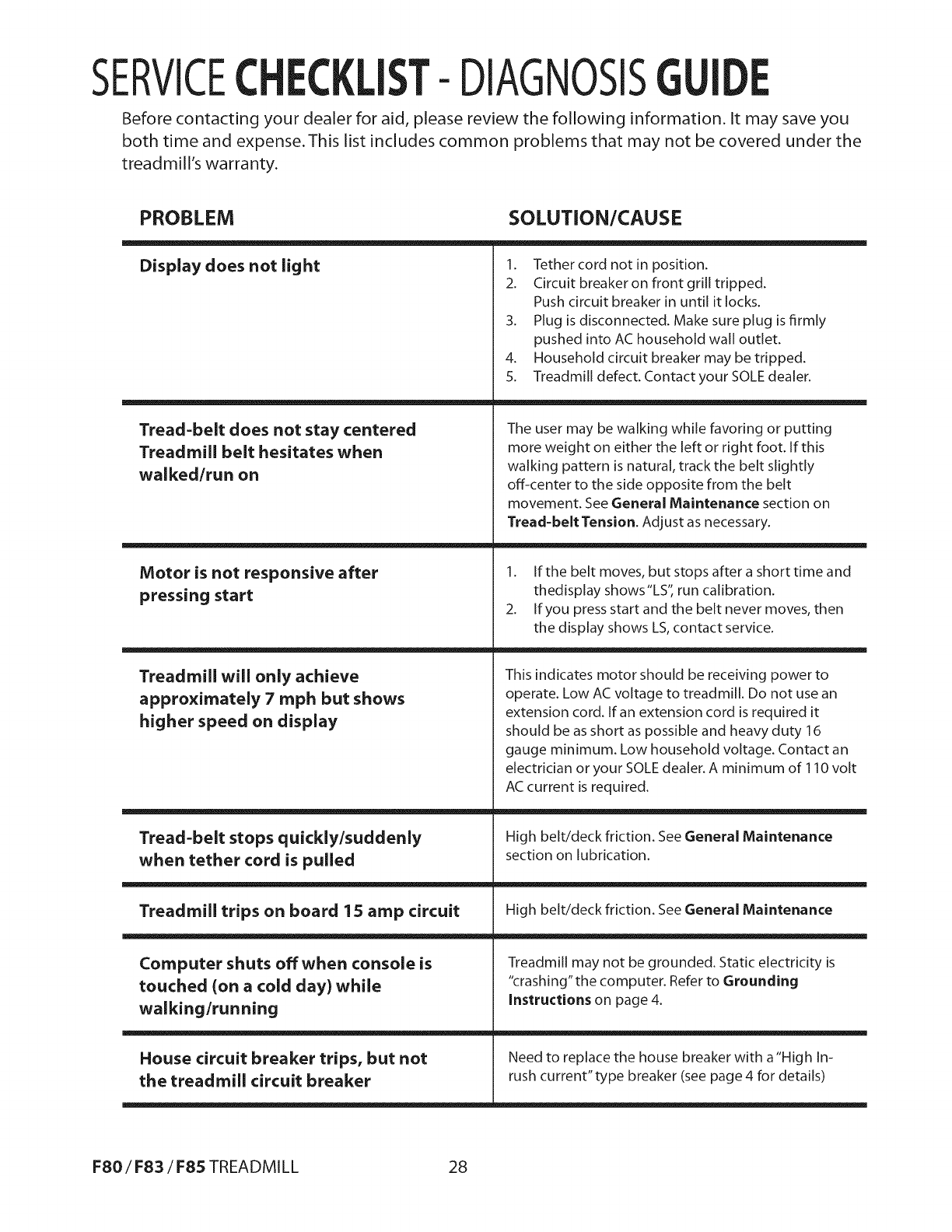

Service Checklist - Diagnosis Guide 28
Manufacturer's Limited Warrant_ 30
![](asset-3.png)
FITNZSS

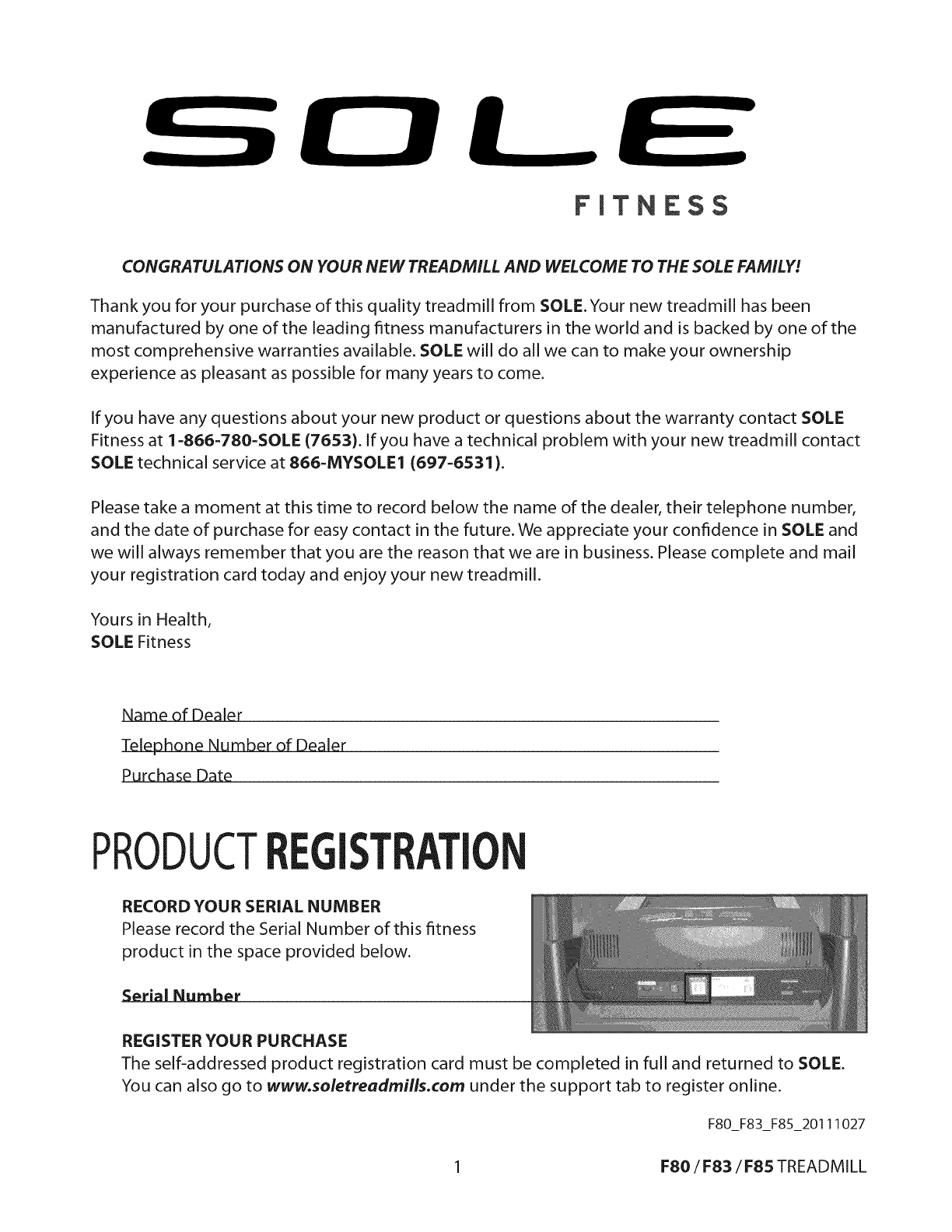

CONGRATULATIONS ON YOUR NEW TREADMILL AND WELCOME TO THE SOLE FAMILW
Thank you for your purchase of this quality treadmill from SOLE.Your new treadmill has been
manufactured by one of the leading fitness manufacturers in the world and is backed by one of the
most comprehensive warranties available. SOLE will do all we can to make your ownership
experience as pleasant as possible for many years to come.
If you have any questions about your new product or questions about the warranty contact SOLE
Fitness at 1-866-780-SOLE (7653). If you have a technical problem with your new treadmill contact
SOLE technical service at 866-MYSOLEI (697-6531).
Please take a moment at this time to record below the name of the dealer, their telephone number,
and the date of purchase for easy contact in the future. We appreciate your confidence in SOLE and
we will always remember that you are the reason that we are in business. Please complete and mail
your registration card today and enjoy your new treadmill.
Yours in Health,
SOLE Fitness
Name of Dealer
Telephone Number of Dealer
Purchase Date
PRODUCT IST TI
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this fitness
product in the space provided below.
Serial Number
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to SOLE.
You can also go to wwwo$oletreadmills.com under the support tab to register online.
F80_F83_F85_20111027
1 F80/F83/F85 TREADMILL
![](asset-4.png)

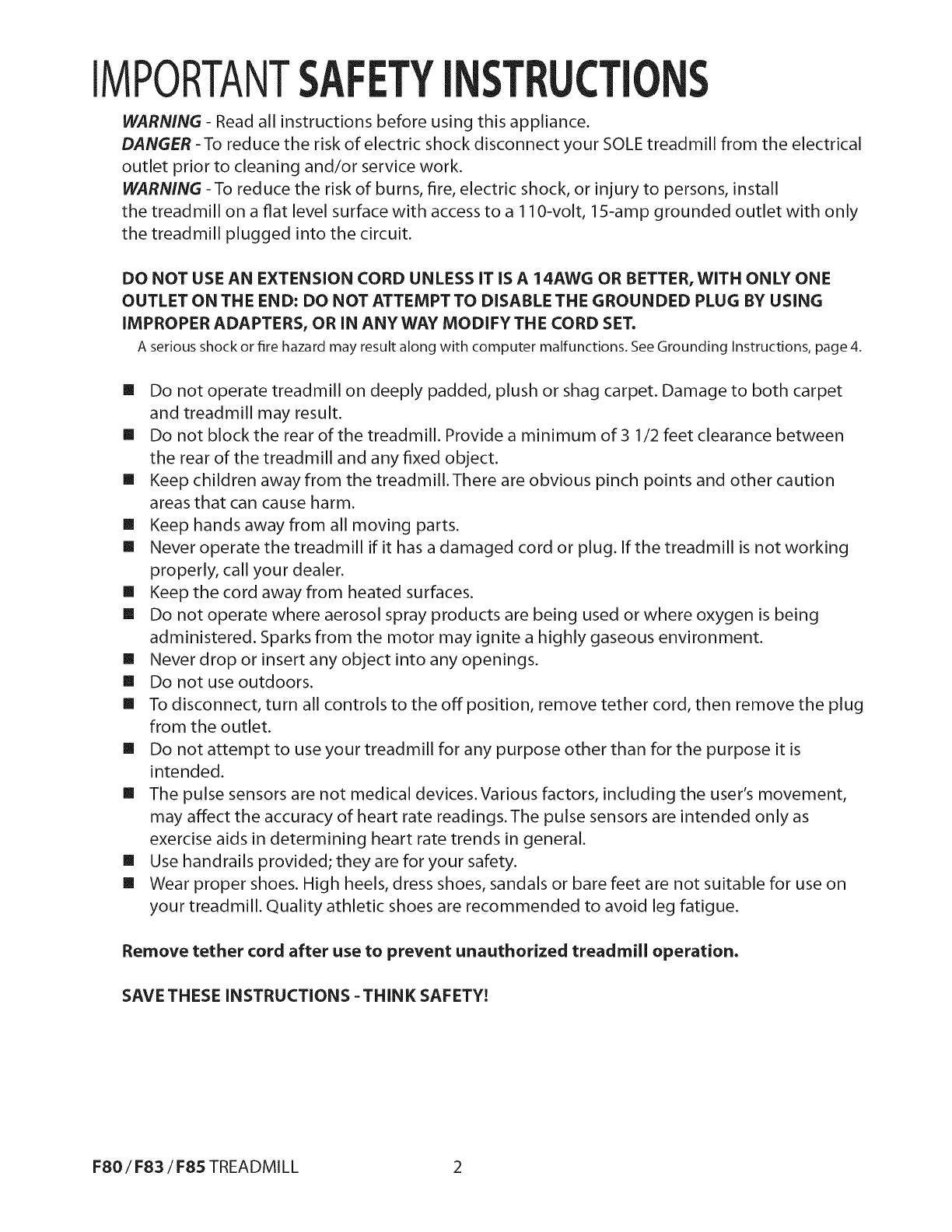

IMPORTANT TYI ST UCTI
WARNING - Read all instructions before using this appliance.
DANGER -To reduce the risk of electric shock disconnect your SOLE treadmill from the electrical
outlet prior to cleaning and/or service work.
WARNING -To reduce the risk of burns, fire, electric shock, or injury to persons, install
the treadmill on a fiat level surface with access to a 11 O-volt, 15-amp grounded outlet with only
the treadmill plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR BETTER, WITH ONLY ONE
OUTLET ON THE END: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING
IMPROPER ADAPTERS, OR IN ANYWAY MODIFY THE CORD SET.
A serious shock or fire hazard may result along with computer malfunctions. See Grounding Instructions, page 4.
[] Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet
and treadmill may result.
[] Do not block the rear of the treadmill. Provide a minimum of 3 1/2 feet clearance between
the rear of the treadmill and any fixed object.
[] Keep children away from the treadmill.There are obvious pinch points and other caution
areas that can cause harm.
[] Keep hands away from all moving parts.
[] Never operate the treadmill if it has a damaged cord or plug. lfthetreadmill is not working
properly, call your dealer.
[] Keep the cord away from heated surfaces.
[] Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
[] Never drop or insert any object into any openings.
[] Do not use outdoors.
[] To disconnect, turn all controls to the off position, remove tether cord, then remove the plug
from the outlet.
[] Do not attempt to use your treadmill for any purpose other than for the purpose it is
intended.
[] The pulse sensors are not medical devices.Various factors, including the user's movement,
may affect the accuracy of heart rate readings.The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
[] Use handrails provided; they are for your safety.
[] Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
Remove tether cord after use to prevent unauthorized treadmill operation.
SAVE THESE INSTRUCTIONS =THINK SAFETY!
F80/F83/F85 TREADMILL 2
![](asset-5.png)

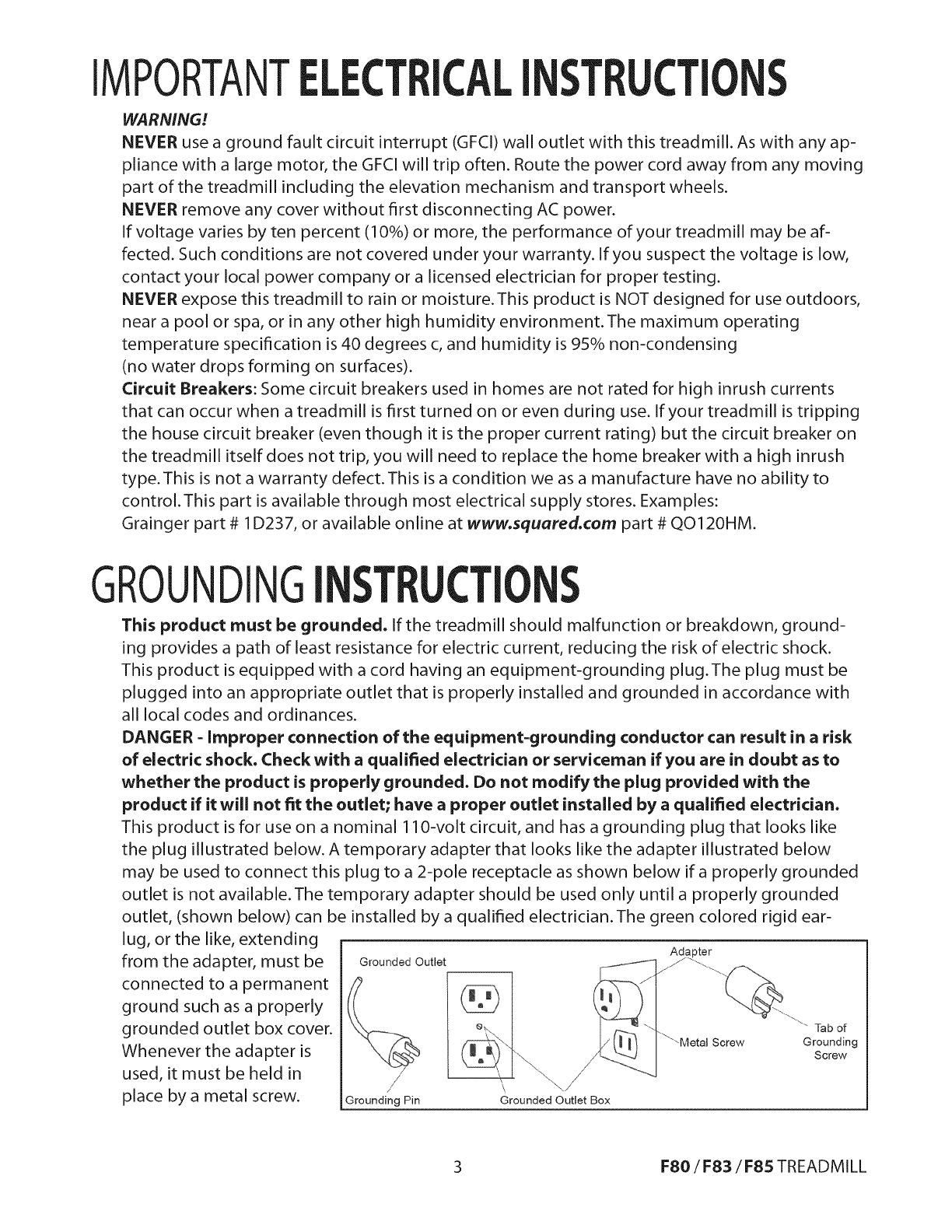

IMPORTANTELECTCALl T TI
WARNING!
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any ap-
pliance with a large motor, the GFCI will trip often. Route the power cord away from any moving
part of the treadmill including the elevation mechanism and transport wheels.
NEVER remove any cover without first disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your treadmill may be af-
fected. Such conditions are not covered under your warranty. If you suspect the voltage is low,
contact your local power company or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture.This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity environment.The maximum operating
temperature specification is 40 degrees c, and humidity is 95% non-condensing
(no water drops forming on surfaces).
Circuit Breakers: Some circuit breakers used in homes are not rated for high inrush currents
that can occur when a treadmill is first turned on or even during use. If your treadmill is tripping
the house circuit breaker (even though it is the proper current rating) but the circuit breaker on
the treadmill itself does not trip, you will need to replace the home breaker with a high inrush
type.This is not a warranty defect.This is a condition we as a manufacture have no ability to
control.This part is available through most electrical supply stores. Examples:
Grainger part # 1D237, or available online at www.squared.com part # Q012OHM.
GROUNDINGI ST T
This product must be grounded. If the treadmill should malfunction or breakdown, ground-
ing provides a path of least resistance for electric current, reducing the risk of electric shock.
This product is equipped with a cord having an equipment-grounding plug.The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
DANGER - Improper connection of the equipment=grounding conductor can result in arisk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the
product if it will not fit the outlet; have aproper outlet installed by a qualified electrician.
This product is for use on a nominal 11O-volt circuit, and has a grounding plug that looks like
the plug illustrated below. A temporary adapter that looks like the adapter illustrated below
may be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded
outlet is not available.The temporary adapter should be used only until a properly grounded
outlet, (shown below) can be installed by a qualified electrician.The green colored rigid ear-
lug, or the like, extending
from the adapter, must be
connected to a permanent
ground such as a properly
grounded outlet box cover.
Whenever the adapter is
used, it must be held in
place by a metal screw.
Grounded Outlet
Grounding Pin
\ \,/
Grounded Outlet Box
Adapter
"" Tab of
"_'Metal Sorew Grounding
Screw
3F80 /F83 /F85 TREADMILL
![](asset-6.png)

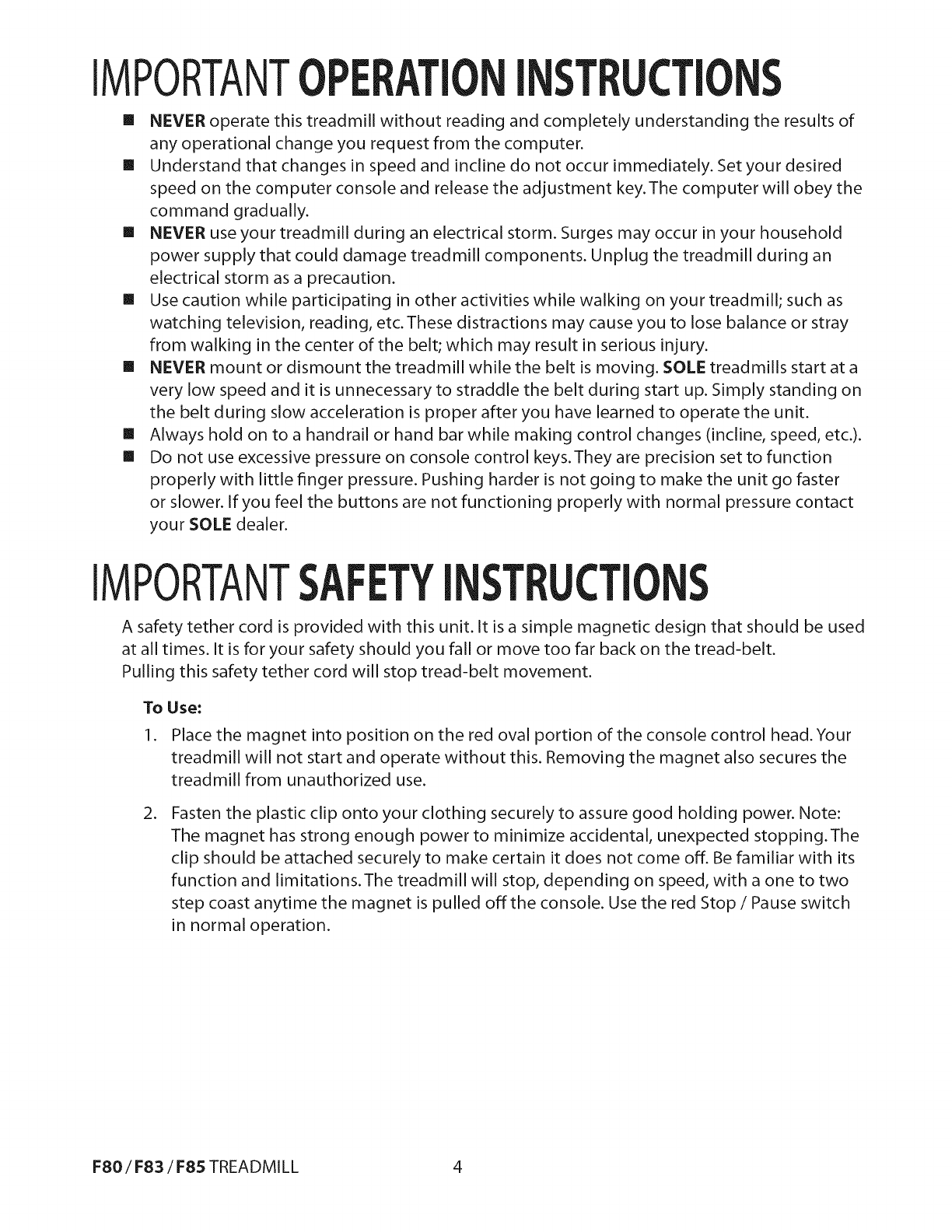

IMPORTANT TI T CTI
II NEVER operate this treadmill without reading and completely understanding the results of
any operational change you request from the computer.
II Understand that changes in speed and incline do not occur immediately. Set your desired
speed on the computer console and release the adjustment key.The computer will obey the
command gradually.
II NEVER use your treadmill during an electrical storm. Surges may occur in your household
power supply that could damage treadmill components. Unplug the treadmill during an
electrical storm as a precaution.
II Use caution while participating in other activities while walking on your treadmill; such as
watching television, reading, etc.These distractions may cause you to lose balance or stray
from walking in the center of the belt; which may result in serious injury.
II NEVER mount or dismount the treadmill while the belt is moving. SOLE treadmills start at a
very low speed and it is unnecessary to straddle the belt during start up. Simply standing on
the belt during slow acceleration is proper after you have learned to operate the unit.
II Always hold on to a handrail or hand bar while making control changes (incline, speed, etc.).
II Do not use excessive pressure on console control keys.They are precision set to function
properly with little finger pressure. Pushing harder is not going to make the unit go faster
or slower. If you feel the buttons are not functioning properly with normal pressure contact
your SOLE dealer.
IMPORTANT TYI ST UCTI
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used
at all times. It is for your safety should you fall or move too far back on the tread-belt.
Pulling this safety tether cord will stop tread-belt movement.
To
1.
Use:
Place the magnet into position on the red oval portion of the console control head. Your
treadmill will not start and operate without this. Removing the magnet also secures the
treadmill from unauthorized use.
.Fasten the plastic clip onto your clothing securely to assure good holding power. Note:
The magnet has strong enough power to minimize accidental, unexpected stopping.The
clip should be attached securely to make certain it does not come off. Be familiar with its
function and limitations.The treadmill will stop, depending on speed, with a one to two
step coast anytime the magnet is pulled offthe console. Use the red Stop /Pause switch
in normal operation.
FSO/F83/F85 TREADMILL 4
![](asset-7.png)

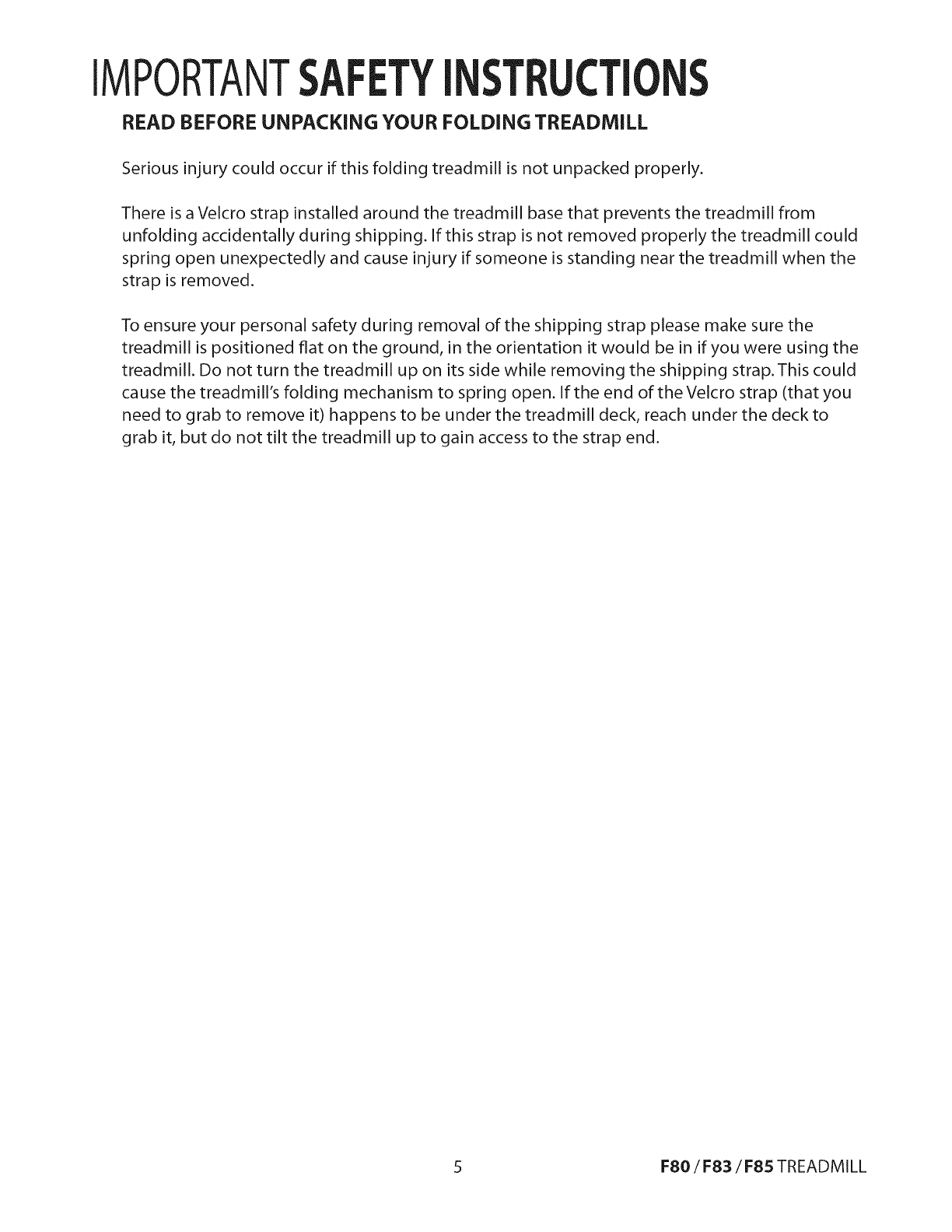

IMPORTANT TYI ST LICTI
READ BEFORE UNPACKING YOUR FOLDING TREADMILL
Serious injury could occur if this folding treadmill is not unpacked properly.
There is a Velcro strap installed around the treadmill base that prevents the treadmill from
unfolding accidentally during shipping. If this strap is not removed properly the treadmill could
spring open unexpectedly and cause injury if someone is standing near the treadmill when the
strap is removed.
To ensure your personal safety during removal of the shipping strap please make sure the
treadmill is positioned fiat on the ground, in the orientation it would be in if you were using the
treadmill. Do not turn the treadmill up on its side while removing the shipping strap.This could
cause the treadmill's folding mechanism to spring open. If the end of the Velcro strap (that you
need to grab to remove it) happens to be under the treadmill deck, reach under the deck to
grab it, but do not tilt the treadmill up to gain access to the strap end.
5F80 /F83 /F8S TREADMILL
![](asset-8.png)

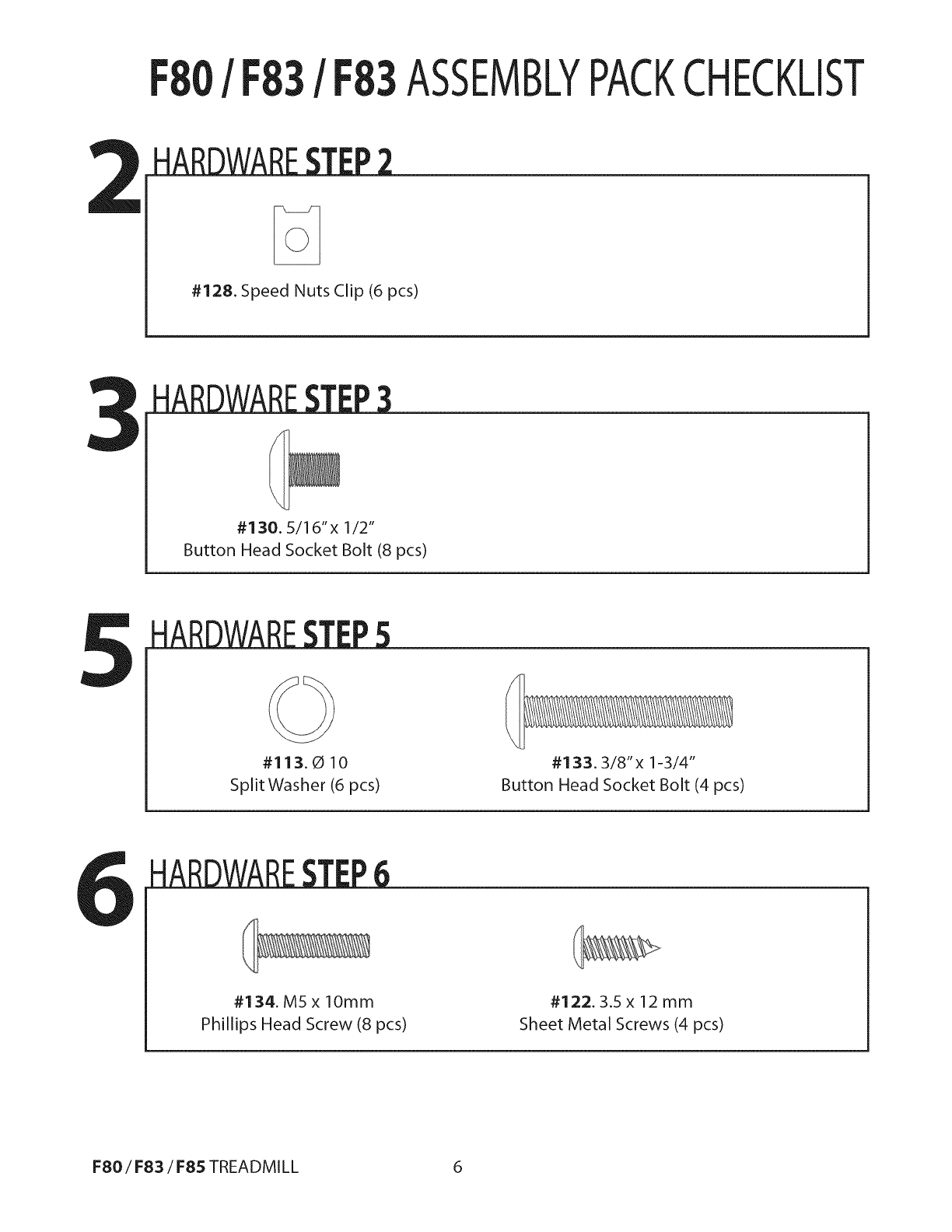

! ! ASSEMLYPACKCHECKLIST
#128. Speed Nuts Clip (6 pcs)
_J2W__EE3
#130.5/16"x 1/2"
Button Head Socket Bolt (8 pcs)
#113.0 10
Split Washer (6 pcs)
#133.3/8" x 1-3/4"
Button Head Socket Bolt (4 pcs)
#134. M5 x lOmm
Phillips Head Screw (8 pcs)
#122.3.5 x 12 mm
Sheet Metal Screws (4 pcs)
F80/F83/F85 TREADMILL 6
![](asset-9.png)

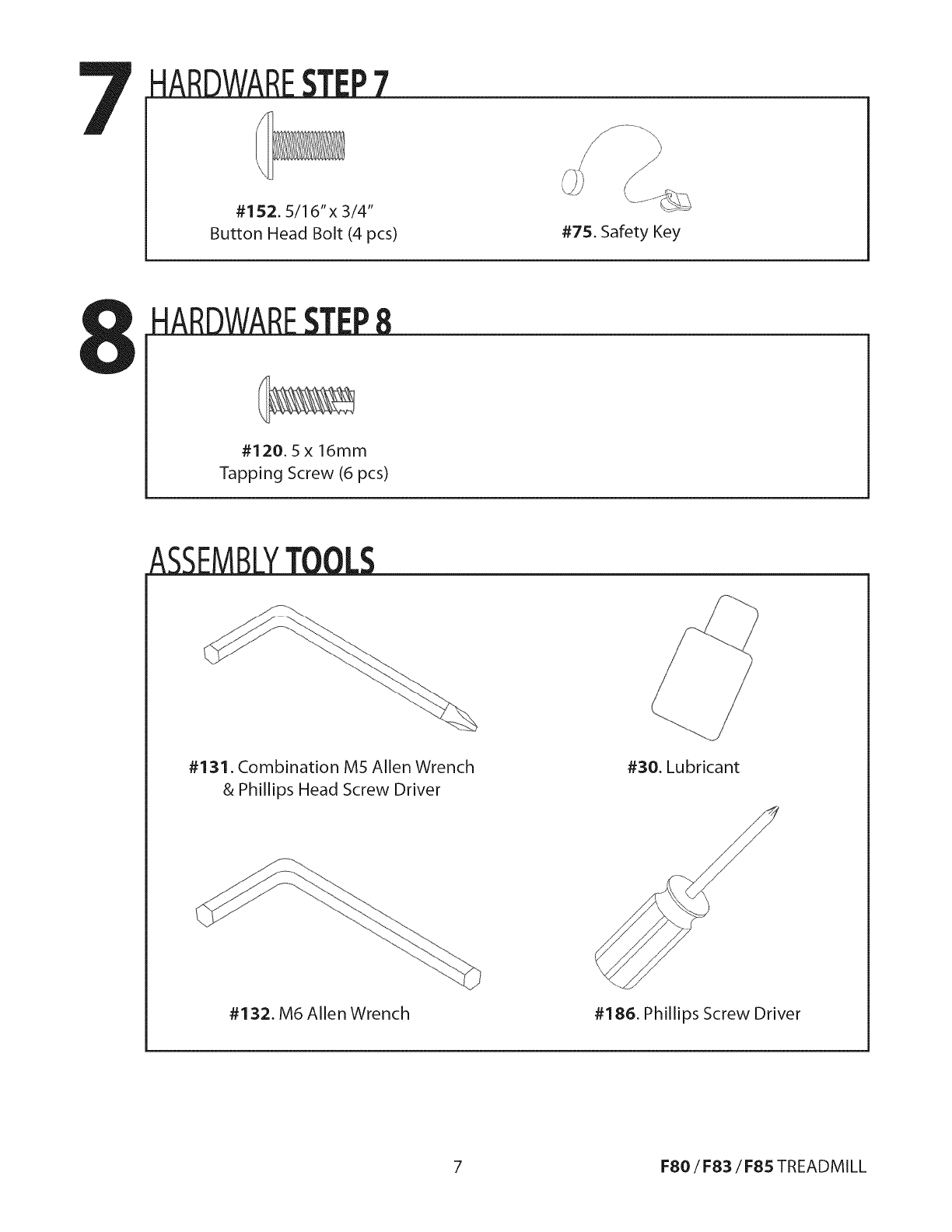

#152.5/16"x 3/4"
Button HeadBolt(4pcs) #75.SafetyKey
#120.5 x 16mm
TappingScrew(6pcs)
#131. CombinationM5AllenWrench
& PhillipsHeadScrewDriver
#30.Lubricant
#132. M6AllenWrench #186. PhillipsScrewDriver
7F80 /F83 /F85 TREADMILL
![](asset-a.png)
//ASSEMLYINSTRUCTIONS
1. Remove the treadmill from the carton and position it aside on a smooth, level
floor.The rear should be at least 3'from any wall. Do not remove the Velcro
belt until you have removed the plastic wrap and Styrofoam from beneath
the unit. Turning the unit on its side after removing the belt may cause
the unit fold up and cause serious injury!
128
128
128 •.... 128
128
128
• i
#128. Speed Nuts
Clip (2 pcs)
1.
2.
Install the six Speed Nut
Clips (128) on the Frame
Base left and right side.
Slide the Frame Base Caps
(61 &62) over the Upright
tubes (4 & 5). Connect the
Lower Computer Cable (49)
to the Middle Computer
Cable (50) on the right side
of the unit.
62
/_¸!¸¸¸_i¸¸_¸il
63
Before attaching the hardware to Step 3, make sure the cables you just connected don't
get pinched in between the steel tubing. If they do, this may cause issues that prevent
the treadmill from operating properly.
F80/F83/F85 TREADMILL 8
![](asset-b.png)
ASSEMBLYSTEP3
131 _
130
130
• i
#130. 5/16"x 1/2" Button
Head Socket Bolts (8 pcs)
1. Attach the Uptight Tubes (4 & 5) onto the Frame Base (2) with eight Button
Head Socket Bolts (130) by using the Combination M5 Allen Wrench & Phil-
lips Head Screw Driver (131). Do not tighten the bolts completely until
Step 7is finished,
37
_ 54
38
4s ....
so
To complete this step, it is recommended that you find something to rest the
console on at the appropriate height or have someone hold the console while
you connect the cables
1. Connect the Speed Adjustment Switch Cable (54) to the Speed Cable, Upper
(37) Connect the Incline Adjustment Switch Cable (55) to the Incline Cable,
Upper (38). Connect the Computer Cable, Middle (50) and Computer Cable,
Upper (48). Tuck the excess cable into the hand rail tubing to prevent it from
getting pinched.
Before attaching the hardware to Step 6, make sure the cables you just connected don't
get pinched in between the steel tubing. If they do, this may cause issues that prevent
the treadmill from operating properly.
9F80 /F83 /F85 TREADMILL
![](asset-c.png)
1.
132

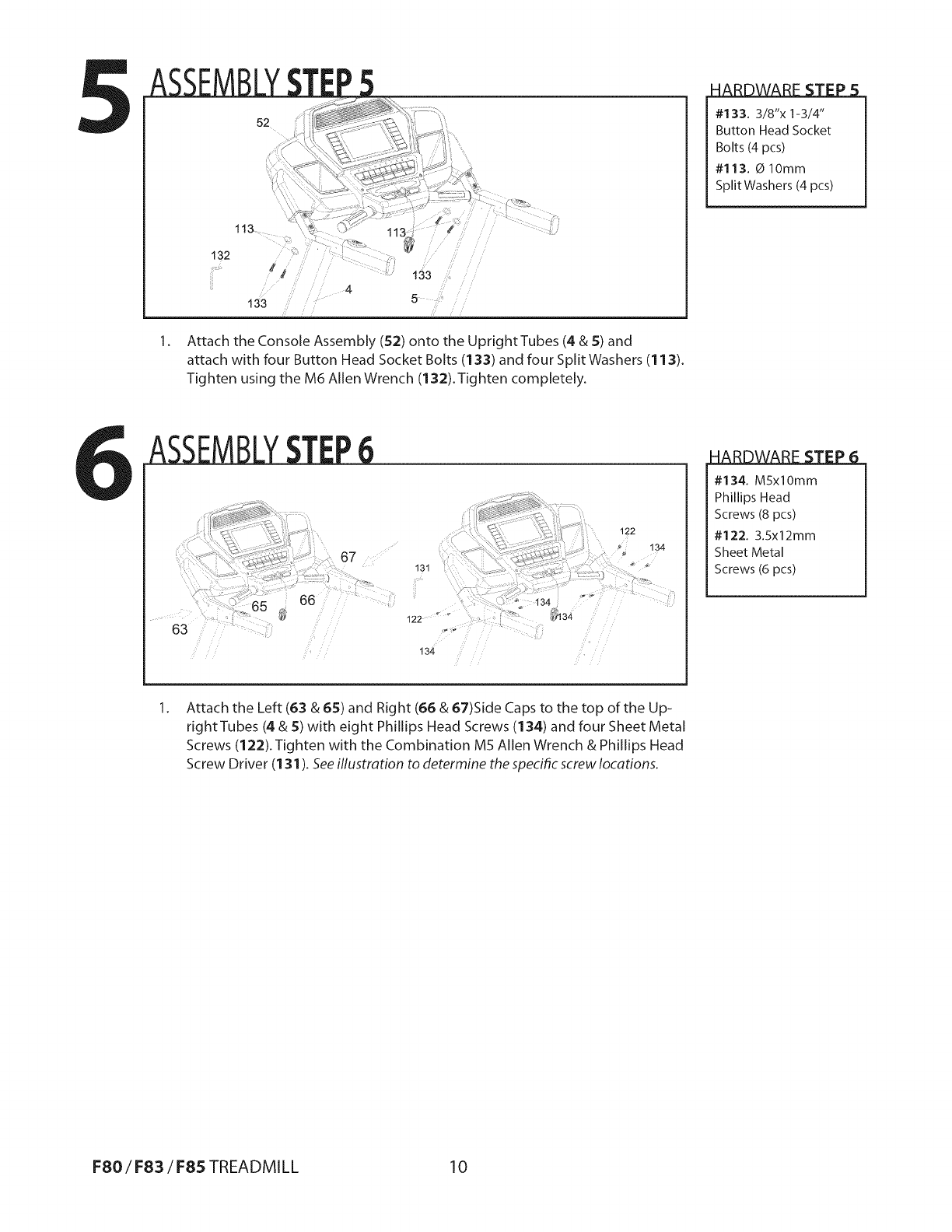

Attach the Console Assembly (52) onto the Upright Tubes (4 & 5) and
attach with four Button Head Socket Bolts (133) and four Split Washers (113).
Tighten using the M6 Allen Wrench (132).Tighten completely.
| i
#133. 3/8"x 1-3/4"
Button Head Socket
Bolts (4 pcs)
#113. _ lOmm
Split Washers (4 pcs)
131
122
134
122
63 _
134
#1:34. MSxlOmm
Phillips Head
Screws (8 pcs)
#122. 3.Sx12mm
Sheet Metal
Screws (6 pcs)
1. Attach the Left (63 &65) and Right (66 & 67)Side Caps to the top of the Up-
right Tubes (4 & 5) with eight Phillips Head Screws (134) and four Sheet Metal
Screws (122). Tighten with the Combination M5 Allen Wrench & Phillips Head
Screw Driver (131 ). See illustration to determine the specifTc screw locations.
F80 /F83 /F85 TREADMILL 10
![](asset-d.png)

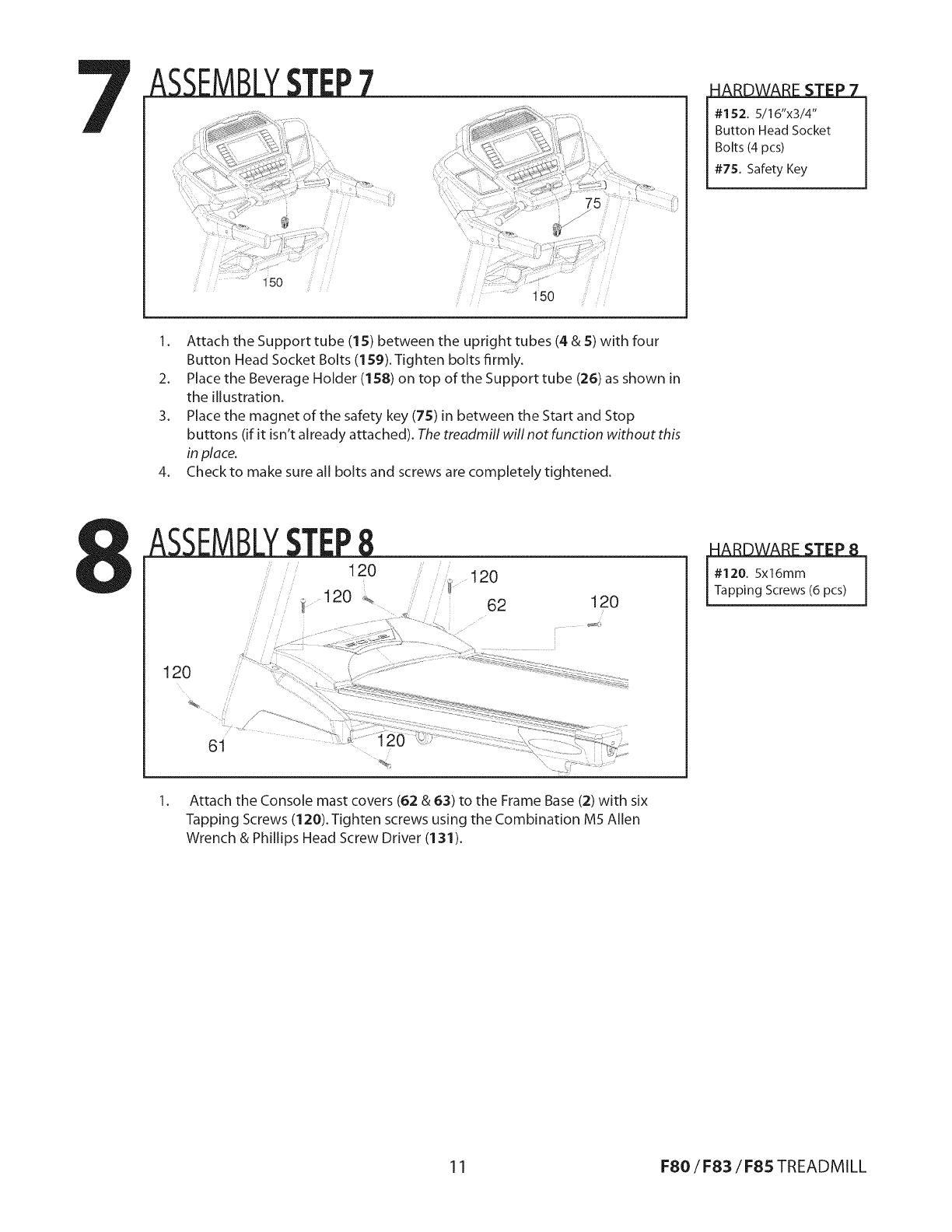

SEI LYSTr 2
15o 150
• i
#152. 5/16"x3/4"
Button Head Socket
Bolts (4 pcs)
#75. Safety Key
1. Attach the Support tube (15) between the upright tubes (4 & 5) with four
Button Head Socket Bolts (159). Tighten bolts firmly.
2. Place the Beverage Holder (158) on top of the Support tube (26) as shown in
the illustration.
3. Place the magnet of the safety key (75) in between the Start and Stop
buttons (if it isn't already attached). The treadmill will not function without this
in place.
4. Check to make sure all bolts and screws are completely tightened.
20
62 120
1.
6!
Attach the Console mast covers (62 & 63) to the Frame Base (2) with six
Tapping Screws (120). Tighten screws using the Combination M5 Allen
Wrench & Phillips Head Screw Driver (131).
#120. 5x16mm
Tapping Screws(6 pcs)
11 FSO /F83 /F85 TREADMILL
![](asset-e.png)
FOLDINGI ST UCT
Do not attempt to move the unit unless it is in the folded and locked position. Be sure the
power cord is secured to avoid possible damage. Use both handrails to maneuver the unit to
the desired position.
Ii TO FOLD THE TREADMILL
Make certain the treadmill is at minimum
incline. Lift the treadmill running deck
until it is secured by the locking telescoping
tube assembly in center back of base.
mTO UNFOLD THE TREADMILL
Apply slight forward pressure* on the treadmill
running deck with one hand. Pull down on the
unlocking lever and slowly lower the running deck
to the floor.The deck will lower
unassisted when it reaches about waist high.
.*At the rear roller area to relieve pressure on the
locking system.
TRANSPORTATION!ST UCT
The treadmill is equipped with four transport wheels that are engaged when the treadmill is
folded. After folding simply roll the treadmill away.
F80 /F83 /F85 TREADMILL 12
![](asset-f.png)
OPERATIONOFYOU T
GETTING FAMILIAR WITH THE CONTROL PANEL
LL
F80CONSOLE
INCLINEQUICK
SPEAKE_
COOLINGFANS
!UICKKEYS
DISPLAYBUTTON_
POWERSWITCH
DOTMATRIXDISPLAY
AUDIOINJACk
(MP3,CD,OR
SMARTPHONE)
HEART
RATESENSORS
F83/85CONSOLE
INCLINEQUICK
COOLINGFANS
!UICKKEYS
AUDIOINJACI(
(MP3,CD,OR
SMARTPHONE)
POWERSWITCH
DOTMATRIXDISPLAY
HEART
RATESENSORS
13 F80 /F83 /F85 TREADMILL
![](asset-10.png)
GETT!GSTARTED
F80 /F83 /F85 CONSOLES
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power
switch located at the front of the treadmill below the motor hood. Ensure that the Safety Key is
installed, as the treadmill will not power on without it (see assembly step 7 for reference).
When the power is turned on, a message will scroll across the dot matrix showing the current
software version.Then the Time and Distance windows will display Odometer readings for a
short time, Time window will show how many hours the treadmill has been in use and the
Distance window will show how many miles (or Kilometers if the treadmill is set to metric
readings) the treadmill has gone.The treadmill will then enter idle mode, which is the starting
point for operation.
QUICK-STARTOPERATION
1. Attach the Safety Key to wake display up (if not already on).
2. Press the Start key to begin belt movement then adjust to the desired speed using the Fast
/Slow keys (console or handgrip). You may also use the Quick speed keys 2, 4, 6, 8 or 12 to
adjust the speed.
3. To slow tread-belt press and hold the Slow key (console or handgrip) to the desired speed.
You may also press the Quick speed adjust keys, 2 through 12.
4. To stop the tread-belt press Stop key or pull away Safety Key.
F80 /F83 /F85 TREADMILL 14
![](asset-11.png)

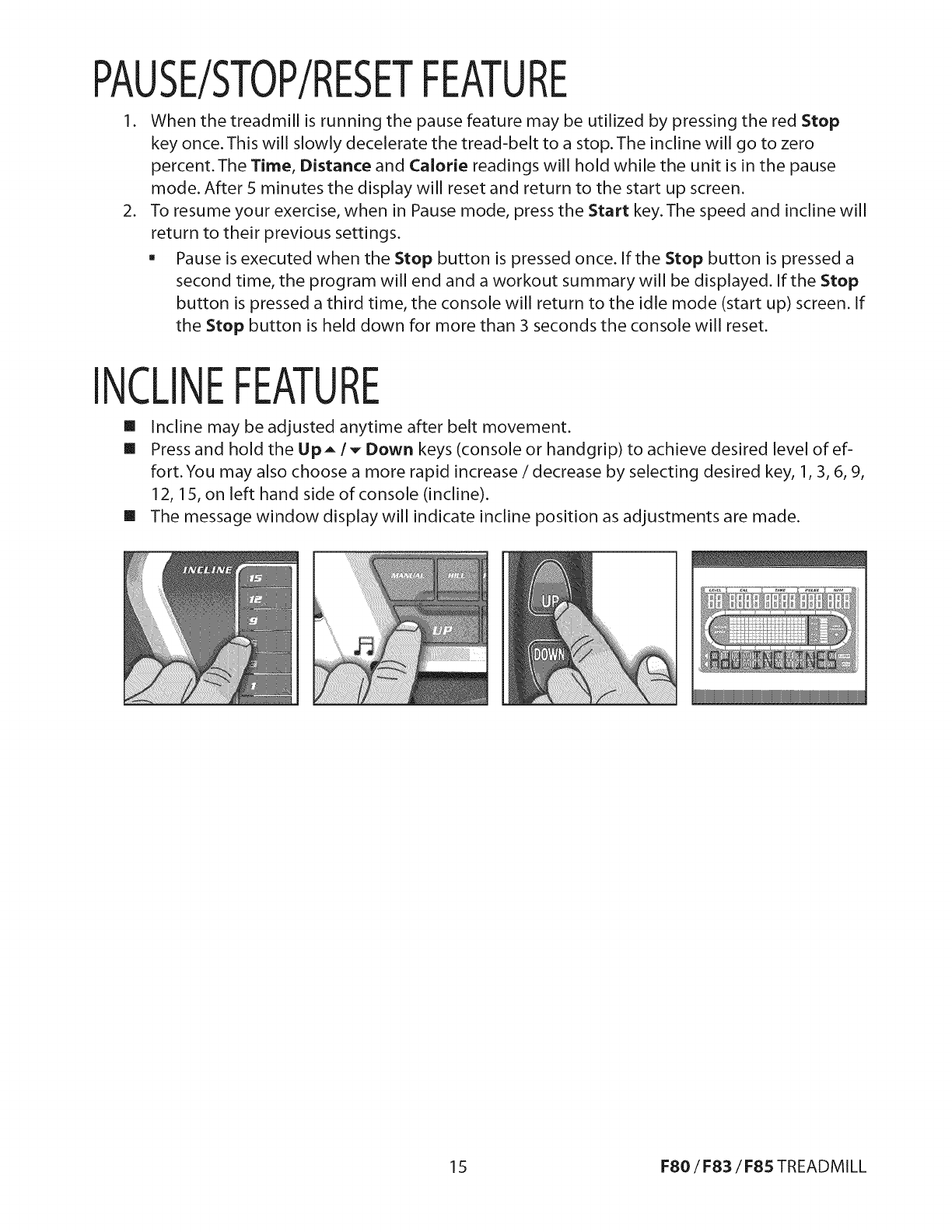

PAUSE/STOP/RESETFEATURE
.
.
When the treadmill is running the pause feature may be utilized by pressing the red Stop
key once.This will slowly decelerate the tread-belt to a stop.The incline will go to zero
percent.The Time, Distance and Calorie readings will hold while the unit is in the pause
mode. After 5 minutes the display will reset and return to the start up screen.
To resume your exercise, when in Pause mode, press the Start key.The speed and incline will
return to their previous settings.
Pause is executed when the Stop button is pressed once. If the Stop button is pressed a
second time, the program will end and a workout summary will be displayed. If the Stop
button is pressed a third time, the console will return to the idle mode (start up) screen. If
the Stop button is held down for more than 3 seconds the console will reset.
INCLINEFEATURE
II Incline may be adjusted anytime after belt movement.
II Press and hold the UpA/T Down keys (console or handgrip) to achieve desired level of ef-
fort.You may also choose a more rapid increase/decrease by selecting desired key, 1, 3, 6, 9,
12, 15, on left hand side of console (incline).
II The message window display will indicate incline position as adjustments are made.
15 F80 /F83 /F85 TREADMILL
![](asset-12.png)
DOTMATRIXCENTERDISPLAY
Twenty columns of dots (8 high) (F80) or 24 columns of dots
(10 high) (F83/85)indicate each segment of a workout.The
dots are only to show an approximate level (speed/incline)
of effort. They do not necessarily indicate a specific value -
only an approximate percent to compare levels of intensity.
In operation, the speed/incline dot matrix window will build
a profile"picture"as values are changed during a workout.
When the word "Speed" is lit above the dot matrix it indicates
that the Speed profile is being displayed and when the word
"Incline" is lit above the dot matrix it indicates the Incline
profile is being displayed. SPEED INCLINE
You may change the Dot Matrix profile view between Speed and Incline by pressing the ENTER
button. After pressing select to view the two profiles, pressing the select button a third time will
automatically alternate the Speed and Incline displays, showing each one for five seconds.
1/4 MILE TRACK
The 1/4 mile track is displayed around the dot matrix window.The flashing dot indicates your
progress.The number of laps you complete are accumulated in the lap counter, which is viewed
in the Message window.
PULSE FEATURE
The Pulse (Heart Rate) window will display your current heart rate in beats per minute during
the workout.You must use both stainless steel sensors on the front cross bar to display your
pulse or wear the wireless chest strap.The pulse value will display anytime the upper display is
receiving a pulse signal.
F80 /F83 /F85 TREADMILL 16
![](asset-13.png)

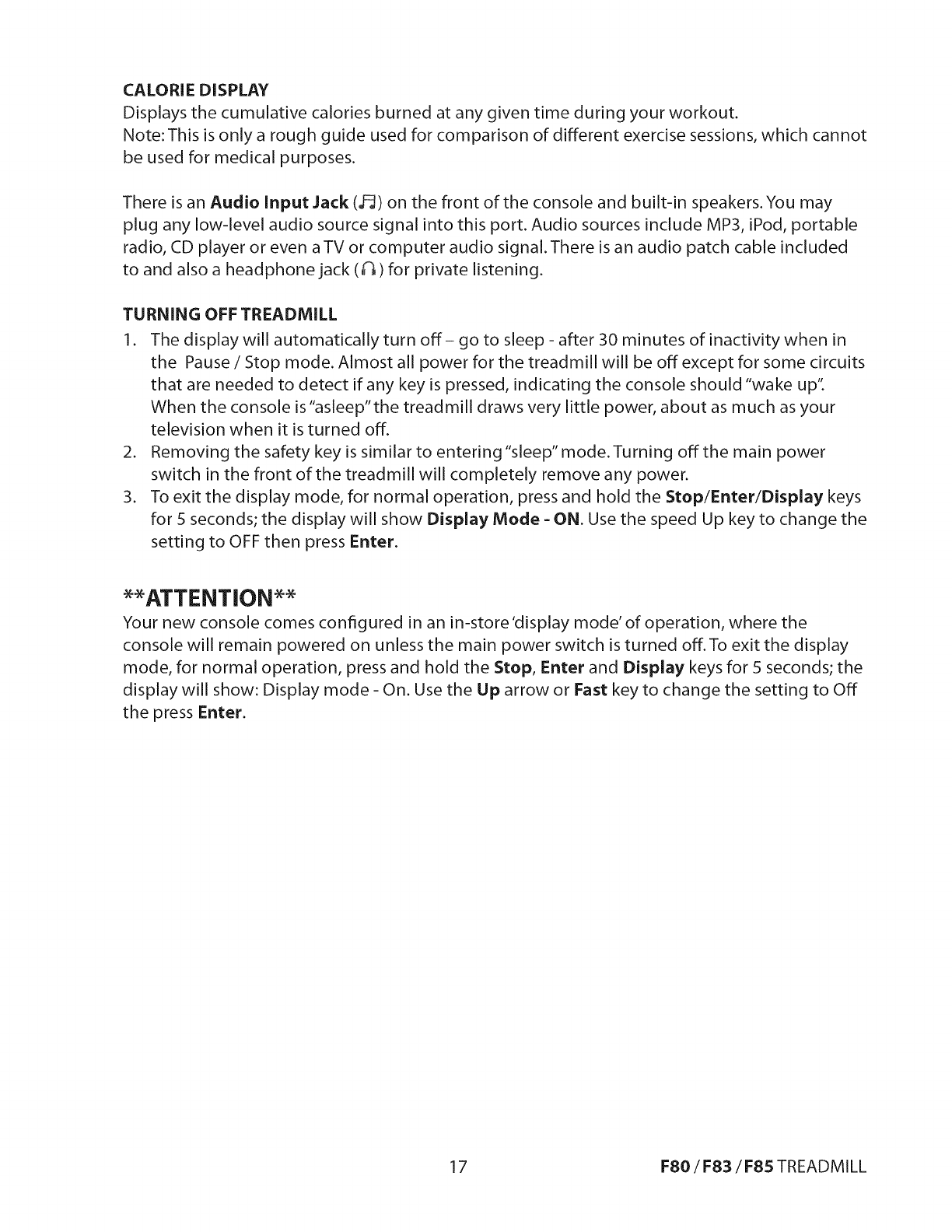

CALOR! E DISPLAY
Displays the cumulative calories burned at any given time during your workout.
Note:This is only a rough guide used for comparison of different exercise sessions, which cannot
be used for medical purposes.
There is an Audio Input Jack (_) on the front of the console and built-in speakers.You may
plug any low-level audio source signal into this port. Audio sources include MP3, iPod, portable
radio, CD player or even aTV or computer audio signal.There is an audio patch cable included
to and also a headphone jack (_;) for private listening.
TURNING OFF TREADMILL
1. The display will automatically turn off- go to sleep - after 30 minutes of inactivity when in
the Pause /Stop mode. Almost all power for the treadmill will be off except for some circuits
that are needed to detect if any key is pressed, indicating the console should "wake up".
When the console is"asleep"the treadmill draws very little power, about as much as your
television when it is turned off.
2. Removing the safety key is similar to entering "sleep" mode.Turning offthe main power
switch in the front of the treadmill will completely remove any power.
3. To exit the display mode, for normal operation, press and hold the Stop/Enter/Display keys
for 5 seconds; the display will show Display Mode - ON. Use the speed Up key to change the
setting to OFF then press Enter.
**ATTENTION**
Your new console comes configured in an in-store 'display mode' of operation, where the
console will remain powered on unless the main power switch is turned off.To exit the display
mode, for normal operation, press and hold the Stop, Enter and Display keys for 5 seconds; the
display will show: Display mode - On. Use the Up arrow or Fast key to change the setting to Off
the press Enter.
17 F80 /F83 /F85 TREADMILL
![](asset-14.png)
PROGRAMMALE
The FSO/F83 /F85 have ten built-in programs: one Manual program (PO), five preset profiles,
two user defined programs (L!I & L!2) and two Heart Rate Control programs (H1 & H2).
PRESET PROGRAMS
Hil
The Hill program simulates going up and down a hill.The resistance in the pedals will
steadily increase and then decrease during the program.
F80SPEED F80INCLINE F83/85SPEED F83/85INCLINE
Fat Burn
The Fat Burn program is designed, as the name =mplies, to maximize the burning of fat.There are many schools
of thought on the best way to burn fat but most experts agree that a lower exertion level that stays at a steady
workload is the best. The absolute best way to burn fat is to keep your heart rate at around 60% to 70% of its
maximum potential. This program does not use heart rate but simulates a lower, steady exertion workout.
% SPEED F80INCLINE F83/85SPEED F83/85INCLINE
ilITYIYIyjii i!i iliill i iii Y i
Cardio
The Cardio program is designed to increase your cardiovascular function and endurance.This is exercise for
your heart and lungs. It will build up your heart muscle and increase blood flow and lung capacity.This is
achieved by incorporating a higher level of exertion with slight fluctuations in work.
F80SPEED F80INCLINE F83/85SPEED F83/85INCLINE
Strength
The Strength program is designed to increase muscular strength in your lower body. This program will steadily
increase in resistance to a high level and forces you to sustain it. This isdesigned to strengthen and tone your
legs and glutes (muscles of the butt).
F80SPEED F80INCLINE F83/85SPEED F83/85INCLINE
Interval
The interval program takes you through high levels of intensity followed by periods of low intensity. This
program increases your endurance by depleting your oxygen level followed by periods of recovery to replenish
oxygen. Your cardiovascular system gets programmed to use oxygen more efficiently this way. This program
also forces your body to become more efficient due to spikes in heart rate, between recovery periods. This aids
in heart rate recovery from intense activities.
F80SPEED F80INCLINE F83/85SPEED F83/85INCLINE
i
ii
F80 /F83 /F8S TREADMILL 18
![](asset-15.png)
SELECTING A PROGRAM
.Press the UpA/T Down keys to view the programs on the screen then press the Enter key
to select the program you would like to perform.The display will prompt you through the
programming steps or you can just press the Start key to begin the program using the
preset program values for age, weight and other program specific information.
2. If enter was pressed, the Message window will display Age. You may use any of the Up/
Down or the Fast/Slow keys to adjust your age. After adjusting press the Enter key. (Note:
You may press start at any time during the programming to start the program with the informa-
tion you've already input.)
:3. The Message window will now be displaying a value, which is your Body Weight. Entering
the correct body weight will affect the calorie count. Use the Up/Down keys or the Fast/
Slow to adjust, then press enter.
A note about the Calorie display: No exercise machine can give you an exact calorie
count because there are too many factors which determine exact calorie burn for a
particular person. Even if someone is the exact same body weight, age and height, their
calorie burn may be very different than yours.The Calorie display is to be used as a
reference only to monitor improvement from workout to workout.
4. The Time window will now be displaying a value, which is total workout time desired. Use
the Up/Down or the Fast/Slow keys to adjust, and then press enter. After adjusting, press
the Enter key.
5. The Speed window will display the preset top speed of the selected program. Use the Up/
Down or the Fast/Slow keys to adjust, and then press enter. Each program has various
speed changes throughout; this allows you to limit the highest speed the program will reach
at it's peak.
6. Press Start to begin the program.The program will begin with a :3 minute warm-up. If you
want to bypass this and go directly to the beginning of the program, press Start again.
19 F80 /F83 /F85 TREADMILL
![](asset-16.png)
USER PROGRAMS
.
.
.
.
5.
.
Select User 1 or User 2 via the Program A T keys then press
Enter. Note that the dot matrix display portion will have a
single row of dots at the bottom (Unless there is a previously
stored program). If there is a program stored under the
button that is pressed, it will be retrieved. If not, you have
the option of programming in your first name.The message
window will display and flash the letter "A". To change it,
press the arrow A key, then "B"will be displayed; if the arrow
v key is pressed, the letter "Z" wil l be displayed. After
selecting the appropriate letter, press enter.The letter "A" wi ll
again be displayed and blinking. Repeat the procedure until
all letters of your first name are programmed (7 characters
maximum). When your name is displayed, press Stop and it
will be stored under either User I or User 2.
Next the Message window is flashing Age. Use the Adjust
Up/Down keys to adjust. Press Enter.This is a must to
continue even if age is not adjusted.
The Message window will now be blinking a body Weight value. Enter your body weight
and press Enter.
The Time window will now be blinking a Time value. Adjust the Time and press Enter.
The first column (segment) will now be blinking. Using the Fast/Slow or Quick keys, adjust
the speed level to your desired effort for the first segment then press enter.The second
column will now be blinking. Repeat the above process until all segments have been
programmed.The first column will be blinking again.This is for the incline programming.
Repeat the above process to program all segments for incline.
Note: While in aUser program, ifyou manually change the speed, all segment speeds from there on will also
change.
Examples: Ifyou increase your current speed 1 mph, the remaining segment speeds will increase by 1 mph. Ifyou
decrease your current speed .5 mph, the remaining segment speeds will decrease by .5 mph, etc.
Press the Start button to begin the workout and also save the program to memory.
F80/F83/F85 TREADMILL 20
![](asset-17.png)

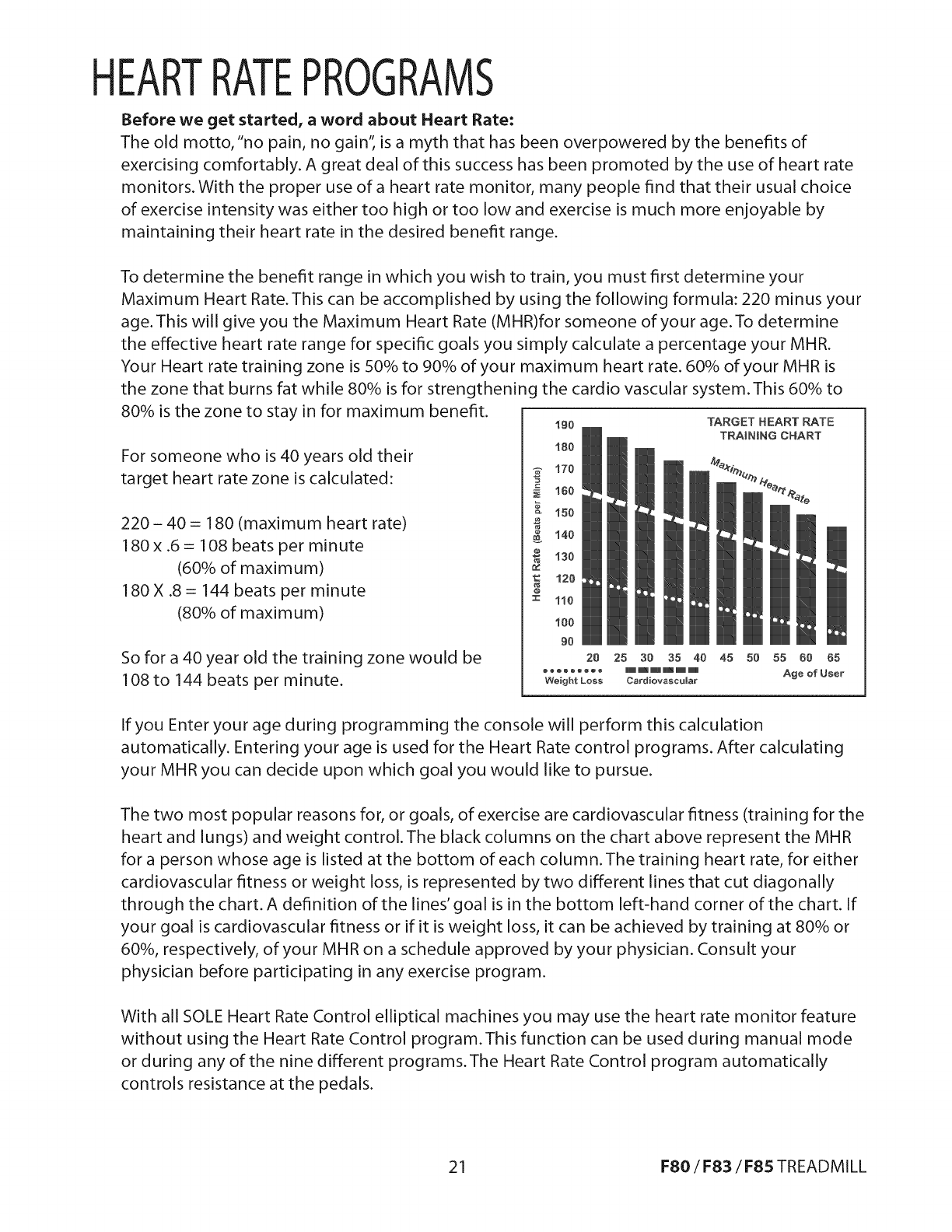

HEARTRATEPROGRAMS
Before we get started, aword about Heart Rate:
The old motto, "no pain, no gain", is a myth that has been overpowered by the benefits of
exercising comfortably. A great deal of this success has been promoted by the use of heart rate
monitors. With the proper use of a heart rate monitor, many people find that their usual choice
of exercise intensity was either too high or too low and exercise is much more enjoyable by
maintaining their heart rate in the desired benefit range.
To determine the benefit range in which you wish to train, you must first determine your
Maximum Heart Rate.This can be accomplished by using the following formula: 220 minus your
age.This will give you the Maximum Heart Rate (MHR)for someone of your age.To determine
the effective heart rate range for specific goals you simply calculate a percentage your MHR.
Your Heart rate training zone is 50% to 90% of your maximum heart rate. 60% of your MHR is
the zone that burns fat while 80% is for strengthening the cardio vascular system.This 60% to
220 - 40 -- 180 (maximum heart rate)
180x.6 = 108 beats per minute
(60% of maximum)
180X.8-- 144 beats per minute
(80% of maximum)
80% is the zone to stay in for maximum benefit. 190
For someone who is 40 years old their 180
target heart rate zone is calculated: 170
160
150
140
130
120
110
100
90
So for a 40 year old the training zone would be 20
108 to 144 beats per minute. _o_h_o_
TARGET HEART RATE
TRAINING CHART
25 3[} 35 4[} 45 50 55 6[} 65
mmmmmm Age of User
CardiovascuJar
If you Enter your age during programming the console will perform this calculation
automatically. Entering your age is used for the Heart Rate control programs. After calculating
your MHR you can decide upon which goal you would like to pursue.
The two most popular reasons for, or goals, of exercise are cardiovascular fitness (training for the
heart and lungs) and weight control.The black columns on the chart above represent the MHR
for a person whose age is listed at the bottom of each column.The training heart rate, for either
cardiovascular fitness or weight loss, is represented by two different lines that cut diagonally
through the chart. A definition of the lines' goal is in the bottom left-hand corner of the chart. If
your goal is cardiovascular fitness or if it is weight loss, it can be achieved by training at 80% or
60%, respectively, of your MHR on a schedule approved by your physician. Consult your
physician before participating in any exercise program.
With all SOLE Heart Rate Control elliptical machines you may use the heart rate monitor feature
without using the Heart Rate Control program.This function can be used during manual mode
or during any of the nine different programs. The Heart Rate Control program automatically
controls resistance at the pedals.
21 F80 /F83 /F85 TREADMILL
![](asset-18.png)

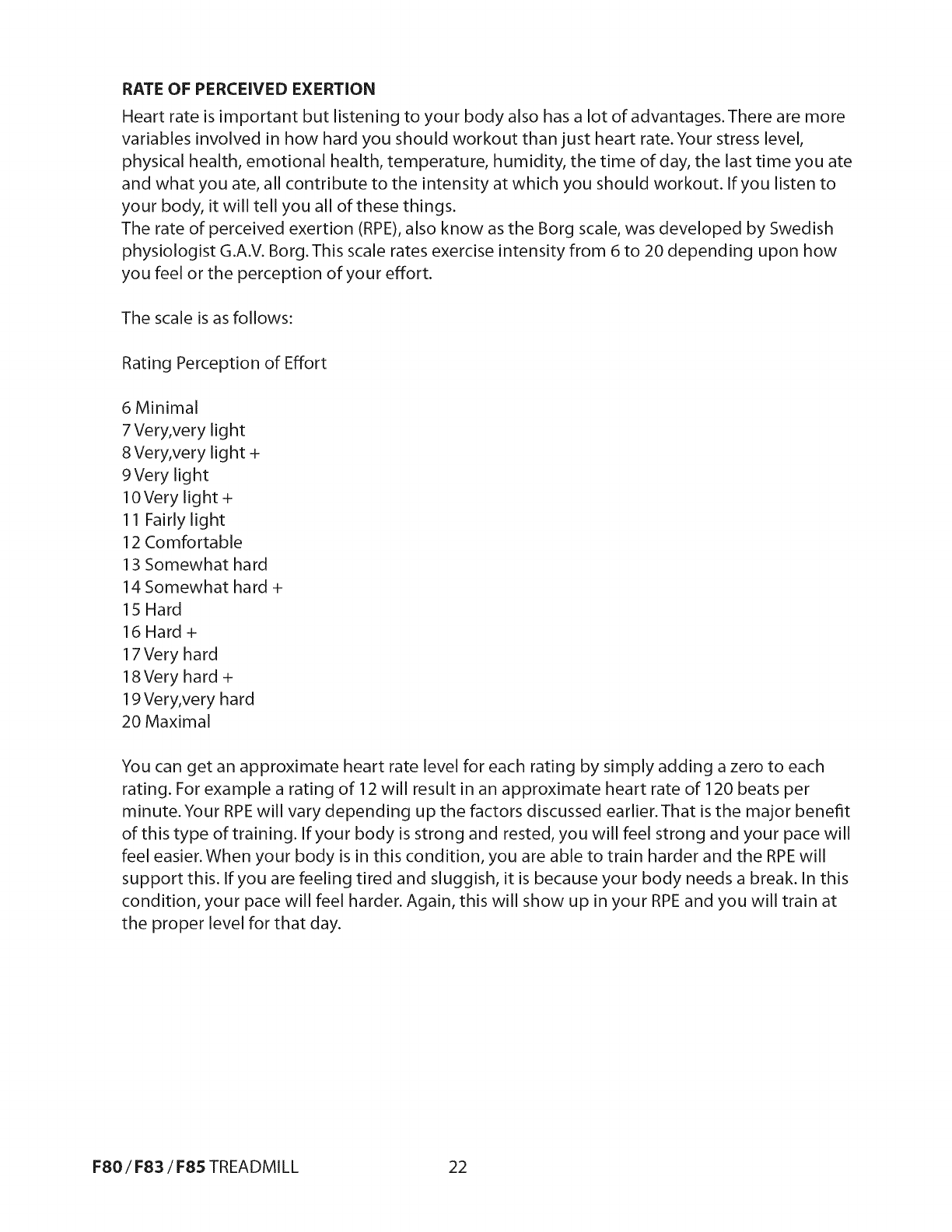

RATE OF PERCEIVED EXERTION
Heart rate is important but listening to your body also has a lot of advantages.There are more
variables involved in how hard you should workout than just heart rate. Your stress level,
physical health, emotional health, temperature, humidity, the time of day, the last time you ate
and what you ate, all contribute to the intensity at which you should workout. If you listen to
your body, it will tell you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish
physiologist G.A.V. Borg.This scale rates exercise intensity from 6 to 20 depending upon how
you feel or the perception of your effort.
The scale is as follows:
Rating Perception of Effort
6 Minimal
7 Very, very light
8 Very, very light +
9Very light
lOVery light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very, very hard
20 Maximal
You can get an approximate heart rate level for each rating by simply adding a zero to each
rating. For example a rating of 12 will result in an approximate heart rate of 120 beats per
minute.Your RPE will vary depending up the factors discussed earlier.That is the major benefit
of this type of training. If your body is strong and rested, you will feel strong and your pace will
feel easier.When your body is in this condition, you are able to train harder and the RPE will
support this. If you are feeling tired and sluggish, it is because your body needs a break. In this
condition, your pace will feel harder. Again, this will show up in your RPEand you will train at
the proper level for that day.
F80/F83/F8S TREADMILL 22
![](asset-19.png)

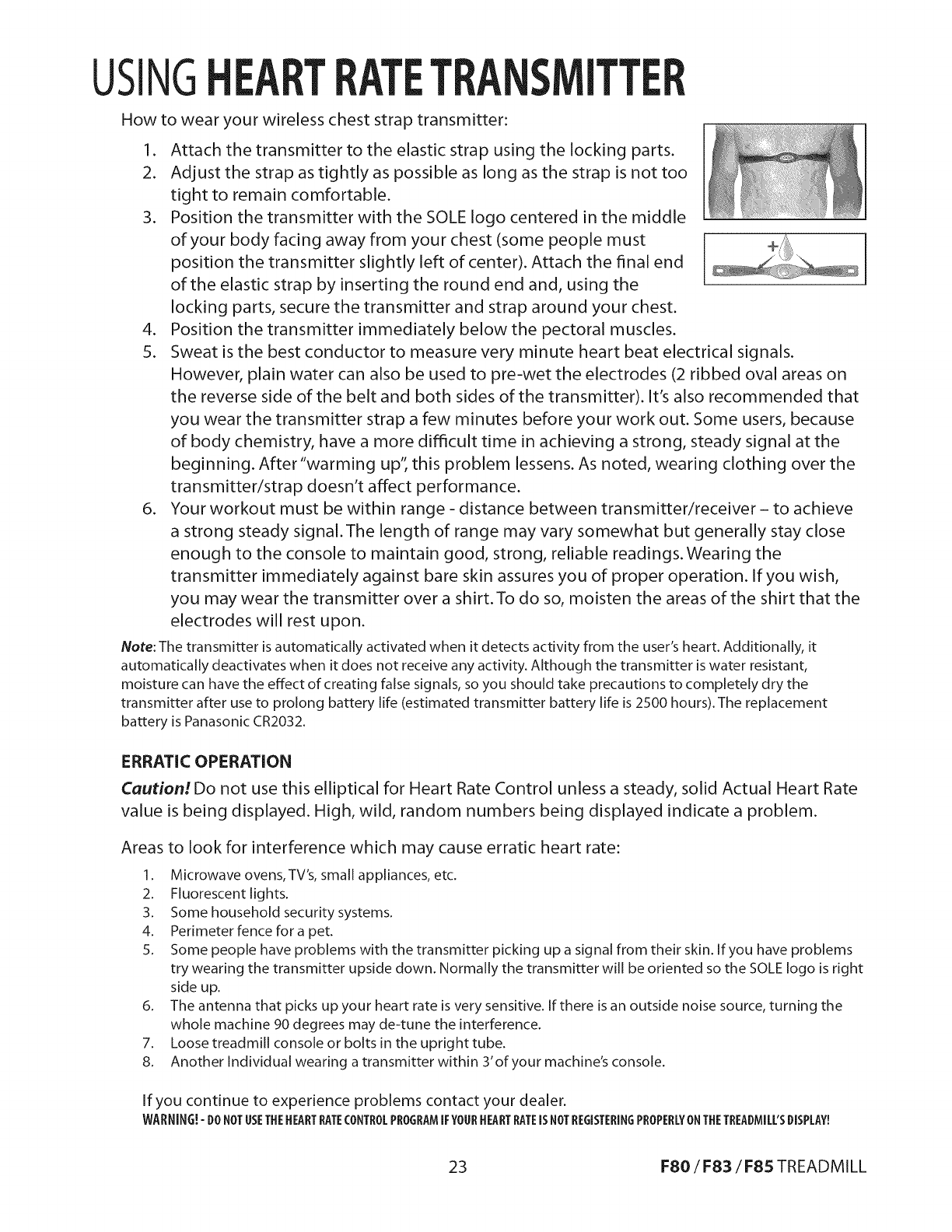

USING TTTITT
How to wear your wireless chest strap transmitter:
1. Attach the transmitter to the elastic strap using the locking parts.
2. Adjust the strap as tightly as possible as long as the strap is not too
tight to remain comfortable.
3. Position the transmitter with the SOLE logo centered in the middle
of your body facing away from your chest (some people must
position the transmitter slightly left of center). Attach the final end
of the elastic strap by inserting the round end and, using the
locking parts, secure the transmitter and strap around your chest.
4. Position the transmitter immediately below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval areas on
the reverse side of the belt and both sides of the transmitter). It's also recommended that
you wear the transmitter strap a few minutes before your work out. Some users, because
of body chemistry, have a more difficult time in achieving a strong, steady signal at the
beginning. After "warming up", this problem lessens. As noted, wearing clothing over the
transmitter/strap doesn't affect performance.
6. Your workout must be within range - distance between transmitter/receiver - to achieve
a strong steady signal.The length of range may vary somewhat but generally stay close
enough to the console to maintain good, strong, reliable readings. Wearing the
transmitter immediately against bare skin assures you of proper operation. If you wish,
you may wear the transmitter over a shirt.To do so, moisten the areas of the shirt that the
electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user's heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the effect of creating false signals, so you should take precautions to completely dry the
transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours). The replacement
battery is Panasonic CR2032.
ERRATIC OPERATION
Caution! Do not use this elliptical for Heart Rate Control unless a steady, solid Actual Heart Rate
value is being displayed. High, wild, random numbers being displayed indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Microwave ovens, TV's, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Perimeter fence fora pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems
try wearing the transmitter upside down. Normally the transmitter will be oriented so the SOLE logo is right
side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the
whole machine 90 degrees may de-tune the interference.
7. Loose treadmill console or bolts in the upright tube.
8. Another Individual wearing a transmitter within 3'of your machine's console.
If you continue to experience problems contact your dealer.
WARNING! - DONOTUSETHEHEARTRATECONTROLPROGRAMIFYOURHEARTRATEISNOTREGISTERINGPROPERLYONTHETREADMILL'SDISPLAY!
23 F80 /F83 /F85 TREADMILL
![](asset-1a.png)
HEART RATE CONTROL PROGRAMMING
CAUTION!
Heart Rate Control programs are intended for wireless transmitter chest strap. Do not use
Pulse Grip bar for Heart Rate Control. You must receive a strong/steady value in the heart rate
window (See Using Heart Rate Transmitter section for
instructions on how to use).
The HR1 program has a default level that is 60% of your projected heart rate maximum.This
program is geared for individuals with fat loss as a goal.The HR2 program has a default of 80%
of your projected heart rate maximum. It is geared for individuals with a goal of improving
cardiovascular & lung function.
1. Select H1 or H2viathe Program A T keys then press enter.
2. The Message window will be blinking, showing the default user's bodyweight for this pro-
gram.You may adjust it and press enter if you want or just press enter to accept the default
value.
3. The Message window will now be blinking showing user's age. Adjust and press enter or
press enter to accept the default value. Adjusting Age will change the Target HR value.
4. The Time window will now be blinking. Adjust the time and press enter.
5. Now you are asked to adjust the HR1 or H2 value.The default is 60% (HR1); (220 - age x .60);
or 80% (HR2); (220 - age x .80). You may select a higher or lower number also. Adjust the
number by pressing the Speed Up or Down keys (console or handrails) and press Enter to
continue.
6. Now you are finished editing the settings and can begin your workout by pressing the Start
key. You can also go back and modify your settings by pressing the Stop key to go back one
level, or screen.
7. If you want to increase or decrease the speed at any time during the program press the Fast
or Slow (console or handrail) keys.
8. During the HRC program you will be able to scroll through the data in the message window
by pressing the Display key. When the program ends the message window will show a
summary of your workout.The summary will be displayed for a short time then the console
will return to the start-up display.
9. Press Start to begin program.
The program will now control the treadmill Incline to steadily increase your heart rate to the tar-
get value.This process is automatic and could take upwards of five minutes, depending on how
far your HR needs to go and what kind of physical shape you are in. People who are more fit will
take longer to reach the target.You can make manual adjustments to the speed throughout the
program.
F80 /F83 /F85 TREADMILL 24
![](asset-1b.png)
GENERAL I T CE
BELT & DECK
Your treadmill uses a very high-e_cient low-friction deck. Performance is maximized when the
deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the
belt and the area between the belt edge and the frame. Also reach as far as practical directly
under the belt edge.This should be done once a month to extend belt and bed life.A mild soap
and water solution along with a nylon scrub brush will clean the top of the textured belt.Allow
to dry before using.
BELT DUST
This occurs during normal break-in or until the belt stabilizes. Sometimes the black dust from
the belt will appear on the floor behind the treadmill, this is normal.
GENERAL CLEANING
Dirt, dust, and pet hair can block air inlets and accumulate on the running belt. Please vacuum
underneath your treadmill on a monthly basis to prevent excess build-up of dirt that can get
sucked up and get into the inner workings under the motor cover. Once a year, you should
remove the black motor hood and vacuum out dirt that may accumulate. UNPLUG POWER
CORD BEFORE THIS TASK.
BELTADJUSTMENTS
Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important
though for joggers and runners in order to provide a smooth, steady running surface.
Adjustment must be made from the rear roller with the 6 mm Allen wrench (132)provided in
the parts package.The adjustment bolts are located at the end of the step rails as shown in the
diagram below. Note: Adjustment is through small hole in end cap.Tracking/Tension
Adjustment Tracking /Tension Adjustment
Tighten the rear roller only enough to prevent
slippage at the front roller.Turn the tread-belt
tension adjusting bolts 1/4 turn each and inspect
for proper tension by walking on the belt and
making sure it is not slipping or hesitating with
each step. When an adjustment is made to the belt
tension, you must be sure to turn the bolts on both
sides evenly or the belt could start tracking to one
side instead of running in the middle of the deck.
NOTE: Adjustment is through small hole in end cap.
DO NOT OVERTIGHTEN -Over tightening will cause belt damage and premature bearing
failure. If you tighten the belt a lot and it still slips, the problem could actually be the drive belt
- located under the motor cover - that connects the motor to the front roller. If that belt is loose
it feels similar to the walking belt being loose.Tightening the motor belt should be done by a
trained service person.
25 FSO /F83 /F85 TREADMILL
![](asset-1c.png)
TREAD-BELTTRACKINGADJUSTMENT
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is
normal for some belts to drift near one side while in use, depending on a user's gait and if they
favor one leg. But if during use the belt continues to move toward one side, adjustments are
necessary.
SETTING TREAD=BELT TRACKING
A 6 mm Allen wrench (132)is provided for this
adjustment. Make tracking adjustments on the
left side bolt. Set belt speed at 3 mph. Be aware
that a small adjustment can make a dramatic
difference which may not be apparent right away.
If the belt is too close to the left side, then turn
the bolt only a 1/4 turn to the right (clockwise)
and wait a few minutes for the belt to adjust itself.
Continue to make 1/4 turns until the belt stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the bolt counter-clockwise. The belt may require
periodic tracking adjustment depending on use and walking/running characteristics. Some
users may affect tracking differently. Expect to make adjustments as required to center the
tread-belt. Adjustments will become less of a maintenance concern as the belt is used. Proper
belt tracking is an owner responsibility common with all treadmills.
ATTENTION:
DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING /TENSION
ADJUSTMENTS IS NOT COVERED UNDER THE SOLE WARRANTY.
F80/F83/F85 TREADMILL 26
![](asset-1d.png)

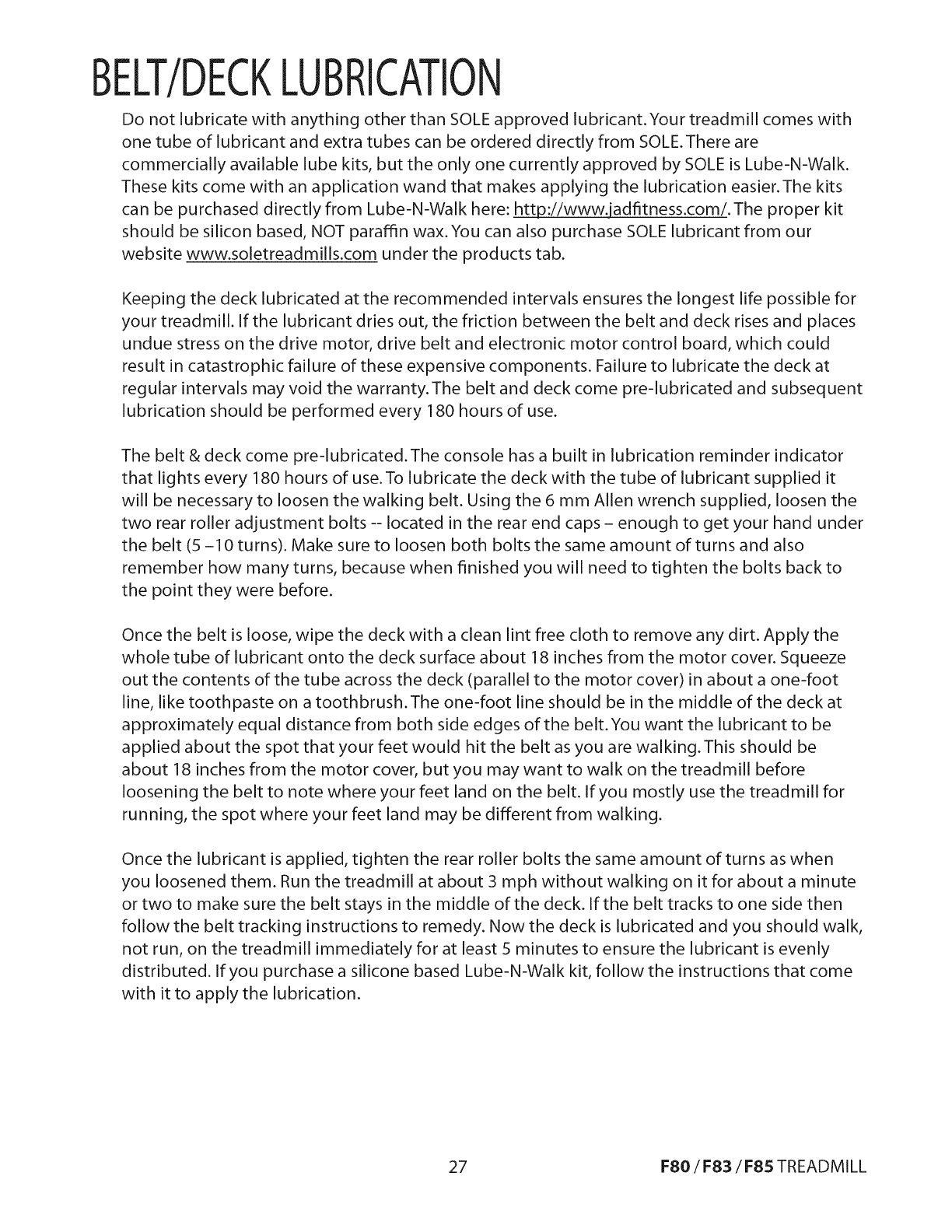

ELT/DECKLUBRICATION
Do not lubricate with anything other than SOLE approved lubricant.Your treadmill comes with
one tube of lubricant and extra tubes can be ordered directly from SOLE.There are
commercially available lube kits, but the only one currently approved by SOLE is Lube-N-Walk.
These kits come with an application wand that makes applying the lubrication easier.The kits
can be purchased directly from Lube-N-Walk here: http://www.jadfitness.com/.The proper kit
should be silicon based, NOT paraffin wax.You can also purchase SOLE lubricant from our
website www.soletreadmills.com under the products tab.
Keeping the deck lubricated at the recommended intervals ensures the longest life possible for
your treadmill. If the lubricant dries out, the friction between the belt and deck rises and places
undue stress on the drive motor, drive belt and electronic motor control board, which could
result in catastrophic failure of these expensive components. Failure to lubricate the deck at
regular intervals may void the warranty.The belt and deck come pre-lubricated and subsequent
lubrication should be performed every 180 hours of use.
The belt & deck come pre-lubricated.The console has a built in lubrication reminder indicator
that lights every 180 hours of use. To lubricate the deck with the tube of lubricant supplied it
will be necessary to loosen the walking belt. Using the 6 mm Allen wrench supplied, loosen the
two rear roller adjustment bolts -- located in the rear end caps - enough to get your hand under
the belt (5 -lOturns). Make sure to loosen both bolts the same amount of turns and also
remember how many turns, because when finished you will need to tighten the bolts back to
the point they were before.
Once the belt is loose, wipe the deck with a clean lint free cloth to remove any dirt. Apply the
whole tube of lubricant onto the deck surface about 18 inches from the motor cover. Squeeze
out the contents of the tube across the deck (parallel to the motor cover) in about a one-foot
line, like toothpaste on a toothbrush.The one-foot line should be in the middle of the deck at
approximately equal distance from both side edges of the belt.You want the lubricant to be
applied about the spot that your feet would hit the belt as you are walking.This should be
about 18 inches from the motor cover, but you may want to walk on the treadmill before
loosening the belt to note where your feet land on the belt. If you mostly use the treadmill for
running, the spot where your feet land may be different from walking.
Once the lubricant is applied, tighten the rear roller bolts the same amount of turns as when
you loosened them. Run the treadmill at about 3 mph without walking on it for about a minute
or two to make sure the belt stays in the middle of the deck. If the belt tracks to one side then
follow the belt tracking instructions to remedy. Now the deck is lubricated and you should walk,
not run, on the treadmill immediately for at least 5 minutes to ensure the lubricant is evenly
distributed. If you purchase a silicone based Lube-N-Walk kit, follow the instructions that come
with it to apply the lubrication.
27 FSO /F83 /F85 TREADMILL
![](asset-1e.png)
SERVICEC ECKLIST-DIAGNOSISGUI E
Before contacting your dealer for aid, please review the following information. It may save you
both time and expense.This list includes common problems that may not be covered under the
treadmill's warranty.
PROBLEM SOLUTION/CAUSE
Display does not light
Tread-belt does not stay centered
Treadmill belt hesitates when
walked/run on
Motor is not responsive after
pressing start
Treadmill will only achieve
approximately 7 mph but shows
higher speed on display
1. Tether cord not in position.
2. Circuit breaker on front grill tripped.
Push circuit breaker in until it locks.
3. Plug is disconnected. Make sure plug is firmly
pushed into AC household wall outlet.
4. Household circuit breaker may be tripped.
5. Treadmill defect. Contact your SOLE dealer.
The user may be walking while favoring or putting
more weight on either the left or right foot. If this
walking pattern is natural, track the belt slightly
off-center to the side opposite from the belt
movement. SeeGeneral Maintenance section on
Tread-belt Tension. Adjust as necessary.
1. If the belt moves, but stops after a short time and
thedisplay shows"LS", run calibration.
2. If you press start and the belt never moves, then
the display shows LS,contact service.
This indicates motor should be receiving power to
operate. Low AC voltage to treadmill. Do not use an
extension cord. If an extension cord is required it
should be as short as possible and heavy duty 16
gauge minimum. Low household voltage. Contact an
electrician or your SOLE dealer. A minimum of 110 volt
AC current is required.
Tread=belt stops quickly/suddenly High belt/deck friction. See General Maintenance
when tether cord is pulled section on lubrication.
Treadmill trips on board 15 amp circuit High belt/deck friction. See General Maintenance
Computer shuts offwhen console is
touched (on acold day) while
walking/running
Treadmill may not be grounded. Static electricity is
"crashing" the computer. Refer to Grounding
Instructions on page 4.
House circuit breaker trips, but not Need to replace the house breaker with a"High In-
the treadmill circuit breaker rush current"type breaker (see page 4 for details)
F80/F83/F85 TREADMILL 28
![](asset-1f.png)
CALiBRATiON PROCEDURE
1. Remove the safety key
2. Press and hold down the Start and Fast (speed up) buttons and replace the safety key.
Continue to hold the Start and Fast key until the window displays "Factory settings", then
press the enter key.
3. You will now be able to set the display to show Metric or English settings (Miles vs.
Kilometers). To do this, press the up or down key to show which you want, then press enter.
4. Make sure the wheel size diameter is 2.83 then press enter
5. Adjust the minimum speed (if needed) to 0.5 and then press enter
6. Adjust the maximum speed (if needed) to 12.0 and then press enter
7. Adjust the maximum elevation (if needed) to 15 and then press enter
8. Grade return- On (This allows the incline to return to zero when stop is pressed. For sale in
Europe, EU standards require this to be off)
9. Press start to begin calibration.The process is automatic; the speed will start up without
warning, so do not stand on the belt.
MAINTENANCE MENU
1. Press and hold the Start, Stop and Enter key at the same time, until the display shows
"Engineering mode" (it may say maintenance menu, depending on version).
Press the Enter key.
2. You can now scroll through the menu using the Fast/Slow keys. Use the Stop key to
return to previous menu selection.The menu selections are:
a. Calibration -Used to verify calibration
B. Factory Settings- Acces only allowed by manufacturing
C. Security - Allows you to lock the keypad so no unauthorized use of the machine is allowed. When the child
lock is enabled, the console will not allow the keypad to operate unless you press and hold the Start and
Enter buttons for 3 seconds to unlock the console.
D. Functions - Press Enter to access settings, use Speed Fast/Slow keys to scroll
I. Sleep Mode - Turn on to have the console power down automatically after 30 minutes of inactivity
II. Pause Mode- Turned on to allow S minutes of pause, turn off to have console pause in de_nitely)
III. Maintenance- Reset lube message and odometer readings
IV. Units- Choose from English or Metric display readings
V. Grade Return - Returns elevation to lowest setting when pause is pressed
E. Key Test - Will allow you to test all the keys to make sure they are functioning
F. Display Test - Tests all the display functions
29 F80 /F83 /F85 TREADMILL
![](asset-20.png)

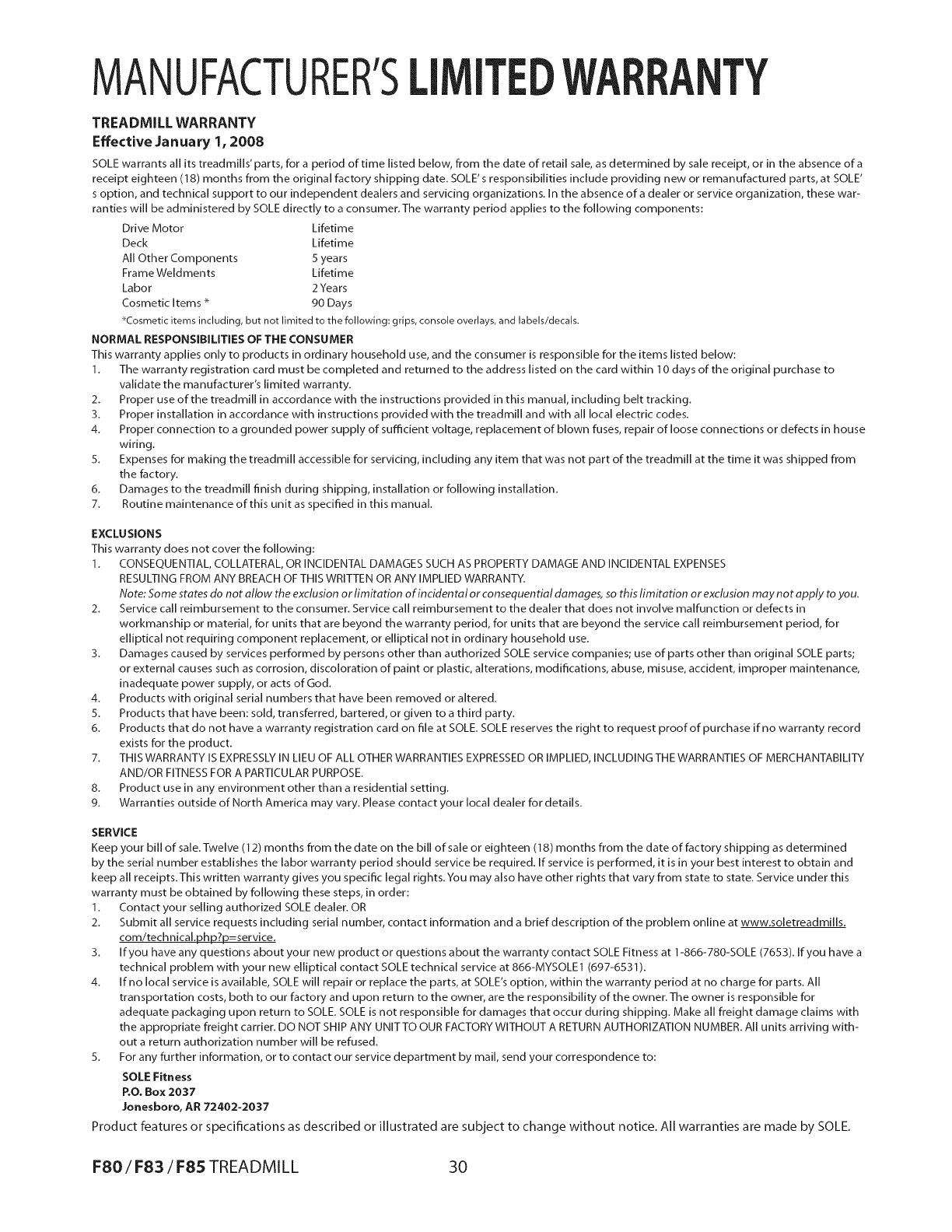

MANUFACTURER'SLIT TY
TREADMILLWARRANTY
Effective January 1, 2008
SOLE warrants all its treadmills' parts, for a period of time listed below, from the date of retail sale, as determined by sale receipt, or in the absence of a
receipt eighteen (18) months from the original factory shipping date. SOLE' s responsibilities include providing new or remanufactured parts, at SOLE'
s option, and technical support to our independent dealers and servicing organizations. In the absence of a dealer or service organization, these war-
ranties will be administered by SOLE directly to a consumer. The warranty period applies to the following components:
Drive Motor Lifetime
Deck Lifetime
All Other Components 5 years
Frame Weldments Lifetime
Labor 2 Years
Cosmetic Items _ 90 Days
×Cosmetic items including, but not limited to the following: grips, console overlays, and labels/decals.
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase to
validate the manufacturer's limited warranty.
2. Proper use of the treadmill in accordance with the instructions provided in this manual, including belt tracking.
3. Proper installation in accordance with instructions provided with the treadmill and with all local electric codes.
4. Proper connection to a grounded power supply of suf_cient voltage, replacement of blown fuses, repair of loose connections or defects in house
wiring.
5. Expenses for making the treadmill accessible for servicing, including any item that was not part of the treadmill at the time it was shipped from
the factory.
6. Damages to the treadmill finish during shipping, installation or following installation.
7. Routine maintenance of this unit as specified in this manual.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period, for
elliptical not requiring component replacement, or elliptical not in ordinary household use.
3. Damages caused by services performed by persons other than authorized SOLE service companies; use of parts other than original SOLE parts;
or external causes such as corrosion, discoloration of paint or plastic, alterations, modifications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on file at SOLE. SOLE reserves the right to request proof of purchase if no warranty record
exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product use in any environment other than a residential setting.
9. Warranties outside of North America may vary. Please contact your local dealer for details.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eig hteen (18) months from the date of factory shipping as determined
by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your best interest to obtain and
keep all receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this
warranty must be obtained by following these steps, in order:
1. Contact your selling authorized SOLE dealer. OR
2. Submit all service requests including serial number, contact information and a brief description of the problem online at www.soletreadmills.
com/tec h nical._j_o? = ser vice.
3. If you have any questions about your new product or questions about the warranty contact SOLE Fitness at 1-866-780-SOLE (7653). If you have a
technical problem with your new elliptical contact SOLE technical service at 866-MYSOLE1 (697-6531).
4. If no local service is available, SOLE will repair or replace the parts, at SOLE's option, within the warranty period at no charge for parts. All
transportation costs, both to our factory and upon return to the owner, are the responsibility of the owner. The owner is responsible for
adequate packaging upon return to SOLE. SOLE is not responsible for damages that occur during shipping. Make all freight damage claims with
the appropriate freight carrier. DO NOT SHIP ANY UNITTO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving with-
out a return authorization number will be refused.
5. For any further information, or to contact our service department by mail, send your correspondence to:
SOLE Fitness
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by SOLE.
F80/F83/F8S TREADMILL 30
