♦ Fits ARC’s IES™ Gen I & Gen II Enclosures—SOLD SEPA-
RATELY— Part #ARC-IE1001K02 or Part #ARC-IE2000K01,
both include mounting bracket
♦ US Engineered
♦ Manufactured under strict US quality control procedures
♦ High gain, competitive pricing
♦ Low profile and rugged design for outdoor use
♦ Custom Enclosures available
ARC Wireless Solutions, Inc. ● 10601 I-70 Frontage Rd., N ● Wheat Ridge, CO 80033-2660 ● Phone 303.421.4063 ● Toll Free 800.508.6532 ● sales@antennas.com
www.antennas.com
“Patented Antenna Solutions”
Specifications subject to change without notice
RF Patterns
Horizontal Cut, typ.
RF Patterns
Vertical Cut, typ.
Electrical Specifications
Frequency Range 5.15—5.875 GHz
Gain 24dBi Vertical
23dBi Horizontal
3dB Beamwidth
Vertical/Horizontal
8 degrees/8 degrees
ETSI ETSI 2, 3, and 5
VSWR
5.15-5.35GHz
5.35-5.875GHz
≤2.0:1 max
≤1.5:1 typ., ≤1.7:1 max.
Port to Port Isolation 40dB (minimum)
Front-to-Back Ratio >40 dBi
Cross Polarization >30 dBi
Sidelobe Level >12 dBi
Power Rating 30 watts
Impedance 50 ohms
Lightning Protection DC ground

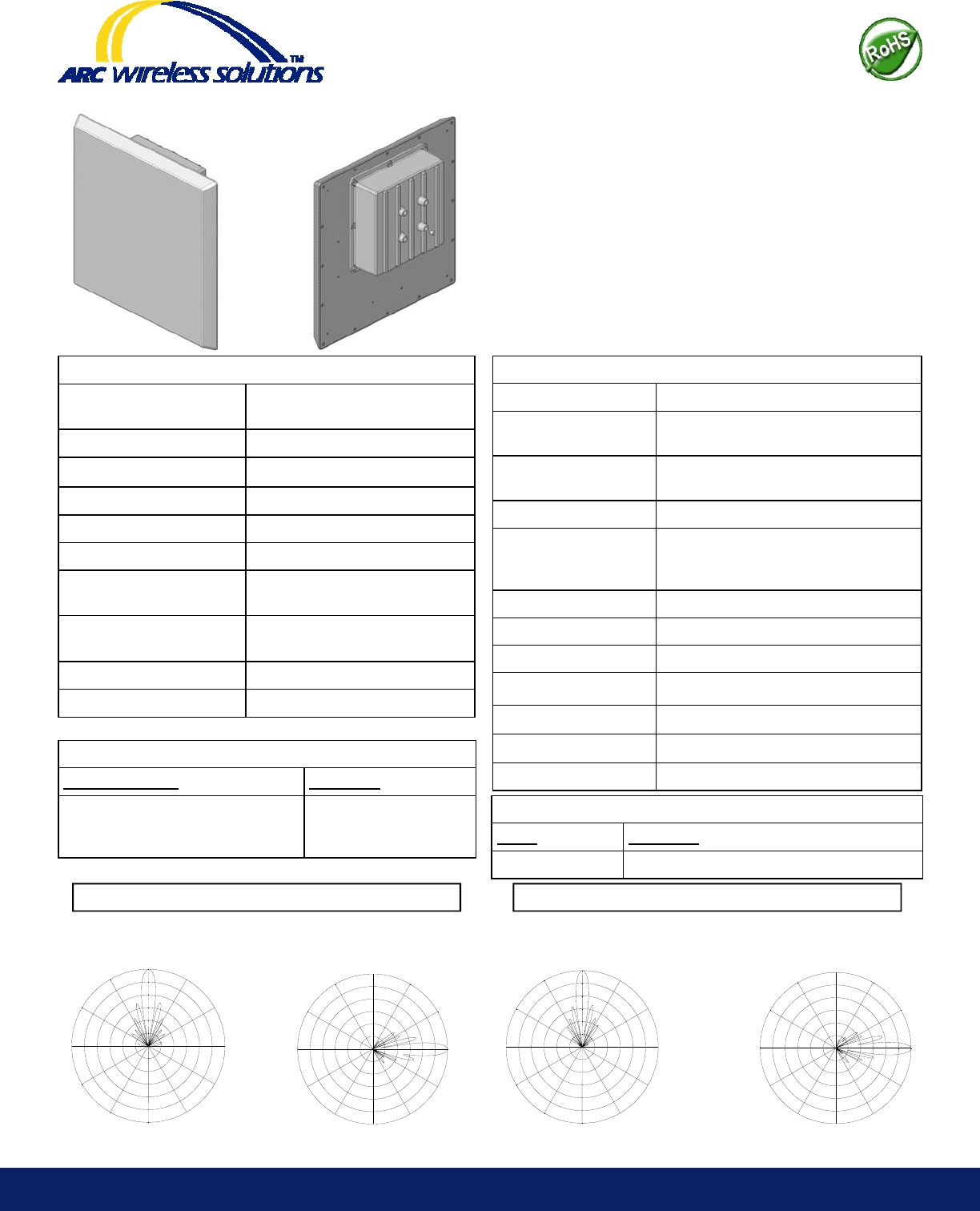

5.15-5.875GHz 24/23dBi Dual Polarization
Panel Antenna for ARC IES™, Integrated
Enclosure Solution
Ordering Information
Part # Description
ARC-ID5823B88 5.8GHz 24/23dBi Dual Pol, R/A SMA Jack
Shipping Information
Sizes and Weights Description
18.625” x 15.3” x 15.25”
(473mm x 388.6mm x 387.4mm)
34 lbs (15.4 kg)
Bulk Pack, includes 10 in
an overpack box
Don’t see what you need? Contact us to discuss alternate configurations
Mechanical and Environmental Specifications
Length x Width x Depth 15.2in x 15.2in x 1.12in
(386mm x 386mm x 28.4mm)
Weight 3.6lbs (1.66kg)
Backplane Aluminum
Radome UV stabilized ABS plastic, gray
Wind Survivability 125mph (201kph)
Wind Load 1.6ft² (0.148m²)
Operating Temperature
Range
-49°F to 149°F
(-45°C to 65°C)
Pole Mount Diameter
Range
0.75in to 3.0in
(19mm to 76mm)
Environmental IP 67
Connector (2) R/A SMA Jack
RF Patterns
Vertical Cut, typ.
RF Patterns
Horizontal Cut, typ.
Vertical Polarization Horizontal Polarization
-30
-25
-20
-15
-10
-5
0
30
210
60
240
90 270
120
300
150
330
180
0
-30
-25
-20
-15
-10
-5
0
30
210
60
240
90 270
120
300
150
330
180
0
-30
-25
-20
-15
-10
-5
0
30
210
60
240
90
270
120
300
150
330
180 0
-30
-25
-20
-15
-10
-5
0
30
210
60
240
90
270
120
300
150
330
180 0
global solutions :
local support
TM
HD SeriesTM High Performance Dish Antennas
4900 to 5875 MHz Operation
The new HD Series dish antennas offered by Laird Technologies offer the
system engineer the best performance available on the market. The antennas
meet ETSI EN 302 085 TS4/TS5 and EN 300 833 Class 1 specifications, the
most stringent specifications for point to point backhaul antennas. The unique
feed system is available in a single polarization version which can be mounted
for either vertical or horizontal polarization. There is also a dual polarized
version available for those systems which can utilize dual polarization to
increase bandwidth or implement diversity. An optional fiberglass radome is
available for added environmental protection.
Features and Benefits:
 •Widebandoperation
 •Verticallyorhorizontallypolarized
 •Dualpolaritymodelsavailable
 •Ultralowsidelobes,meetsETSIstandards
 •Extremelyruggedforlongservicelifeinextremeenvironments
Applications
 •802.11aapplications
 •OFDMsystems
 •Cellularbackhaul
 •Point-to-pointbackhaul
 •Publicsafetycommunications
HDDA5W
www.pacwireless.com
or visit:
www.pacwireless.com
For sales information:
Telephone 801-572-3024
E-Mail sales@pacwireless.com
jljljlj
HDDA5W
global solutions :
local support
TM
ANT-SPEC-HDDA5W-1207
Any information furnished by Laird Technologies and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies materials rests with the end
user since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability, or suitability of any Laird Technologies
materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant
to the Laird Technologies domestic terms and conditions of sale in effect from time to time, a copy of which will be furnished upon request.
Specifications subject to change without notice.
Model 100MPH 125MPH
HDDA5W-29 113 177
HDDA5W-29 with Radome 75 116
HDDA5W-32 256 400
HDDA5W-32 with Radome 111 174
Wind Loading (Lbs.)
Specications
Parameter Min Typ Max Units
Frequency Range (Single Pol.) 4900 5875 MHz
Frequency Range (Dual Pol. ) 5150 5850 MHz
VSWR (Single Pol.) 1.5:1
VSWR (Dual Pol.) 1.8:1
Impedance 50 OHM
Input Power 100 W
Mechanical Downtilt 30 deg
Pole Diameter (OD) 2” (50) 4” (101.6) Inch (mm)
Operating Temperature -40 +70 Deg C
Parameter HDDA5W-29-xx HDDA5W-32-xx
Gain 29dBi 32 dBi
Beam Width 6 deg 4 deg
Sidelobes -32dB -32 dB
Front to Back -32dB -38 dB
Cross Pole -32dB -34dB
Weight 11lb (5kg) 22lb (10kg)
Dimensions (Diameter) 25.5 (648mm) 36.5 (927mm)
Notes:
• All shipments F.O.B. Schaumburg, IL 60173
• All antennas carry a 2 Year Warranty

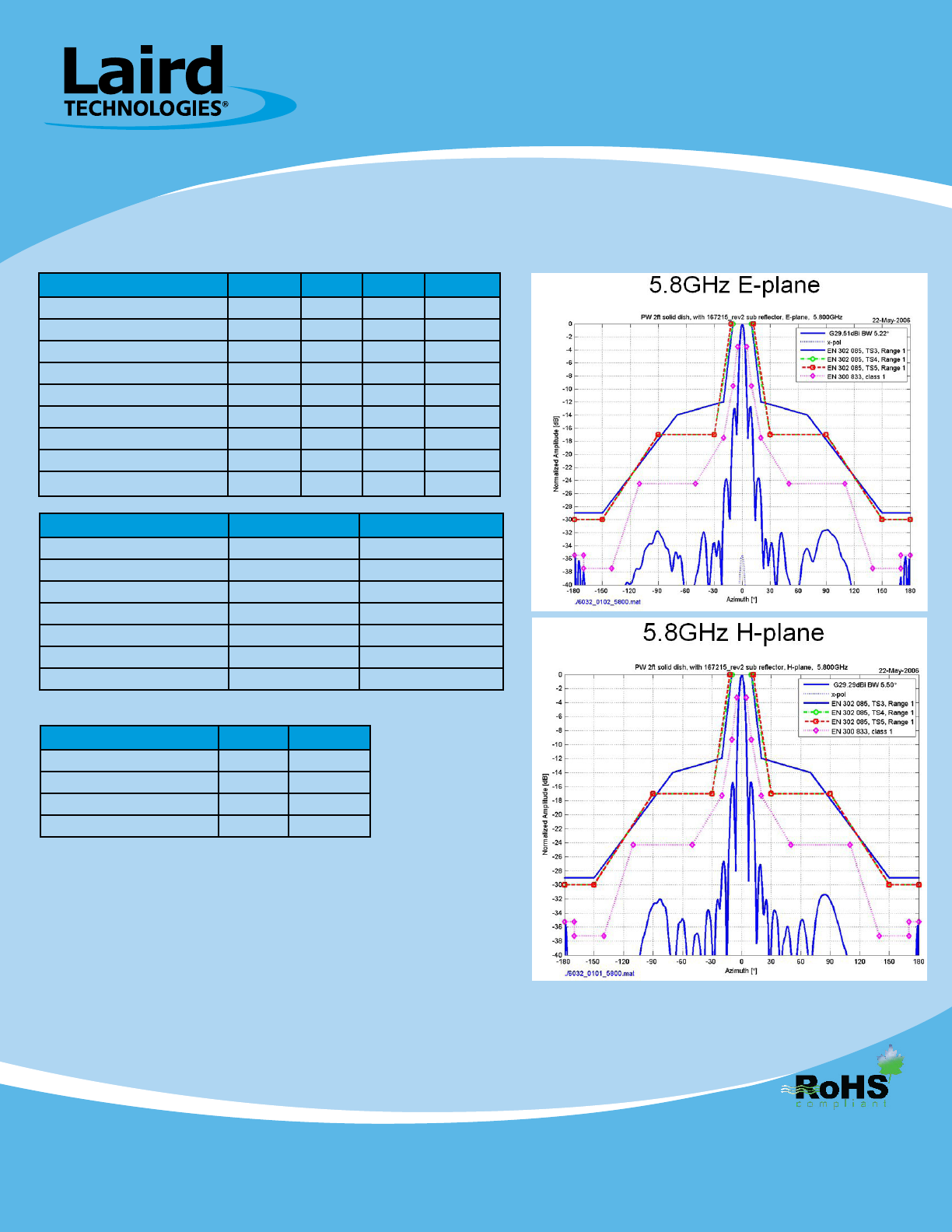

Typical Antenna Patterns With ETSI Limits
System Ordering:
HDDA5W-29 - 29dBi single polarity (H or V)
HDDA5W-29-DP - 29dBi dual polarity (H and V)
HDDA5W-32 - 32dBi single polarity (H or V)
HDDA5W-32-DP - 32dBi dual polarity (H and V)
