Sonic Technology LCT100 Loud and Clear Wireless Auditory Assistance System User Manual LoudandClear Manual 9 11 15

Sonic Technology Products, Inc. Loud and Clear Wireless Auditory Assistance System LoudandClear Manual 9 11 15

user manual

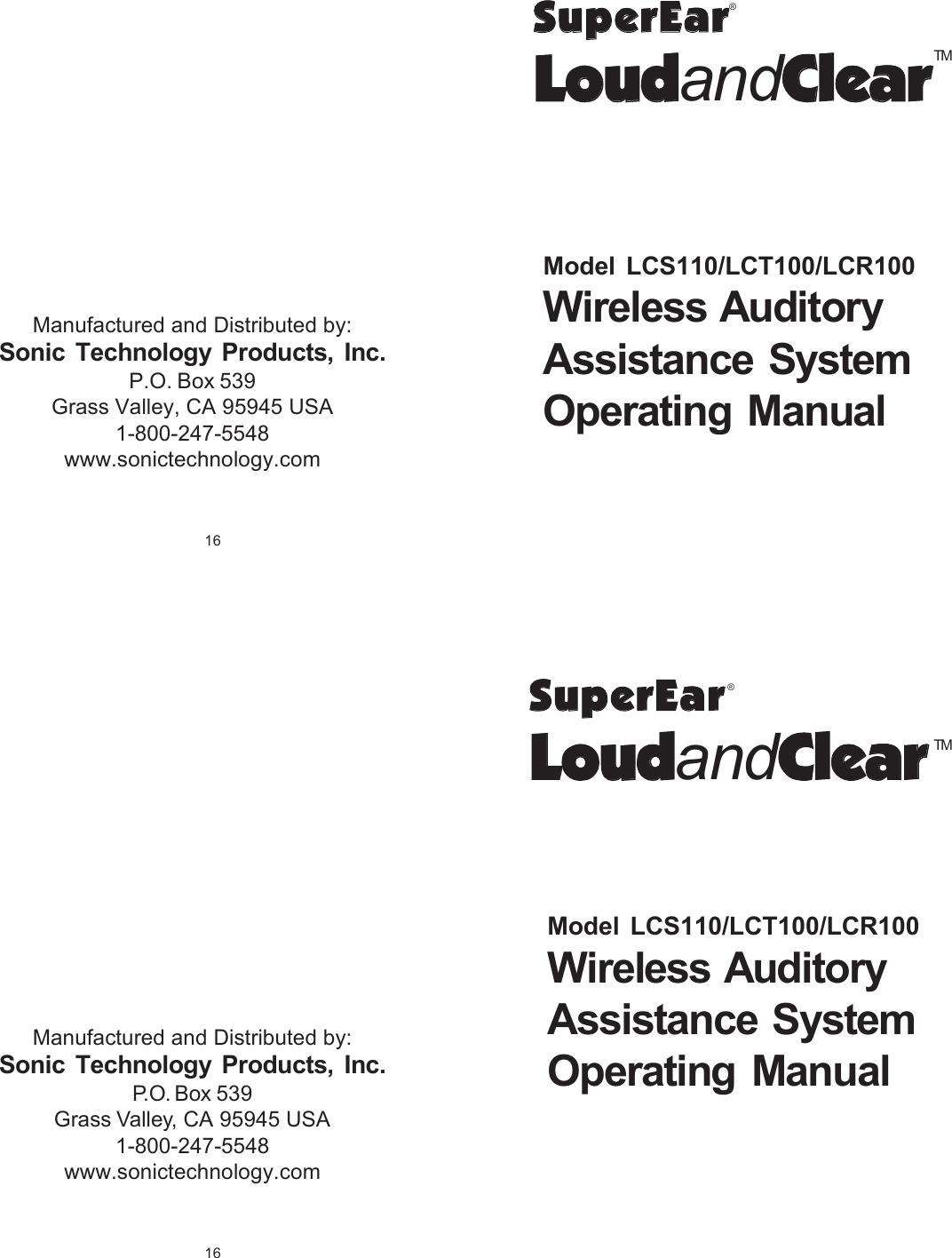

16Manufactured and Distributed by:Sonic Technology Products, Inc.P.O. Box 539Grass Valley, CA 95945 USA1-800-247-5548www.sonictechnology.comModel LCS110/LCT100/LCR100Wireless AuditoryAssistance SystemOperating Manual16Manufactured and Distributed by:Sonic Technology Products, Inc.P.O. Box 539Grass Valley, CA 95945 USA1-800-247-5548www.sonictechnology.comandModel LCS110/LCT100/LCR100Wireless AuditoryAssistance SystemOperating Manual®®TMTMand

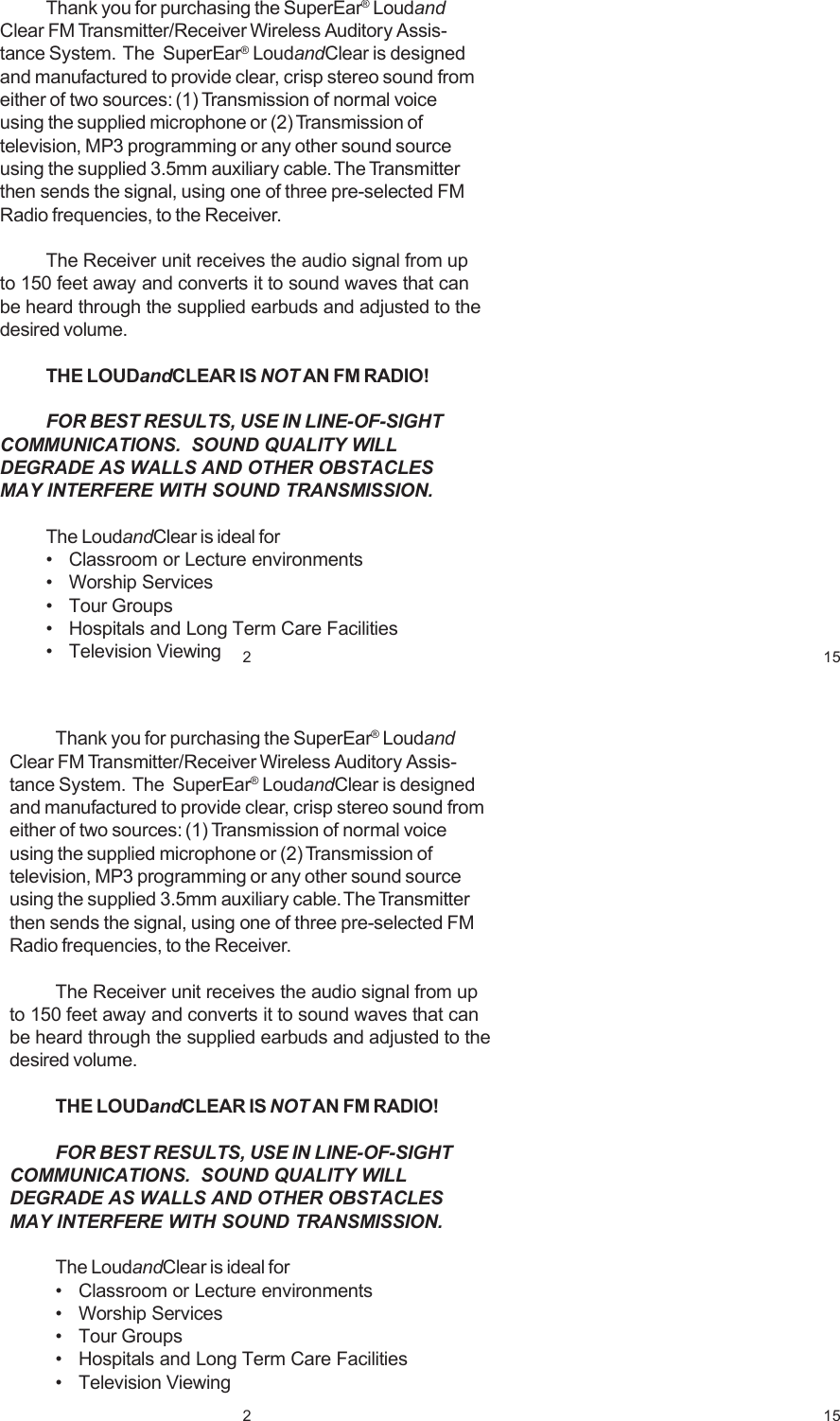

Thank you for purchasing the SuperEar® LoudandClear FM Transmitter/Receiver Wireless Auditory Assis-tance System. The SuperEar® LoudandClear is designedand manufactured to provide clear, crisp stereo sound fromeither of two sources: (1) Transmission of normal voiceusing the supplied microphone or (2) Transmission oftelevision, MP3 programming or any other sound sourceusing the supplied 3.5mm auxiliary cable. The Transmitterthen sends the signal, using one of three pre-selected FMRadio frequencies, to the Receiver.The Receiver unit receives the audio signal from upto 150 feet away and converts it to sound waves that canbe heard through the supplied earbuds and adjusted to thedesired volume.THE LOUDandCLEAR IS NOT AN FM RADIO!FOR BEST RESULTS, USE IN LINE-OF-SIGHTCOMMUNICATIONS. SOUND QUALITY WILLDEGRADE AS WALLS AND OTHER OBSTACLESMAY INTERFERE WITH SOUND TRANSMISSION.The LoudandClear is ideal for• Classroom or Lecture environments• Worship Services• Tour Groups• Hospitals and Long Term Care Facilities• Television Viewing 2 152 15Thank you for purchasing the SuperEar® LoudandClear FM Transmitter/Receiver Wireless Auditory Assis-tance System. The SuperEar® LoudandClear is designedand manufactured to provide clear, crisp stereo sound fromeither of two sources: (1) Transmission of normal voiceusing the supplied microphone or (2) Transmission oftelevision, MP3 programming or any other sound sourceusing the supplied 3.5mm auxiliary cable. The Transmitterthen sends the signal, using one of three pre-selected FMRadio frequencies, to the Receiver.The Receiver unit receives the audio signal from upto 150 feet away and converts it to sound waves that canbe heard through the supplied earbuds and adjusted to thedesired volume.THE LOUDandCLEAR IS NOT AN FM RADIO!FOR BEST RESULTS, USE IN LINE-OF-SIGHTCOMMUNICATIONS. SOUND QUALITY WILLDEGRADE AS WALLS AND OTHER OBSTACLESMAY INTERFERE WITH SOUND TRANSMISSION.The LoudandClear is ideal for• Classroom or Lecture environments• Worship Services• Tour Groups• Hospitals and Long Term Care Facilities• Television Viewing

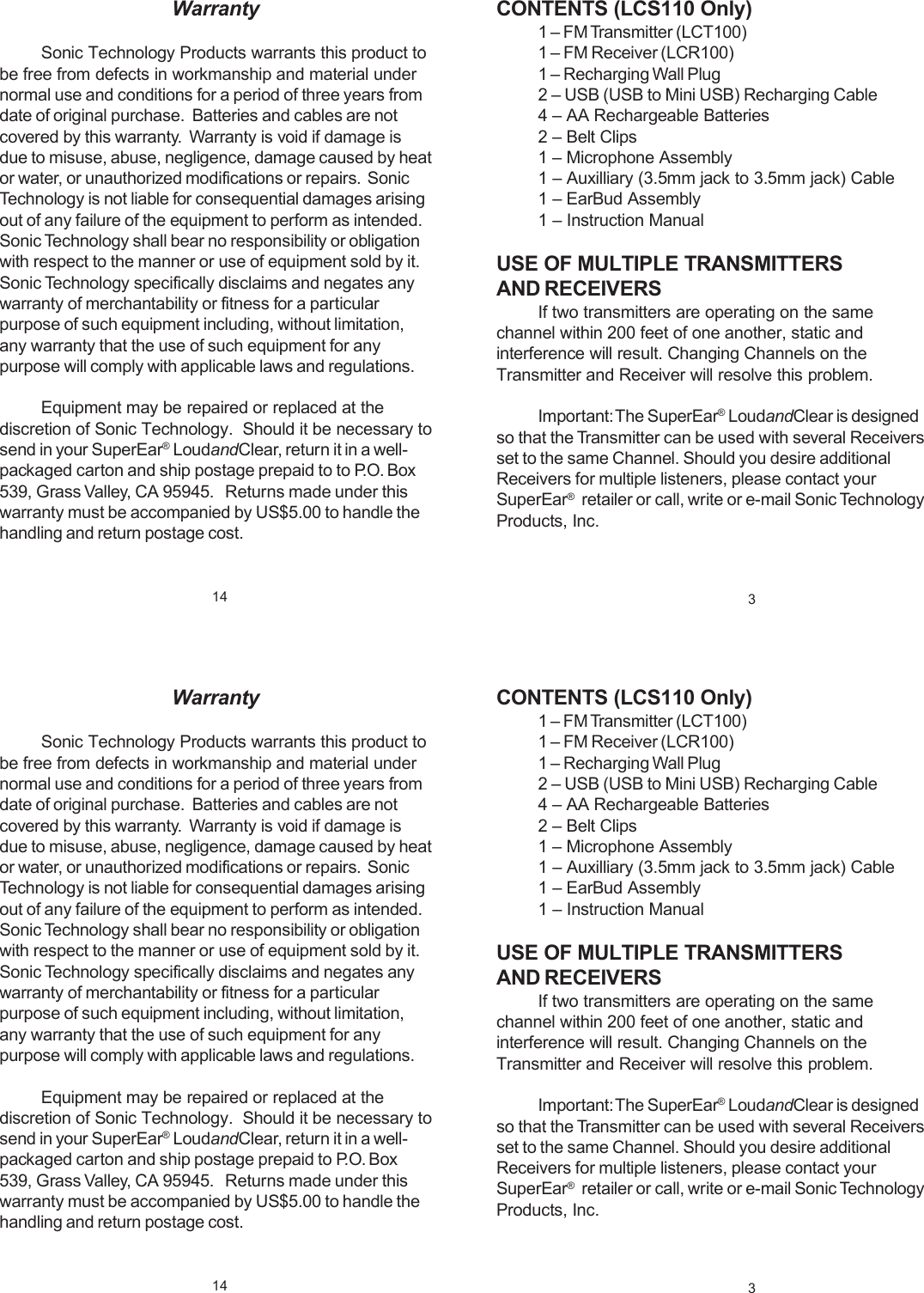

CONTENTS (LCS110 Only)1 – FM Transmitter (LCT100)1 – FM Receiver (LCR100)1 – Recharging Wall Plug2 – USB (USB to Mini USB) Recharging Cable4 – AA Rechargeable Batteries2 – Belt Clips1 – Microphone Assembly1 – Auxilliary (3.5mm jack to 3.5mm jack) Cable1 – EarBud Assembly1 – Instruction ManualUSE OF MULTIPLE TRANSMITTERSAND RECEIVERSIf two transmitters are operating on the samechannel within 200 feet of one another, static andinterference will result. Changing Channels on theTransmitter and Receiver will resolve this problem.Important: The SuperEar® LoudandClear is designedso that the Transmitter can be used with several Receiversset to the same Channel. Should you desire additionalReceivers for multiple listeners, please contact yourSuperEar® retailer or call, write or e-mail Sonic TechnologyProducts, Inc.14 3WarrantySonic Technology Products warrants this product tobe free from defects in workmanship and material undernormal use and conditions for a period of three years fromdate of original purchase. Batteries and cables are notcovered by this warranty. Warranty is void if damage isdue to misuse, abuse, negligence, damage caused by heator water, or unauthorized modifications or repairs. SonicTechnology is not liable for consequential damages arisingout of any failure of the equipment to perform as intended.Sonic Technology shall bear no responsibility or obligationwith respect to the manner or use of equipment sold by it.Sonic Technology specifically disclaims and negates anywarranty of merchantability or fitness for a particularpurpose of such equipment including, without limitation,any warranty that the use of such equipment for anypurpose will comply with applicable laws and regulations.Equipment may be repaired or replaced at thediscretion of Sonic Technology. Should it be necessary tosend in your SuperEar® LoudandClear, return it in a well-packaged carton and ship postage prepaid to to P.O. Box539, Grass Valley, CA 95945. Returns made under thiswarranty must be accompanied by US$5.00 to handle thehandling and return postage cost.CONTENTS (LCS110 Only)1 – FM Transmitter (LCT100)1 – FM Receiver (LCR100)1 – Recharging Wall Plug2 – USB (USB to Mini USB) Recharging Cable4 – AA Rechargeable Batteries2 – Belt Clips1 – Microphone Assembly1 – Auxilliary (3.5mm jack to 3.5mm jack) Cable1 – EarBud Assembly1 – Instruction ManualUSE OF MULTIPLE TRANSMITTERSAND RECEIVERSIf two transmitters are operating on the samechannel within 200 feet of one another, static andinterference will result. Changing Channels on theTransmitter and Receiver will resolve this problem.Important: The SuperEar® LoudandClear is designedso that the Transmitter can be used with several Receiversset to the same Channel. Should you desire additionalReceivers for multiple listeners, please contact yourSuperEar® retailer or call, write or e-mail Sonic TechnologyProducts, Inc.14 3WarrantySonic Technology Products warrants this product tobe free from defects in workmanship and material undernormal use and conditions for a period of three years fromdate of original purchase. Batteries and cables are notcovered by this warranty. Warranty is void if damage isdue to misuse, abuse, negligence, damage caused by heator water, or unauthorized modifications or repairs. SonicTechnology is not liable for consequential damages arisingout of any failure of the equipment to perform as intended.Sonic Technology shall bear no responsibility or obligationwith respect to the manner or use of equipment sold by it.Sonic Technology specifically disclaims and negates anywarranty of merchantability or fitness for a particularpurpose of such equipment including, without limitation,any warranty that the use of such equipment for anypurpose will comply with applicable laws and regulations.Equipment may be repaired or replaced at thediscretion of Sonic Technology. Should it be necessary tosend in your SuperEar® LoudandClear, return it in a well-packaged carton and ship postage prepaid to P.O. Box539, Grass Valley, CA 95945. Returns made under thiswarranty must be accompanied by US$5.00 to handle thehandling and return postage cost.

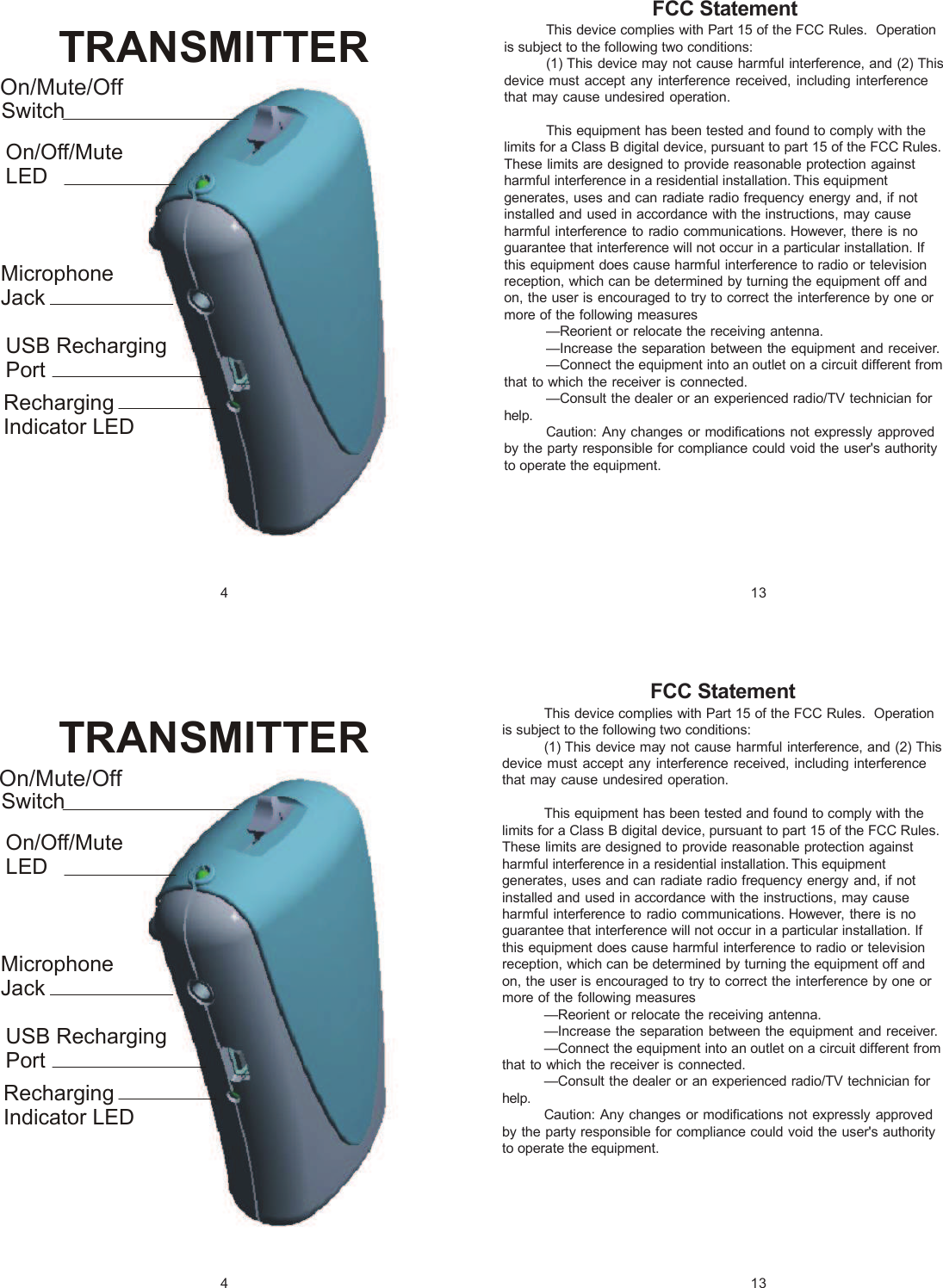

FCC StatementThis device complies with Part 15 of the FCC Rules. Operationis subject to the following two conditions:(1) This device may not cause harmful interference, and (2) Thisdevice must accept any interference received, including interferencethat may cause undesired operation.This equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one ormore of the following measures—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician forhelp.Caution: Any changes or modifications not expressly approvedby the party responsible for compliance could void the user's authorityto operate the equipment.4 13FCC StatementThis device complies with Part 15 of the FCC Rules. Operationis subject to the following two conditions:(1) This device may not cause harmful interference, and (2) Thisdevice must accept any interference received, including interferencethat may cause undesired operation.This equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one ormore of the following measures—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician forhelp.Caution: Any changes or modifications not expressly approvedby the party responsible for compliance could void the user's authorityto operate the equipment.4 13On/Off /MuteSwitchOn/Off/MuteLEDMicrophoneJackUSB RechargingPortRechargingIndicator LEDTRANSMITTEROn/Mute/OffOn/Off /MuteSwitchOn/Off/MuteLEDMicrophoneJackUSB RechargingPortRechargingIndicator LEDTRANSMITTEROn/Mute/Off

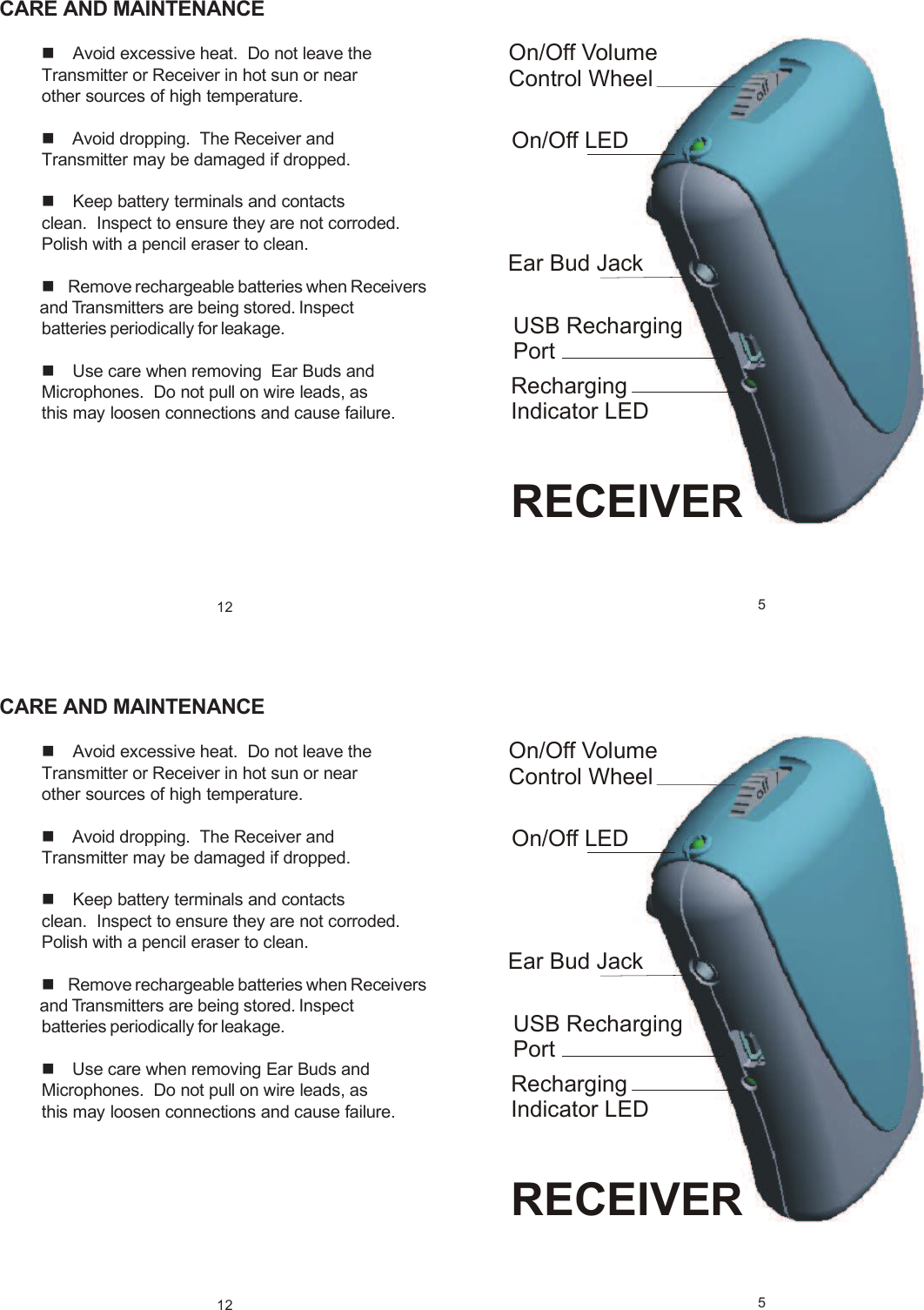

12 5On/Off VolumeControl WheelOn/Off LEDHeadphone/Ear Bud JackUSB RechargingPortRechargingIndicator LEDRECEIVERCARE AND MAINTENANCEAvoid excessive heat. Do not leave theTransmitter or Receiver in hot sun or nearother sources of high temperature.Avoid dropping. The Receiver andTransmitter may be damaged if dropped.Keep battery terminals and contactsclean. Inspect to ensure they are not corroded.Polish with a pencil eraser to clean.Remove rechargeable batteries when Receivers and Transmitters are being stored. Inspectbatteries periodically for leakage.Use care when removing Ear Buds andMicrophones. Do not pull on wire leads, asthis may loosen connections and cause failure.12 5On/Off VolumeControl WheelOn/Off LEDHeadphone/Ear Bud JackUSB RechargingPortRechargingIndicator LEDRECEIVERCARE AND MAINTENANCEAvoid excessive heat. Do not leave theTransmitter or Receiver in hot sun or nearother sources of high temperature.Avoid dropping. The Receiver andTransmitter may be damaged if dropped.Keep battery terminals and contactsclean. Inspect to ensure they are not corroded.Polish with a pencil eraser to clean.Remove rechargeable batteries when Receivers and Transmitters are being stored. Inspectbatteries periodically for leakage.Use care when removing Ear Buds andMicrophones. Do not pull on wire leads, asthis may loosen connections and cause failure.

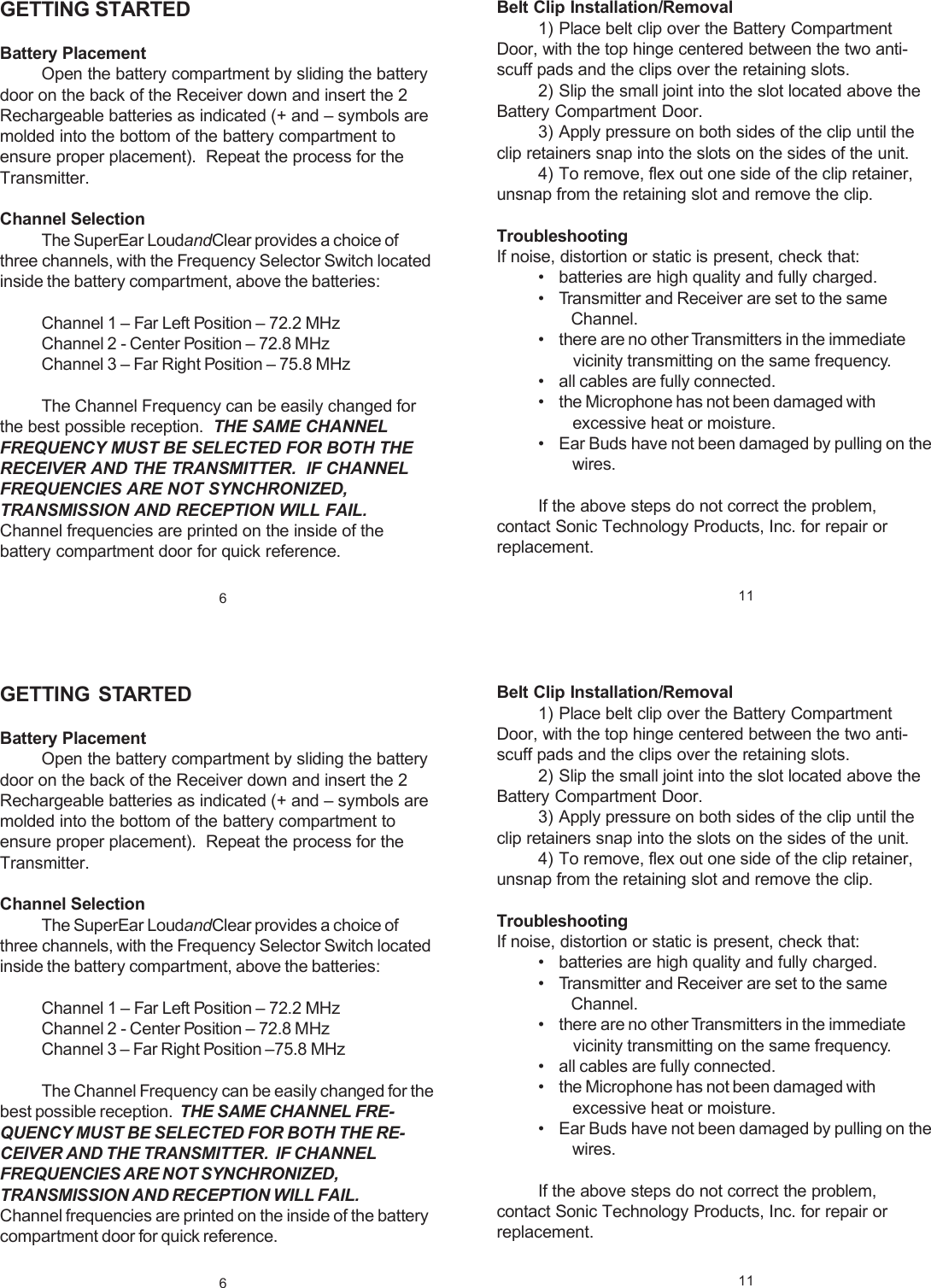

611GETTING STARTEDBattery PlacementOpen the battery compartment by sliding the batterydoor on the back of the Receiver down and insert the 2Rechargeable batteries as indicated (+ and – symbols aremolded into the bottom of the battery compartment toensure proper placement). Repeat the process for theTransmitter.Channel SelectionThe SuperEar LoudandClear provides a choice ofthree channels, with the Frequency Selector Switch locatedinside the battery compartment, above the batteries:Channel 1 – Far Left Position – 72.2 MHzChannel 2 - Center Position – 72.8 MHzChannel 3 – Far Right Position – 75.8 MHzThe Channel Frequency can be easily changed forthe best possible reception. THE SAME CHANNELFREQUENCY MUST BE SELECTED FOR BOTH THERECEIVER AND THE TRANSMITTER. IF CHANNELFREQUENCIES ARE NOT SYNCHRONIZED,TRANSMISSION AND RECEPTION WILL FAIL.Channel frequencies are printed on the inside of thebattery compartment door for quick reference.Belt Clip Installation/Removal1) Place belt clip over the Battery CompartmentDoor, with the top hinge centered between the two anti-scuff pads and the clips over the retaining slots.2) Slip the small joint into the slot located above theBattery Compartment Door.3) Apply pressure on both sides of the clip until theclip retainers snap into the slots on the sides of the unit.4) To remove, flex out one side of the clip retainer,unsnap from the retaining slot and remove the clip.TroubleshootingIf noise, distortion or static is present, check that:• batteries are high quality and fully charged.• Transmitter and Receiver are set to the same Channel.• there are no other Transmitters in the immediate vicinity transmitting on the same frequency.• all cables are fully connected.• the Microphone has not been damaged with excessive heat or moisture.• Ear Buds have not been damaged by pulling on the wires.If the above steps do not correct the problem,contact Sonic Technology Products, Inc. for repair orreplacement.611GETTING STARTEDBattery PlacementOpen the battery compartment by sliding the batterydoor on the back of the Receiver down and insert the 2Rechargeable batteries as indicated (+ and – symbols aremolded into the bottom of the battery compartment toensure proper placement). Repeat the process for theTransmitter.Channel SelectionThe SuperEar LoudandClear provides a choice ofthree channels, with the Frequency Selector Switch locatedinside the battery compartment, above the batteries:Channel 1 – Far Left Position – 72.2 MHzChannel 2 - Center Position – 72.8 MHzChannel 3 – Far Right Position –75.8 MHzThe Channel Frequency can be easily changed for thebest possible reception. THE SAME CHANNEL FRE-QUENCY MUST BE SELECTED FOR BOTH THE RE-CEIVER AND THE TRANSMITTER. IF CHANNELFREQUENCIES ARE NOT SYNCHRONIZED,TRANSMISSION AND RECEPTION WILL FAIL.Channel frequencies are printed on the inside of the batterycompartment door for quick reference.Belt Clip Installation/Removal1) Place belt clip over the Battery CompartmentDoor, with the top hinge centered between the two anti-scuff pads and the clips over the retaining slots.2) Slip the small joint into the slot located above theBattery Compartment Door.3) Apply pressure on both sides of the clip until theclip retainers snap into the slots on the sides of the unit.4) To remove, flex out one side of the clip retainer,unsnap from the retaining slot and remove the clip.TroubleshootingIf noise, distortion or static is present, check that:• batteries are high quality and fully charged.• Transmitter and Receiver are set to the same Channel.• there are no other Transmitters in the immediate vicinity transmitting on the same frequency.• all cables are fully connected.• the Microphone has not been damaged with excessive heat or moisture.• Ear Buds have not been damaged by pulling on the wires.If the above steps do not correct the problem,contact Sonic Technology Products, Inc. for repair orreplacement.

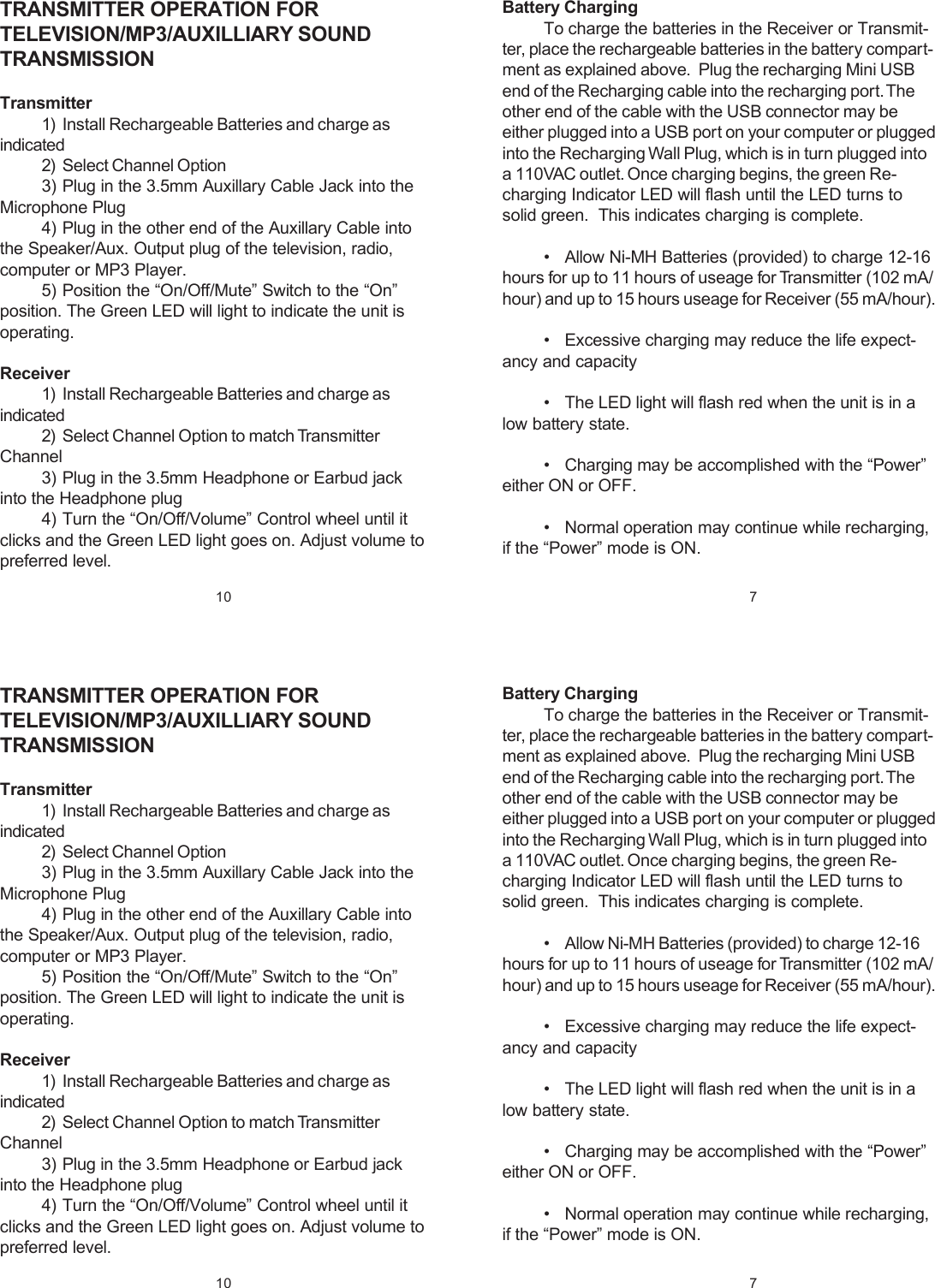

710Battery ChargingTo charge the batteries in the Receiver or Transmit-ter, place the rechargeable batteries in the battery compart-ment as explained above. Plug the recharging Mini USBend of the Recharging cable into the recharging port. Theother end of the cable with the USB connector may beeither plugged into a USB port on your computer or pluggedinto the Recharging Wall Plug, which is in turn plugged intoa 110VAC outlet. Once charging begins, the green Re-charging Indicator LED will flash until the LED turns tosolid green. This indicates charging is complete.• Allow Ni-MH Batteries (provided) to charge 12-16hours for up to 11 hours of useage for Transmitter (102 mA/hour) and up to 15 hours useage for Receiver (55 mA/hour).• Excessive charging may reduce the life expect-ancy and capacity• The LED light will flash red when the unit is in alow battery state.• Charging may be accomplished with the “Power”either ON or OFF.• Normal operation may continue while recharging,if the “Power” mode is ON.TRANSMITTER OPERATION FORTELEVISION/MP3/AUXILLIARY SOUNDTRANSMISSIONTransmitter1) Install Rechargeable Batteries and charge asindicated2) Select Channel Option3) Plug in the 3.5mm Auxillary Cable Jack into theMicrophone Plug4) Plug in the other end of the Auxillary Cable intothe Speaker/Aux. Output plug of the television, radio,computer or MP3 Player.5) Position the “On/Off/Mute” Switch to the “On”position. The Green LED will light to indicate the unit isoperating.Receiver1) Install Rechargeable Batteries and charge asindicated2) Select Channel Option to match TransmitterChannel3) Plug in the 3.5mm Headphone or Earbud jackinto the Headphone plug4) Turn the “On/Off/Volume” Control wheel until itclicks and the Green LED light goes on. Adjust volume topreferred level.710Battery ChargingTo charge the batteries in the Receiver or Transmit-ter, place the rechargeable batteries in the battery compart-ment as explained above. Plug the recharging Mini USBend of the Recharging cable into the recharging port. Theother end of the cable with the USB connector may beeither plugged into a USB port on your computer or pluggedinto the Recharging Wall Plug, which is in turn plugged intoa 110VAC outlet. Once charging begins, the green Re-charging Indicator LED will flash until the LED turns tosolid green. This indicates charging is complete.• Allow Ni-MH Batteries (provided) to charge 12-16hours for up to 11 hours of useage for Transmitter (102 mA/hour) and up to 15 hours useage for Receiver (55 mA/hour).• Excessive charging may reduce the life expect-ancy and capacity• The LED light will flash red when the unit is in alow battery state.• Charging may be accomplished with the “Power”either ON or OFF.• Normal operation may continue while recharging,if the “Power” mode is ON.TRANSMITTER OPERATION FORTELEVISION/MP3/AUXILLIARY SOUNDTRANSMISSIONTransmitter1) Install Rechargeable Batteries and charge asindicated2) Select Channel Option3) Plug in the 3.5mm Auxillary Cable Jack into theMicrophone Plug4) Plug in the other end of the Auxillary Cable intothe Speaker/Aux. Output plug of the television, radio,computer or MP3 Player.5) Position the “On/Off/Mute” Switch to the “On”position. The Green LED will light to indicate the unit isoperating.Receiver1) Install Rechargeable Batteries and charge asindicated2) Select Channel Option to match TransmitterChannel3) Plug in the 3.5mm Headphone or Earbud jackinto the Headphone plug4) Turn the “On/Off/Volume” Control wheel until itclicks and the Green LED light goes on. Adjust volume topreferred level.

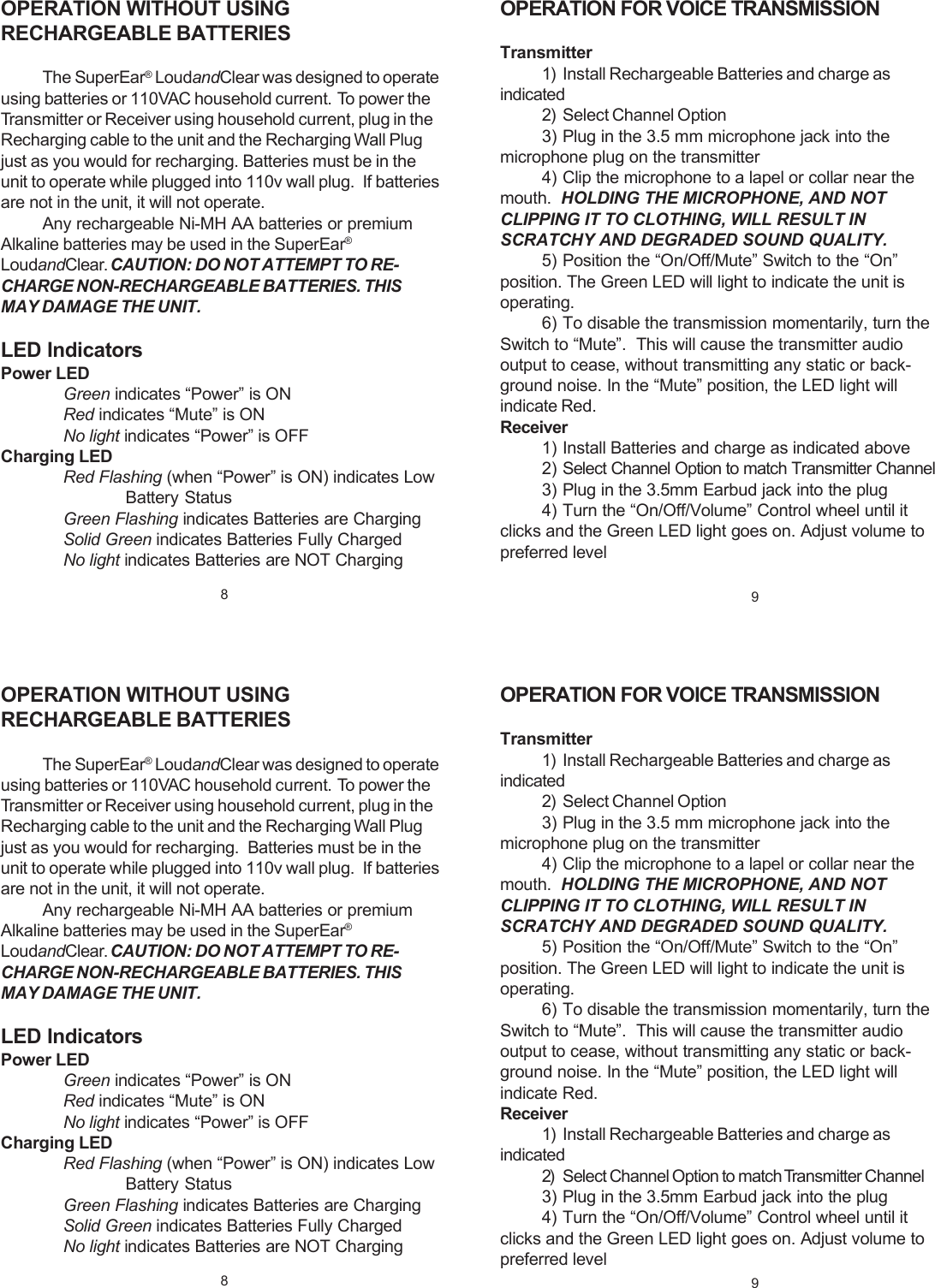

89OPERATION WITHOUT USINGRECHARGEABLE BATTERIESThe SuperEar® LoudandClear was designed to operateusing batteries or 110VAC household current. To power theTransmitter or Receiver using household current, plug in theRecharging cable to the unit and the Recharging Wall Plugjust as you would for recharging. Batteries must be in theunit to operate while plugged into 110v wall plug. If batteriesare not in the unit, it will not operate.Any rechargeable Ni-MH AA batteries or premiumAlkaline batteries may be used in the SuperEar®LoudandClear.CAUTION: DO NOT ATTEMPT TO RE-CHARGE NON-RECHARGEABLE BATTERIES. THISMAY DAMAGE THE UNIT.LED IndicatorsPower LEDGreen indicates “Power” is ONRed indicates “Mute” is ONNo light indicates “Power” is OFFCharging LEDRed Flashing (when “Power” is ON) indicates LowBattery StatusGreen Flashing indicates Batteries are ChargingSolid Green indicates Batteries Fully ChargedNo light indicates Batteries are NOT ChargingOPERATION FOR VOICE TRANSMISSIONTransmitter1) Install Rechargeable Batteries and charge asindicated2) Select Channel Option3) Plug in the 3.5 mm microphone jack into themicrophone plug on the transmitter4) Clip the microphone to a lapel or collar near themouth. HOLDING THE MICROPHONE, AND NOTCLIPPING IT TO CLOTHING, WILL RESULT INSCRATCHY AND DEGRADED SOUND QUALITY.5) Position the “On/Off/Mute” Switch to the “On”position. The Green LED will light to indicate the unit isoperating.6) To disable the transmission momentarily, turn theSwitch to “Mute”. This will cause the transmitter audiooutput to cease, without transmitting any static or back-ground noise. In the “Mute” position, the LED light willindicate Red.Receiver1) Install Batteries and charge as indicated above2) Select Channel Option to match Transmitter Channel3) Plug in the 3.5mm Earbud jack into the plug4) Turn the “On/Off/Volume” Control wheel until itclicks and the Green LED light goes on. Adjust volume topreferred level89OPERATION WITHOUT USINGRECHARGEABLE BATTERIESThe SuperEar® LoudandClear was designed to operateusing batteries or 110VAC household current. To power theTransmitter or Receiver using household current, plug in theRecharging cable to the unit and the Recharging Wall Plugjust as you would for recharging. Batteries must be in theunit to operate while plugged into 110v wall plug. If batteriesare not in the unit, it will not operate.Any rechargeable Ni-MH AA batteries or premiumAlkaline batteries may be used in the SuperEar®LoudandClear.CAUTION: DO NOT ATTEMPT TO RE-CHARGE NON-RECHARGEABLE BATTERIES. THISMAY DAMAGE THE UNIT.LED IndicatorsPower LEDGreen indicates “Power” is ONRed indicates “Mute” is ONNo light indicates “Power” is OFFCharging LEDRed Flashing (when “Power” is ON) indicates LowBattery StatusGreen Flashing indicates Batteries are ChargingSolid Green indicates Batteries Fully ChargedNo light indicates Batteries are NOT ChargingOPERATION FOR VOICE TRANSMISSIONTransmitter1) Install Rechargeable Batteries and charge asindicated2) Select Channel Option3) Plug in the 3.5 mm microphone jack into themicrophone plug on the transmitter4) Clip the microphone to a lapel or collar near themouth. HOLDING THE MICROPHONE, AND NOTCLIPPING IT TO CLOTHING, WILL RESULT INSCRATCHY AND DEGRADED SOUND QUALITY.5) Position the “On/Off/Mute” Switch to the “On”position. The Green LED will light to indicate the unit isoperating.6) To disable the transmission momentarily, turn theSwitch to “Mute”. This will cause the transmitter audiooutput to cease, without transmitting any static or back-ground noise. In the “Mute” position, the LED light willindicate Red.Receiver1) Install Rechargeable Batteries and charge asindicated2) Select Channel Option to match Transmitter Channel3) Plug in the 3.5mm Earbud jack into the plug4) Turn the “On/Off/Volume” Control wheel until itclicks and the Green LED light goes on. Adjust volume topreferred level
