SonicPoint-Ne / SonicPoint-Ni Getting Started Guide

SonicPoint_N_GSG.book Page 1 Friday, June 4, 2010 3:08 PM

SonicWALL

APL21-06E /APL21-083

SonicWALL SonicPoint Getting Started Guide Page 1

SonicWALL SonicPoint-Ne / SonicPoint-Ni

Getting Started Guide

This Getting Started Guide provides instructions for basic installation and configuration of the SonicWALL SonicPoint-Ne / SonicPoint-Ni

wireless appliances in single-unit or distributed wireless deployments.

Setup

Additional Configuration and Information

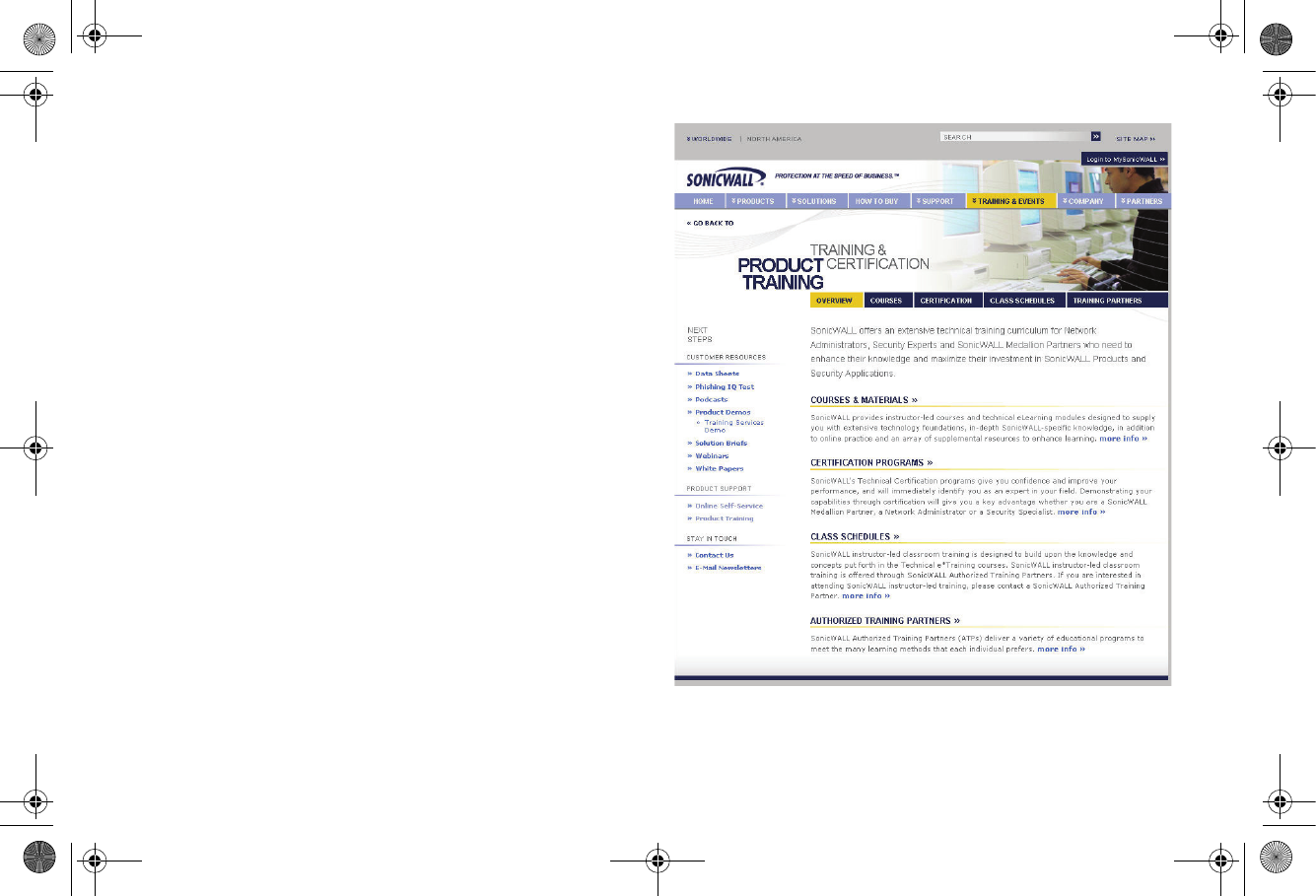

Support and Training Options - page 31

Product Safety and Regulatory Information - page 37

Step Procedure Est. Time

Before You Begin - page 3

Introduction to Secure Wireless - page 7

Registering Your Appliance - page 13

Configuring Your UTM Appliance for Wireless - page 17

Setting Up Your SonicPoint - page 23

SonicPoint_N_GSG.book Page 1 Friday, June 4, 2010 3:08 PM

Page 2 SonicPoint Top Panel / Status LEDs

SonicPoint Top Panel / Status LEDs

link

wlan

lan

act

link

act

(

)

link

wlan

lan

act

link

act

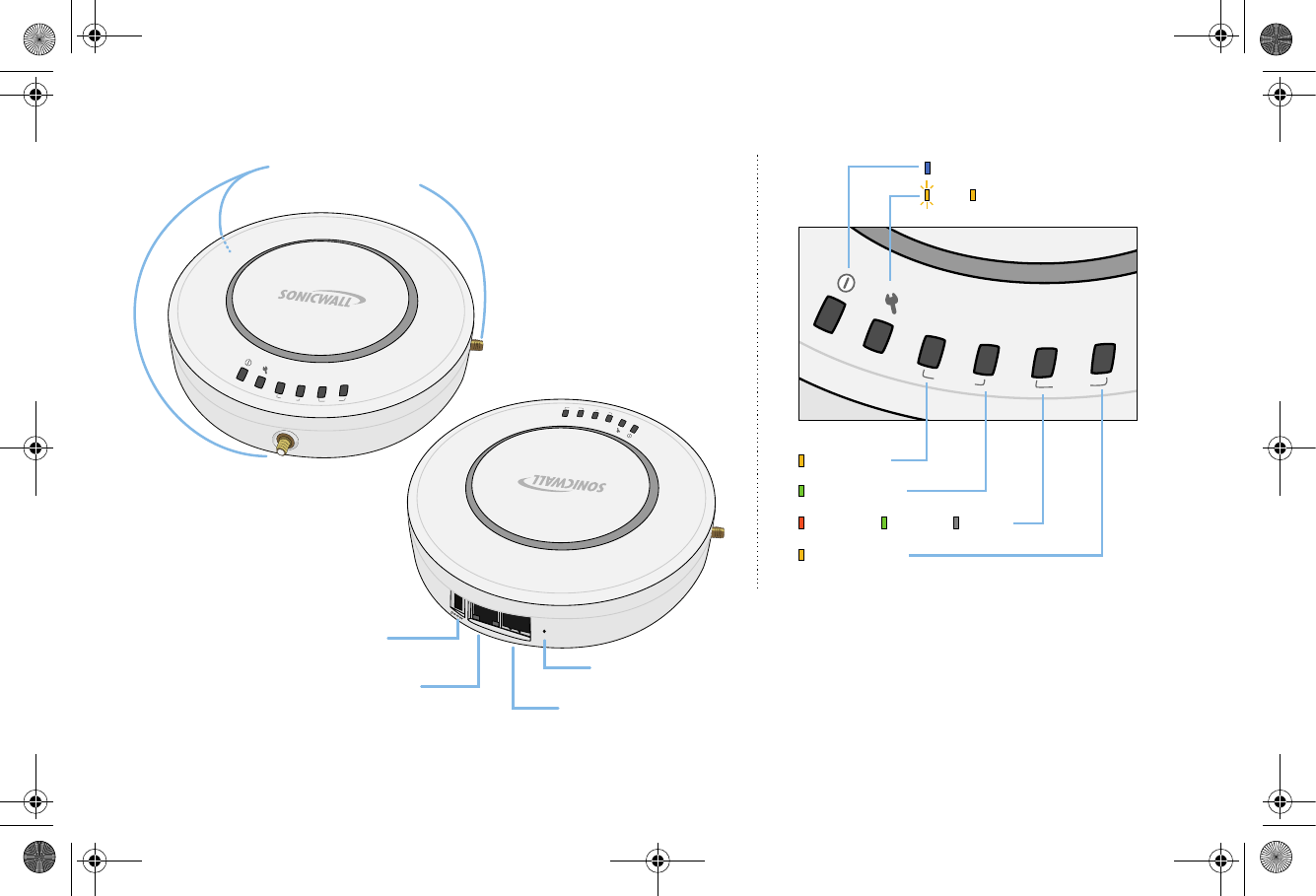

Status LEDs

Power

Test SafeMode

Wireless Link

Wireless Activity

1000mbps 100mbps 10Mbps

Ethernet Activity

link

wlan

lan

act

link

act

Power Port

(SonicPoint-Ne only)

Provides 12VDC power connection

LAN/PoE Port

Provides Power over Ethernet (PoE)

and Ethernet connection

Console Port

Provides management connection using

CLI->DB9 cable (for command line management only)

Reset Button

Press and hold to manually reset

SonicPoint_N_GSG.book Page 2 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 3

Before You Begin

In this Section:

This section provides a basic checklist of materials and information you will need before you begin.

•Check Package Contents - page 4

•What You Need to Begin - page 5

SonicPoint_N_GSG.book Page 3 Friday, June 4, 2010 3:08 PM

Page 4 Check Package Contents

Check Package Contents

Before continuing, ensure that your SonicPoint package contains the following materials:

Any Items Missing?

If any of the items corresponding to your product are missing from the package, please contact SonicWALL support.

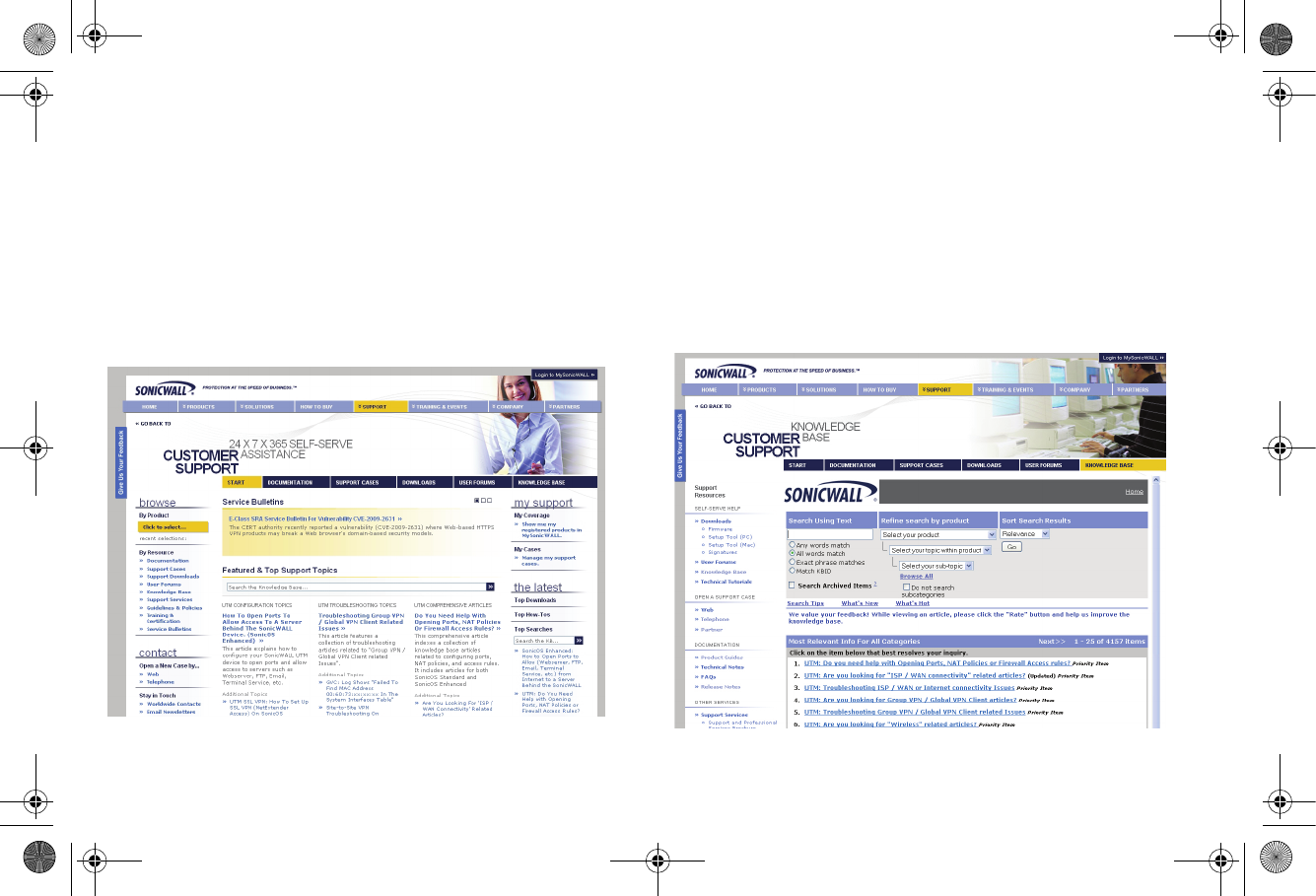

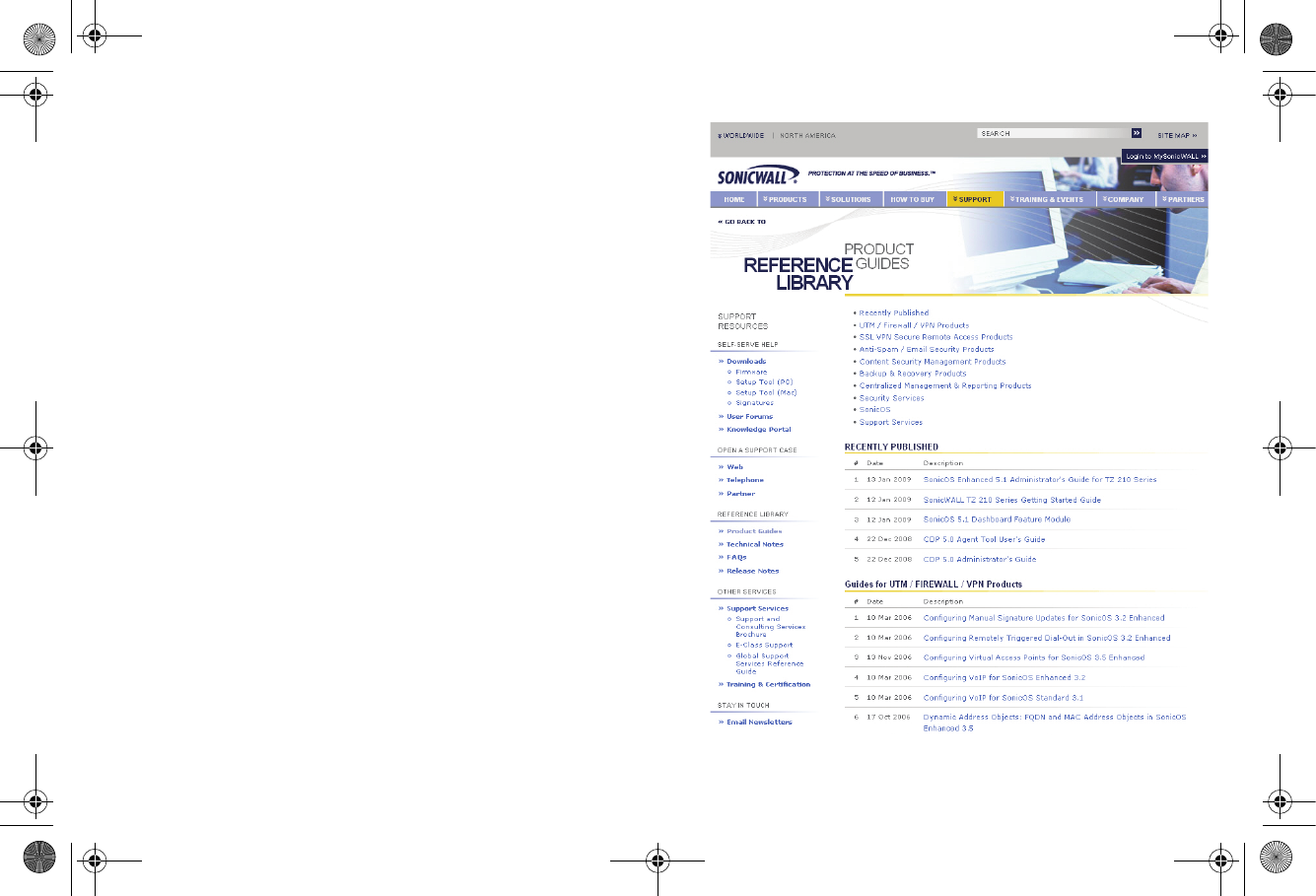

A listing of the most current support documents are available online at:

<http://www.sonicwall.com/us/support.html>

SonicPoint-Ne Appliance Checklist SonicPoint-Ni Appliance Checklist

This Getting Started Guide Document

SonicPoint-Ne Appliance

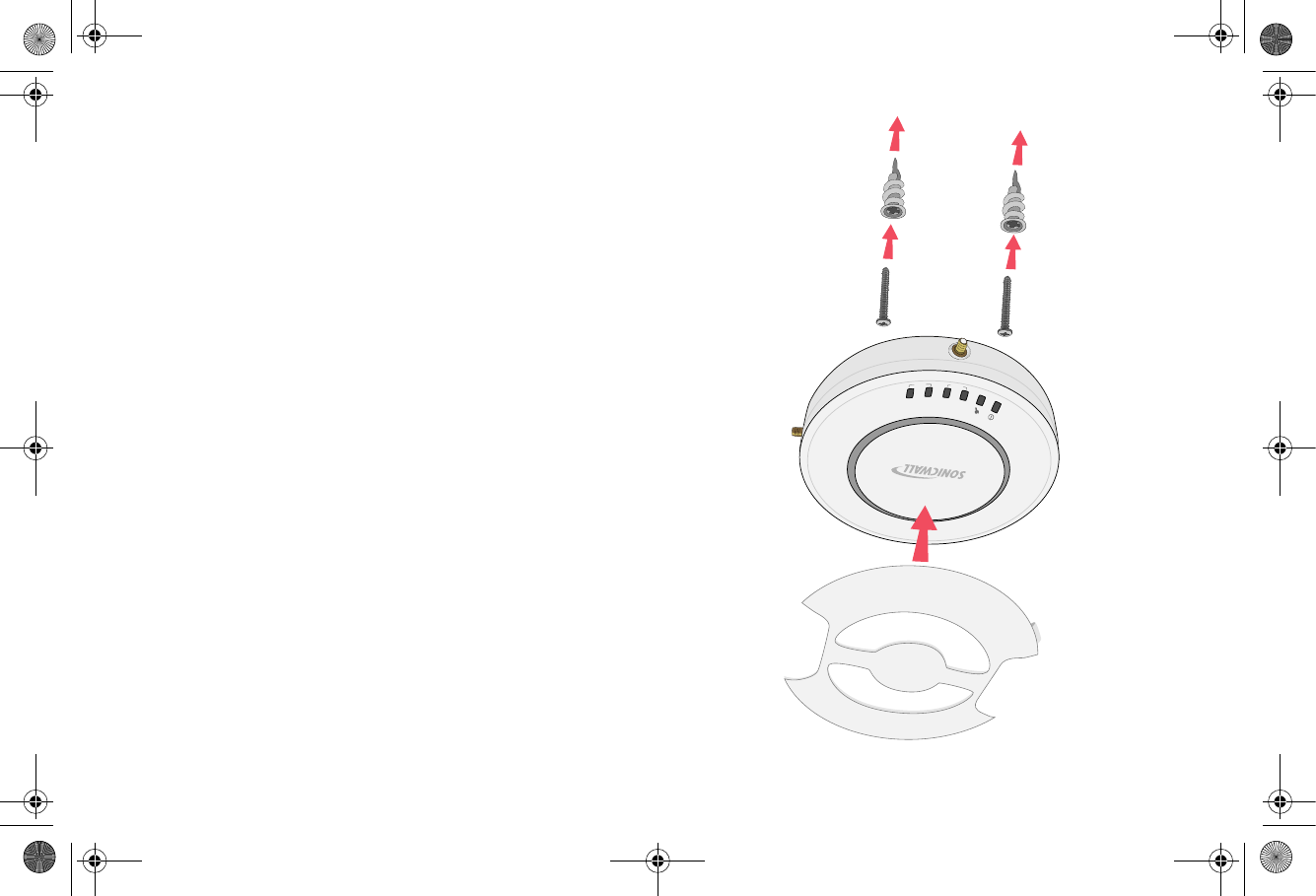

Mounting Kit (Ceiling Braces, Anchor and Screw Kit)

Front LED/Logo Cover Plate

Antennas (3)

Power Adaptora

a. The included power cord is intended for use in North America only.

This Getting Started Guide Document

SonicPoint-Ni Appliance

Mounting Kit (Ceiling Braces, Anchor and Screw Kit)

Front LED/Logo Cover Plate

SonicPoint_N_GSG.book Page 4 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 5

What You Need to Begin

The SonicWALL SonicPoint-Ne/Ni security appliances are centrally managed by SonicWALL NSA E-Class appliances. For more

information on deploying this SonicPoint with SonicWALL NSA series and TZ series platforms, contact your local SonicWALL sales

representative for the supported SonicOS releases. SonicPoints receive auto-firmware updates from the central gateway SonicWALL,

this device supports SonicOS 5.6.0.3 or higher releases.

In addition to the above SonicOS firmware and hardware requirements, ensure that your network deployment includes:

• An 802.3af compliant PoE injector or PoE-capable switch (optional when using the SonicPoint-Ne)

• An active Internet connection

• A configured interface on the SonicWALL security appliance set to a zone type of “wireless”

• A location selected for placement of your SonicPoint such as a wall or ceiling

• Clients capable of 802.11n wireless communications1

1. Although clients with 802.11a/b/g hardware are supported, the presence of these legacy clients within range of your network may affect the connection

speed of your 802.11n clients.

SonicPoint_N_GSG.book Page 5 Friday, June 4, 2010 3:08 PM

Page 6

SonicPoint_N_GSG.book Page 6 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 7

Introduction to Secure Wireless

In this Section:

This section contains excerpts from the SonicWALL Secure Wireless Network Integrated Solutions Guide.

The content is meant to provide a brief introduction to Radio Frequency (RF) technology as it

pertains to different deployment scenarios.

•Wireless RF Introduction - page 8

•Placing Access Points - page 10

•SonicWALL Wireless Firewalling - page 12

SonicPoint_N_GSG.book Page 7 Friday, June 4, 2010 3:08 PM

Page 8 Wireless RF Introduction

Wireless RF Introduction

There are currently four widely adopted standards for 802.11

wireless network types: a, b, g, and n. Although 802.11n is the

newest and highest capacity standard, each of the four

standards has its own strengths and weaknesses. This section

provides overviews of these standards.

The following section provides a brief overview of RF

technologies:

•Frequency Bands and Channels - page 8

•802.11 Comparison Chart - page 8

•Radio Frequency Barriers - page 9

•RF Interference - page 9

Frequency Bands and Channels

To allow multiple separate wireless networks in a shared and

confined space, the RF medium is divided into channels. For

devices in the 5GHz range (802.11a), this means the possibility

of up to 23 discrete channels. For devices using the 2.4GHz

range (802.11b, 802.11g), the wireless space is limited to a

maximum of 14 overlapping channels. As a result of these

overlapping channels, 2.4GHz technology provides only a total

of three discrete channels.

The newer 802.11n technology does not fit into either of these

categories, as it is capable of using both 2.4GHz and 5GHz, but

is limited to 14 overlapping channels for backward compatibility.

802.11 Comparison Chart

The following table compares signal characteristics as they

apply to the current 802.11 standards:

802.11a 802.11b 802.11g 802.11n

# of Channels in USA 23 11 11 11

# of Channels in EU 23 13 13 13

# of Channels in Japan 15 14 14 14

Frequency Band 5GHz 2.4GHz 2.4GHz 2.4/5GHz

Max. Data Rate 54Mbps 11Mbps 54Mbps 150Mbps

300Mbpsa

a. Full 300Mbps throughput is possible only in environments free from

2.4Ghz interference.

Note: Although 802.11b/g/n standards provide between 11

and 14 channels, only 3 of those channels are fully

discrete (non-overlapping) channels.

For more information on this topic, refer to the

SonicWALL Secure Wireless Networking Integrated

Solutions Guide.

Radius (Range) 90ft/25m 120ft/

35m

120ft/

35m

300ft/90m

SonicPoint_N_GSG.book Page 8 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 9

Radio Frequency Barriers

Determining the location of RF barriers can be a painful part of

the placement process, but keep in mind that they can be used

beneficially in an attempt to block signals where you do not

want coverage.

The following tables list some common RF barrier types:

RF Interference

RF interference from home, office, and medical equipment is a

common source of frustration in wireless deployments from the

smallest home office to the largest multi-building campus.

The following table lists several common sources of RF

interference:

Barrier Type RF Signal

Blocking

Open air Very Low

Glass, drywall, cube partitions Low

Stone floors and walls (brick/marble/granite) Medium

Concrete, security glass, stacked books/paper High

Metal, metal mesh (chicken wire), re-enforced

concrete, water

Very High

Faraday cage Extremely High

Interference Source Possible RF

Interference

Band(s)

Affected

2.4GHz phones Entire range (hundreds

of feet)

802.11b/g/n

Bluetooth devices Within 30 feet 802.11b/g/n

Microwave ovena

a. Most newer model microwave ovens have sufficient shielding to

negate possible RF interference.

Within 10-20 feet 802.11b/g/n

Scientific and medical

equipment

Short distance, varies 802.11b/g/n

Off-network access

points

Entire range All

RF reflective objects Long-range wireless

bridging

All

SonicPoint_N_GSG.book Page 9 Friday, June 4, 2010 3:08 PM

Page 10 Placing Access Points

Placing Access Points

Physical placement of an access point has a measurable effect

on who can and cannot access your wireless signal. The

following sections provide an overview of wireless access point

placement, signal strength, and signal direction in common

wireless deployment situations:

•Making Hardware Decisions - page 10

•Solutions to RF Interference and Barriers - page 11

Tip: For the latest SonicPoint wireless deployment

information from switching recommendations to

site survey, see the SonicWALL SonicPoint

Deployment Best Practices Guide at:

<http://www.sonicwall.com/us/support.html>

Making Hardware Decisions

The first decision in hardware is the access point. While access

point technology (802.11a/b/g/n) is one factor in determining

your placement, based on distance served and bandwidth

needed, taking note of other hardware-based factors is just as

important.

Some of the more important hardware decisions include:

•Number of access points versus user density – If too

many users are serviced by a single access point,

maximum transfer rates are reached and that point may

become a bottleneck for the whole system.

•Bandwidth – How much data is moving upstream and

downstream for a given type of user?

•Ethernet cabling – Where are you running the powered

Ethernet (PoE) cable to and how are you securing that

cable. Is your PoE switch able to power all access points?

•Hubs / Switches / UTM – Your wireless deployment has to

tie back into your UTM appliance and LAN resources at

some point. What speed is needed for your Ethernet

connection to accommodate the number of access points

you are installing? Also consider where your key

networking devices are deployed and how they will connect

efficiently with your wireless appliances.

•Upgrade your Ethernet connections for 802.11n – In

most cases, 802.11n wireless hardware requires more

bandwidth than a single (or even dual) 10/100 Ethernet

connection can handle. Gigabit Ethernet connectivity

between the WLAN and the LAN is required to take full

advantage of 802.11n speed.

•Power up that PoE for 802.11n – Part of your wireless

network planning should include verifying that your PoE

equipment is 802.3af compliant, and that a full 15 watts of

power can be supplied to each SonicPoint.

SonicPoint_N_GSG.book Page 10 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 11

Solutions to RF Interference and Barriers

These days, finding an environment with no RF interference or

noise is nearly impossible. Only if you are setting up an office in

a secluded redwood grove can you count on RF interference to

be a non-issue. Even then, the redwood trees might just be

among those fitted with high-gain cellular antennas, an all-too-

common occurrence today. Regardless, you should expect to

deal with some level of signal interference in your deployment.

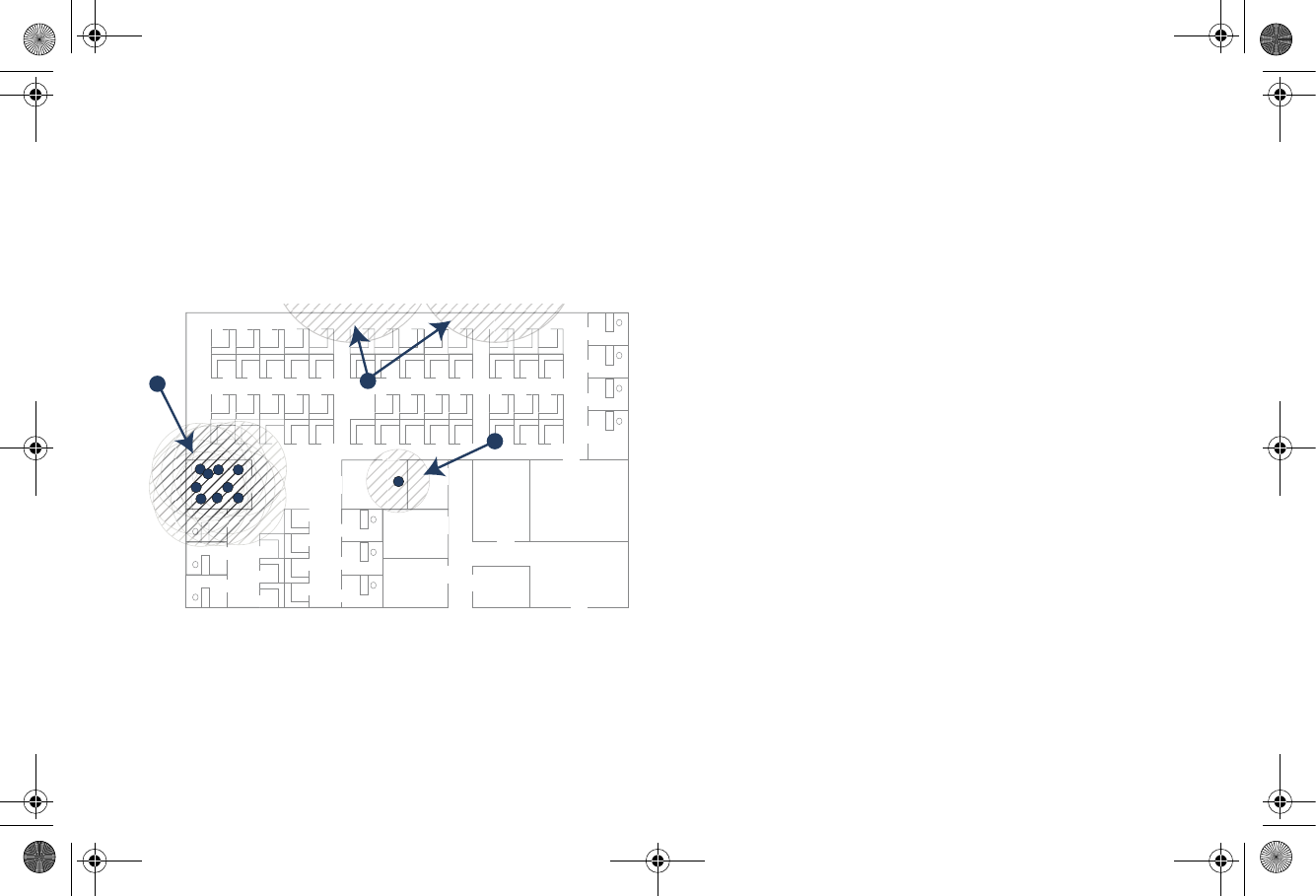

Location A – Rogue access points or wireless test lab

•Problem – Wireless product test labs and other (non-

malicious) rogue access points are problems in many Wi-Fi

deployments.

•Solution – Either eliminate all rogue access points, or

force their owners to use a set channel that does not

overlap with your distributed wireless solution.

Location B – Spectrum noise for 2.4 GHz and 5 GHz

•Problem – Your phone system is partially wireless and

uses the 2.4GHz spectrum.

•Solution – Give VoIP a try. VoIP will work in tandem with

your wireless network, instead of against it. For more on

SonicWALL VoIP implementation and capabilities, refer to

the Configuring VoIP SonicOS feature module available at:

http://www.sonicwall.com/us/support.html

Location C – Off-network access points

•Problem – Your neighbors need wireless, too!

Unfortunately, only a few sheets of drywall separate you.

Solution – Overpowering your neighbors with high-gain

antennas is an option, but not a particularly neighborly one.

Instead, you could simply use a different channel for

wireless access points bordering this wall and ensure that

your neighbors do the same. Performance in some dual-

channel wireless devices may take a hit, but it is better than

dropped connections—or unhappy neighbors.

SonicPoint_N_GSG.book Page 11 Friday, June 4, 2010 3:08 PM

Page 12 SonicWALL Wireless Firewalling

SonicWALL Wireless Firewalling

When a wireless device uses an access point to communicate

with a device on another subnet or on a completely different

network, traffic between the devices is forced to traverse the

network gateway. This traversal enables Unified Threat

Management (UTM) services to be enforced at the gateway.

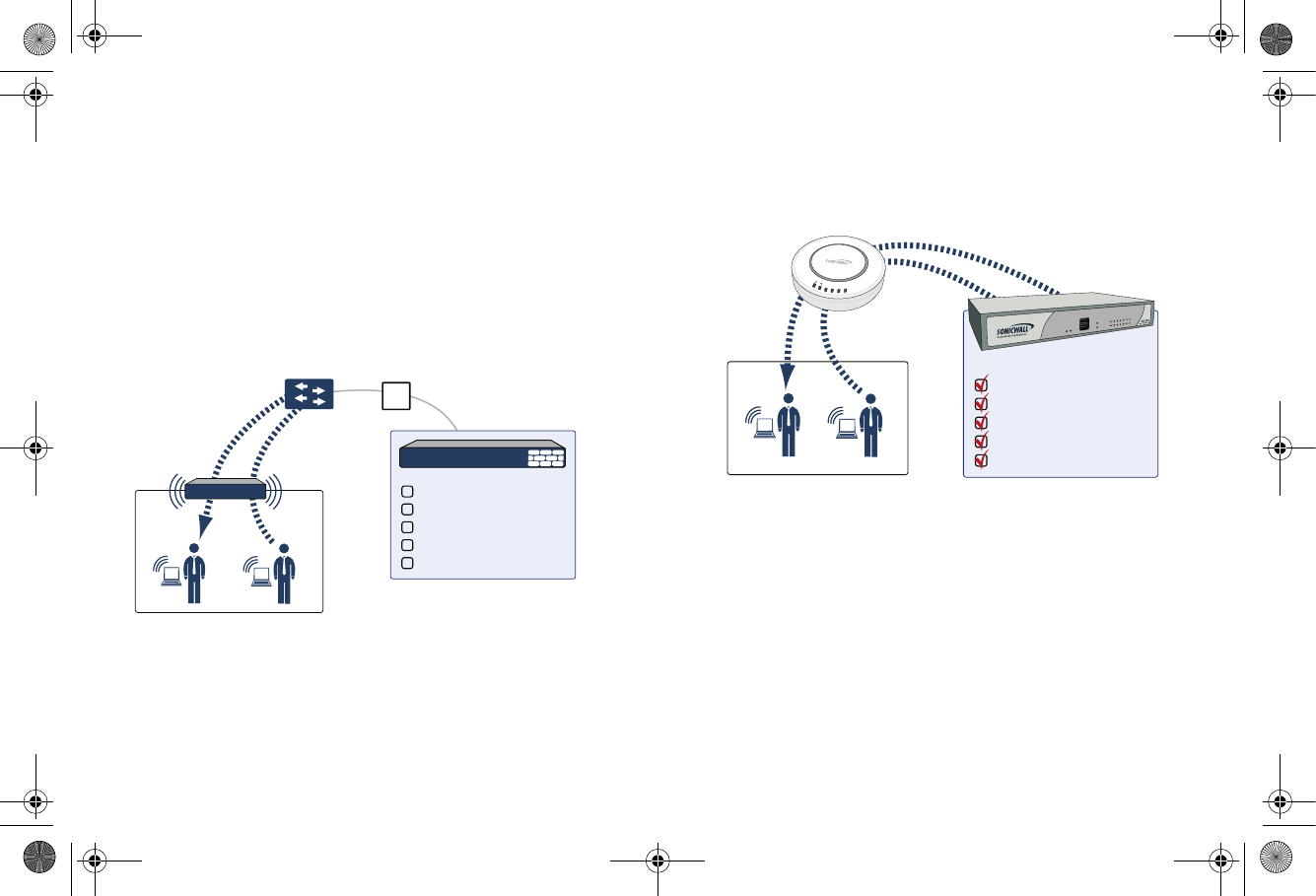

Standard practice for wireless firewalling (where one wireless

client is communicating with another) bypasses many of the

critical UTM security services. The illustration below shows the

standard practice for wireless firewalling.

Many security products on the market share this potential

vulnerability when two users connected by a common hub or

wireless access point wish to exchange data.

SonicWALL addresses this security shortcoming by managing

the SonicPoint access points from the UTM appliance. This

allows complete control of the wireless space, including zone

enforcement of security services and complete firewalling

capabilities, as shown in the illustration below.

WLAN Zone

Security Services

Content Filtering Service

Client Anti-Virus Enforcement

Gateway Anti-Virus

Gateway Anti-Spyware

Intrusion Prevention Service

Other Security Appliance

WLAN Zone Security Services

SonicWALL

appliance

SonicWALL

SonicPoint

Content Filtering Service

Client Anti-Virus Enforcement

Gateway Anti-Virus

Gateway Anti-Spyware

Intrusion Prevention Service

link

wlan

lan

act

link

act

SonicPoint_N_GSG.book Page 12 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 13

Registering Your Appliance

In this Section:

This section provides instructions for registering your SonicWALL SonicPoint appliance.

•Creating a MySonicWALL Account - page 14

•Registering and Licensing Your Appliance on MySonicWALL - page 14

•Using SonicWALL UTM Security Services for Wireless Clients - page 15

Note: Registration is an important part of the setup process and is necessary to receive the full benefits of SonicWALL security

services, firmware updates, and technical support.

SonicPoint_N_GSG.book Page 13 Friday, June 4, 2010 3:08 PM

Page 14 Creating a MySonicWALL Account

Creating a MySonicWALL Account

A MySonicWALL account is required for product registration. If

you already have an account, continue to the Registering and

Licensing Your Appliance on MySonicWALL section.

To create a MySonicWALL account:

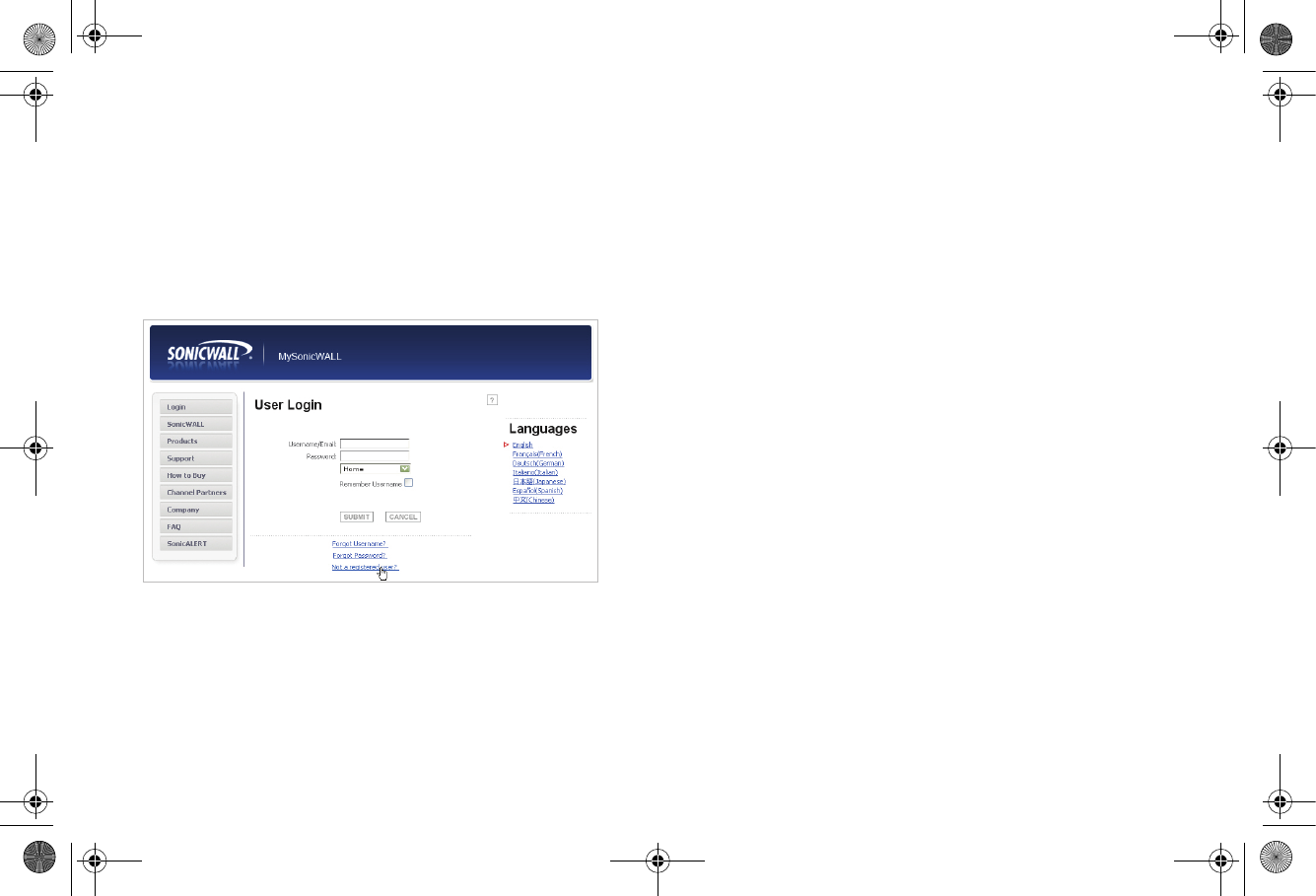

1. In your browser, navigate to www.mysonicwall.com.

2. In the login screen, click the Not a registered user? link.

3. Complete the Registration form and click Register.

4. Verify that the information is correct and click Submit.

5. In the screen confirming that your account was created,

click Continue.

Registering and Licensing Your Appliance

on MySonicWALL

You must register your SonicWALL security appliance on

MySonicWALL to enable full functionality.

To register your SonicPoint, perform the following tasks:

1. Login to your MySonicWALL account. If you do not have

an account, you can create one at www.mysonicwall.com.

2. Enter the serial number of your product in the REGISTER

A PRODUCT field and click the Next button.

3. Type a friendly name for the appliance, select the

Product Group if any, type the authentication code into

the appropriate text boxes, and then click Register.

4. On the Product Survey page, fill in the requested

information and then click Continue.

5. To pair your SonicPoint with a SonicWALL UTM

appliance, navigate to the Service Management page

by clicking on the device you wish to pair with your

SonicPoint.

6. Scroll to the Associated Products section and click the

SonicWALL SonicPoint link to associate your SonicPoint

with the appliance.

SonicPoint_N_GSG.book Page 14 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 15

Using SonicWALL UTM Security Services

for Wireless Clients

Any security services you purchased for your SonicWALL UTM

appliance can also be applied to wireless clients. Simply enable

the security services on the WLAN zone or on a custom

wireless zone, and your wireless traffic will be protected along

with your wired traffic.

If you have not yet purchased a security service

subscription for your SonicWALL UTM appliance, please

speak with a sales representative or visit www.mysonicwall.com

to register for free trials.

• To try a Free Trial of a service, click Try in the Service

Management page.

• To purchase a product or service, click Buy Now in the

Service Management page.

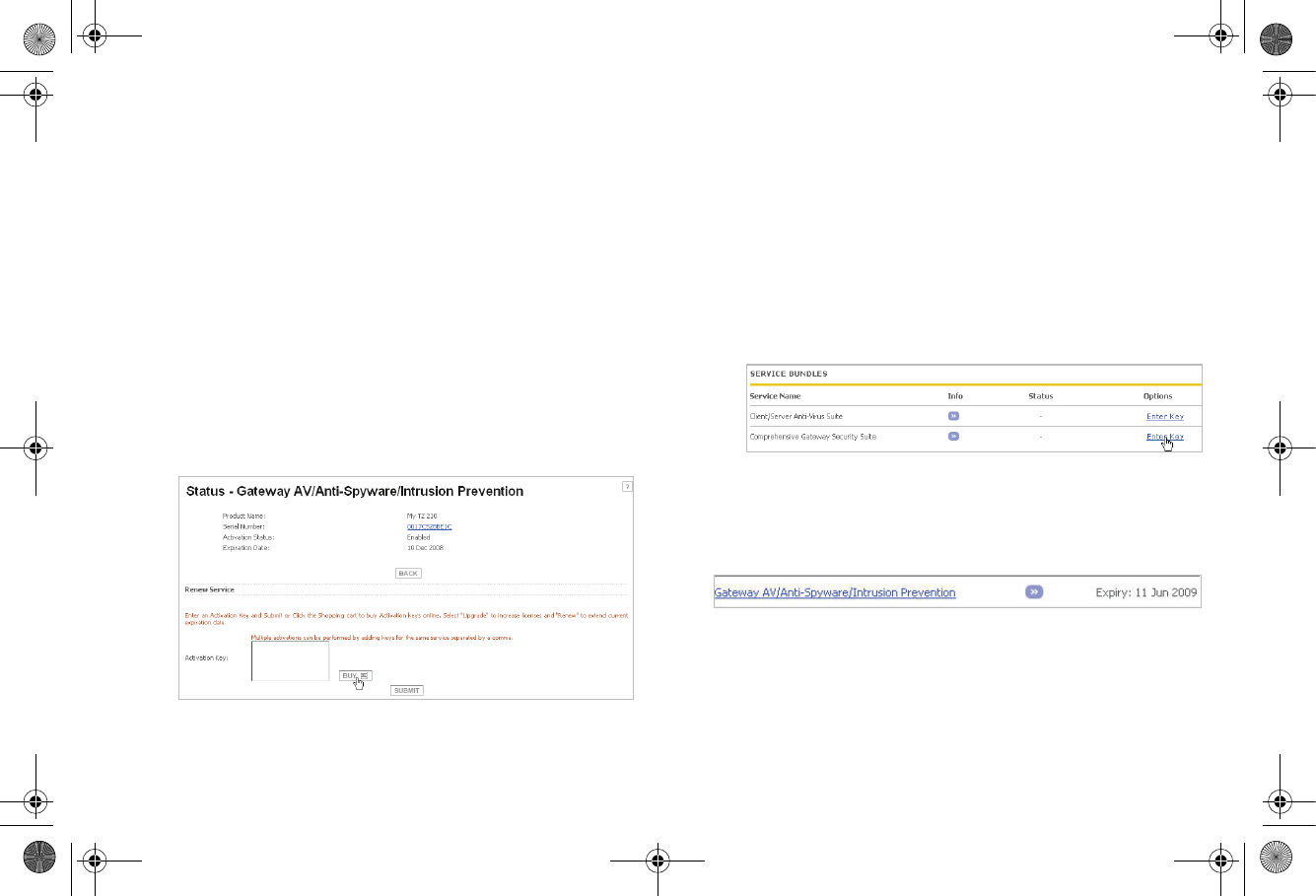

If you recently purchased security services, you will receive an

activation key. This key is emailed to you after online

purchases, or is on the front of the certificate that was included

with your purchase.

To activate existing licenses:

1. Log into mysonicwall.com and navigate to the My

Products page.

2. Select the registered product you want to manage.

3. Locate the product on the Service Management page and

click Enter Key in that row.

4. In the Activate Service page, type or paste your key into

the Activation Key field and then click Submit.

When activation is complete, MySonicWALL displays an

activation screen with service status and expiration information.

You have successfully registered your SonicWALL appliance,

and now you need to enable UTM security services on the

SonicWALL appliance itself. SonicWALL UTM security services

are not enabled by default.

SonicPoint_N_GSG.book Page 15 Friday, June 4, 2010 3:08 PM

Page 16 Using SonicWALL UTM Security Services for Wireless Clients

SonicPoint_N_GSG.book Page 16 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 17

Configuring Your UTM Appliance for Wireless

In this Section:

This section provides instructions for configuring the SonicWALL UTM appliance to connect with your SonicWALL SonicPoint.

•An Introduction to Zones and Interfaces - page 18

•Configuring Wireless Access - page 18

SonicPoint_N_GSG.book Page 17 Friday, June 4, 2010 3:08 PM

Page 18 An Introduction to Zones and Interfaces

An Introduction to Zones and Interfaces

Zones split a network infrastructure into logical areas, each with

its own set of usage rules, security services, and policies. Most

networks include multiple definitions for zones, including those

for trusted, untrusted, public, encrypted, and wireless traffic.

Some basic (default) zone types include:

WAN - Untrusted resources outside your local network

LAN - Trusted local network resources

WLAN - Local wireless network resources originating from

SonicWALL wireless enabled appliances

DMZ - Local network assets that must be accessible from the

WAN zone (such as Web and FTP servers)

VPN - Trusted endpoints in an otherwise untrusted zone (such

as the WAN)

The security features and settings configured for the zones are

enforced by binding a zone to one or more physical interfaces

(such as, X0, X1, or X2) on the SonicWALL UTM appliance.

The X1 and X0 interfaces are preconfigured as WAN and LAN

respectively. The remaining ports (X2-X6) are also LAN ports

by default. However, these ports can be configured to meet the

needs of your network, either by using basic zone types (WAN,

LAN, WLAN, DMZ, VPN) or configuring a custom zone type to

fit your network requirements (for example: Gaming Console

Zone, Wireless Printer Zone, Wireless Ticket Scanner Zone).

Configuring Wireless Access

This section describes how to configure SonicPoints with a

SonicWALL UTM appliance.

SonicWALL SonicPoints are wireless access points specially

engineered to work with SonicWALL UTM appliances. Before

you can manage SonicPoints in the management interface,

perform the following steps:

•Configuring Provisioning Profiles - page 19

•Configuring a Wireless Zone - page 21

•Configuring the Network Interface - page 22

SonicPoint_N_GSG.book Page 18 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 19

Configuring Provisioning Profiles

SonicPoint Profile defines settings that can be configured on a

SonicPoint, such as radio SSIDs, and channels of operation.

These profiles make it easy to apply basic settings to a wireless

zone, especially when that zone contains multiple SonicPoints.

When a SonicPoint is connected to a zone, it is automatically

provisioned with the profile assigned to that zone. If a

SonicPoint is connected to a zone that does not have a custom

profile assigned to it, a default profile is used.

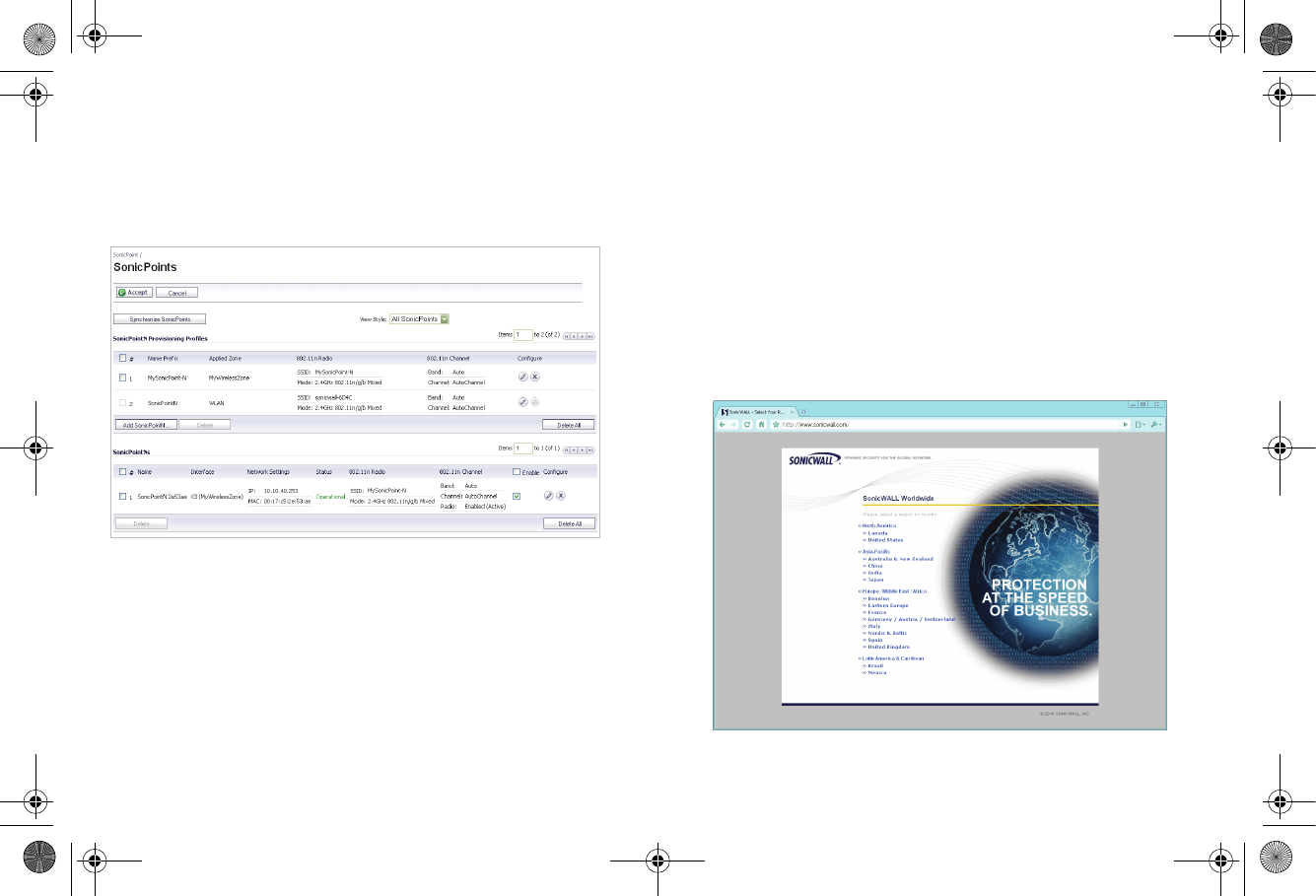

To add a new profile:

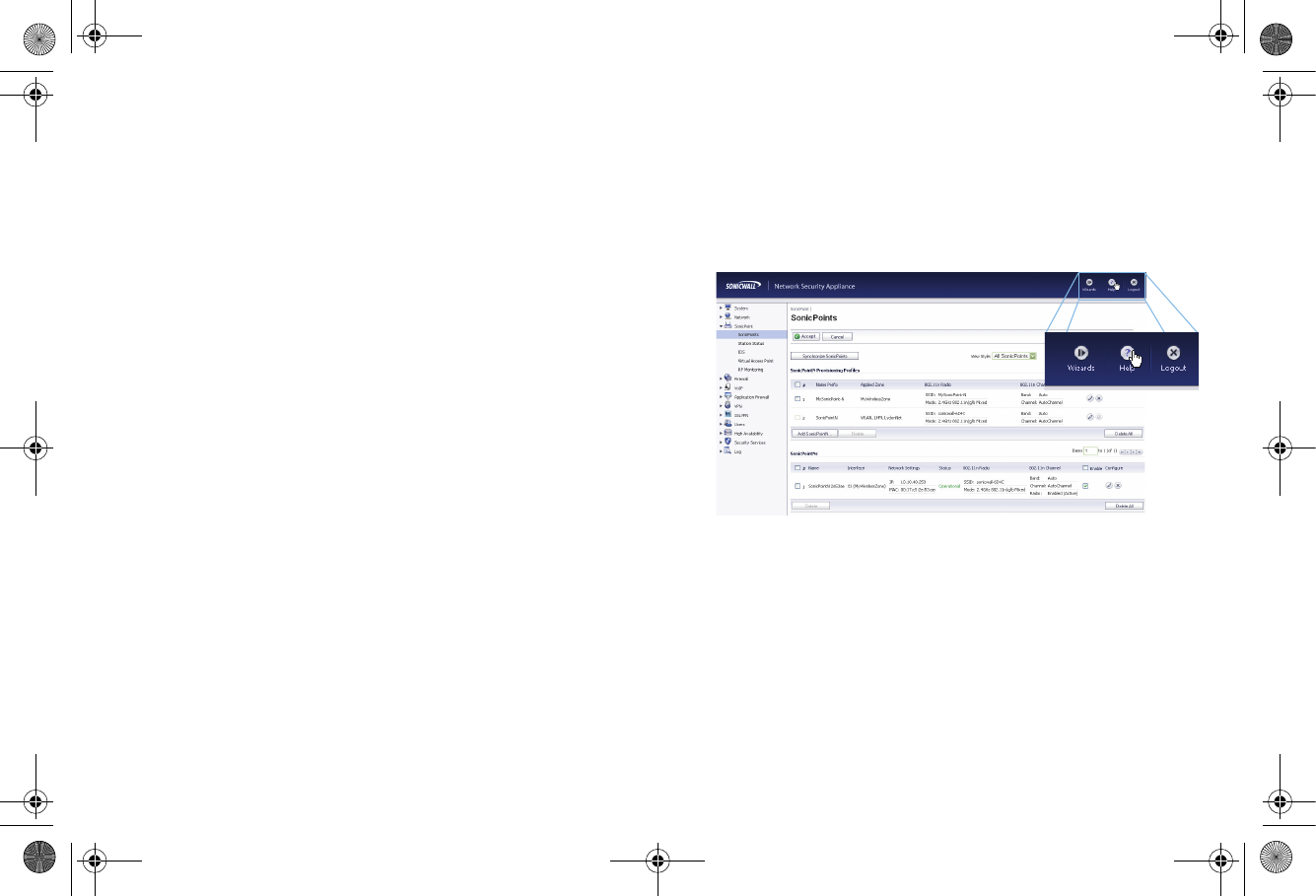

1. Navigate to the SonicPoint > SonicPoints page in the

SonicOS interface.

2. Click Add SonicPoint below the list of SonicPoint

provisioning profiles.

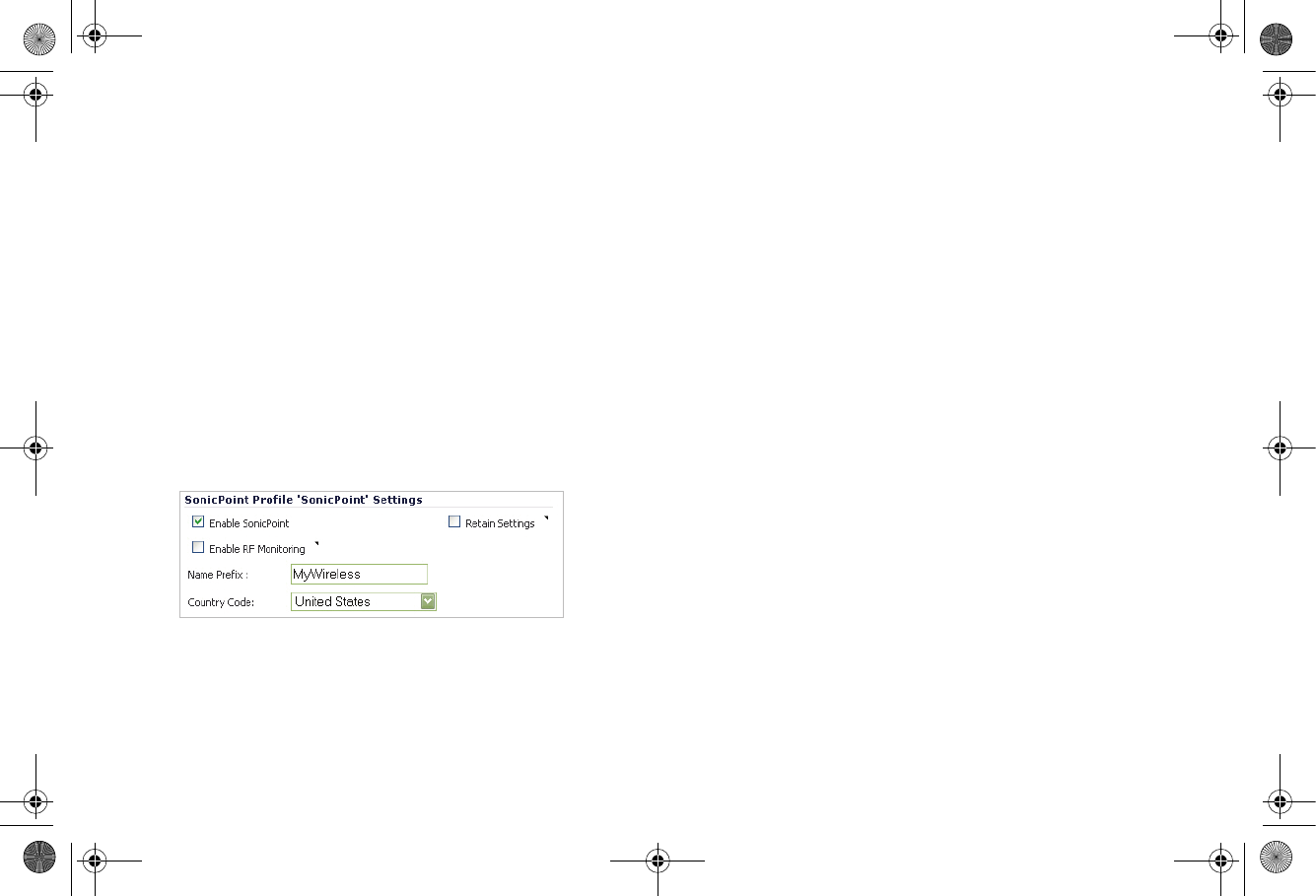

3. The Add/Edit SonicPoint Profile window displays.

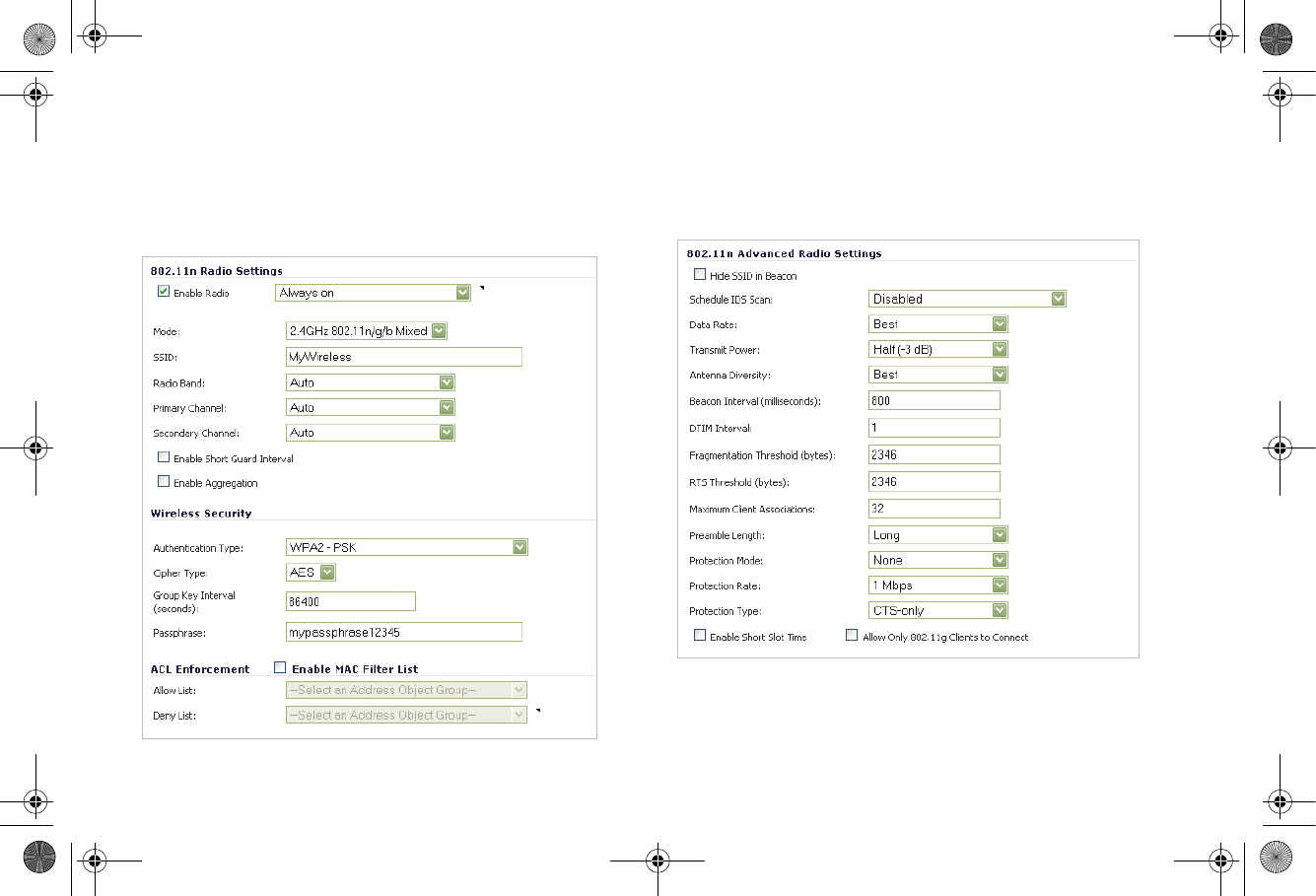

Settings Tab

1. Select Enable SonicPoint.

2. Enter a Name Prefix to be used internally as the first part

of the name for each SonicPoint provisioned.

3. Select the Country Code for the area of operation.

802.11n Radio Tab

1. Select Enable Radio.

2. Optionally, select a schedule for the radio to be enabled

from the drop-down list. The most common work and

weekend hour schedules are pre-populated for selection.

3. Select a Radio Mode to dictate the radio frequency

band(s). The default setting is 2.4GHz 802.11n/g/b Mixed.

4. Enter an SSID. This is the access point name that will

appear in clients’ lists of available wireless connections.

5. Select a Primary Channel and Secondary Channel. You

may choose AutoChannel unless you have a reason to use

or avoid specific channels.

6. Under WEP/WPA Encryption, select the Authentication

Type for your wireless network. SonicWALL recommends

using WPA2 as the authentication type.

7. Fill in the fields specific to the authentication type that you

selected. The remaining fields change depending on the

selected authentication type.

SonicPoint_N_GSG.book Page 19 Friday, June 4, 2010 3:08 PM

Page 20 Configuring Wireless Access

8. Optionally, under ACL Enforcement, select Enable MAC

Filter List to enforce Access Control by allowing or

denying traffic from specific devices. Select a MAC

address object group from the Allow List or Deny List to

automatically allow or deny traffic to and from all devices

with MAC addresses in the group. The Deny List is

enforced before the Allow List.

Advanced Tab

Configure the advanced radio settings for the 802.11n radio.

For most 802.11n advanced options, the default settings give

optimum performance. For a full description of the fields on this

tab, see the SonicOS Enhanced Administrator’s Guide.

When you are finished, click OK.

SonicPoint_N_GSG.book Page 20 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 21

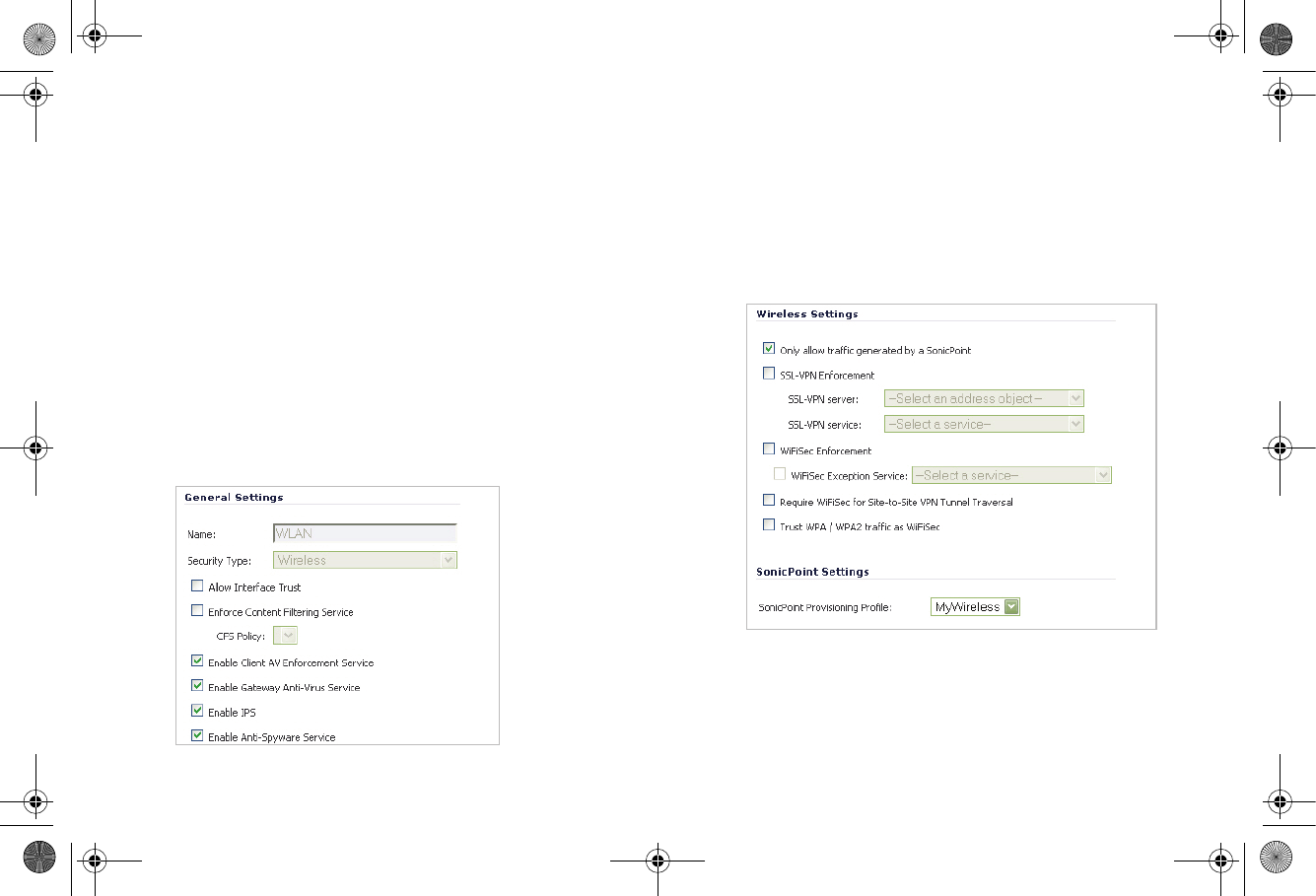

Configuring a Wireless Zone

You can configure a wireless zone on the Network > Zones

page. Typically, you will configure the WLAN zone for use with

SonicPoints.

To configure a standard WLAN zone:

1. On the Network > Zones page in the WLAN row, click the

icon in the Configure column.

2. Click on the General tab.

3. Select the Allow Interface Trust setting to automate the

creation of Access Rules to allow traffic to flow between the

interfaces within the zone, regardless of which interfaces to

which the zone is applied. For example, if the WLAN Zone

has both the X2 and X3 interfaces assigned to it, selecting

the Allow Interface Trust checkbox on the WLAN Zone

creates the necessary Access Rules to allow hosts on

these interfaces to communicate with each other.

4. Select the checkboxes for the security services to enable

on this zone. Typically, you would enable Gateway Anti-

Virus, IPS, and Anti-Spyware. If your wireless clients are

all running SonicWALL Client Anti-Virus, select Enable

Client AV Enforcement Service.

5. Click on the Wireless Tab.

6. Select Only allow traffic generated by a SonicPoint to

allow only traffic from SonicWALL SonicPoints to enter the

WLAN Zone interface, providing maximum security.

7. Optionally, click the Guest Services tab to configure guest

Internet access solely, or in tandem with secured access.

For information about configuring Guest Services, see the

SonicOS Enhanced Administrator’s Guide.

8. When finished, click OK.

SonicPoint_N_GSG.book Page 21 Friday, June 4, 2010 3:08 PM

Page 22

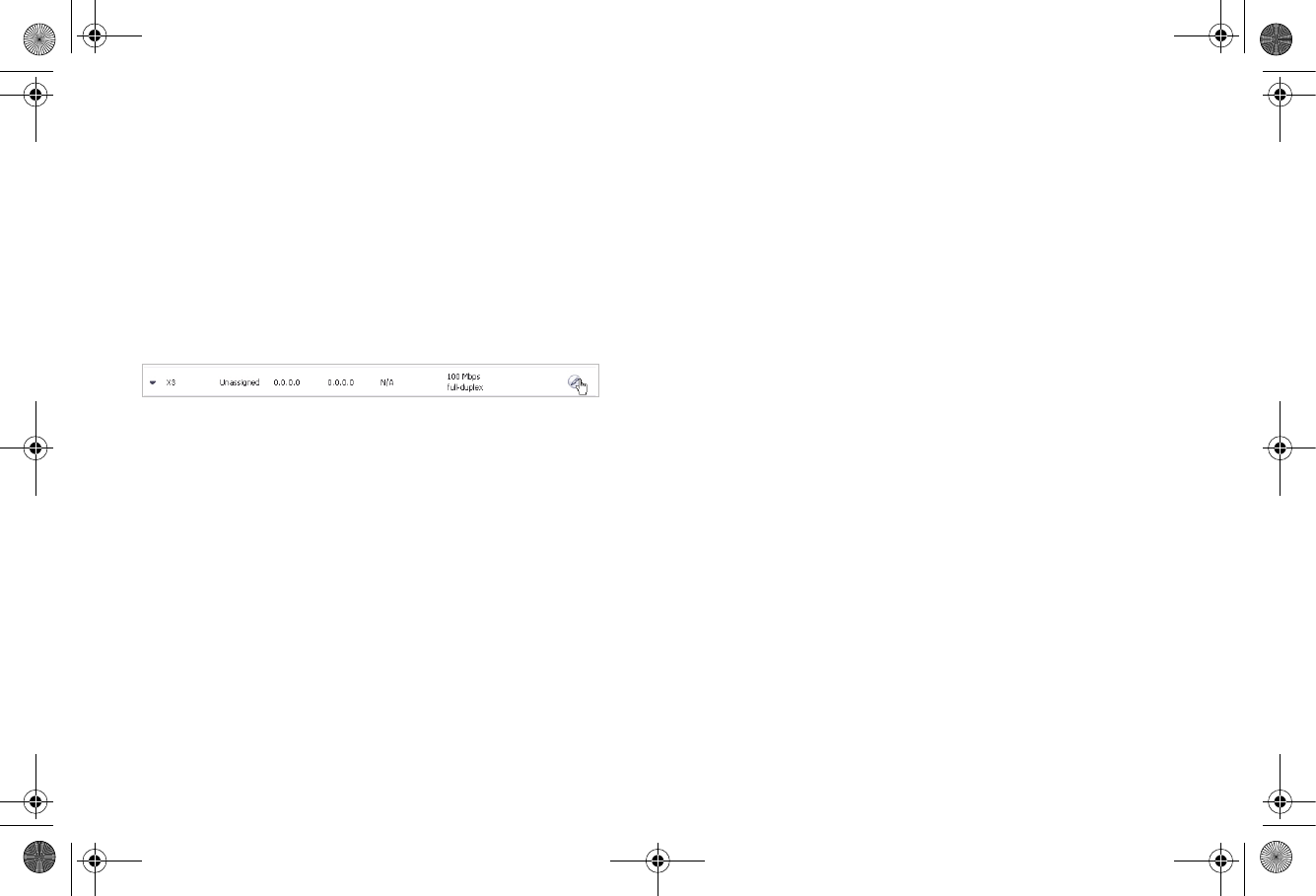

Configuring the Network Interface

Each SonicPoint or group of SonicPoints must be connected to

a physical network interface that is configured for Wireless.

SonicOS by default provides a standard wireless zone (WLAN),

which can be applied to any available interface.

To configure a network interface using the standard wireless

(WLAN) zone:

1. Navigate to the Network > Interfaces page and click the

Configure button for the interface to which your

SonicPoints will be connected.

2. Select WLAN for the Zone type.

3. Select Static for the IP Assignment.

4. Enter a static IP Address in the field. Any private IP is

appropriate for this field, as long at it does not interfere with

the IP address range of any of your other interfaces.

5. Enter a Subnet Mask. In our example 255.255.255.0 is an

appropriate mask.

6. Optionally, choose a SonicPoint Limit for this interface.

This option helps limit resources on port-by-port basis

when using SonicPoints across multiple ports.

7. Optionally, choose to allow Management and User Login

mechanisms if they make sense in your deployment.

Remember that allowing login from a wireless zone can

pose a security threat, especially if you or your users have

not set strong passwords.

SonicPoint_N_GSG.book Page 22 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 23

Setting Up Your SonicPoint

In this Section:

This section describes how to connect and configure physical aspects of the SonicPoint including cabling and mounting.

•Installing Antennas (SonicPoint-Ne Only) - page 24

•Connecting Ethernet Cable - page 24

•Verifying Operation - page 28

•Verifying WAN (Internet) Connectivity - page 28

•Troubleshooting Tips - page 29

•Onboard Help System - page 29

SonicPoint_N_GSG.book Page 23 Friday, June 4, 2010 3:08 PM

Page 24 Installing Antennas (SonicPoint-Ne Only)

Installing Antennas (SonicPoint-Ne Only)

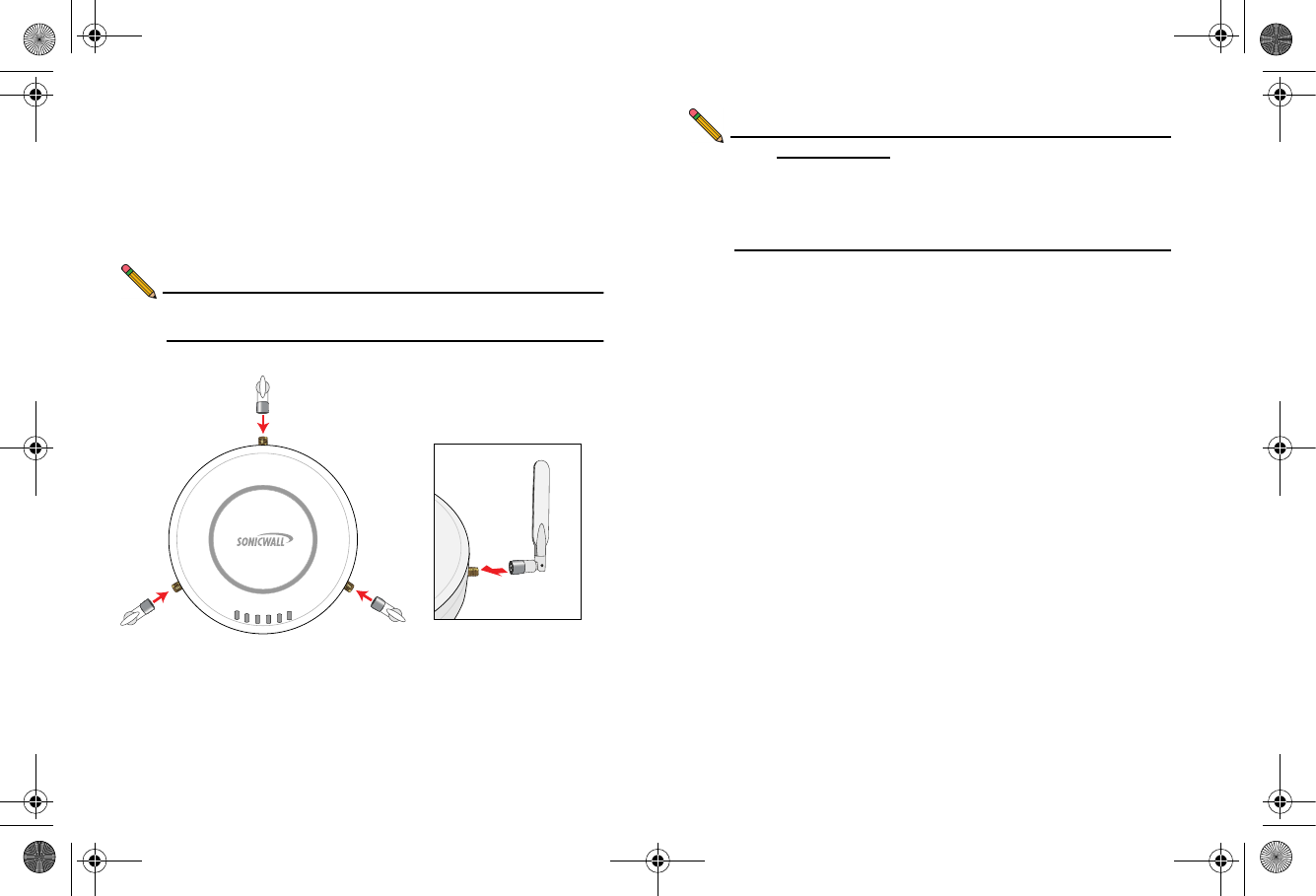

To install the SonicPoint-Ne included antennas:

1. Remove the antennas from the bag and place one on each

connector.

2. Carefully finger-tighten the fittings.

3. Adjust the antennas for optimal reception.

Note: For optimal wireless coverage in most cases, the

SonicPoint-Ne antennas should be oriented vertically.

The circular design of the SonicPoint aides in creating a strong

tri-directional wireless signal pattern. In most cases, leaving the

antennas straight up (as indicated in the illustration) will provide

the best overall coverage.

Note: The SonicPoint-Ne is authorized to use a dipole

antenna with 4dBi or less. Only use antennas provided

by SonicWALL; otherwise your authority to use this unit

may be revoked. Be aware of the regulations in your

region before using other antennas.

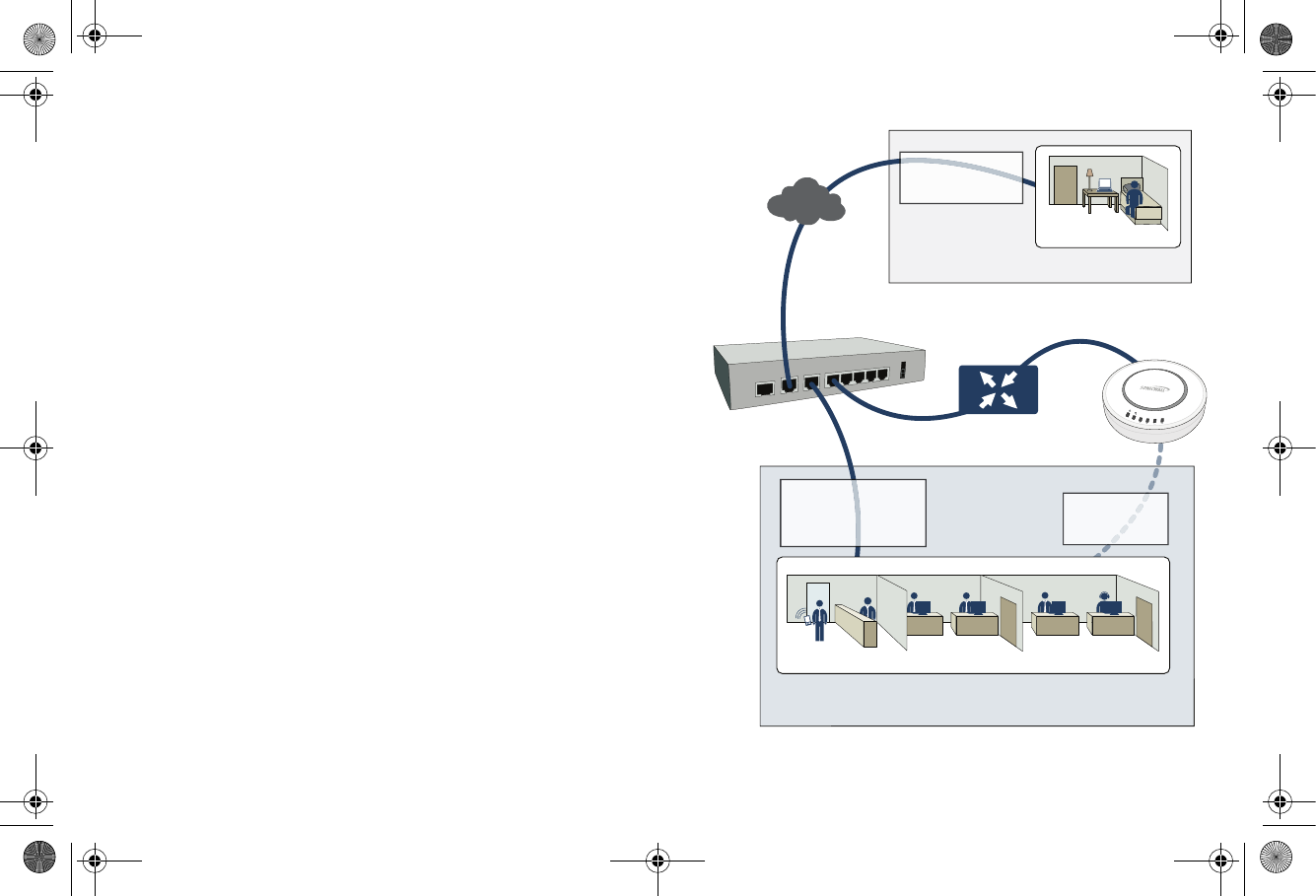

Connecting Ethernet Cable

The illustration on the following page depicts the SonicPoint

within a typical network deployment.

Ethernet Cabling: SonicPoint-Ne vs SonicPoint-Ni

While the SonicPoint-Ne may be powered with either the

included external power adaptor or through Power over

Ethernet (PoE), the SonicPoint-Ni must be powered using

Power over Ethernet (PoE).

Both SonicPoint appliances should be cabled with CAT5,

CAT5e, or CAT6 Ethernet cabling. In addition, the SonicPoint-Ni

will not function unless the Ethernet connection to its LAN port

is powered either by using the SonicWALL PoE line injector

(sold separately), or by using a third-party 802.3af compliant

PoE powered switch. For more information on the SonicWALL

PoE injector, visit:

<http://www.sonicwall.com/us/products_solutions.html>

SonicPoint_N_GSG.book Page 24 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 25

Connecting the PoE Cable

If your deployment uses a SonicWALL PoE injector, read and

comply with instructions provided with the PoE first, then

complete the following steps:

1. Plug the power cord of the SonicWALL PoE injector into

the power outlet.

2. Using Ethernet cable (not included), connect the Data in

port on the SonicWALL PoE Injector to the WLAN zone

interface that you created earlier.

3. Using Ethernet cable, connect the Data and Power out

port on the SonicWALL PoE injector to the LAN port on the

back of your SonicPoint.

4. Wait for the link LED to illuminate. This indicates an active

connection. It takes approximately one minute for the

SonicWALL security appliance to auto-provision.

WAN

LAN/WLAN

Internet

Remote VPN Users

Remote Servers

Internet (WAN)

Local Clients

Local Servers

CDP Backup Appliance

Local Network (LAN)

Wireless Clients

Wireless Devices

Wireless (WLAN)

Hotel / Home Oce

Front Lobby Sales Marketing

X1 WAN

X0 LAN

X2 WLAN

PoE Injector

or PoE Switch

(optional for SonicPoint Ne)

link

wlan

lan

act

link

act

SonicPoint_N_GSG.book Page 25 Friday, June 4, 2010 3:08 PM

Page 26 Mounting Using Ceiling Brackets

Mounting Using Ceiling Brackets

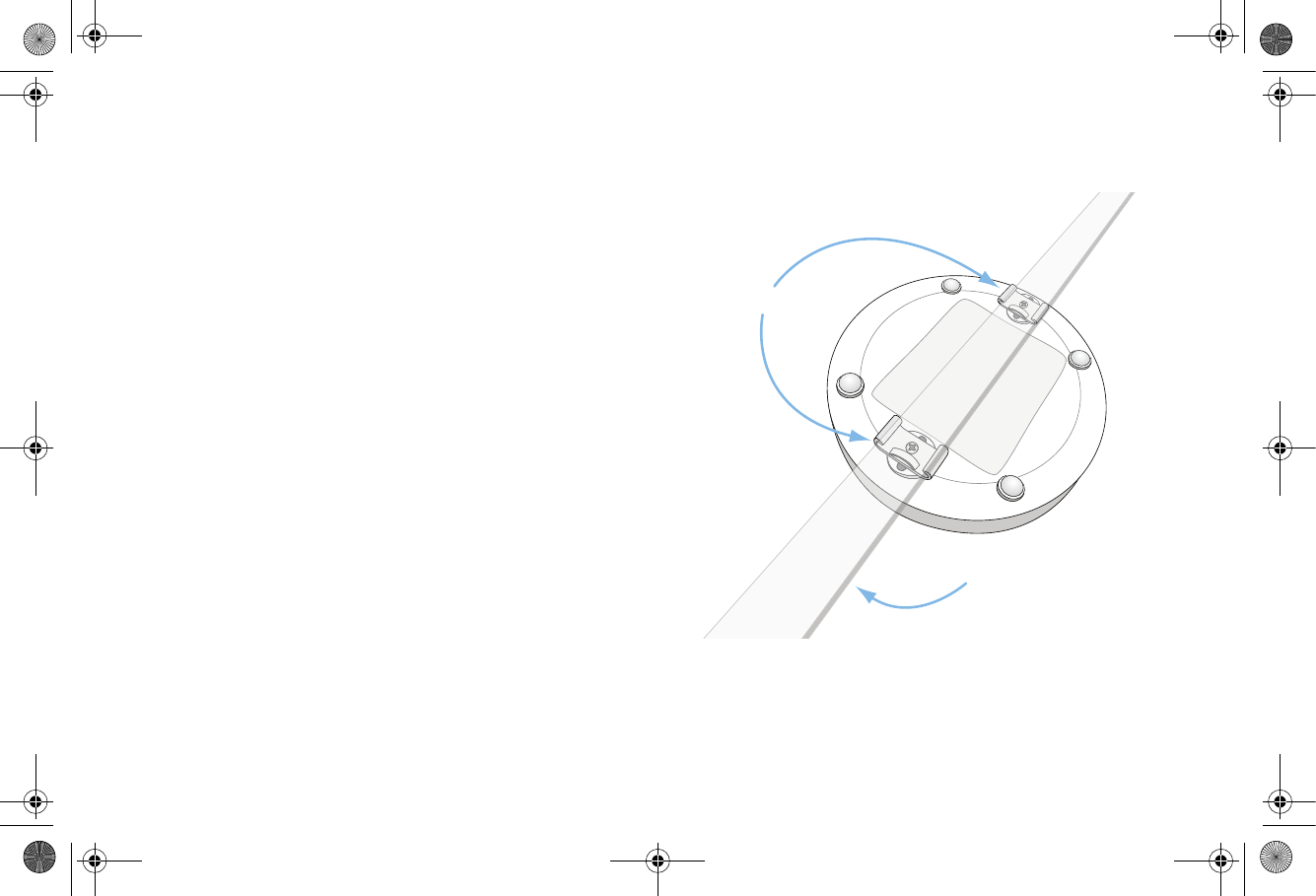

To mount the SonicPoint to a crossbar between ceiling panels

using included brackets:

1. Using the 3/8” screws, screw in the brackets to the

underside of the SonicPoint, making sure both brackets

are parallel.

2. (Optional) Attach the front LED/logo cover plate to the top

of the SonicPoint and if necessary, rotate it to the desired

position (See Mounting Using Anchor Screws section, on

page 27 for illustration).

3. Supporting the SonicPoint in one hand, clip the edge of

each bracket over the edge of the ceiling crossbar. Make

sure the SonicPoint is securely attached to the crossbar

before releasing the device.

Ceiling Crossbar

Mounting Brackets

SonicPoint_N_GSG.book Page 26 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 27

Mounting Using Anchor Screws

To mount the SonicPoint using included anchor screws:

1. On the mounting surface, mark the location to make two

screw holes. The marks should be horizontally parallel to

each other.

2. Drill the holes to accommodate the metal anchor screws.

3. Screw the anchor screws into the holes to their full depth.

4. Insert the 5/8” screws into the anchors, and screw them in

deep enough to leave minimal space between the screw

heads and the wall surface.

5. (Optional) Attach the front LED/logo cover plate to the top

of the SonicPoint and if necessary, rotate it to the desired

position.

6. Supporting the SonicPoint in your hands, securely fit the

underside slots of the SonicPoint onto the screw heads.

See also, Product Safety and Regulatory Information - page 37

link

wlan

lan

act

link

act

SonicPoint_N_GSG.book Page 27 Friday, June 4, 2010 3:08 PM

Page 28 Verifying Operation

Verifying Operation

To verify that the SonicPoint is provisioned and operational,

navigate to the SonicPoint > SonicPoints page in the

SonicOS management interface. The SonicPoint displays an

“operational” status in the SonicPoint table:

Verifying WAN (Internet) Connectivity

Complete the following steps to confirm your Internet

connectivity:

1. Disconnect a client computer from any other network

connections (LAN, 3G, and more).

2. Connect the client computer to the wireless access point

by selecting the appropriate SSID.

3. Launch your Web browser.

4. Enter “http://www.sonicwall.com” in the address bar and

press Enter on the keyboard. The SonicWALL website

displays. If you are unable to browse to a website, see

“Troubleshooting Tips” on page 29.

SonicPoint_N_GSG.book Page 28 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 29

Troubleshooting Tips

If the SonicPoint locates a peer SonicOS device, the two units

perform an encrypted exchange and the profile assigned to the

relevant wireless zone is used to automatically configure

(provision) the newly added SonicPoint unit.

Your SonicPoint is automatically included in the list on the

Wireless > SonicPoints page of the management interface for

the SonicWALL security appliance managing the SonicPoint. If

it does not show in the list:

•Make sure the SonicPoint is connected to an interface

that is configured as part of a Wireless zone. Either the

default WLAN zone, or a custom zone with type set to

“wireless” is required.

•Click the Synchronize SonicPoints button. This is

located in the SonicOS management interface on the

SonicPoint > SonicPoints page and forces the SonicWALL

appliance, if connected, to download a new SonicPoint

image from the SonicWALL back-end server.

•Ensure that the SonicPoint is connected to a 802.3af

compliant PoE powered Ethernet connection. If using PoE

to power your SonicPoint appliance, keep in mind that a

PoE-capable switch or PoE injector is required.

•Verify that your PoE switch/injector is rated to deliver at

least 15 watts of power to each port. Some older PoE

devices do not provide sufficient power to properly run

current generation 802.11n devices across multiple ports.

Check with your PoE manufacturer for 802.3af support, or

use a SonicWALL PoE injector.

Onboard Help System

All SonicWALL network security appliances include an onboard

help system with help topics that are relevant to each area of

the management interface. To access SonicPoint help, click the

Help icon in the upper right-hand corner of the SonicOS

management interface while you are on a SonicPoint page.

SonicPoint_N_GSG.book Page 29 Friday, June 4, 2010 3:08 PM

Page 30

SonicPoint_N_GSG.book Page 30 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 31

Support and Training Options

In this Section:

This section provides overviews of customer support and training options for SonicWALL appliances.

•Customer Support - page 32

•Knowledge Base - page 32

•User Forums - page 33

•Training - page 34

•Related Documentation - page 35

•SonicWALL Secure Wireless Network Integrated Solutions Guide - page 36

SonicPoint_N_GSG.book Page 31 Friday, June 4, 2010 3:08 PM

Page 32 Customer Support

Customer Support

SonicWALL offers telephone, email and Web-based support to

customers who have a valid Warranty or who purchased a

Support Contract. Please review our Warranty Support Policy

for product coverage. SonicWALL also offers a full range of

consulting services to meet your needs, from our innovative

implementation services to traditional statement of work-based

services.

For further information, visit:

<http://www.sonicwall.com/us/support.html>

Knowledge Base

The Knowledge Base allows users to search for SonicWALL

documents based on the following types of search tools:

• Browse

• Search for keywords

• Full-text search

For further information, navigate to the Support > Knowledge

Portal page at:

<http://www.mysonicwall.com/>

SonicPoint_N_GSG.book Page 32 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 33

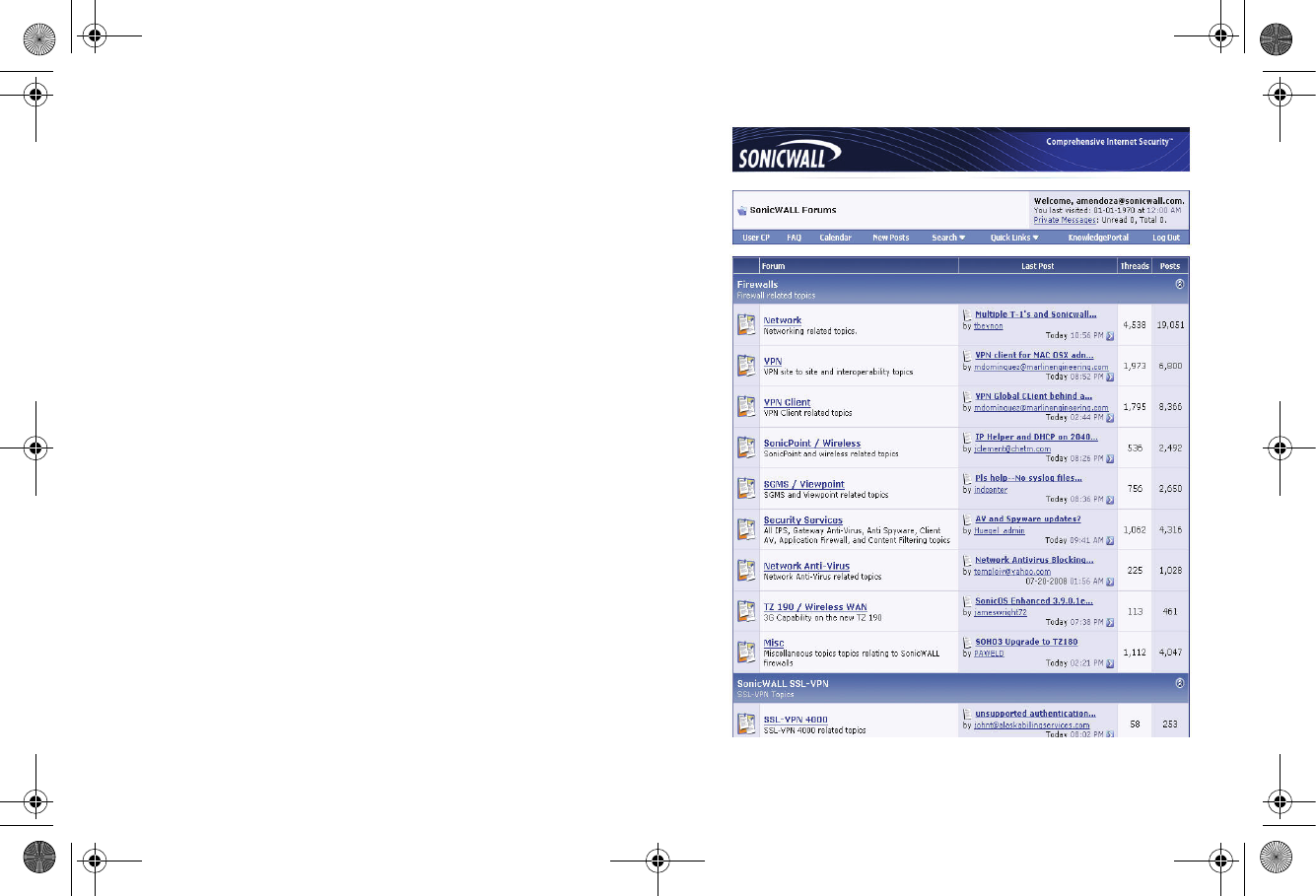

User Forums

The SonicWALL User Forums are a resource that provide users

the ability to communicate and discuss a variety of security and

appliance subject matters. The following categories are

available for users:

• Content Security Manager topics

• Continuous Data Protection topics

• Email Security topics

• Firewall topics

• Network Anti-Virus topics

• Security Services and Content Filtering topics

• SonicWALL GMS and Viewpoint topics

• SonicPoint and Wireless topics

• SSL VPN topics

• TZ 210 / Wireless WAN - 3G Capability topics

• VPN Client topics

• VPN site-to-site and interoperability topics

For further information, visit:

<https://forum.sonicwall.com/>

SonicPoint_N_GSG.book Page 33 Friday, June 4, 2010 3:08 PM

Page 34 Training

Training

SonicWALL offers an extensive sales and technical training

curriculum for Network Administrators, Security Experts, and

SonicWALL Medallion Partners who need to enhance their

knowledge and maximize their investment in SonicWALL

Products and Security Applications. SonicWALL Training

provides the following resources for its customers:

• E-Training

• Instructor-Led Training

• Custom Training

• Technical Certification

• Authorized Training Partners

For further information, visit:

<http://training.sonicwall.com/>

SonicPoint_N_GSG.book Page 34 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 35

Related Documentation

See the following related documents for more information:

• SonicOS Enhanced Administrator’s Guide

• SonicOS Enhanced Release Notes

• SonicOS Enhanced Feature Modules

• DPI-SSL

• MAC-IP Anti-Spoof

• Virtual Access Points

• SSL VPN Remote Access

• High Availability

• Multiple Administrators

• NAT Load Balancing

• Packet Capture

• Radio Frequency Monitoring

• Single Sign-On

• SSL Control

• Secure Wireless Bridging

• SonicWALL GMS Administrator’s Guide

• SonicWALL GVC Administrator’s Guide

• SonicWALL ViewPoint Administrator’s Guide

• SonicWALL GAV Administrator’s Guide

• SonicWALL IPS Administrator’s Guide

• SonicWALL Anti-Spyware Administrator’s Guide

• SonicWALL CFS Administrator’s Guide

For further information, visit:

<http://www.sonicwall.com/us/support.html>

SonicPoint_N_GSG.book Page 35 Friday, June 4, 2010 3:08 PM

Page 36 SonicWALL Secure Wireless Network Integrated Solutions Guide

SonicWALL Secure Wireless Network

Integrated Solutions Guide

Looking to go wireless? Have questions about what it takes to

build a truly “secure” wireless network? Check out the

SonicWALL Secure Wireless Network Integrated Solutions

Guide. This book is the official guide to SonicWALL’s market-

leading wireless networking and security devices.

This title is available in hardcopy at fine book retailers

everywhere, or by ordering directly from Elsevier Publishing at:

<http://www.elsevier.com>

SonicPoint_N_GSG.book Page 36 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 37

Product Safety and Regulatory Information

In this Section:

This section provides regulatory, trademark, and copyright information.

•Safety and Regulatory Information for the SonicWALL SonicPoint Wireless Appliance - page 38

•SonicWALL SonicPoint Wireless Appliance Sicherheit und gesetzliche Vorschriften - page 39

•FCC Part 15 Class B Notice for the SonicWALL SonicPoint Wireless Appliance - page 40

•Copyright Notice - page 43

•Trademarks - page 43

SonicPoint_N_GSG.book Page 37 Friday, June 4, 2010 3:08 PM

Page 38 Safety and Regulatory Information for the SonicWALL SonicPoint Wireless Appliance

Safety and Regulatory Information for the

SonicWALL SonicPoint Wireless

Appliance

Mounting the SonicWALL

•Mount in a location away from direct sunlight and sources

of heat. A maximum ambient temperature of 104º F (40º C)

is recommended.

•Route cables away from power lines, fluorescent lighting

fixtures, and sources of noise such as radios, transmitters,

and broadband amplifiers

•The included power cord is intended for use in North

America only. For European Union (EU) customers, a power

cord is not included.

• Ensure that no water or excessive moisture can enter the

unit.

•Allow unrestricted airflow around the unit and through the

vents on the side of the unit. A minimum of 1 inch

(25.44mm) clearance is recommended.

•Consideration must be given to the connection of the

equipment to the supply circuit and the effect of over-

loading the circuits has minimal impact on overcurrent

protection and supply wiring. Appropriate consideration

of equipment nameplate ratings must be used when

addressing this concern.

Cable Connections

All Ethernet and RS232 (Console) cables are designed for intra-

building connection to other equipment. Do not connect these

ports directly to communication wiring or other wiring that exits

the building where the SonicWALL is located.

Power Supply Information for APL21-083

If the power supply is missing from your SonicWALL product

package, please contact SonicWALL Technical Support at 408-

752-7819 for a replacement. This product should only be used

with a UL listed power supply marked “Class 2” or “LPS”, with an

output rated 48 VDC, minimum 0.35 A.

Power Supply Information APL21-06E

If the power supply is missing from your SonicWALL product

package, please contact SonicWALL Technical Support at 408-

752-7819 for a replacement. This product should only be used

with a UL listed power supply marked “Class 2” or “LPS”, with an

output rated 12 VDC, minimum 1.5 A.

If power is provided by the Ethernet cable plugged into the "lan"

port, this is called "Power Over Ethernet" or "POE". The POE

source should only be UL listed marked “Class 2” or “LPS”, with

an output rated 48 VDC, minimum 0.35 A.

Regulatory Model/Type Product Names

APL21-06E

APL21-083

SonicPoint-Ne

SonicPoint-Ni

SonicPoint_N_GSG.book Page 38 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 39

SonicWALL SonicPoint Wireless

Appliance Sicherheit und gesetzliche

Vorschriften

Weitere Hinweise zur Montage

•Wählen Sie für die Montage einen Ort, der keinem direkten

Sonnenlicht ausgesetzt ist und sich nicht in der Nähe von

Wärmequellen befindet. Die Umgebungstemperatur darf

nicht mehr als 40 °C betragen.

•Führen Sie die Kabel nicht entlang von Stromleitungen,

Leuchtstoffröhren und Störquellen wie Funksendern oder

Breitbandverstärkern.

•Das beigefügte Netzkabel ist nur für den Betrieb in

Nordamerika vergesehen. Für Kunden in der Europäischen

Union ist kein Kabel beigefügt.

•Stellen Sie sicher, dass das Gerät vor Wasser und hoher

Luftfeuchtigkeit geschützt ist.

•Stellen Sie sicher, dass die Luft um das Gerät herum

zirkulieren kann und die Lüftungsschlitze an der Seite des

Gehäuses frei sind. Hier ist ein Belüftungsabstand von

mindestens 26 mm einzuhalten.

• Vergewissern Sie sich, dass das Gerät sicher im Rack

befestigt ist.

Kabelverbindungen

Alle Ethernet- und RS232-C-Kabel eignen sich für die

Verbindung von Geräten in Innenräumen. Schließen Sie an die

Anschlüsse der SonicWALL keine Kabel an, die aus dem

Gebäude herausgeführt werden, in dem sich das Gerät befindet.

Informationen zur Stromversorgung APL21-083

Sollte das Netzteil nicht im Lieferumfang der SonicWALL

enthalten sein, wenden Sie sich diesbezüglich an den

technischen Support von SonicWALL (Tel.: +1-408-752-7819).

Dieses Produkt darf nur in Verbindung mit einem nach den

Normen der Underwriter Laboratories, USA als „UL-gelistet“

zugelassenen Netzteil der Kategorie „Class 2“ oder „LPS“

verwendet werden. Ausgang: 48 VDC Gleichsspannung, mind.

0,35 A.

Informationen zur Stromversorgung APL21-06E

Sollte das Netzteil nicht im Lieferumfang der SonicWALL

enthalten sein, wenden Sie sich diesbezüglich an den

technischen Support von SonicWALL (Tel.: +1-408-752-7819).

Dieses Produkt darf nur in Verbindung mit einem nach den

Normen der Underwriter Laboratories, USA als „UL-gelistet“

zugelassenen Netzteil der Kategorie „Class 2“ oder „LPS“

verwendet werden. Ausgang: 12 VDC Gleichsspannung, mind.

1,5 A.

Wenn der Strom über den LAN Port eingespeist wird,

bezeichnet man dies als "Power over Ethernet" oder "PoE".

Die POE Quelle sollte mit UL Listed “Class 2” oder "LPS"

gekennzeichnet sein, mit einer Ausgangsspannung von 48

VDC und mindestens 0.35 A

SonicPoint_N_GSG.book Page 39 Friday, June 4, 2010 3:08 PM

Page 40 FCC Part 15 Class B Notice for the SonicWALL SonicPoint Wireless Appliance

FCC Part 15 Class B Notice for the

SonicWALL SonicPoint Wireless

Appliance

NOTE: This equipment was tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy. And, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If the

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on,

the user is encouraged to try and correct the interference using one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from the

receiver connection.

• Consult SonicWALL for assistance.

Complies with EN55022 Class B and CISPR22 Class B.

*Refer to the label on the bottom of the unit for device information

including Class A or Class B FCC information.

FCC Caution: Any changes or modifications not expressly approved by

the party responsible for compliance could void the user's authority to

operate this equipment.

FCC and IC RF Radiation Exposure Statement

This equipment complies with FCC and IC RF radiation exposure limits

set forth for an uncontrolled environment. This equipment should be

installed and operated with a minimum distance of 20 centimeters (7.9

inches) between the radiator (antenna) and your body. This transmitter

must not be co-located or operating in conjunction with any other

antenna or transmitter.

For more information regarding the above statement, please contact

SonicWALL, Inc. at:

2001 Logic Drive

San Jose, CA

95124-3452

1-408-745-9600

North American Authorized Channels

SonicWALL declares that the APL21-083 (FCC ID: QWU-083)

(IC: 4408A-083) and APL21-06E (FCC ID: QWU-06E)

(IC: 4408A-06E) when sold in US or Canada is limited to CH1~CH11 by

specified firmware controlled in the USA.

Canadian Radio Frequency Emissions Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-

003 du Canada.

Industry Canada Statement

This device complies with RSS-210 of the Industry Canada Rules.

Operation is subject to the following two conditions:

FCC and IC

(1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may

cause undesired operation.

Caution:

The device for the band 5470 -5725 MHz is only for indoor usage to

reduce potential for harmful interference to co-channel mobile satellite

systems.

The APL21-06E device has been designed to operate with an antenna

having a maximum gain of 4 dBm. Antenna having a higher gain is

strictly prohibited per regulations of Industry Canada. The required

antenna impedance is 50 ohms.

SonicPoint_N_GSG.book Page 40 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 41

This device is a 2.4 GHz wideband transmission system (transceiver),

intended for use in all EU member states and EFTA countries, except in

France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum

authorities in order to obtain authorization to use the device for setting

up outdoor radio links and/or for supplying public access to

telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France

and in some areas the RF output power may be limited to 10 mW EIRP

in the frequency range of 2454 – 2483.5 MHz. For detailed information

the end-user should contact the national spectrum authority in France.

Declaration of Conformity

Certificate #: EU00170-A

I, the undersigned, hereby declare that the equipment specified above conforms to

the above Directives and Standards. Quality control procedures will ensure series

production of equipment will be compliant.

Application of council

Directive

2004/108/EC (EMC)

2006/95/EC (LVD)

1999/5/EC (R&TTE)

Standard(s) to which

conformity is declared

EN 55022:1998 +A1 +A2 Class B

EN 55024:1998, +A2

EN 61000-3-2:2000, +A2

EN 61000-3-3:1995, +A2

EN 60950-1:2006, +A11:2009

National Deviations: AR, AT, AU, BE, CA, CH,

CN, CZ, DE, DK, FI, FR, GB, GR, HU, IL, IN, IT,

JP, KE, KR, MY, NL, NO, PL, SE, SG, SI, SK, US

EN 300 328 V1.7.1:2006

EN 301 893 V1.5.1:2008

EN 301 489 V1.8.1:2008

EN 301 489-17 V2.1.1:2009a

EN 50385:2002

Manufacturer/

Responsible Party

SonicWALL, Inc.

2001 Logic Drive

San Jose, California 95124-3452 USA

Type of Equipment 802.11b/g/n access point

Type Numbers APL21-06E

APL21-083

May be Marketed as SonicPoint-Ne

SonicPoint-Ni

Signature /s/ Larry Wagner_________

Sr. Engineering Director Date 05/30/10

SonicPoint_N_GSG.book Page 41 Friday, June 4, 2010 3:08 PM

• 第十二條

•經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用

者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

•第十四條

•低功率射頻電機之使用不得影響飛航安全及干擾合法通信；

經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。

前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機

須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

依LP0002第4.7.5節規定 ”在5.25-5.35󲥿赫頻帶內操作之無線資訊

傳輸設備，限於室內使用”

專業安裝警語(固定式點對點操作)

此器材須經專業安裝並限用於固定式點對點操作

Page 42 FCC Part 15 Class B Notice for the SonicWALL SonicPoint Wireless Appliance

SonicWALL tímto prohlašuje, že tento APL21-083 / APL21-06E je ve shodě se základními

požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Undertegnede SonicWALL erklærer herved, at følgende udstyr APL21-083 / APL21-06E

overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Hiermit erklärt SonicWALL, dass sich das Gerät APL21-083 / APL21-06E in Übereinstim-

mung mit den grundlegenden Anforderungen und den übrigen einschlägigen

Bestimmungen der Richtlinie 1999/5/EG bendet.

Käesolevaga kinnitab SonicWALL seadme APL21-083 / APL21-06E vastavust direktiivi

1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele

sätetele.

Hereby, SonicWALL, declares that this APL21-083 / APL21-06E is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

Por medio de la presente SonicWALL declara que el APL21-083 / APL21-06E cumple con

los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la

Directiva 1999/5/CE.

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ SonicWALL ΔΗΛΩΝΕΙ ΟΤΙ APL21-083 / APL21-06E ΣΥΜΜΟΡΦΩΝΕΤΑΙ

ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ

1999/5/ΕΚ.

Par la présente SonicWALL déclare que l'appareil APL21-083 / APL21-06E est conforme

aux exigences essentielles et aux autres dispositions pertinentes de la directive

1999/5/CE.

Con la presente SonicWALL dichiara che questo APL21-083 / APL21-06E è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Ar šo SonicWALL deklarē, ka APL21-083 / APL21-06E atbilst Direktīvas 1999/5/EK

būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

Šiuo SonicWALL deklaruoja, kad šis APL21-083 / APL21-06E atitinka esminius reikalavimus

ir kitas 1999/5/EB Direktyvos nuostatas.

Hierbij verklaart SonicWALL dat het toestel APL21-083 / APL21-06E in overeenstemming

is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.

Hawnhekk, SonicWALL, jiddikjara li dan APL21-083 / APL21-06E jikkonforma

mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm d-Dirrettiva

1999/5/EC.

Alulírott, SonicWALL nyilatkozom, hogy a APL21-083 / APL21-06E megfelel a vonatkozó

alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Niniejszym SonicWALL oświadcza, że APL21-083 / APL21-06E jest zgodny z zasadnic-

zymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

SonicWALL declara que este APL21-083 / APL21-06E está conforme com os requisitos

essenciais e outras disposições da Directiva 1999/5/CE.

SonicWALL izjavlja, da je ta APL21-083 / APL21-06E v skladu z bistvenimi zahtevami in

ostalimi relevantnimi določili direktive 1999/5/ES.

SonicWALL týmto vyhlasuje, že APL21-083 / APL21-06E spĺňa základné požiadavky a

všetky príslušné ustanovenia Smernice 1999/5/ES.

SonicWALL vakuuttaa täten että APL21-083 / APL21-06E tyyppinen laite on direktiivin

1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen

mukainen.

Härmed intygar SonicWALL att denna APL21-083 / APL21-06E står I överensstämmelse

med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av

direktiv 1999/5/EG.

SonicPoint_N_GSG.book Page 42 Friday, June 4, 2010 3:08 PM

SonicWALL SonicPoint Getting Started Guide Page 43

Under the copyright laws, this manual or the software described within,

cannot be copied, in whole or part, without the written consent of the

manufacturer, except in the normal use of the software to make a

backup copy. The same proprietary and copyright notices must be

affixed to any permitted copies as were affixed to the original. This

exception does not allow copies to be made for others, whether or not

sold, but all of the material purchased (with all backup copies) can be

sold, given, or loaned to another person. Under the law, copying

includes translating into another language or format.

Specifications and descriptions subject to change without notice.

Trademarks

SonicWALL is a registered trademark of SonicWALL, Inc.

Microsoft Windows, Windows Vista, Windows XP, Windows Server,

Internet Explorer, and Active Directory are trademarks or registered

trademarks of Microsoft Corporation.

Other product and company names mentioned herein may be

trademarks and/or registered trademarks of their respective companies

and are the sole property of their respective manufacturers.

SonicPoint_N_GSG.book Page 43 Friday, June 4, 2010 3:08 PM

Page 44 Trademarks

SonicPoint_N_GSG.book Page 44 Friday, June 4, 2010 3:08 PM

SonicWALL, Inc.

2001 Logic Drive T +1 408.745.9 60 0 w ww. son icwa ll.com

San Jose CA 95124-3452 F +1 408.745.9300

P/N 232-001795-50

Rev A 06/10

©2010 SonicWALL, Inc. is a registered trademark of SonicWALL, Inc. Other product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. Speciﬁcations and descriptions subject to change without notice.

Sonicwall 06E Access Point 802.11 a/b/g/n User Manual

Sonicwall, Inc. Access Point 802.11 a/b/g/n

Contents

User manual

Navigation menu

Namespaces

Views

Navigation
