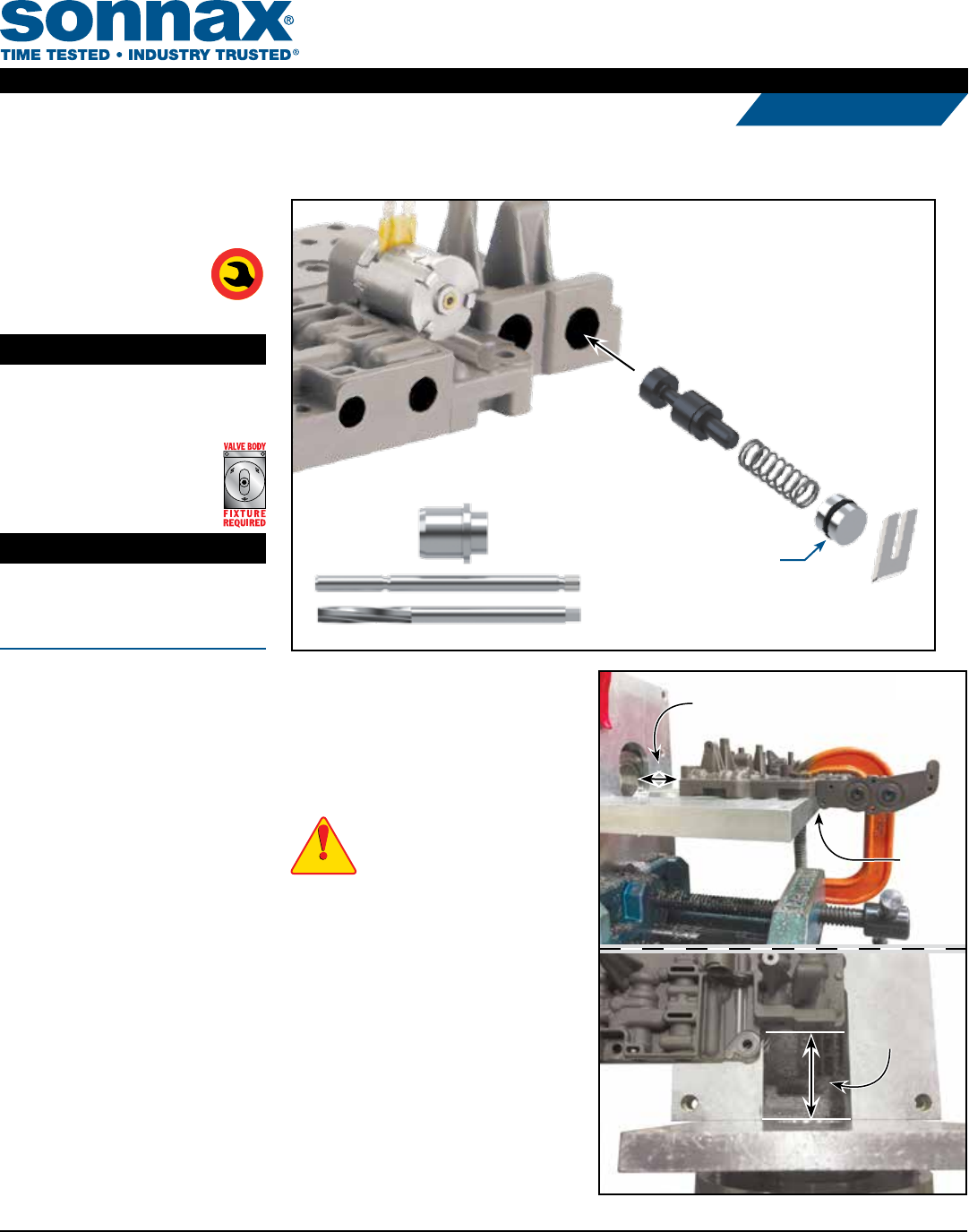

VW/Audi 0B5, DL501
Oversized Clutch
Cooling Control
Valve Kit
Part No.
225740-01K
• Valve
• O-Rings (2) 1 Extra
Tool Kit
Part No.
F-225740-TL
• Reamer
• Reamer Jig
• Guide Pin
NOTE: Sonnax “F-Tool” kits designed to
service a specic bore require the VB-FIX,
a self-aligning valve body reaming xture.
More information and instructions can be
found online at www.sonnax.com.
R
E
Q
U
I
R
E
D
T
O
O
L
R
E
Q
U
I
R
E
D
T
O
O
L
VW/Audi 0B5
Valve Body
Tool KIt
OE
Spring
OE
End Plug
OE
Retainer
Valve
O-Ring
1. Disassembly
a. Remove OE retainer, end plug and
spring. Set aside for reuse.
b. Remove and discard OE valve.
2. Bore Reaming
CAUTION: Due to shape of casting,
valve body must be placed further
away from the backing plate of
VB-FIX as shown (Figure 1).
Ream clutch cooling control bore
(for reaming instructions/reamer care,
please visit www.sonnax.com).
Sonnax reaming tool kit F-225740-TL
and VB-FIX are required for this
operation.
3. Installation & Assembly
a. Ensure valve bore and body are
clean and clear of debris.
b. Install Sonnax valve with stem
facing outward.
c. Reinstall OE spring, ensuring it seats
over valve stem.
CAUTIONCAUTION
CAUTIONCAUTION
Figure 1
Notice
casting
hanging
off back
of VB-FIX.
Side view of gap between
VB-FIX back plate and
VW/Audi 0B5 valve body.
Top view of gap
between VB-FIX
back plate and
VW/Audi 0B5
valve body.
©2015 Sonnax Industries, Inc. 225740-01K-IN 10-13-15
800-843-2600 • 802-463-9722 • F: 802-463-4059 • www.sonnax.com Page 1
TRANSMISSION PARTS
Instructions
3. Installation & Assembly (continued)
d. Remove O-ring from OE end plug and install Sonnax
O-ring into end plug groove. Lubricate and roll on
clean at surface to size O-ring into groove.
e. Reinstall OE end plug and secure with OE retainer.

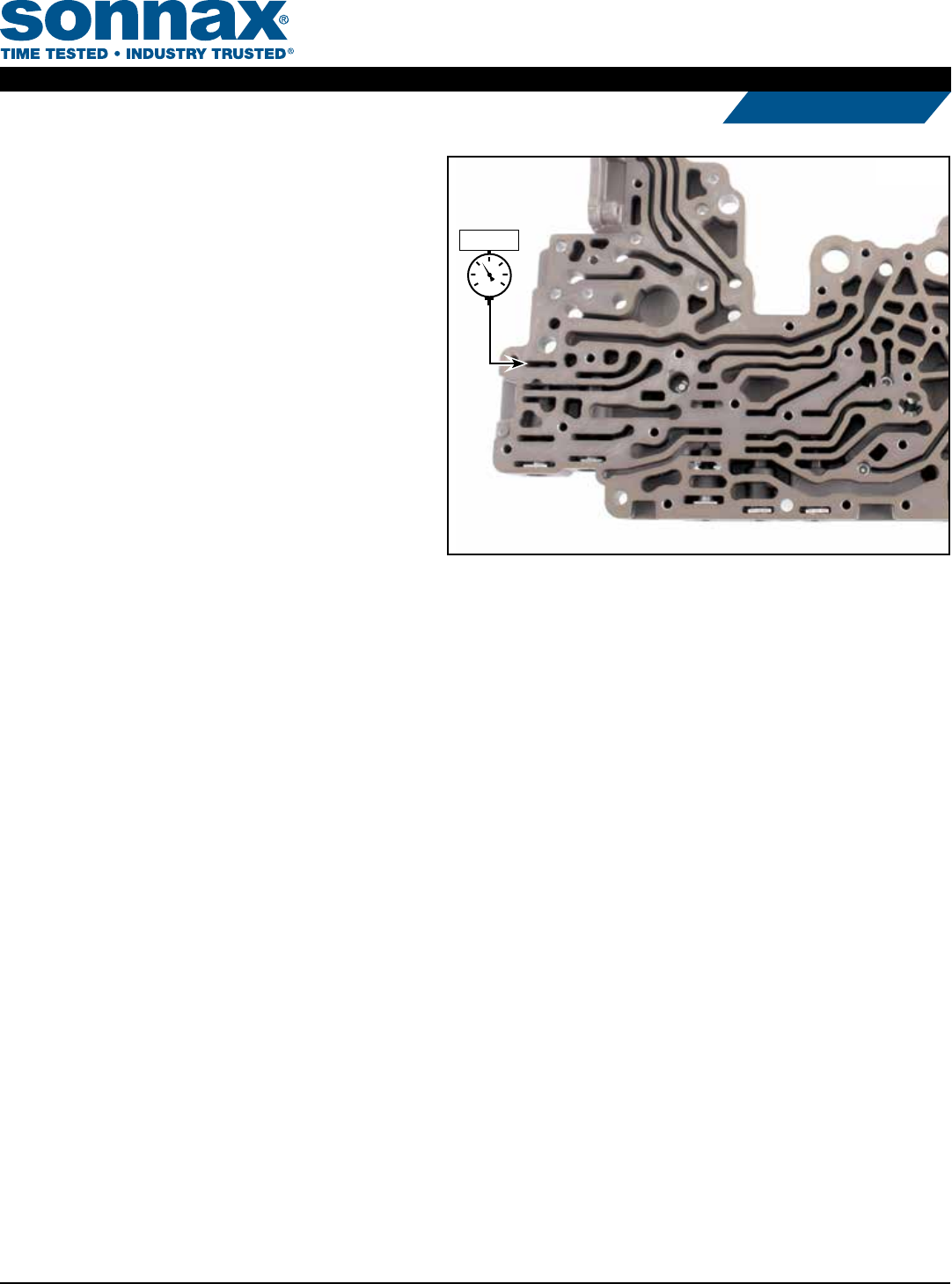

4. Final Testing
Vacuum testing at the port(s) indicated holds the recom-
mended minimum 16 in-Hg (Figure 2).
VW/Audi 0B5 Figure 2
16"-Hg
20
25
15
0
10
5
30
VACUUM
TEST
©2015 Sonnax Industries, Inc. 225740-01K-IN 10-13-15
800-843-2600 • 802-463-9722 • F: 802-463-4059 • www.sonnax.com Page 2
TRANSMISSION PARTS
Instructions
OVERSIZED CLUTCH COOLING CONTROL VALVE KIT 225740-01K, F-225740-TL
