1. Disassembly
a. Remove OE retainer and spring and set aside for reuse.
b. Remove and discard OE valve.
CAUTION: If OE converter relief valve from lower valve body has three spools, STOP. This is the
incorrect valve from the wrong side of the lower valve body (Figure 1). Ensure valve removed
from lower valve body comes from back side of casting and has two spools (main picture).
2. Bore Reaming
Ream solenoid pressure regulator
bore or converter relief bore (for
reaming instructions/reamer care,
please visit www.sonnax.com).
Sonnax reaming tool kit
F-46892-TL3 and VB-FIX are
required for this operation.
3. Installation & Assembly
a. Install Sonnax valve.
b. Reinstall OE spring and retainer.
4. Final Testing
Vacuum testing at the port(s) indicated holds the recommended minimum 18 in-Hg
(Figures 2 & 3).
CAUTIONCAUTION
CAUTIONCAUTION

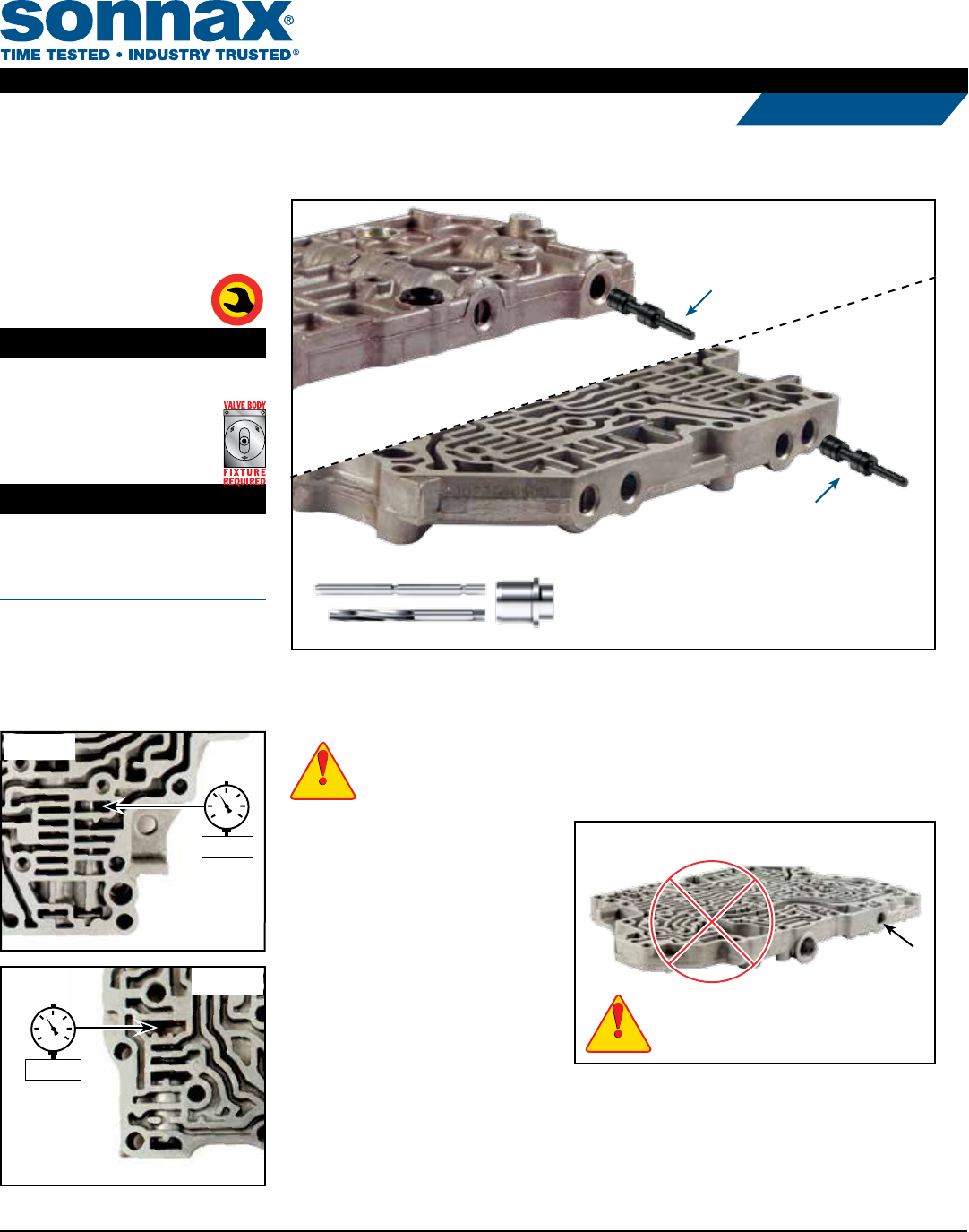

Ford 4F27E, FNR5; Mazda FN4A-EL, FS5A-EL
Oversized Solenoid
Pressure Regulator
or Converter Relief
Valve
Part No.
46892-03
NOTE: Fits either of two locations.
Tool Kit
Part No.
F-46892-TL3
• Reamer
• Reamer Jig
• Guide Pin
NOTE: Sonnax “F-Tool” kits designed to
service a specic bore require the VB-FIX,
a self-aligning valve body reaming xture.
More information and instructions can be
found online at www.sonnax.com.
R
E
Q
U
I
R
E
D
T
O
O
L
R
E
Q
U
I
R
E
D
T
O
O
L
Valve
Solenoid Pressure
Regulator Location
Ford 4F27E
Upper Valve Body
(Front Side)
Ford 4F27E
Lower Valve Body
(Back Side)
Valve
Converter Relief
Location
Tool Kit
Ford 4F27E Lower Valve Body
(Front Side)
Figure 1
CAUTION:This is the incorrect side of the
lower valve body. DO NOT ream for the
three-spool valve that comes out of this
side of the lower valve body.
CAUTIONCAUTION
CAUTIONCAUTION
4F27E Lower
Valve Body
(Converter Relief
Location)
20
25
15
0
10
5
30
VACUUM
TEST
18"-Hg
Figure 2
4F27E Upper
Valve Body
(Solenoid Pressure
Regulator Location)
20
25
15
0
10
5
30
VACUUM
TEST
18"-Hg
Figure 3
©2016 Sonnax Industries, Inc. 46892-03-IN 11-03-16
800-843-2600 • 802-463-9722 • F: 802-463-4059 • www.sonnax.com
