Sonos CR000 802.11b/g MiniPCI module User Manual HHplatter

Sonos, Inc. 802.11b/g MiniPCI module HHplatter

Contents

User Manual

Quick Setup Instructions
Controller
HHpl atter.fm Page 0 Wednesday, December 1, 2004 10:17 AM
HHpl atter.fm Page 1 Wednesday, December 1, 2004 10:17 AM

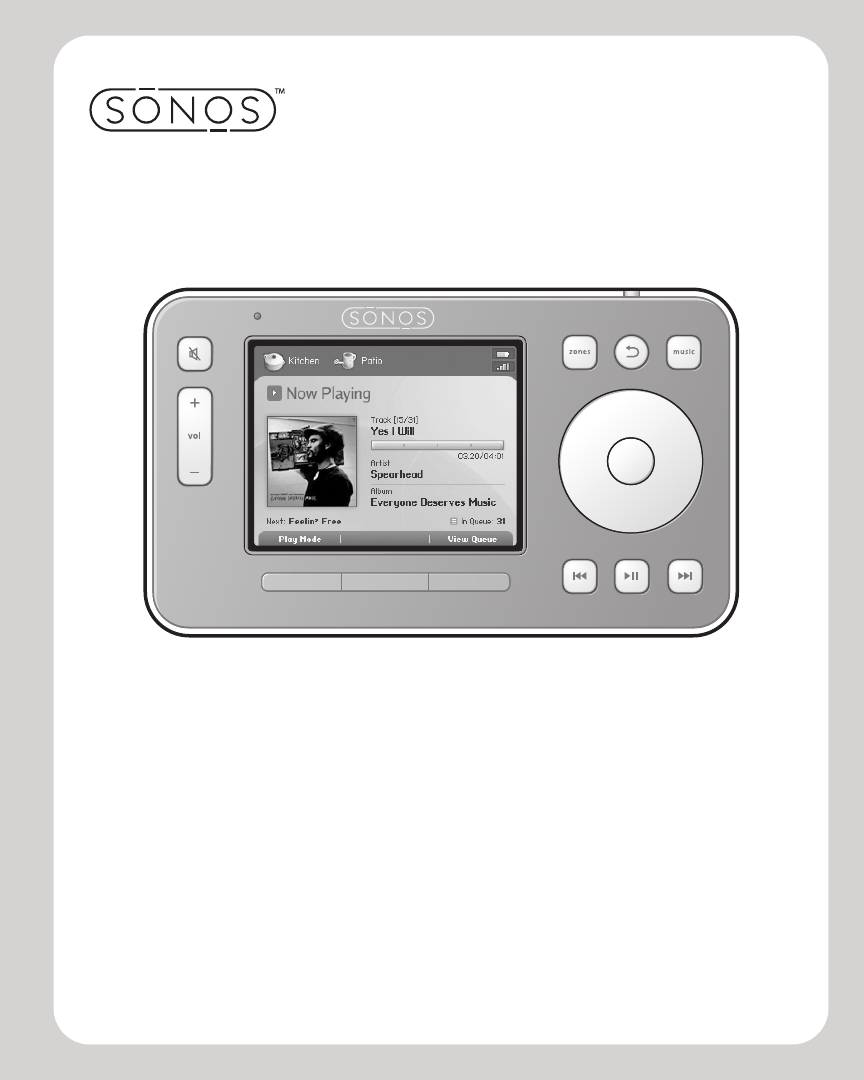

Sonos Controller Quick Setup Instructions
Sonos Controller CR100 Quick Setup Instructions. For use with the Sonos Digital Music System.
THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE. No part of this publication
may be reproduced or transmitted in any form or by any means, electronic or mechanical, including but not limited to
photocopying, recording, information retrieval systems, or computer network without the written permission of Sonos, Inc.
Sonos, Sonosnet, and all Sonos logos are trademarks of Sonos, Inc.
Sonos' Controller software is based in part on the work of the Independent JPEG Group.
All other products and services mentioned may be trademarks or service marks of their respective owners.
© 2004-2005 by Sonos, Inc. All rights reserved.
Version: 0501
January, 2005
Important Safety Information
USA
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
• Consult the dealer or an experienced audio technician for help. Modifications not expressly ap-
proved by the manufacturer may void the user's authority to operate the equipment under FCC
rules.
Canada
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Industry Canada
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not
emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s Web site www.hc-sc.gc.ca/rpb.
Europe
This product complies with the requirements of the R&TTE Directive (99-EC-5).
RF Exposure Requirements
To comply with FCC and EU exposure essential requirements, a minimum separation distance of 20cm (8
inches) is required between the equipment and the body of the user or nearby persons.
Attention In France, operation is limited to indoor use within the band 2.454-2.4835 GHz.
TM
1
HHpl atter.fm Page 2 Wednesday, December 1, 2004 10:17 AM
Sonos Controller Quick Setup Instructions
The Sonos Controller CR100
Sonos puts the control of all your music and all your rooms in the palm of your hand.
With a Sonos Controller in hand, you'll have instant access to your entire digital music
collection, no matter where it's stored. And because it's wireless, you can control the
music and where it's being played from anywhere in your home - inside or out, with no
pointing or line of sight requirements. That means no more moving from room to
room to turn on, change, or turn off the music throughout your home.
The full-color LCD screen and intuitive scroll wheel make everything from browsing
songs to choosing zones incredibly easy. It's like having a giant jukebox at your
fingertips. Simply choose a zone to play music in, make your music selection(s), and
touch Play.
Features
• Wireless control over all your music and all your zones from anywhere
• Instant access to your entire digital music collection from the palm of your hand
• Intuitive control over your music and zones with full-color LCD screen and scroll
wheel that makes it simple to:
•browse songs
• access playlists
• view album art
• queue up tracks
• choose zones
•control volume
•and more
Controller Package Contents
• Sonos Controller CR100
• AC adapter and power cord
•Quick Setup Instructions
• Sonos License Agreement and Limited Warranty
TM
2
HHpl atter.fm Page 3 Wednesday, December 1, 2004 10:17 AM
Sonos Controller Quick Setup Instructions

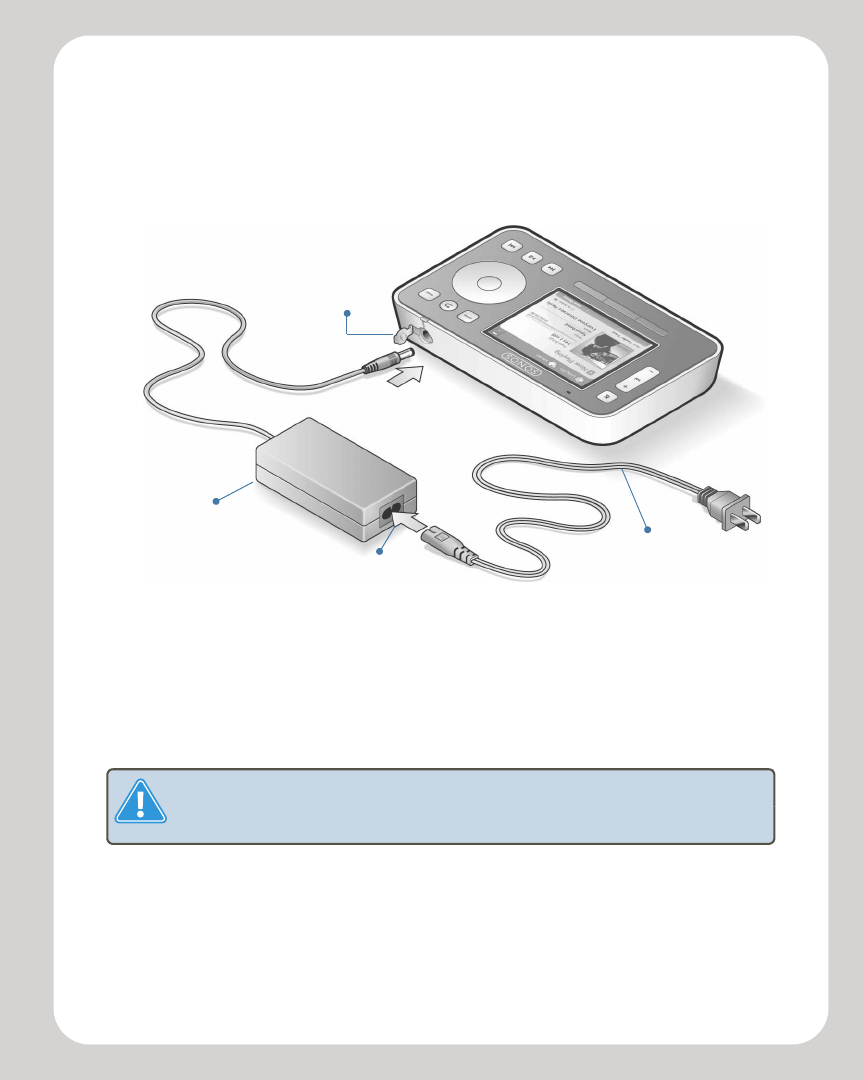

Before You Begin
You should charge your new Sonos Controller when you remove it from the packaging.
The Controller battery will be fully charged in about two (2) hours. You can use your
Controller while it is charging.
1. Pull up from the left side of the power connector cover on your Sonos Controller.
(This cover is part of your Controller’s splash-resistant design so keep the cover
down when the Controller is not charging).
2. Connect the AC power adapter to your Controller using the supplied cable.
3. Plug the power cord into the AC power adapter inlet as shown.
4. Plug the other end of the power cord into your electrical outlet.
You can continue to set up your music system while the Controller is charging.
Caution Use only the supplied power adapter to charge the Controller’s battery.
Using another adapter will damage your Controller and void your product warranty.
Power
connector
cover
AC power adapter
AC power
adapter
inlet
Power
cord
3
HHpl atter.fm Page 4 Wednesday, December 1, 2004 10:17 AM
Sonos Controller Quick Setup Instructions
Getting Started
If you are setting up a new Sonos Digital Music System, Sonos recommends you begin
by unpacking your ZonePlayer(s), and setting up at least one ZonePlayer before adding
the Controller(s) to your music system. Please refer to the ZonePlayer’s Quick Setup
Instructions for step-by-step assistance. As part of the ZonePlayer setup process, you
will be directed to go to your computer and install the System Setup software included
with your ZonePlayer.

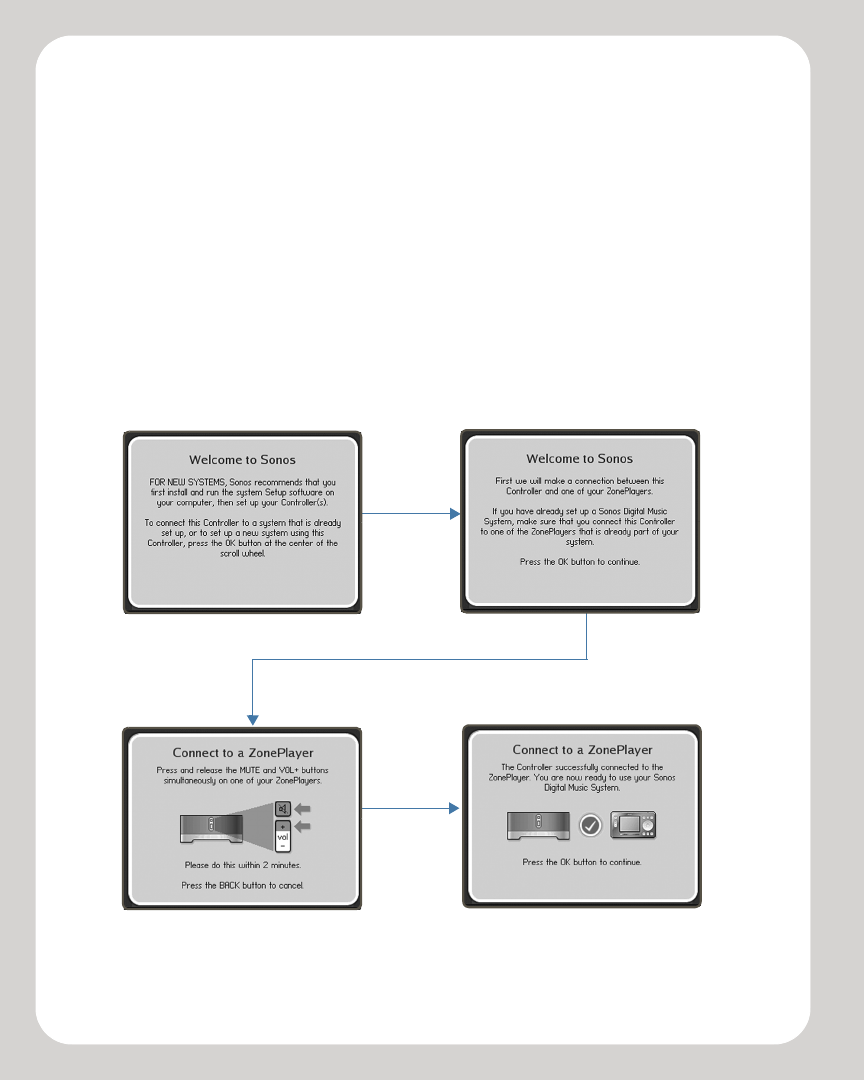

Connecting Your Controller
After at least one ZonePlayer has been set up, follow the instructions on the Controller
screen to associate this Controller to your Sonos Digital Music System.
Your Controller is now connected to your Sonos Digital Music System.
4
HHpl atter.fm Page 5 Wednesday, December 1, 2004 10:17 AM
Sonos Controller Quick Setup Instructions

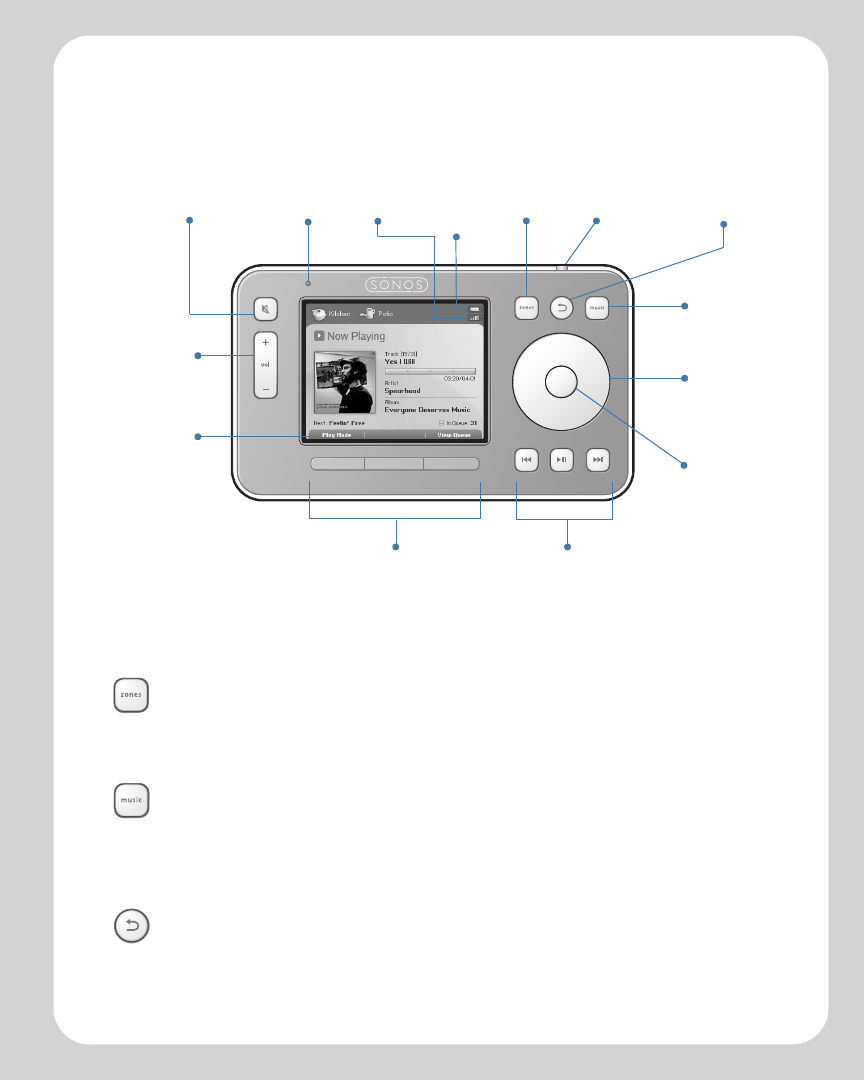

Using the Controller
Navigation
Zones. Use the Zones button to select a zone to play music in, or to view the
music selections playing in each room. You can also use this button to create
or modify zone groups any time you want to share the same music across
zones.
Music. Use the Music button to browse or select music. From the Music menu
you can select new music to play, manage your music queues, access
playlists, and change the default settings for a Sonos ZonePlayer or Controller.
The Music button will also toggle you between the Music menu and the Now
Playing screen.
Back. Use the Back button to return to the previous screen in the selected
menu (zone or music).
Battery
charge
indicator
Mute
button
Volume
Up(+)
Down (-)
Music
button
Scroll
wheel
Back
button
Battery status
indicator light
Zones
button
Labels for
soft
buttons
Soft buttons Playback controls
Light
sensor
OK button
Wireless
indicator
5
HHpl atter.fm Page 6 Wednesday, December 1, 2004 10:17 AM
Sonos Controller Quick Setup Instructions
Scroll wheel. The scroll wheel is used to navigate through a displayed list
whenever one is present on the Controller screen. Use your thumb or finger
to "turn" the wheel clockwise to scroll down through the list, and
counterclockwise to scroll up through the list.
OK. Touch the OK button located in the center of the scroll wheel to make
selections.
Soft buttons. The soft button functions change to reflect the available actions
for the Controller screen currently displayed. The action for each button
appears above it (for example View Queue or Add to Queue).
Playback
Play/Pause. Toggles between playing and pausing the current track.
However, when browsing music sources, if you highlight a playable item
(track, album, artist, playlist) and press Play/Pause, the highlighted music
item is added to the end of the music queue and begins to play immediately.
This occurs whether the current track is in Play or Pause mode.
Next (short press). Jumps to the start of the next track in the music queue.
Fast forward (long press). Pressing and holding this button moves you
forward through the current track. The music playback jumps to the new
position when the button is released (while the button is held down, the track
continues to play at the normal rate).
Previous (short press). If you are more than 3 seconds into the track, this
button jumps to the start of the current track; if you are less than 3 seconds
into the track, this button jumps to the start of the previous track.
Rewind (long press). Pressing and holding this button moves you backward
through the current track. The music playback jumps to the new position
when the button is released (while the button is held down, the track
continues to play at the normal rate).
Volume
Volume controls. Use the volume control buttons to increase (+) or
decrease (-) the volume in any zone, or across a zone group.
6
HHpl atter.fm Page 7 Wednesday, December 1, 2004 10:17 AM
Sonos Controller Quick Setup Instructions
Mute. Use the Mute button to temporarily silence the music in a zone. (Within
a zone group, the mute button automatically mutes the last room where
volume controls were adjusted.) Touch the Mute button again to unmute.
To mute all zones in the house, touch and hold the Mute button for 3 seconds
in any zone that is not currently muted. Touch and hold for 3 seconds to
unmute all ZonePlayers.
Controller Sensors and Indicators
Light sensor. The light sensor automatically turns on the button backlights
based upon the brightness of the environment.
Wireless signal strength indicator. Displays at the top of every screen to
indicate the current strength of the Controller’s wireless signal.
Battery status indicator light. Alerts you to the status of the battery charge:
•Lights red when the battery gets low, indicating that the Controller needs to
be charged.
•Lights amber while the Controller is charging.
•Lights green when the Controller finishes charging.
• Unlit when your Controller is in use and the battery is charged.
Battery charge indicator. Displays at the top of every screen to indicate the
Controller’s remaining battery charge.
Sleep Modes
Light sleep. Your Controller will go into light sleep to preserve the battery life when it is
unused for a specified period of time. The screen will turn off until motion is detected
or a button is pressed. Use the Sleep Timer Docked (when connected to power
supply) and Undocked settings to select the amount of time after which your
Controller will enter light sleep.
Deep sleep. Your Controller will go into deep sleep to preserve the battery life when it is
unused for a specified period of time. When your Controller wakes from deep sleep -
either from the motion sensor or from a button touch - it will go through a restart cycle
that takes several seconds. Use the Deep Sleep Timer setting to select the amount of
time after which your Controller will enter deep sleep.
Motion sensor. The Controller has a motion sensor to automatically wake your
Controller when motion is detected. Use the Motion Sensor setting to turn this off.
7
HHpl atter.fm Page 8 Wednesday, December 1, 2004 10:17 AM
Sonos Controller Quick Setup Instructions
Recharging
The Sonos Controller can be recharged by plugging it into the supplied AC adapter.
The Battery Charge Indicator on your Controller displays the current battery
charge level. When the battery charge gets very low, the Battery Status Indicator will
light red.
Resetting Your Controller
If your Controller’s screen should freeze, press and hold the Mute and Music
buttons simultaneously on the Controller for approximately 3 seconds. The Controller
will reset itself momentarily.
If you want to join your Controller to a different Sonos Digital Music System, you must
factory reset your Controller. Select System Settings→Controller
Settings→Advanced Settings→Factory Reset from the Music menu.
For Additional Information
• Refer to the Sonos Digital Music System User Guide included with your Zone-
Player for additional information regarding the Sonos Controller’s setup, fea-
tures, and functions.
• For the latest Sonos Digital Music System product information, go to
http://www.sonos.com.
•For product service and support, go to http://support.sonos.com.
Caution Household cleaners or solvents can damage the finish on your ZonePlayers
or Controllers. Clean only with a dry soft cloth.
8
HHpl atter.fm Page 9 Wednesday, December 1, 2004 10:17 AM
Sonos Controller Quick Setup Instructions
HHpl atter.fm Page 10 Wednesday, December 1, 2004 10:17 AM
Sonos, Inc.
506 Chapala St.
Santa Barbara, CA 93101
www.sonos.com
1.800.680.2345
HHpl atter.fm Page 11 Wednesday, December 1, 2004 10:17 AM

Navigation menu
