Sonos RM002 802.11 b/g MIMO Mini-PCI Card User Manual WMP N06 User Guide 20090911
Sonos, Inc. 802.11 b/g MIMO Mini-PCI Card WMP N06 User Guide 20090911
Sonos >
User manual
![](/img.php?id=1168625&img=bg1.png)
Alpha Networks Proprietary and Confidential Information
1
Product External Specifications
For
802.11b/g /n MIMO Mini-PCI Card
(Atheros Solution)
WMP-N06
Revision: 1.2
![](/img.php?id=1168625&img=bg2.png)
Alpha Networks Proprietary and Confidential Information
2
FCC Statement :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Installation and use of this Wireless LAN device must be in strict accordance with the instructions included
in the user documentation provided with the product. Any changes or modifications (including the antennas)
made to this device that are not expressly approved by the manufacturer may void the user’s authority to
operate the equipment. The manufacturer is not responsible for any radio or television interference caused
by unauthorized modification of this device, or the substitution of the connecting cables and equipment
other than manufacturer specified. It is the responsibility of the user to correct any interference caused by
such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or
distributors will assume no liability for any damage or violation of government regulations arising from failing
to comply with these guidelines.
FCC RF Radiation Exposure Statement:
1.This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
Modular Approval
This device is intended only form OEM integrator under the following conditions:
1) The antenna must be installed such that 20cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer considered
valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will
be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
![](/img.php?id=1168625&img=bg3.png)
Alpha Networks Proprietary and Confidential Information
3
End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may be installed such that
20 cm may be maintained between the antenna and users (for example access points, routers, wireless
ADSL modems, and similar equipment). The final end product must be labeled in visible area with the
following:
“Contains RF Module FCC ID: SBVRM002
End Product Manual Information
The user manual for end users must include the following information in a prominent location “IMPORTANT
NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter
must be installed to provide a separation distance of at least 20cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.”
![](/img.php?id=1168625&img=bg4.png)
Alpha Networks Proprietary and Confidential Information
4
1.0 Scope
1.1 Document
This document is to specify the product requirements for 802.11b/g MIMOMini-PCI Card. This Mini-PCI Card is
based on Atheros AR5008 chipset that complied with IEEE 802.11n draft 1.0 standard from 2.4~2.5GHz, and it can
be used to provide up to 11Mbps for IEEE 802.11b and 54Mbps/108Mbps for 2.4GHz IEEE 802.11g to connect your
wireless LAN.
With seamless roaming, fully interoperability and advanced security with WEP standard, 802.11b/g MIMOMini-PCI
Card offers absolute interoperability with different vendors’ 802.11b/g MIMO Access Points through the wireless
LAN.
1.2 Product Features
Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate
Compatible with IEEE 802.11g higher speed standard to provide wireless 54Mbps data rate, and the turbo mode
of 108Mbps (For USA)
Operation at 2.4 ~ 2.5GHz frequency band to meet worldwide regulations
Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54 and 108Mbps for 802.11g
Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b
Compatible with IEEE 802.11n draft 1.0 higher speed standard in High Throughput mode from MCS-0 to MCS-
15. The HT data rate refers to Appendix I.
Maximum reliability, throughput and connectivity with automatic data rate switching
Supports wireless data encryption with 64/128/152-bit WEP for security
Support Super G mode to provide the higher data rate and throughput
Supports WPA and AES enhanced security
Supports DFS/TPC for European operation
Supports VLAN tagging
Friendly user configuration and utilities
Drivers support Windows 98SE, ME, 2K, and XP
Supports Mini-PCI Type IIIA form factor
2.0 Requirements
The following sections identify the detailed requirements of the 802.11g Mini-PCI Card.

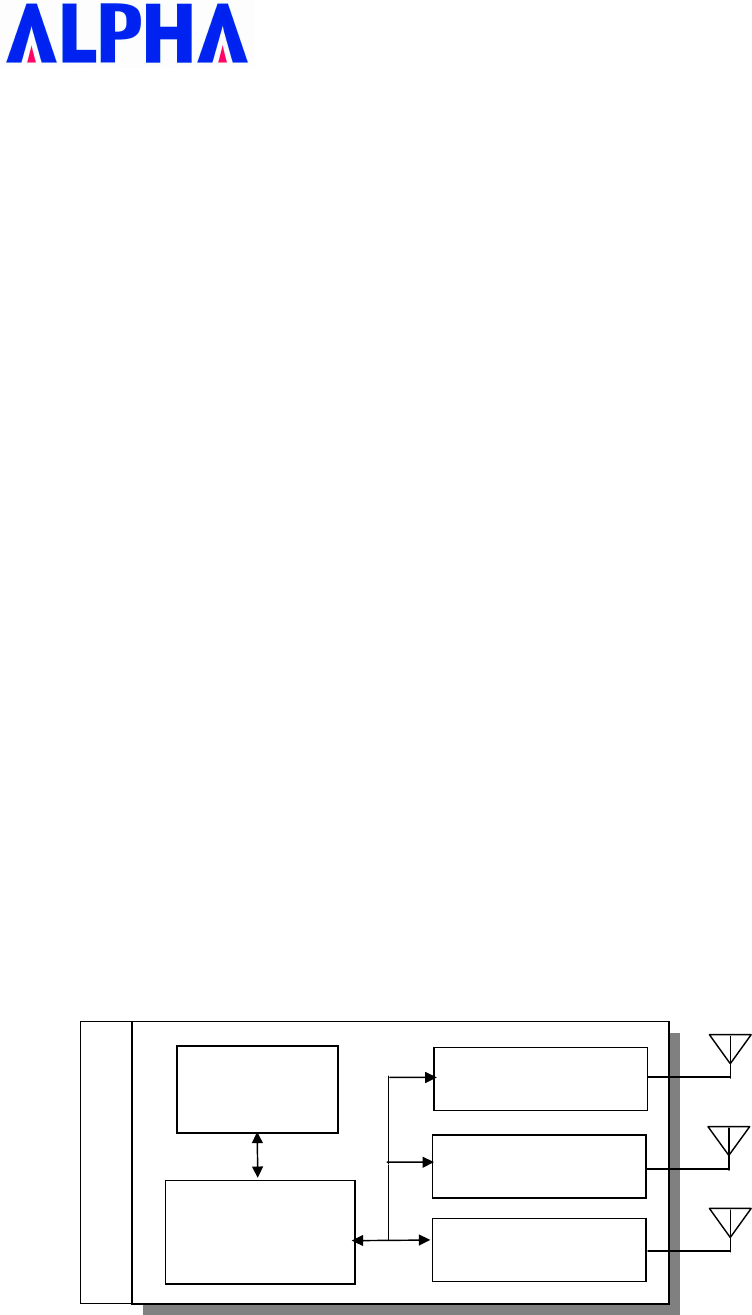

2.1 Functional Block Diagram
AR5416
( EWC MIMO )
MAC/BB SoC
AR2133
( EWC MIMO )
2400~2497MHz
Transceiver
RF-Front End Circuit
Chain 1
RF-Front End Circuit
Chain 2
RF-Front End Circuit
Chain 3
Mini PCI I/O
![](/img.php?id=1168625&img=bg5.png)
Alpha Networks Proprietary and Confidential Information
5
2.2 General Requirements
2.2.1 IEEE 802.11b Section
# Feature Detailed Description
2.2.1.1 Standard IEEE 802.11b
2.2.1.2 Radio and
Modulation
Schemes
DQPSK, DBPSK, DSSS, and CCK
2.2.1.3 Operating
Frequency
2400 ~ 2497MHz ISM band
2.2.1.4 Channel Numbers 11 channels for United States
13 channels for Europe Countries
14 channels for Japan
2.2.1.5 Data Rate 11, 5.5, 2, and 1Mbps
2.2.1.6 Media Access
Protocol
CSMA/CA with ACK
2.2.1.7 Transmitter Output
Power
Typical RF Output Power at each RF chain, Data Rate
and at room Temp. 25degree C( tolerance ±2dB) under
3.3VDC operating voltage
18dBm at 11, 5.5, 2, and 1Mbps
2.2.1.8 Receiver Sensitivity
Typical –84dBm for 11Mbps @ 8% PER
Typical –90dBm for 2Mbps @ 8% PER
2.2.2 IEEE 802.11g Section
# Feature Detailed Description
2.2.2.1 Standard IEEE 802.11g
2.2.2.2 Radio and
Modulation
Schemes
BPSK, QPSK, 16QAM, 64QAM, and OFDM
2.2.2.3 Operating
Frequency
2400 ~ 2483.5MHz ISM band
2.2.2.4 Channel Numbers 11 channels for United States
13 channels for Europe Countries
13 channels for Japan
2.2.2.5 Data Rate 6,9,12,18,24,36,48,54Mbps
2.2.2.6 Media Access
Protocol
CSMA/CA with ACK
2.2.2.7 Transmitter Output
Power
Typical RF Output Power at each RF chain, Data Rate
and at room Temp. 25degree C (tolerance ± 2dB) under
3.3VDC operating voltage
19dBm at 6~24 Mbps
17dBm at 36 Mbps
16dBm at 48 Mbps
15dBm at 54 Mbps
2.2.2.8 Receiver Sensitivity
Typical Sensitivity at Which Frame (1000-byte PDUs)
Error Rate = 10%
–86dBm at 6Mbps
–86dBm at 9Mbps
–84dBm at 12Mbps
–82dBm at 18Mbps
–78dBm at 24Mbps
–75dBm at 36Mbps
–71dBm at 48Mbps
![](/img.php?id=1168625&img=bg6.png)
Alpha Networks Proprietary and Confidential Information
6
# Feature Detailed Description
–70dBm at 54Mbps
2.2.3 IEEE 802.11n Section
# Feature Detailed Description
2.2.3.1 Standard IEEE 802.11n draft 1.0
2.2.3.2 Radio and
Modulation Type
BPSK, QPSK, 16QAM, 64QAM with OFDM
2.2.3.3 Operating Frequency
2400 ~ 2483.5MHz ISM band
2.2.3.4 Channel Numbers 11 channels for United States
13 channels for Europe Countries
13 channels for Japan
2.2.3.5 Data Rate From MCS – 0 to MCS –15 as shown in Appendix A
2.2.3.6 Media Access
Protocol
CSMA/CA with ACK
2.2.3.7 Transmitter Output
Power
Typical RF Output Power at each RF chain, Data Rate and at room
Temp. 25degree C (tolerance ± 2dB) under 3.3VDC operating
voltage
HT20:
19dBm at MCS - 0 ~ 4, MCS 8 ~ 12
17dBm at MCS - 5, 13
13dBm at MCS - 6, 14
8dBm at MCS - 7, 15
HT40:
15dBm at MCS - 0 ~ 4, MCS 8 ~ 12
15dBm at MCS - 5, 13
13dBm at MCS - 6, 14
8dBm at MCS - 7, 15
2.2.3.8 Receiver Sensitivity
Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate =
10%
–88dBm at BPSK, coding rate 1/2 (MCS-0)
–84dBm at QPSK, coding rate 1/2 (MCS-1)
–81dBm at QPSK, coding rate 3/4 (MCS-2)
–78dBm at 16-QAM, coding rate 1/2 (MCS-3)
–75dBm at 16-QAM, coding rate 3/4 (MCS-4)
–70dBm at 64-QAM, coding rate 2/3 (MCS-5)
–69dBm at 64-QAM, coding rate 3/4 (MCS-6)
–68dBm at 64-QAM, coding rate 5/6 (MCS-7)
2.2.4 General Section
# Feature Detailed Description
2.2.4.1 Antenna Connector
Three UFL antenna connectors
2.2.4.2 Operating Voltage 3.3VDC +/- 10%
2.24.3 Current
Consumption
800mA at continuous transmit mode (2 Tx chains on )
450mA at continuous receive mode (3 Rx chains on )
2.2.4.4 Form Factor and Mini-PCI Type IIIA form factor
![](/img.php?id=1168625&img=bg7.png)
Alpha Networks Proprietary and Confidential Information
7
Interface
2.2.4.5 LEDs External LED function supported
![](/img.php?id=1168625&img=bg8.png)
Alpha Networks Proprietary and Confidential Information
8
2.3 Software Requirements
The Configuration Software supports Microsoft Windows 98SE, ME, 2000, and XP. This configuration software
includes the following functions:
Information
Information allows you to monitor network status.
Configuration
Configuration allows you to configure parameters for wireless networking.
Security
Supports enhanced security WEP, 802.1x,WPA.
2.3.1 Information
# Feature Detailed Description
2.3.1.1 General
Information
General Information shows the name of Wireless
Adapter, Adapter MAC Address, Regulatory Domain,
Firmware Version, and Utility Version.
2.3.1.2 Current Link
Information
Current Link Information shows the Current Setting
ESSID, Channel Number, Associated BSSID, Network
Type (infrastructure or Ad-hoc network), WEP Status
(enable or disable), Link Status (Connect or Dis-
connect), 802.11g Transmit Speed (6, 9, 12, 18, 24, 36,
48, 54Mbps), 802.11b Transmit Speed (1, 2, 5.5,
11Mbps), Signal Strength, and Link Quality.
2.3.1.3 Site survey To search the neighboring access points and display the
information of all access points.
2.3.2 Configuration
# Feature Detailed Description
2.3.2.1 ESS ID Input an SSID number if the roaming feature is enabled
Supports for ASCII printable characters.
2.3.2.2 Network Type Ad-hoc Mode and 802.11 Ad-hoc Mode for network
configurations that do not have any access points
Infrastructure Mode for network configurations with
access points
2.3.2.3 Power Save Extend the battery life of clients by allowing the client to
sleep for short periods of time while the Access Point
buffers the messages.
2.3.2.4 RTS Threshold Set the number of bytes used for fragmentation boundary
for messages
2.3.2.5 Fragment Threshold
Set the number of bytes used for RTS/CTS boundary
2.3.2.6 Transmission Speed
This indicates the communication rates. Select
appropriate transmission speed to match your wireless
LAN settings
2.3.2.7 Roaming Support Automatic or Manual Rescan to associate with
access point.
2.3.3 Security
# Feature Detailed Description
2.3.3.1 Encryption RC4 encryption algorithm
Support 64/128/152 bit WEP encryption
Support open system and shared key authentication
2.3.3.2 WEP Management Four WEP keys can be selected
![](/img.php?id=1168625&img=bg9.png)
Alpha Networks Proprietary and Confidential Information
9
# Feature Detailed Description
STA with WEP off will never associate any AP with
WEP enabled
WEP Key Format: Option for Hex format
2.3.3.3 802.1x Support EAP-TLS, EAP-TTLS, and EAP-PEAP
2.3.3.4 WPA Support WPA-PSK and WPA-EAP
Support Cipher Mode AES and TKIP
2.4 Mechanical Requirements
# Feature Detailed Description
2.4.1 Length 50.8mm
2.4.2 Width 59.59mm
2.4.3 Height 0.99mm
2.5 Compatibility Requirements
This device passes the following compatibility requirements.
# Feature Detailed Description
2.5.1 Wi-Fi Meet Wi-Fi certification for IEEE 802.11 product
2.5.2 WHQL Meet applicable WHQL certification requirements
2.5.3 Physical Layer and
Functionality
Meet ALPHA Engineering Test Plan and Test Report
2.6 Requirements of Reliability, Maintainability and Quality
# Feature Detailed Description
2.6.1 MTBF Mean Time Between Failure > 30,000 hours
2.6.2 Maintainability There is no scheduled preventive maintenance required
2.6.3 Quality The product quality is followed-up by ALPHA factory
quality control system
2.7 Environmental Requirements
# Feature Detailed Description
2.7.1 Operating
Temperature
Conditions
The product is capable of continuous reliable operation
when operating in ambient temperature of 0 ℃ to +55℃.
2.7.2 Non-Operating
Temperature
Conditions
Neither subassemblies is damaged nor the operational
performance is degraded when restored to the operating
temperature after exposing to storage temperature in the
range of –20 ℃ to +75 ℃.
2.7.3 Operating
Humidity
conditions
The product is capable of continuous reliable operation
when subjected to relative humidity in the range of 10%
and 90% non-condensing.
2.7.4 Non-Operating
Humidity
Conditions
The product is not damaged nor the performance is
degraded after exposure to relative humidity ranging
from 5% to 95% non-condensing
![](/img.php?id=1168625&img=bga.png)
Alpha Networks Proprietary and Confidential Information
10
Appendix I:

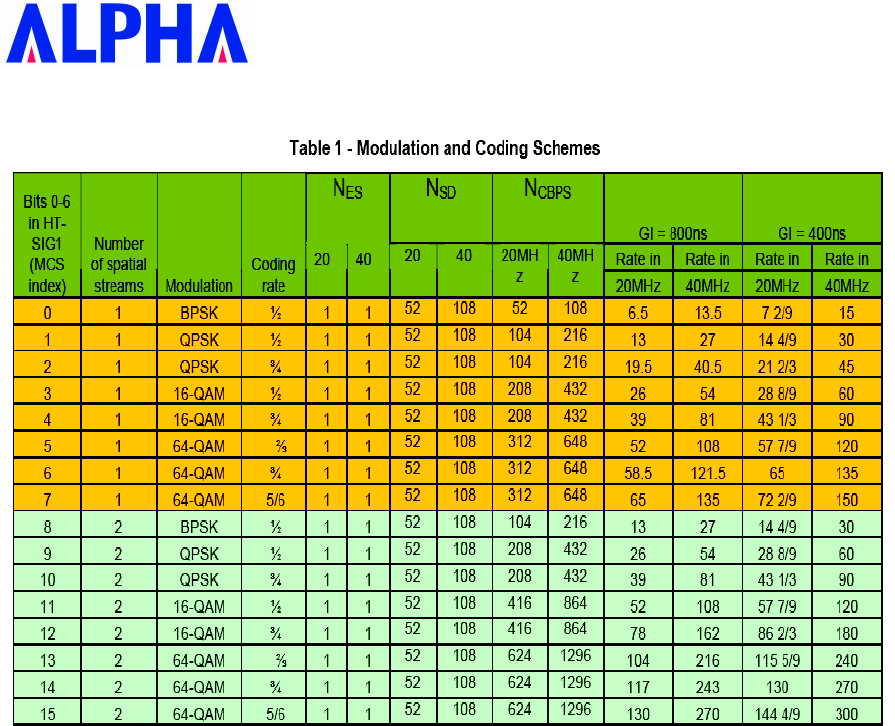

Rate Dependent Parameters for High Throughput . Modulation and Coding Schemes (MCS)
The parameters in the table are:
■ Rate: Rate in Mbps
■ NES: Number of FEC encoders used
■ NSD: Number of Data Subcarriers
■ NCBPS: Number of Code Bits Per Symbol (total of all spatial streams)
■ NSS: Number of Spatial Streams
![](/img.php?id=1168625&img=bgb.png)
Alpha Networks Proprietary and Confidential Information
11

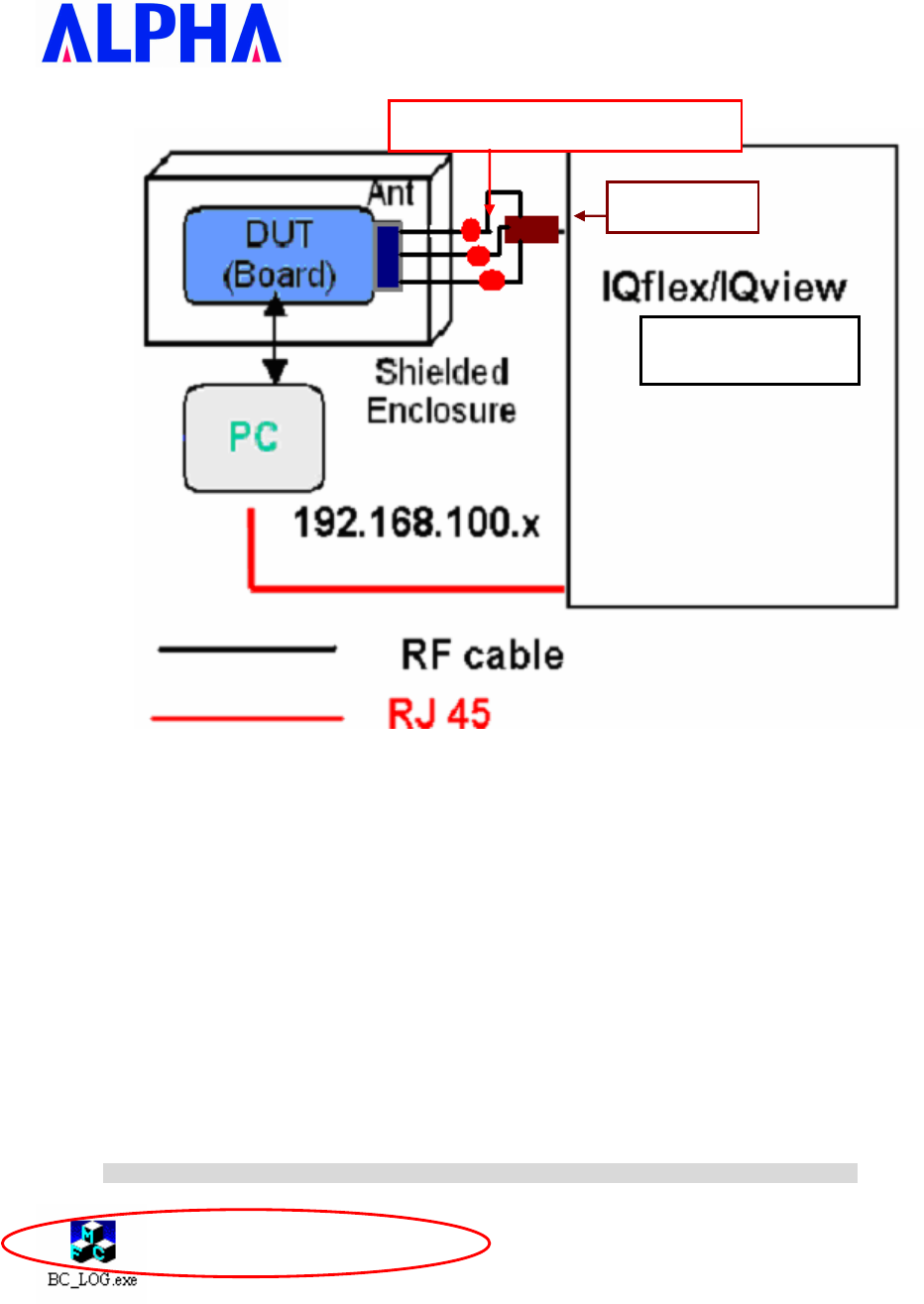

Test Environment Diagram
(
((
(Note:
::
:For IQ-View / IQ-Flex)
))
)
Normal Test Operating Procedure
1. Testing Steps: 8 steps in total
P.S.:Pls. Install driver before insert the card.
[Step 1] Run ” BC_LOG.exe ” at DUT (see Figure 1) to open test window
Ex: C:\Program Files\LitePoint\IQfact\ART_MIMO_1WMPN06…B1G\MINIPCI_2071\ BC_LOG.exe
(Figure 1)
6
IP: 192.168.100.254
Fixed Attenuator (30dB) * 3 pcs
Splitter (1 對
對對
對3)
![](/img.php?id=1168625&img=bgc.png)
Alpha Networks Proprietary and Confidential Information
12

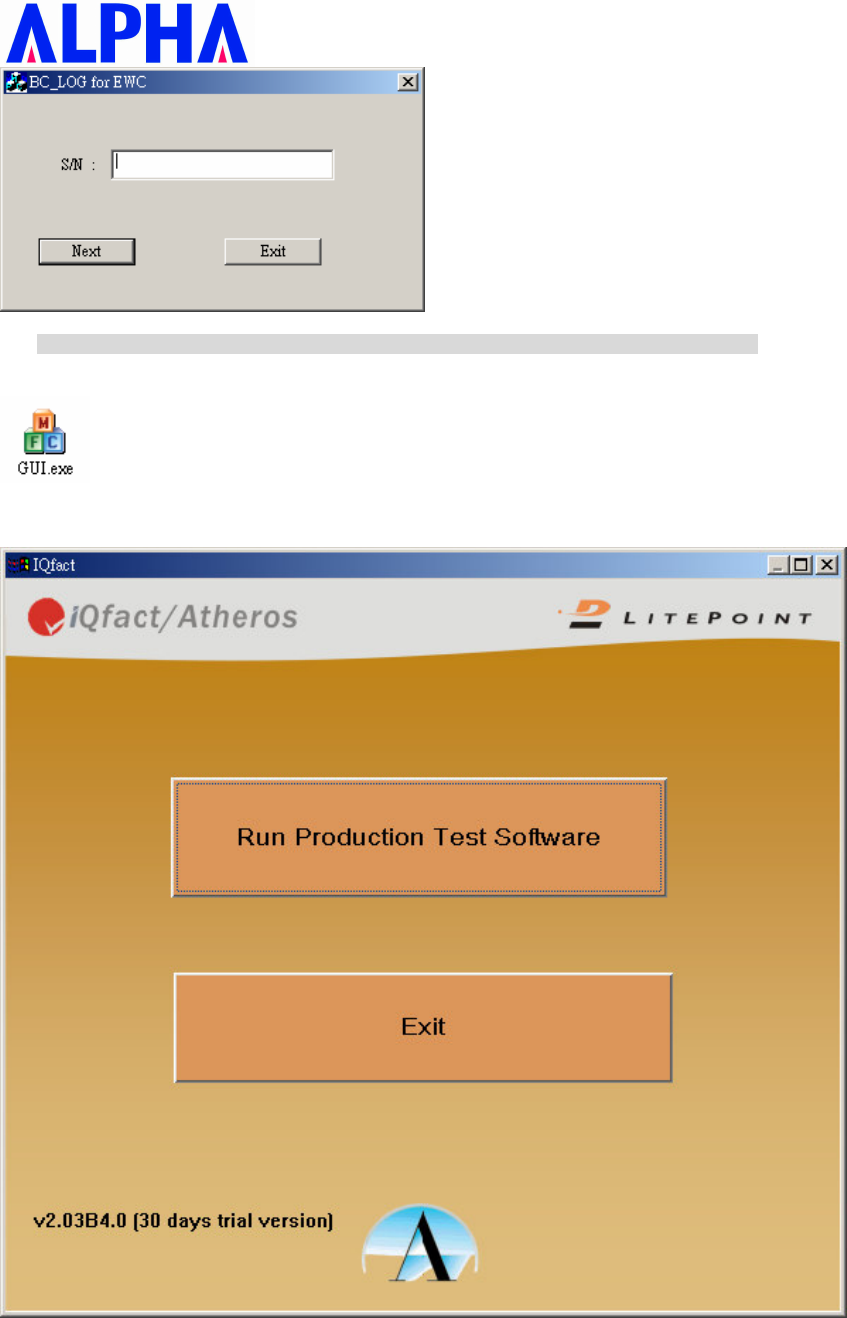

[Step 2] Run ” GUI.exe ” at DUT (see Figure 3) to open test window (see Figure 4).
Ex: C:\Program Files\LitePoint\IQfact\ART_MIMO_1WMPN06…B1G\MINIPCI_2071\ GUI.exe
(Figure 3)
(Figure 4)
![](/img.php?id=1168625&img=bgd.png)
Alpha Networks Proprietary and Confidential Information
13

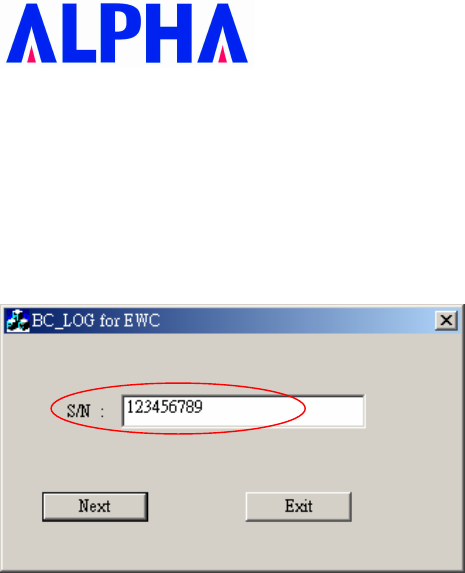

[Step 3] Then Kevin Serial number (see Figure 5)
(Figure 5)
[Step 4] (a) Plug DUT into MINI PCI / CARD BUS Interface
(b) Plug RF Cable on DUT antenna three point and user a special line (MAIN-From Left to
Right 0.1.2)

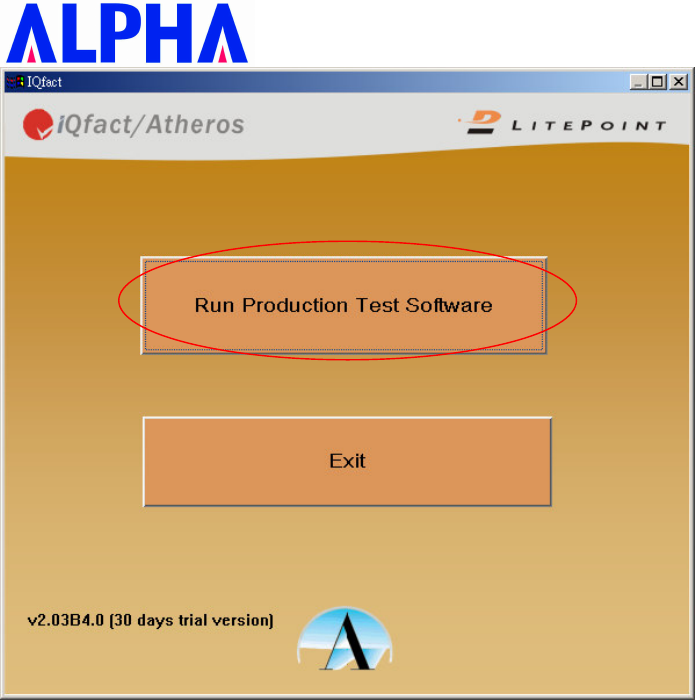

[Step 5] Click “Run Production Test Software” to begin test. (See Figure 6)
(Figure 6)
![](/img.php?id=1168625&img=bge.png)
Alpha Networks Proprietary and Confidential Information
14

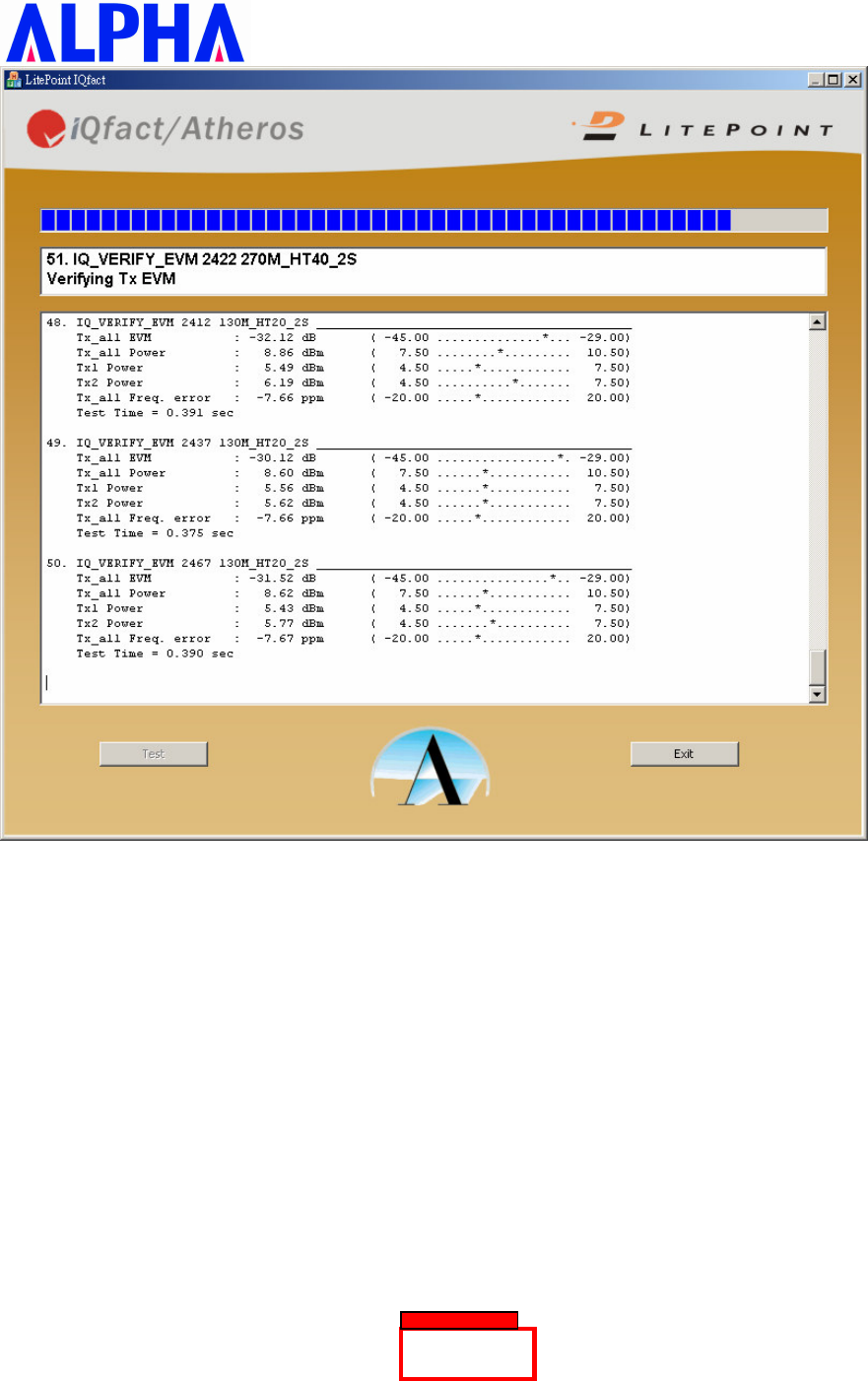

[Step 6] Testing. (See Figure 7)
(Figure 7)
![](/img.php?id=1168625&img=bgf.png)
Alpha Networks Proprietary and Confidential Information
15
[Step 7] When test finish, it will show “PASS”(see Figure 8).
(Figure 8)
![](/img.php?id=1168625&img=bg10.png)
Alpha Networks Proprietary and Confidential Information
16

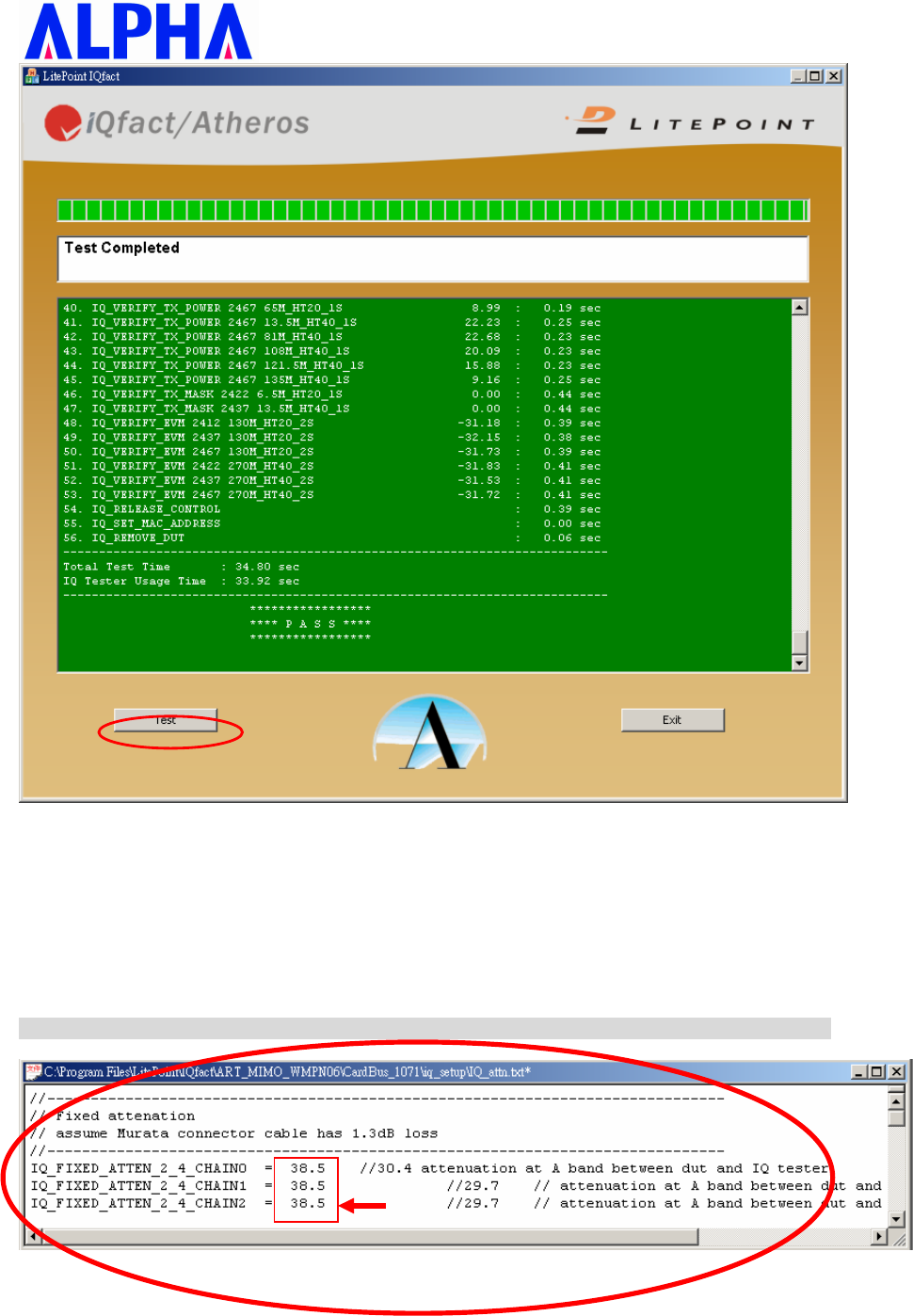

[Step 8] When show “PASS”, click “ Test ” and change the next one to continue (see Figure 8).
Test Program setup
[步驟
步驟步驟
步驟 1] search the program file of ” IQ_attn.txt ” see Figure 1),
(Ex: Ex: C:\Program Files\LitePoint\IQfact\ART_MIMO_1WMPN06…B1G\MINIPCI_2071\iq_setup\ IQ_attn.txt)
(Figure 1)
![](/img.php?id=1168625&img=bg11.png)
Alpha Networks Proprietary and Confidential Information
17
[步驟
步驟步驟

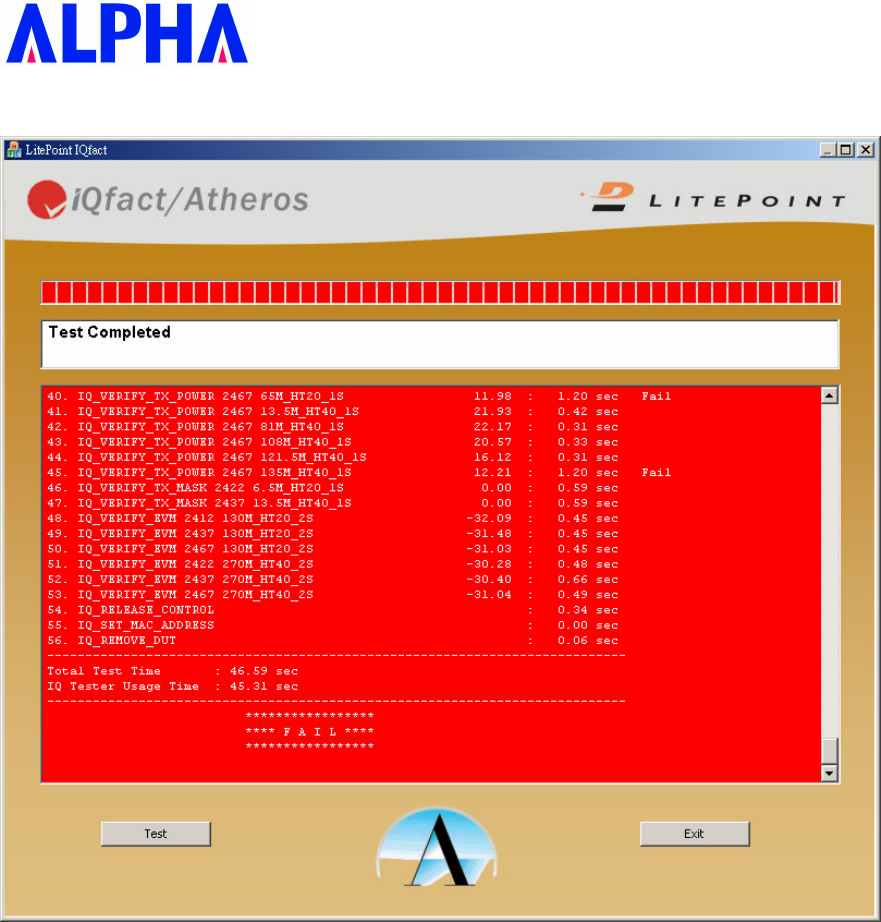

步驟 2] Test Fail (see Figure 2),
(Figure 2)
