Operating Instructions

CM-SB200

CDMA PCS

Telephone

3-867-100-11

SB200 01-03 toc 4/9/99, 2:21 PM1

Before operating your portable dual band telephone, please read this

manual thoroughly and retain it for future reference.

If your usage includes in-vehicle operation, refer to the Installation/

Connections/Operation manual for the optional accessory kits.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

FCC CAUTION STATEMENT

You are cautioned that any changes or modifications not expressly approved

in this manual could void your authority to operate this equipment.

Owner’s record

The model number, regulatory number, and serial number are located on a

nameplate inside the battery compartment. Record the serial number in the

space provided below. Refer to these numbers whenever you call your

dealer regarding this product.

Model No.: ____________________ Serial No.: ___________________

expressly prohibited. Sony, Jog Dial, D-WAVE logo and D-WAVE Astra are trademarks of Sony.

Third party trademarks are the property of their respective holders. Design and specifications

are subject to change without notice. Talk and standby times are subject to change.

DISPOSAL OF LITHIUM ION BATTERY

LITHIUM ION BATTERY.

DISPOSE OF PROPERLY.

You can return your unwanted lithium ion batteries to your nearest

Sony Service Center or Factory Service Center.

Note: In some areas the disposal of lithium ion batteries in

household or business trash may be prohibited.

For the Sony Service Center nearest you call 1-800-222-SONY

(United States only).

For the Sony Factory Service Center nearest you call 416-499-SONY

(Canada only).

SB200 01-03 toc 4/9/99, 2:21 PM2

Table of Contents

Navigating Getting StartedMaking &

Receiving Calls

Phone BookMenu SettingsCarrier FeaturesAdditional Info

Getting Started

Unpacking your phone ................. 4

Looking at your phone ................. 5

Charging the battery ..................... 6

Turning the phone on.................... 9

Activating your phone ................ 11

Navigating

Navigating .................................... 12

Jog Dial™ navigator ............... 12

Navigating keys ...................... 12

Menu map ................................ 13

List of menu items ....................... 14

Quick tips and features............... 16

First things first ............................ 18

Selecting a language ............... 18

Getting your phone number.. 18

Alphanumeric table ................ 19

Making & Receiving Calls

Calling fundamentals.................. 20

Basic calling.............................. 20

Related calling functions........ 20

Limiting outbound calls ............. 21

Calling from the Phone Book..... 22

Manually .................................. 22

Speed dialing ........................... 22

Touch dialing ........................... 22

Fast 4 dialing............................ 23

Call prefixing ........................... 23

Calling from the Calls List.......... 24

Additional Calls List info....... 24

Saving to your Phone Book ... 24

Incoming calls .............................. 25

Basic call answering................ 25

Related answering functions . 25

Setting all keys to answer ...... 25

Setting automatic answer....... 26

Caller ID ................................... 26

Missed Calls ............................. 26

Using the scratch pad.................. 26

Phone Book Functions

Storing information .....................27

Basic storage.............................27

If the Phone Book is full .........27

Special storage functions........ 28

Searching your Phone Book .......30

Alphabetically.......................... 30

By memory location................ 31

For a phone number ...............31

Editing Phone Book entries ........32

Erasing Phone Book entries ....... 33

Restricting Phone Book entries.. 34

Menu Settings

Sounds menu................................35

Display menu ............................... 38

Security menu .............................. 40

Network menu .............................42

Extras menu.................................. 45

Timers menu................................. 46

Carrier provided features

and services

Short Messaging Service............. 48

Receiving messages ................48

Message capacity.....................49

Message format ....................... 50

Accessing messages ................50

Text messages ..........................51

Voice mail .................................52

Sending and receiving data........53

Additional information

Troubleshooting ...........................55

Specifications................................ 56

Optional accessories ....................57

Rules and regulations ................. 58

Safety precautions .......................59

Glossary ........................................62

Index ..............................................64

Warranty Card.............................. 69

Quick Reference Card .................71

SB200 01-03 toc 4/9/99, 2:21 PM3

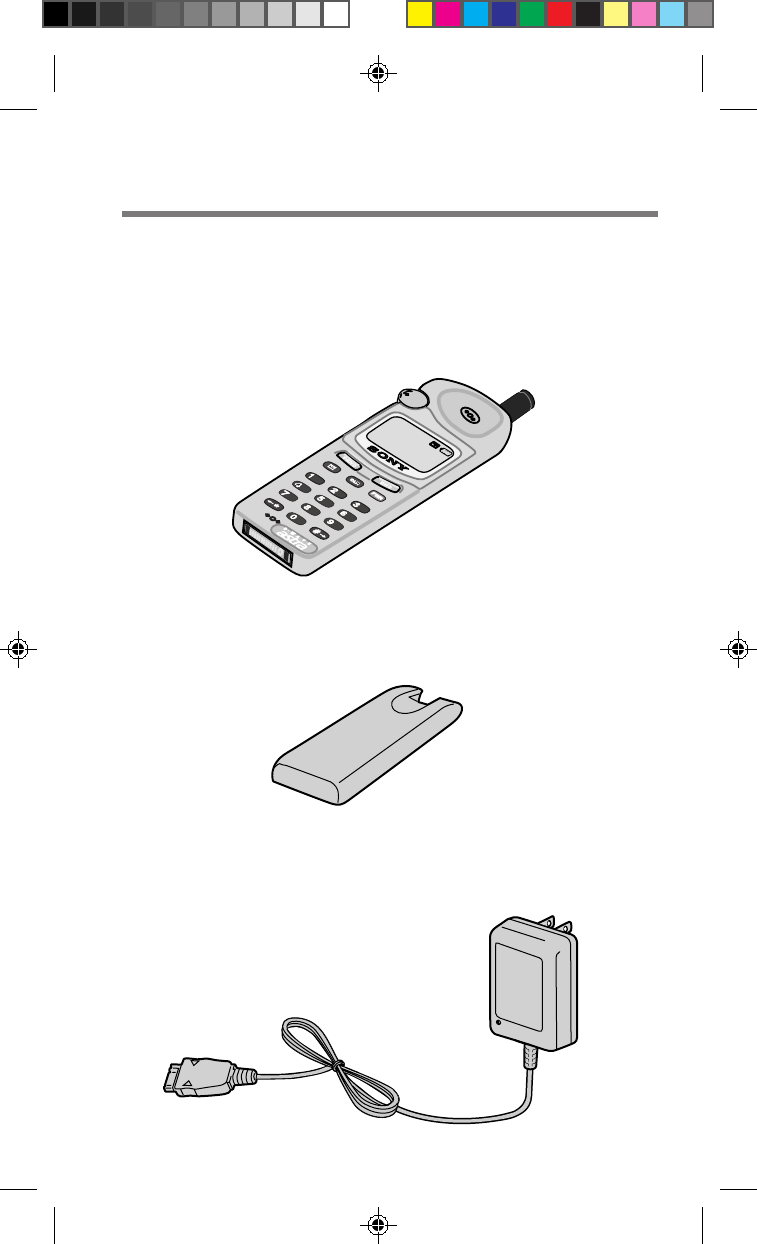

Unpacking Your Phone

Carefully unpack your phone and check the contents using this list. If

something is missing, please contact your nearest Sony dealer.

Portable Cellular/PCS Telephone (1)

QN-400BPL2 Extended Life Lithium-Ion Battery (1)

QN-301TA Travel Adapter (1)

SB200 04-11 prep 4/9/99, 2:21 PM4

Getting Started

!¢

!∞

!§

CLR PWR

213

456

789

END

SEND

!º



!¡

!™

!£

Looking at Your Phone

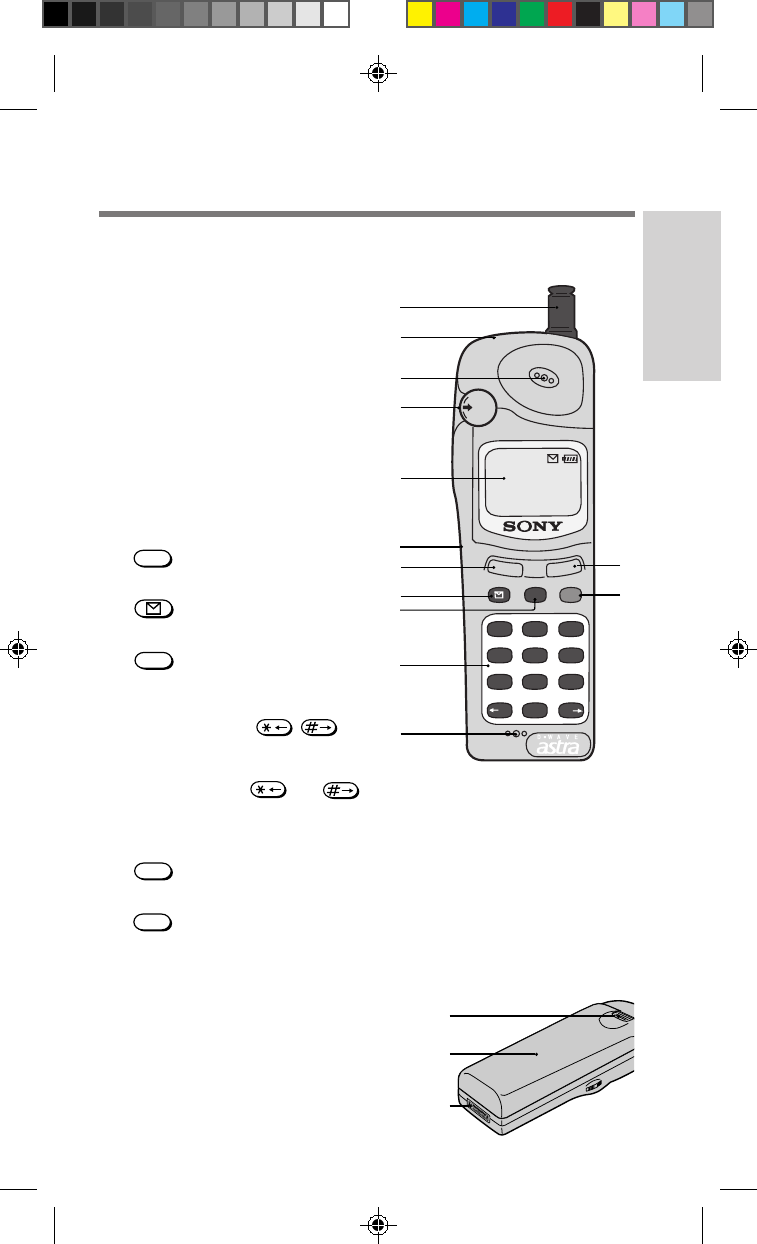

For more information, refer to the page numbers in parentheses ( ).

1Antenna (18)

2Red/Green LED (XX)

Alerts for incoming calls/messages

and identifies charging status.

3Earpiece

4Jog Dial™ navigator (14)

Turn (scroll) and press (select) to

access menus and settings.

5Display (14)

6Ringer speaker

SEND

key (21 to 23)

Press to make or receive calls.

key (78)

Press to access messages.

CLR

key (19, 21, 40)

Press to clear characters on the display

or exit the current operation.

!º Number and / keys

(21, 25, 49)

Use the keypad to enter numbers

and letters. Use and to

move the cursor.

!¡ Microphone

!™

PWR

key (18)

Press to turn the phone on or off.

!£

END

key (19, 21, 23)

Press to end calls or cancel

operations and return to standby

mode.

!¢

Battery release tab (15)

Slide up to remove the battery.

!∞ Battery (15)

!§ Connector (16)

Connects the phone to the travel

adapter or other accessory.

SB200 04-11 prep 4/9/99, 2:21 PM5

Charging the Battery

A new battery is not fully charged so it’s best to charge the battery

before using the phone. The following instructions show you how to

attach/detach the battery and connect the supplied travel adapter.

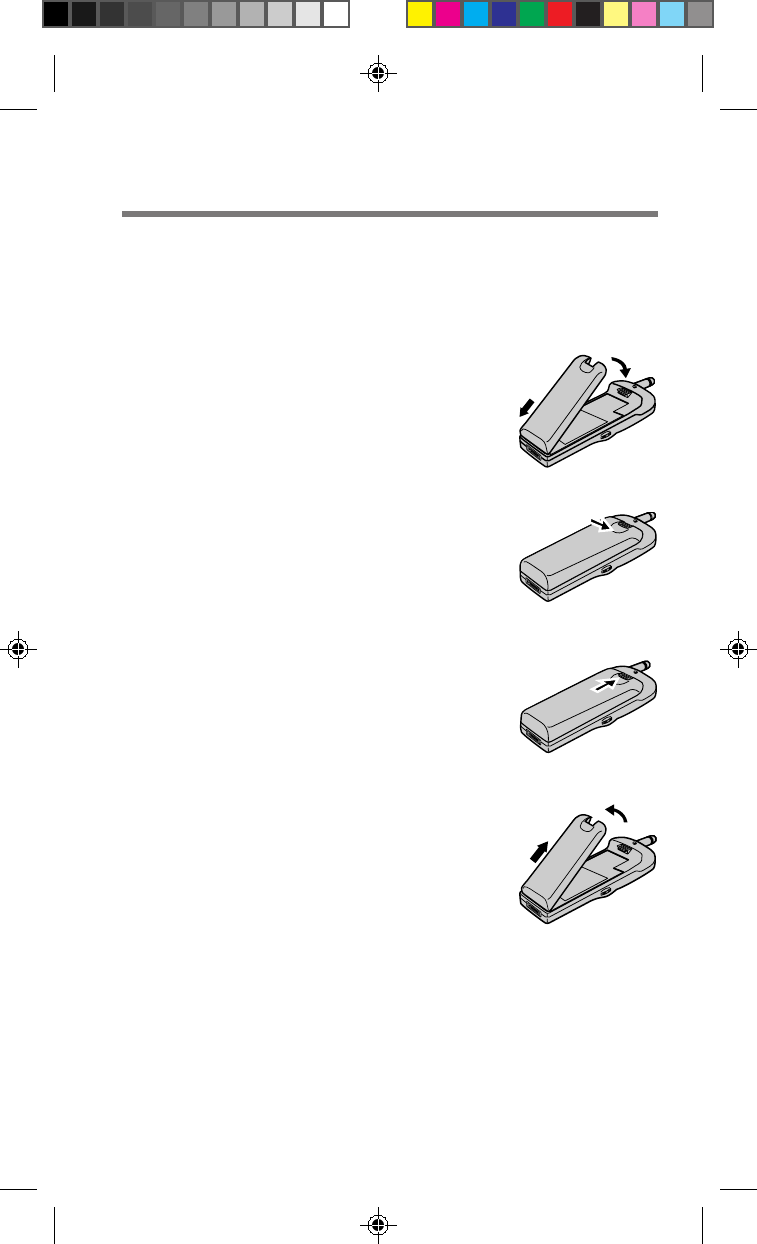

To attach the battery

1 Hook the battery onto the

bottom of the phone 1, then

lower the top down 2.

2 Press down firmly on the thumb

indent to secure the battery in

place.

To remove the battery

1 Place your thumb on the battery

release tab and press upward.

2 Lift the top of the battery 1, then

remove it from the back of the

phone 2.

SB200 04-11 prep 4/9/99, 2:21 PM6

Getting Started

Charging the battery

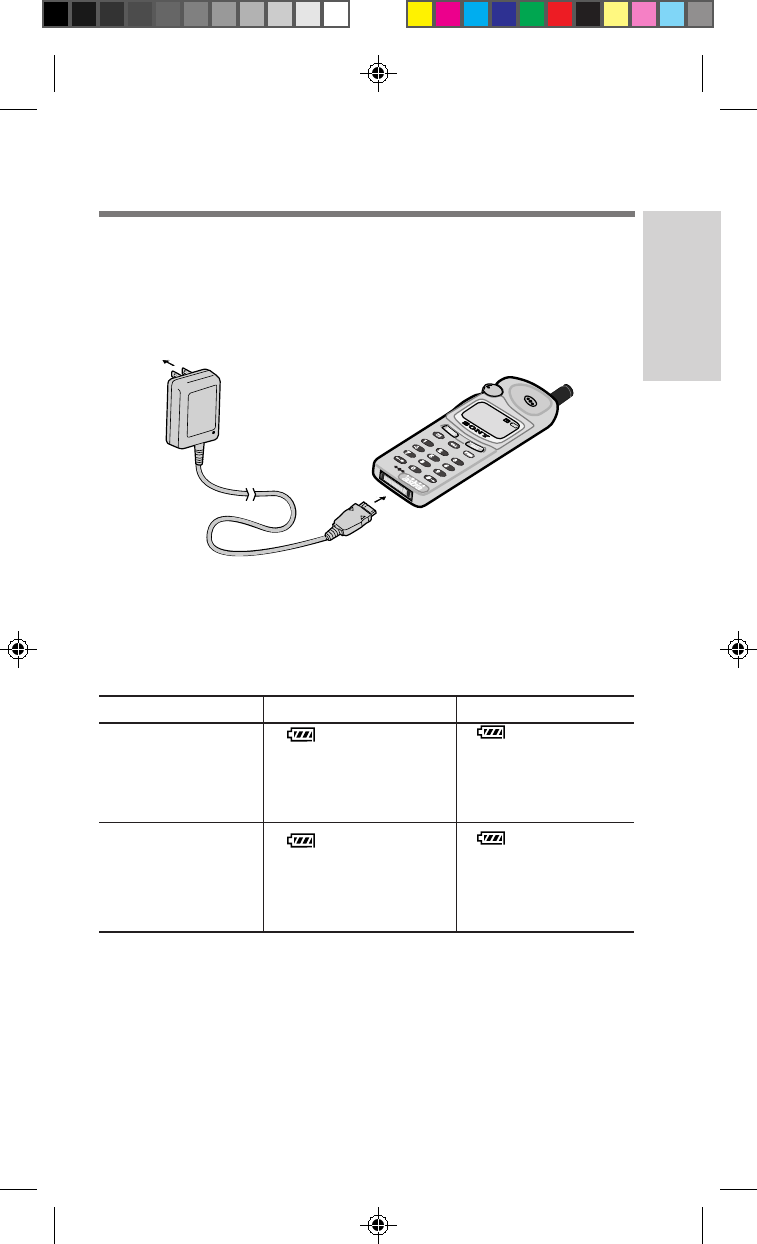

Connect the travel adapter to the phone connector 1, then plug it into a

standard 120V AC outlet 2. Charging time is about 5 hours. Charging

will take longer if the phone is turned on.

What you’ll see when the battery is being charged

plug

into

an AC

outlet

attach to the phone connector

(thumb indent faces up)

During charging

Battery

fully charged

When phone is ON

• flashes

•CH is displayed in the

upper left corner of the

standby display

•LED is not lit

• stops flashing

•FCH is displayed in the

upper left corner of the

standby display

•LED is not lit

When phone is OFF

• flashes

•

Battery is Charging

displayed on the

display screen

•LED flashes red

• stops flashing

•

Charging is Complete

displayed on the

display screen

•LED turns green

Cautions

• Use only Sony-approved batteries and use only as intended. Don’t try to

disassemble or dispose of them in a fire (possible personal injury).

• Avoid charging for long periods of time, in places with high humidity, direct

sunlight or extreme temperatures (below 32°F /0°C or over 104°F /40°C).

• The battery may become warm during charging or after use.

• Replace the supplied AC adapter if necessary. It is not intended to be serviced.

• The AC Adapter allows you to turn on your phone without a battery attached.

But without a battery attached, you won’t be able to make or receive calls.

SB200 04-11 prep 4/9/99, 2:21 PM7

nnn

Full

n n

Empty

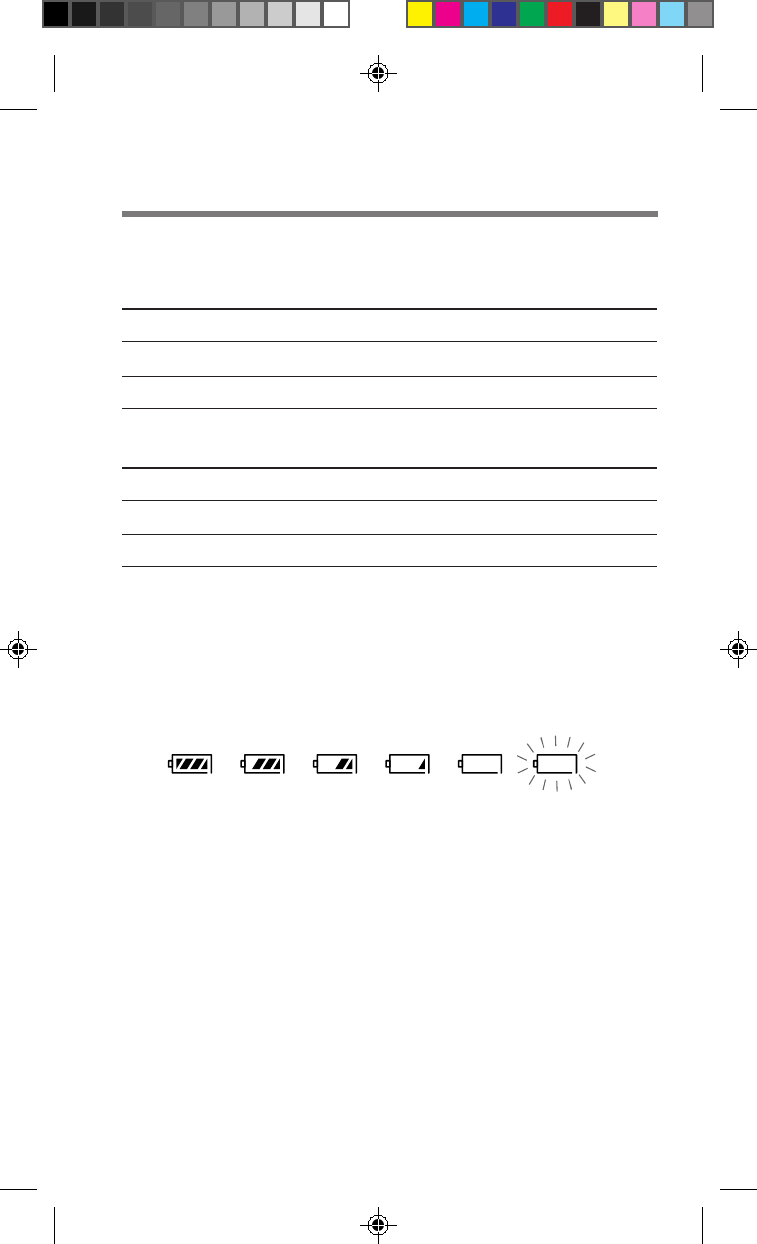

Battery life

Standard battery

CDMA mode Analog mode

Standby mode 72.0 hours 14.0 hours

Talk time 3.0 hours 1.5 hours

Extended battery

CDMA mode Analog mode

Standby mode 144.0 hours 28.0 hours

Talk time 6.0 hours 3.0 hours

Battery condition

The battery icon indicates the approximate charge level remaining in the

battery.

Energy consumption varies depending on conditions of use

(including ambient temperature, network coverage and usage patterns).

The fewer lines you see inside the battery icon body, the less charge it has.

When the battery is empty

When your battery charge is very low, the icon flashes and a warning

message is displayed to remind you. The phone automatically turns off when

the battery runs out of energy. If this happens during a call, you will hear a

beep and the call will be cut off. Recharge the battery as soon as possible.

SB200 04-11 prep 4/9/99, 2:21 PM8

Getting Started

PWR

My Phone

12:34P 12/25

:Saved #s

:Features

Sony

555-1212

:Options

END

SEND

PWRCLR

123

45 6

789

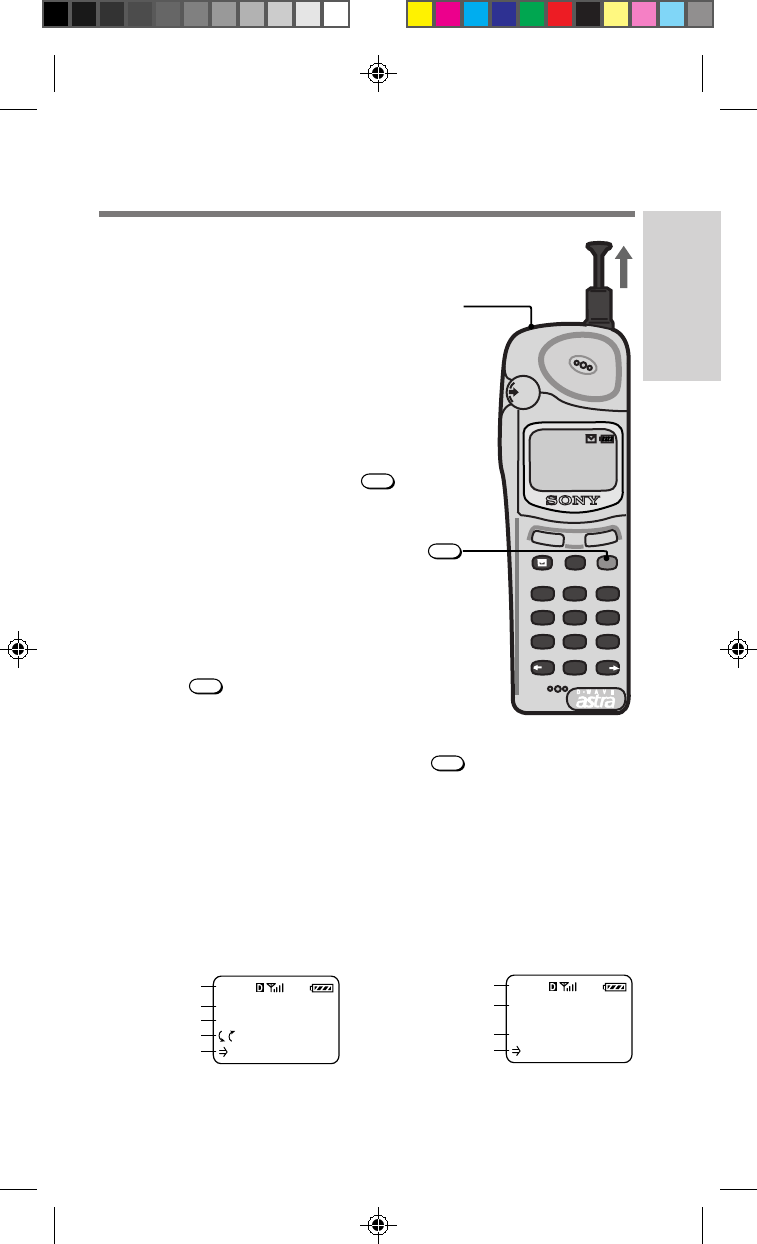

Turning the Phone On

Extending and retracting

the antenna

Extend the antenna to maximize signal

strength and minimize interference. When

you make or receive a call, hold the end of

the antenna and pull up until fully

extended. When you are not in a call, push

the antenna down until fully retracted.

Powering on

To turn your phone on, hold down

PWR

for about two seconds. Powering On

appears on the screen, the LED flashes

green, the phone beeps and searches for a

signal. When a service signal is found, the

standby display appears. Your phone is

ready to use.

Powering off

Hold down

PWR

for about two seconds.

The phone beeps and displays the message

To turn off: Hold down the POWER

key. You hear a second beep, then Powering

off appears on the screen. When you release

PWR

, the phone turns off.

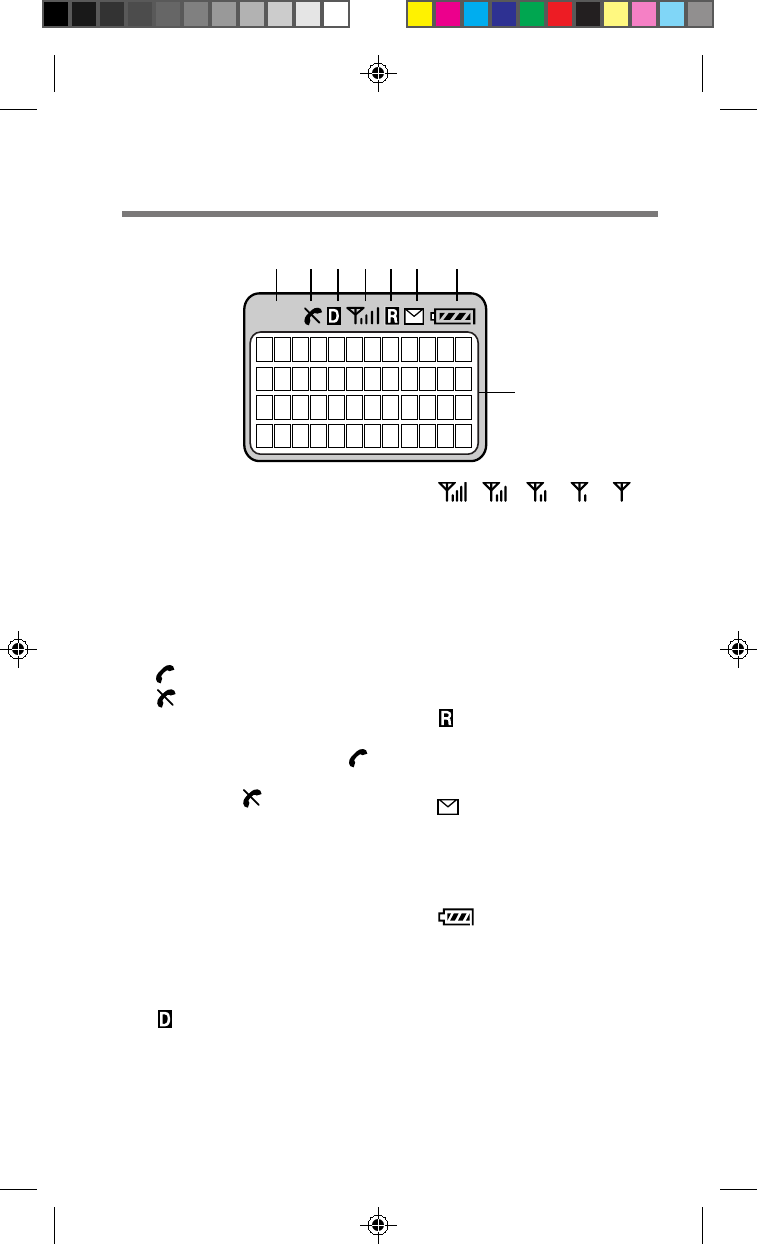

Display screen

Your phone’s display screen has five information lines. Each line can

display up to 12 characters. The top line displays icons which tell you

the status of your phone. Lines two through five change depending on

the current operation. The bottom line is usually a prompt for an

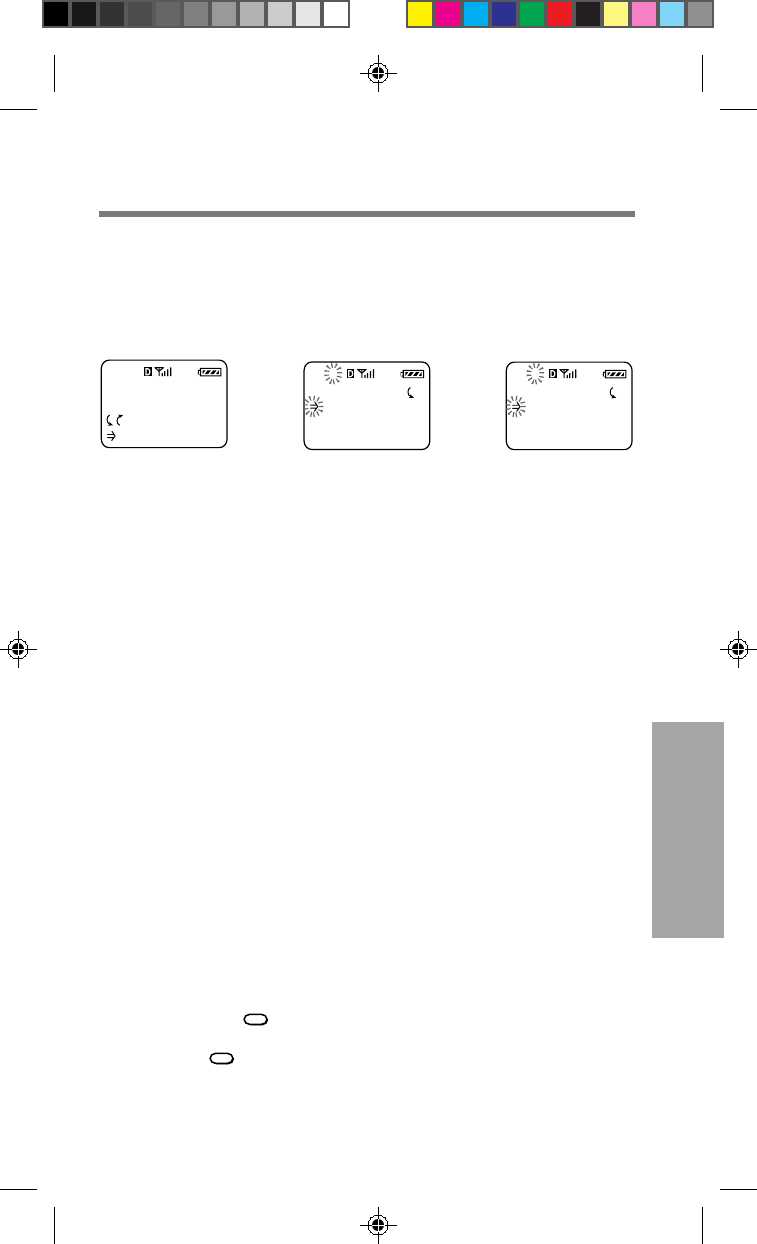

operation. See the following basic examples:

Standby mode Phone Book

phone status phone status

“banner” name

time and date

menu prompt phone #

menu prompt menu prompt

The next page provides detailed information regarding your phone’s display.

LED

SB200 04-11 prep 4/9/99, 2:21 PM9

888

1 2 3 4 5 6 7

1Short character display

Identifies the display based

on the current operation.

• Features menus/submenus

begin with “F”.

• Calls List memory locations

begin with “C”.

• Phone Book memory

locations are all digits.

2 (in-use) /

(out-of-service) icon

(18, 21, 23, 71)

Indicates within or outside a

service area. A phone icon

( )

appears during a call. A slash

through it ( ) appears when

no signal is received, which

means you cannot make or

receive calls. The phone will

search for a service signal. If

it can’t find one, it enters

power save mode and

“wakes up” automatically (at

intervals based on carrier

network settings) to search

for a service signal.

3 (digital) icon

Appears when your phone is

operating in digital (CDMA)

mode.

(signal strength) icon (18)

Shows the approximate

strength of the signal being

received. The more lines

displayed, the stronger the

signal. The icon changes if

the signal strength fluxuates.

It’s best when the signal is

strong, but calls can be made

when it’s weak.

5 (roam) icon (71)

Appears when you are

roaming outside your home

service area.

6 (message) icon (77)

Appears when you have new

text or voice mail messages.

The icon flashes if the new

message is urgent.

(battery) icon (16, 17)

Shows the approximate amount

of energy remaining in the

battery. Recharge the battery

before it is fully discharged.

8Character display

Displays phone numbers and

names, prompts various

actions and displays results.

SB200 04-11 prep 4/9/99, 2:21 PM10

Getting Started

Activating Your Phone

First time activation

In order to make and receive calls, you need to establish telephone

service from a service provider. Many companies provide service.

Choose a service provider that will meet your calling needs.

Self-activating your phone

Some service providers have a service feature called OTASP (Over-The-

Air Service Provisioning) which allows you to self-activate your phone

with a new service. Your phone supports this service feature. Contact

your service provider to see if this service is available in your area.

1 From the Network menu, scroll and select Activation.

2 Scroll and select which system block to activate the

service on.

A display appears prompting you for confirmation. To go back one

step, press

CLR

. To cancel activation and return to the standby

display, press

END

3 Press



to confirm.

The phone calls up a service provider. When a service provider is

contacted, a message appears and you are connected to an

operator. When activation is complete, a confirmation message

appears followed by the standby display.

If activation fails

A message appears advising you that activation failed. Push Jog Dial to

retry or press

END

to return to the standby display.

SB200 04-11 prep 4/9/99, 2:21 PM11

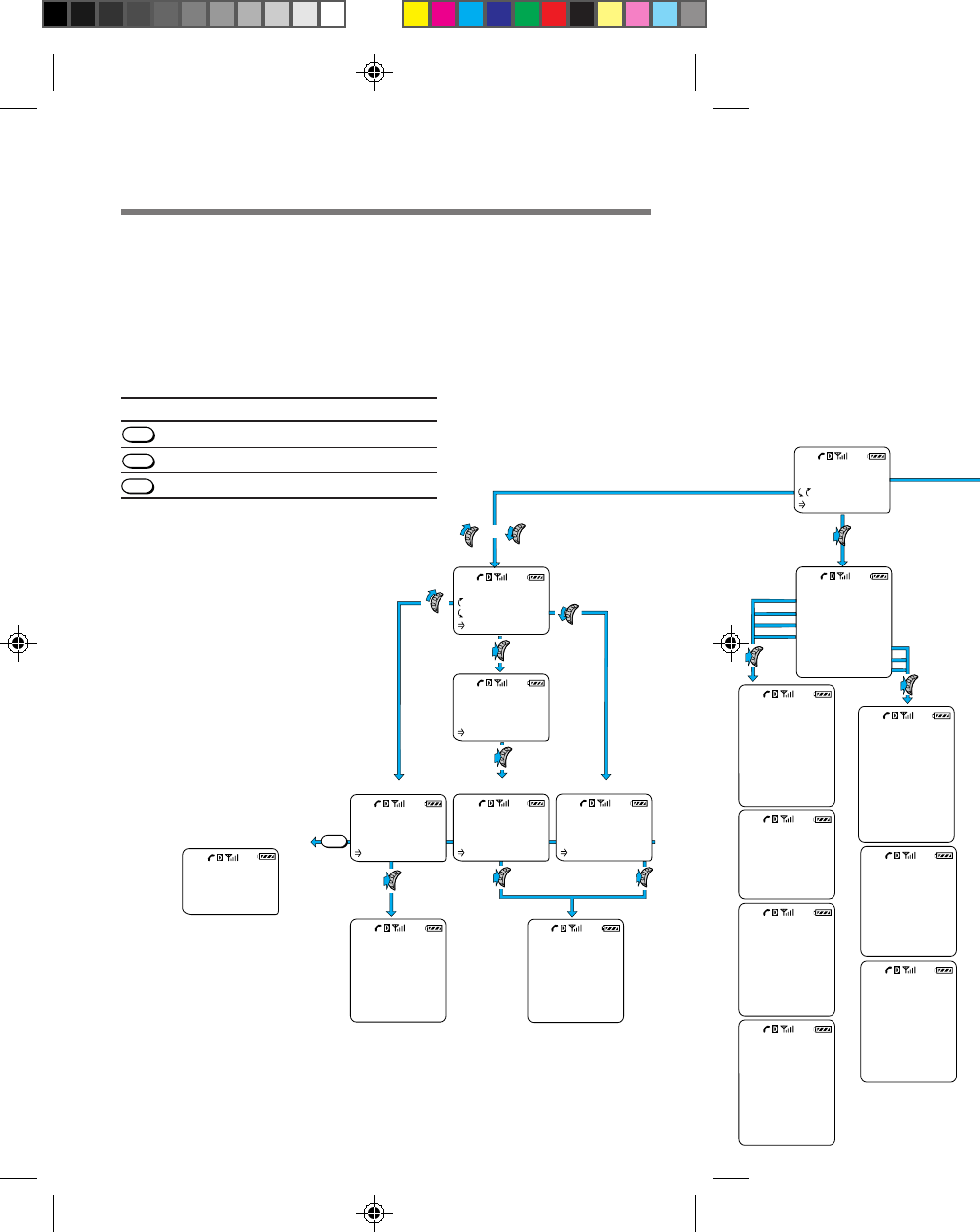

Navigating

Jog Dial navigator: scroll and select

Your Sony portable phone is easy to use thanks to the

Jog Dial navigator

The instructions in this manual will tell you to “scroll and select”. To

scroll, turn Jog Dial up or down. When the flashing arrow points to the

item you want to select, push Jog Dial in toward the phone.

Navigating keys

Key Action Destination

CLR

Press previous menu

CLR

Hold down standby display

END

Press standby display

Note

The phone automatically

returns to standby after 30

seconds of inactivity (e.g., you

haven’t scrolled, selected or

pressed any key).

IT'S A SONY!

12:34P 12/25

:Saved #s 

:Features

Standby display

OPTIONS

Send

Duration

Time/Date

View Number

Number Tone

Save

Saved #s display

SAVED #S

:Calls List

:Phone Book 

:Find Name

CALL TO

Office

555-1212 

:Options

C01

Calls List

Home



555-1234 

:Options

001

Phone Book

SEARCH FOR



(Enter Name) 

:Find



Sony



555-4321 

:Options

005

CALLING....

Office



555-1212

C01

OPTIONS

Send

Edit

Restriction

View Number

Number Tone

Erase

Phone Book

–

SEND

Features menu

FEATURES

Sounds

Timers

Directory

Extras

Security

Display

Network

SOUNDS

Ringer Vol

Mute/Unmute

Keybeep Vol

EarpieceVol

Ringer Type

Key Sound

Beep Length

Message Ring



DIRECTORY

My Number

Save

Erase

Edit

Find Name

Phone Book

Calls List

TIMERS

All Calls

RecentCalls

Roam Calls

MinuteAlert

Auto-Off



EXTRAS

Key Guard

Touch Dial

Auto-Retry

Auto-Answer

AnyKey Answ

Recv. Data

Fast 4 Dial

Scratch Pad

SECURITY

Lock Phone

New Code

Restrict #

RestrictAll

MasterReset

Erase Book

Erase Calls

Emergency #

Limit Calls

NETWORK

Set Analog

Roam Alert

Drop Alert

Priv. Alert

Auto-N.A.M.

Set N.A.M.

Set System

Force Call

DISPLAY

Banner

Backlight

Auto-Hyphen

Sort Book

Language

Menu Length

Msg Format







Call any number that's displayed



SB200 12-21 navigate 4/9/99, 2:21 PM12

Navigating

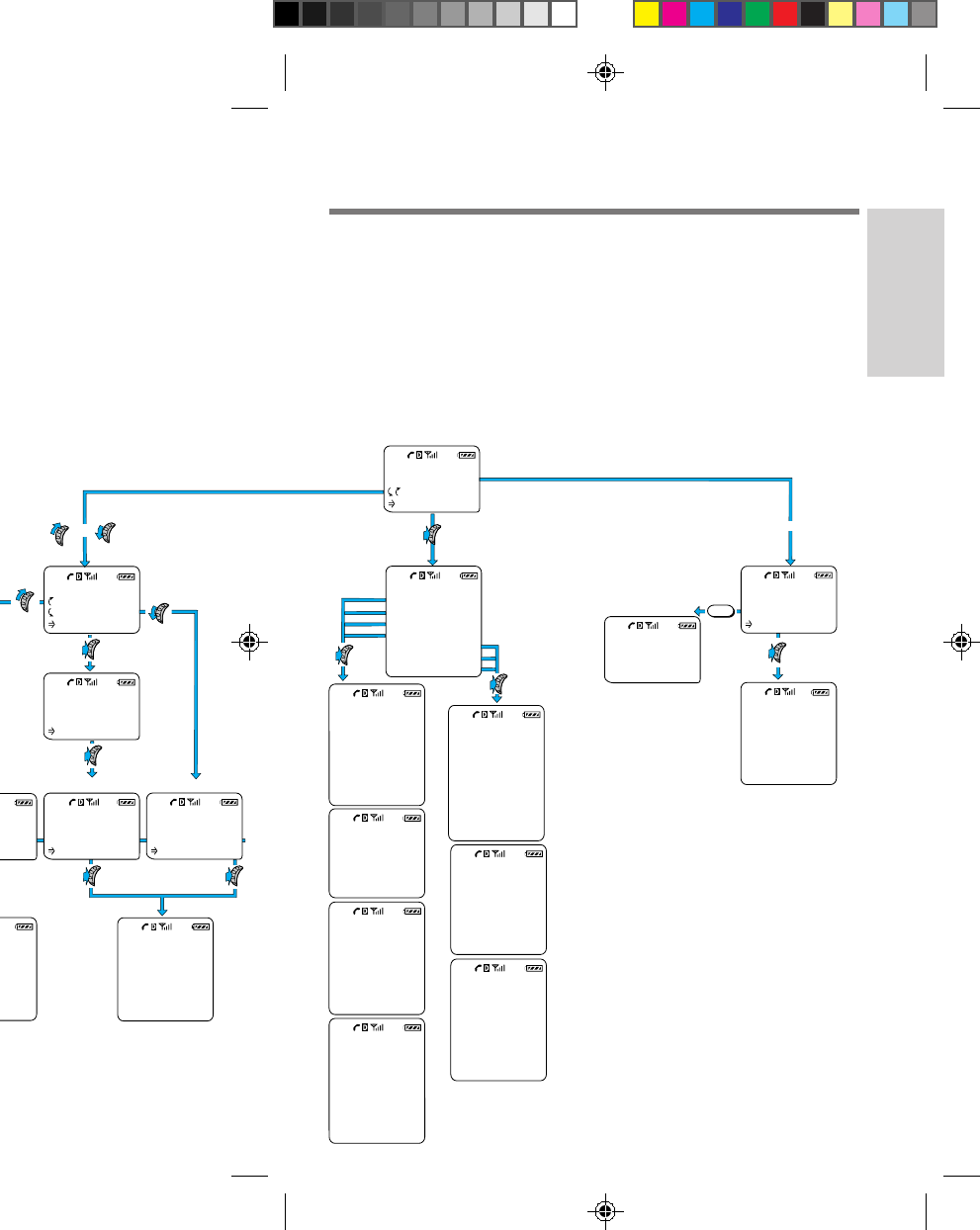

Menu Map: How do I get there?

There are three navigation routes from the standby display:

1Turn Jog Dial

in either direction to access numbers saved in memory.

2Press Jog Dial to access the Features menu.

3Enter a digits.

To see the complete list of menus, submenus and corresponding settings,

see the “Menu list” on pages 12 and 13.

IT'S A SONY!

12:34P 12/25

:Saved #s 

:Features

Standby display



e

ber

one

Saved #s display

SAVED #S

:Calls List

:Phone Book 

:Find Name

1212 

ist

Home



555-1234 

:Options

001

Phone Book

SEARCH FOR



(Enter Name) 

:Find



Sony



555-4321 

:Options

005

OPTIONS

Send

Edit

Restriction

View Number

Number Tone

Erase

Phone Book

–

OPTIONS

Send

Save

Enter Pause

Enter Link

EnterHyphen

Find Number



Options menu



555-1212 

:Options

Calling...



555-1212

SEND

Dials the number

Features menu

FEATURES

Sounds

Timers

Directory

Extras

Security

Display

Network

SOUNDS

Ringer Vol

Mute/Unmute

Keybeep Vol

EarpieceVol

Ringer Type

Key Sound

Beep Length

Message Ring



DIRECTORY

My Number

Save

Erase

Edit

Find Name

Phone Book

Calls List

TIMERS

All Calls

RecentCalls

Roam Calls

MinuteAlert

Auto-Off



EXTRAS

Key Guard

Touch Dial

Auto-Retry

Auto-Answer

AnyKey Answ

Recv. Data

Fast 4 Dial

Scratch Pad

SECURITY

Lock Phone

New Code

Restrict #

RestrictAll

MasterReset

Erase Book

Erase Calls

Emergency #

Limit Calls

NETWORK

Set Analog

Roam Alert

Drop Alert

Priv. Alert

Auto-N.A.M.

Set N.A.M.

Set System

Force Call

DISPLAY

Banner

Backlight

Auto-Hyphen

Sort Book

Language

Menu Length

Msg Format







Enter digits



SB200 12-21 navigate 4/9/99, 2:21 PM13

Features menu 1

F-1 Sounds

Features menu 2

F-2 Timers

Features menu 3

F-3 Directory

List of Menu Items

The Features menu allows you to personalize the way your phone

functions. This menu list shows the entire Features menu (a.k.a. long

menu). The Features menu includes seven categories of menus. Within

each of these menus are submenus identified by a “menu item number”

(they begin with the letter “F” (Features) followed by two digits). Menu

item numbers allow you to quickly access any menu from the Features

menu (for example, to access the earpiece volume menu press



4GHI ).

Current submenu settings are indicated by a check mark (✓) and

displayed in capital letters.

Submenu Settings Page

F11 Ringer Vol. off/low/med./high/escalate/vibrate 41

F12 Mute/UnMute mutes or unmutes the microphone 42

F13 Keybeep Vol off / low / med. / high 42

F14 Earpiece Vol 1 / 2 / 3 / 4 / 5 / 6 / 7 43

F15 Ringer Type option 1 to 5 / melody 1 to 5 43

F16 Key Sound tones / clicks 44

F17 Beep Length standard / long 44

F17 Msg Ringer on / off / +reminder 44

F21 All Calls total call time,

number of calls 45

F22 Recent Calls total call time,

number of calls 45

F23 Roam Calls total call time,

number of calls 46

F24 Minute Alert before min/each min/every 5 min/off44

F25 Auto-Off in 3 hrs / in 2 hrs / in 1 hr /

in 30 mins / never 47

F31 My Number —48

F32 Save —48

F33 Erase —50

F34 Edit —51

F35 Find Name —52

F36 Phone Book No default entries 54

F37 Calls List No default entries 55

SB200 12-21 navigate 4/9/99, 2:21 PM14

Navigating

Features menu 6

F-6 Display

Features menu 7

F-7 Network

Features menu 5

F-5 Security

Features menu 4

F-4 Extras

Sub Menu Settings Page

F41 Keyguard —56

F42 Touch Dial on / off 57

F43 Auto-Retry off / on 10 sec / on 30 sec / on 60 sec 57

F44 Auto-Answer on / off 58

F45 AnyKey Answ on / off 58

F45 Recv. Data off / fax / modem / PC Control 58

F46 Fast 4 Dial on / off 58

F47 Scratch Pad —59

F51 Lock Phone never / on power-up / right now 60

F52 New Code 0000 61

F53 Restrict # No default on restricted numbers 62

F54 Restrict All on / off 63

F55 Master Reset —64

F56 Erase Book —64

F57 Erase Calls —65

F58 Emergency # No default emergency numbers 65

F59 Limit Calls Off/ incoming/ to loc 1-9/ to loc 1-99 65

F61 Banner No default banner 66

F62 Backlight always off / for 7 secs / for 15 secs /

for 30 sec / always on 67

F63 Auto-hyphen on / off 68

F64 Sort Book by loc. # / alphabetic 68

F65 Language English/ French/ Spanish/ Port 20, 69

F66 Menu Length long / short 69

F67 Msg. Format none/ partial/ full 77

F71 Set Analog disabled / until off / automatic 70

F72 Roam Alert on / off 71

F73 Drop Alert on / off 72

F74 Priv. Alert on / off 73

F75 Auto-N.A.M. on / off 74

F76 Set-N.A.M. N.A.M. 1 / N.A.M. 2 74

F77 Activation on Blocks A thru F 75

F78 System Pref. standard / home only 76

SB200 12-21 navigate 4/9/99, 2:21 PM15

Quick Tips and Features

Here is a list of your phone’s features which simplify your calling experience.

MAKING CALLS

Calling displayed phone

numbers

Speed dialing

Touch dialing

Automatic redial

Searching for a phone

number to call

Muting the microphone

Call prefixing

Viewing long phone

numbers

Emergency numbers

• Push

SEND

to call a phone number anytime

it’s displayed on the screen.

• Your phone is able to speed dial phone

numbers stored in your Phone Book:

Enter the memory location number and

press [send].

• Your phone is able to dial at the touch of

the memory location number:

Enter the memory location number, but

keep pressure on the last digit until

connecting appears on the display.

• Need to get through to a difficult number?

Set your phone to automatically redial until

successful!

• There are several ways to search for a

phone number:

- Scroll through your entire Phone Book or

Calls List

- Quick alphabetic search

- Alphabetic search

- Number search

• Push and hold Jog Dial to quickly mute and

unmute the microphone during a call.

• Quickly add a prefix to local numbers

stored in your Phone Book. This is helpful

when you’re traveling outside your area

code.

• If a number is too long to fit on the screen,

view the overflow digits by selecting View

Number on the Options menu.

• You can call 911 and your three stored

emergency numbers even if your phone is

locked or calls are limited.

SB200 12-21 navigate 4/9/99, 2:21 PM16

Navigating

RECEIVING CALLS

AnyKey Answer

Setting your phone to

answer calls

automatically

Muting the ringer

•

You can set your phone to answer

incoming calls with any key except

PWR

• A Hands-Free Car Kit ia a handy

accessories that allows you to set your

phone to answer calls automatically on

the second ring.

• Quickly mute the ringer by turning Jog

Dial down or pressing the [end] key.

SB200 12-21 navigate 4/9/99, 2:21 PM17

PHONE FEATURES and FUNCTIONS

Navigating

Stored information

Backlight

• Quick menu access

Each menu item can be accessed quickly

from the standby display by pushing Jog

Dial, entering the menu item number, then

pressing Jog Dial again.

• Previous menu

Press [clr] to quickly go back to the

previous menu.

• Return to standby

Press [end] or hold down [clr] to quickly

return to standby.

The display automatically returns to

standby after 30 seconds of inactivity.

• Phone Book (permanent storage of

information)

Your phone can store up to 199 entries.

You can make calls from your Phone Book.

You can view your Phone Book from the

standby display or the Directory menu.

• Calls List (temporary information)

Your phone stores a list of your 10 most

recent calls.

You can make calls from your Calls List.

You can save information from your Calls

List to your Phone Book.

You can view the Calls List from the

standby display or from the Directory menu.

• DTMF signals

You can store DTMF signals in your Phone

Book and send them automatically.

• Your phone has two backlight settings: one

in charging mode and one in battery mode.

For faster charging while in charging mode,

you may want to change the setting from

always on (which is set at the factory).

• You can activate the backlight while

KeyGuard is on:

Push and hold Jog Dial.

SB200 12-21 navigate 4/9/99, 2:21 PM18

Navigating

• Turn Jog Dial up or down to quickly adjust

the earpiece volume during a call.

• Turn Jog Dial up or down to quickly adjust

the ringer volume while the phone is

ringing.

• Turn Jog Dial down or press [end] when the

phone is ringing to mute the ringer.

• Press and hold Jog Dial to mute the

microphone during a call.

• Push and hold Jog Dial to quickly lock the

keypad.

• You can lock the keypad even when the

phone itself is locked.

• The keypad unlocks when you answer a

call then relocks when the call is finished.

• Keyguard prevents the keys from

accidentally being pushed. This is

particularly helpful when you transport

your phone.

• Lock phone prevents anyone from using

your phone unless a security code is

entered. This is important not only to

ensure phone calls are made with your

permission, but also to ensure the privacy

of information contained in your phone’s

memory.

• Limit calls doesn’t lock the keys or the

phone, but allows you to limit the calls that

can be made from your phone.

Volume

Locking the keypad

Keyguard vs lock phone

vs limit calls

SB200 12-21 navigate 4/9/99, 2:21 PM19

First Things First

Selecting a language

When you receive your phone, the menus are displayed in English, but

you can change the menu language. To change the menu language,

follow the instructions below.

1 From the Features menu, scroll and select Display.

2 Scroll and select Language.

3 Scroll and select English, French, Spanish or Portuguese.

Getting your phone number

Your phone number has its own submenu; just in case you forget it.

1 From the Directory menu, scroll and select My Number.

2 Push Jog Dial to exit.

Entering information

Entering numbers: To enter numbers, just press the numbers on the

keypad.

Entering characters: You can enter characters as well as numbers using

the keypad. When prompted to enter characters, press the key that has

the character you want to enter printed on it. Continue pressing it until

the character is displayed (lower case letters follow capitals). Refer to the

alphanumeric table on the next page to see a complete list of numeric

keys and corresponding characters. Each menu language has its own

alphanumeric table. Once entered, special language characters (e.g.,

letters with accents) display regardless of the current menu language!

Moving the cursor: To enter the next character, press the corresponding

key. If it’s the same as the last, wait three seconds and the cursor will

move automatically. Or, manually move the cursor to the next space with

Jog Dial or arrow keys ( / ).

For example, to enter “SONY”:

Press



four times to enter an “S”.

Press 6MNO three times to enter an “O”.

Press 6MNO twice to enter an “N”.

Press

three times to enter a “Y”.

SB200 12-21 navigate 4/9/99, 2:21 PM20

Navigating

Key English Sequence

1-“ . ‘ , & ( ) :1

ABC

2AB Ca bc 2

DEF DE Fd ef3

GHI GH Ig hi4

JKL JK L j k l 5

MNO MN Om n o 6

PQ PQ RS pq r s7

TUV TU Vt uv8

WX WX Y Z w x y z9

OPER

Alphanumeric table

Alphanumeric tables for other languages

To view another language table, refer to the respective phone operating

instructions. Not all areas distribute the phone operating instructions in

all languages. To obtain operating instructions in another language,

contact Sony Customer Service.

Correcting and exiting

When you want to: Do this:

Change a character entered Press CLR to correct mistakes.

Cancel operation and return to standby Hold down CLR or press END .

SB200 12-21 navigate 4/9/99, 2:21 PM21

Calling Fundamentals

You can call any number up to 32 digits when you are within a service

area. If you are outside a service area, appears on the display.

There are several ways to make calls, including dialing manually,

speed dialing, touch dialing or recalling a stored number.

Basic calling

The most basic way to call any phone number is to dial it manually.

Enter a phone number on the standby display and press

SEND

The phone dials the number and the icon appears. When the

call is connected, the call timer appears.

To correct mistakes Press CLR .

To return to standby Hold down CLR or press END .

2 Press

END

to disconnect the call.

The icon disappears and the final elapsed call time flashes.

Related calling functions

Volume adjustments during a call

Earpiece: Adjust the earpiece volume during a call by simply turning

Jog Dial up to increase and down to decrease.

Speaker: To quickly mute the microphone during a call, push and

hold Jog Dial. Push and hold again to unmute.

Redialing

Last number called

From standby, press

SEND

to automatically redial the last number dialed.

Automatic redial of unsuccessful call attempts

If a phone call doesn’t go through (e.g., busy or no answer), you can

set your phone to redial automatically up to five times.

1 From the Extras menu, scroll and select Auto-Retry.

2 Scroll and select

off, on 60 secs, on 30 secs or on 10 secs.

SB200 22-28 calls 4/9/99, 2:21 PM22

Making and Receiving Calls

Limiting outbound calls (limit calls)

Limit calls is a function that allows you to control calls that can be

made from your phone. You can limit outgoing calls to specific

segments of your Phone Book, while leaving incoming calls unaffected.

Both limit calls and lock phone allow you to call 911 and your three

stored emergency numbers. This function simply limits your outgoing

calls whereas, locking your phone restricts your entire phone.

Setting Limitation

Off No limitation; calls can be made to any number.

To incoming Only calls to 911 and stored emergency numbers can

be made.

to loc 1-9 You can only call Phone Book entries 1-9, 911 and

stored emergency numbers.

to loc 1-99 You can only call Phone Book entries 1-99, 911 and

stored emergency numbers.

1 From the Security menu, scroll and select Limit Calls.

Scroll and select off, to loc 1-9, to loc 1-99 or to incoming.

Making calls when outgoing calls are limited

If you’ve chosen to limit outgoing calls, it doesn’t matter how you

attempt the call (e.g., dialing manually, from the Phone Book or Calls

List) the phone number is checked against the Phone Book (pauses and

links are ignored). If the number is not in the Phone Book or in a

limited location, an error message is displayed. The phone number is

still displayed when the standby display reappears, so you can edit it.

Changing the Phone Book when outgoing calls are limited

If you’ve chosen to limit outgoing calls, you cannot change your Phone

Book (including saving, editing or restricting).

Restricted Phone Book entries

You will still be prompted to enter the lock code for restricted Phone

Book entries whether or not your outgoing calls are limited.

SB200 22-28 calls 4/9/99, 2:21 PM23

Calling From the Phone Book

Your phone has an internal Phone Book. Once you create entries in your

Phone Book (see the Phone Book section), dial stored numbers quickly

by selecting an entry, speed dialing, touch dialing or fast 4 dialing.

Note

If the Phone Book entry includes a pause or link, push Jog Dial to release

the remaining numbers.

Selecting a Phone Book entry manually

1 From standby, scroll and

select Saved #s.

Scroll and select Phone Book.

From the Features menu,

scroll and select Directory.

Scroll and select Phone Book.

Scroll to select the Phone Book entry you want to call.

4 Push Jog Dial twice to automatically dial.

Speed dialing

There’s no need to program speed dial numbers. You just have to know the

memory location number. You can speed dial memory locations 01 to 99.

1 From standby, enter the memory location number, then

press

SEND

The Phone Book entry in that memory location appears and the

phone dials the stored number.

Touch dialing

1 From the Extras menu, scroll and select Touch Dial.

2 Scroll and select on or off.

Once Touch Dial is on, dial using just the memory location number.

1 From standby, enter the memory location number and hold

down the last digit for about two seconds.

The Phone Book entry in that memory location appears and the

phone dials the stored number.

SB200 22-28 calls 4/9/99, 2:21 PM24

Making and Receiving Calls

Fast four-digit dialing (fast 4 dial)

Fast 4 dial allows you to dial just the last four digits of a phone

number stored in your Phone Book. The last four digits of the number

you want to dial must be unique (e.g., only one phone number in your

Phone Book has those last four digits).

1 From the Extras menu, scroll and select Fast 4 Dial.

2 Scroll and select on or off.

Once you’ve turned fast 4 dial on, you can dial using this feature:

1 From standby, enter the last four digits of the phone

number you want to call, then press

SEND

The phone searches your entire Phone Book for those exact digits.

Automatic dial

If only one Phone Book entry matches, the phone automatically

dials it for you.

Error message

An error message is displayed if more than one Phone Book entry

has those four digits or no Phone Book entries match the digits.

Pauses and links

For entries with pauses or links, the four digits preceding the first

pause or link in the entry are used to match the entered digits.

Call prefixing

It’s not unusual to leave out the area code when you store “local”

numbers in your Phone Book. However, this may pose a problem

when you travel. When you’re outside your normal area code and you

want to call one of these local numbers, temporarily add the area code

(prefix) and dial it like this:

1 Scroll and select the Phone Book entry you want to call, then

push Jog Dial to display the Options menu.

2 Scroll and select Prefix.

When prompted, enter the prefix (area code).

3 Push Jog Dial to automatically dial the number.

SB200 22-28 calls 4/9/99, 2:21 PM25

Calling From the Calls List

The Calls List is a chronological history the phone keeps of your ten

most recent calls (outgoing, incoming, missed, fax calls or data calls)

and scratch pad entries. If you call the same number twice in a row,

only the most recent call is stored. Each Calls List entry includes:

• The type of entry (Call To, Call From, Missed and Added)

• Corresponding name (if the digits match a Phone Book entry)

• Digits (phone number or Scratch pad entry)

From standby mode

Turn Jog Dial once to

access the Saved #s menu.

2 Turn Jog Dial up to select

Calls List.

3 Use Jog Dial to scroll

through your Calls List.

When the entry you want to

call is displayed, press

SEND

push Jog Dial twice to call it.

From the Directory

1 Scroll and select Calls

List.

2 Use Jog Dial to scroll

through your Calls List.

When the entry you want to call

is displayed, press

SEND

or push

Jog Dial twice to call it.

Additional Calls List information

Your phone stores additional information that isn’t displayed on the

Calls List screen, including:

• Time and date of the entry

• Duration of the entry.

• Digits that don’t fit on one display line (only the last 12 digits

appear on the Calls List display).

To view additional information

1 Scroll to view a Calls List entry, then push Jog Dial to

display the Options menu.

2 Scroll and select View Number, Duration, or Time/Date.

Saving a Calls List entry to your Phone Book

Your Calls List is only temporary storage for your ten most recent call

items. When a new item is added, the oldest item is deleted. If you

want to keep a Calls List entry, save it to your Phone Book.

1 Scroll to view a Calls List entry, then push Jog Dial to

display the Options menu.

2 Scroll and select Save then follow the screen prompts.

SB200 22-28 calls 4/9/99, 2:21 PM26

Making and Receiving Calls

Incoming Calls

You can receive calls as long as the icon is not displayed. When

you receive a call, the ringer sounds and the LED flashes green with

each ring. Incoming Call flashes on your phone’s display.

Basic call answering

1 Press

SEND

to answer the call.

When the call is connected, the call timer appears.

2 Press

END

to disconnect the call.

The icon disappears and the final elapsed call time flashes for 10

seconds.

Directory

F-2

TIMERS

All Calls

RecentCalls

MinuteAlert

F21

Checking and Setting the Timers

You can check call durations on the Timers menu. You can also set the

phone to alert you every minute of a call and make the phone turn itself

off automatically.

Accessing the Timers menu

Checking the duration of all calls

You can view the total duration of all calls. This information cannot be reset.

1 Scroll and select All Calls.

2 Push Jog Dial to go back to the standby display.

Checking and resetting the duration of recent calls

You can view the total duration of your most recent calls.

1 Scroll and select Recent Calls.

2 Press



to reset, or hold down

CLR

to go back to the

standby display.

If you choose to reset, the counter of recent calls and the

corresponding durations are reset.

Checking and resetting the duration of roaming calls

You can view the total duration of your recent roaming calls.

1 Scroll and select Roam Calls.

2 Press



to reset, or hold down

CLR

to go back to the

standby display.

If you choose to reset, the counter for roaming calls and the

corresponding durations are reset.

From standby,

press Jog Dial

to access the

Features menu.

From Features,

scroll and select

Timers.

Timers menu

SB200 37-49 settings 4/9/99, 2:21 PM48

Menu Settings

Setting the minute alert

You can set the phone to sound an alert to help you monitor the length

of your calls.

1 Scroll and select Minute Alert.

2 Scroll and select

before min., each min., every 5 min. or off.

Setting the phone to turn off automatically

You can set the phone to automatically turn itself off. But, it will not turn

itself off during a call. Once the phone turns off, the setting reverts to

never.

The countdown timer

The countdown to auto-off appears on your standby display as

Off:HH:MM:SS (hours: minutes: seconds) based on the setting selected.

The timer counts down as long as the phone is idle. If you press any key

or operate Jog Dial, the timer is reset and the countdown starts over.

1 Scroll and select Auto-Off.

2 Scroll and select never, in 3 hours, in 2 hours, in 1 hour or

in 30 mins.

If you don’t want the phone to turn off automatically, select never.

SB200 37-49 settings 4/9/99, 2:21 PM49

Short Messaging Service

Your phone is capable of many functions. However, some of these

functions are dependent upon your service provider being able to

support them. Check with your service provider to see which functions

are supported in your area. One function, Short Messaging Service

(SMS), allows you receive messages and store them in your phone’s

memory.

Receiving messages

Your phone is able to receive three different types of messages

text, voicemail

and pages.

New messages are received whether your phone is on or off, but

your phone can only alert you when it’s on and within a service area.

When your phone is ON When your phone is OFF

and within a service area or outside a service area

•Message icon ( ) appears New message(s) are stored but the

•A beep sounds display does not alert you. Alerts

•LED flashes (green or red) appear when you turn the phone

on within a service area.

The notification display

Envelope icon indicates you have unread messages

2Text indicates the type of message

3Asterisks and exclamation mark indicate urgency

4Dots indicate the number is too long to fit on

one line

The message icon

The message icon ( ) will remain on the display as long as you have

unread messages.

Message beep

You can choose to have an audible sound to accompany the notification

display when you receive a new message.

1 From the Sounds menu, scroll and select MessageBeep.

2 Scroll and select on, off or +reminder.

** PAGE! **

at 11:15AM

12/25 from

123-456-7...



SB200 50-56 sms 4/9/99, 2:21 PM50

Carrier Provided

Features

The LED

The LED alerts you that new messages have been received:

When the message is LED

Non-urgent Flashes green (quickly)

Urgent Blinks red

Unread Remains lit (green or red) until the

message is read or for 15 minutes.

Clearing the message notification

To clear the notification, press Jog Dial or any key (except

PWR

Message storage capacity

Text messages and pages

A text message can be between 1 and 200 characters long. You can store

approximately 7 large messages or 22 small messages.

Voice mail messages

Unlike text messages, voice mail messages are stored remotely by your

service provider. Check with your service provider to find out the

maximum number and length of voice mail messages you can store.

If memory becomes full

When the phone issues a warning that message memory is almost full, it’s

time to erase unnecessary messages (including locked messages). If your

phone doesn’t have enough memory to receive new messages, it attempts

to free up memory by automatically erasing old unlocked messages. If it’s

unable to free up enough memory, new messages are rejected.

SB200 50-56 sms 4/9/99, 2:21 PM51

Message format

Text messages received by your phone are just strings of characters. To

make message reading easier, you can set your phone to format the text

using one of the following settings:

Setting How message is displayed How text is affected

none Exactly as received Twelve consecutive characters

are displayed on each line with

every thirteenth character

displayed on the next line

regardless of word breaks.

partial Long lines of text are If a word doesn’t fit on the

wrapped without current line, the entire word is

improper word breaks moved to the next line.

full Long lines of text are Text is read easily because it’s

wrapped. Extra spaces wrapped, but it also keeps the

and lines are removed. text as compact as possible.

1 From the Display menu, scroll and select Msg. Format.

2 Scroll and select none, partial or full.

Accessing messages

1 Press from the standby display.

The Messages display appears indicating the number of messages

found in each of the following mailboxes:

• Voice mail messages.

• Unread text messages and pagings.

• Old text messages and pagings stored in memory.

Duplicate messages

If you receive the same message more than once, only the most recent

duplicate message is stored and Duplicate is displayed next to it.

To erase a message

1 After reading a text message or listening to a voice mail

message, push Jog Dial.

2 Scroll and select Erase Msg.

To go back to the Messages display without erasing the message,

press

CLR

SB200 50-56 sms 4/9/99, 2:21 PM52

Carrier Provided

Features

Text messages

A hollow box ( ) indicates the end of the message. If you do not scroll,

the display automatically scrolls down for you. After reading your text

messages, protect or erase them.

To read new text messages

1 Scroll and select New Text.

The first message is displayed. If there are no new messages, a

display appears. Push Jog Dial to return to the Messages display.

2 Scroll through the message. To view the next message,

push Jog Dial when you reach the end of the message.

To return to the standby display, press

END

3 Scroll and select Next Msg.

The next message is displayed. If there are no more messages, the

Messages display reappears.

To read old messages

1 Scroll and select Old Text.

2 Scroll through the list. When the message you want is

displayed, push Jog Dial to read it.

3 Scroll through the message. After reading the message,

press

CLR

to return to the list of old messages.

To return to the Messages display, press . To read the next

message, push Jog Dial, then select Next Msg.

To respond to a text message

1 After reading a text message, push Jog Dial.

2 Scroll and select Send.

The phone dials the callback phone number attached to the

message. If there is no callback number attached, a message is

displayed.

To protect a text message

1 After reading a message, push Jog Dial.

2 Scroll and select Lock Msg.

The message is now locked and protected from being erased.

SB200 50-56 sms 4/9/99, 2:21 PM53

To save the callback number

1 After reading a message, push Jog Dial.

2 Scroll and select Save Number.

The phone prompts you for a name to accompany the number.

3 Use the keypad to enter the name, then push Jog Dial to

store the phone number and name.

The phone prompts you to confirm the save.

4 Push Jog Dial to store the new number in the first available

memory location.

If you want to store it in another location, scroll to the desired

location, then push Jog Dial. A confirmation message appears,

followed by the status of the Phone Book.

To erase all old text messages

1 Scroll and select Erase Old.

2 Press



to erase all old messages.

To go back to the Messages display without erasing the messages,

push Jog Dial.

Voice mail messages

1 Scroll and select Voice.

A message appears indicating the number of messages stored in

your voice mailbox. Press

CLR

to go back to the Messages display.

2 Scroll through the message.

A hollow box ( ) indicates the end of the message. After reading

your messages, protect or erase them.

To dial a callback number

1 After reading a voice mail message, push Jog Dial.

2 Scroll and select Send.

The phone dials the callback number attached to the message.

SB200 50-56 sms 4/9/99, 2:21 PM54

Carrier Provided

Features

Sending and Receiving Data

You are able to use your phone to send and receive electronic data (such

as e-mail, faxes and WWW). Your phone can be set to convert digital

signals (which are used by computers) to analog signals (which are used

in telephone communication). This function enables your phone to act as

a modem allowing it to send and receive computer communications.

However, this capability is dependent upon your service provider being

able to support it. Check with your service provider to see which of the

following electronic data functions are supported in your area.

Electronic data using your phone and a computer

To send and receive electronic data, just connect your phone to a

computer using the Sony Interface Cable (QN-012DAS) or Desktop

Charger Speakerphone (QN-023DCS). These accessories include a “Data

Communication Guide” which provides detailed information regarding

sending and receiving data. You can also download the guide from the

Sony Wireless website at www.sony.com/wireless.

Sending data

As long as your phone is connected to a computer, sending data or fax

calls from your phone doesn’t require any special settings.

Receiving data

When your phone is connected to a computer and an incoming call is

received, the Recv. Data setting tells your phone how to handle the

transmission. It’s best to turn this function off unless you are expecting

to receive data or fax calls. If you choose fax, data/modem or PC control,

your computer routes the data accordingly and normal voice calls aren’t

received. All settings except PC Control reset to off when you turn your

phone off.

1 From the Extras menu, scroll and select Recv. Data.

2Scroll and select off, fax, data/modem or PC Control.

SB200 50-56 sms 4/9/99, 2:21 PM55

Unwired planet

As discussed on the previous page, your phone can be set to act as a

modem for your computer allowing it to send and receive electronic

data. However, with unwired planet, your phone can actually bypass

the computer component as well! Just think, send and receive computer

communications such as e-mail, fax and WWW using just your phone!

Unwired planet relies on satellite signals to send and receive electronic

data directly to your phone’s display. However, unwired planet is

dependent upon your service provider supporting this capability.

Check with your provider to see if this service is available in your area.

Access to unwired planet

1 From standby, select Features.

2 Scroll and select browser.

What you’ll see

Navigating and selecting

You’ll still use Jog Dial to scroll through lists of items. However to

navigate and select data, you’ll see two choices on the bottom of the

screen. The choice in the lower lefthand corner is always OK which

selects the item indicated by the flashing arrow (=>). The second choice

in the lower righthand corner is dependent on the current operation. To

select the item indicated by the flashing arrow (=>), push and release Jog

Dial when the word OK is surrounded by brackets. To select the other

choice, hold down Jog Dial until the brackets surround the other choice.

SB200 50-56 sms 4/9/99, 2:21 PM56

Additional

Information

Troubleshooting

Problem Possible solutions Page

Nothing appears • The phone is off. Turn the phone on. 18

on the display. • Battery is fully discharged. Recharge the battery. 16

• Battery may not be completely attached. 15

Securely attach the battery.

Out-of Service • The phone is outside the service area or the 18

icon ( ) appears. signal is too weak. Extend the antenna fully.

• Check NAM settings on the Network menu. 74

If you set “Auto-NAM” to “off” and you are

using two NAM’s, the phone may be ignoring

an available service.

Nothing happens • The keys may be locked. 56

when you press • The phone may be locked. 60

the keys. Enter the lock code to unlock the phone.

The call does not • Check the signal strength. 18

go through. • If the out-of-service icon ( ) is displayed, 18

there is no service. See above.

• Check the number. 21

• Press

SEND

.21

• Listen for a busy signal. —

You hear the caller,

• The microphone may be muted. 22, 42

but the caller Unmute the microphone.

cannot hear you.

You hear the caller • Adjust the earpiece volume. If possible, 22, 43

only faintly. also reduce the noise around you.

The call is cut off • You are possibly out of the coverage area. 18

(“dropped”). Redial the number. If the problem continues,

contact your carrier. Also see “Out-of-service

icon ( ) appears” above.

You hear an • You are attempting to use the phone in an 18

alternate area without service.

high/low tone. • Extend the antenna fully. 18

• Wait for the out-of-service icon ( ) to 18

disappear, then try to dial.

You forgot the • Try 0000, 1234 (commonly used as defaults) 60

lock code. or the last four digits of your own number.

•

See your authorized dealer or service provider.

—

You hear a fast • The fast busy tone can result from any one

busy tone. of the following problems:

– The phone is improperly programmed. —

– The phone is out of range. 18

– All channels are busy. —

– The antenna is broken or damaged. 18

You cannot place • Make sure that the phone is turned on and 18

or receive calls. that out-of-service icon ( ) is not displayed.

• Check system settings. If you are roaming, 71

consult your service provider concerning

roaming agreements.

SB200 57-76 index 4/9/99, 2:22 PM57

Frequency range Transmit (MHz) Receive (MHz)

CDMA 1851.25 to 1908.75 1931.25 to 1988.75

FM 824.04 to848.97 869.04 to 893.97

Dimensions 5.4 x 1.6 x 1.0 inches (146 x 50 x 37 mm)

(h/w/d) (not including antenna)

Mass (weight) Approx. 5 oz (218 g)

(including battery)

RF power CDMA 0.01 µW to 550 mW

output

FM 6 mW to 600 mW

Operational –22°F to +140°F (–30°C to +60°C)

temperature (excluding battery)

Supplied

QN-400BPL2 Extended Life Lithium-Ion Battery (1)

accessories QN-301TA Travel Adapter (1)

Design and specifications are subject to change without notice.

Enhanced Variable Rate Codec available.

Specifications

SB200 57-76 index 4/9/99, 2:22 PM58

Additional

Information

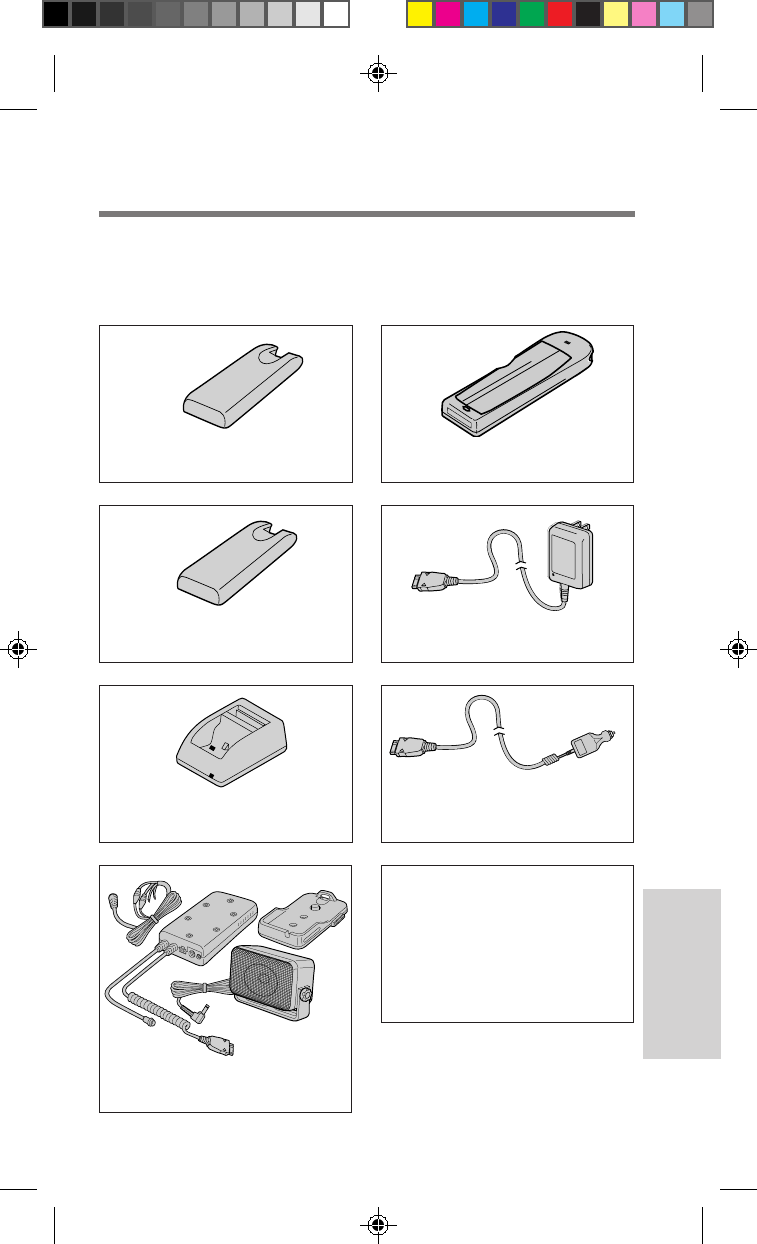

QN-403LC

Leather Case

QN-301TA

Travel Adapter

QN-301CLA

Rapid Charging

Cigarette Lighter Adapter

QN-307DA

Interface Cable

Optional Accessories

Call 1-800-447-8030 or visit our website to order additional accessories

(USA only).

QN-400BPL

Standard Li-Ion Battery

QN-400BPL2

Extended Li-Ion Battery

QN-402BCD

Dual Slot Battery Charger

QN-404HFK

Install Hands-Free Car Kit

FPO

SB200 57-76 index 4/9/99, 2:22 PM59

Rules and Regulations

The U.S. Federal Communications

Commission and the Industry

Canada regulate cellular/PCS

telephone service in their respective

countries. It is important for you,

the cellular/PCS telephone user, to

observe the applicable regulations

when operating your cellular/PCS

telephone in either country. In

addition to these U.S. and Canadian

federal regulations, you may be

bound also by certain state,

provincial, territorial, and local

rules and regulations, as well as by

your cellular/PCS carrier’s tariff

(the rates, terms, and conditions of

its service). If you wish to use your

cellular/PCS telephone in both the

U.S. and Canada, please consult

with your System Operator.

Furthermore, you should remember

that your cellular/PCS telephone is

a radiotelephone, — i.e., it combines

both wireline technology, as used in

your home or office telephone

system, and radio technology — and

that the scope of regulations and

precautions is therefore broader

than the scope of regulations and

precautions relating to wireline-

only telephone usage.

Some of the major points of

consideration are set out below.

Please note, however, that these

“Rules and Regulations” and

“Safety Precautions” sections do

not constitute legal advice, and are

intended merely for general

information purposes. If you have

specific questions, please contact

your cellular/PCS carrier (System

Operator).

License —

If your home system is

in the U.S., you do not require a

separate license to operate your

cellular/PCS telephone; obtaining a

cellular/PCS telephone access

number is sufficient to register you

as a user. If your home system is in

Canada, a separate license is

required; your carrier will assist you

in the licensing process. If you wish

to use your cellular/PCS telephone

on both sides of the border, please

contact your cellular/PCS carrier

(System Operator).

Equipment modifications — The U.S.

Federal Communications Commission

has type-approved the model of

cellular/PCS telephone which you have

purchased, and has allocated a specific

frequency range for cellular/PCS

service. No changes or adjustments are

to be made to your cellular/PCS

telephone.

The radio equipment shall be made

available for inspection upon

request by representatives of the

FCC or licensees.

Denial of service — A cellular/

PCS carrier may deny service

temporarily or terminate service for

violation of any government

regulations or violation of its tariff.

Privacy —

As a telephone user, you

have come to assume a certain

standard of privacy when you place

or receive a telephone call via the

traditional wireline systems.

However, because cellular/PCS

telephones utilize radio

transmissions to effect calls, the

same standard cannot always be

assured. While it is unlawful for any

unauthorized person to divulge or

use any information obtained from

intercepting or “listening in on”

conversations intended for others,

you should not assume that your

conversation is completely secure.

Commercially available scanning

equipment can permit a third party

to monitor the radio channels used

for cellular/PCS telephone calls.

Interference —

No person shall

interfere with, or cause interference to,

any radio communication or signal.

SB200 57-76 index 4/9/99, 2:22 PM60

Additional

Information

scientific evidence that adverse

health effects result from the use of

cellular/PCS telephones.

The Institute of Electrical and

Electronics Engineers (IEEE) in

1991, and The American National

Standards Institute (ANSI) in 1992,

updated the 1982 ANSI Standard

for safety levels with respect to

human exposure to RF energy.

Over 120 scientists, engineers, and

physicians from universities,

government health agencies, and

industry, reviewed the available

research and developed this

updated Standard. In March 1993,

the U.S. Federal Communications

Commission (FCC) proposed the

adoption of this updated Standard.

The design of your phone complies

with this updated Standard. Of

course, if you want to limit RF

exposure even further than the

updated ANSI Standard, you may

choose to control the duration of

your calls and operate your phone

in the most power efficient manner.

Efficient phone operation

For your phone to operate at the

lowest power level consistent with

satisfactory call quality, please

observe the following guidelines:

Your phone has an extendable

antenna; extend it fully whenever

possible for maximum efficiency.

Hold the phone as you would any

other telephone. While speaking

directly into the mouthpiece,

position the antenna up and over

your shoulder.

Do not hold the antenna when the

phone is in use. Holding the

antenna affects call quality and

may cause the phone to operate at

a higher power level than needed.

Safety Precautions

IMPORTANT

For safe and efficient

operation of your phone,

observe these guidelines.

Your dual band (analog/digital

CDMA) hand-held portable cellular/

PCS telephone uses both analog

frequency modulation (FM)

technology and digital Code Division

Multiple Access (CDMA) technology.

CDMA is a newer radio frequency

(RF) technology than the FM

technology that has been used for

radio communications for decades.

Your dual band portable cellular/

PCS telephone is a radio

transmitter and receiver. When the

phone is ON, it receives and sends

out radio frequency (RF) energy.

The phone operates in the

frequency range of 800 MHz in

analog mode and 1.9 GHz in digital

CDMA mode. When you use your

phone, the cellular/PCS system

handling your call controls the

mode of operation (analog or

digital CDMA) and the power level

at which your phone transmits. In

the analog mode, the power is

continuously transmitted at a level

that can range from about 6 mW to

about 600 mW. In the digital

CDMA mode, the power is

transmitted as a digitally coded

waveform at a rate varying from

100 Hz to 800 Hz. The average

power can range from about 0.01

µW to about 300 mW.

Exposure to radio

frequency energy

Research on health effects from RF

energy has focused for many years

on FM radio technology. That

research and studies regarding

newer radio technologies, such as

CDMA, have found no credible

SB200 57-76 index 4/9/99, 2:22 PM61

Heat and sunlight exposure

Avoid leaving your cellular/PCS

phone exposed to direct sunlight or

extreme heat. Extended exposure

to heat and sunlight may damage

the components of your cellular/

PCS phone.

Antenna care and

replacement

Do not use the phone with a

damaged antenna. If a damaged

antenna comes into contact with the

skin, a minor burn may result.

Replace a damaged antenna

immediately. Take your phone to an

authorized service center for repair.

Use only the supplied or approved

antenna. Unauthorized antennas,

modifications, or attachments

could impair call quality, damage

the phone, and violate FCC

regulations.

Driving

Check the laws and regulations on

the use of cellular/PCS telephones

in the areas where you drive.

Always obey them. Also, when

using your phone while driving,

please:

• pay full attention to driving;

• use hands-free operation, if

available;

• pull off the road and park

before making or answering a

call, if driving conditions so

require.

Electronic devices

Most modern electronic equipment

is shielded from RF energy.

However, RF energy from cellular/

PCS telephones may affect some

electronic equipment.

RF energy may affect improperly

installed or inadequately shielded

electronic operating and

entertainment systems in motor

vehicles. Check with the

manufacturer or its representative

to determine if these systems are

adequately shielded from external

RF energy. You should also check

with the manufacturer of any

equipment that has been added to

your vehicle.

Medical devices

Consult the manufacturer of any

personal medical devices (such as

pacemakers, hearing aids, etc.) to

determine if they are adequately

shielded from external RF energy.

Your physician may be able to

assist you in obtaining this

information.

Turn your phone OFF in health

care facilities when regulations

posted in the areas instruct you to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

Aircraft

Turn your phone OFF before

boarding any aircraft.

• Use it on the ground only with

crew permission.

• Do not use in the air.

To prevent possible interference

with aircraft systems, U.S. Federal

Aviation Administration (FAA)

regulations require you to have

permission from a crew member to

use your phone while the plane is

on the ground. To prevent

interference with aircraft

communication systems, FCC

regulations prohibit using your

phone while the plane is in the air.

SB200 57-76 index 4/9/99, 2:22 PM62

Additional

Information

In the United States, vehicles using

liquefied petroleum gas (such as

propane or butane) must comply

with the National Fire Protection

Standard (NFPA-58). For a copy of

this standard, contact the National

Fire Protection Association, One

Batterymarch Park, Quincy, MA

02269, Attn: Publication Sales

Division.

In Canada, vehicles using liquefied

petroleum gas (such as propane or

butane) must comply with the

Canadian Gas Association (CAN/

CGS-B149.2). For a copy of this

standard, contact the Canadian

Standards Association, 178 Rexdale

Blvd., Etobicoke, ON M9W 1R3,

Attn.: Standard Sales Department.

Children

Do not allow children to play with

your phone. It is not a toy.

Children could hurt themselves or

others (by poking themselves or

others in the eye with the antenna,

for example). Children also could

damage the phone or make calls

that increase your telephone bill.

Blasting areas

To avoid interfering with blasting

operations, turn your unit OFF

when in a “blasting area” or in

areas posted: “Turn off two-way

radio.” Construction crews often

use remote control RF devices to

set off explosives.

Potentially explosive

atmospheres

Turn your phone OFF when in any

area with a potentially explosive

atmosphere. It is rare, but your

phone or its accessories could

generate sparks. Sparks in such

areas could cause an explosion or

fire resulting in bodily injury or

even death.

Areas with a potentially explosive

atmosphere are often, but not

always, clearly marked. They

include fueling areas such as gas

stations; below deck on boats; fuel

or chemical transfer or storage

facilities; areas where the air

contains chemicals or particles,

such as grain, dust or metal

powders; and any other area where

you would normally be advised to

turn off your vehicle’s engine.

Do not transport or store

flammable gas, liquid or explosives

in the compartment of your vehicle

which contains your phone or

accessories.

SB200 57-76 index 4/9/99, 2:22 PM63

Glossary

Alphanumeric table

Allows you to enter characters on

your phone’s display.

AnyKey Answer

Allows you to answer your

incoming calls with any key except

power.

Autohyphenation

Automatically hyphens the phone

number as you enter the digits.

Backlight

The light that illuminates the

display on your phone.

Banner

Message at the top of the standby

display.

Calls List

A list of your 10 most recent calls.

Carrier

A company that provides cellular

and PCS telephone service.

CDMA

Code Division Multiple Access. A

spread-spectrum approach to

digital transmission. With CDMA,

each conversation is digitized and

then tagged with a code. The

mobile phone receives only the

signal with the appropriate code.

Coverage area

The geographic area covered by one

carrier. If you travel outside a carrier’s

area, you cannot receive service from

that carrier. Also see “Roam”.

Dropped call

A call terminated because of a

deep, long fade or because the user

left the coverage area.

DTMF

Dual Tone Multiple Frequency,

also known as “touch-tone”. Tone

generated when you press a

telephone key (number, * or #).

Can be used to access answering

machines, pagers, telephone

banking services, data services and

other electronic services.

ESN

Electronic Serial Number. The

unique identification number of

your telephone. The telephone

transmits this number to the base

station every time a call is placed.

Home area

The area of the home system to

which you subscribe.

Keyguard

A feature that allows you to lock

the phone’s keypad for low level

security.

Lock Phone

Protects your phone from

accidental key presses or

unauthorized access to your phone.

Minute Alert

A feature that helps you keep track

of the time you spend on the

phone, by beeping every 10

seconds before the minute.

NAM

Number Assignment Module.

Portion of your telephone’s memory

programmed to contain information

about your subscription to the

carrier. Your telephone can have up

to two NAM’s.

SB200 57-76 index 4/9/99, 2:22 PM64

Additional

Information

Roam

Your phone is roaming when you

use it outside of the home area.

Availability of roaming access to a

different carrier and types of calls

you can make varies with the

agreement between your home

carrier and serving carrier. Check

with your carrier for details about

roaming in a specific area.

Scratch pad

Allows you to enter a number and

store it in the Calls List.

Service area

Region covered by a cellular/PCS

service. Also see “Coverage area”.

SMS

Short Messaging Service. An

extended service offered by carriers

that allows you to receive text

messages on your phone. Check

with your carrier for details.

Speed dialing

Making a call using Phone Book

memory locations.

Touch dialing

A quick way of making a call using

a number stored in a Phone Book

memory location.

Voice mail

An extended service, offered by

carriers, that allows you to retrieve

voice mail messages stored in your

voice mailbox. Check with your

carrier for details.

NAM, automatic

Feature that automatically selects

an available NAM that matches the

current serving system (carrier).

NAM, multiple registration

Registering your phone in more

than one carrier. A cheaper

alternative to roaming. If you travel

frequently to a specific area,

registering the local carrier in your

phone’s NAM’s may be an

economical alternative to roaming

and long distance charges.

OTASP

Allows you to self-activate with

new service. Check with your

service provider for details.

Pause

You can insert a Time Pause or

Hard Pause in the phone number

memory data. A pause causes the

phone to wait (either for a specified

time or until manually released)

before sending a second string of

digits, ensuring your counterpart

(e.g., answering machine, voice mail

system, electronic banking system,

etc.) is ready to accept the string.

Pauses and links

Phone Book

You can store up to 99 numbers in

Phone Book memory, location

number 01 to number 99.

Prefixing

To add an area code to an existing

number in the Phone Book.

Redial

Set your phone to automatically

redial when the first attempt

doesn’t go through (e.g., no answer

or busy signal).

SB200 57-76 index 4/9/99, 2:22 PM65

Index

AC adapter 10, 16

Accessories, optional 54

Adjusting volume

Earpiece 18

Ringer 21

Alerts

Analog roam 41

Drop 42

Minute 47

Privacy 42

Alphanumeric table 16

Antenna 7, 10

Any Key Answer.see Functions

Automatic

Answer 58

Hyphenation 68

Power off 47

Redial 57

Retry 57

Backlight 67

Banner 66

Battery

Attaching/removing 8

Charge contacts 16

Charging 8

Checking 9

Duration 9

Icon 16, 17

Release tab 7

Caller ID 23

Calls, duration 46

Calls, making

Basic 18

From your Calls List 36, 55

From your Phone Book 19

Limiting

Prefixing 22

Recent number 36

Redialing 22, 57

Restricting 30, 62, 63

Roaming 71

Speed dialing 32

Touch dialing 32, 57

Calls, in progress

Dropped call 72

Ending calls 21, 23

Calls, missed 24

Calls, receiving 21

Carrier 71

CDMA (Code Division

Multiple Access) 5

Character display 11

Clearing. See Deleting

Connector 7

Coverage area 71

Cursor 25, 49

SB200 57-76 index 4/9/99, 2:22 PM66

Additional

Information

Dialing. See Calls

Default settings, reverting 39

Deleting

Calls List entries 65

Characters 29, 50

Message 83

Phone Book entries 29, 50

Phone Book, entire 31

Text messages 23

Voice mail 84

Digital icon 14

Display 11

Display settings

Accessing 39

Autohyphenation 68

Backlight 67

Banner 66

Time 45

Displaying overflow digits 23

Displays

Calling 21

Features menu 39

Hyphens/pauses/links 27

Menu setting 69

Security 60

Standby 18

Dropped call 41

DTMF (Dual Tone Multiple

Frequency)

Attached to pauses and

links 27

Sending manually 27

Earpiece 22, 43

Editing

Emergency numbers 65

Phone Book entries 28, 51

Emergency numbers 39

Enabling

Lock 56

Touch dialing 57

Ending a call 21, 23

Entering

Digits and letters 23

Hyphens 27

Links 27

Pauses 27

Erasing. See Deleting

ESN (Electronic Serial

Number) 90

Finding. See Searching

Functions

Any Key Answer 23

Autohyphenation 23

Auto Redial 23

Limit calls 23

Prefixing 23

Touch dial 23

Home Only 76

Hyphens

Autohyphenation 68

Entering manually 27

SB200 57-76 index 4/9/99, 2:22 PM67

Incoming call 23

Icon

Battery 11

Digital 11

In-use 10, 11, 21, 23

Message 11

Roam 11

Out-of service 10, 11

Signal strength 10, 11

Jog Dial 19

Key, arrow/* 7

Key, arrow/# 7

Key, clear 7

Key, end 7

Key, message 7

Key, number 7

Key, power 7

Key, send 7

Keybeep

Length 35

Type 35

Volume 22

Keyguard 56

Keypad lock icon 56

Language selection 20

Laws

Rules and regulations 3

Limit calls 20

Link 27

List of menu items 15

Lock code 39

Locking the keypad 44

Locking your phone 38

Making calls 21

answer manually 23

call 21

Hyphenation 27

Redial 22

Memory

Deleting 29, 50

Editing 28, 51

Number searching 33, 52, 53

Storing 25, 48

Display 36

Extras xx

Network 40

Security xx

Timers 46

Volume xx

Menu items 15

Menu language 20

Menu Map 14

Menus access 39

Message key 78

Message icon 77

Messages

Access 49

Format 49

Full memory 48

Message list 79

Receiving 48

Storage capacity 48

Messages, text

Displaying new 50

Displaying old 50

Erasing 51

Locking 51

Responding 50

Saving the callback 51

Messages, voice mail

Dialing callback 49

Displaying 48

Erasing 49

Locking 80

Receiving 48

Microphone 7, 22, 42

Minute alert 46

Multiple city registration 91

Muting the microphone 22, 42

Muting the ringer 23, 41

SB200 57-76 index 4/9/99, 2:22 PM68

Additional

Information

NAM (Number Assignment

Module), switching

Automatically 70, 74

Manually 42

Number keys 21, 25

Out-of-service icon 18, 21, 23, 71

Over-the-Air Service

Provisioning (OTASP) 7

Overflow digits 37

Pause 27

Phone Book 25, 31, 33, 48

Calling 21

Deleting 29

Limiting calls 22

Restricting/unrestricting 32

Phone number, yours 17

Power

Turning off 10, 18, 47

Turning on 10, 18

Prefixing 22

Privacy alert 42

Quitting. See Power

Receiving

Calls 23

text messages 77

Voice mail 83

Recent number memory

Calling recent numbers 36

Clearing call memory 64

Redialing

Auto-retry 57

Last dialed number 18

Restriction 30, 62, 63

Reverting to default settings 11

Ringer

Speaker 7, 12, 13

Type 35

Volume 41

Roam

Alert 41

Analog 41

Roam icon 71

Roaming agreement 71

Rules and regulations 55

SB200 57-76 index 4/9/99, 2:22 PM69

Safety precautions 55

Saving

Emergency numbers 39

To the Phone Book 25

Scratch pad 59

Scrolling

Menus 19

Message 79, 80

Message list 80

Searching

Alphabetically 28

By memory location 29

For a message 80

For a name 52

For a phone number 33-35

Security code. See Security

functions

Security functions

Accessing 60

Clearing call memory 64

Emergency numbers 65

Lock phone 60

New lock code 61

Restriction 62, 63

Sending. See Calling

Service area 71

Settings

Display xx

Extras 44

Menu length 37

Network 40

Phone’s mode 40

Timers 47

Security 38

Volume 38

Signal strength icon 18

SMS (Short Messaging

Service) 48

Message format 77

Sorting the Phone Book 37

Special characters 20

Special features

Accessing 56

Changing DTMF

transmission 44

Enabling touch dialing 57

Muting the microphone 42, 22

Muting the ringer 23, 41

Setting auto-answer 58

Setting auto-retry 58

Using the scratch pad 59

Specifications 53

Standby display 18

Storing. see Saving.

System preference 76

System settings

Accessing 70

Analog 70

Over-the-Air Service

Provisioning

(OTASP) 75

Selecting NAM’s

Auto-NAM 74

Manual NAM 74

Text Message. See Messages

Touch dialing

Enabling 57

Troubleshooting 52

Turning phone on 18

Unlocking your phone 38

Viewing additional info 24

Voice mail notification

Accessing 84

Receiving 84

Voice Privacy 73

Volume, setting and adjusting

Earpiece 41

Keybeep 34

Ringer 71

SB200 57-76 index 4/9/99, 2:22 PM70

Additional

Information

LIMITED WARRANTY

SONY ELECTRONICS INC. (“SONY”) warrants this Product and its accessories against defects in

material or workmanship as follows:

1. PRODUCTS: For a period of one (1) year from the date of purchase, SONY will, at its

option, either pay the parts and labor charges to any SONY authorized Cellular/PCS telephone

service facility to repair or replace the defective Product (with new or rebuilt replacements).

After this one (1) year period, you must pay all parts, shipping, and labor charges.

2. ACCESSORIES: For a period of one (1) year from the date of purchase, SONY will, at its

option, either pay the parts and labor charges to any SONY authorized Cellular/PCS telephone

service facility to repair or replace defective accessories (i.e.; cables, casings, straps, batteries,

etc.) with new or rebuilt replacements. After this one (1) year period, you must pay all parts,

shipping, and labor charges. This warranty is not valid for any battery if (i) it has been charged

by other than a SONY approved battery charger specified for the charging of the battery, (ii) any

of the seals on the battery are broken or show evidence of tampering, or (iii) the battery has

been used in equipment other than the Cellular/PCS telephone product for which it is specified.

3. REPAIRS:

For a period equal to the remainder of the original limited warranty period on the

original Product or accessory, or for 90 days after the date of repair/replacement, whichever is longer,

SONY will repair or replace (with new or rebuilt replacements) defective parts, accessories and/or

Products used in the repair or replacement of Products or accessories under this Limited Warranty.

To obtain warranty service, contact SONY WIRELESS HOTLINE or your local service provider.

This warranty does not cover customer education, instruction, installation, set up adjustments,

or signal reception problems.

This warranty does not cover cost of removal or reinstallation, cosmetic damage or damage due

to acts of God, accident, misuse, abuse, negligence, or modification of, or to any part of the

Product, including the antenna. This warranty does not cover lost profits, lost sales, loss of use

of the Product, or other consequential loss (e.g., airtime charges during the malfunction of the

Product or accessory), damage due to improper operation or maintenance, installation, connection

to improper voltage supply or attempted repair of the Product or accessories by anyone other

than a facility authorized by SONY. This warranty does not cover Products sold AS IS or WITH

ALL FAULTS, or consumables (such as fuses). This warranty does not apply when the malfunction

results from use of the Product in conjunction with accessories, products or ancillary or peripheral

equipment not manufactured by SONY, and where it is determined by SONY that there is no

fault with the Product itself.

This warranty is valid only in the United States.

Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that the unit

is within the warranty period must be presented to obtain warranty service.

This warranty is invalid if the factory-applied serial number has been altered or removed from

the Product or accessory.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY

OF THE CONSUMER. SONY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT OR

ACCESSORY. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT

OR ACCSSSORY IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or

allow limitations on how long an implied warranty lasts, so the above limitations or exclusions

may not apply to you. This warranty gives you specific legal rights, and you may have other

rights which vary from state to state.

FOR FREQUENTLY CALLED TELEPHONE NUMBERS, PLEASE SEE REVERSE SIDE.

CELLULAR/PCS TELEPHONE

CELLULAR/PCS TELEPHONE ACCESSORIES

SB200 57-76 index 4/9/99, 2:22 PM71

For your convenience, SONY ELECTRONICS INC. has established

telephone numbers for product information regarding

CELLULAR/PCS telephones.

Please call:

SONY WIRELESS HOTLINE

1-800-578-SONY (7669)

or write to:

SONY Customer Information Center

One Sony Drive

Park Ridge, New Jersey 07656-8003

For an accessory or part not available from your authorized dealer,

call:

1-800-488-SONY (7669)

1-816-891-2553

FOR WARRANTY INFORMATION ON YOUR PURCHASE,

PLEASE SEE REVERSE SIDE.

SB200 57-76 index 4/9/99, 2:22 PM72

Additional

Information

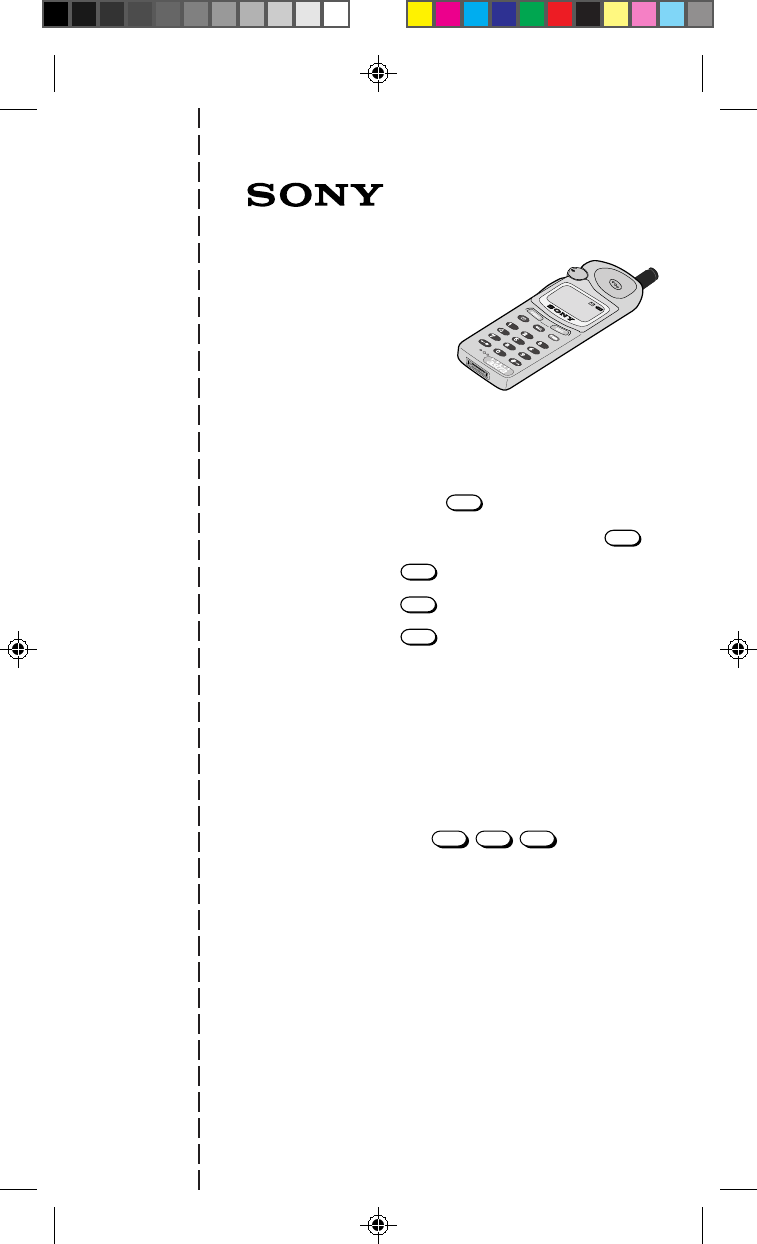

From Short Features menu

Scroll / select

Lock Phone

2 Enter lock code

3 Scroll / select setting

3-xxx-xxx-xx

80-xxxxx-x

The Basics

ON/OFF Hold down

PWR

for one second

Call Enter a phone number then press

SEND

Answer Press

SEND

Disconnect Press

END

Redial Press

SEND

Volume Adjustments

Ringer While it’s ringing, turn Jog Dial

Earpiece During a call, turn Jog Dial

Mute/Unmute

During a call, press and hold Jog Dial

Quick

Reference

Card

CM-SB200

Security

Keypad Lock Hold down Jog Dial

(from standby mode)

Keypad Unlock Press 1 ABC

2 3DEF

Locking the phone

(settings: never, right now or on power up)

From Long Features menu

1 Scroll / select Security

2 Enter lock code

3 Select Lock Phone

4 Scroll / select setting

Setting a New Lock Code (from Long Features menu)

1 Scroll / select Security; enter current lock code

2 Scroll / select New Code

3 Enter new lock code; push Jog Dial

Sony Electronics Inc. 1999 Printed in USA

SB200 57-76 index 4/9/99, 2:22 PM73

Memory

Phone Book

Storing 1 Enter a phone number, then push

2 Scroll & select Save

3 Enter a name, then push twice

Calling

Touch Dial Enter the memory location # and

hold down the last digit

Speed Dial

Enter the memory location #, press

SEND

Fast 4 Dial

Enter the last 4 digits of an entry, press

SEND

Manually

Scroll/select an entry, then push twice

Searching

Quick Press the key that corresponds with the

Alphabetic first letter of the name you want to find

Find Name 1

Turn

–

down to access the phone book

2 Push to select Find Name

3 Enter a name, then push

Calls List

Calling 1

Turn

up twice to access the Calls List

Scroll/select an entry, then push twice

Saving 1

Scroll & select an entry, then push

2 Scroll & select Save

3 Enter a name, then push twice

Short Menu

1 Select Features

Scroll & select

My Number

Miscellaneous

Outbound call restriction

(settings: off, to loc 99, to loc 199)

1 Push to access the Features menu

Scroll & select Security; enter lock code

3 Scroll & select Limit Calls

4 Scroll & select setting

What’s my phone number?

Long Menu

1 Select Features

2 Scroll & select Directory

3 Scroll & select My Number.

Push Jog Dial in Turn Jog Dial down

–

Turn Jog Dial up

SB200 57-76 index 4/9/99, 2:22 PM74

Additional

Information

SB200 57-76 index 4/9/99, 2:22 PM75

SONY Wireless Hotline Number (USA only)

If you have any questions or comments, please call:

SONY WIRELESS HOTLINE

1-800-578-SONY (7669)

Visit our website at www.sony.com/wireless

to register your product online and

find out about additional Sony technology

Printed in USA

SB200 57-76 index 4/9/99, 2:22 PM76

Sony Electronics CMSB200 Dual-Band (Analog/PCS) Phone (AMPS/CDMA) User Manual

Sony Electronics Inc Dual-Band (Analog/PCS) Phone (AMPS/CDMA) Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
