Sony Electronics CMZ200DM2 DUAL MODE PORTABLE CELLULAR PHONE (AMPS/CDMA) User Manual

Sony Electronics Inc DUAL MODE PORTABLE CELLULAR PHONE (AMPS/CDMA) Users Manual

Users Manual

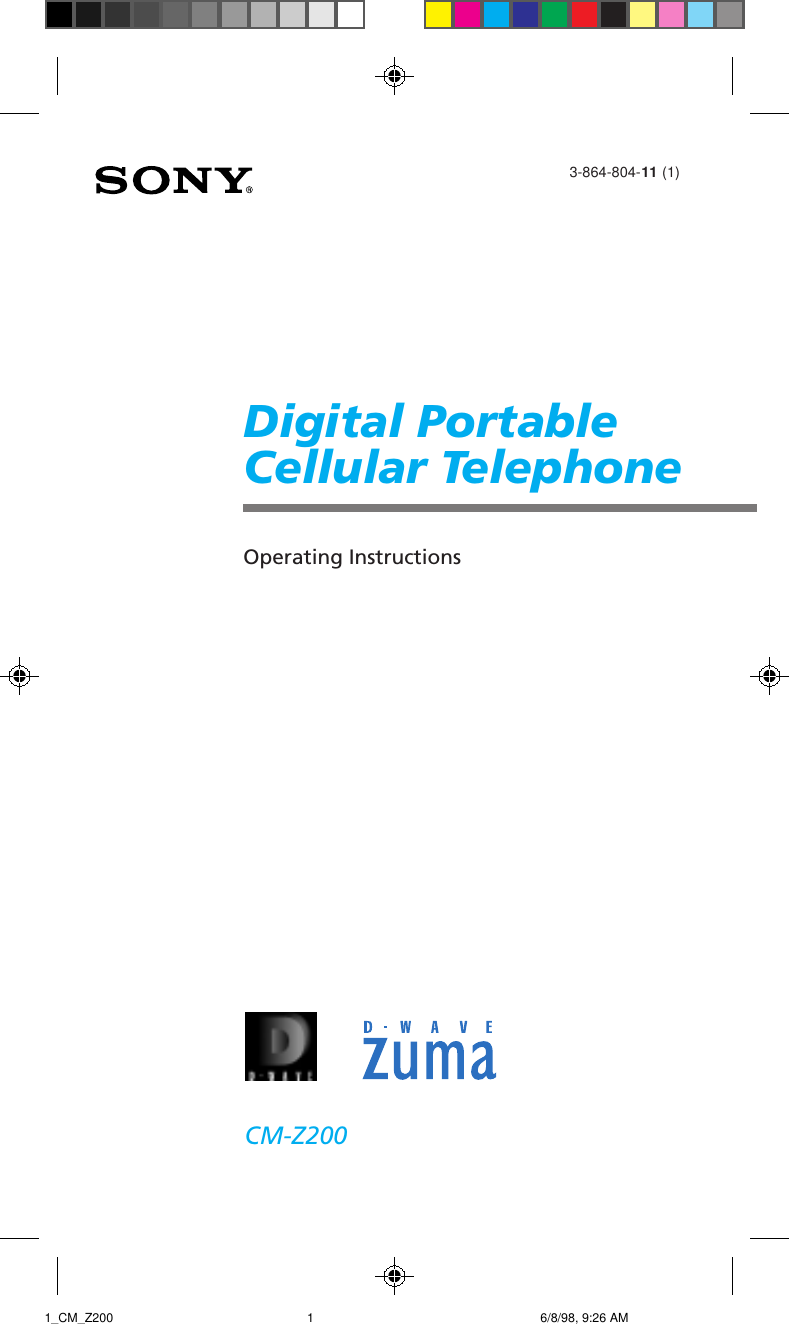

Operating InstructionsDigital PortableCellular Telephone3-864-804-11 (1)CM-Z2001_CM_Z200 6/8/98, 9:26 AM1

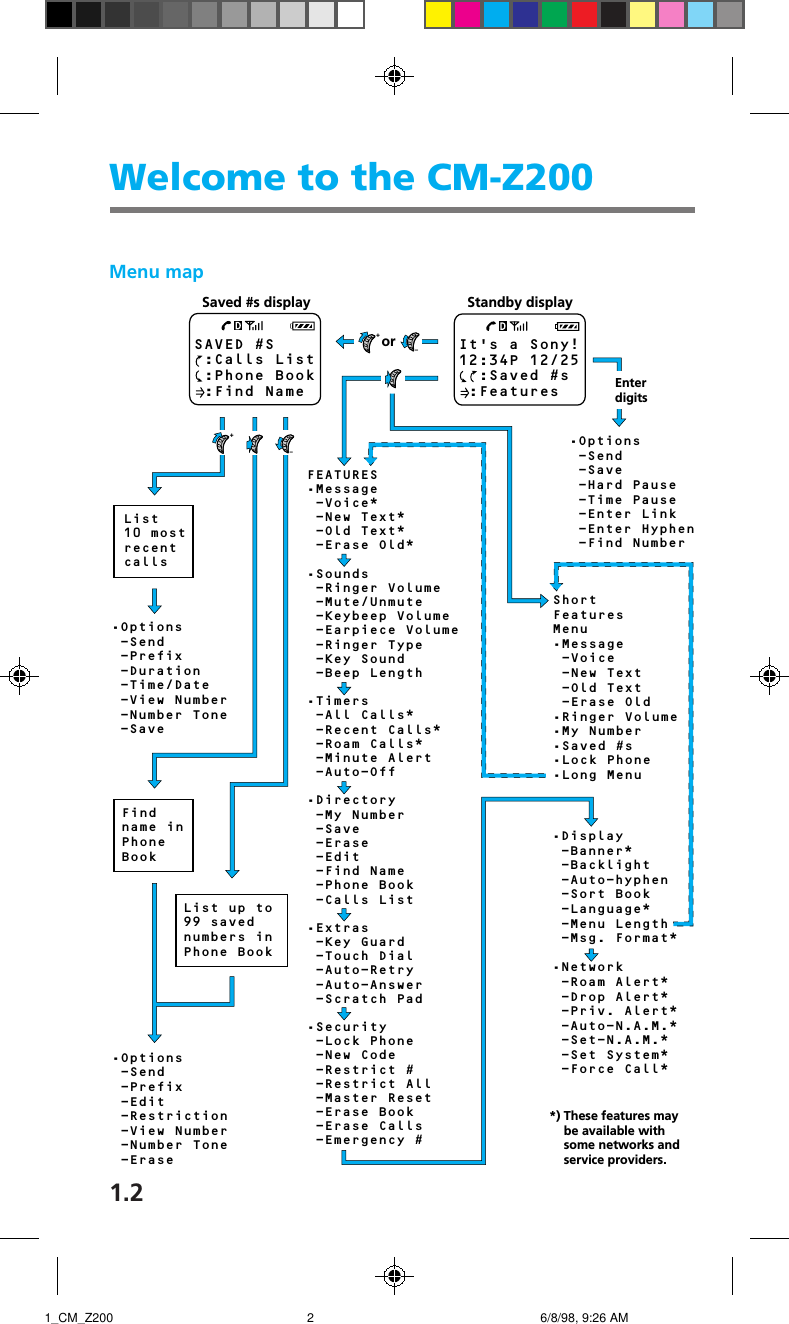

1.2FEATURES•Message -Voice* -New Text* -Old Text* -Erase Old*•Sounds -Ringer Volume -Mute/Unmute -Keybeep Volume -Earpiece Volume -Ringer Type -Key Sound -Beep Length•Timers -All Calls* -Recent Calls* -Roam Calls* -Minute Alert -Auto-Off•Directory -My Number -Save -Erase -Edit -Find Name -Phone Book -Calls List•Extras -Key Guard -Touch Dial -Auto-Retry -Auto-Answer -Scratch Pad•Security -Lock Phone -New Code -Restrict # -Restrict All -Master Reset -Erase Book -Erase Calls -Emergency #•Options -Send -Prefix -Duration -Time/Date -View Number -Number Tone -Save•Options -Send -Prefix -Edit -Restriction -View Number -Number Tone -EraseIt's a Sony!12:34P 12/25 :Saved #s :Features EnterdigitsStandby displaySaved #s display•Options -Send -Save -Hard Pause -Time Pause -Enter Link -Enter Hyphen -Find NumberShortFeaturesMenu•Message -Voice -New Text -Old Text -Erase Old•Ringer Volume•My Number•Saved #s•Lock Phone•Long MenuSAVED #S :Calls List :Phone Book :Find NameFindname inPhoneBookList 10 mostrecentcallsList up to99 saved numbers inPhone Book++––•Display -Banner* -Backlight -Auto-hyphen -Sort Book -Language* -Menu Length -Msg. Format*•Network -Roam Alert* -Drop Alert* -Priv. Alert* -Auto-N.A.M.* -Set-N.A.M.* -Set System* -Force Call*or*) These features maybe available withsome networks andservice providers.Welcome to the CM-Z200Menu map1_CM_Z200 6/8/98, 9:26 AM2

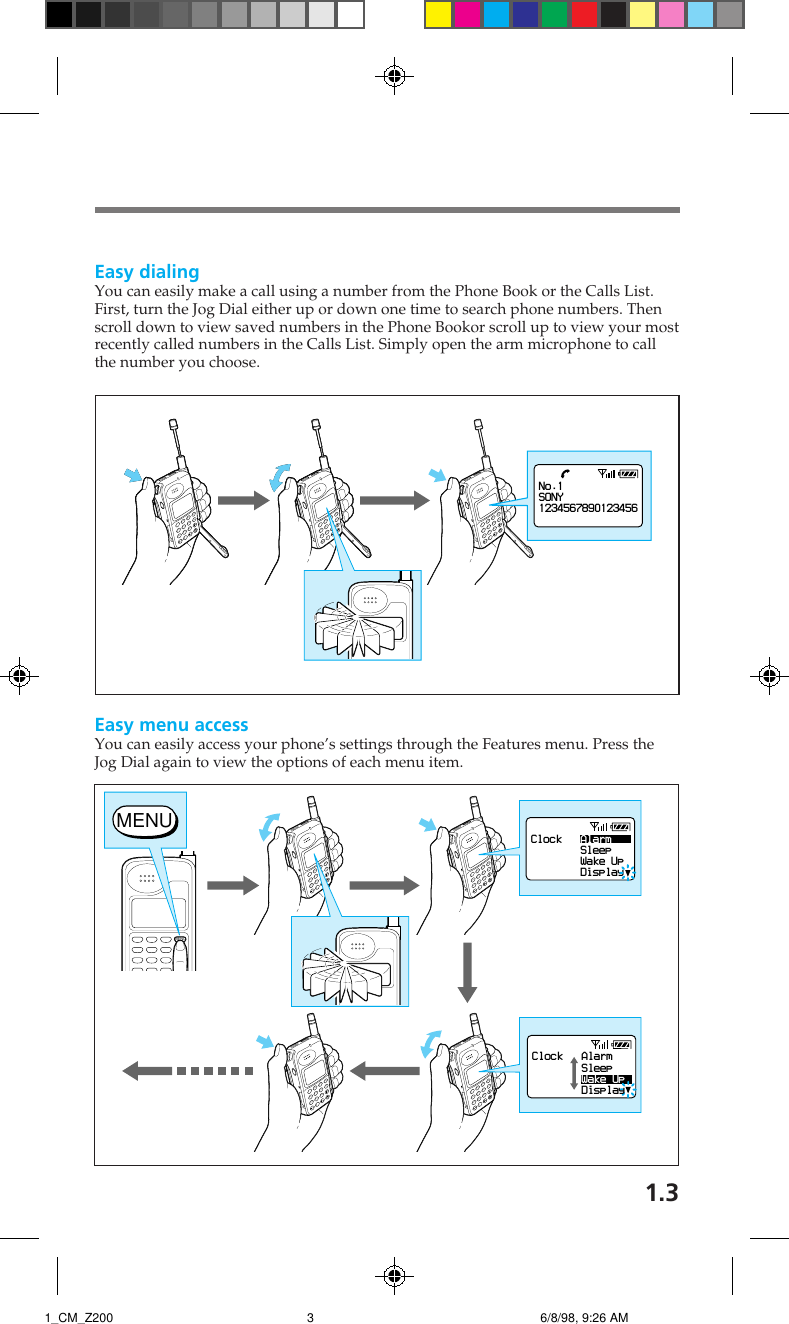

1.3Easy dialingYou can easily make a call using a number from the Phone Book or the Calls List.First, turn the Jog Dial either up or down one time to search phone numbers. Thenscroll down to view saved numbers in the Phone Bookor scroll up to view your mostrecently called numbers in the Calls List. Simply open the arm microphone to callthe number you choose.Easy menu accessYou can easily access your phone’s settings through the Features menu. Press theJog Dial again to view the options of each menu item.210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLR210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLR210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLR210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLR210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLRNo.1SONY1234567890123456210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLR210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLR210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLR210ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEFMENUCLRMENUMENUClock Alarm Sleep Wake Up DisplayClock Alarm Sleep Wake Up Display1_CM_Z200 6/8/98, 9:26 AM3

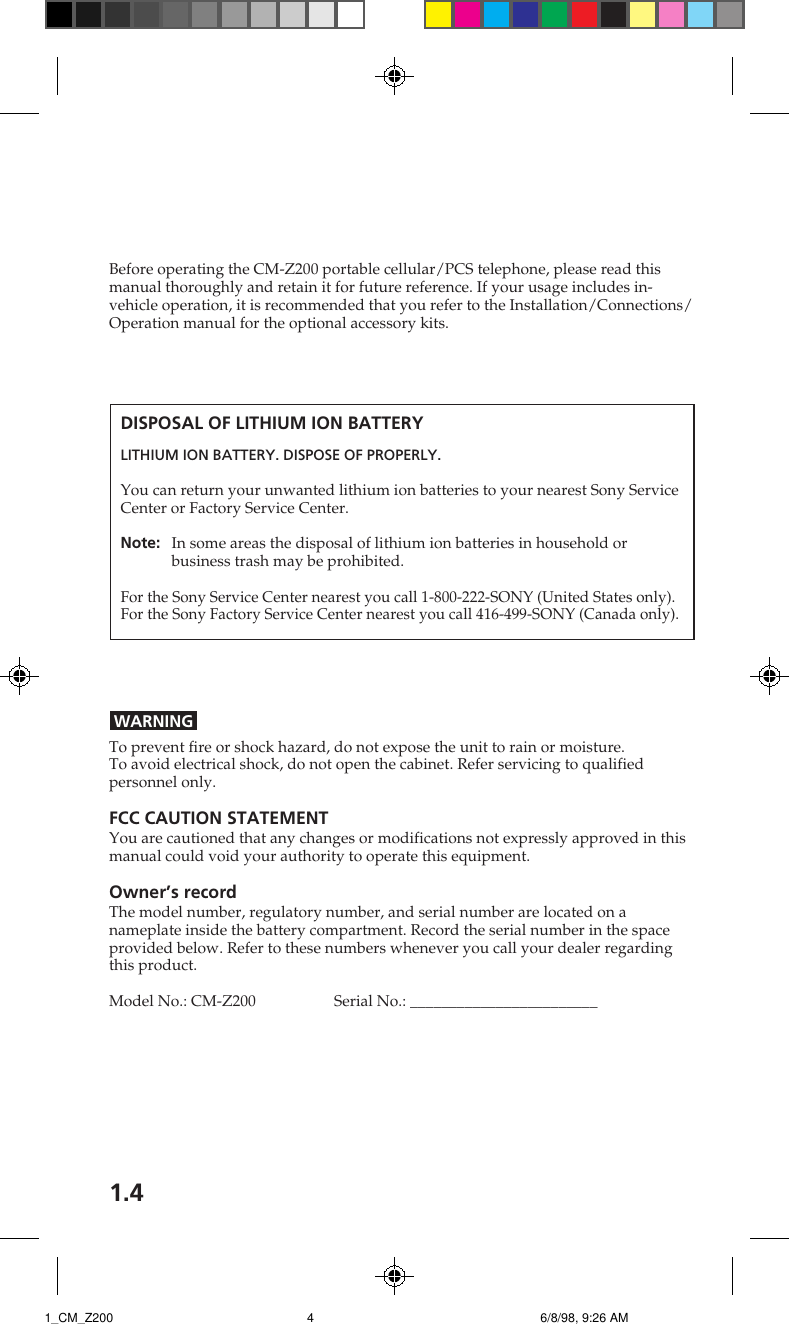

1.4 WARNINGTo prevent fire or shock hazard, do not expose the unit to rain or moisture.To avoid electrical shock, do not open the cabinet. Refer servicing to qualifiedpersonnel only.FCC CAUTION STATEMENTYou are cautioned that any changes or modifications not expressly approved in thismanual could void your authority to operate this equipment.Owner’s recordThe model number, regulatory number, and serial number are located on anameplate inside the battery compartment. Record the serial number in the spaceprovided below. Refer to these numbers whenever you call your dealer regardingthis product.Model No.: CM-Z200 Serial No.: ________________________DISPOSAL OF LITHIUM ION BATTERYLITHIUM ION BATTERY. DISPOSE OF PROPERLY.You can return your unwanted lithium ion batteries to your nearest Sony ServiceCenter or Factory Service Center.Note: In some areas the disposal of lithium ion batteries in household orbusiness trash may be prohibited.For the Sony Service Center nearest you call 1-800-222-SONY (United States only).For the Sony Factory Service Center nearest you call 416-499-SONY (Canada only).Before operating the CM-Z200 portable cellular/PCS telephone, please read thismanual thoroughly and retain it for future reference. If your usage includes in-vehicle operation, it is recommended that you refer to the Installation/Connections/Operation manual for the optional accessory kits.1_CM_Z200 6/8/98, 9:26 AM4

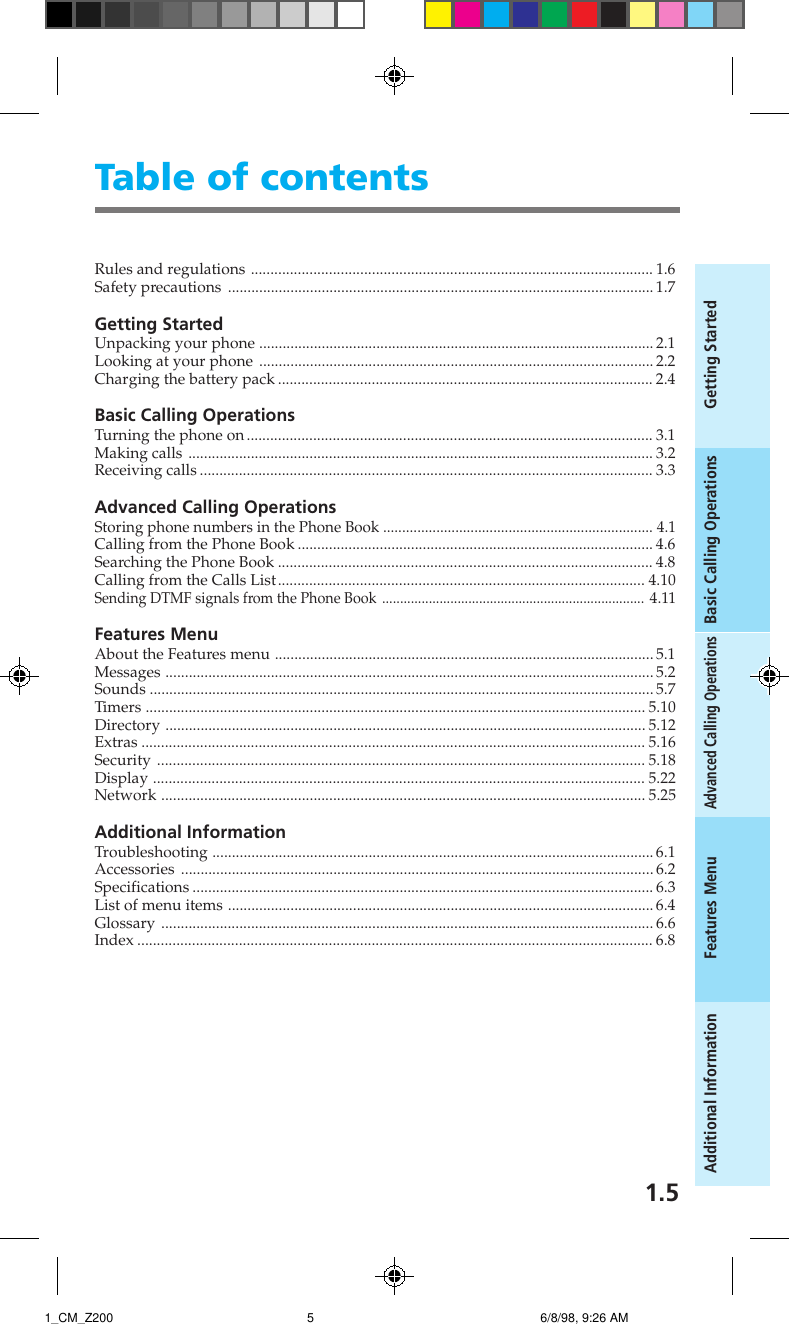

1.5Rules and regulations .......................................................................................................1.6Safety precautions .............................................................................................................1.7Getting StartedUnpacking your phone .....................................................................................................2.1Looking at your phone .....................................................................................................2.2Charging the battery pack................................................................................................2.4Basic Calling OperationsTurning the phone on........................................................................................................3.1Making calls .......................................................................................................................3.2Receiving calls....................................................................................................................3.3Advanced Calling OperationsStoring phone numbers in the Phone Book ....................................................................... 4.1Calling from the Phone Book...........................................................................................4.6Searching the Phone Book................................................................................................ 4.8Calling from the Calls List..............................................................................................4.10Sending DTMF signals from the Phone Book .........................................................................4.11Features MenuAbout the Features menu .................................................................................................5.1Messages .............................................................................................................................5.2Sounds .................................................................................................................................5.7Timers ................................................................................................................................5.10Directory ...........................................................................................................................5.12Extras ................................................................................................................................. 5.16Security ............................................................................................................................. 5.18Display .............................................................................................................................. 5.22Network ............................................................................................................................5.25Additional InformationTroubleshooting .................................................................................................................6.1Accessories .........................................................................................................................6.2Specifications......................................................................................................................6.3List of menu items .............................................................................................................6.4Glossary ..............................................................................................................................6.6Index.................................................................................................................................... 6.8Table of contentsAdvanced Calling OperationsBasic Calling OperationsFeatures Menu Getting StartedAdditional Information1_CM_Z200 6/8/98, 9:26 AM5

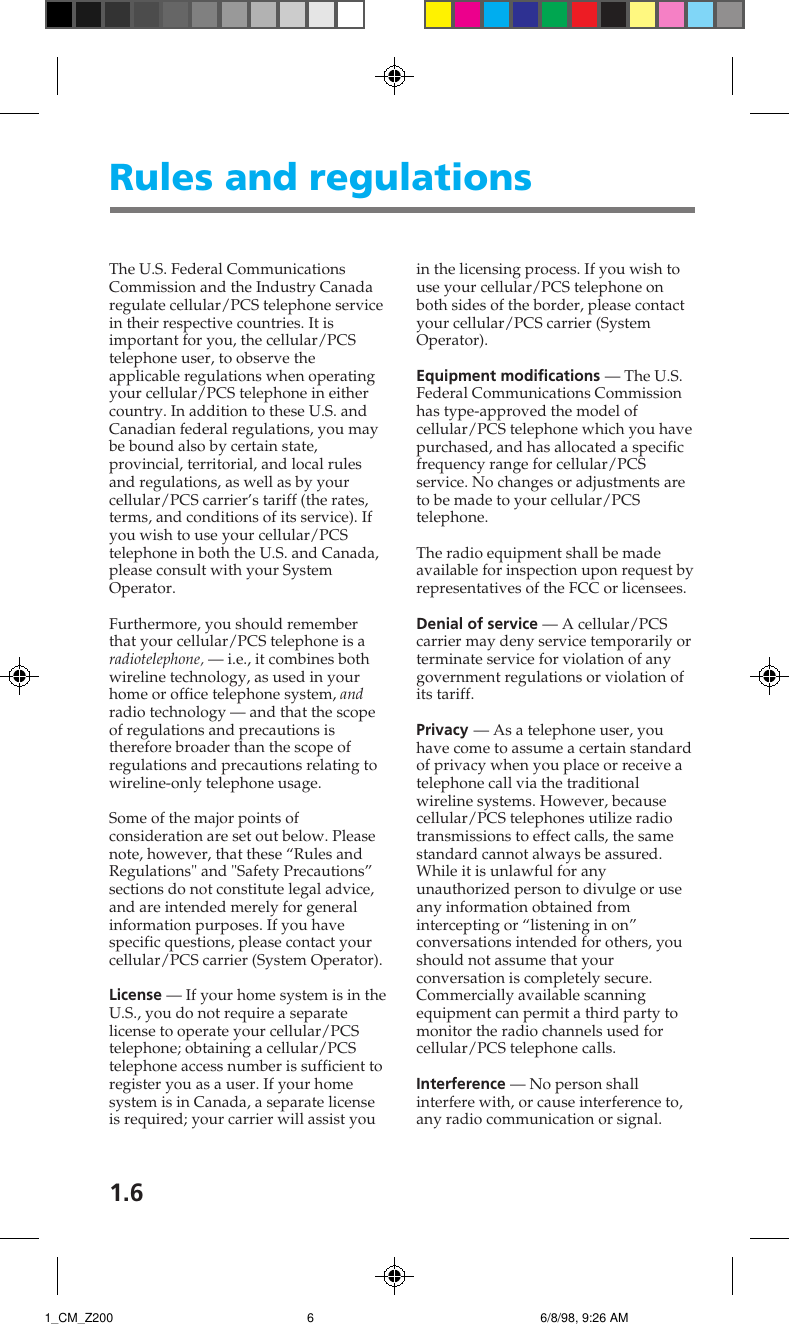

1.6in the licensing process. If you wish touse your cellular/PCS telephone onboth sides of the border, please contactyour cellular/PCS carrier (SystemOperator).Equipment modifications — The U.S.Federal Communications Commissionhas type-approved the model ofcellular/PCS telephone which you havepurchased, and has allocated a specificfrequency range for cellular/PCSservice. No changes or adjustments areto be made to your cellular/PCStelephone.The radio equipment shall be madeavailable for inspection upon request byrepresentatives of the FCC or licensees.Denial of service — A cellular/PCScarrier may deny service temporarily orterminate service for violation of anygovernment regulations or violation ofits tariff.Privacy — As a telephone user, youhave come to assume a certain standardof privacy when you place or receive atelephone call via the traditionalwireline systems. However, becausecellular/PCS telephones utilize radiotransmissions to effect calls, the samestandard cannot always be assured.While it is unlawful for anyunauthorized person to divulge or useany information obtained fromintercepting or “listening in on”conversations intended for others, youshould not assume that yourconversation is completely secure.Commercially available scanningequipment can permit a third party tomonitor the radio channels used forcellular/PCS telephone calls.Interference — No person shallinterfere with, or cause interference to,any radio communication or signal.Rules and regulationsThe U.S. Federal CommunicationsCommission and the Industry Canadaregulate cellular/PCS telephone servicein their respective countries. It isimportant for you, the cellular/PCStelephone user, to observe theapplicable regulations when operatingyour cellular/PCS telephone in eithercountry. In addition to these U.S. andCanadian federal regulations, you maybe bound also by certain state,provincial, territorial, and local rulesand regulations, as well as by yourcellular/PCS carrier’s tariff (the rates,terms, and conditions of its service). Ifyou wish to use your cellular/PCStelephone in both the U.S. and Canada,please consult with your SystemOperator.Furthermore, you should rememberthat your cellular/PCS telephone is aradiotelephone, — i.e., it combines bothwireline technology, as used in yourhome or office telephone system, andradio technology — and that the scopeof regulations and precautions istherefore broader than the scope ofregulations and precautions relating towireline-only telephone usage.Some of the major points ofconsideration are set out below. Pleasenote, however, that these “Rules andRegulations" and "Safety Precautions”sections do not constitute legal advice,and are intended merely for generalinformation purposes. If you havespecific questions, please contact yourcellular/PCS carrier (System Operator).License — If your home system is in theU.S., you do not require a separatelicense to operate your cellular/PCStelephone; obtaining a cellular/PCStelephone access number is sufficient toregister you as a user. If your homesystem is in Canada, a separate licenseis required; your carrier will assist you1_CM_Z200 6/8/98, 9:26 AM6

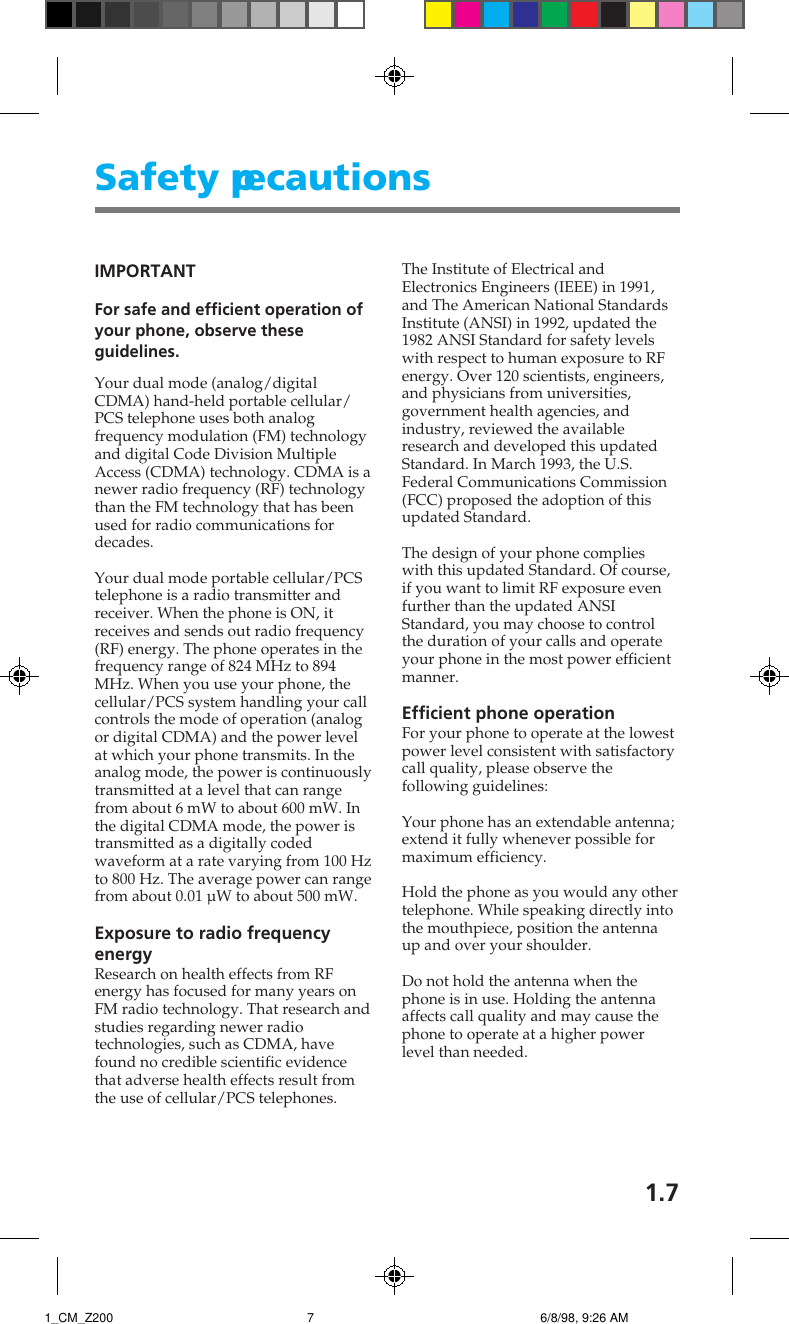

1.7Safety precautionsIMPORTANTFor safe and efficient operation ofyour phone, observe theseguidelines.Your dual mode (analog/digitalCDMA) hand-held portable cellular/PCS telephone uses both analogfrequency modulation (FM) technologyand digital Code Division MultipleAccess (CDMA) technology. CDMA is anewer radio frequency (RF) technologythan the FM technology that has beenused for radio communications fordecades.Your dual mode portable cellular/PCStelephone is a radio transmitter andreceiver. When the phone is ON, itreceives and sends out radio frequency(RF) energy. The phone operates in thefrequency range of 824 MHz to 894MHz. When you use your phone, thecellular/PCS system handling your callcontrols the mode of operation (analogor digital CDMA) and the power levelat which your phone transmits. In theanalog mode, the power is continuouslytransmitted at a level that can rangefrom about 6 mW to about 600 mW. Inthe digital CDMA mode, the power istransmitted as a digitally codedwaveform at a rate varying from 100 Hzto 800 Hz. The average power can rangefrom about 0.01 µW to about 500 mW.Exposure to radio frequencyenergyResearch on health effects from RFenergy has focused for many years onFM radio technology. That research andstudies regarding newer radiotechnologies, such as CDMA, havefound no credible scientific evidencethat adverse health effects result fromthe use of cellular/PCS telephones.The Institute of Electrical andElectronics Engineers (IEEE) in 1991,and The American National StandardsInstitute (ANSI) in 1992, updated the1982 ANSI Standard for safety levelswith respect to human exposure to RFenergy. Over 120 scientists, engineers,and physicians from universities,government health agencies, andindustry, reviewed the availableresearch and developed this updatedStandard. In March 1993, the U.S.Federal Communications Commission(FCC) proposed the adoption of thisupdated Standard.The design of your phone complieswith this updated Standard. Of course,if you want to limit RF exposure evenfurther than the updated ANSIStandard, you may choose to controlthe duration of your calls and operateyour phone in the most power efficientmanner.Efficient phone operationFor your phone to operate at the lowestpower level consistent with satisfactorycall quality, please observe thefollowing guidelines:Your phone has an extendable antenna;extend it fully whenever possible formaximum efficiency.Hold the phone as you would any othertelephone. While speaking directly intothe mouthpiece, position the antennaup and over your shoulder.Do not hold the antenna when thephone is in use. Holding the antennaaffects call quality and may cause thephone to operate at a higher powerlevel than needed.1_CM_Z200 6/8/98, 9:26 AM7

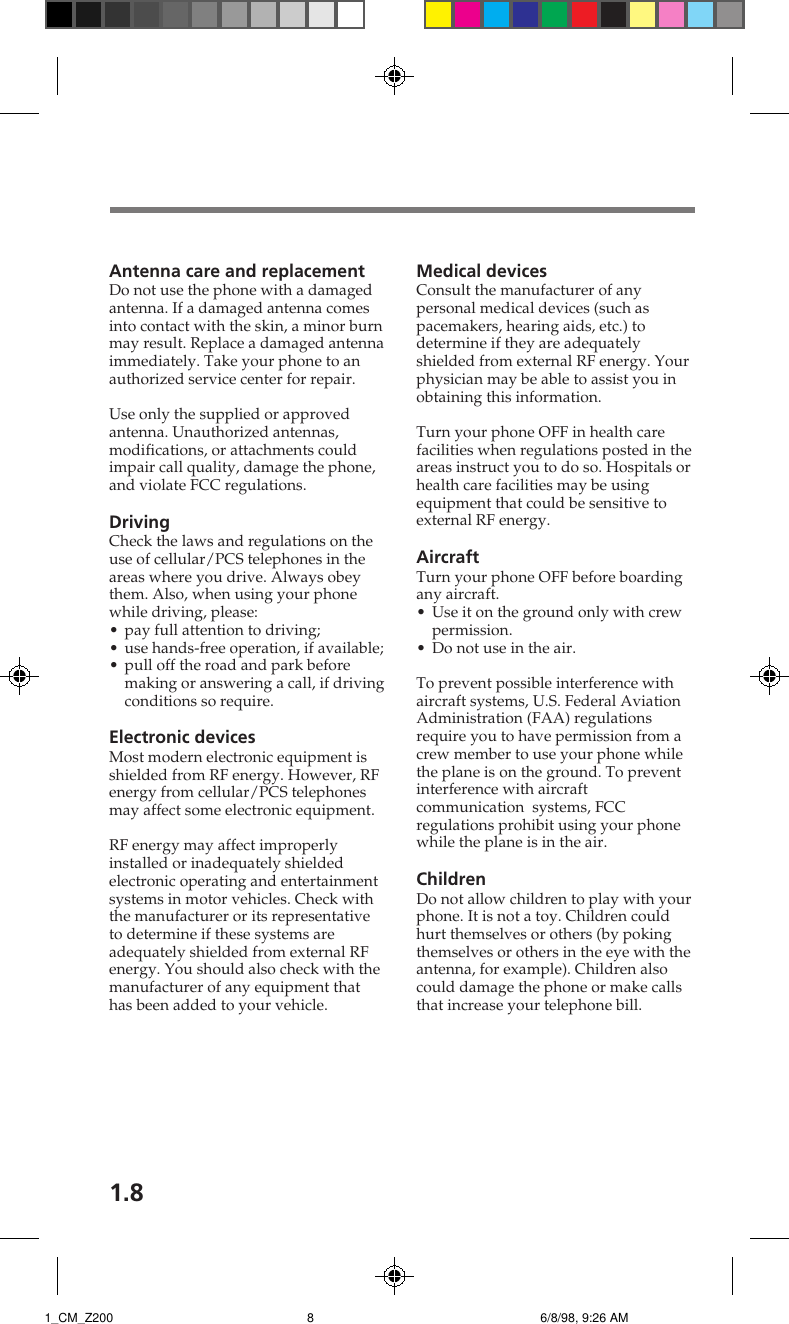

1.8Antenna care and replacementDo not use the phone with a damagedantenna. If a damaged antenna comesinto contact with the skin, a minor burnmay result. Replace a damaged antennaimmediately. Take your phone to anauthorized service center for repair.Use only the supplied or approvedantenna. Unauthorized antennas,modifications, or attachments couldimpair call quality, damage the phone,and violate FCC regulations.DrivingCheck the laws and regulations on theuse of cellular/PCS telephones in theareas where you drive. Always obeythem. Also, when using your phonewhile driving, please:• pay full attention to driving;• use hands-free operation, if available;• pull off the road and park beforemaking or answering a call, if drivingconditions so require.Electronic devicesMost modern electronic equipment isshielded from RF energy. However, RFenergy from cellular/PCS telephonesmay affect some electronic equipment.RF energy may affect improperlyinstalled or inadequately shieldedelectronic operating and entertainmentsystems in motor vehicles. Check withthe manufacturer or its representativeto determine if these systems areadequately shielded from external RFenergy. You should also check with themanufacturer of any equipment thathas been added to your vehicle.Medical devicesConsult the manufacturer of anypersonal medical devices (such aspacemakers, hearing aids, etc.) todetermine if they are adequatelyshielded from external RF energy. Yourphysician may be able to assist you inobtaining this information.Turn your phone OFF in health carefacilities when regulations posted in theareas instruct you to do so. Hospitals orhealth care facilities may be usingequipment that could be sensitive toexternal RF energy.AircraftTurn your phone OFF before boardingany aircraft.• Use it on the ground only with crewpermission.• Do not use in the air.To prevent possible interference withaircraft systems, U.S. Federal AviationAdministration (FAA) regulationsrequire you to have permission from acrew member to use your phone whilethe plane is on the ground. To preventinterference with aircraftcommunication systems, FCCregulations prohibit using your phonewhile the plane is in the air.ChildrenDo not allow children to play with yourphone. It is not a toy. Children couldhurt themselves or others (by pokingthemselves or others in the eye with theantenna, for example). Children alsocould damage the phone or make callsthat increase your telephone bill.1_CM_Z200 6/8/98, 9:26 AM8

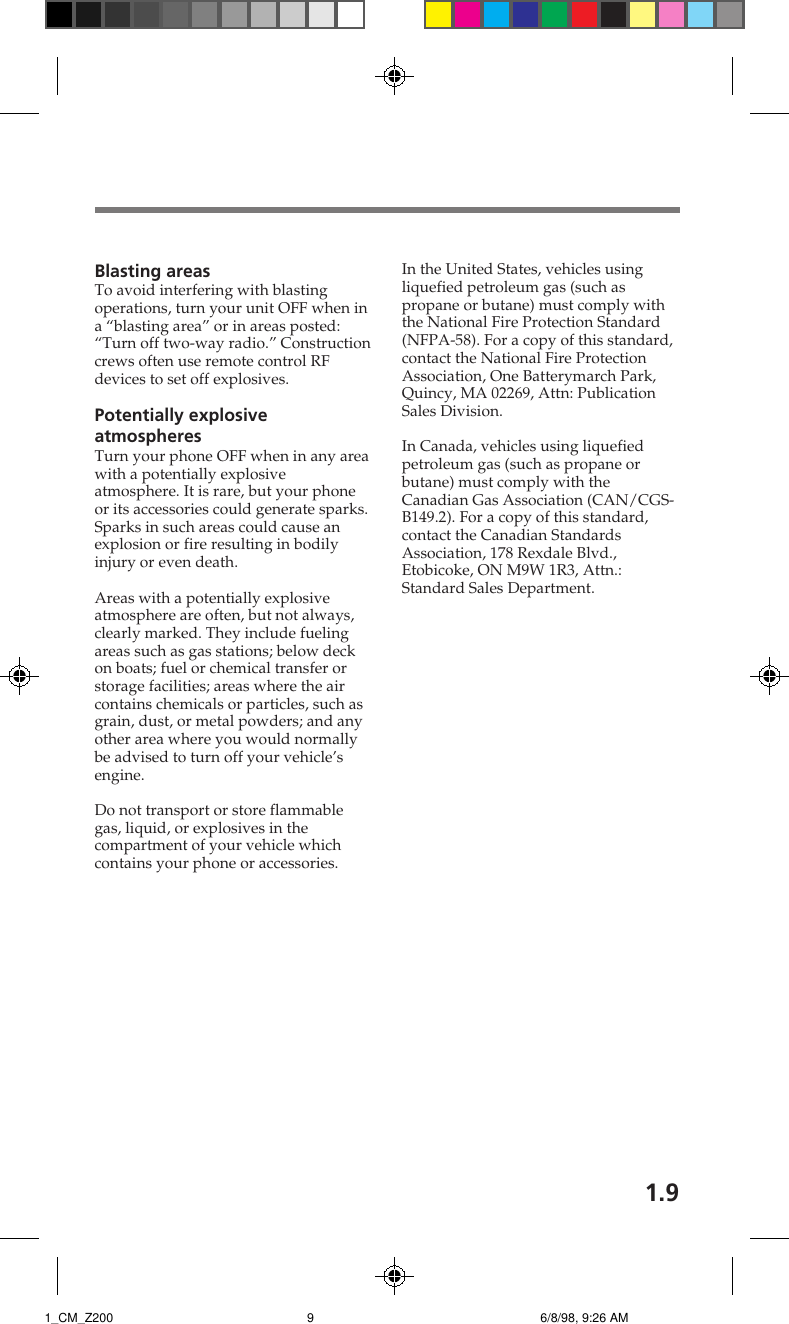

1.9Blasting areasTo avoid interfering with blastingoperations, turn your unit OFF when ina “blasting area” or in areas posted:“Turn off two-way radio.” Constructioncrews often use remote control RFdevices to set off explosives.Potentially explosiveatmospheresTurn your phone OFF when in any areawith a potentially explosiveatmosphere. It is rare, but your phoneor its accessories could generate sparks.Sparks in such areas could cause anexplosion or fire resulting in bodilyinjury or even death.Areas with a potentially explosiveatmosphere are often, but not always,clearly marked. They include fuelingareas such as gas stations; below deckon boats; fuel or chemical transfer orstorage facilities; areas where the aircontains chemicals or particles, such asgrain, dust, or metal powders; and anyother area where you would normallybe advised to turn off your vehicle’sengine.Do not transport or store flammablegas, liquid, or explosives in thecompartment of your vehicle whichcontains your phone or accessories.In the United States, vehicles usingliquefied petroleum gas (such aspropane or butane) must comply withthe National Fire Protection Standard(NFPA-58). For a copy of this standard,contact the National Fire ProtectionAssociation, One Batterymarch Park,Quincy, MA 02269, Attn: PublicationSales Division.In Canada, vehicles using liquefiedpetroleum gas (such as propane orbutane) must comply with theCanadian Gas Association (CAN/CGS-B149.2). For a copy of this standard,contact the Canadian StandardsAssociation, 178 Rexdale Blvd.,Etobicoke, ON M9W 1R3, Attn.:Standard Sales Department.1_CM_Z200 6/8/98, 9:26 AM9

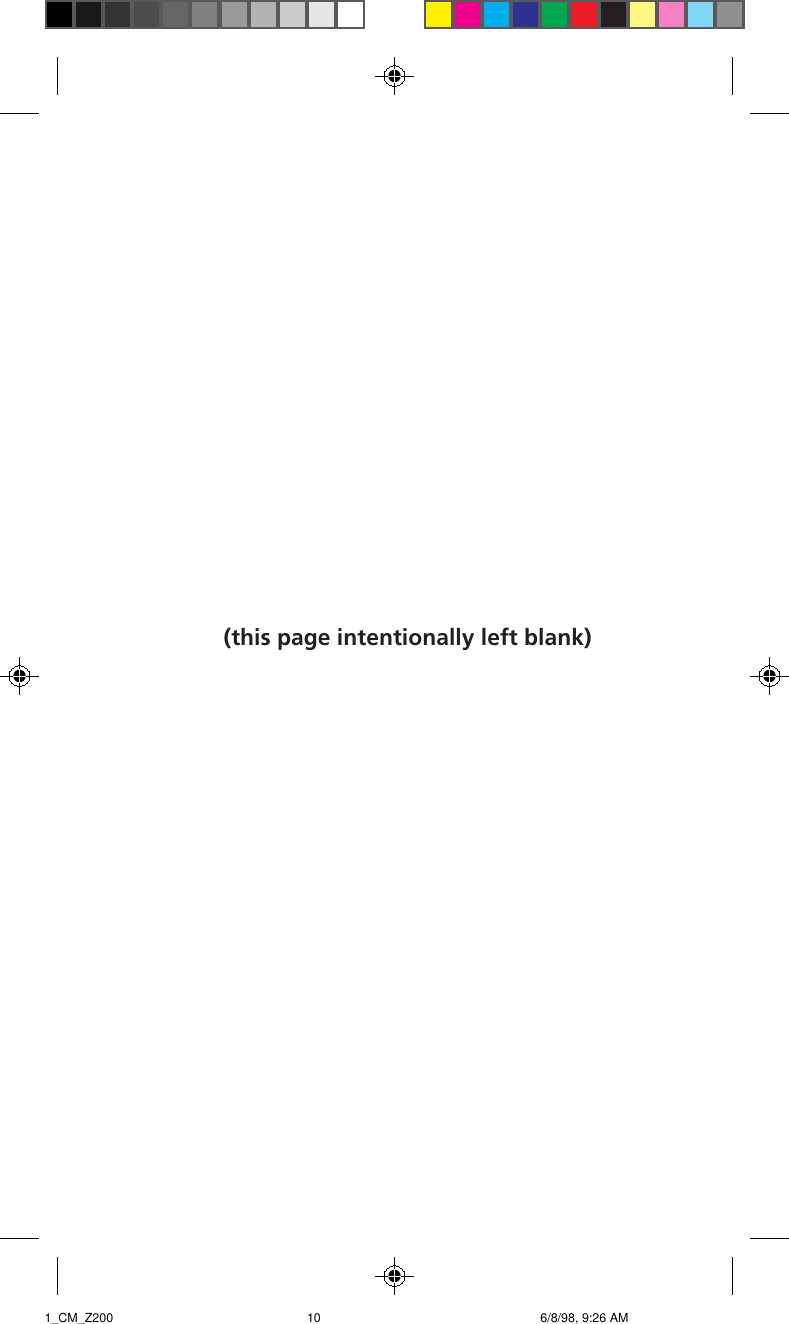

1.10(this page intentionally left blank)1_CM_Z200 6/8/98, 9:26 AM10

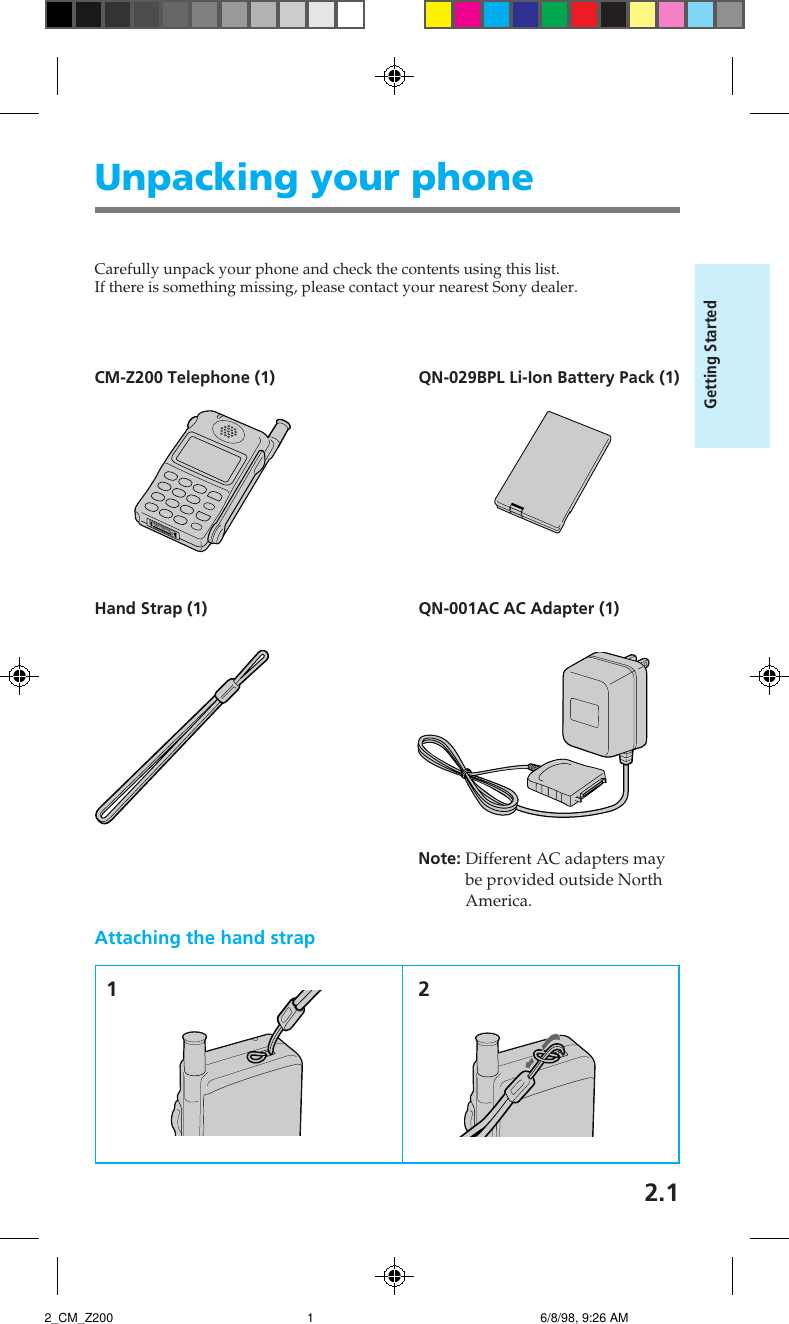

2.1Getting StartedAttaching the hand strap 1 2Carefully unpack your phone and check the contents using this list.If there is something missing, please contact your nearest Sony dealer.CM-Z200 Telephone (1) QN-029BPL Li-Ion Battery Pack (1)Hand Strap (1) QN-001AC AC Adapter (1)Note: Different AC adapters maybe provided outside NorthAmerica.Unpacking your phone2_CM_Z200 6/8/98, 9:26 AM1

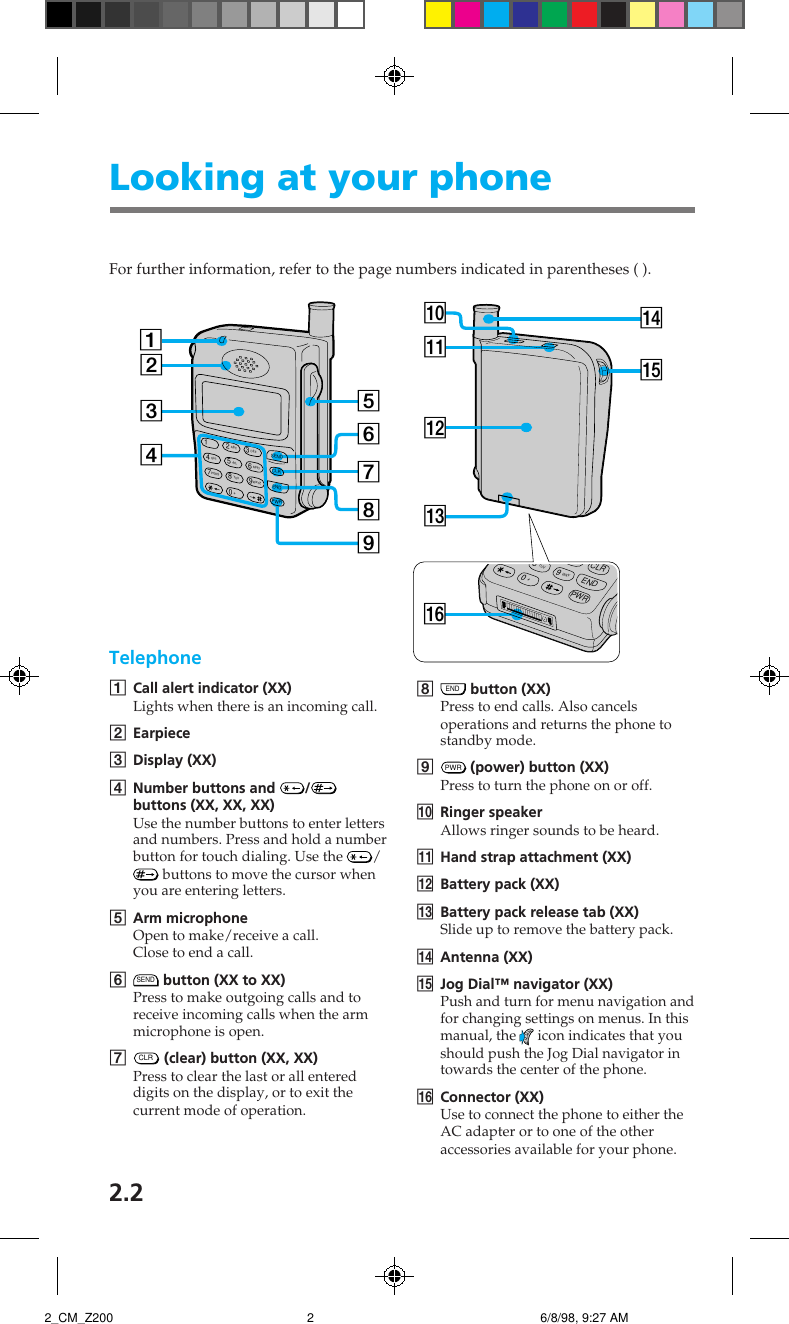

2.28END button (XX)Press to end calls. Also cancelsoperations and returns the phone tostandby mode.9PWR (power) button (XX)Press to turn the phone on or off.0Ringer speakerAllows ringer sounds to be heard.!¡ Hand strap attachment (XX)!™ Battery pack (XX)!£ Battery pack release tab (XX)Slide up to remove the battery pack.!¢ Antenna (XX)!∞ Jog Dial™ navigator (XX)Push and turn for menu navigation andfor changing settings on menus. In thismanual, the icon indicates that youshould push the Jog Dial navigator intowards the center of the phone.!§ Connector (XX)Use to connect the phone to either theAC adapter or to one of the otheraccessories available for your phone.NO8TUV9PWRCLRENDWXY0+!¡1234678952ABC4GHI8TUV7PQRS9WXYZ5JKL6MNO3DEF10+SENDENDCLRPWR!™!¢!∞!£!§!ºLooking at your phoneTelephone1Call alert indicator (XX)Lights when there is an incoming call.2Earpiece3Display (XX)4Number buttons and /buttons (XX, XX, XX)Use the number buttons to enter lettersand numbers. Press and hold a numberbutton for touch dialing. Use the / buttons to move the cursor whenyou are entering letters.5Arm microphoneOpen to make/receive a call.Close to end a call.6SEND button (XX to XX)Press to make outgoing calls and toreceive incoming calls when the armmicrophone is open.7CLR (clear) button (XX, XX)Press to clear the last or all entereddigits on the display, or to exit thecurrent mode of operation.For further information, refer to the page numbers indicated in parentheses ( ).2_CM_Z200 6/8/98, 9:27 AM2

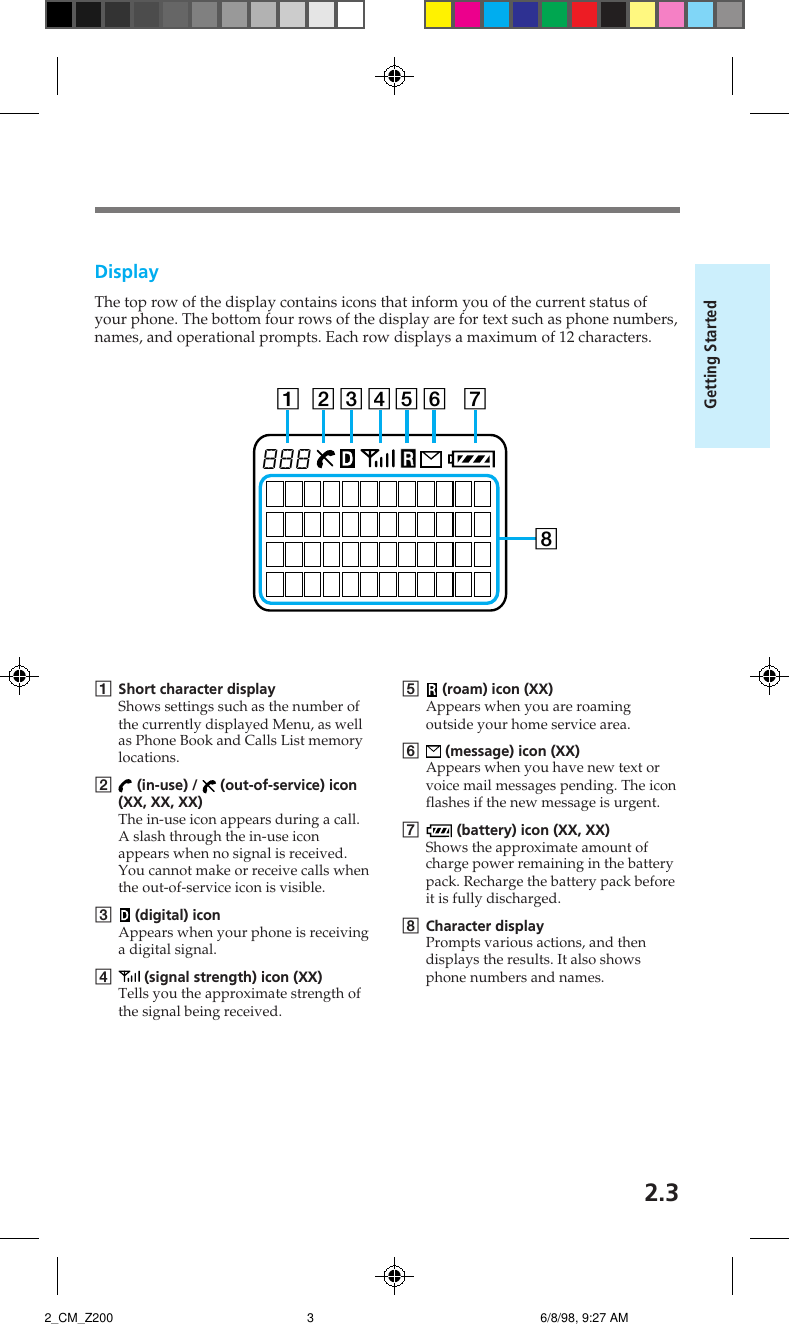

2.3Getting StartedDisplayThe top row of the display contains icons that inform you of the current status ofyour phone. The bottom four rows of the display are for text such as phone numbers,names, and operational prompts. Each row displays a maximum of 12 characters.8881 2 3 4 5 6 781Short character displayShows settings such as the number ofthe currently displayed Menu, as wellas Phone Book and Calls List memorylocations.2 (in-use) / (out-of-service) icon(XX, XX, XX)The in-use icon appears during a call.A slash through the in-use iconappears when no signal is received.You cannot make or receive calls whenthe out-of-service icon is visible.3 (digital) iconAppears when your phone is receivinga digital signal.4 (signal strength) icon (XX)Tells you the approximate strength ofthe signal being received.5 (roam) icon (XX)Appears when you are roamingoutside your home service area.6 (message) icon (XX)Appears when you have new text orvoice mail messages pending. The iconflashes if the new message is urgent.7 (battery) icon (XX, XX)Shows the approximate amount ofcharge power remaining in the batterypack. Recharge the battery pack beforeit is fully discharged.8Character displayPrompts various actions, and thendisplays the results. It also showsphone numbers and names.2_CM_Z200 6/8/98, 9:27 AM3

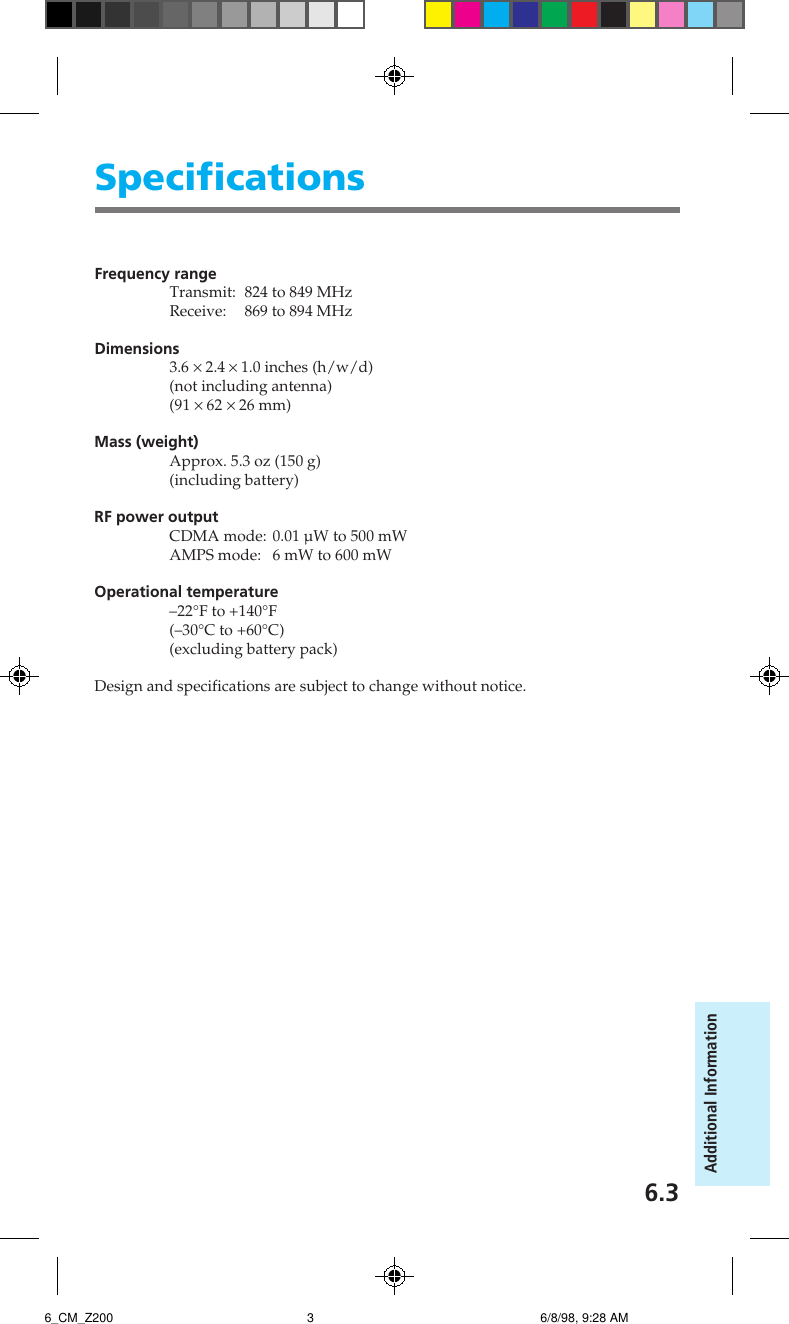

6.3Additional InformationSpecificationsFrequency rangeTransmit:824 to 849 MHzReceive: 869 to 894 MHzDimensions3.6 × 2.4 × 1.0 inches (h/w/d)(not including antenna)(91 × 62 × 26 mm)Mass (weight)Approx. 5.3 oz (150 g)(including battery)RF power outputCDMA mode:0.01 µW to 500 mWAMPS mode:6 mW to 600 mWOperational temperature–22°F to +140°F(–30°C to +60°C)(excluding battery pack)Design and specifications are subject to change without notice.6_CM_Z200 6/8/98, 9:28 AM3
