Wireless Module
1492549
Type Specification
1. Communication Method: Half Duplex Mode
2. Transmission
a) 2.4G
PARAMETER CONDITION MIN TYP MAX UNITS
RFFrequencyRange  2400‐2483.5MHz
NumberofRF‐channels Carriersin
thespectrum‐ 3‐
TransmissionPower  14dBm
ChannelFrequency
(dynamicorfixed
allocation)
CH1
CH2
CH3

2412
2438
2464
‐ MHz
b) 5.2G
PARAMETER CONDITION MIN TYP MAX UNITS
RFFrequencyRange  5150‐5250MHz
NumberofRF‐channels Carriersin
thespectrum‐ 3‐
TransmissionPower  9dBm
ChannelFrequency
(dynamicorfixed
allocation)
CH1
CH2
CH3

5180
5280
(Note1)
5240
‐ MHz
Note 1: For Japan, RF channel 2 will be 5200MHz
c) 5.8G
PARAMETER CONDITION MIN TYP MAX UNITS
RFFrequencyRange  5725‐5875MHz
NumberofRF‐channels Carriersin
thespectrum‐ 3‐
TransmissionPower  9dBm
ChannelFrequency
(dynamicorfixed
allocation)
CH1
CH2
CH3

5736
5762
5814
‐ MHz
d) Modulation: QPSK
3. Antenna Peak Gain:2.8dBi
4. Applicant: Sony
5. Product Name： DWAM83 Wireless Module
6. Model Name: 1492549
GoerTek Confidential Page 5 of 14 12/9/2013
GoerTek
CEP Division
1 Document Scope and Intention
The information in this document provides detailed specifications for the Cocoa. All
features and requirements are described hereunder, including mechanical, electrical,
software and reliability.
This document is released to ensure final production units comply with all requirements
and may be updated as necessary.
2 Applicable Standards, Documents and References
STM-1131 Ink and Printed Parts – Quality Standard
STM-1208 Paint and Painted Parts – Quality Standard
STM-1269 Drop Test Methods for Mobile Products
STM-1284 Vapor-Deposited Parts Quality Standards
3 Glossary
Table1 Glossary
FFC Flexible Flat Cable
FPC Flexible Printed Circuit
EMC Electromagnetic Compatibility
FCC Federal Communications Commission
IEC International Electro-technical Commission
RoHS Restriction of Hazardous Substances
UUT Unit Under Test
WEEE Waste Electrical and Electronic Equipment Directive
TBD To Be Determined
GoerTek Confidential Page 6 of 14 12/9/2013
GoerTek
CEP Division
4 Product Application Overview
Cocoa is a digital wireless audio module base on DARR83 wireless audio processor. It is
an uncompressed wireless digital audio transceiver operating in 2.4GHz, 5.2 GHz and 5.8
GHz bands, with 22Mbps Bandwidth. Cocoa supports point to point connection and
bidirectional data transfer. It’s built in 4M SPI Interface flash, and has a 26pins interface
connector for power, digital audio and control interface and GPIOs. It offers seamless
audio connectivity for a wide range of wireless audio devices.
5 Product Outline

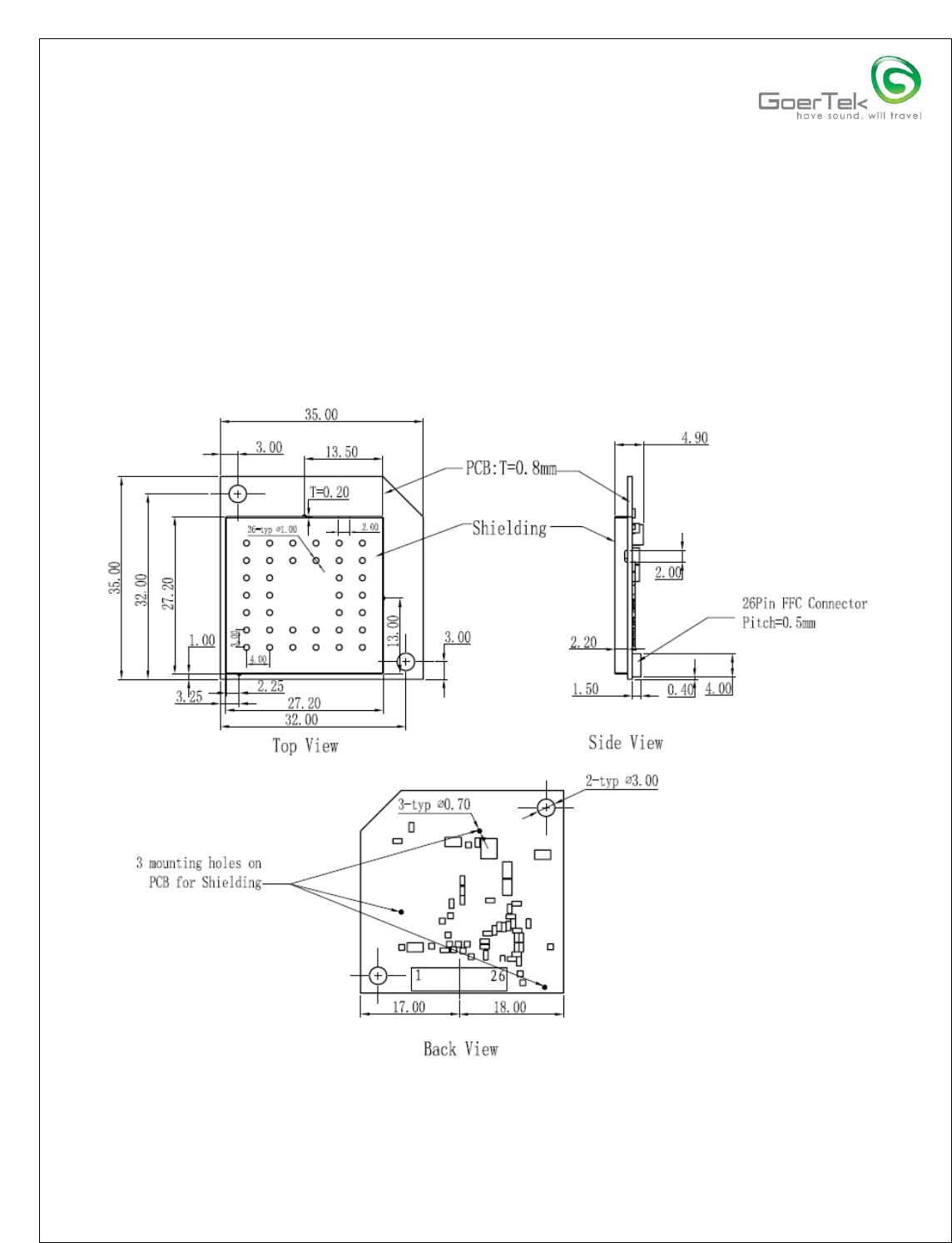

Figure1 Cocoa Outline Drawings
Module size: 35 x 35 x 43 mm (±0.15), including 2-Printed Tri-Band antennas
Diameter mounting holes: 3.0mm (±0.05)
GoerTek Confidential Page 7 of 14 12/9/2013
GoerTek
CEP Division
6 Electric Characteristics
6.1 Block Diagram

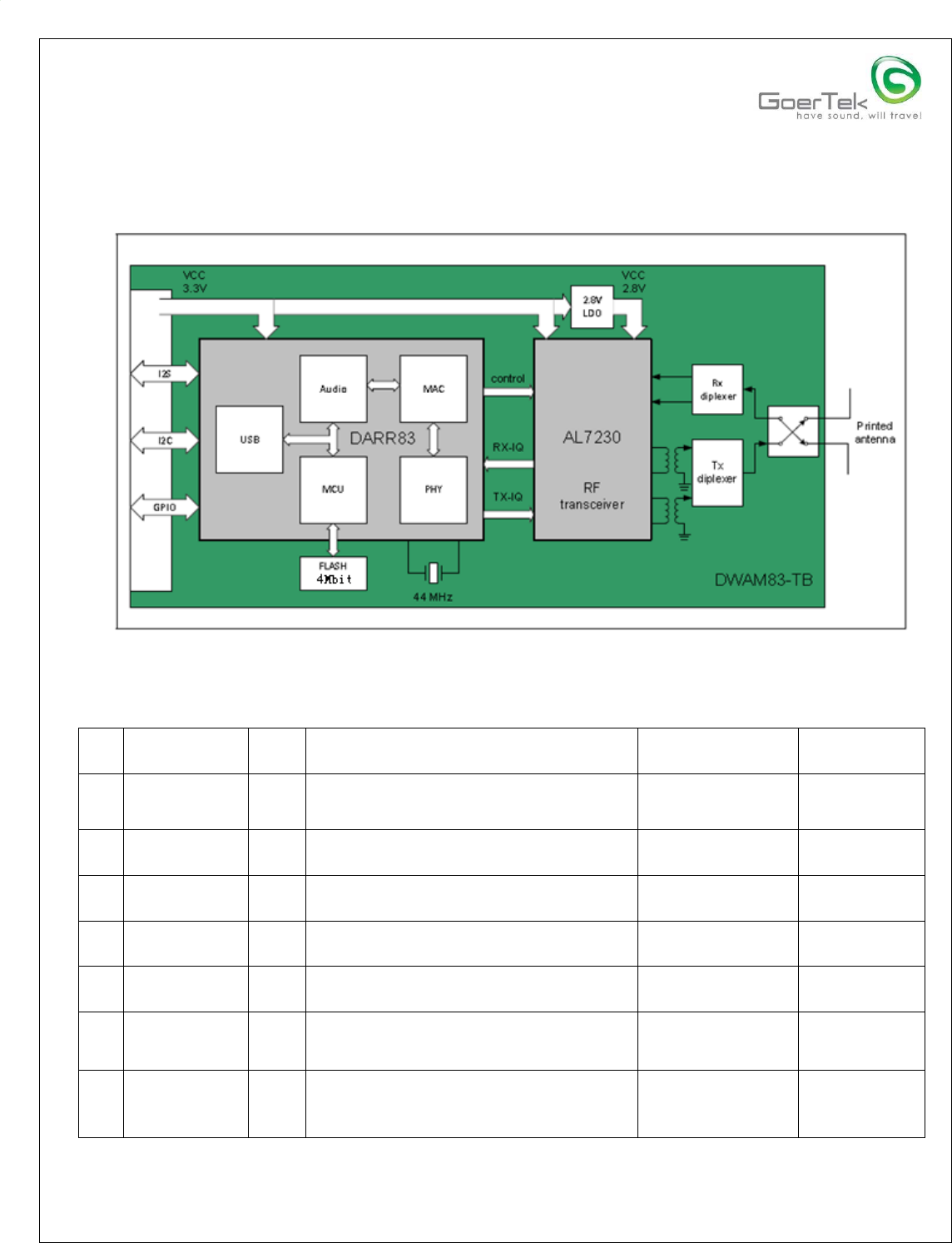

Figure2 Cocoa Module Block Diagram
6.2 Key Components List
No
. Part Name Qty Description Supplier P/N Supplier
1 BASEBAND
IC 1 STS Audio Baseband Chip DARR83 SMSC
2 RADIO IC 1
802.11a/b/g RF IC,2.4~2.5 GHz and
4.9 ~ 5.9 GHz AL7230S Airoha
3 RF
SWITCH 1 2.4GHz and 6GHz Dual-Band
Wireless Lan Upg2164t5n NEC
4 BALUN 1 Balun 50:100, 2400~2500MHz BL2012-
10B2450T/LF ACX
5 BALUN 1 Balun, 50:50, 5512 ±363MHz LDB215G5105C
-001 MURATA
6 DIPLEXER 2 DIPLEXER,2450.00±50.00MHZ/542
5.00±525.00MHZ LFD212G45DF5
B859 MURATA
7 CRYSTAL 1 44MHz, Frequency
Tolerance:±10ppm, Temperature
Characteristics:±10ppm, CL:6pF
EXS00A-
CS04137 NDK
GoerTek Confidential Page 8 of 14 12/9/2013
GoerTek
CEP Division
No
. Part Name Qty Description Supplier P/N Supplier
8 REGULAT
OR 1 Output voltage: 2.8V, 300mA high
speed, extremely low noise CMOS
LDO regulator
AP2125K-
2.8TRG1 BCD
9 SPI Flash 1
SPI Flash ,4M
bits,2.7~3.6,700,SOP-8 GD25Q40TIGR Gigadevice
Table2 Key Components List
7 Recommended Operating Conditions
SYMBOL PARAMETER MIN TYP MAX UNIT
Vcc Supply Voltage 3.1 3.3 3.5 V
VESD ESD Contact Discharge -2 - +2 KV
Tamb Operating Temperature -10 25 60 ℃
Table3 Recommended Operating Conditions
Connection: 0.5mm*26pin connector
Control Interface: IC
Audio Interface: IS S/PDIF
8 DC Characteristics
SYMBOL PARAMETER MIN TYP MAX UNIT
Vcc Ripple Peak to peak Ripple 0 100 mV
Tr Rise time of Reset 10 ms
Tf Fall time of Reset 10 ms
Treset Reset signal pulse width 1 ms
Table4 DC Characteristics
9 Power consumption
Vcc=3.3V, Ambient temperature 25℃
SYMBOL PARAMETER MIN TYP MAX UNIT
Ii Power down current 23 mA
Im24 Continuous TX current@2.4G 360 mA
Im52 Continuous TX current@5.2G 320 mA
GoerTek Confidential Page 9 of 14 12/9/2013
GoerTek
CEP Division
SYMBOL PARAMETER MIN TYP MAX UNIT
Im58 Continuous TX current@5.8G 320 mA
Table5 Power consumption
10 RF Characteristics
Cocoa transceiver/Receiver operates in 2.4GHz, 5.2 GHz and 5.8 GHz bands, with 22Mbps
Bandwidth.
PARAMETER CONDITION MIN TYP MAX UNITS
RF Frequency Range 2400 - 2483.5 MHz
Number of RF-
channels Carriers in the
spectrum - 3 -
Transmission Power
Depending on
antenna design 13 dBm
Channel Frequency
(dynamic or fixed
allocation)
CH1
CH2
CH3
2412
2438
2464 - MHz
Channel Spacing 26 MHz
RF Bandwidth Null-to-null 22 MHz
RX Sensitivity PER<5% - - -80
Table6 RF Performance of 2.4G Application (Vcc=3.3V, 25℃)
PARAMETER CONDITION MIN TYP MAX UNITS
RF Frequency Range 5150 - 5250 MHz
Number of RF-
channels Carriers in the
spectrum - 3 -
Transmission Power
Depending on
antenna design 9 dBm
Channel Frequency
(dynamic or fixed
allocation)
CH1
CH2
CH3
5180
5280
(Note 1)
5240
- MHz
Channel Spacing 30
(Note 2) MHz
RF Bandwidth Null-to-null 22 MHz
RX Sensitivity PER<5% - - -80
Note 1: For Japan, RF channel 2 will be 5200MHz
Note 2: The Default channel spacing is 30MHz, a 20MHz channel space will be used for Japan
GoerTek Confidential Page 10 of 14 12/9/2013
GoerTek
CEP Division
Table7 RF Performance of 5.2G Application (Vcc=3.3V, 25℃)
PARAMETER CONDITION MIN TYP MAX UNITS
RF Frequency Range 5725 - 5875 MHz
Number of RF-
channels Carriers in the
spectrum - 3 -
Transmission Power
Depending on
antenna design 9 dBm
Channel Frequency
(dynamic or fixed
allocation)
CH1
CH2
CH3
5736
5762
5814 - MHz
Channel Spacing 26 MHz
RF Bandwidth Null-to-null 22 MHz
RX Sensitivity PER<5% -78
Table8 RF Performance of 5.8G Application (Vcc=3.3V, 25℃)
11 Interface Definition
The Module interface is an 26pin FFC .
Spec of FFC connector:
- 0.5mm pitch FPC/FFC connector
- 26 ways, Right Angle Type (double face contact)
- LIF SMT Type
- Tin/Nickel (Lead-Free)
- Halogen Free
GoerTek Confidential Page 11 of 14 12/9/2013
GoerTek
CEP Division

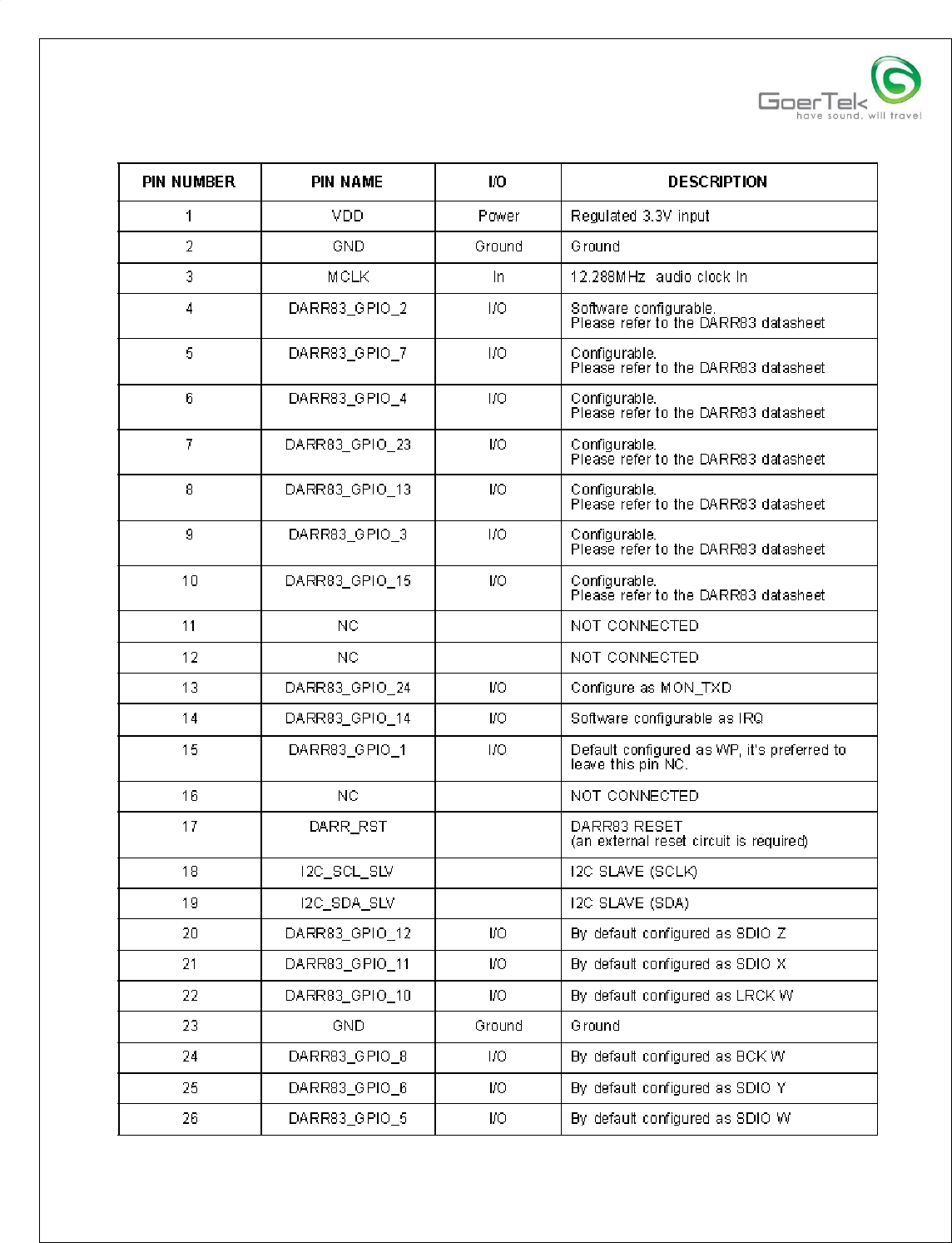

Table9 26pin FFC Definition
GoerTek Confidential Page 12 of 14 12/9/2013
GoerTek
CEP Division
12 Firmware Version
FW is provided by customer.
FW Version: WSLIB_DWAM83_8052_S012.BIN
(Maybe updated base on customer release)
13 Packing and Marks

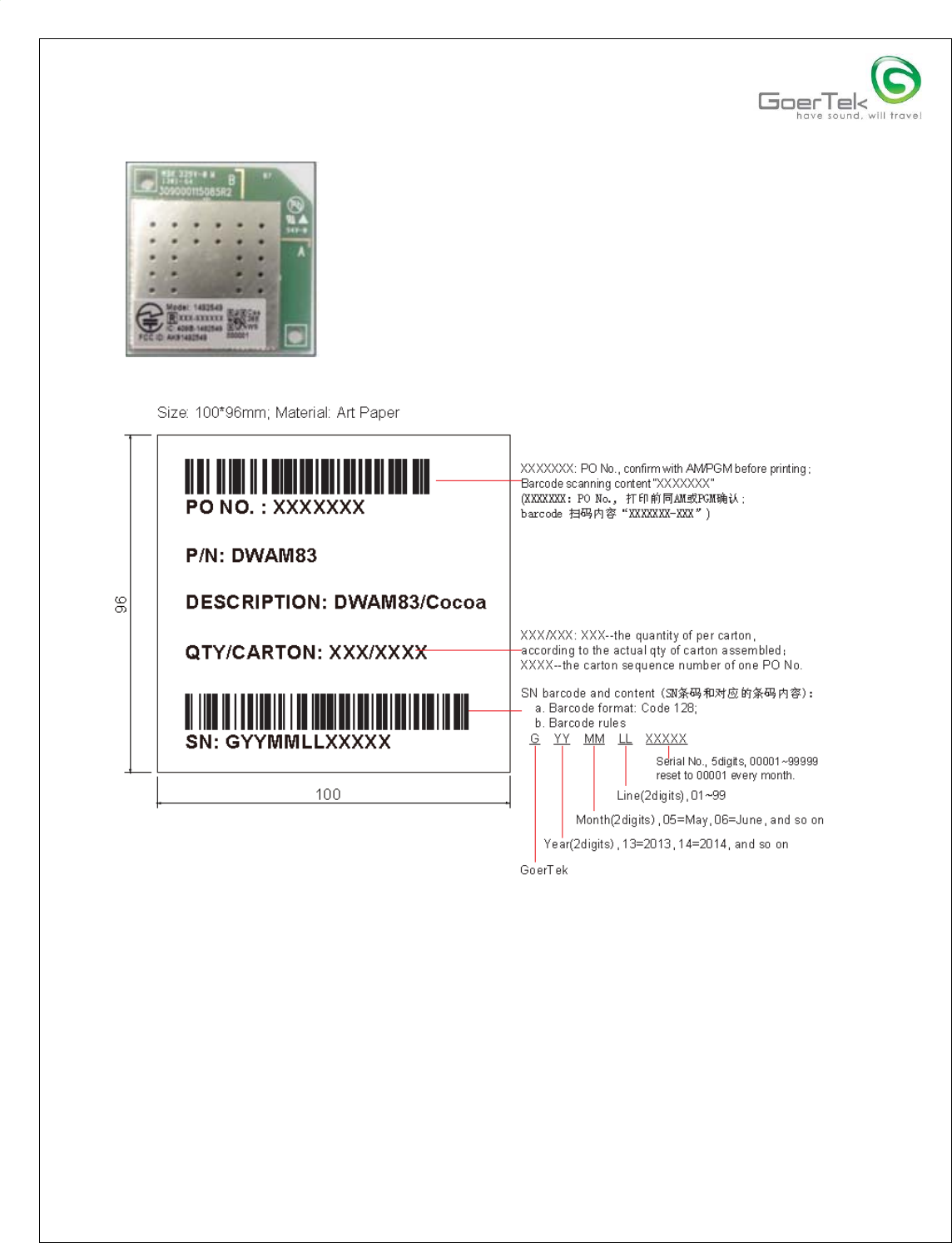

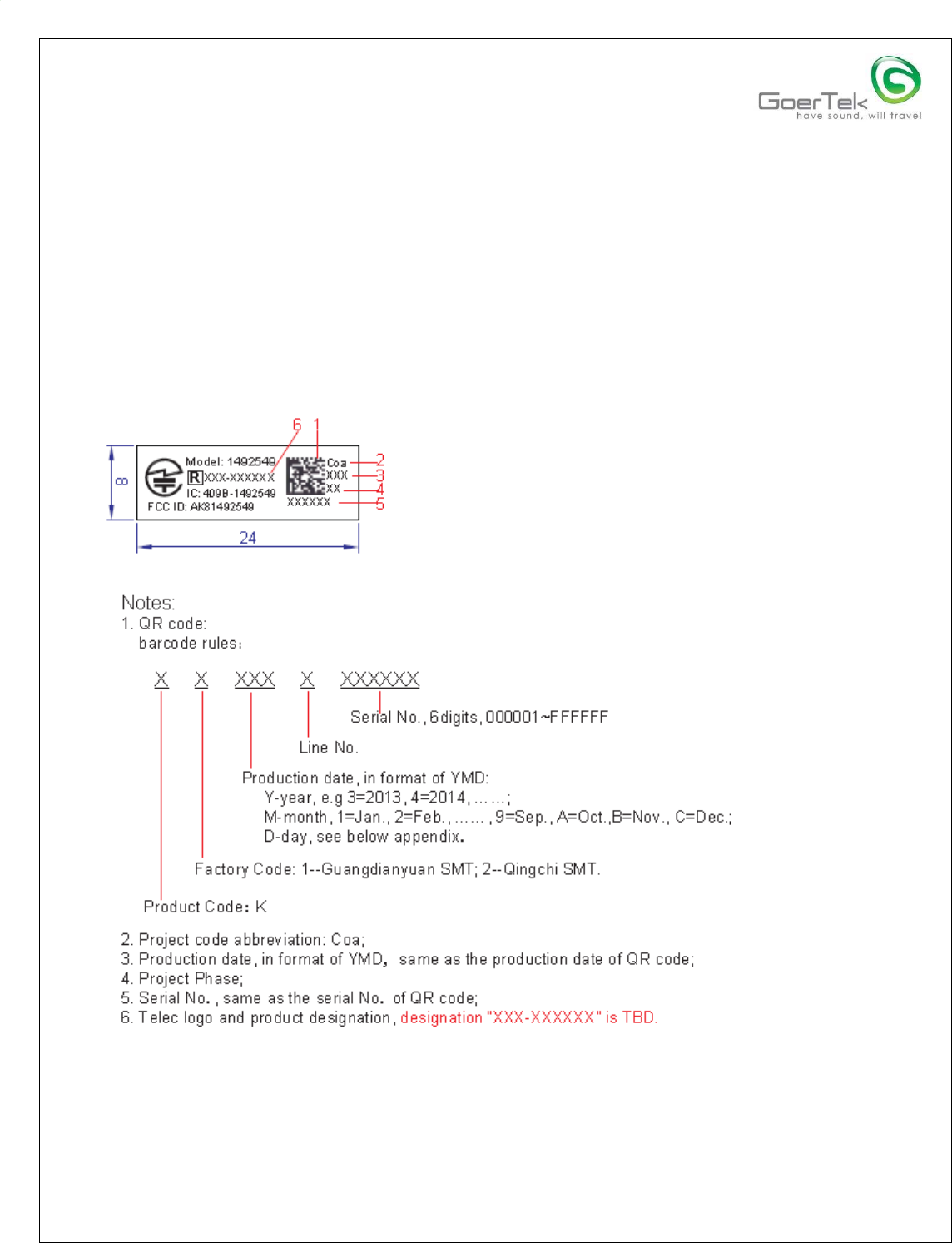

13.1 Module Label
GoerTek Confidential Page 13 of 14 12/9/2013
GoerTek
CEP Division
13.2 Carton Label
GoerTek Confidential Page 14 of 14 12/9/2013
GoerTek
CEP Division
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation. This device must accept any interference received, including interference
that may cause undesired operation. Product that is a radio transmitter is labeled with FCC
ID.
FCC Caution:
(1) Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
(2) The modules FCC ID is not visible when installed in the host, or
(3) If the host is marketed so that end users do not have straight forward commonly used
methods for access to remove the module so that the FCC ID of the module is visible; then an
additional permanent label referring to the enclosed module: Contains Transmitter Module
FCC ID: AK81492549 or Contains FCC ID: AK81492549 must be used.
(4) This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be provide with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
GoerTek Confidential Page 15 of 14 12/9/2013
GoerTek
CEP Division
RF exposure warning
· The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The equipment must not be co-located or operating in conjunction with any other antenna or
transmitter.
IC Radiation Exposure Statement for Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
-----------------------------------------------------------------END------------------------------------------------------

Navigation menu
