Sony Group BM1510 Bluetooth Module User Manual Installation manual

BM1510_Installation manual Rev1

Installation manual

1. Mount parts on PCB (including main board & jack PCB)

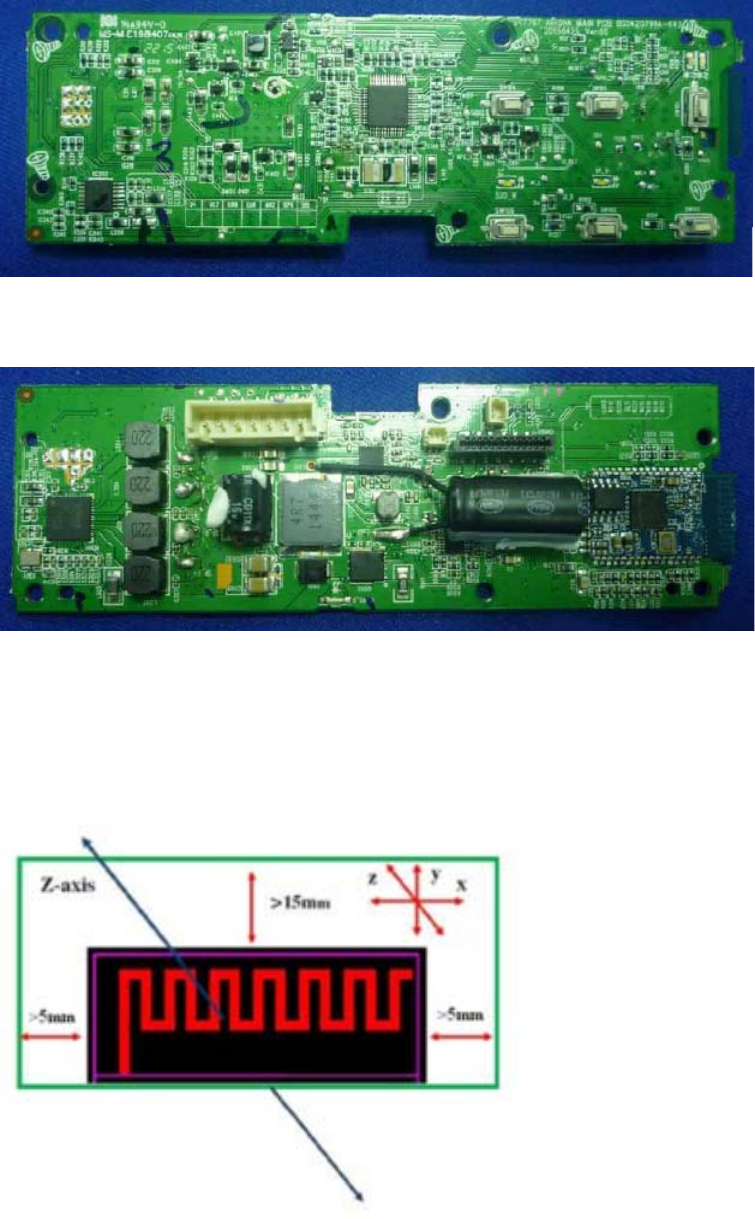

Main board: top side



Main board: bottom side

For a module with print circuit board antenna, to eliminate the influence from other components or ground,

a clearance area around the print circuit board antenna is necessary, please refer to following picture. In

this area, there should be no metal in it. Besides x-y-axis, there should also be no metal at the Z-axis

direction.

Jack PCB



2. Accordingtotheexplodedview(refertofinalpage)tomakeacompleteproduct.



2a:solderthespeakerwirerightly,theninstallthemainboardtothePCBholderwithscrews.

 



2b:Installthebatterypack/NFCmodule/jackPCBtocabinetrightly.



2c:Installthemainboardwithspeakers.

Thenconnectbatterypack/jackPCB/NFCmodule/microphone.



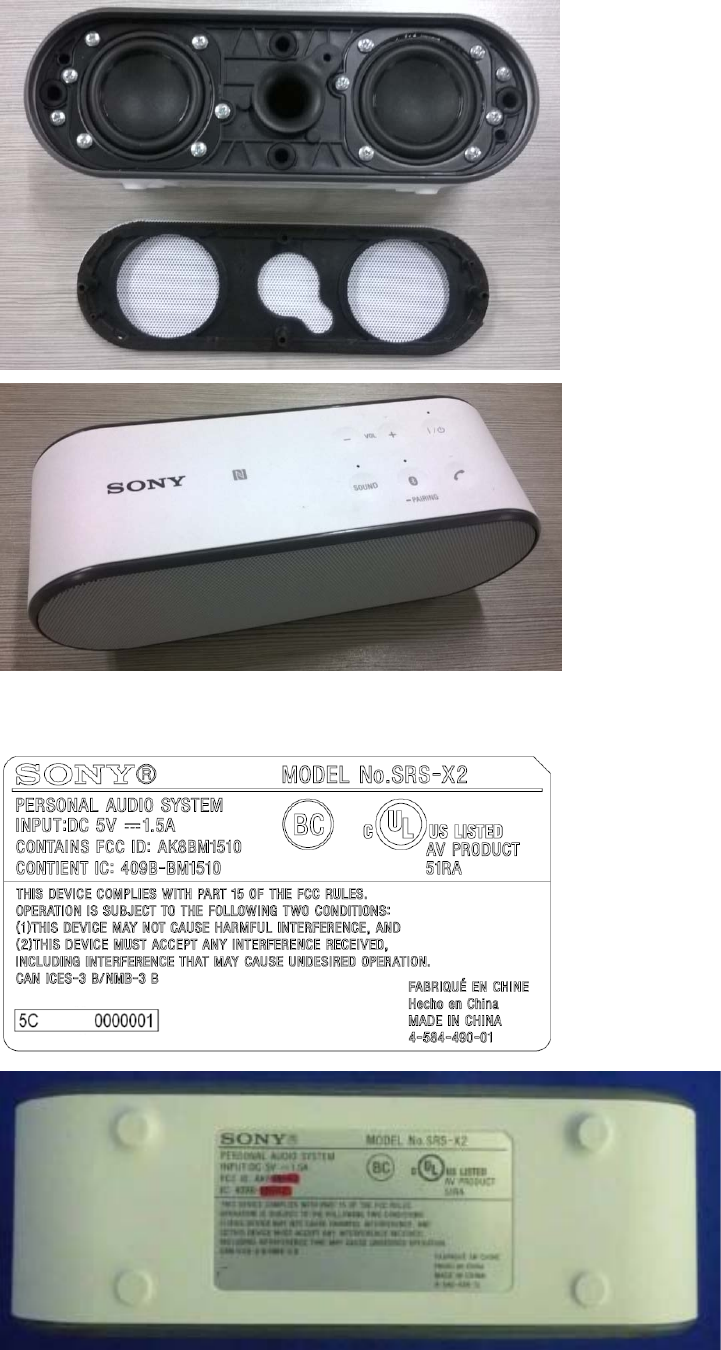

2d:Installthespeakerholderwithscrews,theninstallthespeakergrill.



2e:Stickthenameplateanddatecode/serialnumberonbottomside.



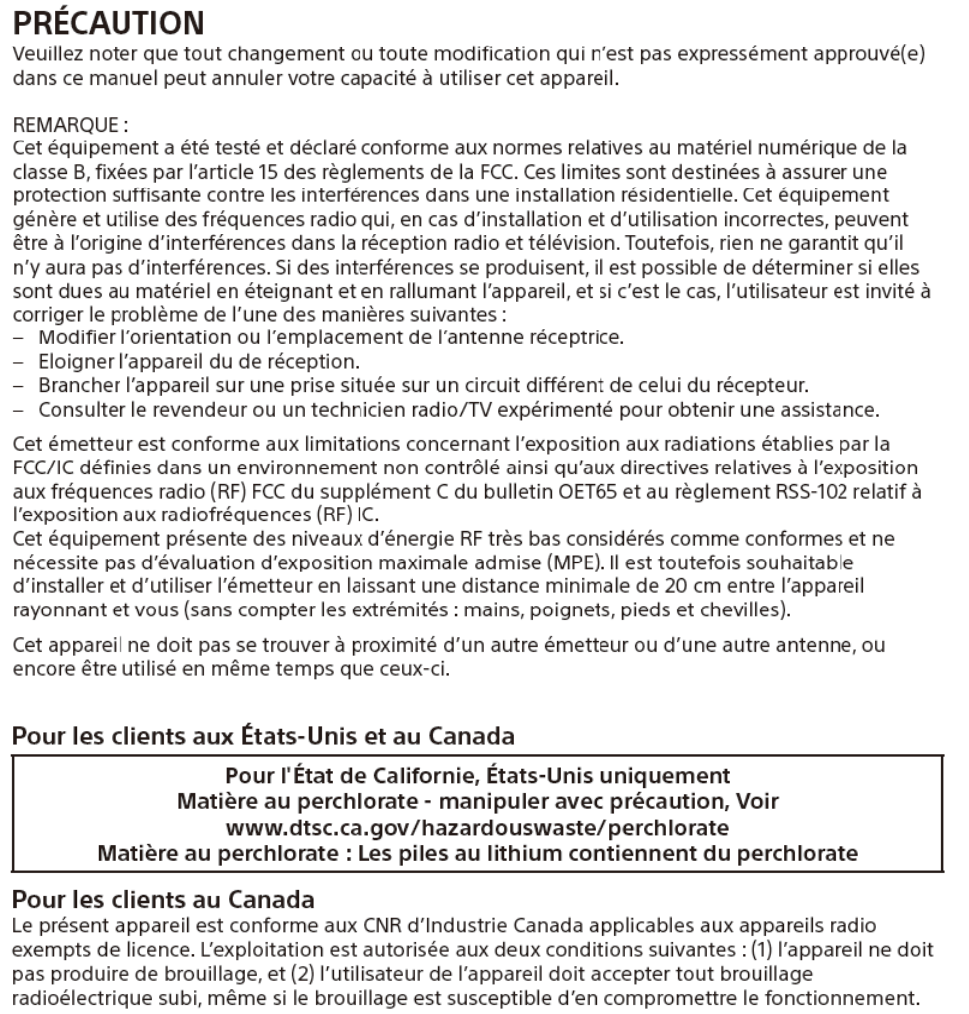

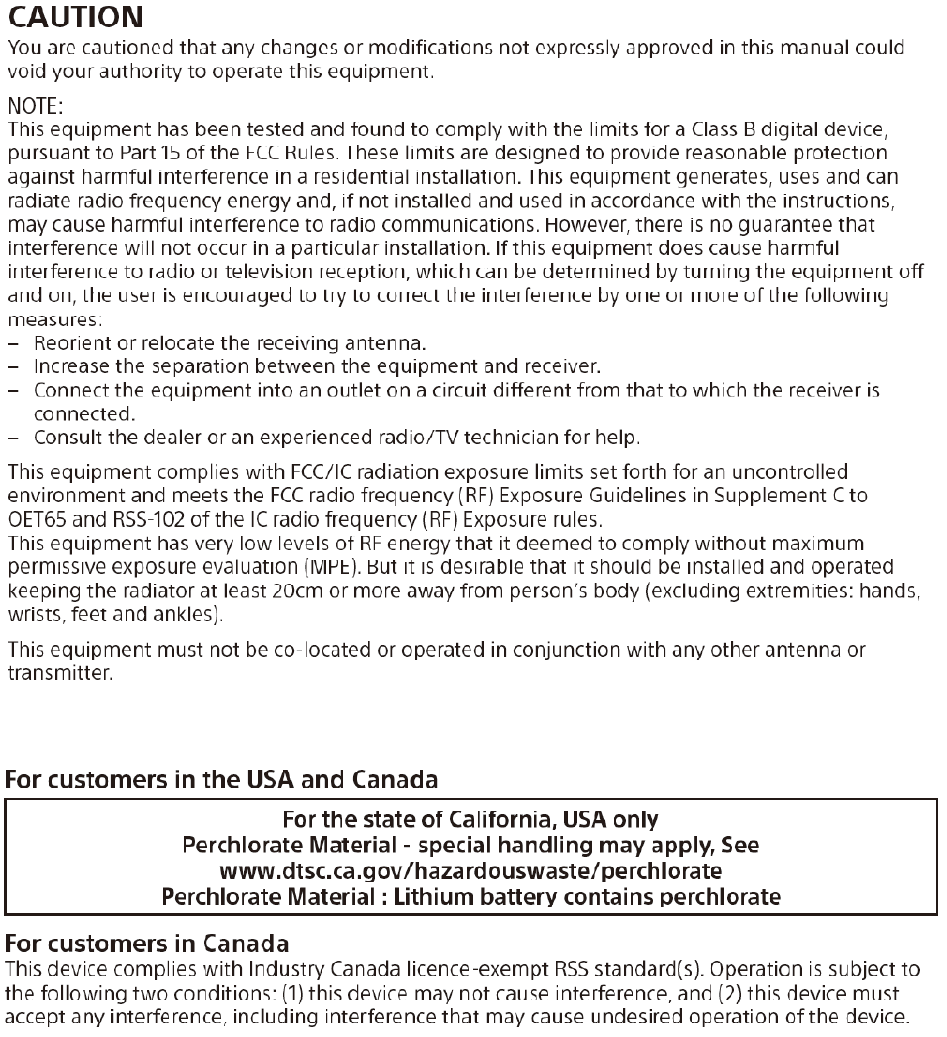

The END host which install this module should bear the label which display “ contains FCC ID:

AK8BM1510and contient IC : 409B‐BM1510"


