BTM-S1 module intall manual

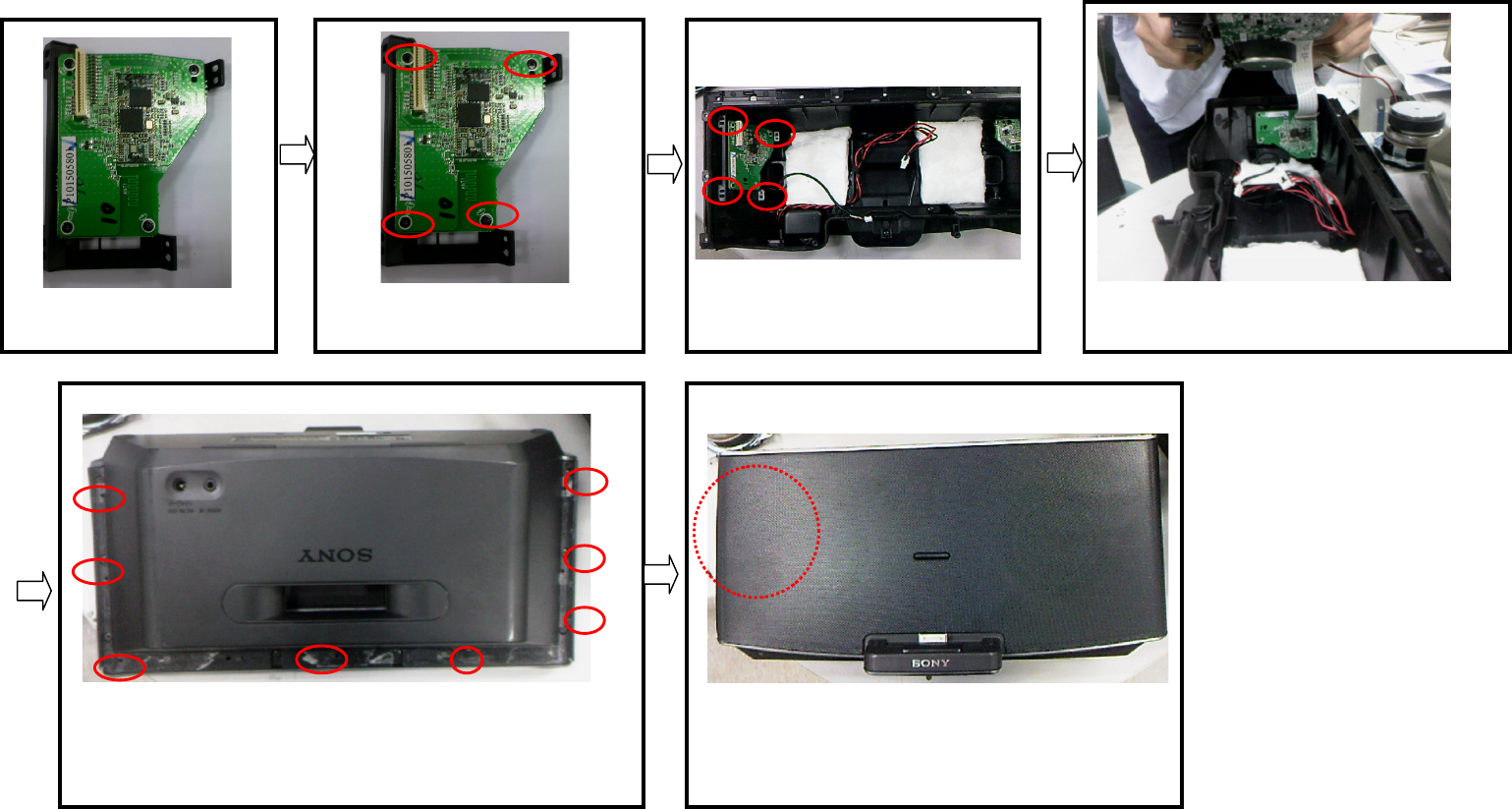

Use four screw fixed inside rear cabinet of unit
MODULE TEST PASS Use four screw fixed in the plastic holder
Use the screw fix the rear and front cabine. The product assembly finished.
Use one 20 pin FFC Cable connect the module to
Main Board.
BTM-S1 install manual
moudle
location
