CXN5100 Module Installation Manual
![](/img.php?id=1620241&img=bg2.png)
EX.)

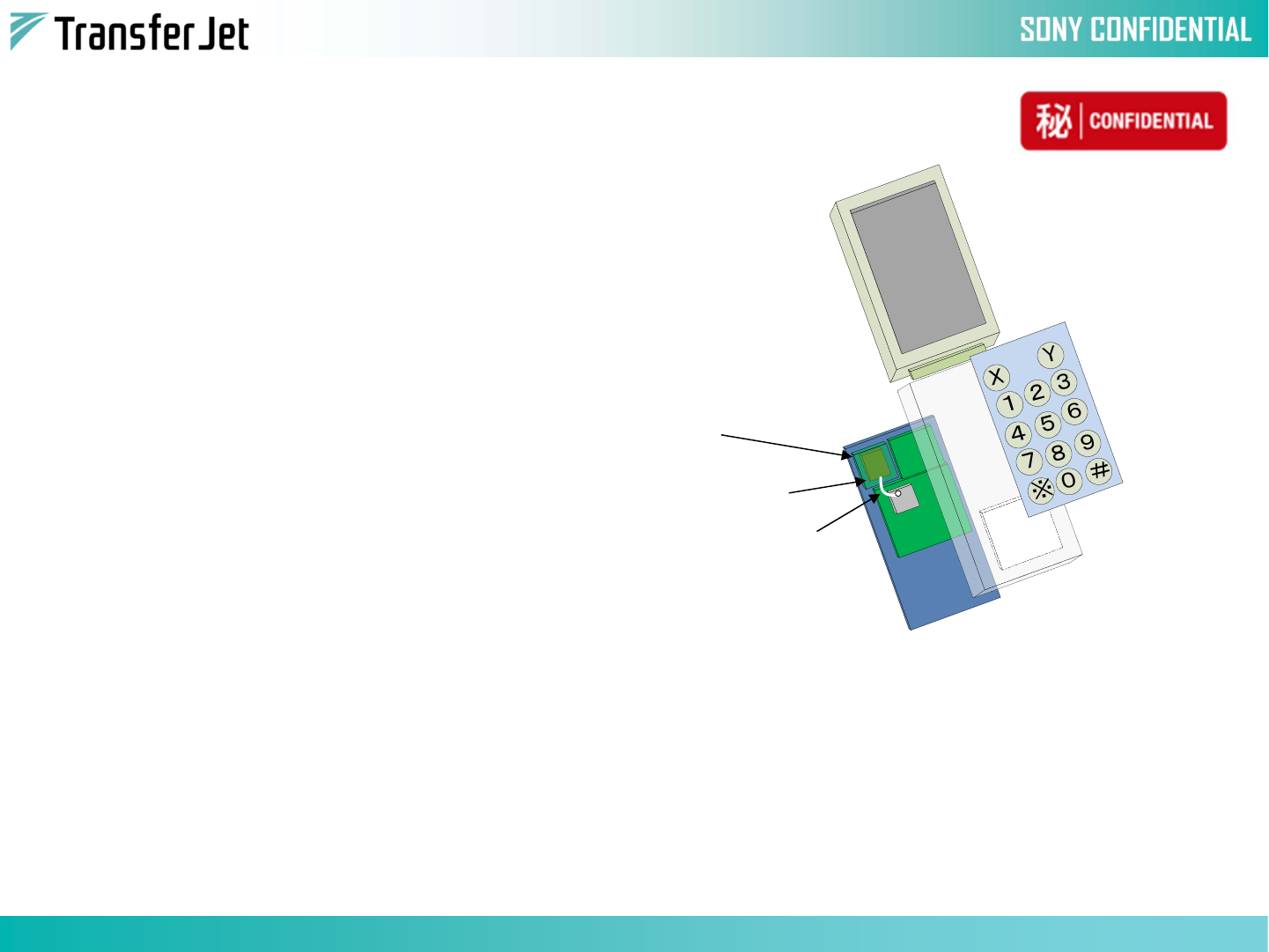

The Image for installation of CXN5100 Module
CXN5100 module
Coupler
(antenna)
cable
Only the coupler (LDA5M4G4815L-301 or LDA5M4G4820L-302) which received approval with
CXN5100 can be used.
By using another coupler mentioned above, additional measurement with the coupler and
application to FCC will be needed based on ”Permissive Change Policies”.
The product which equips CXN5100 should provide :
- stable power supply of DC3.3V and 1.8V to CXN5100
- the SDIO interface (version 2.00) to CXN5100
![](/img.php?id=1620241&img=bg3.png)
FCC Contains Transmitter Module FCC ID:AK8CXN5100 or
Contains FCC ID:AK8CXN5100
The following sentences are added to the label and of end product.
![](/img.php?id=1620241&img=bg4.png)
This device complies with Part 15 of FCC Rules . Operation is subject to the
following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of this device.
If there is any other required sentences to the end product from FCC, It should be added to
the user manual.
The following sentences are added to the user manual of end product.
FCC Contains Transmitter Module FCC ID:AK8CXN5100 or
Contains FCC ID:AK8CXN5100
FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
