Sony Group DWM01 Digital Wireless Microphone User Manual
Sony Corporation Digital Wireless Microphone
User manual
![](/img.php?id=1272768&img=bg1.png)
4-177-129-11 (1)
© 2010 Sony Corporation
Digital Wireless
Microphone
Operating Instructions
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
DWM-01
The supplied CD-ROM includes the Operating Instructions for the DWM-01
Digital Wireless Microphone (English, French, German, Italian, Spanish, and
Japanese versions) and the frequency lists (English and Japanese versions)
in PDF format.
For more details, see “Using the CD-ROM Manual” on page 21.
![](/img.php?id=1272768&img=bg2.png)
2
WARNING
Batteries shall not be exposed to excessive
heat such as sunshine, fire or the like.
For the customers in the U.S.A.
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in
a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on
a circuit different from that to which the
receiver isconnected.
- Consult the dealer or an experienced
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
All interface cables used to connect
peripherals must be shielded in order to
comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC
Rules.
If you have any questions about this
product, you may call;
Sony Customer Information Service Center
1-800-222-7669 or
http://www.sony.com/
Notice for customers in the
U.S.A.
Use of Sony wireless devices is regulated
by the Federal Communications
Commision as described in Part 74 subpart
H of the FCC regulations and users
authorized thereby are required to obtain an
appropriate license.
IMPORTANT NOTE: To comply with the
FCC RF exposure compliance
requirements, no change to the antenna or
the device is permitted,
Any change to the antenna or the device
could result in the device exceeding the RF
exposure requirements and void user’s
authority to operate this device.
This device complies with FCC radiation
exposure limits set forth for uncontrolled
equipment and meets the FCC radio
frequency (RF) Exposure Guidelines in
Supplement C to OET65. This device has
very low levels of RF energy that it is
deemed to comply without testing of
specific absorption radio (SAR).
Declaration of Conformity
Trade Name: SONY
Model: DWM-01
Responsible Party: Sony Electronics
Inc.
Address: 16530 Via Esprillo, San
Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
![](/img.php?id=1272768&img=bg3.png)
3
For customers in Canada
This Class B digital apparatus complies
with Canadian ICES-003.
For the customers in Canada
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
The term “IC” before the radio certification
number only signifies that Industry Canada
technical specifications were met.
Notice for customers in Canada:
Use of Sony wireless devices is regulated
by the Industry Canada as described in their
Radio Standard Specification RSS-123.
A licence is normally required. The local
district office of Industry Canada should
therefore be contacted. When the operation
of the device is within the broadcast band,
the licence is issued on no-interference,
noprotection basis with respect to broadcast
signals.
AVERTISSEMENT
N’exposez pas les batteries à une chaleur
excessive, au soleil ou près d’un feu par
exemple.
Pour les utilisateurs au Canada
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
L’utilisation doit répondre aux deux
conditions suivantes : (1) ce matériel ne doit
pas provoquer de brouillage et (2) il doit
accepter tout brouillage, même celui qui est
susceptible d’affecter son fonctionnement.
La mention « IC: » devant le numéro de
certification/ homologation signifie
uniquement que les spécifications
techniques d’Industrie Canada sont
remplies.
Remarque à l’intention des
utilisateurs au Canada:
L’usage des appareils sans fil Sony est
réglementé par l’Industrie Canada comme
décrit dans leur Cahier des Normes
Radioélectriques CNR-123.
Une licence est normalement requise.
Le bureau de l’Industrie Canada doit être
contacté. Lorsque le fonctionnement de
l’appareil respecte les limites de la bande de
radiodiffusion, la licence est accordée sur la
base d’une non-interférence, non-
protection pour les signaux de
radiodiffusion.
WARNUNG
Akkus dürfen keinesfalls übermäßiger
Wärmeeinwirkung ausgesetzt werden, wie
z.B. Sonneneinstrahlung, Feuer o. ä.
AVVERTENZA
Le batterie non devono essere esposte a
fonti di calore eccessivo come luce solare
diretta, fuoco, ecc.
ADVERTENCIA
No se deben exponer las baterÌas a una
fuente de calor excesivo como la luz del sol,
el fuego o similar.
U.K. 470 - 862 MHz
Germany 470 - 606 MHz, 614 -
862 MHz
Norway 800 - 820 MHz
Luxembourg 470 - 862 MHz
Belgium 470 - 862 MHz
Denmark 800.100 - 819.900 MHz
France 470 - 830 MHz
Italy 470 - 854 MHz
Sweden 470 - 862 MHz
Switzerland 790 - 862 MHz
Finland 790.100 - 821.900 MHz,
854 - 862 MHz
Iceland 470 - 862 MHz
Turkey 470 - 862 MHz
![](/img.php?id=1272768&img=bg4.png)
4
For the customers in Europe
Hereby, Sony Corporation, declares that
this DWM-01 is in compliance with the
essential requirements and other relevant
provisions of the Directive 1999/5/EC.
For details, please access the following
URL: http://www.compliance.sony.de/
This product is intended to be used in the
following countries : United Kingdom,
Germany, Norway, Luxembourg, Belgium,
Denmark, France, Italy, Sweden,
Switzerland, Finland, Iceland, and Turkey.
Pour les clients en Europe
Par la présente Sony Corporation déclare
que l'appareil DWM-01 est conforme aux
exigences essentielles et aux autres
dispositions pertinentes de la directive
1999/5/CE.
Pour toute information complémentaire,
veuillez consulter l’URL suivante:
http://www.compliance.sony.de/
Ce produit est prévu pour être utilisé dans
les pays suivants: Royaume-Uni,
Allemagne, Norvège, Luxembourg,
Belgique, Danemark, France, Italie, Suède,
Suisse, Finlande, Islande et Turquie.
Für Kunden in Europa
Hiermit erklärt Sony Corporation, dass sich
das Gerät DWM-01 in Übereinstimmung
mit den grundlegenden Anforderungen und
den übrigen einschlägigen Bestimmungen
der Richtlinie 1999/5/EG befindet.
Weitere Informationen erhältlich unter:
http://www.compliance.sony.de/
Dieses Produkt ist für den Gebrauch in den
folgenden Ländern vorgesehen: Vereinigtes
Königreich, Deutschland, Norwegen,
Luxemburg, Belgien, Dänemark,
Frankreich, Italien, Schweden, Schweiz,
Finnland, Island und Türkei.
Per i clienti in Europa
Con la presente Sony Corporation dichiara
che questo DWM-01 è conforme ai requisiti
essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/
CE.
Per ulteriori dettagli, si prega di consultare
il seguente URL:
http://www.compliance.sony.de/
Questo prodotto è destinato all’uso nei
seguenti paesi: Regno Unito, Germania,
Norvegia, Lussemburgo, Belgio,
Danimarca, Francia, Italia, Svezia,
Svizzera, Finlandia, Islanda e Turchia.
Para los clientes de Europa
Por medio de la presente Sony Corporation
declara que el DWM-01 cumple con los
requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Para mayor información, por favor consulte
el siguiente URL:
http://www.compliance.sony.de/
Este producto está destinado a utilizarse en
los siguientes países: Reino Unido,
Alemania, Noruega, Luxemburgo, Bélgica,
Dinamarca, Francia, Italia, Suecia, Suiza,
Finlandia, Islandia y Turquía.
Voor de klanten in Europa
Hierbij verklaart Sony Corporation dat het
toestel DWM-01 in overeenstemming is
met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/
EG.
Nadere informatie kunt u vinden op:
http://www.compliance.sony.de/
Dit product is bedoeld om in volgende
landen gebruikt te worden: Verenigd
Koninkrijk, Duitsland, Noorwegen,
Luxemburg, België, Denemarken,
Frankrijk, Italië, Zweden, Zwitserland,
Finland, IJsland en Turkije.
For kunder i Europa
Härmed intygar Sony Corporation att denna
DWM-01 står I överensstämmelse med de
väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
![](/img.php?id=1272768&img=bg5.png)
5
För ytterligare information gå in på följande
hemsida: http://www.compliance.sony.de/
Den här produkten är avsedd för
användning i följande länder:
Storbritannien, Tyskland, Norge,
Luxembourg, Belgien, Danmark,
Frankrike, Italien, Sverige, Schweiz,
Finland, Island och Turkiet.
Para os clientes da Europa
Sony Corporation declara que este DWM-
01 está conforme com os requisitos
essenciais e outras disposições da Directiva
1999/5/CE.
Para mais informacoes, por favor consulte a
seguinte URL:
http://www.compliance.sony.de/
Este produto destina-se a ser usado nos
seguintes países: Reino Unido, Alemanha,
Noruega, Luxemburgo, Bélgica,
Dinamarca, França, Itália, Suécia, Suíça,
Finlândia, Islândia e Turquia.
For kunder i Europa
Undertegnede Sony Corporation erklærer
herved, at følgende udstyr DWM-01
overholder de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/EF.
For yderligere information gå ind på
følgende hjemmeside:
http://www.compliance.sony.de/
Dette produkt er beregnet til brug i de
følgende lande: Storbritannien, Tyskland,
Norge, Luxembourg, Belgien, Danmark,
Frankrig, Italien, Sverige, Schweiz,
Finland, Island og Tyrkiet.
Euroopassa oleville asiakkaille
Sony Corporation vakuuttaa täten että
DWM-01 tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen
mukainen.
Halutessasi lisätietoja, käy osoitteessa:
http://www.compliance.sony.de/
Tämä tuote on tarkoitettu käytettäväksi
seuraavissa maissa: Yhdistynyt
kuningaskunta, Saksa, Norja, Luxemburg,
Belgia, Tanska, Ranska, Italia, Ruotsi,
Sveitsi, Suomi, Islanti ja Turkki.
For kundene i Europa
Sony Corporation erklærer herved at
utstyret DWM-01 er i samsvar med de
grunnleggende krav og øvrige relevante
krav i direktiv 1999/5/EF.
For flere detaljer, vennligst se:
http://www.compliance.sony.de/
Dette produktet er ment for bruk i følgende
land: Storbritannia, Tyskland, Norge,
Luxemburg, Belgia, Danmark, Frankrike,
Italia, Sverige, Sveits, Finland, Island og
Tyrkia.
Για τους πελάτες στην Eυρώπη
Με την παρούσα η Sony Corporation
δηλώνει τι DWM-01
συµµορφώνεται προς της ουσιώδεις
απαιτήσεις και τις λοιπές σχετικές
διατάξεις της οδηγίας 1999/5/ΕΚ..
Για λεπτοµέρειες παρακαλούµε
πως ελένξετε την ακλουθη
σελίδα του διαδικτύου:
http://www.compliance.sony.de/
Το προϊν προορίζεται για χρήση
στις εξής χώρες: Ηνωµένο Βασίλειο,
Γερµανία, Νορβηγία,
Λουξεµβούργο, Βέλγιο, ∆ανία,
Γαλλία, Ιταλία, Σουηδία, Ελβετία,
Φινλανδία, Ισλανδία και Τουρκία.
![](/img.php?id=1272768&img=bg6.png)
6
Pro zákazníky v Evropě
Sony Corporation tímto prohlašuje, že
tento DWM-01 je ve shodě se
základními požadavky a dalšími
příslušnými ustanoveními směrnice
1999/5/ES.
Podrobnosti lze získat na následující
URL:
http://www.compliance.sony.de/
Tento produkt je určen k použití v
následujících zemích: Spojené
království, Německo, Norsko,
Lucembursko, Belgie, Dánsko, Francie,
Itálie, Švédsko, Švýcarsko, Finsko,
Island a Turecko.
Euroopa klientidele
Sony Corporation kinnitab käesolevaga
seadme DWM-01 vastavust 1999/5/EÜ
direktiivi põhinõuetele ja nimetatud
direktiivist tulenevatele teistele
asjakohastele sätetele.
Üksikasjalikum info:
http://www.compliance.sony.de/.
See toode on ettenähtud kasutamiseks
järgmistes riikides: Suurbritannia,
Saksamaa, Norra, Luksemburg, Belgia,
Taani, Prantsusmaa, Itaalia, Rootsi, Šveits,
Soome, Island ja Türgi.
Európai vásárlóink fi gyelmébe
Alulírott, Sony Corporation
nyilatkozom, hogy a(z) DWM-01
megfelel a vonatkozó alapvető
követelményeknek és az 1999/5/EC
irányelv egyéb előírásainak.
További információkat a következő
weboldalon találhat:
http://www.compliance.sony.de/
Ez a termék a következő országokban
használható: Egyesült Királyság,
Németország, Norvégia, Luxemburg,
Belgium, Dánia, Franciaország,
Olaszország, Svédország, Svájc,
Finnország, Izland és Törökország.
Dotyczy klientów z Europy
Niniejszym Sony Corporation
oświadcza, że DWM-01 jest zgodne z
zasadniczymi wymaganiami oraz innymi
stosownymi postanowieniami
Dyrektywy 1999/5/WE.
Szczegółowe informacje znaleźć można
pod następującym adresem URL:
http://www.compliance.sony.de/
Ten produkt jest przeznaczony do
użytku w następujących krajach:
Wielkiej Brytanii, Niemczech, Norwegii,
![](/img.php?id=1272768&img=bg7.png)
7
Luksemburgu, Belgii, Danii, Francji,
Włoszech, Szwecji, Szwajcarii, Finlandii,
Islandii i Turcji.
Pentru clienţii din Europa
Prin prezenta, Sony Corporation declară
că acest DWM-01 respectă cerinţele
esenţiale și este în conformitate cu
prevederile Directivei 1995/5/EC.
Pentru detalii, vă rugăm accesaţi
următoarea adresă:
http://www.compliance.sony.de/
Acest produs este destinat utilizării în
următoarele ţări: Regatul Unit,
Germania, Norvegia, Luxemburg,
Belgia, Danemarca, Franţa, Italia,
Suedia, Elveţia, Finlanda, Islanda și
Turcia.
Pre zákazníkov v Európe
Sony Corporation týmto vyhlasuje, že
DWM-01 spĺňa základné požiadavky a
všetky príslušné ustanovenia Smernice
1999/5/ES.
Podrobnosti získate na nasledovnej
webovej adrese:
http://www.compliance.sony.de/
Tento produkt je určený na používanie v
nasledovných krajinách: Veľká
Británia, Nemecko, Nórsko,
Luxembursko, Belgicko, Dánsko,
Francúzsko, Taliansko, Švédsko,
Švajčiarsko, Fínsko, Island a Turecko.
Za stranke v Evropi
Sony Corporation izjavlja, da je ta
DWM-01 v skladu z bistvenimi
zahtevami in ostalimi relevantnimi
določili direktive 1999/5/ES.
Za podrobnosti vas naprošamo, če
pogledate naURL:
http://www.compliance.sony.de/
Izdelek je namenjen za uporabo v
naslednjih državah: Veliki Britaniji,
Nemčiji, Norveški, Luksemburgu,
Belgiji, Danski, Franciji, Italiji, Švedski,
Švici, Finski, Islandiji in Turčiji.
For the customers in UK:
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Großbritannien:
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Storbritannia:
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant au
Royaume-Uni:
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in het Verenigd
Koninkrijk:
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Storbritannien:
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti nel Regno Unito:
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali..
För kunderna i Storbritannien:
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
![](/img.php?id=1272768&img=bg8.png)
8
Yhdistyneessä
kuningaskunnassa asuville
asiakkaille:
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
For the customers in Germany:
According to German regulation this
equipment can only operate in channels
(specify which channels are allowed).
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Deutschland:
Gemäß den Vorschriften in Deutschland
kann dieses Gerät nur auf bestimmten
Kanälen betrieben werden (zulässige
Kanäle angeben).
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Tyskland:
I henhold til tyske forskrifter kan dette
utstyret kun brukes i kanal (angi hvilke
kanaler som er tillatt).
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant en
Allemagne:
Conformément à la réglementation
allemande, cet équipement fonctionne
uniquement avec des canaux (spécifiez les
canaux autorisés).
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in Duitsland:
Volgens de Duitse wetgeving mag deze
apparatuur alleen werken in kanalen
(opgeven welke kanalen zijn toegestaan).
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Tyskland:
I henhold til tysk lovgivning kan dette
udstyr kun fungere i kanaler (angiv, hvilke
kanaler, der er tilladt).
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti in Germania:
In base alle norme vigenti in Germania, il
presente apparecchio può essere utilizzato
solo su canali (specificare i canali
consentiti).
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
För kunderna i Tyskland:
Enligt tysk lagstiftning får den här
utrustningen endast användas med följande
kanaler (ange vilka kanaler som är tillåtna).
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Saksassa asuville asiakkaille:
Saksassa voimassa olevien määräysten
mukaan tätä laitetta saa käyttää ainoastaan
kanavilla (ilmoita sallitut kanavat).
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
![](/img.php?id=1272768&img=bg9.png)
9
For the customers in Norway:
According to Norwegian regulation this
equipment can only operate in channels
(specify which channels are allowed) with a
maximum RF output power of 20mW.
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Norwegen:
Gemäß den Vorschriften in Norwegen kann
dieses Gerät nur auf bestimmten Kanälen
betrieben werden (zulässige Kanäle
angeben), und zwar mit einer maximalen
HF-Ausgangsleistung von 20 mW.
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Norge:
I henhold til norske forskrifter kan dette
utstyret kun brukes i kanal (angi hvilke
kanaler som er tillatt) med maksimal RF-
utgangseffekt på 20 mW.
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant en
Norvège:
Conformément à la réglementation
norvégienne, cet équipement fonctionne
uniquement avec des canaux (spécifiez les
canaux autorisés) ayant une puissance de
sortie RF maximale de 20 mW.
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in Noorwegen:
Volgens de Noorse wetgeving mag deze
apparatuur alleen werken in kanalen
(opgeven welke kanalen zijn toegestaan)
met een maximaal RF-uitgangsvermogen
van 20 mW.
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Norge:
I henhold til norsk lovgivning kan dette
udstyr kun fungere i kanaler (angiv, hvilke
kanaler, der er tilladt) med en maksimal RF-
udgangseffekt på 20 mW.
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti in Norvegia:
In base alle norme vigenti in Norvegia, il
presente apparecchio può essere utilizzato
solo su canali (specificare i canali
consentiti) con una potenza di uscita RF
massima di 20mW.
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
För kunderna i Norge:
Enligt norsk lagstiftning får den här
utrustningen endast användas med följande
kanaler (ange vilka kanaler som är tillåtna)
med en maximal RF-uteffekt på 20 mW.
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Norjassa asuville asiakkaille:
Norjassa voimassa olevien määräysten
mukaan tätä laitetta saa käyttää ainoastaan
![](/img.php?id=1272768&img=bga.png)
10
kanavilla (ilmoita sallitut kanavat) ja siten,
että RF-lähetysten enimmäisteho on 20
mW.
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
For the customers in
Luxembourg:
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Luxemburg:
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Luxemburg:
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant au
Luxembourg:
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in Luxemburg:
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Luxembourg:
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti in Lussemburgo:
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
För kunderna i Luxemburg:
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Luxemburgissa asuville
asiakkaille:
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.

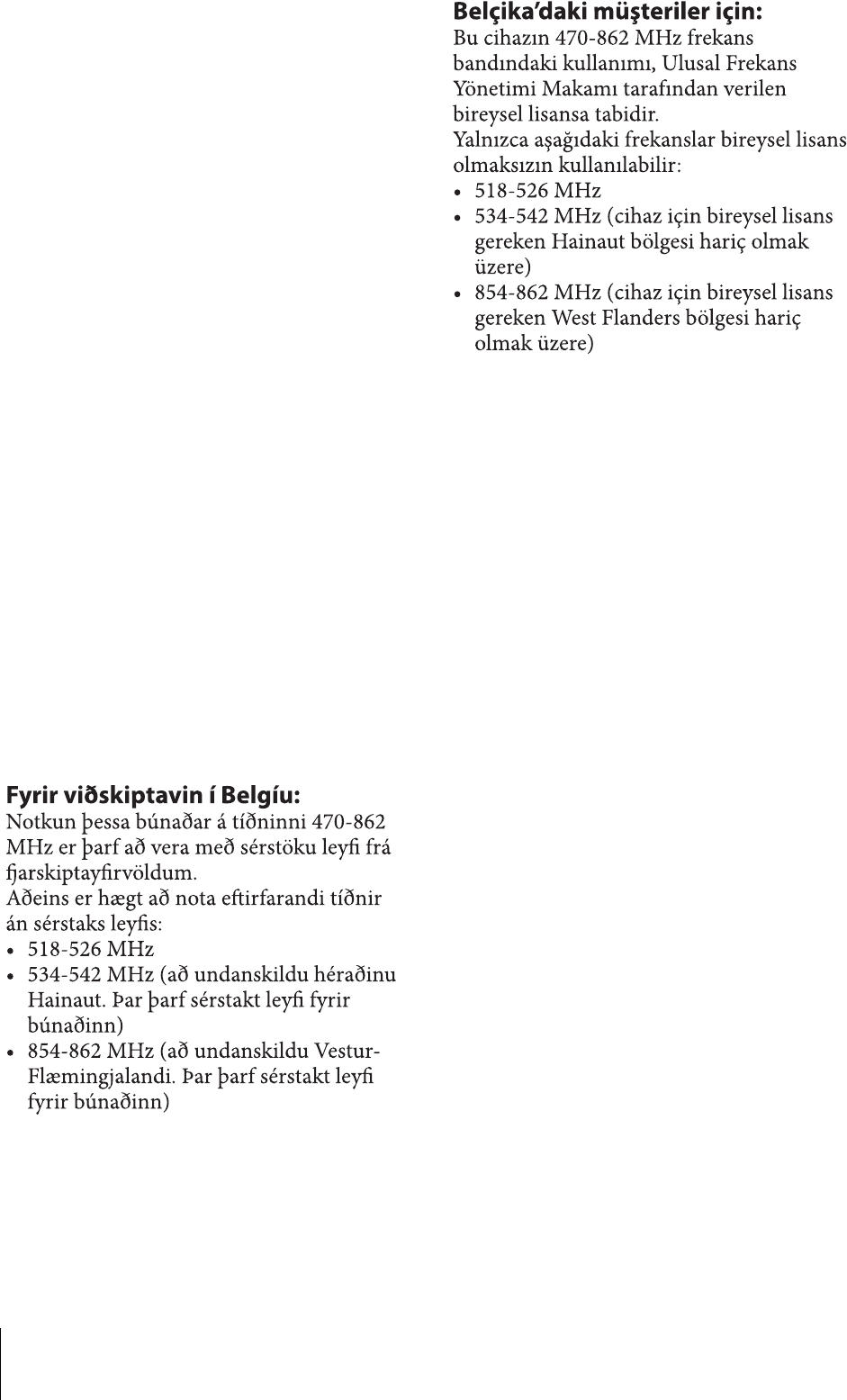

For the customers in Belgium:
The use of this equipment in the frequency
band 470-862 MHz is subject to individual
license granted by the National Frequency
Administration Authority.
Only the following frequencies can be used
without individual license:
•518-526 MHz
• 534-542 MHz (with the exception of the
province of Hainaut where the equipment
requires individual license)
• 854-862 MHz (with the exception of
West Flanders where the equipment
requires individual license)
![](/img.php?id=1272768&img=bgb.png)
11
Für Kunden in Belgien:
Der Gebrauch dieses Geräts im
Frequenzband von 470-862 MHz unterliegt
einer entsprechenden Lizenz, die von der
nationalen Frequenzverwaltungsbehörde
vergeben wird.
Nur die folgenden Frequenzen können ohne
entsprechende Lizenz gebraucht werden:
• 518-526 MHz
• 534-542 MHz (mit Ausnahme der
Provinz Hennegau, wo für das Gerät eine
entsprechende Lizenz erforderlich ist)
• 854-862 MHz (mit Ausnahme von
Westflandern, wo für das Gerät eine
entsprechende Lizenz erforderlich ist)
For kundene i Belgia:
Bruken av dette utstyret i frekvensbåndet
470-862 MHz er underlagt en spesiell lisens
som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Kun følgende frekvenser kan brukes uten
spesiell lisens:
• 518-526 MHz
• 534-542 MHz (med unntak av provinsen
Hainaut, der utstyret krever spesiell
lisens)
• 854-862 MHz (med unntak av Vest-
Flanders, der utstyret krever spesiell
lisens)
Pour les clients résidant en
Belgique:
L’utilisation de cet équipement dans la
bande de fréquences 470-862 MHz est
soumise à une licence individuelle accordée
par l’autorité d’administration nationale des
fréquences.
Seules les fréquences suivantes peuvent
être utilisées sans licence individuelle :
• 518-526 MHz
• 534-542 MHz (à l’exception de la
province de Hainaut où l’équipement
requiert une licence individuelle)
• 854-862 MHz (à l’exception de la
province de Flandre occidentale où
l’équipement requiert une licence
individuelle)
Voor klanten in België:
Het gebruik van deze apparatuur in de
frequentieband 470-862 MHz is onderhevig
aan een afzonderlijke licentie die is
verleend door de nationale autoriteit voor
frequentiebeheer.
Alleen de volgende frequenties mogen
worden gebruikt zonder een afzonderlijke
licentie:
•518-526 MHz
• 534-542 MHz (met uitzondering van de
provincie Hainaut waar een afzonderlijke
licentie is vereist voor de apparatuur)
• 854-862 MHz (met uitzondering van
West-Vlaanderen w aar een afzonderlijke
licentie is vereist voor de apparatuur)
For kunderne i Belgien:
Brugen af dette udstyr i frekvensområdet
470 - 862 MHz er underlagt individuel
licens givet af telemyndighederne.
Kun følgende frekvenser må anvendes uden
individuel licens:
• 518 - 526 MHz
• 534 - 542 MHz (med undtagelse af
provinsen Hainaut, hvor der kræves
individuel licens til udstyret)
• 854 - 862 MHz (med undtagelse af
Vestflandern, hvor der kræves individuel
licens til udstyret)
Per i clienti in Belgio:
L’uso di questo apparecchio nella banda di
frequenza 470-862 MHz è soggetto ad una
licenza individuale accordata dall’Autorità
per l’amministrazione delle frequenze
nazionali.
Solo le seguenti frequenze possono essere
utilizzate senza una licenza individuale:
•518-526 MHz
• 534-542 MHz (ad eccezione della
provincia dell’Hainaut dove
l’apparecchio richiede una licenza
individuale)
• 854-862 MHz (ad eccezione delle
Fiandre occidentali dove l’apparecchio
richiede una licenza individuale)
![](/img.php?id=1272768&img=bgc.png)
12
För kunderna i Belgien:
Användandet av den här utrustningen, som
använder frekvensbandet 470-862 MHz,
sker under enskilda licenser som utfärdas av
den nationella myndighet som handhar
frekvenstillstånd.
Endast följande frekvenser får användas
utan enskild licens:
• 518-526 MHz
• 534-542 MHz (provinsen Hainaut är ett
undantag, där kräver utrustningen enskild
licens)
• 854-862 MHz (Västflandern är ett
undantag, där kräver utrustningen enskild
licens)
Belgiassa asuville asiakkaille:
Laitteiston käyttöön taajuusalueella 470-
862 MHz tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
Vain seuraavia taajuuksia voidaan käyttää
ilman henkilökohtaista lupaa:
• 518-526 MHz
• 534-542 MHz (lukuun ottamatta
Hainautin provinssia, jossa laite vaatii
henkilökohtaisen luvan)
• 854-862 MHz (lukuun ottamatta Länsi-
Flanderia, jossa laite vaatii
henkilökohtaisen luvan).

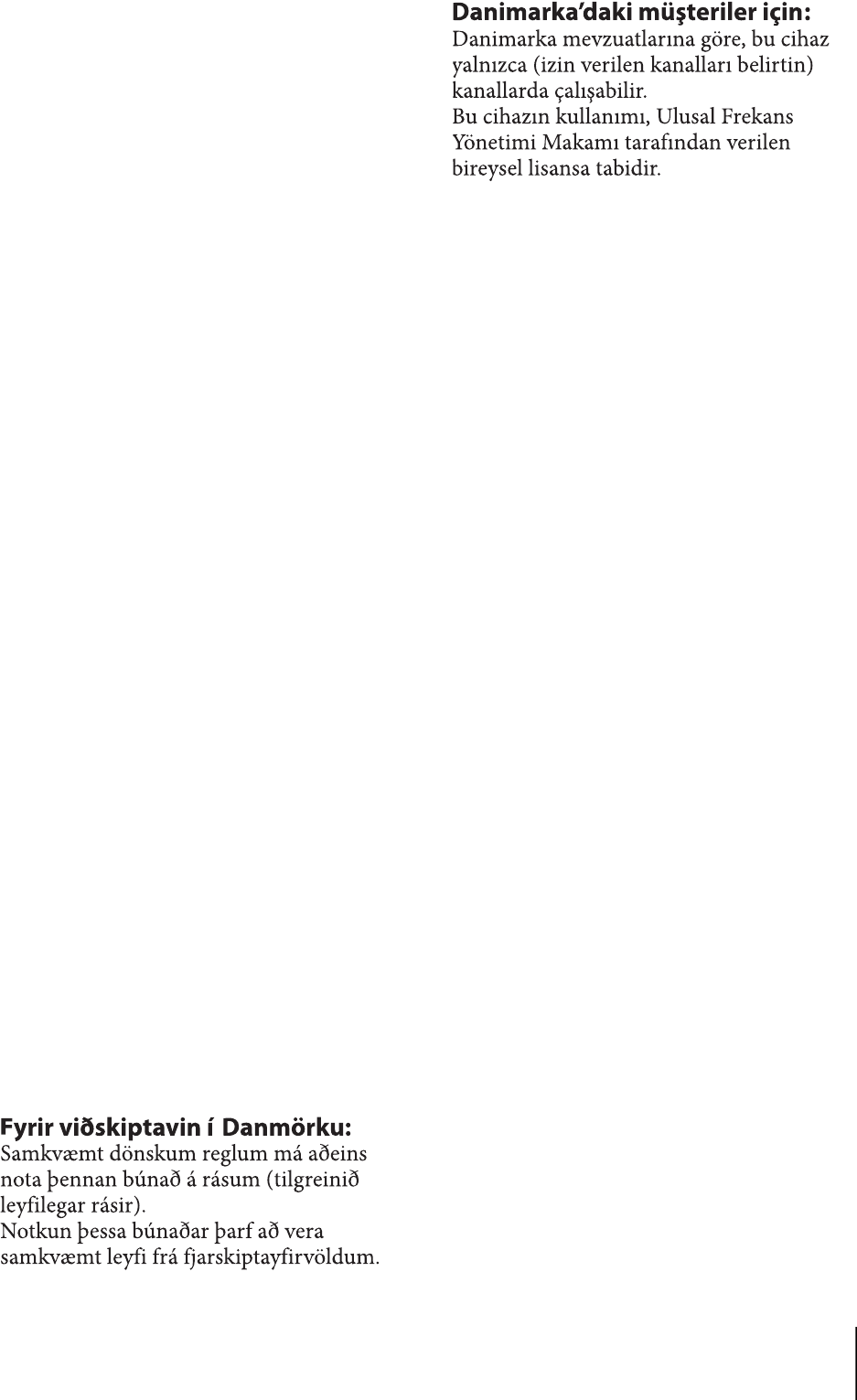

For the customers in Denmark:
According to Danish regulation this
equipment can only operate in channels
(specify which channels are allowed).
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Dänemark:
Gemäß den Vorschriften in Dänemark kann
dieses Gerät nur auf bestimmten Kanälen
betrieben werden (zulässige Kanäle
angeben).
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Danmark:
I henhold til danske forskrifter kan dette
utstyret kun brukes i kanal (angi hvilke
kanaler som er tillatt).
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant au
Danemark:
Conformément à la réglementation danoise,
cet équipement fonctionne uniquement
avec des canaux (spécifiez les canaux
autorisés).
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
![](/img.php?id=1272768&img=bgd.png)
13
Voor klanten in Denemarken:
Volgens de Deense wetgeving mag deze
apparatuur alleen werken in kanalen
(opgeven welke kanalen zijn toegestaan).
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Danmark:
I henhold til dansk lovgivning kan dette
udstyr kun fungere i kanaler (angiv, hvilke
kanaler, der er tilladt).
Brugen af dette udstyr er underlagt til
individuel licens givet at
telemyndighederne.
Per i clienti in Danimarca:
In base alle norme vigenti in Danimarca, il
presente apparecchio può essere utilizzato
solo su canali (specificare i canali
consentiti).
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
För kunderna i Danmark:
Enligt dansk lagstiftning får den här
utrustningen endast användas med följande
kanaler (ange vilka kanaler som är tillåtna).
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Tanskassa asuville asiakkaille:
Tanskassa voimassa olevien määräysten
mukaan tätä laitetta saa käyttää ainoastaan
kanavilla (ilmoita sallitut kanavat).
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
For the customers in Italy:
According to Italian regulation this
equipment can only operate in channels
(specify which channels are allowed).
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Italien:
Gemäß den Vorschriften in Italien kann
dieses Gerät nur auf bestimmten Kanälen
betrieben werden (zulässige Kanäle
angeben).
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Italia:
I henhold til italienske forskrifter kan dette
utstyret kun brukes i kanal (angi hvilke
kanaler som er tillatt).
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant en Italie:
Conformément à la réglementation
italienne, cet équipement fonctionne
uniquement avec des canaux (spécifiez les
canaux autorisés).
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in Italië:
Volgens de Italiaanse wetgeving mag deze
apparatuur alleen werken in kanalen
(opgeven welke kanalen zijn toegestaan).
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
![](/img.php?id=1272768&img=bge.png)
14
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Italien:
I henhold til italiensk lovgivning kan dette
udstyr kun fungere i kanaler (angiv, hvilke
kanaler, der er tilladt).
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti in Italia:
In base alle norme vigenti in Italia, il
presente apparecchio può essere utilizzato
solo su canali (specificare i canali
consentiti).
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
För kunderna i Italien:
Enligt italiensk lagstiftning får den här
utrustningen endast användas med följande
kanaler (ange vilka kanaler som är tillåtna).
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Italiassa asuville asiakkaille:
Italiassa voimassa olevien määräysten
mukaan tätä laitetta saa käyttää ainoastaan
kanavilla (ilmoita sallitut kanavat).
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
For the customers in Sweden:
According to Swedish regulation this
equipment can only operate in channels
(specify which channels are allowed).
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Schweden:
Gemäß den Vorschriften in Schweden kann
dieses Gerät nur auf bestimmten Kanälen
betrieben werden (zulässige Kanäle
angeben).
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Sverige:
I henhold til svenske forskrifter kan dette
utstyret kun brukes i kanal (angi hvilke
kanaler som er tillatt).
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant en
Suède:
Conformément à la réglementation
suédoise, cet équipement fonctionne
uniquement avec des canaux (spécifiez les
canaux autorisés).
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in Zweden:
Volgens de Zweedse wetgeving mag deze
apparatuur alleen werken in kanalen
(opgeven welke kanalen zijn toegestaan).
![](/img.php?id=1272768&img=bgf.png)
15
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Sverige:
I henhold til svensk lovgivning kan dette
udstyr kun fungere i kanaler (angiv, hvilke
kanaler, der er tilladt).
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti in Svezia:
In base alle norme vigenti in Svezia, il
presente apparecchio può essere utilizzato
solo su canali (specificare i canali
consentiti).
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
För kunderna i Sverige:
Enligt svensk lagstiftning får den här
utrustningen endast användas med följande
kanaler (ange vilka kanaler som är tillåtna).
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Ruotsissa asuville asiakkaille:
Ruotsissa voimassa olevien määräysten
mukaan tätä laitetta saa käyttää ainoastaan
kanavilla (ilmoita sallitut kanavat).
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
For the customers in
Switzerland:
According to Swiss regulation this
equipment can only operate in channels
(specify which channels are allowed).
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in der Schweiz:
Gemäß den Vorschriften in der Schweiz
kann dieses Gerät nur auf bestimmten
Kanälen betrieben werden (zulässige
Kanäle angeben).
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Sveits:
I henhold til sveitsiske forskrifter kan dette
utstyret kun brukes i kanal (angi hvilke
kanaler som er tillatt).
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant en
Suisse:
Conformément à la réglementation suisse,
cet équipement fonctionne uniquement
avec des canaux (spécifiez les canaux
autorisés).
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in Zwitserland:
Volgens de Zwitserse wetgeving mag deze
apparatuur alleen werken in kanalen
(opgeven welke kanalen zijn toegestaan).
![](/img.php?id=1272768&img=bg10.png)
16
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Schweiz:
I henhold til schweizisk lovgivning kan
dette udstyr kun fungere i kanaler (angiv,
hvilke kanaler, der er tilladt).
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti in Svizzera:
In base alle norme vigenti in Svizzera, il
presente apparecchio può essere utilizzato
solo su canali (specificare i canali
consentiti).
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
För kunderna i Schweiz:
Enligt schweizisk lagstiftning får den här
utrustningen endast användas med följande
kanaler (ange vilka kanaler som är tillåtna).
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Sveitsissä asuville asiakkaille:
Sveitsissä voimassa olevien määräysten
mukaan tätä laitetta saa käyttää ainoastaan
kanavilla (ilmoita sallitut kanavat).
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
For the customers in Finland:
According to Finnish regulation this
equipment can only operate in channels
(specify which channels are allowed).
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Finnland:
Gemäß den Vorschriften in Finnland kann
dieses Gerät nur auf bestimmten Kanälen
betrieben werden (zulässige Kanäle
angeben).
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene i Finland:
I henhold til finske forskrifter kan dette
utstyret kun brukes i kanal (angi hvilke
kanaler som er tillatt).
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant en
Finlande:
Conformément à la réglementation
finlandaise, cet équipement fonctionne
uniquement avec des canaux (spécifiez les
canaux autorisés).
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in Finland:
Volgens de Finse wetgeving mag deze
apparatuur alleen werken in kanalen
(opgeven welke kanalen zijn toegestaan).
![](/img.php?id=1272768&img=bg11.png)
17
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Finland:
I henhold til finsk lovgivning kan dette
udstyr kun fungere i kanaler (angiv, hvilke
kanaler, der er tilladt).
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti in Finlandia:
In base alle norme vigenti in Finlandia, il
presente apparecchio può essere utilizzato
solo su canali (specificare i canali
consentiti).
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
För kunderna i Finland:
Enligt finsk lagstiftning får den här
utrustningen endast användas med följande
kanaler (ange vilka kanaler som är tillåtna).
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Suomessa asuville asiakkaille:
Suomessa voimassa olevien määräysten
mukaan tätä laitetta saa käyttää ainoastaan
kanavilla (ilmoita sallitut kanavat).
Laitteiston käyttöön tarvitaan
Viestintäviraston myöntämä
henkilökohtainen lupa.
For the customers in Iceland:
The use of this equipment is subject to
individual license granted by the National
Frequency Administration Authority.
Für Kunden in Island:
Der Gebrauch dieses Geräts unterliegt einer
entsprechenden Lizenz von der nationalen
Frequenzverwaltungsbehörde.
For kundene på Island:
Bruken av dette utstyret er underlagt en
spesiell lisens som utstedes av nasjonale
frekvensforvaltningsmyndigheter.
Pour les clients résidant en
Islande:
L’utilisation de cet équipement est soumise
à la licence individuelle accordée par les
autorités d’administration des fréquences
nationales.
Voor klanten in IJsland:
Het gebruik van deze apparatuur is
onderhevig aan een afzonderlijke licentie
die is verleend door de nationale autoriteit
voor frequentiebeheer.
For kunderne i Island:
Brugen af dette udstyr er underlagt
individuel licens givet at
telemyndighederne.
Per i clienti in Islanda:
L’uso di questo apparecchio è soggetto ad
una licenza individuale accordata
dall’Autorità per l’amministrazione delle
frequenze nazionali.
![](/img.php?id=1272768&img=bg12.png)
18
För kunderna i Island:
Användandet av den här utrustningen sker
under enskilda licenser som utfärdas av den
nationella myndighet som handhar
frekvenstillstånd.
Islannissa asuville asiakkaille:
Laitteiston käyttöön tarvitaan paikallisen
viestintäviranomaisen myöntämä
henkilökohtainen lupa.
![](/img.php?id=1272768&img=bg13.png)
19
Table of Contents
Table of Contents
Features ........................................ 20
Using the CD-ROM Manual ....... 21
Preparations ........................... 21
Reading the CD-ROM
Manual ................................... 21

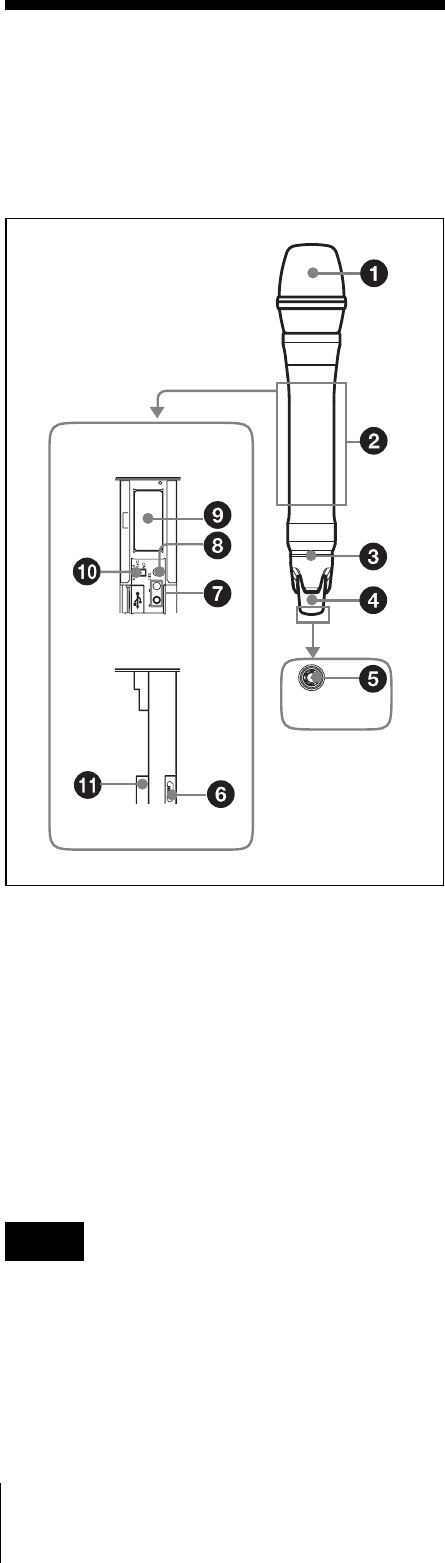

Parts Identification ...................... 22
Power Supply ............................... 24
Installing the Batteries ........... 24
Attaching the Supplied
Accessories ................................... 25
Replacing the Identification
Ring ....................................... 25
Setting the Transmission
Channel ........................................ 25
Selecting the Group/
Channel .................................. 25
Using the Wireless Remote Control
Function ........................................ 26
Pairing With a Receiver ........ 26
Using the Encrypted Transmission
Function ........................................ 28
Using Secure Key Mode
(SECURE KEY) .................... 28
Using Password Mode
(PASSWORD) ....................... 29
Using a USB Keyboard ............... 30
Basic Menu Operations ............... 31
Setting Menus .............................. 32
Naming of Microphone
(NAME) ................................. 32
Selecting the Group/Channel (GP/
CH) ........................................ 33
Selecting the Frequency Band
(BAND) ................................. 33
Setting the RF Output Power (RF
POWER) ................................ 33
Setting the Audio Input Level
(INPUT LEVEL) ....................34
Low-cut Filter Setting
(LCF) ......................................34
Power Save Setting (POWER
SAVE) ....................................34
Displaying the Accumulated Use
Time (TIME) ..........................35
Setting the Battery Type
(BATTERY TYPE) ................35
Setting the Encrypted
Transmission Function
(ENCRYPTION) ....................35
Generating an Internal Signal
(INTERNAL SG) ...................35
Locking the POWER Switch
(POWER SW LOCK) ............35

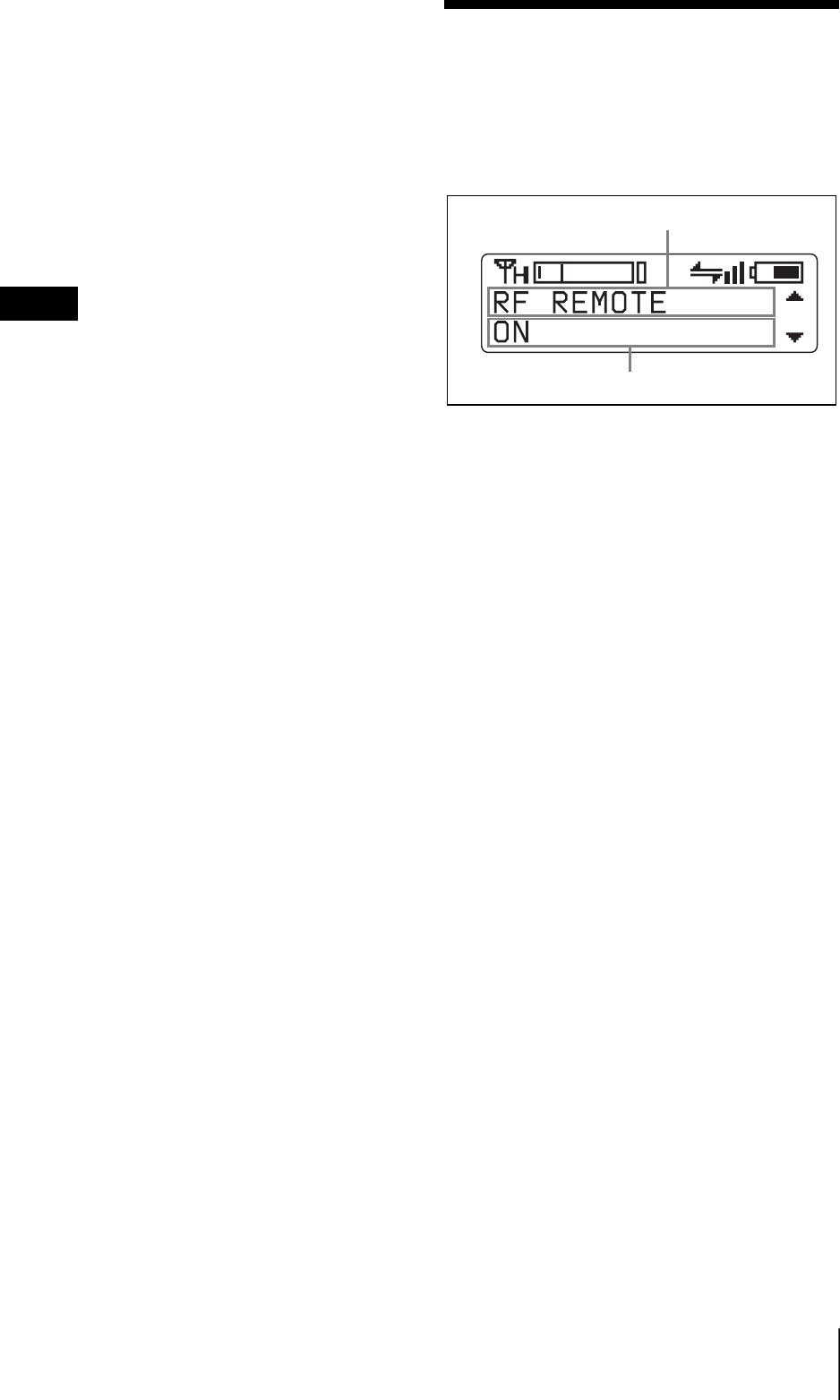

Wireless Remote Control
Function (RF REMOTE) .......36
Setting the Brightness of the
Display (BRIGHTNESS) .......36
Automatic Dimming of the
Display (DIMMER MODE) ..36
Resetting Parameters to Their
Factory Settings (FACTORY
PRESET) ................................36
Displaying the Software Version
(VERSION) ............................36
Block Diagram.............................. 37
Troubleshooting ........................... 38
Important Notes on Operation ...40
Notes on Using the
Microphone ............................40
On Cleaning ...........................40
Specifications ................................41
![](/img.php?id=1272768&img=bg14.png)
20 Features
Features
The DWM-01 is a digital wireless hand-
held microphone for a UHF synthesized
wireless microphone system. This
microphone is especially intended for
vocalists at concerts or in studios.
What are the strengths of a
Digital Wireless Microphone
System?
This system has the following special
features and qualities:
• High-quality audio signal transmission
approaching to the quality of wired
microphone
• Extremely tolerant to interference waves
and secure wireless transmission
• Simultaneous multi-channel operation
• Encrypted transmission
• Metadata transmission.
Note that the DWM-01 digital wireless
microphone cannot be used to transmit to
analog wireless receivers.
The features of this microphone are
described below.
Wide RF carrier frequency
range
The DWM-01 microphone covers an
extremely wide RF carrier frequency range.
The U3040 and U4250 models (US models)
can cover a 66-MHz band and 60-MHz
band respectively — much wider than 24-
MHz of the analog wireless microphone
system, while the CE6267 model
(European model) can cover a 48-MHz
band. This remarkably wide coverage on a
single model offers cost efficiency and
operational convenience, because it allows
one microphone to be operated in many
different areas.
Dynamic type and condenser
type
As a hand-held microphone that is
appropriate for picking up the vocal, the
DWM-01 comes in two types: dynamic
type and condenser type.
Compact, lightweight, and
rugged design
With a solid, monocoque structure that is
tolerant of fall or impact, this microphone
can digitize the sound in the close proximity
of its source. Even the delicate sounds like
intake of breath of the vocalist are naturally
processed.
Capability of accepting wide
range of sound pressure level
For details, see “Setting the Audio Input Level
(INPUT LEVEL)” on page 34.
Selectable RF output power:
1 mW, 10 mW, and 50 mW
For details, see “Setting the RF Output Power (RF
POWER)” on page 33.
Power sleep mode
For details, see “Power Save Setting (POWER
SAVE)” on page 34.
Digital low-cut filter
For details, see “Low-cut Filter Setting (LCF)” on
page 34.
![](/img.php?id=1272768&img=bg15.png)
21
Using the CD-ROM Manual
Using the CD-
ROM Manual
The supplied CD-ROM includes the
Operating Instructions for the DWM-01
(English, French, German, Italian, Spanish,
and Japanese versions) and the frequency
lists (English and Japanese versions) in
PDF format.
Preparations
The following program must be installed on
your computer in order to read the
Operating Instructions contained on the
CD-ROM.
• Adobe Reader Version 6.0 or higher
M
If Adobe Reader is not installed, you can
download it from the Adobe Systems Web
site.
Adobe and Adobe Reader are trademarks of
Adobe Systems Incorporated in the United States
and/or other countries.
Reading the CD-ROM
Manual
To read the Operating Instructions and
frequency lists contained on the CD-ROM,
do the following.
1Insert the CD-ROM in your CD-ROM
drive.
A cover page appears automatically in
your browser.
If it does not appear automatically in
the browser, double-click on the
index.htm file on the CD-ROM.
2Select and click on the Operating
Instructions or the frequency lists that
you want to read.
This opens the selected PDF file.
The files may not be displayed properly,
depending on the version of Adobe Reader.
In such a case, install the latest version you
can download from the Adobe Systems
Web site.
If you have lost or damaged the CD-ROM,
you can purchase a new one to replace it.
Memo
Memo
Note
![](/img.php?id=1272768&img=bg16.png)
22 Parts Identification
Parts
Identification
aWind screen
bGrip
Contains operation buttons, display section,
and the battery holder.
Open the grip to make settings or install the
batteries.
For details on how to open the grip, see “Installing
the Batteries” on page 24.
When the grip is open, the metal part of the
grip obstructs the antenna for RF
transmission and wireless remote control
system. To transmit the signal or to use the
wireless remote control function with this
microphone, be sure to close the grip.
cIdentification ring
The ring can be replaced with the ones
supplied.
This is useful when multiple microphones
are used in the system.
For details on how to replace the identification ring,
see “Replacing the Identification Ring” on page 25.
dAntenna cover
Holds the antenna for RF transmission and
wireless remote control function.
ePOWER indicator
Lights up green when the microphone is
turned on. When the battery is exhausted,
the indicator starts flashing.

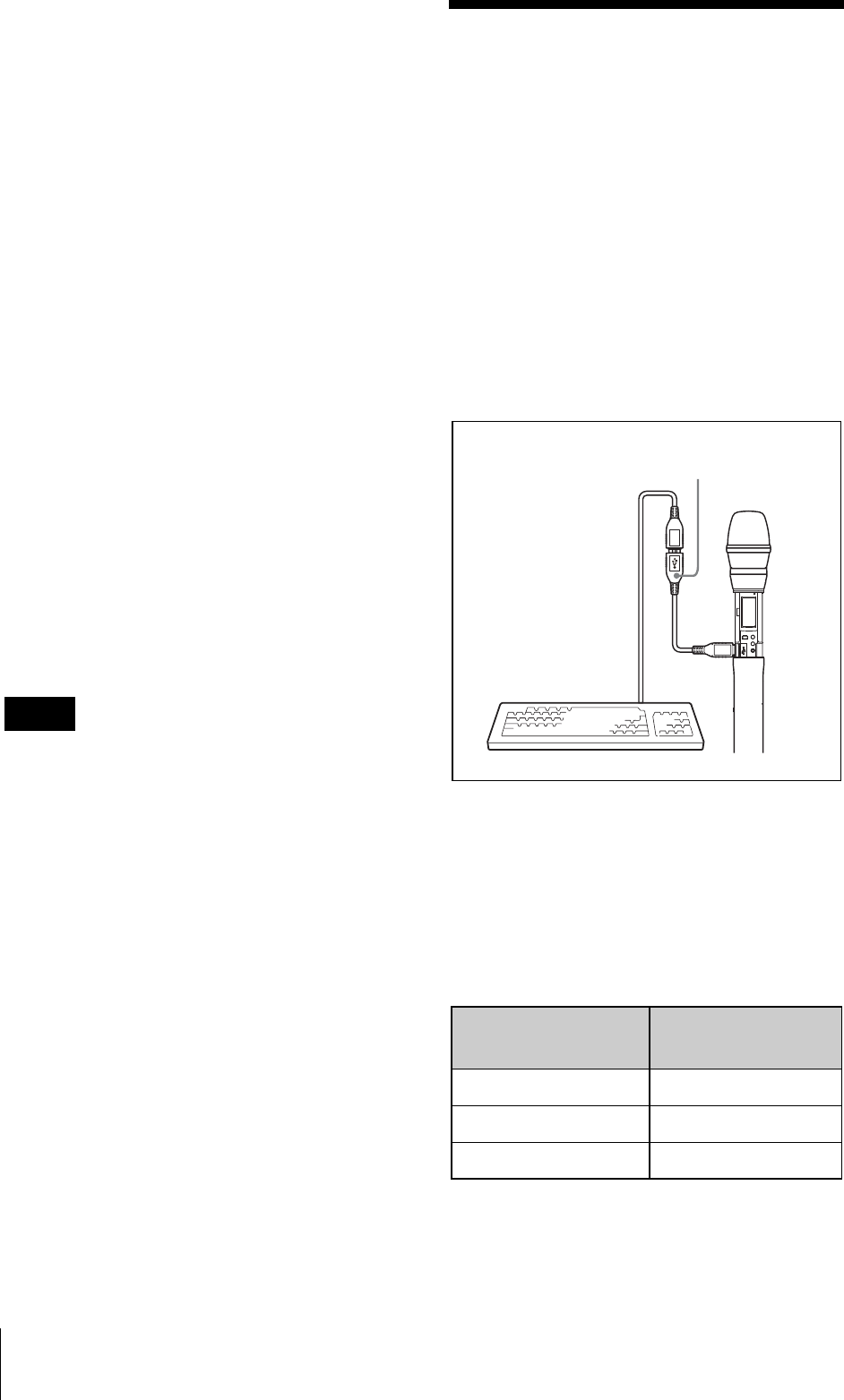

fUSB connector (Micro USB)
Use this connector to connect an optional
USB keyboard to carry out menu functions
using key operations. By connecting the

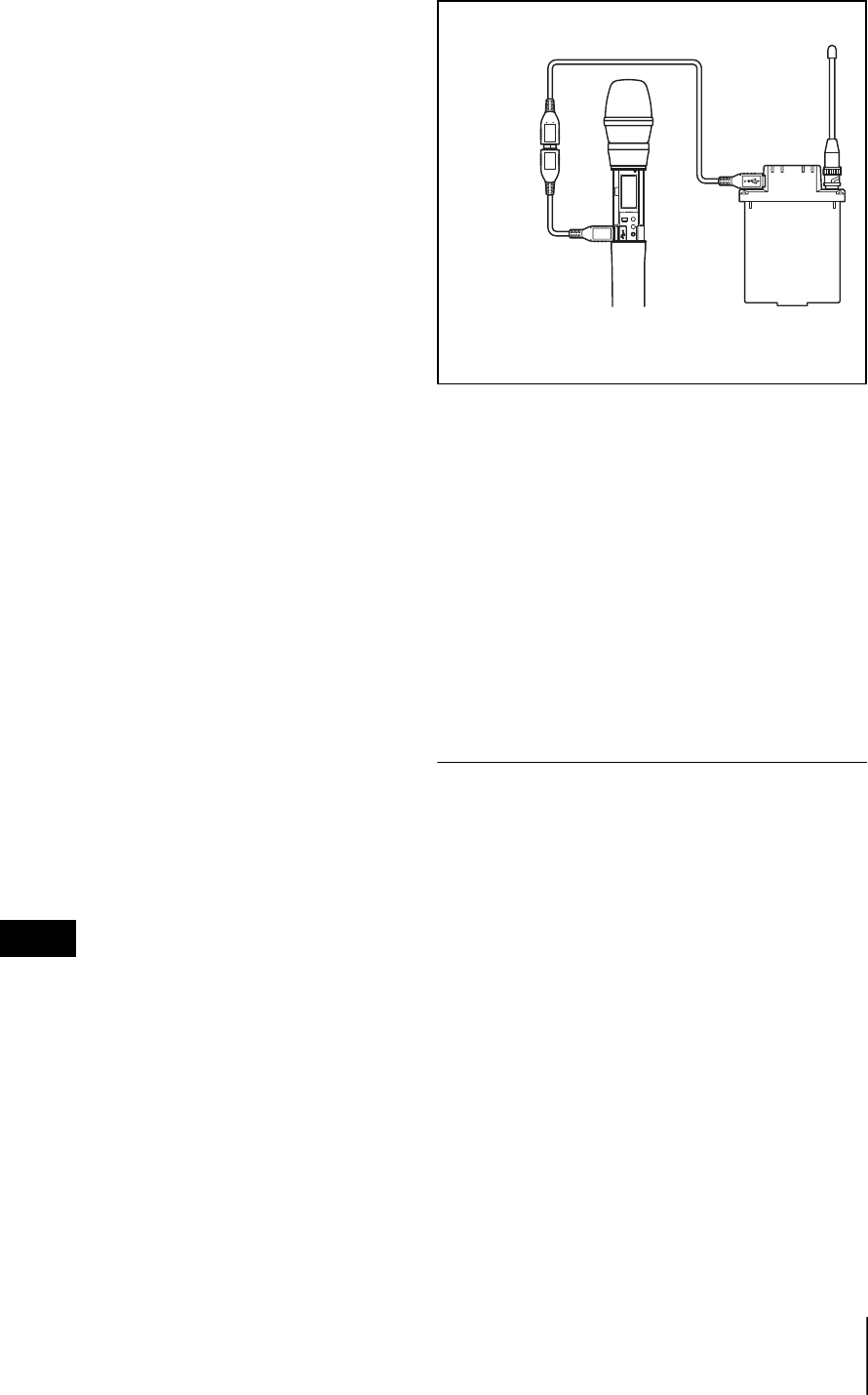

digital wireless receiver to this connector
with the supplied USB cable, you can
exchange the encryption key for encrypted
transmission function.
g + or – button
Selects functions or values shown on the
display.
Holding down the – button while switching
on the microphone activates the pairing
operation for the wireless remote control
function.
hSET button
Adjusts displayed function settings and
enters the value.
Holding down the SET button while
switching on the power turns the
microphone on without sending a signal.
Note
Inside the
grip
Front
Side
Bottom of
the antenna
cover
![](/img.php?id=1272768&img=bg17.png)
23
Parts Identification

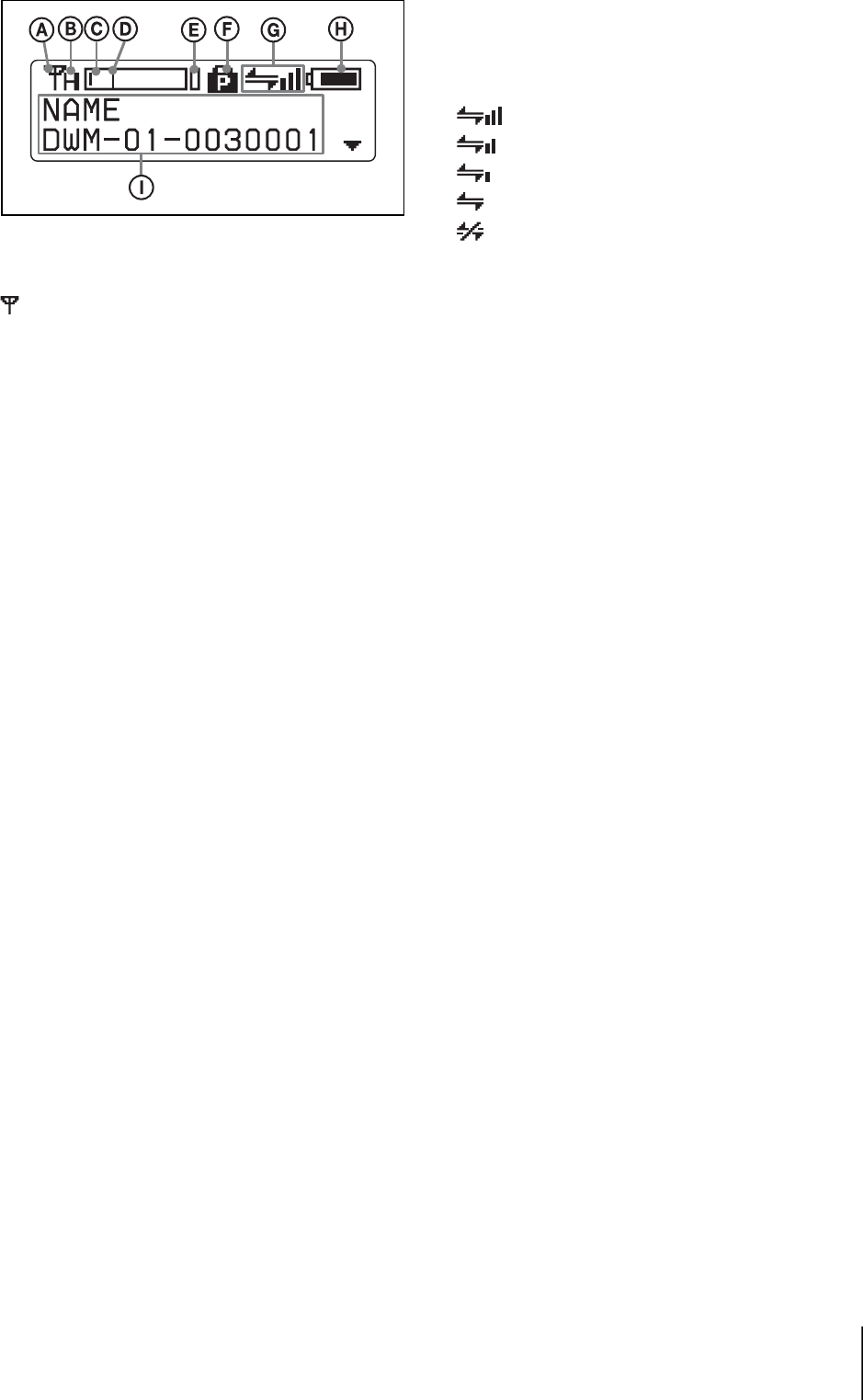

iDisplay section
ARF transmission indication
Indicates the current transmission status.
:Currently transmitting
—: Transmission stopped
BRF (radio frequency) transmission
power indication
Indicates the current transmission power
setting. You can change the setting with the
RF transmission power setting function.
H: transmitting at 50 mW
M: transmitting at 10 mW
L: transmitting at 1 mW
CAudio input level meter
Indicates the signal input level.
DReference level gauge
Indicates the reference input level. When
the attenuation is 0 dB, 94 dBSPL is
indicated.
EPeak indicator
Warns of excessive input by lighting up
when the signal is 3 dB below the level at
which distortion begins.
FPOWER switch lock indicator
Indicates that the POWER switch is locked,
preventing the microphone from being
accidentally turned off or on.
For details, see “Locking the POWER Switch
(POWER SW LOCK)” on page 35.
GWireless remote control condition
indication
Indicates the signal transmission condition
of the wireless remote control function (4
levels).
: Good transmission
: Somewhat good transmission
: Somewhat poor transmission
: Poor transmission
: Unable to communicate with paired
receiver
When the wireless remote control function
is off, this indication does not appear.
HBattery indication
Shows the battery condition.
For details, see “Battery indication” on page 24.
IMenu display section
The status of 17 different functions are
displayed here. To select the function, press
the + or – button repeatedly.
For details, See “Setting Menus” on page 32.
jPOWER switch
Turns the microphone ON or OFF.
kBattery compartment
Accommodates two LR6 (size AA) alkaline
batteries.
For details on how to insert the batteries, see
“Power Supply” on page 24.
![](/img.php?id=1272768&img=bg18.png)
24 Power Supply
Power Supply
The microphone can operate on two LR6
(size AA) alkaline batteries continuously
for about 5 hours at 25°C (77°F).
Installing the Batteries
1Turn the grip in the direction of the
arrow, and pull down the grip until the
battery compartment is shown.
2Insert two new LR6 (size AA) alkaline
batteries, making sure the polarities are
correct.
To prevent the batteries from touching
each other, push in the second battery
against the spring tension.
Squeezing the batteries into the
compartment while two batteries are
touching may damage the battery
packages.
3Close the grip and turn it in the reverse
direction in the step 1 above.
Battery indication
The power status is indicated by eight level
indications.
Replace both batteries when the battery
indication starts to flash.
Be sure to check the expiration date printed
on the new batteries before using them.
• When BATTERY TYPE is set to
TYPE1, the power status is indicated
based on the use of new LR6 (size AA)
Sony Alkaline batteries. An incorrect
indication may result when a different
kind of batteries, a different brand of
batteries or old batteries are used. If you
plan to use other kind of batteries than
alkaline, set the BATTERY TYPE
function according to the type of batteries
to be used.
• If you plan to use the microphone for a
long period of time, it is recommended
that you replace the batteries with brand
new ones.
For details on BATTERY TYPE setting, “Setting the
Battery Type (BATTERY TYPE)” on page 35.
Note
Notes
![](/img.php?id=1272768&img=bg19.png)
25
Attaching the Supplied Accessories / Setting the Transmission Channel
Attaching the
Supplied
Accessories

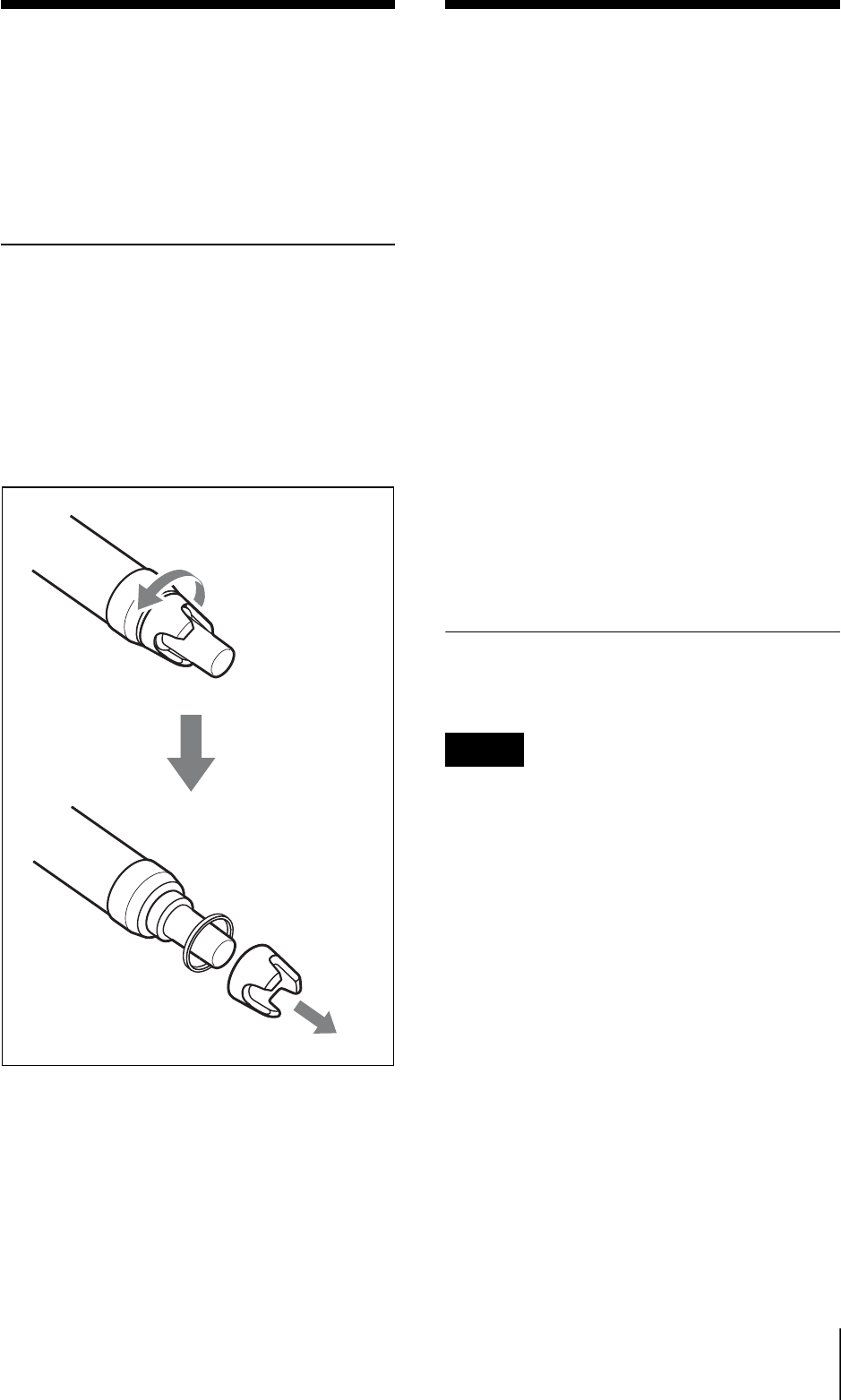

Replacing the
Identification Ring
A black ring is attached at the factory.
When multiple microphones are used in the
system, identification rings with different
colors are useful to distinguish a
microphone from another.
Setting the
Transmission
Channel
The microphone provides groups of
interference-free channels. When using
multiple microphones and transmitters at
the same time (simultaneous multi-channel
operations) within the same area, selecting
the same group and using a channel within
that group can prevent signal interference.
To set the transmission channel on the
microphone, first you select the group and
channel using the RF indicator and
scanning functions on the receiver. Next
you set the group and channel parameters to
match the setting on the receiver.
Selecting the Group/
Channel
• Before doing this procedure, use the
BAND function (see page 33) to set the
microphone to the bandwidth of the
receiver you are using.
• The setting for this function cannot be
changed during actual signal
transmission.
Set the microphone group (GP) and channel
(CH) as follows:
For details on groups and channels, refer to “Sony
Digital Wireless Microphone System Frequency
Lists” on the supplied CD-ROM.
For details on menu operation, see “Basic Menu
Operations” on page 31.
Rotate and
remove the ring
holder to
replace the
identification
ring.
Notes
![](/img.php?id=1272768&img=bg1a.png)
26 Using the Wireless Remote Control Function
1Turn off the power, and then while
holding down the SET button, turn the
power on.
The signal transmission stops.
2Press the + or – button repeatedly until
the GP/CH indication is displayed.
3Hold down the SET button until the
item to be set flashes.
4Press the + or – button repeatedly to
select a group.
5Press the SET button to enter the
group.
The channel indication starts flashing.
6Press the + or – button repeatedly to
select a channel.
7Press the SET button to enter the
channel.
To start signal transmission with the
selected channel, turn off the power and
then turn it on again.
To set the group/channel
using the pairing mode of the
wireless remote control
function
When the microphone is paired with the
receiver, the transmission channel of the
microphone is set to the receiving channel
on the receiver automatically.
For details, see“Pairing With a Receiver” on
page 26.
Using the
Wireless Remote
Control Function
This microphone is equipped with a
wireless remote control function that can be
used to set the parameters (low-cut filter,
attenuation operation, power save mode,
etc.) of the microphone through the receiver
or other devices. This function makes it
easier to operate and manage the
microphone system while in the field.
This wireless control is 2.4 GHz
IEEE802.15.4 compliant and has no effect
on the RF band of digital wireless audio.
This function is activated when pairing is
established between the microphone and
the receiver using the RF REMOTE
function.
Pairing must be done first before the
wireless remote control function can be
used.
Pairing With a Receiver
Pairing links the microphone with the
receiver which the wireless remote control
function is to be used.
When the microphone has been paired with
a receiver through the receiver operation,
turning on the microphone while holding
down the – button establishes the pairing
immediately.
To carry out pairing through menu
operations on the microphone, do the
following.
Note
![](/img.php?id=1272768&img=bg1b.png)
27
Using the Wireless Remote Control Function
1Set the receiver to be used for
controlling the microphone to pairing
mode.
For details, refer to the operating instructions
supplied with the receiver.
2Press the + or – button repeatedly until
the RF REMOTE indication is
displayed.
3Hold down the SET button until the
item to be set flashes.
4Press the + or – button repeatedly to
select PAIRING.
5Press the SET button to enter.
The microphone sends a pairing
request to the receiver which is on
pairing mode.
Before established pairing, if you press
any operation key on the microphone,
pairing mode will be cancelled.
When pairing has been established, the
wireless remote control condition level
(indicated by ) goes up, RF
REMOTE turns on, and the remote
control function becomes operative.
When “Pairing fail” is
displayed
• Successful communication between the
microphone and the receiver did not
occur within a given amount of time.
Perform pairing again.
• Pairing has been performed with the grip
open. When the internal antenna is
covered with the grip, pairing may not be
carried out. After setting the microphone
ready for pairing in step 5 above, be sure
to close the grip.
To use the wireless remote
control function with a
previous pairing
In the RF REMOTE indication, select ON.
• When you set RF REMOTE to ON, the
microphone will communicate with the
receiver to which it was previously
paired. To use the wireless remote
control function with another receiver,
you must perform the pairing procedure
for that receiver.
• Multiple microphones/transmitters
cannot be paired with the same receiver.
• If you reset all parameters by using the
FACTORY PRESET function (see page
36), the pairing setting of the microphone
is also cleared.
The following microphone settings
can be done from the wireless
remote control:
• Frequency band/group/channel selection
• RF transmission power setting
• Attenuator for the audio input setting
• Low-cut filter setting
• Power save setting
For details on menu operation, see “Setting Menus”
on page 32.
To cancel the wireless remote
control function
In the RF REMOTE indication, select OFF.
Notes on the wireless remote
control function
The wireless remote control function on the
microphone uses the 2.4-GHz band and
may thus be subject to interference from
other devices.
• When pairing fails (“Pairing fail” is
displayed), successful communication
Notes
![](/img.php?id=1272768&img=bg1c.png)
28 Using the Encrypted Transmission Function
between the microphone and the receiver
has not occurred within a given amount
of time. Pairing may be harder to do
when another receiver is engaged in
pairing nearby.
• When it becomes hard to use the remote
control, the remote control may be
improved by switching the wireless
remote control function off, then on again
in the RF REMOTE display, then re-
pairing with the microphone (change to a
channel with less interference).
Using the
Encrypted
Transmission
Function
To prevent hacking of the signal, the
microphone scrambles the signal during
transmission. To use this function, select
one of the following encrypted transmission
modes:
Secure key mode: An encryption key
that is automatically generated by the
microphone is used by both the microphone
and receiver in this one-to-one encrypted
transmission method.
Password mode: You choose a
password of up to eight characters that can
be set for multiple microphones/
transmitters and receivers. This enables
encrypted transmission within a group.
Make sure the same mode is set on the
microphone/transmitter and receiver.
Using Secure Key Mode
(SECURE KEY)
Use this mode for one-to-one encrypted
transmission between one microphone and
one receiver.
An encryption key that cannot be read from
the outside is automatically generated by
the microphone. This key is transmitted to
the receiver through a USB connection or
the RF REMOTE function, enabling
encrypted transmission to take place.
Note
![](/img.php?id=1272768&img=bg1d.png)
29
Using the Encrypted Transmission Function
The encryption key used by the microphone
and receiver is newly generated for each
key transmission, resulting in highly secure
communication.
The encryption key used between the
microphone and the receiver is saved when
the power is turned off, so the encrypted
transmission can be resumed the next time
the power is turned on.
1Preparing the microphone (this unit)
1Hold down the SET button until
the item to be set flashes in
ENCRYPTION indication on the
microphone.
2Press the + or – button repeatedly
to select SECURE KEY, and then
press the SET button.
2Preparing the receiver
Select SECURE KEY on the receiver
that receives the encryption key.
For details on receiver operations, refer to the
operating instructions supplied with the
receiver.
3Exchanging the encryption key
On the receiver, select USB or
REMOTE (wireless remote) as the
method for encryption key exchange.
When the RF REMOTE function is
off, REMOTE cannot be selected.
When the receiver does not support
encryption key exchange through USB
connection, select REMOTE.
For details on the receiver, refer to the
operating instructions supplied with the
receiver.
When you select USB:
Connect the microphone to the
receiver with the supplied USB cable
and USB adapter cable.
For details on receiver operations, refer to the
operating instructions supplied with the
receiver.
When you select REMOTE:
The microphone searches for a
receiver that it has been paired with.
After the microphone detects the
receiver, the microphone exchanges
the encryption key with receiver and
encrypted transmission begins.
Using Password Mode
(PASSWORD)
Set this mode when multiple microphones/
transmitters are paired with multiple
receivers for encrypted transmission.
If both microphones/transmitters and
receivers are set with the same user-
designated password, the audio signal can
be decoded. This mode is useful when
multiple microphones/transmitters and
receivers are used as a single group, or
when the audio signal from one
microphone/transmitter is received by
multiple receivers at the same time.
Note
USB cable (supplied)
USB adapter
cable
(supplied)
![](/img.php?id=1272768&img=bg1e.png)
30 Using a USB Keyboard
1Hold down the SET button until the
item to be set flashes in the
ENCRYPTION indication on the
microphone.
2Press the + or – button repeatedly to
select PASSWORD, and then press the
SET button.
3Input a password of up to eight
characters on the microphone.
To enter a password, use the procedure
described in “Naming of Microphone
(NAME)” on page 32.
4Set the encrypted transmission
function setting on the receiver to
PASSWORD.
5Set the same password that was set on
the microphone.
For details on receiver operations, refer to the
operating instructions supplied with the
receiver.
It is recommended that you change the
password periodically.
Using a USB
Keyboard
Connecting an optional USB keyboard to
the microphone allows you to perform
menu operations and enter your name and
password for the encrypted transmission
function from the keyboard.
A Micro USB connector is used on the
microphone. For this reason, use the
supplied USB adapter cable.
Menu operations with a USB
keyboard
You can use a USB keyboard to perform the
same menu operations that you do on the
microphone.
The microphone buttons correspond to the
following keys on a USB keyboard:
To enter a text
With a USB keyboard, you can enter names
and passwords for encrypted transmissions.
Note
Buttons on the
microphone
USB keyboard
SET ENTER
+R
–r
USB adapter cable (supplied)
![](/img.php?id=1272768&img=bg1f.png)
31
Basic Menu Operations
Characters that can be entered from
a USB keyboard: (space), 0, 1, 2, 3, 4, 5,
6, 7, 8, 9, A, B, C, D, E, F, G, H, I, J, K, L,
M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, !,
#, &, $, @, +, -, =, _, (, ), [, ]
(Passwords may consist of the numbers 0 to
9 and letters A to Z only.)
Special key: Backspace (BS) and Delete
(DEL) keys.
• The number keys on the keyboard cannot
be used.
• This microphone is compatible with
English-language keyboards only.
• USB keyboards with multiple functions,
such as USB hub and pointing device,
cannot be used.
• Power to the connected keyboard is
supplied by the USB connector on the
microphone. The power rating is 100
mA. Keyboards that consume more
power than that cannot be used.
• Do not leave the microphone connected
to the keyboard when not in use. If you
do, the batteries in the microphone will
be drained more quickly.
• Text editing should be done with the
alphabet, BS, DEL, and Enter keys.
Basic Menu
Operations
1Press the + or – button repeatedly until
the function to be set appears.
2Hold down the SET button until the
item to be set flashes.
3Press the + or – button to change the
setting.
4Press the SET button to enter the
setting.
Types of menu:
• NAME (microphone name) setting
• BAND (frequency band) selection
• GP/CH (group/channel) selection
• RF POWER (RF transmission power)
setting
• INPUT LEVEL (audio input level)
setting
• LCF (low-cut filter) setting
• POWER SAVE setting
• TIME (accumulated use time) indication
• BATTERY TYPE (battery type) setting
• ENCRYPTION (encrypted transmission
function) setting
• INTERNAL SG (internal signal
generator) function
• POWER SW LOCK (POWER switch
lock) function
• RF REMOTE (wireless remote control)
function
Notes
Function name
Item to be set
![](/img.php?id=1272768&img=bg20.png)
32 Setting Menus
• BRIGHTNESS (display brightness)
setting
• DIMMER MODE (automatic dimming
of the display) setting
• FACTORY PRESET (factory setting)
function
• VERSION (software version) indication
Setting Menus
The functions and parameters of the settings
menu are explained here. Underlined items
are the factory setting.
Naming of Microphone
(NAME)
You can specify a microphone name of up
to 16 characters. The factory setting for the
microphone name is the model name and
serial number. The microphone name is
sent to the receiver as metadata and is used
by the receiver to distinguish between
different microphones/transmitters.
+: The first press on the + button displays
the character set. You can then use the + and
– buttons to select the desired character.
And then, pressing the SET button adds the
selected character to the end of the current
name.
– : Deletes the last character in the current
name.
SET: Enters the character or edited name.
You cannot insert or delete a character in
the middle of the name.
To edit with a keyboard
You can enter data from an optional
keyboard connected to the USB connector.
For details, see “Using a USB Keyboard” on
page 30.
Note
![](/img.php?id=1272768&img=bg21.png)
33
Setting Menus
Selecting the Group/
Channel (GP/CH)
The factory settings are as follows:
US models
U3040: 00 3001 566.125MHz
U4250: 00 4201 638.125MHz
European model
CE6267: 00 6201 798.125MHz
For details, see “Selecting the Group/Channel” on
page 25.
Using wireless remote control, this function
can be controlled from the receiver and
other devices.
For details on wireless remote control function, see
“Using the Wireless Remote Control Function” on
page 26.
Selecting the Frequency
Band (BAND)
Match the frequency range on this
microphone to that of the Sony digital
wireless receiver.
The frequency range that can be set for the
optional receiver combined with this
microphone differs as follows:
US models
3040U
TV30-33, TV34-36, TV38-41
Not available for TV37
4250U
TV42-45, TV46-49, TV50-51
European model
6267CE
TV62-64, TV67-69
Not available for TV65 and TV66
For details about the frequency range of each band,
refer to “Sony Digital Wireless Microphone System
Frequency Lists” on the supplied CD-ROM.
Using wireless remote control, this function
can be controlled from the receiver and
other devices.
For details on wireless remote control function, see
“Using the Wireless Remote Control Function” on
page 26.
• The setting for this function cannot be
changed during actual signal
transmission. To change the setting, turn
off the microphone first. Then, while
holding down the SET button, turn the
power on. Then change the setting after
the signal transmission has stopped.
• Be sure to select the group/channel right
after selecting the frequency band. To
start signal transmission with the selected
frequency band/group/channel, turn off
the power and then turn it on again.
Setting the RF Output
Power (RF POWER)
You can set the RF output power.
1 mW (LOW): transmitted by 1 mW
10 mW (MID): transmitted by 10 mW
50 mW (HIGH): transmitted by 50 mW
• The setting for this function cannot be
changed during actual signal
transmission. To change the setting, turn
off the microphone first. Then, while
holding down the SET button, turn the
power on. And then, change the setting
after the signal transmission has stopped.
• To start signal transmission with the
selected RF output power setting, turn off
the power and then turn it on again.
Notes
Notes
![](/img.php?id=1272768&img=bg22.png)
34 Setting Menus
Using wireless remote control, this function
can be controlled from the receiver and
other devices.
For details on wireless remote control function, see
“Using the Wireless Remote Control Function” on
page 26.
Setting the Audio Input
Level (INPUT LEVEL)
You can set the input level to the analog
head amp.
Press the + or – button repeatedly to select
the appropriate attenuation level.
The reference levels for the various settings
are as follows:
Using wireless remote control, this function
can be controlled from the receiver and
other devices.
For details on wireless remote control function, see
“Using the Wireless Remote Control Function” on
page 26.
Low-cut Filter Setting (LCF)
The frequency of the low-cut filter can be
set.
OFF:Turns off the low-cut filter.
20 30 40 50 60 70 80 90 100
120 140 160 180 200 220 (Hz):
Low-cut filter is set according to the
selected frequency.
Using wireless remote control, this function
can be controlled from the receiver and
other devices.
For details on wireless remote control function, see
“Using the Wireless Remote Control Function” on
page 26.
Power Save Setting (POWER
SAVE)
To conserve power, this setting allows you
to put all microphone functions to sleep.
ACTIVE:The microphone operates
normally.
SLEEP: The sleep function is on. During
sleep, the POWER indicator flashes at 2-
second intervals.
To change back to normal
operation
During sleep, press the SET, +, or – button.
You can also use the wireless remote
control to change the receiver back to
normal operation.
Input Attenuation
(dB)
Reference input
level (dB SPL)
Maximum input
level (dB SPL)
Headroom (dB)
MIC 0 94 130 36
397 133
6100136
9103139
3 dB step 3 dB step 3 dB step
18 112 148
21 115 151
![](/img.php?id=1272768&img=bg23.png)
35
Setting Menus
For details on wireless remote control function, see
“Using the Wireless Remote Control Function” on
page 26.
Displaying the
Accumulated Use Time
(TIME)
You can display the accumulated battery
use time as a rough estimate of total
microphone usage.
The factory setting is “00:00”.
To reset the accumulated time
indication
1Hold down the SET button until the
time indication flashes.
2Press the – button so “00:00 RESET”
appears, and then press the SET
button.
Setting the Battery Type
(BATTERY TYPE)
Set this item according to the type of
batteries you use to obtain accurate battery
power status indication.
TYPE1:The power status is indicated
based on characteristics of new LR6 (size
AA) Sony Alkaline batteries. Select this for
LR6 (size AA) alkaline batteries.
TYPE2: Select this for rechargeable
nickel-metal-hydride batteries.
TYPE3: Select this for lithium batteries.
The characteristics of batteries change
according to battery type and
environmental conditions. It is
recommended that you learn the
characteristics of batteries you use before
using them.
Setting the Encrypted
Transmission Function
(ENCRYPTION)
You can set the encrypted transmission
function.
SECURE KEY: Sets the secure key
method.
PASSWORD: Sets the password method.
OFF: The encrypted transmission function
is not used.
For details, see “Using the Encrypted Transmission
Function” on page 28.
Generating an Internal
Signal (INTERNAL SG)
This microphone generates a 1-kHz
reference level sine wave that can be used to
adjust or check the audio level of the
receiver or the system that you are using.
This internal signal is outside the control of
the attenuator.
1 kHz: A 1-kHz internal signal is
generated.
OFF: An internal signal is not generated.
If the microphone is turned off while the
reference signal function is on, the function
will turn off automatically.
Locking the POWER
Switch (POWER SW LOCK)
The POWER switch can be locked to
prevent the microphone from being
accidentally turned off or on.
Even when the POWER switch is locked,
all parts of the microphone other than the
POWER switch remain functional.
Note
Note
![](/img.php?id=1272768&img=bg24.png)
36 Setting Menus
UNLOCK:The POWER switch is not
locked.
LOCK: The POWER switch is locked.
When LOCK is selected, the POWER
switch lock icon appears in the display.
Wireless Remote Control
Function (RF REMOTE)
This function must be set to allow the
wireless remote control function to be used
between the microphone and receiver.
OFF: Stops the wireless remote control
function.
ON: Starts the wireless remote control
function with the previously paired
receiver.
PAIRING: Executes a new pairing.
For details, see “Pairing With a Receiver” on
page 26.
Setting the Brightness of
the Display (BRIGHTNESS)
Ten levels of brightness can be selected for
the organic light-emitting diode display.
The selectable settings are the following:
(Dark) 1 2 3 4 5 6 7 8 9 10 (Bright)
Automatic Dimming of the
Display (DIMMER MODE)
The organic light-emitting diode display
can be set to dim or turn off after a certain
amount of time.
AUTO OFF: The display turns off after 30
seconds. The display goes on again when
you press the SET, +, or – button.
AUTO DIMMER: The display dims after
30 seconds. The display becomes bright
again when you press the SET, +, or –
button.
ALWAYS ON: The display stays on at the
brightness level set with the BRIGHTNESS
function.
Resetting Parameters to
Their Factory Settings
(FACTORY PRESET)
All parameter settings can be returned to
their factory settings.
Holding down the SET button until a
message appears asking for confirmation.
Press the + or – button repeatedly to select
YES, and then press the SET button to
enter. The microphone parameters are reset
to their factory settings.
• The setting for this function cannot be
changed during actual signal
transmission. To change the setting, turn
off the power first. Then while holding
down the SET button, turn the power on.
Then change the setting after the signal
transmission has stopped.
• To start signal transmission with the
factory parameter settings, turn off the
power and then turn it on again.
Displaying the Software
Version (VERSION)
The version of the microphone software can
be displayed.
Notes
![](/img.php?id=1272768&img=bg25.png)
37
Block Diagram
Block Diagram
Attenuator
Head amp.
A/D converter
Internal SG
Audio
codec
modulator
High-
frequency
circuit
Low-cut filter
Digital signal processor
Microphone
capsule
Regarding the block diagram on this page
We have submitted the long term's confidentiality request
about block diagram.
Therefore we removed the block diagram from this page.
![](/img.php?id=1272768&img=bg26.png)
38 Troubleshooting
Troubleshooting
If you encounter a problem using this microphone, use the following checklist to find a
solution. For any problems with the receiver, refer to the operating instructions supplied with
the receiver. If the problem persists, consult your Sony dealer.
Symptom Meanings Remedy
The
microphone
does not turn
on.
The batteries are inserted
backwards in the battery
compartment.
Reinsert the batteries with the
correct orientation (see page 24).
The batteries are exhausted. Replace the batteries with new
ones.
The batteries
drain quickly.
Manganese batteries are being
used.
Use alkaline batteries.
The microphone is being used
under cold conditions.
The batteries drain quickly under
cold conditions.
Interruptions in
the reception
occurs.
The microphone is too far from
the receiver.
Decrease the distance to the
receiver and check the reception.
The transmission power setting
is set to “L: 1mW”.
Increase the transmission power
(see page 33).
There is no
sound.
The channel setting on the
microphone is different from that
on the receiver.
Use the same channel setting on
both the microphone and receiver.
The setting of the encrypted
transmission function on the
receiver is different from that on
the microphone.
Confirm that the setting of the
encrypted transmission function is
the same on both the microphone
and the receiver (see page 28).
The sound is
weak.
The attenuator is set too high for
the audio input level of the
microphone.
While monitoring the audio input
level meter on the microphone or
the receiver, set the attenuator to
an appropriate level (see page 34).
There is
distortion in the
sound.
The attenuator is set too low for
the audio input level of the
microphone.
The bass is
weak.
The frequency of the low-cut
filter is set too high.
While monitoring the sound,
decrease the low-cut filter
frequency to a level that produces
the proper sound quality (see page
34).
![](/img.php?id=1272768&img=bg27.png)
39
Troubleshooting
There is too
much bass.
The microphone produces
excessive bass because the
frequency response of the
microphone extends into the low
range.
Use the low-cut filter to cut the
bass (see page 34).
The power
does not turn
off even though
the POWER
switch is turned
to OFF.
The POWER switch is locked. Turn off the POWER SW LOCK
function (see page 35).
Wireless
remote control
is not possible.
Pairing has not been established
between the microphone and
receiver.
Carry out pairing (see page 26).
The receiver is too far from the
microphone for communication
to occur.
Check the wireless remote control
condition level. If it is low,
decrease the distance between
the microphone and the receiver
(see page 23).
The microphone that was paired
with the receiver has been
paired with another receiver.
On the receiver, carry out pairing
again with the microphone that you
want to control.
The USB
keyboard does
not work.
You are using a USB keyboard
that is not compatible with the
microphone.
Check the conditions for using a
USB keyboard with the
microphone (see page 30).
The display is
too dark.
The display brightness is set to
low.
Adjust the brightness of the display
(see page 36).
Symptom Meanings Remedy
![](/img.php?id=1272768&img=bg28.png)
40 Important Notes on Operation
Important Notes
on Operation
Notes on Using the
Microphone
• The digital wireless microphone system
product must be used within a
temperature range of 0°C to 50°C (32°F
to 122°F).
• Operating the microphone near electrical
equipment (motors, transformers, or
dimmers) may cause it to be affected by
electromagnetic induction. Keep the
microphone as far from such equipment
as possible.
• The presence of the lighting equipment
may produce electrical interference over
the entire frequency range. Position the
microphone so that interference is
minimized.
• To avoid degradation of the signal-to-
noise ratio, do not use the microphone in
noisy places or in locations subject to
vibration, such as the following:
- near electrical equipment, such as
motors, transformers or dimmers
- near air conditioning equipment or
places subject to direct air flow from
an air conditioner
- near public address loudspeakers
- where adjacent equipment might
knock against the tuner
Keep the microphone as far from such
equipment as possible or use buffering
material.
On Cleaning
• If the microphone is used in a very humid
or dusty place or in a place subject to an
active gas, clean its surface as well as the
connectors with a dry, soft cloth soon
after use. Lengthy use of the microphone
in such places or not cleaning it after its
use in such places may shorten its life.
• Clean the surface and the connectors of
the microphone with a dry, soft cloth.
Never use thinner, benzene, alcohol or
any other chemicals, since these may mar
the finish.
Notes on Simultaneous Multi-
Channel Operation
• Keep the microphone at least 30
centimeters (11 7/8inches) away from
another microphone/transmitter.
• When only digital wireless microphones
are being used, keep the microphone at
least 4 meters (13 feet) away from the
antenna of a receiver for up to 10
channels, and at least 6 meters (20 feet)
away for 11 or more channels.
• When a mixture of digital and analog
wireless microphones/transmitters is
being used, keep the microphone at least
6 meters (20 feet) away from the antenna
of a receiver.
• This system should be kept at least 100
meters (328 feet) away from any analog
wireless systems using the same
frequency when both are being used in a
wide area with no walls or obstructions.
• If you experience noise, increase the
distance between the microphone and
receiver or decrease the transmission
power on the microphone.
![](/img.php?id=1272768&img=bg29.png)
41
Specifications
Specifications
Transmitting section
Oscillator type
Crystal-controlled PLL synthesizer
Carrier frequencies
US models:
U3040: 566 to 607 MHz (TV-30 to
TV-36 channels); 615 to 638
MHz (TV-38 to TV-41
channels)
U4250: 638 to 698 MHz (TV-42 to
TV-51 channels)
European model:
CE6267: 798 to 822 MHz (TV-62
to TV-64 channels); 838 to 862
MHz (TV-67 to TV-69
channels)
Channel step
US models:
U3040/U4250: 125 kHz
European model:
CE6267: 25 kHz
RF power output
1 mW/10 mW/50 mW (e.r.p)
selectable
Antenna type
Helical antenna
Occupied RF bandwidth
192 kHz or less
Audio delay
1.5 ms
Allowable deviation of transmission
frequency
±6.5 ppm
Type of emission
G1E or G1D
Modulation method
π/4 Shift QPSK
Audio section
Microphone type
To prevent electromagnetic
interference from portable
communication devices
The use of portable telephones and
other communication devices near
the DWM-01 may result in
malfunction and interference with
audio signals. It is recommended that
portable communication devices near
the DWM-01 be turned off.
![](/img.php?id=1272768&img=bg2a.png)
42 Specifications
Dynamic type: unidirectional
(Super cardioid)
Electret condenser type:
unidirectional (Cardioid)
Maximum input level
151 dBSPL (with 21 dB attenuator)
Audio attenuator adjustment range (pad)
0 to 21 dB (3 dB steps)
Frequency response
Dynamic type: 60 Hz to 18,000 Hz
Electret condenser type: 60 Hz to
20,000 Hz
Signal-to-noise ratio
Dynamic type: 70 dB or more
Electret condenser type: 66 dB or
more
(A-weighted, 94 dBSPL,
1kHz)
General
Operating voltage
3 V DC, with two LR6 (AA)
alkaline batteries
Battery life
Continuous operating time
5 hours (at 25 °C (77 °F), 10-mW
output using Sony LR6 (AA)-
size alkaline batteries with the
wireless remote control
function off and DIMMER
MODE set to AUTO OFF)
Operating temperature
0 to 50 °C (32 to 122 °F)
Storage temperature
–20 to +60 °C (–4 to +140 °F)
Wireless remote control
2.4-GHz IEEE802.15.4 compliant

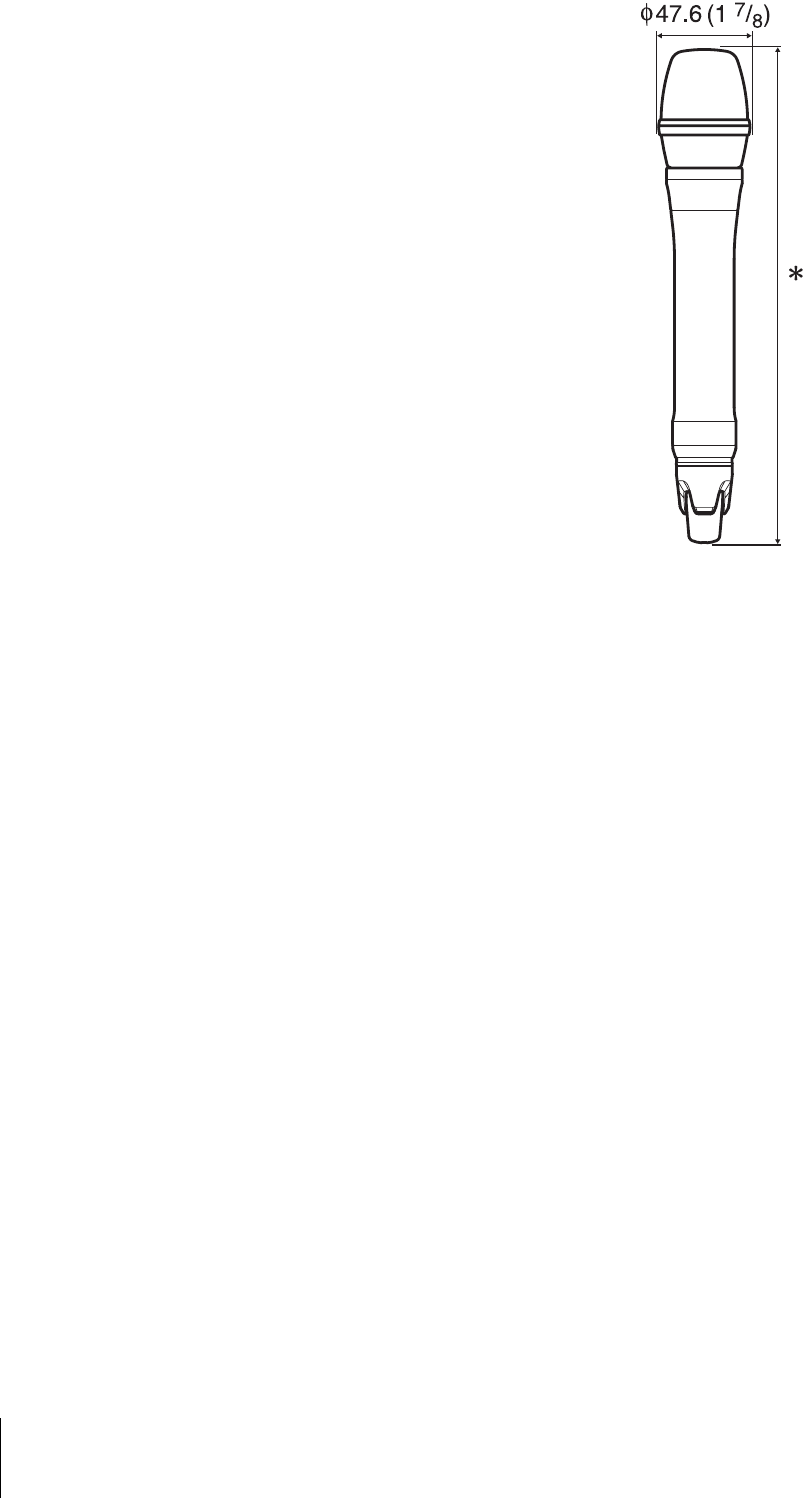

Dimensions (unit: mm (inches))
Mass Dynamic type: approx. 323 g
(11 oz)
Electret condenser type: approx.
297g (10oz)
including batteries
Supplied accessories
Identification ring (1 set)
Microphone holder (1)
USB adapter cable (1)
USB cable (1)
Carrying case (1)
Stand adaptor (1)
For the model available in the
U.S.A.: PF1/2 to W5/8 type
For the model available in
Europe.: PF1/2 to W3/8 type
Operating Instructions (1)
CD-ROM (1)
Design and specifications are subject to
change without notice.
* Dynamic type: 257 mm (10 1/8 inches)
Electret condenser type: 249 mm (9 7/8
inches)
![](/img.php?id=1272768&img=bg2b.png)
43
Specifications
Note
Always verify that the unit is operating
properly before use. SONY WILL NOT
BE LIABLE FOR DAMAGES OF ANY
KIND INCLUDING, BUT NOT
LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT
OF THE LOSS OF PRESENT OR
PROSPECTIVE PROFITS DUE TO
FAILURE OF THIS UNIT, EITHER
DURING THE WARRANTY PERIOD
OR AFTER EXPIRATION OF THE
WARRANTY, OR FOR ANY OTHER
REASON WHATSOEVER.
![](/img.php?id=1272768&img=bg2c.png)

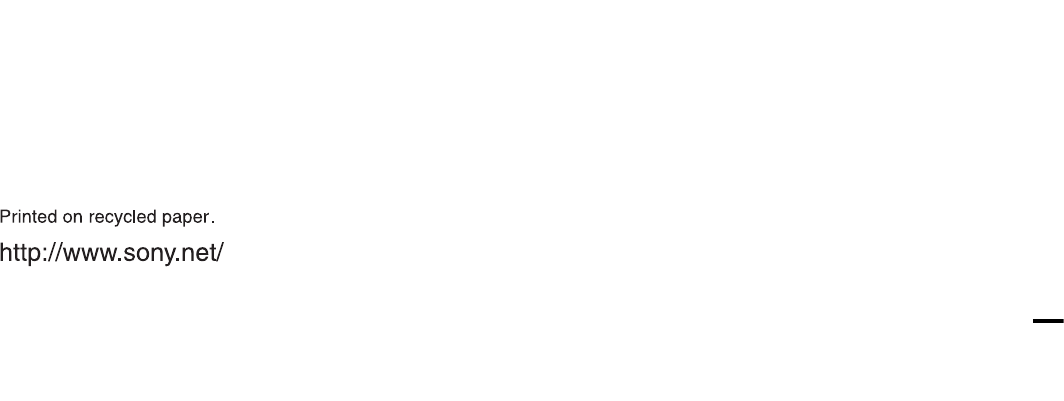

Sony Corporation
Printed in Japan
