Sony Group HCDBX5BT Compact Disc Receiver with Bluetooth User Manual 3 095 507 11 1 indb

Sony Corporation Compact Disc Receiver with Bluetooth 3 095 507 11 1 indb

Users Manual

CMT-BX5BT.GB.3-095-507-11(1)
Micro HI-FI
Component System
© 2007 Sony Corporation
CMT-BX5BT
3-095-507-11(1)
Operating Instructions
Owner’s Record
e model and serial numbers are located on the rear of the unit. Record these
numbers in the space provided below. Refer to them whenever you call upon your
Sony dealer regarding this product.
Model No. ______________ Serial No. ______________
CMT-BX5BT.GB.3-095-507-11(1)
2GB
CMT-
WARNING
To reduce the risk of  re or
electric shock, do not expose
this apparatus to rain or
moisture.
CAUTION
e use of optical instruments with this
product will increase eye hazard.
Notice for the customers in the U.S.A
is symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
su cient magnitude to
constitute a risk of electric
shock to persons.
is symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
Note to CATV system installer:
is reminder is provided to call the
CATV system installer’s attention to
Article 820-40 of the NEC that provides
guidelines for proper grounding and, in
particular, speci es that the cable ground
shall be connected to the grounding
system of the building, as close to the point
of cable entry as practical.
The following FCC statement applies
only to the version of this model
manufactured for sale in the U.S.A.
Other versions may not comply with
FCC technical regulations.
WARNING
is equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules.  ese limits are designed to
provide reasonable protection against
harmful interference in a residential
installation.  is equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used
in accordance with the instructions,
may cause harmful interference to
radio communications. However, there
is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment o and on,
the user is encouraged to try to correct
the interference by one or more of the
following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit di erent from that to which
the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modi cations not expressly approved in
this manual could void your authority to
operate this equipment.
is equipment must not be co-located or
operated in conjunction with any other
antenna or transmitter.
is e
q
radiat
i
unco
n
FCC r
Guide
l
is e
q
level t
h
FCC r
Guide
l
witho
u
evalu
a
it sho
u
least 2
and p
e
hands
,
U.S.
A
mod
e
Note
A Du
a
which
one si
d
the ot
h
mater
i
Comp
this p
r
Musi
c
prot
e
is p
r
discs t
(CD)
s
discs
e
techn
o
comp
a
those
d
confo
r
be pla
y
CMT-BX5BT.GB.3-095-507-11(1)
3GB
p
plies
e
l
S
.A.
with
f
ound
B
the
d
to
t
e
s,
e
re
l
,
e
ct
e
h
e
tlet
w
hich
ed
o
r
d
in
t
y to
ed or
h
er
is equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
is equipment has a very low RF energy
level that is deemed to comply with
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65
without maximum permissive exposure
evaluation (MPE). But it is desirable that
it should be installed and operated with at
least 20cm and more between the radiator
and person’s body (excluding extremities:
hands, wrists, feet and legs).
U.S.A., Canadian and Australian
models only
ENERGY STAR® is a U.S.
registered mark. As an
ENERGY STAR® partner,
Sony Corporation has
determined that this
product meets the ENERGY
STAR® guidelines for energy
e ciency.
Note on DualDiscs
A DualDisc is a two sided disc product
which mates DVD recorded material on
one side with digital audio material on
the other side. However, since the audio
material side does not conform to the
Compact Disc (CD) standard, playback on
this product is not guaranteed.
Music discs encoded with copyright
protection technologies
is product is designed to playback
discs that conform to the Compact Disc
(CD) standard. Recently, various music
discs encoded with copyright protection
technologies are marketed by some record
companies. Please be aware that among
those discs, there are some that do not
conform to the CD standard and may not
be playable by this product.
e Bluetooth word mark and logos
are owned by the Bluetooth SIG, Inc.
and any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are those
of their respective owners.
MPEG Layer-3 audio coding
technology and patents licensed from
Fraunhofer IIS and  omson.
CMT-BX5BT.GB.3-095-507-11(1)
4GB
Table of Contents
Guide to parts and controls .............5
Information on the display ............... 9
Getting Started
Hooking up the system
securely ..................................................10
Setting the clock ................................11
Basic Operations
Playing a CD/MP3 disc .....................12
Listening to the radio .......................13
Using the Bluetooth function ........14
Using optional audio
components .........................................20
Adjusting the sound .........................20
Changing the display .......................21
Other Operations
Creating your own program
(Program Play) .....................................22
Presetting radio stations .................23
Using the Timers .................................24
Others
Troubleshooting ................................. 25
Messages ............................................... 28
Precautions ...........................................29
Speci cations ......................................31
Bluetooth wireless technology .....32
Playable Bluetooth devices ............34
CMT-BX5BT.GB.3-095-507-11(1)
5GB
Guide to parts and controls
Guide to parts and controls
is manual mainly explains operations using the remote, but the same operations can
also be performed using the buttons on the unit having the same or similar names.
Unit (HCD-BX5BT/Compact Disc Receiver)
Front panel
Top panel
Continued
CMT-BX5BT.GB.3-095-507-11(1)
6GB
CMT-
Rem
o
(p
a
Press
t
TUN
E
Press
t
Press
t
mode
.
Rem
o
20)
Press
t
FUN
C
Press
t
DISP
L
Press
t
displa
y
PLA
Y
butt
o
Press
t
MP3
d
Press
t
Sou
n
Unit:
Rem
o
Press
t
Unit:
butt
o
Rem
o
12, 1
3
Press
t
Remote (RM-SC31)
/ (power) button (page 11, 24,
27, 27)
Press to turn on the system.
STANDBY indicator (page 21, 25)
Lights up when the system is turned o .
Remote sensor (page 25)
(open/close) button (page 12)
Press to open or close the disc tray.
BLUETOOTH indicator (page 18,
19, 19)
Lights up when the Bluetooth function
is active.
BLUETOOTH OPR button (page
16, 18, 19, 19)
Press to make a connection,
disconnection, or pairing with a
Bluetooth device.
AUDIO IN jack (page 20)
Connect to an optional audio
component.
PHONES jack
Connect the headphones.
Playback buttons and function
buttons
Unit: BLUETOOTH  (play/
pause) button (page 15, 16, 16)
Press to select the Bluetooth function.
Press to start or pause playback of the
music on the Bluetooth device (Bluetooth
mobile phone, etc.).
Unit: CD  (play/pause)
button (page 12)
Press to select the CD function.
Press to start or pause playback of a disc.
Remote: CD button (page 12)
Press to select the CD function.
CMT-BX5BT.GB.3-095-507-11(1)
7GB
Guide to parts and controls
Remote: (play) button,
(pause) button
Press to start or pause playback.
TUNER/BAND button (page 13)
Press to select the TUNER function.
Press to select FM or AM reception
mode.
Remote: AUDIO IN button (page
20)
Press to select the AUDIO IN function.
FUNCTION button (page 18, 19)
Press to select the function.
DISPLAY button (page 16, 21)
Press to change the information on the
display.
PLAY MODE/TUNING MODE
button (page 12, 13, 22, 23)
Press to select the play mode of a CD or
MP3 disc.
Press to select the tuning mode.
Sound buttons (page 20)
Unit: DSGX button
Remote: EQ button
Press to select the sound e ect.
Unit: /CANCEL (stop/cancel)
button (page 12, 13, 15, 16, 18)
Remote: (stop) button (page
12, 13, 15, 16, 18)
Press to stop playback.
ENTER button (page 11, 22, 23,
24)
Press to enter the settings.
/ (go back/go forward)
button (page 12, 15, 16, 22)
Press to select a track or  le.
Unit: TUNE +/ (tuning) button
(page 13)
Remote: +/ (tuning) button
(page 13, 23)
Press to tune in the desired station.
+/ (select folder) button
(page 12, 15, 22)
Press to select a folder.
/ (rewind/fast forward)
button (page 12, 15, 16)
Press to  nd a point in a track or  le.
Unit: VOL +/ button (page 12,
13, 16, 19, 20)
Remote: VOLUME +/ button
(page 12, 13, 16, 19, 20)
Press to adjust the volume.
CLOCK/TIMER SELECT button
(page 24)
CLOCK/TIMER SET button (page
11, 24)
Press to set the clock and the Play Timer.
1
8,
i
on
g
e
o
n
y
/
6)
o
n.
h
e
e
tooth
disc.
)
Continued
CMT-BX5BT.GB.3-095-507-11(1)
8GB
CMT-
Inf
o
Func
t
MP3
Light
s
DSG
X
Tune
Text
i
REPEAT/FM MODE button (page
12, 13)
Press to listen to a disc, a single track or
le repeatedly.
Press to select the FM reception mode
(monaural or stereo).
Battery compartment lid
(page 11)
CLEAR button (page 16, 18, 22)
Press to delete a pre-programmed track
or  le.
Press to erase the pairing registration
information of the Bluetooth device.
TUNER MEMORY button (page
23)
Press to preset the radio station.
SLEEP button (page 24)
Press to set the Sleep Timer.
CMT-BX5BT.GB.3-095-507-11(1)
9GB
Guide to parts and controls

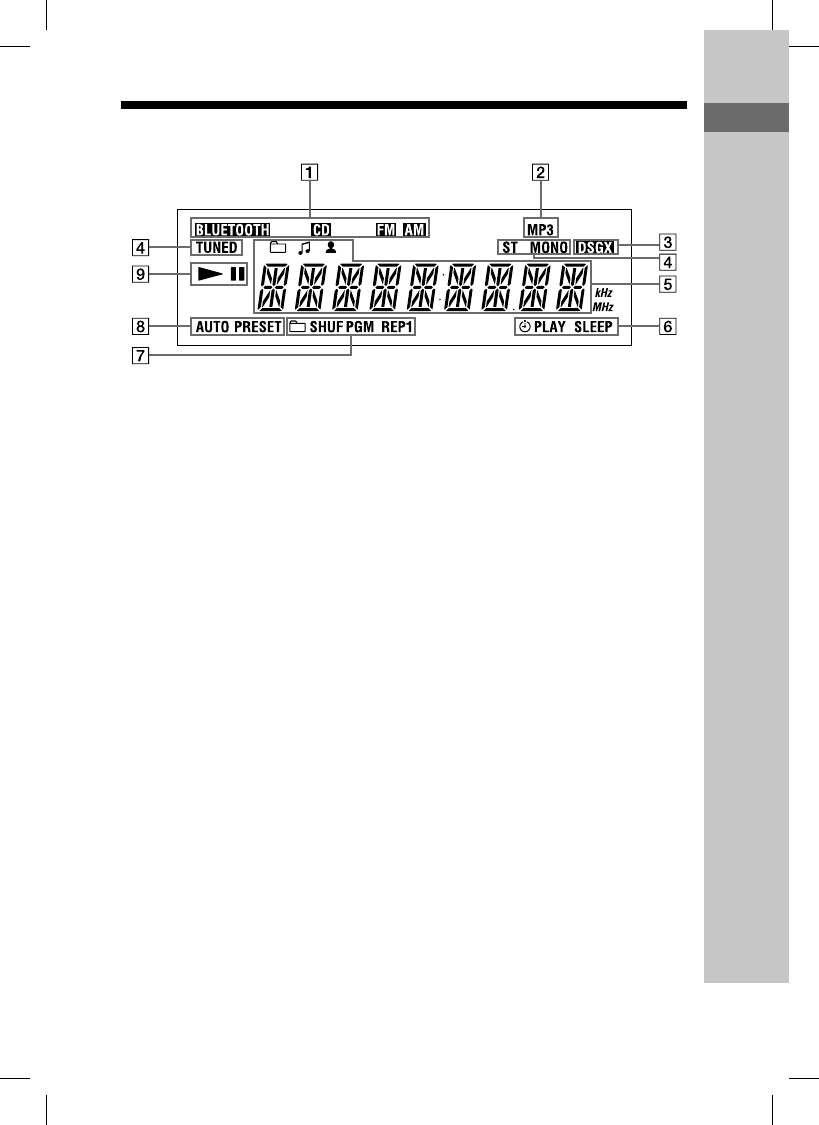

Information on the display
Function
MP3
Lights up when an MP3 disc is loaded.
DSGX (page 20)
Tuner reception (page 13)
Text information
Timer (page 24)
Play mode (page 12)
Tuner reception mode (page 13)
Play/Pause
CMT-BX5BT.GB.3-095-507-11(1)
10GB
CMT-
Getting Started
Hooking up the system securely
Speaker cord (Red/)
Speaker cord (Black/)
AM loop antenna
FM lead antenna (Extend it horizontally.)
Connect white side.
Speakers
Insert only the stripped portion of the
speaker cords into the SPEAKER jacks.
Antennas
Find a location and an orientation that
provide good reception, and then set up
the antenna.
Keep the antennas away from the speaker
cords and the power cord to avoid
picking up noise.
P
o
Conn
e
If the
p
detac
h
for m
o
Whe
n
1
Re
m
me
2
Pre
fun
3
Ho
l
DS
G
on
t
4
Aft
e
po
w
To us
e
Slide
a
comp
a
suppli
rst,
m
below
.
Note
s
Wit
h
abo
u
Do
n
mix
d
If yo
u
of ti
m
from
Left speaker
Right speaker
or
Wall socket
CMT-BX5BT.GB.3-095-507-11(1)
11GB
Getting Started
h
e
c
ks.
h
at
e
t up
p
eaker
Power
Connect the power cord to a wall socket.
If the plug does not  t the wall socket,
detach the supplied plug adaptor (only
for models equipped with an adaptor).
When carrying this system
1
Remove a disc to protect the CD
mechanism.
2
Press CD to select the CD
function.
3
Hold down TUNER/BAND and
DSGX on the unit, and press
on the unit until “STANDBY” appears.
4
After “LOCK” appears, unplug the
power cord.
To use the remote
Slide and remove the battery
compartment lid , and insert the two
supplied R6 (size AA) batteries, side
rst, matching the polarities shown
below.
Notes
With normal use, the batteries should last for
about six months.
Do not mix an old battery with a new one or
mix di erent types of batteries.
If you do not use the remote for a long period
of time, remove the batteries to avoid damage
from battery leakage and corrosion.
Setting the clock
Use buttons on the remote to set the
clock.
1
Press / to turn on the
system.
2
Press CLOCK/TIMER SET .
If the current mode appears on
the display, press /
repeatedly to select “CLOCK SET”
and then press ENTER .
3
Press / repeatedly
to set the hour, and then press
ENTER .
4
Use the same procedure to set
the minutes.
e clock settings are lost when you
disconnect the power cord or if a
power failure occurs.
To display the clock when the system
is o
Press DISPLAY .  e clock is displayed
for about 8 seconds.
CMT-BX5BT.GB.3-095-507-11(1)
12GB
CMT-
Basic Operations
Playing a CD/MP3 disc
1
Select the CD function.
Press CD .
2
Place a disc.
Press on the unit, and place
a disc with the label side up on the
disc tray.
To close the disc tray, press on
the unit again.
Do not force the disc tray closed with
your  nger, as this may damage the
unit.
3
Start playback.
Press (or CD  on the unit)
.
4
Adjust the volume.
Press VOLUME +/ (or VOL +/ on
the unit) .
Other operation
To Press
Pause playback (or CD  on the
unit) . To resume
play, press the button
again.
Stop playback .
Select a folder
on an MP3
disc
+/ .
Select a track
or  le
/ .
Find a point in
a track or  le
Hold down /
during playback, and
release the button at the
desired point.
Select Repeat
Play
REPEAT repeatedly
until “REP” or “REP1”
appears.
To change the play mode
Press PLAY MODE repeatedly while
the player is stopped. You can select
normal play (“ *” for all MP3  les
in the folder on the disc), shu e play
(“SHUF” or “ SHUF*”), or program
play (“PGM”).
* When playing a CD-DA disc, (SHUF)
Play performs the same operation as normal
(shu e) play.
Note
s
All t
r
repe
a
“RE
P
repe
a
Note
s
Do
n
unn
e
les.
Fold
e
MP3
they
e
s
a  le
If th
e
“.MP
les,
malf
u
e
m
fo
l
M
M
c
o
fo
l
is
Co
m
so
w
med
i
MP3
audi
o
Note
s
If th
e
sessi
o
MP3
back
.
A di
s
as a
C
CMT-BX5BT.GB.3-095-507-11(1)
13GB
Basic Operations
the
e
o
n
,
and
t
the
e
dly
P
1”
w
hile
t
s
a
y
r
am
H
UF)
n
ormal
Notes on Repeat Play
All tracks or  les on a disc are played
repeatedly up to  ve times.
“REP1” indicates that a single track or  le is
repeated until you stop it.
Notes on playing MP3 discs
Do not save other types of  les or
unnecessary folders on a disc that has MP3
les.
Folders that have no MP3  les are skipped.
MP3  les are played back in the order that
they are recorded onto the disc.
e system can only play MP3  les that have
a  le extension of “.MP3”.
If there are  les on the disc that have the
“.MP3”  le extension, but that are not MP3
les, the unit may produce noise or may
malfunction.
e maximum number of:
folders is 255 (including the root folder).
MP3  les is 511.
MP3  les and folders that can be
contained on a single disc is 512.
folder levels (the tree structure of  les)
is 8.
Compatibility with all MP3 encoding/writing
so ware, recording device, and recording
media cannot be guaranteed. Incompatible
MP3 discs may produce noise or interrupted
audio or may not play at all.
Notes on playing multisession discs
If the disc begins with a CD-DA (or MP3)
session, it is recognized as a CD-DA (or
MP3) disc, and other sessions are not played
back.
A disc with a mixed CD format is recognized
as a CD-DA (audio) disc.
Listening to the radio
1
Select “FM” or “AM.”
Press TUNER/BAND repeatedly.
2
Select the tuning mode.
Press TUNING MODE repeatedly
until “AUTO” appears.
3
Tune in the desired station.
Press +/ (or TUNE +/ on
the unit) . Scanning stops
automatically when a station is tuned
in, and then “TUNED” and “ST” (for
stereo programs only) appear.
4
Adjust the volume.
Press VOLUME +/ (or VOL +/ on
the unit) .
To stop automatic scanning
Press .
To tune in a station with a weak signal
If “TUNED” does not appear and the
scanning does not stop, press TUNING
MODE repeatedly until “AUTO” and
“PRESET” disappear, and then press
+/ (or TUNE +/ on the unit)
repeatedly to tune in the desired station.
To reduce static noise on a weak FM
stereo station
Press FM MODE repeatedly until
“MONO” appears to turn o stereo
reception.
CMT-BX5BT.GB.3-095-507-11(1)
14GB
CMT-
Using the Bluetooth
function
is system supports Bluetooth A2DP
and AVRCP pro les. For details on
Bluetooth wireless technology, see
“Bluetooth wireless technology” (page
32).
Check the websites below for the latest
information about compatible devices.
For customers in the U.S.A.:
<http://www.sony.com/shelfsupport>
For customers in Canada:
<http://www.sony.ca/
ElectronicsSupport/>
For customers in Europe:
<http://sonydigital-link.com/dna>
For customers in Latin America:
<http://www.sony-latin.com/pa/info>
For customers in Asia and Oceania:
<http://www.css.ap.sony.com/>
Listening to music of a
Bluetooth mobile phone or
Bluetooth device
You can listen to music from your
Bluetooth mobile phone or Bluetooth
device over a wireless connection.
Follow the procedure below to listen to
music from Bluetooth devices with this
system.
Pairing this system with a Bluetooth
device
Connecting to registered devices
Playing music of a Bluetooth device
For details about the operations of
the Bluetooth device, also refer to the
operation manual supplied with your
Bluetooth device.
Pairi
n
devic
e
Pairin
devic
e
befor
e
to pai
r
devic
e
perfo
r
perfo
r
comp
l
a Blue
1
Pl
a
c
o
1
m
2
S
e
Pr
e
th
e
3
O
p
a
n
o
p
Fo
th
e
op
Bl
u
W
h
th
e
de
v
Bl
u
o
n
B
X
W
h
th
i
(
A
de
v
n
o
ca
n
op
CMT-BX5BT.GB.3-095-507-11(1)
15GB
Basic Operations
t
h
n
to
t
his
o
th
c
e
h
e
u
r
Pairing this system with a Bluetooth
device
Pairing is an operation where Bluetooth
devices register with each other
beforehand. Use the procedure below
to pair the system with your Bluetooth
device. Once a pairing operation is
performed, it does not need to be
performed again. If pairing is already
completed, proceed to “Playing music of
a Bluetooth device” (page 16).
1
Place the Bluetooth device to be
connected to this system within
1 meter of the system.
2
Select the Bluetooth function.
Press BLUETOOTH  on
the unit.
3
Operate the Bluetooth device
and perform the pairing
operation.
For details about the operations of
the Bluetooth device, refer to the
operation manual supplied with your
Bluetooth device.
When searching for this system with
the Bluetooth device, a list of the
devices found may appear in the
Bluetooth device display depending
on the type of Bluetooth device.
is system appears as “CMT-
BX5BT.”
When establishing a connection with
this system, select the audio pro le
(A2DP, AVRCP) at the Bluetooth
device. If the Bluetooth device does
not support the AVRCP pro le, you
cannot perform playback or other
operations with the system (page 16).
4
Enter the passcode.
Passcode entry may be required
depending on the type of Bluetooth
device.
When “PIN” appears, enter the
passcode at the system as follows:
P r e s s / and / on the
remote (or +/ and /
 on the unit) to enter the
same passcode that was entered at
the Bluetooth device, and then press
ENTER .
Once pairing is completed and the
connection is established, the system
display changes as follows:
“CONNECT” Name of the
Bluetooth device
To cancel passcode entry partway
Press .
Notes
“Passcode” may be called “Passkey,” “PIN
code,” “PIN number” or “Password,” etc.
depending on the device.
is system only supports numerical
passcodes up to 4 digits.
e pairing standby status of the system is
cancelled a er about 30 seconds. If pairing is
not successful, redo the procedure from step
1.
While connected to a Bluetooth device, this
system cannot be detected and a connection
cannot be established from another
Bluetooth device.
Continued
CMT-BX5BT.GB.3-095-507-11(1)
16GB
CMT-
To erase all the pairing registration
information
1
Press BLUETOOTH  on the
unit.
When the system is connected with a
Bluetooth device (when the Bluetooth
device name or other information
appears in the system display), press
and hold BLUETOOTH OPR on
the unit for about 2 seconds to put the
system in Bluetooth standby mode.
2
Press CLEAR .
“DELETE?” appears.
3
Press ENTER .
“COMPLETE” appears and all the
pairing information is erased.
Note
In order to connect with a Bluetooth device
a er performing this operation, you must enter
the passcode again.
Playing music of a Bluetooth device
You can operate a Bluetooth device by
connecting the system and a Bluetooth
device using AVRCP. If the system is not
connected with a Bluetooth device using
AVRCP, “NOT IN USE” appears when
you operate the system.
1
Select the Bluetooth function.
Press BLUETOOTH  on
the unit.
2
Establish a connection from the
Bluetooth device.
For details about the operations of
the Bluetooth device, refer to the
operation manual supplied with your
Bluetooth device.
Once the connection is established,
the system display changes as follows:
“CONNECT” Name of the
Bluetooth device
3
Start playback.
Press (or BLUETOOTH  on
the unit) .
Depending on the Bluetooth device,
you may need to start up the AV
so ware of the Bluetooth device
beforehand.
4
Adjust the volume.
Press VOLUME +/ (or VOL +/ on
the unit) .
To check the address of a connected
Bluetooth device
Press DISPLAY while the Bluetooth
device name appears in the system
display.
e Bluetooth device address appears for
8 seconds.
To cancel the connection with a
Bluetooth device
Press and hold BLUETOOTH OPR
on the unit for about 2 seconds until
“DISCONNCT” appears, or until the
information on the display (device name,
etc.) disappears.
Other operation
To Press
Pause playback (or BLUETOOTH
 on the unit) .
Stop playback .
Select a  le / .
Find a point in
a  le
Hold down /
.
Note
ese operations may not be available for
certain Bluetooth devices. In addition, the
actual operations may di er depending on the
connected Bluetooth device.
Note
s
devic
e
If yo
u
Blue
t
oper
a
Blue
t
Dep
e
you
c
of th
e
Whe
n
is pr
e
head
p
a co
n
anot
h
CMT-BX5BT.GB.3-095-507-11(1)
17GB
Basic Operations
on
v
ice,
V
/
on
e
d
oth
a
rs for
i
l
h
e
n
ame,
T
H
.
r
h
e
o
n the
Notes on connections with Bluetooth
devices
If you cannot connect with a paired
Bluetooth device, perform the pairing
operation between the system and the
Bluetooth device again.
Depending on the type of Bluetooth device,
you can adjust the volume using the controls
of the Bluetooth device.
When BLUETOOTH  on the unit
is pressed while connected to Bluetooth
headphones, it may take some time until
a connection is made to the system from
another Bluetooth device.
Listening to music on this
system using Bluetooth
headphones
You can listen to music played on this
system using your Bluetooth headphones
over a wireless connection.
Follow the procedure below to listen
to music on this system with Bluetooth
headphones.
Pairing this system with Bluetooth
headphones
Connecting to registered headphones
Playing music on this system
For details about the operations of the
Bluetooth headphones, also refer to the
operation manual supplied with your
Bluetooth headphones.
Continued
CMT-BX5BT.GB.3-095-507-11(1)
18GB
CMT-
Pairing this system with Bluetooth
headphones
Pairing is an operation where Bluetooth
devices register with each other
beforehand. Use the procedure below
to pair the system with your Bluetooth
headphones. Once a pairing operation
is performed, it does not need to be
performed again. If pairing is already
completed, proceed to “Playing music on
this system” (page 19).
1
Select a function other than the
Bluetooth function.
Press FUNCTION repeatedly.
2
Place the Bluetooth
headphones to be connected
to this system within 1 meter of
the system.
3
Put the Bluetooth headphones
in pairing mode.
For details about the operations of the
Bluetooth headphones, refer to the
operation manual supplied with your
Bluetooth headphones.
4
Press and hold BLUETOOTH
OPR on the unit for about 7
seconds until the BLUETOOTH
indicator ashes.
Sound output from the speakers is
stopped.
5
Enter the passcode.
Follow the same procedure as in
step 4 of “Pairing this system with a
Bluetooth device” (page 15).
Once pairing is completed and the
connection is established, the system
display changes as follows:
“CONNECT” Name of the
Bluetooth device
To cancel passcode entry partway
Press .
Notes
“Passcode” may be called “Passkey,” “PIN
code,” “PIN number” or “Password,” etc.
depending on the device.
is system only supports numerical
passcodes up to 4 digits.
e pairing standby status of the system is
cancelled a er about 30 seconds. If pairing is
not successful, redo the procedure from step
1.
While connected to a Bluetooth device, this
system cannot be detected and a connection
cannot be established from another
Bluetooth device.
To erase all the pairing registration
information
1
Press BLUETOOTH  on the
unit.
When the system is connected with a
Bluetooth device (when the Bluetooth
device name or other information
appears in the system display), press
and hold BLUETOOTH OPR on
the unit for about 2 seconds to put the
system in Bluetooth standby mode.
2
Press CLEAR .
“DELETE?” appears.
3
Press ENTER .
“COMPLETE” appears and all the
pairing information is erased.
Note
To connect with Bluetooth headphones a er
performing this operation, you must enter the
passcode again.
Playi
n
You c
a
Bluet
o
syste
m
AVR
C
1
S
e
Bl
u
Pr
e
2
Es
Bl
u
Pr
e
u
n
lig
If
m
th
a
pr
e
at
t
3
m
(C
to
re
c
at
t
es
t
O
n
th
e
“C
Bl
u
3
St
a
th
D
e
he
a
sy
s
et
c
Fo
Bl
u
op
Bl
u
CMT-BX5BT.GB.3-095-507-11(1)
19GB
Basic Operations
y
I
N
c
.
m
is
r
ing is
m
step
, this
e
ction
o
n
he
i
th a
t
ooth
n
r
ess
on
u
t the
d
e.
e
a
er
e
r the
Playing music on this system
You can operate this system from
Bluetooth headphones by connecting the
system and Bluetooth headphones using
AVRCP.
1
Select a function other than the
Bluetooth function.
Press FUNCTION repeatedly.
2
Establish a connection with the
Bluetooth headphones.
Press and hold BLUETOOTH OPR
on the unit for about 2 seconds
until the BLUETOOTH indicator
lights up, then release the button.
If more than one Bluetooth device
that has been connected in the past is
present around the system, the system
attempts to connect with up to the
3 most recently connected devices.
(Connection is attempted with up
to 3 devices in order from the most
recently connected device, and the
attempts end when a connection is
established.
Once the connection is established,
the system display changes as follows:
“CONNECT” Name of the
Bluetooth device
3
Start playback of the music for
the function selected in step 1.
Depending on the type of Bluetooth
headphones, you can operate this
system (playback, volume control,
etc.) using the headphone’s controls.
For details about the operations of the
Bluetooth headphones, refer to the
operation manual supplied with your
Bluetooth headphones.
4
Adjust the volume.
Press VOLUME +/ (or VOL +/ on
the unit) .
To cancel the connection with
Bluetooth headphones
Press and hold BLUETOOTH OPR
on the unit for about 2 seconds until the
BLUETOOTH indicator turns o .
Notes
If you cannot connect with paired Bluetooth
headphones, perform the pairing operation
between the system and the Bluetooth
headphones again.
When the system is changed to a function
other than the Bluetooth function and
BLUETOOTH OPR on the unit is pressed
while connected to a Bluetooth device, it may
take some time until a connection is made
with the Bluetooth headphones.
is system stores separate volume settings
for when listening through the speakers or
PHONES jack , or when listening through
Bluetooth headpnoes.
CMT-BX5BT.GB.3-095-507-11(1)
20GB
CMT-
Using optional audio
components
1
Connect additional audio
component to the AUDIO
IN jack on the unit using
an audio analog cord (not
supplied).
2
Turn down the volume.
Press VOLUME (or VOL on the
unit) .
3
Select the AUDIO IN function.
Press AUDIO IN .
4
Start playing the connected
component.
5
Adjust the volume.
Press VOLUME +/ (or VOL +/ on
the unit) .
Adjusting the sound
To add a sound e ect
To Press
Generate a
more dynamic
sound
(Dynamic
Sound
Generator
X-tra)
DSGX on the unit.
Set the sound
e ect
EQ repeatedly
to select “BASS”
or “TREBLE,” and
then press +/
repeatedly to adjust the
level.
C h
a
To
Chan
g
infor
m
the di
s
Chec
k
clock
w
syste
m
1) For
e
info
r
or f
o
the
t
stop
p
2) Wh
e
con
n
can
v
3) e
ligh
t
Note
s
Cha
r
as “_
e
f
t
o
d
e
t
o
ti
m
e
f
f
o
ei
t
J
o
e
f
I
D
I
D
(
u
CMT-BX5BT.GB.3-095-507-11(1)
21GB
Basic Operations
n
it.
t the
Changing the display
To Press
Change
information on
the display1)2)
DISPLAY repeatedly
when the system is on.
Check the
clock when the
system is o
DISPLAY when
the system is o 3).  e
clock is displayed for 8
seconds.
1) For example, you can view CD/MP3 disc
information, such as the track or  le number
or folder name during normal play, or
the total playing time while the player is
stopped.
2) When the system and a Bluetooth device are
connected using the Bluetooth function, you
can view the Bluetooth device address.
3) e STANDBY indicator on the unit
lights up when the system is o .
Notes on the display information
Characters that cannot be displayed appear
as “_”.
e following are not displayed:
total playing time for a CD-DA disc
depending on the play mode.
total playing time and remaining playing
time for an MP3 disc.
e following are not displayed correctly:
folder and le names that do not follow
either the ISO9660 Level 1, Level 2 or
Joliet in the expansion format.
e following is displayed:
ID3 tag information for MP3  les when
ID3 version 1 and version 2 tags are used
(up to 62 characters).
CMT-BX5BT.GB.3-095-507-11(1)
22GB
CMT-
Other Operations
Creating your own
program
(Program Play)
1
Press CD to select the CD
function.
2
Press PLAY MODE repeatedly
until “PGM” appears while the
system is stopped.
3
Press / repeatedly
until the desired track or  le
number appears.
When programming les, press
+/ repeatedly to select the
desired folder, and then select the
desired  le.
Example: When programming tracks
on a CD
Selected track or  le number Total playing time of
program (including
selected track or  le)
4
Press ENTER to add the track
or  le to the program.
“ . ” appears when the total
program time exceeds 100 minutes
for a CD, or when you select a CD
track whose number is 21 or over, or
when you select an MP3  le.
5
Repeat steps 3 through 4 to
program additional tracks or
les, up to a total of 25 tracks or
les.
6
To play your program of tracks
or  les, press .
e program remains available until
you open the disc tray. To play the
same program again, press .
To cancel Program Play
Press PLAY MODE repeatedly until
“PGM” disappears while the system is
stopped.
To delete the last track or  le of the
program
Press CLEAR while the system is
stopped.
Pre
sta
t
You c
a
statio
n
by sel
e
numb
e
Use b
u
statio
n
1
T
u
“L
i
1
3
2
Pr
e
3
Pr
e
se
n
u
If
a
to
th
e
st
a
4
Pr
e
5
R
e
st
o
Yo
A
M
re
t
yo
u
p
o
CMT-BX5BT.GB.3-095-507-11(1)
23GB
Other Operations
rack
o
tal
u
tes
C
D
e
r, or
o
o
r
k
s or
c
ks
u
ntil
h
e
.
u
ntil
m
is
he
s
Presetting radio
stations
You can preset your favorite radio
stations and tune them in instantly
by selecting the corresponding preset
number.
Use buttons on the remote to preset
stations.
1
Tune in the desired station (see
“Listening to the radio” (page
13)).
2
Press TUNER MEMORY .
3
Press +/ repeatedly to
select your desired preset
number.
If another station is already assigned
to the selected preset number,
the station is replaced by the new
stations.
4
Press ENTER .
5
Repeat steps 1 through 4 to
store other stations.
You can preset up to 20 FM and 10
AM stations.  e preset stations are
retained for about half a day even if
you disconnect the power cord or if a
power failure occurs.
6
To call up a preset radio
station, press TUNING MODE
repeatedly until “PRESET”
appears, and then press +/
repeatedly to select the desired
preset number.
Preset number
CMT-BX5BT.GB.3-095-507-11(1)
24GB
Using the Timers
e system o ers two timer functions.
If you use the Play Timer with the Sleep
Timer, the Sleep Timer has priority.
Sleep Timer:
You can fall asleep to music.  is
function works even if the clock is not
set.
Press SLEEP repeatedly.
If you select “AUTO,” the system
automatically turns o a er the current
disc stops or in 100 minutes.
Play Timer:
You can wake up to CD or tuner at a
preset time.
Use buttons on the remote to control the
Play Timer. Make sure you have set the
clock.
1
Prepare the sound source.
Prepare the sound source, and then
press VOLUME +/ to adjust the
volume.
To start from a speci c track or  le,
create your own program (page 22).
2
Press CLOCK/TIMER SET .
3
Press / repeatedly
to select “PLAY SET,” and then
press ENTER .
“ON” appears, and the hour
indication  ashes.
4
Set the time to start playing.
Press / repeatedly to set
the hour, and then press ENTER .
e minute indication  ashes. Use the
procedure above to set the minutes.
5
Use the same procedure as in
step 4 to set the time to stop
playing.
6
Select the sound source.
Press / repeatedly until
the desired sound source appears, and
then press ENTER .  e display
shows the timer settings.
7
Press / to turn o the
system.
e system turns on 15 seconds
before the preset time. If the system is
on at the preset time, the Play Timer
will not play.
Note
Before the system is turned o , if a connection
is made with the Bluetooth headphones,
sounds played by the Play Timer may be output
to the Bluetooth headphones.
To activate or check the timer again
Press CLOCK/TIMER SELECT , press
/ repeatedly until “PLAY
SEL” appears, and then press ENTER .
To cancel the timer
Repeat the same procedure as above until
“TIMER OFF” appears, and then press
ENTER .
To change the setting
Start over from step 1.
Tip
e Play Timer setting remains as long as the
setting is not canceled manually.
CMT-BX5BT.GB.3-095-507-11(1)
25GB
Others
Others
Troubleshooting
1
Make sure the power cord and
speaker cords are correctly and  rmly
connected.
2
Find your problem in the checklist
below, and take the indicated
corrective action.
If the issue persists, contact your
nearest Sony dealer.
If the STANDBY indicator  ashes
Immediately unplug the power cord,
and check the following items.
If your system has a voltage
selector, is the voltage selector set to
the correct voltage?
Are you using only the supplied
speakers?
Is anything blocking the ventilation
holes on the top or back of the
system?
A er the STANDBY indicator
stops  ashing, reconnect the power
cord, and turn on the system. If the
issue persists, contact your nearest
Sony dealer.
General
Sound comes from one channel,
or the left and right volumes are
unbalanced.
Place the speakers as symmetrically as
possible.
Connect only the supplied speakers.
Severe hum or noise.
Move the system away from sources of
noise.
Connect the system to a di erent wall
socket.
Install a noise  lter (available
separately) to the power cord.
There is no sound.
If the BLUETOOTH indicator is lit
or  ashing when a function other than
the Bluetooth function is selected, no
sound is heard through the speakers
or PHONES jack . Press and hold
BLUETOOTH OPR for about
2 seconds until the BLUETOOTH
indicator turns o .
The remote does not function.
Remove any obstacles between the
remote and the remote sensor on
the unit, and position the unit away
from  uorescent lights.
Point the remote at the system’s sensor.
Move the remote closer to the system.
CD/MP3 player
The sound skips, or the disc will not
play.
Wipe the disc clean, and replace it.
Move the system to a location away
from vibration (for example, on top of
a stable stand).
Move the speakers away from the
system, or place them on separate
stands. At high volume, speaker
vibration may cause the sound to skip.
Play does not start from the  rst
track.
Press PLAY MODE repeatedly until
both “PGM” and “SHUF” disappear to
return to normal play.
Continued
CMT-BX5BT.GB.3-095-507-11(1)
26GB
CMT-
Co
n
sup
p
pla
s
Tur
n
To ch
a
e A
to 9 k
H
Use b
u
AM t
u
1
Tu
n
tur
n
2
Wh
,
All
To
r
pre
s
To im
p
Tur n
o
CD p
o
defau
l
1
Pre
sel
e
o
2
Aft
e
/
do
w
“C
D
pla
y
ti
m
pla
y
unt
Starting playback takes more time
than usual.
e following discs take a longer time
to start playback.
a disc recorded with a complicated
tree structure.
a disc recorded in multisession
mode.
a disc that has not been  nalized (a
disc to which data can be added).
a disc that has many folders.
Bluetooth device
Pairing cannot be done.
Move the Bluetooth device closer to
the system.
Connection is not possible.
e Bluetooth device you attempted
to connect does not support the A2DP
and AVRCP pro les, and cannot be
connected with the system.
Enable the Bluetooth function of the
Bluetooth device.
e pairing registration information
has been erased. Perform the pairing
operation again.
While connected to a Bluetooth device,
this system cannot be detected and a
connection cannot be established from
another Bluetooth device.
The sound skips or  uctuates, or the
connection is lost.
e system and the Bluetooth device
are too far apart.
If there are obstacles between the
system and your Bluetooth device,
remove or avoid the obstacles.
If there is equipment that generates
electromagnetic radiation, such as a
wireless LAN, other Bluetooth device,
or a microwave oven nearby, move
them away.
The sound of your Bluetooth device
cannot be heard on this system.
Turn up the volume on your Bluetooth
device  rst, and then adjust the volume
using VOLUME +/ .
Severe hum or noise
If there are obstacles between the
system and your Bluetooth device,
remove or avoid the obstacles.
If there is equipment that generates
electromagnetic radiation, such as a
wireless LAN, other Bluetooth device,
or a microwave oven nearby, move
them away.
Turn down the volume of the
connected Bluetooth device.
The sound from the Bluetooth
headphones is distorted.
Turn down the volume of the system
using VOLUME . If your
headphones have a volume control,
also adjust the volume using the
headphone’s volume control.
Press DSGX on the unit repeatedly
until “DSGX OFF” appears.
Press EQ repeatedly to select
“BASS” or “TREBLE,” and then press
repeatedly to turn down the
level.
Tuner
Severe hum or noise, or stations
cannot be received. (“TUNED” or “ST”
ashes on the display.)
Connect the antenna properly.
Find a location and an orientation that
provide good reception, and then set
up the antenna again.
Keep the antennas away from the
speaker cords and the power cord to
avoid picking up noise.
Connect a commercially available
external antenna.
CMT-BX5BT.GB.3-095-507-11(1)
27GB
Others
Consult your nearest Sony dealer if the
supplied AM antenna has come o the
plastic stand.
Turn o nearby electrical equipment.
To change the AM tuning interval
e AM tuning interval is factory-preset
to 9 kHz (or 10 kHz, for some areas).
Use buttons on the unit to change the
AM tuning interval.
1
Tune in any AM station, and then
turn o the system.
2
While holding down TUNER/BAND
, press / .
All the AM preset stations are erased.
To reset the interval to the factory
preset, repeat the procedure.
To improve tuner reception
Turn o CD player power by using the
CD power management function. By
default, CD power is turned on.
1
Press FUNCTION repeatedly to
select the CD function, and then turn
o the system.
2
After “STANDBY” stops  ashing, press
/ on the unit while holding
down /CANCEL on the unit.
“CD POWER OFF” appears. With CD
player power turned o , disc access
time is increased. To turn on CD
player power, repeat the procedure
until “CD POWER ON” appears.
To reset the system to factory settings
If the system still does not operate
properly, reset the system to factory
settings.
Use buttons on the unit to reset the
system to its factory default settings.
1
Disconnect and reconnect the power
cord, and then turn on the system.
2
Press , /CANCEL and
/ at the same time.
All user-con gured settings, such as
preset radio stations, timer, and the
clock, are deleted.
v
ice
t
ooth
o
lume
e
,
e
s
s
a
v
ice,
v
e
t
em
o
l,
t
edly
r
ess
e
r
“ST”
n
that
set
d
to
e
CMT-BX5BT.GB.3-095-507-11(1)
28GB
CMT-
Messages
CD/MP3 player, Tuner
CD OVER: You have reached the end of
the disc while pressing during
playback or pause.
COMPLETE:  e preset operation ended
normally.
INVALID: You pressed an invalid button.
LOCKED:  e disc tray does not open.
Contact your nearest Sony dealer.
NO DISC:  ere is no disc in the system,
or you have loaded a disc that cannot
be played.
NO STEP: All of the programmed tracks
or  les have been erased.
PUSH SELECT: You tried to set the clock
or timer during timer operation.
PUSH STOP: You pressed PLAY MODE
during playback.
READING:  e system is reading
information of the disc. Some buttons
are not available.
SET CLOCK: You tried to select the timer
when the clock is not set.
SET TIMER: You tried to select the timer
when the Play Timer is not set.
STEP FULL: You tried to program more
than 26 tracks or  les (steps).
TIME NG:  e Play Timer start and end
times are set to the same time.
Bluetooth device
CONNECT: Bluetooth communication
was established.
DISCONNCT: Communication with a
Bluetooth device was cut o for some
reason, or Bluetooth communication
was ended.
NO DEVICE: A pairable Bluetooth device
was not found, or connection was not
possible.
NOT IN USE:  e system is not
connected with a Bluetooth device
using AVRCP.
PIN:  e system is asking for the
passcode. For details, see “Using the
Bluetooth function” (page 14).
PLEASE WAIT:  e system is readying
for usage of a Bluetooth device.
Displ
a
Displ
a
CMT-BX5BT.GB.3-095-507-11(1)
29GB
Others
i
on
h
a
o
me
t
ion
d
evice
s
not
e
t
he
i
ng
Display examples
Display indicates
2 (two)
5 ( ve)
6 (six)
8 (eight)
0 (zero)
A
B
D
G
H
K
M
O
Q
R
S
Z
|
”
$
%
,
.
?
@
^
Precautions
Discs that this system CAN play
Audio CD
CD-R/CD-RW (audio data/MP3  les)
Discs that this system CANNOT play
CD-ROM
CD-R/CD-RW other than those
recorded in music CD format or MP3
format conforming to ISO9660 Level
1/Level 2, Joliet or multisession
CD-R/CD-RW recorded in
multisession that have not ended by
“closing the session”
CD-R/CD-RW of poor recording
quality, CD-R/CD-RW that have
scratches or are dirty, or CD-R/CD-
RW recorded with an incompatible
recording device
CD-R/CD-RW which is  nalized
incorrectly
Discs containing  les other than
MPEG 1 Audio Layer-3 (MP3)  les
Discs of non-standard shape (for
example, heart, square, star)
Discs that have adhesive tape, paper, or
sticker attached to them
Rental or used discs with attached seals
where the glue extends beyond the seal
Discs that have labels printed using ink
that feels tacky when touched
Notes on discs
Before playing, wipe the disc with a
cleaning cloth from the center out to
the edge.
Do not clean discs with solvents, such
as benzine thinner, or commercially
available cleaners or anti-static spray
intended for vinyl LPs.
Do not expose discs to direct sunlight
or heat sources such as hot air ducts,
nor leave it in a car parked in direct
sunlight.
Continued
CMT-BX5BT.GB.3-095-507-11(1)
30GB
CMT-
On safety
Completely disconnect the power
cord (mains lead) from the wall socket
(mains) if it is not going to be used
for an extended period of time. When
unplugging the unit, always grip the
plug. Never pull the cord itself.
Should any solid object or liquid get
into the system, unplug the system, and
have it checked by quali ed personnel
before operating it again.
e AC power cord can be changed
only by a quali ed service facility.
On placement
Do not place the system in an inclined
position or in locations that are
extremely hot, cold, dusty, dirty, or
humid or lacking adequate ventilation,
or subject to vibration, direct sunlight
or a bright light.
Be careful when placing the unit
or speakers on surfaces that have
been specially treated (for example,
with wax, oil, polish) as staining or
discoloration of the surface may result.
If the system is brought directly
from a cold to a warm location or is
placed in a very damp room, moisture
may condense on the lens inside the
CD player, and cause the system to
malfunction. In this situation, remove
the disc, and leave the system turned
on for about an hour until the moisture
evaporates.
On heat buildup
Heat buildup on the unit during
operation is normal and is not cause
for alarm.
Do not touch the cabinet if it has been
used continuously at a high volume
because the cabinet may have become
hot.
Do not obstruct the ventilation holes.
On the speaker system
is speaker system is not magnetically
shielded, and the picture on nearby TV
sets may become magnetically distorted.
In this situation, turn o the TV, wait
15 to 30 minutes, and turn it back on.
If there is no improvement, move the
speakers far away from the TV.
Cleaning the cabinet
Clean this system with a so cloth
slightly moistened with a mild detergent
solution. Do not use any type of abrasive
pad, scouring powder, or solvent, such as
thinner, benzine, or alcohol.
S p
e
Main
u
Recei
v
AUDI
O
POW
E
HAR
M
With
6
from
1
chann
e
more
t
from
2
Ampli
C
(
1
Input
s
A
v
k
Outp
u
P
h
S
1
Bluet
o
Com
m
B
Outp
u
B
Maxi
m
L
Frequ
e
2
G
Modu
l
F
Comp
a
A
P
A
C
Suppo
r
R
T
1) e
fact
o
mag
n
stati
c
CMT-BX5BT.GB.3-095-507-11(1)
31GB
Others
c
ally
TV
o
rted.
a
it
n
.
h
e
r
gent
r
asive
u
ch as
Speci cations
Main unit (HCD-BX5BT/Compact Disc
Receiver)
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 6 ohm loads, both channels driven,
from 120 10,000Hz; rated 12 watts per
channel minimum RMS power, with no
more than 10% total harmonic distortion
from 250 milliwatts to rated output.
Ampli er section
Continuous RMS power output
(reference): 15 + 15 watts (6 ohms at
1 kHz, 10% THD)
Inputs:
AUDIO IN (stereo mini jack):
voltage 250 mV, impedance 47
kilohms
Outputs:
PHONES (stereo mini jack): accepts
headphones of 8 ohms or more
SPEAKER: accepts impedance of 6 to
16 ohms
Bluetooth section
Communication system:
Bluetooth Standard version 2.0
Output:
Bluetooth Standard Power Class 2
Maximum communication range:
Line of sight approx. 10 m1)
Frequency band:
2.4 GHz band (2.4000 GHz 2.4835
GHz)
Modulation method:
FHSS
Compatible Bluetooth pro les2):
A2DP (Advanced Audio Distribution
Pro le)
AVRCP (Audio Video Remote
Control Pro le)
Supported codecs:
Receive: SBC (Sub Band Codec), MP3
Transmit: SBC (Sub Band Codec)
1) e actual range will vary depending on
factors such as obstacles between devices,
magnetic  elds around a microwave oven,
static electricity, reception sensitivity,
antenna’s performance, operating system,
so ware application, etc.
2) Bluetooth standard pro les indicate the
purpose of Bluetooth communication
between devices.
CD player section
System: Compact disc and digital audio
system
Laser Diode Properties
Emission duration: continuous
Laser Output*: Less than 44.6μW
*  is output is the value measurement
at a distance of 200mm from the
objective lens surface on the Optical
Pick-up Block with 7mm aperture.
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section:
Tuning range: 87.5 108.0 MHz (100 kHz
step)
Antenna: FM lead antenna
Antenna terminals: 75 ohms unbalanced
Intermediate frequency: 10.7 MHz
AM tuner section:
Tuning range:
530 1,710 kHz (with 10 kHz tuning
interval)
531 1,710 kHz (with 9 kHz tuning
interval)
Antenna: AM loop antenna, external
antenna terminal
Intermediate frequency: 450 kHz
Speaker (SS-CBX5)
Speaker system: Full Range 10 cm, cone
type
Nominal impedance: 6 ohms
Dimensions (w/h/d): Approx. 140 × 245 ×
210 mm
Mass: Approx. 1.9 kg net per speaker
Continued
CMT-BX5BT.GB.3-095-507-11(1)
32GB
CMT-
General
Power requirements: 120 V AC, 60 Hz
Power consumption: 40 watts
Dimensions (w/h/d) (excl. speakers):
Approx. 200 × 132 × 298 mm
Mass (excl. speakers): 3.5 kg
Supplied accessories: Remote Commander
(RM-SC31) (1), R6 (Size AA) batteries (2),
AM loop antenna (1), FM lead antenna (1)
Design and speci cations are subject to
change without notice.
Standby power consumption:
0.5 W
Halogenated  ame retardants
are not used in the certain
printed wiring boards.
E ec
t
Bluet
o
appro
x
distan
com
m
short
e
Wh
e
or
o
dev
i
Loc
a
inst
a
Aro
use
Loc
a
wa
v
E ec
t
Bluet
o
(IEEE
band
(
Bluet
o
wirele
interf
e
in lo
w
inabil
i
the fo
l
Try
Blu
e
dev
i
me
t
equ
i
Tur
n
equ
i
dev
i
E ec
t
e r
a
may i
n
medi
c
may r
e
o th
e
mobil
e
the fo
l
In
h
at g
a
a
m
Ne
a
Bluetooth wireless
technology
Bluetooth wireless technology is a short-
range wireless technology linking digital
devices, such as personal computers and
digital still cameras. Using the Bluetooth
wireless technology, you can operate the
units involved within a range of about 10
meters.
e Bluetooth wireless technology is
commonly used between two devices,
but a single device can be connected to
multiple devices.
You do not need wires to get connected
as you do with a USB connection, and
you do not need to place the devices face
to face as you do with wireless infrared
technology. You can use the technology
with one Bluetooth device in your bag
or pocket.
Bluetooth wireless technology is a global
standard supported by thousands of
companies.  ese companies produce
products that meet the global standard.
Supported Bluetooth version and
pro les
Pro le refers to a standard set of
capabilities for various Bluetooth product
capabilities.  is system supports the
following Bluetooth version and pro les.
Supported Bluetooth version:
Bluetooth Standard version 2.0
Supported Bluetooth pro les:
A2DP (Advanced Audio Distribution
Pro le)
AVRCP (Audio Video Remote
Control Pro le)
CMT-BX5BT.GB.3-095-507-11(1)
33GB
Others
E ective communication range
Bluetooth devices should be used within
approximately 10 meters (unobstructed
distance) of each other.  e e ective
communication range may become
shorter under the following conditions.
When a person, metal object, wall
or other obstruction is between the
devices with a Bluetooth connection
Locations where a wireless LAN is
installed
Around microwave ovens that are in
use
Locations where other electromagnetic
waves occur
E ects of other devices
Bluetooth devices and wireless LAN
(IEEE 802.11b/g) use the same frequency
band (2.4 GHz). When using your
Bluetooth device near a device with
wireless LAN capability, electromagnetic
interference may occur.  is could result
in lower data transfer rates, noise, or
inability to connect. If this happens, try
the following remedies:
Try connecting this system and
Bluetooth mobile phone or Bluetooth
device when you are at least 10
meters away from the wireless LAN
equipment.
Turn o  the power to the wireless LAN
equipment when using your Bluetooth
device within 10 meters.
E ects on other devices
e radio waves broadcast by this system
may interfere with the operation of some
medical devices. Since this interference
may result in malfunction, always turn
o the power on this system, Bluetooth
mobile phone and Bluetooth device in
the following locations:
In hospitals, on trains, in airplanes,
at gas stations, and any place where
ammable gasses may be present
Near automatic doors or  re alarms
Notes
is system supports security functions that
comply with the Bluetooth speci cation
as a means of ensuring security during
communication using Bluetooth technology.
However, this security may be insu cient
depending on the setting contents and
other factors, so always be careful when
performing communication using Bluetooth
technology.
Sony cannot be held liable in any way
for damages or other loss resulting from
information leaks during communication
using Bluetooth technology.
Bluetooth communication is not necessarily
guaranteed with all Bluetooth devices that
have the same pro le as this system.
Bluetooth devices connected with this system
must comply with the Bluetooth speci cation
prescribed by the Bluetooth SIG, Inc., and
must be certi ed to comply. However, even
when a device complies with the Bluetooth
speci cation, there may be cases where
the characteristics or speci cations of the
Bluetooth device make it impossible to
connect, or may result in di erent control
methods, display or operation.
Noise may occur or the audio may
cut o depending on the Bluetooth
device connected with this system,
the communications environment, or
surrounding conditions.
h
ort-
i
gital
s
and
t
ooth
e
the
o
ut 10
s
e
s,
d
to
c
ted
n
d
s
face
r
ed
l
ogy
b
ag
lobal
f
ce
a
rd.
d
r
oduct
h
e
o
les.
ution
CMT-BX5BT.GB.3-095-507-11(1)
34GB
CMT-
Playable Bluetooth
devices
You can check the websites below for the
Bluetooth compatible devices.
For customers in the U.S.A.:
<http://www.sony.com/shelfsupport>
For customers in Canada:
<http://www.sony.ca/
ElectronicsSupport/>
For customers in Europe:
<http://sonydigital-link.com/dna>
For customers in Latin America:
<http://www.sony-latin.com/pa/info>
For customers in Asia and Oceania:
<http://www.css.ap.sony.com/>
CMT-BX5BT.GB.3-095-507-11(1)
35GB
Others
CMT-BX5BT.GB.3-095-507-11(1)
Printed in China

Navigation menu
