Sony Corporation Video Cassette Recorder SLV 772HF 779HF
Operating Instructions
3-865-083-11 (1)
Video Cassette
Recorder
Operating Instructions
Owner’s record

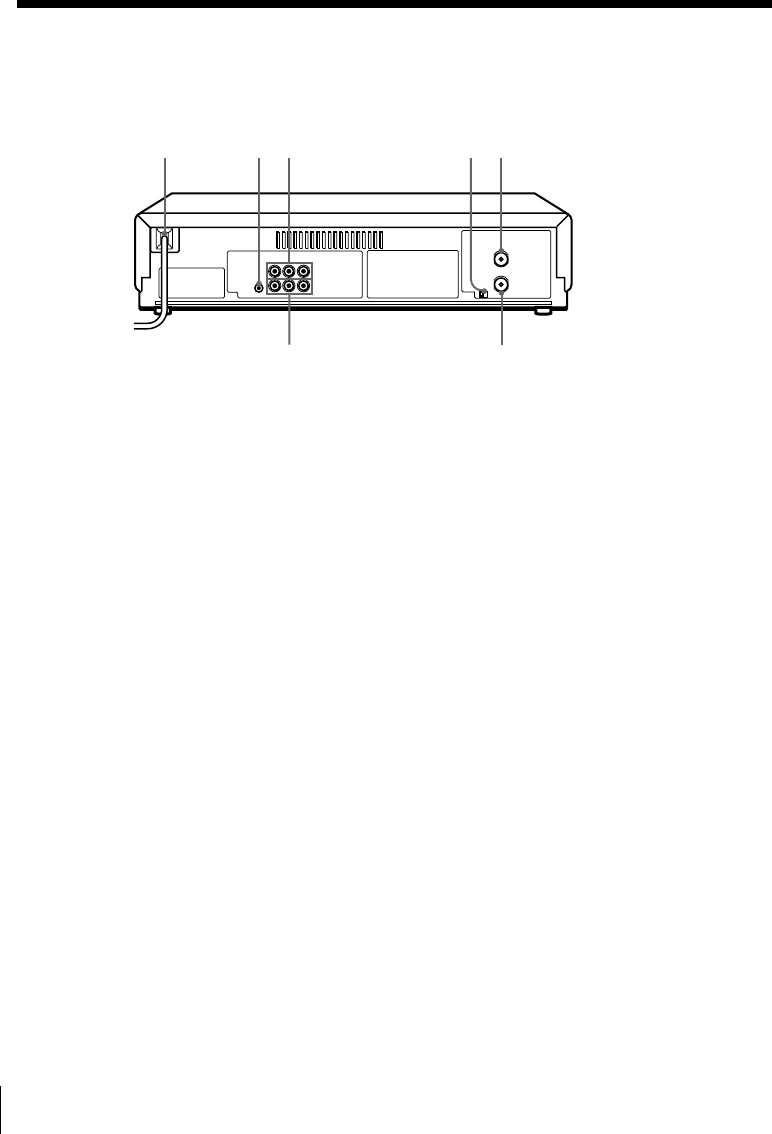

The model and serial numbers are located at the rear of the unit.
Record these numbers in the spaces provided below. Refer to them
whenever you call upon your Sony dealer regarding this product.
Model No. _________________________
Serial No. _________________________
©1999 by Sony Corporation
SLV-772HF/779HF
Introduction2
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION
To prevent electric shock, do not use this
polarized AC plug with an extension cord,
receptacle or other outlet unless the blades
can be fully inserted to prevent blade
exposure.
Precautions
Safety
• Operate the unit only on 120 V AC, 60 Hz.
• If anything falls into the cabinet, unplug the
unit and have it checked by qualified
personnel before operating it any further.
• This unit is not disconnected from the AC
power source (mains) as long as it is connected
to the wall outlet, even if the unit itself has
been turned off.
• Unplug the unit from the wall outlet if you do
not intend to use it for an extended period of
time. To disconnect the cord, pull it out by the
plug, never by the cord.
• One blade of the plug is wider than the other
for the purpose of safety and will fit into the
power outlet only one way. If you are unable
to insert the plug fully into the outlet, contact
your Sony dealer.
Installing
• Allow adequate air circulation to prevent
internal heat buildup.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
• Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation slots.
• Do not install the unit near heat sources such as
radiators or air ducts, or in a place subject to
direct sunlight, excessive dust, mechanical
vibration or shock.
• Do not install the unit in an inclined position. It
is designed to be operated in a horizontal
position only.
• Keep the unit and cassettes away from
equipment with strong magnets, such as
microwave ovens or large loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to a
warm location, moisture may condense inside
the VCR and cause damage to the video head
and tape. When you first install the unit, or
when you move it from a cold to a warm
location, wait for about three hours before
operating the unit.
Information
For customers in the USA
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Caution
Television programs, films, video tapes and
other materials may be copyrighted.
Unauthorized recording of such material may
be contrary to the provisions of the copyright
laws. Also, use of this recorder with cable
television transmission may require
authorization from the cable television
transmission and/or program owner.
3Introduction
Getting Started
* VCR Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation.
The VCR Plus+ system is manufactured under license from Gemstar Development
Corporation.
Table of contents
Getting Started
4Step 1: Unpacking
5Step 2: Setting up the remote commander
8Step 3: Hookups
35 Selecting a language
36 Setting the clock
43 Setting up the cable box control
49 Presetting channels
56 Setting up the VCR Plus+ system
Basic Operations
59 Playing a tape
62 Recording TV programs
66 Recording TV programs using the
VCR Plus+ system
69 Setting the timer manually
Additional Operations
73 Playing/searching at various
speeds
75 Searching for a selected point on
the tape
77 Skip-searching automatically
78 Setting the recording duration
time
79 Checking/changing/canceling
timer settings
81 Recording stereo and bilingual
programs
83 Adjusting the picture
84 Changing menu options
86 Editing with another VCR
Additional Information
88 General setup information
90 Troubleshooting
93 Specifications

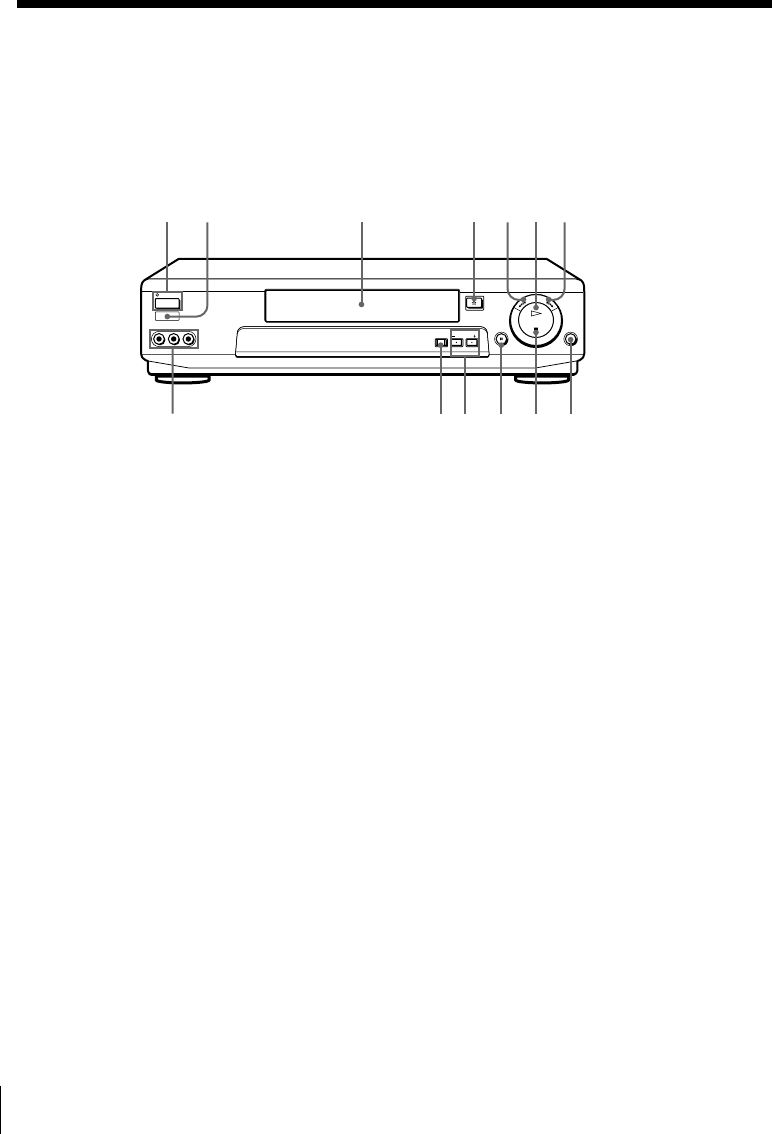

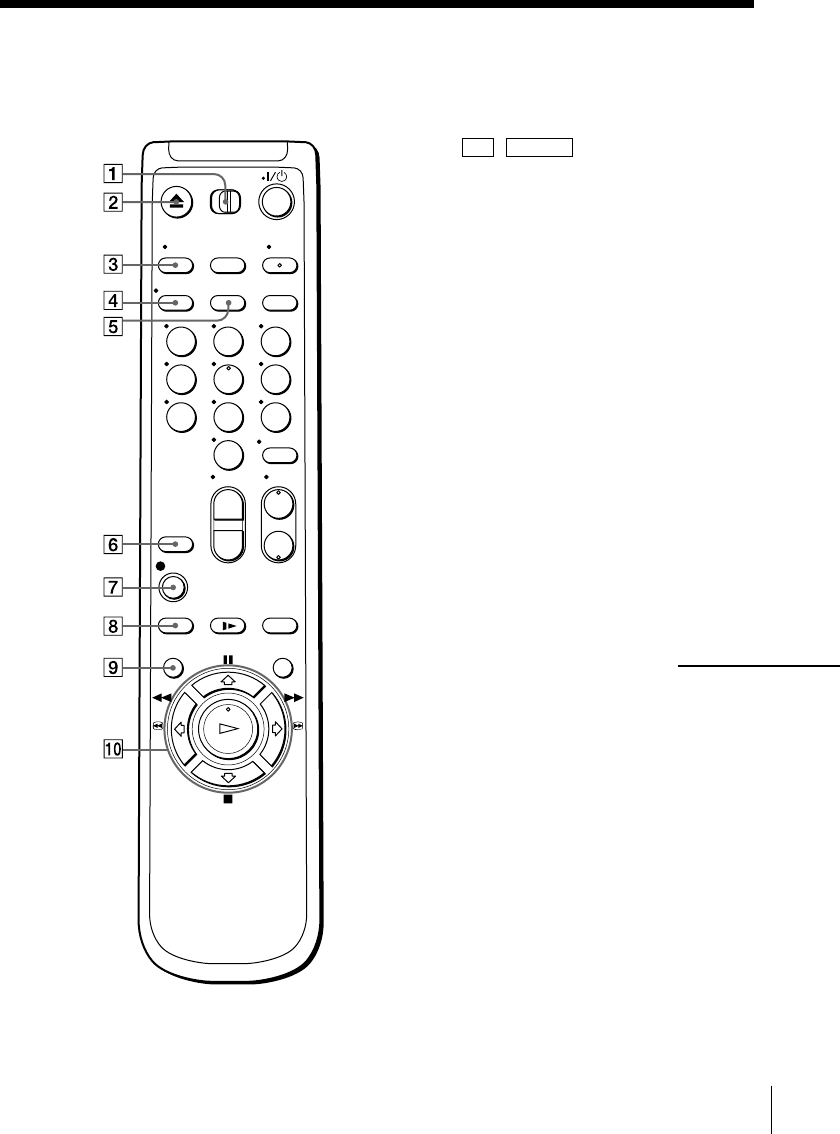

94 Index to parts and controls
99 Index
back cover
Q uick reference to using the VCR
Getting Started4
Getting Started
Step 1
Unpacking

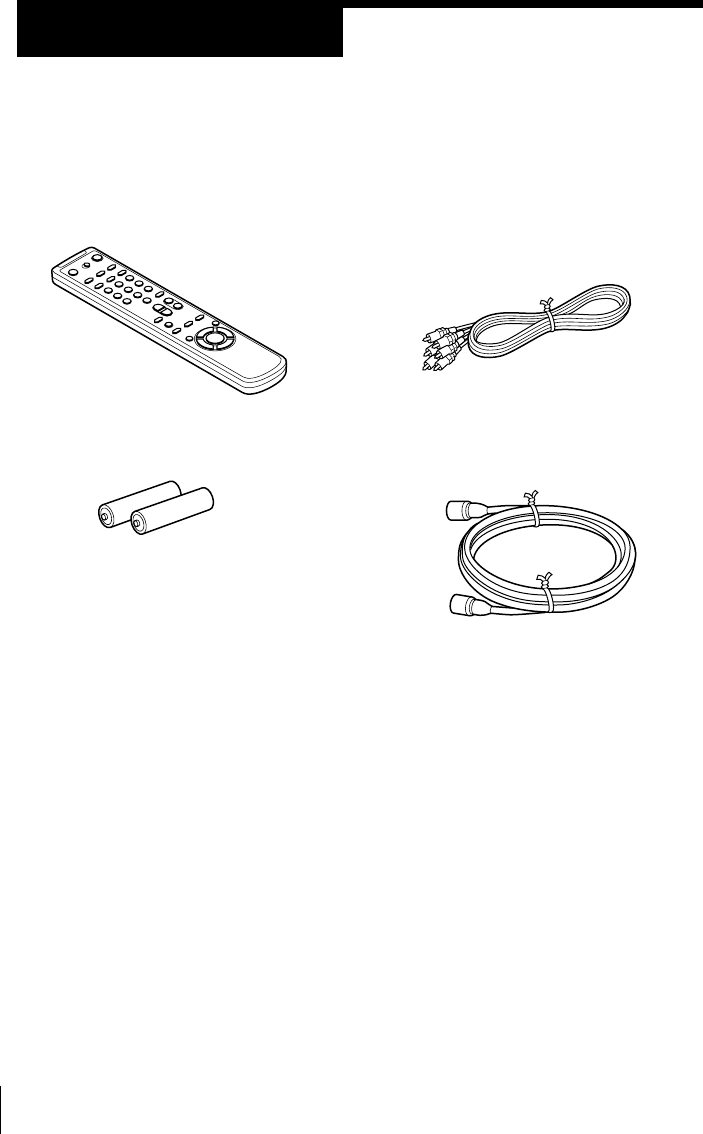

Check that you have received the following items with the VCR:
• Remote commander
• Size AA (R6) batteries
• Audio/video cable (3-phono to
3-phono)
• 75-ohm coaxial cable with F-type
connectors
5Getting Started
Getting Started
Step 2
Setting up the remote commander

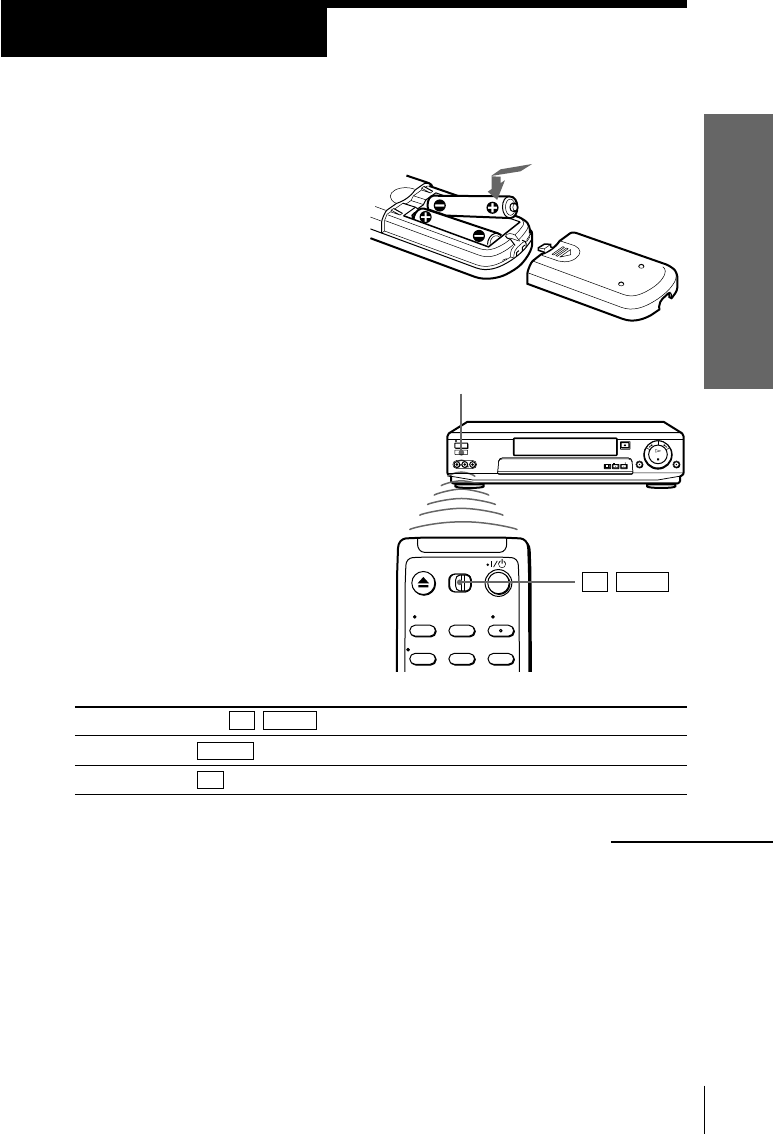

Inserting the batteries
Insert two size AA (R6) batteries
by matching the + and – on the
batteries to the diagram inside the
battery compartment.
Insert the negative (–) end first,
then push in and down until the
positive (+) end clicks into
position.

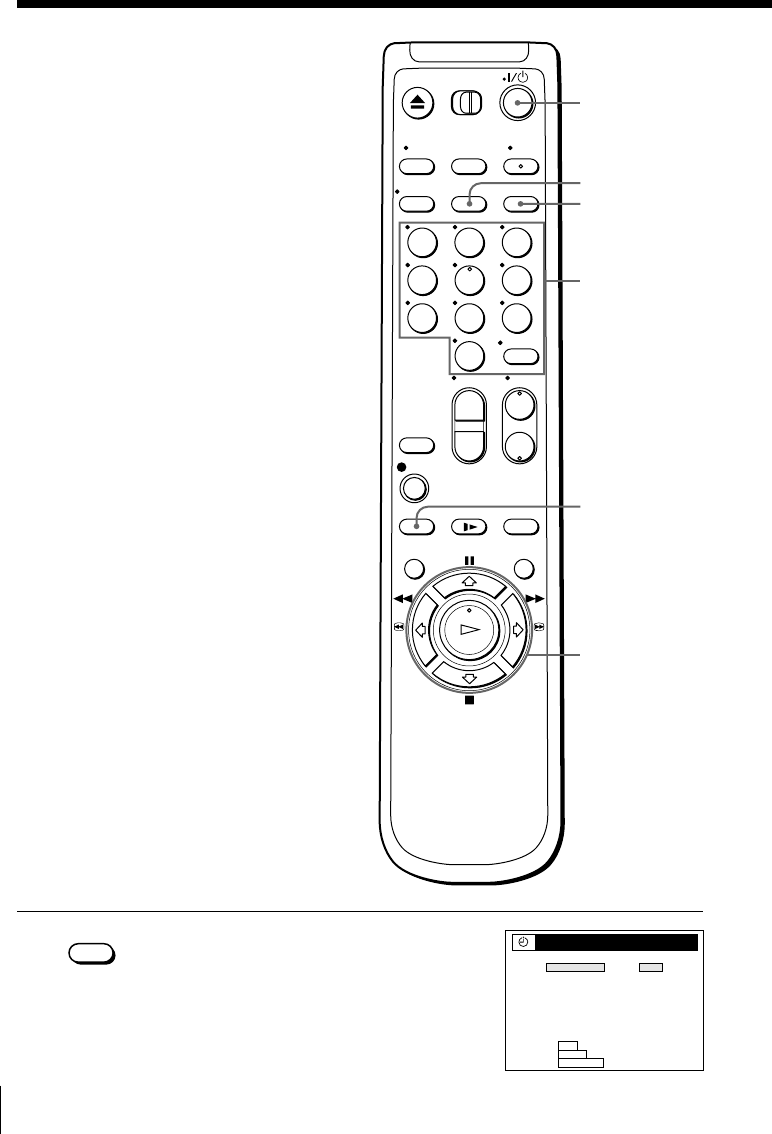

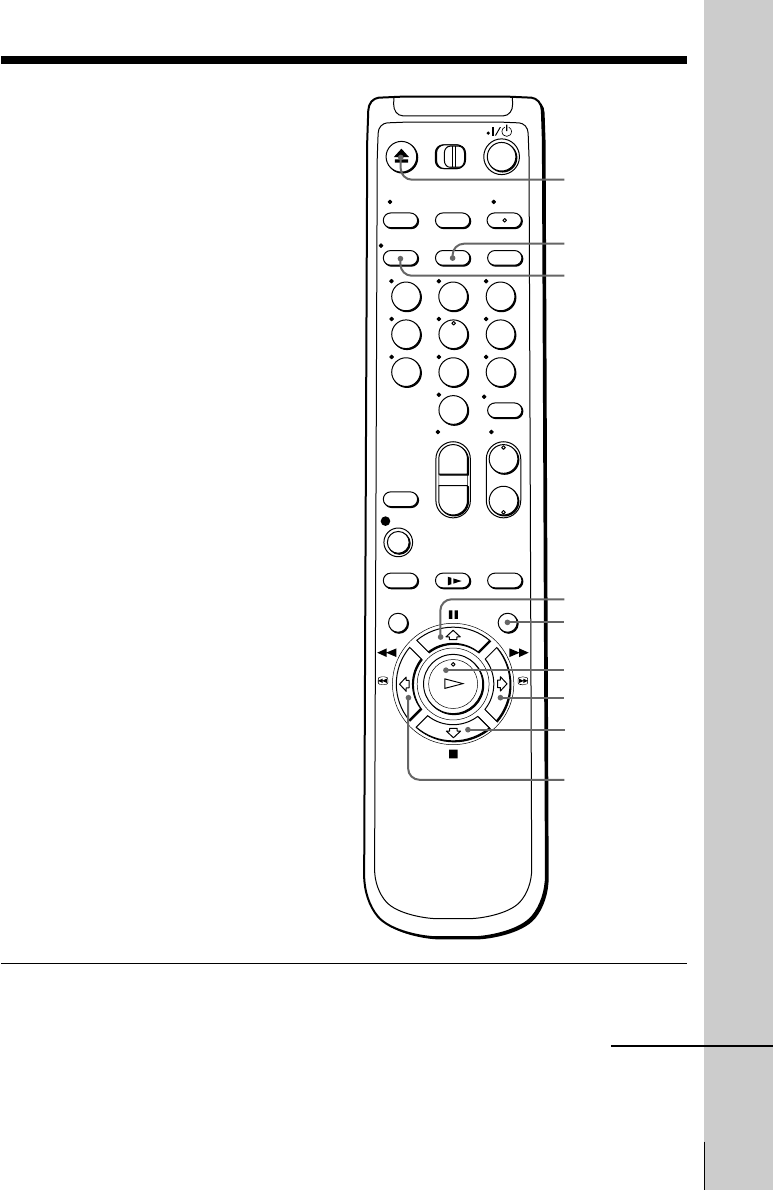

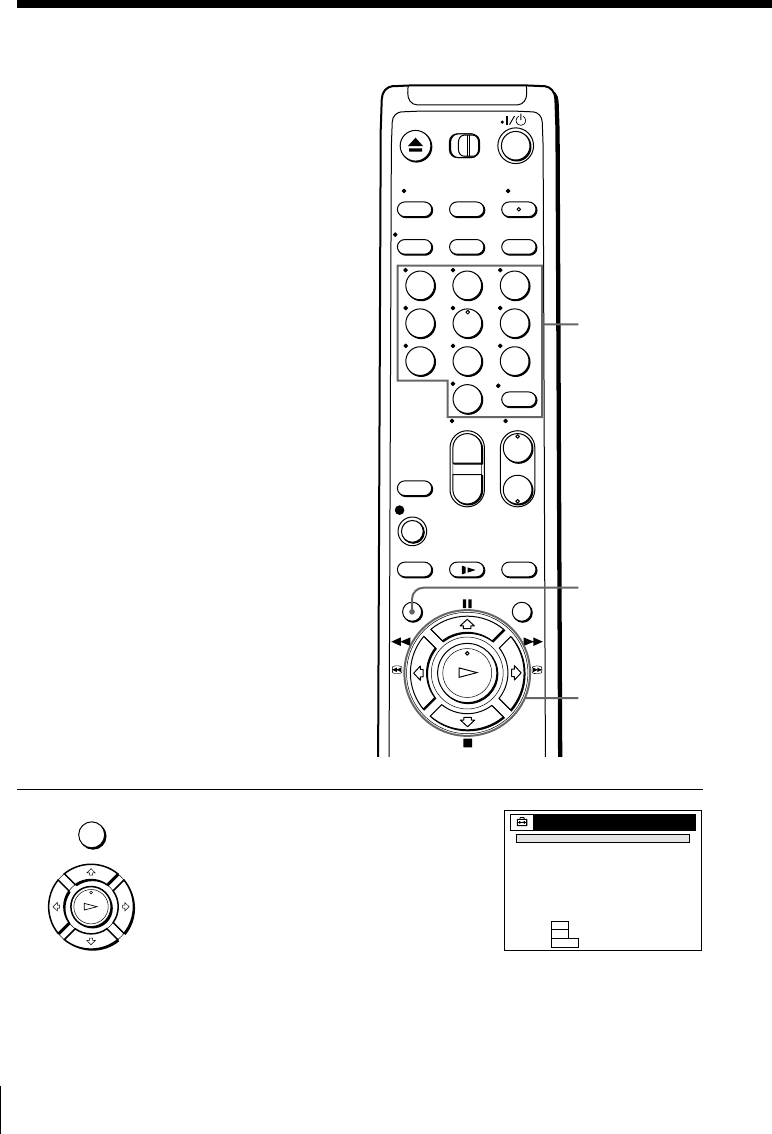

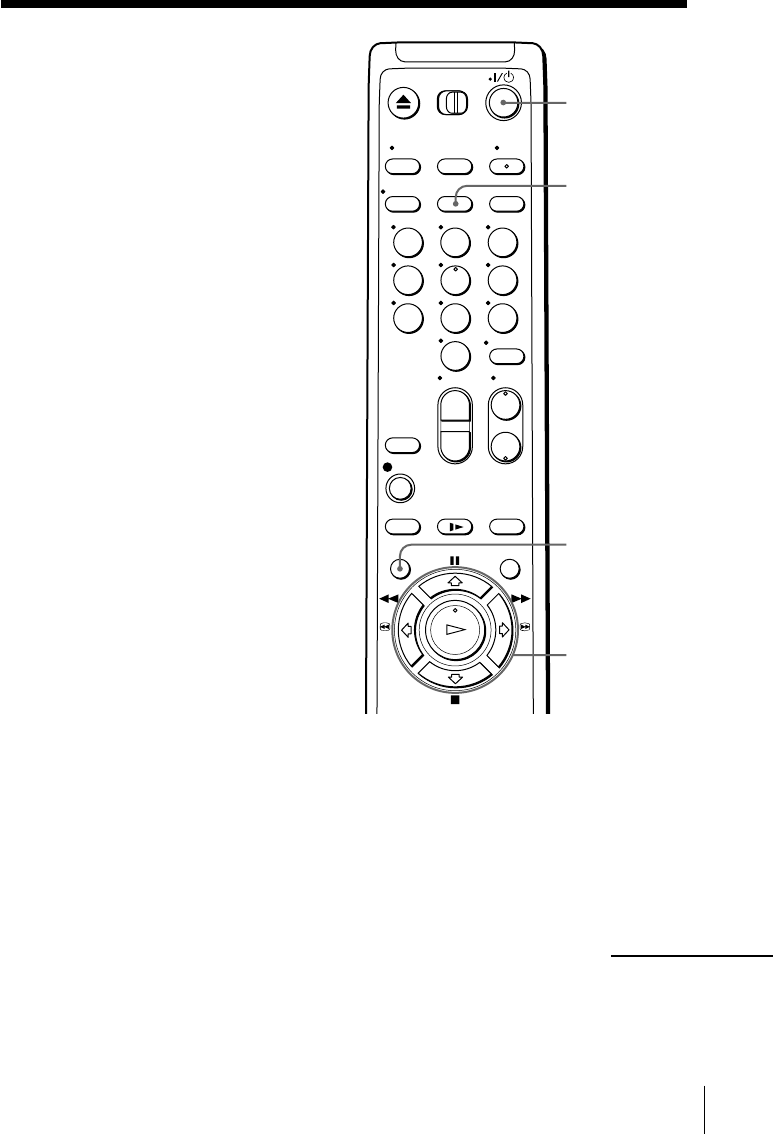

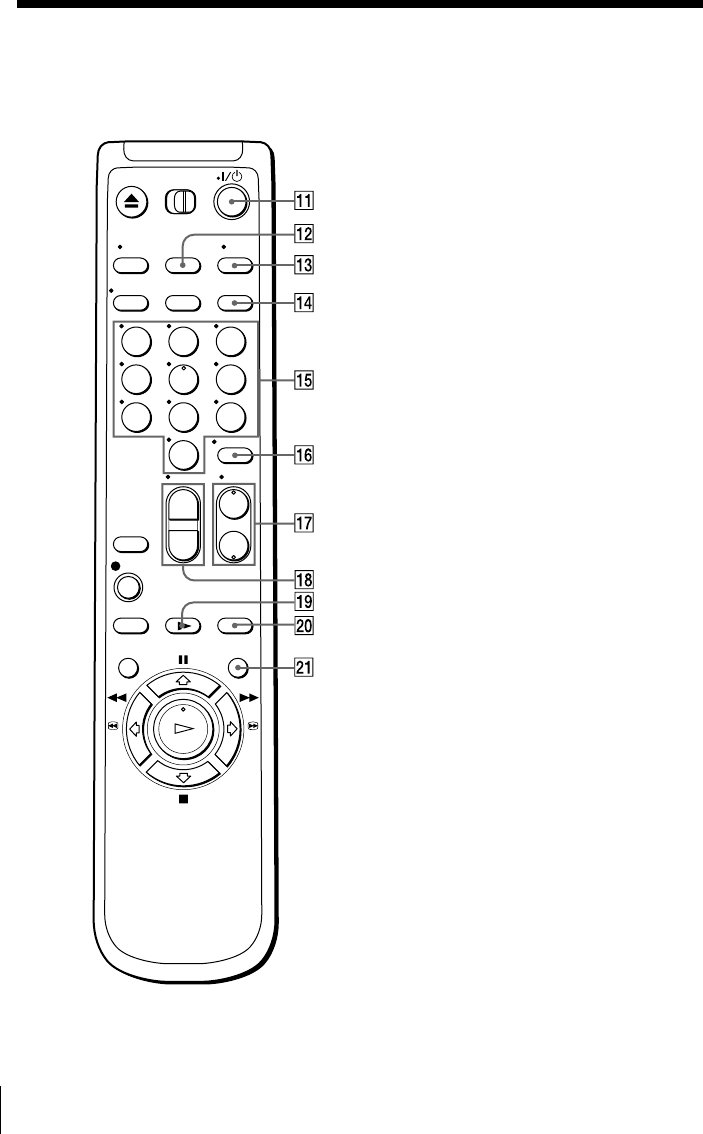

Using the remote commander
You can use this remote
commander to operate this VCR
and a Sony TV. Buttons on the
remote commander marked with
a dot (•) can be used to operate
your Sony TV.
To operate Set TV / VIDEO to
the VCR VIDEO and point at the remote sensor on the VCR
a Sony TV TV and point at the remote sensor on the TV
continued
TV / VIDEO
Remote sensor
1/u
Getting Started6
Step 2: Setting up the remote commander (continued)
Notes
• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove
the batteries to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.

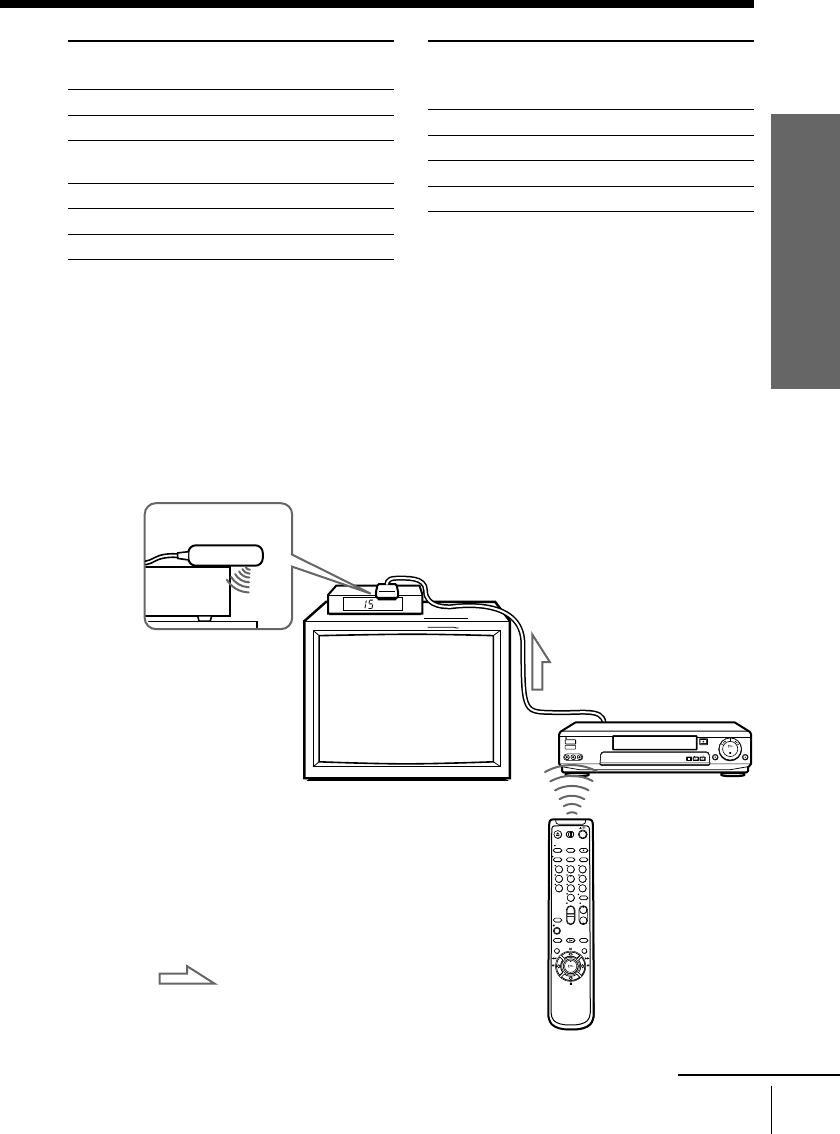

Controlling other TVs with the remote commander
The remote commander is preprogrammed to control non-Sony TVs. If your
TV is listed in the table below, set the appropriate manufacturer’s code
number.
1Set TV / VIDEO at the top of the remote commander to TV .
2Hold down 1/u, and enter your TV’s code number(s) using the number
buttons. Then release 1/u.
Now you can use the 1/u, VOL +/–, CH +/–, and TV/VIDEO buttons to
control your TV. You can also use the buttons marked with a dot (•) to
control a Sony TV. To control the VCR, reset TV / VIDEO to VIDEO .
7Getting Started
Getting Started
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until
you find the one that works with your TV.
Notes
• If the TV uses a different remote control system from the one programmed to work
with the VCR, you cannot control your TV with the remote commander.
• If you enter a new code number, the code number previously entered will be erased.
• When you replace the batteries of the remote commander, the code number may
change. Set the appropriate code number every time you replace the batteries.
Manufacturer Code
number
Sony 01
Akai 04
AOC 04
Centurion 12
Coronado 03
Curis-Mathes 12
Daytron 12
Emerson 03, 04, 14
Fisher 11
General Electric 06, 10
Gold Star 03, 04, 17
Hitachi 02, 03
J.C.Penny 04, 12
Manufacturer Code
number
JVC 09
KMC 03
Magnavox 03, 08, 12
Marantz 04, 13
MGA/Mitsubishi
04, 12, 13, 17
NEC 04, 12
Panasonic 06, 19
Philco 03, 04
Philips 08
Pioneer 16
Portland 03
Quasar 06, 18
Radio Shack 05, 14
Manufacturer Code
number
RCA 04, 10
Sampo 12
Sanyo 11
Scott 12
Sears 07, 10, 11
Sharp 03, 05, 18
Sylvania 08, 12
Teknika 03, 08, 14
Toshiba 07
Wards 03, 04, 12
Yorx 12
Zenith 15
Getting Started8
Step 3
Hookups
Selecting the best hookup option
There are many ways in which your VCR can be hooked up. To hook up
your VCR so that it works best for you, first scan through the table below.
Then use the accompanying diagrams and procedures on the following
pages to set up your VCR.
If you have Use Refer to
TV that has audio/video inputs Audio/video (A/V) hookup, then Pages 9 and 10
follow one of the hookups below.
Cable box that is compatible with the Hookup 1 Pages 11 to 14
VCR’s cable box control feature
No cable box or incompatible cable box Hookup 2 Pages 15 to 18
with only a few scrambled channels
Antenna only, no cable TV Hookup 3 Pages 19 to 22
Incompatible cable box with many Hookup 4 Pages 23 to 26
scrambled channels
DIRECTV* digital satellite receiver Hookup 5 Pages 27 to 29
Incompatible cable box with only a few Hookup 6 Pages 30 to 34
scrambled channels, using an A/B
switch
After you’ve completed the connections, follow the instructions for setup.
During setup, if you need more details on the procedure described, page
numbers are provided where you can find complete, step-by-step
instructions.
After you’ve completed the setup, you’re ready to use your VCR.
Procedures differ depending on the hookup you used. For an overview,
refer to “Quick reference to using the VCR” on the back cover.
Before you get started
• Turn off the power to all equipment.
• Do not connect the AC power cords until all of the connections are
completed.
• Be sure you make connections firmly. Loose connections may cause
picture distortion.
• If your TV doesn’t match any of the examples provided, see your nearest
Sony dealer or qualified technician.
* DIRECTV is a trademark of DIRECTV, Inc., a unit of Hughes Electronics Corporation.
9Getting Started
Getting Started

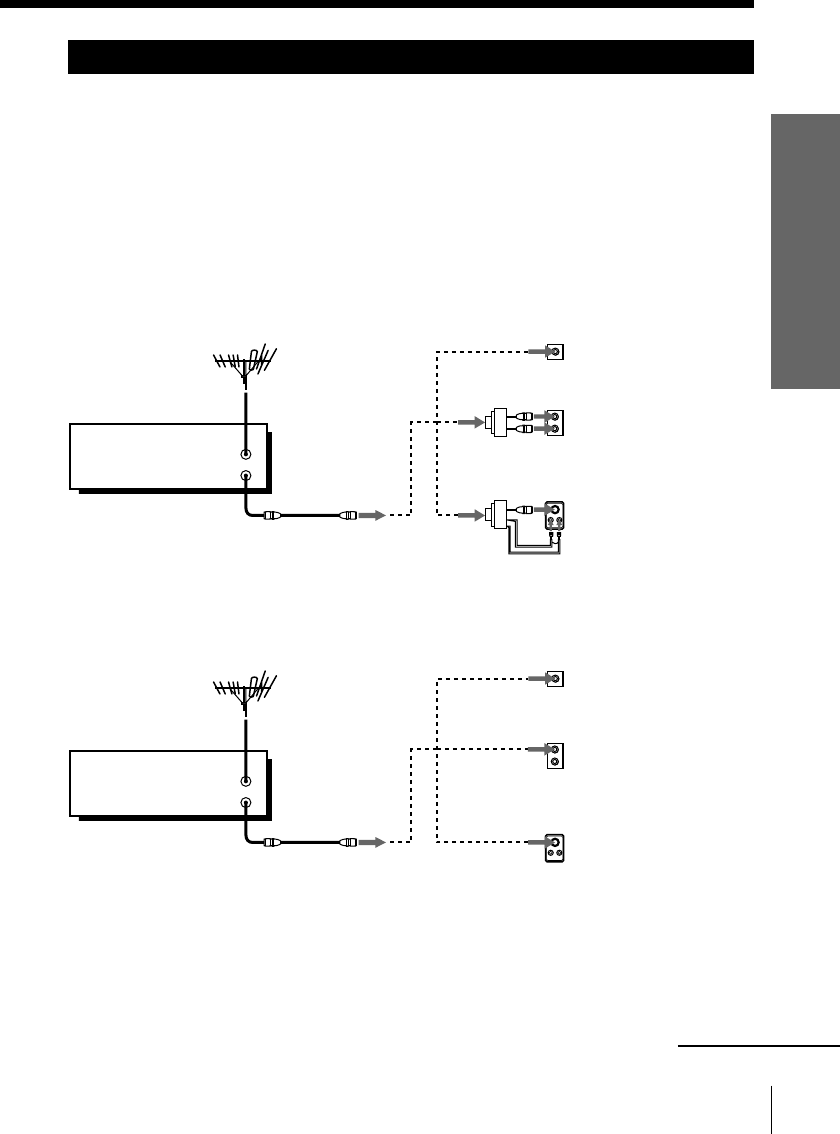

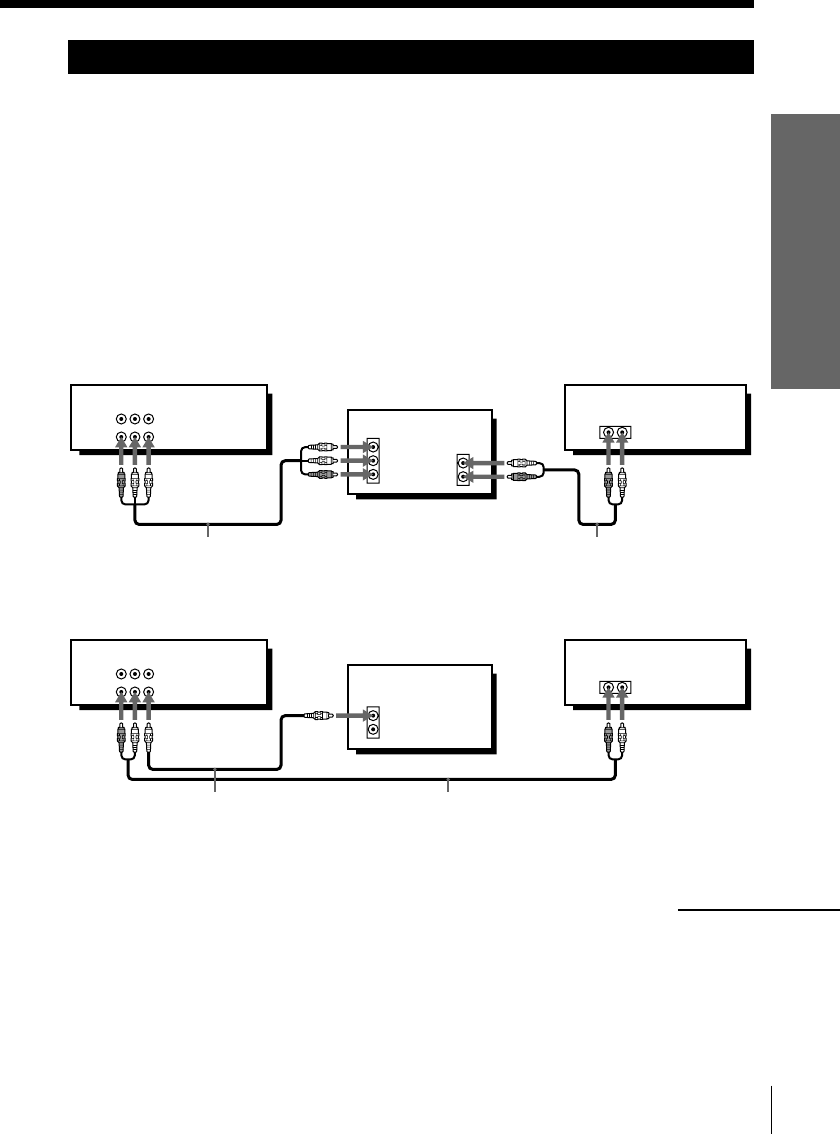

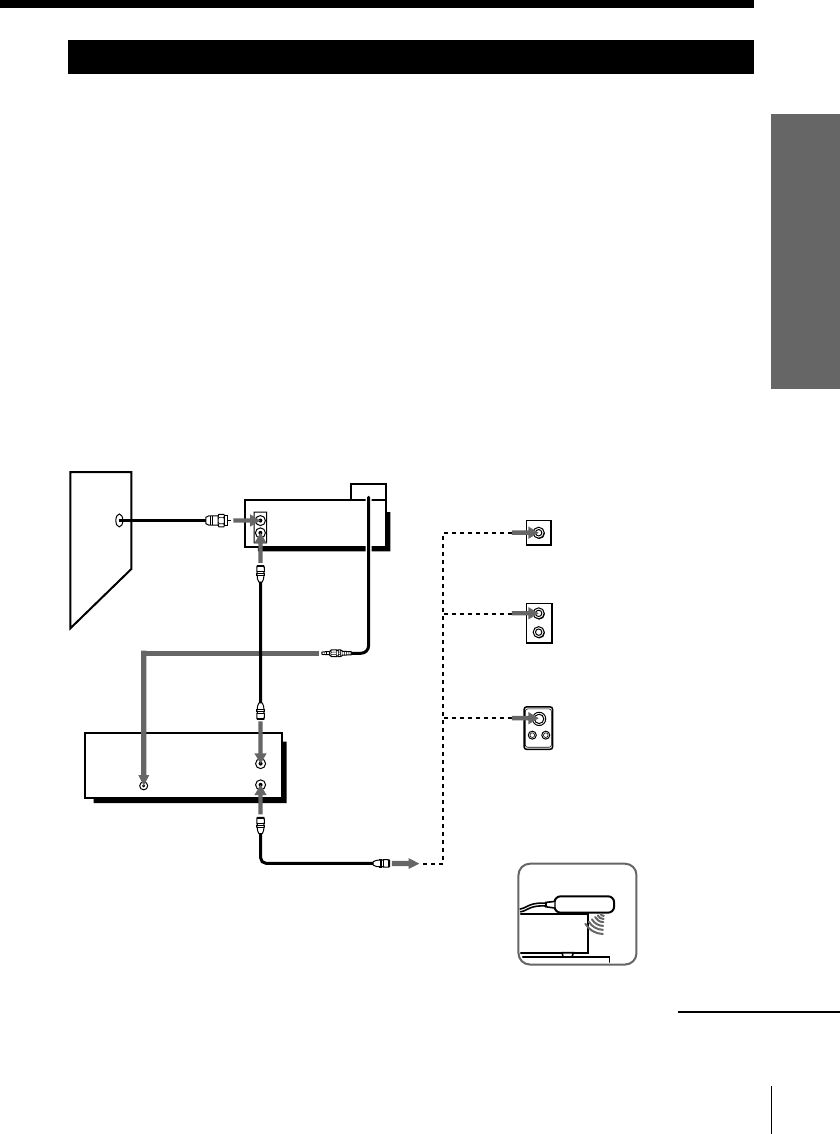

Audio/video (A/V) hookup Pages 9 and 10
If your TV has audio/video (A/V) input jacks, you will get a better picture
and sound if you hook up your VCR using these connections. In addition,
for a true “home theater” experience, you should connect the audio outputs
of your VCR or TV to your stereo system. If your TV doesn’t have A/V
inputs, see the following pages for antenna or cable hookups.
If you’re not planning to use your VCR to record programs, you’re finished
setting up the VCR after you’ve made the connections shown on this page.
If you want to record off-air or off your cable TV system, complete these
connections first, and then go to the following pages for antenna or cable
hookups.
A Use this hookup if your TV has stereo jacks
B Use this hookup if your TV doesn’t have stereo jacks
Note
• To play a tape in stereo, you must use the A/V connection.
Audio/video cable (supplied)
TV
VCR Stereo receiver
TV
VCR Stereo receiver
Video cable (not supplied) Audio cable (not supplied)
Audio cable (not supplied)
IN
VIDEO
AUDIO
AUDIO OUT
AUX IN
AUDIO VIDEO
LINE-1
IN
LINE
OUT
VIDEO
AUDIO
IN
AUX IN
LINE-1
IN
LINE
OUT
AUDIO VIDEO
continued
Getting Started10
Step 3: Hookups (continued)
A/V hookup: VCR setup
After you’ve connected your TV and completed antenna or cable hookup,
use the following procedure to set up the VCR.
Caution
Connections between the VCR’s VHF/UHF connector and the antenna terminals of
the TV receiver should be made only as shown in the following instructions. Failure
to do so may result in operation that violates the regulations of the Federal
Communications Commission regarding the use and operation of RF devices. Never
connect the output of the VCR to an antenna or make simultaneous (parallel) antenna
and VCR connections at the antenna terminals of your receiver.
Note to CATV system installer (in USA)
This reminder is provided to call the CATV system installer’s attention to Article 820-
40 of the NEC that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Press MENU and select
ADVANCED OPTIONS. Set AUTO ANT SELECT
to OFF and press OK.
For details, see page 84.
SELECT
SET
QUIT
:
:
:
TIMER SET/CHECK
SETTINGS
ADVANCED OPTIONS
O K
MENU
n
n
SELECT
SET
QUIT
:
:
:
ADVANCED OPTIONS
O K
MENU
n
n
NRETURN
AUTO ANT SELECT
AUTO STEREO
TUNER AUDIO
TAPE SELECT
AUTO TAPE SPEED
SHARPNESS
APC
ON
OFF
ON
AUTO
ON
L H
/
11Getting Started
Getting Started
Hookup 1 Pages 11 to 14

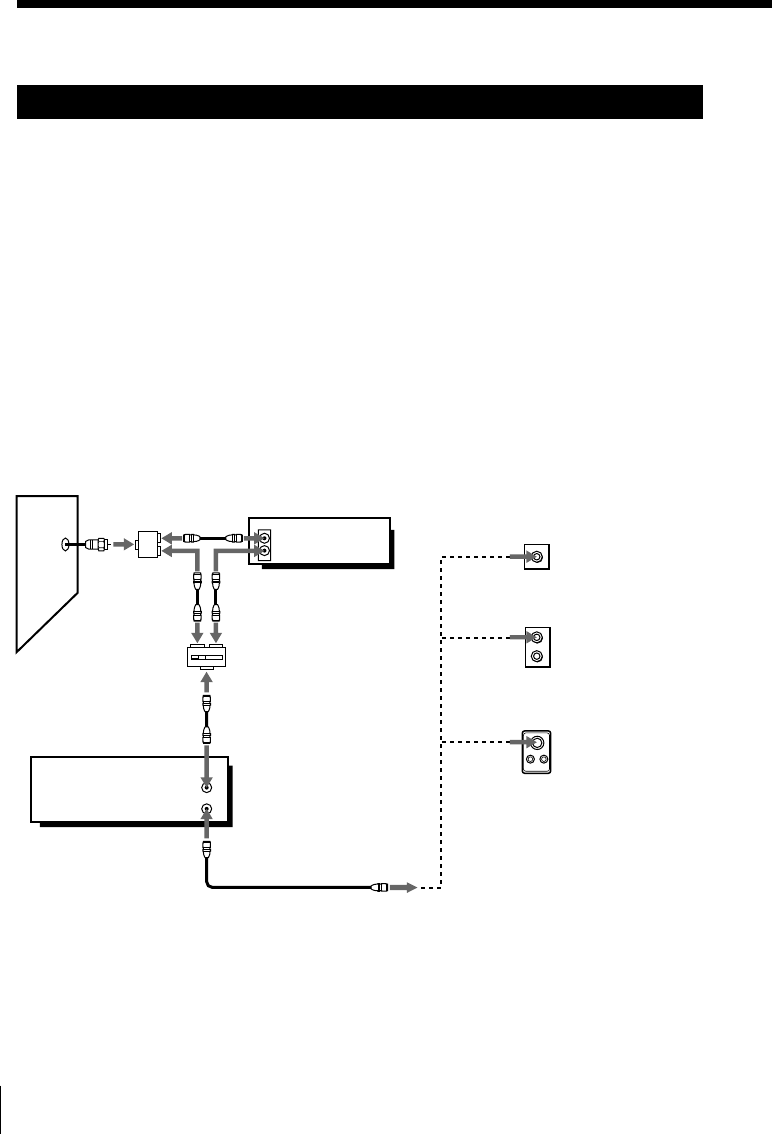

Using cable box control
Recommended use
You should use this hookup if you have a cable box, especially if your cable
system scrambles all or most channels. This hookup allows the VCR’s cable
box control feature to control the channel on the cable box, simplifying the
recording process. A list of compatible cable boxes is on pages 45 to 47.
What you can do with this hookup
• Record any channel using the VCR’s cable box control feature to select
channels on the cable box
What you can’t do
• Record with the cable box turned off
• Record one channel while watching another channel
( )
CABLE
BOX
CONTROL
IN
OUT
VHF/UHF
PLUG IN
POWER
IN
OUT
CONTROL S
OUT
RM-CM101
Cable Mouse
(not supplied)
VCR
Wall
Side view
Cable box Rear of TV
VHF
UHF
Positioning the Cable Mouse
Place the Cable Mouse so that it
hangs out over the cable box
front.
A Match the type of
connector on your
TV: A, B, or C.
B For connector types
B and C, no UHF
connection is
required.
C
or
or
VHF
UHF
VHF/UHF
continued
Getting Started12
Step 3: Hookups (continued)

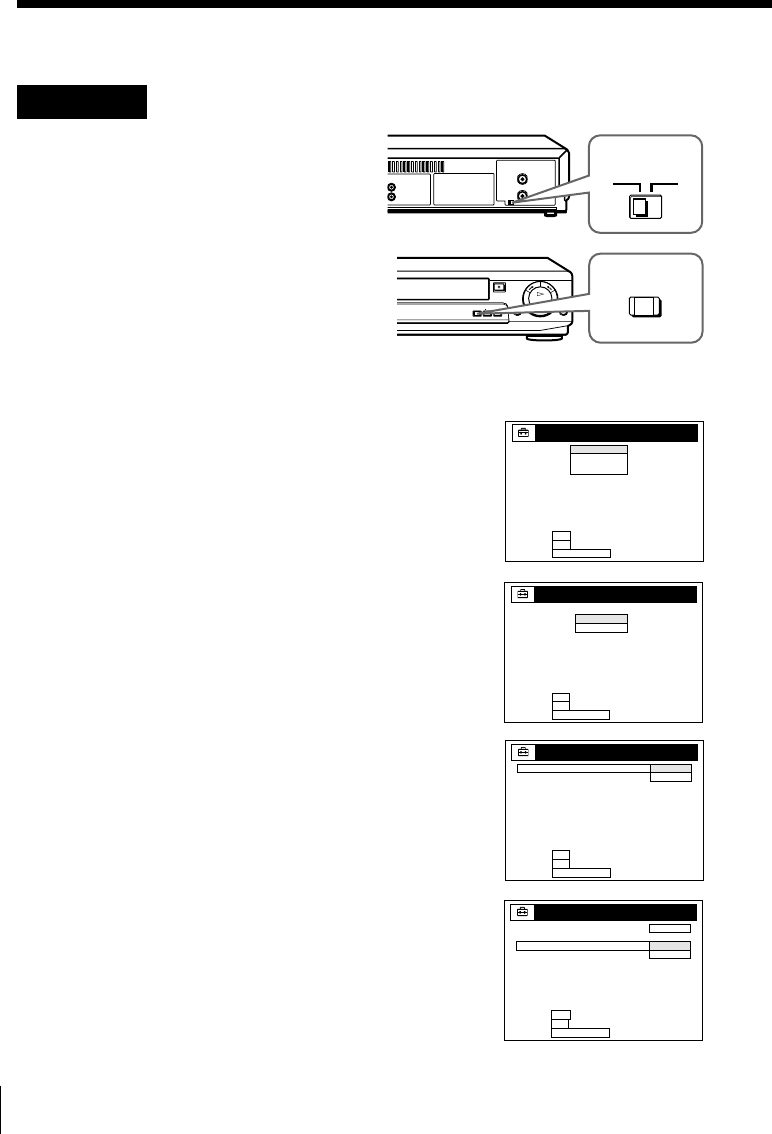

Hookup 1: VCR setup

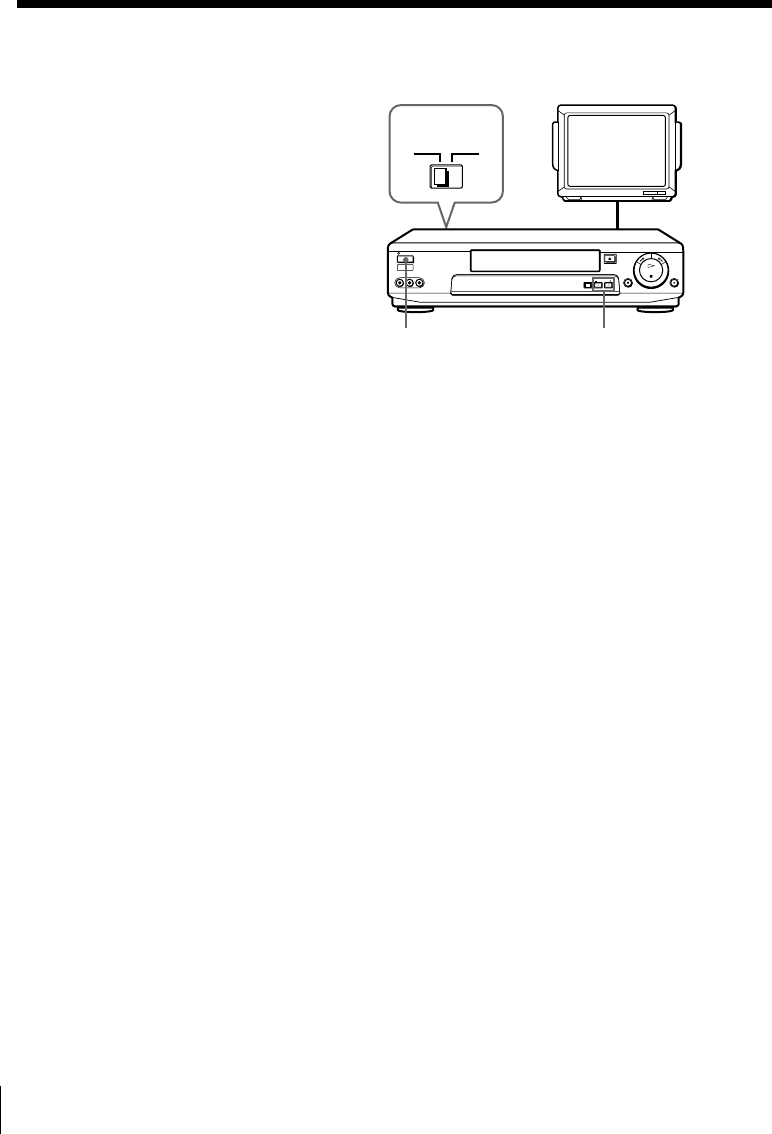

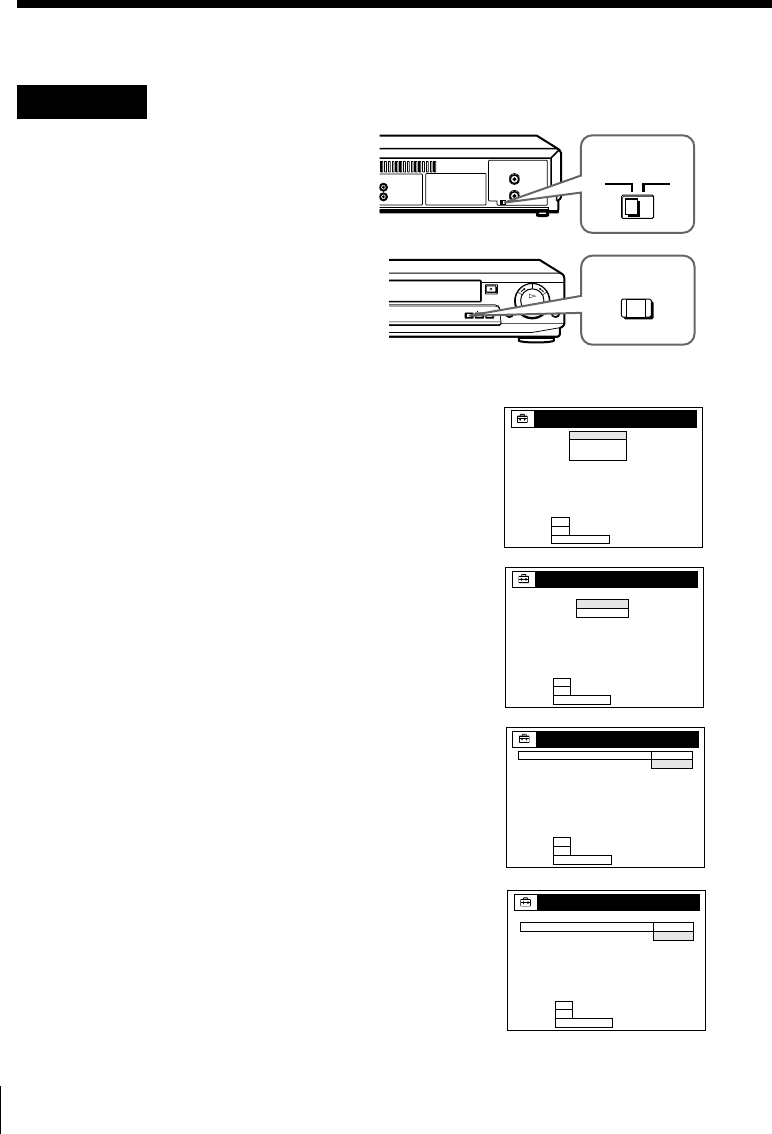

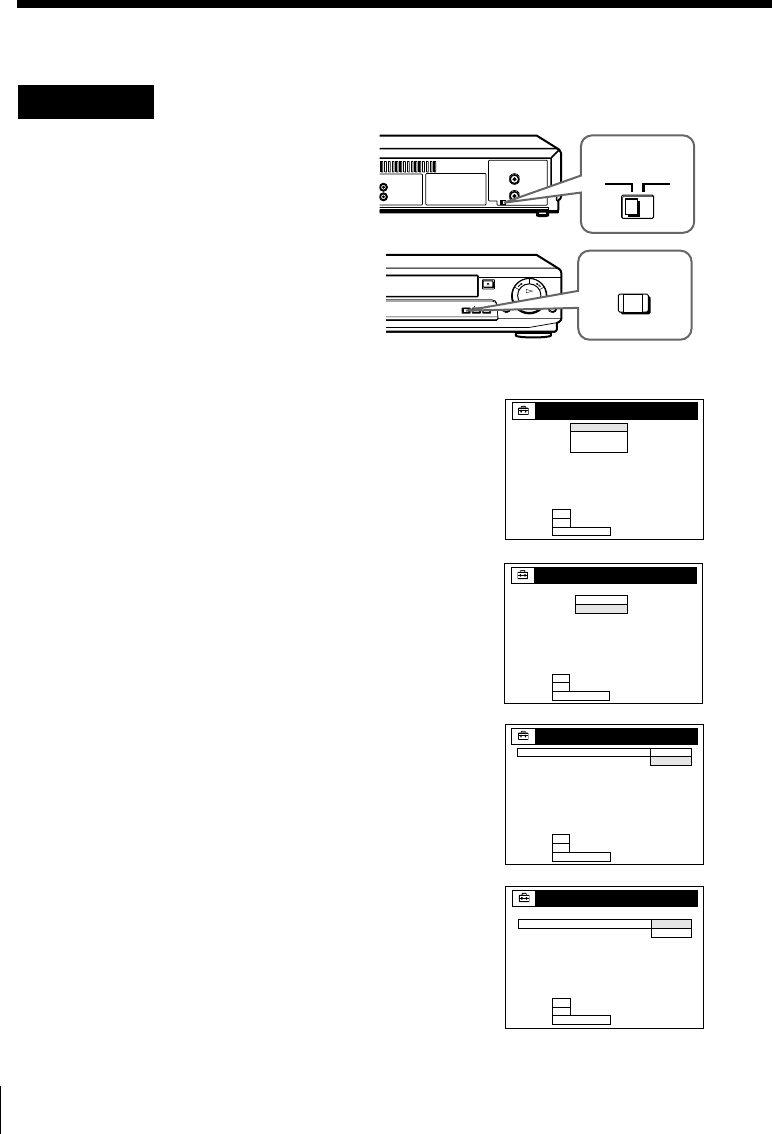

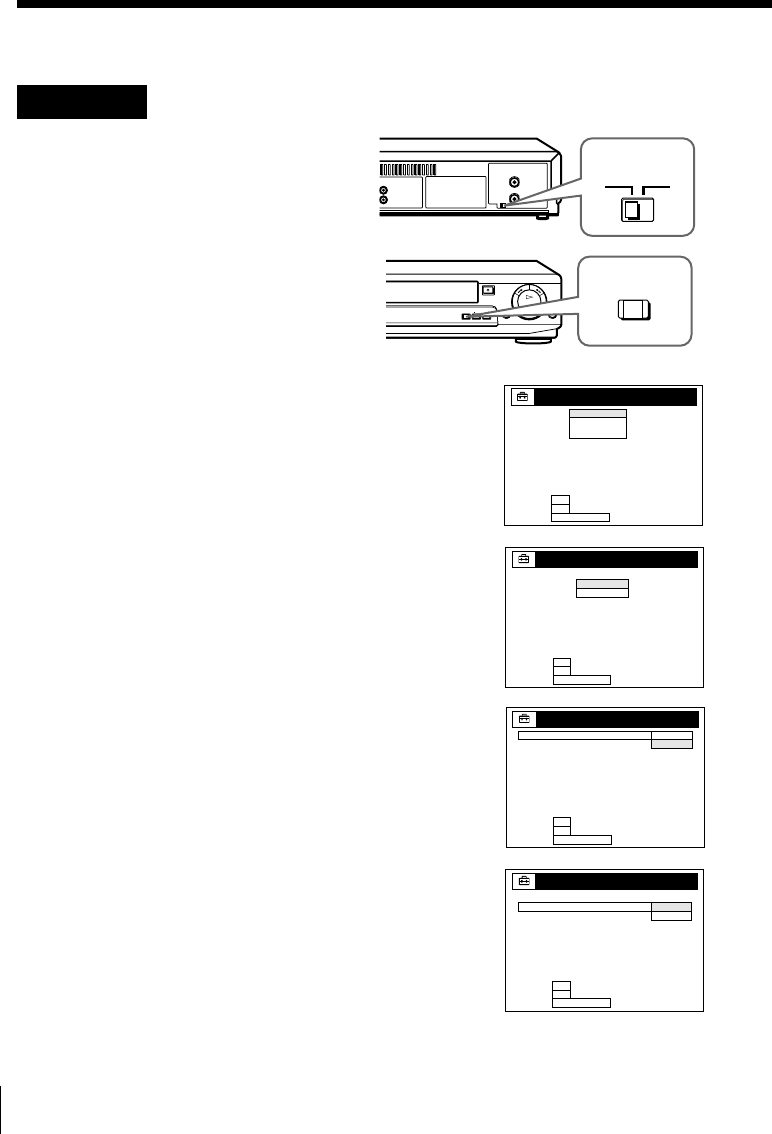

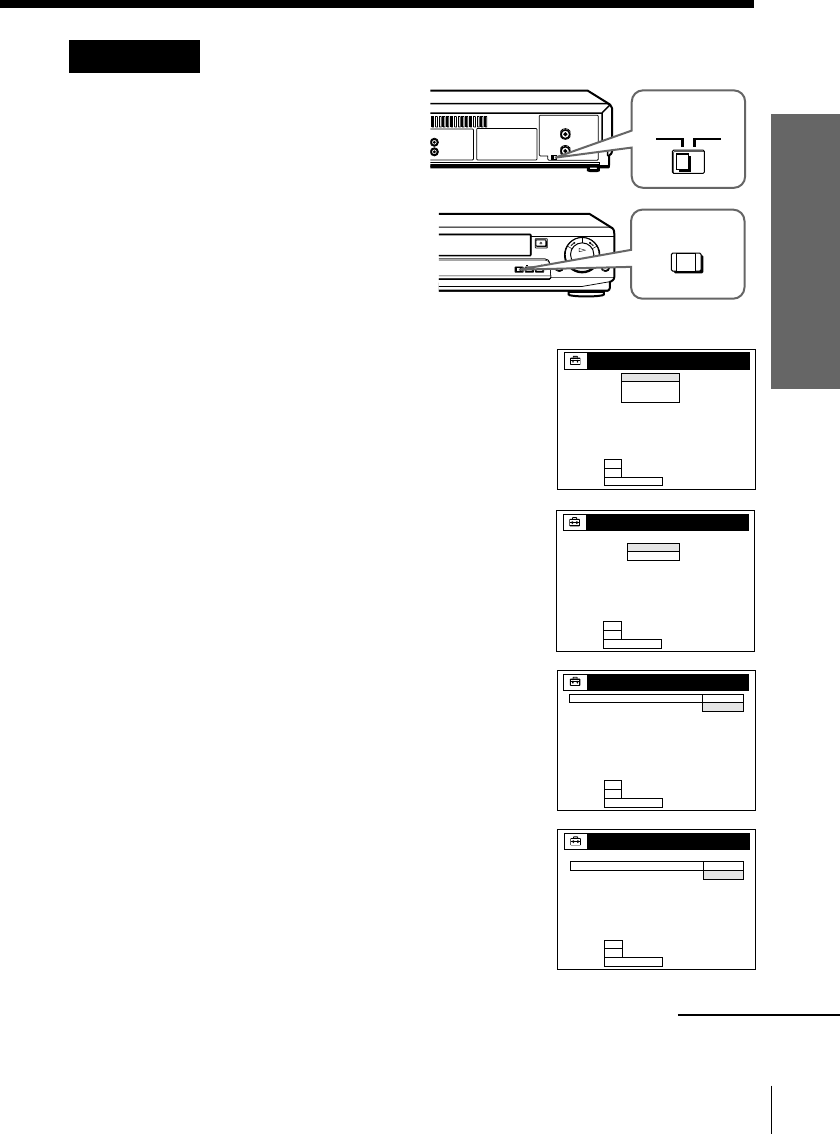

1Set the RF UNIT switch to
CH3 or CH4, whichever
channel is not used in your
area. If both are used, set the
switch to either channel.
For details, see page 88.
If you made A/V
connections (page 9),
you can skip this step.

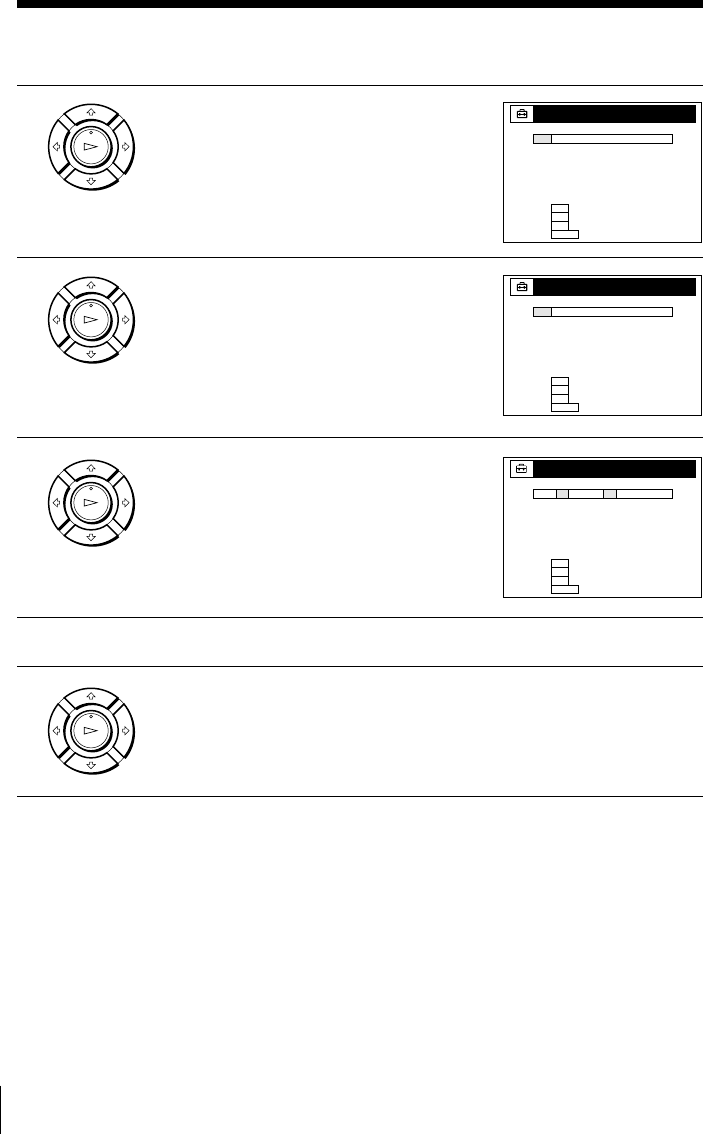

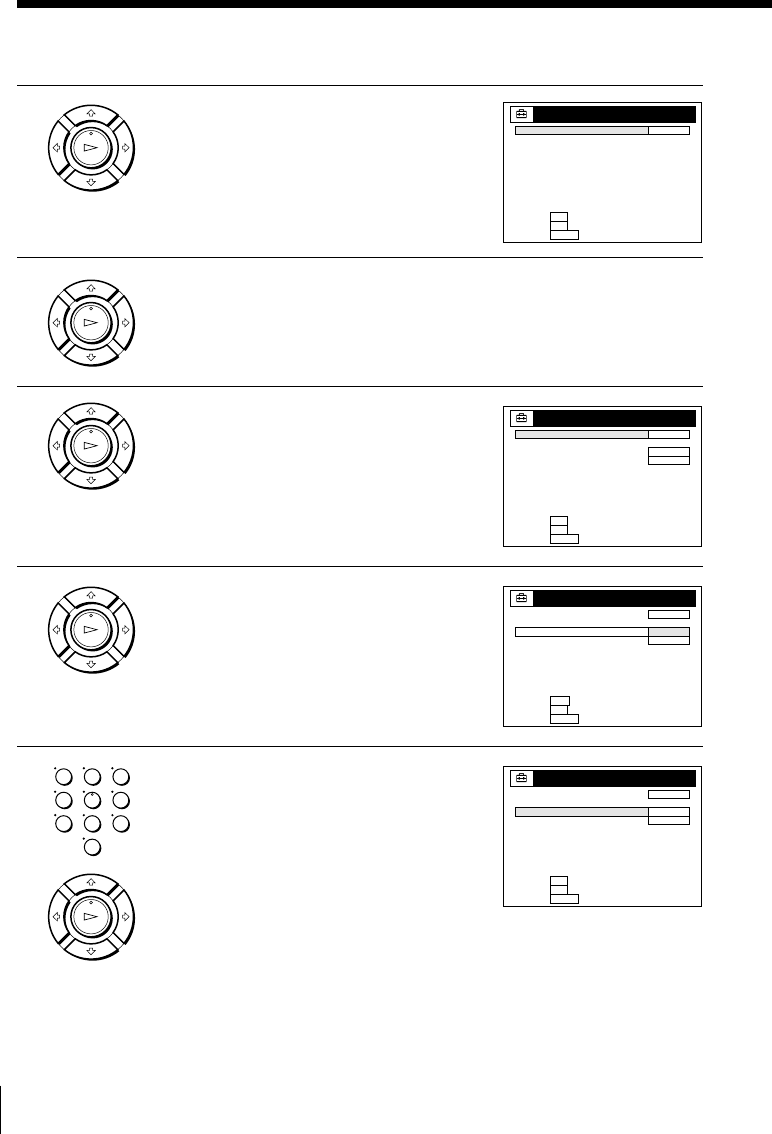

2Turn on your cable box.

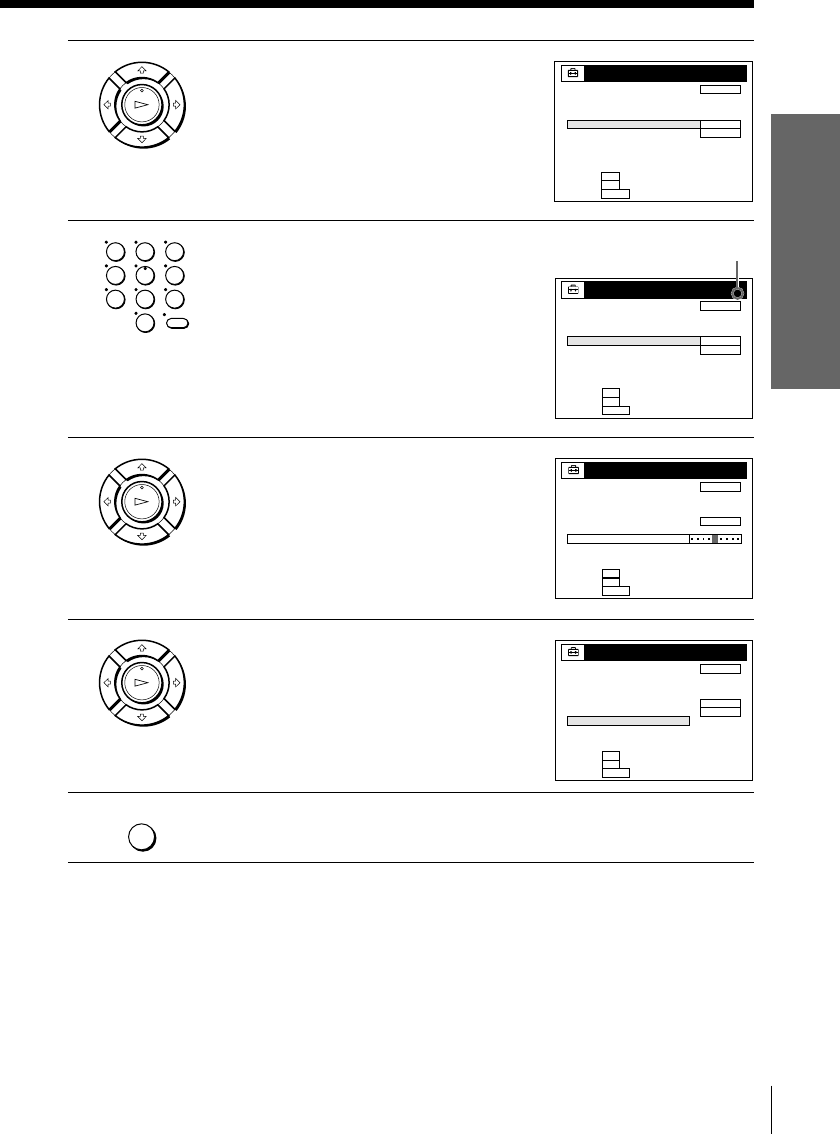

3Press EASY SET UP on the VCR.
1The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if desired,
and press OK. For details, see page 35.
2The CLOCK SET menu appears. Select AUTO
and press OK. For details, see page 37.
3The CABLE BOX CONTROL menu appears.
Select ON. For details, see page 44.
4Enter your cable box code number and press
OK. For details, see page 44.
CH3
RF UNIT
CH4
SELECT
NEXT
CANCEL
:
:
:
SET UP
LANGUAGE
O K
EASY SET UP
n
n
ENGLISH
ESPAÑOL
FRANÇAIS
SET UP
CLOCK SET
AUTO
MANUAL
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SET UP
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
OFF
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
USE
NEXT
CANCEL
:
:
:
SET UP
CABLE BOX CONTROL
0 - 9
O K
EASY SET UP
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH3
–––
EASY SET UP
13Getting Started
Getting Started

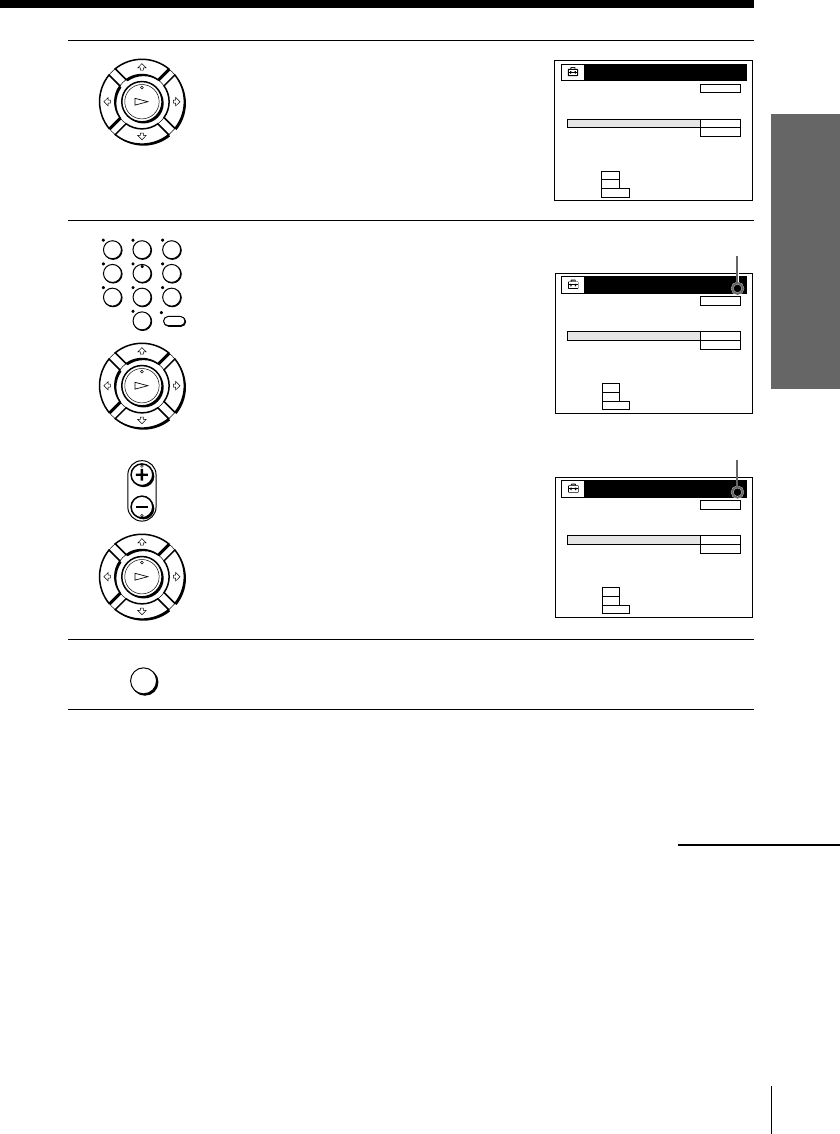

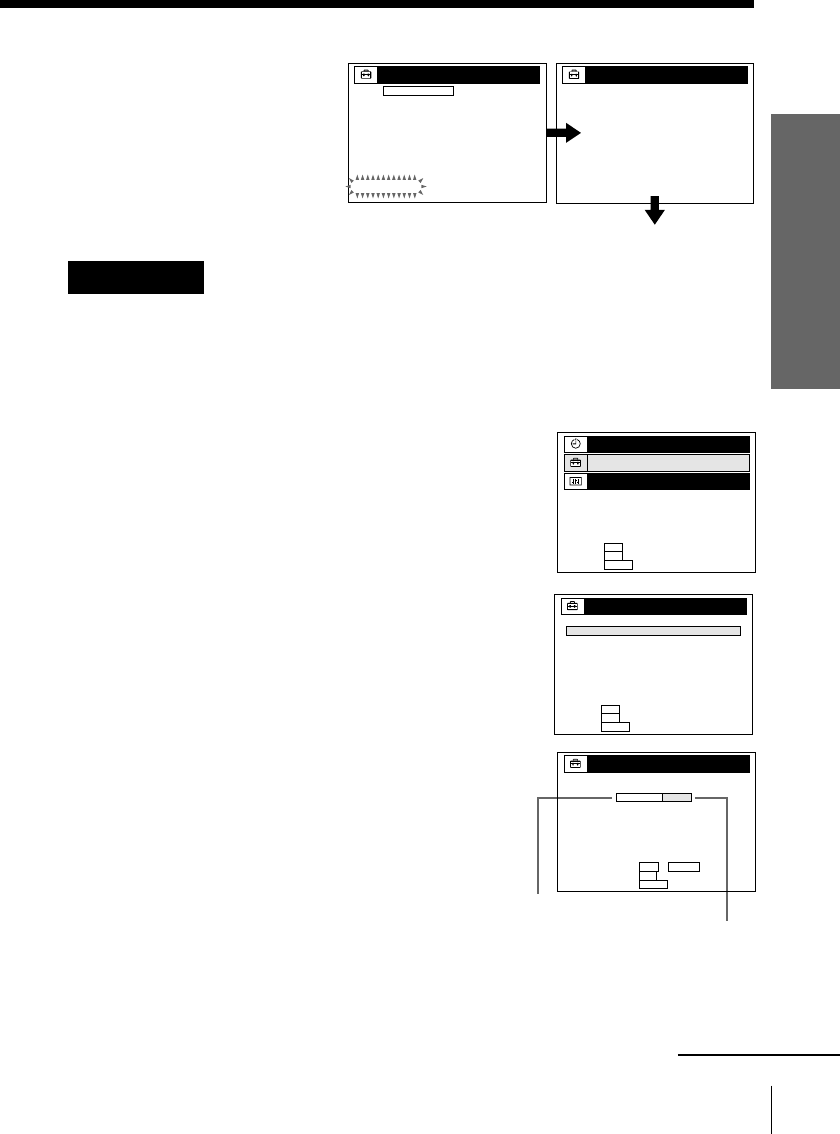

5Select your cable box output channel and press OK.

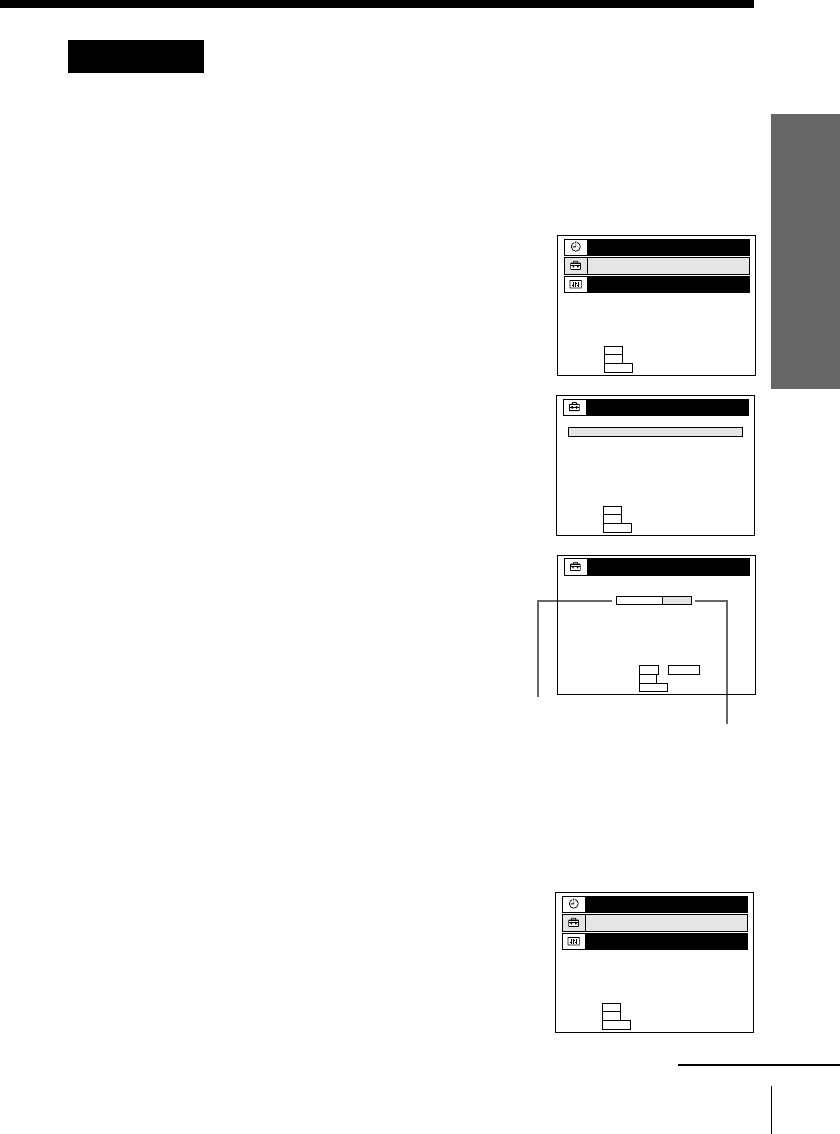

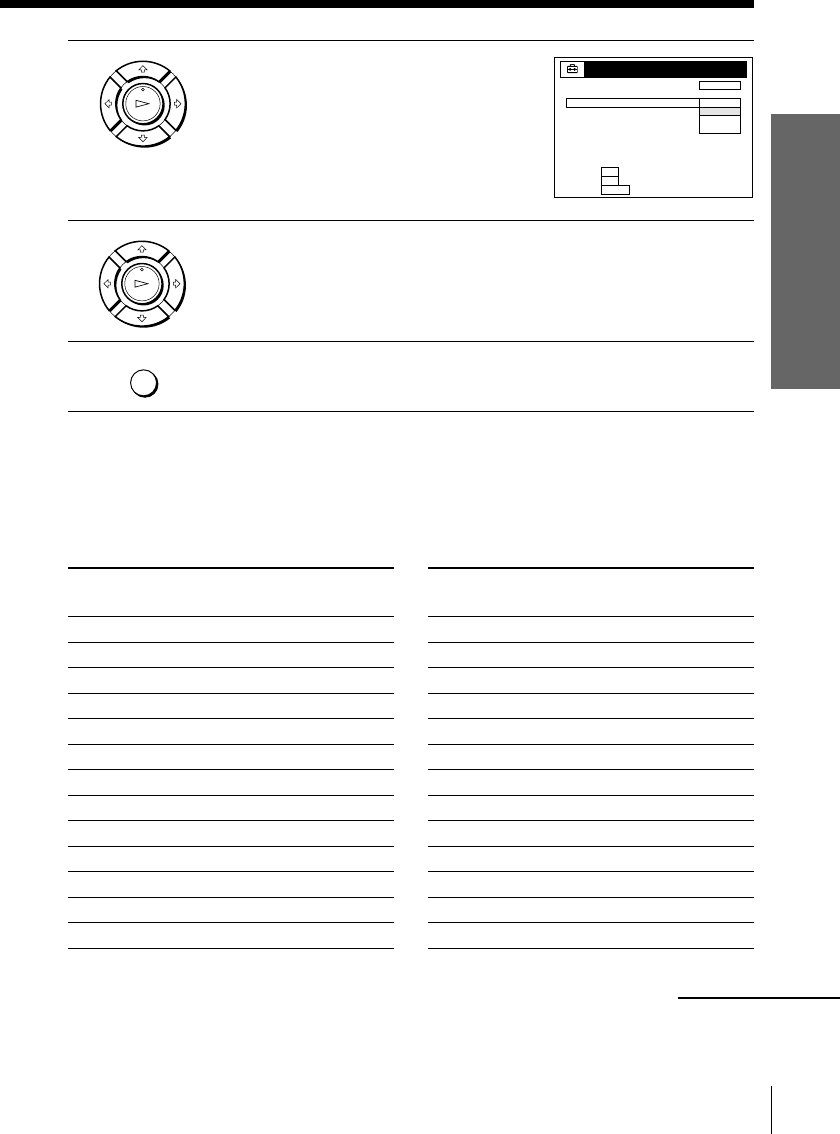

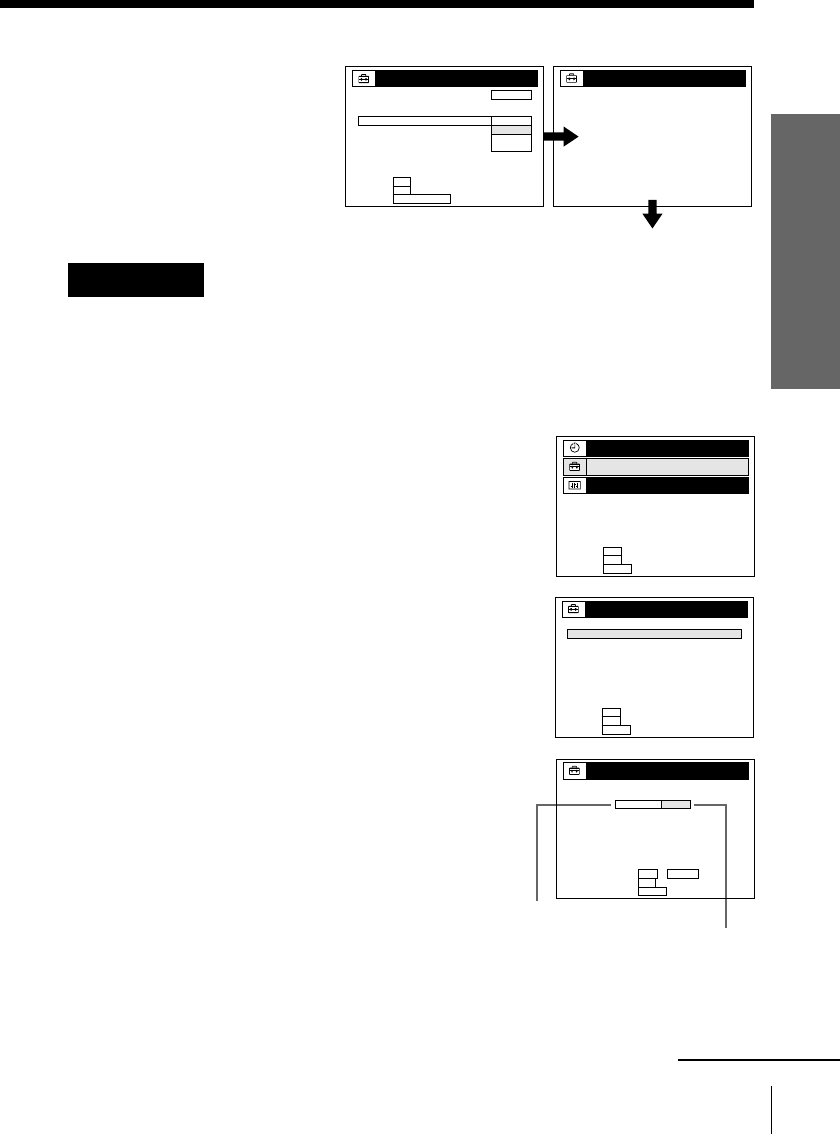

Hookup 1: The VCR Plus+ system channel setup
1Find the VCR Plus+ system Channel Listing in your program guide.
For details, see page 56.
2If the channels in the program guide are different from the channels
that you actually use on your TV, set the channels that are different as
follows. For details, see page 57.

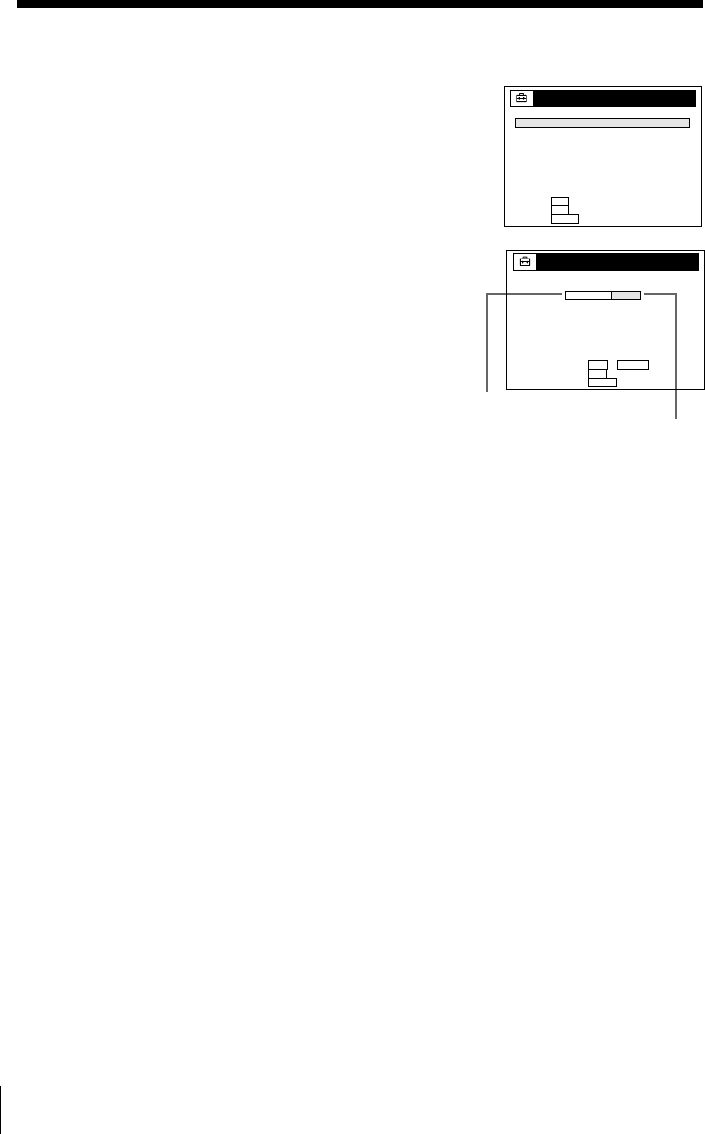

1Press MENU, then select SETTINGS and
press OK.
2 Select SET VCR Plus+ CHANNELS and
press OK.
3Enter the program guide channel, then the
channel you use on your TV.
4Press OK.
5Press MENU to exit the menu.
Program guide channel
Your actual TV channel
SELECT
SET
QUIT
:
:
:
TIMER SET/CHECK
SETTINGS
ADVANCED OPTIONS
O K
MENU
n
n
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 58–
0 - 9
O K
MENU
ENTER
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
SET UP
CABLE BOX CONTROL
CH2
CH3
CH4
LINE
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SET UP
SET UP IS DONE
Normal display
continued
Getting Started14
Step 3: Hookups (continued)
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you
turn off the VCR. After that, whenever you turn off the VCR, it checks the
time and adjusts the clock, even for Daylight Saving Time. The VCR sets the
clock by picking up a time signal provided by some TV channels.
If you want to use the timer to record right away, or if the channels in your
area do not carry time signals, set the clock manually. For details, see
page 41.
Note
• To use the Auto Clock Set feature, leave the cable box on.
15Getting Started
Getting Started

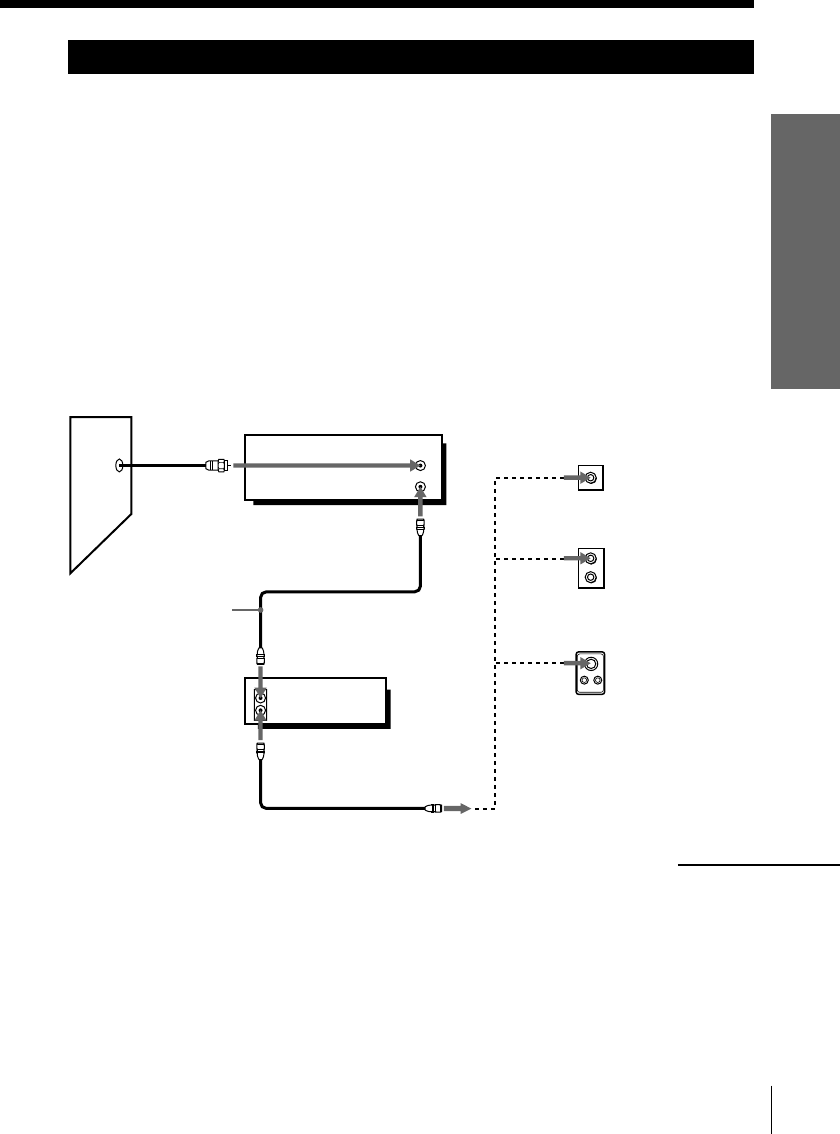

Connect this cable
directly to your TV if
you don't have a
cable box.
VCR
Cable box
Wall

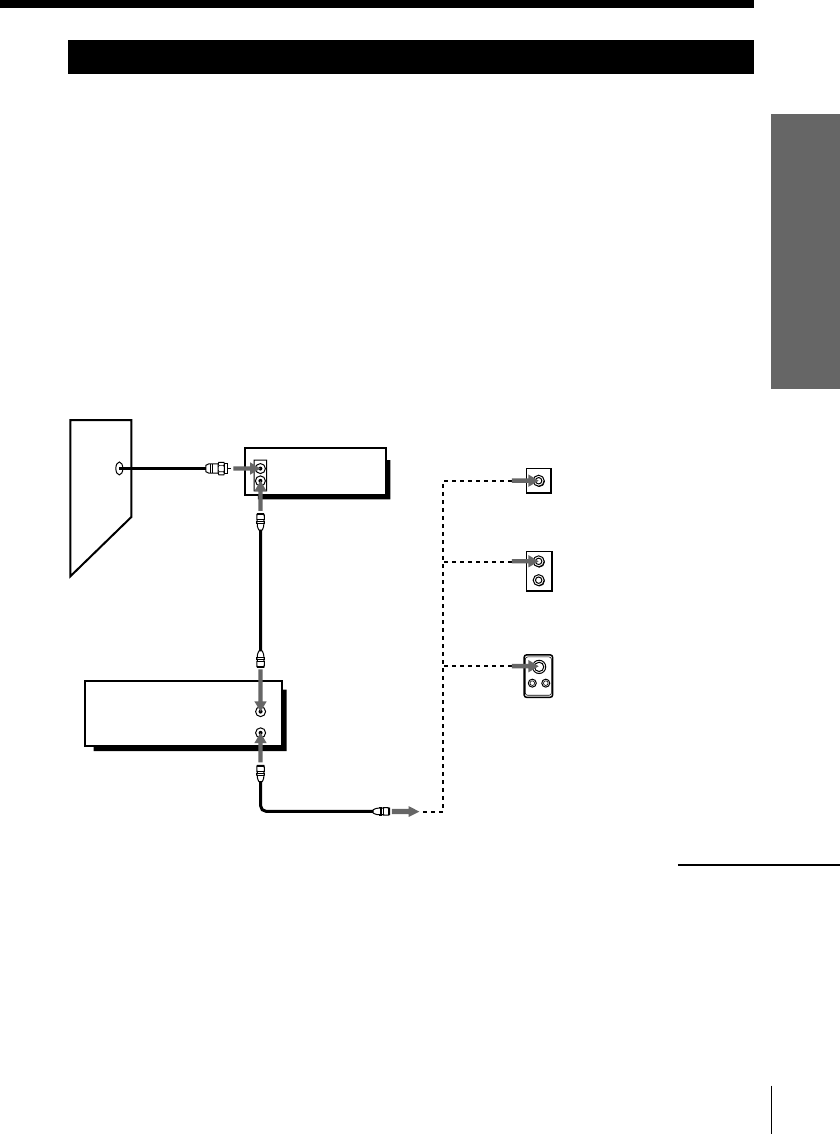

Hookup 2 Pages 15 to 18
No cable box, or incompatible cable box with only a
few scrambled channels
Recommended use
Use this hookup if you do not have a cable box. Also use this hookup if your
cable company cannot supply a cable box that is compatible with the VCR’s
cable box control feature, and your cable system scrambles only a few
channels.
What you can do with this hookup
• Record any unscrambled channel by selecting the channel on the VCR
What you can’t do
• Record scrambled channels that require a cable box
IN
OUT
VHF/UHF
IN
OUT
Rear of TV
VHF/UHF
A Match the type
of connector on
your TV: A, B, or
C.
For connector
types B and C,
no UHF
connection is
required.
VHF
UHF
VHF
UHF
or
or
C
B
continued
Getting Started16
Step 3: Hookups (continued)

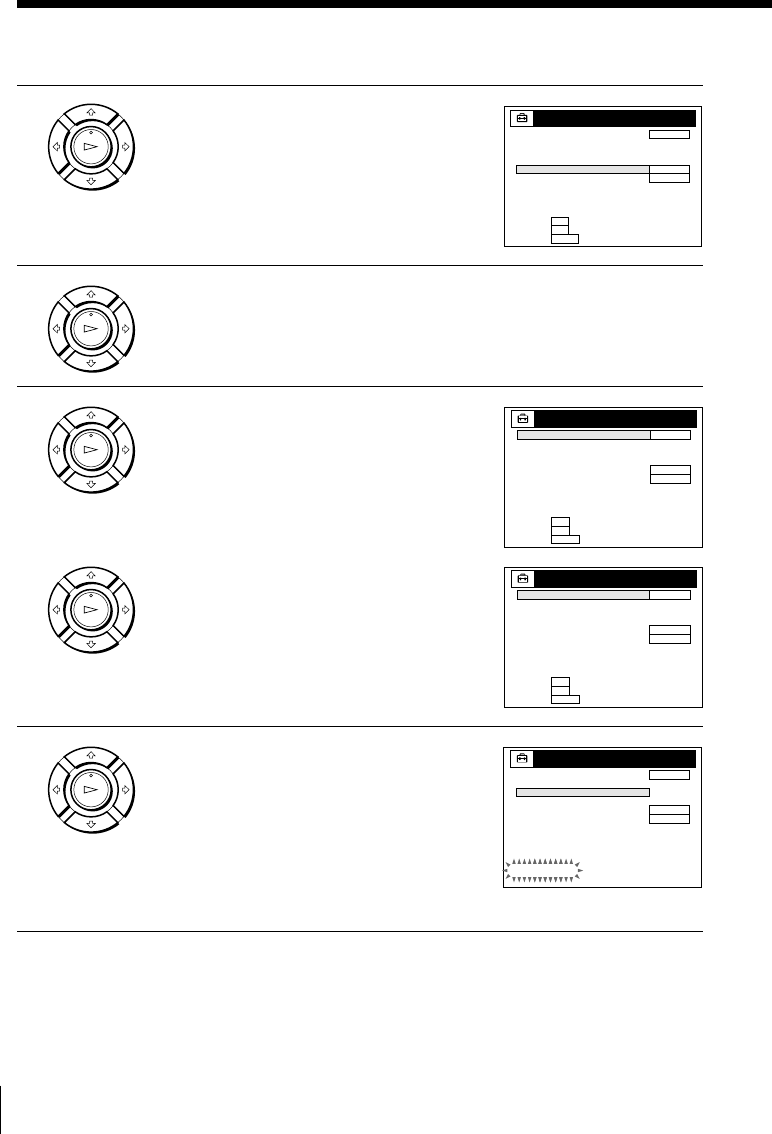

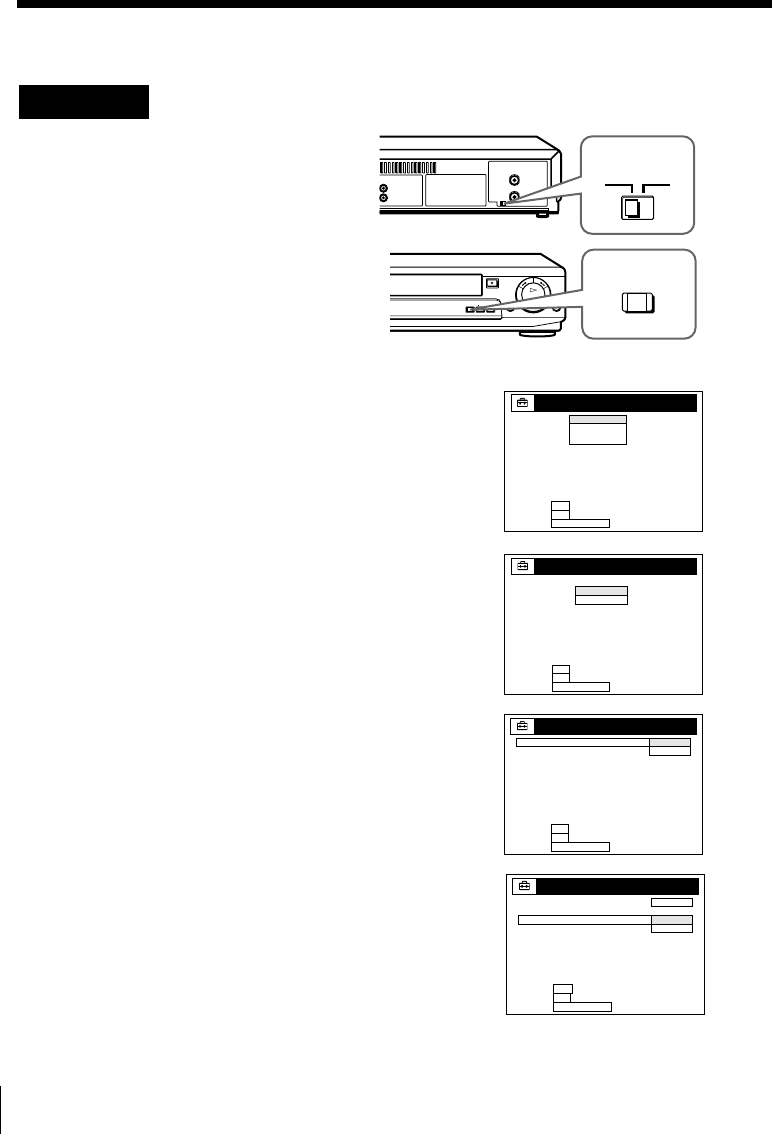

Hookup 2: VCR setup
1Set the RF UNIT switch to
CH3 or CH4, whichever
channel is not used in your
area. If both are used, set
the switch to either channel.
For details, see page 88.
If you made A/V
connections (page 9),
you can skip this step.
2Turn on your cable box.
3Press EASY SET UP on the VCR.
1The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if desired,
and press OK. For details, see page 35.
2The CLOCK SET menu appears. Select AUTO
and press OK. For details, see page 37.
3The CABLE BOX CONTROL menu appears.
Select OFF and press OK.
4The TUNER PRESET menu appears. Set
ANTENNA/CABLE to CABLE and press OK.
For details, see page 50.
SELECT
NEXT
CANCEL
:
:
:
SET UP
LANGUAGE
O K
EASY SET UP
n
n
ENGLISH
ESPAÑOL
FRANÇAIS
SET UP
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
OFF
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SET UP
CLOCK SET
AUTO
MANUAL
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SELECT
NEXT
CANCEL
:
:
:
SET UP
TUNER PRESET
O K
EASY SET UP
n
n
ANTENNA / CABLE ANT
CABLE
CH3
RF UNIT
CH4
EASY SET UP
17Getting Started
Getting Started

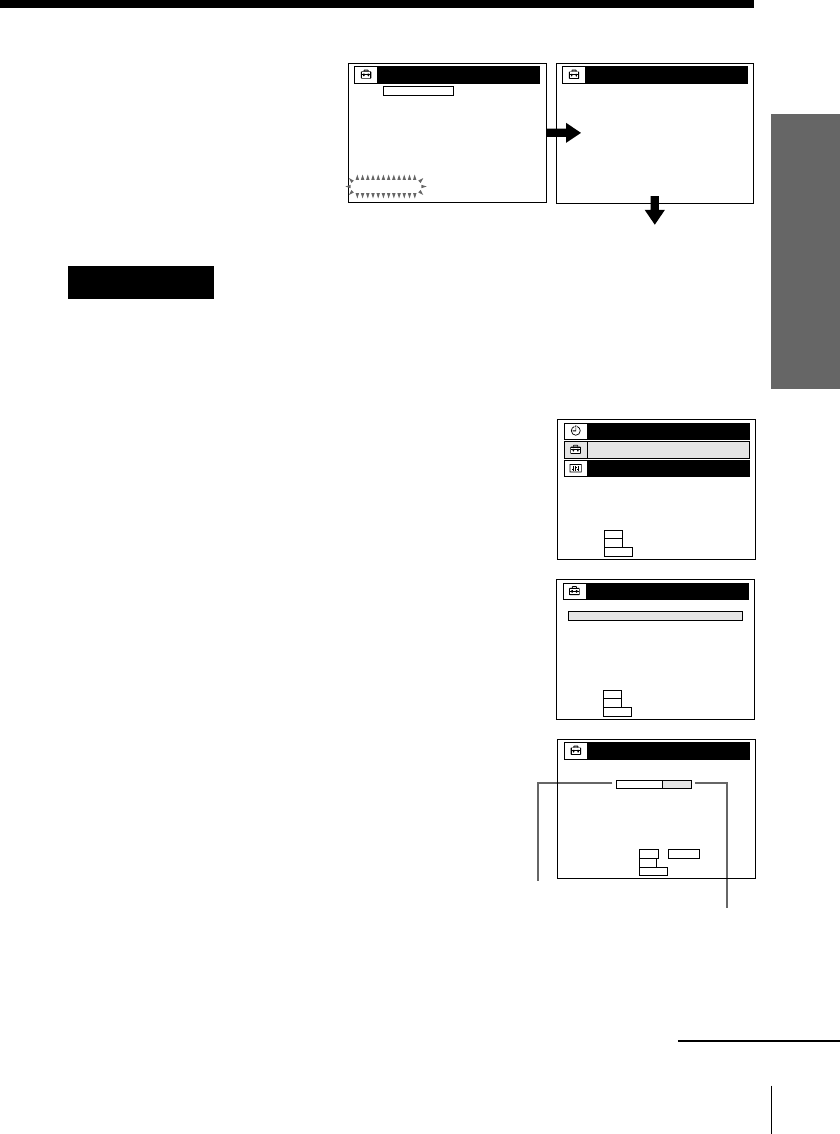

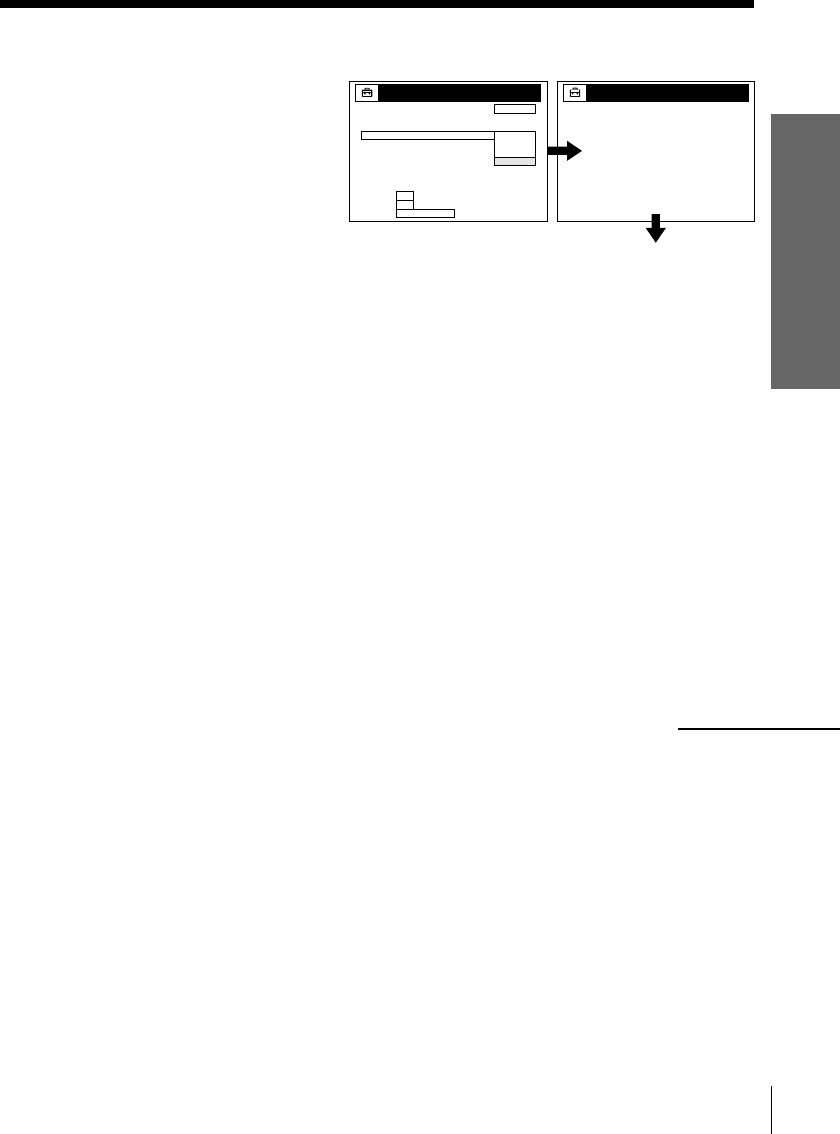

5The AUTO PRESET starts.
Hookup 2: The VCR Plus+ system channel setup
1Find the VCR Plus+ system Channel Listing in your program guide.
For details, see page 56.
2If the channels in the program guide are different from the channels
that you actually use on your TV, set the channels that are different as
follows. For details, see page 57.
1Press MENU, then select SETTINGS and
press OK.
2 Select SET VCR Plus+ CHANNELS and
press OK.
3Enter the program guide channel, then the
channel you use on your TV.
4Press OK.
5Press MENU to exit the menu.
Program guide channel
Your actual TV channel
Normal display
SELECT
SET
QUIT
:
:
:
TIMER SET/CHECK
SETTINGS
ADVANCED OPTIONS
O K
MENU
n
n
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 58–
0 - 9
O K
MENU
ENTER
SET UP
TUNER PRESET
PLEASE WAIT
AUTO PRESET
PROCESSING
SET UP
SET UP IS DONE
continued
Getting Started18
Step 3: Hookups (continued)
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you
turn off the VCR. After that, whenever you turn off the VCR, it checks the
time and adjusts the clock, even for Daylight Saving Time. The VCR sets the
clock by picking up a time signal provided by some TV channels.
If you want to use the timer to record right away, or if the channels in your
area do not carry time signals, set the clock manually. For details, see
page 41.
19Getting Started
Getting Started
Hookup 3 Pages 19 to 22
Antenna hookup
Make the following connections if you’re using an antenna (if you don’t
have cable TV).
AUse this hookup if you’re using:
• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
BUse this hookup if you’re using a VHF-only antenna (you get
channels 2–13 only)

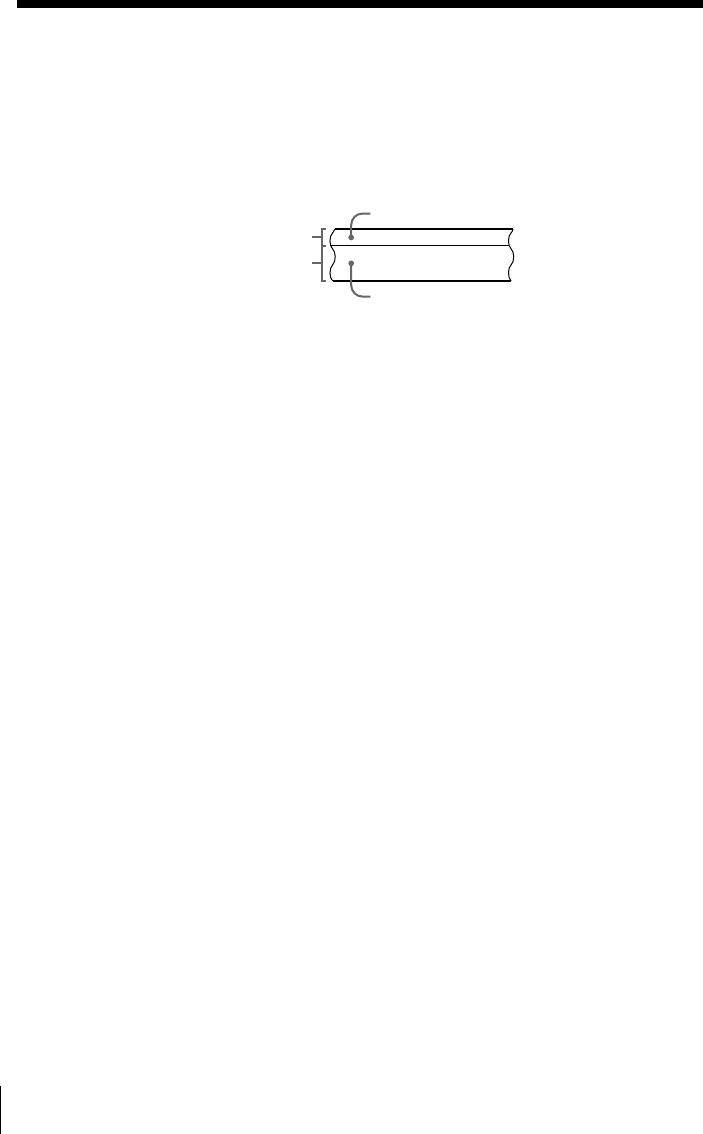

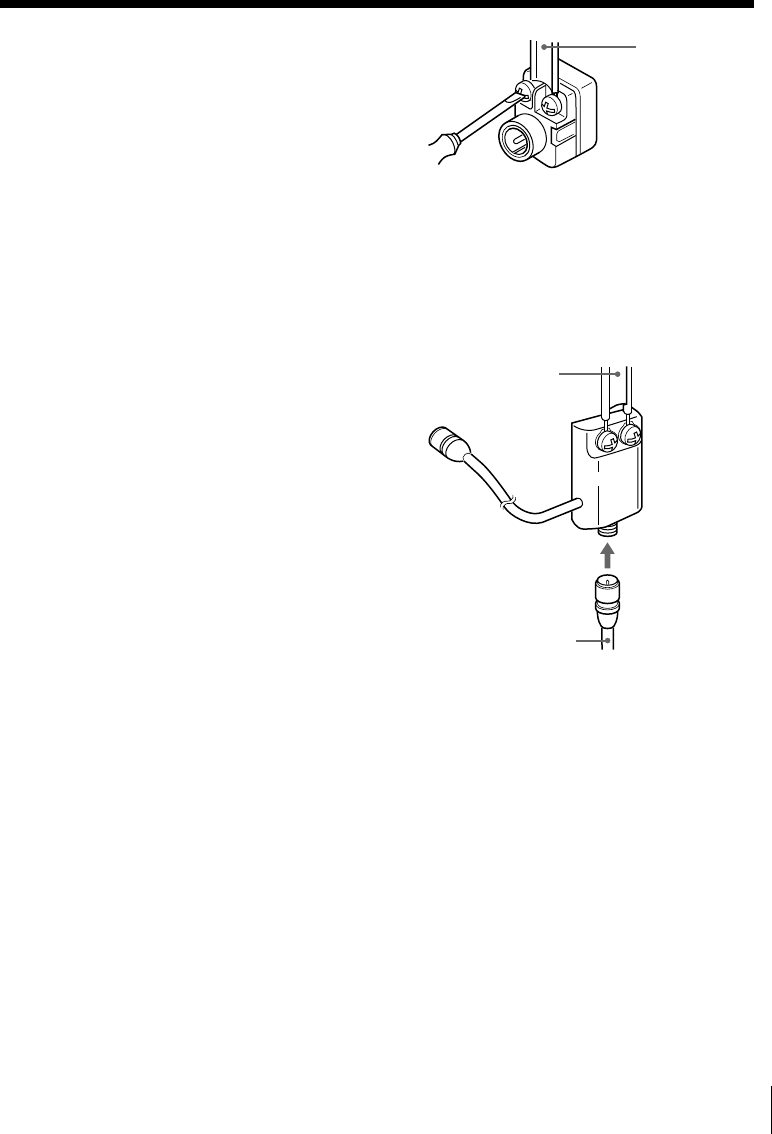

If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external
antenna connector (not supplied) so you can connect the cable to the VHF/UHF IN
connector. If you have separate cables for VHF and UHF antennas, you should use a
U/V band mixer (not supplied). For details, see page 89.
IN
OUT
VHF/UHF
IN
OUT
VHF/UHF
VCR
VCR
or
or
VHF/UHF Match the type of
connector on your
TV: A, B, or C.
A
Rear of TV
B
VHFC
UHF
VHF
UHF
A
Rear of TV
VHF/UHF
or
or
Match the type of
connector on your
TV: A, B, or C.
BFor connector types
B and C, no UHF
connection is
required.
C
UHF
VHF
VHF
UHF
continued
Getting Started20
Step 3: Hookups (continued)
Hookup 3: VCR setup
1Set the RF UNIT switch to
CH3 or CH4, whichever
channel is not used in your
area. If both are used, set the
switch to either channel.
For details, see page 88.
If you made A/V
connections (page 9), you
can skip this step.
2Press EASY SET UP on the
VCR.
1The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if desired,
and press OK. For details, see page 35.
2The CLOCK SET menu appears. Select AUTO
and press OK. For details, see page 37.
3The CABLE BOX CONTROL menu appears.
Select OFF and press OK.
4The TUNER PRESET menu appears. Set
ANTENNA/CABLE to ANT and press OK. For
details, see page 50.
SELECT
NEXT
CANCEL
:
:
:
SET UP
LANGUAGE
O K
EASY SET UP
n
n
ENGLISH
ESPAÑOL
FRANÇAIS
SET UP
CLOCK SET
AUTO
MANUAL
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SET UP
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
OFF
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SELECT
NEXT
CANCEL
:
:
:
SET UP
TUNER PRESET
O K
EASY SET UP
n
n
ANTENNA / CABLE ANT
CABLE
CH3
RF UNIT
CH4
EASY SET UP
21Getting Started
Getting Started
5The AUTO PRESET starts.
Hookup 3: The VCR Plus+ system channel setup
1Find the VCR Plus+ system Channel Listing in your program guide.
For details, see page 56.
2If the channels in the program guide are different from the channels
that you actually use on your TV, set the channels that are different as
follows. For details, see page 57.
1Press MENU, then select SETTINGS and
press OK.
2 Select SET VCR Plus+ CHANNELS and
press OK.
3Enter the program guide channel, then the
channel you use on your TV.
4Press OK.
5Press MENU to exit the menu.
Program guide channel
Your actual TV channel
SELECT
SET
QUIT
:
:
:
TIMER SET/CHECK
SETTINGS
ADVANCED OPTIONS
O K
MENU
n
n
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 58–
0 - 9
O K
MENU
ENTER
Normal display
SET UP
TUNER PRESET
PLEASE WAIT
AUTO PRESET
PROCESSING
SET UP
SET UP IS DONE
continued
Getting Started22
Step 3: Hookups (continued)
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you
turn off the VCR. After that, whenever you turn off the VCR, it checks the
time and adjusts the clock, even for Daylight Saving Time. The VCR sets the
clock by picking up a time signal provided by some TV channels.
If you want to use the timer to record right away, or if the channels in your
area do not carry time signals, set the clock manually. For details, see
page 41.
23Getting Started
Getting Started
Hookup 4Hookup 4
Hookup 4 Pages 23 to 26
Incompatible cable box with many scrambled
channels
Recommended use
Use this hookup if your cable company cannot supply a cable box that is
compatible with the VCR’s cable box control feature, and your cable system
scrambles all or most channels.
What you can do with this hookup
• Record any channel by selecting the channel on the cable box
What you can’t do
• Record with the cable box turned off
• Record one channel while watching another channel
IN
OUT
VHF/UHF
IN
OUT
Cable box
Wall
VCR
VHF/UHF
Rear of TV
A
VHF
or
or
BFor connector
types B and C, no
UHF connection
is required.
UHF
VHF
UHF
C
Match the type of
connector on your
TV: A, B, or C.
continued
Getting Started24
Step 3: Hookups (continued)
Hookup 4: VCR setup
1Set the RF UNIT switch to
CH3 or CH4, whichever
channel is not used in your
area. If both are used, set the
switch to either channel.
For details, see page 88.
If you made A/V
connections (page 9), you
can skip this step.
2Turn on your cable box.
3Press EASY SET UP on the VCR.
1The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if desired,
and press OK. For details, see page 35.
2The CLOCK SET menu appears. Select
MANUAL and press OK. Then set the clock
manually and press OK. For details, see
page 42.
3The CABLE BOX CONTROL menu appears.
Select OFF and press OK.
4The TUNER PRESET menu appears. Set
ANTENNA/CABLE to ANT and press OK. For
details, see page 50.
SELECT
NEXT
CANCEL
:
:
:
SET UP
LANGUAGE
O K
EASY SET UP
n
n
ENGLISH
ESPAÑOL
FRANÇAIS
SET UP
CLOCK SET
AUTO
MANUAL
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SET UP
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
OFF
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SELECT
NEXT
CANCEL
:
:
:
SET UP
TUNER PRESET
O K
EASY SET UP
n
n
ANTENNA / CABLE ANT
CABLE
CH3
RF UNIT
CH4
EASY SET UP
25Getting Started
Getting Started
5The AUTO PRESET starts.
Hookup 4: The VCR Plus+ system channel setup
1Find the VCR Plus+ system Channel Listing in your program guide.
For details, see page 56.
2Enter all the channels you want to record and the cable box output
channel (usually 2, 3, or 4). For details, see page 57.
1Press MENU, then select SETTINGS and
press OK.
2 Select SET VCR Plus+ CHANNELS and
press OK.
3Enter the program guide channel, then the cable
box output channel.
4Press OK.
5Press MENU to exit the menu.
Program guide channel
Cable box output channel
SELECT
SET
QUIT
:
:
:
TIMER SET/CHECK
SETTINGS
ADVANCED OPTIONS
O K
MENU
n
n
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 3–
0 - 9
O K
MENU
ENTER
Normal display
SET UP
TUNER PRESET
PLEASE WAIT
AUTO PRESET
PROCESSING
SET UP
SET UP IS DONE
continued
Getting Started26
Step 3: Hookups (continued)
Automatic clock setting
To use the Auto Clock Set feature with this hookup, you need to manually
select a channel that carries a time signal:
1Tune the cable box to a channel that carries a time signal.
2Select AUTO in the CLOCK SET menu to turn on the Auto Clock Set
feature.
3Turn off the VCR. It automatically sets the clock and adjusts for
Daylight Saving Time by picking up the time signal.
If you want to use the timer to record right away, or if the channels in your
area do not carry time signals, set the clock manually. For details, see
page 41.
Note
• To use the Auto Clock Set feature, leave the cable box on.
27Getting Started
Getting Started
Hookup 5 Pages 27 to 29
DIRECTV digital satellite receiver
Recommended use
Use this hookup if you have a DIRECTV digital satellite receiver. It allows
the VCR’s cable box control feature to control the channel on the DIRECTV
digital satellite receiver, simplifying the recording process. A list of
compatible DIRECTV digital satellite receivers is on page 47.
The DIRECTV system is a satellite broadcast that provides superior digital-
quality video and crisp digital-quality audio. A variety of program packages
are available through your program providers. It also has program guides
that are sorted by program categories.
What you can do with this hookup
•Record any channels using the VCR’s cable box control feature to select
channels on the DIRECTV digital satellite receiver.
What you can’t do
•Record with the DIRECTV digital satellite receiver turned off
•Record any channels from cable or an antenna
(To record channels from cable or an antenna, turn off the cable box control
feature.)
•Use a cable box
•Record programs with the VCR Plus+ system
( )
CABLE
BOX
CONTROL
PLUG IN
POWER
CONTROL S
OUT LINE-1
IN
LINE
OUT
AUDIO VIDEO
IN
OUT
VHF/UHF
AUDIO VIDEO
LINE
OUT OUT
VHF/UHF
IN
RM-CM101
Cable
Mouse
(not
supplied)
VCR
Wall
or
DIRECTV digital
satellite receiver
or
VHF
VHF
UHF
Rear of TV
VHF/UHF
UHF
or
A
B
C
Match the
type of
connector on
your TV: A, B,
or C
For connector
types B and
C, no UHF
connection is
required.
Positioning the Cable Mouse
Place the Cable Mouse so that
it hangs out over the DIRECTV
digital satellite receiver front.
Side view
continued
Getting Started28
Step 3: Hookups (continued)
Hookup 5: VCR setup
1Set the RF UNIT switch to
CH3 or CH4, whichever
channel is not used in your
area. If both are used, set the
switch to either channel.
For details, see page 88.
If you made A/V
connections (page 9), you
can skip this step.
2Turn on your DIRECTV
digital satellite receiver.
3Press EASY SET UP on the VCR.
1The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if desired,
and press OK. For details, see page 35.
2The CLOCK SET menu appears. Select AUTO
and press OK. For details, see page 37.
3The CABLE BOX CONTROL menu appears.
Select ON. For details, see page 44.
4Enter your DIRECTV digital satellite receiver
code number and press OK. For details, see
page 44.
SELECT
NEXT
CANCEL
:
:
:
SET UP
LANGUAGE
O K
EASY SET UP
n
n
ENGLISH
ESPAÑOL
FRANÇAIS
SET UP
CLOCK SET
AUTO
MANUAL
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SET UP
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
OFF
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
USE
NEXT
CANCEL
:
:
:
SET UP
CABLE BOX CONTROL
0 - 9
O K
EASY SET UP
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH3
–––
CH3
RF UNIT
CH4
EASY SET UP
29Getting Started
Getting Started
5Set your DIRECTV digital satellite receiver output channel (BOX OUTPUT
CH) to LINE and press OK.
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you
turn off the VCR. After that, whenever you turn off the VCR, it checks the
time and adjusts the clock, even for Daylight Saving Time. The VCR sets the
clock by picking up a time signal provided by some TV channels.
If you want to use the timer to record right away, or if the channels in your
area do not carry time signals, set the clock manually. For details, see
page 41.
Note
• To successfully record a program from the DIRECTV digital satellite receiver,
proceed as follows:
– Leave the DIRECTV digital satellite receiver on all the time.
– Turn off the display (menu screen, channel number, etc.) of the DIRECTV digital
satellite receiver.
– To record or receive locked channels, unlock the channel before the VCR starts
recording.
– To set pay-per-view programs in the timer setting, order the pay-per-view
program before the VCR starts recording.
– Some programs are copy protected. You cannot record these programs.
Normal display
SET UP
SET UP IS DONE
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
SET UP
CABLE BOX CONTROL
CH2
CH3
CH4
LINE
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
continued
Getting Started30
Step 3: Hookups (continued)
VCR
Hookup 6 Pages 30 to 34
Incompatible cable box with only a few scrambled
channels, using an A/B switch
Recommended use
By using an A/B switch (not supplied), this hookup allows you to record
both scrambled and unscrambled channels conveniently.
What you can do with this hookup
• Record any unscrambled channel by selecting the channel directly on the
VCR (the A/B switch is set to A)
• Record any scrambled channel by selecting the channel on the cable box
(the A/B switch is set to B)
What you can’t do
• Record one scrambled channel while watching another channel (the A/B
switch is set to B)
IN
OUT
VHF/UHF
IN
OUT
A/B switch
AB
Splitter
Wall Cable box
or
Rear of TV
VHF/UHF
A
VHF B
UHF
VHF C
UHF
or
Match the type
of connector on
your TV: A, B, or
C.
For connector
types B and C,
no UHF
connection is
required.
31Getting Started
Getting Started
Hookup 6: VCR setup
1Set the RF UNIT switch to
CH3 or CH4, whichever
channel is not used in your
area. If both are used, set the
switch to either channel.
For details, see page 88.
If you made A/V
connections (page 9), you
can skip this step.
2Set the A/B switch to “A.”
3Press EASY SET UP on the VCR.
1The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if desired,
and press OK. For details, see page 35.
2The CLOCK SET menu appears. Select AUTO
and press OK. For details, see page 37.
3The CABLE BOX CONTROL menu appears.
Select OFF and press OK.
4The TUNER PRESET menu appears. Set
ANTENNA/CABLE to CABLE and press OK.
For details, see page 50.
SELECT
NEXT
CANCEL
:
:
:
SET UP
LANGUAGE
O K
EASY SET UP
n
n
ENGLISH
ESPAÑOL
FRANÇAIS
SET UP
CLOCK SET
AUTO
MANUAL
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SET UP
CABLE BOX CONTROL
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
OFF
SELECT
NEXT
CANCEL
:
:
:O K
EASY SET UP
n
n
SELECT
NEXT
CANCEL
:
:
:
SET UP
TUNER PRESET
O K
EASY SET UP
n
n
ANTENNA / CABLE ANT
CABLE
CH3
RF UNIT
CH4
EASY SET UP
continued
Getting Started32
Step 3: Hookups (continued)
Cable box output channel
5The AUTO PRESET starts.

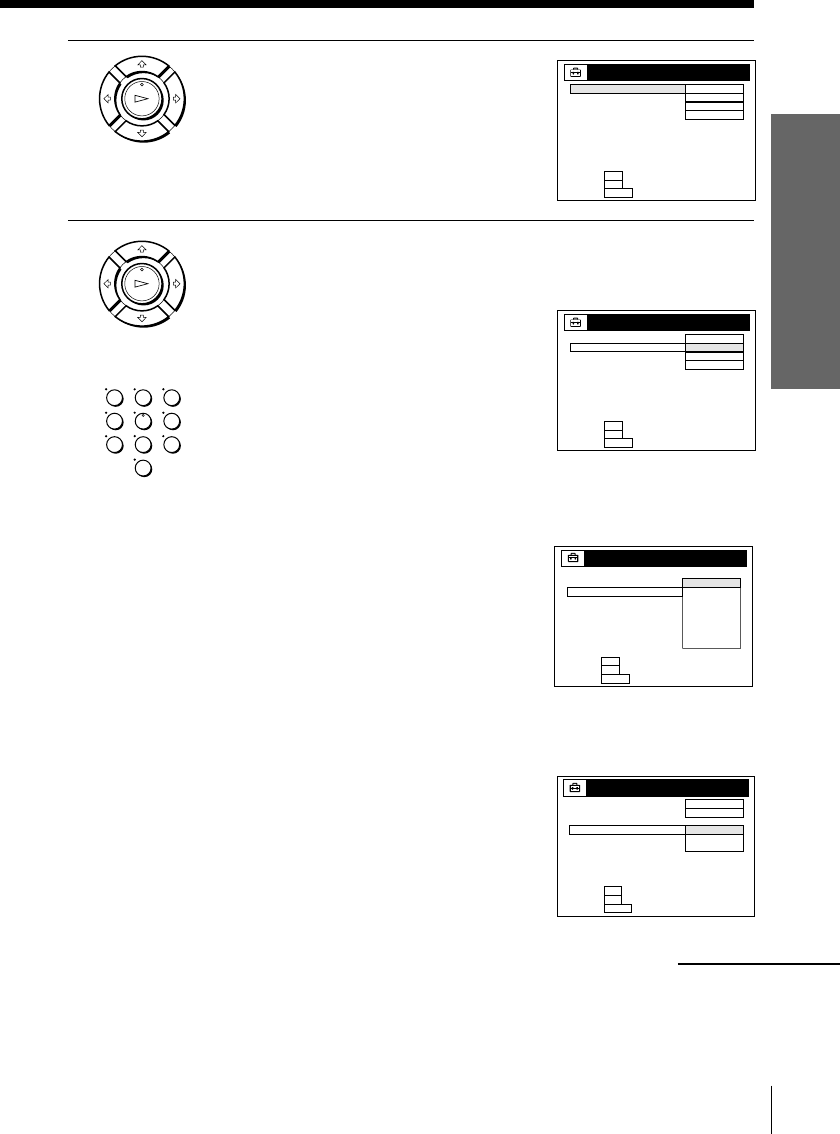

4Preset the cable box output channel (usually 2, 3 or 4). For details, see
page 52.
1Press MENU, then select SETTINGS and
press OK.
2 Select TUNER PRESET and press OK.
3Enter the cable box output channel.
4Set MANUAL SET to ADD and press OK.
5Press MENU to exit the menu.
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
ERASE
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH13
O K
MENU
n
n
3
Normal display
SET UP
TUNER PRESET
PLEASE WAIT
AUTO PRESET
PROCESSING
SET UP
SET UP IS DONE
33Getting Started
Getting Started
Program guide channel
Hookup 6: The VCR Plus+ system channel setup
1Find the VCR Plus+ system Channel Listing in your program guide.
For details, see page 56.
2To set the program guide channels for unscrambled channels, if the
channels in the program guide are different from the channels that you
actually use on your TV, set the channels that are different as follows.
For details, see page 57.
1Press MENU, then select SETTINGS and
press OK.
2 Select SET VCR Plus+ CHANNELS and
press OK.
3Enter the program guide channel, then the
channel you use on your TV.
4Press OK.
5Press MENU to exit the menu.
3To set the program guide channels for scrambled channels, enter all the
scrambled channels you want to record and the cable box output
channel (usually 2, 3, or 4). For details, see page 57.
1Press MENU, then select SETTINGS and
press OK.
Your actual TV channel
SELECT
SET
QUIT
:
:
:
TIMER SET/CHECK
SETTINGS
ADVANCED OPTIONS
O K
MENU
n
n
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 58–
0 - 9
O K
MENU
ENTER
SELECT
SET
QUIT
:
:
:
TIMER SET/CHECK
SETTINGS
ADVANCED OPTIONS
O K
MENU
n
n
continued
Getting Started34
Program guide channel
Cable box output channel
2 Select SET VCR Plus+ CHANNELS and
press OK.
3Enter the program guide channel, then the cable
box output channel.
4Press OK.
5Press MENU to exit the menu.
Automatic clock setting
Once you’ve set up the VCR, it automatically sets the clock the first time you
turn off the VCR. After that, whenever you turn off the VCR, it checks the
time and adjusts the clock, even for Daylight Saving Time. The VCR sets the
clock by picking up a time signal provided by some TV channels.
If you want to use the timer to record right away, or if the channels in your
area do not carry time signals, set the clock manually. For details, see
page 41.
Note
• To use the Auto Clock Set feature, set the A/B switch to “A.”
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 3–
0 - 9
O K
MENU
ENTER
Step 3: Hookups (continued)
35Getting Started
Getting Started

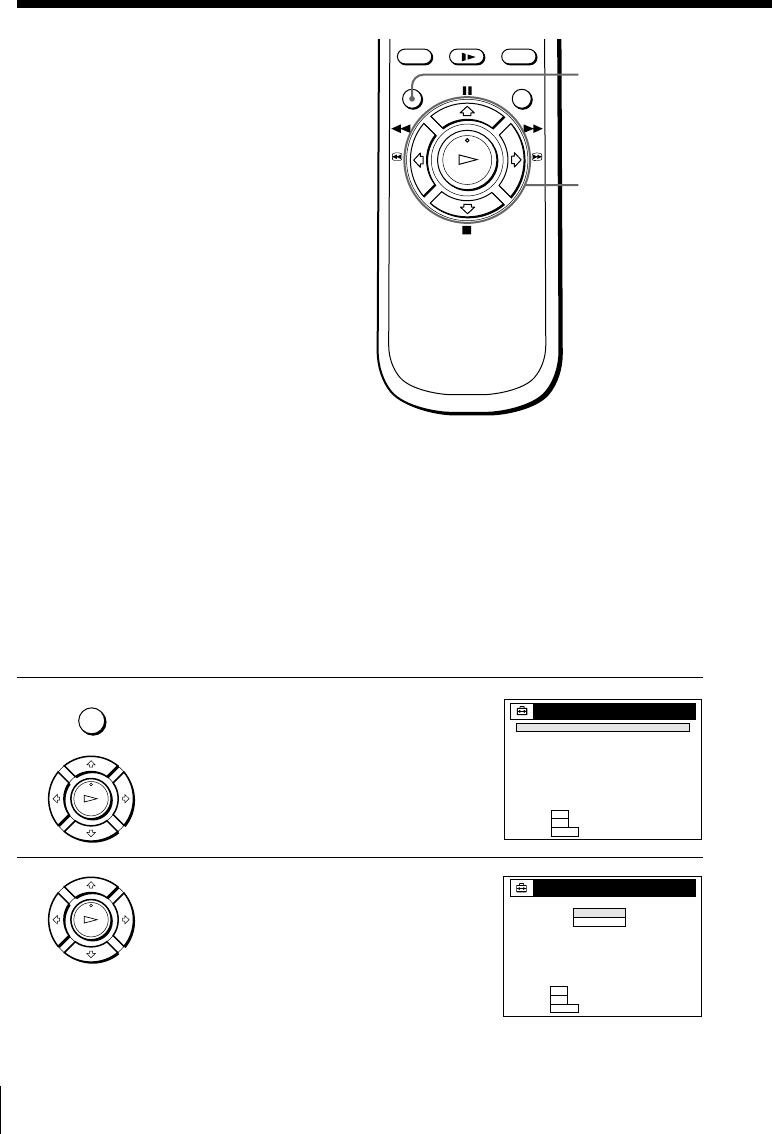

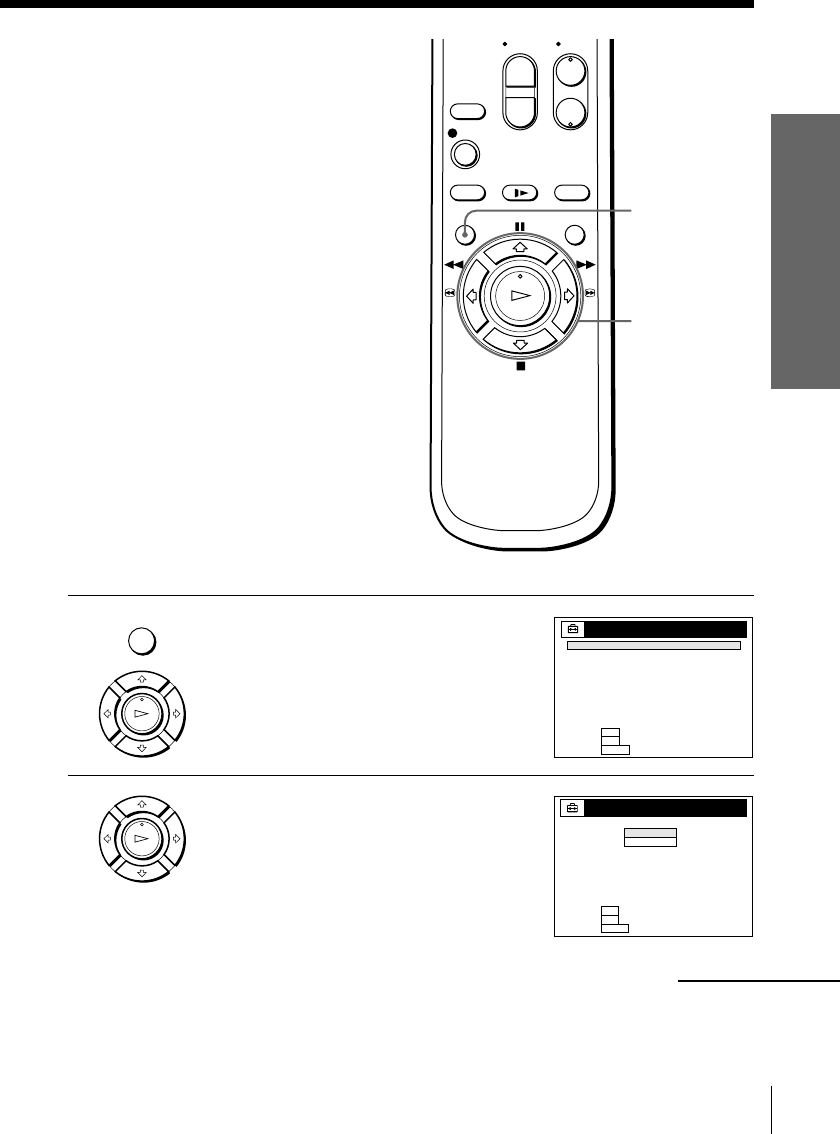

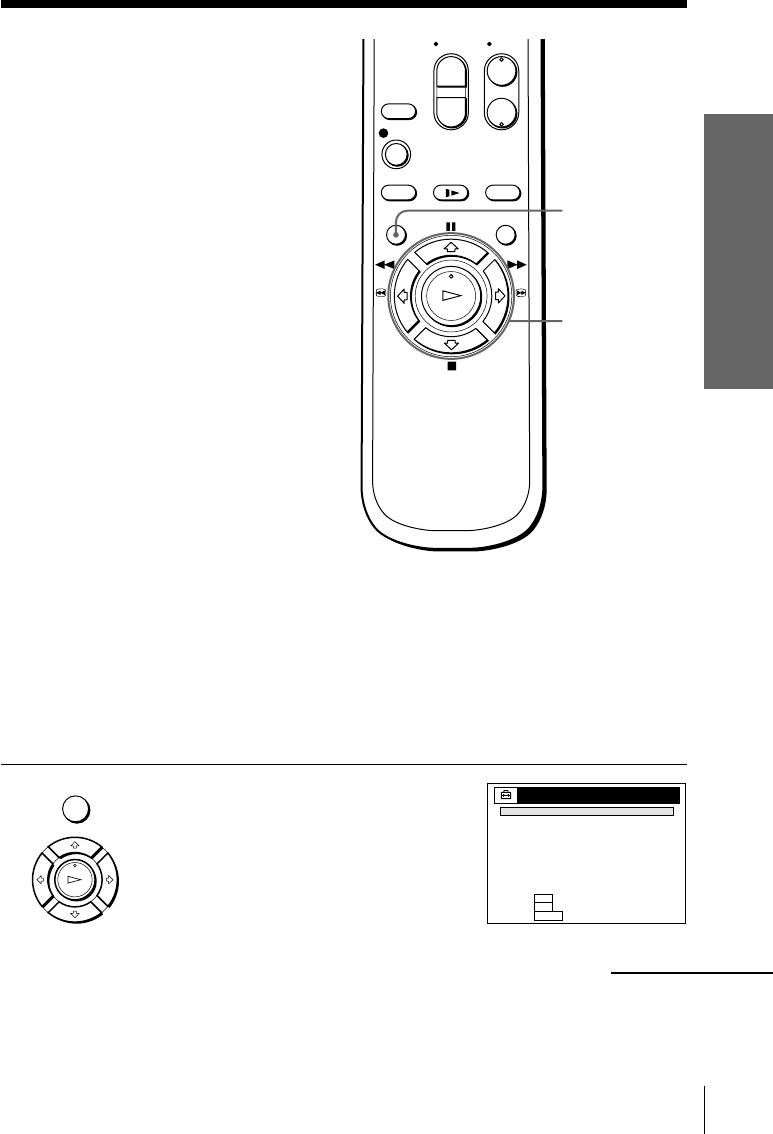

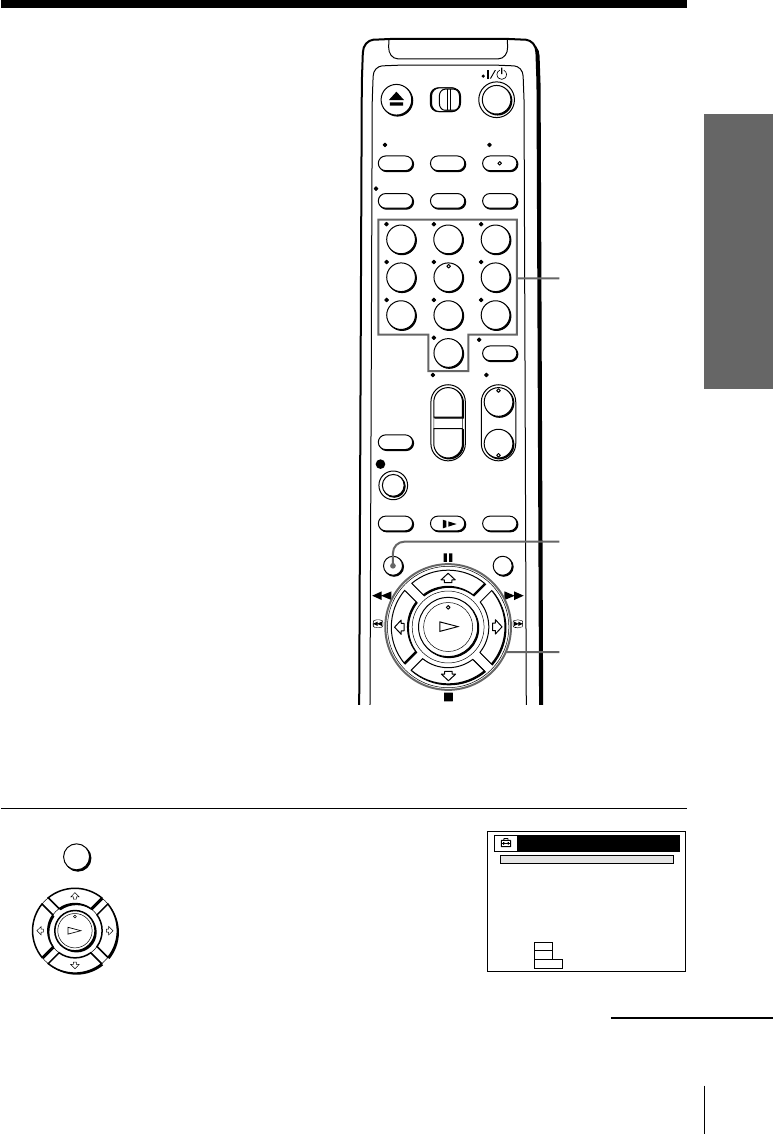

Selecting a
language
You can change the on-screen display
language.
1Press MENU, then press >/. to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
2Press >/. to highlight LANGUAGE, then
press OK.
3Press >/. to highlight ENGLISH, ESPAÑOL, or FRANÇAIS, then
press OK.
4Press MENU to exit the menu.
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
>/.
OK
MENU
OK
PLAY
OK
PLAY
OK
PLAY
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SELECT
SET
QUIT
:
:
:
LANGUAGE
O K
MENU
n
n
ENGLISH
ESPAÑOL
FRANÇAIS
MENU
MENU
Getting Started36

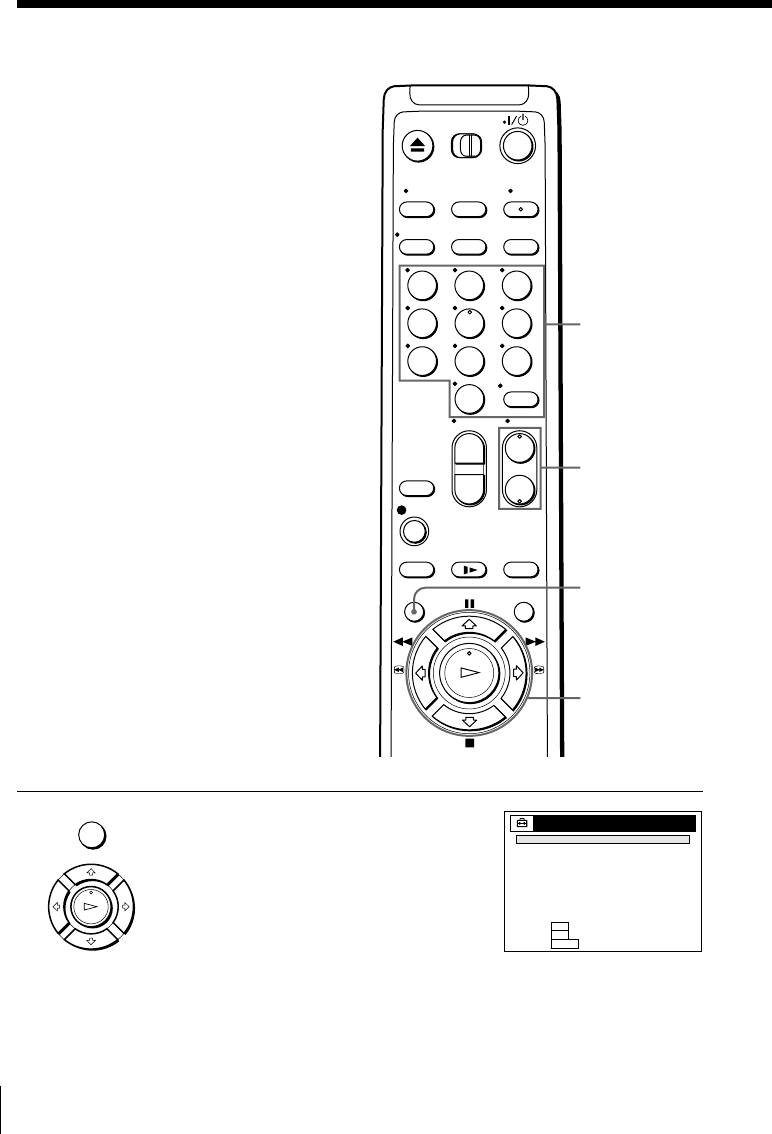

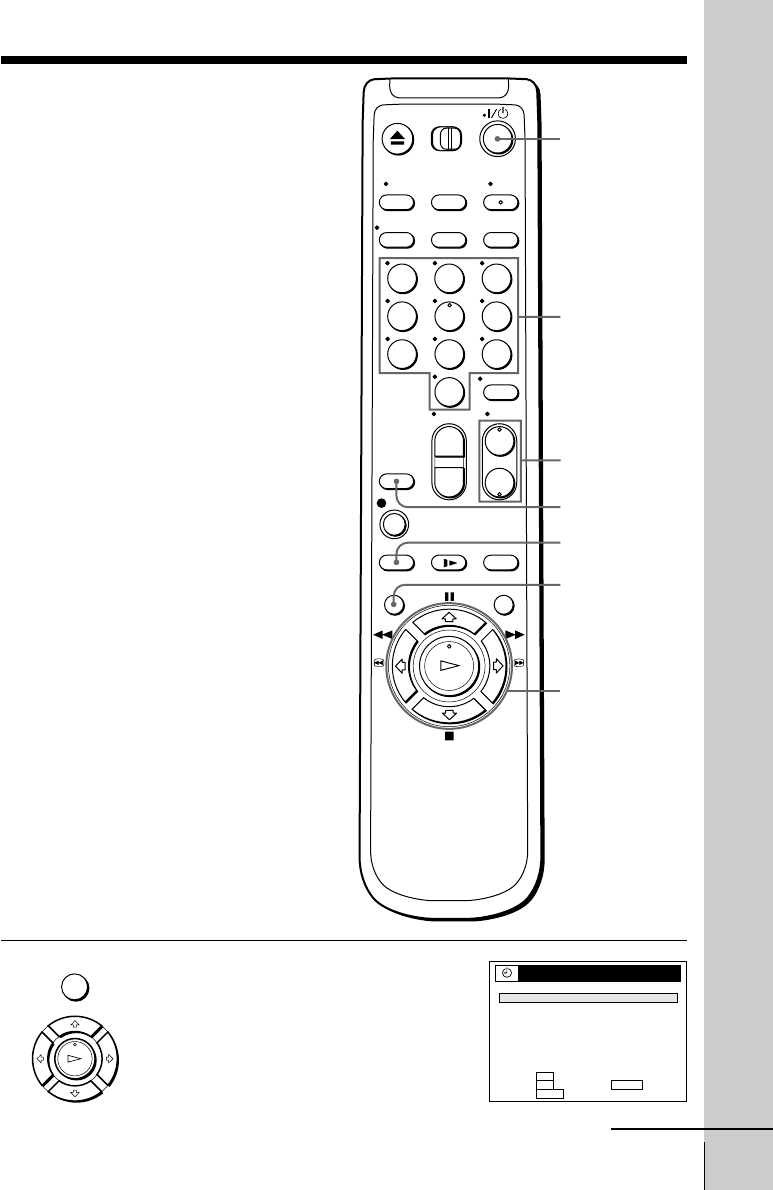

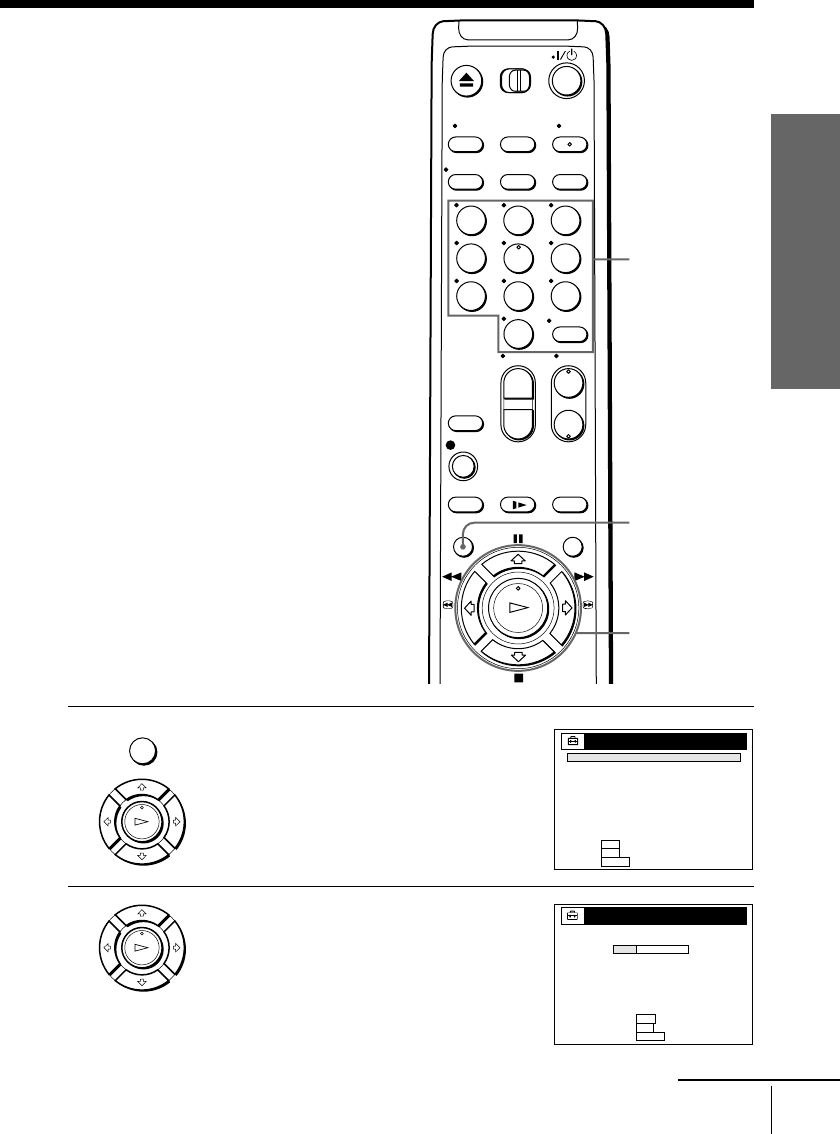

Setting the clock
Using the Auto Clock Set
feature
Some TV and cable channels transmit
time signals with their broadcasts. Your
VCR can pick up this time signal to
automatically set the clock.
The Auto Clock Set feature works only if
a channel in your area is broadcasting a
time signal. If broadcasters in your area
are not yet sending time signals, set the
time manually (page 41).
Before you start…
• Turn on the VCR and the TV.
• Set the TV to the VCR channel
(channel 3 or 4). If your TV is
connected to the VCR using A/V
connections, set the TV to video input.
• Press TV/VIDEO to display the
VIDEO indicator in the VCR’s display
window.
• Press INPUT SELECT so that a
channel number appears in the VCR’s
display window.
1Press MENU, then press >/. to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
2Press >/. to highlight CLOCK SET, then
press OK.
>/.
OK
MENU
OK
PLAY
OK
PLAY
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SELECT
SET
QUIT
:
:
:
CLOCK SET
O K
MENU
n
n
AUTO
MANUAL
MENU
37Getting Started
Getting Started

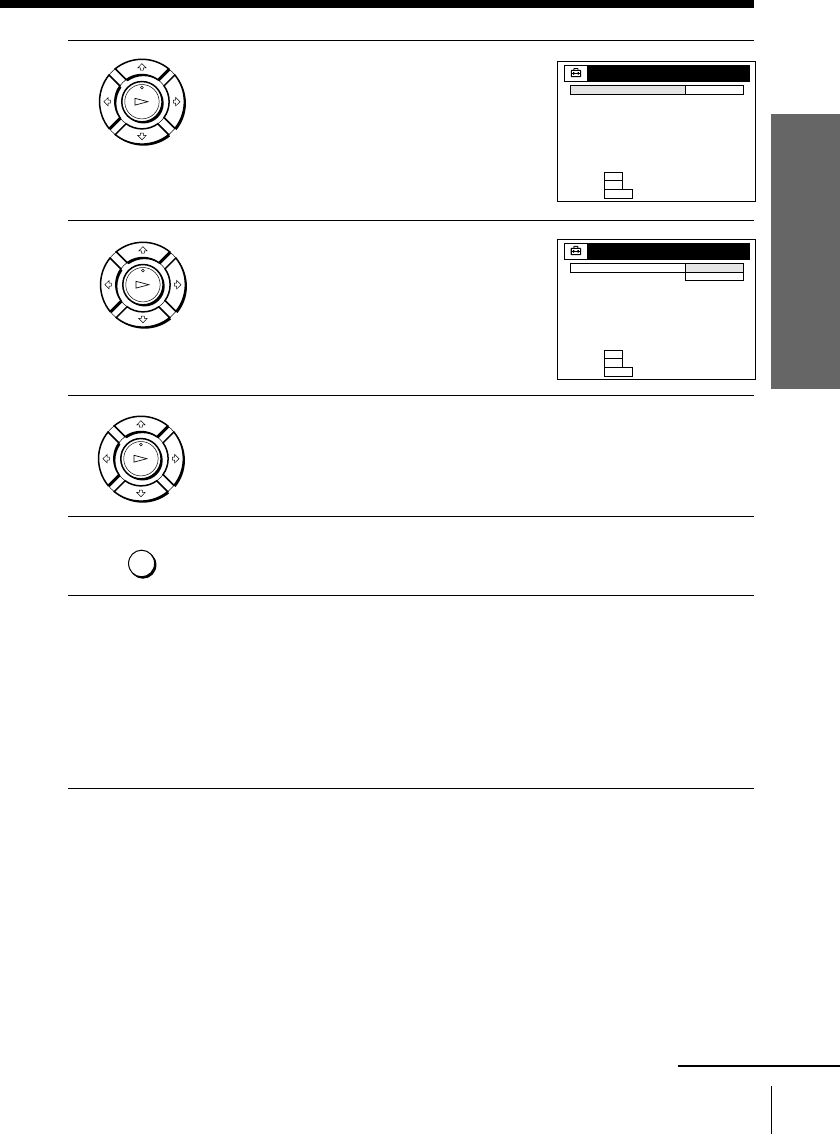

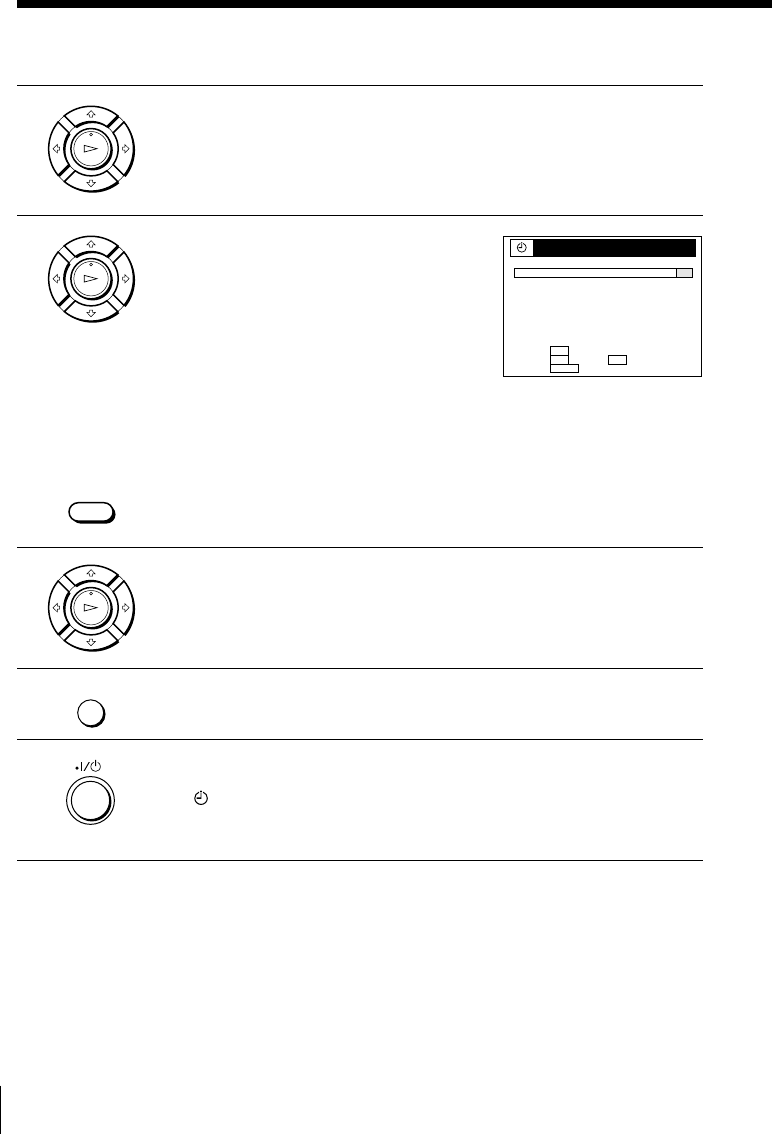

3Press >/. to highlight AUTO, then press
OK.
4Press >/. to highlight FULL AUTO, then
press OK.
5Press >/. to highlight YES, then press OK.
6Press MENU to exit the menu.
7To activate the Auto Clock Set function, turn off the VCR.
The VCR automatically sets the clock by searching for a channel that
carries a time signal and sets your time zone and Daylight Saving
Time (if applicable).
If your clock is set to the wrong time zone or Daylight Saving Time,
you can adjust these settings without turning off the Auto Clock Set
feature (page 38).
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
Notes
• The clock cannot be set automatically if you don’t receive a channel that carries a
time signal in your area. If so, set the clock manually.
• If there are only a few channels in your area that carry time signals, setting the clock
automatically may take up to about 30 minutes. If nothing happens even after you
wait about 30 minutes, set the clock manually.
• If you use Hookup 1, make sure you leave the cable box on.
OK
PLAY
OK
PLAY
SELECT
SET
QUIT
:
:
:
AUTO CLOCK SET
YES
O K
MENU
n
n
NRETURN
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
OK
PLAY
SELECT
SET
QUIT
:
:
:
AUTO CLOCK SET
YES
NO
O K
MENU
n
n
NRETURN
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
MENU
continued
Getting Started38

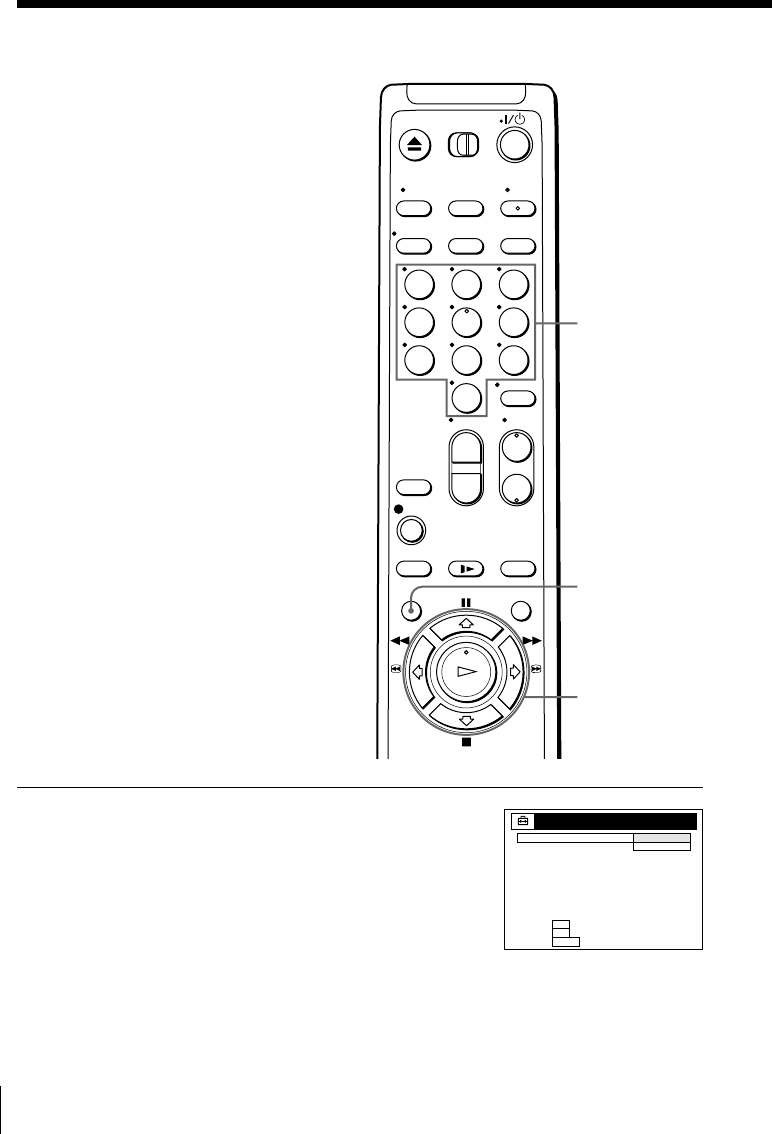

Setting the clock (continued)
MENU
Number
buttons
If the clock is not activated
1Follow steps 1 to 4 in “Using the Auto
Clock Set feature.”
The AUTO CLOCK SET menu is
displayed.
>/.
OK
123
789
0
456
+
–
+
–
SELECT
SET
QUIT
:
:
:
AUTO CLOCK SET
YES
NO
O K
MENU
n
n
NRETURN
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
39Getting Started
Getting Started
2Press >/. to highlight NO for FULL
AUTO and press OK.
3Press >/. to highlight the item you want
to set and press OK. Then press >/. to
make the setting and press OK.
• For CLOCK SET CH
Leave the setting to “– – –” to have the
VCR automatically search for a channel
that carries a time signal.
Press the number buttons to select a
channel that carries a time signal.
Use this option if you know of a channel
that carries a time signal. Most PBS
member stations broadcast a time
signal. For the fastest response, select
your local PBS station.
• For TIME ZONE
Select the time zone of your area, or
select AUTO to have the VCR
automatically set your time zone.
The options are:
AUTO ˜ ATLANTIC ˜
EASTERN ˜ CENTRAL ˜
MOUNTAIN ˜ PACIFIC ˜
ALASKA ˜ HAWAII ˜ AUTO
• For DAYLIGHT SAVING
Select ON or OFF (standard time), or
AUTO to have the VCR automatically
set the daylight saving time.
OK
PLAY
OK
PLAY
123
456
789
0
SELECT
SET
QUIT
:
:
:
AUTO CLOCK SET
NRETURN
O K
MENU
n
n
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
NO
– – –
AUTO
AUTO
USE
SET
QUIT
:
:
:
AUTO CLOCK SET
NRETURN
O K
MENU
0-9
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
NO
123
AUTO
AUTO
SELECT
SET
QUIT
:
:
:
AUTO CLOCK SET
NRETURN
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
NO
123
AUTO
ON
OFF
O K
MENU
n
n
SELECT
SET
QUIT
:
:
:
AUTO CLOCK SET
NRETURN
FULL AUTO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING ATLANTIC
EASTERN
CENTRAL
PACIFIC
ALASKA
HAWAII
MOUNTAIN
AUTO
O K
MENU
n
n
continued
Getting Started40
Setting the clock (continued)
4Press MENU to exit the menu.
5To activate the Auto Clock Set function, turn off the VCR.
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
Note
• If you use both the cable box control feature and the Auto Clock Set feature, the
VCR automatically changes channels on the cable box until a channel that carries a
time signal is found, whenever you turn off the VCR.
If you want to stop the search, change the channel on the cable box with the channel
buttons either on the VCR or on the remote commander.
MENU
41Getting Started
Getting Started
Using Manual Clock Set
Before you start…
• Turn on the VCR and the TV.
• Set the TV to the VCR channel
(channel 3 or 4). If your TV is
connected to the VCR using A/V
connections, set the TV to video input.
• Press TV/VIDEO to display the
VIDEO indicator in the VCR’s display
window.
1Press MENU, then press >/. to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
2Press >/. to highlight CLOCK SET, then
press OK.
OK
PLAY
OK
PLAY
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SELECT
SET
QUIT
:
:
:
CLOCK SET
O K
MENU
n
n
AUTO
MANUAL
MENU
>/./?//
OK
MENU
continued
+
–
+
–
Getting Started42
3Press >/. to highlight MANUAL, then
press OK.
4Press >/. to set the month.
5Press / to highlight the day and press
>/. to set the day.
The day of the week is set automatically.
6Set the year, hour, and minutes in the same way as the day.
7Press OK to start the clock.
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
OK
PLAY
OK
PLAY
OK
PLAY
OK
PLAY
SELECT
SET
END
QUIT
:
:
:
:O K
MENU
CLOCK SET
n
N n
n
1/ 1/1999 FR 12: 00AM
SELECT
SET
END
QUIT
:
:
:
:O K
MENU
CLOCK SET
n
N n
n
9/ 1/1999
WE
12: 00AM
SELECT
SET
END
QUIT
:
:
:
:O K
MENU
CLOCK SET
n
N n
n
9/28/ 1999 TU 12: 00AM
Setting the clock (continued)
43Getting Started
Getting Started
Number
buttons
Setting up the
cable box control
(Skip this section if you are
using Hookup 2, 3, 4, or 6.)
Your VCR includes a cable box control
feature that allows the VCR to control most
brands of cable boxes/DIRECTV digital
satellite receivers via an optional Cable
Mouse. With cable box control, the VCR
controls channels on the cable box/
DIRECTV digital satellite receiver for timer
recording. You can also use the VCR’s
remote commander to change channels on
the cable box/DIRECTV digital satellite
receiver whenever the cable box/DIRECTV
digital satellite receiver is turned on even if
the VCR is turned off. To use cable box
control, you need to connect the Sony RM-
CM101 Cable Mouse (not supplied) (pages
11 and 27) and set the code number and
output channel.
This VCR is programmed with codes
necessary to control channel selection on
most brands of cable boxes at the time this
VCR was manufactured. It is possible that
new cable boxes may be introduced that
cannot be controlled with the RM-CM101
Cable Mouse. If you have a cable box that
is incompatible with this VCR, contact
your cable operator –– they may be able to
provide you with a compatible cable box.
1Press MENU, then press >/. to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
OK
PLAY
>/.
OK
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
123
789
0
456
+
–
+
–
MENU
MENU
continued
Getting Started44
Setting up the cable box control (continued)
2Press >/. to highlight CABLE BOX
CONTROL, then press OK.
3Press >/. to highlight CABLE MOUSE, then press OK.
4Press >/. to highlight ON, then press
OK.
5Press >/. to highlight BOX CODE NO.,
then press OK.
When BOX CODE NO. is “– – –,” skip this
step.
6Press the number buttons to enter the
cable box/DIRECTV digital satellite
receiver code number, then press OK.
Find your cable box/DIRECTV digital
satellite receiver code number from the
chart below.
OK
PLAY
OK
PLAY
OK
PLAY
123
456
789
0
OK
PLAY
OK
PLAY
SELECT
SET
QUIT
:
:
:
CABLE BOX CONTROL
NRETURN
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
OFF
O K
MENU
n
n
USE
SET
QUIT
:
:
:
CABLE BOX CONTROL
0 - 9
O K
MENU
NRETURN
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH3
097
SELECT
SET
QUIT
:
:
:
CABLE BOX CONTROL
NRETURN
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH3
012
O K
MENU
n
n
SELECT
SET
QUIT
:
:
:
CABLE BOX CONTROL
NRETURN
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH3
097
O K
MENU
n
n
45Getting Started
Getting Started
Cable box Code numbers
brand
Decsat 434
Diamond 046
Eagle Comtronics 051
Eastern 013, 285
Electricord 089
Electus 055
Focus 411
Garrard 164
GC Electronics 027, 067, 341
GE 243, 244
GEC 097
Gemini 026, 068, 081
General Instrument 022, 287, 487
Cable box Code numbers
brand
ABC 018, 022, 024, 028, 217
Antronix 218
Archer 033, 050, 164, 218, 808
BBT 278
Cable Star 067
Cabletenna 033
Cable time 172, 388, 459
Century 164
Citizen 164, 326, 327
Clyde Cablevision 097
Colour Voice 036, 042
Comband 243, 244
Comtronics 051, 071
7Press >/. to highlight BOX OUTPUT
CH, then press OK.
8If you want to control a cable box, press >/. to highlight the cable
box output channel, then press OK.
If you want to control a DIRECTV digital satellite receiver, select
LINE, then press OK.
9Press MENU to exit the menu.
Cable box and DIRECTV digital satellite receiver brand and the
corresponding code numbers
If more than one code number is listed, try entering them one by one, until
you come to the correct code for your equipment.
OK
PLAY
MENU
OK
PLAY
continued
SELECT
SET
QUIT
:
:
:
CABLE BOX CONTROL
NRETURN
CABLE MOUSE
BOX CODE NO.
BOX OUTPUT CH
ON
CH3
CH4
LINE
CH2
O K
MENU
n
n
Getting Started46
Setting up the cable box control (continued)
Cable box Code numbers
brand
Hamlin 020, 031, 045, 270, 284
Hitachi 022
Jasco 164, 326
Jerrold 014, 022, 025, 026, 035,
037, 058, 109, 287, 487
Linsay 451
Macom 044
Magnavox 038, 043, 080
Memorex 011
Movie Time 089, 167, 214
Northcoast 325
Novaplex 629
NSC 074, 081, 167, 214
Oak 018, 030, 259
Panasonic 032, 118
Paragon 011
Philips 036, 038, 039, 040, 041,
042, 071, 301
Pioneer 034, 155, 271, 544, 695
Popular Mechanics 411
Pulsar 011
Radio shack 808
RCA 032
Realistic 218
Recoton 411
Regal 031, 270, 284, 290
Regency 013
Rembrandt 081
Samsung 051, 155
Scientific Atlanta 017, 019, 028, 288
Seam 521
Cable box Code numbers
brand
Sharp 324
Signal 051
Signature 022
SL Marx 051
Spectravision 069
Sprucer 032, 318
Standard Components
107, 166
Starcom 014, 026, 058, 109
Stargate 026, 051
STS 167
Sylvania 012
T-Cable Teletext 116
Tandy 269
Tatung 108
Teknica 157
TeleCaption 232
Teleservice 292
Texscan 012, 107
TFC 321
Timeless 429
Tocom 023, 024
Toshiba 011
Tudi 297
TV86 074
TV COM 018, 030, 259
Uniden 236
Unika 033, 164, 218
United Artists 018
United Cable 014
Universal 033, 050, 067, 088, 089,
164, 202, 218, 333
47Getting Started
Getting Started
: Signal flow
Cable box Code numbers
brand
Videoway 261
Vidtech 255
Viewstar 038, 071, 074, 122, 222,
269, 300
Zenith 011, 065, 536
Zentek 411
Wave Master 576
DIRECTV digital Code numbers
satellite receiver
brand
Hitachi 830
RCA 577
Sony 650
Toshiba 801
To ensure correct operation
• Place the Cable Mouse so that it hangs out over the cable box/DIRECTV
digital satellite receiver front.
• Do not place the cable box/DIRECTV digital satellite receiver on top of the
VCR.
• Position the cable box/DIRECTV digital satellite receiver away from the
VCR.
• Point the remote commander at the VCR, not at the cable box/DIRECTV
digital satellite receiver.
Side view
123
789
0
456
+
–
+
–
1/u
continued
Getting Started48
To check the cable box control setting
1Press CH +/– on the remote commander. Does the channel indicator
on the cable box/DIRECTV digital satellite receiver change? (Point the
remote commander at the VCR, not at the cable box/DIRECTV digital
satellite receiver.)
2Press all 10 number buttons (0 to 9) on the remote commander. Does
the channel indicator on the cable box/DIRECTV digital satellite
receiver change?
If the answer to both 1 and 2 is “yes,” you have made the correct setting.
If you cannot get your VCR to control the cable box/DIRECTV digital
satellite receiver
• Check that the Cable Mouse is connected to the CABLE BOX CONTROL
jack on the VCR.
• Check the position of the Cable Mouse.
• Place the cable box/DIRECTV digital satellite receiver and VCR away
from each other. Do not place the cable box/DIRECTV digital satellite
receiver on top of the VCR.
• Try the setup again making sure to use the correct control code. If the
cable box still does not respond, try the other codes that are listed.
If your cable box still does not operate with the Cable Mouse, contact your
cable company to see if they can provide you with a compatible cable box.
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
Note
• Make sure you turn off the VCR when you plug in or unplug the Cable Mouse. If
you unplug the Cable Mouse and plug it in again, turn on the VCR before you use
the cable box/DIRECTV digital satellite receiver control feature.
Setting up the cable box control (continued)
49Getting Started
Getting Started
MENU
Presetting
channels
(Skip this section if you are
using cable box/DIRECTV
digital satellite receiver
control.)
This VCR is capable of receiving VHF
channels 2 to 13, UHF channels 14 to 69
and unscrambled CATV channels 1 to
125. First, we recommend that you
preset the receivable channels in your
area using automatic presetting. Then, if
there are any unwanted channels,
disable them manually. If you have
decided which channels you wish to
preset, set them directly using manual
presetting.
Before you start…
• Turn on the VCR and the TV.
• Set the TV to the VCR channel
(channel 3 or 4). If your TV is
connected to the VCR using A/V
connections, set the TV to video input.
• Press TV/VIDEO to display the
VIDEO indicator in the VCR’s display
window.
Presetting all receivable channels automatically
1Press MENU, then press >/. to highlight
SETTINGS and press OK.
When using the EASY SET UP procedure,
skip steps 1 and 2.
OK
PLAY
>/.
OK
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
MENU
continued
+
–
+
–
Getting Started50
Presetting channels (continued)
2Press >/. to highlight TUNER PRESET,
then press OK.
3Press >/. to highlight ANTENNA/CABLE, then press OK.
4• To preset cable TV channels:
Press >/. to set ANTENNA/CABLE to
CABLE, then press OK.
• To preset VHF and UHF channels:
Press >/. to set ANTENNA/CABLE to
ANT, then press OK.
5Press >/. to highlight AUTO PRESET,
then press OK.
All receivable channels are preset in
numerical sequence. When no more
receivable channels can be found,
presetting stops and the picture from the
lowest numbered channel is displayed on
the TV screen.
OK
PLAY
OK
PLAY
OK
PLAY
OK
PLAY
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
ON
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 1
O K
MENU
n
n
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
ANT
ADD
ON
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 2
O K
MENU
n
n
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
ON
TUNER PRESET CH 1
PLEASE WAIT
OK
PLAY
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
ON
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 1
O K
MENU
n
n
51Getting Started
Getting Started
.
.
.
/
Tips
• When receiving a VHF, UHF, or CATV channel, the display changes as follows each
time you press DISPLAY.
Channel number
Remaining tape length, and time counter
The bar indicator and pointer for searching a specific point
No display
• If you want to return to the previous menu, highlight RETURN and press OK.
continued
Getting Started52
Presetting channels (continued)
Number
buttons,
ENTER
MENU
CH +/–
Presetting/disabling
channels manually
1Press MENU, then press >/. to highlight
SETTINGS and press OK.
OK
PLAY
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
>/.
OK
123
789
0
456
+
–
+
–
MENU
53Getting Started
Getting Started
Channel to be preset
Channel to be disabled
2Press >/. to highlight TUNER PRESET,
then press OK.
3• To preset a channel:
1Press the number buttons to enter the
channel number, then press ENTER.
2Press OK.
3Press >/. to set MANUAL SET to
ADD, then press OK.
• To disable a channel:
1Press CH +/– to select the channel
number.
2Press OK.
3Press >/. to set MANUAL SET to
ERASE, then press OK.
4Repeat step 3 to preset or disable channels as required, then press
MENU.
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
OK
PLAY
OK
PLAY
OK
PLAY
123
789
0
456
• CH
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
ON
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 1
O K
MENU
n
n
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
ON
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 5
O K
MENU
n
n
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ERASE
ON
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 5
O K
MENU
n
n
MENU
continued
Getting Started54
Presetting channels (continued)
MENU
Number
buttons,
ENTER
If the picture is not clear
Normally, the Auto Fine Tuning (AFT)
function automatically tunes in channels
clearly. If, however, the picture of a
channel is not clear, you can also use the
manual tuning function.
1Press MENU, then press >/. to highlight
SETTINGS and press OK.
OK
PLAY
>/./?//
OK
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
123
789
0
456
+
–
+
–
MENU
55Getting Started
Getting Started
2Press >/. to highlight TUNER PRESET,
then press OK.
3Press the number buttons to select the
channel you want to fine-tune, then press
ENTER.
4Press >/. to highlight FINE TUNING,
then press OK.
The fine tuning meter appears.
5Press ?// to adjust to a clearer picture,
then press OK.
Note that the AFT setting switches to OFF.
6Press MENU to exit to the menu.
Tips
• To select the channel on step 3 above, you can also use the CH +/– buttons. In this
case, you don‘t need to press ENTER.
• If you want to return to the previous menu, highlight RETURN and press OK.
Note
• When adjusting FINE TUNING, the menu may become difficult to read due to
interference from the picture being received.
Selected channel
OK
PLAY
OK
PLAY
OK
PLAY
123
789
0
456
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
ON
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 5
O K
MENU
n
n
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
ON
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 1
O K
MENU
n
n
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 5
O K
MENU
N n
NRETURN
ANTENNA / CABLE
AUTO PRESET
AFT
FINE TUNING
MANUAL SET
CABLE
ADD
OFF
SELECT
SET
QUIT
:
:
:
TUNER PRESET CH 5
O K
MENU
N n
MENU
Getting Started56
Example of “PlusCode”
Example of “Channel Line-up Chart”
Setting up the VCR Plus+ system
How the VCR Plus+ system works
Whenever you want to record a TV
program, all you need to do is look up
the “PlusCode” number, a number
assigned to each program published in
the TV section of most newspapers,
cable TV listings, and even TV GUIDE
magazine. Then, just enter the PlusCode
number of the program you want and
the VCR is automatically programmed
to record that show. It’s that simple.
How to set up your VCR
Setting up your VCR involves
coordinating the TV channel number
(the number you turn to on your TV or
VCR to watch a program) with the guide
channel (the number that’s assigned to
that channel in your program guide).
To find the guide channel numbers, look
at the “Channel Line-up Chart” in the
program guide for your area that
features VCR PlusCodes. It usually
looks like the example to the right.
To set the guide channels, use the
Channel Line-up Chart to check that the
guide channel numbers match the TV
channel your VCR receives. For
example, if HBO is listed in the Channel
Line-up Chart on channel 33, and your
VCR receives HBO on channel 5, you
need to coordinate these numbers using
the following procedure. If the guide
and TV channel numbers are the same,
you can skip this procedure.
5:30
6:30
PlusCode
14
2
CNN
234
5
SCIENCE AND TECHNOLOGY
(1hr. 15min.) 73457
DRAMA
WS 9974
SPORT
MOVIE Musical (2hrs.) 33044
Golf (1hr. 25min.) 42060
Comedy (2hrs.) 17390
SAMPLE
CABLE TV
AMC
BRV
CNN
CSP
DIS
DSC
ESN
FAM
HBO
LIF
MAX
MTV
NIK
SC
SCA
SHO
TBS
TMC
TNN
TNT
USA
VCR Plus+
GUIDE CH
35
54
42
28
53
37
34
47
33
46
45
48
38
59
70
41
43
58
49
52
44
American Movie Classics
Bravo (program grid only)
Cable News Network
C-SPAN
The Disney Channel
The Discovery Channel
ESPN
The Family Channel
Home Box Office
Lifetime
Cinemax
Music Television
Nickelodeon
Sports Channel
Sports Channel America
Showtime
TBS SuperStation
The Movie Channel
The Nashville Network
Turner Network Television
USA Network
CABLE
CH
16
17
20
21
22
25
34
35
5
27
29
31
38
39
45
17
44
49
50
51
30
57Getting Started
Getting Started
MENU
Number
buttons,
ENTER
1Press MENU, then press >/. to highlight
SETTINGS and press OK.
2Press >/. to highlight SET VCR Plus+
CHANNELS, then press OK.
OK
PLAY
OK
PLAY
>/./?//
OK
NRETURN
TUNER PRESET
SET VCR Plus+ CHANNELS
CLOCK SET
LANGUAGE
CABLE BOX CONTROL
SELECT
SET
QUIT
:
:
:
SETTINGS
O K
MENU
n
n
SET GUIDE CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
–– –––
0 - 9
O K
MENU
123
789
0
456
+
–
+
–
MENU
continued
Getting Started58
3Enter the guide channel number assigned
in the program guide and press ENTER.
4• If you made Hookup 1, 2 or 3: Enter the
actual number on your TV (and VCR)
and press ENTER.
• If you made Hookup 4: Enter the cable
box output channel (usually 2, 3 or 4)
and press ENTER.
• If you made Hookup 6: Enter the actual
number on your TV (and VCR) for an
unscrambled channel and press ENTER.
For a scrambled channel, enter the cable
box output channel (usually 2, 3, or 4)
and press ENTER.
5Repeat steps 3 and 4 for each channel number that does not match.
6When you have set all channels, press OK
to confirm your channel settings.
To return to the previous page, press ?.
To go to the next page, press /.
7After all settings are complete, press MENU to exit the menu.
Tip
• If you want to return to the previous menu, highlight RETURN and press OK.
OK
PLAY
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 25–
0 - 9
O K
MENU
ENTER
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 58–
0 - 9
O K
MENU
ENTER
SET TV CH
LIST
QUIT
:
:
:
SET VCR Plus+ CHANNELS
GUIDE CH TV CH
25 3–
0 - 9
O K
MENU
ENTER
VCR Plus+ CHANNEL LIST
GUIDE TV GUIDE TV
273 6648––
525 6859––
7 5 71 63––
558 7423––
1
2
4311 1
1
5796––
968 8200––3
34 7 85 98––
95639387––
25559130––
84218852––
PAGE
QUIT :
:MENU
N n
PAGE1
123
789
0
456
123
789
0
456
MENU
Setting up the VCR Plus+ system (continued)
Basic Operations
Basic Operations 59
Basic Operations
Playing a tape
1Turn on your TV and set it to the video channel.
6 EJECT
DISPLAY
CLEAR
· PLAY
SMART CUE
P PAUSE
)# FF
p STOP
03 REW
continued
123
789
0
456
+
–
+
–

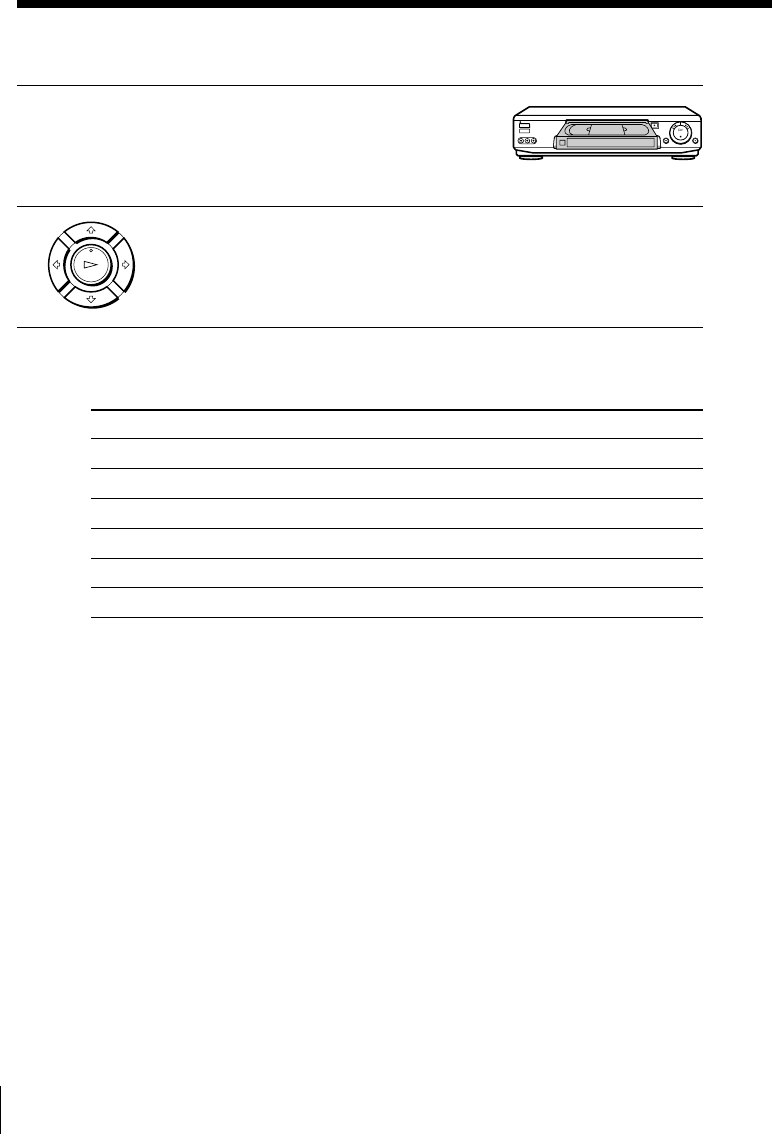

60 Basic Operations
Playing a tape (continued)
2Insert a tape.
The VCR turns on and starts playing
automatically if you insert a tape with its
safety tab removed.
3Press · PLAY.
When the tape reaches the end, it will rewind automatically.
Additional tasks
To Press
Stop play p STOP
Pause play P PAUSE
Resume play after pause P PAUSE or · PLAY.
Fast-forward the tape )# FF during stop
Rewind the tape 03 REW during stop
Eject the tape 6 EJECT
To skip playback
You can skip a portion of playback you don’t want to watch such as a
commercial and restart playback by pressing a single button.
1Press SMART CUE during playback of the scene you want to skip. The
VCR starts searching.
2Press SMART CUE again when you find the scene you want to watch.
The VCR stops searching, rewinds a few seconds, then resumes normal
playback.
If you press and hold SMART CUE while the VCR is skip searching, the VCR
will stop searching, and continue rewinding until you release SMART CUE.
OK
PLAY
1/u
Basic Operations
Basic Operations 61

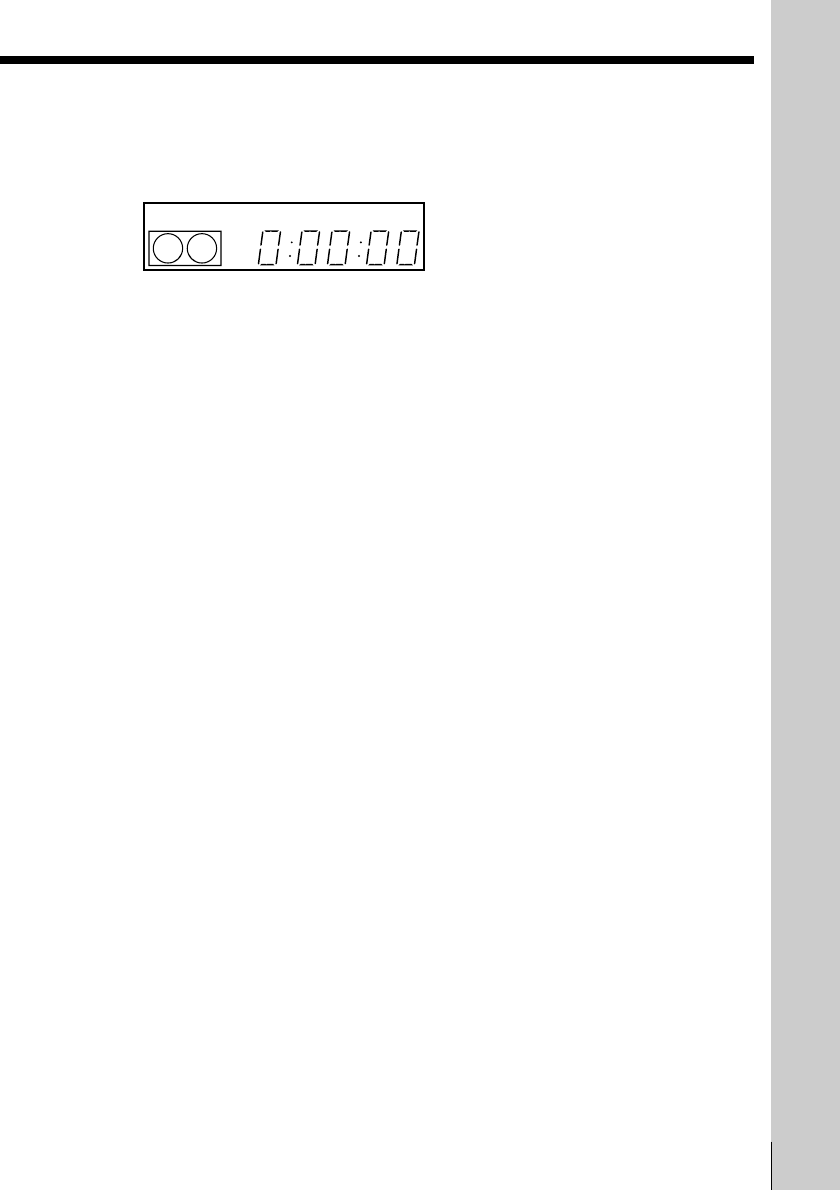

To use the time counter
At the point on the tape that you want to find later, press CLEAR. The
counter in the display window resets to “0:00:00.” Search for the point
afterwards by referring to the counter.
To display the counter on the TV screen, press DISPLAY.
Notes
• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but
the picture quality cannot be guaranteed.
• While setting the menu on the TV screen, you cannot use · PLAY, P PAUSE,
)# FF, 03 REW, or p STOP buttons.
• The counter resets to “0:00:00” whenever a tape is reinserted.
• The counter stops counting when it comes to a portion with no recording.
SP
VIDEO
APC
62 Basic Operations

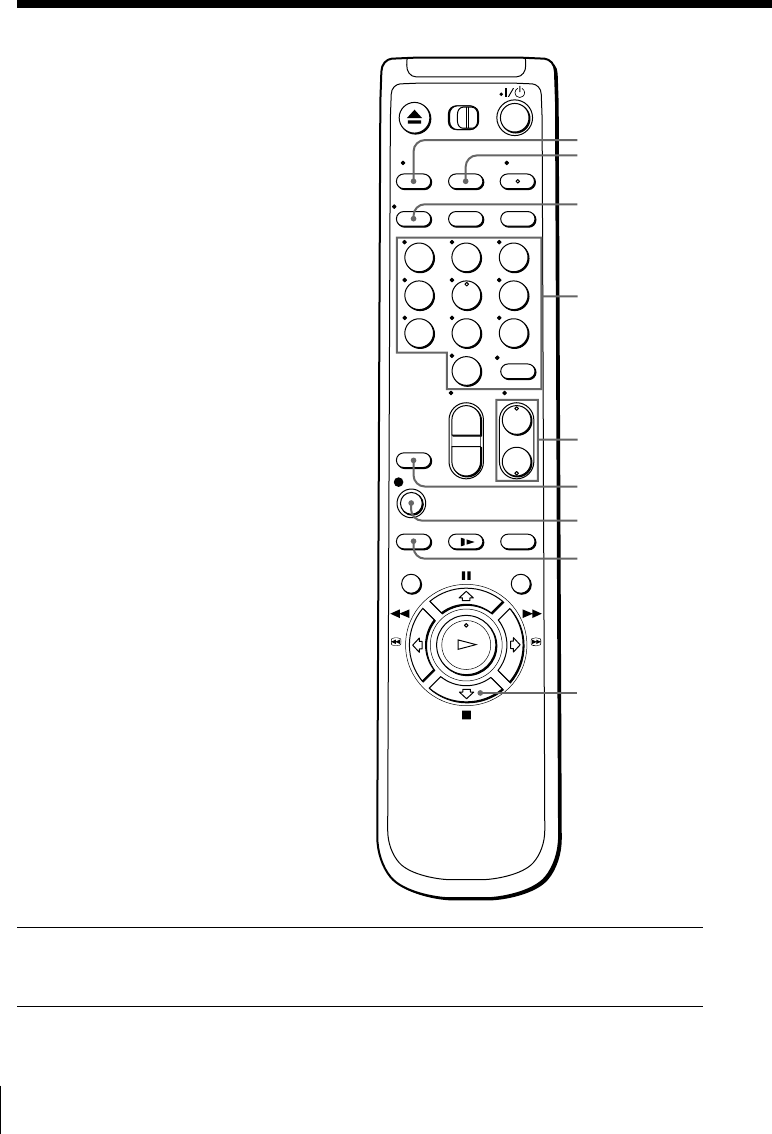

Recording TV
programs
1Turn on your TV and set it to the video channel.
To record from a cable box, turn it on.
2Insert a tape with its safety tab in place.
CH +/–
r REC
INPUT
SELECT
COUNTER/
REMAIN
DISPLAY
TV/VIDEO
p STOP
Number
buttons,
ENTER
123
789
0
456
+
–
+
–
SP/EP
Basic Operations

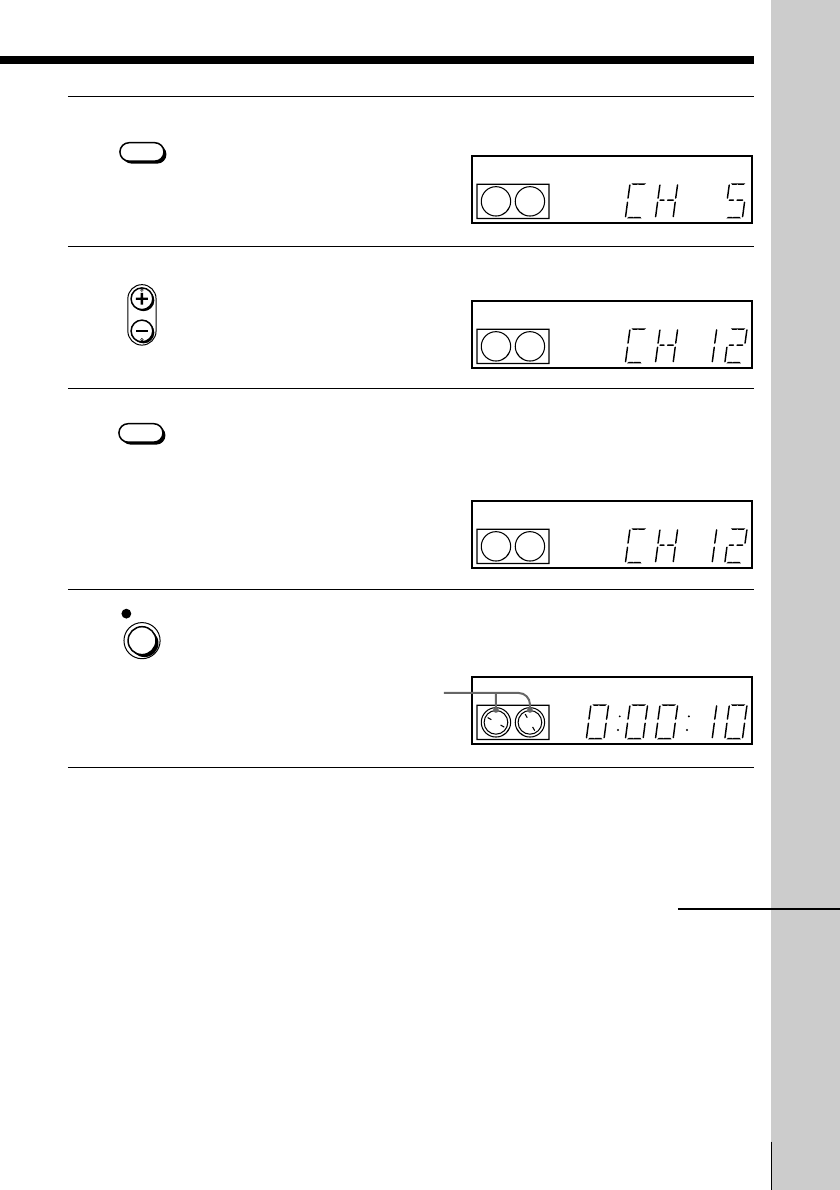

Basic Operations 63
3Press INPUT SELECT until a channel number appears in the display
window.
4Press CH +/– to select the channel you want to record.
5Press SP/EP to select the tape speed, SP or EP.
EP (Extended Play) provides recording time three times as long as
SP (Standard Play), however, SP produces better picture and audio
quality.
6Press r REC to start recording.
The recording indicator lights up red in the display window.
To stop recording
Press p STOP.
Recording indicator
INPUT
SELECT
• CH
SP / EP
REC
continued
EP
VIDEO
APC
EP
VIDEO
APC
SP
VIDEO
APC
SP
VIDEO
APC

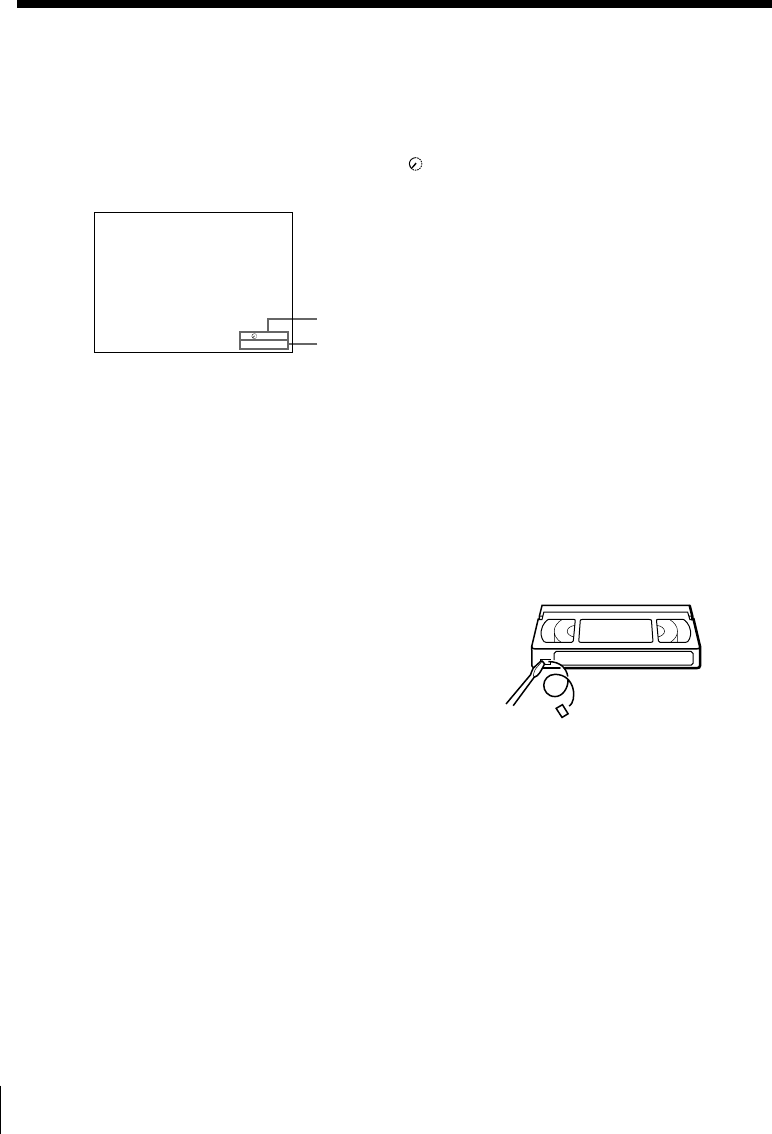

64 Basic Operations
Safety tab
Recording TV programs (continued)
To check the remaining tape length
Press DISPLAY. The remaining tape length and the time counter appear on
the TV screen. Each time you press COUNTER/REMAIN, the time counter
and the remaining tape length with the indicator appear alternately in the
display window.
To check the remaining time of a T-140 or T-180 tape, set TAPE SELECT in
the ADVANCED OPTIONS menu to 180. (For details, see page 85.)
To watch another TV program while recording
1Press TV/VIDEO to turn off the VIDEO indicator in the display
window.
2If the TV is connected to the VCR’s LINE OUT jacks, set the TV to TV
input; if not, skip this step.
3Select another channel on the TV.
To save a recording
To prevent accidental erasure, break off the safety
tab as illustrated. To record on a tape again, cover
the tab hole with adhesive tape.
Time counter
Remaining tape length
SP 22:0 83:1
0:0
Basic Operations
Basic Operations 65
Tips
• To select a channel, you can use the number buttons on the remote commander.
Enter the channel number, then press ENTER.
• You can select a video source from the LINE-1 IN or LINE-2 IN jacks using the
INPUT SELECT button.
• The display appears on the TV screen indicating information about the tape, but the
information won’t be recorded on the tape.
• If you don’t want to watch TV while recording, you can turn off the TV. When
using a cable box, make sure to leave it on.
Notes
• The remaining tape length may not be indicated accurately for short tapes such as
T-20 or T-30, or tapes recorded in the LP mode.
• The display does not appear during still (pause) mode or slow-motion playback.
• It may take up to one minute for the VCR to calculate and display the remaining
tape length after you press DISPLAY.
66 Basic Operations
Recording TV
programs using
the VCR Plus+
system
Just enter the PlusCode number listed in
the TV program guide. The date, time
and channel number of that program are
set automatically. You can preset up to
eight programs at a time.
Before you start…
• Check that the VCR clock is set to the
correct time.
• Turn on your TV and set it to the
video channel. When using a cable
box, turn it on.
• Insert a tape with its safety tab in
place. Make sure the tape is longer
than the total recording time.
1Press VCR Plus+.
CLEAR
VCR Plus+
SP/EP
>/.
p STOP
1/u
Number
buttons,
ENTER
VCR Plus+
USE
SP/EP
QUIT
:
:
:
VCR Plus+
PlusCode SP / EP
EP
--------
0 - 9
SP/EP
VCR Plus+
123
789
0
456
+
–
+
–
Basic Operations
Basic Operations 67

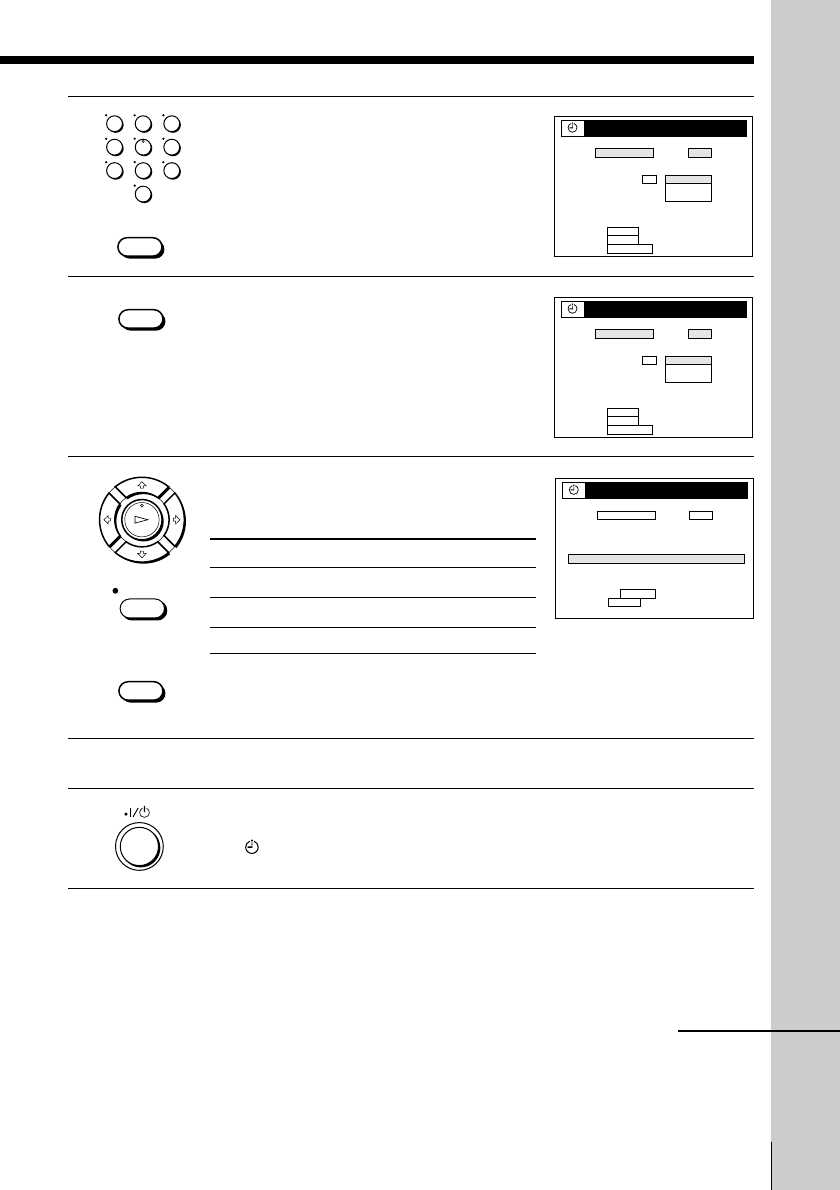

2Press the number buttons to enter the
PlusCode number.
If you make a mistake, press CLEAR and
re-enter the correct number.
3Press SP/EP to select the tape speed, SP or
EP.
4Press >/. to highlight ONCE, DAILY, or
WEEKLY, then press ENTER:
To record Select
Only once ONCE
Everyday Monday to Friday DAILY
Once a week WEEKLY
The date, start and stop time, channel number and tape speed
appear on the TV screen. If the information is not correct, press
CLEAR to cancel the setting.
5To enter another setting, repeat steps 1 to 4.
6Press 1/u to turn off the VCR.
The indicator appears in the display window and the VCR stands
by for recording. When using a cable box, leave it on.
To stop recording
To stop the VCR while recording, press p STOP.
123
456
789
0
SP / EP
OK
PLAY
CLEAR
CLEAR
CONFIRM
CANCEL
QUIT
ENTER
CLEAR
VCR Plus+
:
:
:
VCR Plus+
PlusCode SP / EP
EP
12345 - --
USE :
n
n
ONCE
DAILY
WEEKLY
CONFIRM
CANCEL
QUIT
ENTER
CLEAR
VCR Plus+
:
:
:
VCR Plus+
PlusCode SP / EP
SP
12345 - - -
USE :
n
n
ONCE
DAILY
WEEKLY
SET TIMER :
VCR Plus+
PlusCode SP / EP
SP
12345 - - -
POWER
CANCEL :CLEAR
RECORDING TIME
DATE START STOP CH
9 / 30 TH 8 00:
PM
900:
PM
35 SP
continued
ENTER
68 Basic Operations
To use the VCR after setting the timer
To use the VCR before a timer recording begins, just press 1/u. The
indicator disappears from the display window and the VCR switches on.
Remember to press 1/u to reset the VCR to the timer recording standby
mode after using the VCR.
You can also do the following tasks while the VCR is recording:
• Reset the counter.
• Display tape information on the TV screen.
• Check the timer settings.
• Watch another TV program.
To lock the VCR after setting the timer (Child Lock)
While the VCR turns on, hold down 1/u POWER on the VCR until the H
indicator appears in the display window. The VCR turns off and the H
indicator remains lit. The VCR will not work except for timer recording.
To unlock the VCR, hold down 1/u POWER on the VCR until the H
indicator disappears from the display window. The VCR is unlocked and
turns on.
To stop timer recording while the VCR is locked, press p STOP. The
recording stops and the VCR is unlocked.
Tips
• To cancel the VCR Plus+ system recording, press VCR Plus+ before pressing ENTER
in step 4 above.
• When you are recording a program in the SP mode and the remaining tape becomes
shorter than the recording time, the tape speed is automatically changed to the EP
mode. Note that some noises will appear on the picture when the tape speed is
changed. If you want to keep the tape speed, set AUTO TAPE SPEED to OFF in the
ADVANCED OPTIONS menu (page 85).
Notes
• If the VCR does not accept the PlusCode number, this means that:
–The PlusCode number is incorrect.
–ONCE, DAILY, or WEEKLY was selected incorrectly. You cannot select DAILY or
WEEKLY for a program that airs more than seven days ahead.
• The VCR will be unlocked when:
– you stop timer recording by pressing p STOP
– you insert a tape
– the AC power cord is disconnected or power supply stops.
Recording TV programs using the VCR Plus+ system (continued)
Basic Operations
Basic Operations 69
Setting the timer
manually
If the VCR Plus+ system is not available
in your area, follow the instructions
below to set the timer to record
programs.
Before you start…
• Check that the VCR clock is set to the
correct time.
• Turn on your TV and set it to the
video channel. When using a cable
box, turn it on.
• Insert a tape with its safety tab in
place. Make sure the tape is longer
than the total recording time.
1Press MENU, then press >/. to highlight
TIMER SET/CHECK and press OK.
MENU
INPUT
SELECT
SP/EP
Number
buttons
CH +/–
>/./?//
OK
p STOP
1/u
OK
PLAY
continued
NRETURN
SELECT
SET
QUIT
:
:
:
TIMER SET / CHECK 9/28 TU
O K
MENU
n
n
CANCEL:CLEAR
DATE START STOP CH
– / –– – :–– – : –– –– ––
–– ––
–– ––
– / –– – :–– – : –– –– ––
– / –– – :–– – : –– –– ––
– / –– – :–– – : –– –– ––
– / –– – :–– – : –– –– ––
–/––
–/–– – : –– – : ––
–/––
––:–––:––––––
:––– –:––
123
789
0
456
+
–
+
–
MENU
70 Basic Operations
Setting the timer manually (continued)
2Press >/. to highlight the line that is to be set, then press OK.
3Set the date, start and stop time, channel
number and tape speed:
1Press >/. to set each item.
2Press / to highlight and set each item
in turn.
To correct a setting, press ? to return to
that setting and reset.
To record the same program every day or the same day every week,
press . while the date is highlighting. For details, see “Daily/
weekly recording” below.
To record from a source connected to the LINE-1 IN or LINE-2 IN
jacks, press INPUT SELECT to display “L1” or “L2” in the “CH”
position.
4Press OK to confirm the setting.
To enter another setting, highlight to the next line and repeat step 3.
5Press MENU to exit the menu.
6Press 1/u to turn off the VCR.
The indicator appears in the display window and the VCR stands
by for recording.
When using a cable box, leave it on.
OK
PLAY
OK
PLAY
OK
PLAY
NRETURN
SELECT
SET
QUIT
:
:
:
TIMER SET / CHECK 9/28 TU
END:O K
DATE START STOP CH
TH SP
PM
9/30 8 :00
PM
9 : 00 35
– / –– – :–– – : –– ––
– / –– – :–– – : –– ––
– / –– – :–– – : –– ––
– / –– – :–– – : –– ––
– / –– – :–– – : –– ––
– / –– – :–– – : –– ––
– / –– – :–– – : –– ––
––
––
––
––
––
––
––
MENU
n
N n
n
INPUT
SELECT
MENU
Basic Operations

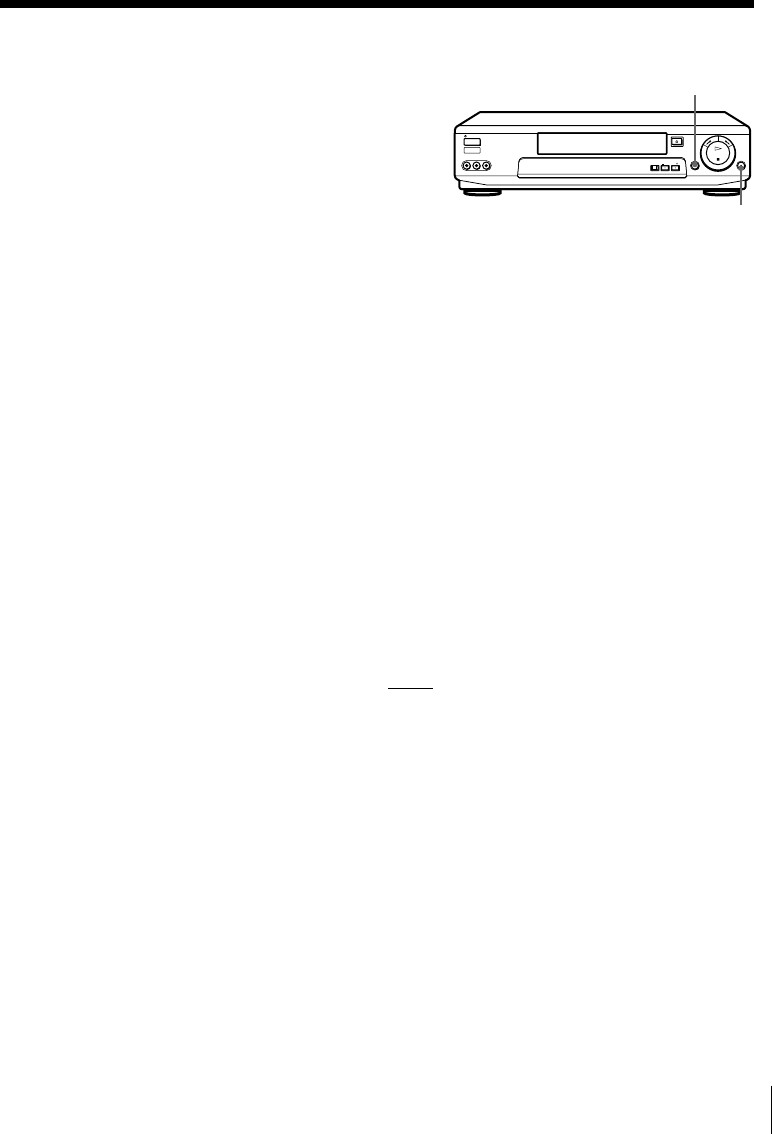

Basic Operations 71
To stop recording
To stop the VCR while recording, press p STOP.
Daily/weekly recording
In step 3 above, press . to select the recording pattern. Each time you press
., the indication changes as shown below. Press > to change the indication
in reverse order.
the current date n SU-SA n MO-SA n MO-FR n EVERY SA n ..... n
EVERY MO n EVERY SU n 1 month later n (dates count down) n the
current date
To use the VCR after setting the timer
To use the VCR before a timer recording begins, just press 1/u. The
indicator disappears from the display window and the VCR switches on.
Remember to press 1/u to reset the VCR to the timer recording standby
mode after using the VCR.
You can also do the following tasks while the VCR is recording:
• Reset the counter.
• Display tape information on the TV screen.
• Check the timer settings.
• Watch another TV program.
To lock the VCR after setting the timer (Child Lock)
While the VCR turns on, hold down 1/u POWER on the VCR until the H
indicator appears in the display window. The VCR turns off and the H
indicator remains lit. The VCR will not work except for timer recording.
To unlock the VCR, hold down 1/u POWER on the VCR until the H
indicator disappears from the display window. The VCR is unlocked and
turns on.
To stop timer recording while the VCR is locked, press p STOP. The
recording stops and the VCR is unlocked.
continued
72 Basic Operations
Tips
• To set the channel, you can also use the CH+/– or number buttons.
• To set the tape speed, you can also use the SP/EP button.
• When you are recording a program in the SP mode and the remaining tape becomes
shorter than the recording time, the tape speed is automatically changed to the EP
mode. Note that some noises will appear on the picture when the tape speed is
changed. If you want to keep the tape speed, set AUTO TAPE SPEED to OFF in the
ADVANCED OPTIONS menu (page 85).
• If you want to return to the previous menu and continue with other operations after
setting the timer, press . to highlight RETURN, then press OK.
The display returns to the MENU screen.
If you are finished using the VCR, turn off the power before the timer recording
starts.
Note
• If you are using cable box control, you cannot select “L1” or “L2”.
Setting the timer manually (continued)

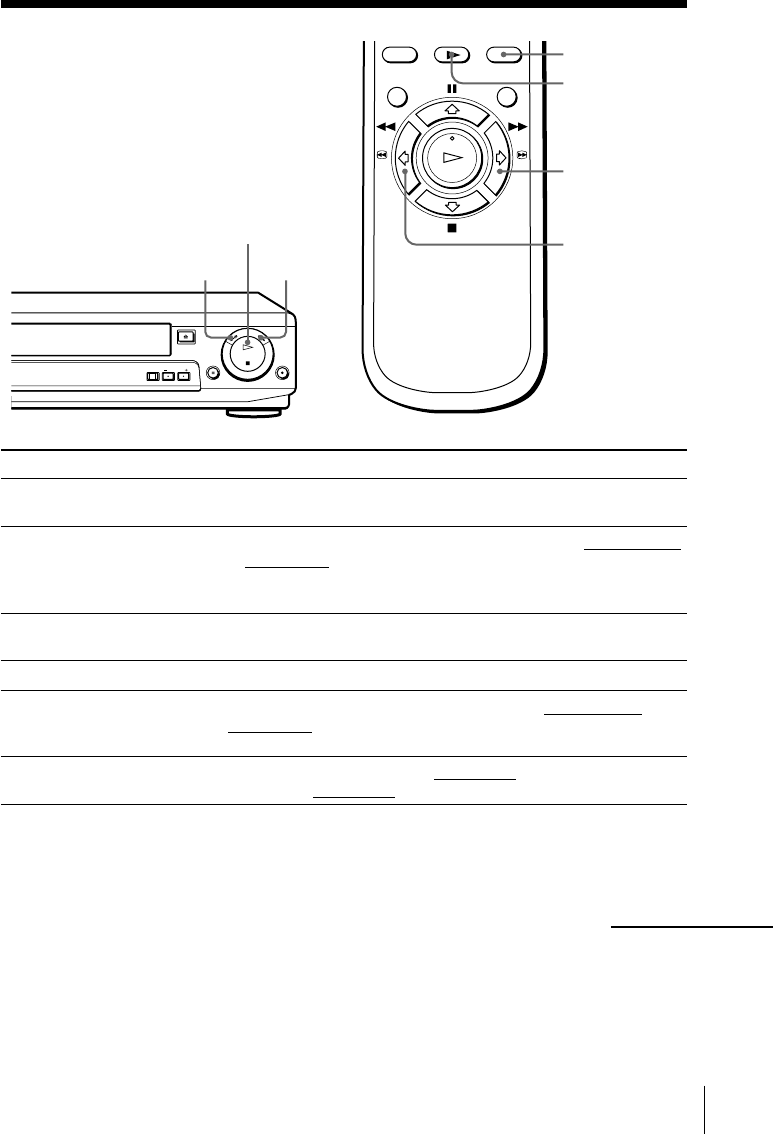

73Additional Operations
Additional Operations
Playing/searching
at various speeds
Playback options Operation
View the picture during During fast-forward, hold down )# FF. During rewind, hold
fast-forward or rewind down 03 REW.
Play at high speed • During playback, press )# FF or 03 REW on the remote
commander.
• During playback, hold down )# FF or 03 REW.
When you release the button, normal playback resumes.
Play at twice the normal During playback, press x2.
speed
Play in slow motion During playback or pause, press & SLOW.
Play frame by frame During pause, press )# FF or 03 REW on the remote
commander. Hold down the button to play one frame each
second.
Rewind and start play During stop, press · PLAY on the VCR while holding down
03 REW on the VCR.
To resume normal playback
Press · PLAY.
& SLOW
03 REW
)# FF
03 REW
· PLAY
x2
)# FF
continued
Additional Operations74
Tip
• Adjust the picture using the TRACKING +/– buttons if:
– Streaks appear while playing in slow motion.
– The picture shakes while pausing.
To set tracking to the center position, press both buttons (+/–) at the same time.
Notes
• The sound is muted during these operations.
• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but
the picture quality cannot be guaranteed.
• The picture may have snow when playing at high speed in reverse.
Playing/searching at various speeds (continued)
75Additional Operations
DISPLAY

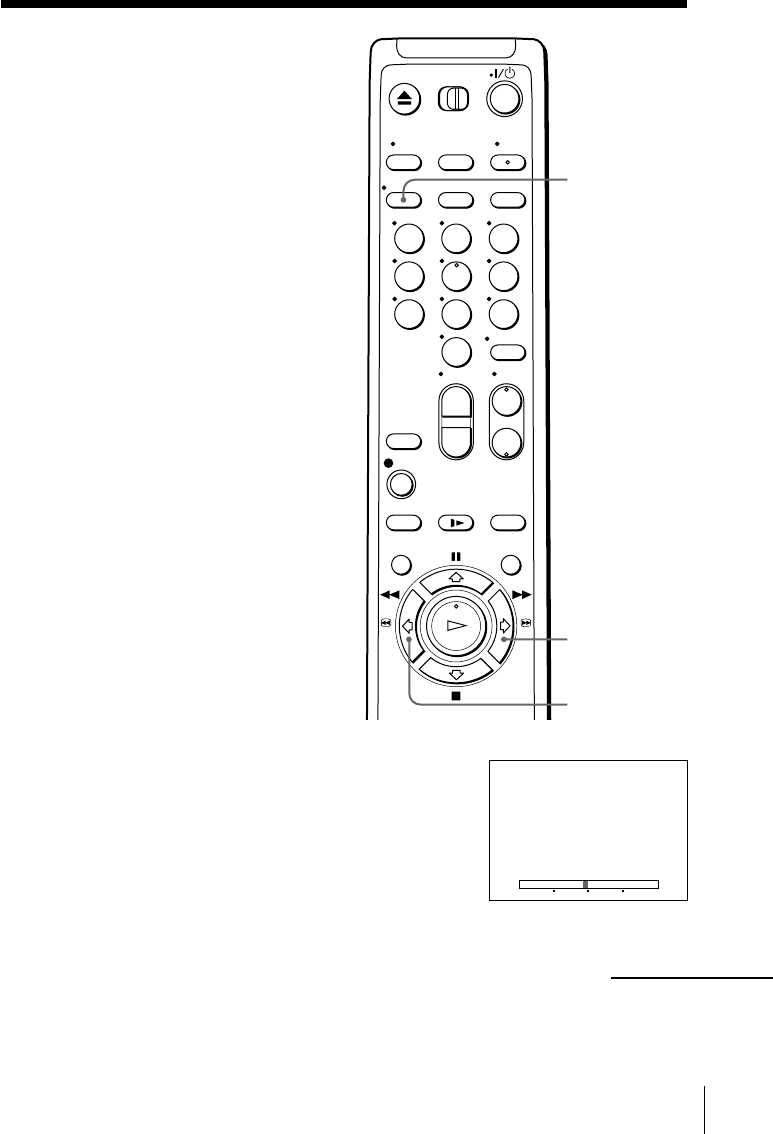

Searching for a
selected point on
the tape
You can easily find a specific point by
moving the pointer on the TV screen.
The VCR fast-forwards or rewinds to the
point you indicate and starts playback
automatically.
1Press DISPLAY repeatedly until the bar
indication appears on the TV screen.
A cursor (p) indicating the current position
of the tape appears on the bar indication. If
the cursor does not appear, play the tape a
few moments (by pressing · PLAY,
)# FF, or 03 REW) until the cursor
appears.
?
0------------------------
120
/
123
789
0
456
+
–
+
–
continued

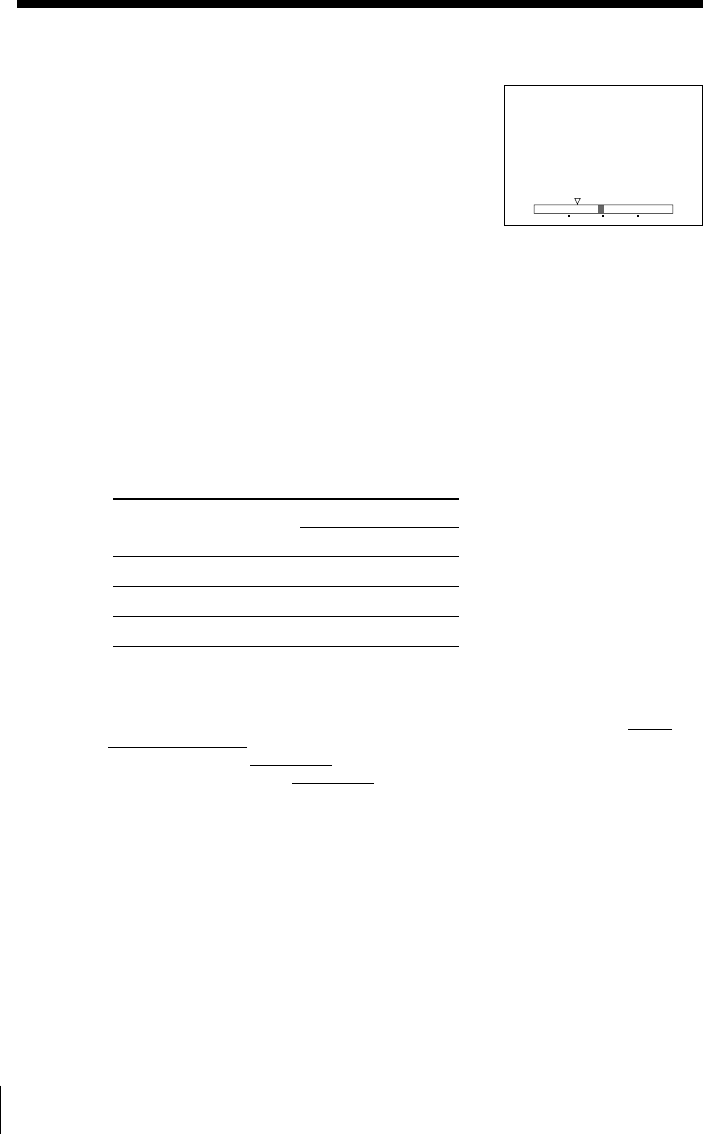

Additional Operations76
2Press ?// to move the pointer (›) to the
point where you want to start playback.
The VCR starts searching and the cursor
(p) moves toward the pointer. When the
VCR locates the marked point, playback
starts.
To cancel searching
Press · PLAY or p STOP.
To turn off the bar indication
Press DISPLAY again.
Notes
• The figure on the bar indication represents the total time length of the inserted tape
as shown below.
The total time length may not be displayed correctly for:
– tapes other than T-60, T-120, or T-160
– tapes recorded in more than one tape speed mode.
Tape type Total time length
SP LP EP
T-60 or shorter 60 120 180
from T-80 to T-140 120 240 360
T-160 or longer 160 320 480
• If you move the pointer (›) on the bar indication during search, the VCR searches
for the new reset point.
• With the bar indication on, the )# FF// and 03 REW/? buttons on the
remote commander work only for moving the pointer (›), while the )# FF and
03 REW buttons on the VCR are used for normal tape operation. Note, however,
if you press these buttons on the VCR, searching is canceled.
0------------------------
120
Searching for a selected point on the tape (continued)
77Additional Operations
search forward
search forward
) fast-forward##) fast-forward
03 REW
)# FF

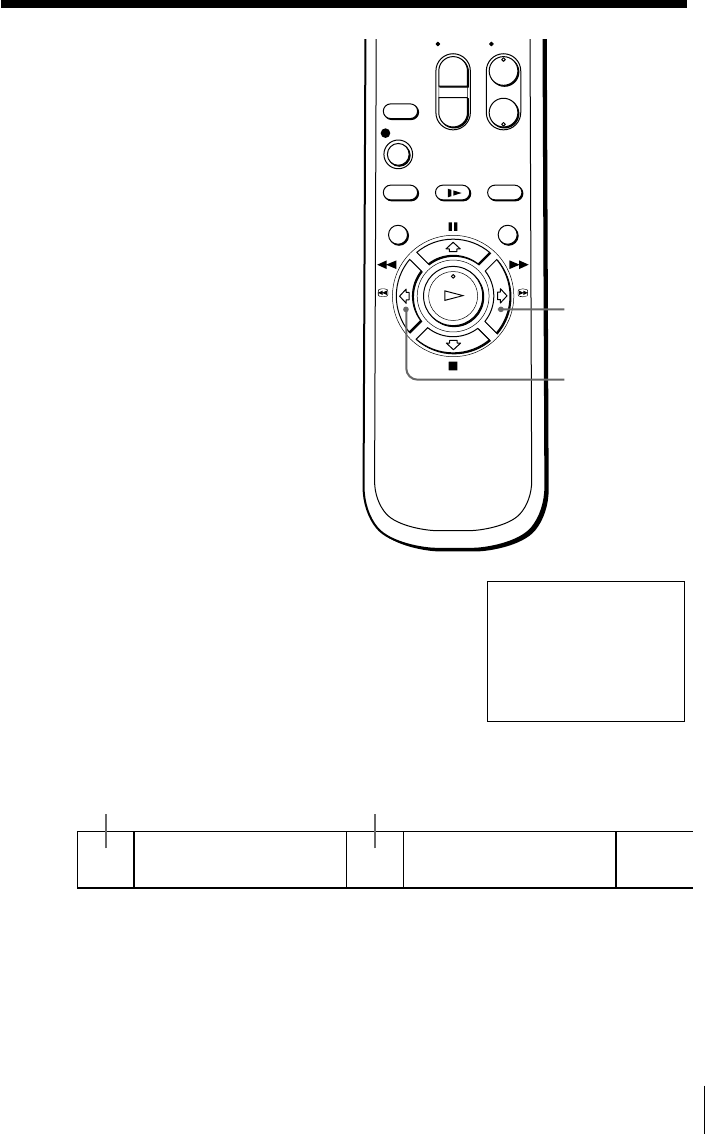

Skip-searching
automatically
You can spot check a whole tape quickly.
At intervals, the VCR skips playback
while searching forward or backward.
Hold down ) # FF (or 0 3 REW) for more
than two seconds during stop. “SKIP” indicator
appears on the TV screen.
The VCR searches forward (or backward) for
about two minutes on the counter, then fast-
forwards (or rewinds) for about ten minutes on
the counter. The VCR repeats this operation
until it stops at the end (or beginning) of the
tape.
To cancel skip-search
Press · PLAY or p STOP.
Note
• The VCR automatically fast-forwards (or rewinds) any portion with no recording.
SKIP
+
–
+
–

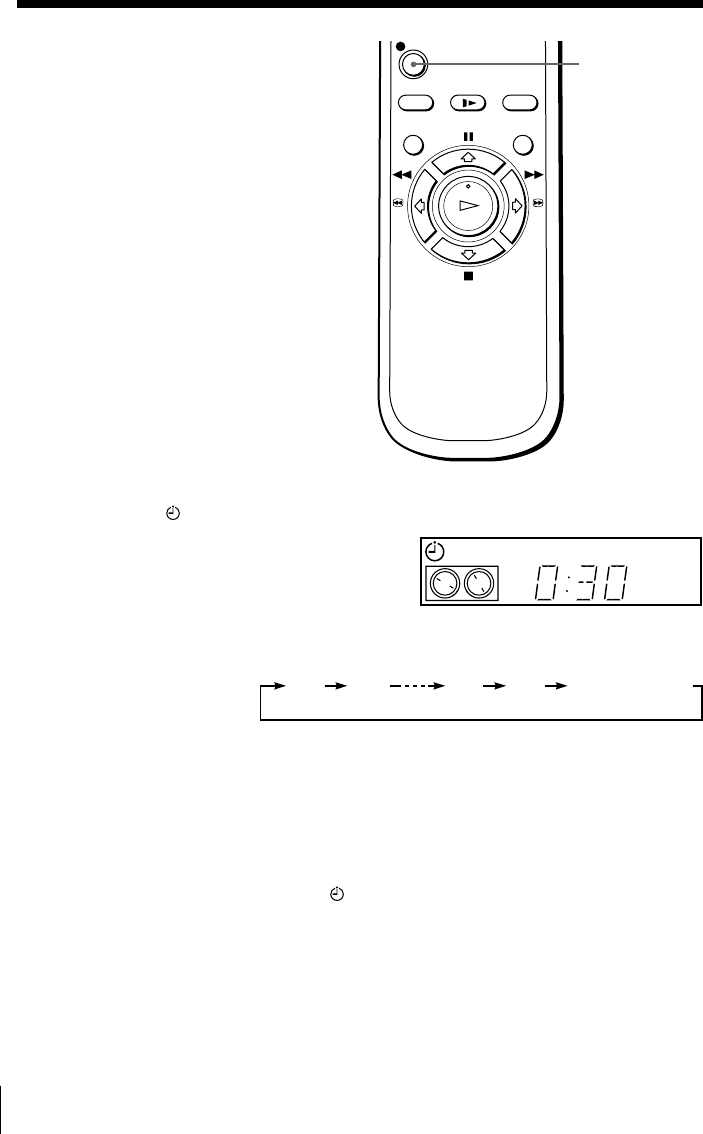

Additional Operations78
Setting the
recording
duration time
After starting recording in the normal
way, you can have the VCR stop
recording automatically after a specified
duration.
1While recording, press r REC.
The indicator appears in the display window.
2Press r REC repeatedly to set the duration.
Each press advances the time in increments of 30 minutes.
The tape counter decreases minute by minute to 0:00, then the VCR
stops recording and turns off automatically.
To extend the duration
Press r REC repeatedly to set a new duration.
To cancel the duration
Press r REC repeatedly until indicator disappears and the VCR returns to
normal recording mode.
To stop while recording
Press p STOP.
Note
• You cannot display the current tape time in the display window when setting the
recording duration.
r REC
Normal recording0:30 1:00 5:30 6:00
EP
VIDEO
APC
79Additional Operations
1/u
CLEAR
MENU
Checking/
changing/
canceling timer
settings
Before you start…
• Turn on your TV and set it to the
video channel.
1Press 1/u to turn on the VCR.
2Press MENU, then press >/. to highlight TIMER SET/CHECK and
press OK.
• If you want to change a setting, go on to the next step.
• If you do not need to change the settings, press MENU, then turn off
the VCR to return to recording standby.
>/./?//
OK
123
789
0
456
+
–
+
–
continued
Additional Operations80
Program 1
Program 2
Will be cut off
3Press >/. to highlight the setting you want
to change or cancel.
• To change the setting, press OK and press
?// to highlight the item you want to
change, then press >/. to reset it.
• To cancel the setting, press CLEAR.
4Press OK.
5Press MENU to exit the menu.
If any timer settings remain, turn off the VCR to return to recording
standby.
When the timer settings overlap
The program that starts first has priority and the second program starts
recording only after the first program has finished. If the programs start at
the same time, the program listed first in the menu has priority.
NRETURN
SELECT
SET
QUIT
:
:
:
TIMER SET / CHECK 9/28 TU
CANCEL CLEAR
:
O K
DATE START STOP CH
TH SP
PM
9/30 8 :00
PM
9 : 00 35
– –– / –– – :–– – : –– –– – –– / –– – :–– – : –– –– – –– / –– – :–– – : –– –– – –– /–– – : –– – :–– ––
SA EP
AM
0
1/2 01:00
AM
1:30
FR EP
PM
MO – 2 : 00
PM
3
1:00 6 0
20
42
SU EP
AM
EVERY :360
AM
7:00
MENU
n
n
Checking/changing/canceling timer settings (continued)
81Additional Operations
Recording stereo and bilingual
programs
Recording stereo programs
This VCR automatically receives and records stereo programs. When a
stereo program is received, the STEREO indicator lights up. If there is noise
in the stereo program, set AUTO STEREO in the ADVANCED OPTIONS
menu to OFF. The sound will be recorded in monaural (on both hi-fi and
normal audio tracks) but with less noise. For details, see page 84.
Recording bilingual programs
Normally, this VCR records only the main sound. When a SAP (Second
Audio Program) is received, the SAP indicator lights up. To record only SAP
sound, set TUNER AUDIO in the ADVANCED OPTIONS menu to SAP. For
details, see page 84.
Selecting the sound during playback
Press AUDIO MONITOR to select the sound you want. (The sound being
recorded will not change.)
To listen to On-screen display Display window
Stereo STEREO STEREO
Left channel L STEREO
Right channel R STEREO
Monaural sound on the normal No indicator No indicator
audio track
continued
Additional Operations82
Normal audio track
Hi-fi audio track
(main track) Stereo sound
(left/right channels)
Monaural sound
How sound is recorded on a video tape
The VCR records sound onto two separate tracks. Hi-fi audio is recorded
onto the main track along with the picture. Monaural sound is recorded
onto the normal audio track along the edge of the tape.
Notes
• To play a tape in stereo, you must use the A/V connections.
• When you play a tape recorded in monaural, the sound is heard in monaural
regardless of the AUDIO MONITOR setting.
Recording stereo and bilingual programs (continued)
83Additional Operations

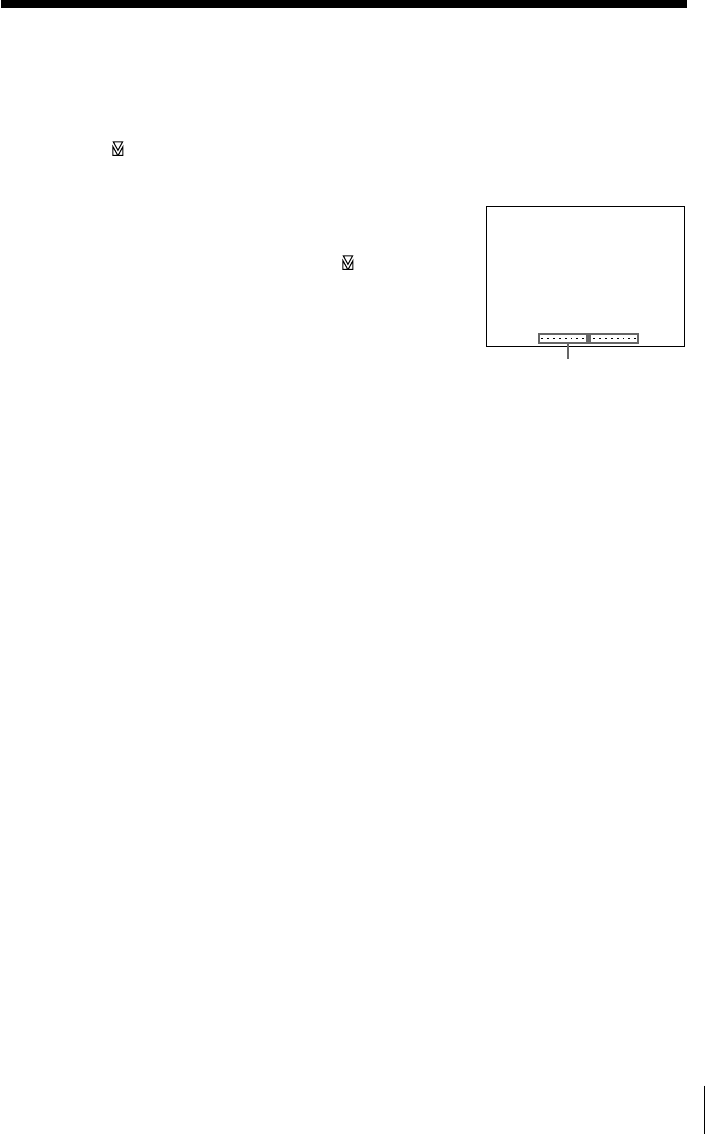

Tracking meter
Adjusting the picture
Adjusting the tracking
Although the VCR automatically adjusts the tracking when playing a tape
(the indicator flashes in the display window, then goes off), distortion
may occur if the tape was recorded in poor condition. In this case, manually
adjust the tracking.
Press TRACKING +/– to display the tracking
meter. The distortion should disappear as you
press one of the two buttons (the indicator
lights up). To resume automatic tracking
adjustment, eject the tape and reinsert it.
About the Adaptive Picture Control (APC) function
The Adaptive Picture Control (APC) function automatically improves
recording and playback quality by adjusting the VCR to the condition of the
video heads and tape. To maintain better picture quality, we recommend
that you set APC to ON in the ADVANCED OPTIONS menu (with the APC
indicator in the display window lit). For details, see page 84.
APC playback
The APC function automatically works on all types of tapes, including rental
tapes and tapes that were not recorded with APC.
APC recording
Whenever you insert a tape and first start recording, the VCR adjusts to the
tape using the APC function (the APC indicator flashes rapidly). This
adjustment is retained until the tape is ejected.
Notes
• The auto tracking adjustment cannot be guaranteed to work with tapes recorded in
the LP mode on other VCRs.
• The APC function does not work if the tape speed is automatically changed from
the SP to EP mode during a timer recording when AUTO TAPE SPEED is set to ON
in the ADVANCED OPTIONS menu, unless the tape has been recorded in the EP
mode with the APC function.
• There is a delay of about ten seconds before the VCR actually starts recording while
the VCR analyzes the tape. To avoid the delay, first set the VCR to recording pause
(the APC indicator flashes slowly) and press r REC to have the VCR analyze the
tape (the APC indicator flashes rapidly). After the APC indicator stops flashing,
press PPAUSE to start recording immediately.
If you want to start recording quickly without using the APC function, first set the
VCR to recording pause (the APC indicator flashes slowly) and press P PAUSE to
start recording.
NORMAL TRACKING
Additional Operations84
Changing menu options
1Press MENU, then select ADVANCED
OPTIONS and press OK.
2Press >/. to highlight the option to change, then press OK.
3Press >/. to change the setting, then press OK.
To adjust the sharpness, press ?// and press OK.
4Press MENU to return to the original screen.
Menu choices
Initial settings are indicated in bold print.
Menu option Set this option to
AUTO ANT SELECT • ON if your TV is connected only to VHF/UHF OUT on
the VCR. To play a tape, set the TV to the VCR channel
(channel 3 or 4).
• OFF if your TV is connected to both VHF/UHF OUT and
LINE OUT on the VCR. To play a tape, set the TV to the
VCR input.
AUTO STEREO • ON to receive stereo programs.
• OFF to reduce noise. The sound changes to monaural.
TUNER AUDIO • MAIN to record the main sound on both hi-fi and normal
audio tracks.
• SAP to record the SAP (Second Audio Program) sound on
both hi-fi and normal audio tracks.
APC • ON to switch on the APC (Adaptive Picture Control)
function and improve picture quality.
• OFF to switch off APC.
SELECT
SET
QUIT
:
:
:
ADVANCED OPTIONS
O K
MENU
n
n
NRETURN
AUTO ANT SELECT
AUTO STEREO
TUNER AUDIO
TAPE SELECT
AUTO TAPE SPEED
SHARPNESS
APC
ON
ON
MAIN
ON
AUTO
ON
L H
85Additional Operations
Menu option Set this option to
TAPE SELECT • AUTO when using a T-160 length tape or any tape shorter
than a T-140 length tape.
• 180 when using a T-140 or T-180 length tape.
For details, see page 64.
AUTO TAPE SPEED • ON to change the timer recording tape speed
automatically to the EP mode when the remaining tape
length becomes shorter than the recording time. To
operate AUTO TAPE SPEED, set TAPE SELECT correctly.
• OFF to keep the tape speed.
SHARPNESS L (Low) through H (High) to adjust the sharpness of the
picture. L to turn off the sharpness control.
Additional Operations86
This VCR (Recorder) TV
Other VCR (Player)
LINE OUT
: Signal flow
LINE-2 IN
Editing with another VCR
How to hook up to record on this VCR
Notes
• Make sure you connect the plugs to jacks of the same color.
• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks,
connect the audio plug to the AUDIO L (white) jack. The sound is recorded on both
right and left channels. When connecting to the AUDIO R (red) jack, the sound is
recorded only on the right channel.
• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other
VCR, select the input correctly to prevent a humming noise.
• You can use the LINE-1 IN jacks for editing. If the other VCR is a monaural type,
the sound is recorded only on the channel whose jack is connected to the audio
plug. To record on both right and left channels, connect the audio plugs to the
AUDIO R/L jacks using a VMC-910HG audio/video cable (not supplied).
1/u
VMC-810HG audio/video cable (not supplied)
87Additional Operations
P PAUSE
r REC
Operation (when recording on this VCR)
Before you start editing
• Turn on your TV and set it to the
video channel.
• Press INPUT SELECT to display “L2”
(or “L1”) in the display window.
• Press SP/EP to select the tape speed,
SP or EP.
1Insert a source tape with its safety tab removed into the other
(playback) VCR. Search for the point to start playback and set it to
playback pause.
2Insert a tape into this (recording) VCR. Search for the point to start
recording and press P PAUSE.
3Press r REC on this VCR and set it to recording pause.
4To start editing, press the P PAUSE buttons on both VCRs at the same
time.
To stop editing
Press the p STOP buttons on both VCRs.
Tip
• To cut out unwanted scenes while editing, press P PAUSE on this VCR when an
unwanted scene begins. When it ends, press P PAUSE again to resume recording.
Note
• If you start recording following the procedure above, the VCR won’t start recording
with the APC function. To record a tape with the APC function, press rREC again
during recording pause in step 3 so that the VCR analyzes the tape. Then when you
start recording in step 4, press P PAUSE immediately after the APC indicator stops
flashing. If you press P PAUSE before the APC indicator stops flashing, the APC
function is canceled.
1/u
88 Additional Information
Additional Information
General setup information
TV
1/u POWER
Setting the RF unit
When connecting the VCR to the TV
using only the antenna cable, you must
set the RF UNIT switch on the rear of the
VCR so that the TV can receive the
correct signal from the VCR.
1Set the RF UNIT switch on the rear of the VCR to CH3 or CH4,
whichever channel is not used in your area. If both are used, set the
switch to either channel.
2Press 1/u POWER to turn on the VCR.
3Press TV/VIDEO to turn on the VIDEO indicator in the VCR’s display
window.
4Press CH +/– to display a channel number in the display window.
Select an active channel number in your area.
5Turn on your TV and set it to the channel you selected in step 1
(channel 3 or 4).
The channel you selected in step 4 appears on the TV screen. If the
channels change when you press CH +/–, you have made the correct
setting.
Whenever you use the VCR, set the TV to the channel selected in step 1.
CHANNEL +/–
CH3
RF UNIT
CH4
1/u
89Additional Information
EAC-32 Antenna
connector (not
supplied)
300-ohm twin
lead cable
EAC-66
UHF/VHF
band
separator/
mixer (not
supplied)
300-ohm twin
lead cable
75-ohm coaxial
cable
Attaching the external
antenna connector
When using a 300-ohm twin lead cable
for VHF/UHF antenna, use the EAC-32
antenna connector (not supplied) to
connect the antenna to the VCR.
1Loosen the screws on the antenna connector.
2Wind the twin leads around the screws on the antenna connector.
3Retighten the screws.
Attaching a UHF/VHF band
mixer
When using both 75-ohm coaxial cable
and 300-ohm twin lead cable for VHF/
UHF antenna, use the EAC-66 UHF/
VHF band separator/mixer (not
supplied) to connect the antenna to the
VCR.
1Loosen the screws on the mixer.
2Wind the twin leads around the screws on the mixer.
3Retighten the screws.
4Connect the 75-ohm coaxial cable to the mixer.

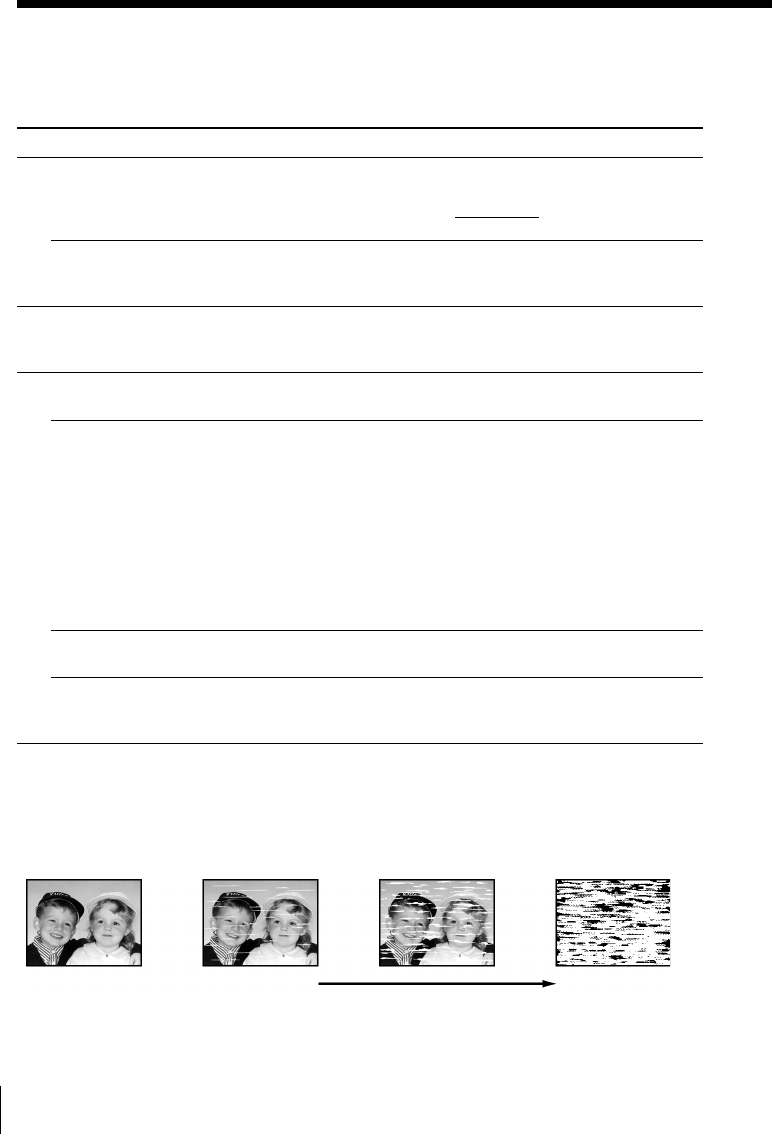

90 Additional Information
PowerClockPlayback
• Normal picture • Rough picture • Unclear picture • No picture (or
black & white
screen appears)
initial
contamination terminal
Troubleshooting
If you have any questions or problems not covered below, please consult your
nearest Sony dealer.
Symptom
The 1/u switch does not
function.
The power is turned on but the
VCR does not operate.
The clock has stopped and
“–:– –” lights in the display
window.
The playback picture does not
appear on the TV screen.
The picture is not clear.
The picture rolls vertically
during picture search.
The picture has no sound.
Symptoms caused by contaminated video heads
Remedy
• Connect the AC power cord securely.
• Make sure the VCR is not locked. To unlock, hold
down 1/u POWER on the VCR until the H indicator
disappears.
• Moisture condensation occurs. Turn the power off,
unplug the AC power cord and leave the VCR to dry
for over three hours.
• The clock stops if the VCR is disconnected from the
wall outlet for more than one hour. Reset the clock
(and timer).
• Make sure the TV is set to the channel for the VCR. If
you are using a monitor, set it to video input.
• Adjust the tracking with the TRACKING+/– buttons.
• The video heads are dirty (see below). Clean the video
heads using the Sony T-25CLD, T-25CLDR, or
T-25CLW video head cleaning cassette. If these
cleaning cassettes are not available in your area, have
the heads cleaned at your nearest Sony service facility
(a standard service fee will be charged). Do not use a
commercially available liquid type cleaning cassette
other than Sony’s, as it may damage the video heads.
• The video heads may have to be replaced. Consult
your local Sony dealer for more information.
• Adjust the vertical hold control on the TV or monitor.
• The tape is defective.
• If you made A/V connections, check the audio cable
connection.
91Additional Information
Recording
Timer recording
Symptom
A TV program does not appear
on the TV screen.
TV reception is poor.
The tape starts playing as soon
as it is inserted.
The tape ejects when you press
r REC.
Nothing happens when you
press r REC.
The timer does not operate.
Remedy
• Make sure the TV is set to the channel for the VCR. If
you are using a monitor, set it to video input.
• Select the correct source with the INPUT SELECT
button. Select a channel number when recording TV
programs; select “L1” or “L2” when recording from
other equipment.
• Adjust the TV antenna.
• The safety tab has been removed. To record on this
tape, cover the tab hole.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
• Check that the clock is set.
• Make sure a tape has been inserted.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
• Make sure a program has been set for timer recording.
• Make sure your timer settings have not already passed
the current time.
• Check that the cable box is turned on.
• The clock stops if the VCR is disconnected from the
wall outlet for more than one hour. Reset the clock and
timer.
• When you use cable box control, make sure the CABLE
BOX CONTROL option is set to ON.
continued
92 Additional Information
Others
Symptom Remedy
A tape cannot be inserted.
The remote commander does
not function.
The channels on the VCR
cannot be changed.
The tracking meter does not
appear on the screen.
You cannot control other TVs.
The VCR needs to be cleaned.
• Check that a tape isn’t already in the tape
compartment.
• Make sure you are pointing the remote commander at
the remote sensor on the VCR.
• Replace all the batteries in the remote commander with
new ones if they are weak.
• Make sure the TV / VIDEO switch is set correctly.
• Make sure the CABLE BOX CONTROL option is set to
OFF.
• The recording condition of the tape is very poor and
tracking cannot be adjusted.
• Set your TV’s code number. The code number may
change when you replace the batteries of the remote
commander.
• Clean the cabinet, panel and controls with a dry, soft
cloth, or a soft cloth slightly moistened with a mild
detergent solution. Do not use any type of solvent,
such as alcohol or benzine.
Troubleshooting (continued)
93Additional Information
Specifications
System
Format
VHS NTSC standard
Video recording system
Rotary head helical scanning FM system
Video heads
Double azimuth four heads
Video signal
NTSC color, EIA standards
Tape speed
SP: 33.35 mm/s (1 3/8 inches/s)
EP: 11.11 mm/s (7/16 inches/s)
LP: 16.67 mm/s (11/16 inches/s),
playback only
Maximum recording/playback time
8 hrs. in EP mode (with T-160 tape)
Fast-forward and rewind time
Approx. 3 min. (with T-120 tape)
Tuner section
Channel coverage
VHF 2 to 13
UHF 14 to 69
CATV A-8 to A-1, A to W, W+1 to W+84
Antenna
75-ohm antenna terminal for VHF/UHF
Inputs and outputs
LINE-1 IN and -2 IN
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced,
sync negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced,
sync negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
CABLE BOX CONTROL (CONTROL S OUT)
Stereo mini jack (plug in power) (1)
Timer section
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
8 programs per month (max.)
Power back-up
Built-in self-charging capacitor
Back-up duration: up to 1 hour at a time
General
Power requirements
120 V AC, 60 Hz
Power consumption
24 W
Operating temperature
5°C to 40°C (41°F to 104°F)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Dimensions
Approx. 430 × 100 × 287 mm (w/h/d)
(Approx. 17 × 4 × 11 3
/
8 inches) including
projecting parts and controls
Mass
Approx. 4.0 kg (8 lb 13 oz)
Supplied accessories
Remote commander (1)
Size AA (R6) batteries (2)
75-ohm coaxial cable with F-type connectors (1)
Audio/video cable (3 phono to 3 phono) (1)
Design and specifications are subject to change
without notice.
ENERGY STAR is a U.S. registered mark.
As an ENERGY STAR Partner, Sony Corporation
has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
94 Additional Information
Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
11/u POWER switch/indicator (67)
2Remote sensor (5)
3Tape compartment
46 EJECT button (60)
503 REW (rewind) button (60, 73)
6· PLAY button (60, 73)
7)# FF (fast-forward) button (60,
73)
8r REC (record) button (63, 78, 87)
9p STOP button (60, 87)
!º P PAUSE button (60, 87)
!¡ CHANNEL/TRACKING +/–
buttons (63, 83)
!™ EASY SET UP button (12, 16, 20, 24,
28, 31)
!£ LINE-2 IN VIDEO/AUDIO L/R
jacks (86)
1/u
1 32 4 5 76
8
9
!º!¡!™
!£
95Additional Information

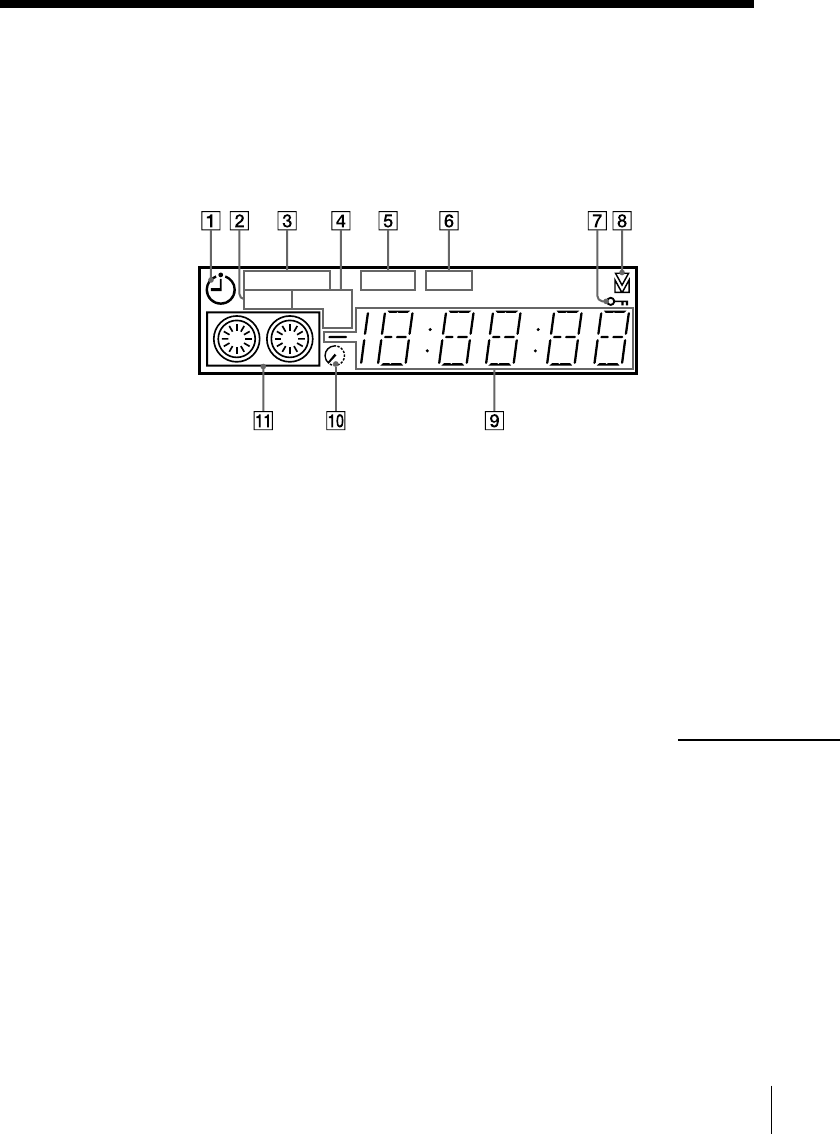

Display window
1Timer indicator (67, 70)
2SAP (Second Audio Program)
indicator (81)
3STEREO indicator (81)
4Tape speed indicator (63)
5VIDEO indicator (64, 88)
6APC (Adaptive Picture Control)
indicator (83)
7Child Lock indicator (68)
8Tracking indicator (83)
9Time counter/clock/line/channel
indicator (61, 63, 87)
!º Remaining time indicator (64)
!¡ Tape/recording indicator (63)
continued
STEREO
SAP LPSP
EP
VIDEO
APC
96 Additional Information
Index to parts and controls (continued)
Rear panel
1AC power cord (8)
2CABLE BOX CONTROL
(CONTROL S OUT) jack (11, 27)
3LINE-1 IN AUDIO R/L/VIDEO
jacks (27, 86)
4RF (Radio Frequency) UNIT switch
(88)
5VHF/UHF IN connector (11, 15, 19,
23, 27, 30)
6VHF/UHF OUT connector (11, 15,
19, 23, 27, 30)
7LINE OUT AUDIO R/L/VIDEO
jacks (9)
1 2 345
6
7
97Additional Information
Remote commander
1TV / VIDEO switch (5)
26EJECT button (60)
3TV/VIDEO button (6, 64)
4DISPLAY button (64, 75)
5CLEAR button (61, 67, 80)
6INPUT SELECT button (63, 65, 87)
7rREC (record) button (63, 78)
8SP (Standard Play)/EP (Extended
Play) button (63)
9MENU button (35, 69, 79)
!º P PAUSE/> button (35, 60)
p STOP/. button (35, 60)
03 REW (rewind)/? button
(60, 73)
)# FF (fast-forward)// button
(60, 73)
· PLAY/OK button (35, 60)
continued
123
789
0
456
+
–
+
–
98 Additional Information
!¡ 1/u (power) switch (6, 67)
!™ COUNTER/REMAIN button (64)
!£ AUDIO MONITOR button (81)
!¢ VCR Plus+ button (66)
!∞ Number buttons (67)
!§ ENTER button (67)
!¶ CH (channel) +/– buttons (6, 63)
!• VOL (volume) +/– buttons (6)
!ª & SLOW button (73)
@º x2 button (73)
@¡ SMART CUE button (60)
123
789
0
456
+
–
+
–
Index to parts and controls (continued)
99Additional Information
Index
A, B
Adjusting
picture 83
tracking 83
Advanced option 84
AFT (Auto Fine Tuning) 54
Antenna hookup 19
APC (Adaptive Picture
Control) 83
Audio track 82
Audio/video (A/V)
hookup 9
Auto Clock Set 36
Auto Tape Speed 85
C
Cable box control
cable box code number
chart 45
setting 43
Cable hookup 8
Cable Mouse 11, 27
Channel line-up chart 56
Child Lock 68
Cleaning the video
heads 90
Clock setting 36
Connecting
cable TV 8
external antenna
connector 89
UHF/VHF band
mixer 89
Counter 61
D
DIRECTV System 27
Disabling channels 52
Dubbing. See Editing.
E, F, G
Easy Set Up 12, 16, 20, 24,
28, 31
Editing 86
EP mode 63
H, I, J, K
Hi-fi audio track 82
L
Language selecting 35
Locking the VCR 68
LP mode 65
M
Monaural 81
Monitoring audio during
playback 81
N, O
Normal audio track 82
P, Q
Picture adjustment. See
Adjusting.
Playback 59
at various speeds 73
frame-by-frame 73
selecting the sound 81
skip 60
slow motion 73
Presetting channels 49
R
Recording 62
bilingual programs 81
SAP broadcasts 81
saving 64
stereo broadcasts 81
timer setting 69
using VCR Plus+ 66
while watching another
program 64
RF channel 88
S
Safety tab 64
SAP (Second Audio
Program) 81
Searching
at various speeds 73
for a selected point 75
skip-search 77
SP mode 63
Stereo 81
T, U
Timer setting 69
canceling 79
changing 79
checking 79
daily/weekly
recording 71
using VCR Plus+ 66
Tracking adjustment. See
Adjusting.
Tuner presetting 49
V, W, X, Y, Z
VCR Plus+
channel setup 56
recording 66
Q uick reference to using the VCR
Sony Corporation Printed in Malaysia
Hookup 1
To play a tape
1Set the TV to channel 3 or
4 (or to video input, if you
made A/V connections.)
2Insert a tape and press
· PLAY.
To record a program
1Turn on the cable box.
2Press VCR Plus+ on the
remote commander.
3Enter the PlusCode
number.
4Select ONCE, DAILY, or
WEEKLY, then press
ENTER.
5Insert a tape.
6Press 1/u to turn off the
VCR.
7Leave the cable box on.
To watch TV
1Turn off your VCR, or
press the VCR’s TV/
VIDEO button until the
VIDEO indicator in the
display window goes off.
2Turn on your cable box.
3Set the TV to the cable box
output channel (usually 2,
3, or 4).
4Set the cable box to the
channel you want to
watch.
Hookup 2
To play a tape
1If you made A/V
connections, set the TV to
video input.
If you didn’t use A/V
hookup:
• Turn on the cable box.
• Set the cable box to
channel 3 or 4.
• Set the TV to the output
channel of the cable box
(usually 2, 3, or 4).
2Insert a tape and press
· PLAY.
To record a program
1Press VCR Plus+ on the
remote commander.
2Enter the PlusCode
number.
3Select ONCE, DAILY, or
WEEKLY, then press
ENTER.
4Insert a tape.
5Press 1/u to turn off the
VCR.
To watch TV
1Turn off your VCR, or
press the VCR’s TV/
VIDEO button until the
VIDEO indicator in the
display window goes off.
2Select the channel with
your cable box (if you have
one) or with your TV.
Hookup 3
To play a tape
1Set the TV to channel 3 or
4 (or to video input, if you
made A/V connections.)
2Insert a tape and press
· PLAY. If there’s no
picture on your TV, press
the VCR’s TV/VIDEO
button until the VIDEO
indicator comes on in the
display window.
To record a program
1Press VCR Plus+ on the
remote commander.
2Enter the PlusCode
number.
3Select ONCE, DAILY, or
WEEKLY, then press
ENTER.
4Insert a tape.
5Press 1/u to turn off the
VCR.
To watch TV
1Turn off the VCR, or press
the VCR’s TV/VIDEO
button until the VIDEO
indicator in the display
window goes off.
2Set the TV to the channel
you want to watch.
Hookup 4
To play a tape
1Set the TV to channel 3 or
4 (or to video input, if you
made A/V connections.)
2Insert a tape and press
· PLAY.
To record a program
1Turn on the cable box.
2Set the cable box to the
channel you want to
record.
3Press VCR Plus+ on the
remote commander.
4Enter the PlusCode
number.
5Select ONCE, DAILY, or
WEEKLY, then press
ENTER.
6Insert a tape.
7Press 1/u to turn off the
VCR.
8Leave the cable box on.
To watch TV
1Turn off your VCR, or
press the VCR’s TV/
VIDEO button until the
VIDEO indicator in the
display window goes off.
2Turn on your cable box.
3Set the TV to the cable box
output channel (usually 2,
3, or 4).
4Set the cable box to the
channel you want to
watch.
If you have any questions about this product, you may call: Sony Customer Information Center
1-800-222-SONY (7669) or write to: Sony Customer Information Center Sony Drive, Mail Drop
#T1-11, Park Ridge, NJ 07656
