Sony Group UTXP1 UHF Synthesized Transmitter User Manual
Sony Corporation UHF Synthesized Transmitter
User Manual
COPY
2-347-712-13(1)
2003 Sony Corporation
Operating Instructions
Before operating the unit, please read this manual thoroughly and
retain it for future reference.
UWP-C1/C2/C3
UWP-S1/S2
UWP-X1/X2
Wireless
Microphone Package
COPY
2
For the AC adapter supplied with
UWP-S1/S2
Important Safety
Instructions
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
• Clean only with dry cloth.
•Do not block any ventilation
openings. Install in accordance with
the manufacturer’s instructions.
•Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
•Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has two blades with
one wider than the other. A
grounding-type plug has two blades
and a third grounding prong. The
wide blade or the third prong is
provided for your safety. If the
provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.
•Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
•Only use attachments/accessories
specified by the manufacturer.
•Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus.
When a cart is used, use
caution when moving the
cart/apparatus combination
to avoid injury from tip-
over.
•Unplug this apparatus during
lightning storms or when unused for
long periods of time.
•Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or has been
dropped.
WARNING
To reduce the risk of fire or
electrical shock, do not expose
this apparatus to rain or
moisture.
To avoid electrical shock, do not
open the cabinet. Refer
servicing to qualified personnel
only.
IMPORTANT
The name plate is located on the
bottom (AC-911).
WARNING
This unit has no power switch.
When installing the unit, incorporate a
readily accessible disconnect device in
the fixed wiring, or connect the power
cord to socket-outlet which must be
provided near the unit and easily
accessible.
If a fault should occur during
operation of the unit, operate the
disconnect device to switch the power
supply off, or disconnect the power
cord.
COPY
3
This symbol is intended to
alert the user to the
presence of uninsulated
“dangerous voltage”
within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
alert the user to the
presence of important
operating and
maintenance (servicing)
instructions in the
literature accompanying
the appliance.
CAUTION
To prevent electric shock, match wide
blade of plug to wide slot, fully insert.
AVERTISSEMENT
Afin de réduire les risques
d’incendie ou d’électrocution, ne
pas exposer cet appareil à la
pluie ou à l’humidité.
Afin d’écarter tout risque
d’électrocution, garder le coffret
fermé. Ne confier l’entretien
l’appareil qu’à un technicien
qualifié.
IMPORTANT
La plaquette signalétique est posée sur
le dessous de l’appareil (AC-911).
AVERTISSEMENT
Cet appareil ne possède pas
d’interrupteur d’alimentation. Lors de
l’installation de l’appareil, incorporer
un dispositif de coupure facilement
accessible dans le câblage fixe ou
brancher le cordon d’alimentation
dans une prise murale proche de
l’appareil et facilement accessible.
En cas de problème lors du
fonctionnement de l’appareil,
enclencher le dispositif de coupure
d’alimentation ou dèbrancher le
cordon de la prise.
ATTENTION
Pour éviter tout choc électrique,
ajuster la lame large de la fiche sur la
fente large et l’insérer à fond.
WARNUNG
Um die Gefahr von Bränden
oder elektrischen Schlägen zu
verringern, darf dieses Gerät
nicht Regen oder Feuchtigkeit
ausgesetzt werden.
Um einen elektrischen Schlag zu
vermeiden, darf das Gehäuse
nicht geöffnet werden.
Überlassen Sie
Wartungsarbeiten stets nur
qualifiziertem Fachpersonal.
COPY
4
WICHTIG
Am Boden des Geräts befindet sich
das Typenschild (AC-911).
WARNUNG
Dieses Gerät hat keinen Netzschalter.
Beim Einbau des Geräts ist daher im
Festkabel ein leicht zugänglicher
Unterbrecher einzufügen, oder das
Netzkabel muss mit einer in der Nähe
des Geräts befindlichen, leicht
zugänglichen Wandsteckdose
verbunden werden.
Wenn während des Betriebs eine
Funktionsstörung auftritt, ist der
Unterbrecher zu betätigen bzw. das
Netzkabel abzuziehen, damit die
Stromversorgung zum Gerät
unterbrochen wird.
ACHTUNG
Um die Gefahr elektrischer Schläge zu
verhindern, immer den Stecker richtig
und vollständig einstecken.
ATTENZIONE
Per ridurre il rischio di incendi o
scosse elettriche, non esporre
questo apparato alla pioggia o
all’umidità.
Per evitare scosse elettriche,
non aprire l’apparecchio.
Per le riparazioni, rivolgersi solo
a personale qualificato.
IMPORTANTE
La targhetta con il nome si trova sul
fondo (AC-911).
AVVERTENZA
Il presente apparecchio non è dotato di
interruttore di alimentazione.
Quando si installa l’apparecchio,
includere nell’impianto fisso un
dispositivo di disconnessione
rapidamente accessibile o collegare il
cavo di alimentazione ad una presa in
prossimità dell’apparecchio e che sia
facilmente raggiungibile.
Nel caso in cui si dovesse verificare
una anomalia durante il
funzionamento dell’apparecchio, agire
sull’interruttore del dispositivo di
disconnessione o disconnettere il cavo
di alimentazione.
ATTENZIONE
Per evitare scosse elettriche assicurarsi
che la spina sia inserita correttamente
e completamente nella presa.
ADVERTENCIA
Para reducir el riesgo de
electrocución, no exponga este
aparato a la lluvia ni a la
humedad.
Para evitar descargas eléctricas,
no abra el aparato.
Solicite asistencia técnica
únicamente a personal
especializado.
IMPORTANTE
La placa de caracteristicas se
encuentra en la parte inferior (AC-
911).
COPY
5
ADVERTENCIA
Esta unidad no tiene interruptor
eléctrico.
Cuando instale la unidad, incluya un
dispositivo de desconexión de fácil
acceso en el cableado fijo o enchufe el
cable eléctrico a un tomacorriente
cerca de la unidad y de fácil acceso.
Si se produce una falla durante el
funcionamiento de la unidad, utilice el
dispositivo de desconexión para
desconectar la electricidad o
desenchufe el cable eléctrico.
PRECAUCIÓN
Para evitar descarga eléctrica, alinee la
pata ancha del enchufe en la ranura
ancha y enchufe a fondo.
COPY
6
For UTX-B1, UTX-H1, and UTX-P1
Transmitters
Owner’s Record
The model and serial numbers are
located at the rear or on the bottom of
the unit. Record the model and serial
numbers in the space provided below.
Refer to these numbers whenever you
call upon your Sony dealer regarding
this product.
Model No. _____________________
Serial No. _____________________
IMPORTANT
The name plate is located on the
bottom and the serial number is
located inside the battery compartment
(UTX-P1).
IMPORTANT
La plaquette signalétique est posée sur
le dessous de l’appareil et le numéro
de série dans le logement des piles
(UTX-P1).
WICHTIG
Am Boden des Geräts befindet sich
das Typenschild und die
Seriennummer befindet sich innen im
Batteriefach (UTX-P1).
IMPORTANTE
La targhetta con il nome si trova sul
fondo e il numero di serie si trova
all’interno del vano pile (UTX-P1).
IMPORTANTE
La placa de caracteristicas se
encuentra en la parte inferior y el
número de serie está en el interior del
compartimiento de pilas (UTX-P1).
Notice for customers in the
U.S.A.
Use of Sony wireless devices is
regulated by the Federal
Communications Commission as
described in Part 74 subpart H of the
FCC regulations and users authorized
thereby are required to obtain an
appropriate license.
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
IMPORTANT NOTE: To comply
with the FCC RF exposure compliance
requirements, no change to the
antenna or the device is permitted.
Any change to the antenna or the
device could result in the device
exceeding the RF exposure
requirements and void user’s authority
to operate this device.
This device complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to
OET65. This device has very low
levels of RF energy that it is deemed
to comply without testing of specific
absorption ratio (SAR).
COPY
7
Notice for customers in Canada:
Use of Sony wireless devices is
regulated by the Industry Canada as
described in their Radio Standard
Specification RSS-123.
A licence is normally required. The
local district office of Industry Canada
should therefore be contacted. When
the operation of the device is within
the broadcast band, the licence is
issued on no-interference, no-
protection basis with respect to
broadcast signals.
Operation of this device is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any
interference, including interference
that may cause undesired operation of
the device.
The term “IC:” before the radio
certification number only signifies that
Industry Canada technical
specifications were met.
Remarque à l’intention des
utilisateurs au Canada:
L’usage des appareils sans fil Sony est
réglementé par l’Industrie Canada
comme décrit dans leur Cahier des
Normes Radioélectriques CNR-123.
Une licence est normalement requise.
Le bureau de l’Industrie Canada doit
être contacté. Lorsque le
fonctionnement de l’appareil respecte
les limites de la bande de
radiodiffusion, la licence est accordée
sur la base d’une non-interférence,
non-protection pour les signaux de
radiodiffusion.
L’utilisation de cet appareil est
soumise aux deux conditions
suivantes: (1) cet appareil ne peut
causer d’interférences, et (2) cet
appareil doit accepter toutes les
interférences, y compris les
interférences capables de provoquer
un fonctionnement non souhaité de
l’appareil.
L’expression <<IC:>> avant le
numéro d’homologation/
enregistrement signifie seulement que
les spécifications techniques de
l’Industrie Canada ont été respectées.
Für Kunden in Deutshland (UTX-
B1/H1/P1)
Entsorgungshinweis: Bitte werfen Sie
nur entladene Batterien in die
Sammelboxen beim Handel oder den
Kommunen. Entladen sind Batterien
in der Regel dann, wenn das Gerät
abschaltet und signalisiert “Batterie
leer” oder nach längerer
Gebrauchsdauer der Batterien “nicht
mehr einwandfrei funktioniert”. Um
sicherzugehen, kleben Sie die
Batteriepole z.B. mit einem
Klebestreifen ab oder geben Sie die
Batterien einzeln in einen
Plastikbeutel.
Voor de Klanten in Nederland
(UTX-B1/H1/P1)
Gooi de batterij niet weg
maar lever deze in als klein
chemisch afval (KCA).
COPY
8
Notice for customers in Europe
Notification aux clients
européens
Hinweis für die Kunden in
Europa
Avvertenza per gli utilizzatori in
Europa
Aviso para los clientes de
Europa
Nota para utilizadores da
Europa
Mededeling voor de klanten in
Europa
Att observera för kunder i
Europa
Meddelelse til kunderne i
Europa
Huomautus Euroopassa asuville
asiakkaillemme
U.K. 854.125 - 862 MHz
Germany 790 - 814 MHz
Norway 800 - 820 MHz
Luxembourg 800 - 830 MHz,
854.125 - 862 MHz
Belgium 854.125 - 862 MHz
Denmark 800.100 - 819.900
MHz
France 798 - 830 MHz
Italy 800 - 820 MHz
Sweden 800 - 820 MHz
Switzerland 800 - 820 MHz
Finland 800.100 - 819.900
MHz
Iceland 800 - 814 MHz
Hereby, Sony Corporation declares
that this UTX-B1/UTX-H1/UTX-P1 is
in compliance with the essential
requirements and other relevant
provisions of Directive 1999/5/EC.
For details, please access the
following URL:
http://www.compliance.sony.de/
Note:
In some countries additional
frequency bands may be used with the
agreement of the national authority.
Sony Corporation déclare par ces
présentes que le UTX-B1/UTX-H1/
UTX-P1 est conforme aux exigences
essentielles et aux dispositions
applicables de la Directive 1999/5/CE.
Pour les détails, accédez à l’URL
suivante:
http://www.compliance.sony.de/
Remarque:
Dans certains pays, des bandes de
fréquences additionnelles pourront
être utilisées avec l’accord des
autorités nationales.
Hiermit erklärt Sony Corporation,
dass die vorliegende Einheit UTX-B1/
UTX-H1/UTX-P1 den wesentlichen
Anforderungen und anderen
relevanten Bestimmungen der
Richtlinie 1999/5/EC entspricht. Für
Einzelheiten siehe folgende URL:
http://www.compliance.sony.de/
Hinweis:
In manchen Ländern ist mit
Genehmigung der zuständigen
Behörden u.U. die Nutzung weiterer
Frequenzbänder möglich.
COPY
9
Con questo Sony Corporation dichiara
che questo UTX-B1/UTX-H1/UTX-
P1 è in conformità con i requisiti
essenziali e altri provvedimenti in
materia della Direttiva 1999/5/CE. Per
dettagli, si prega di accedere alla
seguente URL:
http://www.compliance.sony.de/
Nota:
In alcuni paesi possono essere usate
bande di frequenza supplementari con
il permesso delle autorità nazionali.
Sony Corporation declara aquí que
este modelo, UTX-B1/UTX-H1/UTX-
P1, cumple los requisitos esenciales y
demás provisiones pertinentes de la
Directiva 1999/5/EC.Con respecto a
los detalles, realice el acceso a la
URL:
http://www.compliance.sony.de/
Nota:
En algunos países pueden utilizarse
bandas de frecuencia adicionales de
acuerdo con la autoridad nacional.
A Sony Corporation declara que o
modelo UTX-B1/UTX-H1/UTX-P1
está em conformidade com as
exigências essenciais e outras
provisões pertinentes da Directiva
1999/5/EC. Mais informações neste
endereço da Internet:
http://www.compliance.sony.de/
Obs.:
Em alguns países uma faixa adicional
de frequências pode ser utilizada com
autorização do governo nacional.
Sony Corporation verklaart hierbij dat
de UTX-B1/UTX-H1/UTX-P1
voldoet aan de primaire vereisten en
andere relevante voorschriften van de
Europese Bepaling 1999/5/EC. Nadere
bijzonderheden vindt u op de volgende
website:
http://www.compliance.sony.de/
Opmerking:
In bepaalde landen kan er gebruik
gemaakt worden van aanvullende
frequentiebanden, mits toegestaan
door de nationale instanties.
Sony Corporation förkunnar härmed
att denna UTX-B1/UTX-H1/UTX-P1
uppfyller de huvudsakliga kraven och
andra relevanta villkor i direktivet
1999/5/EC. Se följande URL för
närmare detaljer:
http://www.compliance.sony.de/
Observera:
I vissa länder kan det hända att
ytterligare frekvensband används efter
överenskommelse med det landets
myndigheter.
Sony Corporation erklærer herved, at
denne UTX-B1/UTX-H1/UTX-P1 er i
overensstemmelse med de essentielle
krav og andre relevante bestemmelser
i direktiv 1999/5/EC. Åbn venligst den
følgende URL angående detaljer:
http://www.compliance.sony.de/
Bemærk:
I nogle land kan yderligere
frekvensbånd blive anvendt med de
nationale autoriteters samtykke.
COPY
10
Sony Corporation julistaa täten, että
tämä UTX-B1/UTX-H1/UTX-P1
vastaa direktiivin 1999/5/EC
olennaisia vaatimuksia ja muita
asiaankuuluvia määräyksiä. Katso
tarkemmat tiedot osoitteesta:
http://www.compliance.sony.de/
Huom!
Joissakin maissa lisätaajuuskaistoja
voidaan käyttää viranomaisten
suostumuksella.
Note for customers in
Switzerland:
Before use, a request of concession for
a wireless microphone (Frequency
Class 3) has to be submitted to
Bakom.
Note concernant les utilisateurs
en Suisse:
Une demande de concession de
microphone sans fil (fréquence classe
3) doit être présentée au Bakom avant
d’utiliser l’appareil.
Hinweis für Kunden in der
Schweiz:
Vor Inbetriebnahme ist eine
Konzessionsanforderung für ein
drahtloses Mikrofon (Frequenzklasse
3) bei Bakom einzureichen.
Note for customers in Finland:
To own and use, it is necessary to
obtain an individual licence of the
Telecommunications Administration
Center.
Huomautus Suomessa asuville
asiakkaillemme
Omitusta ja käyttöä varten on tarpeen
hankkia henkilökohtainen lupa
tietoliikennehallintokeskuksesta.
Note for customers in
Luxembourg:
Before any use of an equipment, the
frequencies required have to be, if
necessary according to the regulations
in force, assigned prior to usage by the
“ILT”.
Remarque pour les clients au
Luxembourg:
Avant tout emploi de cet appareil, si
nécessaire conformément à la
réglementation en vigueur, les
fréquences requises doivent être
assignées, avant l’usage par le “ILT”.
Hinweis für Kunden in
Luxemburg:
Vor Inbetriebnahme eines Geräts
müssen die Frequenzen
gegebenenfalls nach den geltenden
Vorschriften vor dem Gebrauch von
der „ILT“ zugewiesen werden.
COPY
11
Note for customers in Italy:
The use of this product within Italy is
subject to article 334 of the Postal and
Telecommunications regulations.
Nota per i clienti in Italia:
L’uso del prodotto sul territorio
italiano è soggetto alle
regolamentazioni del Codice Postale e
delle Telecomunicazioni art. 334.
Note for customers in Belgium:
Using the UTX-B1/UTX-H1 with 30
mW RF output power is not allowed.
Be sure to set the RF output power to
5 mW.
The UTX-P1’s RF output power is 50
mW. Using the UTX-P1 in Belgium is
not allowed.
Remarque concernant les
utilisateurs en Belgique:
L’emploi du UTX-B1/UTX-H1 avec
une puissance de sortie RF 30 mW
n’est pas autorisé. Bien régler la
puissance de sortie RF à 5 mW.
La puissance de sortie RF du UTX-P1
est 50 mW. L’emploi du UTX-P1
n’est pas autorisé en Belgique.
Hinweis für Kunden in Belgien:
Verwendung des UTX-B1/UTX-H1
mit 30 mW HF-Ausgangsleistung ist
nicht zulässig. Immer die HF-
Ausgangsleistung auf 5 mW
einstellen.
Die Ausgangsleistung des UTX-P1
beträgt 50 mW. Verwendung des
UTX-P1 in Belgien ist nicht zulässig.
Mededeling voor de klanten in
België:
Het is niet toegestaan de UTX-B1/
UTX-H1 te gebruiken met een RF
uitgangsvermogen van 30 mW. Zorg
dat het RF uitgangsvermogen is
ingesteld op 5 mW.
Het RF uitgangsvermogen van de
UTX-P1 is 50 mW. De UTX-P1 mag
niet in België worden gebruikt.
Note for customers in Norway:
Using this transmitter requires the
Individual License.
Hinweis für Kunden in
Deutschland:
Vor Inbetriebnahme muss bei der
zuständigen Außenstelle der
Regulierungsbehörde (Reg TP) eine
Kanalzuweisung beantragt werden.
Note for customers in Iceland:
Using this transmitter requires the
Individual License.
Note for customers in Sweden:
Using this transmitter requires the
Individual License.
Att observera för kunder i
Sverige:
För att använda denna sändare krävs
Individuell Licens.
COPY
12
For URX-P1, URX-M1, and URX-R1
Tuners
Owner’s Record
The model and serial numbers are
located at the rear or on the side of the
unit. Record the model and serial
numbers in the space provided below.
Refer to these numbers whenever you
call upon your Sony dealer regarding
this product.
Model No. _____________________
Serial No. _____________________
Notice for customers in the
U.S.A.
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
Declaration of Conformity
Trade Name: SONY
Model No.: URX-P1
URX-M1
URX-R1
Responsible Party:
Sony Electronics
Inc.
Address: 16450 W.
Bernardo Dr, San
Diego, CA. 92127
U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15
of the FCC Rules. Operation is
subject to the following two
conditions:
(1) This device may not cause
harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
If you have any questions about this
product, you may call:
Sony Customer Information Service
Center
1-800-222-7669 or http://
www.sony.com/
Notice for customers in Canada:
Use of Sony wireless devices is
regulated by the Industry Canada as
described in their Radio Standard
Specification RSS-123.
A licence is normally required. The
local district office of Industry Canada
should therefore be contacted. When
the operation of the device is within
the broadcast band, the licence is
issued on no-interference, no-
protection basis with respect to
broadcast signals.
Operation of this device is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any
interference, including interference
that may cause undesired operation of
the device.
The term “IC:” before the radio
certification number only signifies that
Industry Canada technical
specifications were met.
Remarque à l’intention des
utilisateurs au Canada:
L’usage des appareils sans fil Sony est
réglementé par l’Industrie Canada
comme décrit dans leur Cahier des
Normes Radioélectriques CNR-123.
Une licence est normalement requise.
Le bureau de l’Industrie Canada doit
être contacté. Lorsque le
fonctionnement de l’appareil respecte
COPY
13
les limites de la bande de
radiodiffusion, la licence est accordée
sur la base d’une non-interférence,
non-protection pour les signaux de
radiodiffusion.
L’utilisation de cet appareil est
soumise aux deux conditions
suivantes: (1) cet appareil ne peut
causer d’interférences, et (2) cet
appareil doit accepter toutes les
interférences, y compris les
interférences capables de provoquer
un fonctionnement non souhaité de
l’appareil.
L’expression <<IC:>> avant le
numéro d’homologation/
enregistrement signifie seulement que
les spécifications techniques de
l’Industrie Canada ont été respectées.
Für Kunden in Deutshland (URX-
P1)
Entsorgungshinweis: Bitte werfen Sie
nur entladene Batterien in die
Sammelboxen beim Handel oder den
Kommunen. Entladen sind Batterien
in der Regel dann, wenn das Gerät
abschaltet und signalisiert “Batterie
leer” oder nach längerer
Gebrauchsdauer der Batterien “nicht
mehr einwandfrei funktioniert”. Um
sicherzugehen, kleben Sie die
Batteriepole z.B. mit einem
Klebestreifen ab oder geben Sie die
Batterien einzeln in einen
Plastikbeutel.
Voor de Klanten in Nederland
(URX-P1)
Gooi de batterij niet weg
maar lever deze in als klein
chemisch afval (KCA).
Notice for customers in Europe
Notification aux clients
européens
Hinweis für die Kunden in
Europa
Avvertenza per gli utilizzatori in
Europa
Aviso para los clientes de
Europa
Nota para utilizadores da
Europa
Mededeling voor de klanten in
Europa
Att observera för kunder i
Europa
Meddelelse til kunderne i
Europa
Huomautus Euroopassa asuville
asiakkaillemme
U.K. 854.125 - 862 MHz
Germany 790 - 814 MHz
Norway 800 - 820 MHz
Luxembourg 800 - 830 MHz,
854.125 - 862 MHz
Belgium 854.125 - 862 MHz
Denmark 800.100 - 819.900
MHz
France 798 - 830 MHz
Italy 800 - 820 MHz
Sweden 800 - 820 MHz
Switzerland 800 - 820 MHz
Finland 800.100 - 819.900
MHz
Iceland 800 - 814 MHz

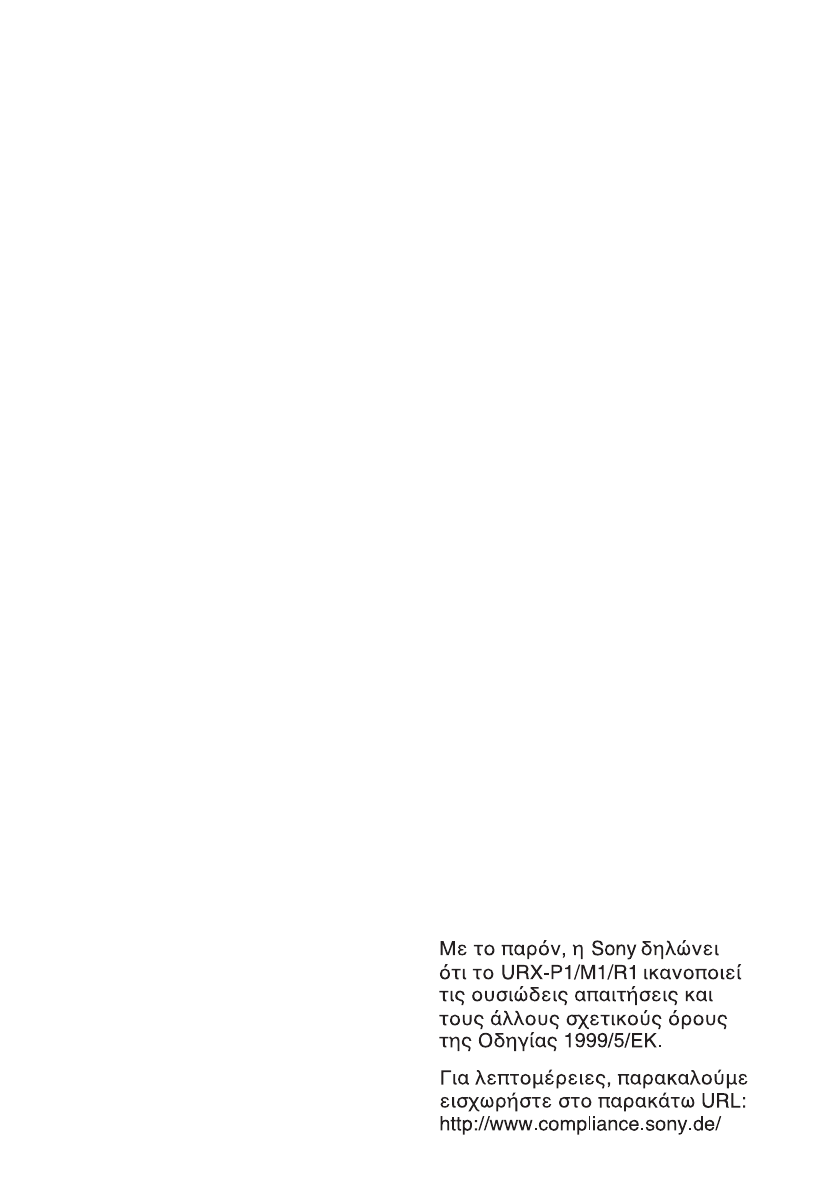

Hereby, Sony Corporation declares
that this URX-P1/M1/R1 is in
compliance with the essential
COPY
14
requirements and other relevant
provisions of Directive 1999/5/EC.
For details, please access the
following URL:
http://www.compliance.sony.de/
Sony Corporation déclare par ces
présentes que le URX-P1/M1/R1 est
conforme aux exigences essentielles et
aux dispositions applicables de la
Directive 1999/5/CE. Pour les détails,
accédez à l’URL suivante:
http://www.compliance.sony.de/
Hiermit erklärt Sony Corporation,
dass die vorliegende Einheit URX-P1/
M1/R1 den wesentlichen
Anforderungen und anderen
relevanten Bestimmungen der
Richtlinie 1999/5/EC entspricht. Für
Einzelheiten siehe folgende URL:
http://www.compliance.sony.de/
Con questo Sony Corporation dichiara
che questo URX-P1/M1/R1 è in
conformità con i requisiti essenziali e
altri provvedimenti in materia della
Direttiva 1999/5/CE. Per dettagli, si
prega di accedere alla seguente URL:
http://www.compliance.sony.de/
Sony Corporation declara aquí que
este modelo, URX-P1/M1/R1 cumple
los requisitos esenciales y demás
provisiones pertinentes de la Directiva
1999/5/EC. Con respecto a los
detalles, realice el acceso a la URL:
http://www.compliance.sony.de/
A Sony Corporation declara pela
presente que o modelo URX-P1/M1/
R1 está em conformidade com as
exigências essenciais e outras
provisões pertinentes da Directiva
1999/5/EC. Mais informações neste
endereço da Internet:
http://www.compliance.sony.de/
Sony Corportion verklaart hierbij dat
de URX-P1/M1/R1 voldoet aan de
primaire vereisten en andere relevante
voorschriften van de Europese
Bepaling 1999/5/EC. Nadere
bijzonderheden vindt u op de volgende
website:
http://www.compliance.sony.de/
Sony Corporation förkunnar härmed
att denna URX-P1/M1/R1 uppfyller
de huvudsakliga kraven och andra
relevanta villkor i direktivet 1999/5/
EC. Se följande URL för närmare
detaljer:
http://www.compliance.sony.de/
Sony Corporation erklærer herved, at
denne URX-P1/M1/R1 er i
overensstemmelse med de essentielle
krav og andre relevante bestemmelser
i direktiv 1999/5/EC. Åbn venligst den
følgende URL angående detaljer:
http://www.compliance.sony.de/
Sony Corporation julistaa täten, että
tämä URX-P1/M1/R1 vastaa
direktiivin 1999/5/EC olennaisia
vaatimuksia ja muita asiaankuuluvia
määräyksiä. Katso tarkemmat tiedot
osoitteesta:
http://www.compliance.sony.de/
COPY
15
Para os clientes no Brasil
O uso dos modulos UWP-C1, S1, X1 e UWP-C2, S2, X2 atende às normas e
resoluções da Anatel, conforme homologação a seguir:
COPY
Table of Contents
16
Table of Contents
Configuration of the
Packages ........................... 17
UWP-C1................................... 17
UWP-C2................................... 18
UWP-C3................................... 19
UWP-S1 ................................... 20
UWP-S2 ................................... 21
UWP-X1 .................................. 22
UWP-X2 .................................. 23
Features .................................. 24
Using the CD-ROM Manual.... 26
CD-ROM system
requirements............................. 26
Preparations ............................. 26
To read the operating
instructions ............................... 26
To read the Sony Wireless
Microphone System Frequency
List ........................................... 26
Precautions............................. 28
Parts Identification ................. 29
Body-pack transmitter
(UTX-B1)................................. 29
Hand-held microphone
(UTX-H1) ................................ 30
Plug-on transmitter
(UTX-P1) ................................. 31
Portable diversity tuner
(URX-P1) ................................. 33

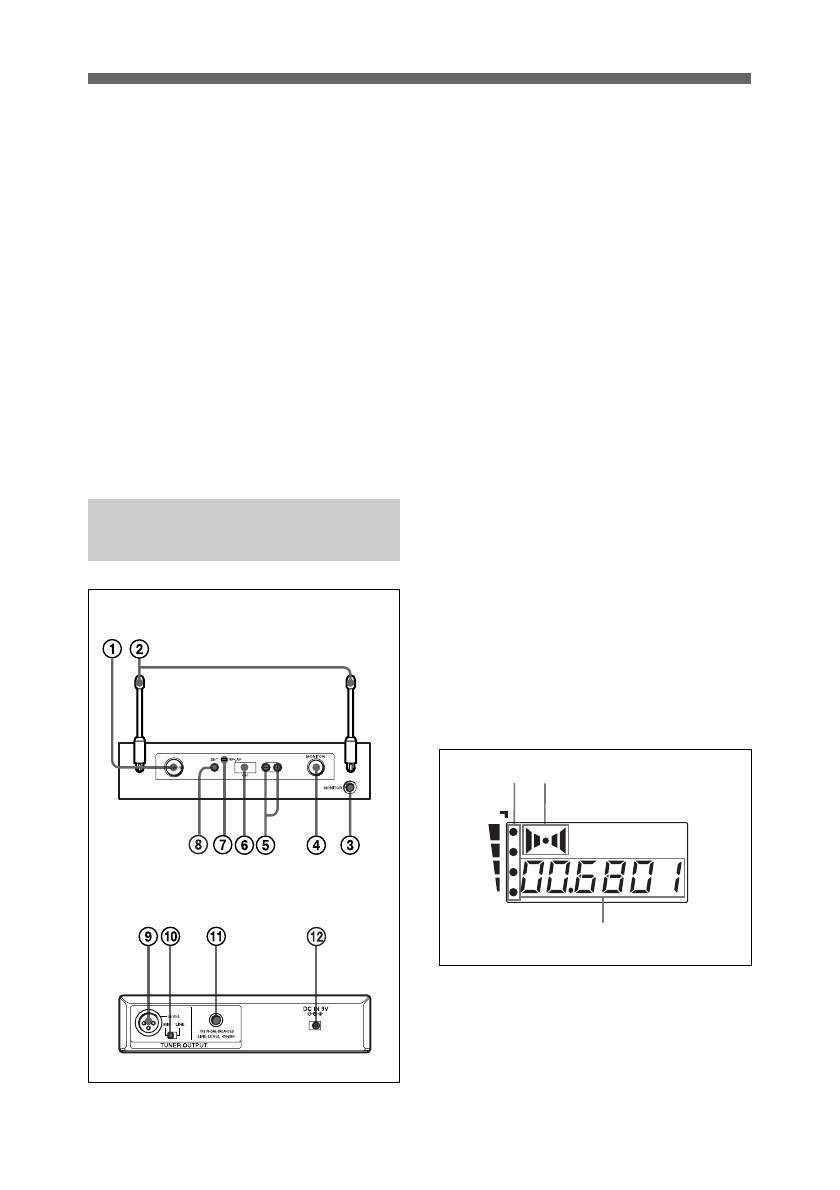

Half-rack size diversity tuner
(URX-R1) ................................ 35
Diversity tuner module
(URX-M1) ............................... 36
Power Supply ......................... 38
Inserting the batteries ............... 38
Attachment and Installation
Procedures ........................ 41

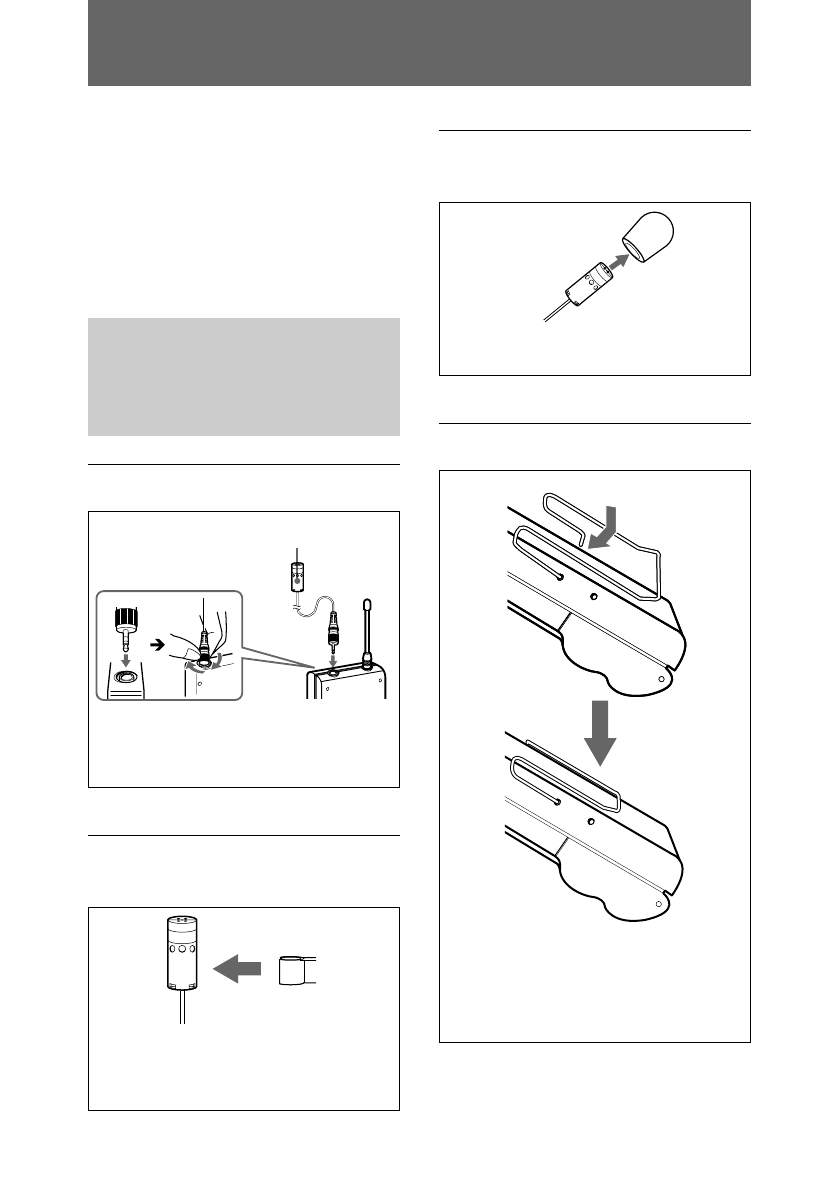

Attaching the supplied
accessories to the body-pack
transmitter (UTX-B1) .............. 41
Attaching the supplied accessory
to the hand-held microphone
(UTX-H1) ................................ 42
Inserting the plug-on transmitter
(UTX-P1) into the supplied soft
case........................................... 42
Attaching optional accessory
to the plug-on transmitter
(UTX-P1) ................................. 43
Attaching the supplied
accessories to the portable
diversity tuner (URX-P1)......... 43

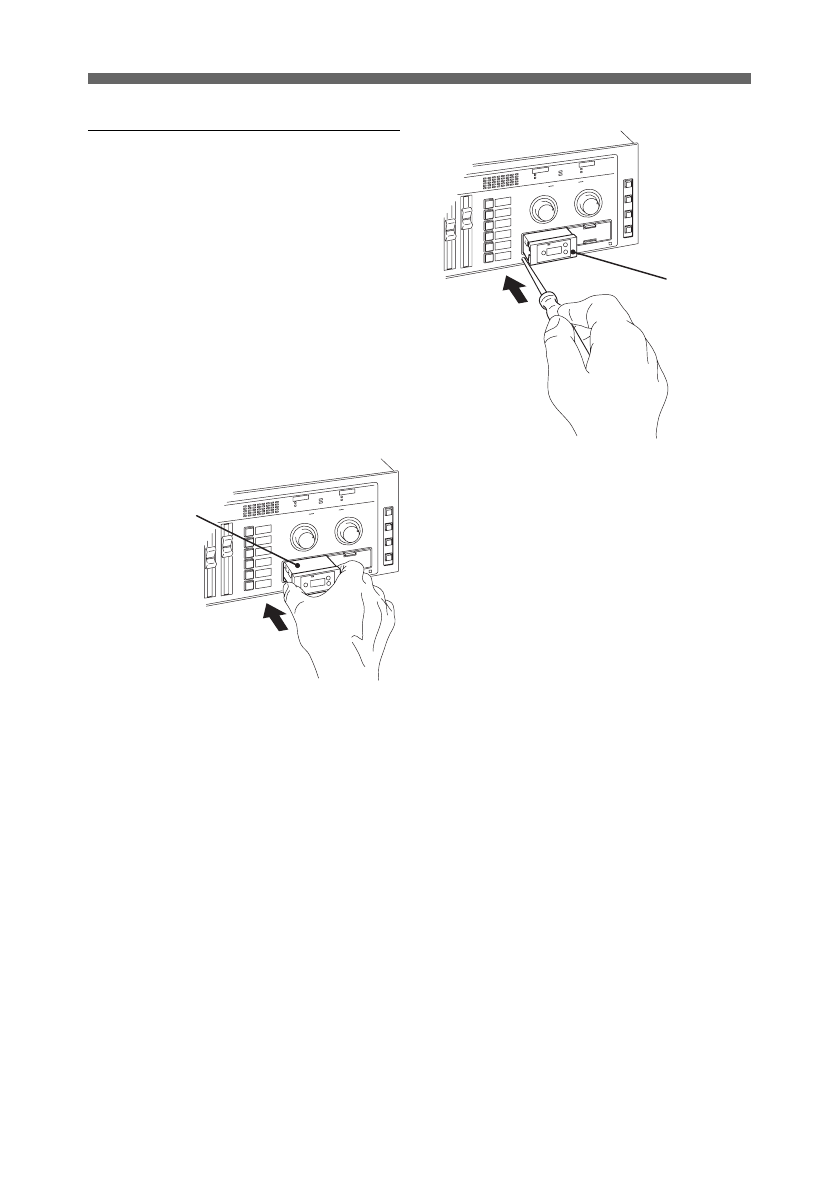

Installing the diversity tuner
module (URX-M1) .................. 44
Settings ................................... 47
Setting the transmission
channel ..................................... 47
Setting the reception channel ... 48
Detecting and selecting the
available channels automatically
(diversity tuner module
(URX-M1) only) ...................... 50

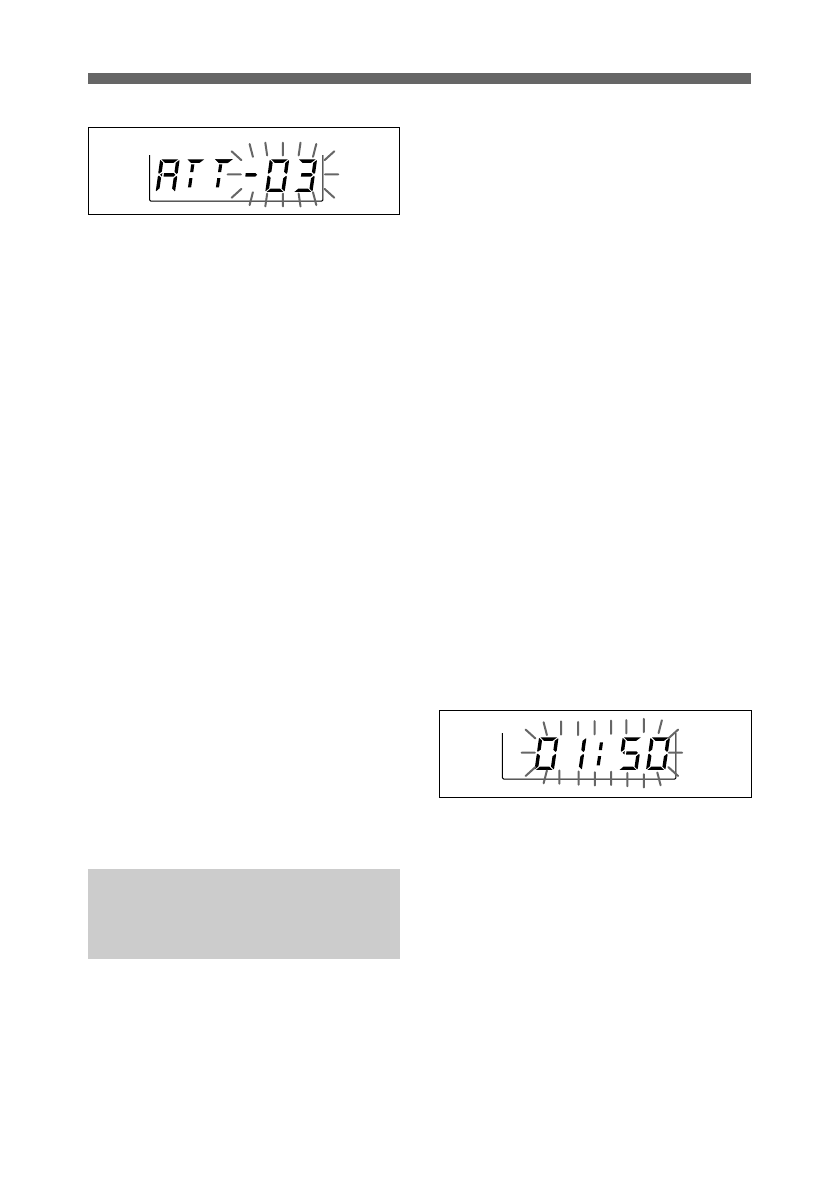

Setting the attenuation level
of the audio input ..................... 50
Resetting the accumulated
battery use time indication ....... 51
Setting the RF output level ...... 52
Setting the monitor level
(portable diversity tuner
(URX-P1) only) ....................... 52
Operation ................................ 53
System Configurations .......... 54

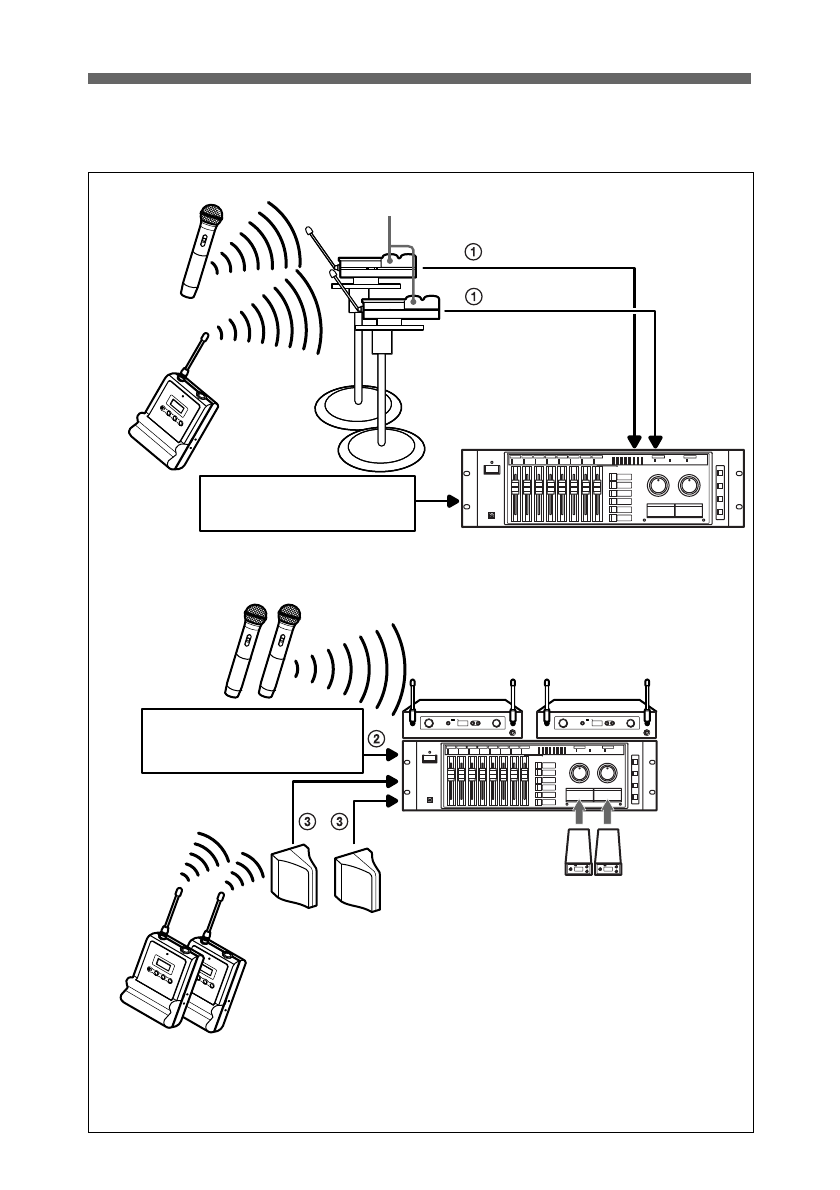

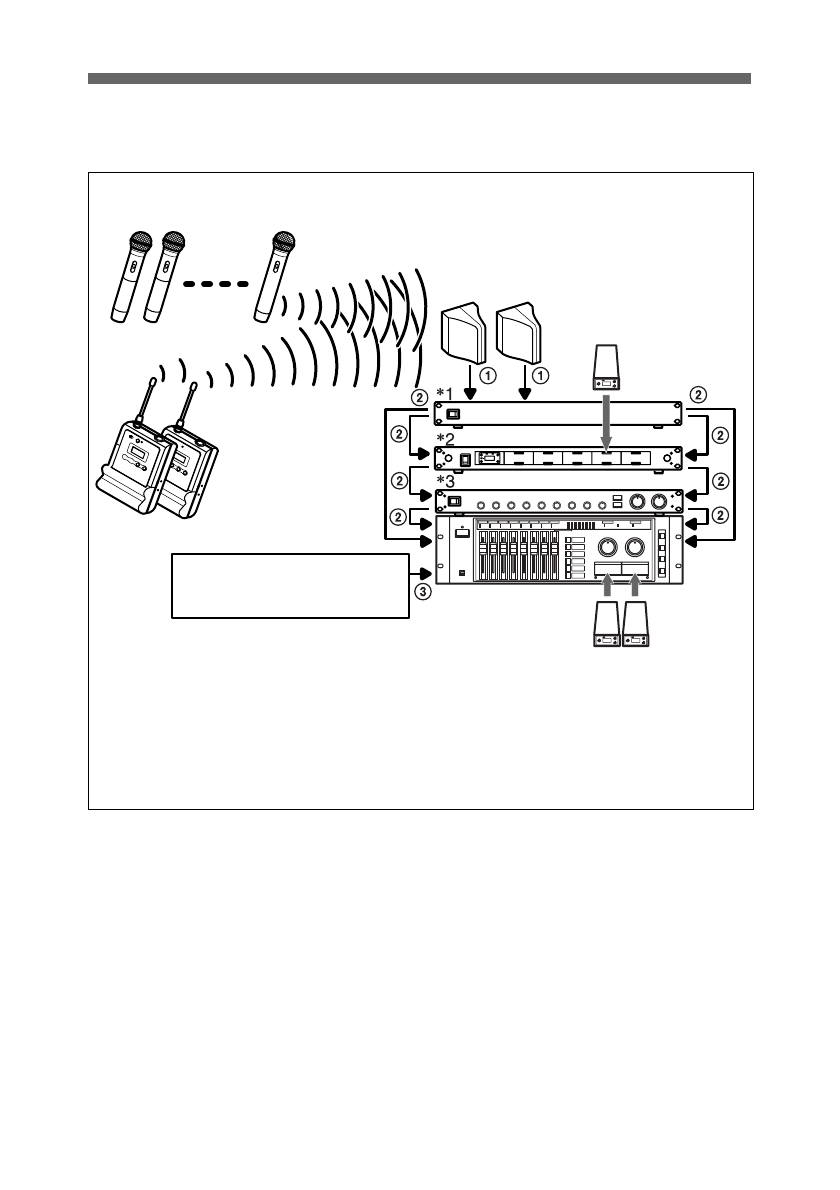

Configuration examples of the
UWP-C1/C2/S1/S2/X1/X2 ...... 54
Configuration example of the
UWP-C3................................... 57
Error Messages ...................... 58
Troubleshooting ..................... 59

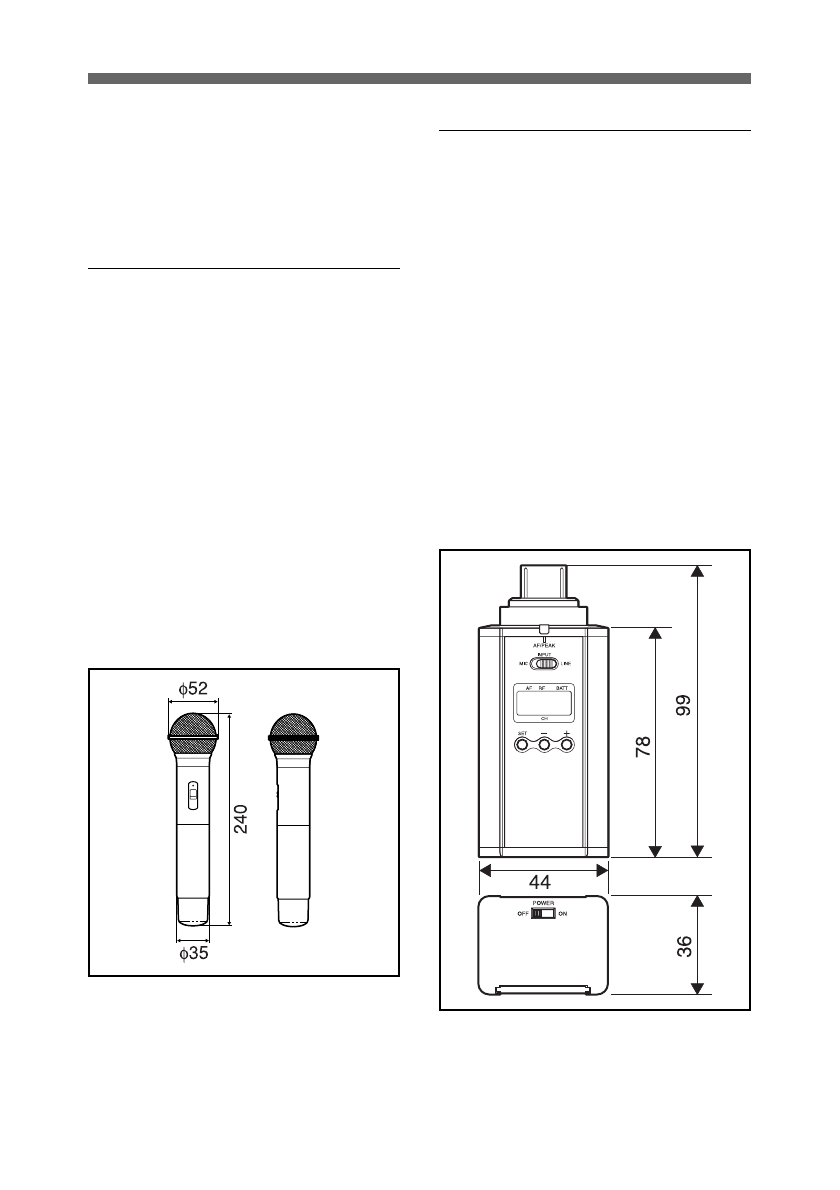

Specifications ......................... 61
COPY
17
Configuration of the Packages
This operation manual is for the UWP-C1/C2/C3/S1/S2/X1/X2
wireless microphone packages. The contents of each package
are described below.

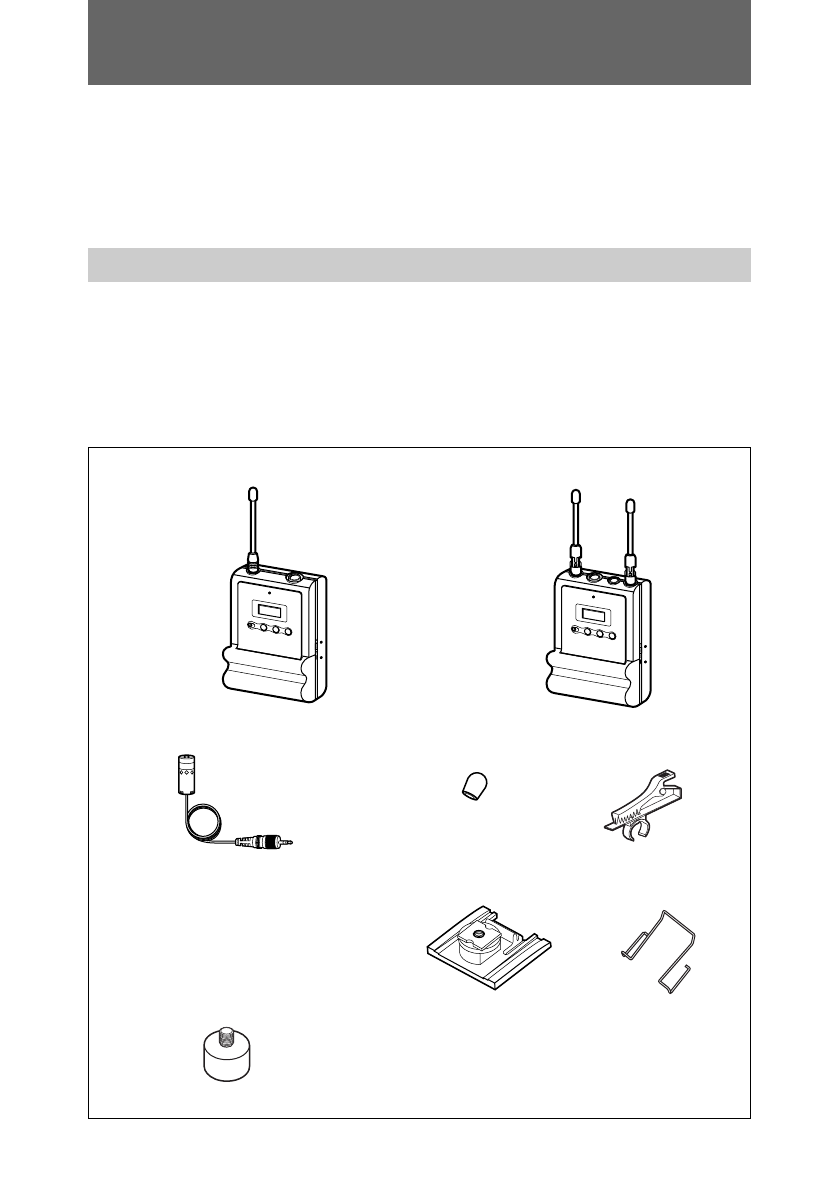

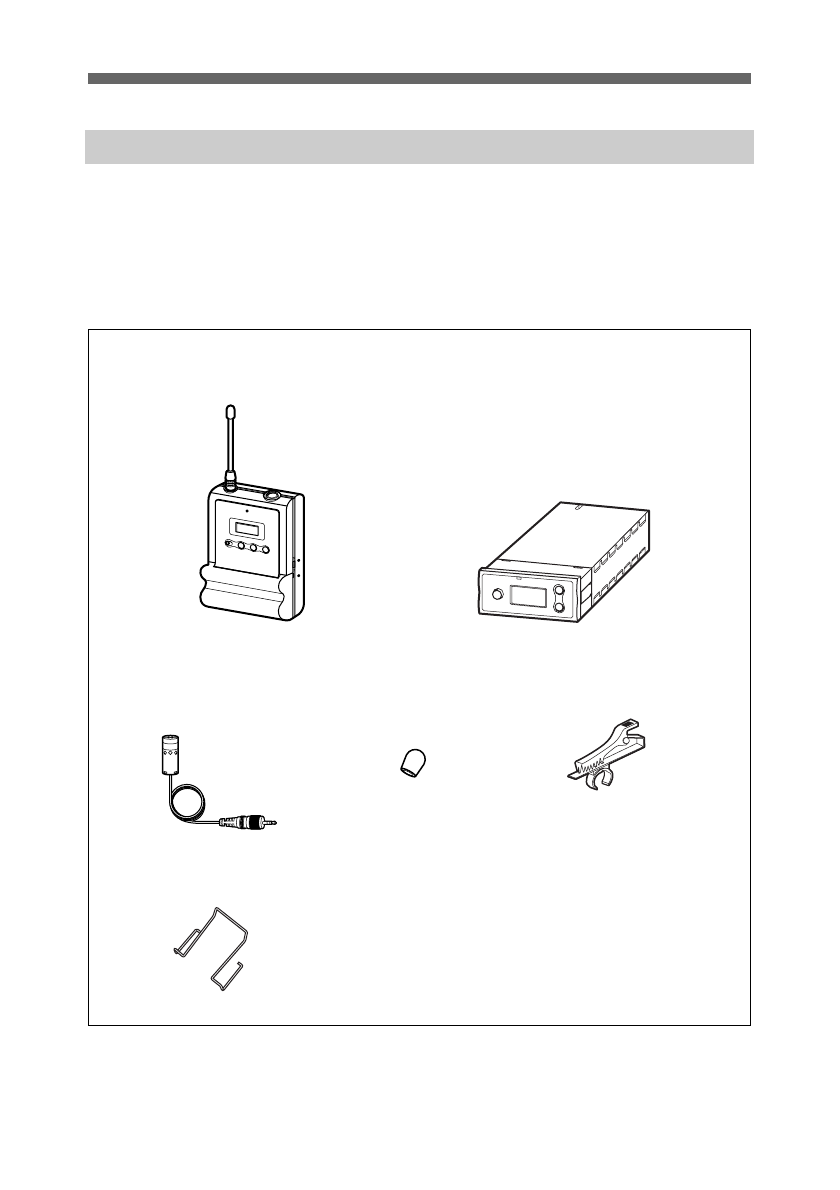

UWP-C1
The UWP-C1 consists of a body-pack transmitter (UTX-B1)
and a portable diversity tuner (URX-P1). When used in
conjunction with a compact camcorder, the UWP-C1 makes a
mobile system for ENG (Electronic News Gathering) or EFP
(Electronic Field Production) purposes.
Body-pack transmitter
(UTX-B1) (1) Portable diversity tuner
(URX-P1) (1)
Supplied accessories
•Omni-directional lavalier microphone
(1) •Wind screen (1)
•XLR-BMP conversion cable (1)
•Holder clip (1)
•Shoe mount adapter (1) •Belt clip (2)
•Microphone stand adapter (1) • Operation manual (1)
•CD-ROM (1) (for U62, U66, CE62, and CE67
models)
•Sony Wireless Microphone System Frequency
List (1) (for AU66 and CE67 models)
•Warranty card (1) (for U62 and U66 models)
•Stereo mini plug-BMP conversion
cable (1)
COPY
Configuration of the Packages
18

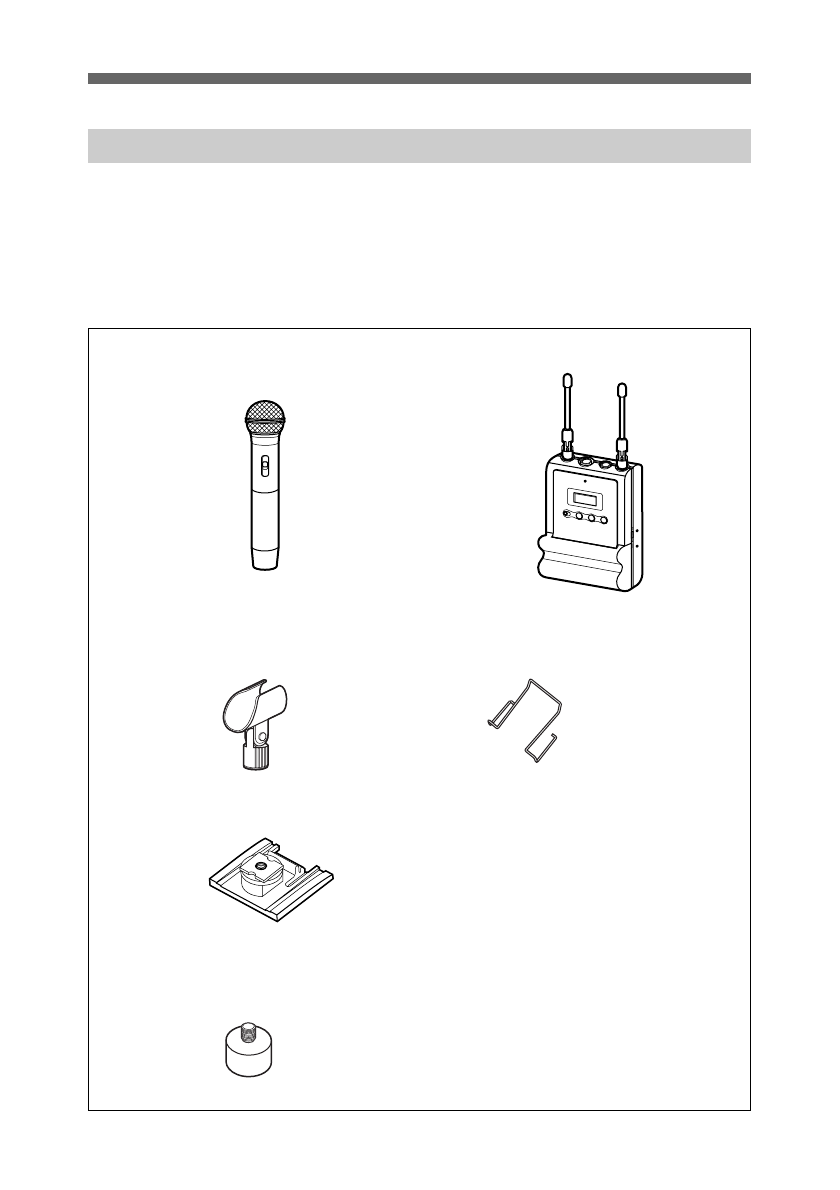

UWP-C2
The UWP-C2 consists of a hand-held microphone (UTX-H1)
and a portable diversity tuner (URX-P1). When used in
conjunction with a compact camcorder, the UWP-C2 makes a
mobile system for ENG (Electronic News Gathering) or EFP
(Electronic Field Production) purposes.
Hand-held microphone
(UTX-H1) (1) Portable diversity tuner
(URX-P1) (1)
Supplied accessories
•Microphone holder (1) • Belt clip (1)
•Shoe mount adapter (1) •XLR-BMP conversion cable (1)
•Microphone stand adapter (1) •Operation manual (1)
•CD-ROM (1) (for U62, U66, CE62, and CE67 models)
•Sony Wireless Microphone System Frequency List (1)
(for AU66 and CE67 models)
•Warranty card (1) (for CE62 and U66 models)
•Stereo mini plug-BMP conversion cable (1)
COPY
19
UWP-C3

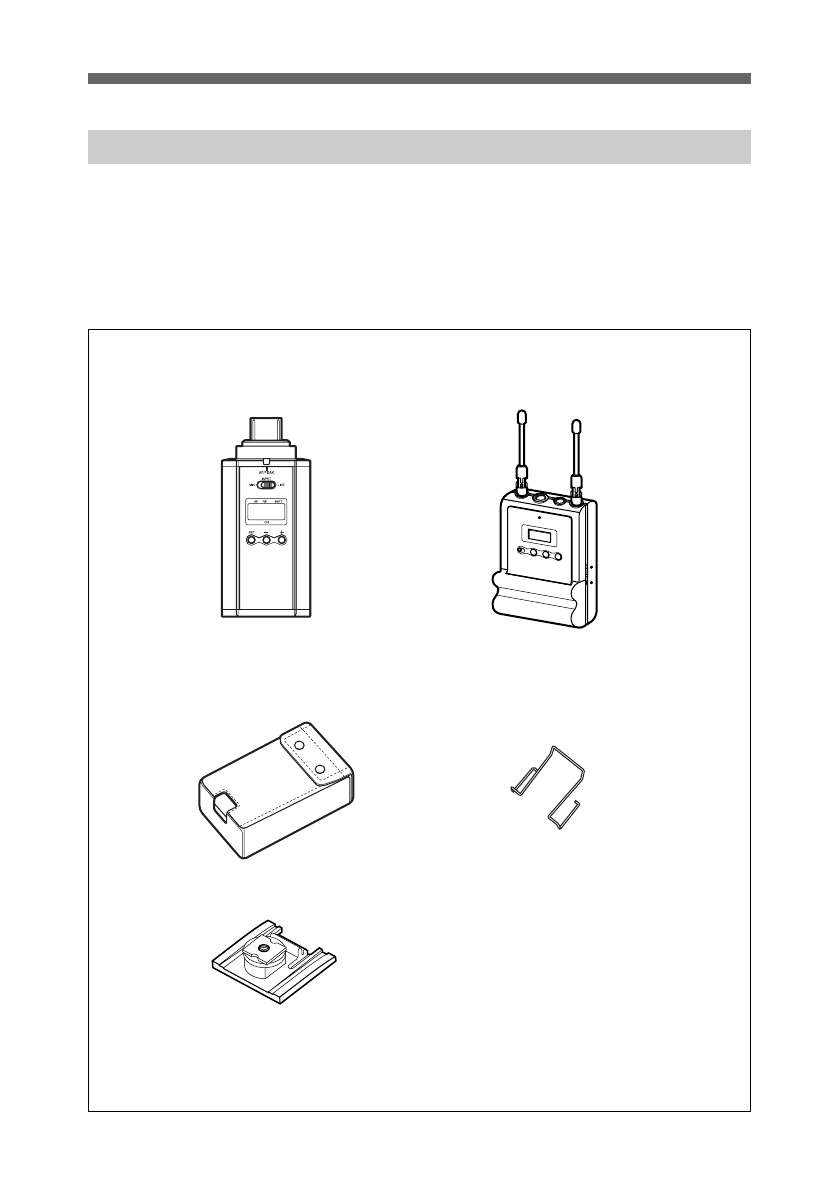

The UWP-C3 consists of a plug-on transmitter (UTX-P1) and a
portable diversity tuner (URX-P1). When used in conjunction
with a compact camcorder, the UWP-C3 makes a mobile
system for ENG (Electronic News Gathering) or EFP
(Electronic Field Production) purposes.
Plug-on transmitter
(UTX-P1) (1) Portable diversity tuner
(URX-P1) (1)
Supplied accessories
•Soft case (1) • Belt clip (1)
•Shoe mount adapter (1) •XLR-BMP conversion cable (1)
•Operation manual (1)
•CD-ROM (1) (for U62, U66, CE62, and CE67 models)
•Sony Wireless Microphone System Frequency List (1) (for CE67 model)
•Warranty card (1) (for U62 and U66 models)
•Stereo mini plug-BMP conversion cable (1)
COPY
Configuration of the Packages
20
UWP-S1
The UWP-S1 consists of a body-pack transmitter (UTX-B1)
and a half-rack size diversity tuner (URX-R1). The UWP-S1 is
suitable for constructing a wireless system for AV
presentations.
Body-pack transmitter
(UTX-B1) (1) Half-rack size diversity tuner
(URX-R1) (1)
Supplied accessories
•Unidirectional lavalier
microphone (1) •Wind screen (1) •Holder clip (1)
•AC adapter (1) • Belt clip (1) •Operation manual (1)
•CD-ROM (1) (for U62, U66,
CE62, and CE67 models)
•Sony Wireless Microphone
System Frequency List (1)
(for AU66 and CE67 models)
•Warranty card (1) (for U62
and U66 models)
–AC-S906T (for U62 and U66
models)
–AC-S906 (for CE62 model)
–AC-S911 (for CE67 model)
–AC-X1 (for AU66 model)
COPY
21

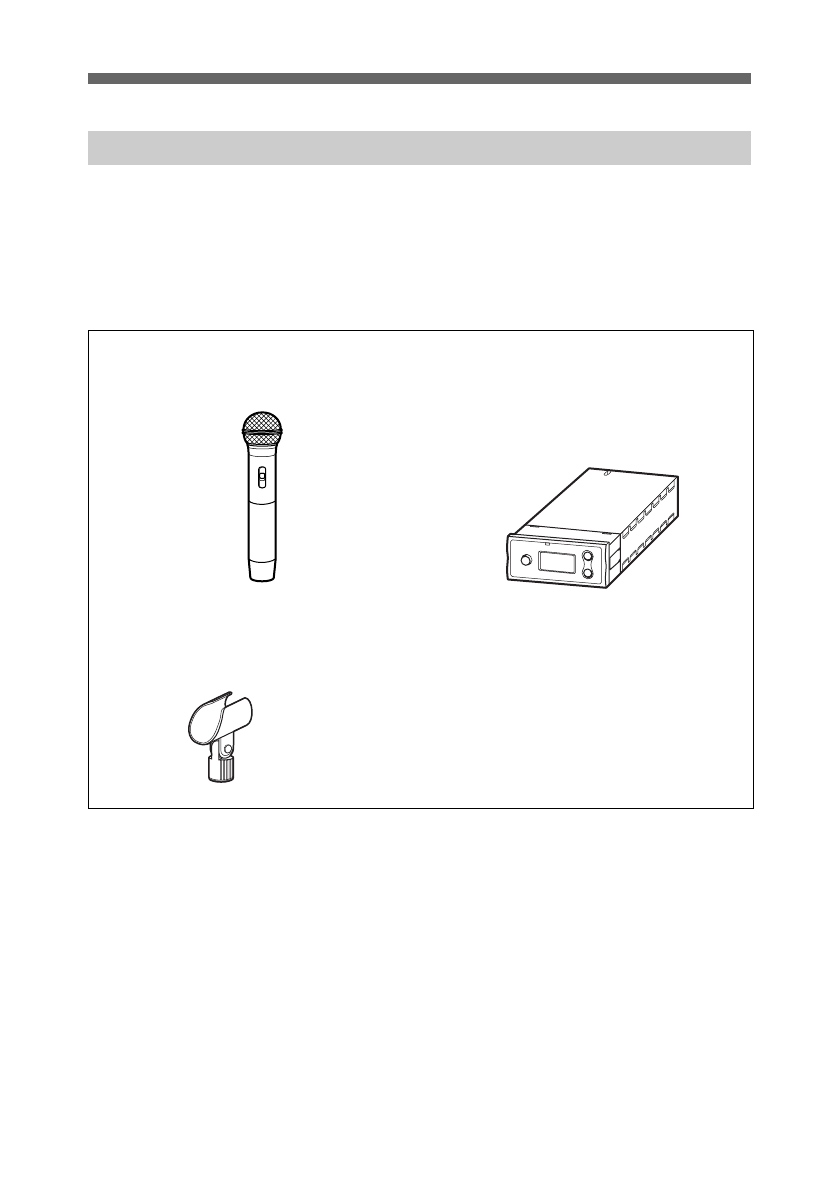

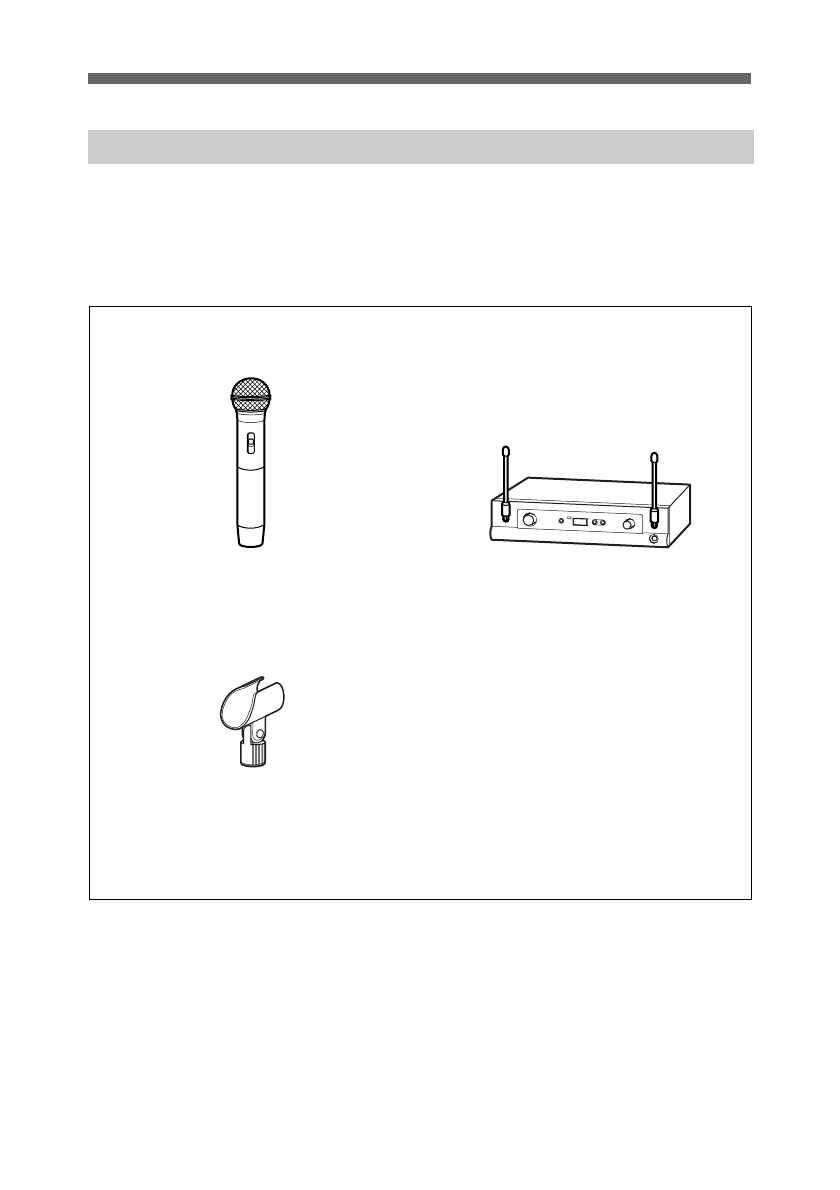

UWP-S2
The UWP-S2 consists of a hand-held microphone (UTX-H1)
and a half-rack size diversity tuner (URX-R1). The UWP-S2 is
suitable for constructing a wireless system for AV
presentations.
Hand-held microphone
(UTX-H1) (1) Half-rack size diversity tuner
(URX-R1) (1)
Supplied accessories
•Microphone holder (1) • AC adapter (1)
•Operation manual (1)
•CD-ROM (1) (for U62, U66, CE62, and CE67 models)
•Sony Wireless Microphone System Frequency List (1) (for AU66 and CE67 models)
•Warranty card (1) (for U62 and U66 models)
–AC-S906T (for U62 and U66 models)
–AC-S906 (for CE62 model)
–AC-S911 (for CE67 model)
–AC-X1 (for AU66 model)
COPY
Configuration of the Packages
22
UWP-X1
The UWP-X1 consists of a body-pack transmitter (UTX-B1)
and a diversity tuner module (URX-M1). By installing the tuner
module into a tuner base unit or a powered mixer, the system
construction to meet the desired purpose of use and required
system scale becomes possible.
Body-pack transmitter
(UTX-B1) (1) Diversity tuner module
(URX-M1) (1)
Supplied accessories
•Unidirectional lavalier
microphone (1) •Wind screen (1) • Holder clip (1)
•Belt clip (1) •Operation manual (1)
•CD-ROM (1) (for U62, U66, CE62, and CE67 models)
•Sony Wireless Microphone System Frequency List (1)
(for AU66 and CE67 models)
•Warranty card (1) (for U62 and U66 models)
COPY
23
UWP-X2
The UWP-X2 consists of a hand-held microphone (UTX-H1)
and a diversity tuner module (URX-M1) . By installing the
tuner module into a tuner base unit or a powered mixer, the
system construction to meet the desired purpose of use and
required system scale becomes possible.
Hand-held microphone
(UTX-H1) (1) Diversity tuner module
(URX-M1) (1)
Supplied accessories
•Microphone holder (1) •Operation manual (1)
•CD-ROM (1) (for U62, U66, CE62, and CE67 models)
•Sony Wireless Microphone System Frequency List (1)
(for AU66 and CE67 models)
•Warranty card (1) (for U62 and U66 models)
COPY
Features
24
Features
Each of the UWP-C1/C2/C3/S1/S2/
X1/X2 wireless microphone packages
(referred to as the UWP series
hereafter) combines a transmitter
(body-pack transmitter (UTX-B1),
hand-held microphone (UTX-H1), or
plug-on transmitter (UTX-P1)) and a
receiver (portable diversity tuner
(URX-P1), half-rack size diversity
tuner (URX-R1), or diversity tuner
module (URX-M1)). The UWP series
can be used with a compact camcorder
for ENG (Electronic News Gathering)
purposes, and with a powered mixer
for AV presentations or as a PA
(public address) system.
Note
The UWP series is not compatible
with conventional WRT series
transmitters, WRR series tuners, or
WRU series tuner units.
The features of each package are
described below.
UWP-C1
Body-pack transmitter (UTX-B1)
This is a small and lightweight
transmitter with a crystal-controlled
PLL (phase lock loop) synthesized
system and a BMP-type microphone
input connector. The RF power output
can be set at 30 mW or at 5 mW.
Portable diversity tuner
(URX-P1)
This tuner employs a space diversity
system with little signal dropout and
two angle-adjustable antennas. It
comes with an adapter for mounting
the tuner on the compact camcorder
(DSR-PD170/PD170P, HVR-Z1, etc.).
UWP-C2
Hand-held microphone (UTX-H1)
This microphone is equipped with a
built-in antenna and a unidirectional
dynamic microphone unit. The RF
power output can be set at 30 mW or
at 5 mW.
Portable diversity tuner
(URX-P1)
This tuner employs a space diversity
system with little signal dropout and
two angle-adjustable antennas. It
comes with an adapter for mounting
the tuner on the compact camcorder
(DSR-PD170/PD170P, HVR-Z1, etc.).
UWP-C3
Plug-on transmitter (UTX-P1)
This is a small and lightweight plug-
on transmitter with a crystal-
controlled PLL (phase lock loop)
synthesized system and an XLR-type
microphone input connector. The RF
power output is set at 50 mW.
COPY
25
Portable diversity tuner (URX-
P1)
This tuner employs a space diversity
system with little signal dropout and
two angle-adjustable antennas. It
comes with an adapter for mounting
the tuner on the compact camcorder
(DSR-PD170/PD170P, HVR-Z1, etc.).
UWP-S1
Body-pack transmitter (UTX-B1)
This is a small and lightweight
transmitter with a crystal-controlled
PLL (phase lock loop) synthesized
system and a BMP-type microphone
input connector. The RF power output
can be set at 30 mW or at 5 mW.
Half-rack size diversity tuner
(URX-R1)
This tuner employs a space diversity
system with little signal dropout and
two angle-adjustable antennas. It
comes with two types of audio
connectors (1/4-inch jack and XLR
type) on the rear panel.
UWP-S2
Hand-held microphone (UTX-H1)
This microphone is equipped with a
built-in antenna and a unidirectional
dynamic microphone unit. The RF
power output can be set at 30 mW or
at 5 mW.
Half-rack size diversity tuner
(URX-R1)
This tuner employs a space diversity
system with little signal dropout and
two angle-adjustable antennas. It
comes with two types of audio
connectors (1/4-inch jack and XLR
type) on the rear panel.
UWP-X1
Body-pack transmitter (UTX-B1)
This is a small and lightweight
transmitter with a crystal-controlled
PLL (phase lock loop) synthesized
system and a BMP-type microphone
input connector. The RF power output
can be set at 30 mW or at 5 mW.
Diversity tuner module
(URX-M1)

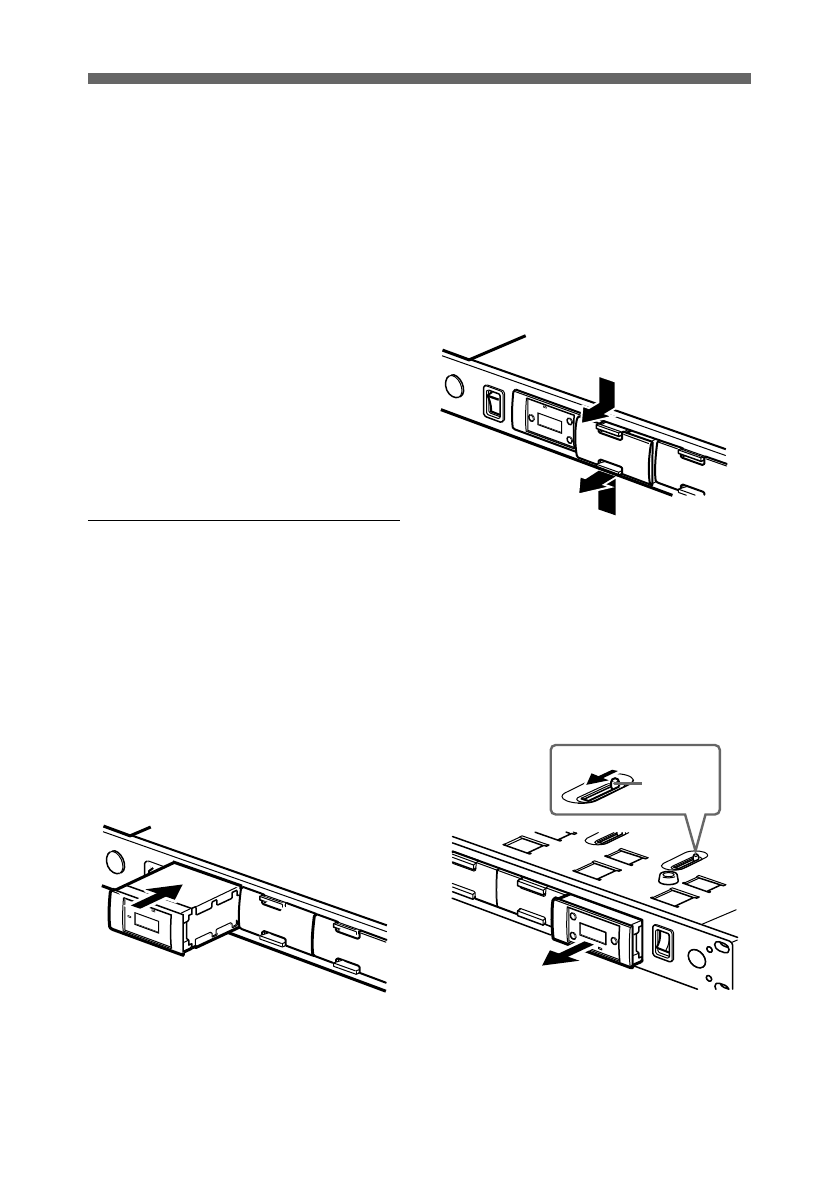

This tuner module can be incorporated
into the MB-806A Tuner Base Unit or
SRP-X500P/X700P Powered Mixer.
UWP-X2
Hand-held microphone (UTX-H1)
This microphone is equipped with a
built-in antenna and a unidirectional
dynamic microphone unit. The RF
power output can be set at 30 mW or
at 5 mW.
Diversity tuner module
(URX-M1)
This tuner module can be incorporated
into the MB-806A Tuner Base Unit or
SRP-X500P/X700P Powered Mixer.
COPY
Using the CD-ROM Manual
26
Using the CD-ROM Manual
The supplied CD-ROM includes
operating instructions for the UWP
series wireless microphone packages
(English, Japanese, French, German,
Italian, and Spanish versions) and
Sony Wireless Microphone System
Frequency Lists (English, French,
German, and Spanish versions).
CD-ROM system
requirements
The following are required to access
the supplied CD-ROM disc.
•Computer: PC with Intel Pentium
CPU
— Installed memory: 64 MB or more
—CD-ROM drive: ×8 or faster
•Monitor: Monitor supporting
resolution of 800 × 600 or higher
•Operating system: Microsoft
Windows XP Professional or
Windows XP Home Edition
When these requirements are not met,
access to the CD-ROM disc may be
slow, or not possible at all.
Preparations
One of the following programs must
be installed on your computer in order
to use the operating instructions
contained on the CD-ROM disc.
•Adobe Acrobat Reader Version 4.0
or higher
•Adobe Reader Version 6.0 or higher
Note
If Adobe Reader is not installed, you
can download it from the following
URL:
http://www.adobe.com/
To read the operating
instructions
To read the operating instructions
contained in the CD-ROM disc, do the
following.
1Insert the CD-ROM disc in your
CD-ROM drive.
A cover page appears
automatically in your browser.
If it does not appear automatically
in the browser, open My
Computer, access the CD-ROM
drive, and double-click the
index.htm file.
2Select and click the operating
instructions that you want to read.
A PDF file of the operating
instructions opens.
To read the Sony
Wireless Microphone
System Frequency List
The frequency lists for U62 and U66
models (for the U.S.A.) and CE62 and
CE67 models (for Europe) are
contained in the CD-ROM disc. To
read the frequency lists, do the
following.
COPY
27
1Insert the CD-ROM disc in your
CD-ROM drive.
A cover page appears
automatically in your browser.
2Select and click the frequency list
that you want to read.
A PDF file of the frequency list
opens.
Note
If you lose the CD-ROM disc or
become unable to read its content, you
can purchase a new CD-ROM disc to
replace one that has been lost or
damaged. Contact your Sony service
representative.
Trademarks
•Intel and Pentium are registered
trademarks of Intel Corporation or its
subsidiaries in the United States and
other countries.
•Microsoft and Windows are
registered trademarks of Microsoft
Corporation in the United States and/
or other countries.
•Adobe, Acrobat, and Adobe Reader
are trademarks of Adobe Systems
Incorporated in the United States
and/or other countries.
COPY
Precautions
28
Precautions
•The UWP series product must be
used within a temperature range of
0°C to 40°C (32°F to 104°F).
•Operating the UWP series product
near electrical equipment (motors,
transformers, or dimmers) may cause
it to be affected by electromagnetic
induction. Keep the UWP series
product as far from such equipment
as possible.
•The presence of the lighting
equipment may produce electrical
interference over the entire
frequency range. Position the UWP
series product so that interference is
minimized.
•To avoid degradation of the signal-
to-noise ratio, do not use the UWP
series product in noisy places or in
locations subject to vibration, such as
the following:
—near electrical equipment, such as
motors, transformers or dimmers
—near air conditioning equipment
or places subject to direct air
flow from an air conditioner
—near public address loudspeakers
—where adjacent equipment might
knock against the tuner
Keep the UWP series product as far
from such equipment as possible or
use buffering material.
•Clean the surface and the connectors
of the UWP series product with a
dry, soft cloth. Never use thinner,
benzene, alcohol or any other
chemicals, since these may mar the
finish.
To prevent electromagnetic
interference from portable
communication devices
The use of portable telephones and
other communication devices near
the UWP series product may result
in malfunction and interference with
audio signals. It is recommended
that portable communication
devices near the UWP series
product be turned off.
COPY
29

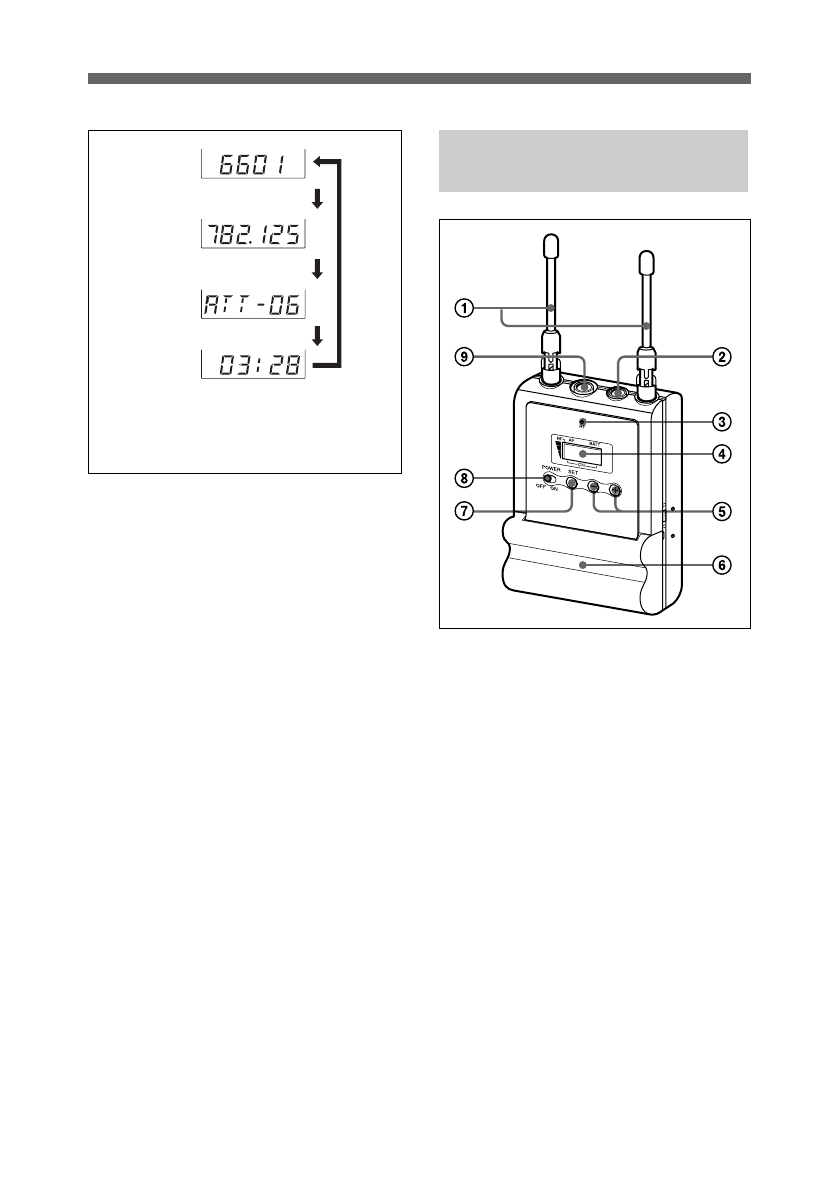

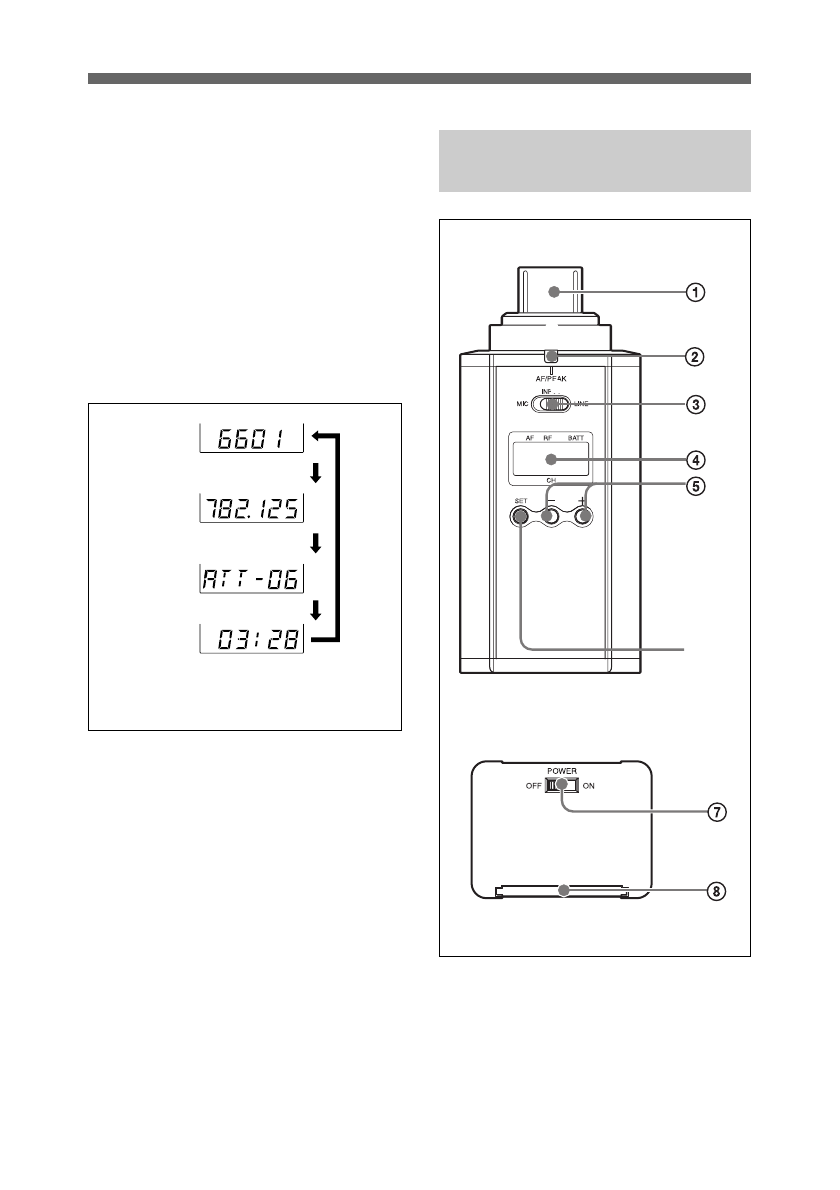

Transmission
channel
Transmission
frequency
Attenuation
level of the
input signal
Accumulated
battery use
time
Press
the
SET
button.
The channel/frequency indications for
U66 model are shown.

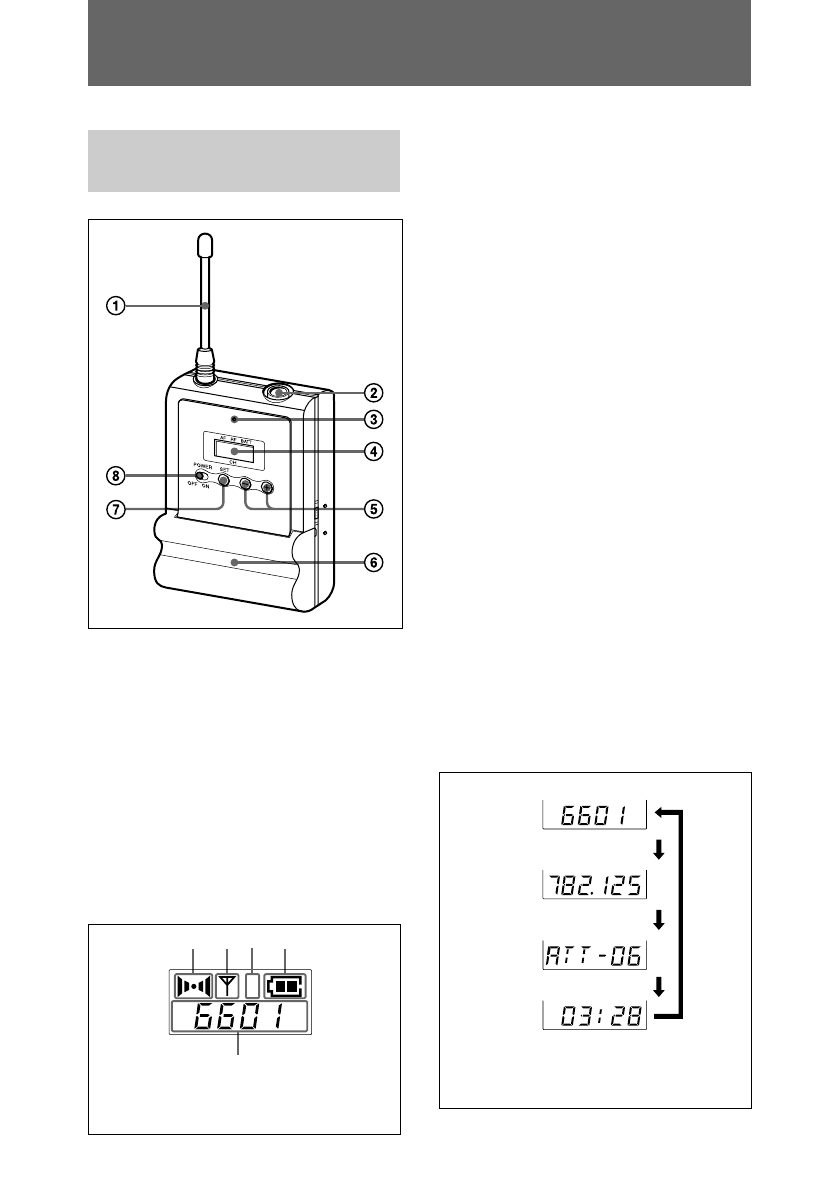

Parts Identification

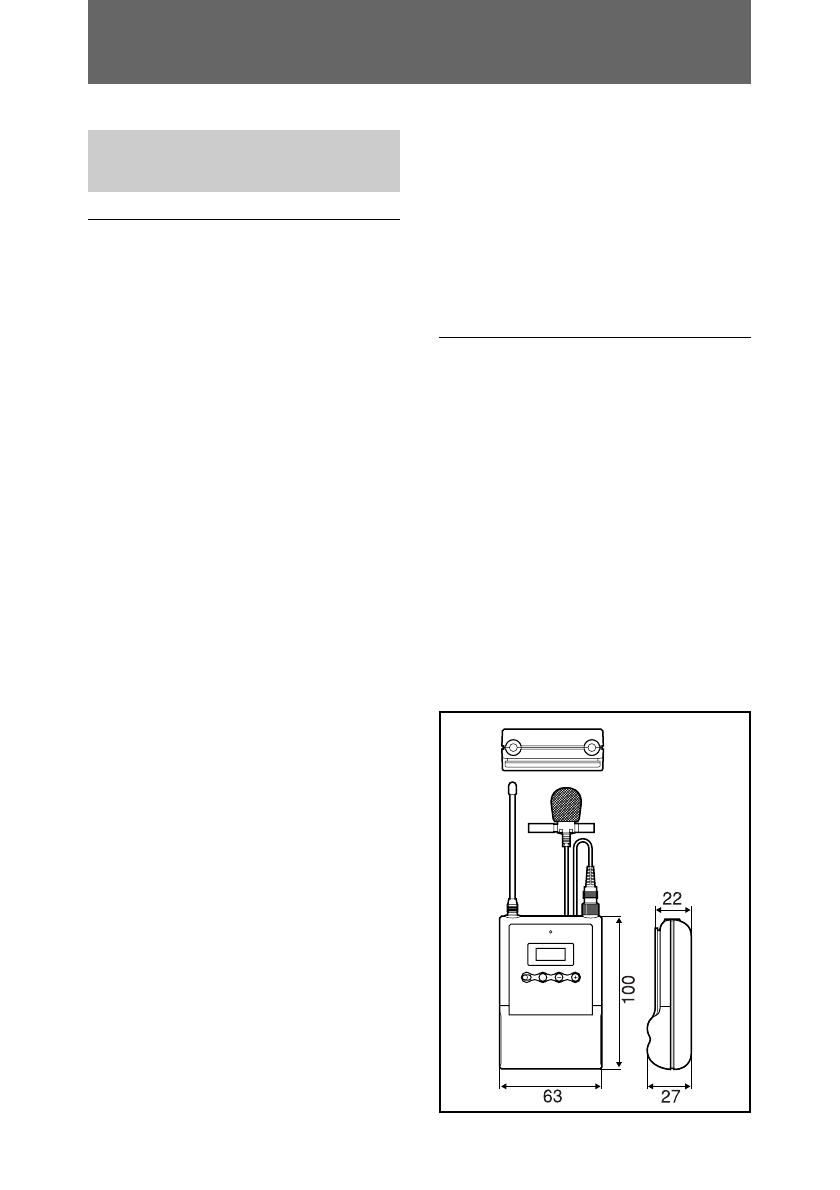

Body-pack transmitter
(UTX-B1)
1 Antenna
2 Audio input connector
Connect the supplied lavalier
microphone here.
3 Power indicator
Lights up red when the transmitter is
tuned on.

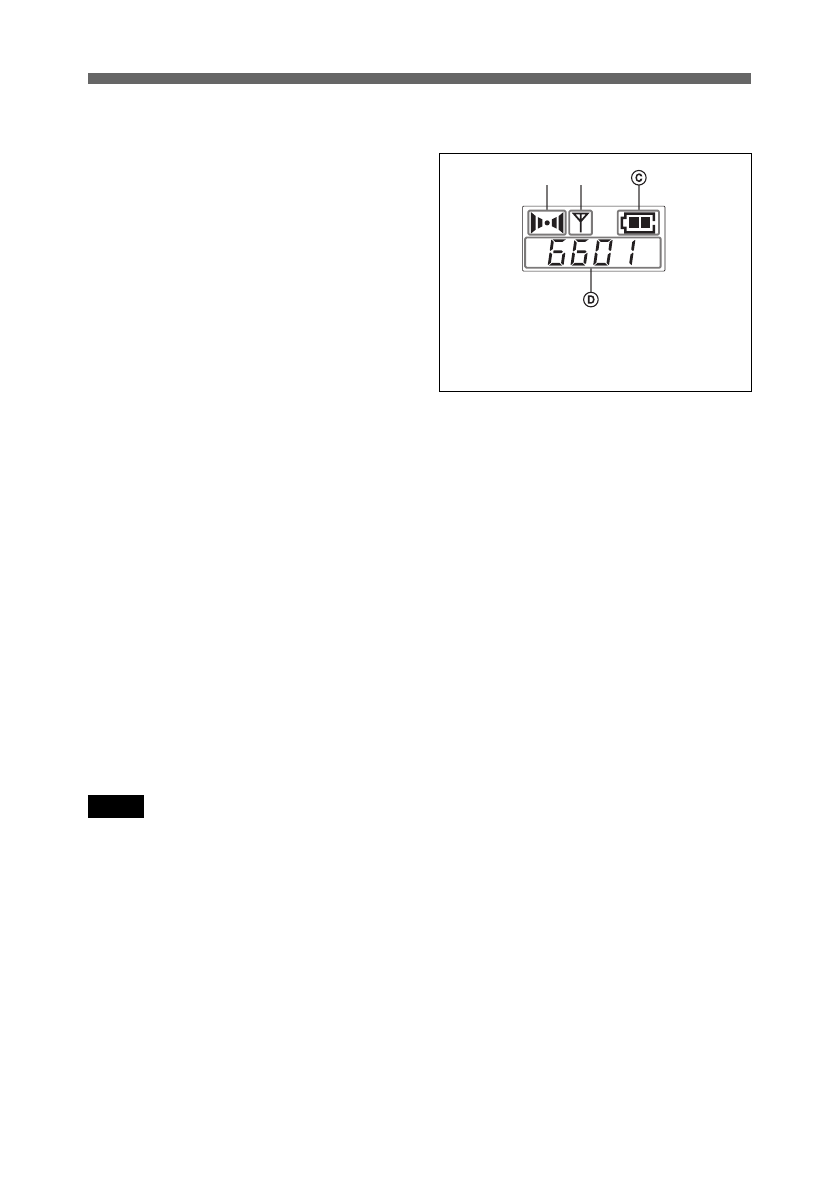

4 Display section
A AF (audio frequency) indication
Appears whenever the input audio
signal is stronger than the reference
level.
B RF (radio frequency) indication
Appears during signal transmission
from the antenna.
C RF (radio frequency) level
indication
Shows the RF output level setting.
For details, see “Setting the RF output
level” on page 52.
D BATT (battery) indication
Shows the battery condition.
For details, see “Power Supply” on
page 38.
E CH (channel) indication
Shows the transmission channel. Each
time you press the SET button in
transmission mode, the channel
indication changes as follows.
For details, see “Settings” on page
47.
ABD
E
AF RF
CH
BATT
C
H
L
The E channel indication for
U66 model is shown.
COPY
Parts Identification
30
5 + (+ selection) / – (– selection/
reset) buttons
Press these buttons to set the
transmission channel, frequency, or
attenuation level of the input signal.
The “–” button resets the accumulated
battery use time to “00:00”.
6 Battery compartment
Accommodates two LR6 (size AA)
alkaline batteries.
For details on how to insert the
batteries, see “Power Supply” on
page 38.
7 SET button
Press to change and enter display
parameters.
For details, see “Settings” on page
47.
8 POWER switch
Turns the power of the transmitter ON
or OFF.

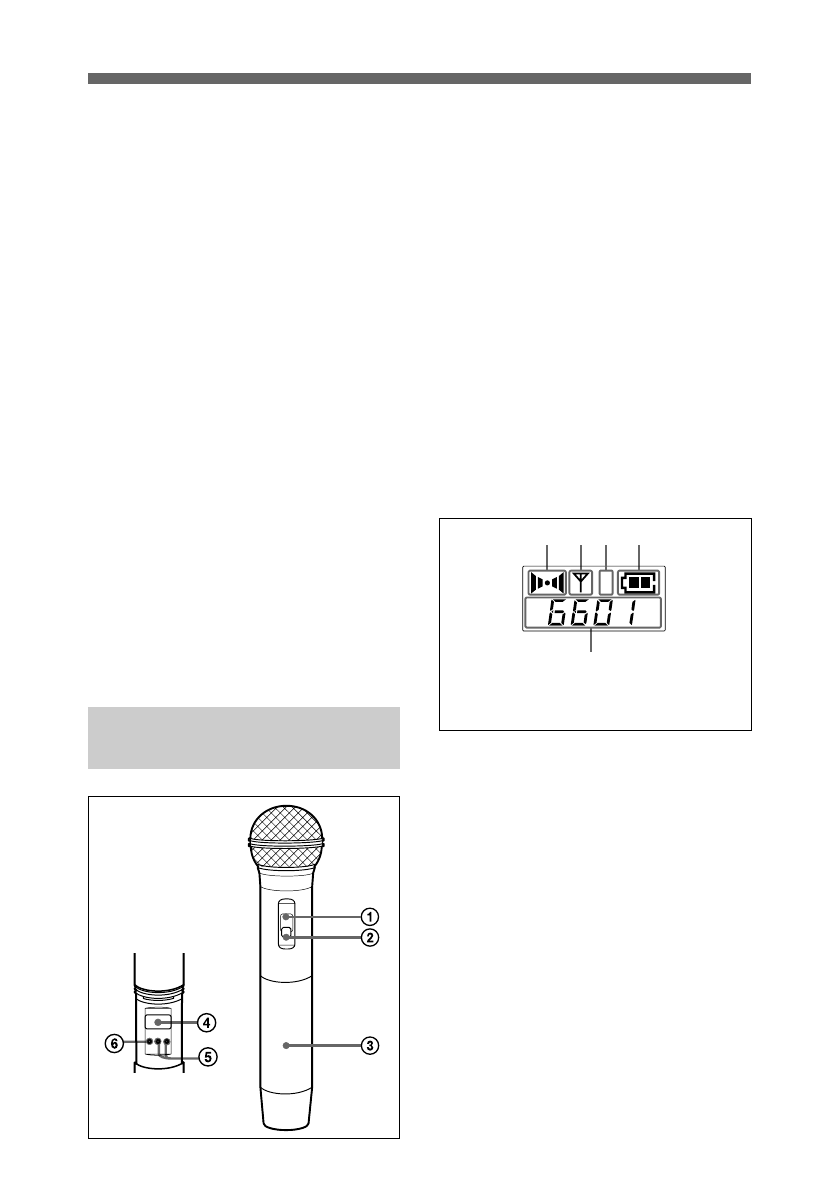

Hand-held microphone
(UTX-H1)
1 Power indicator
Lights up red when the microphone is
turned on.
2 POWER switch
Turns the power of the microphone
ON or OFF.
3 Battery compartment
Accommodates two LR6 (size AA)
alkaline batteries.
For details on how to insert the
batteries, see “Power Supply” on
page 38.
4 Display section
A AF (audio frequency) indication
Appears whenever the input audio
signal is stronger than the reference
level.
B RF (radio frequency) indication
Appears during signal transmission
from the antenna.
C RF (radio frequency) level
indication
Shows the RF output level setting.
For details, see “Setting the RF output
level” on page 52.
ABD
E
C
H
L
The E channel indication for
U66 model is shown.
The rear
side of the
battery
compartment
COPY
31
D BATT (battery) indication
Shows the battery condition.
For details, see “Power Supply” on
page 38.
E CH (channel) indication
Shows the transmission channel. Each
time you press the SET button, the
channel indication changes as follows.
For details, see “Settings” on page
47.
5 + (+ selection) / – (– selection/
reset) buttons
Press these buttons to set the
transmission channel, frequency, or
attenuation level of the input signal.
The “–” button resets the accumulated
battery use time to “00:00”.
6 SET button
Press to change display parameters.
For details, see “Settings” on page
47.
Transmission
channel
Transmission
frequency
Attenuation
level of the
input signal
Accumulated
battery use
time
Press
the
SET
button.
The channel/frequency indications for
U66 model are shown.
Plug-on transmitter
(UTX-P1)
1 Audio input connector (XLR
type)
Connect a microphone or a line output
connector of an audio mixer, etc.
6
Front side
Bottom side
COPY
Parts Identification
32
2 AF/PEAK (audio frequency/
peak) level indicator
The color indicates the strength of the
audio input signal.
On in red: Audio input level is –40
dBV or more (when the INPUT
selector is set to MIC) or +8 dBV
or more (when the INPUT
selector is set to LINE).
On in green: Audio input level is
–60 dBV or more and less than
–40 dBV (when the INPUT
selector is set to MIC) or –9 dBV
or more and less than +8 dBV
(when the INPUT selector is set
to LINE).
Off: Audio input level is less than
–60 dBV (when the INPUT
selector is set to MIC) or less
than –9 dBV (when the INPUT
selector is set to LINE).
3 INPUT (input signal) selector
Set this selector to MIC when a
microphone is conneted to the audio
input connector; set it to LINE when
an audio mixer, etc. is conneted to the
audio input connector.
Notes
•The UTX-P1 does not support
external power supply. Do not
connect a mirophone which requires
external power supply.
•Do not set the INPUT selector to
MIC position while the audio signal
is being input from the audio mixer,
etc. Doing so may cause excessive
audio input, resulting in distorted
playback or recorded sound or
damage to the playback or recording
equipment.
4 Display section
A AF (audio frequency) indication
Appears whenever the input audio
signal is stronger than the reference
level.
B RF (radio frequency) indication
Appears during signal transmission.
C BATT (battery) indication
Shows the battery condition.
For details, see “Power Supply”on
page 38.
D CH (channel) indication
Shows the transmission channel. Each
time you press the SET button in
transmission mode, the channel
indication changes as follows.
For details, see “Settings” on page
47.
AB
AF RF
CH
BATT
The D channel indication for
U66 model is shown.
COPY
33
5 + (+ selection) / – (– selection/
reset) buttons
Press these buttons to set the
transmission channel, frequency, or
attenuation level of the input signal.
The “–-” button resets the
accumulated battery use time to
“00:00”.
6 SET button
Press to change display parameters.
For details, see “Settings” on page
47.
7 POWER switch
Turns the power of the transmitter ON
or OFF.
8 Battery compartment
Accommodates two LR6 (size AA)
alkaline batteries.
For details on how to insert the
batteries, see “Power Supply” on
page 38.
Portable diversity tuner
(URX-P1)
1 Antennas a/b
The angle of the antennas can be
adjusted manually.
2 MONITOR connector (3.5-mm
diameter stereo mini jack)
To monitor the tuner output, connect
the headphones to this connector.
3 RF (radio frequency) indicator
The color indicates the strength of the
RF input signal.
On in green: RF input is 15 dBµ*
or more.
Off: RF input is less than 15 dBµ*.
......................................................................................................................................................................
* 0 dBµ = 1 µVEMF
Transmission
channel
Transmission
frequency
Attenuation
level of the
input signal
Accumulated
battery use
time
Press
the
SET
button.
The channel/frequency
indications for U66 model are
shown.
COPY
Parts Identification
34
4 Display section
A RF (radio frequency) indications
The number of dots indicates the RF
input level.
B AF (audio frequency) indication
Appears whenever the output audio
signal is stronger than the reference
level.
C BATT (battery) indication
Shows the battery condition.
For details, see “Power Supply” on
page 38.
D GP (group)/CH (channel)
indication
Shows the reception channel group
and channel number. Each time you
press the SET button, the channel
indication changes as follows.
For details, see “Settings” on page
47.
5 + (+ selection) / – (– selection/
reset) buttons
Press these buttons to set the reception
channel and frequency. The “–”
button resets the accumulated battery
use time to “00:00”. These buttons can
also be used to adjust the monitor
level.
6 Battery compartment
Accommodates two LR6 (size AA)
alkaline batteries.
For details on how to insert the
batteries, see “Power Supply” on
page 38.
7 SET button
Press to change display parameters.
For details, see “Settings” on page
47.
8 POWER switch
Turns the power of the tuner ON or
OFF.
Reception
channel group
and number
Reception
frequency
Accumulated
battery use
time
Press
the
SET
button.
AF
RF BATT
CH
AB
D
C
COPY
35
9 OUTPUT (audio output)
connector (3.5-mm diameter stereo
mini jack)
Connect one end of the supplied XLR-
BMP conversion cable or the stereo
mini plug-BMP conversion cable here
and the other end to the microphone
input on a camcorder, mixer, or
amplifier. If the microphone input
connector on the device connected to
the tuner is a stereo mini jack, connect
the straight (BMP) plug to the tuner
and the L-shaped (stereo mini) plug to
the microphone input connector on the
device.
Half-rack size diversity
tuner (URX-R1)
1 POWER switch
Turns the power of the tuner ON or
OFF.
2 Antennas a/b
The angle of the antennas can be
adjusted manually.
3 MONITOR connector (phone
jack)
To monitor the tuner output, connect
the headphones to this connector and
adjust the monitor level with the
MONITOR control. Use either stereo
or monaural headphones.
4 MONITOR control
Turn to adjust the output monitoring
level (through the headphones).
5 + (+ selection) / – (– selection/
reset) buttons
Press these buttons to set the reception
channel and frequency.
6 Display section
A RF (radio frequency) indications
The number of dots indicates the RF
input level.
AF
RF
CH
AB
C
Front panel
Rear panel
COPY
Parts Identification
36
B AF (audio frequency) indication
Appears whenever the output audio
signal is stronger than the reference
level.
C GP (group)/CH (channel)
indication
Shows the reception channel group
and channel number. Each time you
press the SET button, the channel
indication changes as follows.
For details, see “Settings” on page
47.
7 RF (radio frequency) indicator
The color indicates the strength of the
RF input signal.
On in green: RF input is 25 dBµ*
or more.
Off: RF input is less than 25 dBµ*.
8 SET button
Press to change display parameters.
For details, see “Settings” on page
47.
9 TUNER OUTPUT (audio
output) connector (XLR type)
Connect to the audio input connector
of a mixer or amplifier, etc.
0 LEVEL (audio output level)
switch
Sets the output level of the TUNER
OUTPUT connector to –28 dBm
or –58 dBm.
Select the setting according to the
input level of the equipment connected
to the tuner.
qa TRS PHONE (tuner audio
output) connector (1/4-inch jack)
Connect to the audio input connector
of a mixer or amplifier, etc. The
output level from this connector is –30
dBm.
qs DC IN 9V (DC power input)
connector
Connect the supplied AC adapter here.
Diversity tuner module
(URX-M1)
1 SET button
Press to change display parameters.
For details, see “Settings” on page
47.
......................................................................................................................................................................
* 0 dBµ = 1 µVEMF
Reception
channel
group and
number
Reception
frequency
Press
the
SET
button.
COPY
37
Reception
channel
group and
number
Reception
frequency
Press
the
SET
button.
AF
RF
CH
AB
C
2 RF (radio frequency) indicator
The color indicates the strength of the
RF input signal.
On in green: RF input is 25 dBµ*
or more.
Off: RF input is less than 25 dBµ*.

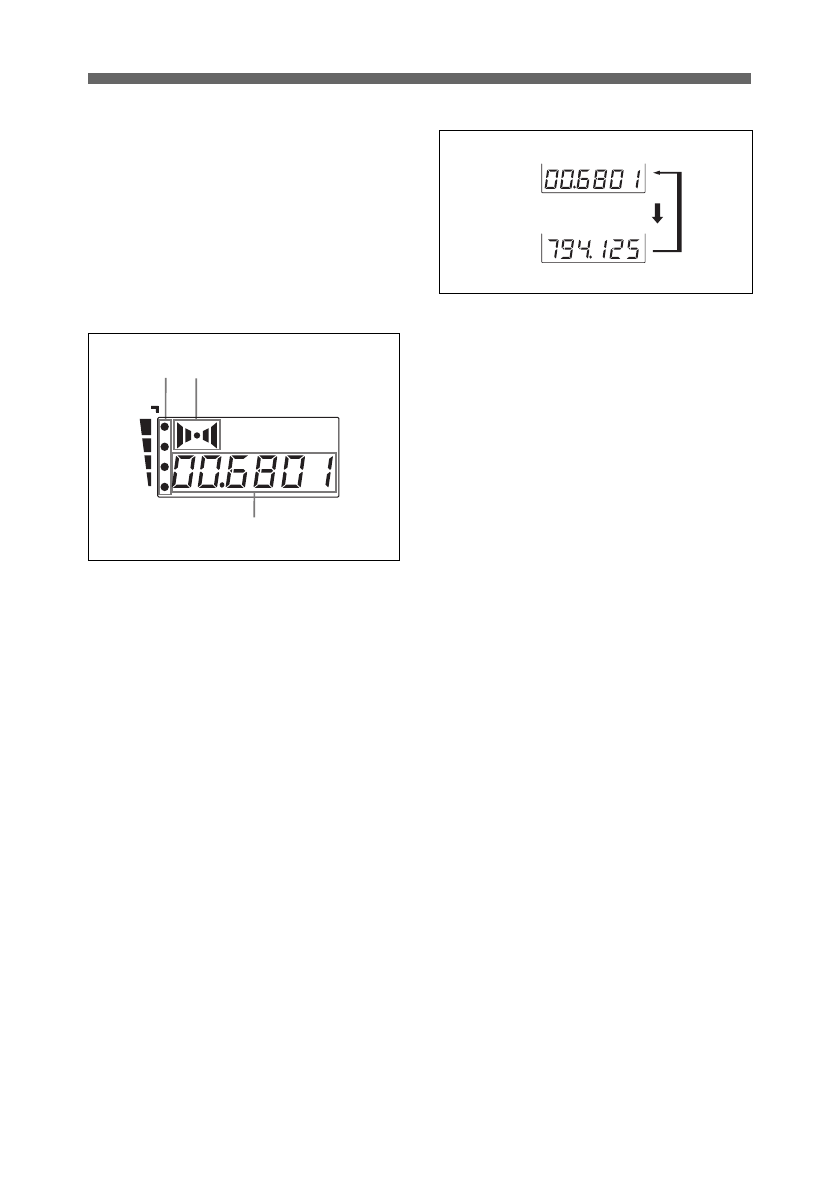

3 Display section
A RF (radio frequency) indications
The number of dots indicates the RF
input level.
B AF (audio frequency) indication
Appears whenever the output audio
signal is stronger than the reference
level.
C GP (group)/CH (channel)
indication
Shows the reception channel group
and channel number. Each time you
press the SET button, the channel
indication changes as follows.
For details, see “Settings” on page
47.
......................................................................................................................................................................
* 0 dBµ = 1 µVEMF
4 + (+ selection) / – (– selection/
reset) buttons
Press these buttons to set the reception
channel and frequency.
COPY
Power Supply
38
Power Supply
This section explains the power supply
for each component.
•Half-rack size diversity tuner
(URX-R1)
Connect the supplied AC adapter to
the DC IN 9V connector on the rear
panel, and then connect the AC
adapter to a wall outlet.
•Diversity tuner module
(URX-M1)
When incorporated into another
component (e.g., MB-806A, SRP-
X700P, etc.), the tuner module draws
its power from that component.
For details on the power supply to
the diversity tuner module, refer to
the operating instructions of the
component in which the diversity
tuner module is installed.
•Body-pack transmitter (UTX-
B1), hand-held microphone
(UTX-H1), plug-on transmitter
(UTX-P1), and portable
diversity tuner (URX-P1)
These components can be powered
by two LR6 (size AA) alkaline
batteries for about six hours of
continuous operation (at 25 ºC
(77ºF)). Details on inserting the
batteries and the battery condition
indication are given below:
Inserting the batteries
Body-pack transmitter (UTX-
B1)/portable diversity tuner
(URX-P1)
The procedure below uses the body-
pack transmitter (UTX-B1) in the
illustrations. Batteries are, however,
inserted in the portable diversity tuner
(URX-P1) in the same manner.
1Slide the latches on both sides of
the transmitter/tuner at the same
time and open the battery
compartment.
2Align two new LR6 (size AA)
alkaline batteries with the polarity
markings and insert them into the
battery compartment, and then
close the cover.
Latch
COPY
39
Hand-held microphone
(UTX-H1)
1Turn the grip in the direction of
the arrow to open the battery
compartment.
2Align two new LR6 (size AA)
alkaline batteries with the polarity
markings and insert them into the
battery compartment.
3Turn the grip in the direction
opposite to the arrow in step 1 to
close the battery compartment.
Note
If you open the battery compartment
during signal transmission, the noise
may occur. Be sure to turn the
microphone off before opening the
battery compartment.
Plug-on transmitter (UTX-P1)
1Slide the battery cover to release
the lock and open the battery
compartment.
2Align two new LR6 (size AA)
alkaline batteries with the polarity
markings and insert them into the
battery compartment, and then
close the cover.
COPY
Power Supply
40
Note
The indicated battery condition may not be correct if the batteries were not new
when installed. If you plan to use the component for a long period, it is
recommended that you replace the batteries with brand new ones.
Notes on batteries
Batteries may leak or explode if mistreated. Be sure to follow these instructions.
•Be sure to install the batteries with the correct polarity.
•Always replace the two batteries together.
•Do not use different types of batteries or old and new one together.
•The batteries are not rechargeable.
•When not using the component for a long period of time, remove the batteries to
avoid leakage. If the batteries do leak, clean all leakage from the battery
compartment and the component. Leakage left in the compartment and the
component may cause poor battery contact. If there seems to be poor battery
contact, consult your Sony dealer.

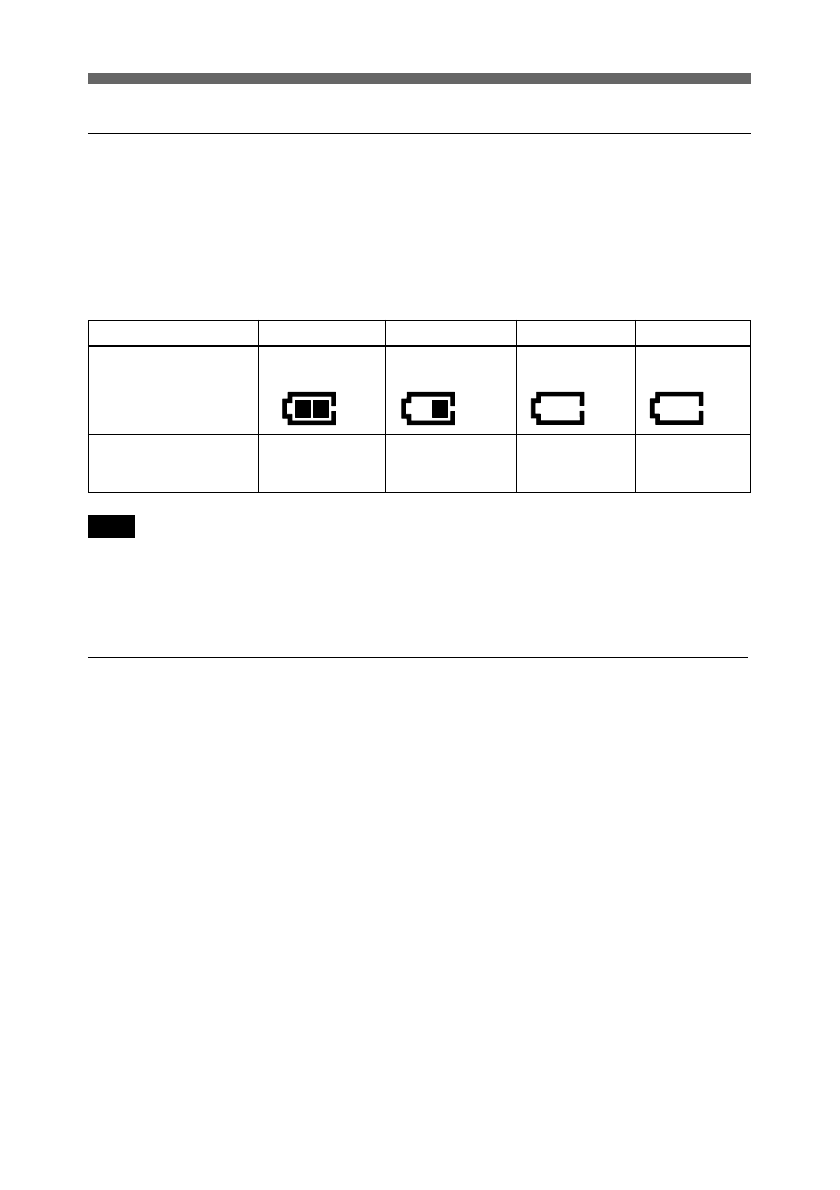

Battery indication
When you turn the power on, the battery condition is shown by the BATT
indication in the display section.
When the indication in column 4 starts to flash, replace the batteries with new
ones. Be sure to check the expiration date printed on the new batteries before
using them.
12 34
BATT indication Lights Lights Lights Flashes
Battery status Good Less than Less than Almost
50% charged 20% charged drained
COPY
41
Attachment and Installation
Procedures
This section describes the procedures
for attaching the supplied accessories
to components and the installation of
the diversity tuner module (URX-M1)
into the MB-806A Tuner Base Unit or
SRP-X700P Powered Mixer.
Attaching the supplied
accessories to the
body-pack transmitter
(UTX-B1)
Attaching the microphone
Attaching the holder clip to
the microphone
Attaching the wind screen to
the microphone
Attaching the belt clip
Microphone (supplied)
For a secure connection, be sure to turn
and lock the connector cover.
Push the holder clip against the
bottom of the microphone until the
holder clip clicks into place.
Insert the microphone into the hole at
the bottom of the windscreen.
Insert one end of the belt clip into one
of two holes on either side of the
transmitter, and then insert the other
end into the hole on the other side.
COPY
Attachment and Installation Procedures
42

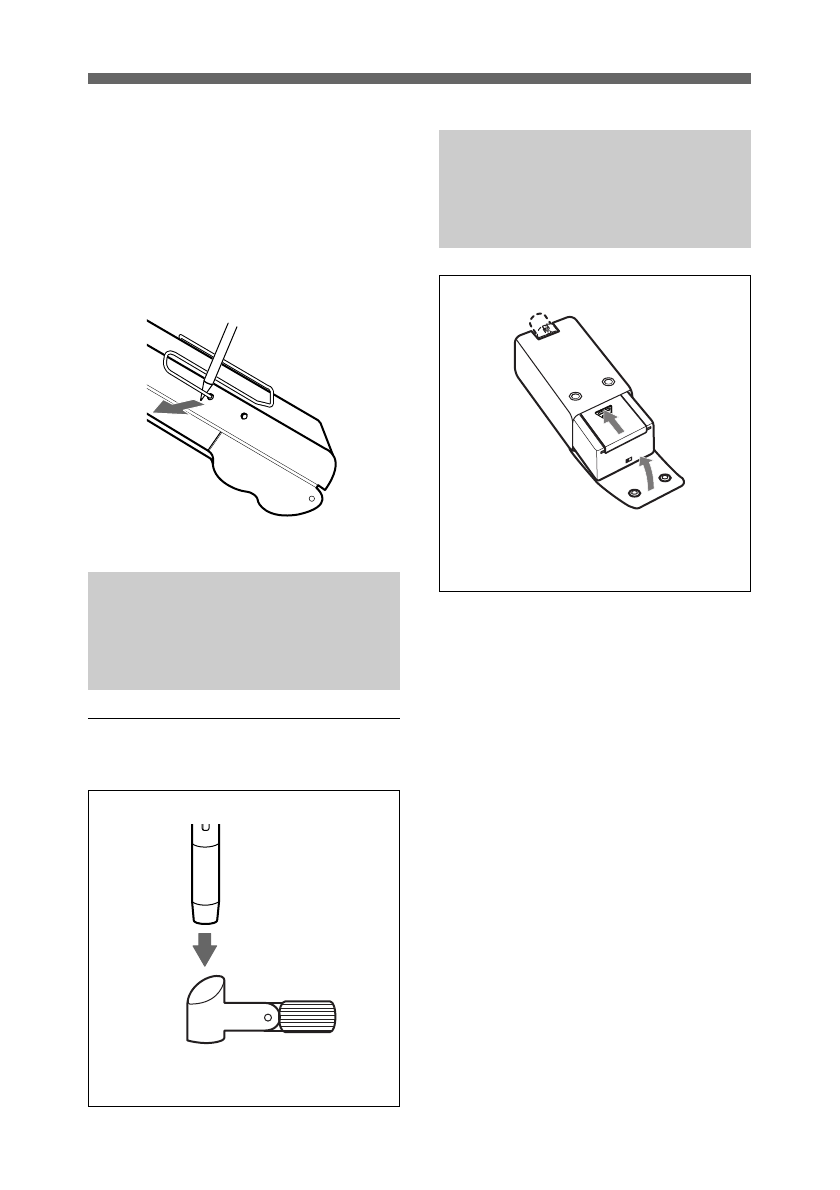

Removing the belt clip
Insert a pointed object such as a
ballpoint pen between the belt clip and
the transmitter to make some space
between them, and then remove the
end of the belt clip from the hole on
the side of the transmitter.
Attaching the supplied
accessory to the hand-
held microphone
(UTX-H1)
Attaching the microphone
holder
Inserting the plug-on
transmitter (UTX-P1)
into the supplied soft
case
Insert the bottom part of the
microphone into the holder.
Insert the UTX-P1 into the supplied soft
case with the rear side up, and close the
flap.
COPY
43

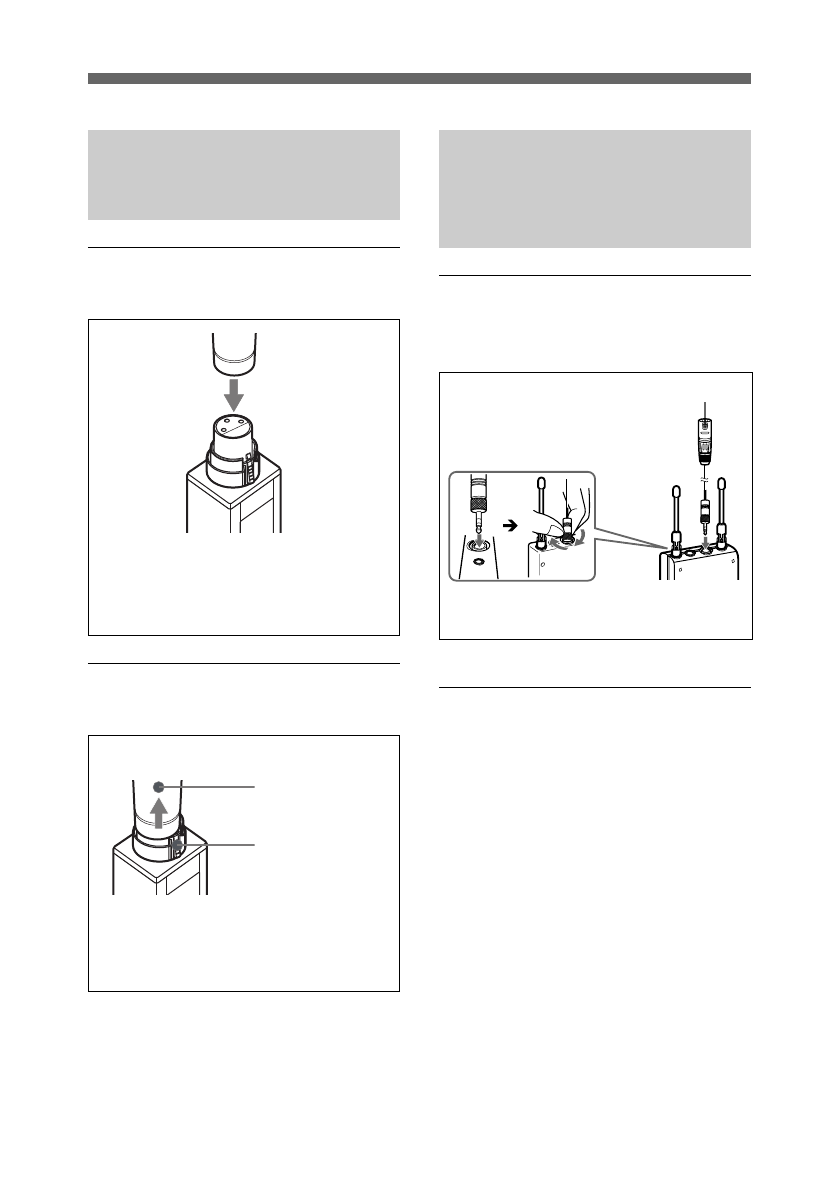

Attaching optional
accessory to the plug-
on transmitter (UTX-P1)
Attaching a microphone or a
cable
Detaching a microphone or a
cable
Press the release button and pull off
the microphone or cable slowly.
Microphone or
cable connector
Push the microphone or cable connector
(XLR-3-12C connector) against the audio
input connector of the UTX-P1 until it
clicks into place.
Release button
Attaching the supplied
accessories to the
portable diversity tuner
(URX-P1)
Connecting a supplied
conversion cable to the
OUTPUT connector
Attaching the belt clip
See “Attaching the belt clip” on page
41.
Example: XLR-BMP conversion cable
(supplied)
For a secure connection, be sure to
turn and lock the connector cover.
COPY
Attachment and Installation Procedures
44

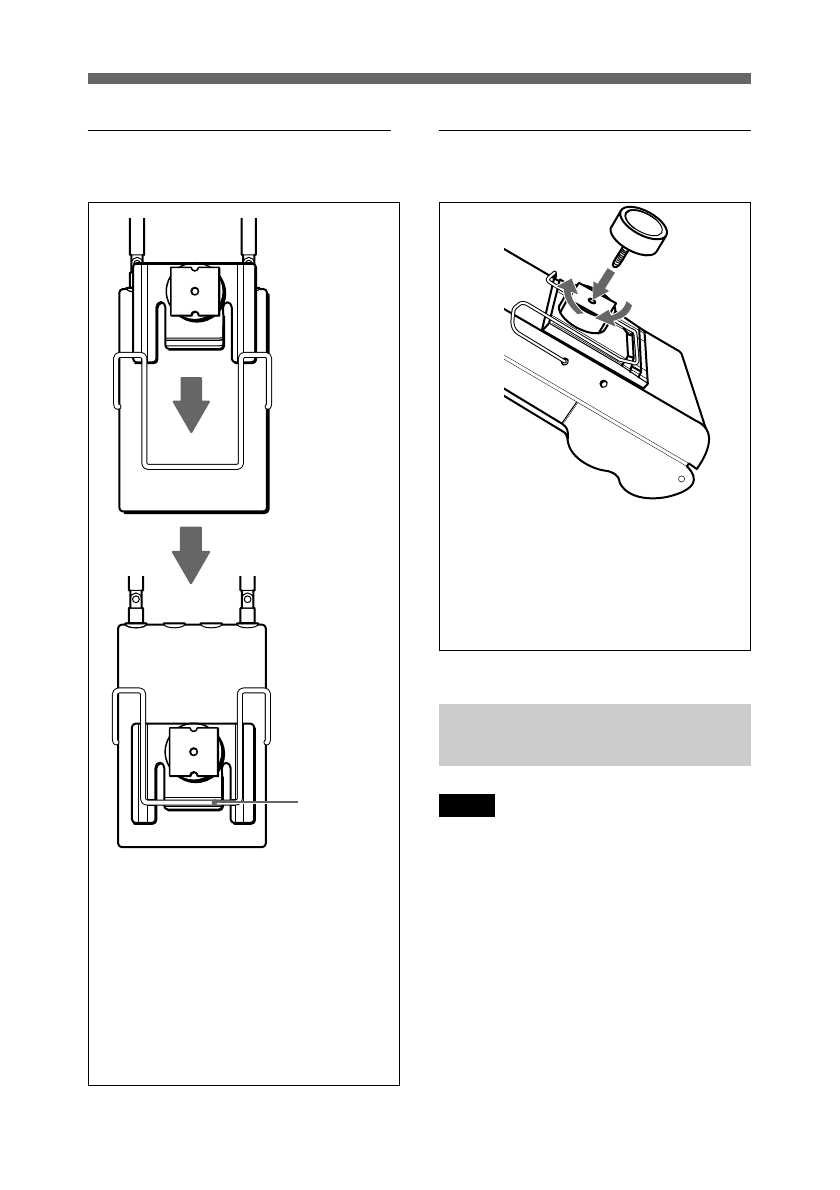

Attaching the microphone
stand adapter
Installing the diversity
tuner module (URX-M1)
Notes
•Before installing the diversity tuner
module (URX-M1), make sure the
unit into which the diversity tuner
module (URX-M1) will be installed
is turned off. Do not install or
uninstall the diversity tuner module
(URX-M1) while the unit is turned
on, as this may damage the
connector or cause noise.
Be sure to
hold the
horizontal
part of the
belt clip with
the
horizontal
groove on
the shoe
mount
adapter.
After attaching the belt clip and the
shoe mount adapter, insert the
microphone stand adapter into the
screw hole at the top of the shoe
mount adapter, and then rotate the
microphone stand adapter until it is
securely attached.
After attaching the belt clip, insert the
shoe mount adapter between the
portable diversity tuner (URX-P1) and
the belt clip, with the vertical parts of the
belt clip aligned with the two vertical
parallel grooves on the shoe mount
adapter. Then, push the shoe mount
adapter in the direction of the arrow, and
then catch the horizontal part of the belt
clip with the horizontal groove on the
shoe mount adapter to hold the belt clip
in place.
Attaching the shoe mount
adapter
COPY
45
•The buttons and display on the front
panel of the diversity tuner module
(URX-M1) may be damaged if they
are gripped too strongly. Always
hold the diversity tuner module by
the side.
•Do not put your fingers on the
connectors on the rear panel of the
diversity tuner module (URX-M1) or
into the slot on the unit into which
the diversity tuner module (URX-
M1) will be installed.
•Keep the diversity tuner module
(URX-M1) away from static
electricity.
Installing a diversity tuner
module (URX-M1) into an MB-
806A Tuner Base Unit
The MB-806A Tuner Base Unit can
accommodate up to 6 diversity tuner
modules (URX-M1).
1Holding both sides of the diversity
tuner module (URX-M1), insert it
into the slot.
Push it in until you hear a click.
2To install two or more diversity
tuner modules (URX-M1) , detach
the necessary number of blank
panels by pressing the top and
bottom tabs on each panel towards
each other and pulling the panel
out. Then do step 1 for each
module.
Removing a diversity tuner
module (URX-M1)
On the bottom panel of the MB-806A,
locate the lever corresponding to the
slot of the diversity tuner module
(URX-M1) to be removed and pull the
lever forward. The diversity tuner
module (URX-M1) is ejected from the
slot.
Lever
COPY
Attachment and Installation Procedures
46
Installing a diversity tuner
module (URX-M1) into an
SRP-X700P Powered Mixer
The SRP-X700P Powered Mixer can
accommodate up to 2 diversity tuner
modules (URX-M1).
1Remove the tuner slot cover from
the SRP-X700P and inspect the
top and bottom sides of the
diversity tuner module. Then,
holding the tuner module on both
sides, insert it into the slot.
MASTER
SCENE
RECALL
GP
AF
RF
GPCH
BATT
LINE 4 SELECT A
A
B
C
D
E
F
B
Removing the diversity tuner
module (URX-M1)
Insert a screwdriver with a shaft
diameter of between 2 to 4 mm and a
shaft length of 30 mm or longer into
the hole under the lower part of the
tuner slot and remove the tuner
module.
Diversity
tuner module
(URX-M1)
Diversity
tuner
module
(URX-M1)
MASTER
SCENE
RECALL
GPGP
AF
AF
RF
RF
GPGP CH
CH
BATT
BATT
LINE 4 SELECT A
A
B
C
D
E
F
B
COPY
47

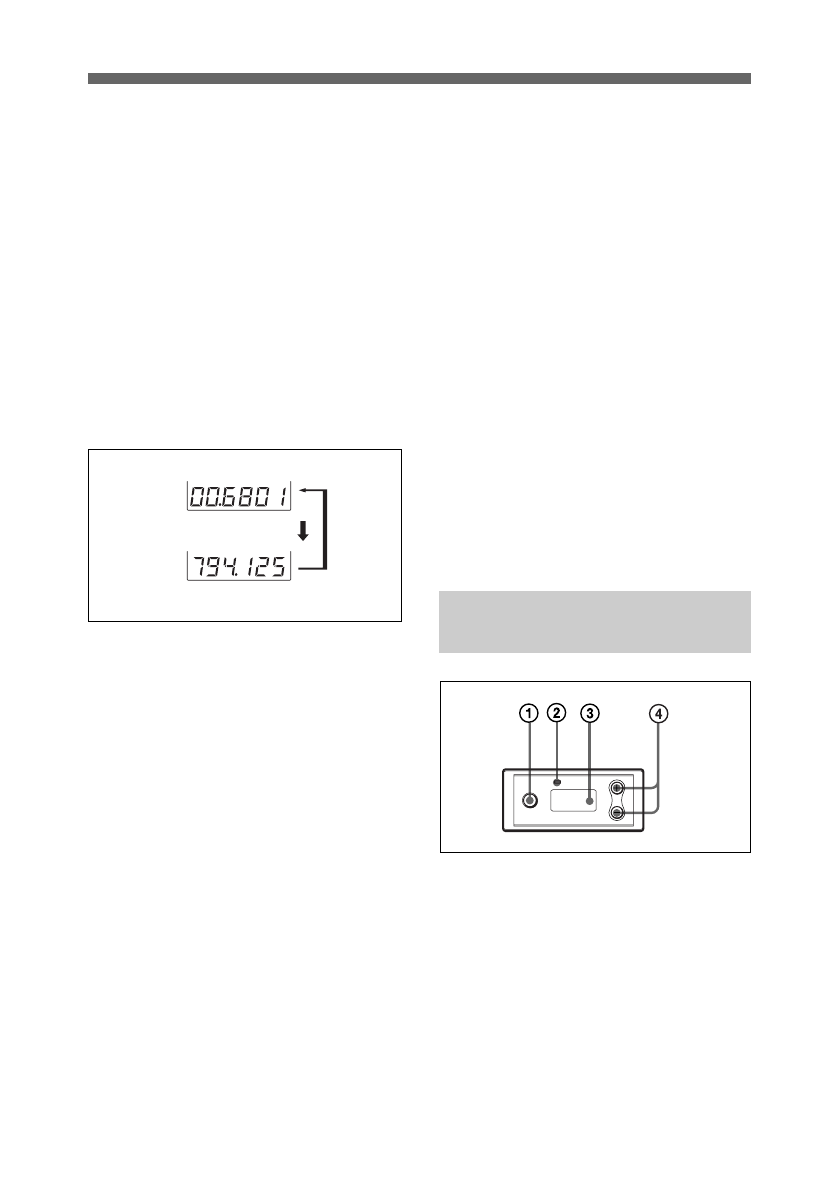

Group
selection
Channel
selection Frequency
selection
V : + button v : – button

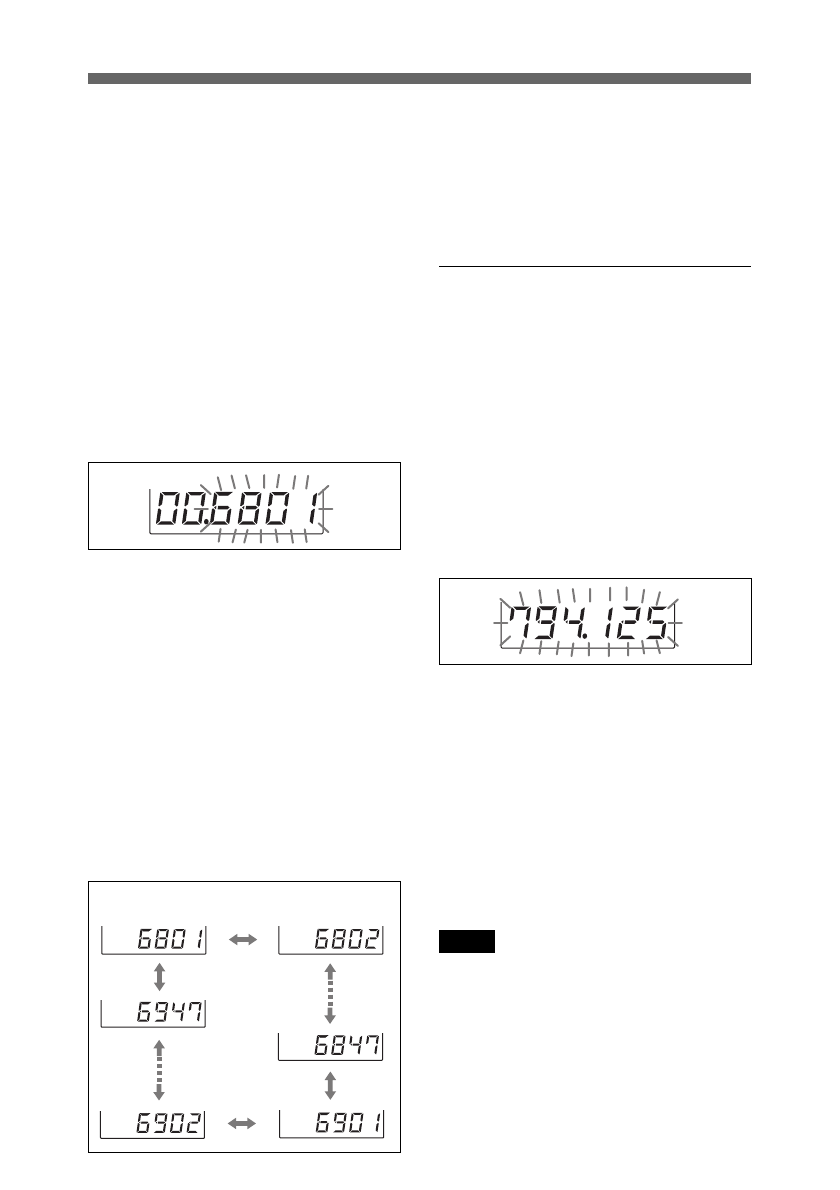

Group, channel, and frequency
selection examples for CE62 model are
shown.
Settings
Microphone System Frequency
List” (for AU66 and CE67
models).
Pressing the – button cycles the
indications in the opposite
direction.
Hold down the + or – button to
change the channel number (or
frequency) faster.
Notes on the European model
Select the group number before
selecting the channel number as
follows.
1) While the left two digits are
flashing, select the group
number by pressing the + or –
button.
2) When the desired group
number appears, press the SET
button.
The right four digits start to
flash to allow the selection of
the channel number.
3) Select the channel number by
pressing the + or – button.
Setting the
transmission channel
The procedure below is the
same for all UWP series
transmitters (UTX-B1/H1/P1).
Refer to the pdf files “Sony Wireless
Microphone System Frequency List”
on the supplied CD-ROM for details
on the selectable channel groups and
channels (for U62, U66, CE62, and
CE67 models) or the supplied leaflet
“Sony Wireless Microphone System
Frequency List” (for AU66 and CE67
models).
1Turn on the transmitter while
pressing down the SET button.
Keep pressing the SET button
until the display section
parameters that were displayed
when the unit was last turned off
start to flash.
2Press the SET button repeatedly
until the channel number (or
frequency) indication appears.
3Press the + or – button to select
the channel number (or
frequency).
Pressing the + button cycles the
indication in the order shown in
the tables in the pdf files “Sony
Wireless Microphone System
Frequency List” on the supplied
CD-ROM (for U62, U66, CE62,
and CE67 models) or the supplied
leaflet “Sony Wireless
COPY
Settings
48
4When the desired channel number
(or frequency) appears, set the
POWER switch to OFF to
complete the setting, or press the
SET button to set other items.
The results are stored in memory.
The stored channel number (or
frequency) will appear in the
display section the next time you
turn on the transmitter by setting
the POWER switch to ON.
Notes
•When you are setting the
transmission channel, the transmitter
cannot be used to transmit signals.
•Do not remove the batteries while
setting the transmission channel. If
they are inadvertently removed, re-
insert them immediately and redo
the procedure “Setting the
transmission channel” from step 1.
•Make sure that the selected channel
is the same on the transmitter and
tuner being used in the same system.
•If you turn off the transmitter and
then immediately turn it on right
after setting the transmission
channel, the unit may not operate
normally. Wait a few seconds before
turning it on again.
Setting the reception
channel
The procedure below is the
same for all UWP series tuners
(URX-P1/R1/M1).
Refer to the pdf files “Sony Wireless
Microphone System Frequency List”
on the supplied CD-ROM for details
on the selectable channel groups and
channels (for U62, U66, CE62, and
CE67 models) or the supplied leaflet
“Sony Wireless Microphone System
Frequency List” (for AU66 and CE67
models).
1Press down the SET button for
more than one second.
Keep pressing the SET button
until the display section
parameters start to flash.
2Press the SET button repeatedly
until the channel group and the
channel number indications
appear.
The channel group indication
starts to flash.
3Press the + or – button to select
the channel group.
Pressing the + button cycles the
indication in the order shown in
the tables in the pdf files “Sony
Wireless Microphone System
Frequency List” on the supplied
CD-ROM (for U62, U66, CE62,
and CE67 models) or the supplied
leaflet “Sony Wireless
Microphone System Frequency
List” (for AU66 and CE67
models).
COPY
49
Pressing the – button cycles the
indications in the opposite
direction.
Hold down the + or – button to
change the channel group faster.
4When the desired channel group
number appears, press the SET
button.
The selected group is entered.
The right four digits start to flash
to allow the selection of the
channel number.
5Press the + or – button to select
the channel number.
The channel indication changes in
the order shown in the tables in
the pdf files “Sony Wireless
Microphone System Frequency
List” on the supplied CD-ROM
(for U62, U66, CE62, and CE67
models) or the supplied leaflet
“Sony Wireless Microphone
System Frequency List” (for
AU66 and CE67 models).
6When the desired channel number
appears, leave the tuner for about
10 seconds until the selected
channel number stops flashing and
the selection is stored in memory.
To select the channel by
frequency indication
1Press the SET button for more
than one second.
Keep pressing the SET button
until the display seciton
parameters start to flash.
2Press the SET button repeatedly
until the frequency indication
appears and starts flashing.
3Press the + or – button to select
the frequency.
4When the desired frequency
appears, leave the tuner for about
10 seconds until the selected
channel frequency stops flashing
and the selection is stored in
memory.
Notes
•When you are setting the reception
channel, the tuner can be used to
receive signals.
•Do not remove the batteries while
setting the reception channel. If they
are inadvertently removed, re-insert
them immediately and redo the
procedure “Setting the reception
channel” from step 1.

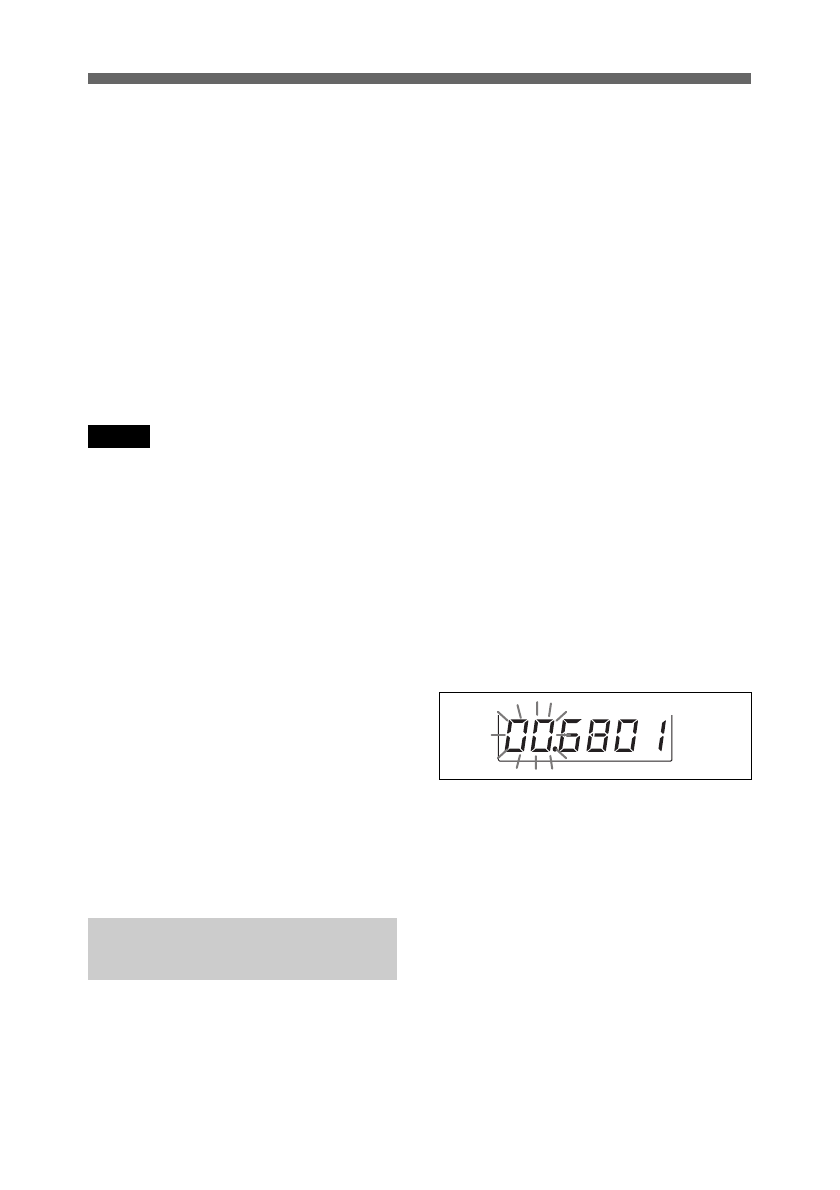

Example: When the channel group
00 is selected
COPY
Settings
50
•Make sure that the selected channel
is the same on the transmitter and
tuner being used in the same system.
•If you turn off the tuner and then
immediately turn it on right after
setting the reception channel, the unit
may not operate normally. Wait a
few seconds before turning it on
again.
Detecting and selecting
the available channels
automatically (diversity
tuner module (URX-M1)
only)
When multiple diversity tuner
modules (URX-M1) are installed into
the MB-806 to perform simultaneous
multiple-channel operation, select the
channel group on the tuner module
installed into the slot 1 of the MB-
806, then all the tuner mudules
installed into the MB-806 can be set to
different channels within the selected
channel group.
1Turn off all the microphones and
transmitters.
2Select the channel group on the
tuner module installed into the
slot 1 of the MB-806.
3After confirming that the channel
group indication has stopped
flashing (about 10 seconds after
you have selected the channel
group), keep pressing the + button
on the tuner module installed into
the slot 1 of the MB-806.
All the tuner modules installed
into the MB-806 are set to the
available channels within the
selected channel group.
After the automatic detection and
selection of available channels
finish, you can change the group
and channel on each tuner module
manually.
Notes
•Do the automatic detection and
selection of available channels with
the channel group other than channel
group 00.
•When there are unavailable channels
due to extraneous radio wave and the
channel could not be selected on
some tuner modules, “NO CH”
appears on the display of those tuner
modules. If this happens, select the
channel group with no interference
from extraneous radio wave, and
repeat the procedure above.
Setting the attenuation
level of the audio input
The procedure below is the
same for all UWP series
transmitters (UTX-B1/H1/P1).
The attenuation level can be set during
signal transmission.
1Do the following while there
is no signal transmission.
Turn on the transmitter while
pressing down the SET button,
and press the SET button
repeatedly until the attenuation
level indication appears in the
display section.
COPY
51
Do the following while there
is signal transmission.
Press the SET button repeatedly
until the attenuation level
indication appears in the display
section.
2Press the + or – button to select
the attenuation level.
The selectable range is from 0 dB
to 21 dB in steps of 3 dB (the
factory setting is 0 dB).
3Do the following while there
is no signal transmission.
Set the POWER switch to OFF to
complete the setting, or press the
SET button to set other items.
The results are stored in memory.
The change becomes effective the
next time you turn on the
transmitter by setting the POWER
switch to ON.
Resetting the
accumulated battery
use time indication
The procedure below is the
same for all UWP series
transmitters (UTX-B1/H1/P1) and
the portable diversity tuner
(URX-P1).
The accumulated battery use time is
the total time (in hours and minutes)
that the batteries have been used. It is
recorded whenever the transmitter/
microphone/tuner is on.
Reset the indication to “00:00”
whenever you replace the batteries.
1
-a
For transmitters (UTX-B1/H1/
P1)
Turn on the unit while pressing
down the SET button.
1
-b
For the portable diversity
tuner (URX-P1)
Press down the SET button for
more than one second.
Keep pressing the SET button
until the display section
parameters start to flash.
2Press the SET button repeatedly
until the accumulated time
indication appears in the display
section.
3Press the – button.
The time indication resets to
“00:00.”
While “00:00” is still displayed,
you can return to previous value
by pressing the + button.
4
-a
For transmitters (UTX-B1/H1)
Set the POWER switch to OFF to
complete the setting, or press the
SET button to set other items.
The results are stored in memory.
COPY
Settings
52
The change becomes effective the
next time you turn on the unit by
setting the POWER switch to ON.
4
-b
For the portable diversity
tuner (URX-P1)
Leave the tuner for about 10
seconds until the time indication
stops flashing and the setting is
stored in memory.
Setting the RF output
level
The procedure below is the
same for the body-pack
transmitter (UTX-B1) and the
hand-held microphone (UTX-
H1).
You can select an RF output level of
H (30 mW) or L (5 mW) in setting
mode. Set the RF output level to L (5
mW) for simultaneous operation of
multiple channels, and set it to H (30
mW) for long-distance operation.
1Turn on the transmitter while
pressing down the SET button.
2Press the SET button repeatedly
until the RF output level
indication appears in the display
section.
3Press the + button to select H (30
mW), or press the – button to
select L (5 mW).
4Set the POWER switch to OFF to
complete the setting, or press the
SET button to set other items.
The results are stored in memory.
The change becomes effective the
next time you turn on the
transmitter by setting the POWER
switch to ON.
Setting the monitor
level (portable diversity
tuner (URX-P1) only)
You can set the monitor level for
monitoring the tuner output within the
range of 01 to 24.
1While the parameters on the
display section are not flashing,
press the + or – button once.
The monitor level indication
appears in the display section.
2Press the + button to increase the
monitor level, or press the –
button to decrease the level.
When you leave the tuner for
about two seconds or more,
current monitor level setting is
stored in memory and the normal
display resumes. Note that
monitor level setting is effective
after you turn off the tuner, then
turn it on again.
COPY
53
Operation
The procedure below is the
same for all UWP series
components (UTX-B1/H1/P1 and
URX-P1/R1/M1).
1Make all necessary connections
on the tuner.
For examples of UWP series
component connections, see
“System Configurations” on page
54.
2Set the transmission channel on
the transmitter, and then turn off
the unit.
For details on setting the
transmission channel, see “Setting
the transmission channel” on
page 47.
3Turn on the tuner.
The parameters that were in the
display section when the tuner
was last turned off appear again.
Note
Before turning on the tuner, turn
down the volume of the
equipment connected to the tuner.
Otherwise, noise will be produced
when the tuner is turned on.
4Set the reception channel on the
tuner.
For details on setting the
reception channel, see “Setting
the reception channel” on page
48.
5Turn on the transmitter.
If noise is heard
Depending on the environment where
the UWP series components are
installed, external noise or radio
waves may disrupt transmission on
certain channels.
When selecting a channel under these
circumstances, turn off the transmitter.
Then, on the tuner, select a channel for
which the RF indications do not
appear in the display section or for
which the RF indicator does not light
up (i.e., a channel free from noise or
radio wave interference). Set the same
channel on the transmitter.
Note
To prevent interference or noise,
please take the following precautions.
•Do not use two or more transmitters
with the same wireless channels.
•When operating two or more UWP
series simultaneously, set each series
to a different channel within the
same channel group.
•Keep the reception antenna and the
transmitter separated more than 3
meters (9 feet 11 inches).
•When operating two or more UWP
series simultaneously with the same
channel group, make sure that they
are at least 100 meters (330 feet)
apart, but within clear sight of each
other. (The actual distance may
differ depending on the
circumstances.)
COPY
System Configurations
54
System Configurations
Note
Production of the peripheral and relating devices may have
been discontinued. Upon selecting the devices to be used with
this product, consult your nearest Sony representative or the
dealer from whom you purchased the product.
Configuration examples of the UWP-C1/C2/S1/S2/X1/X2
Sample configurations for ENG (Electronic News
Gathering) or EFP (Electronic Field Production) with
a digital camcorder
Body-pack transmitter
(UTX-B1)
Portable diversity tuner (URX-P1)
(with the belt clip and the shoe
mount adapter attached)
DVCAM Digital Camcorder (DSR-
PD170/PD170P, HVR-Z1, etc .)
or
Portable diversity tuner (URX-P1)
(with the belt clip and the shoe
mount adapter attached)
Hand-held microphone
(UTX-H1) DVCAM Digital Camcorder (DSR-PD170/
PD170P, HVR-Z1, etc .)
1 XLR-BMP conversion cable (supplied)
COPY
55
Sample configurations for AV presentations
or
Body-pack
transmitter
(UTX-B1)
Portable diversity tuner (URX-P1) (with the belt clip, the shoe
mount adapter, and the microphone stand adapter attached)
Hand-held
microphone
(UTX-H1)
To DVD player,
PC, or VTR, etc.
SRP-X500P/X700P
Powered Mixer
Hand-held
microphone
(UTX-H1)
Half-rack size diversity
tuner (URX-R1)
To DVD player,
PC, or VTR, etc.
Body-pack transmitter
(UTX-B1)
AN-820 UHF
antenna
SRP-X500P/X700P
Powered Mixer
Diversity tuner
module (URX-M1)
1 XLR cable with the XLR-BMP conversion cable (supplied)
2 BNC cable
3 XLR cable or pin cable
COPY
System Configurations
56
Sample configuration of a PA system
Hand-held microphone (UTX-H1)
AN-820 UHF antenna
Diversity
tuner module
(URX-M1)
Body-pack transmitter
(UTX-B1)
To DVD player, PC,
or VTR, etc. SRP-X500P/X700P
Powered Mixer
Diversity tuner
module (URX-M1)
1 BNC cable
2 XLR cable
3 XLR cable or pin cable
*1 WD-820A Antenna Divider
*2 MB-806A Tuner Base Unit
*3 SRP-X100 Audio Mixer
COPY
57

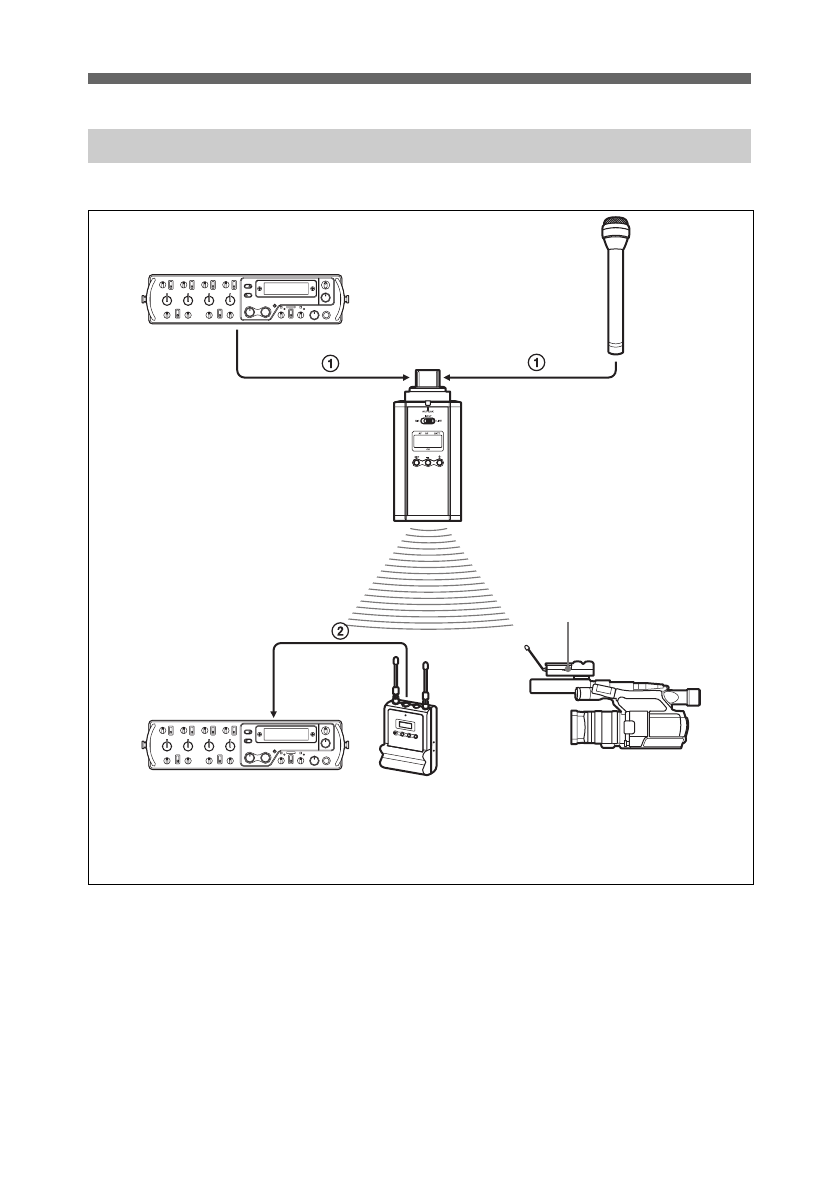

Configuration example of the UWP-C3
DMX-P01 Digital Portable
Mixer F-112 Dynamic
Microphone
or
Plug-on transmitter
(UTX-P1)
DMX-P01 Digital
Portable Mixer Portable diversity
tuner (URX-P1)
or
Portable diversity tuner
(URX-P1) (with the belt clip
and the shoe mount
adapter attached)
DVCAM Digital Camcorder
(DSR-PD170/PD170P, HVR-Z1,
etc.)
1 XLR cable
2 XLR cable with the stereo mini plug-BMP conversion cable (supplied)
COPY
Error Messages
58
Error Messages
When a problem occurs, one of the following error messages may appear on the
display.
Messages Meanings Remedy
Err 01 An error has occurred in the backup memory
data. Contact your Sony dealer.
Err 02 The PLL synthesized circuit is abnormal. Restart the unit. If the
message appears again,
contact your Sony dealer.
Err 03*The battery voltage exceeds the allowable limit. Use the specified batteries.
*Body-pack transmitter (UTX-B1)/hand-held microphone (UTX-H1)/plug-on transmitter (UTX-
P1)/portable diversity tuner (URX-P1) only.
COPY
59
Troubleshooting
If you have any problem using the UWP system, use the following checklist.
Should any problem persist, consult your Sony dealer.
Symptom Meanings/Remedy
*Body-pack transmitter (UTX-B1)/hand-held microphone (UTX-H1)/plug-on transmitter (UTX-
P1)/portable diversity tuner (URX-P1) only.
The unit does not turn on*.The polarity orientation of the batteries in the battery
compartment is incorrect. b Insert the batteries with
the correct polarity orientation.
The batteries are exhausted. b Replace the batteries
with new ones.
The battery terminals in the transmitter are dirty. b
Clean the + and – terminals with a cotton swab.
The batteries become drained
quickly*.The batteries are exhausted. b Replace the batteries
with new ones.
Manganese batteries are being used. b Use alkaline
batteries. The battery life of a manganese battery is
less than half that of an alkaline battery.
The UWP series is being used under cold conditions.
b The batteries drain quickly under cold conditions.
The channel cannot be changed. An attempt was made to change the channel by
pressing the SET button only. b Restart the unit while
holding down the SET button. Then change the
channel with the + and – buttons.
There is no sound. The channel setting on the transmitter is different from
that on the tuner. b Use the same channel setting on
both the transmitter and tuner.
The RF indications (RF indicator) on the tuner do not
appear at all (or does not turn on). b Confirm that the
transmitter is turned on.
The sound is weak. The attenuation level on the transmitter is too high. b
The output level of the transmitter is low. Press the +
button on the transmitter in attenuation level setting
mode to decrease the attenuation level.
The volume on the amplifier or mixer is low. b Adjust
the volume.
COPY
Troubleshooting
60
Symptom Meanings/Remedy
There is distortion in the sound. The attenuation level of the transmitter is too low. b
The input level of the tuner is extremely high. Press
the – button on the transmitter in attenuation level
setting mode to raise the attenuation level.
The transmitter and the tuner are set to different
channels. b Set the transmitter to the same channel.
There is sound interruption or
noise. The RF indications on the tuner appear (the RF
indicator lights up) even when the transmitter is off. b
Jamming radio waves are being received. Determine
which channels are usable (i.e., channels for which
the RF indications on the tuner do not appear (or for
which the RF indicator on the tuner does not light up)
and set the tuner and transmitter to the same usable
channel. When two or more transmitters are used
simultaneously, use another channel group that is
unaffected by jamming radio waves.
The transmitter and the tuner are set to different
channels. b Set the transmitter to the same channel.
Two or more transmitters are set to the same channel.
b Set each transmitter to a different channel.
The transmitters are not set to the channels within the
same channel group. b The channel plan which the
UWP series components use is set so that no signal
interference occurs when 2 or more transmitters are
used simultaneously. Set each transmitter to a
different channel within the same channel group.
COPY
61
Specifications
Transmitters (UTX-B1/
H1/P1)
Items common to all
transmitters
Oscillator type
Crystal-controlled PLL
synthesizer
Carrier frequencies
Model available in USA:
758 to 806 MHz
Model available in Europe:
798 to 862 MHz
Model available in
Australia: 792 to 806
MHz
Operating frequency band
Model available in USA
and Europe: 24 MHz BW
Model available in
Australia: 14 MHz BW
Pre-emphasis
50 µs
Frequency characteristics
50 Hz to 18 kHz
Signal-to-noise ratio
60 dB or more
Tone signal
32 kHz
Attenuation
0 to 21 dB, in 3-dB steps
Display Channel, frequency, audio
level, RF level,
accumulated battery use
time
Power requirements
3.0 V DC (two LR6/AA-
size alkaline batteries)
Battery life
Approx. 6 hours (measured
with two Sony LR6/AA-
size alkaline batteries at
25°C (77°F), with output
power of 30 mW (UTX-
B1/H1) or 50 mW (UTX-
P1))
Body-pack transmitter
(UTX-B1)
Antenna 1/4λ wave length wire
Audio input connector
3.5-mm dia. mini jack
Audio input level
–60 dBV to –39 dBV
RF output level
30 mW/5 mW selectable
Reference deviation
±5 kHz
Distortion
1.0% or less
Indicator Power on

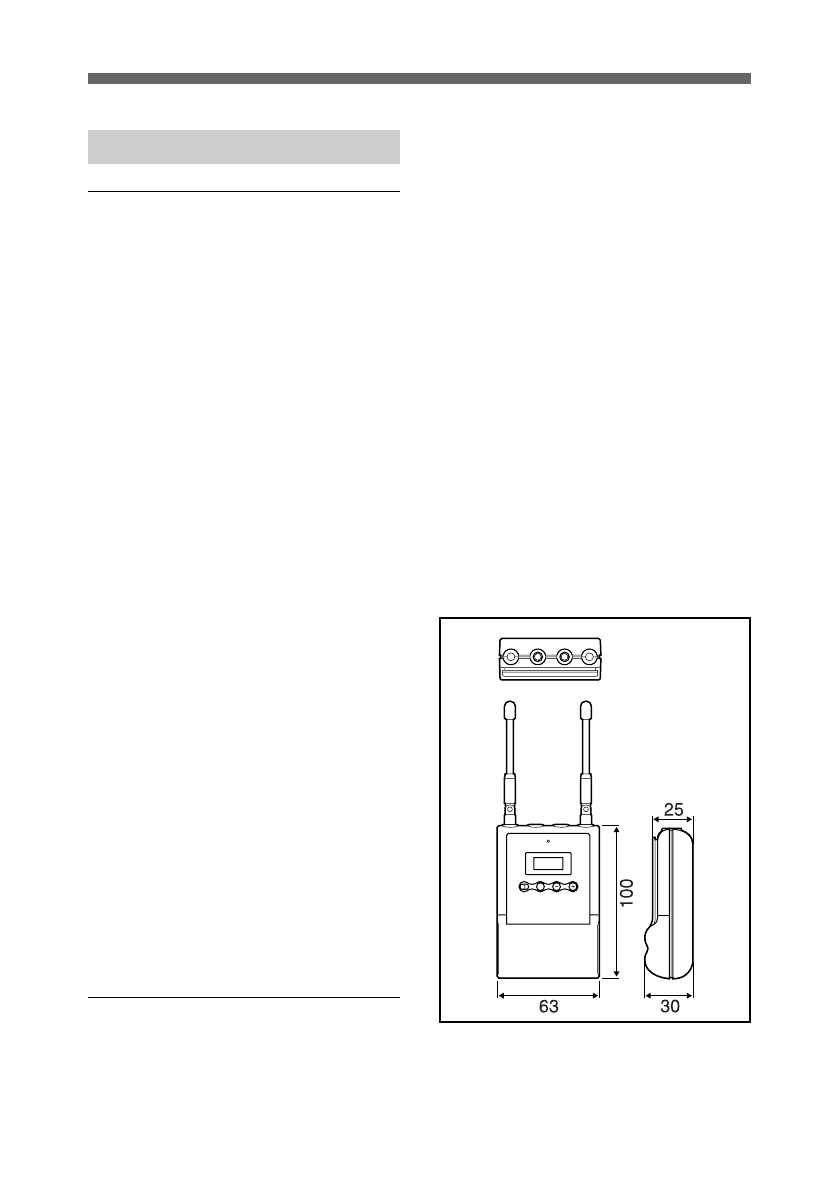

Dimensions
COPY
Specifications
62
63 × 100 × 27 mm (2 1/2 × 4
× 1 1/8 inches) (w/h/d)
(excluding the antennas)
Mass Approx. 140 g (5 oz)
including batteries
Hand-held microphone
(UTX-H1)
Microphone unit
Dynamic
Directivity
Unidirectional
Antenna 1/4λ wave length wire
(internal)
RF output level
30 mW/5 mW selectable
Reference deviation
±5 kHz
Distortion
1.0% or less
Indicator Power on
Dimensions
φ 52 × 240 mm (2 1/8 × 9 1/2
inches) (dia/length)
Mass Approx. 300 g (11 oz)
including batteries
Plug-on transmitter (UTX-P1)
RF output level
50 mW
Reference deviation
±10 kHz
Maximum deviation
±40 kHz
Distortion
1.0% or less at 1 kHz,
–60 dBV (MIC INPUT)
Audio reference level
Mic: –60 dBV
Line: +4 dBu
Audio input connector
XLR-3-11type
Indicator AF/PEAK level
Dimensions
44 × 99 × 36 mm (1 3/4 × 4
× 1 7/16 inches) (w/h/d)
(including the audio input
connector)
Mass Approx. 185 g (6.5 oz)
including batteries
COPY
63
Tuners (URX-P1/R1/M1)
Items common to all tuners
Type of reception
Space diversity
Oscillator type
Crystal-controlled PLL
synthesizer
Reception frequencies
Model available in USA:
758 to 806 MHz
Model available in Europe:
798 to 862 MHz
Model available in
Australia: 792 to 806
MHz
Operating frequency band
Model available in USA
and Europe: 24 MHz BW
Model available in
Australia: 14 MHz BW
Signal-to-noise ratio
60 dB or more
De-emphasis
50 µs
Reference deviation
±5 kHz
Frequency characteristics
50 Hz to 18 kHz
Distortion
1.0% or less at 1 kHz
modulation
Tone signal
32 kHz
Indicator RF input level
Portable diversity tuner
(URX-P1)
Antenna 1/4λ wave length wire
(adjustable angle)
Squelch level
15 dBµ
Audio output level
–58 dBm
Audio output connector
3.5 mm dia. mini jack
Headphones output level
5 mW (16Ω)
Display Channel, frequency, audio
level, RF level,
accumulated battery use
time, monitor level
Power requirements
3.0 V DC (two LR6/AA-
size alkaline batteries)
Battery life
Approx. 6 hours (measured
with two Sony LR6/AA-
size alkaline batteries at
25 °C (77°F))
Dimensions
63 × 100 × 30 mm (2 1/2 × 4
× 1 3/16 inches) (w/h/d)
(excluding the antennas)
Mass Approx. 180 g (6 oz)
including batteries
COPY
Half-rack size diversity tuner
(URX-R1)
Antenna 1/4λ wave length wire
(adjustable angle)
Squelch level
25 dBµ
Audio output level
–28 dBm (LINE level)/–58
dBm (MIC level)
selectable
Audio output connectors
1/4-inch jack, unbalanced
(LINE level only)
XLR-3-32 type, balanced
Headphones output level
5 mW (16Ω)
Display Channel, frequency
Power requirements
9.0 V DC
Dimensions
212 × 44 × 209 mm (8 3/8 ×
1 3/4 × 8 1/4 inches) (w/h/d)
(excluding the antennas)
Mass Approx. 1.3 kg (2 lb 14 oz)
Diversity tuner module
(URX-M1)
Squelch level
25 dBµ
Display Channel, frequency
Dimensions
57 × 26 × 121 mm (2 1/4 × 1
1/16 × 4 7/8 inches) (w/h/d)
Mass Approx. 150 g (5 oz)
Design and specifications are subject
to change without notice.
Sony Corporation
