XAV-AX5000

4-732-062-11(1)

XAV-AX5000

4-732-062-11(1)

AV RECEIVER

Owner’s Record

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer

regarding this product.

Model No. XAV-AX5000

Serial No.

To cancel the demonstration (Demo) display, see page 16.

For the connection/installation, see page 28.

Pour annuler l’affichage de demonstration (Démo), reportez-

vous a la page 00.

Pour le raccordement/l’installation, reportez-vous à la page 00.

Para cancelar la pantalla de demostración (Demostración),

consulte la página 00.

Para la conexión/instalación, consulte la página 00.

Operating Instructions GB

Mode d’emploi FR

Manual de instrucciones ES

010COV.book Page 1 Tuesday, August 29, 2017 11:10 AM

2GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\020INT.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

The nameplate indicating operating voltage, etc., is

located on the bottom of the chassis.

The validity of the CE marking is restricted to only

those countries where it is legally enforced, mainly

in the countries EEA (European Economic Area).

Warning

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified personnel

only.

This device complies with Part 15 of the FCC Rules

and Industry Canada’s licence-exempt RSSs.

Operation is subject to the following two

conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference,

including Interference that may cause undesired

operation of the device.

This transmitter must not be co-located or operated

in conjunction with any other antenna or

transmitter.

This equipment complies with FCC/IC radiation

exposure limits set forth for an uncontrolled

environment and meets the FCC radio frequency

(RF) Exposure Guidelines and RSS-102 of the IC

radio frequency (RF) Exposure rules. This

equipment has very low levels of RF energy that is

deemed to comply without maximum permissive

exposure evaluation (MPE).

For the State of California, USA only

Perchlorate Material – special handling may apply,

See

www.dtsc.ca.gov/hazardouswaste/perchlorate

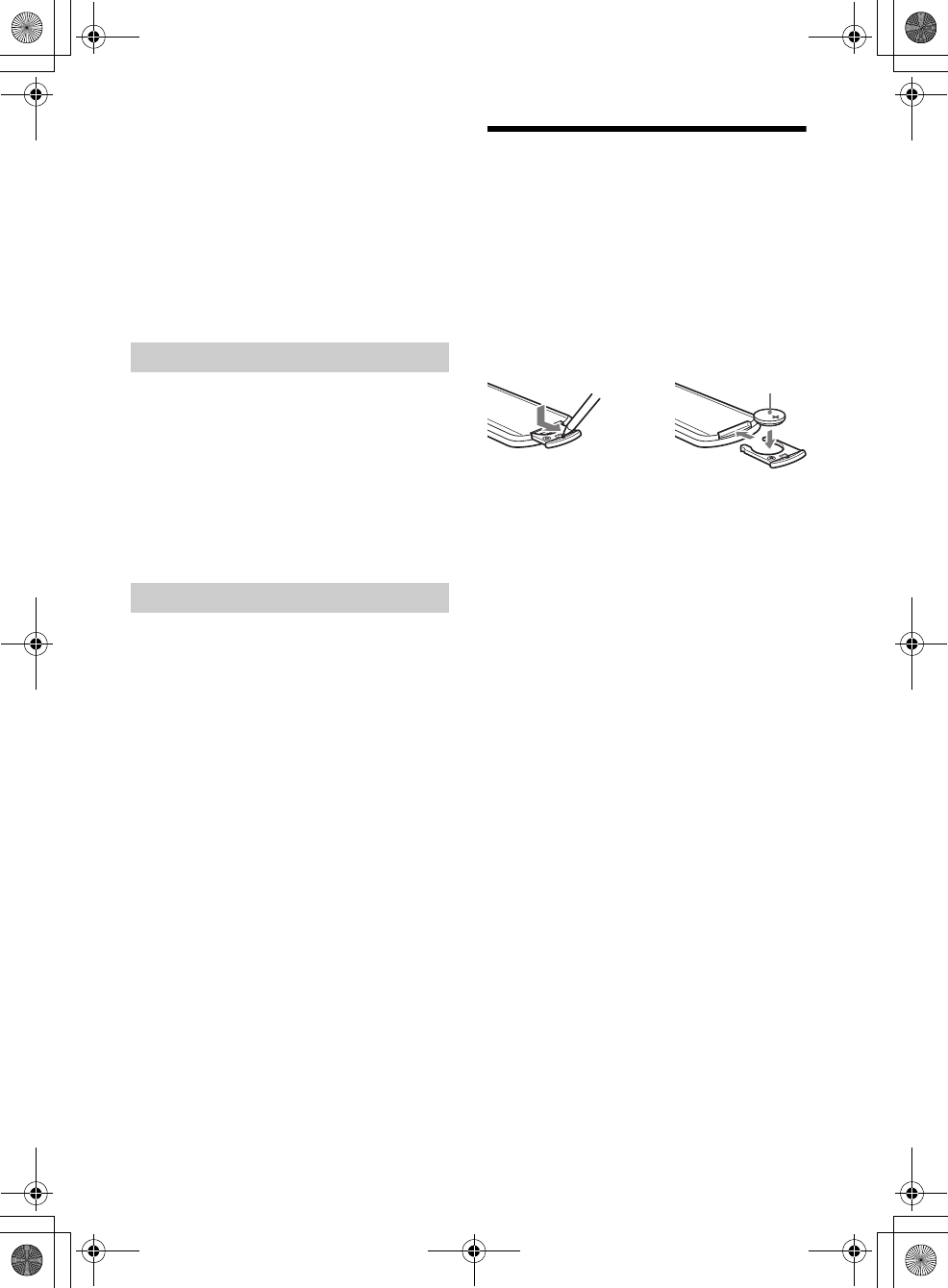

WARNING: Do not ingest battery,

Chemical Burn Hazard.

The remote commander contains a coin/

button cell battery. If the coin/button cell battery is

swallowed, it can cause severe internal burns in just

2 hours and can lead to death.

Keep new and used batteries away from children. If

the battery compartment does not close securely,

stop using the product and keep it away from

children.

If you think batteries might have been swallowed or

placed inside any part of the body, seek immediate

medical attention.

Note on the lithium battery

Do not expose the battery to excessive heat such as

direct sunlight, fire or the like.

Disclaimer regarding services offered by third

parties

Services offered by third parties may be changed,

suspended, or terminated without prior notice.

Sony does not bear any responsibility in these sorts

of situations.

For safety, be sure to install this unit in the

dashboard of the car as the rear side of the unit

becomes hot during use.

For details, see “Connection/Installation”

(page 28).

FOR THE CUSTOMERS IN THE USA. NOT

APPLICABLE IN CANADA, INCLUDING IN THE

PROVINCE OF QUEBEC.

POUR LES CLIENTS AUX ÉTATS-UNIS. NON

APPLICABLE AU CANADA, Y COMPRIS LA

PROVINCE DE QUÉBEC.

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to

radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is

encouraged to try to correct the interference by

one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate this

equipment.

Warning if your car’s ignition has no ACC

position

Do not install this unit in a car that has no ACC

position. The display of the unit does not turn off

even after turning the ignition off, and this

causes battery drain.

010COV.book Page 2 Tuesday, August 29, 2017 11:10 AM

3GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\020INT.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY

INCIDENTAL, INDIRECT OR CONSEQUENTIAL

DAMAGES OR OTHER DAMAGES INCLUDING,

WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF

REVENUE, LOSS OF DATA, LOSS OF USE OF THE

PRODUCT OR ANY ASSOCIATED EQUIPMENT,

DOWNTIME, AND PURCHASER’S TIME RELATED TO

OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS

HARDWARE AND/OR ITS SOFTWARE.

Dear customer, this product includes a radio

transmitter.

Please check your vehicle operation manual or

contact the manufacturer of your vehicle or your

vehicle dealer, before you install this product into

your vehicle.

Emergency calls

This BLUETOOTH car handsfree and the electronic

device connected to the handsfree operate using

radio signals, cellular, and landline networks as well

as user-programmed function, which cannot

guarantee connection under all conditions.

Therefore do not rely solely upon any electronic

device for essential communications (such as

medical emergencies).

On BLUETOOTH communication

• Microwaves emitting from a BLUETOOTH device

may affect the operation of electronic medical

devices. Turn off this unit and other BLUETOOTH

devices in the following locations, as it may cause

an accident.

– where inflammable gas is present, in a hospital,

train, airplane, or petrol station

– near automatic doors or a fire alarm

• This unit supports security capabilities that

comply with the BLUETOOTH standard to provide

a secure connection when the BLUETOOTH

wireless technology is used, but security may not

be enough depending on the setting. Be careful

when communicating using BLUETOOTH wireless

technology.

• We do not take any responsibility for the leakage

of information during BLUETOOTH

communication.

If you have any questions or problems concerning

your unit that are not covered in this manual,

consult your nearest Sony dealer.

Important notice

010COV.book Page 3 Tuesday, August 29, 2017 11:10 AM

4GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\030TOC.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

Table of Contents

Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . 5

Getting Started

Performing Initial Settings . . . . . . . . . . . . . . . . . . . . 8

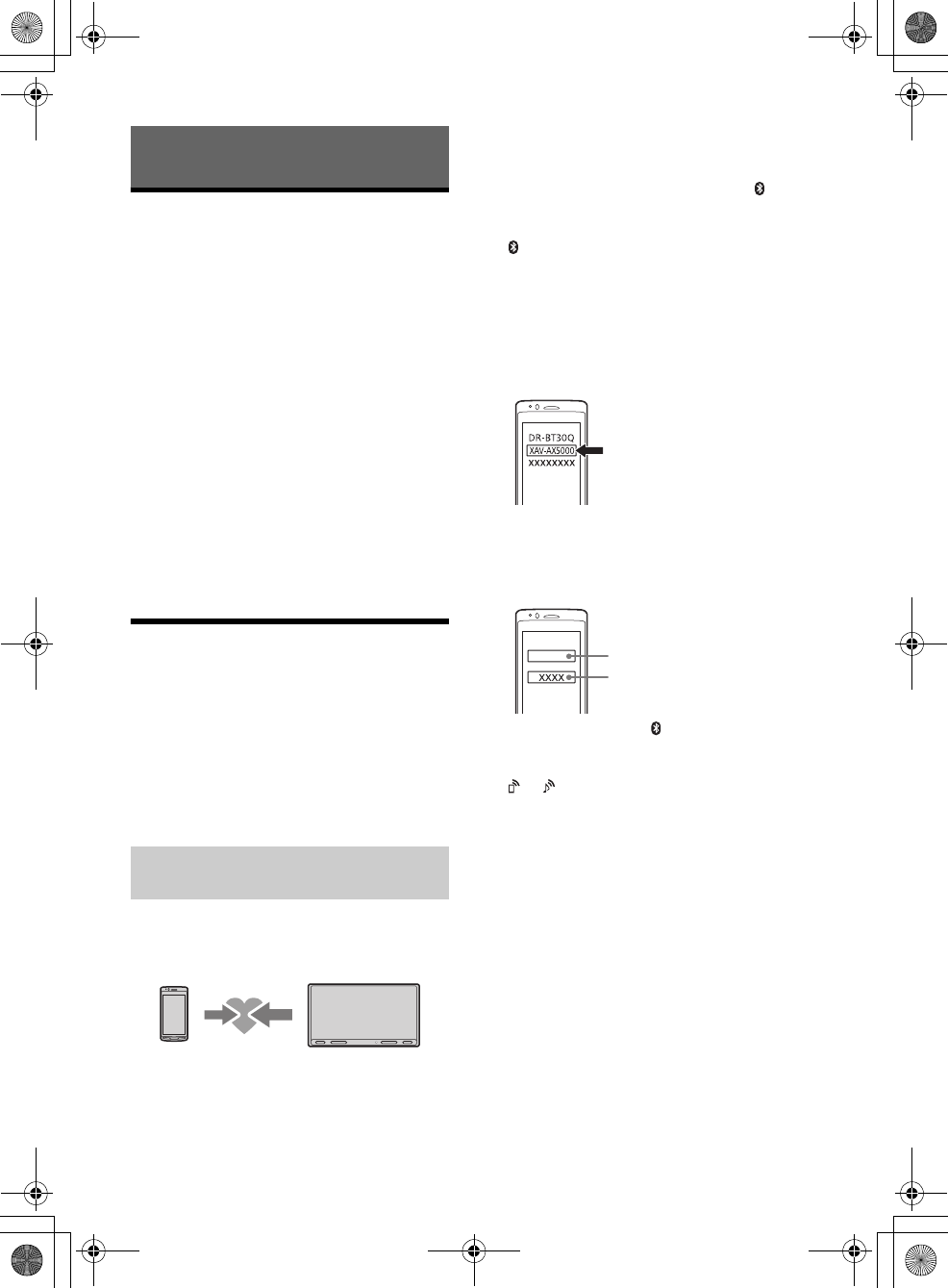

Preparing a BLUETOOTH Device. . . . . . . . . . . . . . . . 8

Connecting Rear View Camera . . . . . . . . . . . . . . . . 9

Listening to the Radio

Listening to the Radio. . . . . . . . . . . . . . . . . . . . . . . . 9

Using Tuner Option Functions . . . . . . . . . . . . . . . . 10

Listening to the SiriusXM Radio . . . . . . . . . . . . . . . 10

Using SXM Option Functions . . . . . . . . . . . . . . . . . 11

Playback

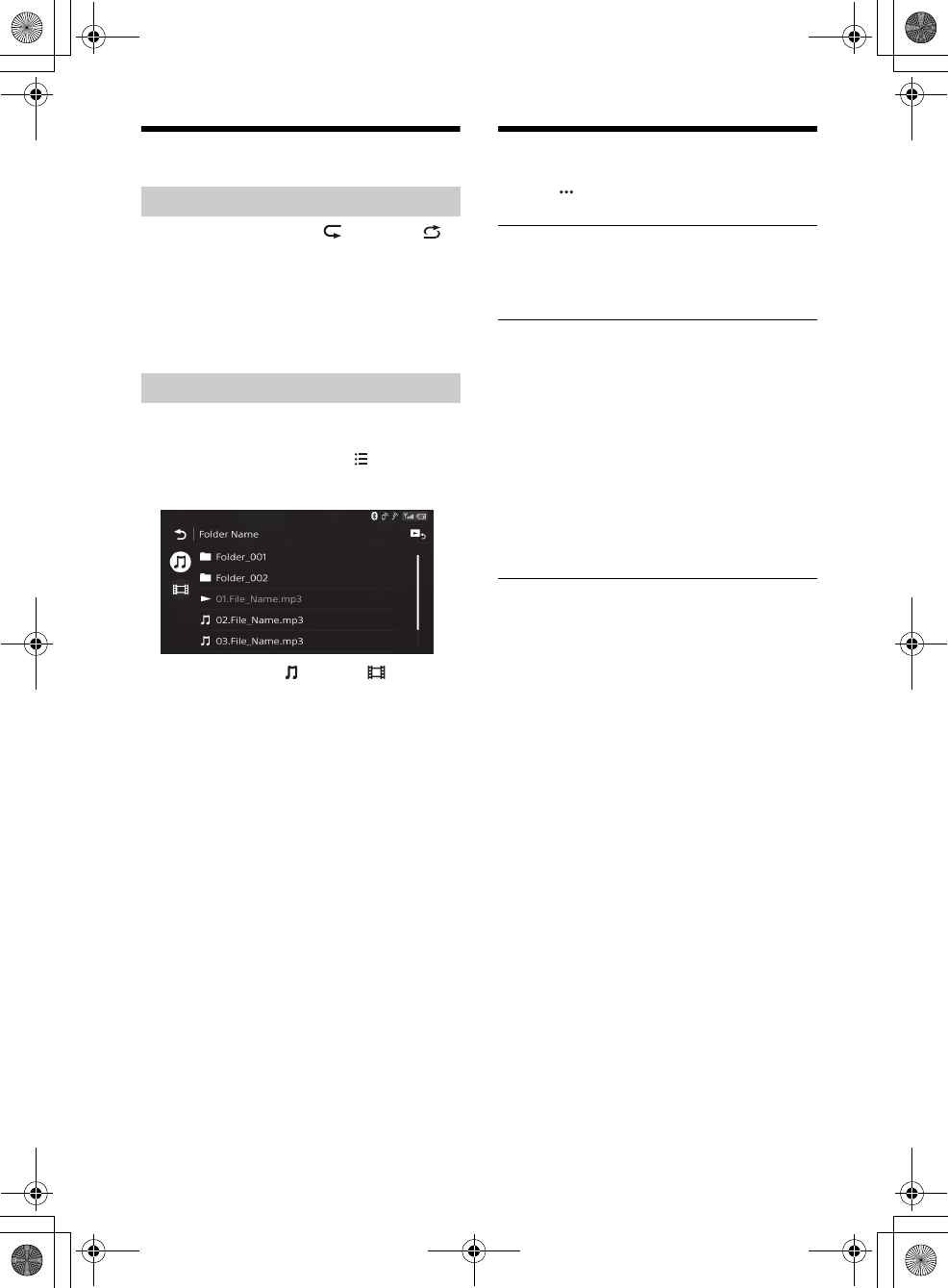

Playing a USB Device . . . . . . . . . . . . . . . . . . . . . . . 12

Playing a BLUETOOTH Device. . . . . . . . . . . . . . . . . 12

Searching and Playing Tracks. . . . . . . . . . . . . . . . . 13

Other Settings During Playback. . . . . . . . . . . . . . . 13

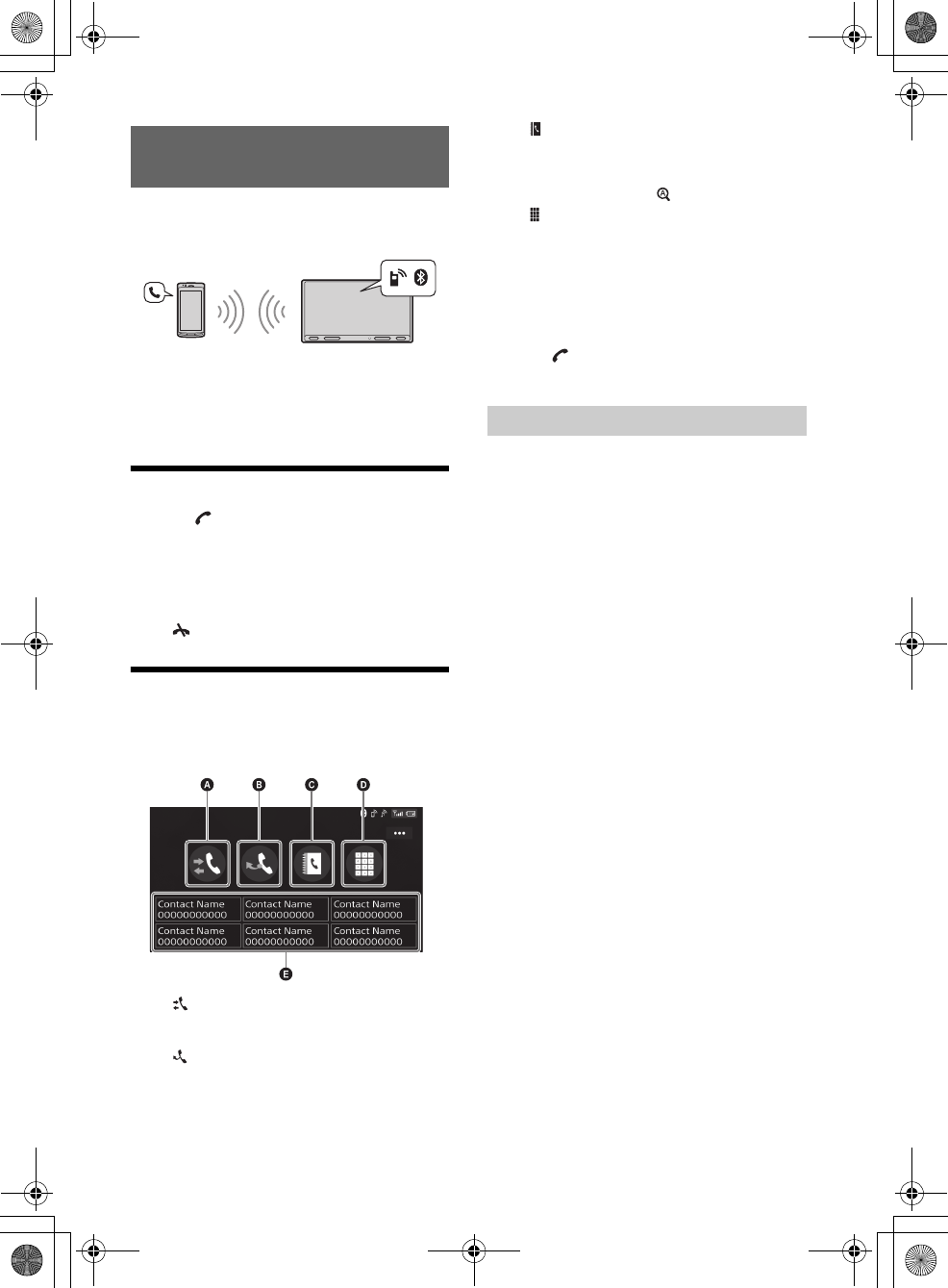

Handsfree Calling

Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Available Operations During a Call . . . . . . . . . . . . 15

Useful Functions

Apple CarPlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Android Auto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using Gesture Command . . . . . . . . . . . . . . . . . . . . 16

Settings

Basic Setting Operation . . . . . . . . . . . . . . . . . . . . . 16

General Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Visual Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Additional Information

Updating the Firmware. . . . . . . . . . . . . . . . . . . . . . 18

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Connection/Installation

Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Parts List for Installation . . . . . . . . . . . . . . . . . . . . 28

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

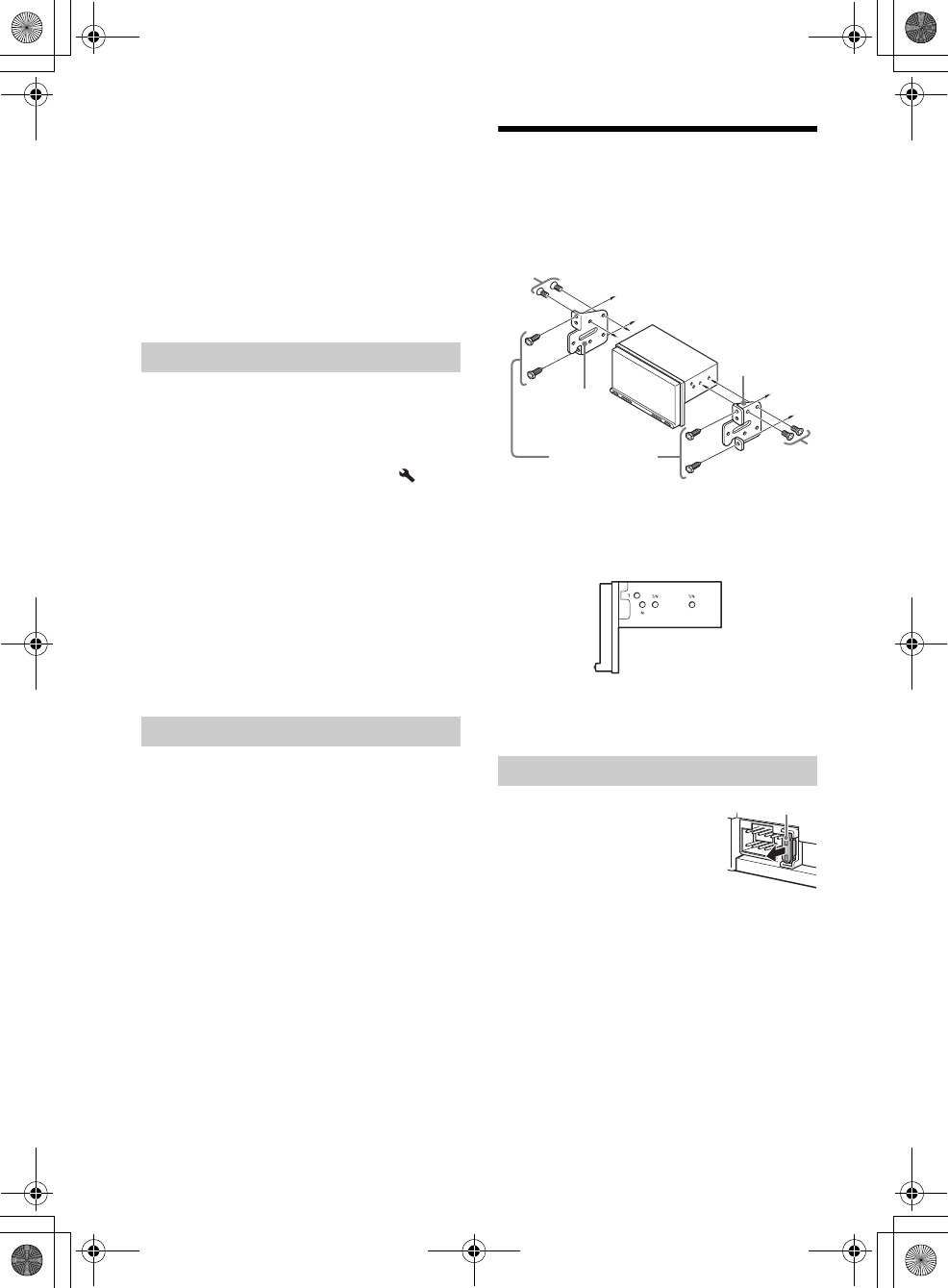

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

010COV.book Page 4 Tuesday, August 29, 2017 11:10 AM

5GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

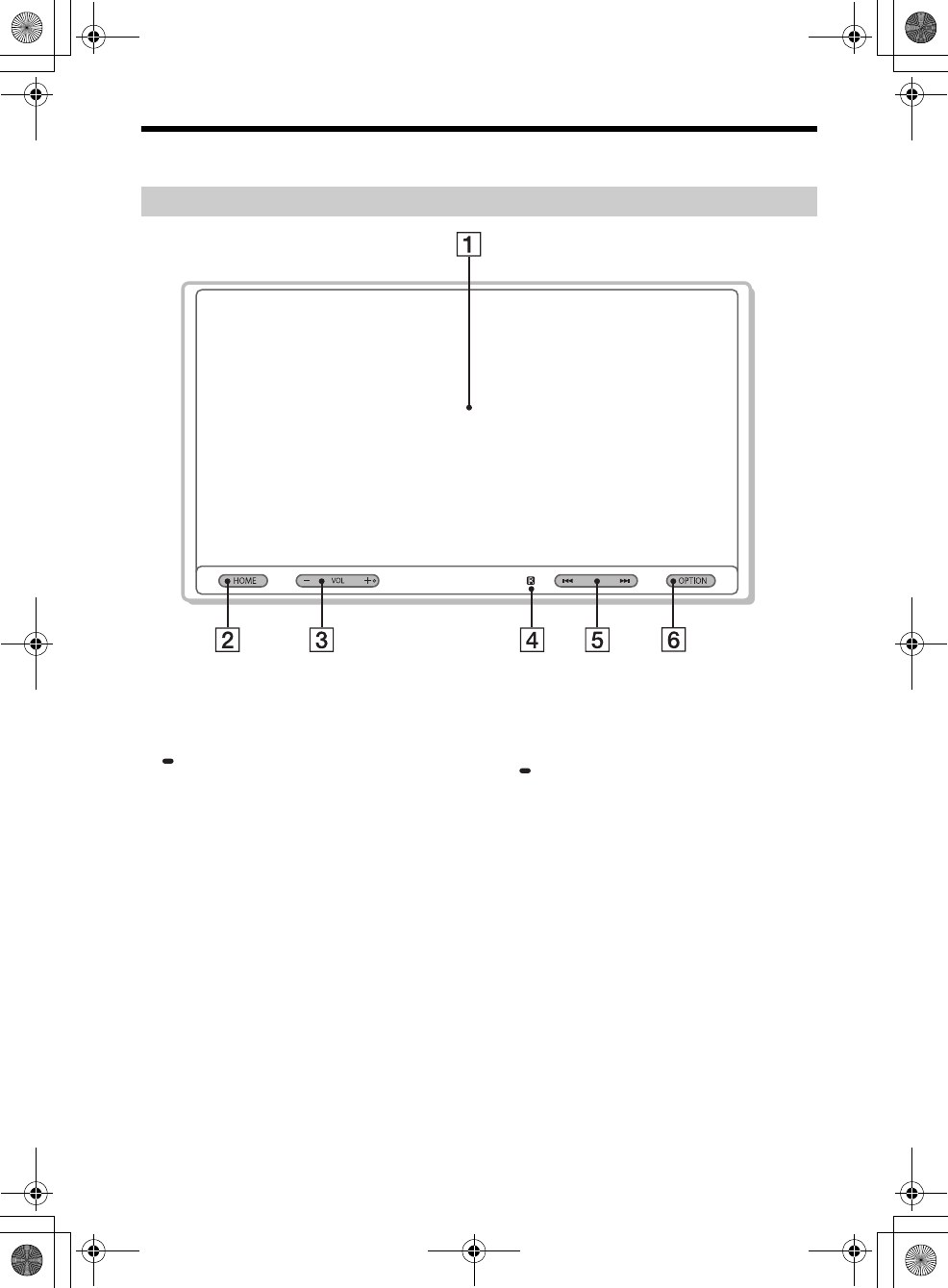

Guide to Parts and Controls

The VOL (volume) + button has a tactile dot.

Display/touch panel

HOME

Open the HOME menu.

ATT (attenuate)

Press and hold for 1 second (less than 2 seconds)

to attenuate the sound.

To cancel, press and hold again, or press VOL +.

VOL (volume) +/–

Receptor for the remote commander

/ (previous/next)

– Move to the previous/next item.

– Press and hold to fast-reverse/fast-forward.

OPTION

Press to open the OPTION screen (page 7).

VOICE

Press and hold to activate the voice command

function for Apple CarPlay and Android Auto™.

Main unit

010COV.book Page 5 Tuesday, August 29, 2017 11:10 AM

6GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

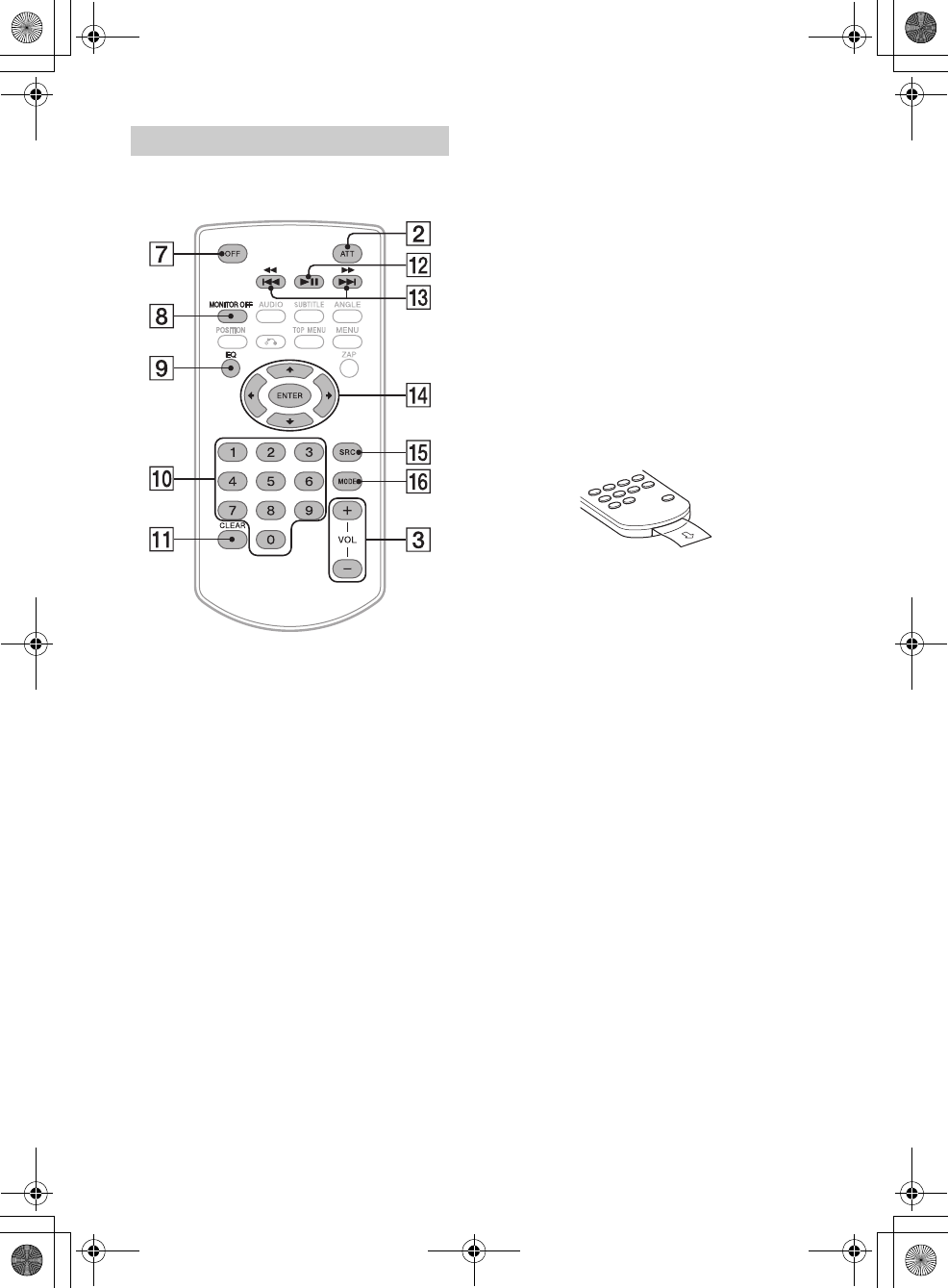

The remote commander can be used to operate the

audio controls. For menu operations, use the touch

panel.

Note

The white buttons in the illustration above are not

supported.

OFF

Turn the source off.

MONITOR OFF

Turn off the monitor.

To turn back on, press again.

EQ (equalizer)

Select an equalizer curve.

Number buttons (0 – 9)

CLEAR

 (play/pause)

/ (previous/next)

/ (fast-reverse/fast-forward)

///

Functions differ depending on the selected

source.

– Tuner: select a preset station or tune into a

station automatically.

– SiriusXM: select a preset channel or move to

the previous/next channel.

– USB: select a folder or move to the previous/

next file.

ENTER

Enter the selected item.

SRC (source)

Change the source. Each time you press this

button, a selectable source is displayed in a

popup on the current display.

MODE

Select the radio band.

Remove the insulation film before use.

RM-X170 remote commander

010COV.book Page 6 Tuesday, August 29, 2017 11:10 AM

7GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

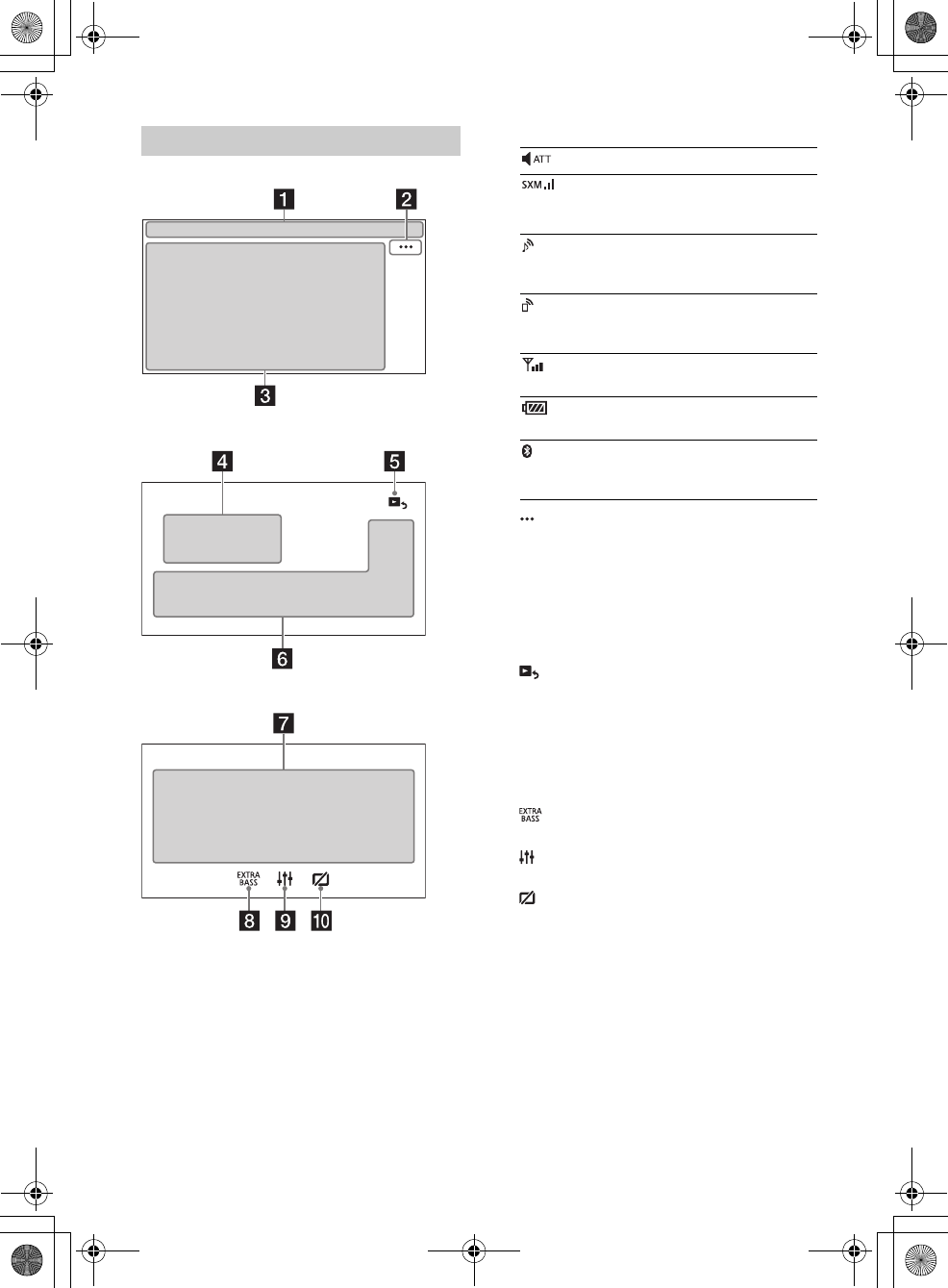

Playback screen:

HOME screen:

OPTION screen:

Status indication

 (source option)

Open the source option menu. The available

items differ depending on the source.

Application specific area

Display playback controls/indications or show

the unit’s status. Displayed items differ

depending on the source.

Clock (page 16)

 (return to the playback screen)

Switch from the HOME screen to the playback

screen.

Sources and Settings select keys

Change the source or make various settings.

Sources select keys

Change the source.

 (EXTRA BASS)

Change the EXTRA BASS setting (page 17).

 (EQ10/Subwoofer)

Change the EQ10/Subwoofer setting (page 17).

 (monitor off)

Turn off the monitor. When the monitor is turned

off, touch any part of the display to turn it back

on.

Screen displays

Lights up when the sound is attenuated.

Indicates the signal strength status of

the connected SiriusXM Connect Vehicle

Tuner.

Lights up when the audio device is

playable by enabling the A2DP

(Advanced Audio Distribution Profile).

Lights up when handsfree calling is

available by enabling the HFP (Handsfree

Profile).

Indicates the signal strength status of

the connected cellular phone.

Indicates the remaining battery status of

the connected cellular phone.

Lights up when the Bluetooth® signal is

on. Flashes when the connection is in

progress.

010COV.book Page 7 Tuesday, August 29, 2017 11:10 AM

8GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

Performing Initial Settings

You need to perform initial settings before

operating the unit for the first time, after replacing

the car battery, or changing connections.

If the initial settings screen does not appear when

you turn on the unit, perform the factory reset

(page 17) to initialize the unit.

1Touch [Language], then set the display

language.

2Touch [Demo], then touch and select [OFF]

to disable the demonstration mode.

3Touch [Set Date/Time], then set the date

and time.

4After setting the date and time, touch [OK].

The startup caution appears.

5Read through the startup caution, then if

you accept all conditions, touch [OK].

The setting is complete.

This setting can be further configured in the setting

menu (page 16).

Preparing a BLUETOOTH Device

You can enjoy music or perform handsfree calling

depending on the BLUETOOTH compatible device

such as smartphones, cellular phones, and audio

devices (hereafter “BLUETOOTH device” if not

otherwise specified). For details on connecting,

refer to the operating instructions supplied with the

device.

Before connecting the device, turn down the

volume of this unit; otherwise, a loud sound may

result.

When connecting a BLUETOOTH device for the first

time, mutual registration (called “pairing”) is

required. Pairing enables this unit and other devices

to recognize each other.

1Place the BLUETOOTH device within 1 m

(3 ft) of this unit.

2Press HOME, then touch [Settings].

3Touch [Bluetooth].

4Touch [Bluetooth Connection], then set the

signal to [ON].

The BLUETOOTH signal is turned on and lights

up on the status bar of the unit.

5Touch [Pairing].

flashes while the unit is in pairing standby

mode.

6Perform pairing on the BLUETOOTH device

so it detects this unit.

7Select [XAV-AX5000] shown in the display of

the BLUETOOTH device.

If your model name does not appear, repeat

from step 5.

8If passkey* input is required on the

BLUETOOTH device, input [0000].

* Passkey may be called “passcode,” “PIN code,” “PIN

number,” “password,” etc., depending on the

BLUETOOTH device.

When pairing is made, stays lit.

9Select this unit on the BLUETOOTH device to

establish the BLUETOOTH connection.

or lights up when the connection is made.

Notes

• The unit can only be connected with one BLUETOOTH

device at a time.

• To disconnect the BLUETOOTH connection, turn the

connection off from either the unit or the BLUETOOTH

device.

Getting Started

Pairing and connecting with a

BLUETOOTH device

[0000]

Input passkey

010COV.book Page 8 Tuesday, August 29, 2017 11:10 AM

9GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

To use a paired device, connection with this unit is

required. Some paired devices will connect

automatically.

1Press HOME, then touch [Settings].

2Touch [Bluetooth].

3Touch [Bluetooth Connection], then touch

[ON].

Make sure that lights up on the status bar of

the unit.

4Activate the BLUETOOTH function on the

BLUETOOTH device.

5Operate the BLUETOOTH device to connect

to this unit.

or lights up on the status bar.

To connect the last-connected device from

this unit

When the ignition is turned to on with the

BLUETOOTH signal activated, this unit searches for

the last-connected BLUETOOTH device, and

connection is made automatically.

Note

While streaming BLUETOOTH audio, you cannot connect

from this unit to the cellular phone. Connect from the

cellular phone to this unit instead.

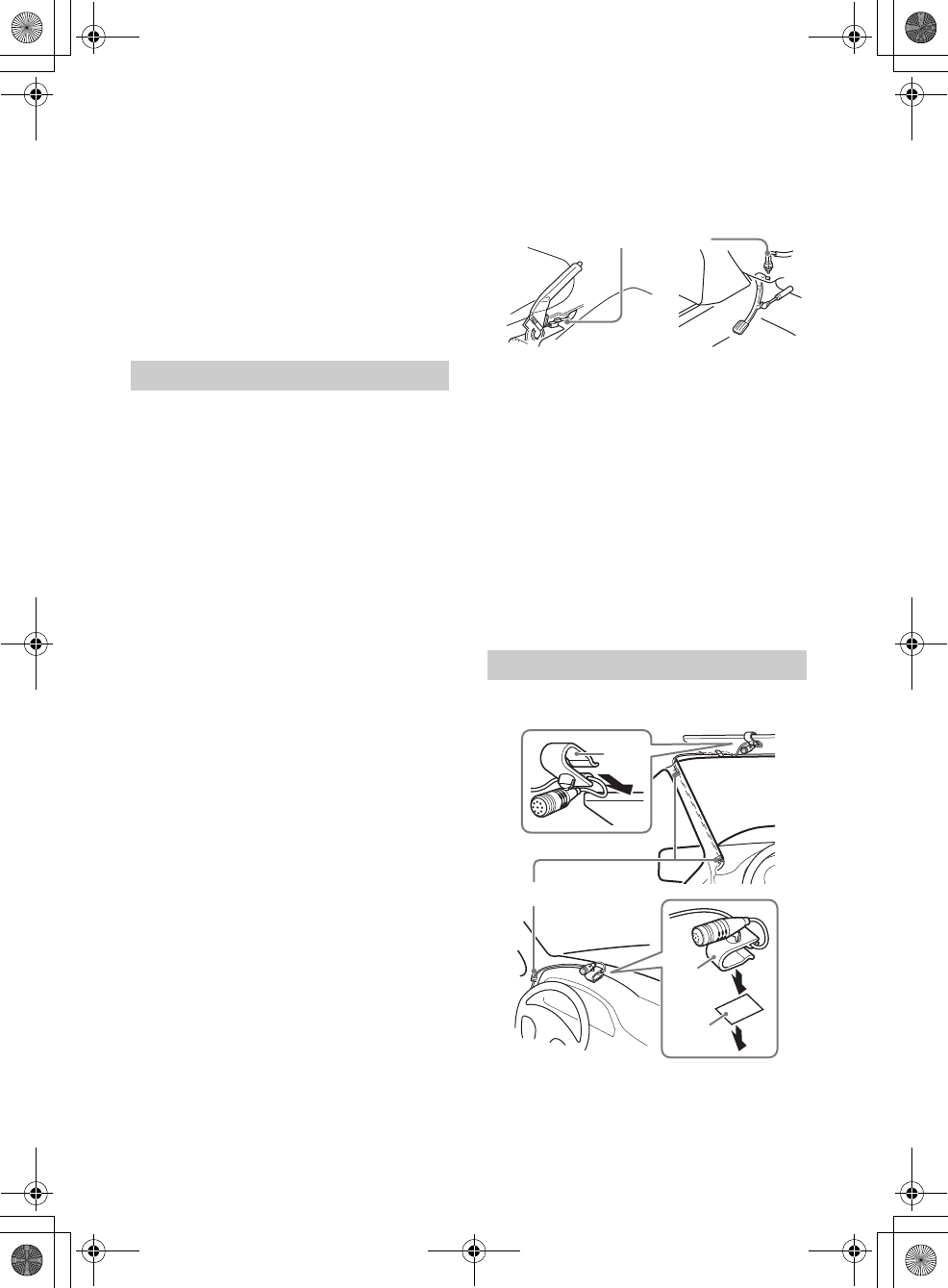

To install the microphone

For details, see “Installing the microphone”

(page 30).

Connecting Rear View Camera

By connecting the optional rear view camera to the

CAMERA IN terminal, you can display the picture

from the rear view camera. For details, see

“Connection/Installation” (page 28).

To display the picture from the rear view

camera

Press HOME, touch [Camera].

Listening to the Radio

To listen to the radio, press HOME then touch

[Tuner].

Reception controls/indications

Current band

Change the band (FM or AM).

Current frequency, program service name*,

RDS (Radio Data System) indication*

* During RDS reception.

 (tuner option)

Open the tuner option menu.

SEEK-/SEEK+

Tune in automatically.

/

Tune in manually.

Touch and hold to continuously skip

frequencies.

Preset numbers

Select a preset station. Swipe right/left to show

the other preset stations.

Touch and hold to store the current frequency in

that preset.

1Select the desired band (FM or AM).

2Perform tuning.

To tune automatically

Touch SEEK-/SEEK+.

Scanning stops when the unit receives a station.

To tune manually

Touch and hold / to locate the approximate

frequency, then touch / repeatedly to fine

adjust to the desired frequency.

Connecting with a paired BLUETOOTH

device Listening to the Radio

Tuning

010COV.book Page 9 Tuesday, August 29, 2017 11:10 AM

10GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

1While receiving the station that you want to

store, press and hold the desired preset

number.

1Select the band, then touch the desired

preset number.

Using Tuner Option Functions

The following functions are available by touching

BTM

Stores stations in order of frequency on the

preset numbers. 18 stations can be stored for FM

and 12 stations for AM as preset stations.

Local

Select [ON] to tune only to stations with strong

signals. To tune normally, select [OFF].

PTY*

Select a program type from the PTY list to search

for a station broadcasting the selected program

type.

* Only available during FM reception.

Listening to the SiriusXM Radio

To listen to the SiriusXM radio, press HOME then

touch [SXM].

Only SiriusXM brings you more of what you love to

listen to, all in one place. Get over 140 channels,

including commercial-free music plus the best

sports, news, talk, comedy and entertainment.

Welcome to the world of satellite radio. A SiriusXM

Connect Vehicle Tuner and Subscription are

required. For more information, visit

www.siriusxm.com

After installing your SiriusXM Connect Vehicle Tuner

and antenna (aerial), press HOME, then touch

[SXM]. You should be able to hear the SiriusXM

preview channel on Channel 1. After verifying that

you can hear the preview channel, select Channel 0

to find the Radio ID of your tuner. In addition, the

Radio ID is located on the bottom of the SiriusXM

Connect Vehicle Tuner and its packaging. You will

need this number to activate your subscription.

Write the number down for reference.

To display the SiriusXM Radio ID

1Press HOME, then touch [SXM].

2Touch , then select [Channel Direct Select].

3Input [000], then touch [OK].

In the USA, you can activate online or by calling

SiriusXM Listener Care:

• Online: Visit www.siriusxm.com/activatenow

• Phone: Call 1-866-635-2349

In Canada, you can activate online or by calling

SiriusXM Listener Care:

• Online: Visit www.siriusxm.ca/activatexm

• Phone: Call 1-877-438-9677

As part of the activation process, the SiriusXM

satellites will send an activation message to your

tuner. When your radio detects that the tuner has

received the activation message, your radio will

display: [Subscription Updated. Press Enter to

Continue.]. Once subscribed, you can tune to

channels in your subscription plan.

Notes

• The activation process usually takes 10 to 15 minutes, but

may take up to an hour.

• Your radio will need to be turned on and receiving the

SiriusXM signal to receive the activation message.

Storing manually

Receiving stored stations

Activating your SiriusXM Subscription

010COV.book Page 10 Tuesday, August 29, 2017 11:10 AM

11GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

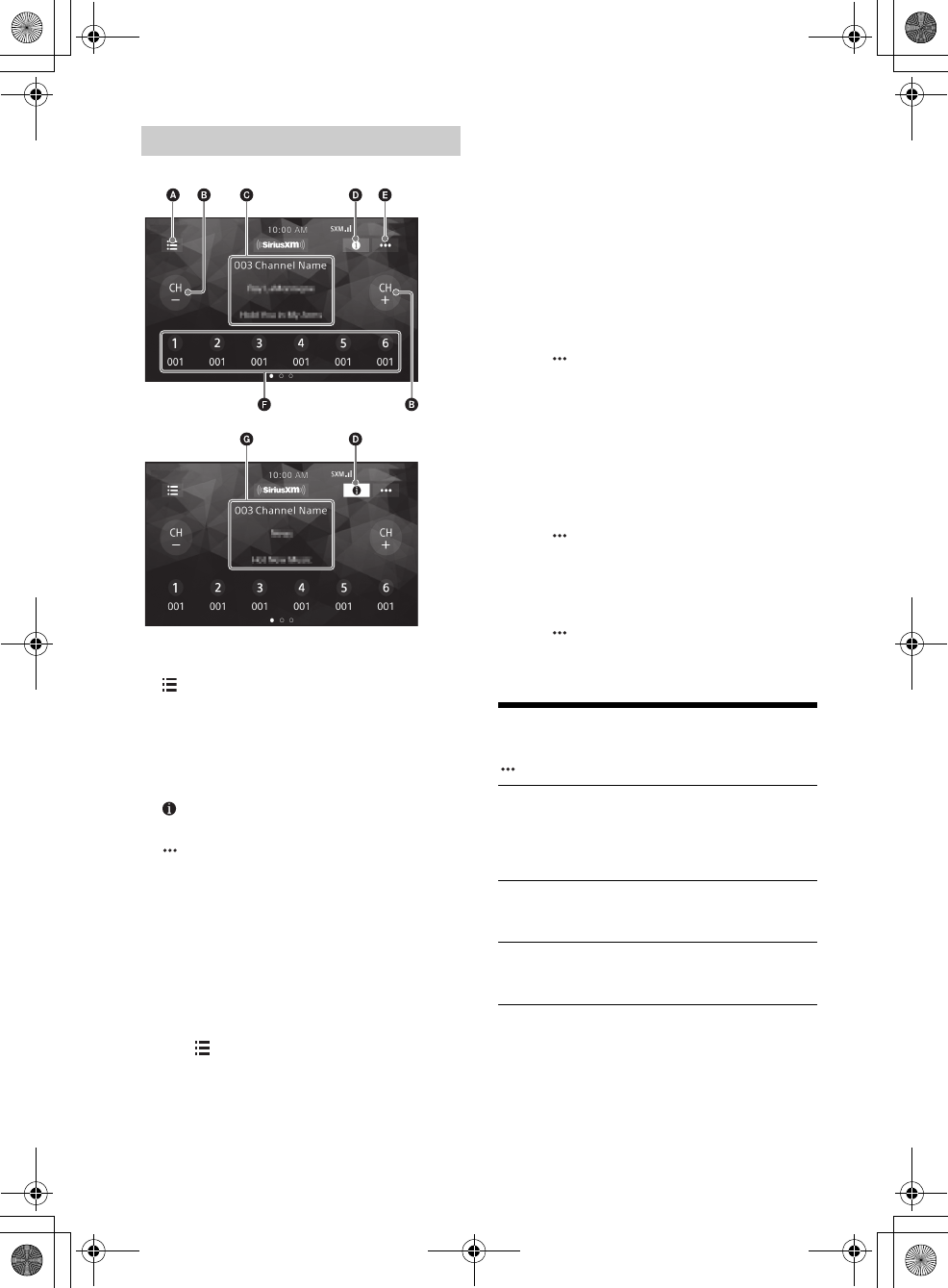

Reception controls/indications

 (list)

Open the channel list or category list.

CH- (previous channel) /CH+ (next channel)

Select the channel.

Channel number, channel name, artist name,

song title

 (information)

Switch the channel information.

 (SXM option)

Open the SXM option menu.

Preset numbers

Select a preset channel. Swipe right/left to show

the other preset channels. Touch and hold to

store the current channel in that preset.

Channel number, channel name, category

name, content information

To tune the channel from the channel list or

category list

1Touch .

2Touch [Channel List].

Alternatively, touch [Category List], then touch the

desired category item.

The channel list appears.

3Touch the desired channel.

To store channels

1While receiving the channel that you want to store,

touch and hold a number key (1 to 6).

To receive the stored channel, touch a number key

(1 to 6).

To set a parental control

The parental control feature allows you to limit

access to SiriusXM channels with mature content.

When enabled, the parental control feature requires

you to enter a passcode to tune to the locked

channels. Information on setting up the passcode

and locking channels can be found below.

1Touch , then touch [Parental Control].

The passcode input display appears.

2Enter your 4-digit passcode by touching the

number keys, then touch [OK].

The passcode confirmation display appears.

3Enter the 4-digit passcode again, then touch [OK].

The parental control is applied, and the channels are

locked.

To unlock the channels/To lock the channels

again

1Touch , then touch [Parental Control].

The passcode input display appears.

2Enter your 4-digit passcode by touching the

number keys, then touch [OK].

To change the passcode

1Touch , touch [Pass Code Change], then enter

your current passcode.

2Enter your new passcode.

Using SXM Option Functions

The following functions are available by touching

Channel Direct Select

Tune the desired channel by inputting its

channel number directly. Use the number

buttons (0 – 9) and press ENTER on the remote

commander.

Parental Control

Set the parental lock to on or off, and edit the

passcode.

Pass Code Change

Change the passcode for the Parental Control

feature.

Tuning channels for SiriusXM

010COV.book Page 11 Tuesday, August 29, 2017 11:10 AM

12GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

Playing a USB Device

MSC (Mass Storage Class) type USB devices*1

compliant with the USB standard can be used.

Also, MTP (Media Transfer Protocol) type USB

devices*1*2 can be used only when connected to

the USB2 port.

*1 e.g., a USB flash drive, digital media player, Android

phone

*2 Some digital media players or Android phones may

require setting to MTP mode.

Notes

• For details on the compatibility of your USB device, visit

the support site on the back cover.

• For details on the supported file formats, see “Supported

formats for USB playback” (page 19).

1Turn down the volume on the unit.

2Connect the USB device to the USB port.

3Press HOME, then touch [USB].

Playback starts.

To remove the device

Turn the unit off or turn the ignition switch to the

ACC off position, then remove the USB device.

When connecting the USB devices, select the USB1

port or the USB2 port according to the features to

use.

: Available, –: Not supported

Playing a BLUETOOTH Device

You can play contents on a connected device that

supports BLUETOOTH A2DP (Advanced Audio

Distribution Profile).

1Make a BLUETOOTH connection with the

audio device (page 9).

2Press HOME, then touch [BT Audio].

3Operate the audio device to start playback.

Notes

• Depending on the audio device, information such as title,

track number/time, and playback status may not be

displayed on this unit.

• Even if the source is changed on this unit, playback of the

audio device does not stop.

To match the volume level of the BLUETOOTH

device to other sources

You can reduce the volume level differences

between this unit and the BLUETOOTH device:

During playback, touch , then set [Input Level]

between –8 and +8.

Playback

USB1 port and USB2 port

Supported features USB1 USB2

Apple CarPlay –

Android Auto –

File system

FAT12 

FAT16 

FAT32 

exFAT –

Playable audio

format

MP3 

WMA 

FLAC 

PCM –

AAC –

Playable video

format

MPEG-4 –

WMV –

MKV –

Xvid –

USB connection

mode

MSC 

MTP – 

Track list display –

Supported features USB1 USB2

010COV.book Page 12 Tuesday, August 29, 2017 11:10 AM

13GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

Searching and Playing Tracks

1During playback, touch (repeat) or

(shuffle) repeatedly until the desired play

mode appears.

Playback in the selected play mode may take

time to start.

Available play modes differ depending on the

selected sound source and connected device.

The track list is not available for the device

connected to the USB2 port.

1During USB playback, touch .

The list screen from the currently played item

appears.

Furthermore, touch (audio) or (video) to

list up by file type.

2Touch the desired item.

Playback starts.

Other Settings During Playback

Further settings are available in each source by

touching . The available items differ depending

on the source.

Picture EQ

Adjusts the picture quality according to your

taste: [Dynamic], [Standard], [Theater], [Custom].

(Available only when the parking brake is applied

and USB video is selected).

Aspect

Selects an aspect ratio for the screen of the unit.

(Available only when the parking brake is applied

and USB video is selected).

Normal

Displays a 4:3 picture in its original size, with side

bars to fill the 16:9 screen.

Zoom

Displays a 16:9 picture that has been converted

into 4:3 letter box format.

Full

Displays a 16:9 picture in its original size.

Captions

Enlarges the picture horizontally, while fitting

captions in the screen.

Repeat play and shuffle play

Searching for a file from the list screen

010COV.book Page 13 Tuesday, August 29, 2017 11:10 AM

14GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

To use a cellular phone, connect it with this unit. For

details, see “Preparing a BLUETOOTH Device”

(page 8).

Note

The handsfree calling functions explained below are

available only when the Apple CarPlay or Android Auto

function is deactivated. When the Apple CarPlay or Android

Auto function is activated, use the handsfree calling

functions on its application.

Receiving a Call

1Touch when a call is received.

The phone call starts.

Note

The ringtone and talker’s voice are output only from the

front speakers.

To reject/end a call

Touch .

Making a Call

1Press HOME, then touch [Phone].

2Touch one of the call icons on the

BLUETOOTH phone display.

 (call history)*

Select a contact from the call history list. The

unit stores the last 20 calls.

 (redial)

Make a call automatically to the last contact

you made.

 (phonebook)*

Select a contact from the name list/number

list in the phonebook. To search for the

desired contact in alphabetical order from

the name list, touch .

 (phone number input)

Enter the phone number.

Preset phone number list

Select the stored contact.

To store the contact, see “Presetting phone

numbers” (page 14).

* The cellular phone needs to support PBAP (Phone

Book Access Profile).

3Touch .

The phone call starts.

You can store up to 6 contacts in the preset list.

1In the phone screen, select a phone number

that you want to store in the preset dial

from the phonebook.

The confirmation display appears.

2Touch [Add to Preset].

3Select the preset phone number list where

the phone number is stored.

The contact is stored in the preset phone

number list.

Handsfree Calling

Presetting phone numbers

010COV.book Page 14 Tuesday, August 29, 2017 11:10 AM

15GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

Available Operations During a

Call

To adjust the ringtone volume

Press VOL +/– while receiving a call.

To adjust the talker’s voice volume

Press VOL +/– during a call.

To adjust the volume for the other party (Mic

gain adjustment)

During a handsfree call, touch , then set [MIC

Gain] to [High], [Middle], or [Low].

To reduce echo and noise (Echo/noise

canceler mode)

During a call, touch , then set [Speech Quality] to

[Mode 1] or [Mode 2].

To switch between handsfree mode and

handheld mode

During a call, touch to switch the

phone call audio between the unit and cellular

phone.

Note

Depending on the cellular phone, this operation may not be

available.

To answer an incoming call automatically

Touch , then set [Auto Answer] to [ON].

Apple CarPlay

Apple CarPlay lets you use your iPhone in the car in

a way that allows you to stay focused on the road.

(Available only when your iPhone is connected to

the USB1 port.)

Notes on using Apple CarPlay

• iPhone with iOS 7.1 or later is required. Update to

the latest iOS version before use.

• Apple CarPlay can be used on iPhone 5 or later.

• For details on compatible models, refer to the

compatibility list on the support site on the back

cover.

• For details about Apple CarPlay, refer to the

manual supplied with your iPhone, or visit the

website of Apple CarPlay.

• Since the GPS on your iPhone is used, place your

iPhone where it can easily receive a GPS signal.

1Connect your iPhone to the USB1 port.

To connect an iPhone, use the USB connection

cable for iPod (not supplied).

2Press HOME, then touch the Apple CarPlay

icon.

Your iPhone’s display appears on the display of

the unit. Touch and control the applications.

Android Auto

Android Auto extends the Android platform into the

car in a way that’s purpose-built for driving.

(Available only when your Android phone is

connected to the USB1 port.)

Notes on using Android Auto

• Android phone with Android 5.0 or higher is

required. Update to the latest OS version before

use.

• Your Android phone needs to support Android

Auto. For details on compatible models, refer to

the compatibility list on the support site on the

back cover.

• Download the Android Auto app on Google

Play™.

• For details about Android Auto, refer to the

manual supplied with your Android phone, or visit

the website of Android Auto.

• Since the GPS on your Android phone is used,

place your Android phone where it can easily

receive a GPS signal.

• Android Auto may not be available in your country

or region.

Useful Functions

010COV.book Page 15 Tuesday, August 29, 2017 11:10 AM

16GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

1Connect your Android phone to the USB1

port.

To connect an Android phone, use an

appropriate connection cable (not supplied).

2Press HOME, then touch the Android Auto

icon.

The Android Auto interface will be displayed full-

screen on the display of the unit. Touch and

control the applications.

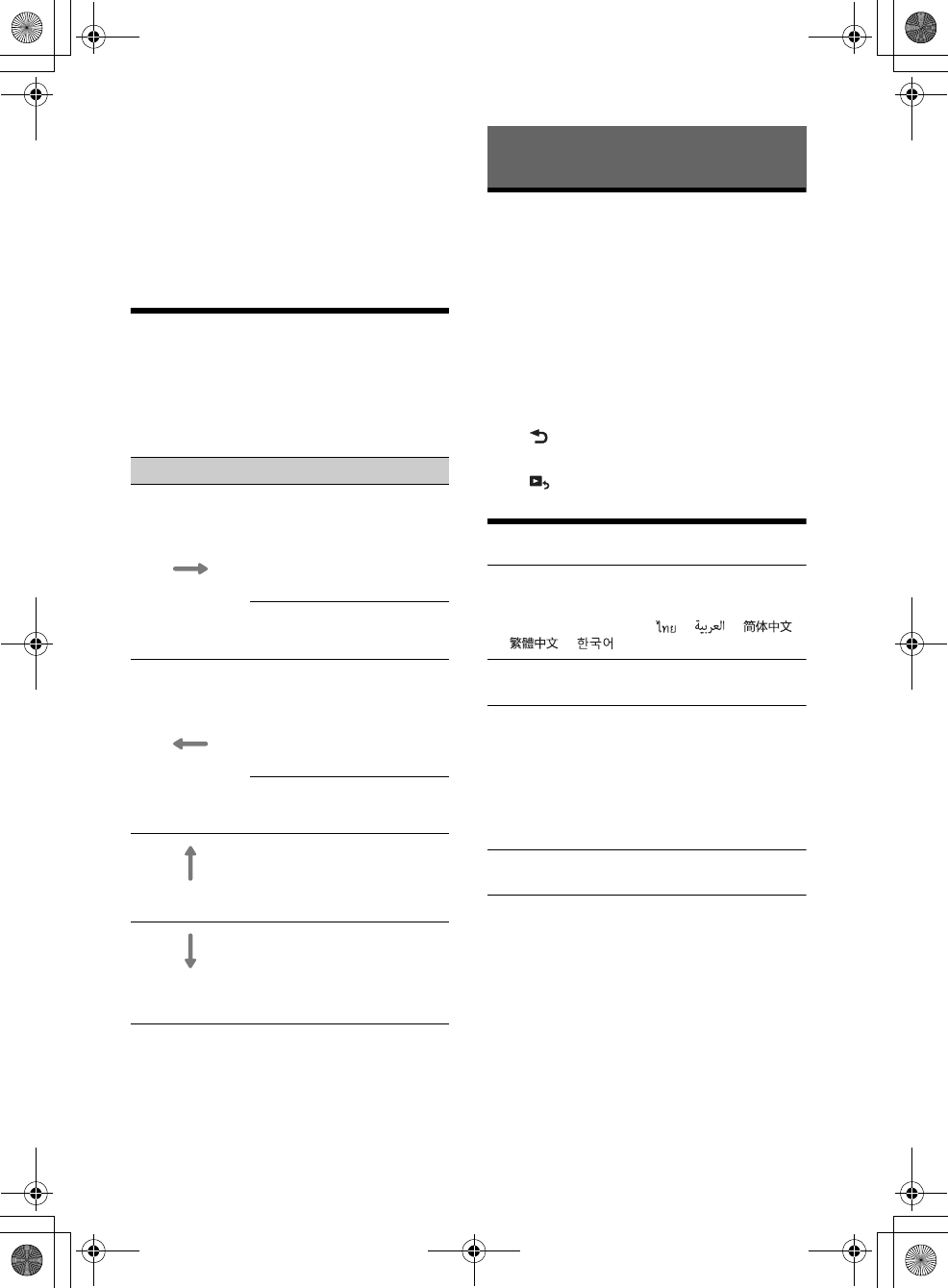

Using Gesture Command

You can perform frequently-used operations by

swiping your finger on the reception/playback

display.

Note

The gesture commands explained below are not available

on the screens of Apple CarPlay and Android Auto.

Basic Setting Operation

You can set items in the following setup categories:

General Settings, Sound Settings,

Visual Settings, Bluetooth

1Press HOME, then touch [Settings].

2Touch one of the setup category.

The items that can be set differ depending on

the source and settings.

3Move the scrollbar up and down to select

the desired item.

To return to the previous display

Touch .

To switch to the playback screen

Touch .

General Settings

Language

Selects the display language: [English],

[Español], [Français], [Deutsch], [Italiano],

[Português], [Русский], [ ], [ ], [ ],

[], [].

Demo

Activates the demonstration: [OFF], [ON].

Date/Time

Date Format

Selects the format: [DD/MM/YY], [MM/DD/YY],

[YY/MM/DD].

Time Format

Selects the format: [12-hour], [24-hour].

Set Date/Time

Sets the date and clock time manually.

Beep

Activates the operation sound: [OFF], [ON].

Camera Input

Selects the image from the rear view camera:

[OFF], [Normal], [Reverse] (mirror image).

[Guide Line Adjust] adjusts the length and/or

position of the marker lines on the picture from

the rear view camera by touching the arrow

marks.

Do this To

Swipe left to right

Radio reception:

seek forward stations.

(The same as pressing and

holding .)

SiriusXM reception:

tune the next channel

(channel +).

Video/audio playback:

skip forward a file/track.

(The same as .)

Swipe right to left

Radio reception:

seek backward stations.

(The same as pressing and

holding .)

SiriusXM reception:

tune the previous channel

(channel –).

Video/audio playback:

skip backward a file/track.

(The same as .)

Swipe upwards

Radio reception:

receive stored stations (go

forward).

SiriusXM reception:

tune the next preset (preset +).

Swipe downwards

Radio reception:

receive stored stations (go

backward).

SiriusXM reception:

tune the previous preset

(preset –).

Settings

010COV.book Page 16 Tuesday, August 29, 2017 11:10 AM

17GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

Steering Control

Selects the input mode for the connected remote

control. To prevent a malfunction, be sure to

match the input mode with the connected

remote control before use.

Custom

Input mode for the steering wheel remote

control (follow the procedures of [ ] to register

functions on the connected remote control).

Preset

Input mode for the wired remote control

excluding the steering wheel remote control.

The steering button panel appears.

Press and hold the button you want to assign

to the steering wheel.

The button on the panel lights up (standby).

Press and hold the button on the steering

wheel you want to assign the function to.

The button on the panel will change the color

(highlighted or encircled by an orange line).

To register other functions, repeat steps 

and .

(Available only when [Steering Control] is set to

[Custom].)

Notes

• While making settings, the connected remote control

cannot be used even though some functions have

already been registered. Use the buttons on the unit.

• If an error occurs while registering, all the registered

information is cleared. Restart registration from the

beginning.

• This function may not be available on some vehicles.

For details on the compatibility of your vehicle, visit the

support site on the back cover.

Clock Time

Sets the clock time by the RDS data: [OFF], [ON].

SXM Reset

Initializes the SiriusXM Connect Vehicle Tuner

settings (preset channels/parental lock): [Reset],

[Cancel].

Factory Reset

Initializes all the settings to the factory settings.

Firmware Version

Updates and confirms the firmware version.

Open Source Licenses

Displays the software licenses.

Sound Settings

EXTRA BASS

Reinforces bass sound in synchronization with

the volume level: [OFF], [1], [2].

EQ10/Subwoofer

Selects an equalizer curve and adjusts the

subwoofer level.

EQ10

Selects the equalizer curve: [OFF], [R&B], [Rock],

[Pop], [Dance], [Hip-Hop], [Electronica], [Jazz],

[Soul], [Country], [Custom].

[Custom] adjusts the equalizer curve: –6 to +6.

Subwoofer

Adjusts the volume level of the subwoofer:

[OFF], –6 to +6.

Balance/Fader

Adjusts the balance/fader level.

Balance

Adjusts the sound balance between the left and

right speakers: [L15] to [R15].

Fader

Adjusts the sound balance between the front

and rear speakers: [Front 15] to [Rear 15].

Crossover

Adjusts the cut-off frequency and subwoofer

phase.

High Pass Filter

Selects the cut-off frequency of the front/rear

speakers: [50Hz], [60Hz], [80Hz], [100Hz],

[120Hz], [OFF].

Low Pass Filter

Selects the cut-off frequency of the subwoofer:

[50Hz], [60Hz], [80Hz], [100Hz], [120Hz].

Subwoofer Phase

Selects the subwoofer phase: [Normal],

[Reverse].

DSO (Dynamic Stage Organizer)

Enhances audio output: [OFF], [Low], [Middle],

[High].

010COV.book Page 17 Tuesday, August 29, 2017 11:10 AM

18GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

Visual Settings

Wallpaper

Changes the wallpaper: [Preset1] to [Preset5].

Dimmer

Dims the display: [OFF], [Auto], [ON].

([Auto] is available only when the illumination

control lead is connected and works when the

head light is turned on.)

[ ] adjusts the brightness level when the

dimmer is activated: –5 to +5.

USB video framerate

Selects the video frame rate on the unit’s display:

[60fps], [50fps].

Bluetooth

Bluetooth Connection

Activates the BLUETOOTH signal: [OFF], [ON],

[Pairing] (enters into pairing standby mode).

Bluetooth Device Info

Displays the information of the device connected

to the unit.

(Available only when [Bluetooth Connection] is

set to [ON] and a BLUETOOTH device is

connected to the unit.)

Bluetooth Reset

Initializes all BLUETOOTH-related settings such as

pairing information, call history, history of

connected BLUETOOTH devices, etc.

Updating the Firmware

To update the firmware, visit the support site on the

back cover, then follow the online instructions.

Updating the firmware takes a few minutes to

complete. During the update, do not turn the

ignition to the OFF position.

Precautions

• Cool off the unit beforehand if your car has been

parked in direct sunlight.

• Power antenna (aerial) extends automatically.

• When you transfer ownership or dispose of your

car with the unit installed, initialize all the settings

to the factory settings by performing the factory

reset (page 17).

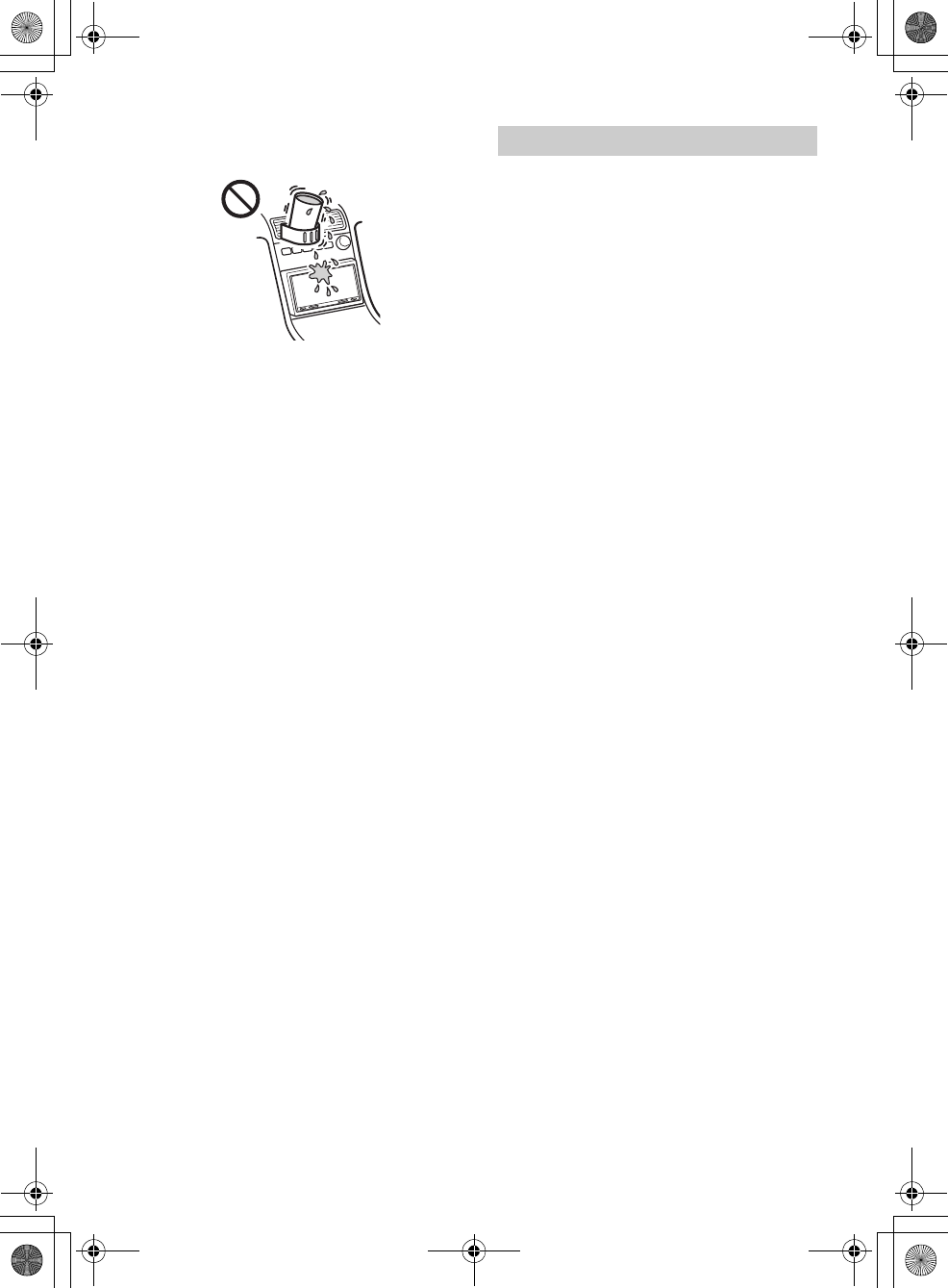

To maintain high sound quality

Do not splash liquid onto the unit.

Notes on safety

• Comply with your local traffic rules, laws, and

regulations.

• While driving

– Do not watch or operate the unit, as it may lead

to distraction and cause an accident. Park your

car in a safe place to watch or operate the unit.

– Do not use the setup feature or any other

function which could divert your attention from

the road.

– When backing up your car, be sure to look back

and watch the surroundings carefully for your

safety even if the rear view camera is connected.

Do not depend on the rear view camera

exclusively.

• While operating

– Do not insert your hands, fingers, or foreign

objects into the unit as it may cause injury or

damage to the unit.

– Keep small articles out of the reach of children.

– Be sure to fasten seatbelts to avoid injury in the

event of sudden movement of the car.

Additional Information

Preventing an accident

Pictures appear only after you park the car and

set the parking brake.

If the car starts moving during video playback,

the following caution is displayed and you

cannot watch the video.

[Video blocked for your safety.]

Do not operate the unit or watch the monitor

while driving.

010COV.book Page 18 Tuesday, August 29, 2017 11:10 AM

19GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

Notes on LCD panel

• Do not get the LCD panel wet or expose it to

liquids. This may cause a malfunction.

• Do not press down hard on the LCD panel as doing

so can distort the picture or cause a malfunction

(i.e., the picture may become unclear or the LCD

panel may be damaged).

• Do not touch the panel with objects other than

with your finger as it may damage or break the

LCD panel.

• Clean the LCD panel with a dry soft cloth. Do not

use solvents such as benzine, thinner,

commercially available cleaners, or antistatic

spray.

• Do not use the unit outside the temperature range

0 ºC – 40 ºC (32 ºF – 104 ºF).

• If your car was parked in a cold or hot place, the

picture may not be clear. However, the monitor is

not damaged and the picture will become clear

after the temperature in your car becomes normal.

• Some stationary blue, red, or green dots may

appear on the monitor. These are called “bright

spots” and can happen with any LCD. The LCD

panel is precision-manufactured with more than

99.99% of its segments functional. However, it is

possible that a small percentage (typically 0.01%)

of the segments may not light up properly. This

will not, however, interfere with your viewing.

Notes on the touch panel

• This unit uses a capacitive touch panel. Touch the

panel directly with your fingertip.

• Multi touch operation is not supported on this

unit.

• Do not touch the panel with sharp objects such as

a needle, pen, or fingernail. The operation with a

stylus is not supported on this unit.

• Touching the panel with gloved fingers may cause

misoperation such as the unit does not respond.

• Do not let any objects contact on the touch panel.

If the panel is touched by objects other than your

fingertip, the unit may not respond correctly.

• Keep other electrical devices away from the touch

panel of the unit. This may cause malfunction of

the touch panel.

• If there are water droplets on the touch panel, or if

you touch the panel with wet fingertips, the touch

panel may not react correctly.

USB1 port:

WMA (.wma)*1*2

Bit rate: 48 kbps – 192 kbps (Supports variable bit

rate (VBR))*3

Sampling frequency*4: 44.1 kHz

MP3 (.mp3)*1*2

Bit rate: 48 kbps – 320 kbps (Supports variable

bit rate (VBR))*3

Sampling frequency*4: 32 kHz, 44.1 kHz, 48 kHz

AAC (.m4a)*1*2

Bit rate: 40 kbps – 320 kbps (Supports variable

bit rate (VBR))*3

Sampling frequency*4: 8 kHz – 48 kHz

Bit per sample (Quantization bit): 16 bits

FLAC (.flac)*1*6

Sampling frequency*4: 8 kHz – 96 kHz

Bit per sample (Quantization bit): 16 bits

WAV (.wav)*1

Sampling frequency*4: 8 kHz – 48 kHz

Bit per sample (Quantization bit): 16 bits, 24 bits

Xvid (.avi)

Video codec: MPEG-4 Advanced Simple Profile

Audio codec: MP3 (MPEG-1 Layer3)

Bit rate: Max. 4 Mbps

Frame rate: Max. 30 fps (30p/60i)

Resolution: Max. 720 × 576*5

MPEG-4 (.mp4)

Video codec: MPEG-4 Advanced Simple Profile,

AVC Baseline Profile

Audio codec: AAC

Bit rate: Max. 4 Mbps

Frame rate: Max. 30 fps (30p/60i)

Resolution: Max. 720 × 576*5

WMV (.wmv, .avi)*1

Video codec: WMV3, WVC1

Audio codec: MP3, WMA

Bit rate: Max. 6 Mbps

Frame rate: Max. 30 fps

Resolution: Max. 720 × 480*5

MKV (.mkv)

Video codec: MPEG-4 Advanced Simple Profile,

AVC Baseline Profile

Audio codec: MP3, AAC

Bit rate: Max. 5 Mbps

Frame rate: Max. 30 fps

Resolution: Max. 720 × 576*5

USB2 port:

MP3 (.mp3)*1*2

Bit rate: 48 kbps – 320 kbps (Supports variable

bit rate (VBR))*3

Sampling frequency*4: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)*1

Sampling frequency*4: 8 kHz – 96 kHz

Bit per sample (Quantization bit): 8 bits, 12 bits,

16 bits, 20 bits, 24 bits

WAV (.wav)*1

Sampling frequency*4: 8 kHz – 48 kHz

Bit per sample (Quantization bit): 16 bits, 24 bits

Supported formats for USB playback

010COV.book Page 19 Tuesday, August 29, 2017 11:10 AM

20GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

*1 Copyright-protected files and multi-channel audio files

cannot be played back.

*2 DRM (Digital Rights Management) files cannot be played

back.

*3 Non-standard bit rates or non-guaranteed bit rates are

included depending on the sampling frequency.

*4 Sampling frequency may not correspond to all encoders.

*5 These numbers indicate the maximum resolution of

playable video and do not indicate the player’s display

resolution. The display resolution is 800 × 480.

*6 Displaying the tag information is not supported.

Note

Some files may not be played back even though their file

formats are supported by the unit.

• For details on compatible iPhone models, visit the

support site on the back cover.

• “Made for iPhone” means that an electronic

accessory has been designed to connect

specifically to iPhone, and has been certified by

the developer to meet Apple performance

standards. Apple is not responsible for the

operation of this device or its compliance with

safety and regulatory standards. Please note that

the use of this accessory with iPhone may affect

wireless performance.

This product contains software that Sony uses

under a licensing agreement with the owner of its

contents of the agreement to customers under

requirement by the owner of copyright for the

software.

For details on software licenses, see page 17.

Notice on GNU GPL/LGPL applied

software

This product contains software that is subject to the

following GNU General Public License (hereinafter

referred to as “GPL”) or GNU Lesser General Public

License (hereinafter referred to as “LGPL”). These

establish that customers have the right to acquire,

modify, and redistribute the source code of said

software in accordance with the terms of the GPL or

LGPL displayed on this unit.

The source code for the above-listed software is

available on the Web.

To download, please access the following URL then

select the model name “XAV-AX5000.”

URL: http://www.sony.net/Products/Linux/

Please note that Sony cannot answer or respond to

any inquiries regarding the content of the source

code.

If you have any questions or problems concerning

your unit that are not covered in this Operating

Instructions, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the remote

commander

Under normal conditions, the battery will last

approximately 1 year. (The service life may be

shorter depending on the conditions of use.)

When the battery becomes weak, the range of the

remote commander becomes shorter.

CAUTION

Danger of explosion if battery is incorrectly

replaced. Replace only with the same or equivalent

type.

Notes on the lithium battery

• Keep the lithium battery out of the reach of children.

Should the battery be swallowed, immediately consult a

doctor.

• Wipe the battery with a dry cloth to ensure good contact.

• Be sure to observe the correct polarity when installing the

battery.

• Do not hold the battery with metallic tweezers, otherwise

a short-circuit may occur.

About iPhone

Notice on license

+ side up



010COV.book Page 20 Tuesday, August 29, 2017 11:10 AM

21GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

Specifications

FOR THE CUSTOMERS IN THE USA. NOT

APPLICABLE IN CANADA, INCLUDING IN THE

PROVINCE OF QUEBEC.

POUR LES CLIENTS AUX ÉTATS-UNIS. NON

APPLICABLE AU CANADA, Y COMPRIS LA

PROVINCE DE QUÉBEC.

AUDIO POWER SPECIFICATIONS

CTA2006 Standard

Power Output: 20 Watts RMS × 4 at

4 Ohms < 1% THD+N

SN Ratio: 80 dBA (reference: 1 Watt into

4 Ohms)

Monitor section

Display type: Wide LCD color monitor

Dimensions: 6.95 in

System: TFT active matrix

Number of pixels:

1,152,000 pixels (800 × 3 (RGB) × 480)

Color system:

PAL/NTSC/SECAM/PAL-M automatic select for

CAMERA IN terminal

Tuner section

Tuning range: 87.5 MHz – 107.9 MHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Usable sensitivity: 10 dBf

Selectivity: 70 dB at 400 kHz

Signal-to-noise ratio: 70 dB (mono)

Separation at 1 kHz: 30 dB

Frequency response: 20 Hz – 15,000 Hz

Tuning range: 530 kHz – 1,710 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Sensitivity: 44 μV

USB player section

Interface:

USB1 port: USB (Hi-speed)

USB2 port: USB (Full-speed)

Maximum current:

USB1 port: 1.5 A

USB2 port: 500 mA

Wireless communication

Communication System:

BLUETOOTH Standard version 3.0

Output:

BLUETOOTH Standard Power Class 2

(Max. +4 dBm)

Maximum communication range*1:

Line of sight approx. 10 m (33 ft)

Frequency band:

2.4 GHz band (2.4000 GHz – 2.4835 GHz)

Modulation method: FHSS

Compatible BLUETOOTH Profiles*2:

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.3

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile) 1.1

Corresponding codec: SBC (.sbc), AAC (.m4a)

*1 The actual range will vary depending on factors such as

obstacles between devices, magnetic fields around a

microwave oven, static electricity, reception sensitivity,

antenna (aerial)’s performance, operating system,

software application, etc.

*2 BLUETOOTH standard profiles indicate the purpose of

BLUETOOTH communication between devices.

Power amplifier section

Outputs: Speaker outputs

Speaker impedance: 4 Ω – 8 Ω

Maximum power output: 55 W × 4 (at 4 Ω)

General

Outputs:

Audio output terminals (FRONT, REAR, SUB)

Power antenna (aerial)/Power amplifier control

terminal (REM OUT)

Inputs:

SiriusXM input terminal

Illumination control terminal

Remote controller input terminal

Antenna (aerial) input terminal

Microphone input terminal

Parking brake control terminal

Reverse input terminal

Camera input terminal

USB ports (USB1, USB2)

External input terminal

Power requirements: 12 V DC car battery

(negative ground (earth))

Rated current consumption: 10 A

Dimensions: Approx. 178 mm × 100 mm × 139 mm

(7 1/8 in × 4 in × 5 1/2 in) (w/h/d)

Mounting dimensions:

Approx. 182 mm × 111 mm × 120 mm

(7 1/4 in × 4 3/8 in × 4 3/4 in) (w/h/d)

Mass: Approx. 00 kg (00 lb 00 oz)

Package contents:

Main unit (1)

Parts for installation and connections (1 set)

Remote Commander (1): RM-X170

Microphone (1)

Optional accessories/equipment:

SiriusXM Connect Vehicle Tuner: SXV100,

SXV200, SXV300

Cable for steering wheel remote input: RC-SR1

Navigation Module: XA-NV400

010COV.book Page 21 Tuesday, August 29, 2017 11:10 AM

22GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

Your dealer may not handle some of the above

listed accessories. Please ask the dealer for detailed

information.

Design and specifications are subject to change

without notice.

SiriusXM Connect Vehicle Tuner and Subscription

sold separately.

www.siriusxm.com

Sirius, XM and all related marks and logos are

trademarks of Sirius XM Radio Inc. All rights

reserved.

MPEG Layer-3 audio coding technology and patents

licensed from Fraunhofer IIS and Thomson.

The Bluetooth® word mark and logos are registered

trademarks owned by the Bluetooth SIG, Inc. and

any use of such marks by Sony Corporation is under

license. Other trademarks and trade names are

those of their respective owners.

Windows Media is either a registered trademark or

trademark of Microsoft Corporation in the United

States and/or other countries.

This product is protected by certain intellectual

property rights of Microsoft Corporation. Use or

distribution of such technology outside of this

product is prohibited without a license from

Microsoft or an authorized Microsoft subsidiary.

Apple and iPhone are trademarks of Apple Inc.,

registered in the U.S. and other countries.

Apple CarPlay is a trademark of Apple Inc.

iOS is a trademark or registered trademark of Cisco

in the U.S. and other countries and is used under

license.

Android, Android Auto, Google and Google Play are

trademarks of Google Inc.

This product uses font data which is licensed to

Sony owned by Monotype Imaging Inc.

Such font data shall be used solely in connection

with this product.

THIS PRODUCT IS LICENSED UNDER THE MPEG-4

VISUAL PATENT PORTFOLIO LICENSE FOR THE

PERSONAL AND NON-COMMERCIAL USE OF A

CONSUMER FOR DECODING VIDEO IN COMPLIANCE

WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4

VIDEO”) THAT WAS ENCODED BY A CONSUMER

ENGAGED IN A PERSONAL AND NONCOMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO

PROVIDER LICENSED BY MPEG LA TO PROVIDE

MPEG-4 VIDEO.

NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR

ANY OTHER USE.

ADDITIONAL INFORMATION INCLUDING THAT

RELATING TO PROMOTIONAL, INTERNAL AND

COMMERCIAL USES AND LICENSING MAY BE

OBTAINED FROM MPEG LA, LLC. SEE

HTTP://WWW.MPEGLA.COM

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT

PORTFOLIO LICENSE FOR THE PERSONAL AND NON-

COMMERCIAL USE OF A CONSUMER TO

(i)ENCODE VIDEO IN COMPLIANCE WITH THE AVC

STANDARD (“AVC VIDEO”)

AND/OR

(ii)DECODE AVC VIDEO THAT WAS ENCODED BY A

CONSUMER ENGAGED IN A PERSONAL AND

NON-COMMERCIAL ACTIVITY AND/OR WAS

OBTAINED FROM A VIDEO PROVIDER LICENSED TO

PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR

SHALL BE IMPLIED FOR ANY OTHER USE.

ADDITIONAL INFORMATION MAY BE OBTAINED

FROM MPEG LA, L.L.C. SEE

HTTP://WWW.MPEGLA.COM

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT

PORTFOLIO LICENSE AND VC-1 PATENT PORTFOLIO

LICENSE FOR THE PERSONAL AND NON-

COMMERCIAL USE OF A CONSUMER TO DECODE

VIDEO IN COMPLIANCE WITH THE AVC STANDARD

(“AVC VIDEO”) AND/OR THE VC-1 STANDARD (“VC-1

VIDEO”) THAT WAS ENCODED BY A CONSUMER

ENGAGED IN A PERSONAL AND NONCOMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO

PROVIDER LICENSED TO PROVIDE AVC VIDEO AND/

OR VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL

BE IMPLIED FOR ANY OTHER USE. ADDITIONAL

INFORMATION MAY BE OBTAINED FROM MPEG LA,

L.L.C. SEE HTTP://WWW.MPEGLA.COM

All other trademarks are trademarks of their

respective owners.

Copyrights

010COV.book Page 22 Tuesday, August 29, 2017 11:10 AM

23GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

Troubleshooting

The following checklist will help you remedy

problems you may encounter with your unit.

Before going through the checklist below, check

the connection and operating procedures.

For details on using the fuse and removing the unit

from the dashboard, see “Connection/Installation”

(page 28).

If the problem is not solved, visit the support site on

the back cover.

General

No power is being supplied to the unit.

Check the fuse.

The connection is not correct.

– Connect the yellow and red power supply

leads.

There is no beep sound.

An optional power amplifier is connected and

you are not using the built-in amplifier.

The contents of the memory have been erased.

The power supply lead or battery has been

disconnected or it is not connected properly.

The fuse has blown.

The unit makes noise when the position of the

ignition is switched.

The leads are not matched correctly with the car’s

accessory power connector.

The display disappears from/does not appear on

the monitor.

The dimmer is set to [ON] (page 18).

The monitor off function is activated (page 6, 7).

– Touch anywhere on the display to turn the

display back on.

Menu items cannot be selected.

Unavailable menu items are displayed in gray.

Touch panel operation

The touch panel does not react to your touch

correctly.

Touch one part of the touch panel at a time. If

two or more parts are touched simultaneously,

the touch panel will not react correctly.

Touch the pressure sensitive panel firmly.

The touch panel does not react when touching

with wet fingertips or when water droplets are on

the touch panel.

Multi touch does not be recognized.

Multi touch operation is not supported on this

unit.

Radio reception

The stations cannot be received.

The sound is hampered by noise.

The connection is not correct.

– Connect the REM OUT lead (blue/white striped)

or accessory power supply lead (red) to the

power supply lead of a car’s antenna (aerial)

booster (only when your car has built-in radio

antenna (aerial) in the rear/side glass).

– Check the connection of the car antenna

(aerial).

– If the auto antenna (aerial) will not extend,

check the connection of the power antenna

(aerial) control lead.

Preset tuning is not possible.

The broadcast signal is too weak.

RDS

PTY displays [PTY not found.].

The current station is not a RDS station.

RDS data has not been received.

The station does not specify the program type.


There is no picture/picture noise occurs.

A connection has not been made correctly.

Check the connection between this unit and

other equipment and set the input selector of the

equipment to the source corresponding to this

unit.

Installation is not correct.

– Install the unit at an angle of less than 45° in a

sturdy part of the car.

The parking cord (light green) is not connected to

the parking brake switch cord, or the parking

brake is not applied.

The picture does not fit in the screen.

The aspect ratio is fixed on the playback source.

010COV.book Page 23 Tuesday, August 29, 2017 11:10 AM

24GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

Sound

There is no sound/sound skips/sound cracks.

A connection has not been made correctly.

Check the connection between this unit and the

connected equipment and set the input selector

of the equipment to the source corresponding to

this unit.

Installation is not correct.

– Install the unit at an angle of less than 45° in a

sturdy part of the car.

The unit is in pause/reverse/fast-forward mode.

The settings for the outputs are not made

correctly.

The volume is too low.

The ATT function is activated.

The format is not supported.

– Check if the format is supported by this unit

(page 19).

Sound is noisy.

Keep cords and cables away from each other.

USB playback

Items cannot be played via a USB hub.

Connect USB devices to this unit without a USB

hub.

Items cannot be played.

Reconnect the USB device.

The USB port to which the USB device is

connected is not appropriate.

– Connect the USB device to the appropriate USB

port that supports the file formats (page 12).

The USB device takes longer to play.

The USB device contains large-sized files or files

with a complicated tree structure.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate.

Audio files cannot be played.

USB devices formatted with file systems other

than FAT12, FAT16, FAT32 or exFAT*1 are

unsupported.*2

The USB port to which the USB device is

connected is not appropriate.

– Connect the USB device to the appropriate USB

port that supports the file systems (page 12).

*1 USB devices formatted with exFAT file system are

available only when connected to the USB1 port.

*2 This unit supports FAT12, FAT16, FAT32 and exFAT, but

some USB device may not support all of these. For

details, refer to the operating instructions of each USB

device or contact the manufacturer.

Operations cannot be performed.

The USB mode of the device is not set to the

appropriate mode.

– Make sure that the USB mode of the device is

set to MSC or MTP mode.

The USB port to which the USB device is

connected is not appropriate.

– Connect the USB device to the appropriate USB

port that supports the features (page 12).

BLUETOOTH function

The other BLUETOOTH device cannot detect this

unit.

Set [Bluetooth Connection] to [ON] (page 18).

While connecting to a BLUETOOTH device, this

unit cannot be detected by another device.

Terminate the current connection and search for

this unit from the other device.

Depending on your smartphone or cellular

phone, you may need to delete this unit from the

history of the connected smartphone or cellular

phone then pair them again (page 8).

Connection is not possible.

Check the pairing and connection procedures in

the manual of the other device, etc., and perform

the operation again.

The name of the detected device does not

appear.

Depending on the status of the other device, it

may not be possible to obtain the name.

There is no ringtone.

Raise the volume while receiving a call.

The talker’s voice volume is low.

Raise the volume during a call.

The other party says that the volume is too low

or high.

Adjust the [MIC Gain] level (page 15).

Echo or noise occurs during call conversations.

Reduce the volume.

Set [Speech Quality] to [Mode 1] or [Mode 2].

(page 15).

If ambient noise other than the phone call sound

is loud, try reducing this noise.

– Shut the window if road noise is loud.

– Lower the air conditioner if the air conditioner is

loud.

The phone sound quality is poor.

Phone sound quality depends on reception

conditions of the cellular phone.

– Move your car to a place where you can

enhance the cellular phone’s signal if the

reception is poor.

010COV.book Page 24 Tuesday, August 29, 2017 11:10 AM

25GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

The volume of the connected BLUETOOTH device

is low or high.

Volume level will differ depending on the

BLUETOOTH device.

– Reduce the volume level differences between

this unit and the BLUETOOTH device (page 12).

The sound skips during audio streaming or the

BLUETOOTH connection fails.

Reduce the distance between the unit and the

BLUETOOTH device.

If the BLUETOOTH device is stored in a case which

interrupts the signal, remove the case while

using the device.

Several BLUETOOTH devices or other devices (e.g.

ham radio devices) which emit radio waves are

used nearby.

– Turn off the other devices.

– Increase the distance between the unit and

other devices.

Playback sound stops momentarily when this

unit is connecting to a cellular phone. This is not

a malfunction.

The connected BLUETOOTH device cannot be

controlled during audio streaming.

Check that the connected BLUETOOTH device

supports AVRCP.

Some functions do not work.

Check that the connecting device supports the

functions in question.

A call is answered unintentionally.

The connecting phone is set to start a call

automatically.

[Auto Answer] of this unit is set to [ON] (page 15).

Pairing failed due to time out.

Depending on the connecting device, the time

limit for pairing may be short. Try completing the

pairing within the time.

Cannot pair.

The unit may not be able to pair with a previously

paired BLUETOOTH device after initializing the

unit if the pairing information of the unit is on the

BLUETOOTH device. In this case, delete the

pairing information of the unit from the

BLUETOOTH device, and then pair them again.

The BLUETOOTH function cannot be operated.

Turn the ignition off. Wait for a while, then turn

the ignition to the ACC position.

No sound is output from the car speakers during

a handsfree call.

If the sound is output from the cellular phone, set

the cellular phone to output the sound from the

car speakers.

SiriusXM Connect Vehicle Tuner

A mature channel is not blocked although

parental control setting has been made.

If you tune to a mature channel, the passcode

display will appear. Once you have entered the

passcode, you will have unblocked parental

control for all channels until the unit is powered

down or you turn parental control back on.

– Set [Parental Control] to [Locked] in the SXM

option ( ) again (page 11).

Apple CarPlay

The Apple CarPlay icon does not appear on the

HOME screen.

Your iPhone is not compatible with Apple

CarPlay.

– Refer to the compatibility list on the support

site on the back cover.

Disconnect your iPhone from the USB1 port and

reconnect it again.

The USB port to which your iPhone is connected

is not appropriate.

– Connect your iPhone to the USB1 port.

Apple CarPlay may not be available in your

country or region.

Make sure a certified Lightning cable is used to

connect your iPhone and the unit.

Android Auto

The Android Auto icon does not appear on the

HOME screen.

Check your Android phone and accept the

disclaimers and permission requests required to

use Android Auto on your Android phone.

There is no Android Auto application installed on

your Android phone.

– Download and install the Android Auto

application onto your Android phone.

Your Android phone is not compatible with

Android Auto.

– Android phone with Android 5.0 or higher is

required. Refer to the compatibility list on the

support site on the back cover.

Disconnect your Android phone from the USB1

port and reconnect it again.

The USB port to which your Android phone is

connected is not appropriate.

– Connect your Android phone to the USB1 port.

Android Auto may not be available in your

country or region.

010COV.book Page 25 Tuesday, August 29, 2017 11:10 AM

26GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

Messages

General

Cannot play this content.

The currently selected content cannot be played

back, or skipped to the next one.

– The content is not in a supported file format.

Check supported file formats (page 19).

Device no response

The unit does not recognize the connected USB

device.

– Reconnect the USB device.

– Check that the USB device is supported by the

unit.

No Playable Data

The USB device has no playable data.

– Load music data/files into the USB device.

Overcurrent caution on USB.

The USB device is overloaded.

– Disconnect the USB device.

– Indicates that the USB device is out of order, or

an unsupported device is connected.

USB device not supported

For details on the compatibility of your USB

device, visit the support site on the back cover.

USB hub not supported

USB hubs are not supported on this unit.

BLUETOOTH

Bluetooth device is not found.

The unit cannot detect a connectable

BLUETOOTH device.

– Check the BLUETOOTH setting of the

connecting device.

No device is in the list of registered BLUETOOTH

devices.

– Perform pairing with a BLUETOOTH device

(page 8).

Handsfree device is not available.

A cellular phone is not connected.

– Connect a cellular phone (page 9).

SiriusXM Connect Vehicle Tuner

Channel Locked

The channel that you have requested is Locked

by the radio Parental Control feature. See “To set

a parental control” (page 11) for more information

on the Parental Control feature and how to access

locked channels.

Channel Not Available

The channel that you have requested is not a

valid SiriusXM channel or the channel that you

were listening to is no longer available.

You may also see this message briefly when first

connecting a new SiriusXM Connect Vehicle

Tuner.

Visit www.siriusxm.com in the USA or

www.siriusxm.ca in Canada for SiriusXM channel

lineup information.

Channel Not Subscribed

Call SiriusXM to Subscribe

The channel that you have requested is not

included in your SiriusXM subscription package

or the channel that you were listening to is no

longer included in your SiriusXM subscription

package.

If you have questions about your subscription

package or would like to subscribe to this

channel, please contact SiriusXM.

In the USA, visit www.siriusxm.com or call

1-866-635-2349.

In Canada, visit www.siriusxm.ca or call

1-877-438-9677.

Check Antenna

The radio has detected a fault with the SiriusXM

antenna (aerial).

The antenna (aerial) cable may be either

disconnected or damaged.

– Verify that the antenna (aerial) cable is

connected to the SiriusXM Connect Vehicle

Tuner.

– Inspect the antenna (aerial) cable for damage

and kinks.

– Replace the antenna (aerial) if the cable is

damaged. SiriusXM products are available at

your local car audio retailer or online at

www.shop.siriusxm.com

Check Tuner

The radio is having difficulty communicating with

the SiriusXM Connect Vehicle Tuner.

The tuner may be disconnected or damaged.

– Verify that the SiriusXM Connect Vehicle Tuner

cable is securely connected to the radio.

Incorrect Pass Code entered

Passcode input failed.

– Check that the passcode has been entered

correctly.

– If you forget your passcode, perform [SXM

Reset] in [General Settings] (page 17).

Note that performing [SXM Reset] will initialize

all the SiriusXM settings and stored contents in

the SiriusXM Connect Vehicle Tuner.

010COV.book Page 26 Tuesday, August 29, 2017 11:10 AM

27GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

No Signal

SiriusXM Connect Vehicle Tuner is having

difficulty receiving the SiriusXM satellite signal.

– Verify that your vehicle is outdoors with a clear

view of the sky.

– Verify that the SiriusXM magnetic mount

antenna (aerial) is mounted on a metal surface

on the outside of the vehicle.

– Move the SiriusXM antenna (aerial) away from

any obstructions.

– Inspect the antenna (aerial) cable for damage

and kinks.

– Consult the SiriusXM Connect Vehicle Tuner

installation manual for more information on

antenna (aerial) installation.

– Replace the antenna (aerial) if the cable is

damaged. SiriusXM products are available at

your local car audio retailer or online at

www.shop.siriusxm.com

Subscription Updated. Press Enter to Continue.

The radio has detected a change in your SiriusXM

subscription status.

– Press Enter to clear the message.

If you have questions about your subscription,

please contact SiriusXM.

In the USA, visit www.siriusxm.com or call

1-866-635-2349.

In Canada, visit www.siriusxm.ca or call

1-877-438-9677.

If these solutions do not help improve the situation,

consult your nearest Sony dealer.

010COV.book Page 27 Tuesday, August 29, 2017 11:10 AM

28GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

Cautions

• Do not install this unit in a car that has no ACC

position. The display of the unit does not turn off

even after turning the ignition off, and this causes

battery drain.

• Run all ground (earth) leads to a common

ground (earth) point.

• Do not get the leads trapped under a screw or

caught in moving parts (e.g., seat railing).

• Before making connections, turn the car ignition

off to avoid short circuits.

• Connect the yellow and red power supply leads

only after all other leads have been connected.

• Be sure to insulate any loose unconnected leads

with electrical tape for safety.

• Choose the installation location carefully so that

the unit will not interfere with normal driving

operations.

• Avoid installing the unit in areas subject to dust,

dirt, excessive vibration, or high temperature, such

as in direct sunlight or near heater ducts.

• Use only the supplied mounting hardware for a

safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo

components, the amperage rating of the car circuit to which

the unit is connected must be higher than the sum of each

component’s fuse amperage rating.

Mounting angle adjustment

Adjust the mounting angle to less than 45°.

Parts List for Installation

This parts list does not include all the package

contents.

Connection/Installation

Precautions



× 4

5 × max. 8 mm

(7/32 × max. 5/16 in)





010COV.book Page 28 Tuesday, August 29, 2017 11:10 AM

29GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

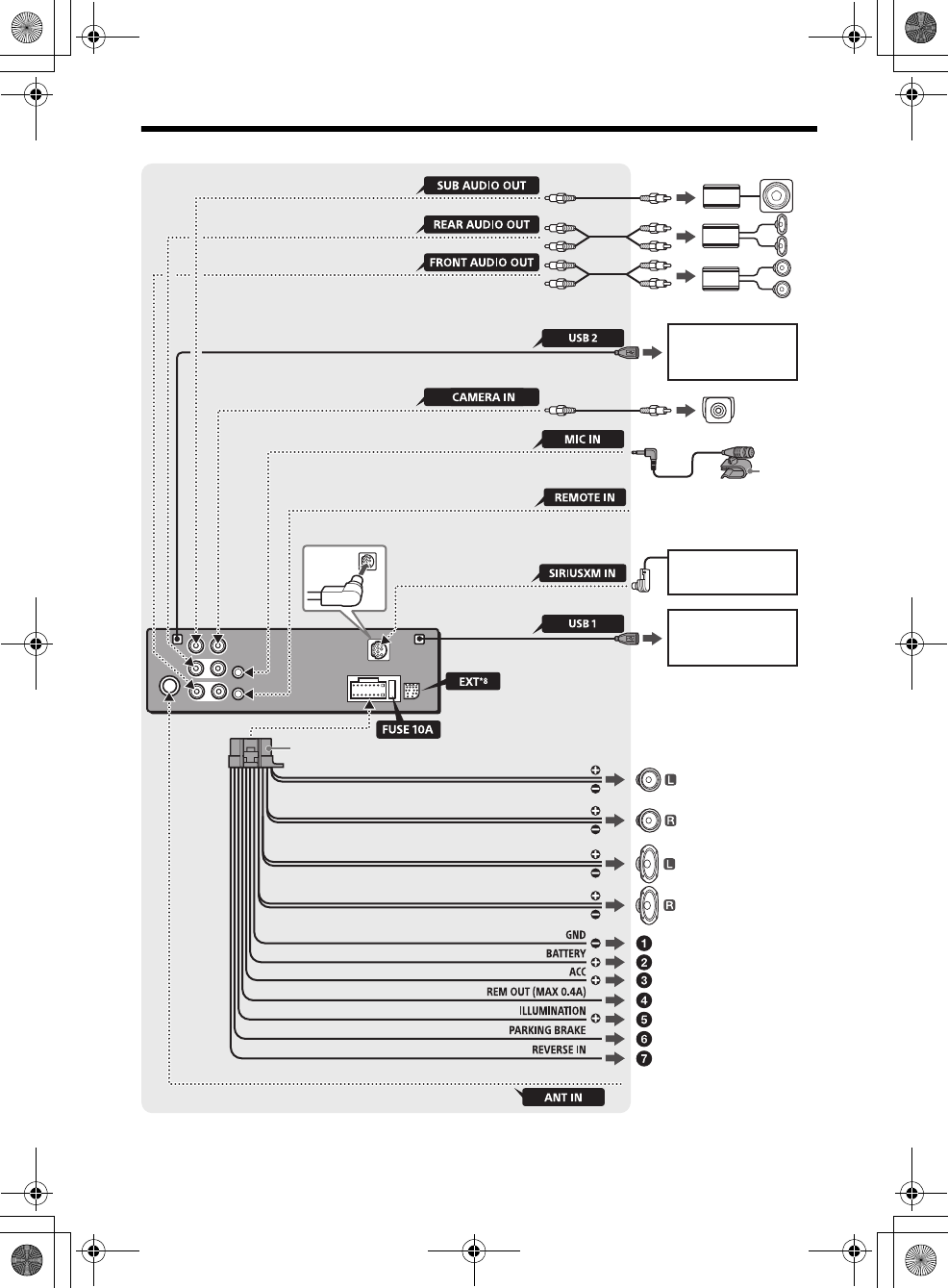

Connection

Subwoofer*1

Power amplifier*1

Smartphone, USB device

(for audio/video

playback)

from a wired remote control (not

supplied)*4

*6*7

White

White/black striped

Gray

Gray/black striped

Green

Green/black striped

Purple

Purple/black striped

Black

Yellow

Red

Blue/white striped

Orange/white striped

Light green

Purple/white striped

from a car antenna (aerial)*5

Rear view

camera*1

For details, see “Making

connections” (page 30).

Front speaker*1*2

Rear speaker*1*2



Satellite radio tuner

(SiriusXM)*1

USB device (for audio

playback only)

010COV.book Page 29 Tuesday, August 29, 2017 11:10 AM

30GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Left

XAV-AX5000

4-732-062-11(1)

*1 Not supplied

*2 Speaker impedance: 4 Ω – 8 Ω × 4

*3 RCA pin cord (not supplied)

*4 Depending on the type of car, use an adaptor for a wired

remote control (not supplied).

For details on using the wired remote control, see “Using

the wired remote control” (page 31).

*5 Depending on the type of car, use an adaptor (not

supplied) if the antenna (aerial) connector does not fit.

*6 Whether in use or not, route the microphone input cord

so it does not interfere with driving operations. Secure

the cord with a clamp, etc., if it is installed around your

feet.

*7 For details on installing the microphone, see “Installing

the microphone” (page 30).

*8 For the navigation module XA-NV400 (not supplied)

To a common ground (earth) point

First connect the black ground (earth) lead then

connect the yellow and red power supply leads.

To the +12 V power terminal which is

energized at all times

Be sure to first connect the black ground (earth)

lead to a common ground (earth) point.

To the +12 V power terminal which is

energized when the ignition switch is set to

the accessory position

Be sure to first connect the black ground (earth)

lead to a common ground (earth) point.

To the power antenna (aerial) control lead or

the power supply lead of the antenna (aerial)

booster

It is not necessary to connect this lead if there is

no power antenna (aerial) or antenna (aerial)

booster, or with a manually-operated telescopic

antenna (aerial).

To AMP REMOTE IN of an optional power

amplifier

This connection is only for amplifiers and a

power antenna (aerial). Connecting any other

system may damage the unit.

Note

It will take about 10 seconds to shut down the output of

REM OUT after the unit is turned off.

To a car’s illumination signal

Be sure to first connect the black ground (earth)

lead to a common ground (earth) point.

To the parking brake switch cord

The mounting position of the parking brake

switch cord depends on your car.

Be sure to connect the parking brake lead (light

green) of the power supply connection cable 

to the parking brake switch cord.

To the +12 V power terminal of the car’s rear

lamp lead (only when connecting the rear

view camera)

Memory hold connection

When the yellow power supply lead is connected,

power will always be supplied to the memory

circuit even when the ignition switch is turned off.

Speaker connection

• Before connecting the speakers, turn the unit off.

• Use speakers with an impedance of 4 Ω to 8 Ω and

with adequate power handling capacities to avoid

damage.

To capture your voice during handsfree calling, you

need to install the microphone .

Making connections

Installing the microphone

Parking brake switch cord

Hand brake type Foot brake type





Clip (not supplied)



010COV.book Page 30 Tuesday, August 29, 2017 11:10 AM

31GB

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\040CD.fm masterpage: Right

XAV-AX5000

4-732-062-11(1)

Cautions

• It is extremely dangerous if the cord becomes

wound around the steering column or gearstick.

Be sure to keep it and other parts from interfering

with your driving operations.

• If airbags or any other shock-absorbing

equipment are in your car, contact the store where

you purchased this unit or the car dealer before

installation.

Note

Before attaching the double-sided tape , clean the

surface of the dashboard with a dry cloth.

When using the steering wheel remote

control

Installation of the connection cable RC-SR1 (not

supplied) is required before use.

1To enable the steering wheel remote control, select

[General Settings]  [Steering Control]  [] to

make the registration (page 17).

When the registration is complete, the steering

wheel remote control becomes available.

Notes on installing the connection cable RC-SR1 (not

supplied)

• Refer to the support site on the back cover for details then

connect each lead properly to the appropriate leads.

Making an improper connection may damage the unit.

• Consulting the dealer or an experienced technician for

help is recommended.

When using the wired remote control

1To enable the wired remote control, set [Steering

Control] in [General Settings] to [Preset] (page 17).

Installation of the rear view camera (not supplied) is

required before use.

The picture from a rear view camera connected to

the CAMERA IN terminal is displayed when:

the back lamp of your car lights up (or the shift

lever is set to the R (reverse) position).

you press HOME, touch [Camera].

Installation

Mounting the unit in a Japanese car

You may not be able to install this unit in some

Japanese cars. In such a case, consult your Sony

dealer.

When mounting this unit to the preinstalled

brackets of your car, use the supplied screws  in

the appropriate screw holes based on your car:

T for TOYOTA and N for NISSAN.

Note

To prevent a malfunction, install only with the supplied

screws .

When replacing the fuse, be sure to

use one matching the amperage

rating stated on the original fuse.

If the fuse blows, check the power

connection and replace the fuse.

If the fuse blows again after

replacement, there may be an

internal malfunction. In such a case, consult your

nearest Sony dealer.

Using the wired remote control

Using the rear view camera

Fuse replacement



To the dashboard/center console

Parts supplied with

your car



Bracket

Fuse (10 A)

010COV.book Page 31 Tuesday, August 29, 2017 11:10 AM

E:\4732062111\4732062111XAVAX5000UC\01GB-XAVAX5000UC\050BCO.fm masterpage: BCO

XAV-AX5000

4-732-062-11(1)

http://esupport.sony.com/

Support site

If you have any questions or for the

latest support information on this

product, please visit the web site

below:

Site d’assistance

Si vous avez des questions ou si vous

souhaitez consulter les toutes

dernières informations techniques

sur ce produit, rendez-vous sur le

site Web suivant :

Sitio Web de soporte

técnico en línea

Para resolver cualquier duda u obtener

la información más reciente sobre el

soporte técnico de este producto,

visite el siguiente sitio Web:

If you have any questions/problems regarding

this product, try the following:

Read Troubleshooting in these

Operating Instructions.

Please contact (U.S.A. only);

Call 1-800-222-7669

URL http://www.SONY.com

Smartphone app

Support by Sony app - Find

information and get notification

about your product:

App. de smartphone

Support by Sony app - Trouvez des

infos et recevez des notifications au

sujet de votre produit :

https://sony.net/SBS

√ News & Alerts / Actus & Alertes / Noticias y Alertas

√ Software updates / Mises à jour / Actualizaciones de software

√ Tutorials / Didacticiels / Tutoriales

√ Tips & Tricks / Conseils & Astuces / Consejos y Trucos

Aplicación para

Smartphone

Aplicación Support by Sony - Busque

información y obtenga notificaciones

acerca de su producto:

010COV.book Page 32 Tuesday, August 29, 2017 11:10 AM

Sony Group XAVAX5000 AV Receiver User Manual XAV AX5000

Sony Corporation AV Receiver XAV AX5000

05 Short-Term Confidential_User Manual

Navigation menu

Namespaces

Views

Navigation
