Exhibit 8 User Manual
3
Contents
Getting started 5
Make and receive the first call.
Getting to know your phone 8
Key functions, quick keys, entering letters and characters.
Personalizing your phone 18
Choose ring signal, theme and other settings.
Calling 27
Use the phone book, call options.
Setting up mobile Internet 42
SetupWAPande-mail.
Messaging 50
Chat, e-mail, text and multimedia messages.
Using mobile Internet 59
WAP browser, bookmarks.
More features 63
Data, events, alarm clock, stopwatch, timer, games.
Security 67
SIM card lock, phone lock.
Troubleshooting 69
Why doesn’t the phone work the way I want?
Additional information 71
Sony Ericsson Consumer web site,
safe and efficient use, warranty, declaration of conformity.
Icons 81
What do the icons mean?
Index 85
4
Sony Ericsson
First edition (May 2002)
This manual is published by Sony Ericsson Mobile
Communications AB, without any warranty.
Improvements and changes to this manual
necessitated by typographical errors, inaccuracies
of current information, or improvements to
programs and/or equipment, may be made by Sony
Ericsson Mobile Communications AB at any time
and without notice. Such changes will, however, be
incorporated into new editions of this manual.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2002
Publication number: EN/LZT 108 5754 R1A
Please note:
Some of the services in this manual are not
supported by all networks.
This also applies to the
GSM International Emergency Number 112
.
Please contact your network operator or service
provider if you are in doubt whether you can use a
particular service or not.
Please read the
Guidelines for safe and efficient
use
and the
Limited warranty
chapters before you
use your mobile phone.
T9™ Text Input is a registered trademark of Tegic
Communications.
T9™ Text Input is licensed under one or more of
the following: U.S. Pat. Nos. 5,818,437, 5,953,541,
5,187,480, 5,945,928, and 6,011,554; Canadian
Pat. No. 1,331,057, United Kingdom Pat. No.
2238414B; Hong Kong Standard Pat. No.
HK0940329; Republic of Singapore Pat. No.
51383; Euro.Pat. No. 0 842 463(96927260.8) DE/
DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional
patents are pending worldwide.
Getting started 5
Getting started
About this user’s guide
For ease of reference, the “Getting to know your
phone” chapter gives a quick overview of the main
functions of the phone, shortcuts and general
information.
More information and downloads are available at
www.SonyEricsson.com/ or wap.SonyEricsson.com/.
Available services
Someservicesandfunctionsdescribedinthisuser’s
guide are network- or subscription-dependent. Because
of this, all menus may not be available in your phone.
This symbol indicates that a service or
function is network or subscription-
dependent.
Please consult your network operator for
more information about your subscription.
The SIM card
When you register as a subscriber with a network
operator, you get a SIM (Subscriber Identity Module)
card. The SIM card contains a computer chip that
keeps track of your phone number, the services
included in your subscription, and your phone book
information, among other things.
Tip: Check if your information is saved to the SIM
card before you remove it from another phone. For
example, phone book entries may be saved in the
phone memory.
Assembly
Before you can use your phone you need to:
• Insert the SIM card.
• Attach and charge the battery. See “SIM card and
battery information” on page 6.
Note: Always turn off the phone and detach the
charger before you insert or remove a SIM card.
6 Getting started

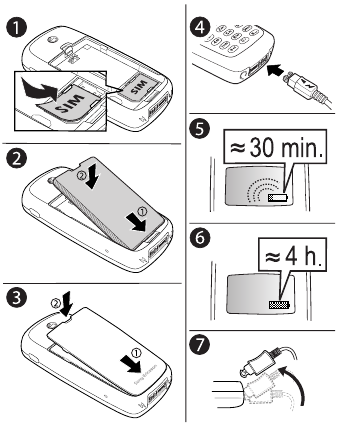

SIM card and battery information
It may take up to 30 minutes before an icon
appears when charging.
1. Insert the SIM card. Make sure the SIM card is placed
under the silvery holders.
2. Place the battery on the back of the phone with the
connectors facing each other.
3. Place the back cover into the bottom of the phone and
push the top until it clicks into place.
4. Connect the charger to the phone at the flash symbol.
The flash symbol on the charger plug must face
upwards.
5. Itmaytakeupto30minutesbeforethebattery
charging icon appears in the display.
6. Wait approximately 4 hours or until the icon indicates
that the battery is fully charged. If you do not see the
battery icon after this time, press any key or the
joystick to activate the display.
7. Remove the charger by tilting the plug upwards.
Note: You have to insert the SIM card and charge the
battery before you can use the phone.
Getting started 7
Making and receiving calls
To turn on the phone
• Press and hold NO until you hear a tone.
• Enter your PIN (Personal Identity Number), if you
have one for your SIM card.
Your PIN is provided by your network operator.
If you make a mistake while entering your PIN, delete
the wrong number by pressing .
If your PIN starts with the same digits as an
emergency number, for example 112, the digits are not
hidden with an * when you enter them. This is so that
you can see and call an emergency number without
entering a PIN. See “Emergency calls” on page 28 for
more information.
Note: IfyouenterthewrongPINthreetimesinarow,
the SIM card is blocked and the message PIN blocked
appears. To unblock it, you need to enter your PUK
(Personal Unblocking Key). Your PUK is provided by
your network operator.
To make and receive calls
• Enter the area code and phone number, and press YES
to make the call.
•Press
NO to end the call.
• When the phone rings, press YES to answer the call.
On/off
My Network
12:18
Welcome
PIN:
8 Getting to know your phone
Getting to know your phone
Key functions
Volume
key
Increase/decrease the earpiece
volume during a call. Scroll
through menus, lists and text.
Enter the Status menu in
standby. Slide twice to reject
an incoming call. Slide once to
turn off the ring signal when
receiving a call.
Make and answer calls. Select
a menu, submenu or an option.
Press for options, help.
Press and hold for WAP.
1–9, 0 Enter digits, 0–9, and letters.
Press and hold to enter
the international prefix +.
Move through menus using
shortcuts.
Enter *. Shift between lower/
upper case.
Press the joystick up, down,
left or right to move through
the menus, lists and texts.
Press the joystick as an
alternative to .
Pressandholdtoturnthe
phone on or off (in standby)
or to go back to standby mode
from menus. Press to end or
reject a call, go back one level
in the menus or leave an
option unchanged.
(clear)
Delete numbers, letters or an
item from a list. Press and
holdtoturnoffthe
microphone (during calls) or
turn off sound or lock the
keypad (standby menu).
Enter # or a space.
Getting to know your phone 9
Quick keys
Useful key combinations are described below.
To... When in standby:
make an emergency call enter the international
emergency number and
press YES
enter and move through
the main menus
press or
enter Call contact press or
enter Call list press YES
call your voice mail press and hold
enter the +sign press and hold
turn off the ring signal
when receiving a call
press , or slide the
volume key up or down
once
set the phone to silent or
lock the keypad
press and hold
reach a contact beginning
withaspecificletter
press and hold any of the
keys -
reach a phone number at a
specific position.
press the position number
and
speed dial press any of the number
keys - and YES
find a contact in the Call
contact list
press and hold
enter the first submenu of
the My shortcuts menu
press and hold
enter the Status menu to
see today’s date, the
profileinuseandthe
model name of the phone
slide the volume key up or
down
change the language to
Automatic
press 8888
change the language to
English
press 0000
reject a call quickly slide the volume
keyupordowntwice
when receiving a call or
press NO
To... When in standby:
10 Getting to know your phone
To... During a call:
put a call on hold press YES
retrieve a call press YES again
turn off the microphone press and hold
To... When in the menus:
move through menus or
lists
slide (and hold) the
volumekeyupordownor
use the joystick
enter a quick options menu
or help, if available.
press
delete an item press and hold when
in lists
go back to standby press and hold NO
To... When entering letters
using multitap text input:
reach the second letter or
character of a key
slide the volume key up
and press any of the
number keys
reach the third letter or
character of a key
slide the volume key down
and press any of the
number keys
shift between capital and
lower-case letters
press , then the letter
enter numbers press and hold any of the
number keys
enter a question mark slide the volume key up
and press
enter the @-sign slide the volume key down
and press
enter a space press
delete letters and numbers press
shift between multitap or
T9 Text input methods
press and hold
shift between input
languages and other
character or numeric input
methods
press and hold
To... When entering letters
using multitap text input:
Getting to know your phone 11
Using shortcuts
A quicker way to move through the menus is to use
shortcuts. Enter the menus by pressing or and
thensimplyenterthenumberofthemenutowhichyou
want to go. To get back to standby, press and hold NO.
You can quickly and easily reach the settings you use
most by placing them in the menu My shortcuts.See
“My shortcuts” on page 26.
Help texts
More information, explanations or tips about selected
menus or functions are available in your phone.
To get help
1. Select the menu or function and press .
2. Select Help (if available), YES.
To... When entering letters
using T9 Text Input:
view alternative words press or
accept a word and add a
space
press
enter a full stop press
view alternative
punctuation marks press , then or
repeatedly
shift between capital and
lower-case letters
press , then the letter
enter numbers press and hold any of the
number keys
delete letters and numbers press
shift between multitap or
T9 Text input methods
press and hold
shift between input
languages and other
character or numeric input
methods
press and hold
To... When entering numbers:
enter a p(pause) press and hold when
entering numbers or
saving codes
12 Getting to know your phone
Delete, edit and rename
If you add items, for example, a contact, an event or a
WAP bookmark, it can be deleted, edited or renamed.
There are two ways of deleting items:
• Select an item and press .
• Select an item, press , select Delete or Delete all.
There are two ways of editing items:
• Select an item, press , select Edit.
• Scroll to the item you want to edit and press YES twice,
select Edit.
Tip: You can rename an item in the same way.
Online services
Online services are customized services
offered by network operators, independently
of mobile phones and mobile phone
manufacturers.
A SIM card which supports Online services works
in the same way as a normal SIM card. When you have
inserted your SIM card and turned on your phone, your
network operator can download data to your SIM card.
When you restart your phone after the first data
download, a new submenu appears under the Connect
menu.
To enter your new menu system
•ScrolltoConnect/Online services.
Note: This menu only appears if your SIM card
supports this service. Some operators may not use the
name “Online services”. Your phone may not support
all of the services offered.
Getting to know your phone 13
Menu overview
(1)
Phone book
(2)
Messages
(3)
Calls
or
Ongoing call*
1 Call contact
2 Add contact
3 Manage contact
4Pictures
5 Personal rings
6 Special numbers
7Advanced
8 Options
Find and send*
1Text
2 Multimedia
3 Call voice mail
4E-mail
5Chat
6Areainfo
7 Options
1Missedcalls
2Calllist
3 Manage calls
4 Time and cost
5Nextcall
6 Options
Calling local**
Switch to line 1**
Switch to line 2**
1 Record*
2 Turn off tones*
3Holdcall*
4Switchcalls*
5 Release active*
6Joincalls*
7Transfercall*
8 Release all*
Extract part*
Release part*
Parties in conf.*
Calls*
(4)
Fun &Games
(5)
Settings
(6)
WAP services
(7)
Organizer
(8)
Connect
(9)
My shortcuts
1Games
2Mypictures
3 My sounds
4 Themes
5 Composer
6 Sound recorder
7 CommuniCam™
1 Sounds & alerts
2 Profiles
3 Display
4 Language
5 Time and date
6 Locks
7 Handsfree
8 Master reset
1 Mobile Internet
2Bookmarks
3 Push inbox
4 Enter address
5 Resume
6Selectprofile
7Advanced
8 Options
1 Events
2Alarms
3Timer
4 Stopwatch
5Calculator
1 Infrared port
2GSMNetworks
3Datacomm.
4 Accessories
Online services**
1 Select profile
2 Ring volume
3Switchtoline1**
4 My numbers
5Editshortcuts
Note:
(1) Main menu numbering
does not appear.
1Menu numbering may
change with certain functions
or services.
*Only available during a call
or conference call.
**Network- and subscription-
dependent.
14 Getting to know your phone
Entering letters and characters
You can enter letters, for example, when you add
names to the phone book, write text messages or enter
WAP addresses.
Apart from the way you normally enter letters in
your phone, using multitap text input, you can use
T9™ Text Input for entering text messages and e-
mail, for example, if the input language you select
supports this. T9 Text Input is a predictive input
method and is a quicker way to write texts.
Input languages
Before you start entering letters, you need to select the
input languages that you want to use when writing.
To select input languages
1. Scroll to Settings,YES,Language,YES,Input,YES.
2. Scroll to the language or alphabet that you want to use
for entering letters and press for each language
you want.
3. Press YES to exit the menu.
When writing, you can switch to one of your selected
input languages by pressing and then selecting
Language. See “The list of options” on page 16.
Multitap text input
When saving names in the phone book or when writing
WAP addresses, you enter letters using multitap text
input. You press each key as many times as needed to
show the letter you want. The following example
shows how to write a name in the Phone book.
To enter letters using multitap text input
1. Scroll to Phone book,YES,Add contact,YES,YES again.
2. Press the appropriate key, – , or ,
repeatedly until the character you want appears.
You can view the characters in the row that appears
brieflyatthetopofthedisplaywhenyoupressakey.
Note: Your selection of input languages and character
or numeric input methods determines what you can see
or enter.
See the Latin alphabet, abc, table below:
Press… to see/enter…
-?!‚.:;"’<=>()_1
ABCÅÄÆàÇ2Γ
DEFèÉ3∆ Φ
GHIì4
Getting to know your phone 15
Example:
•Toenteran‘A’, press once.
•Toentera‘b’, quickly press twice.
• To shift between capital and lower-case letters, press
, then enter the letter.
Tip: You can also use the volume key as a shortcut to
certain letters:
To enter a ‘B’, slide the volume key up and press .
To ent er a ‘C’, slide down and press .
T9™Tex t Inp ut
You can use T9 Text Input when writing, for example,
text messages and e-mail. The T9 Text Input method
uses a built-in dictionary to recognize the most
commonlyusedwordforeachsequenceofkey
presses. This way, you press each key only once, even
if the letter you want is not the first letter on the key.
Note: A language must be selected to be able to use the
T9 Text Input method.
The following example shows how to start writing a
text message:
To enter letters using T9 Text Input
1. Scroll to Messages,YES,Text,YES,Write new,YES.
2. For example, if you want to write “Jane”, press ,
,,.
JKL5Λ
MNOÑÖØò6
PQRSß7Π Σ
TUVÜù8
WXYZ9
+&@/¤%$€£¥\§¿¡0Θ Ξ Ψ
Ω
Space # * ↵ ¶
to delete letters and numbers
to shift between capital and lower-
case letters
-press and hold to enter numbers
Press… to see/enter…
16 Getting to know your phone
3. Press or repeatedly to view alternative words
(candidates).
4. If the word shown is the one you want:
• press to accept and add a space
•press or
YES to accept without a space.
If the candidates do not include a word you want, you
can add a new word to the list whilst selecting.
To add a word to candidates
1. Scroll to a similar candidate to the word you want to
add, press , select Edit word,YES.
2. Press repeatedly to delete one letter at a time.
Write the new word using multitap text input, YES.
The word is added to the dictionary. The next time you
enter the word you just added to the dictionary, it
appears as one of the alternative words.
3. Continue writing your message. See also “Sending text
messages” on page 50.
Tip: Press to enter a full stop. To enter other
punctuation marks, press and then or
repeatedly. Press to accept and add a space.
Press and hold to select an input method for the
text you are currently writing.
Thelistofoptions
Press when writing to enter a list of options:
•Add symbol – Symbols and punctuation marks such as
?and ,are shown. Move between the symbols by using
the joystick.
•Insert item – Add a picture, sound effect, melody or
animation to a message.
•Edit word – For T9 Text Input only
Edit the suggested word by using multitap text input.
•Text format – Edit size, style, alignment or start a new
paragraph.
•Language – Show the input language selected earlier.
•Input method – A list of input methods available for
the current input language is shown.
•Candidates – For T9 Text Input only
A list of alternative words is shown.
•Help.
To turn T9 Text Input on or off
•ScrolltoSettings/Language/T9 input or press and hold
when writing.
Getting to know your phone 17
Note: Changing Settings/Language/T9 input is valid
for all input of texts – not only for the text you are
currently writing.
18 Personalizing your phone
Personalizing your phone
You can adjust the phone settings to suit your own
requirements.
Note: Ifyouchangeasettingwhichisincludedina
profile, the active profile is also changed. See
“Profiles” on page 26.
Master reset
Youcanresetallthesettingsinthephonetotheway
they were when you bought your phone by selecting
Reset settings.
If you also want to delete all contacts, messages and
other personal data, select Reset all instead.
Note: If you select Reset all, some pictures, melodies
and templates which came with your phone are
deleted.
To reset the phone
1. Scroll to Settings,YES,Master reset,YES.
2. Select Reset settings or Reset all,YES.
3. Enter the phone lock code (0000 or the new code if you
have changed it) and press YES.
The infrared (IR) port
The infrared port can be used to transfer and exchange
information with another device equipped with an
infrared port. When used with certain functions, such
as sending a picture, it is automatically activated for 10
minutes. Infrared can be activated in the following
ways:
• Press from standby, scroll to Activate IR,YES.
•ScrolltoConnect,YES,Infrared port,YES, select an
option, YES.
• When selecting a transfer method, for example when
sending a picture.
Note: Infrared ports must face each other at a distance
of less than one metre when used.
To turn infrared off
•ScrolltoConnect,YES,Infrared port,YES,Off,YES.
Themes
You can change the appearance of the display, for
example, the colours and background picture, by using
themes. Your phone comes with some pre-set themes.
You cannot delete these, but you can create new
themes on Sony Ericsson Mobile Internet and
Personalizing your phone 19
download them to your phone. For more information,
visit wap.SonyEricsson.com/.
To select a theme
•ScrolltoFun & Games/Themes.
Note: If you need to adjust the display contrast, scroll
to Settings/Display/Contrast.
Exchanging themes
You can send and receive a theme via IR and MMS or
download it via WAP. For more information on
sending themes in messages, see “Messaging” on page
50.
Tosendatheme
1. Scroll to Fun & Games,YES,Themes,YES.
2. Select a theme, press .
3. Select Send,YES.
4. Select a transfer method, YES.
Note: You are not allowed to exchange copyright-
protected material.
To receive and save a theme
1. From standby, press , scroll to Activate IR,YES.
2. When you receive the theme, press YES to save it in
Themes.
Pictures
Your phone comes with a number of pictures. You can
• Set a picture as background when in standby mode.
• Set a picture as a screen saver.
• Assign a picture to a contact in the phone book. When
that person calls, the picture appears in the display
(provided your subscription supports the Calling Line
Identification service). See “To add a picture to a
phonebookcontact”onpage30.
• Enclose a picture in a text message.
• Send a picture via IR, MMS or e-mail.
All pictures and are saved in Fun & Games/My
pictures.
Handling pictures
You can also add, delete or rename pictures in My
pictures. The number of pictures that can be saved
depends on the size of the pictures. File types
supported are GIF, JPEG and WBMP.
20 Personalizing your phone
To view your pictures
•ScrolltoFun & Games,YES,My pictures, YES.
The pictures are shown in thumbnail view. To get a full
view, press YES.
Note: Animations for multimedia messages can be
viewed in My pictures. Animations for text messages
canonlybeviewedwheninsertinganiteminatext
message.See“Toinsertaniteminatextmessage”on
page 51.
To view your camera pictures (if connected)
•ScrolltoFun & Games,YES,CommuniCam™,YES or
• Scroll to Connect, YES, Accessories, YES.
To select a picture as background
1. Scroll to Settings,YES,Display,YES,Background,YES.
2. Select Select picture,YES.
3. Select a picture, YES.
Tip: When viewing your pictures, you can set a
background by pressing .
To turn the background picture
On
or
Off
•ScrolltoSettings/Display/Background/Activate.
Exchanging pictures
You can send pictures via IR, MMS or e-mail and
receive via IR or MMS. For more information on
sending pictures in messages, see “Messaging” on
page 50.
Note: You are not allowed to exchange copyright-
protected material.
Tosendapicture
1. Scroll to Fun & Games,YES,My pictures or
CommuniCam™,YES.
2. Select a picture, YES.Press .
3. Select Send,YES.
4. Select a transfer method.
To receive and save a picture
1. From standby, press , scroll to Activate IR,YES.
2. When you receive the picture, press YES to save it in
My pictures.
• When you receive a picture via a text message or a
multimedia message, a new message appears in your
Inbox. Highlight the picture in the message, press
and select Save to save in My pictures.
Personalizing your phone 21
Screen saver
The phone has a screen saver, which is activated
automatically when the phone has been in idle mode
for a few seconds. After a short period of time the
screen saver changes to sleep mode, to save power.
Toturnthescreensaver
On
or
Off
•ScrolltoSettings/Display/Screen saver/Activate.
To use a picture as the screen saver
You can select a picture, saved in the phone, and use it
as the screen saver.
1. Scroll to Settings,YES,Display,YES,Screen saver,YES.
2. Scroll to Select picture,YES.
3. Scroll to the picture you want to use as the screen
saver, YES.
4. Press YES to save.
Ring signals and melodies
Your phone comes with a number of standard and
polyphonic melodies which can be used as ring
signals. See “Icons” on page 81 for more information.
You can create and edit standard melodies, and send
them to a friend, in a text or multimedia message. You
can also exchange standard melodies via IR or
download them via WAP.
Note: You are not allowed to exchange copyright-
protected material.
To select a ring signal
•ScrolltoSettings/Sounds & alerts/Ring signals.
To set the ring signal volume
1. Scroll to Settings,YES,Sounds & alerts,YES,Ring
volume,YES.
2. Press or to increase or decrease the volume.
3. Press YES to save the setting.
Warning! The ring signal/volume may be
uncomfortably loud at the higher volume levels if the
phone is close to your ear.
Toturntheringsignalonoroff
•Pressandhold from standby and select Turn on
silent or Turn off silent.
All signals except the alarm and timer signals are
turned off.
22 Personalizing your phone
To compose a ring signal or melody
1. Scroll to Fun & Games,YES,Composer,YES.
• Press a key to enter a note.
• Press or to make
the note shorter or longer.
There are six different lengths
of notes.
• Press to change octave.
• Press once to raise the
note one semitone.
• Press twice to lower the note one semitone.
• Press to add a melody effect, and to set the
tempo, volume, style and duration.
• Press to remove notes.
2. To listen to your melody, press YES.
3. Press YES again to save and name it, or press NO to
continue composing.
Note: To edit a melody, scroll to Fun & Games/My
sounds, select the melody and press
.
To use the piano
1. In the Composer, slide the
volumekeyuptoactivate
the piano.
2. Use the joystick to move
between the keys.
3. Press YES to select a note.
4. Slide the volume key
down to deactivate the piano.
Exchanging melodies
You can send and receive a sound or melody via IR,
SMS or MMS, or download it via WAP.
Note: You cannot exchange a polyphonic melody via
SMS.
To send a melody
1. Scroll to Fun & Games,YES,My sounds,YES.
2. Select a melody and press
.
3. Select Send,YES.
4. Select a transfer method.
See “Icons” on page 81.
Personalizing your phone 23
Note: Tosendaringsignalormelodyinatext
message, see “To insert an item in a text message” on
page 51.
To receive a sound or melody
1. From standby, press , scroll to Activate IR,YES.
2. When you receive the sound or melody, press YES to
save it in My sounds.
Increasing ring
You can choose a ring signal that rises in steps from
the lowest volume to the highest.
To turn increasing ring
On
or
Off
•ScrolltoSettings/Sounds & alerts/Increasing ring.
Specific ring signals for personal calls
If you subscribe to the Two Line Service, you
can set different ring signals for the two voice
lines. Line 1 and Line 2 are displayed instead
of Voice calls.
If your subscription includes the Calling Line
Identification (CLI) service, you can assign a personal
ring signal to numerous callers.
To set a specific ring signal for a caller
1. Scroll to Phone book,YES,Personal rings,YES,Add
new?,YES.
2. Enter the first letter of the contact name, YES.
3. Select a contact, YES.
4. Select a ring signal, YES.
Sounds & alerts
Youcanchoosetobenotifiedofanincomingcallby
the buzzing of the vibrating alert. You can set the
phone’s vibrating alert to one of the following:
•On – all the time.
•On if silent –onwhentheringvolumeisturnedoffor
when you have set the phone to silent.
•Off – all the time.
To set the vibrating alert
1. Scroll to Settings,YES,Sounds & alerts,YES,Vibrating
alert,YES.
2. Select the setting you want, YES.
From Settings/Sounds & alerts, you can also select:
•Message alert when messages are received.
•Key sound when using the keypad.
•Minute minder to beep after every minute during calls.
24 Personalizing your phone
Menu language
Most SIM cards automatically set the menu language
to the language of the country where you bought your
SIM card. If this is not the case, the preset language is
English.
To change the menu language
1. Scroll to Settings,YES,Language,YES,Menus,YES.
2. Select a language, YES.
Note: You can always choose Automatic by pressing
8888 in standby.
You can always choose English by pressing
0000 in standby.
Display light
The display light can be set to automatic, off or on. In
automatic mode, the display light is turned off a few
seconds after you press the last key.
Note: The display light consumes extra battery power
and reduces standby time, if set to On.
To set the display light
•ScrolltoSettings/Display/Light.
To set the display contrast
•ScrolltoSettings/Display/Contrast.
Time settings
The time is always displayed in standby.
To set the time
•ScrolltoSettings/Time and date/Set time.
You can choose a 12-hour clock or a 24-hour clock.
To set the time format
•ScrolltoSettings/Time and date/Time format.
Note: If you select the 12-hour clock, you can
alternate between am and pm by pressing when
setting the time.
Date
When the phone is in standby mode, you can slide the
volumekeyupordowntoseetoday’sdateinthe
Status menu.
To set the date and/or date format
•ScrolltoSettings/Time and date.
Personalizing your phone 25
Advanced time settings
Under Advanced in the Settings/Ti me and
date menu, you can set time zone and daylight
saving time. Changing these, changes the
time accordingly, if your network operator supports
this service.
When your phone changes network, and the time
sent out from the network operator deviates from the
time in your phone, you are asked whether you want to
update the time if you have turned on Auto time zone.
If you press YES, the time is updated automatically.
Note: Contact your network operator for more
information.
Answering mode
When using a portable handsfree kit, you can choose to
answer a call by pressing any key (except the NO key)
or set the phone to answer the call automatically.
To select answering mode
•ScrolltoSettings/Handsfree/Answering mode.
User greeting
When you turn your phone on or off, the Sony Ericsson
greeting appears. Your network operator’s own
greeting may be shown instead.
To select a greeting
1. Scroll to Settings,YES,Display,YES,User greeting,
YES.
2. Select a greeting, YES.
My phone numbers
You can check your own phone number(s).
To check your phone number
•ScrolltoPhone book/Special numbers/My numbers.If
your number is not saved on your SIM card, you can
enter it yourself.
Keypad lock
You can lock the keypad to avoid dialling a number by
accident.
Note: Calls to the international emergency number
112 can still be made, even when the keypad is locked.
26 Personalizing your phone
Automatic keylock
Automatic keylock means the keypad is locked
25 seconds after you last press a key.
To turn automatic keylock
On
or
Off
•ScrolltoSettings/Locks/Auto keylock.
To lock the keypad manually
• Press and hold in standby, and select Lock
keypad,YES.
The keypad remains locked until you answer an
incoming call or until you unlock the keypad manually.
To unlock the keypad
• Press and select Unlock keypad?,YES.
My shortcuts
You can place your favourite functions that you want
to reach quickly and easily in the My shortcuts menu.
Toaddafunctiontomyshortcuts
1. Scroll to My shortcuts,YES,Edit shortcuts,YES.
2. Select a function from the list by pressing .
3. Enter the position number you want for this function in
your menu and press YES.
4. Press YES to exit the list.
Profiles
Your phone has a number of pre-set profiles which are
set to suit a certain environment. You can add
accessories to, rename or change these profiles. For
example, when you go to a meeting, you can simply
choose the Meeting profile and a number of settings
such as the ring signal is turned off.
To select a profile
•ScrolltoSettings/Profiles/Select profile.
To change a profile setting
1. Scroll to Settings,YES,Profiles,YES,Edit profile,YES.
2. Select a setting, YES.
3. Change the profile settings and press YES to confirm.
To rename a profile
•ScrolltoSettings/Profiles/Edit profile/Profile name.
You can reset all profile settings to the way they were
set when you bought your phone.
Calling 27
To reset all profiles
•ScrolltoSettings/Profiles/Reset profiles.
Automatic activation
Some profiles, for example In car, are automatically
activated when used with a specific accessory. When
disconnected, the profile is changed back.
Calling
Before you can make or receive any calls, you must
turn on the phone and be within range of a network.
See “Making and receiving calls” on page 7.
Making calls
1. Enter the area code and the phone number.
2. Press YES to make the call.
3. Press NO to end the call.
Tip: You can call numbers from the call list and the
phone book. See “Call list” on page 29 and “Phone
book” on page 29.
To change the earpiece volume during a call
• Slide the volume key on the side of the phone up or
down to increase or decrease the earpiece volume.
To turn off the microphone during a call
• Press and hold until the display shows Muted.
Press again to resume the conversation.
28 Calling
Automatic re-dialling
If the connection of the call failed and the display
shows Retry?,pressYES.
Note: Do not hold the phone to your ear while waiting.
When the call is connected, the phone gives a loud
signal.
The phone re-dials the number (up to ten times) or
until:
• The call is connected.
• You press a key or receive a call.
Note: Automatic re-dialling is not available for data
calls.
Making international calls
1. Press and hold until a + sign appears in the
display.
The + replaces the international prefix number of the
country from which you are calling.
2. Enter the country code, area code (without the leading
zero) and phone number, YES.
Tip: It is useful to enter the + sign and country code
for all numbers in the phone book as they can then be
easily used whether home or abroad.
Emergency calls
To make an emergency call
• Enter 112 (the international emergency number), YES.
Your phone supports the international emergency
numbers, 112, 911 and 08. This means that these
numbers can normally be used to make an emergency
call in any country, with or without a SIM card
inserted, if a GSM network is within range.
Note: Some network operators may require that a SIM
card is inserted, and in some cases that the PIN has
been entered as well.
In some countries, other emergency numbers may also
be promoted. Your operator may therefore have saved
additional local emergency numbers on the SIM card.
To view your local emergency numbers
•ScrolltoPhone book/Special numbers/SOS numbers.
Calling 29
Receiving calls
When you receive a call, the phone rings and Answer?
appears. If the number is a restricted number, Withheld
appears.
To answer a call
•PressYES.
To reject a call
•PressNO.
Missed calls
Ifyouhavemissedacall,Missed calls:1 appears in
standby, indicating the number of missed calls.
To check your missed calls
1. When Missed calls:1 is displayed, press YES to display
the missed calls.
2. To call a number from the list, scroll to the number,
YES.
Call list
The numbers of the last calls that you have made or
received are saved in the call list. If your subscription
includes the Calling Line Identification service and the
caller’s number is identified, you will also find the
numbers of answered and missed calls in the call list.
To call a number from the call list
1. To enter the call list, press YES from standby.
2. Scroll to the number you want to call, YES.
To clear the call list
•ScrolltoCalls,YES,Options, YES, Clear call list, YES.
Toturnthecalllistonoroff
•ScrolltoCalls,YES,Options, YES, Call listing,YES.
Phone book
In the Phone book you can save all the information
needed to contact people.
To add a contact
1. Scroll to Phone book,YES,Add contact,YES.
2. Scroll to the field you want to fill in, press YES.
3. Enter the information, YES.
4. When you have entered the information, scroll to Save
and exit?, YES.
30 Calling
Tip: Toenteranunsavednumber,whenyouareina
number field, press YES, and select a number from
the unsaved numbers list.
Pictures and personal rings
You can add a picture and personal ring signal to a
contact.
To add a picture to a phone book contact
1. Scroll to Phone book,YES,Pictures, YES.
2. Enter the first letters of the contact, YES.
3. When the contact is highlighted, press YES.
This takes you to My pictures. Select a picture and
press YES twice.
• Select Personal rings to add a personal ring signal.
To call a contact
1. From standby, press and hold one of the number keys
2-9 to find a contact beginning with the first letter on
that key (or closest following).
• Forexample,pressandhold5togotothefirst
contact beginning with “J”. To go to a contact
beginning with “L” press 5 three times after you
have entered the list of contacts.
2. When the contact you want to call is highlighted, press
YES.
3. Select the number you want to call, YES.
If only one number is linked to the contact, press
and hold YES at step 2.
Tip: You can also use the Call contact option in the
Phone book menu to call a contact.
Updating the phone book
When needed, you can easily update or delete any
contact information.
To edit a contact
1. Scroll to Phone book,YES,Manage contact,YES,Edit
contact,YES.
2. Enter the first letters of the contact, YES.
3. When the contact is highlighted, press YES.
4. Select Edit info.,YES.
5. Scroll to the field you want to fill in, YES.
6. Enter the information, YES.
7. When you have entered the information, scroll down to
Save and exit?, YES.
Calling 31
To delete a contact
•ScrolltoPhone book/Manage contact/Delete contact.
Then select the contact and press YES twice.
To delete all contacts
•ScrolltoPhone book/Advanced/Delete all.
Note: Contacts that are saved on the SIM card are not
deleted.
Default (standard) number
Each contact has a default phone number. The first
phone number you link to a contact automatically
becomes the default number. If you scroll to a certain
contact in the Call contact listandthenpressandhold
YES, the default number is dialled.
To set the default number
1. Scroll to Phone book,YES,Manage contact, YES,Edit
contact,YES.
2. Enterthefirstletterofthecontact,YES.
3. When the contact is highlighted, press YES.
4. Select Default number,YES. Select the number you
want as default, YES.
Groups
You can create a group of contacts. By doing so you
can send text messages to several recipients at the
same time. See “Sending text messages” on page 50.
To create a group of contacts
1. Scroll to Phone book,YES,Manage contact,YES,
Groups,YES,Add group,YES.
2. Enter a name for the group, YES.
3. Select Add member,YES.
4. Enter the first letters of the contact you want to add,
press YES.
5. Press YES to select the contact.
6. Select a phone number, press YES.
7. Repeat steps 3-6 to add more members.
Business cards
You can add your own business card to the phone
book.
To add your own business card
•ScrolltoPhone book,YES,Manage contact,YES,My
card,YES. Select Add,YES.
32 Calling
Exchanging business cards
You can exchange business cards via IR, SMS or
MMS.
To send your business card
1. Scroll to Phone book,YES,Manage contact, YES,My
card,YES,Send,YES.
2. Select a transfer method, YES.
To receive a business card via IR
1. From standby, press , scroll to Activate IR,YES.
When you receive the business card, press YES.
2. Press YES again to save the card in the phone book.
To save a business card in a multimedia message
1. Scroll to Messages,YES,Multimedia,YES.
2. Scroll to Inbox,YES,select the message, YES.
3. Scroll to the business card item, press YES to accept it.
Tosendacontact
1. Scroll to Phone book,YES,Manage contact, YES,Send
contact, YES,
2. Enter the first letters of the contact you want to send,
YES.
3. Press YES to select the contact.
4. Select transfer method, YES.
To send all contacts (via IR only)
•ScrolltoPhone book/Advanced/Send all,YES.
Copy contacts
You can copy the names and numbers in your phone
book between your phone’s memory and the SIM card.
The number of phone numbers that can be saved
depends on the type of SIM card.
Note: Be careful not to replace details by mistake
when copying contacts.
To copy names and phone numbers to the SIM
card
•ScrolltoPhone book/Advanced/Copy all to SIM.
IfyouinsertaSIMcardwithsavednamesandphone
numbers in your phone, you can call a person by
selecting Phone book/Advanced/Call from SIM.Ifyou
want to edit a name or phone number saved on the SIM
card, you first need to copy it to the phone.
Calling 33
To copy names and phone numbers to the phone
•ScrolltoPhone book/Advanced/Copy from SIM.
Tip: When you have selected a name in the Call from
SIM menu, you can copy name and phone number to
the phone by pressing and then selecting Copy to
phone.
Speed dialling
You can save the phone numbers that you want to
reach easily in positions 1-9 on your SIM card.
To call any of these phone numbers from standby
• Enter the position number and press YES.
To change position numbers
1. Scroll to Phone book,YES,Advanced, YES,Position
list,YES.
2. Select the phone number you want to move, YES.
3. Select the position to which you want to move the
phone number, press YES.
4. When finished press NO to exit, YES to save to SIM.
Voice mail
If your subscription includes an answering
service, callers can leave a voice mail
message when you cannot answer a call.
Receiving a voice mail message
Depending on your network operator, you are
informed that someone has left a message by a text
message (SMS) or by a voice mail indication. Press
YES to listen to the message.
Calling your voice mail service
You can easily call your voice mail service by pressing
and holding , if you have saved your voice mail
number in the phone. You get the number from your
service provider.
To enter a voice mail number
•ScrolltoMessages/Options/Voice mail no.
Call time
During a call, the duration of the call is shown in the
display.
34 Calling
You can check the duration of your last call, outgoing
calls and the total time.
To check the call time and reset
•ScrolltoCalls/Time and cost/Call timers and select an
option.
• Select Reset timers to reset the call time meter.
Call cost
Forcostinformationyouneedtocheckwith
your network operator or service provider if
youcansubscribetosuchaservice,where
call cost (or the number of call units) is
displayed.
If you have a subscription with a cost information
service, you can check the cost of your last call and the
total cost of your calls.
To check the call cost and reset
•ScrolltoCalls/Time and cost/Call costs and select an
option.
• Select Clear total cost toresetthecallcostmeter.
Note: If you subscribe to cost information, you must
enter your PIN2 to clear the cost or time counter.
Setting the call cost
You can use the Tariff function to specify the price per
call unit. If you do not specify a price per call unit, the
number of call units is displayed.
To enter the price per call unit
1. Scroll to Calls,YES,Time and cost,YES,Call costs,
YES,Set tariff,YES.
2. EnteryourPIN2,YES.
3. Select Change,YES.
4. Enter the code for the currency you want, (for example
GBP for Pounds Sterling), YES.
5. Enter the price per call unit, YES.
To enter a decimal point, press .
Credit limit for calls
You can enter a total amount of money that
can be used for making calls. When the
amount reaches zero, no more calls can be
made. Please note that the credit limit is only an
estimated value.
Calling 35
To set a credit limit
1. Scroll to Calls,YES,Time and cost,YES,Call costs,
YES,Set credit,YES.
2. Enter your PIN2, YES.
3. Select Change,YES.
4. Enter an amount, YES.
See “Security” on page 67 for more information about
PIN2.
Diverting calls
If you cannot answer incoming voice or data
calls, you can divert them to another number,
for example your answering service.
For voice calls, you can choose between the
following divert alternatives:
•Divert always – divert all voice calls.
•When busy –divertcallsifyouarealreadyonthe
phone.
•Not reachable – divert calls if your phone is turned
off or if you are unreachable.
•No reply – divert calls that you do not answer within
a specified time limit (operator-dependent).
Note: When the Restrict calls function is on, some
Divert calls options cannot be activated.
To turn on a call divert
1. Scroll to Calls,YES,Manage calls,YES,Divert calls,
YES.
2. Select a call category and then a divert alternative, YES.
3. Select Activate,YES.
4. Enter the phone number to which you want your calls
to be diverted and press YES, or retrieve it from the
phone book.
To turn off a call divert
• Select a divert option and select Cancel.
To check status
1. Scroll to Calls, YES, Manage calls, YES, Divert calls,
YES.
2. Select a call type,YES.
3. Scroll to the divert you want to check,YES.Select Get
status,YES.
To check the status of all call diverts
• Select Check all in the Divert calls menu.
36 Calling
More than one call
You can handle more than one call
simultaneously. For example, you can put an
ongoingcallonhold,whileyoumakeor
answer a second call, and then switch between the two
calls.
Note: DuringacalltheOngoingcallmenureplaces
the Calls menu.
Call waiting service
If the call waiting service is activated, you hear a beep
in the earpiece if you receive a second call during an
ongoing call.
To activate or deactivate the call waiting service
•ScrolltoCalls/Manage calls/Call waiting.
Tomakeasecondcall
1. Press YES to put the ongoing call on hold.
2. Enter the number you want to call and press YES,or
retrieve a number from the phone book.
Note: You can only put one call on hold.
You can also reach different options by pressing .
Receiving a second call
• To answer the second call and put the ongoing call on
hold, press YES.
• To reject the second call and continue the ongoing call,
press ,select Busy.
• To answer the second call and to end the ongoing call,
press ,select Release&answer.
Handling two calls
When you have one ongoing call and one call on hold,
you can do the following:
•Press
YES to switch between the two calls.
•Press ,thenselectJoin calls to join the two calls
into a conference call.
•Press ,thenselectTransfer call, to connect the
two calls. You are disconnected from both calls.
•Press
NO to end the ongoing call, then press YES to
retrieve the held call.
•Press
NO twice to end both calls.
Note: You cannot answer a third call without ending
one of the first two calls.
Calling 37
Conference calls
Inaconferencecall,youcanhaveajoint
conversation with up to four other people.
You can also put a conference on hold and
make another call.
Creating a conference call
To create a conference call, you must first have one
ongoing call and one call on hold.
Tojointhetwocallsintoaconferencecall
•ScrolltoOngoing call,YES,Join calls,YES.
To add a new participant
1. Press YES to put the conference call on hold.
2. Call the next person you wish to include in the
conference call.
3. Press , select Join calls, YES.
Repeat steps 1 to 3 to include more participants.
To release a participant
1. Press , select Release part,YES.
2. Select the participant, YES.
To end the conference call
•PressNO.
Having a private conversation
You can have a private conversation with one of the
participants and put the other participants on hold.
• Press , then select Extract part to select the
participant that you want to talk with.
• Select Join calls to resume the conference call, again.
Two vo ice lines
Your phone may have two voice lines with
different phone numbers. This may be useful
if, for example, you want to keep business
calls and private calls on separate lines.
To select a line
•ScrolltoCalls/Next call.
All outgoing calls are made on this line until you
change it. Incoming calls can still be received on either
line.
You can change the names of the lines, and have
different settings for each line, for example, different
ring signals.
38 Calling
To change the name of a line
•ScrolltoSettings/Display/Edit line tags.
Calling card calls
You can use the calling card service to
redirect the cost of a call to a credit card or a
calling card account, instead of your normal
account. This may be useful, for example, when
making long distance calls.
You can save two separate calling card numbers. The
numbers and the codes associated with them are
protected by the code.
Beforemakingacallingcardcall,youneedtoselect
and activate a card.
Note: You cannot use the calling card service for data
calls.
To turn the calling card service on or off
1. Scroll to Calls,YES,Time and cost,YES,Calling cards,
YES,Use callingcards,YES.
2. Enter your phone lock code, YES.
3. Select On or Off,YES.
See “Security” on page 67 for more information.
Tosaveacardnumber
1. Scroll to Calls,YES,Time and cost,YES,Calling cards,
YES,My cards,YES.
2. Enter your phone lock code, YES.
3. Select Add new?,YES.
Enter the card settings (the access number and name of
the calling card server, and the verification code). You
get this information from your card provider. Select
which you want to send first – the number that you
want to call, or the verification code. Press YES to
confirm your choice.
To select a card
1. Scroll to Calls,YES,Time and cost,YES,Calling cards,
YES,My cards,YES.
2. Enter your phone lock code, YES.
3. Select a card, YES.
4. Select Activate card,YES.
See“Security”onpage67formoreinformation.
Tomakeacallingcardcall
1. Enter the phone number of the person you want to call,
or retrieve the number from the phone book.
2. Press and hold YES.
The access number of the calling card server is called.
Calling 39
3. During the connecting phase, you are asked:
•Send called number? Press YES to send the phone
number you want to call.
•Send verification number? Press YES to send the
verification code.
Alternatively, if you wait a few seconds, the number
and code are sent automatically.
Restricted dialling
You can use the restrict calls service to restrict
outgoing and incoming calls. This may be
useful, for example, when you are abroad. To
use this service, you need a password which you get
from your service provider.
Note: If you divert incoming calls, you cannot activate
some Restrict calls options.
The following calls can be restricted:
• All outgoing calls – All outgoing.
• All outgoing international calls – Outgoing intl.
• All outgoing international calls except to your home
country – Outg. intl roam.
• All incoming calls – All incoming.
• All incoming calls when you are abroad (when
roaming) – Inc when roam.
To turn a call restriction on or off
1. Scroll to Calls,YES,Manage calls,YES,Restrict calls,
YES.
2. Select an option, YES.
3. Select Activate or Cancel,YES.
4. Enter your password, YES.
• To turn off all call restrictions, select Cancel all.
• To change the password, select Change passwd.
Fixed dialling
The fixed dialling function allows calls to be
made only to certain numbers saved on the
SIM card. Fixed dialling requires a SIM card
that allows fixed numbers to be saved. The fixed
numbers are protected by your PIN2.
Note: Calls to the international emergency number
112 can still be made, even when the fixed dialling
function is on.
40 Calling
• Partial numbers can be saved. For example, saving
0123456 allows calls to be made to all numbers
starting with 0123456.
• Numbers with question marks can be saved. For
example, saving 01234567?0, allows calls to be made
to numbers from 0123456700 to 0123456790. To enter
a question mark, press and hold .
Toturnfixeddiallingonoroff
1. Scroll to Phone book,YES,Options,YES,Fixed
dialling,YES.
2. Enter your PIN2, YES.
3. Select On or Off,YES.
To save a fixed number
•ScrolltoPhone book/Special numbers/Fixed numbers.
Select Add new? and enter the number.
Closed user groups
The Closed User Group function is a way of lowering
call costs. On some networks it is cheaper to make
calls within a call group. You can save ten groups.
To add a group
1. Scroll to Calls,YES,Manage calls,YES,Closed groups,
YES,Edit list,YES.
2. Scroll to Add new?, YES.
3. Enter the name of the user group, YES.
4. Enter the index number, YES.
You get the index number from your operator.
To activate a group
1. Scroll to Calls,YES,Manage calls,YES,Closed groups,
YES,Edit list,YES.
2. Select a group, YES.
3. Select Activate, YES.
Calls can only be made within the selected group.
TocalloutsideaClosedUserGroup
• Select Open calls andthenselectOn.
Accept calls
With the accept calls service, you can choose to
receive calls only from certain numbers. Other calls
are automatically rejected by a busy tone. The phone
numbersofcallsyouhaverejectedaresavedinthe
Call List.
Calling 41
To add numbers to the accepted callers list
1. Scroll to Calls,YES,Manage calls,YES,Accept calls,
YES,Accepted list,YES.
2. Scroll to Add new?,YES.
This takes you to the phone book.
3. Select an entry, YES.
To select an accept option
•ScrolltoCalls/Manage calls/Accept calls/Accept
options.
Networks
When you turn on the phone, it automatically
selects your home network if this is within
range. If it is not within range, you may use
another network, provided your network operator has
an agreement that allows you to do so. This is called
roaming.
You can select the network you want to use, or you
can add a network to your list of preferred networks.
You can also change the order in which networks are
selected during an automatic search. For all such
options, scroll to Connect,YES,GSM Networks,YES.
Additional calling functions
Tone signals
You can use telephone banking services or
control an answering machine by sending
tone signals (also known as DTMF tones or
touch tones) during a call.
To send and clear tones
• Press the number keys 0-9, and .
• To clear the display after a call, press NO.
Notepad
You can use the phone to make a note of a phone
number during a call. When you press the number
keys, the person you are talking to hears tone signals.
To turn these tone signals off during the call, press
,select Turn off tones,YES. When you end the
call, the number remains in the display. You can then
call the number by pressing YES.
42 Setting up mobile Internet
Showing or hiding your number
If your subscription supports the Calling Line
Identification Restriction (CLIR) service, you
can hide your phone number when making a
call.
To show or hide your phone number
1. Enter the phone number you want to call.
2. Scroll to Calls,YES,Next call,YES.
3. Select Hide my number or Show my numb. and press
YES to make the call.
Setting up mobile Internet
In order to use the Internet, browse via WAP
services or send and receive multimedia and
e-mail messages, the following are required:
1. A phone subscription that supports data
transmission.
2. Settings entered in your phone.
• Settings may already be entered when you buy your
phone.
• You can receive settings in a text message from your
network operator or service provider.
• Settings are also available at
www.SonyEricsson.com/
3. You may also have to register as a WAP/e-mail user
with your service provider or network operator.
Receiving settings in a text message
Your GSM network operator or Internet service
provider may be able to send the required data account,
WAP and e-mail settings direct to your phone in a text
message (SMS).
Setting up mobile Internet 43
To request settings from Sony Ericsson
1. UseaPCtogoto
http://www.SonyEricsson.com/. Select your region and
then use the Configurators torequestthatatext
message be sent to your phone with the settings you
need.
2. When the message arrives, New settings received.
Install? appears.
•Press
YES to install the new settings
Note: If settings already exist in your phone you can
either keep or replace them. See “Advanced setting
information” on page 43 for more information.
•Press
NO to cancel installation. A new request for
settings is then required, as in step 1.
3. After installation, see “Using mobile Internet” on
page 59.
Setupwiththewizard
If your phone is not set up for WAP, you can ask your
network operator or service provider to provide you
with WAP settings information. Then you can simply
use the wizard in your phone to help guide you through
the relevant settings.
To use the wizard for setting up WAP
1. Scroll to WAP services,YES, homepage (for example
Mobile Internet),YES. The wizard now starts if no
WAP settings exist.
2. Enter and save settings when asked, press YES to
confirm.
Advanced setting information
TousetheWAPbrowser,viaaWAPserviceprovider,
you need settings for:
• a specific data account for WAP, and a WA P pro f il e .
To use e-mail messaging, via an Internet service
provider, you need settings for:
• a specific data account for e-mail, and an e-mail
account.
To send a text message (SMS) to an e-mail address via
yournetworkoperator,youneedtoset:
• an e-mail gateway phone number.
Note: Some advanced settings that are described in the
following texts are not necessarily mandatory, please
consult your network operator or service provider for
more information.
44 Setting up mobile Internet
Adata account includes connection settings for
access to a server at your service provider, for example
via WAP (Mobile Internet) or via e-mail (Internet).
AWAP profile includes user settings that allow WAP
browsing and multimedia messaging.
An e-mail account includes user settings that allow e-
mail messaging direct from your phone, such as those
provided by your Internet service provider.
Alternatively, E-mail via WAP includes user settings
that also allow e-mail messaging, such as those
provided by your Internet service provider. However
this is set up on your service provider’s WAP site.
Note: Check with your WAP service provider if their
site supports e-mail.
Data account settings
You can have several data accounts saved in
your phone, with different settings for
different purposes. The main setting for a data
account is the Account type (connection method).
Tip: If there are no data account or WAP profile
settings in your phone, you can enter data account
settings when you enter WAP profile settings. See WAP
services/Options/WAP profiles/Add profile?/Enter a
name/ Connect using:/Add account?/.
You can choose from GPRS data or GSM data account
types.
Note: Please contact your network operator for
charging details.
GPRS (General Packet Radio Service) allows
fast and efficient access where you can
always be online.
Note: You need a subscription that supports GPRS.
GPRS settings that are available:
•APN (Access point name address) – the address of
the external data network you want to connect to,
either an IP address or a text string.
•User id –youruseridtologontotheexternaldata
network.
•Password –yourpasswordtologontotheexternal
data network.
Setting up mobile Internet 45
•Passwd request (Password request) – if this setting
is on, you are asked for a password each time you
logontotheexternaldatanetwork.
•Allow calls (Preferred service) – if you want to be
able to accept incoming calls during a GPRS
session, select Automatic. If not, select GPRS only.
•IP address – the IP address that the phone uses
when communicating with the network. If you do
not enter an address, the network provides you with
a temporary IP address.
•DNS address – if the network does not provide the
IP address to the DNS server automatically, you
may enter it here.
•Advan. settings (Advanced settings) – these are
optional. Consult your network operator.
GSM settings include some settings that are
similar to GPRS settings and some that are
GSM specific as follows:
•Phone number – the phone number of your
Internet service provider.
•Data rate – select the speed you want for the
connection.
•Dial type – select analogue or ISDN connection.
Note: If you want to change access type, you have to
create a new data account and select the access type
youwanttouse.
To create a data account manually
1. Scroll to Connect,YES,Data comm.,YES,Data
accounts,YES,Add account?,YES.
2. Select an account type for access.
3. Enteranameforthedataaccount.
4. Enter the settings that you have received from your
network operator or service provider.
Confirm each setting by pressing YES.
5. Scroll to Save?,YES.
To edit a data account
1. Scroll to Connect,YES,Data comm.,YES,Data
accounts,YES.
2. Select a data account, YES.
3. Select Edit.
4. Select the setting you want to edit, YES.Editthe
setting, YES.
5. Repeat step 4 for other settings you want to edit.
Preferred service
You can set GPRS or GSM as the preferred service.
46 Setting up mobile Internet
To select preferred mode
•ScrolltoConnect/Data comm./Pref. service and select
GPRS and GSM or GSM only.
Note: To see the status of GPRS coverage and
connection, slide the volume key up or down from
standby to enter the Status menu and then scroll to
GPRS.
WAP profile settings
The WAP settings are stored in a WAP profile. In most
cases you only need to use one profile to access the
Internet.
You set up and use additional WAP profiles, for
example, when accessing secure Internet sites, such as
a banking site or a corporate intranet. You then simply
switch between profiles when you need to change the
network connection.
Tip: If there are no data account or WAP profile
settings in your phone, you can enter data account
settings when you enter WAP profile settings. See WAP
services/Options/WAP profiles/Add profile?/Enter a
name/ Connect using:/Add account?/.
To enter WAP profile settings manually
1. Make sure you have a data account set up between
your phone and the Internet server, as described in
“Data account settings” on page 44.
2. Scroll to WAP services,YES,Options,YES,WAP
profiles,YES.
3. Select Add profile? to add a new profile or select an
existing profile that you want to edit, YES.
When selecting Add profile? enter a name for the
profile, YES,Connect using:,YES,select the data
account to be used, YES and enter the IP address:,YES.
A list appears. Scroll to Save?,YES.
Whenselectinganexistingprofile,youcandothe
following:
•Rename – Change the name of the profile.
•Connect using – Select data account.
•IP address – WAP gateway server address.
•Advanced – More profile settings, see below.
•Delete –Removetheprofile.
If you select Advanced you can also do the following:
•Chg homepage – Enter the address of the WAP site
you want as the homepage.
Setting up mobile Internet 47
•Second account – Select an alternative data account,
if the first in Connect using fails.
•User id – Enter your user id for the WAP gateway.
•Password – Enter your password for the WAP
gateway.
•Security – See WAP security settings.
•Show pictures – View pictures while browsing.
WAP security settings
Your phone has support for WAP secure
browsing. When you turn on security, the
connection between your phone and the WAP
gateway is secure.
Note: Security for a connection between a WAP
gateway and a WAP service provider is the
responsibility of the WAP service provider.
To turn on a secure connection
1. Scroll to WAP services,YES,Options,YES,WAP
profiles,YES.
2. Select the profile to be used, YES.
3. Select Advanced,YES,Security,YES.
4. Select On,YES.
Security module (Locks)
The security module is located on the SIM card, if your
network operator or service provider supplies such a
service. It can contain both certificates and your
private keys. The security module is protected by a
special access PIN and your phone asks you for it
when establishing a secure connection.
To enter the access PIN (for the security module)
and the signature PIN
•ScrolltoWAP services,YES,Options,YES,Common,
YES,Security,YES,Locks.
Digital signatures
You can sign a contract with your phone by entering a
digital signature PIN as if signing with a pen on paper.
Digital signature records can be traced back to your
private key through a certificate that is used for signing
a contract.
All transactions, signed contracts, made with your
phone when browsing are stored in your phone.
To check your contracts
•ScrolltoWAP services/Options/Common/Security/
Contracts.
48 Setting up mobile Internet
Trusted certificates and Client certificates
To establish a secure connection when using certain
WAP services, for example banking or WAP shopping,
you need certificates in your phone.
The different types of certificates are as follows:
1. Server certificates areusedtoidentifyaWAP
gateway to the phone and to show that it is certified by
a trusted authority. The server certificate is checked
against trusted certificates that are stored in the phone
or in a security module. If the phone cannot verify the
identity of a server, you are given the options to
terminate or continue the connection.
2. Trusted certificates areusedtoverifytheWAP
gateway that you are trying to connect to. Your phone
may already contain trusted certificates when you buy
it. If you have a security module, it may also contain
trusted certificates. You can also download trusted
certificates from Sony Ericsson Mobile Internet or
other WAP pages.
3. Client certificates are located in a security module
together with your private keys. Client certificates can
be used to present your identity to a bank or other
services. They can also be used for digital signatures.
To check the certificates in your phone
1. Scroll to WAP services,YES,Options,YES,Common,
YES,Security, YES.
2. Select Trusted certif. or Client certif.
E-mail account settings
An e-mail account specifies, for example, the server
that is used for your e-mail messages.
To create an e-mail account
1. Scroll to Messages,YES,E-mail,YES,Options,YES.
2. Select Edit account,YES.
3. Select Add new?,YES.
4. Enter a name for the account, for example Home or
Office.
5. Select Connect using,YES.
A list appears with the data accounts that you have
savedinyourphone.
6. Select the data account you want to use with this e-
mail account, YES.
7. Enter the rest of the settings in the list, some of which
are optional. To enter the settings, scroll to the setting,
press YES and enter the information. Press YES to
confirm. Repeat this for each required setting. You use
the same e-mail settings in your phone as in your PC e-
Setting up mobile Internet 49
mail program. If you do not have an e-mail service,
contact your operator to get all the necessary settings.
•Protocol – select POP3 or IMAP4.
•Inc. server (Incoming server)– enter the name or IP
address of the service provider for incoming e-mail
messages. For example, mail.server.com or 10.1.1.1.
•Incoming port – if needed, change the number of the
port used by the protocol you are using.
•Mailbox – enter a user name for your e-mail account.
•Password – enter a password for your e-mail account.
Your service provider may alternatively request a
password on connection.
•Outgoing server – enter the name or IP address of the
SMTP server to be able to send e-mail messages.
•Outgoing port – if needed, change the number of the
port used by the SMTP protocol.
•E-mail address – enter your e-mail address.
•Download – select whether to receive headers and text
or headers only.
•From name – enter your name.
•Signature – select if you want to add your business
card to your e-mail messages.
•Copy outgoing – Select On,ifyouwante-mail
messages sent from your phone also to be sent to an e-
mail address of your choice. This way, your sent
messages are copied and can be saved for future
reference.
•Check interval – Select how often you want the phone
to connect to your e-mail server and check for
incoming e-mail messages.
Ifyouhavebothanofficeandahomee-mailaccount,
you can set one of them as default:
• Select Set account from the Messages/E-mail/Options
menu and select the account.
See “E-mail” on page 57 for information about how to
use e-mail.
50 Messaging
Messaging
Your phone supports various messaging
services - text messages, chat messages,
multimedia messages and e-mail. Please
contact your service provider for details on
which services you can use.
Text messages
Text messages are sent via SMS (Short Message
Service). They can be sent to one person or to a
number of recipients, for example, that you may have
saved in the phone book.
You can add pictures, animations, melodies, and
sound effects to a text message, and format the text,
using EMS (Enhanced Messaging Service). You can
also send picture messages.
Note: Text messages with EMS functionality can only
be sent to other compatible phones supporting the
EMS standard.
Before you start
Firstmakesurethatthenumberofyourservicecentre
is set. The number is supplied by your service provider
andisusuallysavedontheSIMcard.
To set the service centre number
1. Scroll to Messages,YES,Text,YES,Options,YES,
Service centres,YES.
The service centre number appears if it is saved on the
SIM card.
2. If there is no number in the list, select Add new?,YES.
3. Enter the number, including the international “+” sign
and country code, YES.
Sending text messages
For information about entering letters, see “Entering
letters and characters” on page 14.
To write and send a text message
1. Scroll to Messages,YES,Text,YES,Write new,YES.
2. Write your message, YES.
3. Enter a recipient or more as follows:
• Enter a recipient’s phone number, YES.
• For more recipients, scroll to Add recipient,YES,
enter the number, YES.
Messaging 51
• Press to retrieve a number from the phone book
or other options.
4. Select Send,YES.
Note: If you send a text message to more than one
recipient, you are charged per recipient.
To insert an item in a text message
1. Scroll to Messages,YES,Text,YES,Write new,YES.
2. While writing your message press .
3. Select Insert item,YES.
4. Select Picture,Sound effect,Melody,Animation or My
anim. or Picture msg,YES.
5. Select an item, YES.ThenpressYES againtoconfirm.
After inserting an item, press to select, delete or
replace options.
Note: Options to insert other items such as sounds and
melodies are available only for Sony Ericsson picture
formats, not for picture messages.
E-mail gateway
Your network operator may have a phone number to an
e-mail gateway that allows you to send a text message
to an e-mail address.
To set up an e-mail gateway
1. Scroll to Messages,YES,Te x t,YES,Options,YES,E-
mail gateways,YES.
2. Ifthereisnonumberinthelist,selectAdd new?,YES.
3. Enter the number, including the international “+” sign
and country code, YES.
You can activate, edit or delete e-mail gateways.
Text formatting
You can change the style, size and alignment of the
text, and create new paragraphs, in a text message.
To format the text in a text message
1. Scroll to Messages,YES,Text,YES,Write new,YES.
2. Write the text message. Highlight the text you want to
format by sliding the volume key down while scrolling
back with the joystick.
3. Press .
4. Select Text format,YES. Then select Text style, Text
size, Alignment or New paragr., YES.
5. Select a text format, YES.
Tip: You can also select text formats before you start
writing the text message.
52 Messaging
Receiving text messages
When you receive a text message, the phone beeps and
the message New messages Read now? appears in the
display. If you receive a text message from someone
you have saved as a contact in your phone book, the
name of that contact appears in the display along with
the text message.
To read the text message
Press YES to read the text message, or NO if you want to
read the message later. The message is saved in Inbox
in the Text menu. You may not receive all parts of a
long message at the same time.
While reading the text message you can, for example,
start a chat session with the sender or go to a WAP
address found in the text message.
When you have read the text message, press YES to
select one of the following options, for example,
Reply,Forward or Delete the text message. Press NO to
close the text message.
Saving incoming text messages
Incoming text messages are saved in the phone
memory. When the phone memory is full, incoming
text messages are saved on the SIM card. Messages
that you have saved on the SIM card remain there until
you delete them.
To save from a text message
When the melody, phone number, WAP address,
picture or animation is highlighted, press YES.Then
select to save the item and press .
• A melody is saved in My sounds.
• A phone number is saved in Phone book.
• A WAP address is saved in Bookmarks.
• All pictures are saved in My pictures.
Note: Animations can only be viewed when inserting
aniteminatextmessage.See“Toinsertanitemina
text message” on page 51.
Long messages
Asingletextmessagecancontainupto160characters.
You can send a longer message where two or more
messages are linked together.
Note: You are charged for the number of linked
messages.
Messaging 53
To turn long messages off
•ScrolltoMessages,YES,Text ,YES,Options,YES,Long
messages,YES, select Off,YES.
Templat es
If you have one or more messages that you send often,
you can save these as templates. Your service provider
may also have saved some templates in your phone.
To create a template
1. Scroll to Messages,YES,Text,YES,Templates,YES,Add
new?,YES.
2. Write the message, YES.
3. Press YES ifyouwanttosendthemessagenow.Press
NO to save the template.
Message options
You can set a default value for message options or you
can choose the settings each time you send a message.
•SMS type – The phone supports different types of
messages. Your service provider may offer the facility
of converting a text message into a format (e-mail, for
example) that suits the equipment that is going to
receive the message.
•Validity period – If your message cannot be delivered,
for example, if the recipient has turned off the phone,
your service centre can save the message to send it
later.
•Request reply – Include a reply request if you want the
recipient of your message to reply.
•Status request – Check if a message has been
delivered.
To set a message option
1. Scroll to Messages,YES,Text,YES,Options,YES.
2. Select a message option, YES.
3. Select an option or Set on send,YES.
To check the status of a sent message
•ScrolltoMessages,YES,Text,YES,Sent items,YES,
select a text message, press , View st atus,YES.
Mobile chat
The mobile chat function works in the same way as a
chat on the Internet. You can choose a nickname that
appears in the recipient’s display each time you send a
chat message.
54 Messaging
To enter a chat nickname
1. Scroll to Messages,YES,Chat,YES.
2. Select Nickname,YES.
3. Enter your nickname (maximum of 6 characters), YES.
To start a chat session
1. Scroll to Messages,YES,Chat,YES Start new,YES.
2. Enter the recipient’s phone number, or retrieve it from
the phone book by pressing .
3. Write your message, YES.
Receiving a chat session invitation
When you receive a chat session invitation, the phone
beeps and Chat message Chat now? appears.
• To read the chat message, press YES.
• Write your chat message reply and press YES.
• To suspend a chat session, press NO.
• To resume a chat session, scroll to Messages/Chat/
Resume.
• To end a chat session, press and hold NO.
• To reject a chat message, press NO. The rejected chat
message is saved in Inbox in the Messages menu.
• To end an ongoing session and start another one from a
new chat message, press YES.
Area information
Area information is a type of text message that is sent
to all subscribers in a certain network area, for
example, a local traffic report. When you receive an
area information message, the message automatically
appears. You cannot save area messages. Please
consult your service provider for more information
about area information codes.
To turn area information on or off
•ScrolltoMessages/Area info/Reception.
To enter an area information code
•ScrolltoMessages/Area info/Message list/Add new?.
Cell information
The cell information channel is used by some network
operators to send messages to their subscribers within
a certain network area.
To turn on the channel
•ScrolltoMessages/Area info/Cell information.
Messaging 55
Multimedia messages
Multimedia messages can be sent to a mobile phone
and an e-mail account via MMS (Multimedia
Messaging Service). A multimedia message can
contain text, pictures, animations, melodies and sound.
You can also send contacts, event entries and sound
recordings as attachments.
Before you start
Make sure you have the following settings:
• An address to your service centre.
• A specific WAP profile for multimedia messages.
Note: Contact your network operator to automatically
download settings or for more information.
Toentertheservicecentreaddress
•ScrolltoMessages/Multimedia/Options/Message
server.
To select or enter settings for MMS
•ScrolltoMessages/Multimedia/Options/WAP profile
and select Select or Create new. See “To enter WAP
profile settings manually” on page 46 for information
how to create a WAP profile.
More Options
You can set different options for sending and receiving
multimedia messages.
To edit an option
•ScrolltoMessages/Multimedia/Options.
Tocomposeandsendanewmultimedia
message
1. Scroll to Messages YES,Multimedia,YES,Write new,
YES.
2. Select from the submenus, press YES.
3. Enter the information you want to send, press YES.
Press YES again to continue.
4. Select , YES to add other items or more options.
5. Scroll to Send message,YES.
6. Entertherecipientsphonenumberorpress to
retrieve a phone number or e-mail address from the
phone book.
7. Press YES to send the message.
Tip: Highlight a part of the message and press if
you are not satisfied and want to delete a part while
writing.
56 Messaging
To use a pre-defined template for a multimedia
message
•ScrolltoMessages,YES,Multimedia,YES,Templates,
YES.
To edit the message before sending it
• Toeditanitem,selectitandpressYES.
• Pictures – Add or replace an existing picture with
one from My pictures.
• Text – Add or edit existing text. To change text size,
select the text and press .Select Text size,YES.
• Sound – Add or replace an existing sound with an
alternative from My sounds.
• Page – Insert a new page.
• Timing – To set how many seconds you want an
item to be displayed, select the item and press .
Select Item timing,YES. To set the timing for the
page, select the cursor icon in the message, press
YES and select Page timing,YES.
• Deletepage–Removeapage.
• Preview page – View a page before sending.
• Preview – View the message.
Receiving multimedia messages
When you receive a multimedia message, the phone
beeps and the message Read now? appears. Press YES
to read the message.
Note: Memory capacity is limited. You may have to
delete old messages before you can receive new ones.
Automatic download options
From the Messages/Multimedia/Options/Auto
download menu select one of the following:
•On – Messages are automatically downloaded to your
phone by default.
•Confirm –PressYES to download or NO to save it on
your network operator’s server.
•Off – A new message icon appears in the inbox. Select
the message and press YES to download.
Note: Check with your network operator regarding
how many messages can be saved or the space
available on the network server.
To view a multimedia message
1. Press YES. The message is automatically played.
2. Press any key to stop.
Messaging 57
When you have viewed a multimedia message, you
can use the joystick to scroll through the message
again. When an item is highlighted, press to save
it in your phone.
When you have read the message, select Proceed to
select one of the following options such as: Reply,
Forward, Save template or Delete the message. Press
NO to close the message.
Tip: You can also select a message from the list of
messages and press to delete the entire message.
E-mail
You can use your phone to send and receive e-mail
messages via the Internet, as you would from a PC.
Before you start
First make sure that you have:
• A subscription that supports data transmission. For
more information, consult your service provider.
• Set up a data account. See “Data account settings” on
page 44.
• Set up and selected an e-mail account. See “E-mail
account settings” on page 48.
Sending and receiving e-mail messages
The Send & receive option offers the fastest way to
send e-mail messages saved in the Outbox and check
for new e-mail messages.
To write and send an e-mail message
1. Scroll to Messages,YES,E-mail,YES,Write new,YES.
2. Select:
•To : – Then add name, enter an e-mail address, or
retrieve an e-mail address from the phone book. You
can also retrieve a saved address from received
messages in your inbox.
•Cc: – If you want to send a copy of the message to
someone.
•Priority: – Set the message priority.
•Subject: – Write a title, YES.
•Text – Write your message, YES.
•Attachments – Add up to five pictures to a message.
3. Select one of the following:
•Send now – The e-mail message is sent.
•Send w. attach. –YoucanattachapicturefromMy
pictures or from a digital camera connected via IR.
Select a picture and press YES to send.
•Save to outbox –Thee-mailmessageissavedinthe
Outbox.
58 Messaging
•Save to drafts –Thee-mailmessageissavedinthe
Drafts folder
4. Send & receive in the E-mail menu – All e-mail
messages in the Outbox are sent and any new e-mail
messagesarereceivedintheInbox.
To receive and read e-mail messages
1. Scroll to Messages,YES,E-mail,YES,Send & receive,
YES.
2. When the e-mail messages have been downloaded to
the phone, scroll to Messages/E-mail/Inbox to read
them.
Note: The phone can save up to six complete e-mail
messages depending on the size. You can use the
setting to download headers only, see “E-mail account
settings” on page 48. All e-mail messages are also
saved on your e-mail server.
More messages on the server are indicated by:
• Arrows in the top or bottom left corners.
• Numbers in brackets for the previous and following
messages in the list.
Note: If you select a WAP address when reading an e-
mail message, e-mail disconnects and WAP starts.
To retrieve more messages
• Scroll to the arrow and press YES.
To reply to an e-mail message
1. Open the e-mail message.
2. Place the cursor in the text and press .
3. Select Reply or Reply all,YES.
4. Select Write new or Include this msg to include the
message you received, press YES.
5. Writeamessage,YES.
To save an e-mail address or a phone number
• When the e-mail address or phone number is
highlighted, press YES. Select Save, YES.
Archiving
Youcanarchiveane-mailmessageinordertoreadit
later, or if you want to save important information. You
can archive only as much text as the display shows.
Toarchiveane-mailmessage
1. Open the e-mail message.
Using mobile Internet 59
2. Make sure that the text you want to archive is visible in
the display.
3. Place the cursor in the text and press .
4. Select Copy to arch.,YES. The text can be found in
Archive in the E-mail menu.
To delete an e-mail message (POP3 users)
1. Scroll to Messages,YES,E-mail,YES,Inbox, YES.
2. Scroll to the message and press .
3. Select Mark f.deletion,YES.
The message is deleted the next time you connect to
your e-mail server by selecting Send & receive.
To delete e-mail messages (IMAP4 users)
1. Scroll to Messages,YES,E-mail,YES,Options, YES.
2. Select Empty inbox,YES.
3. Select whether to delete with Send & receive or not.
Using mobile Internet
Your phone has a WAP (Wireless Application
Protocol) browser and e-mail messaging
which are designed to bring a modified Internet to your
mobile phone. A wide range of services are available,
for example, news, entertainment, timetables,
reservations, banking, e-commerce, positioning and e-
mail.
Before you start
First make sure that you have:
• A phone subscription that supports data transmission.
• Correct settings in your phone for mobile Internet,
WAP and/or e-mail messaging. See “Setting up mobile
Internet” on page 42.
• Registered as a WAP/E-mail user with your network
operator or service provider.
Note: See “E-mail account settings” on page 48 or
“E-mail” on page 57 for more information about e-
mail set-up and messaging.
60 Using mobile Internet
Using the WAP browser
To start browsing
1. First select the WAP profile you want to use. Scroll to
WAP services,YES,Select profile,YES.
2. Then select one of the following:
• Open your homepage (Sony Ericsson Mobile Internet
is default).
• Go to one of your bookmarks. Select Bookmarks,YES.
• Enter the address of a WAP site. Select Enter address,
YES,New address? to enter a new WAP address or
select one of the 10 latest entered addresses.
Tip: When you enter a WAP address, the normal
http:// prefix is not needed.
To exit WAP and disconnect
•PressandholdNO or
•Press ,selectExit WAP.
Options when browsing
When you have started browsing, you can reach
different browsing options by pressing .
The options menu is dynamic. Its content may vary
depending on which WAP site you are visiting.
The options menu always contains the following:
• Go to the homepage set for the current WAP profile.
•Bookmarks –Addthesiteyouarecurrentlybrowsing
to your list of bookmarks, or see the list of bookmarks
for the current profile.
•Enter address – Enter the WAP address of a site you
want to visit.
•Save picture – Save a picture from the site.
•Send via SMS –Sendatextmessagewithalinktothe
current WAP page to another phone.
•Send link –Sendalinktothecurrentsitetoanother
phone via infrared.
•Reload – Refresh the contents of the WAP page.
•Exit WAP – Disconnect and go to standby.
•Status – Display current status information, for
example, profile, access type, connection time, data
rate, security, address.
•Set as homepg – Set the current site as the homepage of
the WAP profile you are using.
Note: If you select an e-mail address when browsing a
WAP site, you can reply with a text message.
Using mobile Internet 61
Using bookmarks
You use bookmarks in your mobile phone just as you
do with a PC Internet browser. You can have up to a
maximum of 25 bookmarks.
To work with bookmarks
1. Scroll to WAP services,YES,Bookmarks,YES.
2. Select the bookmark you want to work with, .
3. Select one of the following options and press YES:
•Go to –GotothemarkedWAPaddress.
•Edit – Edit the name and/or the WAP address of the
bookmark. See “Options when browsing” on
page 60 for more information.
•Delete – Delete the bookmark.
•Send via SMS –SendalinktotheWAPaddressina
text message.
•Send –SendalinktothecurrentWAPaddressvia
infrared.
•Set as homepg – Set the WAP address as the
homepage.
Downloading
You can download, for example, pictures, themes,
games and ring signals, from WAP sites directly to
your phone.
To download from wap.sonyericsson.com
1. Scroll to WAP services, YES,Bookmarks,YES, Mobile
Internet, YES.
2. Select what you want to download and follow the
instructions that appear,YES.
Note: Make sure the file sizes do not exceed the free
memory in your phone, see “Memory status” on
page 71 for more information.
WAP push messages
You can receive push messages via WAP Services.
This means that a service provider sends WAP content
(information) to your phone without you having to do
anything. You can, for example, get updated news or
new WAP settings from your service provider.
There are two kinds of push messages:
• Text messages that inform you about WAP services, by
sending a link. To go to the WAP service, click the link
and select Load.
• Updated information from a WAP service is sent to
appear in the WAP browser.
62 Using mobile Internet
Receivingapushmessage
You can set your phone to either accept or reject push
messages. This is valid for all your WAP profiles.
To set push message acceptance
1. Scroll to WAP services,YES,Options,YES,Common,
YES,Push access,YES.
2. Select one of the following settings:
•On – You allow push messages to be automatically
loaded.
•Prompt – You allow push messages, but only when
you confirm.
•Off – You do not allow push messages.
To respond to a push message
•ScrolltoWAP services, YES, Push inbox,YES,scrollto
anypushmessage,YES and select one of the following:
•Load – The browser starts and loads the WAP site so
that you can see the push content.
•Delete – Deletes the push message.
•Postpone – Save the message, to be loaded later.
Stored information
The following information can be saved in your phone:
• Cache – improves memory efficiency.
• Passwords – improves server access efficiency.
• Cookies – improves site access efficiency.
To allow mobile Internet information in your phone
1. Scroll to WAP services,YES,Options,YES,Common,
YES.
2. Select the information to allow, YES.
Note: See “WAP security settings” on page 47 for
more information regarding security and certificates.
It is advisable to clear any sensitive information about
previously visited WAP services. This is to avoid a
security risk if your phone is misplaced, lost or stolen.
To clear cache, password list, cookies or push
inbox
1. Scroll to WAP services,YES,Advanced,YES.
2. Select the information to be cleared.
3. Press YES to confirm.
More features 63
More features
Data calls
Data calls
To make data calls you need to connect your
phone to a computer, and then start the appropriate
software program.
Receive data calls
The procedure of receiving data calls depends on your
network and subscription. If you have separate numbers
for voice and data calls, your phone will recognize the
type of call.
To receive a data call (separate numbers)
1. Connect your phone to a computer.
2. Answer the call from within the software program (if it
does not answer automatically).
You cannot answer a data call by pressing the YES key
on the phone.
One number
If you have a SIM card that does not support a separate
data number, the phone does not recognize the type of
incoming call.
If you want to receive a data call, you have to set the
phone to this option. Once you have set your phone for
a specific incoming call, it stays like this until you
change it.
To select the next incoming call type
•ScrolltoCalls/Next call/Next incoming.
Alarm clock
The alarm can be set to ring at a specific time within 24
hours, or recurrently at a specific time on several days.
You can have both these alarms set at the same time.
Even if you have set your phone to silent, the alarm
and timer signals ring. The alarm clock also rings if the
phone is turned off.
To set an alarm
1. Scroll to Organizer,YES,Alarms,YES,Alarm or
Recurrent alarm,YES.
2. Enter the time, YES and day, if recurrent, by scrolling
and pressing ,YES.
64 More features
• To change the alarm time, scroll to Organizer/Alarms/
Alarm/New time.
• Press any key to turn the alarm signal off when it rings.
If you do not want the alarm to be repeated, press YES.
• To cancel the alarm, scroll to Organizer/Alarms/Alarm
or Recurrent alarm/Cancel.
• To select an alarm signal, scroll to Settings/Sounds &
alerts/Alarm signal.
Stopwatch
Scroll to Organizer,YES,Stopwatch,YES.
• To start, stop or re-start the stopwatch, press YES.
• Tosaveuptoninelaptimes,press .
• To check saved lap times, scroll using the joystick.
• To reset the stopwatch, press or NO.
Note: The stopwatch is turned off when you answer an
incoming call or when you exit the stopwatch menu.
Timer
The phone has a built-in 24-hour timer.
To set the timer
•ScrolltoOrganizer/Timer. When the signal rings,
pressanykeytoturnitoff.
Calculator
The phone has a built-in calculator, which can add,
subtract, divide and multiply.
To use the calculator
•ScrolltoOrganizer,YES, Calculator, YES.
You can enter digits with the keypad and the following:
•Press toget+,-,x,/.
• Press to delete the figure.
• Press to enter a decimal point or %.
•Press
YES to calculate a result, equals to (=).
• Press to save to memory.
• Press to retrieve from memory.
Events
Keep track of important things that you need to do.
You can choose to add, reschedule, edit, send or delete
events.
To add a new event
1. Scroll to Organizer,YES,Events,YES,New?,YES.
2. Enter the appropriate information: date, time, subject,
icon, reminder.
Confirm each entry with YES.
More features 65
To view or edit your events
•ScrolltoOrganizer,YES,Events,YES and then select an
event, YES:
Events options
• Scroll to an event, press and then select one of
the options to reschedule, edit, send, delete or delete
all.
Exchanging events
YoucansendandreceiveaneventviaIR.
To send an event
1. Scroll to the item you want to send and press .
2. Scroll to Send,YES.
3. Align the receiving device.
Toreceiveanevent
1. From standby, press , scroll to Activate IR,YES.
2. Press YES to save.
Note: If the events list is full, you must remove events
before you can save any new ones.
Sound recorder
With the Sound recorder function, you can record
either your own memos or calls. All participants in the
call are automatically recorded. The recording is
terminated if any party hangs up.
The recordings are saved in your mobile phone and
can be accessed even if you change your SIM card.
Note: Insomecountriesorstatesitisrequiredbylaw
that you inform the other person before recording the
call.
To start a sound recording
•ScrolltoFun & Games,YES,Sound recorder,YES.
Recording starts and the display shows Recording
together with the time of the current recording
(increasing).
Note: Recordings are saved in Fun & Games/My
sounds.
To end the recording
•PressNO.
66 More features
The recording stops automatically if you receive an
incoming call or when the call ends. You hear a tone a
few seconds before the memory is full.
Listening to recordings
You can listen to your recordings at any time, even
during a call, and both persons will hear them.
To listen to your recordings
1. Scroll to Fun & Games,YES,My sounds,YES.
2. Scroll to Recording or go to next or previous by
moving the joystick up or down, respectively.
3. Press NO to stop playback.
Note: You can also send, delete, rename, check sound
information and memory status.
To send a recording
1. Scroll to Fun & Games,YES,My sounds,YES.
2. Scrolltotherecordingyouwishtosend.
3. Press and select the transfer method.
To erase or rename a sound recording
1. Scroll to Fun & Games,YES,My sounds,YES.
2. Scrolltotherecordingyouwishtoeraseorrename.
3. Press when the recording is highlighted.
4. Select Delete or Rename,YES.
Games
Your phone has games and you can download games.
To start a game
1. Scroll to Fun & Games,YES,Games,YES.
2. Select a game, YES.
3. Select New game or Resume game,YES.
4. Start the game.
Note: Press to manage downloaded games.
Game controls:
Use the joystick to move up, down, left or right and to
select an item, or use the keys as follows:
= confirm/re-start = save and quit
= up = down
=left =right
= select/deselect = pause
= reset = undo
Security 67
To download a new game
1. Make sure you have entered WAP settings, see
“Setting up mobile Internet” on page 42.
2. Scroll to Fun & Games,YES,Games,YES,New games,
YES.
3. Press YES to download a new game via WAP.
A WAP session starts.
4. Select a game from the WAP site, YES.
ThegameisdownloadedandsavedinFun & Games/
Games.
Note: See “To download from wap.sonyericsson.com”
on page 61 for more information.
Security
SIM card lock
The SIM card lock protects your subscription, but not
your phone itself, from unauthorized use. If you
change SIM cards, the phone still works with the new
SIM card.
Most SIM cards are locked at the time of purchase.
If the SIM card lock is on, you have to enter a “PIN”
(Personal Identity Number) every time you turn on
your phone.
If you enter your PIN incorrectly three times in a
row, the SIM card is blocked. This is indicated by the
message PIN blocked. To unblock it you need to enter
your “PUK” (Personal Unblocking Key). Your PIN
andPUKaresuppliedbyyouroperator.
To unblock your SIM card
1. PIN blocked appears.
2. Enter your PUK and press YES.
3. Enter a new four- to eight-digit PIN and press YES.
4. Re-enter the new PIN to confirm and press YES.
To edit your PIN
•ScrolltoSettings/Locks/SIM lock/Change PIN.
68 Security
Note: If the message “Codes do not match” appears,
you entered the new PIN incorrectly. If the message
“Wrong PIN” appears, followed by “Old PIN:”, you
entered your old PIN incorrectly.
PIN2
Certain services are protected by a second PIN.
To edit your PIN2
•ScrolltoSettings/Locks/SIM lock/Change PIN2.
To turn the SIM card lock on or off
1. Scroll to Settings,YES,Locks,YES,SIM lock,
YES,Protection,YES.
2. Select On or Off, and press YES.
3. Enter your PIN and press YES.
Phone lock
The phone lock protects the phone against
unauthorized use if it is stolen and the SIM card is
exchanged. It is not on when you buy the phone. You
can change the phone lock code (0000) to any four- to
eight-digit personal code. The phone lock can be set to
on, automatic or off.
Phone lock on
If the phone lock is on, the message Phone locked
appears each time you turn on the phone. You have to
enter your code followed by YES to use your phone.
Automatic
If the phone lock is set to automatic, you do not need to
enter your phone lock code until a different SIM card
is inserted in the phone.
To edit your phone lock code
•ScrolltoSettings/Locks/Phone lock/Change code.
Note: It is important that you remember your new
code. If you should forget it, you have to hand in your
phone to your local Sony Ericsson retailer.
To set the phone lock
1. Scroll to Settings,YES,Locks,YES,Phone lock,YES,
Protection,YES.
2. Select an alternative and press YES.
3. Enter the phone lock code and press YES.
Troubleshooting 69
Troubleshooting
This chapter lists some problems that you might
encounter while using your phone. Some problems
require that you call your service provider, but most of
the problems you can easily correct yourself.
The phone cannot be switched on
Recharge or replace the battery. See “SIM card and
battery information” on page 6.
No indication of charging
When you start charging a battery that is empty or a
battery that has not been used for a long time, it may
take up to 30 minutes before the battery icon appears in
the display.
Menu language
If the display shows a language that you do not
understand, you can always set the following from
standby:
• Press 0000 for English menus.
• Press 8888 for automatic, local menus.
Note: Themes are also set to factory default.
Grey menu options
Grey text indicates a function that is
temporarily unavailable, for example, due to
your subscription or due to a certain setting
which has not been turned on.
Since you cannot send themes, pictures and sounds
that are copyright-protected, the Send menu is
sometimes unavailable.
Error messages
Insert SIM
There is no SIM card in the phone or you may have
inserted it incorrectly. See “SIM card and battery
information” on page 6.
Insert correct SIM card
The phone is set to work only with certain SIM cards.
Insert the correct SIM card.
SOS calls only
You are within range of a network, but you are not
allowedtouseit.However,inanemergency,some
operators allow you to call the international emergency
number 112. See “Emergency calls” on page 28.
70 Troubleshooting
No network
There is no network within range or the received signal
istooweak.Youhavetomovetogetasignalthatis
strong enough.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2 incorrectly.
• Enter the correct PIN or PIN2, and press YES.See
“SIM card lock” on page 67.
Codes do not match
When you want to change a security code (for example
your PIN) you have to confirm the new code by
entering it again. The two codes that you have entered
do not match. See “SIM card lock” on page 67.
PIN blocked/PIN2 blocked
You have entered your PIN or PIN2 incorrectly three
times in a row. To unblock, see “SIM card lock” on
page 67.
PUK blocked – contact operator
You entered your personal unblocking key code (PUK)
incorrectly 10 times in a row. Contact your network
operator or service provider.
Phone locked
The phone is locked. To unlock the phone, see “Phone
lock” on page 68.
Phone lock code:
Your phone comes with the phone lock code, 0000.
You can change it to any four- to eight-digit code. See
“Phone lock” on page 68.
Number not permitted
The Fixed Dialling function is on and the number you
have dialled is not on your fixed numbers list. See
“Fixed dialling” on page 39.
Charging, alien battery
The battery you are using is not a Sony Ericsson-
approved battery and is charging slowly for safety
reasons.
Cannot connect to server
If your settings have previously worked, try again later
as the network server may be temporarily busy or
experiencing problems.
Additional information 71
Memory status
Check for example, how many positions are left in
your phone book or how much memory is used.
To check the memory for the phone book
•ScrolltoPhone book/Advanced/Memory status.
To check the memory for themes, pictures,
sounds, games (and multimedia messages)
•ScrolltoFun & Games,YES, select one of the menus,
YES,,select Memory status,YES.
To check memory for text/multimedia messages
•ScrolltoMessages,YES, select one of the menus, YES,
Memory status,YES.
Memory full
Free memory by deleting unused files or information.
To delete saved files or information
• Select a file or information, press ,YES.
• Select a submenu option or advanced option to delete.
Note: Some factory default files and information
cannot be deleted.
Additional information
Sony Ericsson Consumer web site
On www.SonyEricsson.com/ there is a support section
where help and tips are only a few clicks away. Here
you find the latest software updates, tips on how to use
your product more efficiently, function guides for
some of the products and additional help when you
require it.
Exchangeable front covers
You can replace the front cover with an accessory.
To replace the front cover
1. Press and hold the release button on the top of the
phone.
72 Additional information
2. Pull the front cover away at the sides.
3. Put the keypad in place.
4. Place the bottom of the new front cover on the phone
and push the top until it clicks into place.
Note: See “Guidelines for Safe and Efficient Use” on
page 73 for more information.
Additional information 73
Guidelines for Safe and Efficient Use
Please read this information before using
your mobile phone.
When exchanging the cover please note
that the product may contain substances
that could create an allergic reaction.
RECOMMENDATIONS
• Always treat your product with care and keep it in a clean
and dust-free place.
• Do not expose your product to liquid or moisture or
humidity.
• Do not expose your product to extreme high
or low temperatures.
• Do not expose your product to open flames
or lit tobacco products.
• Do not drop, throw or try to bend your
product.
• Do not paint your product.
• Do not use your product near medical equipment without
requesting permission.
• Do not use your product when in, or around aircraft, or
areas posted “turn off two-way radio”.
• Do not use your product in an area where a
potentially explosive atmosphere exists.
• Do not place your product or install wireless
equipment in the area above your car’s air
bag.
• Do not attempt to disassemble your
product. Only Sony Ericsson authorised
personnel should perform service.
• Do not direct the infrared ray at anyone's
eye and make sure that it does not disturb any other
infrared units.
• To avoid hearing impairment, accept the call before
holding your product (or portable handsfree device) to
your ear.
ANTENNA
Only use an antenna that has been specifically designed
by Sony Ericsson for your mobile phone. Use of
74 Additional information
unauthorised or modified antennas could damage your
mobile phone and may violate regulations, causing loss
of performance and SAR levels above the recommended
limits (see below).
EFFICIENT USE
Hold your mobile phone as you would any other phone.
Do not cover the top of the phone when in use, as this
affects call quality and may cause the phone to operate
at a higher power level than needed, thus shortening talk
and standby times.
RADIO FREQUENCY (RF) EXPOSURE AND
SAR
Your mobile phone is a low-power radio transmitter and
receiver. When it is turned on, it emits low levels of radio
frequency energy (also known as radio waves or radio
frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
(International Commission on Non-Ionizing Radiation
Protection), through periodic and thorough evaluation of
scientific studies. These guidelines establish permitted
levels of radio wave exposure for the general population.
All Sony Ericsson mobile phone models are designed to
operate within these stringent levels. The levels include a
safety margin designed to assure the safety of all
persons, regardless of age and health, and to account for
any variations in measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency energy
absorbed by the body when using a mobile phone. The
SAR value is determined at the highest certified power
level in laboratory conditions, but the actual SAR level of
the mobile phone while operating can be well below this
value.
This is because the mobile phone is designed to use
the minimum power required to reach the network.
Therefore, the closer you are to a base station, the more
likely it is that the actual SAR level will decrease.
Variations in SAR below the radio frequency exposure
guidelines do not mean that there are variations in safety.
While there may be differences in SAR levels among
various mobile phones, all Sony Ericsson mobile phone
models are designed to meet radio frequency exposure
guidelines.
A separate leaflet with SAR information for this mobile
phone model is included with the material that comes
with this mobile phone. This information can also be
found, together with more information on radio frequency
exposure and SAR, on www.SonyEricsson.com/.
DRIVING
Please check if local laws and regulations restrict the use
of mobile phones while driving or require drivers to use
handsfree solutions. We recommend that you use only
Additional information 75
Ericsson or Sony Ericsson handsfree solutions intended
for use with your product. Please note that because of
possible interference to electronic equipment, some
vehicle manufacturers forbid the use of mobile phones in
their vehicles unless a handsfree kit with an external
antenna supports the installation.
Always give full attention to driving and pull off the road
and park before making or answering a call if driving
conditions so require.
PERSONAL MEDICAL DEVICES
Mobile phones may affect the operation of cardiac
pacemakers and other implanted equipment. Please
avoid placing the mobile phone over the pacemaker, e.g.
in your breast pocket. When using the mobile phone,
place it at the ear opposite the pacemaker. If a minimum
distance of 15 cm (6 inches) is kept between the mobile
phone and the pacemaker, the risk of interference is
limited. If you have any reason to suspect that
interference is taking place, immediately turn off your
mobile phone. Contact your cardiologist for more
information.
For other medical devices, please consult the
manufacturer of the device.
CHILDREN
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR COULD
ACCIDENTALLY DAMAGE THE MOBILE PHONE OR
ACCESSORY. YOUR MOBILE PHONE OR ITS
ACCESSORY MAY CONTAIN SMALL PARTS THAT
COULD BE DETACHED AND CREATE A CHOKING
HAZARD.
DISPOSING OF THE PRODUCT
Your mobile phone should not be placed in
municipal waste. Please check local
regulations for disposal of electronic
products.
POWER SUPPLY
Connect the AC power adapter only to designated power
sources as marked on the product. Make sure the cord is
positioned so that it will not be subjected to damage or
stress. To reduce risk of electric shock, unplug the unit
from any power source before attempting to clean it. The
AC power adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug will not fit
into the outlet, have a proper outlet installed by a
qualified electrician.
76 Additional information
EMERGENCY CALLS
Mobile phones operate using radio signals, which cannot
guarantee connection under all conditions. Therefore you
should never rely solely upon any mobile phone for
essential communications (e.g. medical emergencies).
Emergency calls may not be possible on all cellular
networks or when certain network services and/or mobile
phone features are in use. Check with your local service
provider.
BATTERY USE AND CARE
We recommend that you fully charge the battery before
you use your mobile phone for the first time. The battery
can only be charged in temperatures between +5°C
(+41°F) and +45°C (+113°F).
A new battery or one that has not been used for a long
time could have reduced capacity the first few times it is
used.
The talk and standby times depend on the actual
transmission conditions when using the mobile phone. If
the mobile phone is used near a base station, less power
is required and talk and standby times are prolonged.
•Warning!May explode if disposed of in fire.
• Use only Ericsson or Sony Ericsson branded original
batteries and chargers intended for use with your mobile
phone. Other chargers may not charge sufficiently or
may produce excessive heat. Using other batteries and
chargers could be dangerous.
• Do not expose the battery to liquid.
• Do not let the metal contacts on the battery touch another
metal object. This could short-circuit and damage the
battery.
• Do not disassemble or modify the battery.
• Do not expose the battery to extreme
temperatures, never above +60°C (+140°F).
For maximum battery capacity, use the
battery in room temperature.
• Turn off your mobile phone before removing the battery.
• Keep out of children’s reach.
• Use the battery for the intended purpose
only.
• Do not allow the battery to be put into the mouth. Battery
electrolytes may be toxic if swallowed.
Additional information 77
DISPOSING OF THE BATTERY
Please check local regulations for disposal
of batteries or call your local Sony Ericsson
Customer Care Center for information.
The battery should never be placed in
municipal waste. Use a battery disposal
facility if available.
Limited Warranty
Sony Ericsson Mobile Communications AB, S-221 88
Lund, Sweden, (Sony Ericsson), provides this Limited
Warranty for your mobile phone and original accessory
delivered with your mobile phone (hereinafter referred to
as “Product”).
Should your Product need warranty service, please
return it to the dealer from whom it was purchased, or
contact your local Sony Ericsson Customer Care Center
(national rates may apply) or visit
www.SonyEricsson.com to get further information.
OUR WARRANTY
Subject to the conditions of this Limited Warranty, Sony
Ericsson warrants this Product to be free from defects in
design, material and workmanship at the time of its
original purchase by a consumer, and for a subsequent
period of one (1) year.
WHAT WE WILL DO
If, during the warranty period, this Product fails to
operate under normal use and service, due to defects in
design, materials or workmanship, Sony Ericsson
authorised distributors or service partners, in the country/
region* where you purchased the Product, will, at their
option, either repair or replace the Product in accordance
with the terms and conditions stipulated herein.
Sony Ericsson and its service partners reserve the
right to charge a handling fee if a returned Product is
found not to be under warranty according to the
conditions below.
CONDITIONS
1. The warranty is valid only if the original proof of purchase
issued to the original purchaser by the dealer, specifying
the date of purchase and serial number**, is presented
with the Product to be repaired or replaced. Sony
Ericsson reserves the right to refuse warranty service if
this information has been removed or changed after the
original purchase of the Product from the dealer.
2. If Sony Ericsson repairs or replaces the Product, the
repaired or replaced Product shall be warranted for the
remaining time of the original warranty period or for
ninety (90) days from the date of repair, whichever is
longer. Repair or replacement may involve the use of
functionally equivalent reconditioned units. Replaced
parts or components will become the property of Sony
Ericsson.
78 Additional information
3. This warranty does not cover any failure of the Product
due to normal wear and tear, or due to misuse, including
but not limited to use in other than the normal and
customary manner, in accordance with the Sony
Ericsson instructions for use and maintenance of the
Product. Nor does this warranty cover any failure of the
Product due to accident, modification or adjustment, acts
of God or damage resulting from liquid.
4. Since the cellular system on which the Product is to
operate is provided by a carrier independent from Sony
Ericsson, Sony Ericsson will not be responsible for the
operation, availability, coverage, services or range of that
system.
5. This warranty does not cover Product failures caused by
installations, modifications, or repair or opening of the
Product performed by a non-Sony Ericsson authorised
person.
6. The warranty does not cover Product failures which have
been caused by use of accessories or other peripheral
devices which are not Ericsson or Sony Ericsson
branded original accessories intended for use with the
Product.
7. Tampering with any of the seals on the Product will void
the warranty.
8. THERE ARE NO EXPRESS WARRANTIES, WHETHER
WRITTEN OR ORAL, OTHER THAN THIS PRINTED
LIMITED WARRANTY. ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY. IN NO
EVENT SHALL SONY ERICSSON OR ITS LICENSORS
BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER,
INCLUDING BUT NOT LIMITED TO LOST PROFITS OR
COMMERCIAL LOSS, TO THE FULL EXTENT THOSE
DAMAGES CAN BE DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion or
limitation of incidental or consequential damages, or
limitation of the duration of implied warranties, so the
preceding limitations or exclusions may not apply to you.
The warranty provided does not affect the consumer's
statutory rights under applicable legislation in force, nor
the consumer's rights against the dealer arising from
their sales/ purchase contract.
* EUROPEAN UNION (EU)
If you have purchased your Product in an EU country you
can have your Product serviced, under the conditions set
out above, within the warranty period in any EU country
where an identical Product is sold by an authorised Sony
Ericsson distributor. To find out if your Product is sold in
the EU country you are in, please call the local Sony
Ericsson Customer Care Center. Please observe that
certain services may not be possible elsewhere than in
the country of original purchase, for example due to the
fact that your Product may have an interior or exterior
which is different from equivalent models sold in other
Additional information 79
EU countries. It may not be possible to repair SIM-locked
Products.
** In some countries/regions additional information is
requested. If so, this is clearly shown on the valid proof of
purchase.
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
S-221 88 Lund, Sweden.
declare under our sole responsibility that our product
Sony Ericsson type 113 0601-BV
and in combination with our accessories, to which this
declaration relates is in conformity with the appropriate
standards 3GPP TS 51.010-1, EN 301489-7,
EN 300328, EN 300826 and EN 60950, following the
provisions of, Radio Equipment and Telecommunication
Terminal Equipment directive 99/5/EC with requirements
covering EMC directive 89/336/EEC, and Low Voltage
directive 73/23/EEC.
We fulfil the requirements of the R&TTE Directive (99/5/
EC).
Lund, May 2002
Place & date of issue 0682
Kentaro Odaka, Head of Product Business Unit GSM/UMTS
80 Additional information
FCC Statement
Before a phone model is available for sale to
the public, it must be tested and certified to
the FCC that it does not exceed the limit
established by the government-adopted requirement for
safe exposure. The tests are performed in positions and
locations (i.e. at the ear and worn on the body) as
required by the FCC for each model. Body worn
measurements are made while the phone is in use and
worn on the body with an Ericsson or Sony Ericsson
branded original accessory intended for use with the
phone. The design and composition of an accessory can
affect the body worn SAR (Specific Absorption Rate)
levels for the phone. Sony Ericsson has not measured,
and makes no representation about, the body worn SAR
levels when the phone is used with non-Ericsson or non-
Sony Ericsson branded original accessories intended for
use with the phone.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.
Icons 81
Icons
The table below shows icons which may appear in
standby or in the menus.
Icon Description
Main menus
Your personal phone book.
Handling of text (SMS), multimedia (MMS),
e-mail and voice messages.
Handling of outgoing/incoming calls, call time
and cost information.
Handling of ongoing calls. Alternates with the
Calls menu, i.e. only available during calls.
Handling of pictures, sounds and themes. Play
games.
Personal settings including profiles, display,
language, time and locks.
Gives you access to WAP services on the
Internet.
Events, alarm clock and other extras.
Receive items via infrared, networks, data
communications settings and accessories.
Create your own menu for the functions you
use most often.
Standby
Tells you the strength of the GSM network
signal.
GPRS is within range.
GPRS is within range and can be used.
Tells you the status of the battery.
You cannot receive any incoming calls.
Youhavemissedanincomingcall.
All incoming calls are diverted to a defined
number.
No calls or only certain calls from numbers in
a list are received.
All signals are off, except the alarm and timer.
The alarm clock has been set and is on.
Icon Description
82 Icons
The timer has been set and is on.
A profile other than Normal has been chosen.
The keypad is locked.
The card lock or phone lock is on.
A secure WAP connection is established.
You have received a text message.
You have received an e-mail message.
You have received a multimedia message.
You have received a voice message.
You have received a WAP push message.
The infrared port is on.
Infrared communication is in progress.
A GPRS session is in progress.
Line1isinuseforoutgoingcalls.
Icon Description
Line2isinuseforoutgoingcalls.
Ciphering is currently not being provided by
the network.
The network is preferred and can be used.
The network is forbidden and cannot be used.
Your home network is within range and can be
used.
An ongoing call.
A chat session is in progress.
Phone book
A group of contacts in the phone book.
You can enter the phone book by pressing .
A home number in the phone book.
A work number in the phone book.
A mobile number in the phone book.
Icon Description
Icons 83
An e-mail address in the phone book.
A picture is connected to the contact.
Messages
A text message is saved on the SIM card.
A voice message has not been checked.
A message has not been read.
A message has been read.
Only part of a read e-mail or a multimedia
message is saved in the phone.
Only part of an unread e-mail or a multimedia
message is saved in the phone.
A read message will be deleted the next time
you connect to the server.
An unread message will be deleted the next
time you connect to the server.
A damaged message.
A read picture message.
Icon Description
An unread picture message.
The message has not been sent.
The message has been sent.
A message has been delivered or read by the
recipient.
A sent message that has expired or been
rejected by the recipient.
Pre-defined message template (not editable).
User-defined message template.
A multimedia message is playing.
A multimedia message has been stopped.
A multimedia message has been paused.
Picture could not be shown.
A business card is attached to a multimedia
message.
Icon Description
84 Icons
An event is attached to a multimedia message.
A theme is attached to a multimedia message.
A multimedia message contains a melody.
A multimedia message contains a recorded
sound.
Cursor in a multimedia message.
More message options.
Chat message prompt.
Calls
A missed call in the call list.
An answered call in the call list.
A dialled number in the call list.
Icon Description
Fun & Games
A standard melody saved in My sounds.
A polyphonic melody saved in My sounds.
Fun & Games/Composer
Turns the indicator light on and off.
Turns backlight on and off.
Turns vibrating alert on and off.
Starts and stops a melody loop.
Increases and decreases the volume one step.
A volume between 0 and 15 has been selected.
Whole note, half note, 1/4 note.
1/8 note, 1/16 note, 1/32 note.
Icon Description
85
Index
A
Alarm clock 63
Animations 20
Answering mode 25
Area information 54
B
Battery 6
Business cards 31
C
Calculator 64
Call costs 33
calling card 38
credit limit 34
minute minder 23
Call time 33
Calls
accept 40
answer 7, 29
automatic re-dialling 28
call list 29
divert 35
emergency 28
fixed dialling 39
groups 31
international 28
make 7, 27
missed 29
putonhold36
receive 7, 29
reject 29
restrict 39
speed dialling 33
Cell information 54
Charging (battery) 6
Chat 53
Conference calls 37
Contacts 29
Contrast (display) 24
D
Data calls 63
Declaration of conformity 79
Display
contrast 24
greeting 25
help texts 11
icons 81
light 24
Diverting calls 35
Downloading 61
E
E-mail 57
gateway 43, 51
settings 43, 48
Emergency calls 28
Error messages 69
Events 64
F
Fixed dialling 39
Front cover replacement 71
G
Games 66
memory status 71
GPRS 44
Greeting 25
Groups 31
closed user groups 40
conference calls 37
H
Handsfree 25
Help texts 11
86
I
Icons (display) 81
Infrared port 18
International
calls 28
emergency number 28
K
Key functions 8
Key sound 23
Keypad lock 25
L
Language (display) 24
Locks
keypad 25
phone 68
SIM card 67
M
Melodies, see Ring signals 21
Memory
full 71
status 71
Menu language 24
Menu overview 13
Minute Minder 23
Missed calls 29
MMS, see Multimedia messages 55
Mobile Internet 59
bookmarks 60
downloading 61
e-mail settings 43, 48
options 60
security 47
settings 42
Multimedia messages 55
memory status 71
Multitap text input 14
My numbers 25
My shortcuts 26
N
Networks 7, 41
O
Online services 12
Own number 25
P
Pause 11
Personal ring signal 23
Phone book 29
memory status 71
Phone lock 68
Picture messages 51
Pictures 19
animations 20
background picture 20
exchange 20
memory status 71
PIN
change 67
enter 7
PIN2 68
Profiles 26
PUK 67
Q
Quick keys 9
R
Redialling 28
Reset 18
Ring signals 21
S
Screen saver 21
Security
Mobile Internet 47
phone lock 68
87
SIM card 67
Shortcuts 9, 11, 26
Silent ring signal 21
SIM card 6, 12
copy contacts 32
lock 67
unblock 67
SMS, see Text messages 50
Sony Ericsson
Mobile Internet 19
web site 71
Sound recorder 65
Sounds
memory status 71
Speed dialling 33
Stopwatch 64
T
T9 Text input 15
Text messages 50
E-mail gateway 43, 51
memory status 71
Themes 18
memory status 71
Time settings 24
Timer 64
Turning the phone on/off 7
Two voice lines 37
V
Vibrating alert 23
Voice mail 33
W
WAP, see Mobile Internet 59
Warranty 77
